Controls

1 button

to open the detachable control panel
(fl ip-release panel).

2 SRC button

Source selection between radio and CD
and (if connected or switched on) CD
changer and AUX.

3 TRAF button

Short press: Switches traffi c informa­tion standby on/off.
Long press: Switches convenient RDS
function on/off.

4 Arrow buttons
5 MENU•OK button

Short press: Calls up the menus for ba­sic settings and confi rms settings.
Ending the scan function.
Long press: Starts the Scan function.

6 On/Off button

Short press: Switches the device on. In
operation: Mutes the device.
Long press: Switches the device off.

7 Volume control
8 Display
9 Keys 1 - 5
: DIS button

Changes display contents.

button

;

Briefl y displaying the time

< ESCAPE button

Confi rm menu item and return to the
display of the MENU or AUDIO main
level.

= BND button

Short press: Selects the FM memory
banks and the MW and LW wavebands.
Long press: Starts the Travelstore func­tion.

> AUD button, sets bass, treble, middle,

balance, and fader.
Switching X-BASS on/off and adjust­ing it.
Selects an equalizer presetting.

button (Eject) for removing a CD

?

from the device.

@ CD tray

ENGLISH

35

Contents

About these instructions ..................38

Symbols used................................ 38

Use as directed .............................. 38

Declaration of conformity ................ 38

For your safety ................................39

If you are installing device yourself .... 39

Observe the following! ....................39

Cleaning instructions ......................39

Disposal of old unit ........................ 39

Scope of delivery ............................. 40

Optional equipment

(not part of the scope of delivery) .... 40

Warranty .........................................40

Service ........................................ 40

Detachable control panel ................. 41

Theft protection.............................41

Detaching the control panel .............41

Attaching the control panel .............. 41

Switch-off time (OFF TIMER) ...........42

Timeout function ........................... 42

Switching on/off ..............................42

Adjusting the volume .......................43

Setting the power-on volume ........... 43

Quickly reducing the volume (MUTE) ... 43
Telephone Audio/Navigation Audio ...44
Switching the confi rmation beep

on/off ..........................................44

Radio mode .....................................45

Adjusting the tuner......................... 45

Switching to radio mode ................. 45

Convenient RDS functions (AF, REG) ... 45
Selecting the waveband/

memory bank ................................46

Tuning into a station ....................... 46

Setting the sensitivity of

station seek tuning ......................... 47

Storing stations .............................47

Storing stations automatically

(Travelstore) .................................47

Listening to stored stations ............. 47

Scanning receivable stations (SCAN) . .47

Setting the scanning time ................48

Programme type (PTY) .................. 48

Optimising radio reception .............. 49

Confi guring the display ................... 49

Traffi c information ........................... 50

Switching traffi c information

priority on/off ............................... 50

Setting the volume for traffi c

announcements .............................50

CD mode ......................................... 51

Switching to CD mode .................... 51

Selecting tracks .............................51

Fast seek tuning (audible) ............... 51

Random track play (MIX) .................52

Scanning tracks (SCAN).................. 52

Repeating tracks (REPEAT) ............. 52

Interrupting playback (PAUSE) ......... 52

Confi guring the display ................... 52

Displaying CD text .......................... 53

Traffi c announcements in CD mode .. 53

Ejecting a CD................................. 53

MP3/WMA mode ............................. 54

Preparing an MP3/WMA CD .............54

Switching to MP3 mode .................. 55

Confi guring the display ................... 55

Selecting a directory ...................... 56

Selecting Tracks/Files .....................56

Fast search ................................... 56

Random track play (MIX) .................56

Scanning tracks (SCAN).................. 56

Repeating individual tracks or

whole directories (REPEAT) .............57

Interrupting playback (PAUSE) ......... 57

36

Contents

CD-changer mode ............................58

Switching to CD-changer mode ........ 58

Selecting CDs ................................58

Selecting tracks .............................58

Fast searching (audible) .................. 58

Confi guring the display ................... 58

Repeating individual tracks or

whole CDs (REPEAT) ...................... 58

Random track play (MIX) ................. 59

Scanning all tracks on all CDs (SCAN) .. 59

Interrupting playback (PAUSE) ......... 59

Clock – Time.................................... 60

Setting the time ............................. 60

Selecting 12/24-hour clock mode ....60

Displaying the time continuously
when the device is off and

the ignition is on ............................ 60

Sound ............................................. 61

Adjusting the bass ......................... 61

Adjusting the middle ...................... 61

Adjusting the treble ........................ 61

Setting the left/right volume

distribution (Balance) .................... 62

Adjusting the front/rear volume

distribution (Fader) ........................ 62

X-BASS ...........................................63

Adjusting the X-BASS boost ............. 63

Equalizer presettings (Presets) ........ 63

Adjusting the display settings ........... 64

Adjusting the display brightness ....... 64

Setting the display illumination

colour .......................................... 64

Activating/deactivating demo mode ... 65

External audio sources ..................... 65

Technical data .................................66

Amplifi er ...................................... 66

Tuner ...........................................66

CD ............................................... 66

Pre-amp out .................................. 66

Input sensitivity ............................. 66

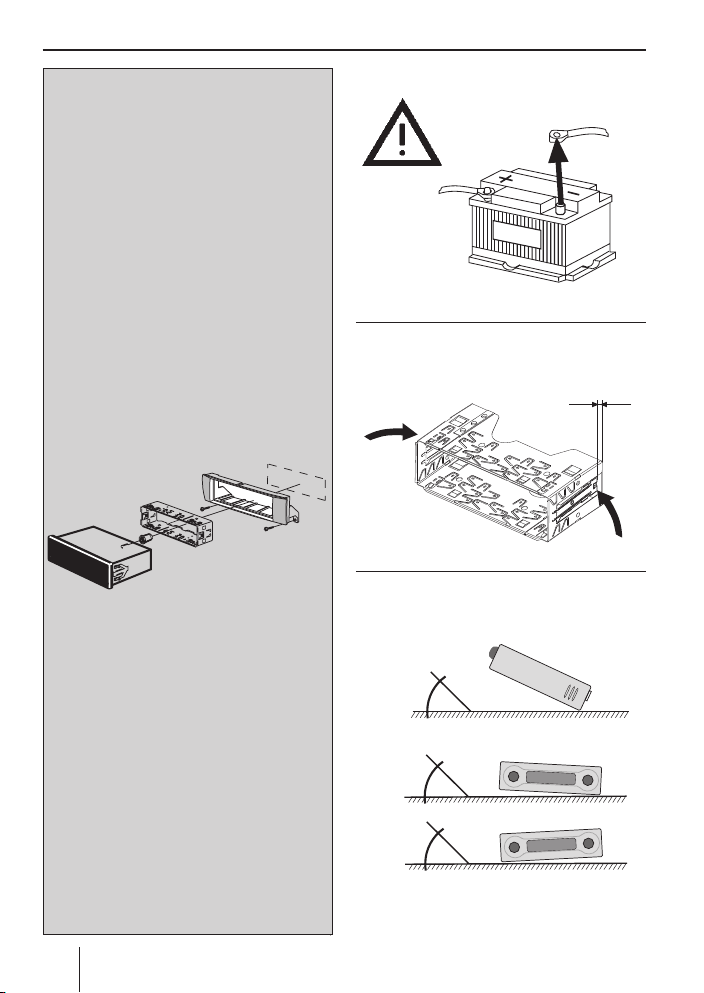

Installation instructions ................ 423

ENGLISH

37

About these instructions

About these instructions

These instructions contain important infor­mation to easily and safely install and oper­ate the device.

Read these instructions carefully and

•
completely before using the device.

•

Keep the instructions at a location so
that they are always accessible to all
users.

•

Always pass on the device to third par­ties together with these instructions.

In addition, observe the instructions of the
devices used in conjunction with this de­vice.

Symbols used

These instructions employ the following
symbols:

CAUTION!

Warns about laser beam

CAUTION!

Warns about damaging the CD
drive

Use as directed

This device is intended for installation and
operation in a vehicle with 12 V vehicle sys­tem voltage and must be installed in a DIN
slot. Observe the 'performance limits in the
technical data. Repairs and installation, if
necessary, should be performed by a spe­cialist.

Declaration of conformity

The Blaupunkt GmbH declares that the
Sevilla MP38 device complies with the
basic requirements and the other relevant
regulations of the directive 89/336/EWG.

The CE mark confi rms the compli­ance with EU directives.

Identifi es a sequencing step

쏅

Identifi es a listing

•

38

For your safety

The device was manufactured according to
the state of the art and established safety
guidelines. Even so, dangers may occur if
you do not observe the safety notes in these
instructions:

If you are installing device
yourself

You may only install the device yourself if
you are experienced in installing car sound
systems and are very familiar with the elec­trical system of the vehicle. For this pur­pose, observe the installation instructions
at the end of these instructions.

Observe the following!

CAUTION

The device contains a Class 1 laser

that can cause injuries to your eyes.
Do not open the device and do not perform

any modifi cations.

In operation

Operate the device only if traffi c situa-

•
tion permits it! Stop at a suitable loca­tion to perform more extensive opera­tions.

Remove or attach the control panel only

•
while the vehicle is standing an.

To protect your hearing, always listen

•
at a moderate volume. During mute
phases (e.g. when changing the audio
source or CD in the CD changer and
Travelstore), changing the volume is
not audible. Do not increase the volume
during this mute phase.

For your safety

•

Always listen at a moderate volume so
that you can always hear acoustic warn­ing signals (e.g. police).

After operation

•

The device is worthless to a thief with­out the control panel. Always remove
the control panel whenever you leave
the vehicle.

•

Transport the control panel so that it is
protected against impacts and the con­tacts cannot become dirty.

Cleaning instructions

Solvents, cleaning and scouring agents as
well as dashboard spray and plastics care
product may contain ingredients that will
damage the surface of the device.

Use only a dry or slightly moistened cloth
for cleaning the device.

Disposal of old unit

Do not dispose of your old unit in the

household trash!

Use the return and collection systems avail­able to dispose of the old device.

ENGLISH

39

Scope of delivery Warranty

Scope of delivery

The scope of delivery includes:
1 car sound system
1 support frame
2 disassembly tools
1 guide pin
1 operating instructions

Optional equipment

(not part of the scope of delivery)

Use only accessories approved by
Blaupunkt.

Remote control

The steering wheel and/or handheld remote
control allows you to access the basic func­tions of your car sound system safely and
conveniently.

You cannot switch the device on/off using
the remote control!

You can fi nd out from your Blaupunkt dealer
or on the Internet at www.blaupunkt.com
which remote controls can be used with
your car sound system.

Warranty

We provide a manufacturer's warranty
for products bought within the European
Union. Devices purchased outside the
European Union are subject to the warranty
terms published by our respective regional
agency.

The warranty terms can be called up under
www.blaupunkt.com or requested directly
from:

Blaupunkt GmbH
Hotline
Robert-Bosch-Str. 200

D-31139 Hildesheim, Germany

Service

In some countries, Blaupunkt offers a repair
and pick-up service.
Information about the availability of this
service in your country can be found at
www.blaupunkt.com.
If you want to take advantage of this serv­ice, you may request a pick-up service for
your device via the Internet.

Amplifi er

You can use all Blaupunkt and Velocity am­plifi ers.

CD changers

You can connect the following Blaupunkt
CD changers:
CDC A 03, CDC A 08 and IDC A 09.

40

Detachable control panel

Detachable control panel

Theft protection

The device is equipped with a detachable
control panel (fl ip-release panel) as a way
of protecting your equipment against theft.
The device is worthless to a thief without
this control panel.

Protect your device against theft by taking
the control panel with you whenever you
leave your vehicle. Do not leave the control
panel inside your vehicle - not even in a hid­ing place.

Notes:

•

Never drop the control panel.

•

Do not expose the control panel to di­rect sunlight or another heat source.

•

Avoid direct skin contact with the
control panel’s electrical contacts. If
necessary, clean the contacts with a
lint-free cloth moistened with clean­ing alcohol.

Detaching the control panel

Press the button 1.

쏅

The control panel opens to the bottom.

Hold the control panel by its right side

쏅

and then pull it straight out of the
bracket.

Notes:

The device is switched off after a time

•
preset by you. For further details,
please read the section "Switch-off
time (OFF TIMER)" in this chapter.

The device remembers the audio

•
source played last for the next switch­on.

Any CD already inserted in the device

•
remains there.

Attaching the control panel

2.

1.

Hold the control panel approximately

쏅

at a right angle to the device. (see fi g­ure, 1.)

Push the control panel into the guides

쏅

at the bottom edge of the device.
Push the control panel carefully into the

쏅

bracket until it clicks into place.
Fold the control panel up into the slot

쏅

and press it gently into place until it
clicks. (see fi gure, 2.)

If the device was still switched on when you
detached the control panel, it will automati­cally switch on with the last setting activat­ed (radio, CD, CD changer or AUX) when
the panel is replaced.

ENGLISH

41

Detachable control panel Switching on/off

Switch-off time (OFF TIMER)

After opening the control panel, the device
is switched off after an adjustable time. You
can set this time from 0 to 30 seconds.

Press the MENU•OK button 5.

쏅

Press the

쏅

until the displays shows "OFF TIMER".
Press the

쏅

menu.
Set the time with the

쏅

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeatedly

button 4 to open the

or button 4.

Timeout function

The device features a time-out function
(time window).
For example, if you press the MENU•OK
button 5 and select a menu item, the de­vice switches back after approx. 8 seconds
after the last button activation. The settings
performed are saved.

Switching on/off

There are various ways of switching the de­vice on/off:

Switching on/off with the On/Off button

For switch-on, press the On/Off but-

쏅

ton 6.

The device switches on.

To switch off the device, press and hold

쏅

down the On/Off button 6 for longer
than two seconds.

The device switches off.

Switching on/off using the vehicle
ignition

The device will switch on/off simultane­ously with the ignition if the device is cor­rectly connected to the vehicle’s ignition as
shown in the installation instructions and
you did not switch the device off by press­ing the On/Off button 6.

Switching the device off using the
detachable control panel

Detach the control panel.

쏅

The devices switches off after the time set
in the "OFF TIMER" menu.

42

Note:

To protect the vehicle battery, the de­vice will switch off automatically after
one hour if the ignition is off.

Volume

Adjusting the volume

You can adjust the volume in increments
from 0 (off) to 66 (maximum).

To increase the volume,

turn the volume control 7 clockwise.

쏅

To decrease the volume,

turn the volume control 7 counter-

쏅

clockwise.

Setting the power-on volume

You can set the power-on volume.

Press the MENU•OK button 5.

쏅

Press the

쏅

edly until "ON VOLUME" appears on the
display.

Press the

쏅

menu item.
Set the desired power-on volume with

쏅

the button

To help you adjust the setting more easily,
the device will increase or decrease the vol­ume as you make your changes.

If you set "LAST VOL" (setting 0 = LAST
VOL), the volume at which you were listen­ing before power-off is activated again.

Note:

To protect your hearing, the power-on
volume is limited to the value "38" for
the setting "LAST VOL". If the volume
was higher before switch-off, the value
is automatically set to "38" at switch­on. This prevents an unintentionally
and unexpectedly high volume when
switching on the device.

or button 4 repeat-

button 4 to open the

or 4.

When you have fi nished making your chang­es,

쏅

press the ESCAPE button <.

Quickly reducing the volume
(MUTE)

You can quickly reduce the volume to a pre­set level.

쏅

Briefl y press the On/Off button 6.

"MUTE" appears on the display.

Cancelling mute

To return to your previously set volume
level,

쏅

briefl y press the On/Off button 6
again.

Adjusting the mute level

You can adjust the mute level.

쏅

Press the MENU•OK button 5.

쏅

Press the
edly until "MUTE LVL" appears on the
display.

쏅

Press the
menu.

쏅

Set the mute level with the
ton 4.

When you have fi nished making your chang­es,

쏅

press the ESCAPE button <.

or button 4 repeat-

button 4 to open the

or but-

ENGLISH

43

Volume

Telephone Audio/Navigation
Audio

Muting during telephone mode

If your car sound system is connected with
a cell phone or navigation system, "picking"
up the phone or a voice output of the navi­gation system automatically mutes the car
sound system. The call or the voice output
is played back via the loudspeakers of the
car sound system. For this purpose, the cell
phone or the navigation system must be
connected to the car sound system as de­scribed in the installation instructions.

You can fi nd out from your Blaupunkt dealer
which navigation systems can be used with
your car sound system.

If you answer a call or a navigation an­nouncement takes place, the display shows
"PHONE".

Adjusting the volume for telephone
audio/navigation audio

During a telephone call or a voice output of
the navigation, no traffi c announcements
are switched through. The traffi c announce­ment is not recorded!

You can set the volume level at which the
telephone calls or navigation announce­ments are mixed in.

쏅

Press the MENU•OK button 5.

쏅

Press the
until "TEL VOL" appears on the display.

쏅

Press the
menu.

쏅

Set the desired volume with the
button 4.

or button 4 repeatedly

button 4 to open the

or

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

Note:

You can use the volume control 7 to
adjust the volume of telephone calls
and navigation announcements whilst
you are listening to them.

Switching the confi rmation beep
on/off

The system will output a confi rmation beep
for some functions if you keep a button
pressed down for longer than two seconds,
for instance, when assigning a radio station
to a station preset button. You can switch
the beep on or off.

쏅

Press the MENU•OK button 5.

쏅

Press the
until "BEEP ON" or "BEEP OFF" appears
on the display.

쏅

Switch the BEEP ON or OFF with the
or

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeatedly

button 4.

44

Radio mode

Radio mode

This device is equipped with an RDS radio
receiver. Many of the receivable FM stations
broadcast a signal that not only carries the
programme but also additional information
such as the station name and programme
type (PTY).

The station name appears on the display as
soon as the tuner receives it.

Adjusting the tuner

To ensure proper functioning of the tuner,
the device must be set for the region in
which it is being operated. You can select
among Europe "EUROPE", America "USA",
Thailand "THAI", and South America "S­AMERIKA". The tuner is factory-set to the
region in which it was sold. If you experi­ence problems with your radio reception,
please check this setting.

Note:

The radio functions described in these
operating instructions refer to the tun­er setting EUROPE.

쏅

Switch off the device by pressing the
On/Off button 6.

쏅

Hold the buttons 1 and 5 9 pressed at
the same time and switch on the device
again with the On/Off button 6.

"TUNER" appears on the display.

쏅

Select your tuner region with the

button 4.

To save the setting,

press the On/Off button 6 to switch

쏅

the device off and on again. The radio
starts playing with the last setting se­lected (radio, CD, CD changer or AUX).

or

Switching to radio mode

If you are in CD, CD changer or AUX mode,

press the BND button =

쏅

or

press the SRC button 2 repeatedly

쏅

until the display shows "FM1", "FM2",
"FMT", "MW" or "LW".

Convenient RDS functions
(AF, REG)

The convenient RDS functions AF
(Alternative Frequency) and REGIONAL ex­tend your radio’s range of functions.

•

AF: If the RDS function is activated, the
radio automatically tunes into the best
receivable frequency for the station
that is currently set.

•

REGIONAL: At certain times, some ra­dio stations divide their programme
into regional programmes providing
different content. You can use the REG
function to prevent the car radio from
switching to alternative frequencies
that are transmitting different pro­gramme content.

Note:

REGIONAL must be activated/deacti­vated separately in the menu.

Switching REGIONAL on/off

쏅

Press the MENU•OK button 5.

쏅

Press the

until "REG" appears on the display.
"OFF" or "ON" is displayed alongside "REG".
To switch REGIONAL on/off,

press the

쏅

or button 4 repeatedly

or button 4.

ENGLISH

45

Radio mode

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

Switching the RDS function on/off

To switch the RDS functions AF and
REGIONAL on or off,

press and hold the TRAF button 3 for

쏅

longer than two seconds.

If the RDS comfort function is active, the
RDS symbol appears on the display.

Selecting the waveband/memory
bank

This device can receive programmes broad­cast over the FM frequency range as well as
the MW and LW (AM) wavebands. There are
three memory banks available for the FM
waveband (FM1, FM2 and FMT) and one
for each of the MW and LW wavebands.

Five stations can be stored in each memory
bank.

To switch between the FM memory banks
(FM1, FM2 and FMT) and the MW and LW
wavebands,

쏅

press the BND button =.

Tuning into a station

There are various ways of tuning into a sta­tion.

Automatic station seek tuning

Press the

쏅

The radio tunes into the next receivable sta­tion.

or button 4.

Note:

If the priority for traffi c information is
active (the display shows the traffi c
jam symbol), the next traffi c informa­tion station is set.

Tuning into stations manually

You can also tune into stations manually.

Note:

You can only tune into stations manu­ally if the convenient RDS function is
deactivated.

To change the set frequency in small incre­ments,

쏅

briefl y press the

To change the set frequency quickly,

press and hold down the

쏅

4 for a longer period of time.

Browsing through broadcasting
networks (FM only)

If a radio station provides several pro­grammes, you have the option of browsing
through its so-called "broadcasting net­work".

Note:

The convenient RDS function must be
activated before you can use this fea­ture.

쏅

Press the
to the next station on the broadcasting
network.

Note:

When using this feature, you will only
be able to switch to stations that you
have received once before already. To

or button 4.

or button

or button 4 to switch

46

Radio mode

receive the stations, use the Scan or
Travelstore function.

Setting the sensitivity of station
seek tuning

You can choose whether the radio should
only tune into stations providing good re­ception or whether it can also tune into
those with a weak reception.

Press the MENU•OK button 5.

쏅

Press the

쏅

until "SENS HI" or "SENS LO" appears
on the display.

The display shows the currently set sensi­tivity level. "SENS HI6" indicates the high­est sensitivity, "SENS LO1" the lowest.

Set the desired sensitivity with the

쏅

button 4.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

Note:

The device stores the sensitivity value
set in the respective FM and AM wave­band.

or button 4 repeatedly

or

Storing stations

Storing stations manually

Select the desired memory bank (FM1,

쏅

FM2, FMT) or one of the wavebands
(MW or LW).

Tune into the desired station.

쏅

Press and hold down one of the station

쏅

buttons 1 - 5 9 for longer than two
seconds to assign the station to that
button.

Storing stations automatically
(Travelstore)

You can automatically store the fi ve sta­tions offering the strongest reception in the
region (FM only). The stations are stored in
the FMT memory bank.

Note:

Any stations that were previously

stored in this memory bank are deleted

in the process.

쏅

Press and hold down the BND button

= for longer than 2 seconds.
The storing procedure begins. "FM TSTORE"

appears on the display. After the process
has completed, the radio will play the sta­tion that is stored in memory location 1 of
the FMT memory bank.

Note:

If the priority for traffi c information is

active (the display shows the traffi c

jam symbol), only traffi c information

stations are stored.

Listening to stored stations

Select the memory bank or waveband.

쏅

Press one of the station buttons 1 - 5

쏅

9.

The stored station is played if it can be re­ceived.

Scanning receivable stations
(SCAN)

You can use the scan function to play all the
receivable stations briefl y. You can set the
scanning time in the menu to between 5
and 30 seconds.

ENGLISH

47

Radio mode

Starting SCAN

Press and hold down the MENU•OK

쏅

button 5 for longer than two sec­onds.

The radio scans the next receivable station.
"SCAN" and the current frequency or the
station name appear intermittently on the
display.

Cancelling the SCAN and continuing to
listen to a station

Press the MENU•OK button 5.

쏅

Scanning stops and the radio continues
playing the station that it tuned into last.

Setting the scanning time

Press the MENU•OK button 5.

쏅

Press the

쏅

edly until "SCAN TIME" appears on the
display.

Press the

쏅

menu.
Set the desired scan time with the

쏅

button 4.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

Note:

The defi ned scanning time is also ap­plied by the system to scanning carried
out in CD and CD-changer as well as
MP3 mode.

or button 4 repeat-

button 4 to open the

or

Programme type (PTY)

Besides transmitting the station name,
some FM stations also provide informa­tion on the type of programme that they are
broadcasting. Your car radio can receive
and display this information.

For example, the programme types can be:
CULTURE TRAVEL JAZZ
SPORT SERVICE POP
ROCK KNOWLEDGE KIDS
You can use the PTY function to select

stations of a particular programme type.

PTY-EON

If you specify the programme type and start
seek tuning, the radio will switch from the
current station to a station of the selected
programme type.

Notes:

If the tuner does not fi nd a station

•
that corresponds to the selected pro­gramme type, you will hear a beep
and "NO PTY" appears briefl y in the
display. The radio will then retune to
the station that it received last.

If the tuned radio station or another

•
station on the broadcasting network
broadcasts your selected programme
type at a later point in time, the radio
will automatically switch from the cur­rently tuned station or from CD mode
or CD-changer mode to the station
whose programme type matches the
one you selected.

If you do not want this PTY EON

•
switching, disable PTY. First, switch
to radio mode using the SRC 2 or

48

Radio mode

BND button =. In CD or CD changer

mode, the menu item "PTY ON/ OFF"
is not available.

Switching PTY on/off

Press the MENU•OK button 5.

쏅

Press the

쏅

until "PTY" appears on the display with
the current setting.

쏅

Press the
PTY ON or OFF.

When you have fi nished making your chang­es,

쏅

press the ESCAPE button <.

Selecting the PTY language

You can select the language for the display
of the programme types. Options include
DEUTSCH, ENGLISH and FRANÇAIS.

쏅

Press the MENU•OK button 5.

쏅

Press the
edly until "PTY LANG" appears on the
display.

Set the desired language using the

쏅

button 4.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeatedly

or button 4 to switch

or button 4 repeat-

or

Press the

쏅

seek tuning.

The radio will then tune into the next station
that it fi nds that corresponds to your select­ed programme type.

or button 4 to start

Optimising radio reception

Treble reduction feature during
interference (High Cut)

The High Cut function results in an improved
reception in case of weak radio reception
(FM only). If reception interferences are
present, the interference level is automati­cally reduced.

Switching High Cut on/off

Press the MENU•OK button 5.

쏅

Press the

쏅

ly until "HICUT" appears on the display
with the current setting.

Press the

쏅

High Cut on or off.

"HICUT 0" means no automatic reduction of
the interference level, "HICUT 1" means au­tomatic reduction of the interference level.

When you have fi nished making your
changes,

쏅

press the ESCAPE button <.

or button 4 repeated-

or button 4 to switch

ENGLISH

Selecting a programme type and
starting seek tuning

The current program type appears only
briefl y on the display.

쏅

Press the
During the display time, press the

쏅

button 4 to change to a different

program type.

or button 4.

or

Confi guring the display

In radio mode, you can choose between
various display options.

Station name or frequency

•
Memory location and time

•

To switch between the display options,

press the DIS button :.

쏅

49

Traffi c information

Traffi c information

Your device is equipped with an RDS-EON
receiver. EON (Enhanced Other Network)
ensures that whenever a traffi c announce­ment (TA) is broadcast, the system switch­es automatically from a station that does
not provide traffi c reports to the appropri­ate traffi c information station within the
broadcasting network that does.

Once the traffi c report has been played, the
system will switch back to the programme
that you were listening to before.

Switching traffi c information
priority on/off

Press the TRAF button 3.

쏅

The priority for traffi c announcements is ac­tivated if the display shows the traffi c jam
symbol.

Notes:

You will hear a warning beep:

If you leave the reception area of a

•
traffi c information station that you
are currently listening to.

If you leave the reception area of a

•
traffi c information station that the
system is tuned into while you are in
the CD or CD changer mode, and the
subsequent automatic seek tuning
cannot fi nd a new traffi c information
station.

If you retune the radio from a traffi c in-

•
formation station to a station that does
not broadcast traffi c information.

If you hear the warning beep, you can ei­ther switch off traffi c information priority
or tune into a station that broadcasts traffi c
information.

Setting the volume for
traffi c announcements

Press the MENU•OK button 5.

쏅

Press the

쏅

edly until "TA VOLUME" appears on the
display.

Press the

쏅

menu.
Set the volume with the

쏅

4.

To help you adjust the setting more easily,
the device will increase or decrease the vol­ume as you make your changes.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

Notes:

Using the volume control 7, you can

•
also adjust the volume during a traf­fi c announcement for the duration of
that announcement.

During traffi c reports, you can adjust

•
the sound settings and volume distri­bution settings for traffi c announce­ments. For further information, please
read the "Sound" chapter.

or button 4 repeat-

button 4 to open the

or button

50

CD mode

CD mode

You can use this device to play standard
audio CDs, CD-Rs and CD-RWs with a dia­meter of 12 or 8 cm.

Caution!

Labelled or shaped CDs can dam­age the CD drive.

Do not insert any shape CDs.

•
Do not attach labels to CDs since the la-

•
bel may detach during operation.

Note:

Label CDs only by using a marker since
it does not contain any caustic materi­als. Permanent markers can damage
CDs.

To ensure proper functioning, use only CDs
with the Compact-Disc logo. Copy-pro­tected CDs can cause playback problems.
Blaupunkt cannot guarantee the proper
functioning of copy-protected CDs!

Besides being able to play audio CDs on this
device, you can also play CDs containing
MP3/WMA music fi les. For further informa­tion, please read the chapter entitled "MP3/
WMA mode".

Switching to CD mode

If there is no CD inserted in the drive,

press the

쏅

The control panel opens.

Gently insert the CD with its printed

쏅

side uppermost into the drive until you
feel some resistance.

button 1.

The drive draws in the CD automatically.
If the CD is not automatically drawn in,

쏅

briefl y press the

You must not hinder or assist the drive as it
draws in the CD.

Gently close the control panel whilst

쏅

exerting a little pressure until you feel
it click into place.

The CD playback starts and "CD" is shown
on the display.

Note:

If the vehicle ignition was switched
off prior to inserting the CD, you must
switch the device on fi rst with the On/
Off button 6 to start the playback.

If a CD is already inserted in the drive,

쏅

press the SRC button 2 repeatedly
until "CD" appears on the display.

Playback begins from the point at which it
was last interrupted.

button ?.

Selecting tracks

Press one of the arrow keys or 4

쏅

or 4 to select the next or pre-

or
vious track.

If you press the
rent track will be played again from the be­ginning.

button 4 once, the cur-

Fast seek tuning (audible)

To fast search backwards or forwards,

쏅

press and hold down the
4 until fast searching backwards/for­wards begins.

or button

ENGLISH

51

CD mode

Random track play (MIX)

Press the 5 MIX button 9.

쏅

"MIX CD" appears briefl y on the display and
the MIX symbol is displayed. The next ran­domly selected track will then be played.

Cancelling MIX

Press the 5 MIX button 9 again.

쏅

"MIX OFF" appears briefl y on the display
and the MIX symbol disappears.

Scanning tracks (SCAN)

You can scan (briefl y play) all the tracks on
the CD.

Press the MENU•OK button 5 for

쏅

longer than two seconds.

The next track will then be scanned. "SCAN"
appears on the display and the current track
number is fl ashing.

Note:

You can set the scan time. For further
information, please read the section
entitled "Setting the scanning time" in
the "Radio mode" chapter.

Cancelling Scan and continuing listening
to a track

To end the scanning process,

press the MENU•OK button 5.

쏅

The currently scanned track will then con­tinue to be played normally.

Repeating tracks (REPEAT)

If you want to repeat a track,

press the 4 RPT button 9.

쏅

"RPT TRCK" appears briefl y on the display
and the RPT symbol is displayed. The track
is repeated continuously until you deacti­vate Repeat.

Cancelling Repeat

If you want to cancel the repeat function,

press the 4 RPT button 9 again.

쏅

"RPT OFF" appears briefl y on the display
and the RPT symbol disappears. Normal
playback is then resumed.

Interrupting playback (PAUSE)

Press the button 3 9.

쏅

"PAUSE" appears on the display.

Cancelling pause

During the pause, press the button 3

쏅

9.

Playback is continued.

Confi guring the display

You can choose from various display op­tions in CD mode:

Track number and playing time

•
Track number and time

•

To switch between the display options,

press the DIS button :.

쏅

52

CD mode

Displaying CD text

Some CDs include CD text. The CD text
might contain the names of the artist and
the album.

The CD text is shown as scrolling text on the
display with every track change.

Switching CD text on/off

Press the MENU•OK button 5.

쏅

Press the

쏅

until "CD TEXT" appears on the display
with the current setting.

Press the

쏅

menu.
Select between the options "TEXT ON"

쏅

(display CD text) or "TEXT OFF" (do not
display CD text) with the
ton 4.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeatedly

button 4 to open the

or but-

Traffi c announcements in CD
mode

If you wish to receive traffi c announcements
in CD mode,

Press the TRAF button 3.

쏅

The priority for traffi c announcements is ac­tivated if the display shows the traffi c jam
symbol. For further details, please read the
chapter entitled "Traffi c information".

Ejecting a CD

Press the button 1.

쏅

The control panel opens to the bottom.

Press the button

쏅

compartment.

The CD is ejected.

Remove the CD and close the control

쏅

panel.

Notes:

If a CD is ejected, the drive will auto-

•
matically draw it back in again after
10 seconds.

You can also eject CDs whilst the de-

•
vice is switched off or whilst another
audio source is activated.

? next to the CD

ENGLISH

53

MP3/WMA mode

MP3/WMA mode

You can also use this car sound system to
play CD-Rs and CD-RWs that contain MP3
music fi les. You can also play WMA fi les.

This chapters deals only with playing
MP3 fi les since the operation for MP3
and WMA fi les is identical.

Notes:

WMA fi les with Digital Rights

•
Management (DRM) from online mu­sic shops cannot be played with this
device.

WMA fi les can only be played back safe-

•
ly if they were created with Windows
Media Player version 8 or later.

Preparing an MP3/WMA CD

The various combinations of CD burners,
CD burning software and CD blanks may
lead to problems arising with the device’s
ability to play certain CDs. If problems oc­cur with your own burned CDs, you should
try another brand of CD blank or choose an­other colour of CD blank.

The format of the CD must be ISO 9660
Level 1/Level 2 or Joliet. Other formats
cannot be played reliably.

You can create a maximum of 252 directories
on a CD. You can use this device to access
all of these directories individually.

Regardless of the number of directories on
the CD, the device can handle up to 511
MP3 fi les on a single CD, with a maximum
of 255 fi les in one directory.

D01

T001
T002
T003
T004
T005
T006
T007
T008
T009
T010
T011

A

B

D02

D03

T001
T002
T003
T004
T005

T001
T002
T003
T004
T005
T006

A Directories
B Tracks · Files

You can name each directory using a PC.
The device is capable of displaying the di­rectory name. Name the directories and
tracks/fi les using your CD burner software.
The software’s instruction manual will pro­vide details on how to do this.

Notes:

When naming fi les (directories and

•
tracks) you should avoid using ac­cents and special characters.

If you use fi le names with more than

•
16 characters (including ".MP3" or
".WMA"), the maximum number of
tracks and directories is reduced.

If you like your fi les to be in the specifi c or­der, save the fi les on the data carrier in the
desired sequence in which you want to play

D04

54

MP3/WMA mode

them later. The devices plays back the fi les
in the order in which they were physically
stored on the data carrier.

To play back fi les in this device, the MP3 fi les
must have the fi le extension ".MP3" and the
WMA fi les the fi le extension ".WMA".

Notes:

To ensure uninterrupted playback:

•

Do not try changing the fi le extension
to ".MP3" of any fi les other than MP3
fi les and then attempt to play them!
The device will ignore these invalid
fi les during playback.

•

Do not use "mixed" CDs containing
both non-MP3 data and MP3 tracks
(the device only reads MP3 fi les dur­ing MP3 playback).

•

Do not use mix-mode CDs containing
both CD-audio tracks and MP3 tracks.
If you try playing a mix-mode CD, the
device will only play the CD-audio
tracks.

MP3 ID3 tags

MP3 tracks can contain additional infor­mation such as the artist, album and track
name (ID3 tags). This device can display
ID3 tags of version 1 and 2.

Switching to MP3 mode

MP3 mode is activated in the same way as
normal CD mode. For further information,
please read the section entitled "Switching
to CD mode" in the "CD mode" chapter.

Confi guring the display

The following settings require that an MP3
CD is in the device.

Confi guring the default display

You can display various types of informa­tion on the current track:

Directory number and track number

•
"DIR-TRCK"

•

Directory number and time "DIR-CLK"

•

Directory number and playing time
"DIR-TIME"

•

Track number and playing time "TRCK­TIME"

•

Track number and time "TRCK-CLK"

Note:

After the MP3 scrolling text was
scrolled once after a track change, the
information is permanently shown on
the display.

To switch between the different display op­tions,

쏅

press the DIS button : once or sev­eral times until the desired display ap­pears.

Confi guring the MP3 scrolling texts

One of the following scrolling texts is
shown once on the display with every track
change. Afterwards, the confi gured stand­ard display is shown.

The available scrolling texts are:

•

Directory name ("DIR NAME")

•

Name of the track ("SONG NAME")

•

Name of the album ("
Name of the artist ("ARTIST")

•

ALBM NAME

")

ENGLISH

55

MP3/WMA mode

File name ("FILE NAME")

•

Note:

Artist, track and album name are part
of the MP3-ID tag of version 1 and can
only be displayed if they have been
saved with the MP3 fi les (for further in­formation, please read the instructions
that came with your PC’s MP3 software
or burner software).

To switch between the different display op­tions,

쏅

press the MENU•OK button 5.

쏅

Press the
edly until "MP3 DISP" appears on the
display.

Press the

쏅

menu.
Select the desired MP3 scrolling text

쏅

with the

When you have fi nished making your changes,

press the ESCAPE button <.

쏅

or button 4 repeat-

button 4 to open the

or button 4.

Selecting a directory

To move up or down to another directory,

press the

쏅

several times.

or button 4 once or

Selecting Tracks/Files

to move up or down to another track/fi le
in the current directory,

press the

쏅

several times.

If you press the
rent track will be played again from the be­ginning.

or button 4 once or

button 4 once, the cur-

Fast search

To fast search backwards or forwards,

press and hold down the

쏅

4 until fast searching backwards / for­wards begins.

or button

Random track play (MIX)

To play the tracks in the current directory in
random order,

briefl y press the 5 MIX button 9.

쏅

"MIX DIR" appears on the display and the
MIX symbol lights up.

To play all the tracks contained on the in­serted MP3 CD in random order,

쏅

press and hold down the 5 MIX button
9 for longer than two seconds.

"MIX CD" appears on the display and the
MIX symbol lights up.

Cancelling MIX

To cancel MIX,

쏅

briefl y press the 5 MIX button 9.

"MIX OFF" appears on the display and the
MIX symbol disappears.

Scanning tracks (SCAN)

You can scan (briefl y play) all the tracks on
the CD.

Press and hold down the MENU•OK

쏅

button 5 for longer than two seconds.
The next track will then be scanned.

"TRK SCAN" briefl y appears on the display.
The currently active track number fl ashes.
The titles of the CD are scanned in ascend­ing order.

56

MP3/WMA mode

Note:

You can set the scanning time. For fur­ther information on setting the scan­ning time, please read the section en­titled "Setting the scanning time" in the
"Radio mode" chapter.

Cancelling SCAN and continuing
listening to a track

Briefl y press the MENU•OK button

쏅

5.

The currently scanned track will then con­tinue to be played normally.

Repeating individual tracks or
whole directories (REPEAT)

To play the current track repeatedly,

briefl y press the 4 RPT button 9.

쏅

"RPT TRCK" appears briefl y on the display
and RPT lights up.

To repeat the whole directory,

press and hold down the 4 RPT button

쏅

9 for longer than two seconds.

"RPT DIR" appears briefl y on the display.

Cancelling REPEAT

To stop the current track or current direc­tory from being repeated,

briefl y press the 4 RPT button 9.

쏅

"RPT OFF" appears briefl y on the display
and RPT disappears.

Interrupting playback (PAUSE)

Press the button 3 9.

쏅

"PAUSE" appears on the display.

Cancelling pause

During the pause, press the button

쏅

3

9.

Playback is continued.

ENGLISH

57

CD-changer mode

CD-changer mode

Note:

Information on handling CDs, inserting
CDs and operating the CD changer can
be found in the operating instructions
supplied with your CD changer.

Switching to CD-changer mode

Press the SRC button 2 repeatedly

쏅

until "CHANGER" appears on the dis­play.

A border appears around the CD changer
symbol.

The device starts playing the fi rst CD that
the CD changer detects.

Selecting CDs

To move up or down to another CD,

press the

쏅

several times.

Note:

The device will ignore empty CD slots
in the changer and slots containing
invalid CDs.

Selecting tracks

To move up or down to another track on
the current CD,

쏅

press the
several times.

Fast searching (audible)

To fast search backwards or forwards,

press and hold down one of the

쏅

buttons 4 until fast searching back­wards / forwards begins.

or button 4 once or

or button 4 once or

Confi guring the display

Five options are available for the display in
CD changer mode:

CD number and track number ("CD-

•
TRCK")

CD number and time ("CD-CLK")

•
CD number and playing time ("CD-

•
TIME")

Track number and playing time ("TRCK-

•
TIME")

Track number and time ("TRCK-CLK")

•

To switch between the display options,

press the DIS button : once or sev-

쏅

eral times until the desired display ap­pears.

Repeating individual tracks or
whole CDs (REPEAT)

To repeat the current track,

briefl y press the 4 RPT button 9.

쏅

"RPT TRCK" appears briefl y and RPT lights
up on the display.

To repeat the current CD,

press and hold down the 4 RPT button

쏅

9 for longer than two seconds.

"RPT DISC" appears briefl y and RPT lights
up on the display.

Cancelling REPEAT

To stop the current track or current CD from
being repeated,

briefl y press the 4 RPT button 9.

쏅

"RPT OFF" appears and RPT disappears on
the display.

58

CD-changer mode

Random track play (MIX)

To play the tracks on the current CD in
random order,

briefl y press the 5 MIX button 9.

쏅

"MIX CD" appears briefl y and MIX lights up
on the display.

To play the tracks on all inserted CDs in
random order,

press and hold down the 5 MIX button

쏅

9 for longer than two seconds.

"MIX ALL" appears briefl y and MIX lights up
on the display.

Cancelling MIX

Briefl y press the 5 MIX button 9.

쏅

"MIX OFF" appears and MIX on the display
disappears.

Scanning all tracks on all CDs
(SCAN)

To scan (briefl y play) all the tracks on all the
inserted CDs in ascending order,

press and hold down the MENU•OK

쏅

button 5 for longer than two sec­onds.

"TRK SCAN" appears on the display and the
number of the current track fl ashes.

section entitled "Setting the scanning
time" in the "Radio mode" chapter.

Interrupting playback (PAUSE)

Press the button 3 9.

쏅

"PAUSE" appears on the display.

Cancelling pause

During the pause, press the button

쏅

3 9.

Playback is continued.

ENGLISH

Stopping SCAN

To stop scanning,

briefl y press the MENU•OK button

쏅

5.

The currently scanned track will then con­tinue to be played normally.

Note:

You can set the scanning time. For
further information, please read the

59

Clock – Time

Clock – Time

Setting the time

To set the time,

press the MENU•OK button 5.

쏅

Press the

쏅

edly until "CLOCK SET" appears on the
display.

쏅

Press the
menu.

The time appears on the display. The min­utes are fl ashing and can be adjusted.

쏅

Set the time with the

To switch between hours and minutes,

press the

쏅

When you have fi nished making your chang­es,

쏅

press the ESCAPE button <.

Selecting 12/24-hour clock mode

Press the MENU•OK button 5.

쏅

Press the

쏅

until "24H MODE" or "12H MODE" ap­pears on the display.

Press the

쏅

between the modes.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeat-

button 4 to open the

or button 4.

or button 4.

or button 4 repeatedly

or button 4 to switch

Displaying the time continuously
when the device is off and the
ignition is on

To display the time when the device is off
and the vehicle ignition is on,

press the MENU•OK button 5.

쏅

Press the

쏅

until "CLOCK OFF" or "CLOCK ON" ap­pears on the display.

Press the

쏅

the display between CLOCK ON and
CLOCK OFF.

When you have fi nished making your chang­es,

press the ESCAPE button <.

쏅

or button 4 repeatedly

or button 4 to switch

60

Sound

Sound

You can adjust the sound settings (bass,
middle and treble) separately for each
source (radio, CD, CD changer, AUX, traf­fi c announcement, telephone/navigation).
The volume distribution settings (balance
and fader) and X-BASS apply to all the au­dio sources except for traffi c announce­ments and telephone/navigation. You can
adjust the volume distribution settings
separately for traffi c announcements and
telephone/navigation.

Note:

The settings of the sound for traffi c an­nouncements and telephone/naviga­tion can only be made during a traffi c
announcement or during a telephone
call/voice output.

Adjusting the bass

You can select 1 of 4 middle frequencies
(60 Hz, 80 Hz, 100 Hz, 200 Hz). In ad­dition, you can adjust the level between

-7 and +7 for the selected bass frequency.

Adjusting bass frequency and level

Press the AUD button >.

쏅

"BASS" appears on the display.

쏅

Press the
the BASS submenu.

Press the

쏅

until the desired bass frequency ap­pears on the display.

쏅

Press the
the level between -7 and +7.

Press the AUD > button twice to exit

쏅

the menu.

button 4 once to reach

or button 4 repeatedly

or button 4 to adjust

Note:

If an Equaliser preset (POP, ROCK,
CLASSIC) is selected, the manual in­crease of the bass level does not result
in an audible change starting at a cer­tain setting. For further information,
please read the note in the section
entitled "Equaliser presets".

Adjusting the middle

You can select 1 of 4 centre frequencies
(500 Hz, 1 kHz, 2 kHz, 3 kHz). In addition,
you can adjust the level between -7 and +7
for the selected centre frequency.

Adjusting centre frequency and level

Press the AUD button >.

쏅

"BASS" appears on the display.

쏅

Press the
until "MIDDLE" appears on the display.

쏅

Press the
the MIDDLE submenu.

쏅

Press the
until the desired centre frequency ap­pears on the display.

쏅

Press the
the level between -7 and +7.

쏅

Press the AUD > button twice to exit
the menu.

or button 4 repeatedly

button 4 once to reach

or button 4 repeatedly

or button 4 to adjust

Adjusting the treble

You can select 1 of 4 treble frequencies
(10 kHz, 12 kHz, 15 kHz, 17 kHz). In ad­dition, you can adjust the level between

-7 and +7 for the selected treble frequency.

ENGLISH

61

Sound

Adjusting treble frequency and level

Press the AUD button >.

쏅

"BASS" appears on the display.

Press the

쏅

until "TREBLE" appears on the display.
Press the

쏅

the TREBLE submenu.
Press the

쏅

until the desired treble frequency ap­pears on the display.

Press the

쏅

the level between -7 and +7.
Press the AUD > button twice to exit

쏅

the menu.

Note:

If an Equaliser preset (POP, ROCK,
CLASSIC) is selected, the manual in­crease of the treble level does not re­sult in an audible change starting at a
certain setting. For further informa­tion, please read the note in the section
entitled "Equaliser presets".

or button 4 repeatedly

button 4 once to reach

or button 4 repeatedly

or button 4 to adjust

Setting the left/right volume
distribution (Balance)

To adjust the left/right volume distribution
(balance),

press the AUD button >.

쏅

"BASS" appears on the display.

쏅

Press the
until "BAL" appears on the display with
the current setting.

Press the

쏅

the balance (right/left).
Press the AUD > button to exit the

쏅

menu.

or button 4 repeatedly

or button 4 to adjust

Adjusting the front/rear volume
distribution (Fader)

To adjust the front/rear volume distribution
(fader),

press the AUD button >.

쏅

"BASS" appears on the display.

Press the

쏅

ly until "FADER" appears on the display
with the current setting.

쏅

Press the
the volume distribution front/rear.

Press the AUD > button to exit the

쏅

menu.

or button 4 repeated-

or button 4 to adjust

62

X-Bass Equalizer presettings

X-BASS

X-Bass allows you to increase the bass at
low volume.

The selected X-Bass setting is effective for
all audio sources (radio, CD, CD changer or
AUX).

The X-BASS increase can be set in incre­ments of 1 to 3.

"XBASS OFF" means that the X-BASS func­tion is switched off.

Adjusting the X-BASS boost

Press the AUD button >.

쏅

"BASS" appears on the display.

Press the

쏅

until "X-BASS" appears on the display.
Press the

쏅

the X-BASS submenu.
Press the

쏅

until the desired setting appears on the
display.

When you have fi nished making your
changes,

쏅

press the AUD button > twice.

or button 4 repeatedly

button 4 once to reach

or button 4 repeatedly

Equalizer presettings
(Presets)

This device features an equaliser in which
the settings for the music genres "ROCK",
"POP" and "CLASSIC" are already pro­grammed.

To select an equaliser setting,

press the AUD button >.

쏅

"BASS" appears on the display.

Press the

쏅

until "POP", "ROCK", "CLASSIC" or "EQ
OFF" appears on the display.

Press the

쏅

one of the settings or select "EQ OFF"
to switch off the equalizer.

When you have fi nished making your
changes,

press the AUD button >.

쏅

Note:

Without Equaliser presets, you can ad­just the bass and treble up to +7.
If you selected an Equaliser preset
(POP, ROCK, CLASSIC), the adjust­ment of bass and treble is only limited.
For example, the preset POP only al­lows for an audible treble adjustment
up to +3.

or button 4 repeatedly

or button 4 to select

ENGLISH

63

Display

Adjusting the display
settings

Adjusting the display brightness

If your car sound system is installed as de­scribed in the installation instructions and
your vehicle features the corresponding
connection, the display brightness for day
and night is switched by switching on the
vehicle lighting. The display brightness can
be adjusted separately for day and night in
increments from 1 - 9.

Press the MENU•OK button 5.

쏅

Press the

쏅

until "DIM DAY" or "DIM NIGHT" appears
on the display.

Press the

쏅

menu.
Press the

쏅

between the brightness levels.

When you have fi nished making your
changes,

press the ESCAPE button <.

쏅

Setting the display illumination
colour

For the display illumination, you can mix a
colour from the RGB spectrum (red green
blue) or select a colour during a colour
seek.

Mixing a colour for the display
illumination

To customise the display illumination to suit
your tastes you can mix a colour yourself
using the three primary colours red, green
and blue.

Press the MENU•OK button 5.

쏅

64

or button 4 repeatedly

button 4 to open the

or button 4 to switch

쏅

Press the
edly until "DISP COL" appears on the
display.

Press the

쏅

menu.

The menu for mixing your own colour is dis­played. "R", "G", and "B" are displayed with
the current values. The setting for "R" is ac­tivated.

Press the

쏅

edly until the desired colour value is
displayed.

Press the

쏅

selection marker to the position after
the other colours.

Adjust the other colour components to

쏅

suit your preferences.

When you have fi nished making your
changes,

쏅

press the ESCAPE button <.

Selecting a display illumination during a
colour scan

쏅

Press the MENU•OK button 5.

쏅

Press the
edly until "COL SCAN" appears on the
display.

Press the

쏅

our seek.

The device starts changing the display illu­mination colour.

To select the currently set colour,

press the MENU•OK button 5.

쏅

To start the seek tuning again,

쏅

press the

If you found the desired colour,

press the ESCAPE button <.

쏅

or button 4 repeat-

button 4 to open the

or button 4 repeat-

or button 4 to move the

or button 4 repeat-

button 4 to start the col-

button 4.

Display External audio sources

Activating/deactivating demo
mode

In demo mode, the functions of the device
are shown on the display as scrolling text.
The constant colour change demonstrates
the setting options of the display colours.

Pressing any button interrupts the demo
mode for approx. 10 seconds.

Switching on the demo mode

Switch off the device by pressing the

쏅

On/Off button 6.
Hold the buttons 1 9 and DIS :

쏅

pressed at the same time and switch
on the device again with the On/Off
button 6.

"DEMO" briefl y appears on the display.

Switching off the demo mode

Switch off the device by pressing the

쏅

On/Off button 6.
Hold the buttons 1 9 and DIS :

쏅

pressed at the same time and switch
on the device again with the On/Off
button 6.

The demo mode is switched off.

External audio sources

External audio sources, such as portable
CD players, MiniDisc players or MP3 play­ers, can be connected to the device via the
rear AUX input (if no CD changer is connect­ed to the device).

Notes:

An adapter cable is needed to con-

•
nect an external audio source via the
rear AUX input. You can obtain this ca­ble (Blaupunkt no.: 7 607 897 093)
from your Blaupunkt dealer.

The rear AUX input can be selected

•
with the SRC button 2. "AUX INPUT"
then appears on the display.

AUX INPUT can be selected only if no

•
CD changer is connected to the de­vice.

ENGLISH

65

Technical data

Technical data

Amplifi er

Output power: 4 x 18 watts sine at

14.4 V and
1% distortion factor
at 4 ohms.

4 x 26 watts sine

in accordance
with DIN 45324 at

14.4 V at 4 ohms.

4 x 50 watts

max. power

Tuner

Wavebands:
FM : 87.5 - 108 MHz
MW : 531 - 1 602 kHz
LW : 153 - 279 kHz

FM frequency response:
35 - 16,000 Hz

CD

Frequency response:
20 - 20,000 Hz

Pre-amp out

4 channels: 2 V

Input sensitivity

AUX input: 2 V / 6 kΩ
Tel./Navi input: 10 V / 1 kΩ

Weight approx. 1.36 kg

Subject to changes

66

Einbauanleitung • Installation instructions • Notice de montage • Istruzioni di installazione •
Inbowhandleiding • Monteringsanvisning • Instrucciones de instalación • Instruções de mon­tagem • Monteringsvejledning • Instrukcja montażowa • Návod k montáži • Montážny návod •
Инструкция по установке

Einbauanleitung

Sicherheitshinweise

Für die Dauer der Montage und
des Anschlusses beachten Sie bitte fol­gende Sicherheitshinweise.

• Minuspol der Batterie abklemmen!

Dabei die Sicherheitshinweise des
Kfz- Herstellers beachten.

• Beim Bohren von Löchern darauf

achten, dass keine Fahrzeugteile be­schädigt werden.

• Der Querschnitt des Plus- und Minus-

kabels darf 1,5 mm
schreiten.

• Fahrzeugseitige Stecker nicht an

das Radio anschließen!

Die für Ihren Fahrzeugtyp erforder-

lichen Adapterkabel erhalten Sie im
BLAUPUNKT-Fachhandel.

• Je nach Bauart kann Ihr Fahrzeug

von dieser Beschreibung abwei­chen. Für Schäden durch Einbau­oder Anschlussfehler und für Folge­schäden übernehmen wir keine
Haftung.

Sollten die hier aufgeführten Hin-

weise für Ihren Einbau nicht pas­sen, so wenden Sie sich bitte an
Ihren Blaupunkt-Fachhändler, Ihren
Fahrzeughersteller oder unsere
Telefon-Hotline.

Bei Einbau eines Amplifi er oder
Changers müssen unbedingt erst die
Gerätemassen angeschlossen werden,

2

nicht unter-

bevor die Stecker für die Line-In- oder
Line-Out-Buchse kontaktiert werden.

Fremdgerätemassen dürfen nicht an
der Autoradiomasse (Gehäuse) ange­schlossen werden.

Installation instructions

Safety instructions

When carrying out installation
work and making connections please
observe the following safety instruc­tions:

• Disconnect the negative terminal of

the battery! When doing so, please
observe the vehicle manufacturer’s
safety instructions.

• Make sure you do not damage vehi-

cle components when drilling any
holes.

• The cross sections of the positive

and negative cables must not be less
than 1.5 mm

• Do not connect the vehicle’s plug

connectors to the radio!

You can obtain the adapter cable re-

quired for your vehicle type from any
BLAUPUNKT dealer.

• Depending on the model, your vehi-

cle may differ from the description
provided here. We accept no respon­sibility for any damages due to incor­rect installation or connection or for
any consequential damages.

2

.

423

If the information provided here is

not suitable for your specifi c instal­lation requirements, please contact
your Blaupunkt dealer, your vehicle
manufacturer or our telephone hot­line.

When installing an amplifi er or changer,
you must fi rst connect the device earth
connections before connecting the
plugs for the line-in or line-out jacks.

Earth connection of external devices
may not be connected to earth of car
sound system (housing).

Notice de montage

Consignes de sécurité

Respecter les consignes de sé­curité suivantes pendant la durée du
montage et du branchement.

• Débrancher le pôle (-) de la batterie !

Respecter les consignes de sécurité
du constructeur automobile !

• Veiller à n’endommager aucune piè-

ce du véhicule en perçant des trous.

• La section du câble (+) et (-) ne doit

pas dépasser 1,5 mm

• Ne pas brancher les connecteurs

du véhicule sur la radio !

Les câbles d’adaptation nécessai-

res pour le type de véhicule sont
disponibles auprès des revendeurs
BLAUPUNKT.

• En fonction du modèle, votre véhi-

cule peut différer de cette descrip­tion. Nous déclinerons toute respon­sabilité en cas de dommages causés
par des erreurs de montage ou de

2

.

connexion et en cas de dommages
consécutifs.

Si les indications décrites ici ne s’ap-

pliquent au montage que vous voulez
effectuer, adressez-vous à votre re­vendeur Blaupunkt, votre construc­teur automobile ou notre service
d’assistance téléphonique.

Pour le montage d’un amplifi cateur ou
changeur, les masses d’appareil doi­vent être d’abord connectées avant de
connecter les fi ches pour les connec­teurs Line In ou Line Out.

Les masses des appareils externes ne
doivent pas être raccordées à la mas­se de l'autoradio (boîtier).

Istruzioni di

installazione

Note di sicurezza

Durante il montaggio e l’allaccia­mento osservate per favore le seguenti
istruzioni sulla sicurezza.

• Staccate il polo negativo della batte-

ria! Nel fare ciò osservate le istruzioni
di sicurezza del fabbricante d’auto.

• Quando praticate dei fori, fate at-

tenzione a non danneggiare nessuna
parte dell’autovettura.

• La sezione dei cavi positivi e nega-

tivi non deve essere mai inferiore
a 1,5 mm

• Non collegate alla radio le spine

in dotazione di autovettura!

Richiedete ad un negoziante specia-

lizzato in articoli BLAUPUNKT il cavo

2

.

424

di adattamento richiesto per il vostro
modello di autovettura.

• A seconda del modello il Suo veicolo
può differire da questa descrizione.
Non forniamo garanzia per danni
derivanti da errori di montaggio o
di collegamento e per danni conse­guenti.

Se le indicazioni qui elencate non

sono adatte al Suo montaggio, La pre­ghiamo di rivolgersi al Suo rivendito­re Blaupunkt, al fabbricante dell’auto
o alla nostra hotline telefonica.

Quando vengono montati un amplifi ­catore o un multilettore CD, bisogna
innanzi tutto allacciare le masse degli
apparecchi prima di eseguire la connes­sione delle spine con le prese line-in e
line-out.

Le masse di altri apparecchi non de­vono essere collegate alla massa del­l'autoradio (involucro).

Inbowhandleiding

Adviezen voor de
veiligheid

Wilt u dedurende het monteren en aan­sluiten de volgende veiligheidsadviezen
in acht nemen.

• De minpool van de batterij afklem­men! De veiligheidsadviezen van de
fabrikant in acht nemen.

• Bij het gaten boren erop letten dat
geen voertuigonderdelen worden
beschadigd.

• De dwarsdoorsnede van de plus­en minkabel mag niet minder dan

2

zijn.

1,5 mm

• Stekker aan de voertuigkant niet

aan de radio aansluiten!

De voor uw voertuig vereiste adap-

terkabel is bij de BLAUPUNKT-vak­handel verkrijgbaar!

• Afhankelijk van de uitvoering kan uw
auto afwijken van deze beschrijving.
Voor schade door fouten in montage
of aansluiting en schade als gevolg
daarvan aanvaarden wij geen aan­sprakelijkheid.

Mochten de hier vermelde aanwijzin-

gen voor de montage voor u niet van
toepassing zijn, dan kunt u contact
opnemen met uw Blaupunkt-vak­handel, uw autofabrikant of onze te­lefoon-hotline.

Bij inbouw van een versterker of cd-wis­selaar moeten eerst de massacontacten
van de apparaten worden verbonden
voordat de stekkers voor de line-in- of
line-out-bussen worden aangesloten.

De massa van andere apparaten mag
niet aan de massa van de autoradio
(huis) worden aangesloten.

Monteringsanvisning

Skyddsanvisningar

Vänligen beakta följande skydds­anvisningar under pågående montage
och anslutning.

• Lossa polskon från batteriets minus-

pol! Följ därvid fordonstillverkarens
skyddsanvisningar.

425

• Se till att inga av fordonets kompo­nenter skadas i samband med borr­ning av hål.

• Plus- och minuskabelns ledningsa­rea måste vara minst 1,5 mm

• Fordonets stickkontakt får inte

anslutas till radion!

Din BLAUPUNKT fackhandel tillhan-

dahåller för resp fordonstyp erfor­derlig adapterkabel.

• Beroende på konstruktionstyp kan
fordonet avvika från denna beskriv­ning. Vi frånsäger oss allt ansvar för
skada eller följdskada pga. felaktig
montering eller anslutning.

Om här givna monteringsanvisning-

ar ej stämmer överens med faktiska
förhållanden, vänligen kontakta
Blaupunkt fackhandel, representant
för fordonets tillverkare eller vår te­lefonkundtjänst.

Vid montering av förstärkare eller cd­växlare måste först apparatstommen
jordas, innan stickpropparna ansluts till
in- eller utgångarna (hylstag line-in resp
line-out).

Jord från andra apparater får inte
anslutas till bilradions jord (höljet).

2

.

Instrucciones de

instalación

Normas de seguridad

Durante el montaje y la conexión
es imprescindible observar las siguien­tes normas de seguridad.

• Desemborne el polo negativo de la
batería. Observe las normas de se­guridad dadas por el fabricante del
vehículo.

• Al perforar agujeros, asegúrese de
no dañar ninguna pieza del vehículo.

• La sección transversal del cable po­sitivo y del cable negativo no debe
ser menor de 1,5 mm

• ¡No conecte a la radio los conecto-

res ubicados en el vehículo!

Los cables adaptadores necesarios

para su vehículo los encontrará en el
comercio especializado en artículos
de la marca BLAUPUNKT.

• Dependiendo del modelo, es posible
que su vehículo varíe un poco con
respecto a la descripción aquí dada.
Tenga en cuenta que no asumimos
ninguna responsabilidad por los da­ños debidos a un montaje o conexión
incorrectos ni por los daños resultan­tes.

Si las instrucciones aquí dadas no

son aptas para el montaje en su ve­hículo, póngase en contacto con su
proveedor de artículos Blaupunkt o
con el fabricante del vehículo, o lla­me a nuestro teléfono de atención al
cliente.

En caso de montar un amplifi cador o un
cambiadiscos, es necesario conectar la
puesta a tierra de las unidades antes de
establecer el contacto de los conectores
para las hembrillas Line-In y Line-Out.

No deben conectarse masas de otros
equipos a la masa de la radio (carcasa).

2

.

426

Instruções de

montagem

Instruções de segurança

Durante a montagem e a ligação
do aparelho, queira respeitar as seguin­tes instruções de segurança.

• Separar o pólo negativo da bateria!

Respeitar ao mesmo tempo as ins­truções de segurança do fabricante
do automóvel.

• Quando se procede à furagem de

buracos, prestar atenção para não
serem danifi cadas quaisquer partes
do veículo.

• As secções transversais dos cabos

positivo e negativo não devem ser
inferiores a 1,5 mm

• Não ligar as fi chas existentes do

lado do automóvel ao auto-rádio!

Os cabos adaptadores necessários

para o seu automóvel podem ser
adquiridos nos revendedores da
BLAUPUNKT.

• O seu veículo pode divergir desta

descrição em função do modelo.
Não assumimos qualquer responsa­bilidade por erros de montagem ou
de ligação nem por danos daí decor­rentes.

Caso as presentes instruções não se-

jam adequadas para a montagem no
seu veículo, dirija-se ao revendedor
da Blaupunkt, ao fabricante do seu
veículo ou à nossa linha verde.

No caso de montagem de um amplifi ca­dor ou leitor multi-CD, é imprescindível
ligar primeiro os aparelhos à terra antes

2

.

de se conectar as fi chas às tomadas Line
In ou Line Out.

A massa de aparelhos externos não
deve ser ligada à massa do auto-rádio
(caixa).

Monteringsvejledning

Sikkerhedshenvisninger

Under monteringen og tilslutnin­gen skal følgende sikkerhedshenvisnin­ger iagttages.

• Batteriets negative pol skal afbry-

des! Herved skal bilfabrikantens sik­kerhedshenvisninger iagttages.

• Vær opmærksom på, at ingen bildele

ødelægges under boringen af huller.

• Tværsnittet af plus- og minuskablet

må ikke underskride 1,5 mm

• Bilens stik må ikke tilsluttes radio-

en!

De nødvendige adapterkabler til din

biltype kan købes hos BLAUPUNKT­specialforretningen.

• Alt efter konstruktion kan bilen afvi-

ge fra denne beskrivelse. For skader
på grund af monterings- eller tilslut­ningsfejl og for følgeskader overta­ger vi intet ansvar.

Hvis de her anførte henvisninger

til monteringen ikke skulle passe,
kontakt din Blaupunkt-specialforret­ning, bilfabrikanten eller vor telefon­hotline.

Ved montering af en forstærker eller et
Multi CD-apparat skal apparaternes stel

2

.

427

først tilsluttes, før stikkene for tilslutnin­gerne Line-In eller Line-Out sættes i.

Eksterne enheders stelforbindelse
må ikke sluttes til bilradioens stelfor­bindelse (kabinet).

Instrukcja montażowa

Wskazówki bezpieczeń­stwa

Podczas montażu i podłączania należy
przestrzegać poniższych wskazówek
bezpieczeństwa.

• Odłączyć biegun ujemny akumulato­ra! Przestrzegać wskazówek bezpie­czeństwa producenta pojazdu.

• Przy wierceniu otworów uważać, aby
nie uszkodzić któregoś z urzą dzeń
pokładowych pojazdu.

• Przekrój kabla plusowego i minu­sowego nie może być mniejszy niż

2

1,5 mm

.

• Nie podłączać wtyczek samocho-

du do radia!

Odpowiedni dla danego typu pojaz-

du przewód-adapter można nabyć
u autoryzowanego sprzedawcy pro­duktów BLAUPUNKT.

• Zależnie od marki i modelu, konstruk­cja Państwa pojazdu może niekiedy
odbiegać od podanego tu opisu. Firma
Blaupunkt wyklucza wszelką odpowie­dzialność za szkody spowodowane
błędnym montażem i instalacją urzą­dzenia.

W przypadku, gdy podane tu wska-

zówki nie znajdują zastosowania w
Państwa pojeździe, prosimy skon-

taktować się z autoryzowanym sprze­dawcą produktów Blaupunkt, produ­centem pojazdu lub zadzwonić do
naszej infolinii.

Przy montażu wzmacniacza lub zmie­niarki należy koniecznie najpierw pod­łączyć masy urządzeń, zanim połączona
zostanie wtyczka do gniazda Line-In lub
Line-Out.

Do masy radioodtwarzacza (obudo­wa) nie wolno podłączać masy obcych
urządzeń.

Návod k montáži

Bezpečnostní pokyny

Během montáže a připojení
dodržujte prosím následující bezpeč­nostní pokyny.

• Odpojte záporný pól akumuláto-

ru! Přitom dodržujte bezpečnostní
pokyny výrobce vozidla.

• Při vrtání otvorů dbejte na to, abyste

nepoškodili žádné díly vozidla.

• Průřez kabelu plus a minus pólu

musí být minimálně 1,5 mm

• Konektory od vozidla nepřipojujte

k rádiu!

Adaptérový kabel potřebný pro vaše

vozidlo obdržíte ve specializované
prodejně BLAUPUNKT.

• V závislosti na konstrukci se může

postup u vašeho vozidla od zde
popsaného postupu lišit. Za škody
způsobené montáží nebo připojením
nepřebíráme žádné ručení.

2

.

428

Pokud zde uvedené pokyny pro

montáž neodpovídají vašemu vozi­dla, obraťte se na specializovaného
prodejce Blaupunkt, výrobce vozidla
nebo naši horkou linku.

Při montáži zesilovače nebo měničů,
předtím než budou konektory zapojeny
do zdířek Line-in nebo Line-out, musí
být nejprve bezpodmínečně připojeny
kostry přístrojů.

Kostry jiných přístrojů nesmí být při­pojeny na kostru autorádia (kryt pří­stroje).

Montážny návod

Bezpečnostné pokyny

Počas montáže a zapojenia re­špektujte následné bezpečnostné po­kyny.

• Odpojte záporný pól akumulátora!

Rešpektujte pri tom bezpečnostné
pokyny výrobcu vozidla.

• Pri vŕtaní otvorov dávajte pozor na

to, aby sa nepoškodili žiadne diely
vozidla.

• Prierez kábla kladného a záporného

pólu nesmie byť menší ako 1,5 mm

• Koncovky elektroinštalácie vozid-

la sa do rádia nesmú zapojiť!

Potrebný kábel s adaptérom pre vaše

vozidlo obdržíte v špecializovaných
predajniach BLAUPUNKT.

• V závislosti od konštrukcie sa môže

postup pri vašom vozidle od tu po­písaného postupu líšiť. Za škody
spôsobené montážou alebo neod-

2

.

borným pripojením nepreberáme
záruku.

Ak by tu uvedené pokyny na montáž

nezodpovedali vášmu vozidlu, ob­ráťte sa prosím na špecializovaného
predajcu fy Blaupunkt, výrobcu váš­ho vozidla alebo na našu zákaznícku
linku.

Pri montáži zosilňovača alebo meniča
je bezpodmienečne nutné najprv zapo­jiť kostru prístroja, než sa nakontaktujú
zástrčky do zásuvky Line-In alebo Line­Out.

Kostry cudzích prístrojov sa nesmú
napojiť na kostru (schránku) autorá­dia.

Инструкция по

установке

Указания по технике
безопасности

Во время монтажа и подсоединения
соблюдайте, пожалуйста, следующие
указания по технике безопасности.

• Отсоедините минусовую клемму
аккумулятора! Соблюдайте при
этом правила техники безопаснос­ти завода-изготовителя Вашего ав­томобиля.

• При сверлении отверстий следите
за тем, чтобы не повредить компо­ненты автомобиля.

• Сечение плюсового/минусового
кабелей должен быть не меньше

2

.

1,5 мм

429

• Не включайте в аудиосистему ав­томобильные штекеры!

Необходимые для Вашего типа авто-

мобиля адаптерные кабели Вы мо­жете приобрести в авторизованном
сервисном центре Blaupunkt.

• Ваш автомобиль может - в зависи­мости от конструкции - отклоняться
от данного описания. Завод-изго­товитель аудиосистемы не несет
ответственности за повреждения
и-за ошибок при монтаже или под­ключении, а также за косвенный
ущерб.

Если перечисленные здесь указа-

ния для Ваших условий монтажа не
подходят, то обратитесь, пожалуй­ста, в авторизованный сервисный
центр Blaupunkt или продавцу
Вашего автомобиля.

При установке усилителя или чейн­джера перед соединением штекеров
гнезд линейного входа и выхода сна­чала нужно в обязательном порядке
подключить массы устройств.

Запрещается подключение масс
посторонних устройств к массе ау­диосистемы (корпусу).

430

Mitgelieferte Montage- und
Anschlussteile

Supplied Mounting Hardware
Materiel de montage fourni
Componenti di fi ssaggio comprese

nella fornitura
Meegeleverde montagematerialen
Medföljande monteringsdetaljer
Ferretería de montaje suministrada
Elementos de fi xação fornecidos
Medleverede monterings- og

tilslutningsdele
Dołączone części montażowe i

połączeniowe
Přiložené montážní díly a přípojné

svorky
Dodávané montážne a pripojovacie

dielce
Поставляемые в комплекте

компоненты для установки и
подсоединения

A

Als Sonderzubehör erhältlich
Available as an optional accessory
Disponible en option
Reperibili come accessori extra
Als speciale accessoire verkrijgbaar
Tillval
De venta como accesorios especiales
Disponíveis como acessórios

opcionais
Fås som specialtilbehør
Dostępne jako wyposażenie

dodatkowe
Jako zvláštní příslušenství můžete

obdržet
Ako osobitné príslušenstvo

dostanete
Поставляется как дополнительная

принадлежность

Preamp./Sub./Center - out

cable

7 607 001 512

B

A

7 607 621 . . .

431

Einbausätze
Installation kits
Kits de montage
Set di montaggio
Inbouwsets
Monteringssatser
Juegos de montaje
Kits de montagem
Indbygningssæt
Zestawy montażowe
Montážní soupravy
Montážne súpravy
Установочные комплекты

1.

12V

2.

ca. 10 mm

432

7 608 . . . . . .

3.

0°- 30°

+/– 10°

+/– 10°

4.

6. Ausbau / Removal / Démontage /
Smontaggio / Demontage /
Urmontering / Desmontaje /
Desmontagem / Udbygning /
Demontaż / Demontáž / Demontáž /

Демонтаж

antenna connection

5.

1.

182

53

A

165

1-20

B

2.

2.

8 613 150 002

3.

7.

12V

433

8.

C

B

A

C-1 C-2 C-3

10

13

16 19

7

4

1

12

6

3

2

5

157

15

9

14

17

11

8

3

8642

3157

8642

18

20

10 Ampere

Aut. antenna

FB +12V / RC +12V
+12V Amplifier

*

Summe
Sum
Somme
Somma
Som
Summa
Suma

150 mA

Soma

AB

1 NC 1 Speaker out RR+

Celkem
Súčet

Сумма
2 Radio Mute 2 Speaker out RR–
3 NC 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF–
5 Aut. antenna * 5 Speaker out LF+
6 Illumination 6 Speaker out LF–
7 Kl.15/Ignition 7 Speaker out LR+
8 Masse/GND 8 Speaker out LR–

C1 C2 C3

1 Line Out LR 7 Telefon NF in + 13 CDC-Data In
2 Line Out RR 8 Telefon NF in – 14 CDC-Data Out
3 Line Out / Ground 9 Radio Mute 15 Permanent +12V
4 Line Out LF 10 SW Supply - RC +12V * 16 SW Supply +12V *
5 Line Out RF 11 Remote Control 17 Bus - Masse/GND

SW Supply +12V

6

Amp. *

12 RC - GND 18 CDC/AUX1 Audio IN-GND

19 CDC/AUX1 Audio IN-L
20 CDC/AUX1 Audio IN-R

434

CD-Changer / AUX IN

Amplifi er

Optional
(Remote Control Eye)

9.

Preamp./Sub./Center - out

cable

7 607 001 512

+12V

A

7

5

3

1

8

6

4

2

Radio Mute

Radio Mute

+

4 Ohm

-

R

L

F

L

F

R

R

R

Änderungen vorbehalten!
Subject to changes!
Sous réserve de modifi cations!
Modifi che riservate!
Wijzigingen voorbehouden!
Ändringar förbehålles!
Modifi caciones reservadas!
Sob reserva de alterações!
Ret til ændringer forbeholdes!
Zmiany techniczne zastrzeżone!
Změny vyhrazeny!
Zmeny vyhradené!
Завод-изготовитель оставляет за собой право на внесение изменений!

+

+

+

-

-

-

4 Ohm

4 Ohm
4 Ohm

Amplifi er

+12V

Relais

+12V

Kl. 15 +12V

1

2

V

435

© 2007 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal

use only.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology

outside of this product is prohibited without a license from Microsoft.

436

Bitte den ausgefüllten Gerätepass sicher aufbewahren!
Please keep the fi lled-in radio pass in a safe place!
Prière de conserver soigneusement la carte d’autoradio remplie !
Tenete per favore il libretto di apparecchio, debitamente riempito, in un
posto sicuro!
Bewaar de ingevulde apparaatpas op een veilige plaats!
Vänligen förvara ifyllt apparatpass på säker plats!
¡Favor guardar el documento del aparato debidamente llenado en un lugar
seguro!
Por favor, guardar o cartão preenchido do aparelho num lugar seguro!
Det udfyldte apparatpas opbevares et sikkert sted!
Prosimy przechowywać metrykę radia w bezpiecznym miejscu!
Vyplněný dokument o přístroji prosím bezpečně uschovejte!
Vyplnený dokument o prístroji prosím bezpečne uschovajte!
Пожалуйста, храните заполненный паспорт устройства в надежном месте!

437

Country: Phone: Fax: WWW:

Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 39 0 01-610 39 391
Belgium (B) 02-525 5444 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 94 27 337 210 94 12 711
Ireland (IRL) 01-46 66 700 01-46 66 706
Italy (I) 02-369 62331 02-369 62464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 00 31 24 35 91 338 00 31 24 35 91 336
Norway (N) [phone] [phone]
Portugal (P) 2185 00144 2185 00165
Spain (E) 902 52 77 70 91 410 4078
Sweden (S) 08-7501850 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0446 02-6130 0514
Hungary (H) 76 889 704 –
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-335 07 23 0212-346 00 40
USA (USA) 800-950-2528 708-6817188
Brasil
(Mercosur) (BR) 0800 7045446 [phone]
Malaysia
(Asia Pacifi c) (MAL) [phone] [phone]

Gerätepass

(dt, gb, fr, it, nl, sw, es, pt, dk, pl, cz, sk, ru)

10/07 - CM-AS/SCS1

Name: .....................................................................

Typ: ....................................................................

Sevilla MP38
7 648 003 310

Serien-Nr: BP ................................................................

Blaupunkt GmbH, Robert-Bosch-Straße 200, D-31139 Hildesheim

438

8622405677
