Blaupunkt Miami-Beach-CD-52 Owners Manual

Radio / CD

Miami Beach CD52

Operating and installation instructions

Open here

Ouvrir s.v.p.

Por favor, abrir

Favor abrir

2

2

4

1

3

5

6

798

10

11

1213141516

3

CONTROLS

1 button – to unlock the

removable control panel (release
panel)

2 Volume control
3 Button – switches the unit on/off,

volume mute

4 FM button – selects the radio

mode source,
selects the FM memory levels

5 AM button – selects the radio

mode source,
selects the AM frequency range

6 Display
7

8 MENU button – opens the basic

9

: Arrow buttons

button – displays the time,
DIS – changes the display con­tent

settings menu

button – opens the flip­release panel

; OK button – confirms menu

entries and starts the scan func­tion

< X-BASS button – to set the

X-Bass feature

= AUDIO button (audio) – adjusts

the bass, treble, balance and
fader

> Keys 1 - 6
? TS button – starts the Travel-

store function

@ SRC button – to switch between

CD, CD changer (if connected)
and AUX sources

4

TABLE OF CONTENTS

Notes and accessories ............ 6

Road safety ..................................... 6

Installation ....................................... 6

Accessories .................................... 6

International telephone information ... 6

Removable control panel ......... 7

Switching on/off ...................... 8

Adjusting the volume ............... 9

Setting the power-on volume ........... 9

Instantaneous volume reduction

(mute) ............................................. 9

Telephone audio / navigation audio .. 9
Setting the volume of the

confirmation beep .......................... 10

Radio mode ............................ 11

Switching to radio mode ................ 11

Selecting the frequency range /

memory ......................................... 11

Tuning into a station ....................... 11

Storing stations ............................. 11

Storing stations automatically

(Travelstore) .................................. 12

Listening to preset stations ............ 12

Scanning receivable stations

(SCAN) ......................................... 12

Setting the scantime ...................... 12

Tuner configuration ........................ 12

Setting the display ......................... 13

CD mode ................................ 13

Switching to CD mode .................. 13

Selecting tracks ............................ 14

Quick track selection ..................... 14

Fast searching (audible) ................ 14

Random play (MIX) ........................ 14

Scanning tracks (SCAN) ............... 14

Repeating tracks (REPEAT) ........... 14

Pausing playback (PAUSE)............ 14

Changing the display ..................... 15

Ejecting a CD ................................ 15

CD changer mode .................. 15

Switching to CD changer mode ..... 15

Selecting a CD .............................. 15

Selecting tracks ............................ 15

Quick track selection ..................... 15

Fast searching (audible) ................ 15

Changing the display ..................... 16

Repeating individual tracks or

whole CDs (REPEAT) .................... 16

Random play (MIX) ........................ 16

Scanning all tracks on all CDs

(SCAN) ......................................... 16

Pausing playback (PAUSE)............ 17

CLOCK - Time ........................ 17

Sound and volume

distribution settings ............... 19

Adjusting the bass settings ............ 19

Adjusting the treble settings........... 19

Setting the left/right volume

distribution (balance) ..................... 19

Setting the front/back volume

distribution (fader) ......................... 19

X-BASS .................................. 20

Setting the spectrometer ....... 20

External audio sources .......... 21

Specifications ........................ 21

Installation instructions .......... 78

ENGLISH

5

NOTES AND ACCESSORIES

Thank you for deciding to purchase a
Blaupunkt product. We hope you enjoy
using this new piece of equipment.
Before using the device for the first time,
please read these instructions careful­ly . The Blaupunkt editors are constant­ly working on making the operating in­structions clearer and easier to under­stand. However, if you still have any
questions on how to operate the unit
please contact your dealer or the tele­phone hotline for your country . You will
find the hotline telephone numbers print­ed at the back of this booklet.

Road safety

Road safety has absolute prior­ity. Only operate your car radio if the
road and traffic conditions allow you
to do so. Familiarise yourself with the
unit before setting off on your jour­ney.
You should always be able to hear
police, fire and ambulance sirens
from afar. For this reason, set the
volume of whatever you are listen­ing to to a reasonable level.

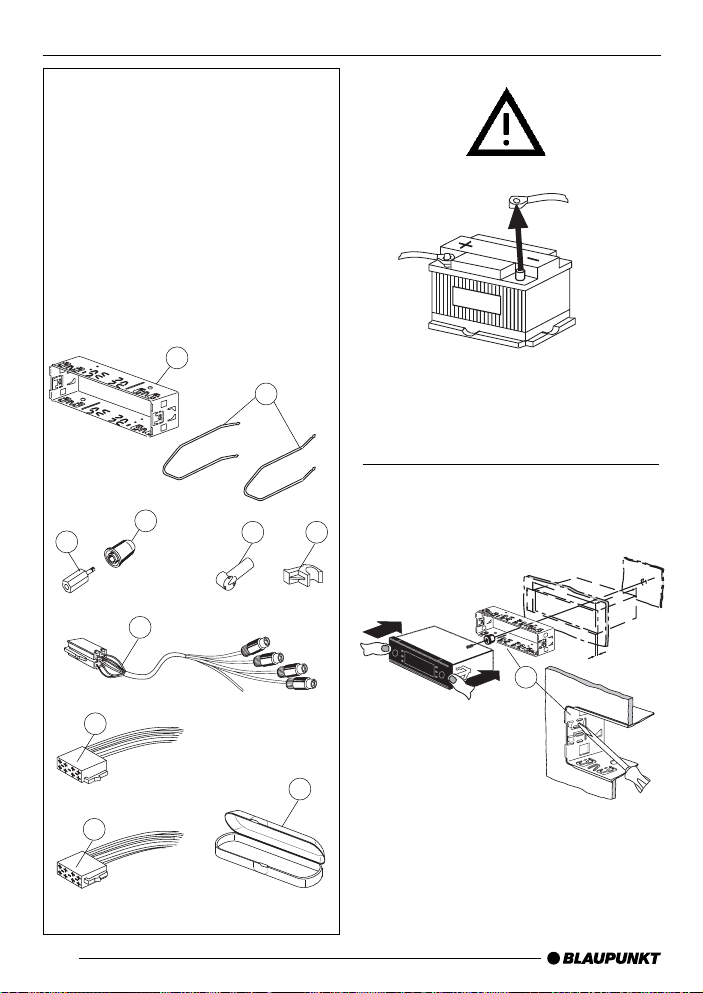

Installation

If you want to install your car radio your­self, please read the installation and
connection instructions that follow these
operating instructions.

Accessories

Only use accessories approved by Blau­punkt.

Remote control

The optional RC08 or RC10 remote
controls allow you to safely and conve­niently access the most important func­tions of your car radio from your steer­ing wheel.

Amplifier

All Blaupunkt amplifiers can be used.

CD changer

You can connect the following Blaupunkt
CD changers:
CDC A 06, CDC A 08, CDC A 072,
IDC A 09 and CDC A 02.
You can also connect the CDC A 05 and
CDC A 071 CD changers by using an
adapter cable (Blaupunkt no.: 7 607 889

093).

International telephone
information

If you have any questions regarding the
operation of your car radio or if you re­quire further information, please do not
hesitate to call us!
The information hotline numbers are
printed on the last page of these instruc­tions.

6

REMOVABLE CONTROL PANEL

Removable control panel

Theft protection

As a way of protecting your car radio
against theft, the unit is equipped with
a removable control panel (flip-release
panel). Without this control panel, the
car radio is worthless to a thief.
Protect your car radio against theft by
taking the control panel with you every
time you leave your vehicle. Do not
leave the control panel in your vehicle ­not even in a hiding place.
The control panel has been designed
to be easy to use.

Note:

● Never drop the control panel.

● Never expose the control panel

to direct sunlight or other heat
sources.

● Store the control panel in the sup-

plied case.

● Avoid making direct skin contact

with the control panel’s contacts. If
necessary, clean the contacts with
a lint-free cloth soaked in cleaning
spirits.

➮ Press the button 1.

The control panel locking mechanism
opens.

➮ First, pull the control panel straight

off the unit and then out towards
the left.

● The unit switches off after the con-

trol panel is removed.

● All the current settings are saved.

● Any CD already inserted in the unit

remains there.

Attaching the control panel

➮ Slide the control panel from left to

right into the unit’s panel locking
mechanism.

➮ Press the left-hand edge of the

control panel into the unit until it
clicks into place.

ENGLISH

Removing the control panel

1

Note:

● When attaching the control panel,

make sure you do not press the
display.

If the unit was still switched on when
you removed the control panel, the unit
will automatically switch on with the last
settings activated (i.e. radio, CD, CD
changer, or AUX) when the panel is re­placed.

7

SWITCHING ON/OFF

Switching on/off

There are various ways of switching the
unit on/off:

Switching on/off using the vehicle
ignition

If the unit is correctly connected to the
vehicle’s ignition and it was not switched
off using button 3, it will switch on/off
simultaneously with the ignition.

You can switch the unit on even if the
ignition is off:

➮ To do so, press button 3.

Note:

● To protect the vehicle battery , the

unit will switch off automatically af­ter one hour if the ignition is off.

Switching on/off using the
removable control panel

➮ Remove the control panel.

The unit switches off.

➮ Attach the control panel again.

The unit switches on. The last settings
(radio, CD, CD changer or AUX) will be
reactivated.

Switching on/off using button 3

➮ To switch the unit on, press button

3.

➮ To switch the unit off, press button

3 for longer than two seconds.

The unit switches off.

Switching on by inserting a CD

If the unit is switched off and there is no
CD inserted in the drive,

➮ press the button 9.

The flip-release panel opens.

➮ Gently insert the CD with the print-

ed side uppermost into the drive
until you feel some resistance.

The CD will be drawn automatically into
the drive.
You must not hinder or assist the drive
as it draws in the CD.

➮ Gently close the control panel

whilst exerting a little pressure until
you feel it click into place.

The unit switches on. CD playback be­gins.

8

ADJUSTING THE VOLUME

Adjusting the volume

The volume can be adjusted in steps
from 0 (off) to 66 (maximum).

➮ To increase the volume, turn the

volume control 2 to the right.

➮ To decrease the volume, turn the

volume control 2 to the left.

Setting the power-on volume

You can set the unit’s default power-on
volume.

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “ON VOLUME” appears in
the display .

➮ Set the power-on volume using the

and buttons :.

If you change the setting to “LAST VOL”,
the power-on volume will be the same
as the volume level that was set before
the unit was last switched off.

Note:

● To protect your hearing, the power-

on volume is limited to a value of
“38” if you have chosen “LAST
VOL”. If the volume level was high­er when the unit was switched off,
the volume will be reset to “38”
when the unit is switched on again.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

Instantaneous volume reduction
(mute)

This feature allows you to instanta­neously reduce (mute) the volume to a
level preset by you.

➮ Briefly press button 3.

“MUTE” appears in the display .

Setting the mute level

You can set the unit’s mute volume lev­el.

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “MUTE LEVEL” appears in
the display .

➮ Set the mute level using the and

buttons :.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

Telephone audio / navigation
audio

If your car radio is connected to a mo­bile telephone or a navigation system,
the unit’s volume will be muted as soon
as you “pick up” the telephone or as
soon as a navigation announcement is
made. The caller or voice output will
then be heard over the car radio loud­speakers. In order for this to work, the
mobile telephone or navigation system
must be connected to the car radio in
the manner described in the installation
instructions. For this, you need the Blau­punkt-cable 7 607 001 503.

ENGLISH

9

ADJUSTING THE VOLUME

You can find out from your Blaupunkt
dealer which navigation systems can be
used with your car radio.

You can set the volume level at which
telephone calls and the navigation voice
output will first be heard.

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “TEL/NAVI VOL” appears
in the display.

➮ Set the required volume using the

and buttons :.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

Note:

● Using the volume control 2, you

can directly adjust the volume of
telephone calls and navigation
voice output (whilst they are being
heard).

Setting the volume of the
confirmation beep

For some functions you will hear a con­firmation beep if you keep a button
pressed for longer than two seconds.
For instance, after storing a radio sta­tion to a station button you will hear a
confirmation beep. Y ou can set the vol­ume of this beep.

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “BEEP” appears in the dis­play.

➮ Set the volume using the and

buttons :. “0” means beep off, “9”
means maximum beep volume.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

;.

10

RADIO MODE

Radio mode

Switching to radio mode

If you are in CD, CD changer or AUX
mode,

➮ press the FM 4 / AM 5 button

or

➮ keep pressing the SRC button @

until “RADIO” appears in the
display.

Selecting the frequency range /
memory

This unit can receive programmes
broadcast over the FM and AM frequen­cy ranges. There are three preset mem­ory levels for the FM range and one for
the AM range. Six stations can be stored
on each memory level.

Selecting the FM memory level

➮ Press the FM button 4 to switch

between the FM memory levels
(FM1, FM2 and FMT).

Selecting the AM frequency range

➮ Press the AM button 5 to select

the AM frequency range.

Tuning into a station

There are various ways of tuning into a
station.

Automatic seek tuning

➮ Press the or button :.

The unit tunes into the next receivable
station.

Setting the sensitivity for station
seek tuning

You can configure the radio to only tune
into stations with a strong reception or
to also tune into those with a weak re­ception.

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “SENS HI” or “SENS LO”
appears in the display .

“SENS HI” means that the tuner is highly
sensitive. “SENS LO” means it is set to
the lowest sensitivity setting.

➮ Set the required sensitivity using

the and buttons :.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

;.

Tuning into stations manually

You can also tune into stations manually.

➮ Press the or button :.

Storing stations

Storing stations manually

➮ Select the required memory level

(FM1, FM2 or FMT) or the AM fre­quency range.

➮ Tune into the station.
➮ Press one of the station buttons 1-

6 > for longer than one second to
store the station to that button.

ENGLISH

11

RADIO MODE

Storing stations automatically
(Travelstore)

You can automatically store the six sta­tions with the strongest reception in the
region. The stations are stored in the
FMT or AM memory depending on the
selected frequency range.

Note:

● Stations that were previously

stored in this memory are deleted
in the process.

➮ Briefly press the TS button ?.

The station storing procedure begins.
“TRAVEL-STORE” appears in the dis­play . After the process is completed, the
station that is stored in location 1 of the
respective memory level will be played.

Listening to preset stations

➮ Select the memory level on which

the station was stored.

➮ Press the preset station button 1-6

> of the station you want to listen
to.

Scanning receivable stations
(SCAN)

You can briefly play all the receivable
stations. Y ou can set the scanning time
to between 5 and 30 seconds in the
menu.

Starting SCAN

➮ Keep the OK button ; pressed

until the scan process starts.

“SCAN” appears briefly in the display
followed by the current frequency (which
flashes).

12

Stopping SCAN and continuing
listening to a station

➮ Press the OK button ;.

Scanning is stopped and the station that
was tuned into last will remain active.

Setting the scantime

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “SCANTIME” appears in
the display .

➮ Set the required scantime using

the and buttons :.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

Note:

● The set scantime also applies to

scanning in CD and CD changer
mode.

Tuner configuration

This unit is equipped with a multiband
tuner. The tuner can be configured to
suit the requirements that are specific
to various countries. The countries/re­gions available are: America, Europe,
Asia and Thailand. The tuner will only
function optimally if it is configured for
the country/region in which the unit is
being operated.

Configuring the tuner

➮ Press the MENU button 8.
➮ Keep pressing the or button

: until “FM TUNER” appears in
the display .

RADIO MODE CD MODE

➮ Press the or button : to set

the country/region.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

Note:

● Once you have configured the tun-

er, the unit will switch to radio
mode and tune into the preset fre­quency 87.5 MHz

Setting the display

In radio mode, you have the option of
continuously displaying the time or con­tinuously displaying the frequency .

➮ Keep the / DIS button 7

pressed until the required display
appears.

CD mode

You can use this unit to play standard
audio CDs , CD-Rs and CD-RWs with
a diameter of 5 inches.

Risk of damage to the CD drive!
CD singles with a diameter of 3 inch­es and contoured CDs (shape CDs)
are not suitable for playback in this
unit.
We accept no liability for any dam­age to the CD drive that may occur
as a result of the use of unsuitable
CDs.

Switching to CD mode

● If there is no CD inserted in the

drive,

➮ press the button 9.

The flip-release panel opens.

➮ Gently insert the CD with the print-

ed side uppermost into the drive
until you feel some resistance.

The CD is drawn into the drive automat­ically.
You must not hinder or assist the drive
as it draws in the CD.

➮ Gently close the control panel

whilst exerting a little pressure until
you feel it click into place.

CD playback begins.

● If a CD is already inserted in the

drive.

➮ Keep pressing the SRC button @

until “CD” appears in the display .

Playback begins from the point at which
it was last interrupted.

ENGLISH

13

CD MODE

Selecting tracks

➮ Press one of the arrow buttons :

to select the next or previous track.

If you press the
the current track will be played again
from the beginning.

or button : once,

Quick track selection

To quickly select tracks backwards or
forwards,

➮ keep one of the or buttons :

pressed until fast-reverse / fast-for­ward track selection begins.

Fast searching (audible)

To fast search backwards or forwards,

➮ keep one of the buttons :

pressed until fast reversing / fast
forwarding begins.

Random play (MIX)

➮ Press button 5 MIX >.

“MIX CD” appears briefly in the display
and the MIX symbol lights up. The next
randomly selected track will then be
played.

Stopping MIX

➮ Press button 5 MIX > again.

“MIX OFF” appears briefly in the dis­play and the MIX symbol disappears.

Scanning tracks (SCAN)

You can briefly play all the tracks on a
CD.

➮ Press the OK button ; for longer

than two seconds. The next track
will then be played briefly .

Note:

● You can set the scantime. For fur-

ther details, please read the sec­tion entitled “Setting the scantime”
in the “Radio mode” chapter.

Stopping SCAN and continuing
playback

➮ To stop scanning, press the OK

button ;.

The current track will then continue to
be played.

Repeating tracks (REPEAT)

➮ If you want to repeat a track, press

button 4 RPT >.

“REPEAT TRCK” appears briefly in the
display and the RPT symbol lights up.
The track is repeated until you deacti­vate RPT.

Cancelling repeat

➮ If you want to stop the repeat func-

tion, press button 4 RPT > again.

“REPEAT OFF” appears briefly in the
display and the RPT symbol disappears.
Normal playback is then continued.

Pausing playback (PAUSE)

➮ Press button 1 >.

“PAUSE” appears in the display.

Cancelling pause

➮ Press button 1 > while in

pause mode.

Playback is continued.

14

CD MODE CD CHANGER MODE

Changing the display

➮ To switch between the track num-

ber and clock display / track num­ber and playing time display, press

/ DIS button 7 once or sev-

the
eral times for longer than two sec­onds until the required display ap­pears.

Ejecting a CD

➮ Press the button (9).

The flip-release panel opens and the CD
is ejected.

➮ Remove the CD and close the con-

trol panel.

CD changer mode

Note:

● Information on handling CDs, in-

serting CDs and operating the CD
changer can be found in the oper­ating instructions supplied with
your CD changer.

Switching to CD changer mode

➮ Keep pressing the SRC button @

until “CHANGER” appears in the
display.

Playback begins with the first CD that
the CD changer detects.

Selecting a CD

➮ To move up/down from one CD to

another, press the or button
: once or several times.

Selecting tracks

➮ To move up/down from one track to

another on the current CD, press

or button : once or sev-

the
eral times.

Quick track selection

To quickly select tracks backwards or
forwards,

➮ keep one of the or buttons :

pressed until fast-reverse / fast-for­ward track selection begins.

ENGLISH

Fast searching (audible)

To fast search backwards or forwards,

➮ keep one of the buttons :

pressed until fast reversing / fast
forwarding begins.

15

CD CHANGER MODE

Changing the display

➮ To switch between the track num-

ber and clock display / track num­ber and playing time display / CD
number and track number display ,
press the
or several times for longer than two
seconds until the required display
appears.

/ DIS button 7 once

Repeating individual tracks or
whole CDs (REPEAT)

➮ If you wish to repeat the current

track, briefly press button 4 RPT
>.

“REPEAT TRCK” appears briefly and
RPT lights up in the display.

➮ If you wish to repeat the current

CD, press button 4 RPT > again.

“REPEAT DISC” appears briefly and
RPT lights up in the display.

Cancelling repeat

➮ If you want to stop the repeat func-

tion for the current track or CD,
press button 4 RPT > until
“REPEAT OFF” appears briefly in
the display and RPT disappears.

Random play (MIX)

➮ To play all the tracks on the current

CD in random order, briefly press
button 5 MIX >.

“MIX CD” appears briefly and MIX lights
up in the display .

➮ To play the tracks on all the insert-

ed CDs in random order, press but­ton 5 MIX > again.

“MIX ALL” appears briefly and MIX lights
up in the display .

Note:

● In the case of the CDC A 08 and

the IDC A 09, all the CDs in the
changer are selected randomly . In
the case of any other changer, all
the tracks on one CD are played
randomly before the next CD in the
changer is played.

Stopping MIX

➮ Press button 5 MIX > until

“MIX OFF” appears briefly in the
display and MIX disappears.

Scanning all tracks on all CDs
(SCAN)

➮ To briefly play all the tracks on all

inserted CDs in ascending order,
press the OK button ; for longer
than two seconds.

“SCAN” appears in the display .

Stopping SCAN

➮ To stop scanning, briefly press the

OK button ;.

The current track will then continue to
be played.

Note:

● You can set the scantime. For fur-

ther details, please read the sec­tion entitled “Setting the scantime”
in the “Radio mode” chapter.

16

CD CHANGER MODE CLOCK - TIME

Pausing playback (PAUSE)

➮ Press button 1 >.

“PAUSE” appears in the display.

Cancelling pause

➮ Press button 1 > while in

pause mode.

Playback is continued.

CLOCK - Time

Briefly displaying the time

➮ To display the time, briefly press

/ DIS button 7.

the

Setting the time

Setting the time manually

➮ To set the time, press the MENU

button 8.

➮ Keep pressing the or button

: until “CLOCKSET” appears in
the display .

➮ Press the button :.

The time appears in the display. The
minutes flash on and off and can be
adjusted.

➮ Adjust the minutes using the

buttons :.

➮ Once you have set the minutes,

press the
start flashing.

➮ Adjust the hours using the

buttons :.

➮ Press the MENU button 8 or OK

; twice.

button :. The hours

ENGLISH

17

CLOCK - TIME

Selecting 12/24-hour clock
mode

➮ Press the MENU button 8.

“MENU” appears in the display .

➮ Keep pressing the or button

: until “24 H MODE” or “12 H
MODE” appears in the display .

➮ Press the or button : to

switch between the modes.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

;.

Displaying the time continuously
when the unit is off and the
ignition is on

To display the time when the unit is off
and the vehicle ignition is on,

➮ press the MENU button 8.
➮ Keep pressing the or button

: until “CLK DISP OFF” or “CLK
DISP ON” appears in the display.

➮ Press the or button : to

switch between the ON/OFF set­tings.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

;.

Briefly displaying the time when
the unit is switched off

To briefly display the time when the unit
is off,

➮ press the / DIS button 7.

The time is displayed for eight seconds.

18

SOUND AND VOLUME DISTRIBUTION SETTINGS

Sound and volume
distribution settings

You can adjust the sound distribution
settings separately for each source (ra­dio, CD, CD changer and AUX).

Adjusting the bass settings

➮ Press the AUDIO button =.

“BASS” appears in the display.

➮ Press the or button : to ad-

just the bass.

When you have finished making your
changes,

➮ press the AUDIO button =.

Adjusting the treble settings

➮ Press the AUDIO button =.

“BASS” appears in the display.

➮ Keep pressing the button :

until “TREBLE” appears in the dis­play.

➮ Press the or button : to ad-

just the treble.

When you have finished making your
changes,

➮ press the AUDIO button =.

Setting the left/right volume
distribution (balance)

➮ To set the left/right volume distribu-

tion (balance), press the AUDIO
button =.

“BASS” appears in the display .

➮ Keep pressing the button : un-

til “BALANCE” appears in the dis­play.

➮ Press the or button : to

adjust the balance (right/left).

When you have finished making your
changes,

➮ press the AUDIO button =.

Setting the front/back volume
distribution (fader)

➮ To set the front/back volume distri-

bution (fader), press the AUDIO
button =.

“BASS” appears in the display .

➮ Keep pressing the button : un-

til “FADER” appears in the display .

➮ Press the or button : to ad-

just the fader (front/back).

When you have finished making your
changes,

➮ press the AUDIO button =.

ENGLISH

19

X-BASS

SPECTROMETER

X-BASS

The X-BASS feature can be used to
boost the bass at low volume levels.

Adjusting the X-BASS boost
settings

The X-BASS boost can be set in steps
from “X-BASS OFF” to “X-BASS LOW”
to “X-BASS HIGH”.

➮ Press the X-BASS button <.
➮ Keep pressing the or button

: until the required setting ap­pears in the display.

When you have finished making your
changes,

➮ press the X-BASS button <.

Note:

The “X-BASS” icon is lighted up when
“X-BASS LOW” or “X-BASS HIGH” is
selected.

Setting the spectrometer

The spectrometer (level display) briefly
provides a symbolic display of the vol­ume and the audio control settings
whilst you are adjusting them.

When you are not changing any set­tings, the spectrometer displays the car
radio’s output level.

You can set the type of spectrometer in
the menu.

There are two types available.

Setting the spectrometer type

➮ Press the MENU button 8.

“MENU” appears in the display .

➮ Keep pressing the or button

: until “EQ DISPLAY” appears in
the display.

➮ Press the or button : to

select “SPECTRUM 1”,
“SPECTRUM 2” or “EQ DISP OFF.”

When you have finished making your
changes,

➮ press the MENU button 8 or OK

; twice.

20

EXTERNAL AUDIO SOURCES

SPECIFICATIONS

External audio sources

Instead of connecting a CD changer,
you can connect another audio source
equipped with a line output. The audio
source, for example, can be a portable
CD player, MiniDisc player or MP3 play­er.
The AUX input must be activated in the
menu.
If you want to connect an external au­dio source, you will need an adapter
cable. You can obtain this adapter ca­ble (BP no.: 7 607 897 093) from your
authorised Blaupunkt dealer.

Switching the AUX input on/off

➮ Press the MENU button 8.

“MENU” appears in the display .

➮ Keep pressing the or button

: until “AUX-IN-1 OFF” or “AUX­IN-1 ON” appears in the display.

➮ Press the or button : to

switch AUX on/off.

When you have finished making your
changes,

➮ press the MENU button 8 or OK

;.

Note:

● If the AUX input is switched on it

can be selected by pressing the
SRC button @.

Specifications

Amplifier

Output power: 4 x 25 watts sine in

accordance with
DIN 45 324 at

14.4 V
4 x 50 watts max.
power

Tuner

Frequency ranges US:
FM: 87.5 – 107.9 MHz
AM: 530 – 1710 kHz

Frequency ranges Asia and Europe:
FM: 87.5 – 108 MHz
AM: 531 – 1602 kHz

Frequency ranges Thailand:
FM: 87.5 – 108 MHz
AM: 531 – 1629 kHz

FM mono sensitivity:

17 dbf

FM frequency response:

35 - 16,000 Hz

CD

Frequency response:

20 - 20,000 Hz

Pre-amp out

4 channels: 3 V

ENGLISH

Input sensitivity

AUX input: 2 V / 6 kΩ
Tel./Navi input: 10 V/ 1 kΩ

Subject to changes!

21

Service numbers / Numéros du service après-vente /
Números de servicio / Número de serviço

Country: Phone: Fax: WWW:

Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 390 01-610 393 91

Belgium (B) 02-525 5454 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 0800-550 6550 01-576 9473
Ireland (IRL) 01-4149400 01-4598830
Italy (I) 02-369 6331 02-369 6464
Luxembourg (L) 40 4078 40 2085
Netherland (NL) 023-565 6348 023-565 6331
Norway (N) 66-817 000 66-817 157
Portugal (P) 01-2185 00144 01-2185 11111
Spain (E) 902-120234 916-467952
Sweden (S) 08-7501500 08-7501810
Switzerland (CH) 01-8471644 01-8471650

Czech. Rep. (CZ) 02-6130 0441 02-6130 0514
Hungary (H) 01-333 9575 01-324 8756
Poland (PL) 0800-118922 022-8771260

Turkey (TR) 0212-3350677 0212-3460040
USA (USA) 800-2662528 708-6817188
Brasil

(Mercosur) (BR) [phone] [phone]
Malaysia

(Asia Pacific) (MAL) [phone] [phone]

Blaupunkt GmbH

01/02 CM/PSS 8 622 403 152

Installation instructions • Notice de montage •
Instrucciones de instalación • Instruções de montagem

GB

Safety instructions

When carrying out installation work
and making connections please
observe the following safety
instructions:

- Disconnect the negative terminal of
the battery! When doing so, please
observe the vehicle manufacturer’s
safety instructions.

- Make sure you do not damage ve­hicle components when drilling any
holes.

- The cross sections of the positive
and negative cables must not be
less than 1.5 mm

2

.

- Do not connect the vehicle’s

plug connectors to the radio!

-You can obtain the adapter cable
required for your vehicle type from
any BLAUPUNKT dealer.

- Depending on the model, your ve­hicle may differ from the descripti­on provided here. We accept no re­sponsibility for any damages due to
incorrect installation or connection
or for any consequential damages.
If the information provided here is
not suitable for your specific instal­lation requirements, please contact
your Blaupunkt dealer, your vehicle
manufacturer or our telephone hot­line.

F

Consignes de sécurité

Respecter les consignes de sécurité
suivantes pendant la durée du
montage et du branchement.

- Débrancher le pôle (-) de la batte­rie ! Respecter les consignes de
sécurité du constructeur automobi­le !

-Veiller à n’endommager aucune
pièce du véhicule en perçant des
trous.

- La section du câble (+) et (-) ne
doit pas dépasser 1,5 mm

2

.

- Ne pas brancher les connec-

teurs du véhicule sur la radio !

- Les câbles d’adaptation néces­saires pour le type de véhicule sont
disponibles auprès des revendeurs
BLAUPUNKT.

- En fonction du modèle, votre véhi­cule peut différer de cette descripti­on. Nous déclinerons toute re­sponsabilité en cas de dommages
causés par des erreurs de monta­ge ou de connexion et en cas de
dommages consécutifs.
Si les indications décrites ici ne
s’appliquent au montage que vous
voulez effectuer, adressez-vous à
votre revendeur Blaupunkt, votre
constructeur automobile ou notre
service d’assistance téléphonique.

78

E

Normas de seguridad

Durante el montaje y la conexión es
imprescindible observar las
siguientes normas de seguridad.

- Desemborne el polo negativo de la
batería. Observe las normas de se­guridad dadas por el fabricante del
vehículo.

- Al perforar agujeros, asegúrese de
no dañar ninguna pieza del vehícu­lo.

- La sección transversal del cable
positivo y del cable negativo no
debe ser menor de 1,5 mm

2

.

- ¡No conecte a la radio los conec-

tores ubicados en el vehículo!

- Los cables adaptadores necesari­os para su vehículo los encontrará
en el comercio especializado en
artículos de la marca BLAU­PUNKT.

- Dependiendo del modelo, es posi­ble que su vehículo varíe un poco
con respecto a la descripción aquí
dada. Tenga en cuenta que no
asumimos ninguna responsabilidad
por los daños debidos a un monta­je o conexión incorrectos ni por los
daños resultantes.
Si las instrucciones aquí dadas no
son aptas para el montaje en su
vehículo, póngase en contacto con
su proveedor de artículos Blau­punkt o con el fabricante del vehí­culo, o llame a nuestro teléfono de
atención al cliente.

P

Instruções de segurança

Durante a montagem e a ligação do
aparelho, queira respeitar as
seguintes instruções de segurança.

- Separar o pólo negativo da bateria
! Respeitar ao mesmo tempo as in­struções de segurança do fabrican­te do automóvel.

- Quando se procede à furagem de
buracos, prestar atenção para não
serem danificadas quaisquer par­tes do veículo.

- As secções transversais dos cabos
positivo e negativo não devem ser
inferiores a 1,5 mm

2

.

- Não ligar as fichas existentes do

lado do automóvel ao auto-rá­dio!

- Os cabos adaptadores necessários
para o seu automóvel podem ser
adquiridos nos revendedores da
BLAUPUNKT.

-O seu veículo pode divergir desta
descrição em função do modelo.
Não assumimos qualquer respon­sabilidade por erros de montagem
ou de ligação nem por danos daí
decorrentes.
Caso as presentes instruções não
sejam adequadas para a monta­gem no seu veículo, dirija-se ao re­vendedor da Blaupunkt, ao fabri­cante do seu veículo ou à nossa
linha verde.

ENGLISH

FRANÇAIS

ESPAÑOL

PORTUGUÊS

79

Supplied Mounting Hardware
Materiel de montage fourni
Ferretería de montaje

suministrada
Elementos de fixação fornecidos.

A

B

D

C

G

E

1.

12V

2.

F

182

53

A

165

1 20

80

H

J

I

3.

A

4.

ENGLISH

7 607 621 . . .

Car-specific adapter cable which is
available at your dealer.

Câble adaptateur spécifique au
véhicule, disponible dans le
commerce.

Adaptador específico del vehículo, el
cual se puede adquirir en el comercio
especializado.

Cabo de adaptação específico do
automóvel que pode ser adquirido no
comércio especializado.

F

E

FRANÇAIS

Antenna

ESPAÑOL

5.

uninstalling,

1.

B

3.

PORTUGUÊS

2.

3.

2.

B

8 601 910 003

6.

12V

81

7.

C-1 C-2 C-3

14

C

2

B

A

6

3

58

1

3

2

4

345

1

2

7

10 131619

9

12

11

5
6

6

7
8

7
8

14 17

15

18

20

AB

1nc1 Speaker out RR+
2 Radio Mute 2 Speaker out RR­3nc3 Speaker out RF+
4Permanent +12V 4 Speaker out RF­5Aut. antenna 5 Speaker out LF+
6 Illumination 6 Speaker out LF­7Kl.15/Ignition 7 Speaker out LR+
8Ground 8 Speaker out LR-

C

C1 C2 C3

1Line Out LR 7 Telefon / Navi NF in + 13 CDC-Data - In
2Line Out RR 8 Telefon / Navi NF in – 14 CDC-Data - Out
3Line Out Masse / Ground 9 Radio / Navi Mute 15 Permanent +12V
4Line Out LF 10 FB +12V / RC +12V 16 +12V
5Line Out RF 11 Fernbedienung / Remote Control 17 Bus - Masse / GND
6 +12V Amplifier 12 FB - Masse / RC - GND 18 AF - Masse / GND

19 Line In - L

20 Line In - R

Equalizer Amplifier

82

Remote
Control

Tel.-NF in

CD-Changer

8.

G

ENGLISH

I

LF

F

R

R

R

10A

H

Radio Mute (low)

+12V

(max. 150 mA)

+

4 Ohm

-

LR

+

4 Ohm

-

+

4 Ohm

-

+

4 Ohm

-

Relais

Kl. 15 +12V

7

5

3

1

8

6

4

2

1

2

V

FRANÇAIS

ESPAÑOL

PORTUGUÊS

This information is subject to change without notice!
Sous réserve de modifications!
Modificaciones reservadas!
Sob reserva de alterações!

83
