Blaupunkt MADISON DJ AG, MADISON DJ, NEW ORLEANS DJ, MADRID RCM 148, TEXAS RCM 148 User Manual
...
Radio / Cassette / Changer
Como RCM 148
Madrid RCM 148
Texas RCM 148
Madison DJ
New Orleans DJ
Operating instructions
18
141516
11121317
Madrid
New Orleans DJ
1
2
4
2
6
5
11
7
Fernbedienung RC 06 (Option)
Remote control RC 06 (optional)
Télécommande RC 06 (en option)
9
8
10
Como
Madison DJ
Texas
RCM 148
RCM 148
RCM 148
Telecomando RC 06 (optional)
Afstandsbediening RC 06 (Optie)
Fjärrkontroll RC 06 (Tillval)
Mando a distancia RC 06 (opcional)
4
3
Telecomando RC 06 (opção)
2
Contents
Quick reference ............................ 29
Important notes ............................ 35
Precautions........................................... 35
Traffic safety ......................................... 35
Installation............................................. 35
Telephone mute.................................... 35
Accessories .......................................... 35
KeyCard theft protection system.. 36
Operating the unit ................................. 36
Removing the KeyCard ........................ 36
“Training” a second KeyCard/
Replacing a KeyCard............................ 36
Displaying the radio pass data ............. 37
Short Additional Memory (S.A.M.)........ 37
Turn On Message (T.O.M.) .................. 37
Optical indication of anti-theft
protection .............................................. 37
Care of your KeyCard........................... 37
Switching the audio source ........ 38
Radio operation with RDS ...........38
AF - Alternative frequency.................... 38
REG - regional programme .................. 38
Selecting a waveband
(only Como RCM 148, Texas RCM 148,
Madison DJ)..........................................
Station tuning........................................ 39
Automatic tuning / ....................... 39
Manual tuning with << >>.................. 39
39
Scrolling through the broadcasting
networks................................................ 39
Changing the memory bank ................. 40
Storing stations..................................... 40
Automatically storing the strongest
stations with Travelstore....................... 40
Recalling stored stations ...................... 40
Scanning stored stations with
Preset Scan .......................................... 40
Scanning stations with Radio-Scan...... 41
Selecting the seek tuning sensitivity .... 41
Switching from stereo to mono............. 41
Loudness .............................................. 41
PTY – Programme-Type....................... 41
Switching PTY on/off......................... 41
Programme type ................................... 41
Checking the programme type of
the station.......................................... 42
Displaying the selected programme
type.................................................... 42
Selecting a programme type ............. 42
Storing programme types.................. 43
Scanning stations with PTY-SCAN... 43
PTY priority........................................ 43
Receiving traffic programme
stations with RDS-EON................ 44
Traffic announcement priority on/off .... 44
Beep tone ............................................. 44
Switching off the beep tone............... 44
Automatic seek tuning start
(tape and CD changer operation)......... 44
Adjusting the volume for traffic
announcements and the beep tone...... 45
Tape operation ............................. 45
Inserting a tape..................................... 45
Removing a tape................................... 45
Fast Forward/Rewind ........................... 45
Selecting titles with S-CPS................... 45
Switching the tape side (autoreverse).. 46
Tape equalisation ................................. 46
Scanning cassette titles with SCAN ..... 46
Dolby B NR*.......................................... 46
Listening to the radio during fast tape
winding with RM (Radio Monitor) ......... 46
Skipping unrecorded tape portions
with Blank Skip ..................................... 46
Care notes ............................................ 47
CD changer operation.................. 47
Switching to the CD changer mode...... 47
Selecting CDs and titles ....................... 47
MIX playback ........................................ 48
Selecting the display mode .................. 48
SCAN .................................................... 48
DSC programming ....................... 49
Overview of DSC factory settings ........ 51
Appendix....................................... 52
Specifications........................................ 52
Blaupunkt telephone hotline ................. 52
28
Quick reference
1 Switching on with the buttons:
Press one of the buttons illustrated
here after you have inserted the KeyCard.
The unit will play at the pre-adjusted
volume.
Switch off with the ON button.
Switching on/off with the KeyCard:
When turned on, the set can be
switched off and back on by removing
and re-inserting the KeyCard.
Note:
Be sure to read the information in the
section on “KeyCard theft protection
system”.
Switching on/off via the ignition:
If the equipment has been connected
correspondingly, the set can also be
turned on and off with the vehicle ignition.
After the ignition has been switched
off, a double beep tone will remind you
that you should remove the KeyCard
before leaving your vehicle.
Switching on when the ignition is
switched off:
To keep on operating the set when the
ignition is switched off (KeyCard is inserted), proceed as follows:
Press ON after you hear the double
beep tone.
The unit will turn on.
To prevent the battery from going
dead, the system will turn off automatically after it has played for one hour.
2 VOL+ / VOL-
To alter the volume.
Each time the set is switched on, it will
play with the pre-adjusted volume
(VOL FIX).
You may also change the VOL FIX setting (see chapter “DSC programming”).
3
For instantly muting the volume.
By pressing the
button the volume
can be muted immediately. “MUTE”
will appear in the display.
The function is cancelled by pressing
button or VOL+.
When pressing VOL-, the
(mute)
volume will be adopted.
To programme the mute volume level,
proceed as follows:
• Adjust the desired volume.
• Press
for 1 second until you
hear a beep.
Now this volume level is stored as your
mute volume.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
29
PORTUGUÊS

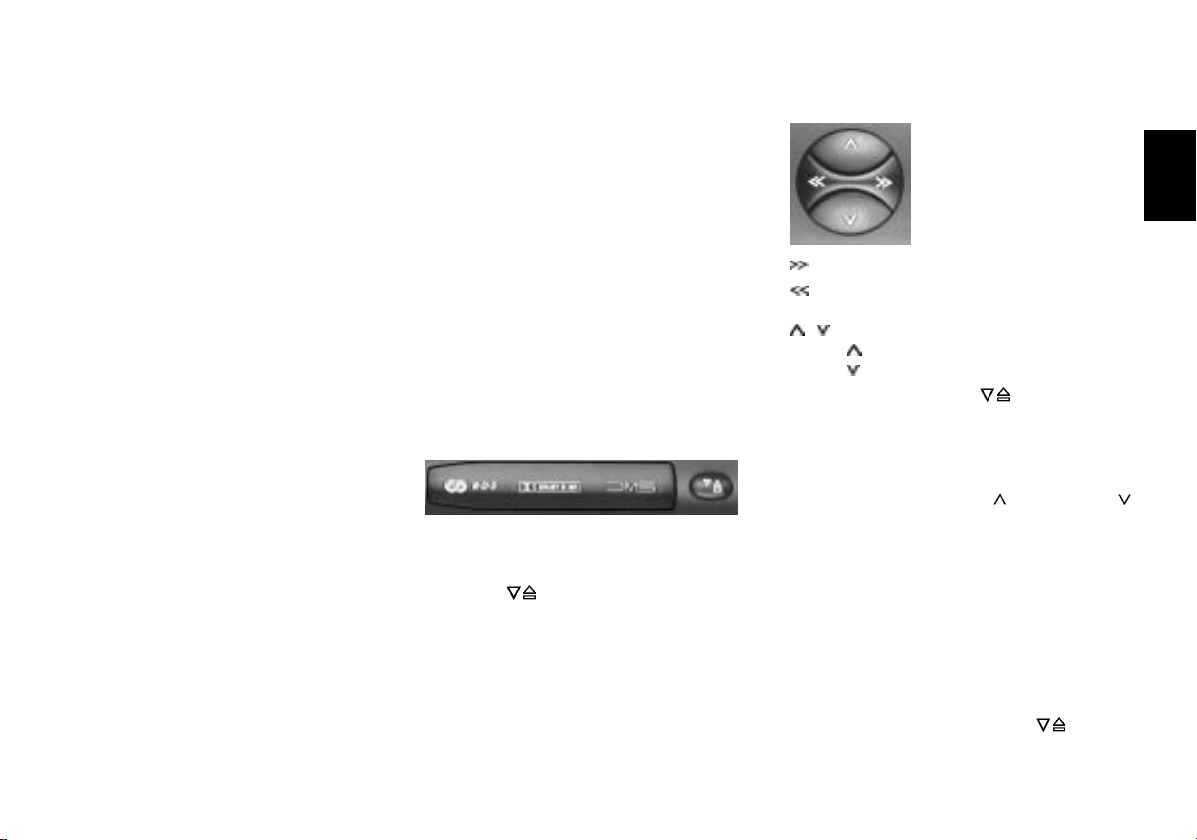

4 Rocker switch
Changer operation
Remote control
Radio operation
/ Station search
Up
Down
<</>> Up/Down in short intervals
(on FM only if AF is off)
On FM only:
<</>> To scroll through the station net-
works when AF is on, e.g.NDR 1, 2,
3, 4, N-JOY.
Tape operation
/ Title selection (S-CPS)
Up
Down
Fast forward
Fast rewind
Stop function by pressing the opposite key.
Optional:
Como RCM 148, Madrid RCM 148,
Texas RCM 148
Included in scope of delivery:
Madison DJ, New Orleans DJ
CD selection
Up
Down
Title selection
Upwards: Press briefly.
CUE - fast advance (audible):
Keep depressed.
Downwards: Press as many times
as required.
To re-start a title: Press briefly.
REVIEW - fast reverse (audible):
Keep depressed.
Extra rocker switch functions:
Further setting functions with
AUD B
DSC Mode A
PTY @
Condition: The corresponding function
is activated.
RC 06 (optional)
Using the remote control you can
execute the same functions as with the
corresponding buttons of the car
stereo.
Exception:
Radio operation
<< Press briefly.
To switch the FM memory bank.
<< Press for approx. 1 sec.
To store the six most powerful stations automatically with Travelstore.
>> To select one of the stations stored
on memory bank I, II or T.
30
5 Display
a
e
d
f
b
c
a) NDR1 NDS - Station name
b) TR 1 - Track (side) 1 of the cas-
c) 1 : 52 - Playback TIME or disc
d) FM - Waveband
e) 5 - Preset button (1-6)
f) I, II, T - Memory bank I, II or
g) lo - Seek tuning sensitivity
h) AF - Alternative frequency for
i) TP - A traffic station is being
j) TA - Priority for traffic stations
j
gi h
k
l
sette
NUMBER during CD
changer operation
Travelstore
RDS operation
received
m
k) LD - Loudness
l) PTY - Programme type function
m) B - Dolby B noise reduction
6 KeyCard theft protection system
To operate the set the KeyCard must
be inserted first.
KeyCard
Insert KeyCard
When the KeyCard tongue is protruding out of the unit, insert the KeyCard
with the contact area facing up into
the slot in the middle of the area.
If necessary, pull the KeyCard forward.
Be sure to read the information in the
section on “KeyCard theft protection
system”.
Flashing KeyCard tongue
When the radio is turned off and the
KeyCard removed, the KeyCard
tongue can be programmed to flash for
optical theft protection.
For more information see the section
on “DSC programming”.
T
7 FM
(Madrid RCM 148,
New Orleans DJ)
BND
(Como RCM 148,
Texas RCM 148, Madison DJ)
For selection of the FM memory banks
I, II and T (Travelstore).
To switch over:
Press button repeatedly.
The selected memory bank will appear
in the display.
Como RCM 148,
Texas RCM 148, Madison DJ:
Additional selection of medium- and
long-wave stations, provided that “AM
ON” has been adjusted in the DSC
menu.
Travelstore
To store and recall the six most powerful stations with Travelstore.
To store: Press button for approximately 1 sec. until you hear a beep
and “T-STORE” appears in the display.
To recall: Select the memory bank “T”
and press the corresponding preset
button (1-6) briefly.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
31
PORTUGUÊS
8 AF
Alternative frequency during RDS op-
eration:
When “AF” lights up in the display, the
system will automatically seek a frequency offering better reception of the
same RDS programme.
AF on/off: Press AF briefly.
Regional function on/off:
Press the AF button for approximately
1 sec. until you hear a beep. “REG
ON” or “REG OFF” will appear in the
display (see chapter REG - regional
programme).
9 TA (priority for traffic announcements)
When “TA” lights up in the display, the
system will play traffic stations only.
Priority on/off: Press TA.
: 1, 2, 3, 4, 5, 6 - preset buttons
You can store six stations for each of
the memory banks I, II, T, M and L.
To store a station: Press a preset
button during radio operation and hold
down until the set resumes play after
the muting and you hear a beep.
To recall a station: Select the desired
memory bank and press the relevant
preset button briefly.
Extra function of preset buttons
To store and recall a PTY programme
type.
When PTY is active (“PTY” lights up in
the display), you can store and recall
one programme type on/from each
preset button on FM.
; SRC (Source)
You can switch between the different
audio sources radio, cassette and CDchanger when a tape is inserted and a
CD-changer hooked up.
/ lo
<
Radio operation
To switch the seek tuning sensitivity
level:
Press button briefly.
If “lo” is displayed, the radio will only
pick up strong, local stations (normal
sensitivity).
If “lo” does not light up, the radio will
also pick up weaker, distant stations
(high sensitivity).
Extra function of lo button:
To switch between mono and stereo
reception:
Press button for approximately 1 sec.
(beep).
The selected condition will be briefly
displayed.
Tape operation
Dolby B NR*
Press this button to play back a tape
which has been recorded with Dolby-B
noise reduction. When this button is
pressed, “B” lights up in the display.
* Noise Reduction system manufactured under li-
cense from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corporation.
= /
To switch the tape side: Press briefly.
To eject the tape: Press for approximately 1 sec.
Extra function /
Frequency display during radio operation:
Press button briefly.
The frequency will be briefly displayed.
32
> Cassette loading slot
Insert the tape with side A or 1 facing
up, the open side showing to the right.
? SC
Radio operation
Scan
The scan function cannot be started
unless PTY has been switched off
(“PTY” does not light up in the
display).
Press SC briefly The scanned frequency or station
name will flash in the display. The display will show “FM SCAN” or
“AM SCAN” while searching for the
next station. The unit will scan all of
the receivable stations of the
selected memory bank/waveband.
Preset Scan
Preset Scan cannot be started unless
PTY has been switched off (“PTY”
does not light up in the display).
Press SC for approximately 1 second
until you hear a beep.
“SCAN” will alternate with the name or
frequency of the scanned station in the
display.
The unit will scan all of the stations
stored on the preset buttons of the selected memory bank/waveband.
To stop Scan / Preset Scan:
Press SC once again.
PTY-Scan
PTY-Scan cannot be started unless
PTY is switched on (“PTY” lights up in
the display).
All of the stations for the programme
type selected will be scanned briefly.
Tape operation
Cassetten-Scan
Press SC.
“CC SCAN” will appear in the display.
All cassette titles will be scanned briefly.
To stop cassette scan:
Press SC once again.
Changer operation
CD-Scan
Press SC briefly.
“CDC SCAN” will appear in the display.
All CD titles will be scanned briefly.
To stop CD-Scan:
Press SC once again.
@ PTY (Programme Type)
In the PTY mode, the preset buttons
become programme type buttons. With
every preset you can select one programme type, such as for example
NEWS, SPORT, POP MUSIC, EDUCATE, etc. With the << >> rocker
switch, it is possible to recall all of the
PTY programme types as long as the
PTY function has been activated
(“PTY” will light up in the display).
A DSC (Direct Software Control)
Use the DSC function to customise
certain programmable, basic settings
to suit your personal needs and preferences. See chapter “DSC programming” for more information.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
33
PORTUGUÊS
B AUD
Adjusts the treble and bass frequencies.
Press AUD once and use the rocker
switch to adjust the settings.
Treble +
Treble –
Bass –
Bass +
Setting the balance (left/right) and
the fader (front/rear).
Press AUD twice:
Fader front
Fader rear
Balance left
Balance right
The settings selected will appear in the
display. The last setting will be stored
automatically.
Switching AUD off: Press the button
once again.
If no changes are made within 8 seconds, the display will switch back to
the previous condition.
Extra function AUD
Loudness - When listening at a low
level, the Loudness function creates a
more natural sound by boosting
the low frequency range.
Loudness on/off: Press AUD for approximately 1 sec.
“LD” lights up in the display if the
Loudness function is switched on.
Please refer to chapter “DSC programming” for more information on how to
program the Loudness boost.
34
Important notes
Precautions
Before starting to use your new car radio,
please read the following information carefully.
Traffic safety
Traffic safety always has the highest priority.
As the driver of a motor vehicle, it is your
responsibility to pay attention to the traffic
situation at all times. Never use your car
radio in a way that could distract you.
Please keep in mind that you travel a distance of 14 m per second at a speed of only
50 km/h.
Should the traffic situation become particularly demanding, we advise you not to use
the radio.
Always make sure that you are still able to
hear any warning signals coming from outside of the vehicle, such as police or fire
engine sirens, so that you can react accordingly.
Therefore, you should always select a moderate volume for playing your car radio while
you are driving.
Installation
If you would like to install your new car stereo yourself or add other audio components
to existing ones, then please read carefully
the enclosed instructions on installation and
connection.
In order to ensure that the set operates properly it is necessary that the positive power
supply line is connected to the ignition and
the permanent +12 V lead.
Do not ground the loudspeaker outputs!
Telephone mute
If there is a mobile telephone installed in your
vehicle, the radio, tape player or CD player
can be muted automatically when the phone
is being used.
“PHONE” will then appear in the display.
When TA is active, traffic messages will always have priority. The announcement will
be aborted by pressing the TA button.
Accessories
Use accessories and spare parts approved
by Blaupunkt only.
You can use the following Blaupunkt products with this car radio:
Amplifier
All Blaupunkt amplifiers, the preamp-out
cable 7 607 893 093 is required.
Changer
CDC A 06, CDC A 072
Madison DJ, New Orleans DJ:
CDC A 072 included in the delivery.
Remote control
With the infrared remote control RC 06 you
can control all of the important functions of
your car radio system from the steering
wheel.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
35
PORTUGUÊS
KeyCard theft protection system
This car radio includes one KeyCard as
standard equipment, but it can also be operated with a second card.
If you have lost your KeyCard or if it was
damaged, you can buy a new one from your
specialised dealer.
If you use two KeyCards, you can store the
following functions individually for each card:
Bass, treble, balance and fader settings,
Loudness, TA (traffic announcement
volume), TA priority, AF, beep volume, mute
volume, lo or dx, BLS, RM ON/OFF, Dolby
B, PTY functions.
In addition, the settings which are activated
before you switch the radio off, such as the
waveband
RCM 148, Madison DJ)
remained stored.
This ensures that you will find your basic
settings re-adjusted automatically as soon
as you have inserted your KeyCard.
(only Como RCM 148, Texas
and station will also
Operating the unit
• Turn on the set.
With the KeyCard tongue protruding
out of the unit, insert the KeyCard into
the slot with the contact area facing
up in the middle of the area.
The car radio is now ready for operation.
If a wrong KeyCard is inserted, then “CARD
ERR” followed by “WAIT” will appear in the
display. In this case please do not make any
further adjustments.
The system will switch off by itself after approximately 10 seconds.
If another card type is inserted (e.g. phone
or credit card), the display will show
“WRONG KC” for approximately 2 seconds.
Remove the wrong card and insert the correct KeyCard.
After the display indications “CARD ERR”
or “WRONG KC”:
• Press ON to turn on the set.
Removing the KeyCard
• Pull out the KeyCard tongue and remove the card.
“Training” a second KeyCard/
Replacing a KeyCard
When the unit is operated with the first KeyCard, you can “train” a second one which
can also be used with the set.
To “train” a second KeyCard:
• Insert the first KeyCard and turn on the
set.
• Press the DSC button and select
“LEARN KC” by pressing
• Press << or >>.
The display will switch to “CHANGE”.
• Remove the first KeyCard and insert
the new one while “CHANGE” still appears in the display.
After the display indication “READY” or
“LEARN KC”,
• press DSC.
Now you can also use the new KeyCard to
operate your car stereo.
A maximum of 2 cards can be used for the
set.
If you attempt to “train” a third one, the access authorisation for the KeyCard not used
for the “training” process will be deleted automatically.
/ .
36
Displaying the radio pass data
Using the KeyCard supplied with your set
you can have the radio pass data such as
the model name, product number (7 6..) and
serial number indicated on the display panel.
Please refer to chapter “DSC programming
- READ KC”.
Short Additional Memory
(S.A.M.)
Using the second KeyCard to be purchased
at any specialised dealership, you can program a short text by selecting the DSC menu
item READ KC. This text will be moved
through the display and might be the telephone number of a car repair service or the
emergency call number of your auto club.
Any specialised dealer with the proper
equipment can program the desired text with
up to a maximum of 162 characters onto the
KeyCard.
Turn On Message (T.O.M.)
Using the second KeyCard to be purchased
at any specialised dealership, you can program the unit to display a selected “Turn On
Message” after the set is switched on.
Any specialised dealer with the proper
equipment can program the desired text with
up to a maximum of 48 characters onto the
KeyCard.
Each time you switch on your car radio using the second KeyCard, this text will appear in the display.
Optical indication of anti-theft
protection
Flashing KeyCard tongue
When the vehicle is stationary and the
KeyCard removed, the KeyCard tongue can
be switched to flash for extra anti-theft security.
For this it is necessary that the positive power supply line and the permanent +12 V lead
are connected such as described in the installation instructions.
Be sure that “LED ON” is adjusted in the
DSC mode.
If required, please refer to chapter “DSC
programming - LED”.
Switching off the flashing light
If you would like to deactivate the flashing
tongue in general, select “LED OFF” in the
DSC menu.
Care of your KeyCard
In order to ensure that the KeyCard always
functions correctly, it is important for the
contacts to be free from any foreign particles. Avoid direct skin contact.
If necessary, clean the KeyCard contacts
using a cotton swab dipped in alcohol.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
37
PORTUGUÊS
Switching the audio source
Radio operation with RDS
(Radio Data System)
Using the SRC button you can switch between the following audio sources:
radio,
tape,
changer
Como RCM 148, Madrid RCM 148,
Texas RCM 148)
Tape/changer operation is only available if
a cassette/disc is inserted.
To switch to another source,
• press SRC briefly.
(optional for
.
The Radio Data System offers you more
convenience when listening to FM radio stations.
More and more radio stations have begun
to broadcast RDS information alongside
their programmes.
As soon as a programme has been identified, the station name including a regional
identifier, if applicable, will appear in the display, for example, NDR1 NDS (regional programme in Lower Saxony, Germany).
When RDS is activated, the preset buttons
become programme buttons. You now know
exactly which programme you have tuned
into, making it easy to find the desired station quickly.
But RDS offers you further advantages:
AF - Alternative frequency
The AF (Alternative Frequency) function
makes sure that the strongest frequency of
the currently selected programme is always
tuned in automatically.
This function is activated when “AF” appears
in the display.
In order to switch this function on or off,
• press the AF button briefly.
While searching for the strongest reception
signal, the radio may switch to mute briefly.
If “SEARCH” appears in the display when
switching on the radio or recalling one of the
stored frequencies, the unit is automatically
searching for an alternative frequency.
“SEARCH” will disappear from the display
when the alternative frequency has been
found or after the frequency band has been
run through completely.
If the reception quality of the selected programme becomes too bad:
• Tune into another station.
REG - regional programme
Certain radio programmes are split up at
times into regional programmes offering local information. The 1st programme broadcast by NDR, for example, offers programmes with different contents in the northern states of Germany Schleswig-Holstein,
Hamburg and Lower Saxony at certain times
of the day.
If you are listening to one regional programme and move to an area where another linked regional programme becomes
stronger, the unit will switch to that programme.
If you wish to continue listening to the first
programme,
• press the AF button for approximately
1 sec.
“REG ON” appears in the display.
38
If you leave the service area of the regional
programme tuned into, or if you would like
to take advantage of the full RDS service,
switch to “REG OFF”.
• Press the AF button for approximately
1 sec. until “REG OFF” appears.
If the REG function is active, “REG ON” will
be briefly displayed each time the radio is
switched on.
Selecting a waveband
(only Como RCM 148, Texas RCM 148,
Madison DJ)
You can select between the following wavebands:
FM 87.5 - 108 MHz
MW 531 - 1602 kHz
LW 153 - 279 kHz
• Press the BND button until the desired
waveband shows on the display panel.
Note:
In the DSC menu you can deactivate the
station selection on either MW or LW or for
both wavebands at the same time.
This has the advantage that only the required bands will allow to be activated, so
that you must press the BND button less
often. For more information, please refer to
chapter “DSC programming - AM ON/OFF”.
Station tuning
Automatic tuning /
• Press / ; the car radio will automatically search for the next station.
When keeping the upper or lower part /
of the rocker switch depressed, seek tuning
will speed up in upwards or downwards direction.
Seek tuning
Up
Down
Down in short intervals
(“AF” must be switched off)
Up in short intervals
(“AF” must be switched off)
Manual tuning with << >>
You can also tune in a station manually.
Condition:
AF and PTY must be switched off (i.e. the
symbols do not light up in the display).
If necessary, deactivate these functions:
• Press AF or PTY briefly.
Manual tuning:
• Press << >>; the frequency will change
in short intervals in downwards or upwards direction.
When holding the right or left part of the rocker switch depressed, the frequency scan is
speeded up.
Scrolling through the broadcasting networks
You can use the << >> buttons to tune in
stations of your reception area.
If several programmes of the broadcasting
networks can be received, you can scroll
through them in forwards direction pressing
>>, or backwards using the << button, e.g.
NDR 1, 2, 3, 4, N-JOY.
For this it is necessary that the stations have
been tuned in at least once and that “AF” is
active (lights up in the display).
For this purpose, you may start Travelstore
seek operation:
• Press FM
system starts to run through the frequency band. The display shows
“T-STORE”.
If “AF” does not light up,
• press AF.
This fulfils the requirements for selecting
stations with << >>.
T or BND for 1 sec.; the
39
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Changing the memory bank
You can shift between the memory banks I,
II and T in order to store stations and recall
them later.
The currently selected memory bank is indicated in the display.
• Press the FM
times until the desired memory bank
lights up in the display.
T or BND button as many
Storing stations
On FM, you can store six stations on the
preset buttons 1-6 for each of the memory
banks I, II and T.
On MW/LW, you can also store six stations
(only with Como RCM 148, Texas
each.
RCM 148, Madison DJ)
• Select the desired memory bank.
• Tune in a station with the rocker switch
(either automatically
<< >>).
• Press and hold down the desired preset button until the radio resumes play
after the muting (takes approximately
1 sec., confirmed by beep).
Now the station has been stored.
The activated preset button is indicated in
the display.
/ or manually
Notice:
Should you tune in a station which has already been stored before, then the corresponding preset position and memory bank
will briefly flash in the display.
Automatically storing the
strongest stations with
Travelstore
You can automatically store the six most
powerful FM stations of your current reception area sorted according to their signal
strength. This function is particularly convenient on longer trips.
• Press the FM
1 sec.
“T-STORE” will appear in the display.
The six strongest FM stations will be auto-
matically stored on the memory bank “T”
(Travelstore). When this process has been
completed, the radio will play the first station stored on preset 1.
If desired, stations can also be stored manually on the Travelstore bank (see “Storing
stations”).
T or BND button for
Recalling stored stations
You can recall any stored station at the touch
of a button.
• Select the memory bank with FM
BND.
• Press the corresponding preset button
briefly to recall the station.
T or
Scanning stored stations with
Preset Scan
You can have all of the stored stations briefly
scanned on all wavebands.
Preset Scan cannot be started unless PTY
has been switched off (“PTY” is not lit up in
the display).
To start Preset Scan:
• Press SC for approximately 1 sec.
All of the stored stations to be received will
be scanned one after the other.
To select a scanned station and switch
off Preset Scan:
• Press SC briefly.
Note:
If “TA” shows on the display panel, the system will scan the stored traffic stations only.
40
Scanning stations with RadioScan
You can briefly scan through all of the receivable stations of the selected waveband.
To start the Scan function:
• Press SC briefly.
The scanned frequency or station name will
flash in the display. During the actual scanning process “FM SCAN” or “AM SCAN” will
be displayed.
To select a scanned station and switch
off Radio-Scan:
• Press SC briefly.
If no station is selected, the scan function
will be automatically switched off after the
frequency band has been run through completely. The unit will tune in the station listened to before starting the scan.
Selecting the seek tuning sensitivity
You can alter the automatic seek tuning
sensitivity.
If “lo” is displayed, the radio will only pick up
strong, local stations.
If “lo” does not light up, the radio will also
pick up weaker, distant stations.
To switch the seek tuning sensitivity:
• Press
/ lo briefly.
The sensitivity level can be altered separately in both modes. Please refer to chapter “DSC programming - S-LO, S-DX”).
Switching from stereo to mono
Every time the radio is switched on, stereo
playback is activated automatically.
The unit will gradually switch to mono if reception is poor.
You can also switch between mono and stereo reception manually:
• Press the
/ lo button for approxi-
mately 1 sec.
The selected condition will briefly appear in
the display.
Loudness
Adjusts the low bass frequencies for a more
natural sound.
Switching Loudness on/off:
• Press the AUD button for approximate-
ly 1 sec.
When the Loudness function is active, “LD”
will light up in the display.
See chapter “DSC programming” for more
information.
PTY – Programme-Type
PTY is an RDS service offered by more and
more radio broadcasters. This feature allows
you to select FM stations according to their
programme type. After you have chosen the
PTY of your preference, the corresponding
stations can be selected either by seek tuning or using the scan function.
Switching PTY on/off
• Press PTY.
When the function is active, the programme
type selected last will briefly appear in the
display. “PTY” will be permanently indicated in the lower right corner of the display
panel.
Programme type
Use << >> to have the last selected programme type displayed and to choose a new
one.
You can select any one of the stored types
with the preset buttons 1-6.
Condition: PTY must be active.
Using DSC you can choose between German and English (see “DSC programming PTY LANG”).
All of the programme types listed below are
available.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
41
PORTUGUÊS
The letters printed in bold are identical to
the actual short-time indication in the display.
NEWS
CURRENT AFFAIRS
INFORMATION
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP MUSIC
ROCK MUSIC
M.O.R. M (middle of the road music)
LIGHT M (light classical)
CLASSICS (serious classical)
OTHER M (other music)
WEATHER
FINANCE
CHILDREN’S PROGRAMMES
SOCIAL AFFAIRS
RELIGION
PHONE IN
TRAVEL
HOBBIES
JAZZ MUSIC
COUNTRY MUSIC
NATIONAL MUSIC
OLDIES MUSIC
FOLK MUSIC
DOCUMENTARY
ALARM TEST
Checking the programme type of the
station
• Press PTY for approximately 1 sec.
After the beep tone the display will show the
programme type offered by the tuned in station.
If “NONE” appears in the display, the current station has no PTY code.
Displaying the selected programme
type
• Press << or >>.
The programme type selected last will be
displayed briefly.
Selecting a programme type
a) Using the preset buttons
When PTY is switched on, you can use
the preset buttons 1-6 to select the
programme types stored at the factory.
• Press one of the presets 1-6.
The selected programme type will be
displayed for 2 seconds.
If you wish to listen to a station with
this PTY,
• press
/ to start seek tuning.
If the system is unable to find a station offering the selected programme type, the display will show “NO PTY” and a beep tone
will be released. The station received before starting seek tuning will be tuned in.
You can assign different programme types
to each preset position. Please refer to chapter “Storing programme types”.
b) Using the << >> buttons of the rocker
switch
When PTY is switched on, you can se-
lect a programme type using buttons
<< >>.
• Press << or >>; the programme
type selected last will be displayed
for 3 seconds.
• During this period press >> (forwards) or << (backwards) to select
the desired type.
• Press << or >> as many times as
required.
If you wish to listen to a station offering
the selected PTY,
• press
If the system is unable to find a station offering the selected programme type, the display will show “NO PTY” and a beep tone
will be released. The station received before starting seek tuning will be tuned in.
/ to start seek tuning.
42
Storing programme types
At the factory, one programme type was
assigned to each of the preset buttons 1-6.
If desired, you can also store other available programme types.
To do so, make sure that “PTY” lights up in
the display.
• If necessary, press the PTY button to
switch on the function.
• Select a programme type using buttons << >> and
• hold down the desired preset button
(1-6) until you hear a beep.
Now the selected programme type can be
recalled by pressing this preset. For this, the
PTY function must be active.
Scanning stations with PTY-SCAN
Condition: “PTY” must appear in the display.
• Press the SC button.
All of the received stations offering the selected programme type will be scanned.
To switch off PTY-SCAN:
• Press SC once again.
PTY priority
Situation:
PTY is switched on and lights up in the dis-
play.
No station offering the selected programme
type can be currently received (neither with
seek tuning nor with scan).
The set will switch back to the previous station.
As soon as a programme with such PTY can
be received within the broadcasting network,
the unit will switch over to the corresponding station for the duration of the programme.
Example: German broadcasting network
NDR:
- Station tuned in: NDR3.
- “PTY” lights up in the display.
- Programme type “POP” selected.
- Seek tuning is started.
- No station with “PTY-POP” can be
found.
- The display shows “NO PTY” and
- automatically switches back to NDR3.
- NDR2 airs a “PTY-POP” programme.
- The system will switch to the linked
NDR2 station for the duration of the
“POP” programme.
During cassette or CD-changer operation,
the set will also automatically switch to the
programme offering the selected PTY within the broadcasting network.
After the PTY programme the system will
remain in the radio mode.
Notice:
As mentioned earlier, these functions are
currently only supported by a limited number
of RDS stations.
43
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Receiving traffic programme stations with RDS-EON
The abbreviation “EON” stands for Enhanced Other Networks, meaning the exchange of information within a radio network.
Many FM broadcasters offer traffic messages for their service area at regular intervals.
All traffic programme stations transmit a
special carrier signal alongside their programmes, which is decoded by your car radio. If this signal is identified, “TP” will appear in the display (Traffic Programme).
In addition to these, there are also stations
which do not actually transmit traffic programmes themselves, but by using RDSEON they offer the possibility to receive the
traffic messages broadcast by another traffic programme station in the same radio
network.
If you wish to have the priority for traffic announcements activated while listening to
one of these stations (e.g. NDR3), “TA” must
appear on the display panel.
If a traffic announcement is broadcast, the
radio will automatically switch to the linked
traffic programme station (in this case,
NDR2) for the duration of the message and
return to the original programme (NDR3)
afterwards.
Traffic announcement priority
on/off
If the priority for traffic announcement programmes is activated, “TA” will light up in
the display.
To switch the priority on or off:
• Press the TA button.
When pressing TA while a message is being broadcast, this message will be interrupted. The unit will then switch back to the
previous condition. The priority for all other
traffic messages remains active.
Please note that several buttons have no
function while a traffic announcement is
broadcast.
Beep tone
If you leave the reception area of the traffic
programme station currently tuned into, you
will hear a beep tone approximately every
30 seconds.
This tone will also be released when pressing a preset button which has no traffic programme allocated to it.
Switching off the beep tone
a) Tune into another station offering traf-
fic information:
• Press the rocker switch or
• press a preset button which has a
traffic programme station allocated
to it.
Alternatively:
b) Switch off the priority for traffic an-
nouncements:
• Press TA.
“TA” will disappear from the display.
Automatic seek tuning start
(tape and CD changer operation)
When leaving the reception area of the tuned
in traffic programme station while listening
to a tape or CD, the system will automatically start searching for a new TA programme.
If no such station is found within approximately 30 seconds, you will hear a warning
beep every 30 seconds. To switch off the
beep tone proceed as described above.
44
Tape operation
Adjusting the volume for traffic
announcements and the beep
tone
This volume was preset at the factory,
though you can alter the value using the
DSC function (see “DSC programming, TA
VOL”).
If the volume level is altered while a message is being played, this will only affect the
current announcement.
The car stereo has to be switched on.
The unit will automatically switch to tape
operation when inserting a cassette.
Inserting a tape
• Turn on the set.
• Insert a tape.
The cassette will be automatically transport-
ed to the playback position. Side A or 1 starts
to play.
During tape operation, “TR 1” or “TR 2”
(track) will be indicated on the display panel.
Insert the tape with side A or 1 facing up, the open side
showing to the right.
Removing a tape
• Press for 1 sec.
The cassette will eject.
Fast Forward/Rewind
Fast forward
Fast rewind
/ Title selection (S-CPS)
Stop function by pressing .
Up
Down
Selecting titles with S-CPS
(Super Cassette Programme Search)
Use this function to skip (
recorded titles.
A maximum of nine titles can be skipped.
To do so,
• press the rocker switch as many times
as required.
The number of titles to be skipped appears
on the display panel.
If necessary, you can correct your entry by
pressing the opposite rocker switch button.
Stop immediately by pressing
) and repeat ( )
.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
45
PORTUGUÊS
For a proper operation of the S-CPS function there has to be an unrecorded tape
portion of at least three seconds between
the individual titles.
Switching the tape side
(autoreverse)
To change the tape direction during cassette
playback:
• Press
At the end of a tape side the mechanism
changes directions automatically to play the
other side (autoreverse). The display shows
“TR 1” for track (side) 1 or “TR 2” for track 2.
Notice:
If there is too much tension on the tape during playback, the set may switch over by itself before having reached the end of the
tape side. In this case check the condition
of the cassette tape. Sometimes it helps to
rewind it completely.
briefly.
Tape equalisation
When a metal or CrO2 tape is inserted, the
tape mechanism automatically adjusts to
metal/CrO2 tape equalisation.
Scanning cassette titles with
SCAN
You can have the cassette titles played briefly by using the scan function. If you like a
title, stop the scan to continue listening to
that track.
To start/stop the scan function:
• Press the SC button briefly.
Scan condition: There has to be an unre-
corded tape portion of at least 3 seconds
between the individual titles.
Dolby B NR*
With this unit you can play back tapes recorded with Dolby-B NR or without noise
reduction.
Cassette tapes recorded with Dolby NR*
stand out by their reduced tape hiss and the
improved dynamics.
If Dolby-B NR is switched on, “B” will light
up in the display.
To switch on/off:
• Press
* Noise Reduction system manufactured under licen-
se from Dolby Laboratories Licensing Corporation.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
/lo.
Listening to the radio during
fast tape winding with RM
(Radio Monitor)
When the tape is fast forwarded or rewound
(also with CPS), the radio will normally be
muted. In order to listen to the radio during
fast winding, you can activate the Radio
Monitor function.
For more information please refer to chapter “DSC programming - RM ON/OFF”.
Skipping unrecorded tape portions with Blank Skip
This function senses an unrecorded tape
portion continuing for more than 10 seconds
and automatically fast forwards the cassette
to the beginning of the next track.
Please refer to chapter “DSC programming
- BLS ON/OFF” for more information on how
to use this function.
46
CD changer operation
Care notes
To avoid possible problems, we recommend
you to use C-60/C-90 type cassette tapes
only. Store your tapes in a cool place away
from dirt, dust and temperatures exceeding
50 °Celsius. Allow very cold tapes to warm
up before playing them in order to avoid
uneven tape transport. After approximately
100 hours of use, dust particles collected
on the playback head or roller may lead to
tape run problems and sound distortions.
Use a head cleaning tape to remove normal dirt build-up. For tougher cases, use a
cotton swab (Q-Tip) dipped in alcohol. Do
not attempt to clean by inserting a hard object into the player!
Optional:
Como RCM 148, Madrid RCM 148,
Texas RCM 148
Included in scope of delivery:
Madison DJ, New Orleans DJ
This piece of equipment offers you convenient control of a Blaupunkt CD changer CDCA 06, CDC A 072.
Note:
Use only perfectly circular CDs.
CDs manufactured in the shape of a butterfly or a beer mug, for example, are not suitable for use with this equipment.
Using such CDs can very likely result in the
destruction of the CD and the CD drive.
We assume no responsibility for damages
caused by using unsuitable CDs.
Switching to the CD changer
mode
Make sure that at least one CD has been
inserted into the magazine.
Press SRC to toggle the audio source:
• Press repeatedly until the CD functions
appear in the display.
Selecting CDs and titles
CD selection
Up
Down
Title selection
Upwards: Press briefly.
CUE - fast advance (audible): Keep
depressed.
Downwards: Press as many times as
required.
To re-start a title: Press briefly.
REVIEW - fast reverse (audible):
Keep depressed.
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
47
PORTUGUÊS
MIX playback
You can have the CD tracks played in random order.
Select the desired MIX mode in the DSC
menu.
MIX CDC – The MIX mode is active:
The individual discs and the
titles of the selected CD are
chosen randomly. After all
titles have been played, the
next CD will be selected at
random again.
to select a CD title in
Use
random order.
MIX OFF – The Mix function is deactivat-
ed. Discs and titles will be
selected in numeric order.
To change the MIX mode:
• Press DSC.
Select “MIX” using the rocker switch
and adjust with << >>.
If the function is active, “CDC MIX” will be
displayed every time CD changer operation
is activated.
Selecting the display mode
You can select the desired display mode for
CD playback:
“NUMBER” – The CD number, such
as “CD 8” is displayed.
“TIME” – The elapsed playback
time of the current title
is displayed, for example “2 : 32”.
To switch the display mode:
• Press DSC.
Use the rocker switch
“CDC DISP”.
• Use << >> to adjust to “NUMBER” or
“TIME”.
You can also change the display mode immediately for the title currently playing by
pressing
/
.
/ to select
SCAN
Use this function to scan all of the CD tracks.
To start the Scan function:
• Press SC.
The titles will be scanned one after the oth-
er in ascending order.
To stop the Scan function:
• Press SC briefly.
The track currently being scanned is con-
tinued to be played.
SCAN will also be terminated by
• pressing one of the buttons AUD,
DSC, SRC, << >> or
/ .
48
DSC programming
DSC (Direct Software Control) allows you
to customise certain programmable, basic
settings to suit your personal needs and
preferences and then store them.
The basic settings for this audio equipment
were made at the factory.
In the following you can find an overview of
these settings, so that you can always reset
to these if desired.
If you wish to alter any of the programming,
• press SRC to choose the desired operating mode (e.g. radio, if you wish to
change the language with PTY LANG).
• press DSC.
Use the rocker switch to select and adjust
the functions described in the following. The
display will show you the adjusted condition.
/ Select function
<< >> Adjust/recall value
AM ON / OFF
(Como RCM 148, Texas
RCM 148, Madison DJ)
You can deactivate one or
both AM bands (MW/LW) in
order to reduce the number
of bands for selection with
BND.
selectable:
AM ON – all bands
MW OFF – LW, FM
LW OFF – MW, FM
AM OFF – FM
MIX For changer operation only.
MIX CDC CD selection at random.
All titles of this disc will be
chosen in random order as
well.
The next disc is again selected at random.
MIX OFF The MIX function is
switched off.
CDC DISP For changer operation only.
To select the display mode
NUMBER or TIME. See
changer operation - Selecting the display mode).
RM
ON / OFF
(Radio Monitor)
For tape operation only.
Allows you to listen to the
radio during fast winding of
the tape.
RM ON – Radio playback
activated
RM OFF – Function deactivated
BLS (Blank Skip – to skip unre-
corded tape portions automatically)
For tape operation only.
BLS ON – Automatic fast
tape forwarding if the system senses an unrecorded
tape portion continuing for
more than 15 seconds.
BLS OFF – The function is
deactivated.
LOUDNESS When listening at a low lev-
el, the Loudness function
creates a more natural
sound by boosting the low
frequency range.
LOUD 1 - Low boost
LOUD 6 - Max. boost
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
49
TA VOL To adjust the traffic an-
nouncement and beep tone
volume from between 0 to
63.
The message will then come
through at this volume, if the
standard volume is lower.
If the standard volume is
higher than the TA VOL level, the traffic report will be
played slightly louder than
the standard volume.
BEEP Acknowledgement tone for
all functions which require a
button to be pressed for
more than 1 second.
The volume can be adjusted
from between 0 to 9. (0 =
off)
LED
ON/OFF
You can choose between
LED ON or LED OFF. With
LED ON, the KeyCard
tongue will flash for extra
anti-theft protection when
the unit has been switched
off and the KeyCard removed.
LEARN KC To “train” a second Key-
Card.
Please read the information
in chapter “KeyCard theft
protection system - Training
a second KeyCard”.
READ KC To read out the KeyCard
data.
The KeyCard supplied with
the radio is used to display
the model name, type
number (7 6..) and the serial
number.
Using the second KeyCard
to be purchased at any specialised dealership it is possible to display the Short
Additional Memory (S.A.M.)
data entered by the dealer.
See chapter “Short Additional Memory S.A.M.”.
PTY LANG To select the programme
type language: DEUTSCH
or ENGLISH
S-DX To adjust the seek tuning
sensitivity for distant reception.
DX 1 - high sensitivity
DX 3 - low sensitivity
S-LO To adjust the seek tuning
sensitivity for local reception.
LO 1 - high sensitivity
LO 3 - low sensitivity
The seek tuning sensitivity
values can be set separately
for AM and FM.
AUX
ON/OFF
Please note that this item
will not appear if you have
connected a CD changer.
Default setting: AUX OFF.
Adjust to AUX ON if you
have connected an external
piece of equipment to the
AUX socket.
50
VOL FIX Use this function to select
the volume at which the radio is set when it is switched
on. Adjust the desired volume level with << >>. When
adjusted to “VOL 0”, the
system will come on with the
volume selected before
switching it off.
To quit the DSC programming mode
and store the adjustment:
• Press DSC.
Overview of DSC factory settings
MIX OFF
CDC DISP NUMBER
RM OFF
BLS OFF
LOUDNESS 3
TA VOL 35
BEEP 4
LED ON
LEARN KC READ KC PTY LANG ENGLISCH
S - DX 1
S - LO 1
AUX OFF
VOL FIX 25
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
(Como RCM 148, Texas RCM 148,
Madison DJ):
AM ON
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
51
Appendix
Specifications
Amplifier
Output power: 4 x 23 W RMS power
acc. to DIN 45324 at
14.4 V
4 x 35 W max. power
Tuner
Wavebands:
FM : 87.5 – 108 MHz
(Como RCM 148, Texas RCM 148,
Madison DJ
MW 531 – 1602 kHz
LW 153 – 279 kHz
FM sensitivity: 0.9 µV at 26 dB signal-
to-noise ratio
FM frequency response:
30 - 16 000 Hz
Tape player
Frequency response:
CD changer
Frequency response:
30 - 18 000 Hz
5 - 20 000 Hz
Blaupunkt
telephone hotline
Address of the next service
centre in your vicinity
(only for Germany)
If you would like to know the address of
the next Blaupunkt service centre of
your area without having our service list
at hand:
- Find out your area code.
- Then call the following chargeable
phone number: 01 80 / 5 25 56 66.
- Using the area code to be entered
you will be automatically given the
address and phone number of the
next Blaupunkt service centre. You
can also request this information
by fax.
52
Subject to modifications!
Blaupunkt-Werke GmbH
Bosch Gruppe
12/97 Ts K7/VKD 8 622 401 355
28
Loading...
