CAR MULTIMEDIA
HOKKAIDO 100
Operating and Installation Instructions
Car radio must be used in a way that compliments
safety of the user when driving the vehicle. It is
recommended for the user to at an appropriate
location when operating the car radio. While
driving, user is not recommended to use
applications that can be prone to distraction e.g.
streaming to videos, entering destination etc.
User is recommended to proceed with proposed
driving routes only if it does not violate any trac
regulations. Local trac signs and regulations
always prevail over the routes proposed.
User is advised to keep the volume of the car radio
to a moderate level for the protection of the ears
and to increase the ability to hear any emergency
warning signals (e.g. police and ambulance sirens).
Do not increase the car radio volume while the car
radio is muted as it is not audible. The car radio
volume can be too loud when the car radio is
unmuted.
This car radio is intended for installation and
operation in a vehicle with 12V vehicle system
outage, hence the radio unit must be installed in a
DIN slot. Observe the output limits of the car radio.
Do not dismantle or modify the car radio.
Installation and repairs, if necessary, should be
performed by a specialist. We are not liable for any
loss or damage caused or resulting from
unauthorized disassembly or modication to the
product.
CAUTIONS
Safety Notes
This car radio has been manufactured according to
established safety guidelines. However, dangers may still
occur if the safety notes in this manual is not observed.
This manual is intended to familiarize the user with the
car radio’s important functions. Read this carefully, prior
to using the car radio. Keep this manual in an easily
accessible location. In addition, do observe the
instructions of the devices used in conjunction with this
car radio.
Road Safety
Always observe the following notes for road safety:
•
•
•
General Safety Notes:
Observe the following for protection against injuries:
•
•
•
•
•
•
•
Disclaimer
In no event shall Blaupunkt be liable for any direct,
indirect, punitive, incidental, special consequential
damages to property or life and whatsoever arising out
of or connected with the use or misuse of our products.
USA & CANADA: This product is not intended for sale in
the United States and Canada. If purchased in the U.S. or
Canada, this product is purchased on as-is basis. No
warranty, whether expressed or implied is provided in
the U.S. or Canada.
This car radio’s core components may result to
damage when the car is driven on bumpy roads for
a prolonged period of time or if it is used to play
non-standard or severely damaged discs.
Please do not operate the car radio under extreme
temperature conditions (extremely high
temperature or extremely low temperature); make
sure that temperature within the car ranges from
-20°C to 80°C before you connect the car radio to
the power supply
For abnormalities, please refer to the
“Troubleshooting” section. If the problem cannot be
resolved, please press the Reset button to recover
its factory settings. Otherwise, please contact
respective installer/seller directly for help.
As SD/USB le formats, codecs, bitrate, resolution
and other parameters available in the market are
not all the same, there is no guarantee that this car
radio can play all media le formats.
Dierent cars may have dierent congurations. It is
normal that some CAN-Bus functions cannot be
enabled because it is not supported by the user’s
car or this car radio.
Solvents, cleaning and scouring agents as well as
dashboard spray and plastics care products may
contain materials which can damage the surface
and screen of the car radio. Use only dry or slightly
moistened cloth to clean the car radio surface and
screen.
This manual may be updated from time to time
without any notice.
1
KEY FUNCTIONS
Radio mode
•
Playback mode
•
Phone (BT) mode
•
Press once to turn on or o.
Media mode
•
Phone (BT) mode
•
MUTE
Press to switch EQ between ROCK - POP CLASS - JAZZ.
Turn knob left/right to increase/decrease
volume or press knob to switch between
BAS : Bass
TRRE : Treble
BAL : Balance
FAD : Fader
LOD : Loud
EQ : Equalizer
and turn left/right to adjust.
Press to switch between radio band FM1 FM2 - FM3 or press and hold for automatic
radio stations scan and save .
Press to select songs (use 20 or 19 to select
position of the digit, turn the knob (6) to
select the number, then press 6 to conrm to
play track.
Press to end call.
Press to switch between media RADIO - USB SD - BT - AUXIN.
Press to answer call.
1
2
3
4
5
6
LCD Display
Press to view time or press and hold to adjust
time setting.
USB
AUX-IN
SD
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Use digit to select radio station or press and
hold to save the station.
Press to skip to next 10th song or press and
hold to skip to the next folder.
Use digit to select radio station or press and
hold to save the station.
Press to skip to previous 10th song or press
and hold to skip to previous folder.
Use digit to select radio station or press and
hold to save the station.
Press to turn on/o shue play.
7
8
9
10
11
12
13
14
2
1
19 18 17 16 15 14 13 12 11 10
32 4 5 6 7
8
9
KEY FUNCTIONS
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Use digit to select radio station or press and
hold to save the station.
Press to repeat ONE/ALL.
Use digit to select radio station or press and
hold to save the station.
Press to play the rst 5sec of each track.
Use digit to select radio station or press and
hold to save the station.
Press to PAUSE/PLAY.
Press and hold until MANUAL appear to
manually increase the frequency. Or repeat
press and hold until AUTO appear to increase
the frequency automatically.
Press to skip to next track.
Press and hold until MANUAL appear to
manually decrease the frequency. Or repeat
press and hold until AUTO appear to
decrease the frequency automatically.
Press to begin the track again or press twice
to skip to previous track.
15
16
17
18
19
Mute
Power
•
Media mode
•
Radio mode
•
Phone (BT) mode :
•
Radio mode
•
Phone (BT) mode :
•
Increase volume
Decrease volume
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Press to turn on or press and hold to turn o.
Press to switch between media RADIO - USB SD - BT - AUXIN.
Press and hold until MANUAL appear to
manually increase the frequency. Or repeat
press and hold until AUTO appear to increase
the frequency automatically.
Press to skip to next track.
Press and hold until MANUAL appear to
manually decrease the frequency. Or repeat
press and hold until AUTO appear to
decrease the frequency automatically.
Press to begin the track again or press twice
to skip to previous track.
Press to broadcast each saved radio station
for 5sec or press and hold for automatic radio
stations scan and save.
Press to select songs (use 3 or 4 to select
position of the digit, adjust the number with
5 or 6 to select the number, then press 19 to
conrm to play track.
Use digit to select radio station or press and
hold to save the station.
Press to play the rst 5sec of each track.
Use digit to select radio station or press and
hold to save the station.
Press to PAUSE/PLAY.
1
2
3
4
5
6
7
8
9
3
BAND
CLK
SEL
EQ
RPT
DIR+
9
6
3
RDM
7
4
1
SCN
0
DIR-
8
5
2
V-
V+
1
2
3
4
5
6
7
8
9
10
11
12
18
17
16
15
14
13
KEY FUNCTIONS / OPERATION
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Digit button
Radio mode
•
Playback mode
•
Radio mode
•
Playback mode
•
Media mode
•
Press this button to select preferred option.
Press to view time or press and hold to adjust
time setting.
Radio mode
•
Ensure mobile phone supports Bluetooth
function before pairing. Dierent mobile phone
will have dierent emissive power. To get the
best connection, the recommended distance
range is 3m without any object obstruction.
Use digit to select radio station or press and
hold to save the station.
Press to skip to previous 10th song or press
and hold to skip to previous folder.
Use digit to select radio station or press and
hold to save the station.
Press to turn on/o shue play.
Use digit to select radio station or press and
hold to save the station.
Press to skip to next 10th song or press and
hold to skip to the next folder.
Use digit to select radio station or press and
hold to save the station.
Press to repeat ONE/ALL.
Press to switch between media RADIO - USB SD - BT - AUXIN.
Press to switch between radio band FM1 FM2 - FM3.
10
11
12
13
14
15
BLUETOOTH
Pre-pair Blutooth
•
Turn on mobile phone’s Bluetooth to set up.
(Please refer to the instruction manual of the
mobile phone on how to operate Bluetooth)
“Hokkaido 100 BT” should appear on your
available Bluetooth scanning list.
Select “Hokkaido 100 BT” . Pairing successful
when phone’s Paired Device list appear as
“Connected” under Hokkaido 100 BT.
...............................................11 ~ 16V
..........................................max. 10A
..................................................4 x 50W
............................180 x 120 x 55mm
..........................................................................0.318kg
.......................................-20° ~ 60°
..........................................87.5 - 108MHz
....................................................18
.......................................................................<20dB
........................................................>25dB
...................................................................................>60dB
......................................20Hz - 20kHz
..................................................4 ohms
....................................................................MP3, WMA
....................................................................ID3 display
........................................................................<0.3%
...................................................................................>60dB
.................................................................................A2DP
....................................................................3.5mm jack
Car sound system
Operating / installation instructions
Remote control (include battery)
Connecting cable
Installation keys
Trim ring
Mounting bar
Pairing
•
•
•
General
Power supply (12V)
Current Consumption
Max. power output
Dimension (WxDxH)
Weight
Operation temperature
FM Stereo Radio
Frequency range
Preset memory stations
Sensitivity
Stereo separation
SNR
Audio Specication
Frequency response
Speaker impedance
Playback
USB/SD
Display
Distortion
SNR
Bluetooth
Prole
Aux-In
Scope of Delivery
•
•
•
•
•
•
•
4
TROUBLESHOOTING

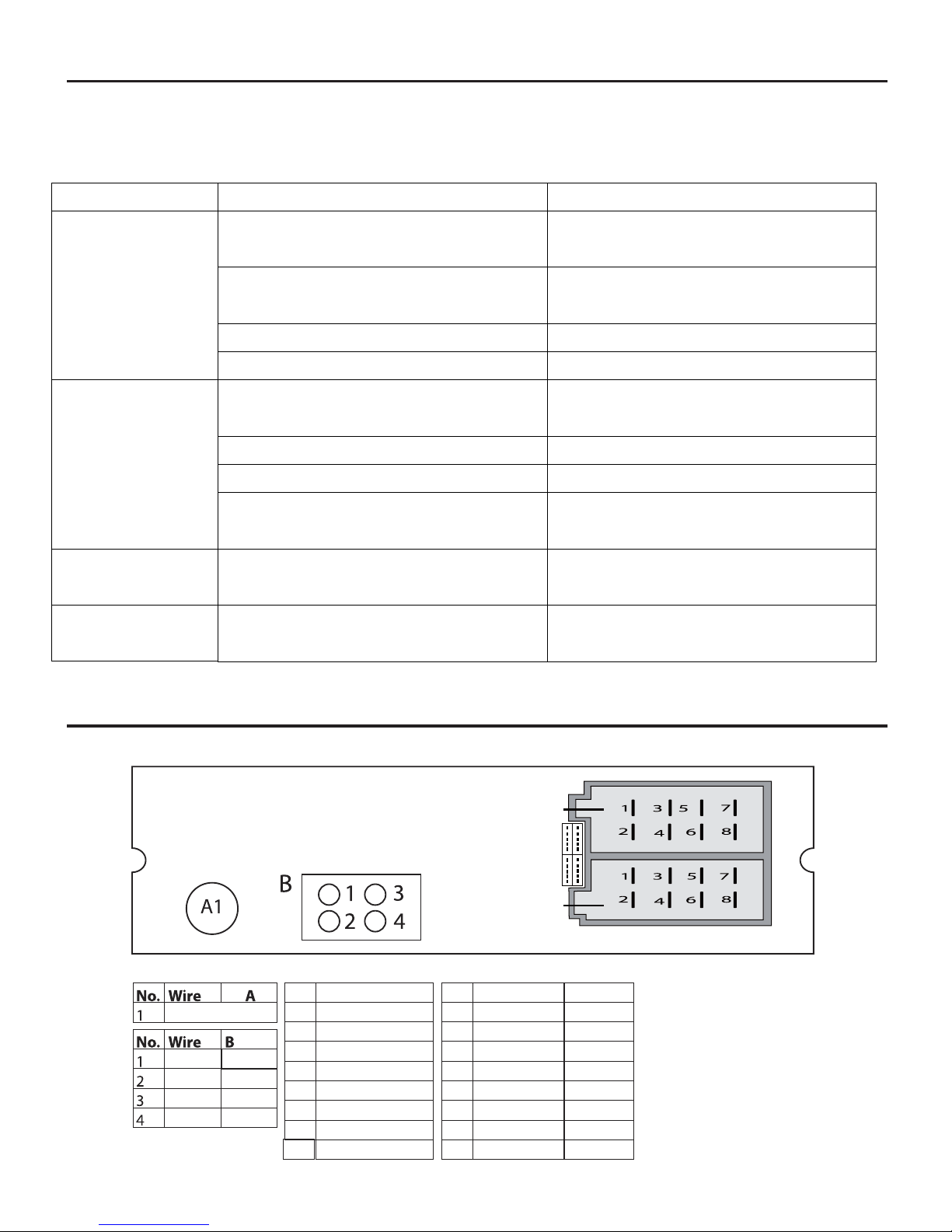

WIRING DIAGRAM
If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt
authorized dealer if problem persist.
Problems
Unable to start up
No sound
Slow in SD card
reading
Unable to search
radio stations
Possible Causes
The car key is not inserted into the
ignition; ignition is o
Power Cable is not inserted into the main
body.
Burnt power fuse .
Drained car battery.
Audio cables are not properly connected to
the unit.
Mute setting is on.
Low volume.
No sound from front, rear, left & right
speakers due to Fade-Balance settings.
SD card may contain corrupted les or virus.
Radio’s antenna is not well inserted.
Solutions
Insert the car key and turn on the ignition.
Insert the power cable.
Replace it with a new fuse.
Charge or replace the car battery.
Ensure proper connection of the audio
cables.
Unmute the volume.
Adjust the volume.
Select Equalizer from Home Page to adjust
setting.
Replace it with a new audio SD card with
compatible le formats.
Ensure radio antenna is properly installed.
5
C
D
No.
1
2
3
4
5
6
7
8
D
-
-
B+
ANT
ACC
GND
Wire
-
-
YELLOW
BLUE
RED
BLACK
No.
1
2
3
4
5
6
7
8
C
REAR RIGHT +
REAR RIGHT FRONT RIGHT +
FRONT RIGHT FRONT LEFT +
FRONT LEFT FRONT LEFT +
REAR LEFT -
Radio antenna
-
-
RCA
RCA
RCA
RCA
FL
FR
RL
RR
INSTALLATION INSTRUCTION
6
SAFETY
•
•
•
CAUTION
•
•
•
•
•
•
When installing amplier, rst connect the
device ground connections before connecting
the plugs for the line-out jacks.
Ground connection of external devices may
not be connected to ground of car sound
system (housing).
Supplied mounting hardware
Optional accessories
Assign a mounting location that will not
obstruct driver in any circumstances. Or
cause injuries to drivers and passengers in
case emergency brake or accidents.
Ensure all wires are connected properly, and
that the unit is functioning well before tting
the unit into the mount.
Any unauthorized installation and
modication may cause malfunction to the
unit. Always use the parts that are included
with the units only.
Disconnect the negative terminal of the
battery (Refer to vehicle manufacturer’s
safety instructions).
Be wary to not damage vehicle components
when drilling holes.
Make sure you do not damage vehicle
components when drilling any holes.
The cross sections of the positive and negative
cables must not be less than 1.5 mm2.
Do not connect the vehicle’s plug connectors
to the radio!
Your vehicle may dier from the description
provided here. Blaupunkt is not liable in case
any damage caused by incorrect installation
or connection.
Please contact Blaupunkt dealers or vehicle’s
manufacturer if information provided here
does not t your specic installation
requirement.
Installation kit
INSTALLATION INSTRUCTION
7
1.
4.
2.
3.
DISMANTLE INSTRUCTION
8
1. 4.
2.
3.
Design and engineered by Blaupunkt 1 101 18 013 29 01
Loading...
