VEHICLE
TRACKING SYSTEM
GT100
Operating and Installation Instructions
CAUTIONS
Safety Notes
This device has been manufactured
according to established safety
guidelines. However, dangers may
still occur if the safety notes in
this manual is not observed. This
manual is intended to familiarize
the user with the device’s import
ant functions. Read this carefully,
prior to using the device. Keep
this manual in an easily accessible
location. In addition, do observe
the instructions of the devices
used in conjunction with this
device.
Attentions
•
This device is intended for
installation and operation in a
vehicle with 12V and 24V vehicle
system voltage.
•
Keep the device away from
children.
•
Keep the device away from
ammable areas or liquids.
•
The device should be stored in
dry and low humidity place.
•
Ensure the car battery is fully
charged.
•
Weak signal or signal interference
of device can arise from obstacle
locations such as underground
parking.
•
For abnormalities, please refer
to the “Troubleshooting” section.
Consult with Blaupunkt dealer for
further assistance, in case if the
problem cannot be resolved.
This manual may be updated from
time to time without any notice.
Visit www.blaupunkt.com/ase for
latest info.
Disclaimer
In no event shall Blaupunkt be lia
ble for any direct, indirect, punitive,
incidental, special consequential
damages to property or life and
whatsoever arising out of or
connected with the use or misuse
of our products.
USA & CANADA: This product is
not intended for sale in the United
States and Canada. If purchased in
the U.S. or Canada, this product is
purchased on as-is basis. No
warranty, whether expressed or
implied is provided in the U.S.
or Canada.
Blaupunkt does not warrant the
performance of the local telecom
munication network used with our
product. It is recommended to test
for network compatibility prior
to purchase.
1
-
-
STRUCTURE & FUNCTIONS
Functions
Indicator light of GSM
1.
Indicator light of GPS
2.
Switch (On/O)
3.
SIM card slot
4.
Light sensor
5.
SPECIFICATIONS
•
Operating Voltage : DC 9V-36V
•
Current : 10mA
•
Navigation System : GPS
•
Location Accuracy : Up to10 meters
•
GSM Frequency : 850/900/1800/1900MHz
•
Internet Protocol : TCP
•
Working Temperature : -25°C ~ +75°C
•
Storage Temperature : -40°C ~ +85°C
•
Standby Battery : 0.5 Hours
•
Dimension (LxWxH) : 78.5x23x12mm
2
1
2
3 4
5
FUNCTION LIST OF THE DEVICE
Details
Functions
Vehicle
Status
Detection
Alarm
Notication
Acc On/ O
External Power
Disconnection
Low External
Battery
External Power
Supply
External Power
Disconnection
Enter Fence
Leave Fence
Speeding Start
Speeding End
Descriptions
Uploaded data include the Acc On/
O status each time in dynamic view.
When the vehicle voltage is <5V,
vehicle battery consumption is
stopped. When the backup battery
of device is depleted, the tracking
function will be disconnected.
Vehicle battery voltage is between
5V to 10V. It is an indicate that the
vehicle battery is low.
Power is supplied to the device.
Power supply has been disconnected
from the device.
The vehicle enters the dened area
set by user.
The vehicle leaves the dened area
set by user.
Vehicle speed exceeds value set.
Default is 120km/hr for 10 seconds.
Vehicle speed is below value set after
speeding is detected.
3
WIRING DIAGRAM
Note:
This wiring is only
required for remote
fuel cut-o function.
YELLOW (Fuel cut-o)
BLUE (Pump Wire)
ORANGE (ON ACC)
BLACK (Negative)
RED (Positive)
OFF
12V BATTERY
2A FUSE
86 30 87a 85
GREEN
+ -
WHITE
(Positive)
PUMP
TROUBLESHOOTING
If any of the following problem occur, please resort to Troubleshooting for
the possible solutions. Consult Blaupunkt authorized dealer if problem
persist.
Problems
Weak or no
GPS signal
The device is
not respond
ing to SMS
commands
Possible Causes
GPS tracking device is
not positioned properly.
SIM card has run out
of credit.
Improper installation of
SIM card.
Solutions
Check the installation location
of the device.
Ensure it is not being shielded
by metal.
Top up the SIM card.
Check whether the SIM card
has been slotted correctly.
Check that the SMS command
is correct.
4
OPERATION INSTRUCTION

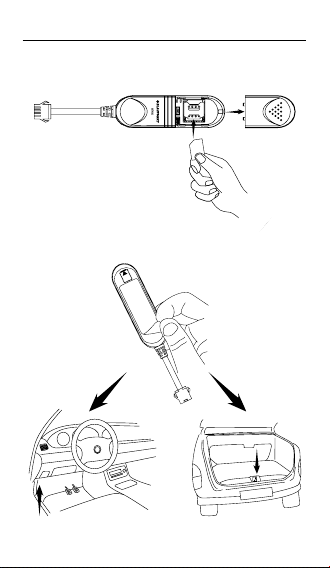

1.
Remove device cover and insert the SIM card into the SIM card slot
and close back the device.
(Ensure the SIM card has Internet access)
SIM
Card
2.
Tear o the 3M tape on the back of device and paste it inside the
dashboard or car trunk.
M
3
M
3
M
3
M
3
M
3
M
3
Inside Dashboard Car Trunk
5
DIFFERENT SCENARIO

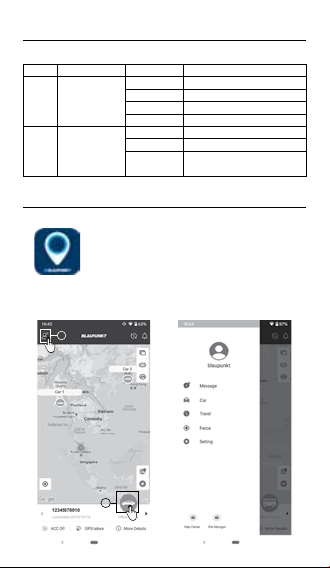

Indicator of GSM and GPS
Indicator Light
System
Red
GSM
Yellow
GPS
Status
Fast Flash
Slow Flash
Long Bright
No Light
Fast Flash
Long Bright
No Light
Meaning
GSM intialising
Normal GSM signal
GPRS online
No GSM signal/ No SIM card
Searching for GPS Signal
Normal GPS signal
No GPS signal/ GPS not
working
SOFTWARE OPERATION
Mobile Application
Search “Blaupunkt Tracker” on Google Play Store or iOS
App Store to download the App.
Home Page
1.0 Click on the menu button
2.0 Click to enter tracking interface.
a
b
1.0 Menu
6
SOFTWARE OPERATION
1.1 Setting
2.1 Tracking Details 2.1.1 Playback
2.0 Tracking
• Click to enter tracking details
interface.
7
SOFTWARE OPERATION

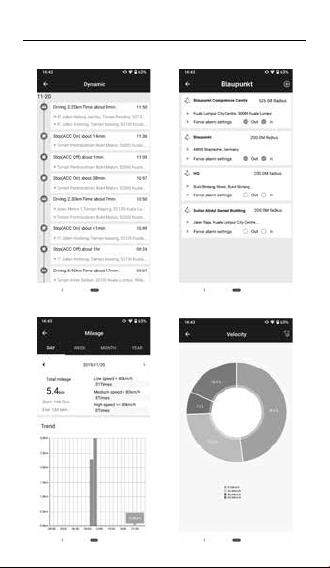

2.1.2 Dynamic
2.1.3 Fence
2.1.4 Mileage Analysis & Report
2.1.5 Velocity Analysis & Report
8
