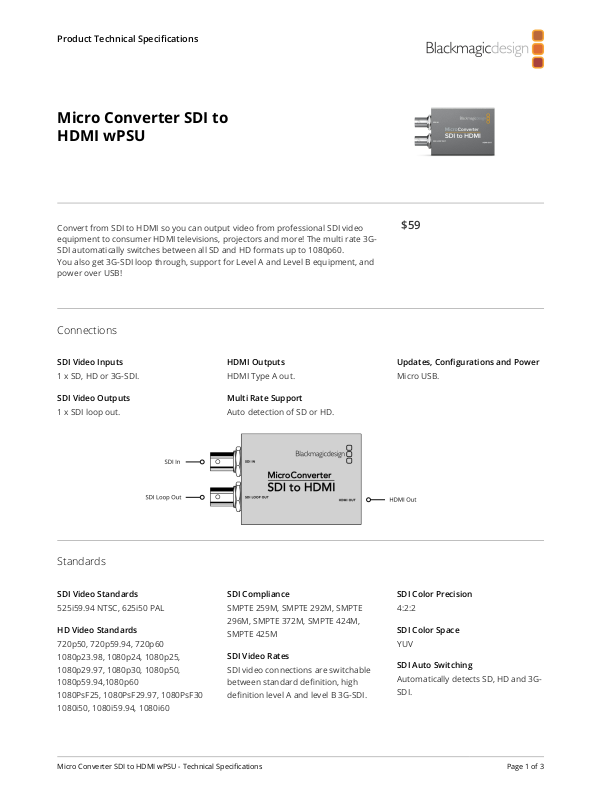

Product Technical Specifications
Micro Converter SDI to
HDMI wPSU
Convert from SDI to HDMI so you can output video from professional SDI video |
$59 |
equipment to consumer HDMI televisions, projectors and more! The multi rate 3G- |
|
SDI automatically switches between all SD and HD formats up to 1080p60. |
|
You also get 3G-SDI loop through, support for Level A and Level B equipment, and |
|
power over USB! |
|
Connections
SDI Video Inputs |
HDMI Outputs |
Updates, Configurations and Power |
1 x SD, HD or 3G-SDI. |
HDMI Type A out. |
Micro USB. |
SDI Video Outputs |
Multi Rate Support |
|
1 x SDI loop out. |
Auto detection of SD or HD. |
|
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3GSDI.
Micro Converter SDI to HDMI wPSU - Technical Specifications |
Page 1 of 3 |
