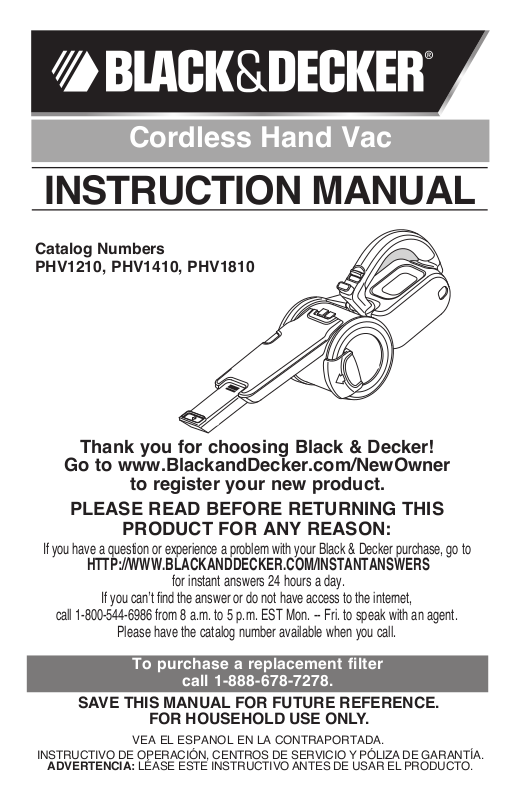

Black & Decker PHV1810, PHV1410 User Manual

Cordless Hand Vac

INSTRUCTION MANUAL

Catalog Numbers PHV1210, PHV1410, PHV1810

Thank you for choosing Black & Decker!

Go to www.BlackandDecker.com/NewOwner

to register your new product.

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON:

If you have a question or experience a problem with your Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

for instant answers 24 hours a day.

If you can’t find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

Please have the catalog number available when you call.

To purchase a replacement filter

call 1-888-678-7278.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

FOR HOUSEHOLD USE ONLY.

VEA EL ESPANOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION: Indicates a potentially haz ard ous situation which, if not

avoided, may result in minor or mod er ate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous

situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

WARNING: Some household dust contains chemicals known to the

State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

WARNING: To reduce the risk of fire, electrical shock or injury:

•

WARNING: To reduce the risk of electric shock – Do not

use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle charger, including charger plug, and charger terminals with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of

dust,lint, hair, and anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas

where they may be present.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

• Do not use without dust bag and/or filters in place.

• Do not charge the unit outdoors.

• Use only the charger supplied by the manufacturer to recharge.

• Do not incinerate the appliance even if it is severely damaged. The batteries can

explode in a fire.

• This appliance is intended for household use only and not for commercial or industrial use.

• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging base in

water or other liquid.

• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit

should be placed or mounted away from sinks and hot surfaces.

• Plug the charger directly into an electrical outlet.

• Use the charger only in a standard electrical outlet (120V/60Hz).

• Unplug the charger from outlet before any routine cleaning or maintenance.

• This product includes rechargeable nickel cadmium batteries. Do not incinerate batteries as they

will explode at high temperatures.

• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a

20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush

them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

• Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.

SAVE THESE INSTRUCTIONS

Symbols

• The label on your tool may include the following symbols. The symbols and their

definitions are as follows:

V ..................volts A ...................amperes

Hz ................hertz W .................. watts

min ..............minutes

or DC ..direct current

................Class I Construction .................earthing terminal

(grounded)

................Class II Construction .../min or rpm ........ revolutions or reciprocation

(double insulated) per minute

or AC .......alternating current

o .................no load speed

................safety alert symbol

• When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gauge Than Than 0 - 6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

Minimum Gauge for Cord Sets

Product Features

1. Dust collector

2. Dust container release button

3. Pivot lock button

4. On/off switch

5. Container door

6. Container door release latch

7. Charger

8. Flip-out brush

9. Dust collector extension

Assembly

Adjusting the dust collector (fig. A - C)

The dust collector (1) has a brush that can be

folded forward for dusting and upholstery cleaning.

• The dust collector (1) is stored under the

appliance. To adjust for use, unplug the

appliance from the charger (7).

• Press the pivot lock button (3) and rotate the dust collector (1) to the required position.

• Release the pivot lock button (3) to lock the

dust collector in position

• The dust collector can be extended by pulling the dust collector extension (9) until it

locks into position.

• The extension can be retracted by pressing the button (10) and pushing the extension

back into the dust collector.

• The dust collector should be returned to

the storage position under the appliance after use and while charging the appliance.

Use

• Before first use, the battery must be

charged for at least 9 hours.

• Plug the appliance into the charger

whenever power gets low.

Charging the battery (fig. D)

• Make sure that the appliance is switched off. The battery will not be charged with the on/off switch (4) in the on position.

• Plug the appliance into the charger (7) as shown. The charging indicator wil be lit.

• Leave the appliance on charge for at

least 9 hours. While charging, the charger may get warm, this is perfectly normal and safe. It is safe to leave the appliance connected to the charger indefinitely. The charger automatically reduces power consumption when charging is complete.

• When charging is complete, the LED will

turn off.

WARNING: Do not

charge the battery at ambient temperatures

below 39°F (4°C) or above 104°F (40°C).

Switching on and off (fig. E)

• To switch the appliance on, slide the on/ off switch (4) forward to position I.

• To switch the appliance off, slide the on/ off switch (4) back to position 0.

Optimizing the suction force

Rotating the bowl (fig. A) agitates the filter

to remove dirt; however, in order to keep the suction force optimized, the dust container and filters must be cleaned regularly.

Cleaning the dust container and filters (fig. F - J)

There are two methods of cleaning the bowl, a quick empty method and a thorough clean method.

For the quick empty method use the following instructions.

• Press the release latch (6) and open the container door (5) (fig. F).

• Empty the dust container (11).

• Close the dust container door (5). Make sure that the release latch (6) clicks into place.

For the thorough clean method use the following instructions.

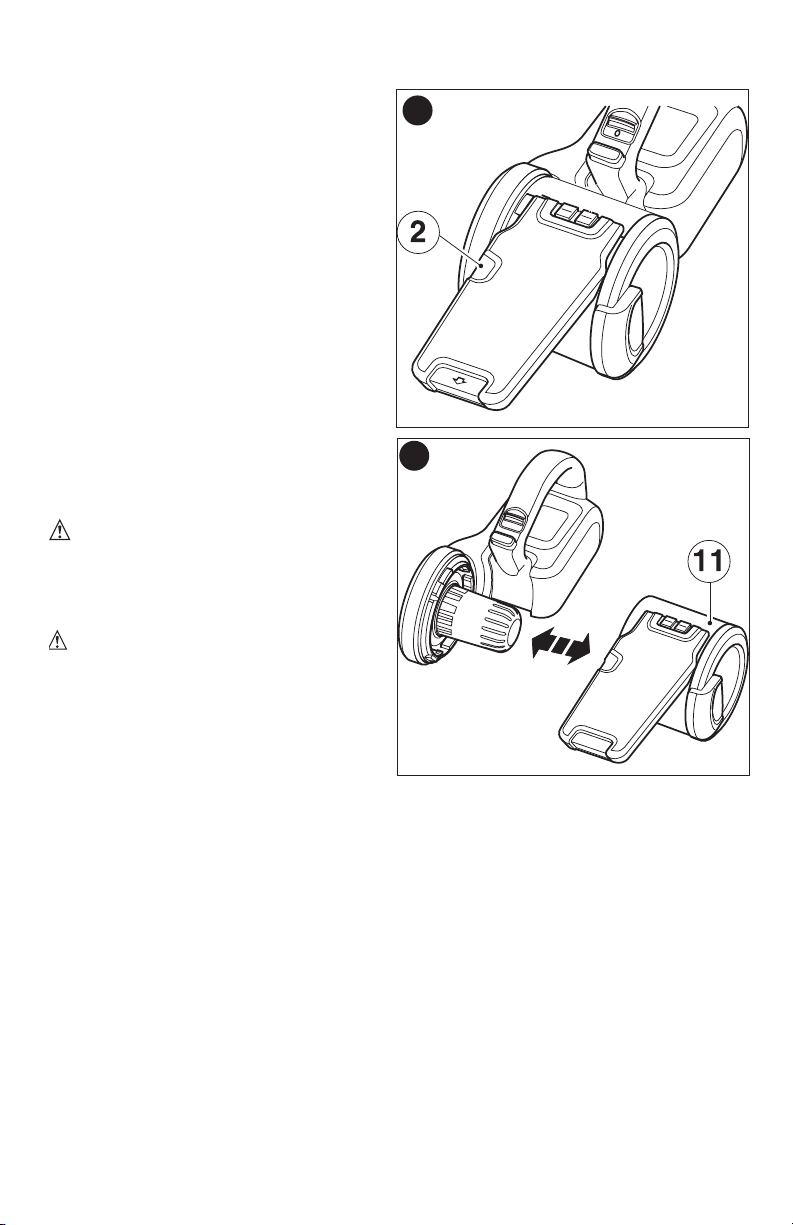

• The dust container (11) is attached to

the body of the appliance. To remove the dust container, press the dust container

release button (2) and rotate the dust container (11) counterclockwise and

carefully slide the dust container clear of the appliance.

• Remove the main filter (13).

• Brush any loose dust off the filter (12).

•

To remove the pre-filter, rotate counterclockwise and carefully slide it clear of the dust container.

• The dust container can be cleaned.

Wipe with a damp cloth or rinse with warm soapy water and allow to dry.

• The filters are re-usable and should be

cleaned regularly. Rinse with warm soapy water and allow to dry.

• Install the pre- filter into the dust container (11) rotating it clockwise until it

locks into place.

• Install the main filter into the pre-filter.

• Install the dust container (11) to the

appliance, rotate it clockwise until it locks into place.

WARNING:

Respiratory Hazard: Never use the

appliance without the filters. Optimum dust collection will only be achieved with clean filters.

CAUTION:

appliance on when dust container is removed.

the pre-filter

Projectile/

Do not turn

Replacing the filters

The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available

from your Black & Decker dealer (cat. no. PVF110):

• Remove the old filters as described

above.

• Fit the new filters as described above.

Maintenance

Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the

IMPORTANT:

and adjustment (other than those listed in this manual) should be performed by authorized

service centers or other qualified service personnel, always using identical replacement

tool; never immerse any part of the tool into a liquid.

To assure product SAFETY and RELIABILITY, repairs, maintenance

parts.

Troubleshooting

Problem Possible Cause Possible Solution

• Unit will not start. • Battery not charged. • Check battery charging

requirements.

• Battery will not charge. • Charger not plugged in. • Plug charger into a working outlet. Refer to “Important Charging Notes” for more details.

• Check current at receptacle by plugging in a lamp or other appliance.

• Check to see if receptacle is

connected to a light switch which turns power off when you turn out the lights.

• Surrounding air • Move charger and tool to a

temperature too hot or surrounding air temperature

too cold. of above 40 degrees F(4.5°C) or below 105 degrees F (+40.5°C).

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986.

Accessories

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:

1-800-544-6986.

WARNING: The use of any accessory not recommended for use with

this tool could be hazardous.

BATTERY REMOVAL AND DISPOSAL

This product uses nickel-cadmium (Ni-Cd) rechargeable and recyclable batteries.

When the batteries no longer hold a charge, they should be removed from the Vac and recycled. They must not be incinerated or composted.

The batteries can be taken for disposal to a Black & Decker, Company-Owned or Authorized Service Center. Some local retailers are also participating in a national

recycling program (see “RBRC

the batteries to a Black & Decker Company-Owned or Authorized Service Center, the Center will arrange to recycle old batteries. Or, contact your local municipality for proper disposal instructions in your city/town.

To remove the battery pack for disposal:

1.) First, before attempting to disassemble the product, turn it on and leave it on until

the motor completely stops insuring a complete discharge of the batteries.

2.) Ensure nozzle is rotated out of storage position.

3.) Using a phillips screwdriver, remove the seven screws securing the two housing

halves.

4.) Lift the housing cover away from the assembly.

5.) Remove the single screw which secures the motor assembly. (located at bottom of

unit, adjacent to the bowl.

6.) Lift out the motor assembly.

7.) Remove the three screws in the cover and lift the cover off of the assembly

exposing the batteries.

8.) Detach motor connections and lift motor away from assembly.

9.) Detach all lead connections and remove batteries from battery casing.

10.) Dispose of batteries as per recommended guidelines.

Seal”). Call your local retailer for details. If you bring

The RBRC™ Seal

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the nickel-cadmium battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have

already been paid by Black & Decker. In some areas, it is illegal to place spent nickel-cadmium batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has established programs in the United States and Canada to facilitate the collection of spent nickel-

cadmium batteries. Help protect our environment and conserve natural resources by

returning the spent nickel-cadmium battery to an authorized Black & Decker service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-8-BATTERY.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under “Tools—Electric” or call: 1-800-544-6986 or visit www.blackanddecker.com

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided

that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black & Decker and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from

whom it was purchased (provided that the store is a participating retailer).Returns

should be made within the time period of the retailer’s policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the

product (prepaid) to a Black & Decker owned or authorized Service Center for repair or

replacement at Black & Decker’s option. Proof of purchase may be required. Black & Decker owned and authorized service centers are listed under “Tools–Electric” in the yellow pages of the phone directory or online at www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarentees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A

+ 19 hidden pages
