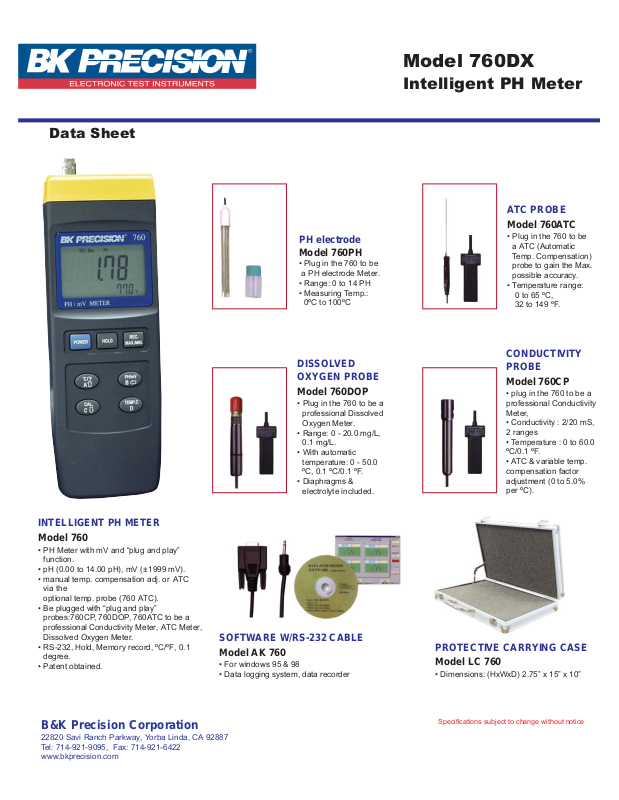

B&K Precision 760DX Datasheet

Data Sheet

Model 760DX

Intelligent PH Meter

PH electrode

Model 760PH

• Plug in the 760 to be
a PH electrode Meter.

• Range: 0 to 14 PH

• Measuring Temp.:

0ºC to 100ºC

DISSOLVED
OXYGEN PROBE

Model 760DOP

• Plug in the 760 to be a
professional Dissolved
Oxygen Meter.

• Range: 0 - 20.0 mg/L,

0.1 mg/L.

• With automatic
temperature: 0 - 50.0
ºC, 0.1 ºC/0.1 ºF.

• Diaphragms &
electrolyte included.

ATC PROBE

Model 760ATC

• Plug in the 760 to be
a ATC (Automatic
Temp. Compensation)
probe to gain the Max.
possible accuracy.

• Temperature range:

0 to 65 ºC,
32 to 149 ºF.

CONDUCTIVITY
PROBE

Model 760CP

• plug in the 760 to be a
professional Conductivity
Meter,

• Conductivity : 2/20 mS,
2 ranges

• Temperature : 0 to 60.0
ºC/0.1 ºF.

• ATC & variable temp.
compensation factor
adjustment (0 to 5.0%
per ºC).

INTELLIGENT PH METER

Model 760

• PH Meter with mV and “plug and play”
function.

• pH (0.00 to 14.00 pH), mV (±1999 mV).

• manual temp. compensation adj. or ATC
via the
optional temp. probe (760 ATC).

• Be plugged with “plug and play”
probes:760CP, 760DOP, 760ATC to be a
professional Conductivity Meter, ATC Meter,
Dissolved Oxygen Meter.

• RS-232, Hold, Memory record, ºC/ºF, 0.1
degree.

• Patent obtained.

B&K Precision Corporation

22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: [phone], Fax: [phone]
www.bkprecision.com

SOFTWARE W/RS-232 CABLE

Model AK 760

• For windows 95 & 98

• Data logging system, data recorder

PROTECTIVE CARRYING CASE

Model LC 760

• Dimensions: (HxWxD) 2.75” x 15” x 10”

Specifications subject to change without notice
