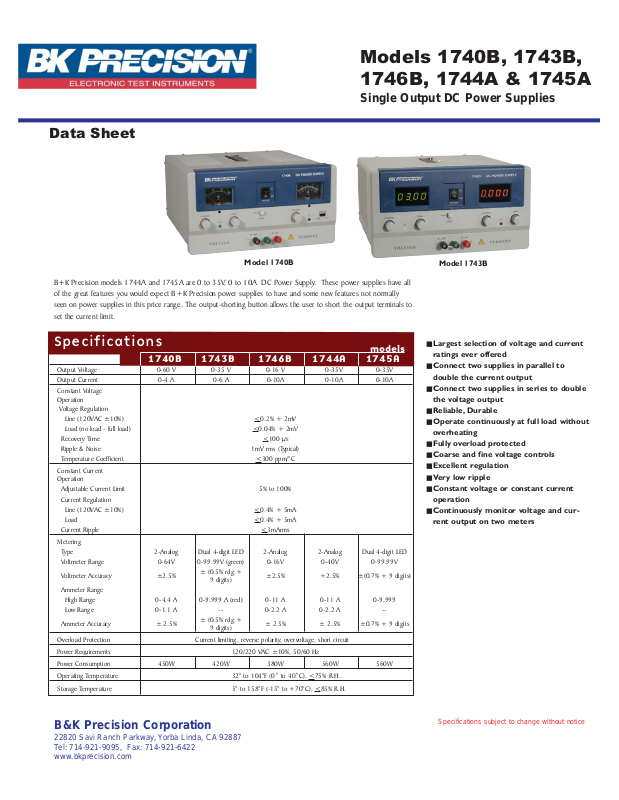

Data Sheet

Models 1740B, 1743B,
1746B, 1744A & 1745A

Single Output DC Power Supplies

Output Voltage 0-60 V 0-35 V 0-16 V 0-35V 0-35V
Output Current 0-4 A 0-6 A 0-10A 0-10A 0-10A

Constant Voltage
Operation

Voltage Regulation

Line (120VAC ±10%) <

0.2% + 2mV

Load (no load - full load) <

0.04% + 2mV

Recovery Time <

100 µs
Ripple & Noise 1mV rms (Typical)
Temperature Coefficient <

300 ppm/°C

Constant Current
Operation

Adjustable Current Limit 5% to 100%
Current Regulation

Line (120VAC ±10%) <

0.4% + 5mA

Load <

0.4% + 5mA

Current Ripple <3mArms

Metering

Type 2-Analog Dual 4-digit LED 2-Analog 2-Analog Dual 4-digit LED
Voltmeter Range 0-64V 0-99.99V (green) 0-16V 0-40V 0-99.99V

± (0.5% rdg +

Voltmeter Accuracy ±2.5% ±2.5% +2.5% ±(0.7% + 9 digits)

9 digits)

Ammeter Range

High Range 0-4.4 A 0-9.999 A (red) 0-11 A 0-11 A 0-9.999
Low Range 0-1.1 A -- 0-2.2 A 0-2.2 A --

± (0.5% rdg +

Ammeter Accuracy ± 2.5% ± 2.5% ± 2.5% ±0.7% + 9 digits

9 digits)

Overload Protection Current limiting, reverse polarity, overvoltage, short circuit

Power Requirements 120/220 VAC ±10%, 50/60 Hz

Power Consumption 450W 420W 380W 560W 560W

Operating Temperature 32° to 104°F (0˚ to 40˚C), <75% R.H.

Storage Temperature 5° to 158°F (-15° to +70°C), <

85% R.H.

Specifications

models

1740B 1743B 1746B 1744A 1745A

B+K Precision models 1744A and 1745A are 0 to 35V, 0 to 10A DC Power Supply. These power supplies have all
of the great features you would expect B+K Precision power supplies to have and some new features not normally
seen on power supplies in this price range. The output-shorting button allows the user to short the output terminals to
set the current limit.

■ Largest selection of voltage and current

ratings ever offered

■ Connect two supplies in parallel to

double the current output

■ Connect two supplies in series to double

the voltage output

■ Reliable, Durable

■ Operate continuously at full load without

overheating

■ Fully overload protected

■ Coarse and fine voltage controls

■ Excellent regulation

■ Ve ry low ripple

■ Constant voltage or constant current

operation

■Continuously monitor voltage and cur-

rent output on two meters

Model 1743B

Model 1740B
