MCP6P M2+/N68S+ BIOS Setup

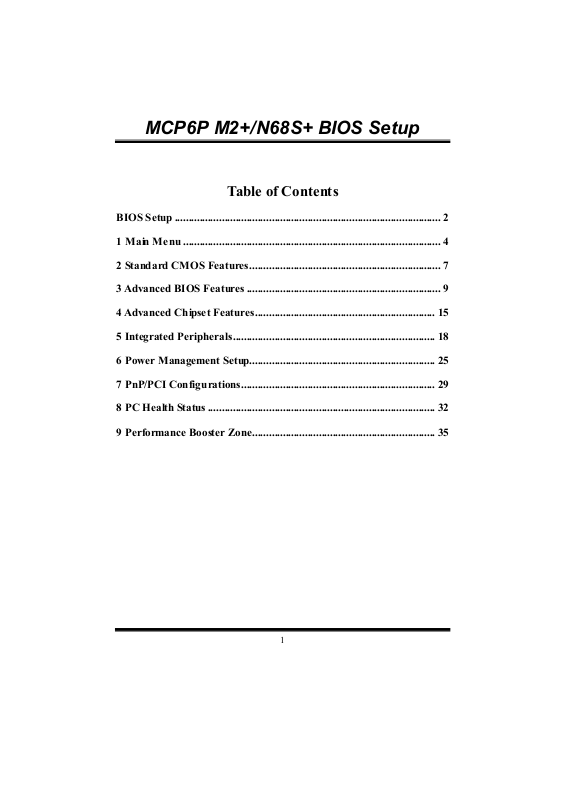

Table of Co ntents
BIOS Setup ................................................................................................ 2
1 Main Menu ............................................................................................. 4
2 Standard CMOS Features..................................................................... 7
3 Advanced BIOS Features ...................................................................... 9
4 Advanced Chipset Features................................................................. 15
5 Integrated Peripherals ......................................................................... 18
6 Power Management Setup................................................................... 25
7 PnP/PCI Configurations...................................................................... 29
8 PC Health Status .................................................................................. 32
9 Performance Booster Zone.................................................................. 35
1
Page 2
MCP6P M2+/N68S+ BIOS Setup
BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the Phoenix-Award™
BIOS Setup program on this motherboard. T he Setup program allo ws users to
modify the basic system co nfiguratio n and save these settings to C MOS RAM.
The power of CMOS RAM is supplied b y a battery so that it retains the Setup
info rmat ion when the po wer is turned off.
Basic Inp ut-O utput Sys tem (BIOS) determines what a computer can do without
accessing programs from a disk. This system controls most of the input and
outp ut devices suc h as keyboard, mo use, s erial po rts and disk drives. BIOS
activates at the first stage of the booting process, loading and executing the
operating system. Some additional features, such as virus and password
protection or chipset fine-tuning options are also included in BIOS.
The rest of this manual will to guid e you through the options and settings in
BIOS Setup.
Plug and Pla y Support
This PHO ENIX-AWARD BIOS supports t he Plug and Play Vers io n 1.0A
specification.
EPA Green PC Support
This PHOENIX-AWARD BIOS supports Version 1.03 of the EPA Green PC
specification.
APM Support
This PHOENI X-AW ARD BIOS supports Vers ion 1.1&1. 2 of the Advanc ed
Power Management (APM) specification. Power management features are
implemented via the System Management Interrupt (SMI). Sleep and Suspend
power management modes are supported. Power to the hard disk drives and
video monito rs can also be managed by this PHOENIX-AWARD BIOS.
ACPI Support
Phoenix-Award ACPI BIOS support Version 1.0b of Advanc ed Configuration
and Power interfac e specification (ACPI). It provides ASL code for power
management and device configuration capabilit ies as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
2
Page 3
MCP6P M2+/N68S+ BIOS Setup
PCI Bus Support
This PHO ENIX-AWARD BIOS also s uppo rts Vers ion 2.3 o f the I nt el PCI
(Peripheral Co mponent Interconnect) loc al b us specific ation.
DRAM Support
DDR2 S DRAM (Double Data Rate Synchronous DRAM) is supported.
Supported CPUs
This PHOENIX-AWARD BIOS supports the AMD CPU.
Using Setup
Use the arrow keys to highlight ite ms in most of the place, p res s <Enter> to
select, use the <PgUp> and <PgDn> keys to change entries, press <F1> for help
and press <Esc> to quit. The following table provides more detail about how to
navigate in the Setup p rogra m by using the keybo ard.
Keystroke Function
Up arrow Move to p revious item
Down arrow Move to next item
Left arro w Move to the item o n the left (men u bar)
Right arrow Move to t he item o n the right (menu bar)
Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ Key Increase the numeric value or make changes
- Key Decrease the numeric value or make c hanges
Esc key Main Menu – Quit and not save changes into CMOS
F1 key General help o n Setup navigation keys
F5 key Load previous values from CMOS
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit
Status Page Setup Menu and Option Page Setup Me nu – Exit
Current page and re turn to Main Me nu
3
Page 4
MCP6P M2+/N68S+ BIOS Setup
1 Main Menu
Onc e you enter Phoenix-Award BIOS™ CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from several
setup functions. Use the arrow keys to select among the items and press <Enter>
to accept and enter the sub-menu.
!! WARNING !!
For better system performance, the BIOS firmware is being
continuo us ly updated. The BIOS infor mation describ ed in
this manual (Figure 1, 2, 3, 4, 5, 6, 7, 8, 9) is fo r yo ur
reference only. The actual BIOS information and s ettings on
board may be slightly different from this manual.
Figure 1: Main Menu
Stan dar d CMO S Featu res
This submenu contains industry standard configurable options.
Advanced BIOS Features
This submenu allo ws yo u to conf igure advanc ed features o f the BIOS.
4
Page 5
MCP6P M2+/N68S+ BIOS Setup

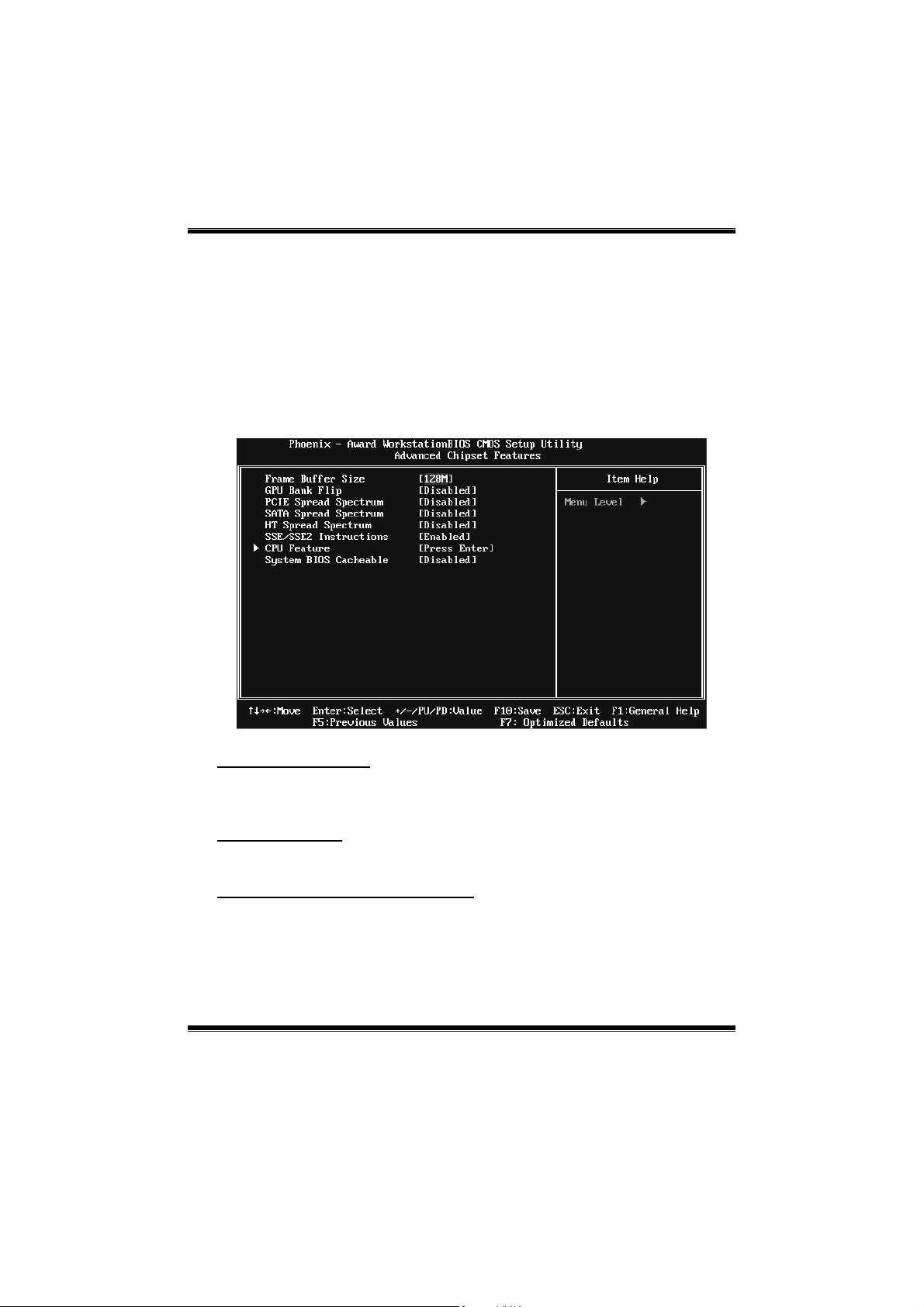

Advanced Chipset Features
This submenu allows you to configure sp ecial chips et features.

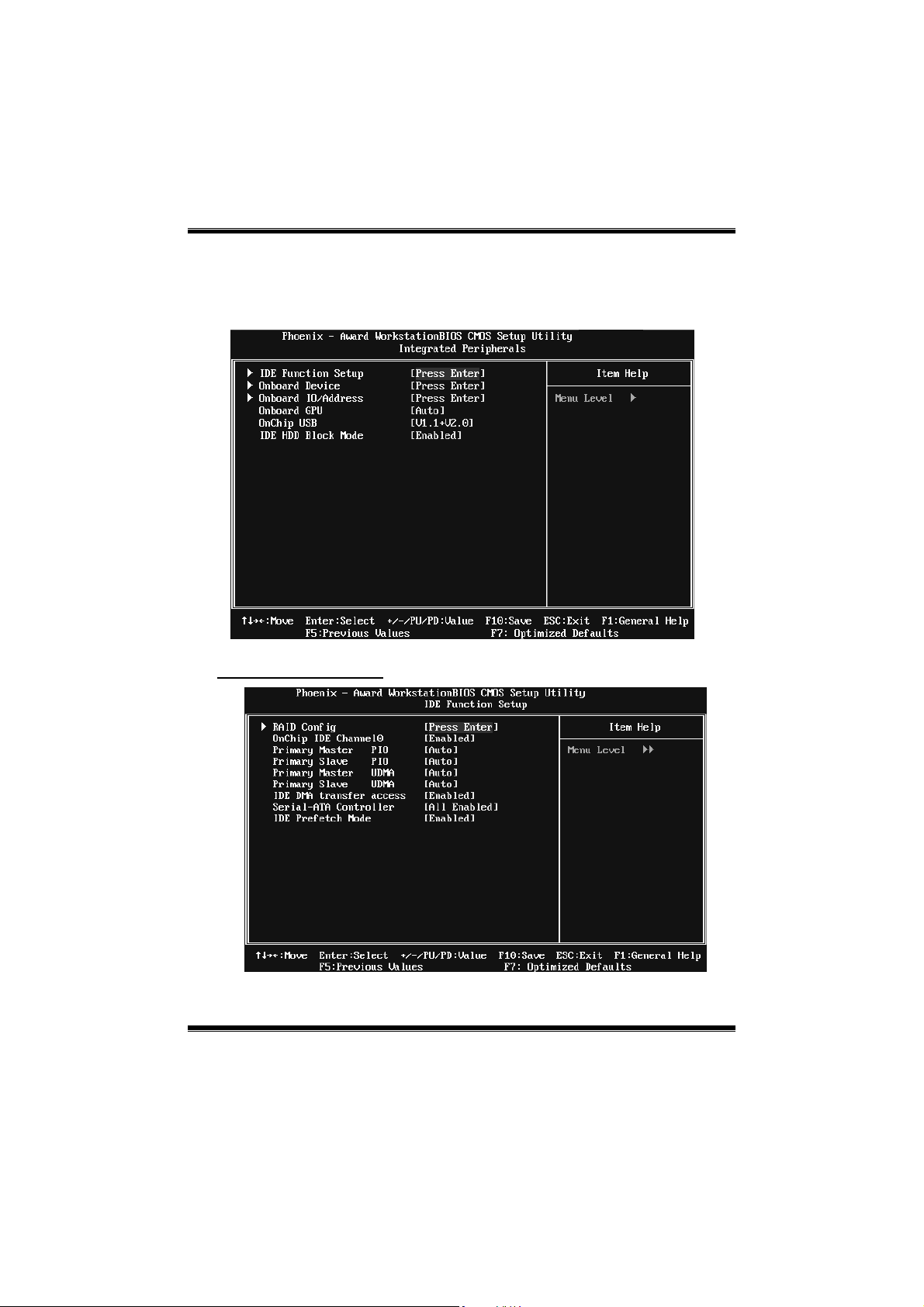

Integrated Peripherals
This s ub menu allo ws you to configure certain IDE hard drive options and
Programmed Input/ Output features.

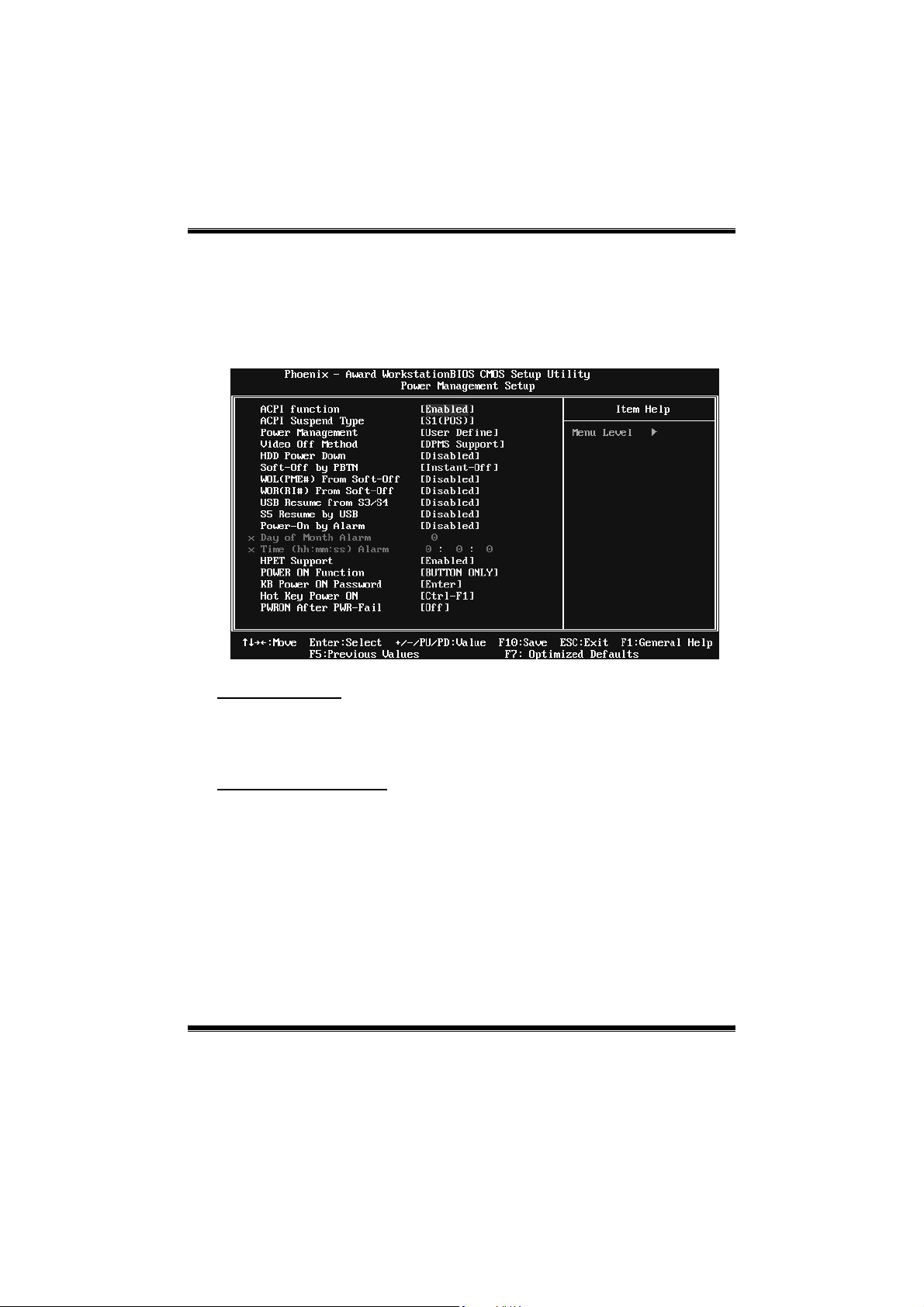

Power Management Setup
This submenu allows you to configure the power management features.
PnP/PCI Configurations
This submenu allows you to configure certain “Plug and Play” and PCI options.
PC Health Status
This submenu allo ws yo u to monitor the hardware of yo ur s yst em.

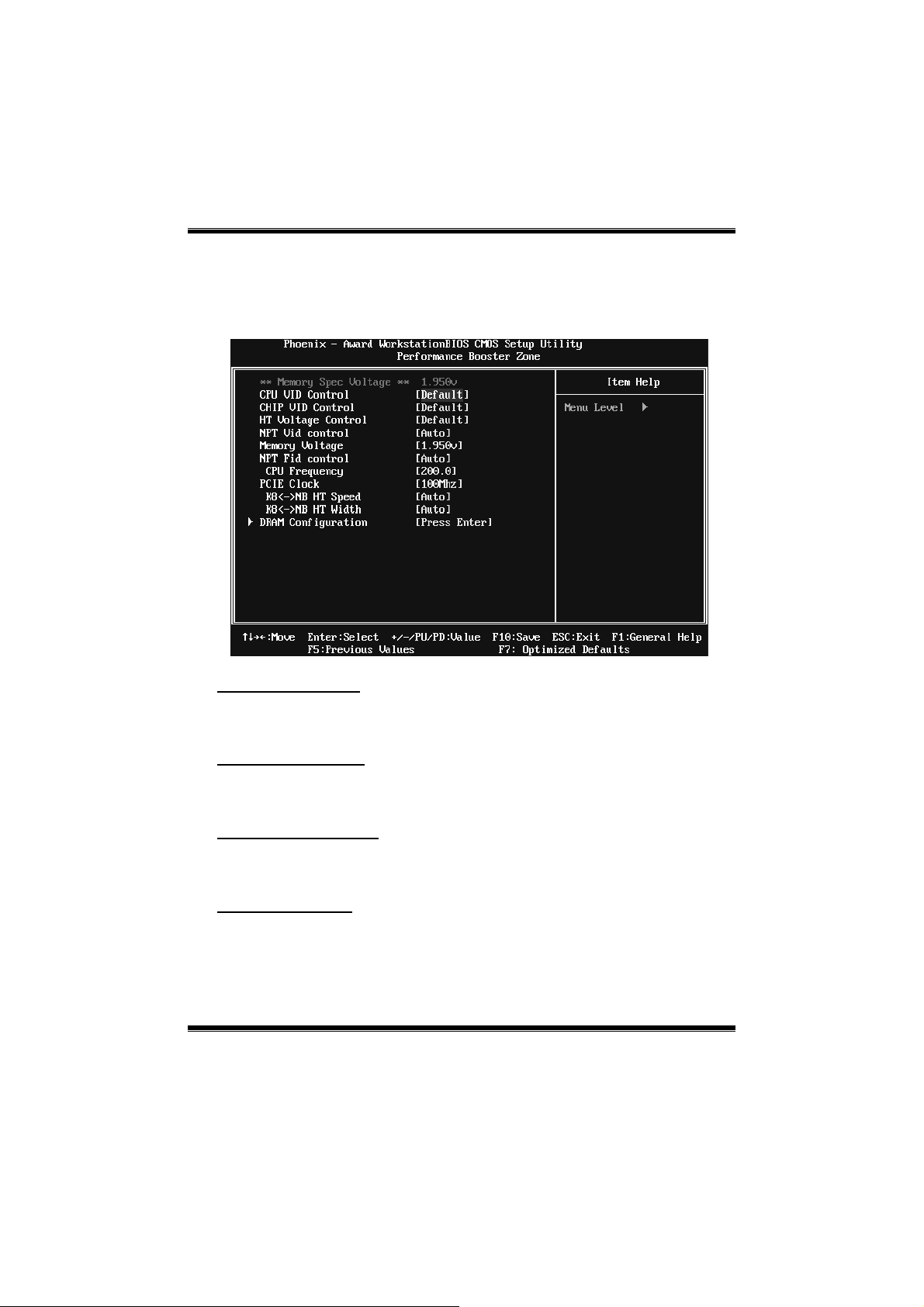

Performance Booster Zone
This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock.
(However, we suggest you to use the default setting. Changing the voltage and
cloc k imp rop erly may d amage the CP U or M/B!)
Load Optimized Defaults
This selection allo ws you to reload the BIOS when problem occurs during
system booting sequenc e. These configurations are factory settings optimized
for this syst em. A confirmat ion message will be displayed before defaults are
set.
Set Supervisor Password
Setting the sup ervisor pass word will prohibit everyone except the supervisor
from making changes us ing the CMOS Setup Utility. You will b e prompted with
to ent er a pass word.
5
Page 6
MCP6P M2+/N68S+ BIOS Setup
Set User Password
If the Supervisor Password is not set, then the User P ass word will function in
the same way as the Supervisor Password. If the Supervisor Password is set and
the User Password is set, the “User” will only be able to view configurations but
will not be able to change them.
Save & Exit Setup
Save all configuration changes to CMOS (memory) and exit setup. Confirmation
message will be displayed before proceeding.
Exit Without Saving
Abandon all changes made during the current session and exit setup.
Confirmation message will be displayed before proceeding.
Upgrade BIOS
This submenu allows you to upgrade bios.
6
Page 7
MCP6P M2+/N68S+ BIOS Setup
2 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories.
Each cate gory inc lud es no, one or more than one setup items. Us e t he arrow
keys to highlight the item and then use the<P gUp> or <PgDn> keys to select the
value you want in each item.
Figure 2: Standard CMOS Setup
Main Menu Selections
This table shows the items and the available options on the Main Menu.
Item Options Description
Date mm : dd : yy
Time hh : mm : ss
IDE Channel 0 Master
IDE Channel 0 Slave
Options are in its sub
Options are in its sub
menu.
menu.
Set the system date. Note
that the ‘Day’ automatically
changes when you set the
date.
Set the system internal
clock.
Press <Enter> to enter the
sub menu of detailed
options
Press <Enter> to enter the
sub menu of detailed
options.
7
Page 8
MCP6P M2+/N68S+ BIOS Setup
Item Options Description
360K, 5.25 in
1.2M, 5.25 in
Drive A
Video
Halt On
Base Memory N/A
Extended Memory N/A
Total Memory N/A
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
None
EGA/ VG A
CGA 40
CGA 80
MONO
All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/ Key
Select the type of floppy
disk drive installed in your
system.
Select the default video
device.
Select the situation in which
you want the BIOS to stop
the POST process and
notify you.
Displays the amount of
conventional memory
detected during boot up.
Displays the amount of
extended memory detected
during boot up.
Displays the total memory
available in the system.
8
Page 9
MCP6P M2+/N68S+ BIOS Setup
3 Advanced BIOS Features
Figure 3: Advanced BIOS Setup
Cache Setup
9
Page 10
MCP6P M2+/N68S+ BIOS Setup
CPU Internal Cache
Depending on the CPU/chipset in use, you may be able to increase memory
ac cess tim e with this opt io n.
Enabled (default) Enable cache.
Disabled Disable cache.
External Cache
This option enables or disables “Level 2” secondary cache on the CPU, which
may improve performance.
Enable d (default) Enable cache.
Disabled Disable cache.
Boot Seq & Floppy Setup
This item allows you to setup boot sequence & Floppy.
10
Page 11
MCP6P M2+/N68S+ BIOS Setup
Removable Device Prior ity
Select Removable Boot Device Priority.
The Choices: F lopp y Disks , Zip 100, USB-F DD0, US B-F DD1, USB- ZI P0,
USB-ZIP 1, LS120.
Hard Disk Boot Priority
The BIOS will attempt to arrange the Hard Disk boot s equence
automatically.You can change the Hard Disk booting sequence here.
The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USBHDD0,
USBHDD1, USBHDD2, and Bootable Add-in Cards.
11
Page 12
MCP6P M2+/N68S+ BIOS Setup
CD-ROM Boot Priority
The Choices: P r i. Master, Pri. Slave, S ec. Mast er, S ec. S lave, US B-CDRO M0,
USB-CDROM1.
First/Second/Third Boot Dev ice
The BIOS will attempt to load the operating system in this order.
The Choices: Removable, Hard Disk, CDROM, Legacy LAN, Disabled.
Boot Other Device
When enabled, BIOS will try to load the operating system from other device
when it failed to load from the three devices above.
The Choices: Enabled (default), Disabled
Boot Up Floppy Seek
When enabled, System will test the floppy drives to determine if they have 40
or 80 tracks during boot up. Disabling this option reduces the time it takes to
boot-up.
The Choices: Enabled (default), Disabled.
12
Page 13
MCP6P M2+/N68S+ BIOS Setup
Virus Warning
This option allows you to c hoose the VIRUS Warning feature that is used to
protect the IDE Hard Disk boot sector. If this function is enabled and an attempt
is made to write to the boot sector, BIOS will disp lay a warning message on the
screen and sound an alarm beep.
Disabled (default) Virus protectio n is disabled.
Enabled Virus protectio n is activated.
Quick Power On Self Test
Enabling this option will cause an abridged version of the Power On Self-Test
(POS T) to execut e aft er you power up the comput er.
Disabled Normal POST.
Ena bled (default) Enable quick POST.
Boot Up NumLock Status
Selec ts the NumLock State after the s ystem switc hed o n.
The Choices:
On (def ault) Nump ad is n umber keys.
Off Numpad is arro w keys.
Gate A20 Option
Select if chipset or keyboard controller should control Gate A20.
The Choices:
Normal A p in in the keyboard contro ller controls GateA20.
Fast (default) Lets chips et control Gate A20.
Typematic Rate Setting
When a key is held down, the keystroke will repeat at a rate determined by the
keyboard controller. When enabled, the typematic rate and typ ematic delay can
be configured.
The Choices: Disabled (def ault), Enabled.
Typematic Rate (Chars/Sec)
Sets the rat e at whic h a keystroke is repeat ed when you hold the key do wn.
The Choices: 6 (default), 8, 10, 12, 15, 20, 24, 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before it begins to repeat the
keystroke.
The Choices: 250 (default), 500, 750, 1000.
13
Page 14
MCP6P M2+/N68S+ BIOS Setup
Security Option
This option will enable only individuals with passwords to b ring the system
online and/or to use the CMOS Setup Utility.
System: A pass word is required for the system to boot and is also
req uired to acc es s the Setup Utility.
Setup (def ault ): A pass word is required to acc ess the Setup Utility only.
This will o nly apply if passwords are set from t he Setup main menu.
APIC MOD E
Selecting Enabled enables APIC device mode reporting from the BIOS to the
operating system.
The Choices: Enabled (default), Disabled.
MPS Version Control For OS
The BIOS supports version 1.1 and 1.4 of the Intel multiprocessor specificatio n.
Selec t vers ion s upported by the operation sys tem running on t his co mput er.
The Choices: 1.4 (default), 1.1.
OS Select For DRAM > 64MB
A c hoice other than Non-OS 2 is o nly used for OS 2 systems with memo ry
exceeding 64MB.
The Choices: Non-OS2 (default), OS2.
Small Logo(EPA) Show
This item allows you to selec t whether the “S mall Logo” shows. Enabled
(default) “Small Logo” shows when system boots up. Disabled No “Small
Logo” shows when system boots
The Choices: Enabled (default), Disabled
Summary Screen Show
This item allows you to enable/disab le the summary screen. Summary screen
means system configuration and PCI device listing.
The Choices: Disabled (def ault), Enabled.
14
Page 15
MCP6P M2+/N68S+ BIOS Setup
4 Advanced Chipset Features
This submenu allo ws you to configure the specific features of the chipset
installed on your system. This chipset manage bus speeds and access to system
memory resources, such as DRAM. It also coordinates communications with the
PCI bus. The default settings that came with your system have been optimized
and t herefore s hould not be changed unless you are suspicious that the s ettings
have been changed incorrectly.
Figure 4: Advanced Chipset Setup
Frame Buffer Size
This item allows you to choose the frame buffer size of on-chip VGA.
The Choices: 128MB (default), 16MB, 32MB, 64MB, 256MB, Disabled.
GPU Bank Flip
The Choices: Disabled (def ault), Enabled.
PCIE / SATA Spread Spectrum
This item allows you to enable/disable the Spread Spectrum functio n.
The Choices: Disabled (default), Triangular Down.
15
Page 16
MCP6P M2+/N68S+ BIOS Setup
HT Spread Spectrum
This item allows you to select HT Sp read Spectr um function.
The choices: Disabled (default), 0.50% H.Kiss Cntr
SSE/SSE2 instruction
This item allows you to enable/disable SS E/SS E2 instruction.
The Choices: Enabled (default), Disabled.

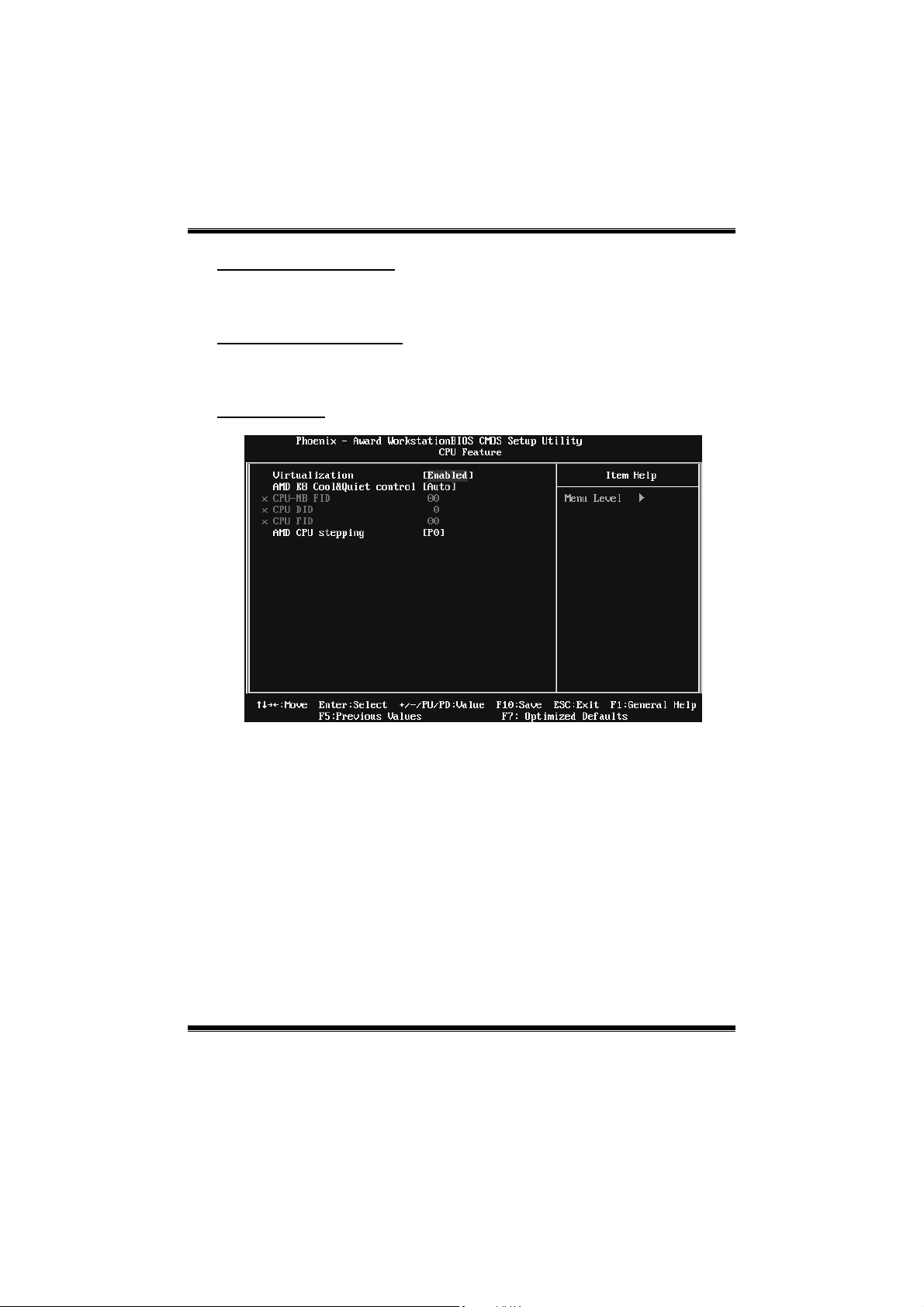

CPU Feature
Virtualiza tion
Virtualization Technology can virtually separate your system resource into
several parts, thus enhance the performance when running virtual machines or
mult i interfa ce syste ms.
The Choices: Enabled (default), Disabled.
AMD K8 Coo l&Quiet control
The item allows you select K8 Cool’n’Quiet control.
The Choices: Auto (default), Disabled.
CPU-NB FID
The Choices: 00 (default); Min=0000, Max=001B, key in a HEX number.
16
Page 17
MCP6P M2+/N68S+ BIOS Setup
CPU DID
The Choices: 0 (default), 1, 2, 3, 4
CP U FID
The Choices: 00 (default); Min=0000, Max=003F, key in a HEX number.
AMD CPU Stepping
The Choices: P0 (default), P1, P2, P 3, P 4.
System BIOS Cacheable
Selec ting the “ Enabled ” option allows c aching o f the system BIOS ROM at
F0000h-FFFFFh, which is able to improve the system performance. However,
any programs that attempts to write to this memory block will cause conflicts
and result in system errors.
The Choices: Disabled (def ault), Enabled.
17
Page 18
MCP6P M2+/N68S+ BIOS Setup
5 Integrated Peripherals
Figure 5. Integrated Peripherals
IDE Function Setup
18
Page 19
MCP6P M2+/N68S+ BIOS Setup

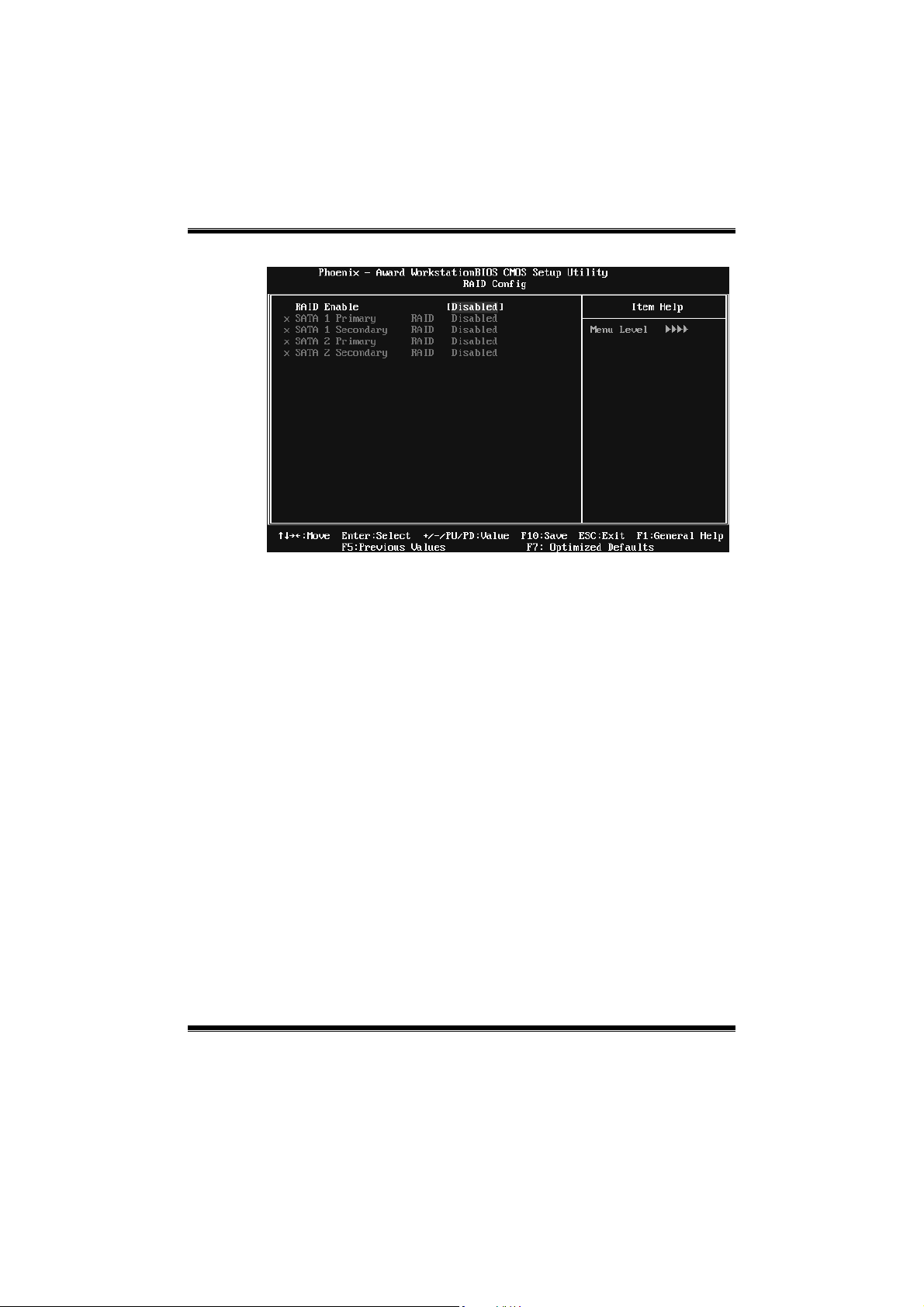

RAID Config
RAID Enable
This option allows you to enable or disable R AID function.
The Choices: Disabled (defa ult), E nabled .
SATA 1/2 Prim ary/Secondary RAID
This option allows you to enable or disable SATA A Primary/Secondary RAID.
The Choices: Disabled (defa ult), E nabled.
On-chi p IDE Cha nne l 0
The motherboard chipset contains a PCI IDE interface with support for two
IDE channels. Select “Enabled” to activate the first and/or second IDE interface.
Select “Disabled” to deactivate an interface if you are going to install a primary
and/or secondary add-in IDE interface.
The Choices: Enabled (default), Disabled.
Primary Master/Slave PIO
The IDE PIO (P rogrammed Input / Output) fields let you set a PIO mode (0-4)
for each of the IDE devices that the onboard IDE interface supports. Modes 0
to 4 will increase performance progressively. In Auto mode, the system
automatically determines the best mode for each device.
The Choices: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4.
19
Page 20
MCP6P M2+/N68S+ BIOS Setup
Primary Master/Slave UDMA
Ultra DMA function can be implemented if it is supported by the IDE hard
drives in your system. As we ll, your operatin g environment requires a DMA
driver (Windows 95 or OSR2may need a third party IDE bus master driver). If
your hard drive and your system software both support Ultra DMA, select Auto
to enable BIOS support.
The Choices: Auto (default), Disabled.
IDE DMA Transfer Access
This item allows you to enable or disable the IDE DMA transfer access.
The Choices: Enabled (default), Disabled.
Serial-AT A Controller
Enables support for Serial-ATA controller.
The Choices: All Enabled (default), Disabled
IDE Prefetch Mode
The “onboard” IDE drive interfaces supports IDE prefetch function for faster
drive access. If the interface on your drive does not support prefetching, or if
you install a primary and/or secondary add-in IDE interface, set this option to
“Disabled”.
The Choices: Enabled (default), Disabled.
20
Page 21
MCP6P M2+/N68S+ BIOS Setup
Onboard Device
USB Memory Type
The item allows you select the type of USB Memory.
The Choices: SHADOW (default), Base Memory(640K).
USB Keyboard/ Storage Support
This item allows you to support the USB legacy devices.
The Choices: Enabled, Disabled (default).
USB Mouse Support
This item allows you to enable or disable the USB Mouse Legacy Support.
Enabled Enable USB Mouse Support.
Disabled (default) Disable USB Mouse Support.
HD Audio
This item allows you to enable or disable to support HD Audio.
The Choices: Auto (default), Disabled.
21
Page 22
MCP6P M2+/N68S+ BIOS Setup
MAC LAN
This option allows you to control the onboard MAC LAN.
The Choices: Auto (default), Disabled.
MAC Media Interface
This option allows you to control the onboard MAC Media Interface.
The Choices: Pin Strap (default), MII, RGMII
Onboard LAN Boot ROM
This item allows you to enable or disable the Onboard LAN Boot ROM.
The Choices: Disabled (defa ult), E nabled.

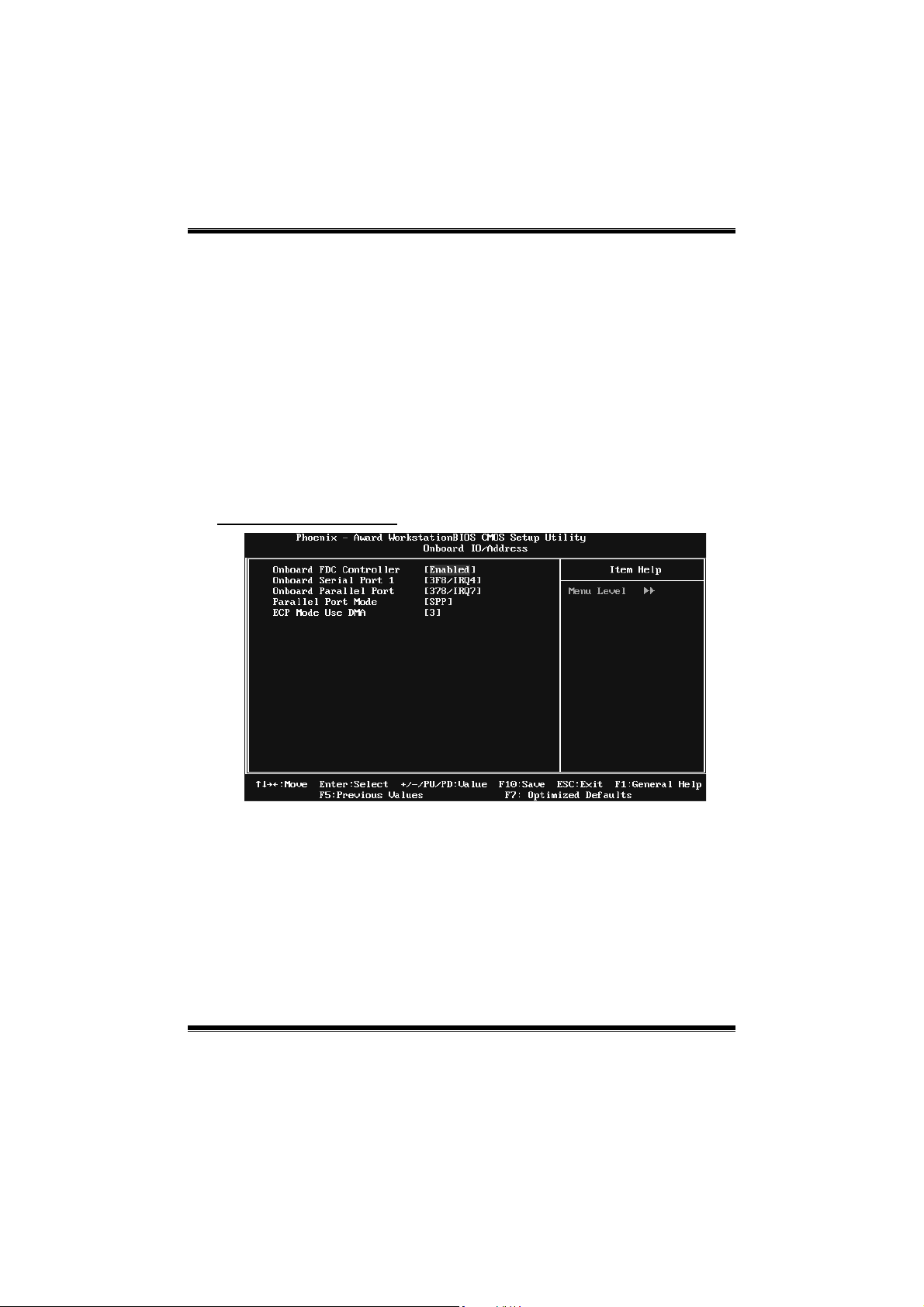

Onboard I/O Address
Onboard FDC Controller
Select enabled if your system has a floppy disk controller (FDC) installed on
the system board and you wish to use it. If you installed another FDC or the
system uses no floppy drive, select disab led in this field.
The Choices: Enabled (default), Disabled.
22
Page 23
MCP6P M2+/N68S+ BIOS Setup
Onboard Serial Port 1
Select an address and corresponding interrupt for the first and second serial
ports.
The Choices: 3F8/IRQ4 (default), Disabled, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,
Auto.
Onboard Para llel Por t
This item allows you to determine access onboard parallel port controller with
which I/O Address.
The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.
Parallel Port Mode
This item allows you to determine how the paralle l port should function. The
default value is SPP.
The Choices:
SPP (def ault) Usin g Para llel port as Sta ndard Pr inte r P ort.
EPP Usin g Pa rallel P ort as En hance d Pa rallel P ort.
ECP Usin g Pa rallel p ort as Extende d Capabi lit ies P o rt.
ECP +EPP Usin g Pa rallel p ort as EC P & EPP mode.
ECP Mode Use DMA
Onboard GPU
This item allows you to control the Onbo ard GPU.
The Choices: Auto (default), Always Enable.
OnChip USB
This option s hould be enabled if yo ur system has a USB installed on the system
board. You may need to disable this feature if you add a higher performance
controller.
The Choices: V1.1+V2.0 (def ault), Disab led, V1.1
Select a DMA Channel for the port.
The Choices: 3 (default), 1.
23
Page 24
MCP6P M2+/N68S+ BIOS Setup
IDE HDD Block Mode
Block mode is also called block trans fer, multiple commands, or mult iple
sectors read / write. If your IDE hard drive supports block mode (most new
drives do), select Enabled for automatic detection of the optimal number of
block mode (most new drives do), select Enab led for automat ic det ectio n o f the
optimal number of block read / write per s ector where the drive can s upport.
The Choices: Enabled (default), Disabled.
24
Page 25
MCP6P M2+/N68S+ BIOS Setup
6 Power Management Setup
The Power Management Setup Menu allows you to configure your system to
utilize energy conservation and power up/power down features.
Figure 6. Power Manageme nt Setup
ACPI Function
This item displays the status of the Advanc ed Configur ation and Po wer
Management (ACPI).
The Choices: Enabled (default), Disabled.
ACPI Suspend Type
The item allo ws you to s elect the susp end typ e unde r t he ACP I op erating
system.
The Choices: S1 (POS) (default) Power on Susp end
S3 (STR) S usp end to RAM
S1 & S3 POS+STR
25
Page 26
MCP6P M2+/N68S+ BIOS Setup
Power Management
This c ategory allows you to select the power saving method and is directly
re la ted to t he fo llo wing mo d es :
1. HDD Po we r Do wn.
2. Suspend Mode.
There are three options of Power Management, three of whic h have fixed mode
settings
Min. Power Saving
Minimum power management.
Suspend Mode = 1 hr.
HDD Power Down = 15 min
Max. Power Saving
Maximum power management only available for sl CPU’s.
Suspend Mode = 1 min.
HDD Power Down = 1 min.
Use r De f i ne (default)
Allow you to set each optio n individually.
When you choose user define, you can adjust each of the item from 1 min. to 1
hr. except for HDD Power Down which ranges fro m 1 min. to 15 min.
Video Off Method
This option determines the manner when the monitor goes blank.
V/H SYNC+Blank
This selection will cause the system to turn off the vertical and horizontal
synchronization ports and write blanks to the video buffer.
Blank Screen
This optio n only writes blanks to the video buffer.
DPM S S u ppo rt
Initial display power management s ignaling.
HDD Power Down
When enabled, the hard-disk drives will power down after a set time of system
inactivity. All other devices remain active.
The Choices: Disabled (d efault), 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7
Min, 8 Min, 9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15 Min.
(default)
26
Page 27
MCP6P M2+/N68S+ BIOS Setup
Soft-Off by PBTN
This item determines the behavior of system power button. Instant off turn off
the po wer immediately, and Delay 4 Sec. will require you to p ress and hold the
power button for 4 s eco nds to c ut off the system po wer.
The Choices: Delay 4 Sec, Instant-Off (default).
WOL(PME#)/ From Soft-Off
This item allo ws you to enable o r dis ab le Wake On LAN from Soft-Off
function.
The Choices: Disabled (def ault), Enabled.
WOR(RI#) From Soft-Off
This item allows you to enable o r disable Wake On Ring from Soft-Off function.
The Choices: Disabled (def ault), Enabled.
USB Resume from S3/S4
This item a llo ws you to enab le or disabled the US B device wake up fro m S3/S4
function.
The Choices: Disabled (defa ult), E nabled.
S5 Resume by USB
The Choices: Disabled (defa ult), E nabled.
Power-On by Alarm
This function is for s etting date and time for your computer to boot up. W hen
enabled, you c a n choose t he date and time to b oo t up the sys te m.
The Choices: Disabled (def ault), Enabled.
Date (of Month) Alarm
You c an c hoos e which month the syst em wil l boot up.
Time (hh:mm:ss) Alarm
You can choose the system boot up time, input hour, minute and second to
specify.
Note: If you have c hange the setting, yo u must le t the sys tem boo t up until it
goes to the op erating syste m, before t his func tion wil l work.
27
Page 28
MCP6P M2+/N68S+ BIOS Setup
HPET Support
This item allows you to control the high precision event timer.
The Choices: Enabled (default), Dis abled.
POWER ON Function
This item allows you to choose the power on method.
The Choices: Button Only (default), Pass word, Hot Key, Mouse Mo ve/Click,
Mouse Double Click, Any Key, Keyboard 98.
KB Power ON Password
Input password and press Enter to set the Keyboard power on password.
Hot Key Power ON
Choos e the Hot Key co mbinatio n to boo t up the system.
The Choices: Ctrl-F1 (default), Ctrl-F2, Ctrl-F3, Ctrl-F4, Ctrl-F5, Ctrl-F6,
Ctrl-F7, Ctrl-F8, Ctrl-F9, Ctrl-F10, Ctrl-F11, and Ctrl-F12.
PWRON After PWR-Fail
This s etting specifies how your system should behave after a po wer fail or
interr upts occurs. By c hoos ing off wil l leave the co mp uter in th e po wer o ff st ate.
Choosing On will reboot the computer. Former-Sts will restore the system to the
status before po wer failure or interrupt occ urs.
The Choices: Off (default), On, Former-S ts.
28
Page 29
MCP6P M2+/N68S+ BIOS Setup
7 PnP/PCI Configurations
This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at
speeds nearing the speed of the CPU itself uses when communicating with its
own spec ial compo nents. This sectio n covers some very tec hnical items and it is
strongly recommended that only experienced us ers sho uld make any changes to
the default settings.
Figure 7: PnP/PCI Configurations
Init Display First
With systems that have multiple video cards, this item d etermines whether the
primary display uses a PCI Slot or an AGP Slot.
The Choices: PCIEx (d efault), PCI S lot, Onboard.
29
Page 30
MCP6P M2+/N68S+ BIOS Setup
Reset Configuration Data
The s ystem BI OS supports the PnP feature whic h req uires the system to record
whic h reso urces are as s igned and pro tects reso urces fro m co nflic t.
Every per ipheral devic e has a node, whic h is c alled ESCD. This nod e records
whic h resourc es ar e ass igned to it. The s ystem needs to record and updat e ESCD
to the memory locations. T hese locations are reserved in the sys tem BIOS. If the
Disabled (default) option is chos en, the system‘s ESCD will update only when
the new co nfiguration varies fro m the last one. If t he Enabled optio n is chos en,
the system is forc ed to update ESCDs and then is auto matically set to the
“Disabled ” mode.
The above settings will be shown on the screen o nly if “Manual” is chosen for
the res ourc es contro lled b y funct ion.
Legac y is the term, which signif ies that a resourc e is assigned to the IS A Bus
and p rovides non-P nP ISA add -on cards. PC I / IS A PnP s ignify that a r eso urce
is assigned to the PCI Bus or provides for ISA PnP add-on cards and
peripherals.
The Choices: Disabled (def ault), Enabled.
Resources Controlled By
By Choos ing “Auto(ESCD)” (default), the system BIOS will detect the system
resources and automatically assign the relative IRQ and DMA channel for each
peripheral. By Choosing “Manual”, the user will need to assign IRQ & DMA for
add-on cards. Be sure that there are no IRQ/DMA and I/O port conflicts.
The Choices: Auto (ESCD) (default), Manual.
IRQ Resources
This submenu will allo w you to ass ign each system interrupt a type, depending
on the type of device using the interrupt. When you press the “Press Enter” tag,
you will be directed to a submenu that will allow you to configure the sys tem
interrupts. This is only configurable when “Resources Controlled By” is set to
“Manual”.
IRQ-5 ass igned to PCI Device
IRQ-7 ass igned to PCI Device
IRQ-9 ass igned to PCI Device
IRQ-10 ass igned to PCI Device
IRQ-11 ass igned to PCI Device
IRQ-14 ass igned to PCI Device
IRQ-15 ass igned to PCI Device
30
Page 31
MCP6P M2+/N68S+ BIOS Setup
PCI / VGA Palette Snoop
Some old graphic controllers need to “snoop” on the VGA palette and then map
it to their d isp lay as a way to provide boo t information and VGA compatibility.
This item allows such snooping to take place.
The Choices: Disabled (def ault), Enabled.
Ma xi mu m Pa ylo ad Siz e
Set t he maximum payload size fo r T ransac tio n pac kets (TLP).
The Choice: 4096 (default.), 128, 256, 512, 1024, 2048.
31
Page 32
MCP6P M2+/N68S+ BIOS Setup
8 PC Health Status

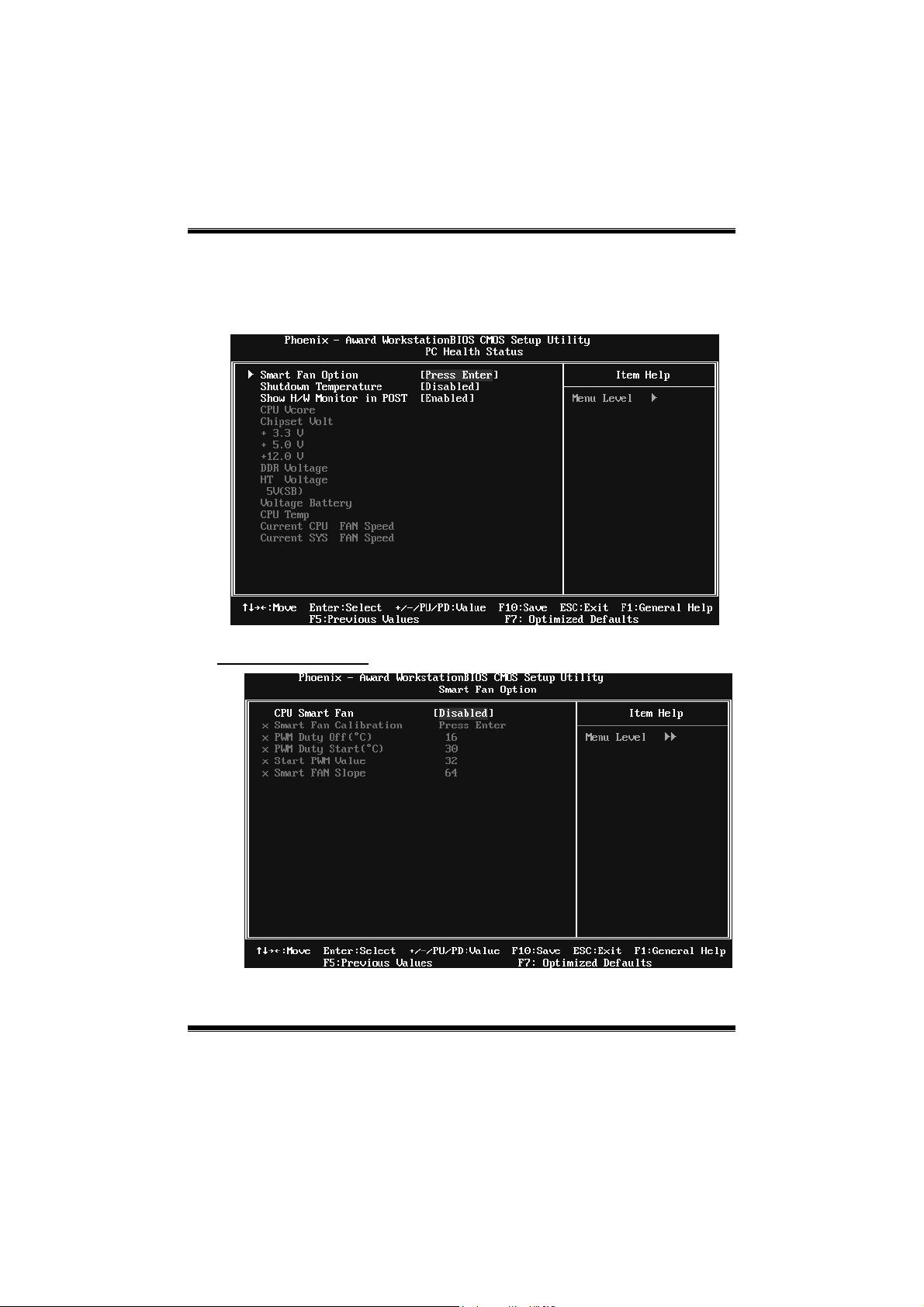

Figure 8: PC Health Status
Smart Fan Option
32
Page 33
MCP6P M2+/N68S+ BIOS Setup
CPU Smart Fan
Smar t Fan Calibration
PWM Duty Off<℃>
PWM Duty Start<℃>
Start PWM Value
Smart Fan Slope
T his item al lows you to contr ol the C PU Fan.
The Choices: Disabled (default), Auto, 4-pin, 3-pin..
Choose this item and then the BIOS will auto test and detect the CPU fan
functions and show CPU fan speed.
If the CPU Temperature is lower than the set value, FAN will turn off.
The Choices: Min=0,.Max=127, Key in a DEC number.
CPU fan starts to work under smart fan function when arrive this set
value.
The Choices: Min=0,.Max=127, Key in a DEC number.
Whe n CP U temperature arrives to th e set value, the CPU fan will work
under Smart Fan Func t ion mod e. T he r ange is from 0~127, with an
interval of 1.
The Choices: Min=0,.Max=127, Key in a DEC number.
Increasing the value of s lop e PW M will raise the sp eed of CPU fan.
The Choices: Min=1,.Max=127, Key in a DEC number.
Shutdown Temperature
This item allows you to set up the CPU shutdo wn Temp erat ure. This item is
only effective under Windows 98 ACPI mode.
The Choices: Disabled (default), 60℃/ 140℉, 65℃/ 149℉ , 70℃/ 158℉, 75℃
/ 167℉, 80℃/ 176℉, 85℃/ 185℉, 90℃ / 167℉.
Show H/W Monitor in POST
If you co mp ut er c o nt ains a mo nito ring syst em, it will show P C hea lt h status
during POST stage. The item offers several different delay times.
The Choices: Enabled (default), Disabled.
CPU Vcore, Chipset Volt, +3.3V, +5.0V, +12.0V, DDR/HT
Voltage, 5V (SB), Voltage Battery
Detect the sys tem’s voltage status automatically.
33
Page 34
MCP6P M2+/N68S+ BIOS Setup
CPU Temp
This field disp lays t he c urrent temperatur e of CPU.
Current CPU FAN Speed
This field disp lays the c urr ent sp eed o f CPU fan.
Current SYS FAN Speed
This field disp lays t he c urrent speed SYSTEM fan.
34
Page 35
MCP6P M2+/N68S+ BIOS Setup
9 Performance Booster Zone
Fig ure 9: Perfo rmance Booster Zone
CPU VID Control
This func tion allo ws yo u to adjus t the CPU voltag e.
The Choices: Default (default), +3.3%, +6.6%, +10%.
CHIP VID Control
This function allows you to adjust the chipset voltage.
The Choices: Default (default), +0.04, +0.08, +0.12
HT Voltage Control
This function allows you to adjust the HT voltage.
The Choices: Default (default), +0.02V.
NPT Vid control
This func t ion allows yo u to adjus t the FS B volt age.
The Choices: Auto (default), 0.3875v ~ 1.550v
35
Page 36
MCP6P M2+/N68S+ BIOS Setup
Memory Voltage
This item allows you to select memory Voltage.
The Choices: 1.950V (default), 2.000V, 2.050V, 2.100V.
NPT Fid control
This func tion allo ws yo u to adjus t the ratio frequency.
The Choices: Auto (default), x4 800Mhz ~ x24.5 4900Mhz
CPU Frequency
This item allows you to select the CP U Frequency.
The Choices: 200.0 (default), 201.0~450.0.
PCIE Clock
The Choices: 100MHz (d ef ault), 101MHz ~ 150MHz
K8<->NB HT Speed
This item allows you to select the K8<->NB HT Sp eed.
The Choices: Auto (default), 1x, 2x, 3x, 4x, 5x.
K8<->NB HT Width
This item allows you to select the K8<->NB HT width.
The Choices: Auto (default), ↓8↑8, ↓16↑ 16.

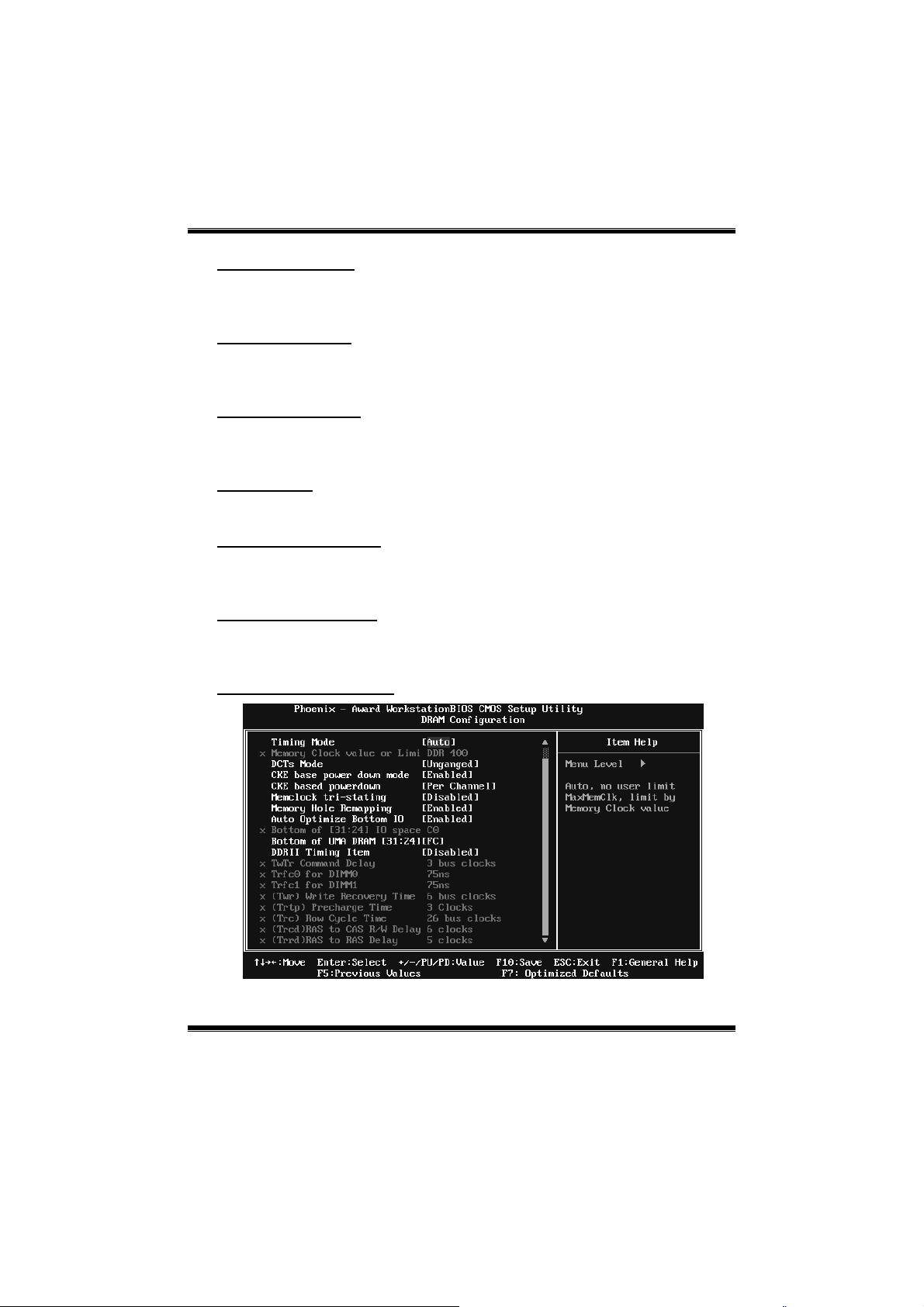

DRAM Configuration
36
Page 37
MCP6P M2+/N68S+ BIOS Setup
Timing Mode
The Choices: Auto ( de fau lt), MaxMemClk, Manu a l.
Memory Clock value or Limit
The Choices: DDR 400 (default), DDR 533, DDR 667, DDR 800, DDR1066.
DCTs Mode
This item controls the DRAM controller ganged (128bit*1) / ungan ged
(64bit*2) dual-channel operation mode. If two DRAM modules with different
size are installed, using ungan ged mode can still make it run in dual-channel
operation.
The Choices: Unganged (default), Ganged.
CKE base po wer dow n mode
The Choices: Enabled (default), Disabled.
CKE base powerdown
The Choices: Per Channel (default), Per CS.
Memclock tri-stating
The Choices: Disabled (default), Enabled.
Memory Hole Remapping
The Choices: Enabled (default), Disabled.
Auto Optimize Bottom IO
The Choices: Enabled (default), Disabled.
Bottom of [31:24] IO space
The Choices: Min=0000 Max=00FF; Key in a HEX number.
Botto m of UM A D RAM [31:24]
The Choices: Min=0000 Max=00FC; Key in a HEX number.
DDRII Timing Item
The Choices: Disabled (defa ult), E nabled.
TwTr Command Delay
The Choices: 3 bus clocks (default), 1 bus clocks, 2 bus clocks.
Trfc0 for DIMM0
The Choices: 75ns (default), 105ns, 127.5ns, 195ns, 327.5ns.
37
Page 38
MCP6P M2+/N68S+ BIOS Setup
Trfc1 for DIMM1
The Choices: 75ns (default) , 105ns, 127.5ns, 195ns, 327.5ns.
<Twr> Write Recovery T ime
The Choices: 6 bus clocks (default), 3 bus clocks, 4 bus clocks, 5 bus clocks.
<Trtp> Precharge Time
The Choices: 3 clocks (default), 2 clocks.
<Trc> Row Cycle Time
The Choices: 26 bus clocks (default), 11-25 bus clocks.
<Trcd> RAS to CAS R/W Delay
The Choices: 6 clocks (default), 3 clocks, 4 clocks, 5 clocks.
<Trrd> RAS to RAS Delay
The Choices: 5 clocks (default), 2 clocks, 3 clocks, 4 clocks.
<Trp> Row Precharge Time
The Choices: 6 clocks (default), 3 clocks, 4 clocks, 5 clocks.
<Tras> Minimum RAS Active T
The Choices: 18 bus clocks (default), 5-17 bus clocks.
Special Notice:
If the syst em’s freq uenc y that you are s elected is not funct io ning, there are two methods
of booting-up the system.
Method 1:
Clear the CMOS d ata by s etting the JCMOS 1 ((2-3) clos ed)) as “ON” status. All the
CMOS d ata will be loaded as d efaults setting.
Method 2:
Press the <Ins ert> key a nd Power b utton simultaneous ly, after that keep -on press ing the
<Insert> key until the po wer-on screen showed.
This action will boot-up the system according to FSB of the processor
It’s strongly reco mmended to set CPU Vcore and clock in default setting. If the CPU
Vcore and clock are not in default setting, it may cause CPU or M/B damage.
38
Loading...
