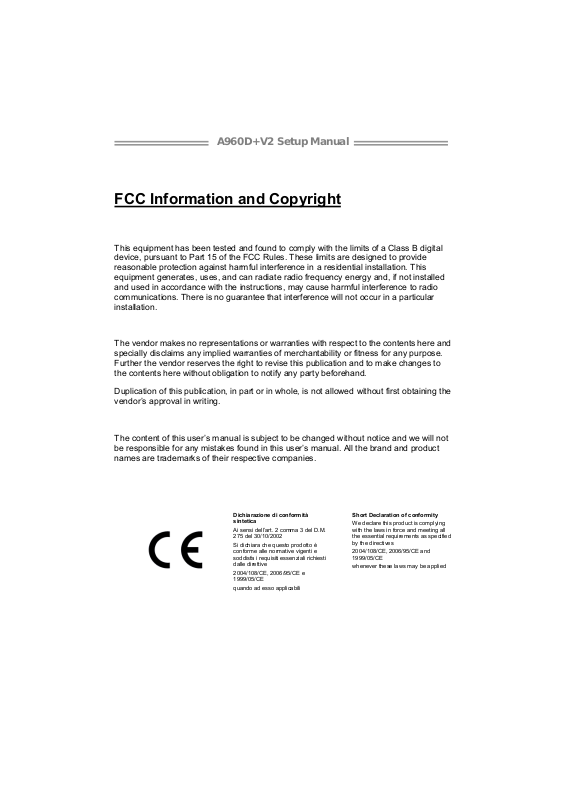

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a particular
installation.

The vendor makes no representations or warranties with respect to the contents here and
specially disclaims any implied warranties of merchantability or fitness for any purpose.
Further the vendor reserves the right to revise this publication and to make changes to
the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the
vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we will not
be responsible for any mistakes found in this user’s manual. All the brand and product
names are trademarks of their respective companies.

Dichiarazione di conformità
sintetica

Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002

Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive

2004/108/CE, 2006/95/CE e
1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives

2004/108/CE, 2006/95/CE and
1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ............................................................... 1

1.1 Before You Start ......................................................................... 1

1.2 Package Checklist ..................................................................... 1

1.3 Motherboard Features ............................................................... 2

1.4 Rear Panel Connectors ............................................................. 3

1.5 Motherboard Layout .................................................................. 4

Chapter 2: Hardware Installation ................................................ 5

2.1 Installing Central Processing Unit (CPU) .................................. 5

2.2 Install a Heatsink ....................................................................... 7

2.3 Fan Headers .............................................................................. 8

2.4 Installing System Memory ......................................................... 9

2.5 Connectors and Slots .............................................................. 10

Chapter 3: Headers & Jumpers Setup ................................... 13

3.1 How to Setup Jumpers ............................................................ 13

3.2 Detail Settings ......................................................................... 13

Chapter 4: Useful Help .............................................................. 16

4.1 Driver Installation ..................................................................... 16

4.2 Software ................................................................................... 17

4.3 BIOS Setup .............................................................................. 19

4.4 Troubleshooting ....................................................................... 22

4.5 RAID Function ......................................................................... 23

Appendix: SPEC In Other Languages ...................................... 24

German ....................................................................................................... 24

French ........................................................................................................ 26

Italian .......................................................................................................... 28

Spanish ....................................................................................................... 30

Portuguese ................................................................................................. 32

Polish .......................................................................................................... 34

Russian ....................................................................................................... 36

Arabic ......................................................................................................... 38

Japanese .................................................................................................... 40

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with sufficient

lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded
appliance, or use grounded wrist strap to remove the static
charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the
edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may
damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit

A960D+V2

1.2 Package Checklist

 Serial ATA Cable x2
 Rear I/O Panel for ATX Case x1
 Quick Installation Guide x1
 Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was
sold. For more information about the standard package in your region, please contact your
dealer or sales representative.

1

Motherboard Manual

1.3 Motherboard Features

SPEC

Socket AM3 / AM3+

CPU

FSB

Chipset

Super I/O

Main

Memory

Graphics Integrated in AMD 890GX Chipset Max Shared Video Memory is 1024MB

SATA II Integrated Serial ATA Controller

LAN Realtek RTL 8111G 10 / 100 / 1000 Mb/s auto negotiation

Sound ALC662

Slots

On Board

Connectors

AMD Sempron / Athlon II / Phenom II /FX

processors (Maximum Watt: 125W)

Support Hyper Transport 3.0

Supports up to 4.8 GT/s Bandwidth

AMD 890GX

AMD SB710

ITE 8728F-EX

Provides the most commonly used legacy

Super I/O functionality

DDR3 DIMM Slots x 2

Max Memory Capacity 16GB

Each DIMM supports 512MB/1GB/

2GB/4GB/8GB DDR3

PCI Express X16 slot x1 Supports PCI-E X16 expansion card

PCI Express X1 slot x1 Supports PCI-E X1 expansion card

PCI slot x1 Supports PCI expansion cards

SATA Connector x4 Each connector supports 1 SATA device

IDE Connector x1 Each connector supports 2 IDE device

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

2

AMD 64 Architecture enables 32 and 64 bit

computing

Supports Hyper Transport 3.0

Low Pin Count Interface

Environment Control initiatives

H/W Monitor

ITE's "Smart Guardian" function

Dual Channel Mode DDR3 memory module

Supports DDR3 800/1066/1333/1600(OC)/1866(OC

for AM3+ CPU only)

Registered DIMM and ECC DIMM is not supported

Data transfer rates up to 3 Gb/s

SATA Version 2.0 specification compliant

5.1 channels audio out

High Definition Audio

SPEC

CMOS Clear Jumper x1 Restore CMOS data to factory default setting

USB Connector x2 Each connector supports 2 front panel USB ports

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Printer Port Connector x1 Each connector supports 1 Printer port

PS/2 Keyboard x1

PS/2 Mouse x1

Back Panel

I/O

Board Size 190 mm(W) x 235 mm(L)

Special

Features

OS

Support

DVI port x1

VGA port x1

LAN port x1

USB Port x4

Audio Jack x3

RAID 0 / 1 / 10 support

Windows XP / Vista / 7 / 8 / 8.1 / 10

(Microsoft provides inbox graphics driver for

Windows 8 / 8.1 / 10.)

A960D+V2

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to DVI-D monitor

Connect to D-SUB monitor

Connect to RJ-45 Ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Biostar reserves the right to add or remove support

for any OS With or without notice.

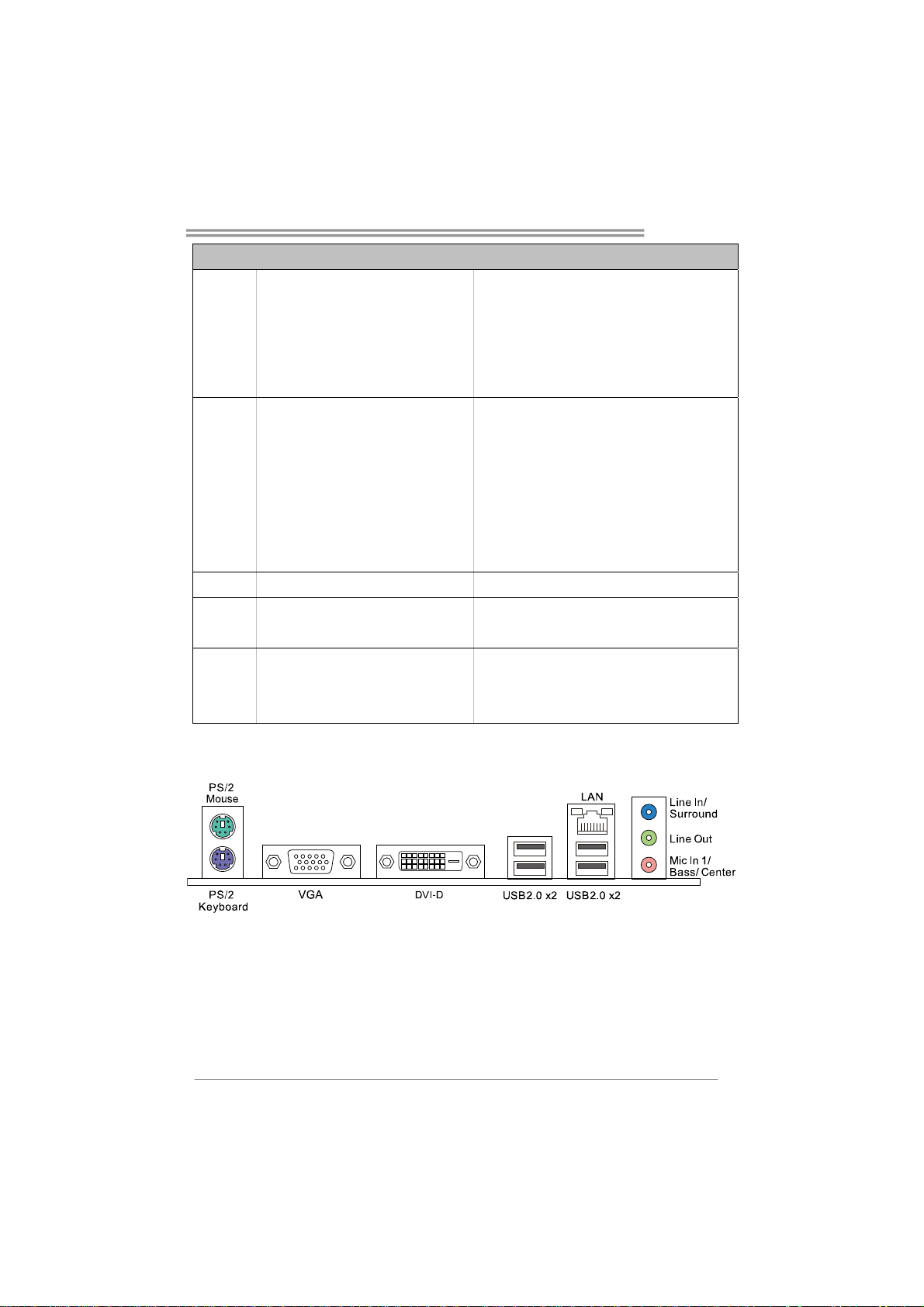

1.4 Rear Panel Connectors

3

Motherboard Manual

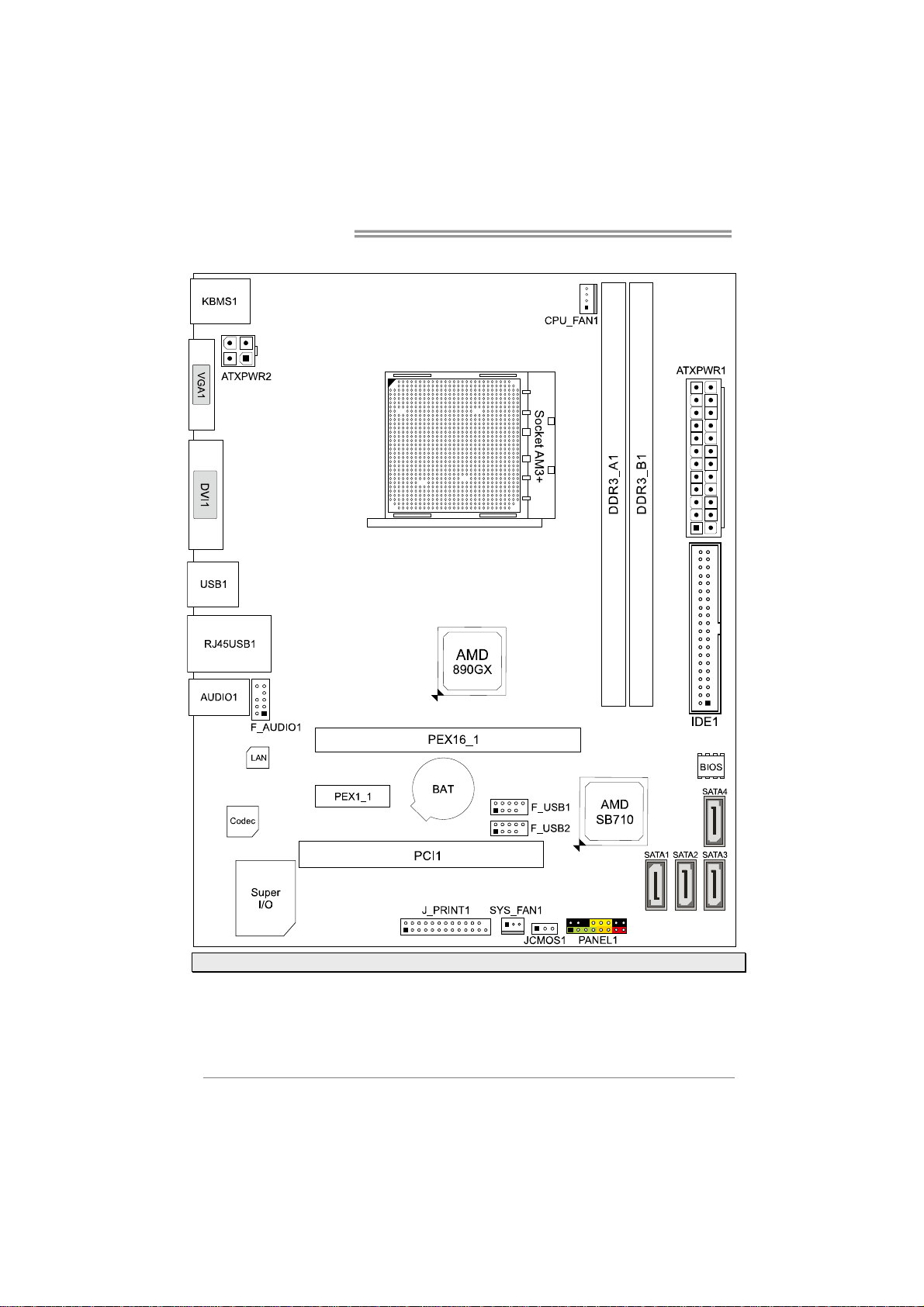

1.5 Motherboard Layout

Note: ■ represents the 1st pin.

4

CHAPTER 2: HARDWARE INSTALLATION

2.1 Installing Central Processing Unit (CPU)

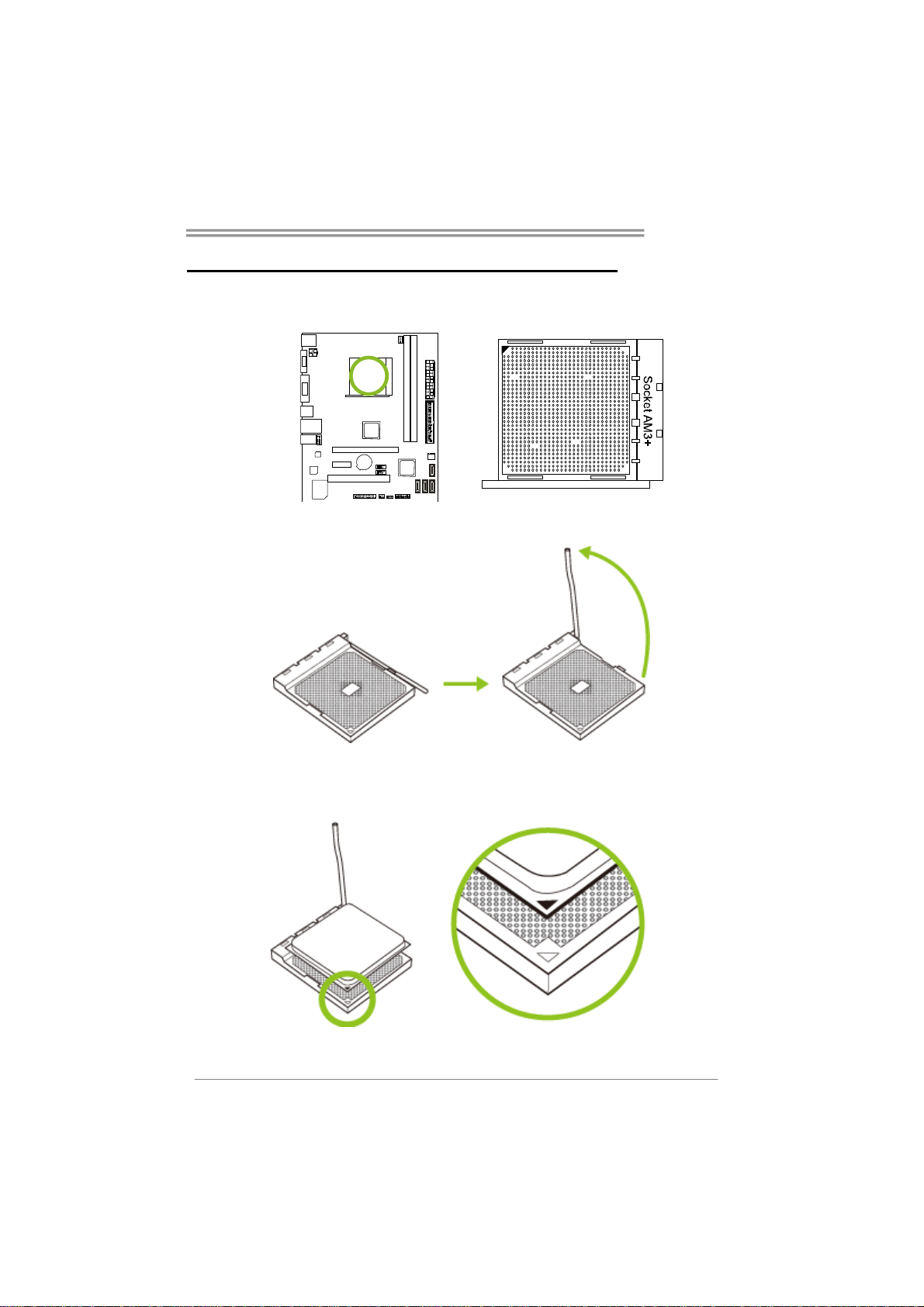

Step 1: Locate the CPU socket on the motherboard

Step 2: Pull the socket locking out from the socket and then raise the lever

up to a 90-degree angel.

A960D+V2

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.

5

Motherboard Manual

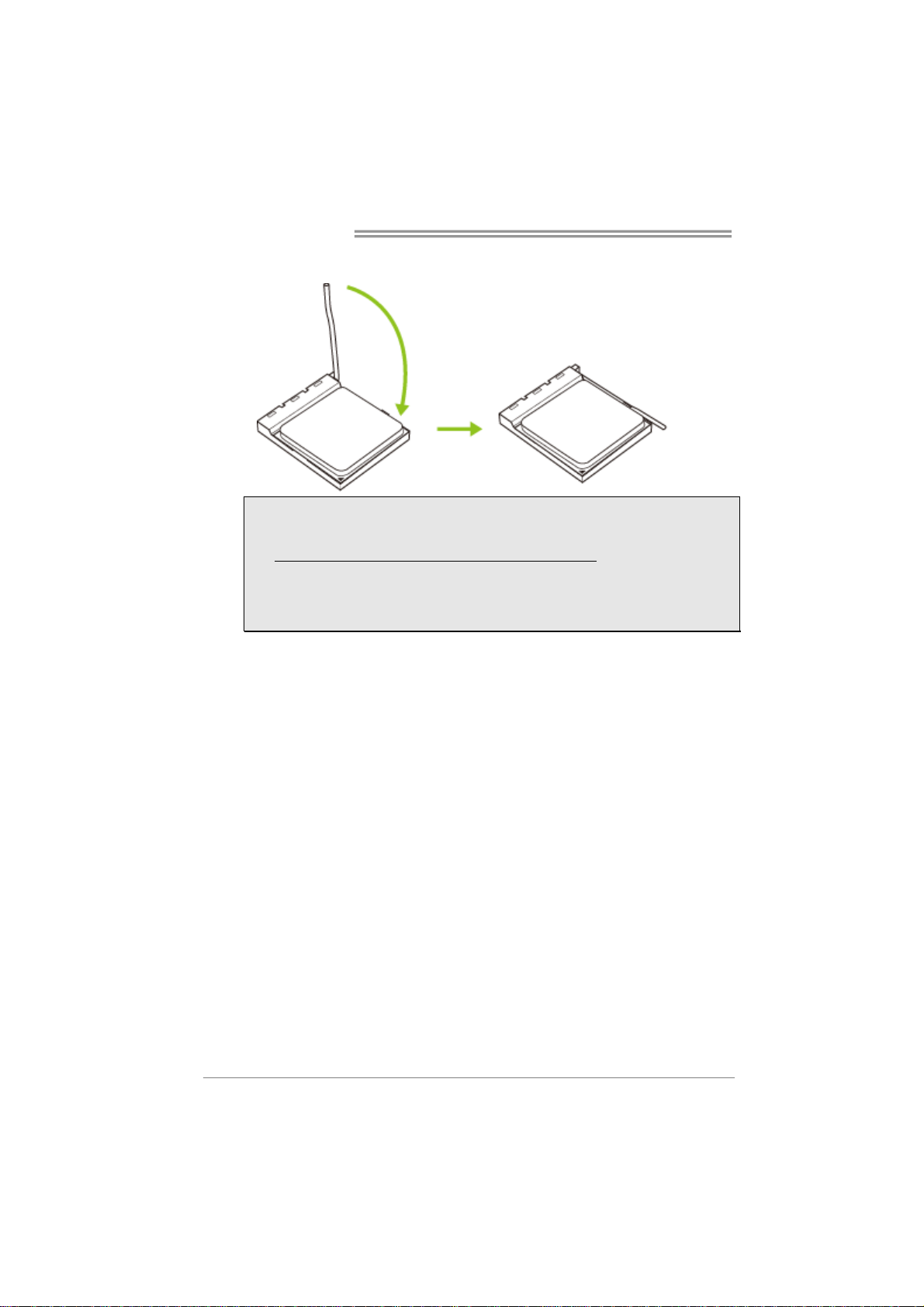

Step 4: Hold the CPU down firmly, and then close the lever to locked the

position.

Note:

1. This MB is designed for AMD 125W AM3/AM3+ CPU, pleases check the CPU TDP
spec before you install it on MB AM3+ CPU TDP spec from below web link:
http://www.amd.com/en-us/products/processors/desktop/fx

2. AMD’s product warranty does not cover damage caused by overclocking (even
when overclocking is enabled via AMD OverDrive™ software).

3. Due to the AMD AM3+ CPU designation, we strongly recommend you use AMD
original box CPU fan and add an extra system fan inside the chassis.

6

A960D+V2

2.2 Install a Heatsink

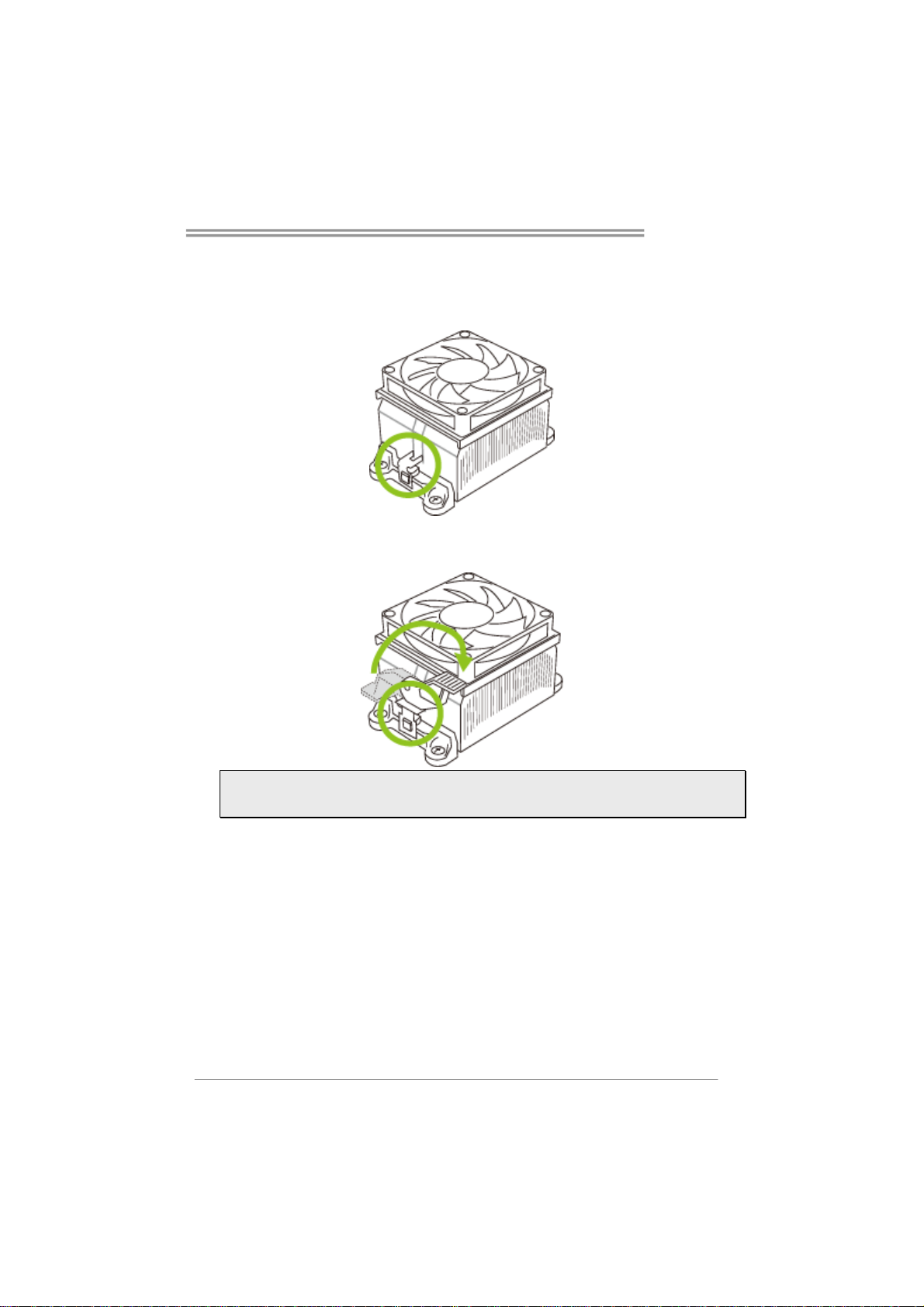

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the

heatsink clip with the socket mounting-lug. Hook the spring clip to the
mounting-lug.

Step 2: On the other side, push the retention clip straight down to lock into the

plastic lug on the retention frame, and then press down the locker until it
stops.

Note1: Do not forget to connect the CPU fan connector.
Note2: For proper installation, please kindly refer to the installation manual of your CPU
heatsink.

7

Motherboard Manual

2.3 Fan Headers

These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different due to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

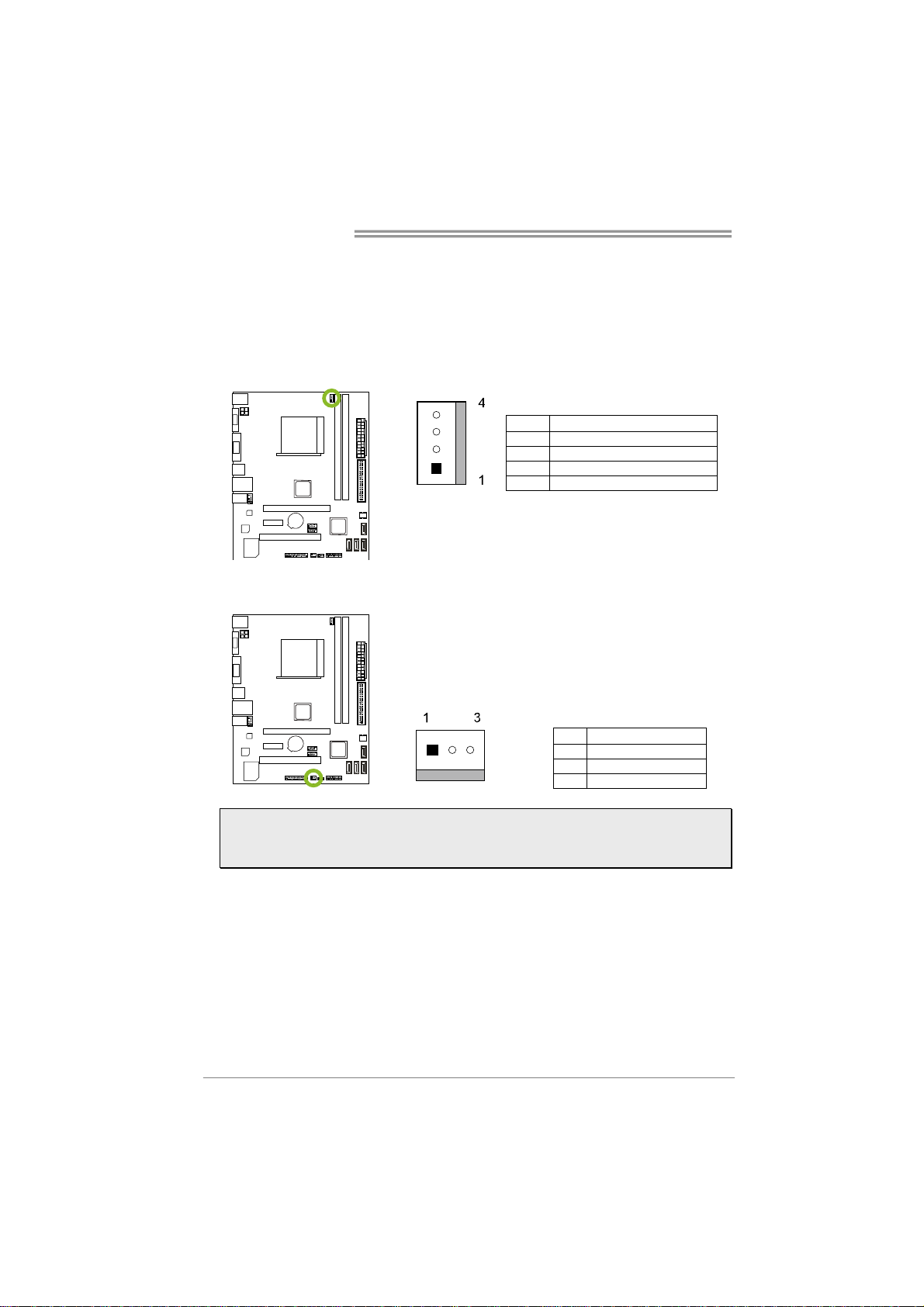

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground
2 +12V

Note: CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When
connecting with wires onto connectors, please note that the red wire is the positive and
should be connected to pin#2, and the black wire is Ground and should be connected to
GND.

3 FAN RPM rate sense

8

A960D+V2

2.4 Installing System Memory

A. Memory Modules

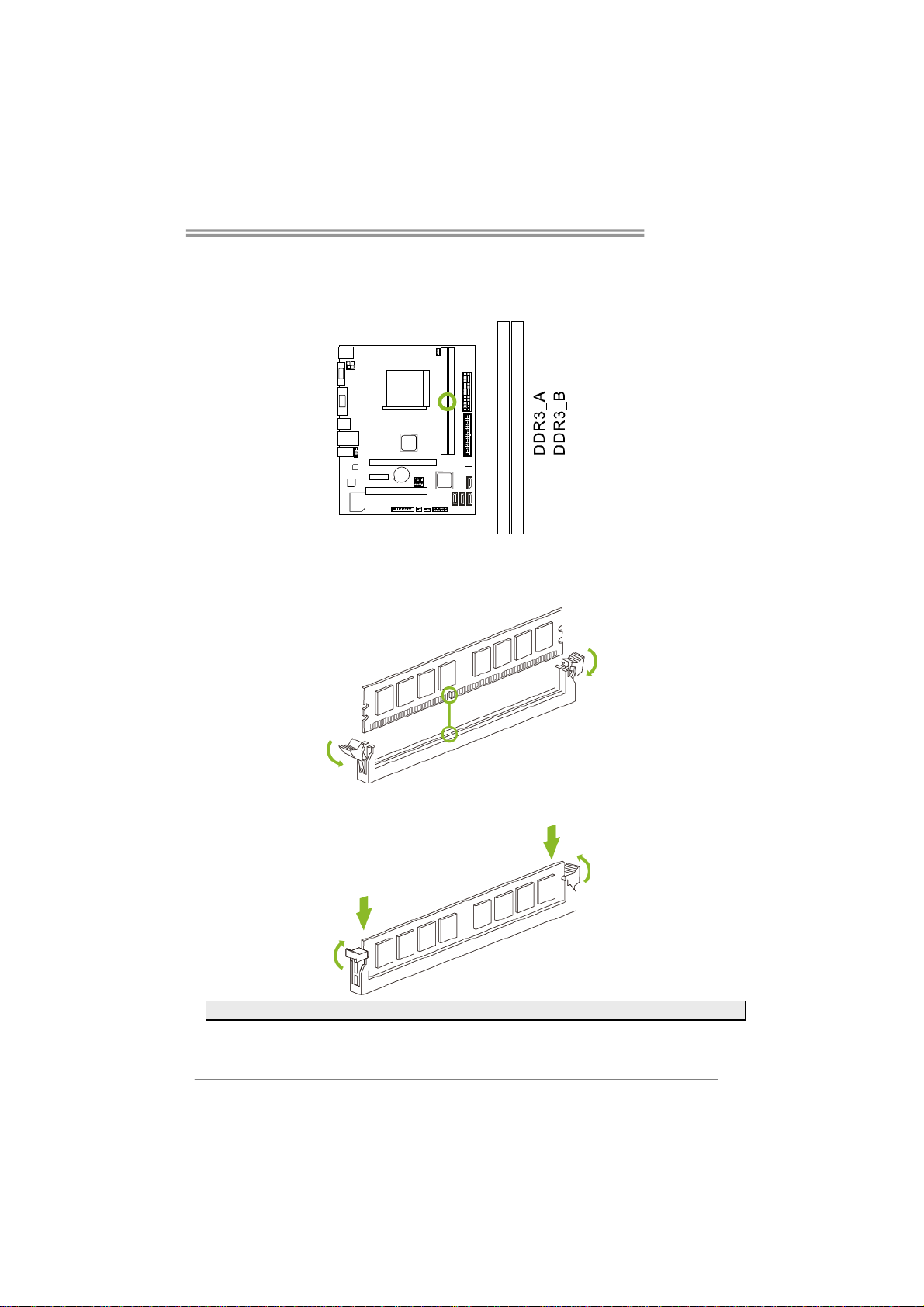

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining
clips snap back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

9

Motherboard Manual

B. Memory Capacity

DIMM Socket Location

DDR3_A1 512MB/1GB/2GB/4GB/8GB
DDR3_B1 512MB/1GB/2GB/4GB/8GB

DDR3 Module

C. Dual Channel Memory installation

Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.

Dual Channel Status

Disabled O X
Disabled X O

Enabled O O

DDR3_A1

DDR3_B1

(O means memory installed, X means memory not installed.)

Note: The DRAM bus width of the memory module must be the same (x8 or x16)

2.5 Connectors and Slots

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.

Total Memory Size

Max is 16GB.

Pin Assignment

1 Ground
2 TX+
3 TX­4 Ground
5 RX­6 RX+
7 Ground

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

10

A960D+V2

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Pin Assignment

1 +12V
2 +12V
3 Ground
4 Ground

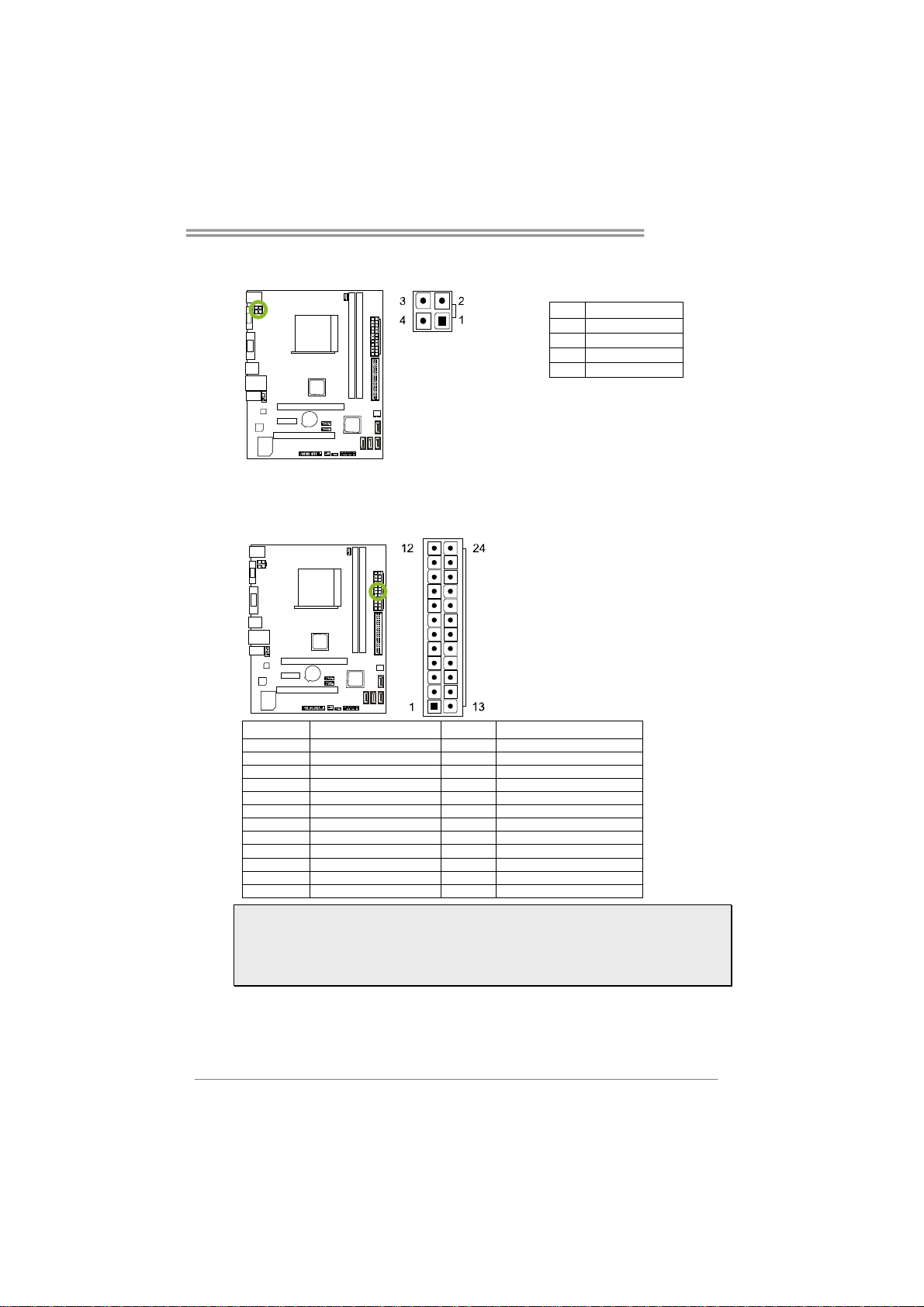

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX
power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

Note1: Before you power on the system, please make sure that both ATXPWR1 and
ATXPWR2 connectors have been plugged-in.

Note2: Insufficient power supplied to the system may result in instability or the
peripherals not functioning properly. Use of a PSU with a higher power output is
recommended when configuring a system with more power-consuming devices.

11

Motherboard Manual

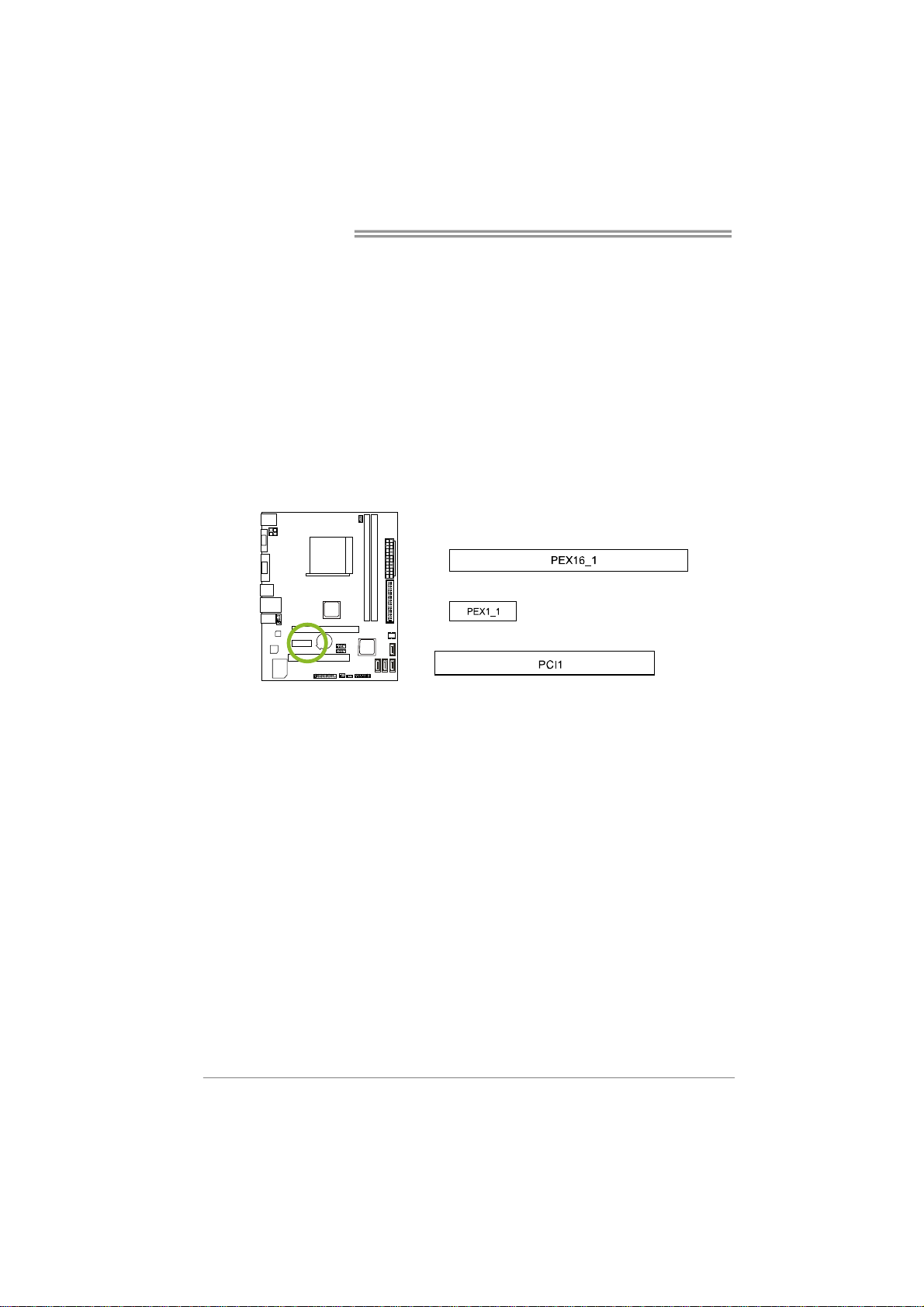

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

PEX1_1: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total

PCI1: Peripheral Component Interconnect Slot

This motherboard is equipped with 1 standard PCI slot. PCI stands for Peripheral
Component Interconnect, and it is a bus standard for expansion cards.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

12

CHAPTER 3: HEADERS & JUMPERS SETUP

3.1 How to Setup Jumpers

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.

Pin opened Pin closed Pin1-2 closed

3.2 Detail Settings

JCMOS1: Clear CMOS Jumper

Placing the jumper on pin2-3 allows user to restore BIOS safe setting and
CMOS data. Pease carefully follow the procedures to avoid damaging the
motherboard.

13

Pin 1-2 Close:

Normal Operation (default).

A960D+V2

13

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

13

Motherboard Manual

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.

Pin Assignment Function Pin Assignment Function

1 +5V
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 Speaker 12 Power LED (+)
5 HDD LED (+)
6 HDD LED (-) 14 Power LED (-)
7 Ground
8 Reset control 16 Ground

Speaker
Connector

Hard drive
LED

Reset button

9 N/A

13 Power LED (+)

15 Power button

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.

N/A

Power LED

Power-on button

14

Pin Assignment

1 +5V (fused)
2 +5V (fused)
3 USB­4 USB­5 USB+
6 USB+
7 Ground
8 Ground
9 KEY

10 NC

A960D+V2

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.

Pin Assignment

1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in

10 Jack Sense

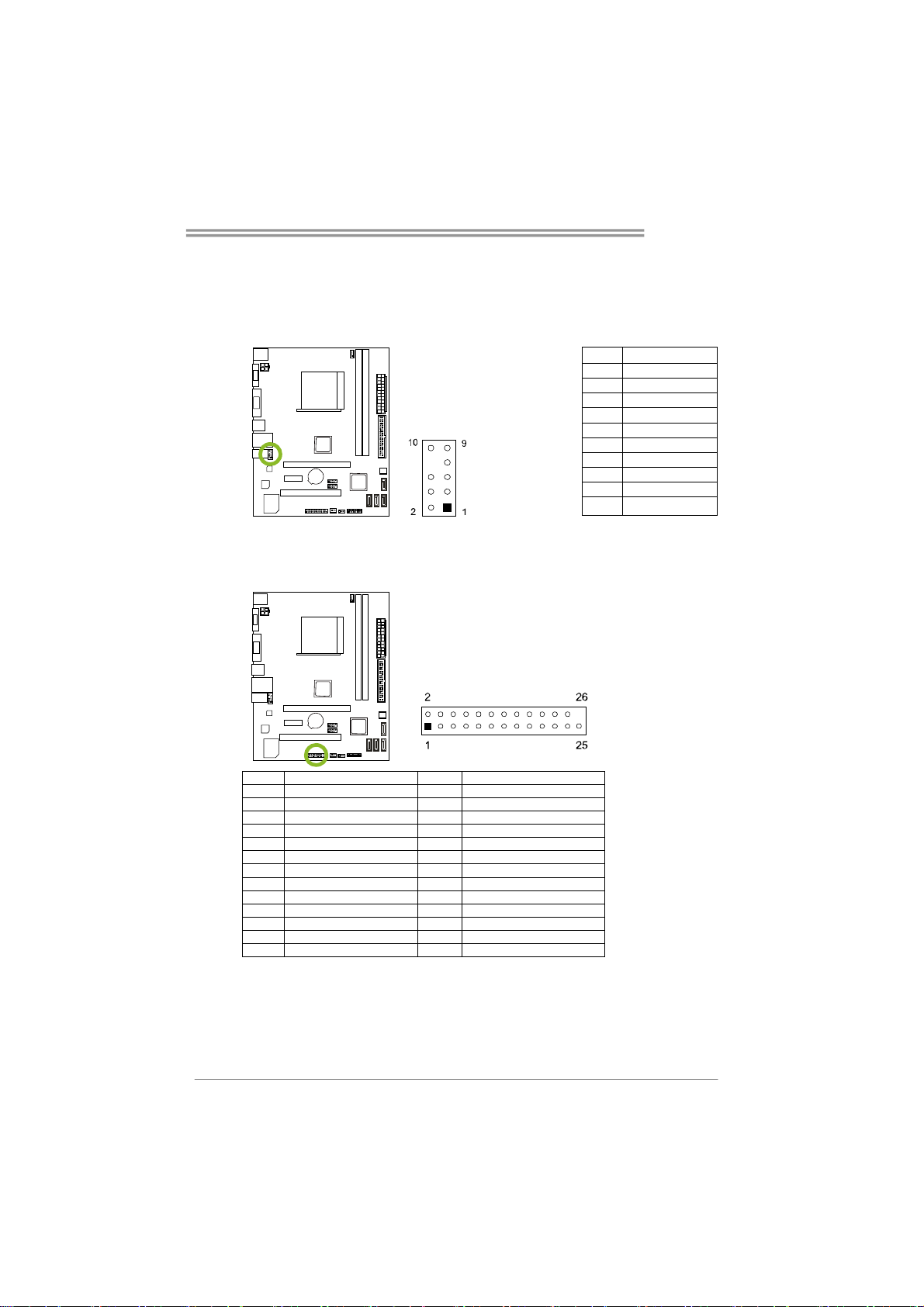

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy

9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key

15

Motherboard Manual

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your
optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note: If this window didn’t show up after you insert the Driver DVD, please use file browser
to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible
driver for your motherboard and operating system. Click on each device driver to launch the
installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the
software available for your system, click on each software title to launch the installation
program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the
Manual icon to browse for available manual.

Note: You will need Acrobat Reader to open the manual file. Please download the latest
version of Acrobat Reader software from http://get.adobe.com/reader/

16

A960D+V2

e

4.2 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The drivers installation program would appear if the
Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Note1: All the information and content about following software are subject to be changed
without notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The
actual information and settings on board may be slightly different from this manual.

Launching Software

After the installation process, you will see the software icon “eHOT Line” / “BIOS Update”
appears on the desktop. Double-click the icon to launch the utility.

eHot-Line

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This
utility will collect the system information which is useful for analyzing the problem you may
have encountered, and then send these information to our tech-support department to help
you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client
application program.

repr esents important

*

infor mation that you
must provide. Without
this information, you may
not be able to send out
the mail.

This block will show
the information which
would be collected in
the mail.

Send the mail out.

Describe conditi on

*

of your system.

Save these infor ma tion to a .txt fi l

Exit this dialog.

Select your area or

*

the area close to you.

Provide the e-mail
address that you would
like to send t he copy to.

Pro vide t he name o f

*

the memory module
manufacturer.

Provide the name of
the power supply
manufacturer and the
model no.

17

Motherboard Manual

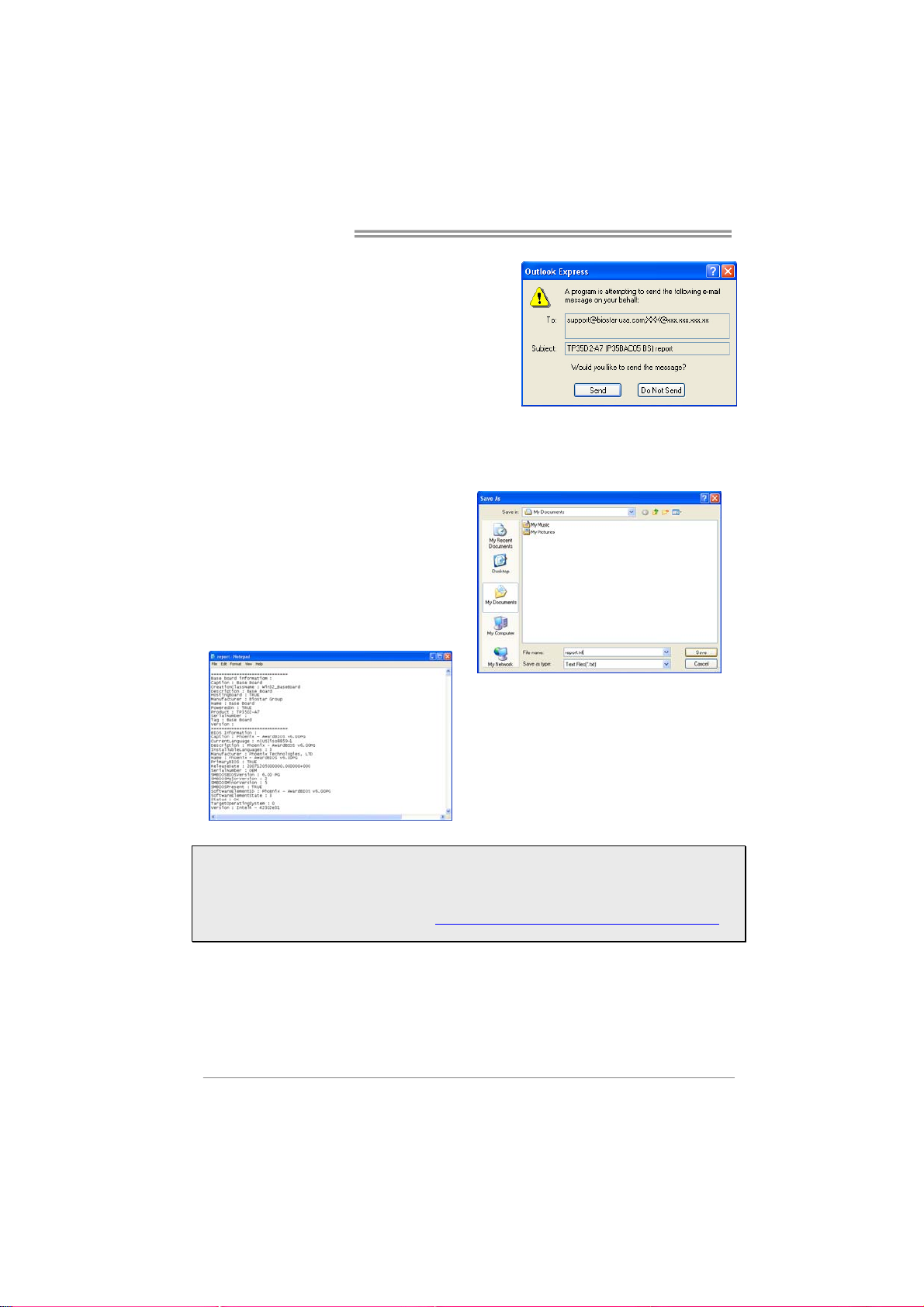

After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you
will see a saving dialog appears asking you to enter file name.

Enter the file name and then click
“Save”. Your system information will
be saved to a .txt file.

Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This
information is also concluded in the
sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to
provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may
need to save the system information to a .txt file and send the file to our tech support with other
e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php for
getting our contact information.

18

A960D+V2

n

4.3 BIOS Setup

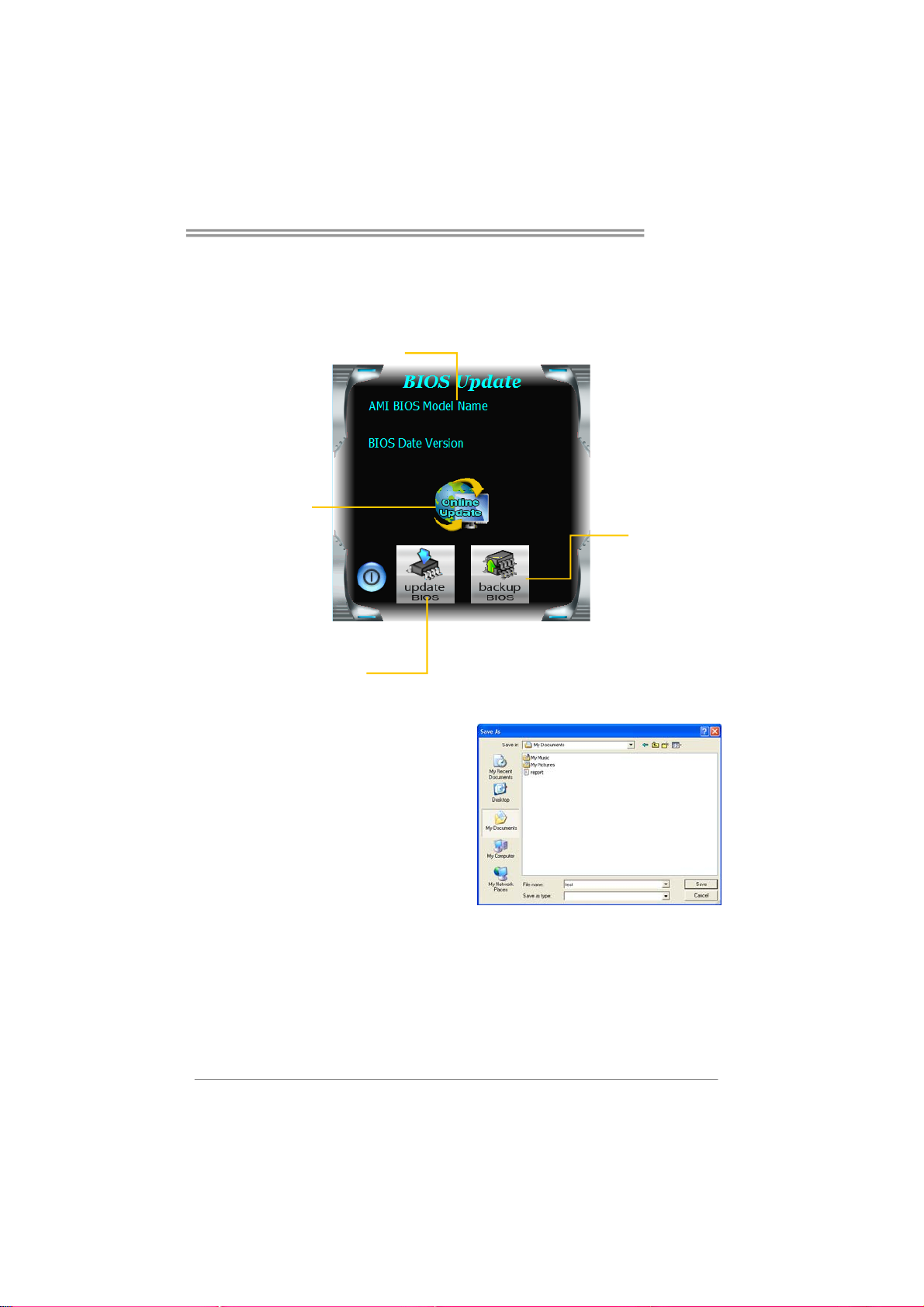

BIOS Update is a convenient utility which allows you to update your
motherboard BIOS under Windows system.

Show current BIOS informatio

Update BIOS

from the Internet

with a BIOS file

Update BIOS

Save current BIOS

to a .bin file

<Backup BIOS>

Once click on this button, the saving
dialog will show. Choose the
position to save file and enter file
name. (We recommend that the file
name should be English/number
and no longer than 7 characters.)
Then click Save.

19

Motherboard Manual

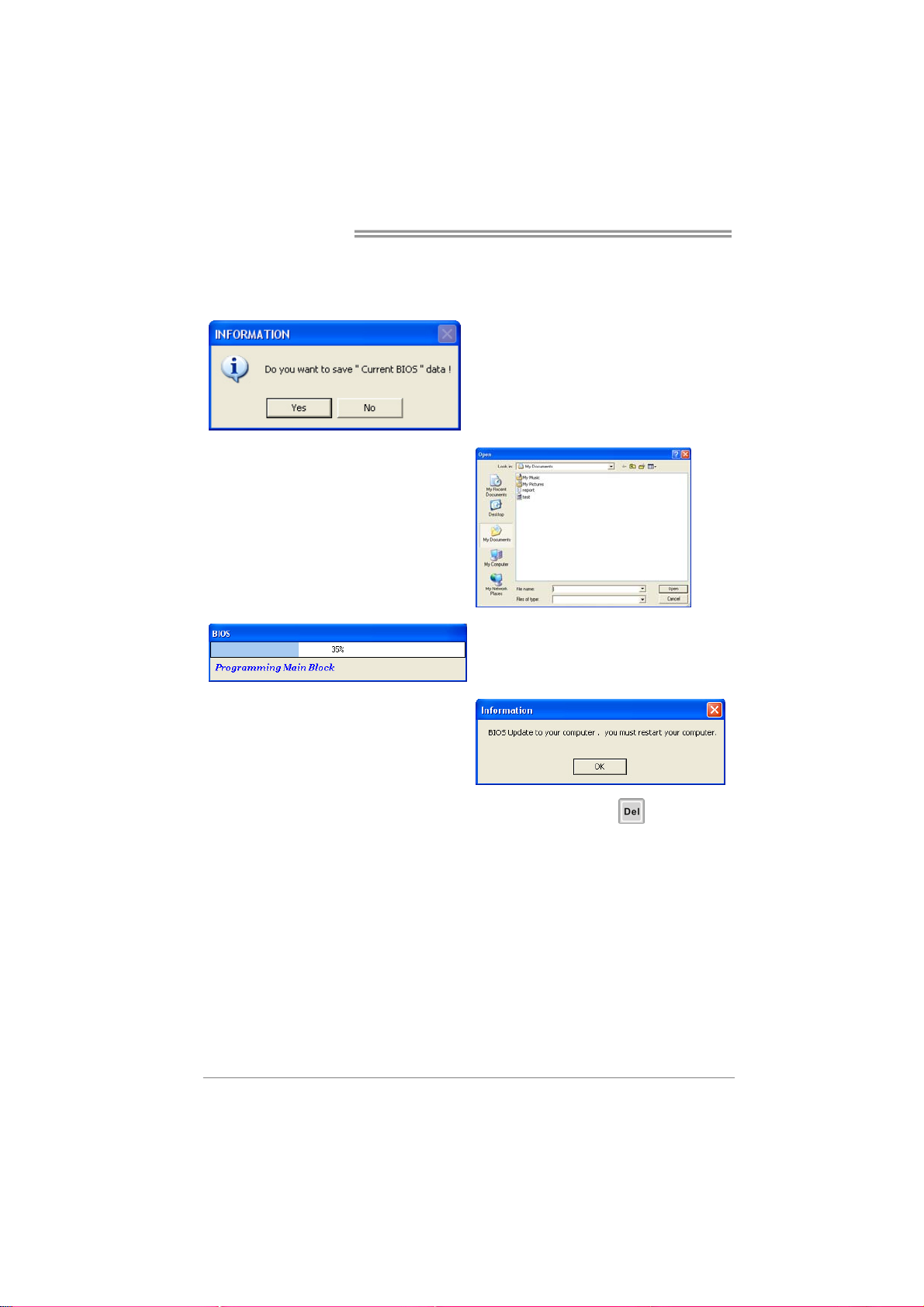

<Update BIOS>

Before doing this, please download the proper BIOS file from the website.

Then click Update BIOS button, a
dialog will show for asking you backup
current BIOS. Click Yes for BIOS
backup and refer to the Backup BIOS
procedure; or click No to skip this
procedure.

After the BIOS Backup procedure, the
open dialog will show for requesting the
BIOS file which is going to be updated.
Please choose the proper BIOS file for
updating, then click on Open.

The utility will update BIOS with the
proper BIOS file, and this process may
take minutes. Please do not open any
other applications during this process.

After the BIOS Update process, click on
OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete>
key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and
Exit Setup to exit BIOS setup. BIOS Update is completed.

20

A960D+V2

BIO-Flasher

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to
update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during
the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB
port or the floppy disk drive.

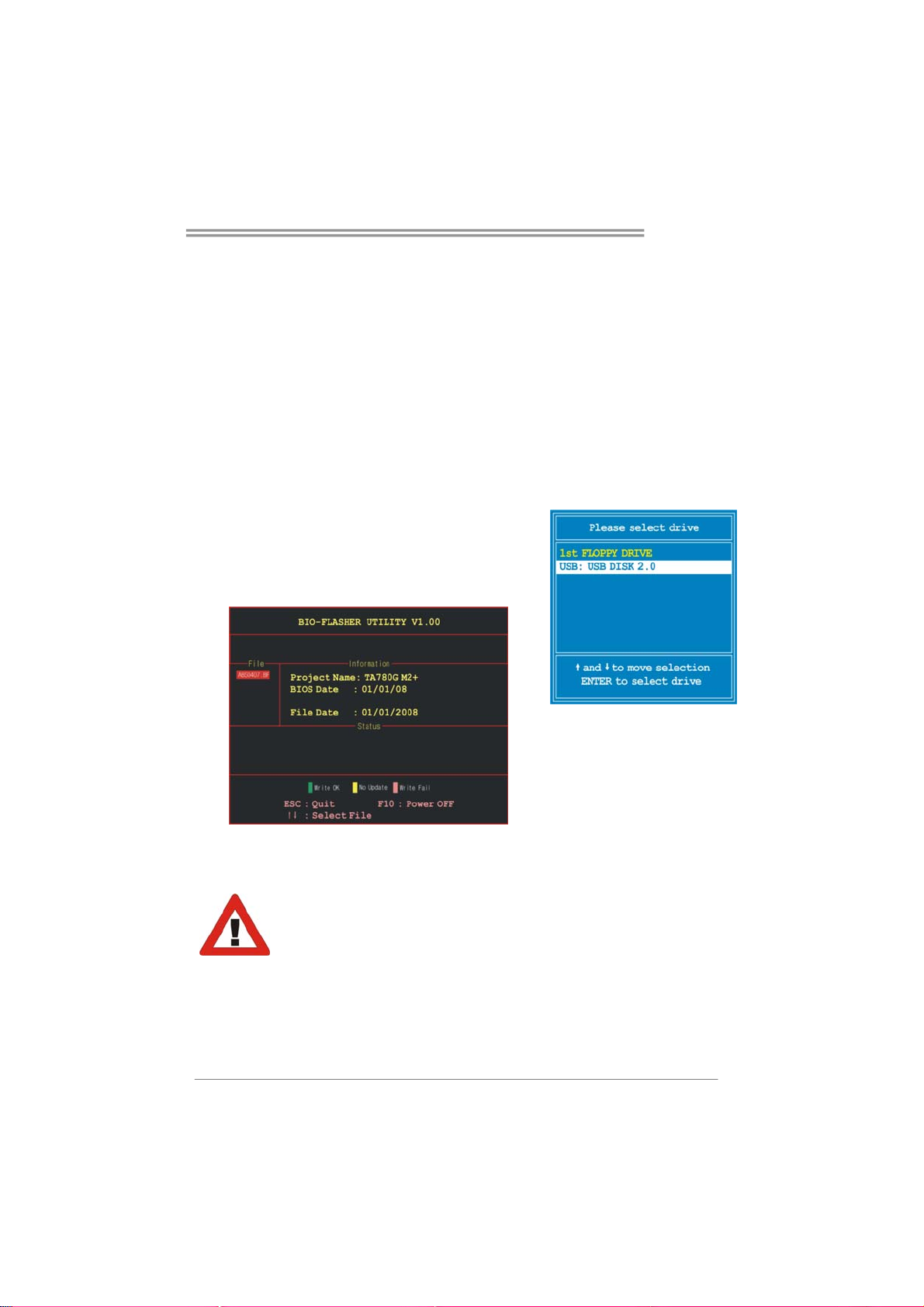

4. Power on or reset the computer and then
press <F12> during the POST process.
A select dialog as the picture on the right
appears.
Select the device contains the BIOS file and
press <Enter> to enter the utility.

5. The utility will show the BIOS
files and their respective
information. Select the proper
BIOS file and press <Enter>
then <Y> to perform the BIOS
update process.

6. After the update process, the utility will ask you to reboot the system. Press
<Y> to proceed. BIOS update completes.

 This utility only allows storage device with FAT32/16 format and single

partition.

 Shutting down or resetting the system while updating the BIOS will lead to

system boot failure.

21

Motherboard Manual

4.4 Troubleshooting

Probable Solution

1. There is no power in the system.
Power LED does not shine; the
fan of the power supply does not
work

2. Indicator light on keyboard does
not shine.

System is inoperative. Keyboard lights
are on, power indicator lights are lit, and
hard drives are running.

System does not boot from a hard disk
drive, but can be booted from optical
drive.

System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.

Screen message shows “Invalid
Configuration” or “CMOS Failure.”

System cannot boot after user installs a
second hard drive.

1. Make sure power cable is securely
plugged in.

2. Replace cable.

3. Contact technical support.

Using even pressure on both ends of the DIMM,
press down firmly until the module snaps into
place.

1. Check cable running from disk to disk
controller board. Make sure both ends are
securely plugged in; check the drive type
in the standard CMOS setup.

2. Backing up the hard drive is extremely
important. All hard disks are capable of
breaking down at any time.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install
applications and data using backup disks.

Review system’s equipment. Make sure correct
information is in setup.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct
drive types. Call the drive manufacturers
for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that
means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to
avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.
Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

22

4.5 RAID Function

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No capacity

loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data

is lost.

 Fault Tolerance: No.
 Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Features and Benefits

 Drives: Minimum 2, and maximum is 2.
 Uses: RAID 1 is ideal for small databases or any other application that requires fault

tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the controller

switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive. Performance is

impaired during drive rebuilds.

 Fault Tolerance: Yes .

A960D+V2

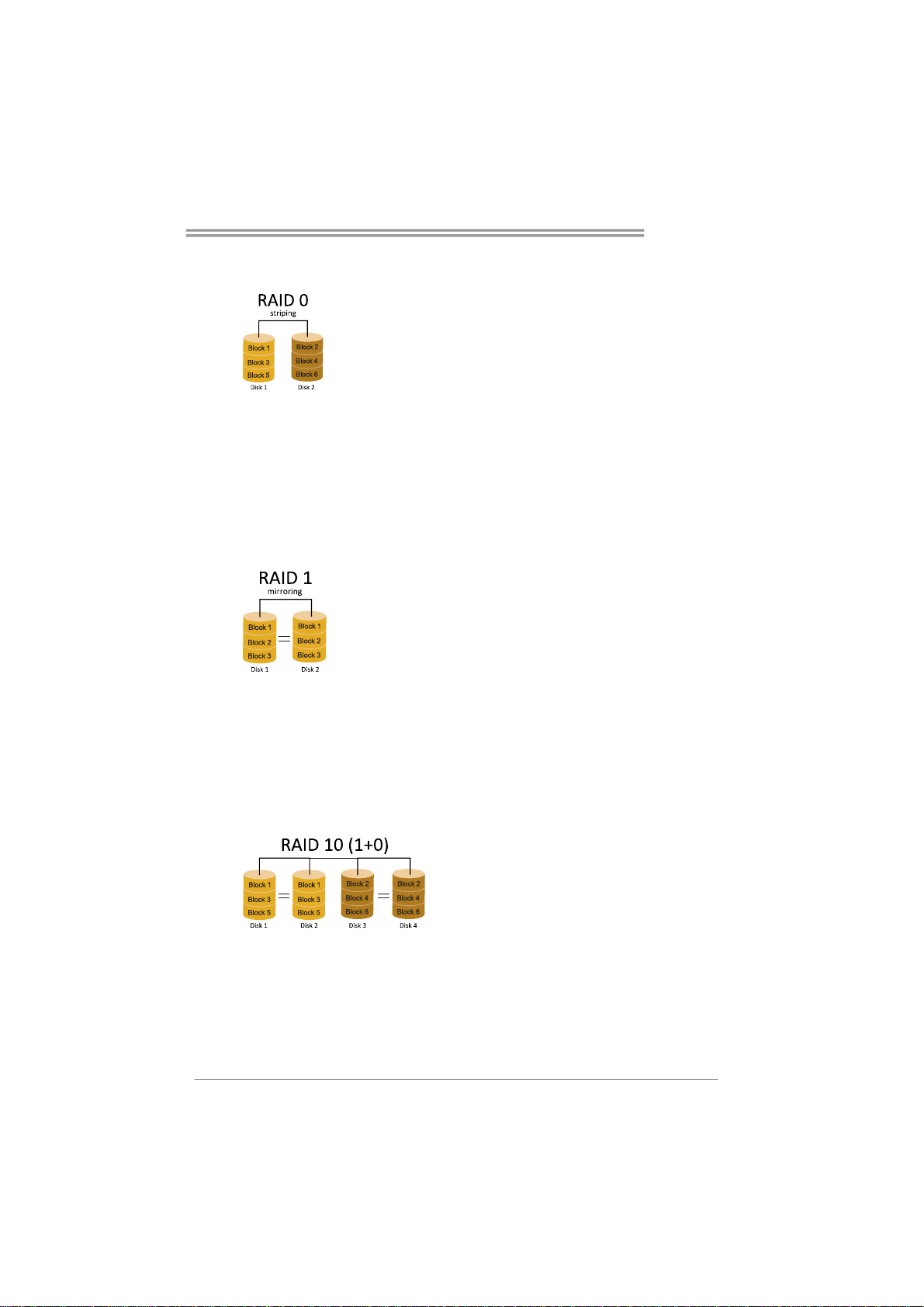

In a RAID 0 system data are split up in blocks that get
written across all the drives in the array. By using multiple
disks (at least 2) at the same time, this offers superior I/O
performance. This performance can be enhanced further
by using multiple controllers, ideally one controller per
disk.

Data are stored twice by writing them to both the data
disk (or set of data disks) and a mirror disk (or set of
disks). If a disk fails, the controller uses either the data
drive or the mirror drive for data recovery and continues
operation. You need at least 2 disks for a RAID 1 array.

RAID 10 combines the advantages (and
disadvantages) of RAID 0 and RAID 1 in one
single system. It provides security by mirroring all
data on a secondary set of disks (disk 3 and 4 in
the drawing below) while using striping across
each set of disks to speed up data transfers.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
 Benefits: Optimizes for both fault tolerance and performance, allowing for automatic

redundancy. May be simultaneously used with other RAID levels in an array, and
allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy, the same

as RAID level 1.

 Fault Tolerance: Yes .

23

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

German

Spezifikationen

CPU

FSB

Chipsatz

Super E/A

Arbeitsspeic

her

Grafik

SATA

LAN

HD

Audio-Unters

tützung

Sockel AM3 / AM3+

AMD Sempron/Athlon II / Phenom II /FX

Prozessoren (Maximales Watt: 125W)

Unterstützt Hyper Transport 3.0 mit

einer Bandbreite von bis zu 4.8 GT/s

AMD 890GX

AMD SB710

ITE 8728F-EX

Bietet die häufig verwendeten alten

Super E/A-Funktionen.

DDR3 DIMM-Steckplätze x 2

Max. 16GB Arbeitsspeicher

Jeder DIMM unterstützt 512MB/1GB/

2GB/4GB/8GB DDR3.

Integrierter AMD 890GX-Chipsatz Max. 1024MB gemeinsam benutzter Videospeicher

Integrierter Serial ATA-Controller

Realtek RTL 8111G 10 / 100 / 1000 Mb/s Auto-Negotiation

ALC662

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport 3.0

Low Pin Count-Schnittstelle

Umgebungskontrolle,

Hardware-Überwachung

"Smart Guardian"-Funktion von ITE

Dual-Kanal DDR3 Speichermodul, Unterstützt DDR3

800/1066/1333/1600(OC)/1800(OC für AM3-CPU-only)

registrierte DIMMs. ECC DIMMs werden nicht

unterstützt.

Datentransferrate bis zu 3 Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

5.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

Steckplätze

Onboard-Ans

chluss

24

PCI Express X16 Steckplatz x1

PCI Express X1 Steckplatz x1

PCI-Steckplatz x1

SATA-Anschluss x4 Jeder Anschluss unterstützt 1 SATA-Laufwerk

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

A960D+V2

Spezifikationen

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

Rückseiten-E

/A

Platinengröß

e

Sonderfunkti

onen

CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x1 System-Lüfter-Stromversorgungsanschluss

"CMOS löschen"-Sockel x1

USB-Anschluss x2

Stromanschluss (24-polig) x1

Stromanschluss (4-polig) x1

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

PS/2-Tastatur x1

PS/2-Maus x1

DVI-Anschluss x1

VGA-Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

190 mm (B) X 235 mm (L)

Unterstützt RAID 0 / 1 / 10

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funktion)

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

OS-Unterstüt

zung

Windows XP / Vista / 7 / 8 / 8.1 / 10

Biostar behält sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem hinzuzufügen

oder zu entfernen.

25

Motherboard Manual

French

Socket AM3 / AM3+

UC

Processeurs AMD Sempron/Athlon II /

Phenom II /FX (Watt maximum : 125W)

SPEC

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyper Transport 3.0

Bus frontal

Chipset

Super E/S

Mémoire

principale

Graphiques

SATA

LAN

Prise en

charge

audio HD

Fentes

Prend en charge Hyper Transport 3.0

jusqu'à une bande passante de 4.8 GT/s

AMD 890GX

AMD SB710

ITE 8728F-EX

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Fentes DDR3 DIMM x 2

Capacité mémoire maximale de 16Go

Chaque DIMM prend en charge des

DDR3 de 512Mo/1Go/2Go/4Go/8Go

Integré dans la chipset AMD 890GX Mémoire vidéo partagée maximale de 1024 Mo

Contrôleur Serial ATA intégré

Realtek RTL 8111G 10 / 100 / 1000 Mb/s négociation automatique

ALC662

Fente PCI Express X16 x1

Fente PCI Express X1 x1

Interface à faible compte de broches

Initiatives de contrôle environnementales,

Moniteur de matériel

Fonction "Gardien intelligent" de l'ITE

Module de mémoire DDR3 à mode à double voie

Prend en charge la DDR3

800/1066/1333/1600(OC)/1866(OC pour les

processeurs AM3 uniquement)

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécification SATA Version 2.0

Sortie audio à 5.1 voies

Prise en charge de l'audio haute définition

Connecteur

embarqué

26

Fente PCI x1

Chaque connecteur prend en charge 1 périphérique

Connecteur SATA x4

SATA

A960D+V2

SPEC

Connecteur IDE x1

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Chaque connecteur prend en charge 2 périphériques

IDE

E/S du

panneau

arrière

Embase de ventilateur UC x1

Embase de ventilateur système x1 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2

Connecteur d'alimentation x1

(24 broches)

Connecteur d'alimentation x1

(4 broches)

Connecteur de Port d'imprimante x1

Clavier PS/2 x1

Souris PS/2 x1

Port DVI x1

Port VGA x1

Port LAN x1

Port USB x4

Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Chaque connecteur prend en charge 2 ports USB de

panneau avant

Chaque connector prend en charge 1 Port

d'imprimante

Dimensions

de la carte

Fonctionnal

ités

spéciales

Support SE

Fiche audio x3

190 mm (l) X 235 mm (H)

Prise en charge RAID 0 / 1 / 10

Biostar se réserve le droit d'ajouter ou de supprimer le

Windows XP / Vista / 7 / 8 / 8.1 / 10

support de SE avec ou sans préavis.

27

Motherboard Manual

Italian

SPECIFICA

CPU

FSB

Chipset

Super I/O

Memoria

principale

Grafica

SATA

LAN

Socket AM3 / AM3+

Processori AMD Sempron/Athlon II /

Phenom II /FX (Watt massimo: 125W)

Supporto di HyperTransport 3.0 fino a 4.8

GT/s di larghezza di banda

AMD 890GX

AMD SB710

ITE 8728F-EX

Fornisce le funzionalità legacy Super I/O

usate più comunemente.

Alloggi DIMM DDR3 x 2

Capacità massima della memoria 16GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Integrata nel Chipset AMD 890GX La memoria video condivisa massima è di 1024MB

Controller Serial ATA integrato

Realtek RTL 8111G Negoziazione automatica 10 / 100 / 1000 Mb/s

L’architettura AMD 64 abilita la computazione 32 e 64 bit

Supporto di Hyper Transport 3.0

Interfaccia LPC (Low Pin Count)

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Funzione "Smart Guardian" di ITE

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800/1066/1333/1600(OC)/1800(OC

per CPU AM3 solo)

DIMM registrati e DIMM ECC non sono supportati

Velocità di trasferimento dei dati fino a 3 Gb/s.

Compatibile specifiche SATA Versione 2.0.

Supporto

audio HD

Alloggi

Connettori

su scheda

28

ALC662

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

Alloggio PCI Express X16 x1

Alloggio PCI Express X1 x1

Alloggio PCI x1

Connettore SATA x4 Ciascun connettore supporta 1 unità SATA

Connettore IDE x1 Ciascun connettore supporta 2 unità IDE

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

A960D+V2

SPECIFICA

Collettore ventolina CPU x1 Alimentazione ventolina CPU (con funzione Smart Fan)

Collettore ventolina sistema x1 Alimentazione ventolina di sistema

Collettore cancellazione CMOS x1

I/O pannello

posteriore

Dimensioni

scheda

Caratteristic

he speciali

Sistemi

operativi

supportati

Connettore USB x2

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4 pin)

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Tastiera PS/2 x1

Mouse PS/2 x1

Porta DVI x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio x3

190 mm (larghezza) x 235 mm (altezza)

Supporto RAID 0 / 1 / 10

Windows XP / Vista / 7 / 8 / 8.1 / 10

Ciascun connettore supporta 2 porte USB pannello

frontale

Biostar si riserva il diritto di aggiungere o rimuovere il

supporto di qualsiasi sistema operativo senza preavviso.

29

Motherboard Manual

Spanish

Especificación

CPU

FSB

Conjunto

de chips

Súper E/S

Memoria

principal

Gráficos

Conector AM3 / AM3+

Procesadores AMD Sempron/Athlon II /

Phenom II /FX (Vatio máximo: 125W)

Admite HyperTransport 3.0 con un ancho

de banda de hasta 4.8 GT/s

AMD 890GX

AMD SB710

ITE 8728F-EX

Le ofrece las funcionalidades heredadas

de uso más común Súper E/S.

Ranuras DIMM DDR3 x 2

Capacidad máxima de memoria de 16GB

Cada DIMM admite DDR de

512MB/1GB/2GB/4GB/8GB

Integrados en el conjunto de chips AMD

890GX

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Soporta las tecnologías Hyper Transport 3.0

Interfaz de cuenta Low Pin

Iniciativas de control de entorno,

Monitor hardware

Función "Guardia inteligente" de ITE

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800/1066/1333/1600(OC)/1866(OC

para CPU AM3 solamente)

No admite DIMM registrados o DIMM compatibles con

ECC

Memoria máxima de vídeo compartida de 1024 MB

SATA

Red Local

Soporte de

sonido HD

Ranuras

Conectores

en placa

30

Controlador ATA Serie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Compatible con la versión SATA 2.0.

Realtek RTL 8111G Negociación de 10 / 100 / 1000 Mb/s

Salida de sonido de 5.1 canales

ALC662

Soporte de sonido Alta Definición

Ranura PCI Express X16 X1

Ranura PCI Express X1 X1

Ranura PCI X1

Conector SATA X4 Cada conector soporta 1 dispositivos SATA

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

A960D+V2

Especificación

Conector de panel frontal X1 Soporta instalaciones en el panel frontal

Conector de sonido frontal X1 Soporta funciones de sonido en el panel frontal

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X1 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Panel

trasero de

E/S

Tamaño de

la placa

Funciones

especiales

Soporte de

sistema

operativo

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4 patillas)

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Teclado PS/2 X1

Ratón PS/2 X1

Puerto DVI X1

Puerto VGA X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

190 mm. (A) X 235 Mm. (H)

Admite RAID 0 / 1 / 10

Windows XP / Vista / 7 / 8 / 8.1 / 10

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

31

Motherboard Manual

Portuguese

Socket AM3 / AM3+

CPU

Processadores AMD Sempron/Athlon II /

Phenom II /FX (Watt máximo: 125W)

ESPECIFICAÇÕES

A arquitectura AMD 64 permite uma computação de

32 e 64 bits

Suporta as tecnologias Hyper Transport 3.0

FSB

Chipset

Especificaç

ão Super

I/O

Memória

principal

Placa

gráfica

SATA

LAN

Suporte

para áudio

de alta

definição

Ranhuras

Suporta a tecnologia HyperTransport 2.0

com uma largura de banda até 4.8 GT/s

AMD 890GX

AMD SB710

ITE 8728F-EX

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Ranhuras DIMM DDR3 x 2

Capacidade máxima de memória: 16GB

Cada módulo DIMM suporta uma

memória DDR3 de 512MB/1GB/

2GB/4GB/8GB

Integrada no chipset AMD 890GX Memória de vídeo máxima partilhada: 1024 MB

Controlador Serial ATA integrado

Realtek RTL 8111G Auto negociação de 10 / 100 / 1000 Mb/s

ALC662

Ranhura PCI Express X16 x1

Ranhura PCI Express X1 x1

Interface LPC (Low Pin Count).

Iniciativas para controlo do ambiente

Monitorização do hardware

Função "Smart Guardian" da ITE

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3

800/1066/1333/1600(OC)/1866(OC para o CPU AM3

só)

Os módulos DIMM registados e os DIMM ECC não

são suportados

Velocidades de transmissão de dados até 3 Gb/s.

Compatibilidade com a especificação SATA versão

2.0.

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

32

Ranhura PCI x1

A960D+V2

ESPECIFICAÇÕES

Conector SATA x4 Cada conector suporta 1 dispositivo SATA

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conectores

na placa

Entradas/S

aídas no

painel

traseiro

Tamanho

da placa

Característi

cas

especiais

Sistemas

operativos

suportados

Conector da ventoinha da CPU x1

Conector da ventoinha do sistema x1 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(4 pinos)

Conector da para impressora x1 Cada conector suporta 1 Porta para impressora

Teclado PS/2 x1

Rato PS/2 x1

Porta DVI x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio x3

190 mm (L) X 235 mm (A)

Suporta as funções RAID 0 / 1 / 10

Windows XP / Vista / 7 / 8 / 8.1 / 10

Alimentação da ventoinha da CPU (com a função

Smart Fan)

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

aviso prévio.

33

Motherboard Manual

Polish

SPEC

Procesor

FSB

Chipset

Pamięć

główna

Super I/O

Grafika

Socket AM3 / AM3+

AMD Sempron/Athlon II / Phenom II /FX

Procesory (Maksymalny Watt: 125W)

Obsługa HyperTransport 3.0 o szerokości

pasma do 4.8 GT/s

AMD 890GX

AMD SB710

Gniazda DDR3 DIMM x 2

Maks. wielkość pamięci 16GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

ITE 8728F-EX

Zapewnia najbardziej powszechne funkcje

Super I/O.

Zintegrowana w chipsecie AMD 890GX

Architektura AMD 64 umożliwia przetwarzanie 32 i 64

bitowe

Obsługa Hyper Transport 3.0

Moduł pamięci DDR3 z trybem podwójnego kanału

Obsługa DDR3 800/1066/1333/1600(OC)/1866(OC dla

procesorów AM3 tylko)

Brak obsługi Registered DIMM oraz ECC DIMM

Interfejs Low Pin Count

Funkcje kontroli warunków pracy,

Monitor H/W

Funkcja ITE "Smart Guardian"

Maks. wielkość współdzielonej pamięci video wynosi

1024 MB

SATA

LAN

Obsługa

audio HD

Gniazda

34

Zintegrowany kontroler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

10 / 100 / 1000 Mb/s z automatyczną negocjacją

Realtek RTL 8111G

szybkości

5.1 kanałowe wyjście audio

ALC662

Obsługa High-Definition Audio

Gniazdo PCI Express X16 x1

Gniazdo PCI Express X1 x1

Gniazdo PCI x1

Złącze SATA x4 Każde złącze obsługuje 1 urządzenie SATA

Złącze IDE x1 Każde złącze obsługuje 2 urządzenia IDE

Złącza

wbudowan

e

A960D+V2

SPEC

Złącze panela przedniego x1 Obsługa elementów panela przedniego

Przednie złącze audio x1 Obsługa funkcji audio na panelu przednim

Złącze główkowe wentylatora procesora

Zasilanie wentylatora procesora (z funkcją Smart Fan)

x1

Back Panel

I/O

Wymiary

płyty

Funkcje

specjalne

Obsluga

systemu

operacyjne

go

Złącze główkowe wentylatora

systemowego x1

Złącze główkowe kasowania CMOS x1

Złącze USB x2

Złącze zasilania (24 pinowe) x1

Złącze zasilania (4 pinowe) x1

Złącze Port drukarki x1 Każde złącze obsługuje 1 Port drukarki

Klawiatura PS/2 x1

Mysz PS/2 x1

Port DVI x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio x3

190 mm (S) X 235 mm (W)

Obsługa RAID 0 / 1 / 10

Windows XP / Vista / 7 / 8 / 8.1 / 10

Zasilanie wentylatora systemowego

Każde złącze obsługuje 2 porty USB na panelu

przednim

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsługi dowolnego systemu

operacyjnego bez powiadomienia.

35

Motherboard Manual

Russian

CPU

(центральный

процессор)

FSB

Набор

микросхем

Основная

память

Super I/O

Графика

SATA

Локальная

сеть

Звуковая

поддержка

жесткого

диска

Слоты

Гнездо AM3 / AM3+

Процессоры AMD Sempron/Athlon II /

Phenom II /FX (Максимальный ватт:

125W)

Поддержка HyperTransport 3.0 с

пропускной способностью до 4.8 GT/s

AMD 890GX

AMD SB710

Слоты DDR3 DIMM x 2

Максимальная ёмкость памяти 16ГБ

Каждый модуль DIMM поддерживает

512МБ/1ГБ/2ГБ/4ГБ/8ГБ DDR3

ITE 8728F-EX

Обеспечивает наиболее

используемые действующие

функциональные возможности Super

I/O.

Встроенная в набор микросхем AMD

890GX

Встроенное последовательное

устройство управления ATA

Realtek RTL 8111G

ALC662

Слот PCI Express X16 x1

Слот PCI Express X1 x1

Слот PCI x1

Разъём SATA x4 Каждый разъём поддерживает 1 устройство SATA

СПЕЦ

Архитектура AMD 64 разрешать обработка

данных на 32 и 64 бит

Поддержка Hyper Transport 3.0

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3

800/1066/1333/1600(OC)/1866(OC для

процессоров AM3 только)

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Интерфейс с низким количеством выводов

Инициативы по охране окружающей среды,

Аппаратный монитор

Функция ITE "Smart Guardian" (Интеллектуальная

защита)

Максимальная совместно используемая видео

память составляет 1024 МБ

скорость передачи данных до 3 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Автоматическое согласование 10 / 100 / 10000

Мб/с

Звуковая поддержка High-Definition

5.1канальный звуковой выход

36

Встроенный

разъём

Задняя

панель

средств

ввода-вывода

Размер

панели

Специальные

технические

характеристи

ки

Поддержка

OS

A960D+V2

СПЕЦ

Разъём IDE x1

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1 Поддержка звуковых функций на лицевой панели

Контактирующее приспособление

вентилятора центрального

процессора x1

Контактирующее приспособление

вентилятора системы x1

Открытое контактирующее

приспособление CMOS x1

USB-разъём x2

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Разъём Порт подключения

принтера x1

Клавиатура PS/2 x1

Мышь PS/2 x1

Порт DVI x1

Порт VGA x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушников x3

190 мм (Ш) X 235 мм (В)

Поддержка RAID 0 / 1 / 10

Windows XP / Vista / 7 / 8 / 8.1 / 10

Каждый разъём поддерживает 2 встроенных

интерфейса накопителей

Источник питания для вентилятора центрального

процессора (с функцией интеллектуального

вентилятора)

Источник питания для вентилятора системы

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Каждый разъём поддерживает 1 Порт

подключения принтера

Biostar сохраняет за собой право добавлять или

удалять средства обеспечения для OS с или без

предварительного уведомления.

37

Motherboard Manual

Arabic

تﺎﻔﺻاﻮﻤﻟا

ﺔﻴﻨﻘﺗ ﻦﻜﻤﺗAMD 64 ﺔﻋﺮﺴﺑ ﺔﻴﺑﻮﺳﺎﺤﻟا تﺎﻴﻠﻤﻌﻟا ءاﺮﺟإ32 و64

ﺖﺑ

تﺎﺠﻟﺎﻌﻣAMD Sempron/Athlon II / Phenom II /FX

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و3.0

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyperTransport ﻰﻟإ ﻞﺼﻳ ددﺮﺘﺑ3.0 4.8 GT/s

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗLow Pin Count Interface

ﺔﺌﻴﺒﻟا ﻲﻓ ﻢﻜﺤﺘﻟا ﻞﺋﺎﺳو:

ةﺰﻬﺟﻷا ﺔﻟﺎﺣ ﺔﻓﺮﻌﻤﻟ ﺐﻗاﺮﻣ

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻣ ITE

ةﺮآاذ ةﺪﺣوDDR3 ةﺎﻨﻘﻟا ﺔﺟودﺰﻣ

عﻮﻧ ﻦﻣ ةﺮآاﺬﻟا ﻢﻋﺪﺗDDR3 تﺎﻌﺳ

800/1066/1333/1600)OC( ﺎﺠﻴﻣ

ﺔﺤﺘﻓ ﻞآ ﻢﻋﺪﺗDIMM عﻮﻧ ﻦﻣ ةﺮآاذ ﻢﻋﺪﺗ DDR3 ﺔﻌﺳ

ﺖﻳﺎﺑ/1866 (OC لتﺎﺠﻟﺎﻌﻣ AM3 ﻂﻘﻓ)

ةﺮآاﺬﻟا ﻖﺋﺎﻗر ﻢﻋﺪﺗ ﻻDIMM ﻊﻣ ﻖﻓاﻮﺘﺗ ﻻ ﻲﺘﻟا ﻚﻠﺗو ECC

ﺔآﺮﺘﺸﻤﻟا ﻮﻳﺪﻴﻔﻟا ةﺮآاﺬﻟ ﺔﻌﺳ ﻰﺼﻗأ1024 ﺖﻳﺎﺑ ﺎﺠﻴﻣ ﻖﺋﺎﻗر ﻲﻓ ﺔﺠﻣﺪﻣ AMD 890GX

ﻇو ﺮﻓﻮﺗ ﺔﻔﻴ Super I/O ًﺎ ﻣ ا ﺪﺨ ﺘ ﺳ ا ﺮﺜآﻷا.

ﺲﺒﻘﻣAM3 / AM3+

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو

ﺮﻤﻟاﺔﻳﺰآ

(طاو ىﻮﺼﻗ: 125و)

ﻲﻣﺎﻣﻷا ﻞﻗﺎﻨﻟا

ﻲﺒﻧﺎﺠﻟا

AMD 890GX

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ

AMD SB710

ITE 8728F-EX

Super I/O

ﺔﺤﺘﻓDDR3 DIMM دﺪﻋ2

ىﻮﺼﻗ ةﺮآاذ ﺔﻌﺳ16 ﺖﻳﺎﺑ ﺎﺠﻴﺟ

ﺔﻴﺴﻴﺋﺮﻟا ةﺮآاﺬﻟا

/512

و ﺖﻳﺎﺑ ﺎﺠﻴﻣ1/ و2/ و4/ و8 ﺖﻳﺎﺑ ﺎﺠﻴﺟ

تﺎﻣﻮﺳﺮﻟا ﺔﻗﺎﻄﺑ

ﻰﻟإ ﻞﺼﺗ تﺎﻋﺮﺴﺑ تﺎﻧﺎﻴﺒﻟا ﻞﻘﻧ3 ﺖﺑﺎﺠﻴﺟ/ﺔﻴﻧﺎﺛ.

ﻢﻜﺤﺘﻣSerial ATA ﻞﻣﺎﻜﺘﻣ

ﺔﻘﺑﺎﻄﻣ تﺎﻔﺻاﻮﻤﻟ SATA راﺪﺻﻹا 2.0.

ﺎﺠﻴﻣ / ﺔﻴﻧﺎﺛ ضوﺎﻔﺗ تارﺎﻴﺴﻟا 10/100/1000 Realtek RTL 8111G

5.1 تﻮﺼﻟا جﺮﺨﻟ تاﻮﻨﻗ

ﻦﻣ ﻒﻳﺮﻌﺘﻟا ﻲﻟﺎﻋ تﻮﺼﻟا ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗ

ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1

ﻓ ﺔﺤﺘx1 PCI Express دﺪﻋ1

ﺔﺤﺘﻓPCI دﺪﻋ1

ةﺰﻬﺟأ ﻦﻣ ﺪﺣاو ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳSATA ﺬﻔﻨﻣSATA دﺪﻋ4

ةﺰﻬﺟأ ﻦﻣ ﻦﻴﻨﺛا ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳIDE ﺬﻔﻨﻣIDE دﺪﻋ1

38

ALC662

SATA

ﺔﻴﻠﺧاد ﺔﻜﺒﺷ

ﻲﻟﺎﻋ تﻮﺼﻟا ﻢﻋد

ﻒﻳﺮﻌﺘﻟا

تﺎﺤﺘﻔﻟا

ﺢﻄﺳ ﻰﻠﻋ ﺬﻓﺎﻨﻤﻟا

ﺔﺣﻮﻠﻟا

تﺎﻔﺻاﻮﻤﻟا

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا تاﺰﻴﻬﺠﺗ ﻢﻋﺪﻳ ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ تﻮﺼﻟا ﺔﻔﻴﻇو ﻢﻋﺪﻳ ﻲﻣﺎﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1

ﺔﻔﻴﻇو ﻊﻣ ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟSmart Fan ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻤﻟ ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺘﻟ مﺎﻈﻨﻟا ﺔﺣوﺮﻣ ﺔﻠﺻو دﺪﻋ1

ﺢﺴﻣ ﺔﻠﺻوCMOS دﺪﻋ1

ﻲﺘﺤﺘﻓ ﺬﻔﻨﻣ ﻞآ ﻢﻋﺪﻳUSB ﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟﺎﺑ ﺬﻔﻨﻣUSB دﺪﻋ2

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)24سﻮﺑد( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺻﻮﺗ ﺬﻔﻨﻣ)4سﻮﺑد( دﺪﻋ1

ﺔﻌﺑﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1

A960D+V2

ﺢﻴﺗﺎﻔﻣ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻣ PS/2 دﺪﻋ1

ﻆﻔﺘﺤﺗBiostar ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟازإ وأ ﺔﻓﺎﺿإ ﻲﻓ ﺎﻬﻘﺤﺑ

رﺎﻄﺧإ نوﺪﺑ وأ رﺎﻄﺧﺈﺑ.

190 ﻢﻣ)ضﺮﻋ (X 235 ﻢﻣ)عﺎﻔﺗرا(

Windows XP / Vista / 7 / 8 / 8.1 / 10

ﺬﻓﺎﻨﻣDVI دﺪﻋ1

ﺬﻔﻨﻣVGA دﺪﻋ1

ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺷ ﺬﻔﻨﻣ دﺪﻋ1

ﺬﻓﺎﻨﻣUSB دﺪﻋ4

تﻮﺻ ﺲﺒﻘﻣ ﺪﻋ3

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 10

ﻞﺧد ﺬﻓﺎﻨﻣ/ جﺮﺧ

ﺔﻴﻔﻠﺨﻟا ﺔﺣﻮﻠﻟا

ﺔﺣﻮﻠﻟا ﻢﺠﺣ

ﺔﺻﺎﺧ ﺎﻳاﺰﻣ

ﺔﻤﻈﻧأ ﻢﻋد

ﻞﻴﻐﺸﺘﻟا

39

Motherboard Manual

Japanese

仕様

CPU

FSB

チップセッ

ト

メインメモ

リ

Super I/O

グラフィッ

クス

Socket AM3 / AM3+

AMD Sempron/Athlon II / Phenom II /FX

プロセッサ (最高のワット: 125W)

4.8 GT/sのバンド幅までハイパートラン

スポート3.0をサポートします

AMD 890GX

AMD SB710

DDR3 DIMMスロット x 2

最大メモリ容量16GB

各DIMMは 512MB/1GB/2GB/4GB/8GB

DDR3をサポート

ITE 8728F-EX

もっとも一般に使用されるレガシー

Super I/O機能を採用しています。

AMD 890GXチップセットに統合 最大の共有ビデオメモリは1024MBです

AMD 64アーキテクチャでは、32ビットと64ビット計算

が可能です

ハイパートランスポート3.0とクールアンドクワイア

ットをサポートします

デュアル チャンネルモードDDR3メモリモジュール

DDR3 800/1066/1333/1600(OC)/1866（唯一のAM3

CPUのOC） をサポート

登録済みDIMMとECC DIMMはサポートされません

低ピンカウントインターフェイス

環境コントロールイニシアチブ、

H/Wモニター

ITEの「スマートガーディアン」機能

SATA

LAN

HDオーデ

ィオのサポ

ート

スロット

オンボード

コネクタ

40

統合シリアルATAコントローラ

最高3Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

Realtek RTL 8111G 10 / 100 / 1000 Mb/秒のオートネゴシエーション

5.1チャンネルオーディオアウト

ALC662

ハイデフィニションオーディオのサポート

PCI Express X16スロット x1

PCI Express X1スロット x1

PCIスロット x1

SATAコネクタ x4 各コネクタは1つのSATAデバイスをサポートします

IDEコネクタ x1 各コネクタは2つのIDEデバイスをサポートします

A960D+V2

仕様

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x1 システムファン電源装置

CMOSクリアヘッダ x1

背面パネル

I/O

ボードサイ

ズ

特殊機能

OSサポー

ト

USBコネクタ x2

電源コネクタ(24ピン) x1

電源コネクタ(4ピン) x1

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

PS/2キーボード x1

PS/2マウス x1

DVIポート x1

VGAポート x1

LANポート x1

USBポート x4

オーディオジャック x3

190 mm (幅) X 235 mm (高さ)

RAID 0 / 1 / 10 のサポート

Windows XP / Vista / 7 / 8 / 8.1 / 10

各コネクタは2つのフロントパネルUSBポートをサポ

ートします

Biostarは事前のサポートなしにOSサポートを追加ま

たは削除する権利を留保します。

2015/10/29

41
