CHAPTER 1: INTRODUCTION

A960A3+

1.1 B

EFORE YOU START

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet

before operation.

 Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

 Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short circuits which may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be

0 to 45 degrees Celsius.

1.2 PACKAGE CHECKLIST

Serial ATA Cable X 2 Rear I/O Panel for ATX Case X 1 User’s Manual X 1 Fully Setup Driver CD X 1

Note: The package contents may be different due to area or your motherboard version.

Page 4

Motherboard Manual

1.3 MOTHERBOARD FEATURES

Socket AM3+

CPU

FSB

Chipset

Super I/O

Main

Memory

IDE Integrated IDE Controller

SATA II Integrated Serial ATA Controller

LAN Realtek RTL 8111F

Sound ALC662

Slots

On Board

Connector

AMD Sempron /Athlon II /Phenom II /FX

processors (Maximum Watt: 125W)

Support HyperTransport 3.0

Suppo rts up to 5. 2 GT/s Bandwidth

Northbridge: AMD RX881

Southbridge: AMD SB710

ITE 8728F

Provides the most commonly used legacy

Super I/O functionality

DDR3 DIMM Slots x 4

Max Memory Capacity 32GB

Each DIMM supports

512MB/1GB/2GB/4GB/8GB DDR3

PCI Express Gen2 x16 slot x1

PCI Express Gen2 x1 slot x2

PCI slot x3

Floppy Connector x1 Each connector supports 2 Floppy drives

IDE Connector x1 Each connector supports 2 IDE device

SATA Connector x6 Each connector supports 1 SATA devices

SPEC

AMD 64 Architecture enables 32 and 64 bit

computing

Supports Hyper Transport 3.0

Low Pin Count Interface

Environment Control initiatives

H/W Monitor

ITE's "Smart Guardian" function

Dual Channel Mode DDR3 memory module

Supports DDR3 800 / 1066 / 1333

Supports DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 for AM3+ CPU only

Registered DIMM and ECC DIMM is not suppo rted

Multi-word DMA, and Ultra DMA 33/66/100/133

modes

Data transfer rates up to 3 Gb/s

SATA Version 2.5 specification compliant

10 / 100 /1000 Mb/s auto negotiation

Half / Full duplex capability

5.1 channels audio out

High Definition Audio

Supports PCI-E Gen2 x16 expansion cards

Supports PCI-E Gen2 x1 expansion cards

Supports PCI expansion cards

Page 5

SPEC

Front Panel Connector x1 Supports front panel facilities

Front Audio Connector x1 Supports fro nt panel audio function

S/PDIF Out Connector x1 Supports digital audio out function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

CMOS Clear Header x1 Restore CMOS data to factory default

USB Connector x2 Each connector supports 2 front panel USB ports

Power Connector (24pin) x1 Co nnects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Printer Port Connector x1 Each connector suppo rts 1 Printer port

PS/2 Keyboard x1

PS/2 Mouse x1

Rear Panel

I/O

Board Size 205 mm(W) x 305 mm(L) ATX

Special

Features

OS Suppo rt Windows XP / Vista / 7

Serial Port x1

LAN port x1

USB Port x4

Audio Jack x3

RAID 0 / 1 / 10 support

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connects to RS-232 Port

Connect to RJ-45 ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Biostar reserves the right to add or remove support

for any OS With or without notice.

A960A3+

1.4 REAR PANEL CONNECTORS

PS/2 Mouse

PS/2 Keyboard

COM1 USBX2USBX2

LAN

Line In/ Surround

Line Out

Mic In 1/ Bass/ Center

Page 6

Motherboard Manual

1.5 MOTHERBOARD LAYOUT

Note: represents the 1■

pin.

Page 7

CHAPTER 2: HARDWARE INSTALLATION

A960A3+

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 2: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only in the correct orientation.

Page 8

Motherboard Manual

Step 3: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the CPU_FAN1. This completes the installation.

Note: Please update the BIOS to the latest version while using AM3+ CPUs. Due to the latest CPU

transition, you may encounter the situation that the new system failed to boot while using new AM3+ CPUs. In this c ase, please install one standard AM2 CPU to boot your s ystem, and update the latest BIOS fr om our website for AM3+ CPUs support.

Page 9

A960A3+

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assi gnment

1 Ground 2 +12V 3

FAN RPM rate sense

4 Smart Fan Control (By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground 2 +12V 3

FAN RPM rate sense

Note:

The CPU_FAN1 and S YS_FAN1 support 4-pin and 3-pin head connector. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to GND.

Page 10

Motherboard Manual

2.3 INSTALLING SYSTEM MEMORY

A. DDR3 Modules

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.

Page 11

A960A3+

B. Memory Capacity

DIMM Socket

Location

DIMMA1 512MB/1GB/2GB/4GB/8GB

DIMMA2 512MB/1GB/2GB/4GB/8GB

DIMMB1 512MB/1GB/2GB/4GB/8GB

DIMMB2 512MB/1GB/2GB/4GB/8GB

DDR3 Module

Total Memory Size

Max is 32GB.

C. Dual Channel Memory installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

The DRAM bus width of the memory module must be the same (x8 or x16)

Note:

Memory module must be installed in DDR3-A2 or DDR3-B2 to boot the system.

Page 12

Motherboard Manual

2.4 CONNECTORS AND SLOTS

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode 0~4, Bus Master, Multi-word DMA, and Ultra DMA 33/66/100/133 functionality.

SATA1~SATA6: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground 2 TX+ 3 TX4 Ground 5 RX6 RX+ 7 Ground

Page 13

ATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX power supply.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V

A960A3+

ATXPWR2: ATX Power Source Connector

Connecting this connector will provide +12V to CPU power circuit.

Pin Assignment

1 +12V 2 +12V 3 Ground 4 Ground

Page 14

Motherboard Manual

PEX16_1: PCI-Express Gen2 x16 Slot

- PCI-Express 2.0 compliant.

- Maximum theoretical realized bandwidth of 8GB/s simultaneously per

direction, for an aggregate of 16GB/s totally.

PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slots

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

- PCI-Express Gen2 supports a raw bit-rate of 5.0Gb/s on the data pins.

- 2X bandwidth over the PCI-Express 1.0 architecture.

PCI1~PCI3: Peripheral Component Interconnect Slots

This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.

Page 15

CHAPTER 3: HEADERS & JUMPERS SETUP

A960A3+

3.1 H

OW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETTINGS

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.

Pin Assignment Function Pin Assignment Function

1 +5V 9 N/A 2N/A 10N/A 3 N/A 11 N/A N/A 4 Speaker 5 HDD LED (+) 13 Power LED (+) 6 HDD LED (-) 7 Ground 15 Power button 8 Reset control

Speaker Connector

Hard drive LED

Reset button

12 Power LED (+)

14 Power LED (-)

16 Ground

N/A

Power LED

Power-on button

Page 16

Motherboard Manual

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector.

JSPDIFOUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Pin Assignment

1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in

10 Jack Sense

Assignment

1 +5V 2 SPDIF_OUT 3 Ground

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused) 2 +5V (fused) 3 USB4 USB5 USB+ 6 USB+ 7 Ground 8 Ground 9 Key

10 NC

Page 17

A960A3+

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at F_USB1/F_USB2.

JUSBV2: +5V for USB ports at USB1/RJ45USB1.

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at F_USB1/F_USB2.

JUSBV2: +5V STB for USB ports at USB1/RJ45USB1.

Pin 1-2 close

Pin 2-3 close

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedure to avoid damaging the motherboard.

Pin 1-2 Close:

Normal Operation (Default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jum per to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jum per to “Pin 1-2 close”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Page 18

Motherboard Manual

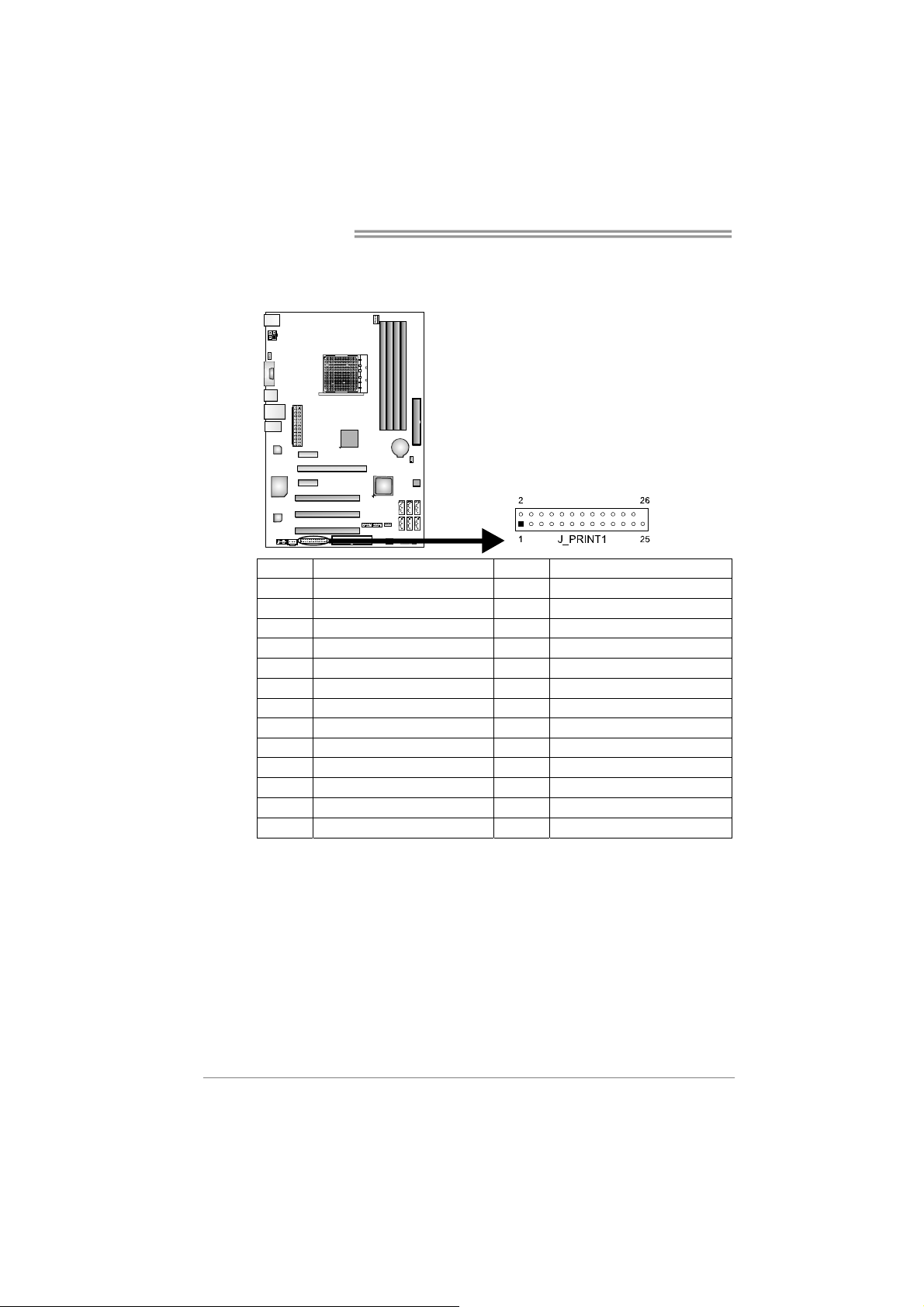

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground 2 -ALF 15 Data 6 3 Data 0 16 Ground 4 -Error 17 Data 7 5 Data 1 18 Ground 6 -Init 19 -ACK 7 Data 2 20 Ground 8 -Scltin 21 Busy

9 Data 3 22 Ground 10 Ground 23 PE 11 Data 4 24 Ground 12 Ground 25 SCLT 13 Data 5 26 Key

Page 19

CHAPTER 4: RAID FUNCTIONS

A960A3+

4.1 O

Supports Windows XP Home/Professional Edition, Windows Vista and Windows 7.

PERATING SYSTEM

4.2 RAID ARRAYS

RAID supports the following types of RAID arrays:

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applications.

RAID 1: RAID 1 defines techniques for mirroring data. RAID 10: RAID 10 combines the techniques used in RAID 0 and RAID 1.

4.3 HOW RAID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a large file into smaller blocks and performs disk reads and writes across multiple drives in parallel. The size of each block is determined by the stripe size parameter, which you set during the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.

Features and Benefits

 Drives: Minimum 1, and maximum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No

capacity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all data is lost.

 Fault Tolerance: No.

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Page 20

Motherboard Manual

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.

RAID techniques can be applied for high-availability solutions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliable media.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.  Uses: RAID 1 is ideal for small databases or any other application that

requires fault tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the

controller switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive.

Performance is impaired during drive rebuilds.

 Fault Tolerance: Yes.

Block 1 Block 2 Block 3

Page 21

A960A3+

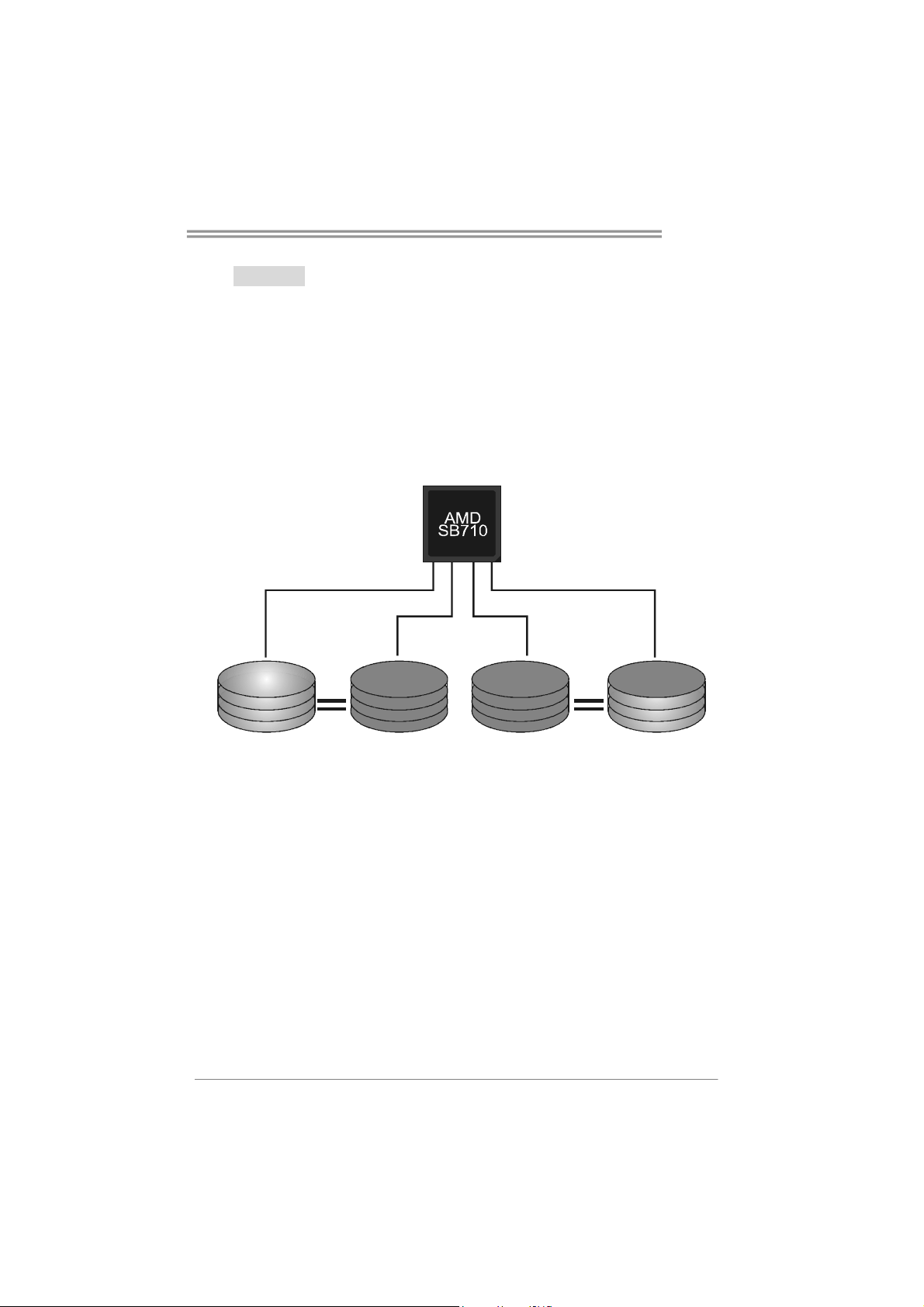

RAID 10:

RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 10 solution for improved resiliency, performance and rebuild performance.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.  Benefits: Optimizes for both fault tolerance and performance, allowing for

automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy,

the same as RAID level 1.

 Fault Tolerance: Yes.

Block 1 Block 3 Block 5

Block 2 Block 4 Block 6

Page 22

Motherboard Manual

CHAPTER 5: USEFUL HELP

5.1 D

RIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the CD

The setup guide will auto detect your motherboard and operating system.

Note:

If this window didn’t show up after you insert the Driver CD, pleas e use file browser to locate and execute the file SETUP.EXE under your opt ical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.

Note:

You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader softwar e from http://get.adobe.com/reader/

Page 23

A960A3+

5.2 SOFTWARE

Installing Software

1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process, you will see the software icon “eHOT Line” / “BIOS Update” appears on the desktop. Double-click the icon to launch the utility.

eHot-Line (Optional)

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

Before you use this utility, please set Outlook Express as your default e-mail client application program.

repr esents i mportant

in form ati on t hat y ou must provide. Withou t this information, you may not be able to send out the mail.

This bloc k will show the i nform atio n wh ich would be collected in the mail.

Describe condition

of your system.

Send the mail out .

Save these in forma tion to a .txt fi le

Exit this dialog .

Select your ar ea or

the area close to yo u.

Pro vide t he e-mai l address that you woul d like to send the copy to.

Provi de th e nam e of

the memory module manufactur er.

Provi de the n ame of the power suppl y manufactur er and the model no.

Page 24

Motherboard Manual

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”. Your system information will be saved to a .txt file.

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.

We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.

If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web

http://www.biostar.com.tw/app/en-us/about/contact.php

for getting

our contact information.

Page 25

BIOS Update

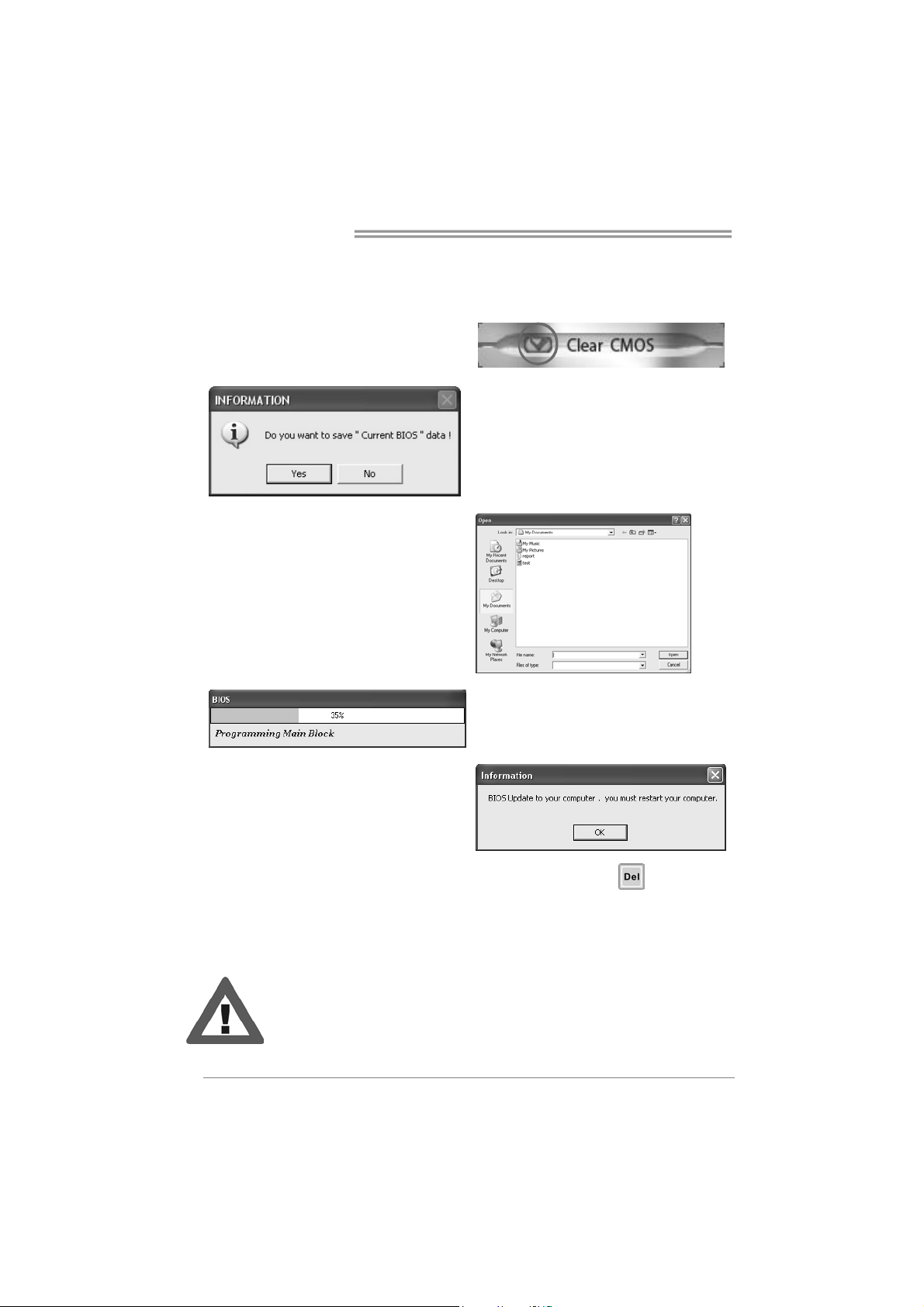

BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.

A960A3+

AWAR D B IOS AM I B I O S

Clear CMOS function

(Only for AWARD BIOS)

Show current BIOS information

Save current BIOS

to a .bi n file

Update BIOS

with a BIOS file

Once click on this button, the saving

dialog will show. Choose the

position to save file and enter file

name. (We recommend that the file

name should be English/number

and no longer than 7 characters.)

Then click Save.

Page 26

Motherboard Manual

Before doing this, please download the proper BIOS file from the website.

For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.

Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.

After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.

The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.

After the BIOS Update process, click on OK to restart the system.

While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.

In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.

All the information and content above about the software are subject to be changed without notic e. For better performance, the software is being continuously updated. The information and pictures described above are for your refer ence only. The actual information and settings on board may be slightly different from this manual.

Page 27

5.3 EXTRA INFORMATION

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

A960A3+

Page 28

Motherboard Manual

BIO-Flasher

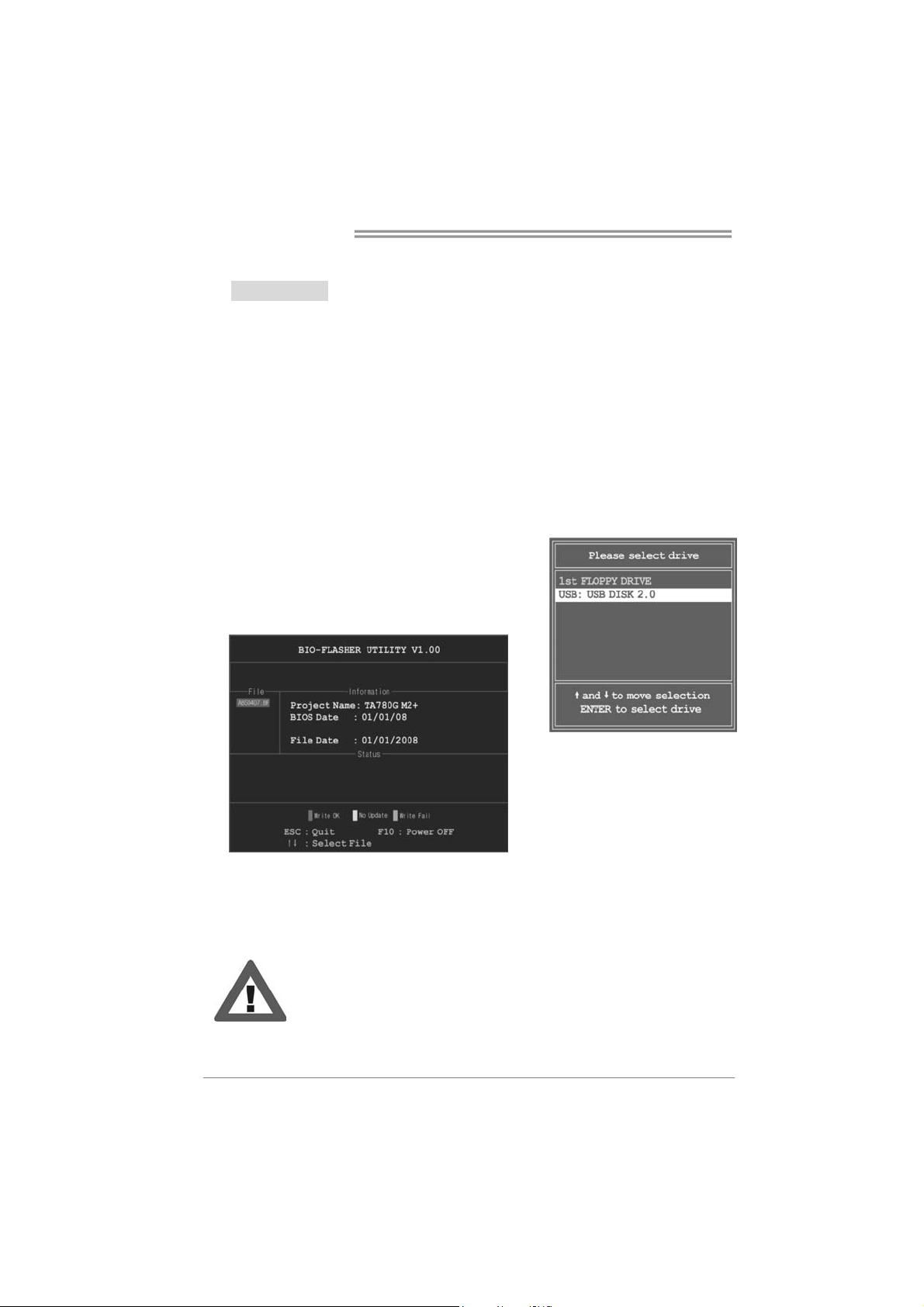

BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk.

The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, save the BIOS file into a USB pen drive or a floppy disk.

3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.

4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.

5. The utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.

6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.

z This utility only allows storage device with FAT32/16 format and single

partition.

z Shutting down or resetting the system while updating the BIOS will lead to

system boot f ailure.

Page 29

5.4 AMI BIOS BEEP CODE

Boot Block Beep Codes

Number of Beeps Description

1 No media present. (Insert diskette in floppy drive A:)

3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error

7 No Flash EPROM detected 10 Flash Erase error 11 Flash Program error 12 “AMIBOOT.ROM” file size error

POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error

3 Base memory read/write test error

6 Keyboard controller BAT command failed

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

“AMIBOOT.ROM” file not found in root directory of diskette in A:

BIOS ROM image mismatch (file layout does not match image present in flash device)

A960A3+

Troubleshooting POST BIOS Beep Codes

Number of Beeps Troubleshooting Action

1, 3 Reseat the memory, or replace with known good modules.

Fatal error indicating a serious problem with the system. Consult your system manufacturer. Before declaring the motherboard beyond all hope, eliminate the possibility of interference by a malfunctioning add-in card. Remove all expansion cards except the video adapter. z If beep codes are generated when all other expansion

6, 7

cards are absent, consult your system manufacturer’s technical support.

z If beep codes are not generated when all other expansion

cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the

malfunctioning card. If the system video adapter is an add-in card, replace or reseat the video adapter. If the video adapter is an integrated part of the system board, the board may be faulty.

Page 30

Motherboard Manual

5.5 TROUBLESHOOTING

Probable Solution

1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work

2. Indicator light on keyboard does not shine.

System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.

System does not boot from a hard disk drive, but can be booted from optical drive.

System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.

Screen message shows “Invalid Configuration” or “CMOS Failure.”

System cannot boot after user installs a second hard drive.

1. Make sure power cable is securely plugged in.

2. Replace cable.

3. Contact technical support.

Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.

1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.

2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install applications and data using backup disks.

Review system’s equipment. Make sure correct information is in setup.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

Page 31

A960A3+

This page is intentionally left blank.

Page 32

Motherboard Manual

APPENDIX: SPEC IN OTHER LANGUAGES

ERMAN

Spezifikationen

Sockel AM3+

CPU

FSB

Chipsatz

Super E/A

Arbeitsspeich

IDE Integrierter IDE-Controller

SATA II Integrierter Serial ATA-Controller

LAN Realtek RTL 8111F

Audio-Codec ALC662

Steckpl ätze PCI Steckplatz x3

AMD Sempron /Athlon II /Phenom II /FX

Prozessoren (Maximales Watt: 125W)

Unterstützt HyperTransport 3.0 mit einer

Bandbreite von bis zu 5.2 GT/s

AMD RX881

AMD SB710

ITE 8728F

Bietet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

DDR3 DIMM-Steckplätze x 4

Max. 32GB Arbeitsspeicher

Jeder DIMM unterstützt

512MB/1GB/2GB/4GB/8GB DDR3.

Die AMD 64-Architektur unterstützt eine 32-Bit- und

64-Bit-Datenverarbeitung

Unterstützt Hyper Transport 3.0

Umgebungskontrolle,

Hardware-Überwachung

Lüfterdrehzahl-Controller

"Smart Guardian"-Funktion von ITE

Dual-Kanal DDR3 Speichermodul

Unterstützt DDR3 800 / 1066 / 1333

Unterstützt DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 für AM3 + CPU nur

registrierte DI MMs. ECC DI MMs werden nicht

unterstützt.

Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus

Unterstützt PIO-Modus 0~4,

Datentransferrate bis zu 3Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

Unterstützt RAID 0,1,10

10 / 100 / 1000 Mb/s Auto-Negotiation

Halb-/ Vollduplex-Funktion

5.1-Kanal-Audioausgabe

Unterstützt High-Definition Audio

Page 33

Spezifikationen

PCI Express Gen2 x16 Steckplatz x1

PCI Express Gen2x1 Steckplatz x2

Diskettenlaufwerkanschluss x1 Jeder Anschluss unterstützt 2 Diskettenlaufwerke

Druckeranschluss Anschluss x1 Jeder Anschluss unterstützt 1 Druckeranschluss

IDE-Anschluss x1 Jeder Anschluss unterstützt 2 IDE-Laufwerke

SATA-Anschluss x6 Jeder Anschluss unterstützt 1 SATA-Laufwerk

Fronttafelanschluss x1 Unterstützt die Fronttafelfunktionen

Front-Audioanschluss x1 Unterstützt die Fronttafel-Audioanschlussfunktion

Onboard-Ans

chluss

Rückseiten-E

Plati nengröße 205 mm (B) X 305 mm (L) ATX

OS-Unterstüt

zung

S/PDIF- Ausgangsanschluss x1 Unterstützt die digitale Audioausgabefunktion

CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x2 System-Lüfter-Stromversorgungsanschluss

"CMOS l öschen"-Sockel x1

USB-Anschluss x2

Stromanschluss (24-polig) x1

Stromanschluss (4-polig) x1

PS/2-Tastatur x1

PS/2-Maus x1

Serieller Anschluss x1

LAN-Anschluss x1

USB-Anschluss x4

Audioanschluss x3

Windows XP / Vista / 7

CPU-Lüfterstromversorgungsanschluss (mit Smart

Fan-Funk tion)

Jeder Anschluss unterstützt 2

Fronttafel-USB-Anschlüsse

Biostar behäl t sich das Recht vor, ohne Ankündigung

die Unterstützung für ein Betriebssystem

hinzuzufügen oder zu entfernen.

A960A3+

Page 34

Motherboard Manual

FRENCH

Socket AM3+

Bus frontal

Chipset

Super E/S

Mémoire

principale

IDE Contrôleur I DE intégré

SATA II Contrôleur Serail ATA intégré

LAN Realtek RTL 8111F

Codec audio ALC662

Fentes

Processeurs AMD Sempron /A thlon II

/Pheno m II /FX (Watt maximum : 125W)

Prend en charge Hyper Transport 3.0 jusqu'à

une bande passante de 5.2 GT/s

AMD RX881

AMD SB710

ITE 8728F

Fournit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

Fentes DDR3 DIMM x 4

Capacité mémoire maximale de 32 Go

Chaque DIMM prend en charge des DDR3 de

512Mo/1Go/2Go/4Go/8Go

Fente PCI x3

Fente PCI Express Gen2 x16 x1

Fente PCI Express Gen2 x1 x2

SPEC

L'architecture AMD 64 permet le calcul 32 et 64 bits

Prend en charge Hyper Transport 3.0

Initiatives de contrôle environnementales,

Moniteur de matériel

Contrôleur de vitesse de ventilateur

Fonction "Gardien intelligent" de l'ITE

Module de mémoire DDR3 à mode à double voie

Prend en charge la DDR3 800 / 1066 / 1333

Prend en charge la DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 pour CPU AM3 + ne

Les DIMM à registres et DIMM avec code correcteurs

d'erreurs ne sont pas prises en charge

Mode principale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en charge le mode PIO 0~4,

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécification SATA Version 2.0

Prise en charge RAID 0,1,10

10 / 100 / 1000 Mb/s négociation automatique

Half / Full duplex capability

Sortie audio à 5.1 voies

Prise en charge de l'audio haute définition

Page 35

Connecteur de disquette x1

Connecteur de Port d'imprimante x1

Connecteur IDE x1

Connecteur SATA x6

Connecteur du panneau avant x1 Prend en charge les équipements du panneau avant

Connecteur Audio du panneau avant x1 Prend en charge la fonction audio du panneau avant

Connecteur

embarqué

E/S du

panneau

arrière

Dimensions

de la carte

Support SE Windows XP / Vista / 7

Connecteur de sortie S/PDIF x1

Embase de ventilateur UC x1

Embase de ventilateur système x2 Alimentation électrique du ventilateur système

Embase d'effacement CMOS x1

Connecteur USB x2

Connecteur d'alimentation x1

(24 broches)

Connecteur d'alimentation x1

(4 broches)

Clavier PS/2 x1

Souris PS/2 x1

Port séri e x1

Port LAN x1

Port US B x4

Fiche audio x3

205 mm (l) X 305 mm (H) ATX

A960A3+

SPEC

Chaque connector prend en charge 2 lecteurs de

disquettes

Chaque connector prend en charge 1 Port

d'imprimante

Chaque connecteur prend en charge 2 périphériques

IDE

Chaque connecteur prend en charge 1 périphérique

SATA

Prend en charge la fonction de sortie audio

numérique

Alimentation électrique du ventilateur UC (avec

fonction de ventilateur intelligent)

Chaque connecteur prend en charge 2 ports USB de

panneau avant

Biostar se réserve le droit d'ajouter ou de supprimer

le support de SE avec ou sans préavis.

Page 36

Motherboard Manual

ITALIAN

Socket AM3+

CPU

Processori AMD Sempron /Athlon II

SPECIFICA

L’architettura AMD 64 abilita la computazione 32

e 64 bit

FSB

Chipset

Super I/O

Memoria

principale

IDE

/Phenom II /FX (Watt massimo: 125W)

Supporto di HyperTransport 3.0 fino a

5.2 GT/s di larghezza di banda

AMD RX881

AMD SB710

ITE 8728F

Fornisce le funzionalità legacy Super

I/O usate più comunemente.

Interfaccia LPC (Low Pin Count)

Alloggi DIMM DDR3 x 4

Capacità massima della memoria 32GB

Ciascun DIMM supporta DDR3

512MB/1GB/2GB/4GB/8GB

Controller IDE integrato

Supporto di Hyper Transport 3.0

Funzioni di controllo dell’ambiente:

Monitoraggio hardware

Controller velocità ventolina

Funzione "Smart Guardian" di ITE

Modulo di memoria DDR3 a canale doppio

Supporto di DDR3 800 / 1066 / 1333

Supporto di DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 per CPU AM3 + solo

DIMM registrati e DIMM ECC non sono supportati

Modali tà Bus Master Ultra DMA 33 / 66 / 100 /

133

Supporto modalità PIO Mode 0-4

SATA II

LAN

Codec

audio

Alloggi

Controller Serial ATA integrato

Realtek RTL 8111F

ALC662

Alloggio PCI x3

Alloggio PCI Express Gen2 x16 x1

Velocità di trasferimento dei dati fino a 3 Gb/s.

Compatibile specifiche SATA Versione 2.0.

Supporto RAID 0,1,10

Negoziazione automatica 10 / 100 / 1000 Mb/s

Capacità Half / Full Duplex

Uscita audio 5.1 canali

Supporto audio High-Definition (HD)

Page 37

A960A3+

SPECIFICA

Alloggio PCI Express Gen2x1 x2

Connettore floppy x1 Ciascun connettore supporta 2 unità Floppy

Connettore Porta stampante x1 Ciascun connettore supporta 1 Porta stampante

Connettore IDE x1 Ci ascun connettore supporta 2 unità IDE

Connettore SATA x6 Ciascun connettore supporta 1 unità SATA

Connettore pannello frontale x1 Supporta i servizi del pannello frontale

Connettore audio frontale x1 Supporta la funzione audio pannello frontale

Connettore output SPDIF x1 Supporta la funzione d’output audio digitale

Connettori

su scheda

I/O

pannello

posteriore

Dimension

i scheda

Collettore ventolina CPU x1

Alimentazione ventolina CPU (con funzione Smart

Fan)

Collettore ventolina sistema x2 Alimentazione ventolina di sistema

Collettore cancellazione CMOS x1

Ciascun connettore supporta 2 porte USB

Connettore USB x2

pannello frontale

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(4 pin)

Tas t i er a PS / 2 x1

Mouse PS/2 x1

Porta seriale x1

Porta LAN x1

Porta USB x4

Connettore audio x3

205 mm (larghezza) x 305 mm

ATX

(altezza)

Sistemi

operativi

supportati

Windows XP / Vista / 7

Biostar si riserva il diritto di aggiungere o

rimuovere il supporto di qualsiasi sistema

operativo senza preavviso.

Page 38

Motherboard Manual

SPANISH

Conector AM3+

CPU

FSB

Procesadores AMD Sempron /Athlon II

/Phenom II /FX (Vatio máximo: 125W)

Admite HyperTransport 3.0 con un ancho

de banda de hasta 5.2 GT/s

Especificación

La arquitectura AMD 64 permite el procesado de 32 y

64 bits

Soporta las tecnologías Hyper Transport 3.0

Conjunto de

chips

Súper E/S

Memoria

principal

IDE Controlador IDE integrado

SATA II Co ntrolado r Serial ATA integrado

Red Local Realtek RTL 8111F

Códecs de

sonido

Ranuras

Conectores Conector disco flexible X1 Cada conector soporta 2 unidades de disco flexible

AMD RX881

AMD SB710

ITE 8728F

Le ofrece las funcionalidades heredadas de

uso más común Súper E/S.

Interfaz de cuenta Low Pin

Ranuras DIMM DDR3 x 4

Capacidad máxima de memoria de 32GB

Cada DI MM admite DDR de

512MB/1GB/2GB/4GB/8GB

ALC662

Ranura PCI X3

Ranura PCI Express Gen2 x16 X1

Ranura PCI express Gen2 x1 X2

Iniciativas de control de entorno,

Monitor hardware

Controlador de velocidad de ventilador

Función "Guardia inteligente" de ITE

Módulo de memoria DDR3 de canal Doble

Admite DDR3 de 800 / 1066 / 1333

Admite DDR3 de 1600 (OC) / 1866 (OC)

DDR3-1866 para AM3 + CPU

No admite DIMM registrados o DIMM compatibles co n

ECC

Modo bus maestro Ultra DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

Tasas de transferencia de hasta 3 Gb/s.

Compatible con la versión SATA 2.0.

Admite RAID 0,1,10

Negociación de 10 / 100 / 1000 Mb/s

Funciones Half / Full dúplex

Salida de sonido de 5.1 canales

Soporte de so nido de Al ta Definición

Page 39

en placa

Panel

trasero de

E/S

Tam añ o de

la placa

Soporte de

sistema

operativo

A960A3+

Especificación

Conector Puerto de impresora X1 Cada conector soporta 1 Puerto de impresora

Conector IDE X1 Cada conector soporta 2 dispositivos IDE

Conector SATA X6 Cada conector soporta 1 dispositivos SATA

Conector de panel frontal X1 Soporta instalaciones en el panel frontal

Conector de so nido frontal X1 Soporta funciones de so nido en el panel fro ntal

Conector de salida S/PDIF X1 Soporta función de salida de sonido digital

Cabecera de ventilador de CPU X1 Fuente de alimentación de ventilador de CPU (con

función Smart Fan)

Cabecera de ventilador de sistema X2 Fuente de alimentación de ventilador de sistema

Cabecera de borrado de CMOS X1

Conector USB X2 Cada conector soporta 2 puertos USB frontales

Conector de alimentación X1

(24 patillas)

Conector de alimentación X1

(4 patillas)

Tec l ado P S / 2 X1

Ratón PS/2 X1

Puerto serie X1

Puerto de red local X1

Puerto USB X4

Conector de sonido X3

205 mm. (A) X 305 mm. (H) ATX

Windows XP / Vista / 7

Biostar se reserva el derecho de añadir o retirar el

soporte de cualquier SO con o sin aviso previo.

Page 40

Motherboard Manual

PORTUGUESE

Socket AM3+

CPU

FSB

Processadores AMD Sempron /Athlon II

/Pheno m II /FX (Watt máximo: 125W)

Suporta a tecnologia HyperTransport 3.0

com uma largura de banda até 5.2 GT/s

ESPECIFICAÇÕES

A arquitectura AMD 64 permite uma computação de 32

e 64 bits

Suporta as tecnologias Hyper Transport 3.0

Chipset

Especificaçã

o Super I/O

Memória

principal

IDE Controlador IDE integrado

SATA II Co ntrolado r Serial ATA integrado

LAN Realtek RTL 8111F

Codec de

som

Ranhuras

AMD RX881

AMD SB710

ITE 8728F

Proporciona as funcionalidades mais

utilizadas em termos da especificação

Super I/O.

Interface LPC (Low Pin Count).

Ranhuras DI MM DDR3 x 4

Capacidade máxima de memória: 32GB

Cada módulo DIMM suporta uma

memória DDR3 de 512MB/

1GB/2GB/4GB/8GB

ALC662

Ranhura PCI x3

Ranhura PCI Express Gen2 x16 x1

Ranhura PCI Express Gen2 x1 x2

Iniciativas para controlo do ambiente

Monitorização do hardware

Controlador da velocidade da ventoinha

Função "Smart Guardian" da ITE

Módulo de memória DDR3 de canal duplo

Suporta módulos DDR3 800 / 1066 / 1333

Suporta módulos DDR3 1600 (OC) / 1866 (OC)

DDR3 -1866 + para AM3 CPU s ó

Os módulos DIMM registados e os DIMM ECC não são

suportados

Modo Bus master Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

Velocidades de transmissão de dados até 3 Gb/s.

Compatibilidade com a especificação SATA versão 2.0.

Suporta as funções RAID 0,1,10

Auto negociação de 10 / 100 / 1000 Mb/s

Capacidade semi/full-duplex

Saída de áudio de 5.1 canais

Suporta a especificação High-Definition Audio

Page 41

Conectores

na placa

Entradas/S

aídas no

painel

traseiro

Tam a nh o

da placa

Sistemas

operativos

suportados

A960A3+

ESPECIFICAÇÕES

Conector da unidade de disquetes x1 Cada conector suporta 2 unidades de disquetes

Conector da para impressora x1 Cada co nector suporta 1 Porta para impressora

Conector IDE x1 Cada conector suporta 2 dispositivos IDE

Conector SATA x6 Cada conector suporta 1 dispositivo SATA

Conector do painel frontal x1 Para suporte de várias funções no painel frontal

Conector de áudio frontal x1 Suporta a função de áudio no painel frontal

Conector de saída S/PDIF x1 Suporta a saída de áudio digital

Conector da ventoinha da CPU x1

Conector da ventoinha do sistema x2 Alimentação da ventoinha do sistema

Conector para limpeza do CMOS x1

Conector USB x2 Cada conector suporta 2 portas USB no painel frontal

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(4 pinos)

Tec l ado P S / 2 x1

Rato PS/2 x1

Port a s érie x1

Port a LAN x1

Port a USB x4

Tomada de áudio x3

205 mm (L) X 305 mm (A) ATX

Windows XP / Vista / 7

Alimentação da ventoinha da CPU (com a função Smart

Fan)

A Biostar reserva-se o direito de adicionar ou remover

suporte para qualquer sistema operativo com ou sem

aviso prévio.

Page 42

Motherboard Manual

POLISH

SPEC

Socket AM3+

Procesor

FSB

Chipset

Pamięć

główna

Super I/O

IDE Zintegrowany kontrol er IDE

SATA II Zintegrowany kontroler Serial ATA

LAN Realtek RTL 8111F

Kodek

dźwiękowy

Gniazda Gniazdo PCI x3

AMD Sempron /Athlon II /Phenom II /FX

Procesory

(Maksymalny Watt: 125W)

Obsługa HyperTransport 3.0 o szerokości pasma

do 5.2 GT/s

AMD RX881

AMD SB710

Gniazda DDR3 DIMM x 4

Maks. wielkość pamięci 32GB

Każde gniazdo DIMM obsługuje moduły

512MB/1GB/2GB/4GB/8GB DDR3

ITE 8728F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Interfejs Low Pin Count

ALC662

Architektura AMD 64 umożliwia przetwarzanie

32 i 64 bitowe

Obsługa Hyper Transport 3.0

Moduł pamięci DDR3 z trybem podwójnego

kanału

Obsługa DDR3 800 / 1066 / 1333

Obsługa DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 dla AM3 + CPU tylko

Brak obsługi Registered DIMM oraz ECC DIMM

Funkcje kontroli warunków pracy,

Monitor H/W

Kontroler prędkości wentylatora

Funkcja ITE "Smart Guardian"

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsługa PIO tryb 0~4,

Trans f er dan ych d o 3 G b/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

Obsługa RAID 0, 1,10

10 / 100 / 1000 Mb/s z automatyczną negocjacją

szybkości

Działanie w trybie połowicznego/pełnego

dupleksu

5.1 kanałowe wyjście audio

Obsługa High-Definition Audio

Page 43

Złącza

wbudowane

Back Panel

I/O

Wymiary

płyty

Obsluga

systemu

operacyjne

SPEC

Gniazdo PCI Express Gen2 x16 x1

Gniazdo PCI Express Gen2 x1 x2

Złącze napędu dyskietek x1

Złącze Port drukarki x1

Złącze IDE x1

Złącze SATA x6

Złącze panela przedniego x1

Przednie złącze audio x1

Złącze wyjścia S/PDIF x1

Złącze główkowe wentylatora

procesora x1

Złącze główkowe wentylatora systemowego x2

Złącze główkowe kasowania

CMOS x1

Złącze USB x2

Złącze zasilania (24 pinowe) x1

Złącze zasilania (4 pinowe) x1

Klawiatura PS/2 x1

Mysz PS/2 x1

Port szeregowy x1

Port LAN x1

Port US B x4

Gniazdo audio x3

205 mm (S) X 305 mm (W) ATX

Windows XP / Vista / 7

Każde złącze obsługuje 2 napędy dyskietek

Każde złącze obsługuje 1 Port drukarki

Każde złącze obsługuje 2 urządzenia IDE

Każde złącze obsługuje 1 urządzenie SATA

Obsługa elementów panela przedniego

Obsługa funkcji audio na panelu przednim

Obsługa funkcji cyfrowego w yjścia audio

Zasilanie wentylatora procesora (z funkcją Smart

Fan)

Zasilanie wentylatora systemowego

Każde złącze obsługuje 2 porty USB na panelu

przednim

Biostar zastrzega sobie prawo dodawania lub

odwoływania obsługi dowolnego systemu

operacyjnego bez powiadomienia.

A960A3+

Page 44

Motherboard Manual

RUSSIAN

CPU

(центральн

ый

процессо р)

FSB

Набор

микросхем

Основная

память

Super I/O

IDE

SATA II

Локальная

сеть

Звуковой

кодек

Слоты

Встроенны

й разъём

Гнездо AM3+

Проц ессо ры AMD Sempron /Athlon II

/Phenom II /FX (Максимальный ватт:

125W)

Поддержка HyperTransport 3. 0 с

пропускной способностью до 5.2 GT/s

AMD RX881

AMD SB710

Слоты DDR3 DIMM x 4

Максимальная ёмкость памяти 32ГБ

Каждый модуль DI MM поддерживает

512МБ/1ГБ/2ГБ/4ГБ/8ГБ DDR3

ITE 8728F

Обеспечивает наиболее используемые

действующие функциональные

возможности Super I/O.

Интерфейс с низки м количеством выводов

Встроенное устройство управления

встроенными интерфейсами устройств

Встроенное устройство управления

встроенными интерфейсами устройств

Realtek RTL 8111F

ALC662

Слот PCI x3

Слот PCI Express Gen2 x16 x1

Слот PCI Express Gen2 x1 x2

Разъём НГМД x1

Разъём Порт подключения

принтера x1

СПЕЦ

Архитектура AMD 64 разрешать обработка

данных на 32 и 64 бит

Поддержка Hyper Transport 3.0

Модуль памяти с двухканальным режимом DDR3

Поддержка DDR3 800 / 1066 / 1333

Поддержка DDR3 1600 (OC) / 1866 (OC)

DDR3-1866 для процессоро в AM3 + только

Не поддерживает зарегистрированные модули

DIMM and ECC DIMM

Инициативы по охране окружающей среды,

Аппаратный монитор

Регулятор скорости

Функция ITE "Smart Guardian"

(Интеллектуальная защита)

Режим "хозяина" шины Ultra DMA 33 / 66 / 100 /

133

Поддержка режима PIO 0~ 4,

скорость передачи данных до 3 гигабит/с.

Соответствие спецификации SATA версия 2.0.

Поддержка RAID 0,1,10

Автом атич еское согласование 10 / 100 / 1000

Мб/с

Частичная / полная дуплексная способность

Звуковая подд ержка High-Definition

5.1канальный звуковой выход

Каждый разъём поддерживает 2 накопителя на

гибких магнитных дисках

Каждый разъём поддерживает 1 Порт

подкл ючения принтера

Page 45

Задняя

панель

средств

ввода-выв

ода

Размер

панели

Поддержка

A960A3+

СПЕЦ

Разъём IDE x1

Разъём SATA x6 Каждый разъём поддерживает 1 устройство SATA

Разъём на лицевой панели x1 Поддержка устройств на лицевой панели

Входной звуковой разъём x1

Разъём вывода для S/PDIF x1 Поддержка вывода цифровой звуковой функции

Контактирующее приспособление

вентилятора центрального процессора x1

Контактирующее приспособление

вентилятора системы x2

Открытое контактирующее

приспособление CMOS x1

USB-разъём x2

Разъем питания (24 вывод) x1

Разъем питания (4 вывод) x1

Клавиатура PS/2 x1

Мышь PS/2 x1

Последовательный порт x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

наушников x3

205 мм (Ш) X 305 мм (В) ATX

Windows XP / Vista / 7

Каждый разъём поддерживает 2 встроенных

интерфейса накопителей

Поддержка звуковых функций на лицевой

панели

Источник питания для вентилятора центрального

процессо ра (с функцией интеллектуального

вентилятора)

Источник питания для вентилятора сист емы

Каждый разъём поддерживает 2 USB-порта на

лицевой панели

Biostar со храняет за собой право добавлять или

удалять средства обеспечени я для OS с или без

предварительного уведомления.

Page 46

Motherboard Manual

ARABIC

ﻦﻜﻤﺗ ﺔﻴﻨﻘﺗ AMD 64 ءاﺮﺝإ تﺎﻴﻠﻤﻌﻟا ﺔﻴﺏﻮﺳﺎﺤﻟا ﺔﻋﺮﺴﺏ 32 و64 ﺖﺏ

ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ Hyper Transport و 3.0

تﺎﻔﺻاﻮﻤﻟا

ﺲﺒﻘﻡ AM3+

تﺎﺠﻟﺎﻌﻡAMD Sempron /Athlon II /Pheno m II /FX

(طاو ىﻮﺼﻗ: 125و)

AMD

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا

ﺔﻳﺰآﺮﻤﻟا

ﻞﻗﺎﻨﻟا ﻲﻡﺎ ﻡﻷا ﻲﺒﻥﺎﺠﻟا ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ HyperTransport ددﺮﺘﺏ ﻞﺼﻳ ﻰﻟإ 3. 0 5.2 GT/s

ةﺪﺣو ةﺮآاذ DDR3 ﺔﺝودﺰﻡ ﻘﻟاةﺎﻨ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR3 تﺎﻌﺳ

لAM3 + ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا ﺔﻳﺰآﺮﻤﻟا ﻂﻘﻓ DDR3-1866

ﻻ ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮآاﺬﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻻ ﻖﻓاﻮﺘﺗ ﻊﻡ ECC

ﻞﺋﺎﺳو ﻢﻜﺤﺘﻟا ﻲﻓ ﻴﺒﻟاﺔﺌ:

ﺐﻗاﺮﻡ ﺔﻓﺮﻌﻤﻟ ﺔﻟﺎﺣ ةﺰﻬﺝﻷا

ﺐﻗاﺮﻡ ﻲﻓ ﺔﻋﺮﺳ ﺔﺣوﺮﻤﻟا

ﺔﻔﻴﻇو"Smart Guardian" ﻦﻡ ITE

ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUltra DMA 33 / 66 / 100 / 133

ﻊﺿو ﻲﺴﻴﺋر

ﻊﺿو ﻢﻋدPIO Mo de 0~ 4

ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺏﺎﺠﻴﺝ/ﺎﺙﺔﻴﻥ.

ﺔﻘﺏﺎﻄﻡ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.

ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0,1, 10

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻡ ﺖﻳﺎﺏ /ﺔﻴﻥﺎﺙ و1ﺎﺠﻴﺝ ﺖﺏ/ﺔﻴﻥﺎﺙ

ﺔﻴﻥﺎﻜﻡإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻡﺎﻜﻟا/ﻲﻔﺼﻨﻟا

ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ تﻮﺼﻟا ﻲﻟﺎﻋ ﻒﻳﺮﻌﺘﻟا ﻦﻡ

5.1 تاﻮﻨﻗ جﺮﺨﻟ ﻟاتﻮﺼ

ﻢﻋﺪﻳ ﻦﻴآﺮﺤﻡ صاﺮﻗﻸﻟ ﺔﻥﺮﻤﻟا

800/1066/1333/1600)OC(/1866)OC(ﺎﺝ ﺖﻳﺎﺏ

AMD SB710

ﺔﺤﺘﻓ DDR3 DIMM دﺪﻋ4

ﺔﻌﺳ ةﺮآاذ ىﻮﺼﻗ 32 ﺎﺠﻴﺝ ﺖﻳﺎﺏ

ﻢﻋﺪﺗ ﻞآ ﺔﺤﺘﻓ DIMM ﻢﻋﺪﺗ ةﺮآاذ ﻦﻡ عﻮﻥ DDR3

ﺔﻌﺳ /512 ﺎﺠﻴﻡ ﺖﻳﺎﺏ و1/ و2/ و4 / و8 ﺎﺠﻴﺝ ﺖﻳﺎﺏ

ITE 8728F

ﺮﻓﻮﺗ ﺔﻔﻴﻇو Super I/O ﺮﺜآﻷا ًﺎ ﻡا ﺪﺨ ﺘ ﺳ ا.

ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ

Low Pin Count Interface

ﺔﻥﺮﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1

RX881

ﺔﺤﺘﻓPCI ﺪﻋ3 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓPCI Express Gen2 x1 دﺪﻋ2

ﺔﻋﻮﻤﺠﻡ ﺢﺋاﺮﺸﻟا

ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا

Super I/O

ﺬﻔﻨﻡ IDE ﻢﻜﺤﺘﻡ IDE ﻞﻡﺎﻜﺘﻡ

SATA II ﻢﻜﺤﺘﻡ Serial ATA ﻞﻡﺎﻜﺘﻡ

ﺔﻜﺒﺵ ﺔﻴﻠﺥاد Realtek RTL 8111F

ﻚﻳدﻮآ تﻮﺼﻟا ALC662

تﺎﺤﺘﻔﻟا

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺳ

Page 47

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎ ﻄﺥﺈﺏ

وأ نوﺪﺏ رﺎﻄﺥإ.

ﻢﻋﺪﻳ ﻞآ ﺬﻔﻨﻡ ﻦﻴﻨﺙا ﻦﻡ ةﺰﻬﺝأ IDE

ﻢﻋﺪﻳ ﻞآ ﺬﻔﻨﻡ ﺪﺣاو ﻦﻡ ةﺰﻬﺝأ SATA

ﻢﻋﺪﻳ تاﺰﻴﻬﺠﺗ ﺔﺣﻮﻠﻟا ﺔﻴﻡﺎﻡﻷا

ﻢﻋﺪﻳ ﺔﻔﻴﻇو تﻮﺼﻟا ﺔﺣﻮﻠﻟﺎﺏ ﺔﻴﻡﺎﻡﻷا

ﻢﻋﺪﻳ ﺔﻔﻴﻇو جﺮﺥ تﻮﺼﻟا ﻲﻤﻗﺮﻟا

ﻞﻴﺹﻮﺘﻟ ﺔﻗﺎﻄﻟا ﺔﺣوﺮﻤﻟ ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا ﻊﻡ ﺔﻔﻴﻇو Smart Fan

ﻞﻴﺹﻮﺘﻟ ﺔﻗﺎﻄﻟا ﺔﺣوﺮﻤﻟ مﺎﻈﻨﻟا

ﻢﻋﺪﻳ ﻞآ ﺬﻔﻨﻡ ﻲﺘﺤﺘﻓ USB ﺔﺣﻮﻠﻟﺎﺏ ﺔﻴﻡﺎﻡﻷا

A960A3+

تﺎﻔﺻاﻮﻤﻟا

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﺔﺣﻮﻠﻟا

ﺬﻔﻨﻡIDE دﺪﻋ1

ﺬﻔﻨﻡSATA ﻋدﺪ6

ﺔﻴﻡﺎﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻡS/PDI F دﺪﻋ1

ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو ﺪﻋ2

ﺢﺴﻡ ﺔﻠﺹوCMOS دﺪﻋ1

ﺬﻔﻨﻡUSB دﺪﻋ2

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎﺏد( دﺪﻋ12

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮﻟPS/2 دﺪﻋ1

سوﺎﻡ PS /2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ﺔﻴﻠﺤﻡ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ ﺪﻋ1

ﺬﻓﺎﻨﻡUSB دﺪﻋ4

تﻮﺹ ﺲﺒﻘﻡ دﺪﻋ3

205 ﻢﻡ)ضﺮﻋ (X 305 ﻢﻡ)عﺎﻔﺗرا( AT X

ﻡﺬﻓﺎﻨ ﻞﺥد/جﺮﺥ

ﺔﺣﻮﻠﻟا ﺔﻴﻔﻠﺨﻟا

ﻢﺠﺣ ﺔﺣﻮﻠﻟا

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻟا Windows XP / Vista / 7

Page 48

Motherboard Manual

JAPANESE

Socket AM3+

CPU

FSB

AMD Sempron /Athlon II /Phenom II /FX プロ

セッサ (最高のワット: 125W)

5.2 GT/sのバンド幅までハイパートランスポート

3.0をサポートします

仕様

AMD 64アーキテクチャでは、32ビットと64ビット計算が

可能です

ハイパートランスポート3.0サポートします

チップセット

メインメモリ

Super I/O

IDE 統合IDEコントローラ

SATA II 統合Serial ATAコントローラ

LAN Realtek RTL 8111F

サウンド

Codec

スロット

オンボードコフロッピーコネクタ x1 各コネクタは2つのフロッピードライブをサポートします

AMD RX881

AMD SB710

DDR3 DIMMスロット x 4

最大メモリ容量32GB

各DIMMは 512MB/1GB/2GB/4GB/8GB DDR3

をサポート

ITE 8728F

もっとも一般に使用されるレガシーSuper I/O機

能を採用しています。

低ピンカウントインターフェイス

ALC662

PCIスロット x3

PCI Express Gen2 x16スロット x1

PCI Express Gen2 x1スロット x2

デュアルチャンネルモードDDR3メモリモジュール

DDR3 800 / 1066 / 1333 をサポート

DDR3 1600 (OC) / 1866 (OC)をサポート

AM3用DDR3- 1866+ CPUのみ

登録済みDIMMとECC DIMMはサポートされません

環境コントロールイニシアチブ、

H/Wモニター

ファン速度コントローラ/ モニター

ITEの「スマートガーディアン」機能

Ultra DMA 33 / 66 / 100 / 133バスマスタモード

PIO Mode 0~ 4のサポート、

最高3 Gb/秒のデータ転送速度

SATAバージョン2.0仕様に準拠。

RAID 0,1,10のサポート

10 / 100 / 1000 Mb/秒のオートネゴシエーション

半/全二重機能

ハイデフィニションオーディオのサポート

5.1 チャンネルオーディオアウト

Page 49

仕様

ネクタ

背面パネル

I/O

ボードサイズ 205 mm (幅) X 305 mm (高さ) ATX

OSサポート Windows XP / Vista / 7

プリンタポートコネクタ x1 各コネクタは1つのプリンタポートをサポートします

IDEコネクタ x1 各コネクタは2つのIDEデバイスをサポートします

SATAコネクタ x6 各コネクタは1つのSATAデバイスをサポートします

フロントパネルコネクタ x1 フロントパネル機能をサポートします

フロントオーディオコネクタ x1 フロントパネルオーディオ機能をサポートします

S/PDIFアウトコネクタ x1 デジタルオーディオアウト機能をサポートします

CPUファンヘッダ x1 CPUファン電源装置(スマートファン機能を搭載)

システムファンヘッダ x2 システムファン電源装置

CMOSクリアヘッダ x1

USBコネクタ x2

電源コネクタ(24ピン) x1

電源コネクタ(4ピン) x1

PS/2キーボード x1

PS/2マウス x1

シリアルポート x1

LANポート x1

USBポート x4

オーディオジャック x3

各コネクタは2つのフロントパネルUSBポートをサポート

します

Biostarは事前のサポートなしにOSサポートを追加または

削除する権利を留保します。

A960A3+

2012/02/06
