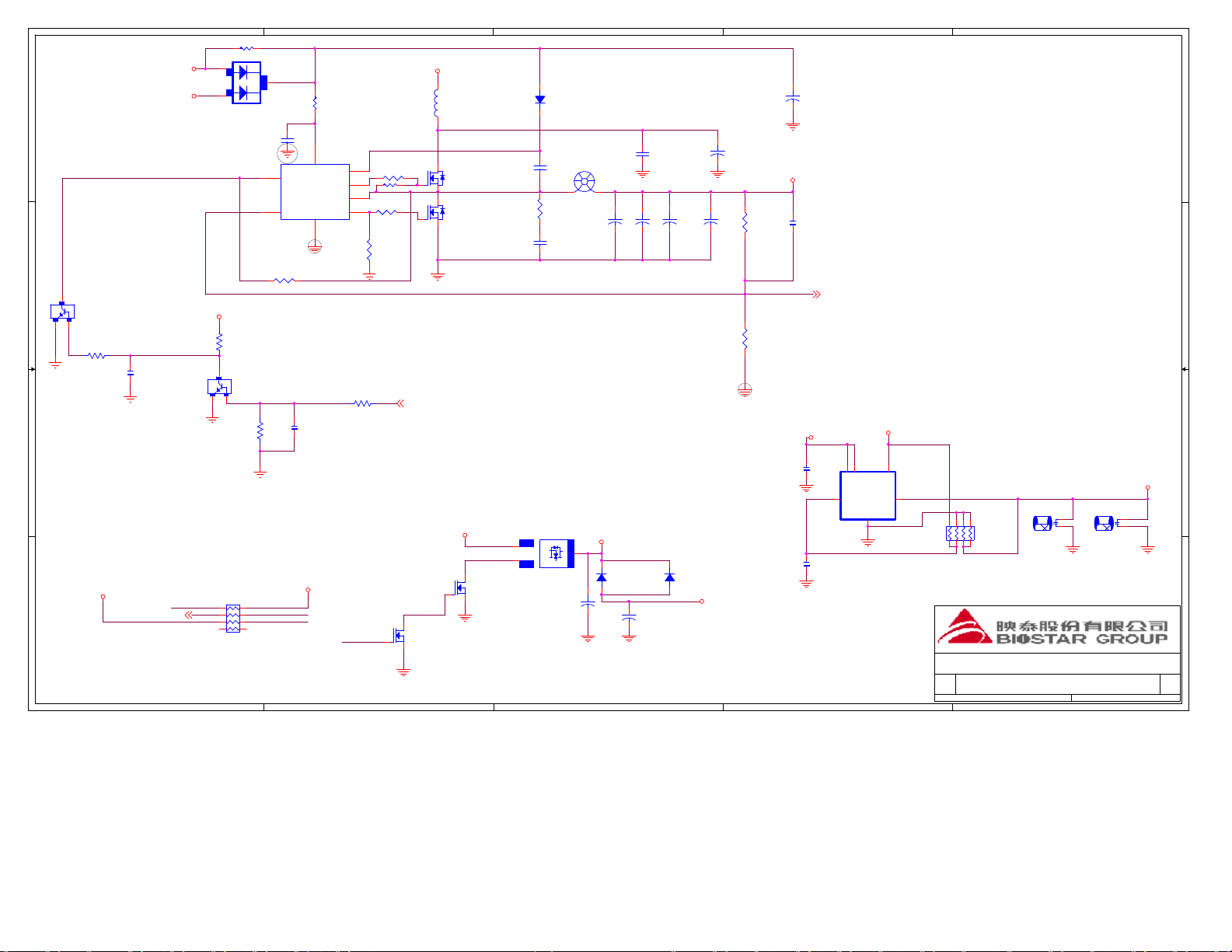

Biostar A78DG-A2T Schematic

5

A

4

3

2

1

D D

C C

B B

PAGE

1
2
3
4
5
6-10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

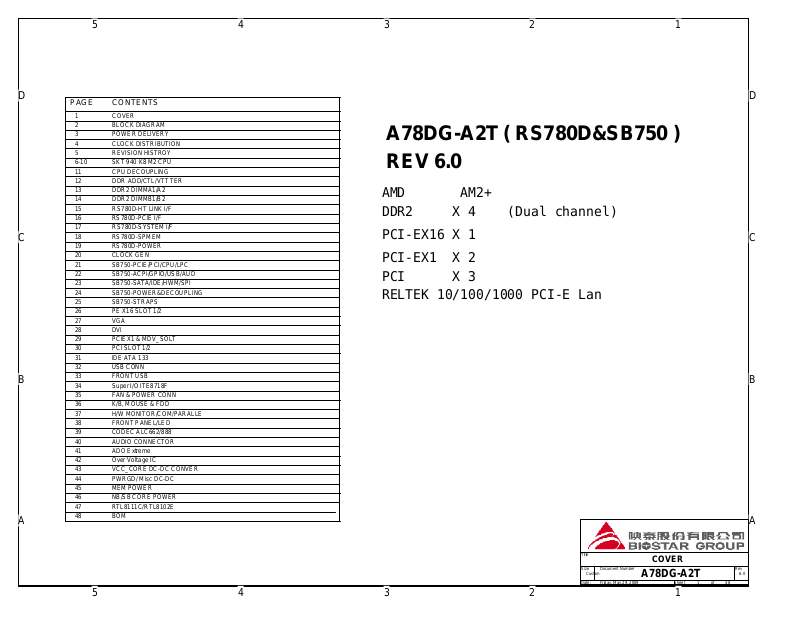

CONTENTS

COVER
BLOCK DIAGRAM
POWER DELIVERY
CLOCK DISTRIBUTION
REVISION HISTROY
SKT 940 K8 M2 CPU
CPU DECOUPLING
DDR ADD/CTL/VTT TER
DDR2 DIMMA1/A2
DDR2 DIMMB1/B2
RS780D-HT LINK I/F
RS780D-PCIE I/F
RS780D-SYSTEM I/F
RS780D-SPMEM
RS780D-POWER
CLOCK GEN
SB750-PCIE/PCI/CPU/LPC
SB750-ACPI/GPIO/USB/AUD
SB750-SATA/IDE/HWM/SPI
SB750-POWER&DECOUPLING
SB750-STRAPS
PE X16 SLOT 1/2
VGA
DVI
PCIEX1 & MDV_SOLT
PCI SLOT 1/2
IDE ATA 133
USB CONN
FRONT USB
Super I/O ITE8718F
FAN & POWER CONN
K/B, MOUSE & FDD
H/W MONITOR/COM/PARALLE
FRONT PANEL/LED
CODEC ALC662/888
AUDIO CONNECTOR
ADO Extreme
Over Voltage IC
VCC_CORE DC-DC CONVER
PWRGD/ Misc DC-DC
MEM POWER
NB/SB CORE POWER
RTL8111C/RTL8102E
BOM

A78DG-A2T ( RS780D&SB750 )
REV 6.0

AMD AM2+
DDR2 X 4 (Dual channel)

PCI-EX16 X 1
PCI-EX1 X 2

PCI X 3
RELTEK 10/100/1000 PCI-E Lan

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

COVER

A78DG-A2T

1

1 48Friday, May 29, 2009

6.0

5

A

4

3

2

1

34

PCIE
SLOT

PCIE
SLOT

32

UNBUFFERED
DDRII DIMM3

UNBUFFERED
DDRII DIMM4

8X
(RS780D)

27

16X

27

10,12,13

AMD
AM2/AM2g2

Clock

D D

Generator

DVI CON

HDMI CON

VGA CON

19

HyperTransport
Link

26

26

25

OPTION

2CH TMDS

AM2 SOCKET

OUT

IN

6,7,8,9

16x16

RS780/RS780D

HyperTransport LINK0 CPU I/F

DX10 IGP
LVDS/TVOUT/TMDS
DISPLAY PORT X2
Side Port Memory

1 X16 GFX PCIE I/F (RS780)

2 X8 GFX PCIE I/F (RS780D)

1 X4 PCIE I/F WITH SB
6 X1 GPP PCIE I/F

14,15,16,17,18

C C

4X
PCIE

USB-7

USB-8

USB-6 USB-3USB-4

30

USB-9

31

USB-5

USB-11USB-10

31 30 30

B B

USB-2

PCI BUS

USB-0

3030313130

31

USB-12

31

SPI ROM SPI I/F

22

USB 2.0

USB 1.1

SB700(SB710,SB750)

USB2.0 (12)+ 1.1(2)
SATA II (6 PORTS)
AZALIA HD AUDIO
ATA 66/100/133
SPI I/F
LPC I/F(S5)
ACPI 1.1
INT RTC
HW MONITOR
PCI/PCI BDGE

20, 21, 22, 23,24

DDRII 400,533,667,800

128bit

DDRII 400,533,667,800

Side port

I2C I/F

16X

PCIE GPP[3:0]
X4

28

HD AUDIO I/F

SATA II I/F

ATA 66/100/133 I/F

HW MONITOR I/F

IR I/F

FRAME BUFFER

DDR3 512MBIT

BOOTSTRAPS
ROM(NB)

6 1X PCIE INTERFACE

PCIE GPP4
X1

28

UNBUFFERED
DDRII DIMM1

UNBUFFERED
DDRII DIMM2

DDRII FIRST LOGICAL DIMM DDRII SECOND LOGICAL DIMM

17

17

PCIE GPP5
GIGABIT
BCM5761/5755

HD AUDIO HDR

iSATA#0 to #5

IDE CON

HW
MONITOR

IR Transceiver

34

22

34

10,12,13

11,12,13 11,12,13

8X

16X or 8X

USB-1

HD AUDIO
REAR CON

(5761)

32

34

22

DESKTOP AM2/AM2g2
POWER

DDR2
MEMORY
POWER

5

37,38

PCI SLOT
#1

RS780D
CORE POWER

+1.1V, +1.2V

39

POWER

PCI SLOT

29

40

42

29

#2

ITE LPC SIO
8716F

KBD
MOUSE
COM

4

FLOPPY

3

LPC I/F

33

3536

TPM 1.2

LPC
BIOS

2

35

35

Title

Size Document Number Rev

Custom

Date: Sheet of

BLOCK DIAGRAM

A78DG-A2T

1

A

6.0

2 48Friday, May 29, 2009

5

A

4

3

2

1

ATX P/S WITH 1A STBY CURRENT

5V

5VSB

+/-5%

+/-5%

3.3V
+/-5%

12V
+/-5%

-12V
+/-5%

CPU
PW
12V
+/-5%

D D

+5VDUAL_MEM (S0,S5)

VCC 1.1V SW
REGULATOR

VCC 1.2V SW
REGULATOR

+3.3VSB (S0, S1, S3, S4, S5)

+3.3VSB REGULATOR

C C

ACPI CONTROLLER

+3.3VDUAL (S0, S1, S3, S4, S5)

+5VDUAL (S0, S1, S3, S4, S5)

2.5V SHUNT
REGULATOR

VRM SW
REGULATOR

1.8V VDD SW
REGULATOR

VCC 1.1V SW
REGULATOR

+1.1V (S0, S1)

1.8V LINEAR
REGULATOR

VDD_CPUCORE_RUN (S0, S1)/VDD_CPUNB_RUN (S0, S1)

0.9V VTT_DDR
REGULATOR

+1.1V RS780; +1.2V RS780D (S0, S1)

+1.8V(S0, S1)

1.5V LINEAR

+1.2V(S0, S1)

1.2V STB LDO
REGULATOR

+1.2VSB (S5)

REGULATOR

DDRII DIMMs

VTT_DDR 2A

VDD MEM 12A

+1.5V(S0, S1)

CPU_VDDA_RUN(S0, S1)

CPU_VTT_SUS (S0,S1,S3)

CPU_VDDIO_SUS(S0,S1,S3)

AM2

VDDA 2.5V 0.2A

VDDCORE

0.8-1.55V 110A
DDRII MEM I/F
VTT 2A, VDD 10A

VLDT 1.2V 0.5A

RS780

VDDHT/RX 1.1V 1.2A
VDDHTTX 1.2V 0.5A
VDDPCIE 1.1V 2A
NB CORE VDDC

1.1V 10A

VDDA18PCIE 1.8V 0.9A
PLLs 1.8V 0.1A
VDD18/VDD18_MEM

1.8V 0.01A
VDD_MEM 1.8V/1.5V 0.5A

AVDD 3.3V 0.135A

SB700(SB710,SB750)

X4 PCI-E 0.8A
ATA I/O 0.5A
ATA PLL 0.01A
PCI-E PVDD 80mA
SB CORE 0.6A
CLOCK

1.2V S5 PW 0.22A

3.3V S5 PW 0.01A
USB CORE I/O 0.2A

3.3V I/O 0.45A

AZALIA CODEC CON

B B

3

USB X6 FR

VDD
5VDual

2.0A

USB X6 RL 2XPS/2

VDD
5VDual

2.0A

5VDual

1.0A

GBE

3.3V 0.5A (S0, S1)

3.3V 0.1A (S3)

2

Title

Size Document Number Rev

Custom

Date: Sheet of

+3.3VDUAL (S0, S1, S3)

5

PCI Slot (per slot)

5V

3.3V
12V

3.3Vaux

-12V

0.375A

5.0A

7.6A

0.5A

0.1A

3.3V

3.3Vaux

4

0.5A

0.1A

X16 PCIEX1 PCIE per

3.3V
12V12V

3.0A3.0A

5.5A

X16 PCIE

3.3V
12V

3.0A

5.5A

3.3V CORE 0.3A
5V ANALOG 0.1A
12V 0.1A

POWER DELIVERY

A78DG-A2T

3 48Friday, May 29, 2009

1

A

6.0

5

A

DIMM4DIMM3

4

3

2

1

D D

DIMM1 DIMM2

3 PAIR MEM CLK

3 PAIR MEM CLK

AM2/AM2g2 CPU

AM2 SOCKET

C C

B B

3 PAIR MEM CLK

3 PAIR MEM CLK

AMD NB
RS780

PCIE GFX SLOT 1 - 16 LANES

PCIE GPP SLOT 1 - 1 LANE

PCIE GPP SLOT 2 - 4 LANES

PCIE GFX SLOT 1 - 8 LANES

PCIE GBE

25MHZ OSC INPUT

25MHz

SATA

1 PAIR CPU CLK

200MHZ

HT REFCLK

100MHz DIFF

EXTERNAL
CLK GEN.

NB-OSCIN

14.318MHZ

PCIE GPP CLK

100MHZ

PCIE GPP CLK

100MHZ

NB GFX PCIE CLK

100MHZ

PCIE GFX CLK

100MHZ

PCIE GPP CLK

100MHZ

PCIE GPP CLK

100MHZ

PCIE GFX CLK

100MHZ

PCIE GPP CLK

100MHZ

USB CLK

48MHZ

CPU_HT_CLK

NB_HT_CLK

25M_48M_66M_OSC

AMD SB

SB700
(SB710,SB750)

NB_DISP_CLK

GPP_CLK3

PCIE_RCLK/
NB_LNK_CLK

SLT_GFX_CLK

GPP_CLK0

GPP_CLK1

GPP_CLK2

USB_CLK

SB_BITCLK

48MHZ

PCI CLK0

33MHZ

PCI CLK1

33MHZ

PCI CLK2

33MHZ

LPC_CLK0

33MHZ

LPC CLK1

33MHZ

PCI CLK3

33MHZ

PCI CLK4

33MHZ

25MHz

PCI SLOT 0

PCI SLOT 1

TPM

LPC BIOS

TPM (BCM5755/5761)

SUPER IO
IT8716F

HD AUDIO CON

14.31818MHz

SIO CLK

48MHZ

32.768KHz

External clock mode

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

CLOCK DISTRIBUTION

A78DG-A2T

4 48Friday, May 29, 2009

1

6.0

5

A

4

3

2

1

HyperTransport

D D

HTCPU_UPCLK115

HTCPU_UPCLK1_15

HTCPU_UPCLK015

HTCPU_UPCLK0_15

HTCPU_UPCNTL115

HTCPU_UPCNTL1_15

HTCPU_UPCNTL15

C C

B B

HTCPU_UP[15..0]15

HTCPU_UP_[15..0]15

HTCPU_UPCLK1
HTCPU_UPCLK1_
HTCPU_UPCLK0
HTCPU_UPCLK0_

HTCPU_UPCNTL1
HTCPU_UPCNTL1_
HTCPU_UPCNTL
HTCPU_UPCNTL_

HTCPU_UP15
HTCPU_UP_15
HTCPU_UP14
HTCPU_UP_14
HTCPU_UP13
HTCPU_UP_13
HTCPU_UP12
HTCPU_UP_12
HTCPU_UP11
HTCPU_UP_11
HTCPU_UP10
HTCPU_UP_10
HTCPU_UP9
HTCPU_UP_9
HTCPU_UP8
HTCPU_UP_8

HTCPU_UP7
HTCPU_UP_7
HTCPU_UP6
HTCPU_UP_6
HTCPU_UP5
HTCPU_UP_5
HTCPU_UP4
HTCPU_UP_4
HTCPU_UP3
HTCPU_UP_3
HTCPU_UP2
HTCPU_UP_2
HTCPU_UP1
HTCPU_UP_1
HTCPU_UP0
HTCPU_UP_0

HTCPU_UP[15..0]
HTCPU_UP_[15..0]

CPU1A

N6

L0_CLKIN_H1

P6

L0_CLKIN_L1

N3

L0_CLKIN_H0

N2

L0_CLKIN_L0

V4

L0_CTLIN_H1

V5

L0_CTLIN_L1

U1

L0_CTLIN_H0

V1

L0_CTLIN_L0

U6

L0_CADIN_H15

V6

L0_CADIN_L15

T4

L0_CADIN_H14

T5

L0_CADIN_L14

R6

L0_CADIN_H13

T6

L0_CADIN_L13

P4

L0_CADIN_H12

P5

L0_CADIN_L12

M4

L0_CADIN_H11

M5

L0_CADIN_L11

L6

L0_CADIN_H10

M6

L0_CADIN_L10

K4

L0_CADIN_H9

K5

L0_CADIN_L9

J6

L0_CADIN_H8

K6

L0_CADIN_L8

U3

L0_CADIN_H7

U2

L0_CADIN_L7

R1

L0_CADIN_H6

T1

L0_CADIN_L6

R3

L0_CADIN_H5

R2

L0_CADIN_L5

N1

L0_CADIN_H4

P1

L0_CADIN_L4

L1

L0_CADIN_H3

M1

L0_CADIN_L3

L3

L0_CADIN_H2

L2

L0_CADIN_L2

J1

L0_CADIN_H1

K1

L0_CADIN_L1

J3

L0_CADIN_H0

J2

L0_CADIN_L0

SOCKET_M2 940 SMD

L0_CLKOUT_H1
L0_CLKOUT_L1
L0_CLKOUT_H0
L0_CLKOUT_L0

L0_CTLOUT_H1
L0_CTLOUT_L1
L0_CTLOUT_H0
L0_CTLOUT_L0

L0_CADOUT_H15

L0_CADOUT_L15

L0_CADOUT_H14

L0_CADOUT_L14

L0_CADOUT_H13

L0_CADOUT_L13

L0_CADOUT_H12

L0_CADOUT_L12

L0_CADOUT_H11

L0_CADOUT_L11

L0_CADOUT_H10

L0_CADOUT_L10

L0_CADOUT_H9

L0_CADOUT_L9

L0_CADOUT_H8

L0_CADOUT_L8

L0_CADOUT_H7

L0_CADOUT_L7

L0_CADOUT_H6

L0_CADOUT_L6

L0_CADOUT_H5

HT LINK

L0_CADOUT_L5

L0_CADOUT_H4

L0_CADOUT_L4

L0_CADOUT_H3

L0_CADOUT_L3

L0_CADOUT_H2

L0_CADOUT_L2

L0_CADOUT_H1

L0_CADOUT_L1

L0_CADOUT_H0

L0_CADOUT_L0

HTCPU_DWNCLK1

AD5

HTCPU_DWNCLK1_

AD4

HTCPU_DWNCLK0

AD1

HTCPU_DWNCLK0_

AC1

HTCPU_DWNCNTL1

Y6

HTCPU_DWNCNTL1_

W6

HTCPU_DWNCNTL

W2

HTCPU_DWNCNTL_

W3

HTCPU_DWN15

Y5

HTCPU_DWN_15

Y4

HTCPU_DWN14

AB6

HTCPU_DWN_14

AA6

HTCPU_DWN13

AB5

HTCPU_DWN_13

AB4

HTCPU_DWN12

AD6

HTCPU_DWN_12

AC6

HTCPU_DWN11

AF6

HTCPU_DWN_11

AE6

HTCPU_DWN10

AF5

HTCPU_DWN_10

AF4

HTCPU_DWN9

AH6

HTCPU_DWN_9

AG6

HTCPU_DWN8

AH5

HTCPU_DWN_8

AH4

HTCPU_DWN7

Y1

HTCPU_DWN_7

W1

HTCPU_DWN6

AA2

HTCPU_DWN_6

AA3

HTCPU_DWN5

AB1

HTCPU_DWN_5

AA1

HTCPU_DWN4

AC2

HTCPU_DWN_4

AC3

HTCPU_DWN3

AE2

HTCPU_DWN_3

AE3

HTCPU_DWN2

AF1

HTCPU_DWN_2

AE1

HTCPU_DWN1

AG2

HTCPU_DWN_1

AG3

HTCPU_DWN0

AH1

HTCPU_DWN_0

AG1

HTCPU_DWN[15..0]
HTCPU_DWN_[15..0]

HTCPU_DWNCLK115
HTCPU_DWNCLK1_15
HTCPU_DWNCLK015
HTCPU_DWNCLK0_15

HTCPU_DWNCNTL115
HTCPU_DWNCNTL1_15
HTCPU_DWNCNTL15
HTCPU_DWNCNTL_15HTCPU_UPCNTL_15

HTCPU_DWN[15..0] 15
HTCPU_DWN_[15..0] 15

A

Title

Size Document Number Rev

B

Date: Sheet of

5

4

3

2

K8 CPU HT

A78DG-A2T

1

6 48Friday, May 29, 2009

6.0

A

LAYOUT: PLACE 169 OHM WITHIN 600mils OF CPU
AND TRACE TO AC CAPS LESS THAN 1250mil

10UF 10V 0805 Y5V

D D

ROUTE AS DIF 5/5/5/20
LAYOUT: PLACE 169 OHM WITHIN 600mils OF CPU

AND TRACE TO AC CAPS LESS THAN 1250mil

CPU_CORE_FB

CPU_CORE_FB_

C1

1 2

CLOSE TO CPU

C7

0.1UF 16V Y5V 0402 /NI

1 2

Q1
AZ1117H-ADJ SOT-223

CPU_PRESENT#22

C C

+1.8V_SUS

綼

1 2
12

B B

LDT_RST#17,21
LDT_STOP#17,21

CPU PIN F12

R11
150 1% 0402

CPU_M_VREFF

12

R19
150 1% 0402

+1.8V_SUS

1 2

3 4

5 6

C8
1UF 10V Y5V

RN3
680 8P4R 0402

7 8

Vout=Vref (1.25V) X ( 1+R2/R1 )
=2.5V

+5V

R1

I
O
A

R2

CPU_CLK20

CPU_CLK_20

CPU_CLK

AOD Extreme

CPU_TDI42

CPU_TRST#42

CPU_TCK42
CPU_TMS42

CPU_DBREQ#42

02/18 >10mils

ROUTE AS DIF 5/5/5/20

5

R1

49.9 1% 0402

R2

49.9 1% 0402

CT1

3900P 50V X7R 0402

3900P 50V X7R 0402

HTCPU_RST_1
HTCPU_STOP_
HTCPU_PWRGD

4

綼

C5

C6

+1.8V_SUS

+1.8V_SUS

CPU_CORE_FB43
CPU_CORE_FB_43

+1.8V_SUS

+

3

CPU_VDDA

CT1
100UF 16V 5X11 2mm

12

C2
1UF 16V 0805 Y5V

C2

綼

CPU PIN C10&D11

R1&R2

12

R3
169 1% 0402

CPU

HTCPU_PWRGD
HTCPU_STOP_CPU_CLK*
HTCPU_RST_1

CPU_M_VREFF

1 2

12

R6 1K 0402

1 2

R7 300 0402

1 2

R8 300 0402

1 2

R10 1K 0402

CPU_TDI CPU_TDOCPU_TDO
CPU_TRST#
CPU_TCK
CPU_TMS

CPU_CORE_FB
CPU_CORE_FB-

綼

R13 39.2 1% 0402

1 2

R15 39.2 1% 0402

1 2

R16 510 0402

1 2

R18 510 0402

1 2

R20 300 0402

1 2

R21 300 0402

1 2

CPU1D

C10

VDDA_1

D10

VDDA_2

A8
B8

C9
D8
C7

AL3

AL6
AK6
AK4
AL4

AL10
AJ10

AH10

AL9

A5

G2
G1

E12
F12

AH11

AJ11

A10
B10
F10

E9

AJ7

F6
D6

E7
F8
C5

AH9

E5
AJ5
AH7
AJ6 D4

AD25
AE24
AE25

AJ18
AJ20

AK3
C18
C20

SOCKET_M2 940 SMD

MISC.

CLKIN_H
CLKIN_L

PWROK
LDTSTOP_L
RESET_L

CPU_PRESENT_L

SIC
SID
SA0
ALERT_L

TDI
TRST_L
TCK
TMS

DBREQ_L
VDD_FB_H

VDD_FB_L

VTT_SENSE
M_VREF

M_ZN
M_ZP

TEST25_H
TEST25_L
TEST19
TEST18
TEST13
TEST9

TEST17
TEST16
TEST15
TEST14
TEST12

TEST7
TEST6
TEST3
TEST2 TEST8

RSVD1
RSVD2
RSVD3
RSVD4

INT. MISC.

RSVD5
RSVD6
RSVD9
RSVD10

PLATFORM_TYPE

THERMTRIP_L

VDDNB_FB_H

VDDNB_FB_L

KEY/VSS1
KEY/VSS2

CORE_TYPE

VID5

VID4
SVC/VID3
SVD/VID2

PVIEN/VID1

VID0

THERMDC
THERMDA

PROCHOT_L

TDO

DBRDY

VDDIO_FB_H
VDDIO_FB_L

PSI_L

HTREF1
HTREF0

TEST29_H

TEST29_L

TEST24
TEST23
TEST22
TEST21
TEST20

TEST28_H

TEST28_L

TEST27
TEST26
TEST10

RSVD11
RSVD12
RSVD13
RSVD14

RSVD15
RSVD16
RSVD17
RSVD18
RSVD19
RSVD20

CPU_THERMTRIP

+1.8V_SUS

H22
AE9

F2
G5

D2
D1
C1
E3
E2
E1

AG9
AG8
AK7
AL7

AK10

B6
AK11

AL11
G4
G3

F1
V8

V7

C11
D11

AK8
AH8
AJ9
AL8
AJ8

J10
H9
AK9
AK5
G7

L30
L31
V29
W30

F3
G24
G25
H25
L25
L26

R4
330 0402

CPU_DBRDYCPU_DBRDYCPU_DBREQ#

R12 44.2 1% 0402
R14 44.2 1% 0402

FBCLKOUT
FBCLKOUT*

R17 80.6 1% 0402

RN2

330 8P4R 0402

2

+1.8V_SUS

R5
330 0402

VID3
VID2
VID1

CPU_THERMTRIPCPU_THERMTRIP

12
12

78
56
34
12

R43
10K 0402

G
S

Q15

FDV301N SOT23

1 2

3 4

5 6

+1.2V_HT

12

+1.8V_SUS

D

RN1
330 8P4R 0402

7 8

1

CPU_THERMTRIP#22

CPU_CORE_TYPE 43
K8_VID543

K8_VID443
K8_VID343
K8_VID243
K8_VID143
K8_VID043

CPU_THERMDC34,37
CPU_THERMDA34

CPU_PROCHOT# 21

VDDNB_FB_H 43
VDDNB_FB_L 43

8/5/8/20
LAYOUT: ROUTE 80 OHM DIFF IMPEDENCE
LAYOUT: PLACE WITHIN 1 INCH OF CPU

CPU_TDO42

CPU_DBRDY 42

AOD Extreme

+1.8V

+3.3V_DUAL

R23

10K 0402 /NI

IMC_CRST_L22

E

R22
10K 0402

B

Q2
2N3904 SOT23

C

5

+1.8V

R299
10K 0402 /NI

HTCPU_RST_1

V0.51 modify 1, Pin AJ9 (TEST22) add 300 0402 pull down

2, Pin A5 (DBREQ_L) add 300 0402 pull to +1.8V_SUS

+1.8V_SUS

R44
10K 0402

Q16

G

LDT_PG21

HTCPU_PWRGD

S

D

FDV301N SOT23

4

PWM_PWROK43

3

2

Title

Size Document Number Rev

Custom

Date: Sheet of

CTRL/STRAPS

A78DG-A2T

7 48Friday, May 29, 2009

1

A

6.0

5

A

4

3

2

1

CPU1B

MEM_MA0_CLK_H212,13

MEM_MA0_CLK_L212,13

MEM_MA1_CLK_H212,13

MEM_MA1_CLK_L212,13

MEM_MA0_CLK_H012,13

MEM_MA0_CLK_L012,13

D D

C C

B B

MEM_MA1_CLK_H012,13

MEM_MA1_CLK_L012,13

MEM_MA0_CLK_H112,13

MEM_MA0_CLK_L112,13

MEM_MA1_CLK_H112,13

MEM_MA1_CLK_L112,13

MEM_MA0_CS_L112,13
MEM_MA0_CS_L012,13

MEM_MA0_ODT012,13

MEM_MA1_CS_L112,13
MEM_MA1_CS_L012,13

MEM_MA1_ODT012,13

MEM_MA_CAS_L12,13

MEM_MA_WE_L12,13

MEM_MA_RAS_L12,13
MEM_MA_BANK212,13

MEM_MA_BANK112,13
MEM_MA_BANK012,13

MEM_MA_CKE112,13
MEM_MA_CKE012,13

MEM_MA_ADD[15..0]12,13

MEM_MA_DQS_H[8..0]13

MEM_MA_DQS_L[8..0]13

MEM_MA_DM[8..0]13

MEM_MA_ADD[15..0]
MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0
MEM_MA_DQS_H[8..0]
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

MEM_MA_DQS_L[8..0]

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

MEM_MA_DM[8..0]

AG21

MA_CLK_H7

AG20

MA_CLK_L7

AE20

MA_CLK_H6

AE19

MA_CLK_L6

U27

MA_CLK_H5

U26

MA_CLK_L5

V27

MA_CLK_H4

W27

MA_CLK_L4

W26

MA_CLK_H3

W25

MA_CLK_L3

U24

MA_CLK_H2

V24

MA_CLK_L2

G19

MA_CLK_H1

H19

MA_CLK_L1

G20

MA_CLK_H0

G21

MA_CLK_L0

AC25

MA0_CS_L1

AA24

MA0_CS_L0

AE28

MA0_ODT1

AC28

MA0_ODT0

AD27

MA1_CS_L1

AA25

MA1_CS_L0

AE27

MA1_ODT1

AC27

MA1_ODT0

E20

MA_RESET_L

AB25

MA_CAS_L

AB27

MA_WE_L

AA26

MA_RAS_L

N25

MA_BANK2

Y27

MA_BANK1

AA27

MA_BANK0

L27

MA_CKE1

M25

MA_CKE0

M27

MA_ADD15

N24

MA_ADD14

AC26

MA_ADD13

N26

MA_ADD12

P25

MA_ADD11

Y25

MA_ADD10

N27

MA_ADD9

R24

MA_ADD8

P27

MA_ADD7

R25

MA_ADD6

R26

MA_ADD5

R27

MA_ADD4

T25

MA_ADD3

U25

MA_ADD2

T27

MA_ADD1

W24

MA_ADD0

AD15

MA_DQS_H7

AE15

MA_DQS_L7

AG18

MA_DQS_H6

AG19

MA_DQS_L6

AG24

MA_DQS_H5

AG25

MA_DQS_L5

AG27

MA_DQS_H4

AG28

MA_DQS_L4

D29

MA_DQS_H3

C29

MA_DQS_L3

C25

MA_DQS_H2

D25

MA_DQS_L2

E19

MA_DQS_H1

F19

MA_DQS_L1

F15

MA_DQS_H0

G15

MA_DQS_L0

AF15

MA_DM7

AF19

MA_DM6

AJ25

MA_DM5

AH29

MA_DM4

B29

MA_DM3

E24

MA_DM2

E18

MA_DM1

H15

MA_DM0

SOCKET_M2 940 SMD

MA_DATA63
MA_DATA62
MA_DATA61
MA_DATA60
MA_DATA59
MA_DATA58
MA_DATA57
MA_DATA56
MA_DATA55
MA_DATA54
MA_DATA53
MA_DATA52
MA_DATA51
MA_DATA50
MA_DATA49
MA_DATA48
MA_DATA47
MA_DATA46
MA_DATA45
MA_DATA44
MA_DATA43
MA_DATA42
MA_DATA41
MA_DATA40
MA_DATA39
MA_DATA38
MA_DATA37
MA_DATA36
MA_DATA35
MA_DATA34
MA_DATA33
MA_DATA32
MA_DATA31
MA_DATA30
MA_DATA29
MA_DATA28
MA_DATA27
MA_DATA26
MA_DATA25
MA_DATA24
MA_DATA23
MA_DATA22
MA_DATA21
MA_DATA20
MA_DATA19
MA_DATA18
MA_DATA17
MA_DATA16
MA_DATA15
MA_DATA14
MA_DATA13

MEM CHA

MA_DATA12
MA_DATA11
MA_DATA10

MA_DATA9
MA_DATA8
MA_DATA7
MA_DATA6
MA_DATA5
MA_DATA4
MA_DATA3
MA_DATA2
MA_DATA1
MA_DATA0

MA_DQS_H8

MA_DQS_L8

MA_DM8

MA_CHECK7
MA_CHECK6
MA_CHECK5
MA_CHECK4
MA_CHECK3
MA_CHECK2
MA_CHECK1
MA_CHECK0

MEM_MA_DATA[0..63]
MEM_MA_DATA63

AE14

MEM_MA_DATA62

AG14

MEM_MA_DATA61

AG16

MEM_MA_DATA60

AD17

MEM_MA_DATA59

AD13

MEM_MA_DATA58

AE13

MEM_MA_DATA57

AG15

MEM_MA_DATA56

AE16

MEM_MA_DATA55

AG17

MEM_MA_DATA54

AE18

MEM_MA_DATA53

AD21

MEM_MA_DATA52

AG22

MEM_MA_DATA51

AE17

MEM_MA_DATA50

AF17

MEM_MA_DATA49

AF21

MEM_MA_DATA48

AE21

MEM_MA_DATA47

AF23

MEM_MA_DATA46

AE23

MEM_MA_DATA45

AJ26

MEM_MA_DATA44

AG26

MEM_MA_DATA43

AE22

MEM_MA_DATA42

AG23

MEM_MA_DATA41

AH25

MEM_MA_DATA40

AF25

MEM_MA_DATA39

AJ28

MEM_MA_DATA38

AJ29

MEM_MA_DATA37

AF29

MEM_MA_DATA36

AE26

MEM_MA_DATA35

AJ27

MEM_MA_DATA34

AH27

MEM_MA_DATA33

AG29

MEM_MA_DATA32

AF27

MEM_MA_DATA31

E29

MEM_MA_DATA30

E28

MEM_MA_DATA29

D27

MEM_MA_DATA28

C27

MEM_MA_DATA27

G26

MEM_MA_DATA26

F27

MEM_MA_DATA25

C28

MEM_MA_DATA24

E27

MEM_MA_DATA23

F25

MEM_MA_DATA22

E25

MEM_MA_DATA21

E23

MEM_MA_DATA20

D23

MEM_MA_DATA19

E26

MEM_MA_DATA18

C26

MEM_MA_DATA17

G23

MEM_MA_DATA16

F23

MEM_MA_DATA15

E22

MEM_MA_DATA14

E21

MEM_MA_DATA13

F17

MEM_MA_DATA12

G17

MEM_MA_DATA11

G22

MEM_MA_DATA10

F21

MEM_MA_DATA9

G18

MEM_MA_DATA8

E17

MEM_MA_DATA7

G16

MEM_MA_DATA6

E15

MEM_MA_DATA5

G13

MEM_MA_DATA4

H13

MEM_MA_DATA3

H17

MEM_MA_DATA2

E16

MEM_MA_DATA1

E14

MEM_MA_DATA0

G14

MEM_MA_DQS_H8

J28

MEM_MA_DQS_L8

J27

MEM_MA_DM8

J25

MEM_MA_CHECK[7..0]
MEM_MA_CHECK7

K25

MEM_MA_CHECK6

J26

MEM_MA_CHECK5

G28

MEM_MA_CHECK4

G27

MEM_MA_CHECK3

L24

MEM_MA_CHECK2

K27

MEM_MA_CHECK1

H29

MEM_MA_CHECK0

H27

MEM_MA_DATA[0..63]13

MEM_MA_CHECK[7..0] 13

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

K8 CPU MEMORY-1

A78DG-A2T

8 48Friday, May 29, 2009

1

6.0

5

A

4

3

2

1

CPU1C

MEM_MB0_CLK_H212,14

MEM_MB0_CLK_L212,14

MEM_MB1_CLK_H212,14

MEM_MB1_CLK_L212,14

MEM_MB0_CLK_H012,14

MEM_MB0_CLK_L012,14

D D

C C

B B

MEM_MB1_CLK_H012,14

MEM_MB1_CLK_L012,14

MEM_MB0_CLK_H112,14

MEM_MB0_CLK_L112,14

MEM_MB1_CLK_H112,14

MEM_MB1_CLK_L112,14

MEM_MB0_CS_L112,14
MEM_MB0_CS_L012,14

MEM_MB0_ODT012,14

MEM_MB1_CS_L112,14
MEM_MB1_CS_L012,14

MEM_MB1_ODT012,14

MEM_MB_CAS_L12,14

MEM_MB_WE_L12,14

MEM_MB_RAS_L12,14

MEM_MB_BANK212,14
MEM_MB_BANK112,14
MEM_MB_BANK012,14

MEM_MB_CKE112,14
MEM_MB_CKE012,14

MEM_MB_ADD[15..0]12,14

MEM_MB_DQS_H[8..0]14

MEM_MB_DQS_L[8..0]14

MEM_MB_DM[8..0]14

MEM_MB_ADD[15..0]
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
MEM_MB_DQS_H[8..0]
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DQS_L[8..0]
MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0
MEM_MB_DM[8..0]

AJ19

MB_CLK_H7

AK19

MB_CLK_L7

AL19

MB_CLK_H6

AL18

MB_CLK_L6

U31

MB_CLK_H5

U30

MB_CLK_L5

W29

MB_CLK_H4

W28

MB_CLK_L4

Y31

MB_CLK_H3

Y30

MB_CLK_L3

V31

MB_CLK_H2

W31

MB_CLK_L2

A18

MB_CLK_H1

A19

MB_CLK_L1

C19

MB_CLK_H0

D19

MB_CLK_L0

AE30

MB0_CS_L1

AC31

MB0_CS_L0

AF31

MB0_ODT1

AD29

MB0_ODT0

AE29

MB1_CS_L1

AB31

MB1_CS_L0

AG31

MB1_ODT1

AD31

MB1_ODT0

B19

MB_RESET_L

AC29

MB_CAS_L

AC30

MB_WE_L

AB29

MB_RAS_L

N31

MB_BANK2

AA31

MB_BANK1

AA28

MB_BANK0

M31

MB_CKE1

M29

MB_CKE0

N28

MB_ADD15

N29

MB_ADD14

AE31

MB_ADD13

N30

MB_ADD12

P29

MB_ADD11

AA29

MB_ADD10

P31

MB_ADD9

R29

MB_ADD8

R28

MB_ADD7

R31

MB_ADD6

R30

MB_ADD5

T31

MB_ADD4

T29

MB_ADD3

U29

MB_ADD2

U28

MB_ADD1

AA30

MB_ADD0

AK13

MB_DQS_H7

AJ13

MB_DQS_L7

AK17

MB_DQS_H6

AJ17

MB_DQS_L6

AK23

MB_DQS_H5

AL23

MB_DQS_L5

AL28

MB_DQS_H4

AL29

MB_DQS_L4

D31

MB_DQS_H3

C31

MB_DQS_L3

C24

MB_DQS_H2

C23

MB_DQS_L2

D17

MB_DQS_H1

C17

MB_DQS_L1

C14

MB_DQS_H0

C13

MB_DQS_L0

AJ14

MB_DM7

AH17

MB_DM6

AJ23

MB_DM5

AK29

MB_DM4

C30

MB_DM3

A23

MB_DM2

B17

MB_DM1

B13

MB_DM0

SOCKET_M2 940 SMD

MB_DATA63
MB_DATA62
MB_DATA61
MB_DATA60
MB_DATA59
MB_DATA58
MB_DATA57
MB_DATA56
MB_DATA55
MB_DATA54
MB_DATA53
MB_DATA52
MB_DATA51
MB_DATA50
MB_DATA49
MB_DATA48
MB_DATA47
MB_DATA46
MB_DATA45
MB_DATA44
MB_DATA43
MB_DATA42
MB_DATA41
MB_DATA40
MB_DATA39
MB_DATA38
MB_DATA37
MB_DATA36
MB_DATA35
MB_DATA34
MB_DATA33
MB_DATA32
MB_DATA31
MB_DATA30
MB_DATA29
MB_DATA28
MB_DATA27
MB_DATA26
MB_DATA25
MB_DATA24
MB_DATA23
MB_DATA22
MB_DATA21
MB_DATA20
MB_DATA19
MB_DATA18
MB_DATA17
MB_DATA16
MB_DATA15
MB_DATA14
MB_DATA13
MB_DATA12

MEM CHB

MB_DATA11
MB_DATA10

MB_DATA9
MB_DATA8
MB_DATA7
MB_DATA6
MB_DATA5
MB_DATA4
MB_DATA3
MB_DATA2
MB_DATA1
MB_DATA0

MB_DQS_H8

MB_DQS_L8

MB_DM8

MB_CHECK7
MB_CHECK6
MB_CHECK5
MB_CHECK4
MB_CHECK3
MB_CHECK2
MB_CHECK1
MB_CHECK0

AH13
AL13
AL15
AJ15
AF13
AG13
AL14
AK15
AL16
AL17
AK21
AL21
AH15
AJ16
AH19
AL20
AJ22
AL22
AL24
AK25
AJ21
AH21
AH23
AJ24
AL27
AK27
AH31
AG30
AL25
AL26
AJ30
AJ31
E31
E30
B27
A27
F29
F31
A29
A28
A25
A24
C22
D21
A26
B25
B23
A22
B21
A20
C16
D15
C21
A21
A17
A16
B15
A14
E13
F13
C15
A15
A13
D13

J31
J30

J29
K29

K31
G30
G29
L29
L28
H31
G31

MEM_MB_DATA[0..63]
MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA5
MEM_MB_DATA4
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA1
MEM_MB_DATA0

MEM_MB_DQS_H8
MEM_MB_DQS_L8

MEM_MB_DM8
MEM_MB_CHECK7

MEM_MB_CHECK6
MEM_MB_CHECK5
MEM_MB_CHECK4
MEM_MB_CHECK3
MEM_MB_CHECK2
MEM_MB_CHECK1
MEM_MB_CHECK0
MEM_MB_CHECK[7..0]

MEM_MB_DATA[0..63]14

MEM_MB_CHECK[7..0] 14

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

K8 CPU MEMORY-2

A78DG-A2T

9 48Friday, May 29, 2009

1

6.0

5

A

4

3

2

1

CPU1E

+V_CPU +V_CPU CPU_VDDNB

B3

VDD_1

C2

VDD_2

C4

VDD_3

D3

VDD_4

D5

VDD_5

D D

C C

B B

E4

VDD_6

E6

VDD_7

F5

VDD_8

F7

VDD_9

G6

VDD_10

G8

VDD_11

H7

VDD_12

H11

VDD_13

H23

VDD_14

J8

VDD_15

J12

VDD_16

J14

VDD_17

J16

VDD_18

J18

VDD_19

J20

VDD_20

J22

VDD_21

J24

VDD_22

K7

VDD_23

K9

VDD_24

K11

VDD_25

K13

VDD_26

K15

VDD_27

K17

VDD_28

K19

VDD_29

K21

VDD_30

K23

VDD_31

L4

VDD_32

L5

VDD_33

L8

VDD_34

L10

VDD_35

L12

VDD_36

L14

VDD_37

L16

VDD_38

L18

VDD_39

L20

VDD_40

L22

VDD_41

M2

VDD_42

M3

VDD_43

M7

VDD_44

M9

VDD_45

M11

VDD_46

M13

VDD_47

M15

VDD_48

M17

VDD_49

M19

VDD_50

M21

VDD_51

M23

VDD_52

N8

VDD_53

N10

VDD_54

N12

VDD_55

N14

VDD_56

N16

VDD_57

N18

VDD_58

N20

VDD_59

N22

VDD_60

P7

VDD_61

P9

VDD_62

P11

VDD_63

P13

VDD_64

P15

VDD_65

P17

VDD_66

P19

VDD_67

P21

VDD_68

P23

VDD_69

R4

VDD_70

R5

VDD_71

R8

VDD_72

R10

VDD_73

R12

VDD_74

R14

VDD_75

R16

VDD_76

R18

VDD_77

R20

VDD_78

R22

VDD_79

T2

VDD_80

T3

VDD_81

T7

VDD_82

T9

VDD_83

T11

VDD_84

T13

VDD_85

SOCKET_M2 940 SMD

POWER/GND1

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85

A3
A7
A9
A11
B4
B9
B11
B14
B16
B18
B20
B22
B24
B26
B28
B30
C3
D14
D16
D18
D20
D22
D24
D26
D28
D30
E11
F4
F14
F16
F18
F20
F22
F24
F26
F28
F30
G9
G11
H8
H10
H12
H14
H16
H18
H24
H26
H28
H30
J4
J5
J7
J9
J11
J13
J15
J17
J19
J21
J23
K2
K3
K8
K10
K12
K14
K16
K18
K20
K22
K24
K26
K28
K30
L7
L9
L11
L13
L15
L17
L19
L21
L23
M8
M10

CPU1F

T15

VDD_86

T17

VDD_87

T19

VDD_88

T21

VDD_89

T23

VDD_90

U8

VDD_91

U10

VDD_92

U12

VDD_93

U14

VDD_94

U16

VDD_95

U18

VDD_96

U20

VDD_97

U22

VDD_98

V9

VDD_99

V11

VDD_100

V13

VDD_101

V15

VDD_102

V17

VDD_103

V19

VDD_104

V21

VDD_105

V23

VDD_106

W4

VDD_107

W5

VDD_108

W8

VDD_109

W10

VDD_110

W12

VDD_111

W14

VDD_112

W16

VDD_113

W18

VDD_114

W20

VDD_115

W22

VDD_116

Y2

VDD_117

Y3

VDD_118

Y7

VDD_119

Y9

VDD_120

Y11

VDD_121

Y13

VDD_122

Y15

VDD_123

Y17

VDD_124

Y19

VDD_125

Y21

VDD_126

Y23

VDD_127

AA8

VDD_128

AA10

VDD_129

AA12

VDD_130

AA14

VDD_131

AA16

VDD_132

AA18

VDD_133

AA20

VDD_134

AA22

VDD_135

AB7

VDD_136

AB9

VDD_137

AB11

VDD_138

AB13

VDD_139

AB15

VDD_140

AB17

VDD_141

AB19

VDD_142

AB21

VDD_143

AB23

VDD_144

AC4

VDD_145

AC5

VDD_146

AC8

VDD_147

AC10

VDD_148

AC12

VDD_149

AC14

VDD_150

AC16

VDD_151

AC18

VDD_152

AC20

VDD_153

AC22

VDD_154

AD2

VDD_155

AD3

VDD_156

AD7

VDD_157

AD9

VDD_158

AD11

VDD_159

AD23

VDD_160

AE10

VDD_161

AE12

VDD_162

AF7

VDD_163

AF9

VDD_164

AF11

VDD_165

AG4

VDD_166

AG5

VDD_167

AG7

VDD_168

AH2

VDD_169

AH3

VDD_170

SOCKET_M2 940 SMD

M12

VSS_86

M14

VSS_87

M16

VSS_88

M18

VSS_89

M20

VSS_90

M22

VSS_91

N4

VSS_92

N5

VSS_93

N7

VSS_94

N9

VSS_95

N11

VSS_96

N13

VSS_97

N15

VSS_98

N17

VSS_99

N19

VSS_100

N21

VSS_101

N23

VSS_102

P2

VSS_103

P3

VSS_104

P8

VSS_105

P10

VSS_106

P12

VSS_107

P14

VSS_108

P16

VSS_109

P18

VSS_110

P20

VSS_111

P22

VSS_112

R7

VSS_113

R9

VSS_114

R11

VSS_115

R13

VSS_116

R15

VSS_117

R17

VSS_118

R19

VSS_119

R21

VSS_120

R23

VSS_121

T8

VSS_122

T10

VSS_123

T12

VSS_124

T14

VSS_125

T16

VSS_126

T18

VSS_127

T20

VSS_128

T22

VSS_129

U4

VSS_130

U5

VSS_131

U7

VSS_132

U9

VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170

U11
U13
U15
U17
U19
U21
U23
V2
V3
V10
V12
V14
V16
V18
V20
V22
W7
W9
W11
W13
W15
W17
W19
W21
W23
Y8
Y10
Y12
Y14
Y16
Y18
Y20
Y22
AA4
AA5
AA7
AA9

POWER/GND2

CPU1G

A4

VDDNB_1

A6

VDDNB_2

B5

VDDNB_3

B7

VDDNB_4

C6

VDDNB_5

C8

VDDNB_6

D7

VDDNB_7

D9

VDDNB_8

E8

VDDNB_9

E10

VDDNB_10

F9

VDDNB_11

F11

VDDNB_12

G10

VDDNB_13

G12

VDDNB_14

H3

NC1

H4

NC2

H20

NC3

H21

NC4

AD18

NC6

AD19

NC7

AE7

NC8

AE8

NC9

SOCKET_M2 940 SMD

VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200

POWER/GND3

VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214

+1.2V_HT

C9
10UF 10V 0805 Y5V

1 2

AA11
AA13
AA15
AA17
AA19
AA21
AA23

+0.9V_SUS

AB2
AB3
AB8
AB10
AB12
AB14

+1.8V_SUS

AB16
AB18
AB20
AB22
AC7
AC9
AC11
AC13
AC15
AC17
AC19
AC21
AC23
AD8
AD10
AD12
AD14
AD16
AD20
AD22
AD24
AE4
AE5
AE11
AF2
AF3
AF8
AF10
AF12
AF14
AF16

C10
1UF 16V 0805 Y5V

1 2

+1.2V_HT

+1.2V_HT_CPU

12

C11
1UF 16V 0805 Y5V

CPU1H

AJ1

VLDT_A_1

AJ2

VLDT_A_2

AJ3

VLDT_A_3

AJ4

VLDT_A_4

A12

VTT_1

B12

VTT_2

C12

VTT_3

D12

VTT_4

M24

VDDIO_1

M26

VDDIO_2

M28

VDDIO_3

M30

VDDIO_4

P24

VDDIO_5

P26

VDDIO_6

P28

VDDIO_7

P30

VDDIO_8

T24

VDDIO_9

T26

VDDIO_10

T28

VDDIO_11

T30

VDDIO_12

V25

VDDIO_13

V26

VDDIO_14

V28

VDDIO_15

V30

VDDIO_16

Y24

VDDIO_17

Y26

VDDIO_18

Y28

VDDIO_19

Y29

VDDIO_20

AB24

VDDIO_21

AB26

VDDIO_22

AB28

VDDIO_23

AB30

VDDIO_24

AC24

VDDIO_25

AD26

VDDIO_26

AD28

VDDIO_27

AD30

VDDIO_28

AF30

VDDIO_29

SOCKET_M2 940 SMD

12

C12
10UF 10V 0805 Y5V

+1.2V_HT_CPU

H1

VLDT_B_1

H2

VLDT_B_2

H5

VLDT_B_3

H6

VLDT_B_4

AG12

VTT_5

AH12

VTT_6

AJ12

VTT_7

AK12

VTT_8

AL12

VTT_9

AF18

VSS_215

AF20

VSS_216

AF22

VSS_217

AF24

VSS_218

AF26

VSS_219

AF28

VSS_220

AG10

VSS_221

AG11

VSS_222

AH14

VSS_223

AH16

VSS_224

AH18

VSS_225

AH20

VSS_226

AH22

VSS_227

AH24

VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242

AH26
AH28
AH30
AK2
AK14
AK16
AK18
AK20
AK22
AK24
AK26
AK28
AK30
AL5

POWER/GND4

+0.9V_SUS

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

POWER/GND

A78DG-A2T

1

10 48Friday, May 29, 2009

6.0

5

A

02/27 BC249=>NI

BC

筿甧簿 タ

02/27 BC250=>NI 02/27 BC251=>NI 02/27 BC252=>NI 02/27 BC253=>NI

4

рB

奔э

02/27 BC254=>NI

3

02/27 BC262=>NI

2

1

D D

+1.8V_SUS

PLACE BOTTOM SIDE

12

C13
1UF 16V 0805 Y5V /NI

+1.8V_SUS

DECOUPLING BETWEEN PROCESSOR AND DIMMS

12

C20
1UF 16V 0805 Y5V /NI

12

C14

10UF 10V 0805 Y5V

C25

0.1UF 16V Y5V 0402

12

C15
1UF 16V 0805 Y5V /NI

C22

0.1UF 16V Y5V 0402

12

C16
10UF 10V 0805 Y5V /NI

12

C17
1UF 16V 0805 Y5V /NI

12

C18
10UF 10V 0805 Y5V /NI

12

C19
1UF 16V 0805 Y5V /NI

C C

+0.9V_SUS

12

C26
1UF 10V Y5V

+V_CPU

PLACE BOTTOM SIDE DECOUPLING

12

B B

C35
10UF 10V 0805 Y5V

+V_CPU

5

12

C27

0.1UF 16V Y5V 0402

12

C38
10UF 10V 0805 Y5V

02/27 BC47=>NI 02/27 BC50=>NI

12

C28
1000P 50V X7R 0402

FOR EMI FOR EMI

12

C51
10UF 10V 0805 Y5V

4

+0.9V_SUS

12

C29
10UF 10V 0805 Y5V

+V_CPU

PLACE LEFT SIDE OF CPU SOCKETPLACE RIGHT SIDE OF CPU SOCKET

12

C30
1UF 10V Y5V

12

C256
10UF 10V 0805 Y5V

12

C31

0.1UF 16V Y5V 0402

CPU_VDDNB

3

12

C36
10UF 10V 0805 Y5V

12

C32
1000P 50V X7R 0402

12

C137
10UF 10V 0805 Y5V

Title

Size Document Number Rev

Custom

Date: Sheet of

2

DECOUPLING

A78DG-A2T

1

11 48Friday, May 29, 2009

6.0

A

5

A

4

3

2

1

MEM_MA0_CLK_H28,13

C53

D D

C C

MEM_MA0_CLK_L28,13

MEM_MA0_CLK_H18,13

MEM_MA0_CLK_L18,13

MEM_MA0_CLK_H08,13

MEM_MA0_CLK_L08,13

MEM_MB0_CLK_H29,14

MEM_MB0_CLK_L29,14

MEM_MB0_CLK_H19,14

MEM_MB0_CLK_L19,14

MEM_MB0_CLK_H09,14

MEM_MB0_CLK_L09,14

LAYOUT: FRONT SIDE PLACE ALTERNATING GND AND 1.8V
ALONG 0.9V VTT FILL

1.5P 50V NPO 0402

C55

1.5P 50V NPO 0402

C57

1.5P 50V NPO 0402

C59

1.5P 50V NPO 0402

C61

1.5P 50V NPO 0402

C63

1.5P 50V NPO 0402

MEM_MA1_CLK_H28,13

C54

MEM_MA1_CLK_L28,13

MEM_MA1_CLK_H18,13

MEM_MA1_CLK_L18,13

MEM_MA1_CLK_H08,13

MEM_MA1_CLK_L08,13

MEM_MB1_CLK_H29,14

MEM_MB1_CLK_L29,14

MEM_MB1_CLK_H19,14

MEM_MB1_CLK_L19,14

MEM_MB1_CLK_H09,14

MEM_MB1_CLK_L09,14

1.5P 50V NPO 0402

C56

1.5P 50V NPO 0402

C58

1.5P 50V NPO 0402

C60

1.5P 50V NPO 0402

C62

1.5P 50V NPO 0402

C64

1.5P 50V NPO 0402

B B

+0.9V_SUS +1.8V_SUS

C83 0.1UF 16V Y5V 0402

1 2

C89 0.1UF 16V Y5V 0402

1 2

C95 0.1UF 16V Y5V 0402

1 2

C101 0.1UF 16V Y5V 0402

1 2

C107 0.1UF 16V Y5V 0402

1 2

C113 0.1UF 16V Y5V 0402

1 2

C118 0.1UF 16V Y5V 0402

1 2

C121 0.1UF 16V Y5V 0402

1 2

C122 0.1UF 16V Y5V 0402

1 2

C123 0.1UF 16V Y5V 0402

1 2

C124 100P 50V NPO 0402
C468 1UF 10V Y5V
C469 10UF 10V 0805 Y5V

12
12
12

5

FOR EMI

+0.9V_SUS

C84 0.1UF 16V Y5V 0402

1 2

C90 0.1UF 16V Y5V 0402

1 2

C96 0.1UF 16V Y5V 0402

1 2

C102 0.1UF 16V Y5V 0402

1 2

C108 0.1UF 16V Y5V 0402

1 2

4

MEM_MA_ADD[15..0]8,13

MEM_MA_BANK18,13
MEM_MA_BANK28,13
MEM_MA_CAS_L8,13

MEM_MA_WE_L8,13

MEM_MA_RAS_L8,13

MEM_MA_CKE08,13
MEM_MA_CKE18,13

MEM_MA0_CS_L08,13
MEM_MA0_CS_L18,13
MEM_MA1_CS_L08,13
MEM_MA1_CS_L18,13 MEM_MB1_CS_L09,14

MEM_MA0_ODT08,13
MEM_MA1_ODT08,13

MEM_MA_ADD[15..0]
MEM_MA_ADD9

MEM_MA_ADD12
MEM_MA_BANK2
MEM_MA_ADD14

MEM_MA_ADD5
MEM_MB_ADD5
MEM_MA_ADD4
MEM_MA_ADD3

MEM_MB_RAS_L
MEM_MB1_CS_L0
MEM_MB0_CS_L0
MEM_MB_CAS_L

MEM_MA0_ODT0
MEM_MA1_ODT0
MEM_MA_CAS_L
MEM_MB_WE_L

MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD9
MEM_MB_ADD7

MEM_MA_ADD15
MEM_MA_CKE0
MEM_MA_CKE1
MEM_MB_CKE0

MEM_MB0_ODT0
MEM_MB1_ODT0
MEM_MB_ADD13
MEM_MB1_CS_L1

MEM_MB_CKE1
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_BANK2

MEM_MA_ADD0
MEM_MA_ADD1
MEM_MA_ADD2
MEM_MA_ADD3
MEM_MA_ADD4
MEM_MA_ADD5
MEM_MA_ADD6
MEM_MA_ADD7
MEM_MA_ADD8
MEM_MA_ADD9
MEM_MA_ADD10
MEM_MA_ADD11
MEM_MA_ADD12
MEM_MA_ADD13
MEM_MA_ADD14
MEM_MA_ADD15

3

22P 50V NPO 0402C65
22P 50V NPO 0402C67
22P 50V NPO 0402C69
22P 50V NPO 0402C71
22P 50V NPO 0402C73
22P 50V NPO 0402C75
22P 50V NPO 0402C77
22P 50V NPO 0402C79
22P 50V NPO 0402C81
22P 50V NPO 0402C85
22P 50V NPO 0402C87
22P 50V NPO 0402C91
22P 50V NPO 0402C93
22P 50V NPO 0402C97
22P 50V NPO 0402C99
22P 50V NPO 0402C103
22P 50V NPO 0402C105
22P 50V NPO 0402C109
22P 50V NPO 0402C111
22P 50V NPO 0402C114
22P 50V NPO 0402C116
22P 50V NPO 0402C119

MEM_MB_CKE09,14
MEM_MB_CKE19,14

MEM_MB0_CS_L09,14
MEM_MB0_CS_L19,14

MEM_MB1_CS_L19,14

MEM_MB0_ODT09,14
MEM_MB1_ODT09,14

+0.9V_SUS

RN4 47 8P4R 0402

78
56
34
12

RN6 47 8P4R 0402

78
56
34
12

RN8 47 8P4R 0402

78
56
34
12

RN1047 8P4R 0402

78
56
34
12

RN1247 8P4R 0402

78
56
34
12

RN1447 8P4R 0402

78
56
34
12

RN1647 8P4R 0402

78
56
34
12

RN1847 8P4R 0402

78
56
34
12

+1.8V_SUS

MEM_MB_ADD[15..0]9,14

MEM_MB_BANK09,14MEM_MA_BANK08,13
MEM_MB_BANK19,14
MEM_MB_BANK29,14
MEM_MB_CAS_L9,14

MEM_MB_WE_L9,14

MEM_MB_RAS_L9,14

MEM_MB_ADD[15..0]
MEM_MA_WE_L

MEM_MA0_CS_L0
MEM_MA1_CS_L0
MEM_MA_RAS_L

MEM_MA_ADD6
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD11

MEM_MB_ADD8
MEM_MB_ADD6
MEM_MA_ADD1
MEM_MA_ADD2

MEM_MA_ADD0
MEM_MA_ADD10
MEM_MA_BANK1
MEM_MA_BANK0

MEM_MA0_CS_L1
MEM_MA1_CS_L1
MEM_MB0_CS_L1
MEM_MA_ADD13

MEM_MB_ADD3
MEM_MB_ADD4
MEM_MB_ADD1
MEM_MB_ADD2

MEM_MB_ADD0
MEM_MB_ADD10
MEM_MB_BANK1
MEM_MB_BANK0

22P 50V NPO 0402C66
22P 50V NPO 0402C68
22P 50V NPO 0402C70
22P 50V NPO 0402C72
22P 50V NPO 0402C74

MEM_MB_ADD0
MEM_MB_ADD1
MEM_MB_ADD2
MEM_MB_ADD3
MEM_MB_ADD4
MEM_MB_ADD5
MEM_MB_ADD6
MEM_MB_ADD7
MEM_MB_ADD8
MEM_MB_ADD9
MEM_MB_ADD10
MEM_MB_ADD11
MEM_MB_ADD12
MEM_MB_ADD13
MEM_MB_ADD14
MEM_MB_ADD15

Title

Size Document Number Rev

Custom

Date: Sheet of

22P 50V NPO 0402C76
22P 50V NPO 0402C78
22P 50V NPO 0402C80
22P 50V NPO 0402C82
22P 50V NPO 0402C86
22P 50V NPO 0402C88
22P 50V NPO 0402C92
22P 50V NPO 0402C94
22P 50V NPO 0402C98
22P 50V NPO 0402C100
22P 50V NPO 0402C104
22P 50V NPO 0402C106
22P 50V NPO 0402C110
22P 50V NPO 0402C112
22P 50V NPO 0402C115
22P 50V NPO 0402C117
22P 50V NPO 0402C120

VTT TERMINATI

A78DG-A2T

2

+0.9V_SUS

RN5 47 8P4R 0402

78
56
34
12

RN7 47 8P4R 0402

78
56
34
12

RN9 47 8P4R 0402

78
56
34
12

RN1147 8P4R 0402

78
56
34
12

RN1347 8P4R 0402

78
56
34
12

RN1547 8P4R 0402

78
56
34
12

RN1747 8P4R 0402

78
56
34
12

+1.8V_SUS

12 48Friday, May 29, 2009

1

6.0

A

5

A

4

3

2

1

238

VDDSPD

236

DQ63

235

DQ62

230

DQ61

229

DQ60

117

DQ59

116

DQ58

111

DQ57

110

DQ56

227

DQ55

226

DQ54

218

DQ53

217

DQ52

108

DQ51

107

DQ50

99

DQ49

98

DQ48

215

DQ47

214

DQ46

209

DQ45

208

DQ44

96

DQ43

95

DQ42

90

DQ41

89

DQ40

206

DQ39

205

DQ38

200

DQ37

199

DQ36

87

DQ35

86

DQ34

81

DQ33

80

DQ32

159

DQ31

158

DQ30

153

DQ29

152

DQ28

40

DQ27

39

DQ26

34

DQ25

33

DQ24

150

DQ23

149

DQ22

144

DQ21

143

DQ20

31

DQ19

30

DQ18

25

DQ17

24

DQ16

141

DQ15

140

DQ14

132

DQ13

131

DQ12

22

DQ11

21

DQ10

13

DQ9

12

DQ8

129

DQ7

128

DQ6

123

DQ5

122

DQ4

10

DQ3

9

DQ2

4

DQ1

3

DQ0

73

WE_L

1

VREF

102

TEST

195

ODT0

77

ODT1

55
68

PAR_IN

19

NC1

DIMMA1

MEM_MA_DATA[0..63]
MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56

MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20
MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16

MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12
MEM_MA_DATA11 MEM_MA_DATA11
MEM_MA_DATA10
MEM_MA_DATA9
MEM_MA_DATA8
MEM_MA_DATA7
MEM_MA_DATA6
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1

MEM_MA_WE_L8,12

MEM_M_VREF

MEM_MA0_ODT08,12

12

C125

0.1UF 16V Y5V 0402

PLACE NEAR DIMM SOCKETS

+1.8V_SUS

R24
150 1% 0402

1 2

R25
150 1% 0402

1 2

MEM_M_VREF

12

C127

0.1UF 16V Y5V 0402

MEM_MA_DM[8..0]8

MEM_MA_DQS_H[8..0]8

MEM_MA_DQS_L[8..0]8

SCLK14,20,22,43
SDATA14,20,22,43
MEM_MA_BANK28,12
MEM_MA_BANK18,12
MEM_MA_BANK08,12

MEM_MA_CHECK[7..0]8MEM_MA_CHECK[7..0]8

MEM_MA1_CLK_H08,12
MEM_MA1_CLK_L08,12
MEM_MA1_CLK_H18,12
MEM_MA1_CLK_L18,12
MEM_MA1_CLK_H28,12
MEM_MA1_CLK_L28,12

MEM_MA_CKE18,12

MEM_MA_RAS_L8,12MEM_MA_RAS_L8,12
MEM_MA_CAS_L8,12

MEM_MA1_CS_L08,12
MEM_MA1_CS_L18,12

3

MEM_MA_DM[8..0]
MEM_MA_DM8

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

MEM_MA_DQS_H[8..0]
MEM_MA_DQS_H8
MEM_MA_DQS_L8
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

MEM_MA_DQS_L[8..0]

+3.3V

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13MEM_MA_DATA15
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5 MEM_MA_DATA7
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0
MEM_MA_CHECK[7..0]
MEM_MA_CHECK7
MEM_MA_CHECK6
MEM_MA_CHECK5
MEM_MA_CHECK4
MEM_MA_CHECK3
MEM_MA_CHECK2
MEM_MA_CHECK1
MEM_MA_CHECK0

MEM_MA_CKE1

+3.3V +3.3V

DIMMA1

172

178

184

187

189

1975359646769170

VDD1

VDD2

VDD3

VDD4

VDD5

D D

MEM_MA_DM[8..0]8

MEM_MA_DQS_H[8..0]8

C C

MEM_MA_DQS_L[8..0]8

SCLK14,20,22,43
SDATA14,20,22,43
MEM_MA_BANK28,12
MEM_MA_BANK18,12
MEM_MA_BANK08,12

MEM_MA_ADD[15..0]8,12 MEM_MA_ADD[15..0]8,12

B B

MEM_MA0_CLK_H08,12
MEM_MA0_CLK_L08,12
MEM_MA0_CLK_H18,12
MEM_MA0_CLK_L18,12
MEM_MA0_CLK_H28,12
MEM_MA0_CLK_L28,12

MEM_MA_CKE08,12

MEM_MA_CAS_L8,12

MEM_MA0_CS_L08,12
MEM_MA0_CS_L18,12

MEM_MA_DM[8..0]
MEM_MA_DM8

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

MEM_MA_DQS_H[8..0]
MEM_MA_DQS_H8
MEM_MA_DQS_L8
MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0
MEM_MA_DQS_L[8..0]

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA_CHECK[7..0]

MEM_MA_CHECK7
MEM_MA_CHECK6
MEM_MA_CHECK5
MEM_MA_CHECK4
MEM_MA_CHECK3
MEM_MA_CHECK2
MEM_MA_CHECK1
MEM_MA_CHECK0

MEM_MA_CKE0

164
165
232
233
223
224
211
212
202
203
155
156
146
147
134
135
125
126

46

45
114
113
105
104

93

92

84

83

37

36

28

27

16

15

7
6

101
240
239
120
119

54
190

71
173

174
196
176

57

70
177
179

58
180

60

61
182

63
183
188

168
167
162
161

49

48

43

42
185

186
137
138
220
221

18

52
171
192

74
193

76

DDR2-240 pin-T

DQS17_H
DQS17_L
DQS16_H
DQS16_L
DQS15_H
DQS15_L
DQS14_H
DQS14_L
DQS13_H
DQS13_L
DQS12_H
DQS12_L
DQS11_H
DQS11_L
DQS10_H
DQS10_L
DQS9_H
DQS9_L
DQS8_H
DQS8_L
DQS7_H
DQS7_L
DQS6_H
DQS6_L
DQS5_H
DQS5_L
DQS4_H
DQS4_L
DQS3_H
DQS3_L
DQS2_H
DQS2_L
DQS1_H
DQS1_L
DQS0_H
DQS0_L

SA2
SA1
SA0
SCL
SDA
BA2
BA1
BA0

A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0

CB7
CB6
CB5
CB4
CB3
CB2
CB1
CB0

CK0_H
CK0_L
CK1_H
CK1_L
CK2_H
CK2_L

RESET_L
CKE0

CKE1
RAS_L
CAS_L

S0_L
S1_L

VDD6

5

175

181

191

194515662727578

VDD7

VDD8

VDD9

VDD10

VDD11

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VDDQ5

VDDQ6

VDDQ7

VDDQ8

VDDQ9

VDDQ10

VDDQ11

ERR_OUT_L

4

DIMMA2

164

DQS17_H

165

DQS17_L

232

DQS16_H

233

DQS16_L

223

DQS15_H

224

DQS15_L

211

DQS14_H

212

DQS14_L

202

DQS13_H

203

DQS13_L

155

DQS12_H

156

DQS12_L

146

DQS11_H

147

DQS11_L

134

DQS10_H

135

DQS10_L

125

DQS9_H

126

DQS9_L

46

DQS8_H

45

DQS8_L

114

DQS7_H

113

DQS7_L

105

DQS6_H

104

DQS6_L

93

DQS5_H

92

DQS5_L

84

DQS4_H

83

DQS4_L

37

DQS3_H

36

DQS3_L

28

DQS2_H

27

DQS2_L

16

DQS1_H

15

DQS1_L

7

DQS0_H

6

DQS0_L

101

SA2

240

SA1

239

SA0

120

SCL

119

SDA

54

BA2

190

BA1

71

BA0

173

A15

174

A14

196

A13

176

A12

57

A11

70

A10

177

A9

179

A8

58

A7

180

A6

60

A5

61

A4

182

A3

63

A2

183

A1

188

A0

168

CB7

167

CB6

162

CB5

161

CB4

49

CB3

48

CB2

43

CB1

42

CB0

185

CK0_H

186

CK0_L

137

CK1_H

138

CK1_L

220

CK2_H

221

CK2_L

18

RESET_L

52

CKE0

171

CKE1

192

RAS_L

74

CAS_L

193

S0_L

76

S1_L

DDR2-240 pin-G

+1.8V_SUS+1.8V_SUS

172

178

184

187

189

VDD1

VDD2

1975359646769170

VDD3

VDD4

VDD5

VDD6

175

181

191

194515662727578

VDD7

VDD8

VDD9

VDD10

VDD11

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VDDQ5

VDDQ6

VDDQ7

VDDQ8

VDDQ9

VDDQ10

VDDQ11

ERR_OUT_L

Title

Size Document Number Rev

Custom

Date: Sheet of

2

238

VDDSPD

236

DQ63

235

DQ62

230

DQ61

229

DQ60

117

DQ59

116

DQ58

111

DQ57

110

DQ56

227

DQ55

226

DQ54

218

DQ53

217

DQ52

108

DQ51

107

DQ50

99

DQ49

98

DQ48

215

DQ47

214

DQ46

209

DQ45

208

DQ44

96

DQ43

95

DQ42

90

DQ41

89

DQ40

206

DQ39

205

DQ38

200

DQ37

199

DQ36

87

DQ35

86

DQ34

81

DQ33

80

DQ32

159

DQ31

158

DQ30

153

DQ29

152

DQ28

40

DQ27

39

DQ26

34

DQ25

33

DQ24

150

DQ23

149

DQ22

144

DQ21

143

DQ20

31

DQ19

30

DQ18

25

DQ17

24

DQ16

141

DQ15

140

DQ14

132

DQ13

131

DQ12

22

DQ11

21

DQ10

13

DQ9

12

DQ8

129

DQ7

128

DQ6

123

DQ5

122

DQ4

10

DQ3

9

DQ2

4

DQ1

3

DQ0

73

WE_L

1

VREF

102

TEST

195

ODT0

77

ODT1

55
68

PAR_IN

19

NC1

DIMMA2

MEM_MA_DATA[0..63]

MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56
MEM_MA_DATA55MEM_MA_DATA55
MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20
MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16
MEM_MA_DATA15
MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12

MEM_MA_DATA10
MEM_MA_DATA9
MEM_MA_DATA8

MEM_MA_DATA6
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1
MEM_MA_DATA0MEM_MA_DATA0

12

C126

0.1UF 16V Y5V 0402

PLACE NEAR DIMM SOCKETS

DDR DIMM1 & 2

A78DG-A2T

1

MEM_MA_DATA[0..63] 8MEM_MA_DATA[0..63] 8

MEM_MA_WE_L8,12

MEM_M_VREF

MEM_MA1_ODT08,12

6.0

13 48Friday, May 29, 2009

A

5

A

4

3

2

1

194515662727578

VDDQ4

VDDQ5

VDDQ6

VDDQ7

VDDQ8

4

VDDQ9

+3.3V

VDDQ10

VDDQ11

238

VDDSPD

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L

VREF
TEST
ODT0

ODT1

ERR_OUT_L

PAR_IN

DIMMB1

MEM_MB_DATA[0..63]
MEM_MB_DATA63

236

MEM_MB_DATA62

235

MEM_MB_DATA61

230

MEM_MB_DATA60

229

MEM_MB_DATA59

117

MEM_MB_DATA58

116

MEM_MB_DATA57

111

MEM_MB_DATA56

110

MEM_MB_DATA55

227

MEM_MB_DATA54

226

MEM_MB_DATA53

218

MEM_MB_DATA52

217

MEM_MB_DATA51

108

MEM_MB_DATA50

107

MEM_MB_DATA49

99

MEM_MB_DATA48

98

MEM_MB_DATA47

215

MEM_MB_DATA46

214

MEM_MB_DATA45

209

MEM_MB_DATA44

208

MEM_MB_DATA43

96

MEM_MB_DATA42

95

MEM_MB_DATA41

90

MEM_MB_DATA40

89

MEM_MB_DATA39

206

MEM_MB_DATA38

205

MEM_MB_DATA37

200

MEM_MB_DATA36

199

MEM_MB_DATA35

87

MEM_MB_DATA34

86

MEM_MB_DATA33

81

MEM_MB_DATA32

80

MEM_MB_DATA31

159

MEM_MB_DATA30

158

MEM_MB_DATA29

153

MEM_MB_DATA28

152

MEM_MB_DATA27

40

MEM_MB_DATA26

39

MEM_MB_DATA25

34

MEM_MB_DATA24

33

MEM_MB_DATA23

150

MEM_MB_DATA22

149

MEM_MB_DATA21

144

MEM_MB_DATA20

143

MEM_MB_DATA19

31

MEM_MB_DATA18

30

MEM_MB_DATA17

25

MEM_MB_DATA16

24

MEM_MB_DATA15

141

MEM_MB_DATA14

140

MEM_MB_DATA13

132

MEM_MB_DATA12

131

MEM_MB_DATA11

22

MEM_MB_DATA10

21

MEM_MB_DATA9

13

DQ9

MEM_MB_DATA8

12

DQ8

MEM_MB_DATA7

129

DQ7

MEM_MB_DATA6

128

DQ6

MEM_MB_DATA5

123

DQ5

MEM_MB_DATA4

122

DQ4

MEM_MB_DATA3

10

DQ3

MEM_MB_DATA2

9

DQ2

MEM_MB_DATA1

4

DQ1

MEM_MB_DATA0

3

DQ0

73
1
102
195

77
55

68
19

NC1

MEM_MB_DATA[0..63]9

MEM_MB_WE_L9,12

MEM_M_VREF

MEM_MB0_ODT09,12

12

C128

0.1UF 16V Y5V 0402

PLACE NEAR DIMM SOCKETS

+1.8V_SUS

C135 0.1UF 16V Y5V 0402 /NI

1 2

194515662727578

VDDQ4

VDDQ5

VDDQ6

VDDQ7

+3.3V

238

VDDQ8

VDDQ9

VDDQ10

VDDQ11

VDDSPD

ERR_OUT_L

Title

Size Document Number Rev

Date: Sheet of

DQ63
DQ62
DQ61
DQ60
DQ59
DQ58
DQ57
DQ56
DQ55
DQ54
DQ53
DQ52
DQ51
DQ50
DQ49
DQ48
DQ47
DQ46
DQ45
DQ44
DQ43
DQ42
DQ41
DQ40
DQ39
DQ38
DQ37
DQ36
DQ35
DQ34
DQ33
DQ32
DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

WE_L
VREF

TEST

ODT0
ODT1

PAR_IN

Custom

236
235
230
229
117
116
111
110
227
226
218
217
108
107
99
98
215
214
209
208
96
95
90
89
206
205
200
199
87
86
81
80
159
158
153
152
40
39
34
33
150
149
144
143
31
30
25
24
141
140
132
131
22
21
13

DQ9

12

DQ8

129

DQ7

128

DQ6

123

DQ5

122

DQ4

10

DQ3

9

DQ2

4

DQ1

3

DQ0

73
1
102
195

77
55

68
19

NC1

DIMMB2

MEM_MB_DATA[0..63]

MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA5
MEM_MB_DATA4
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA1
MEM_MB_DATA0

MEM_MB_DATA[0..63]9

MEM_MB_WE_L9,12

MEM_MB1_ODT09,12

12

C129

0.1UF 16V Y5V 0402

PLACE NEAR DIMM SOCKETS

DDR DIMMB2&3

A78DG-A2T

MEM_M_VREF

1

14 48Friday, May 29, 2009

6.0

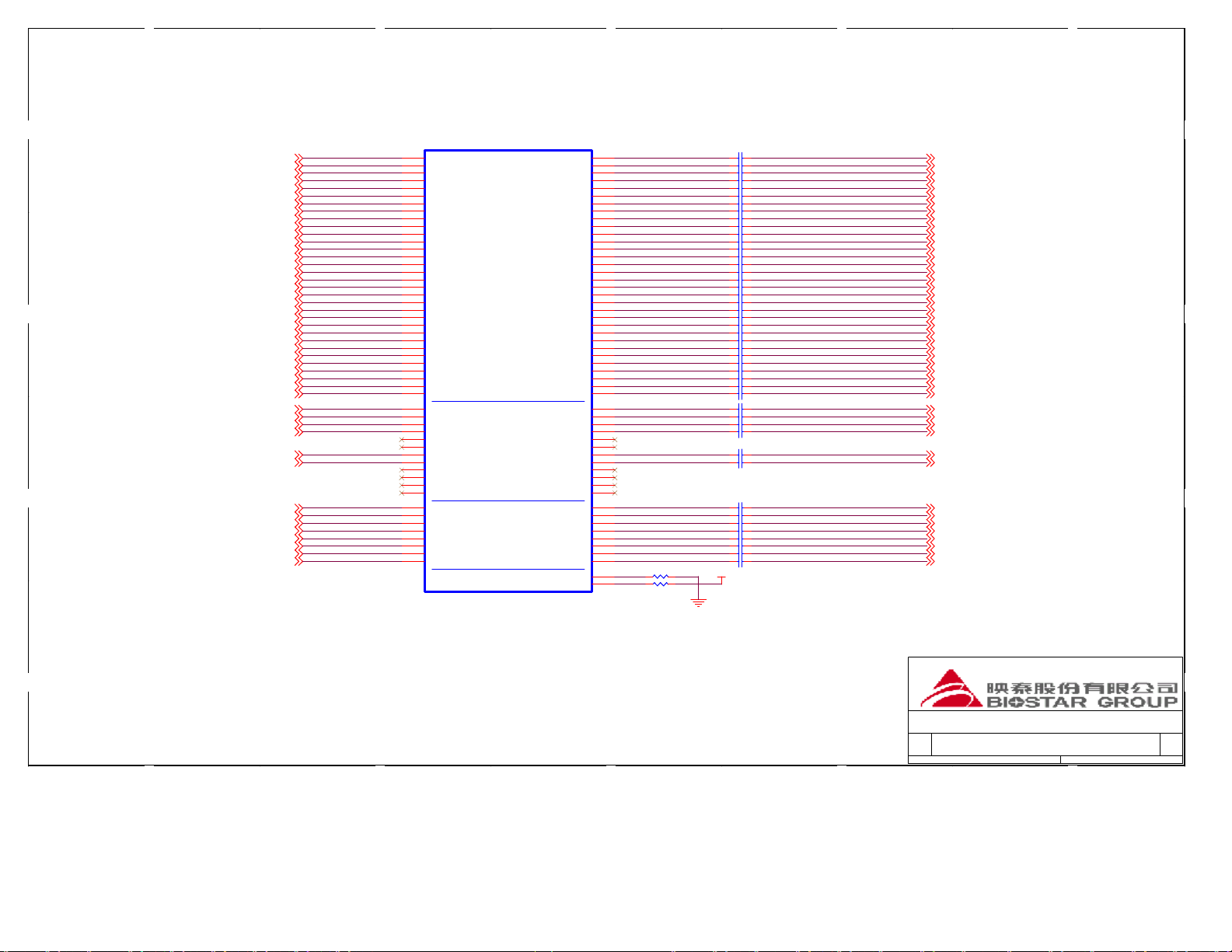

+1.8V_SUS

DIMMB2

172

178

184

187

189

1975359646769170

MEM_MB_DM[8..0]9

MEM_MB_DQS_H[8..0]9

MEM_MB_DQS_L[8..0]9

SCLK13,20,22,43
SDATA13,20,22,43
MEM_MB_BANK29,12
MEM_MB_BANK19,12
MEM_MB_BANK09,12

MEM_MB_ADD[15..0]9,12

MEM_MB_CHECK[7..0]9

MEM_MB1_CLK_H09,12
MEM_MB1_CLK_L09,12
MEM_MB1_CLK_H19,12
MEM_MB1_CLK_L19,12
MEM_MB1_CLK_H29,12
MEM_MB1_CLK_L29,12

MEM_MB_CKE19,12

MEM_MB_RAS_L9,12
MEM_MB_CAS_L9,12

MEM_MB1_CS_L09,12
MEM_MB1_CS_L19,12

MEM_MB_DM[8..0]
MEM_MB_DM8
MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

MEM_MB_DQS_H[8..0]
MEM_MB_DQS_H8
MEM_MB_DQS_L8
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DQS_L[8..0]

+3.3V

MEM_MB_ADD[15..0]
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
MEM_MB_CHECK[7..0]
MEM_MB_CHECK7
MEM_MB_CHECK6
MEM_MB_CHECK5
MEM_MB_CHECK4
MEM_MB_CHECK3
MEM_MB_CHECK2
MEM_MB_CHECK1
MEM_MB_CHECK0

3

164
165
232
233
223
224
211
212
202
203
155
156
146
147
134
135
125
126

46

45
114
113
105
104

93

92

84

83

37

36

28

27

16

15

7
6

101
240
239
120
119

54
190

71
173

174
196
176

57

70
177
179

58
180

60

61
182

63
183
188

168
167
162
161

49

48

43

42
185

186
137
138
220
221

18

52
171
192

74
193

76

DDR2-240 pin-G

DQS17_H
DQS17_L
DQS16_H
DQS16_L
DQS15_H
DQS15_L
DQS14_H
DQS14_L
DQS13_H
DQS13_L
DQS12_H
DQS12_L
DQS11_H
DQS11_L
DQS10_H
DQS10_L
DQS9_H
DQS9_L
DQS8_H
DQS8_L
DQS7_H
DQS7_L
DQS6_H
DQS6_L
DQS5_H
DQS5_L
DQS4_H
DQS4_L
DQS3_H
DQS3_L
DQS2_H
DQS2_L
DQS1_H
DQS1_L
DQS0_H
DQS0_L

SA2
SA1
SA0
SCL
SDA
BA2
BA1
BA0

A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0

CB7
CB6
CB5
CB4
CB3
CB2
CB1
CB0

CK0_H
CK0_L
CK1_H
CK1_L
CK2_H
CK2_L

RESET_L
CKE0

CKE1
RAS_L
CAS_L

S0_L
S1_L

VDD1

VDD2

VDD3

VDD4

VDD5

2

175

181

191

VDD6

VDD7

VDD8

VDD9

VDD10

VDD11

VDDQ1

VDDQ2

VDDQ3

+1.8V_SUS

DIMMB1

172

178

184

187

189

1975359646769170

VDD1

VDD2

VDD3

VDD4

D D

MEM_MB_DM[8..0]9

MEM_MB_DQS_H[8..0]9

C C

MEM_MB_DQS_L[8..0]9

SCLK13,20,22,43
SDATA13,20,22,43
MEM_MB_BANK29,12
MEM_MB_BANK19,12
MEM_MB_BANK09,12

MEM_MB_ADD[15..0]9,12

B B

MEM_MB_CHECK[7..0]9

MEM_MB0_CLK_H09,12
MEM_MB0_CLK_L09,12
MEM_MB0_CLK_H19,12
MEM_MB0_CLK_L19,12
MEM_MB0_CLK_H29,12
MEM_MB0_CLK_L29,12

MEM_MB_CKE09,12

MEM_MB_RAS_L9,12
MEM_MB_CAS_L9,12

MEM_MB0_CS_L09,12
MEM_MB0_CS_L19,12

MEM_MB_DM[8..0]
MEM_MB_DM8

MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

MEM_MB_DQS_H[8..0]
MEM_MB_DQS_H8
MEM_MB_DQS_L8
MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DQS_L[8..0]

+3.3V

MEM_MB_ADD[15..0]
MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0
MEM_MB_CHECK[7..0]
MEM_MB_CHECK7
MEM_MB_CHECK6
MEM_MB_CHECK5
MEM_MB_CHECK4
MEM_MB_CHECK3
MEM_MB_CHECK2
MEM_MB_CHECK1
MEM_MB_CHECK0

164
165
232
233
223
224
211
212
202
203
155
156
146
147
134
135
125
126

46

45
114
113
105
104

93

92

84

83

37

36

28

27

16

15

7
6

101
240
239
120
119

54
190

71
173

174
196
176

57

70
177
179

58
180

60

61
182

63
183
188

168
167
162
161

49

48

43

42
185

186
137
138
220
221

18

52
171
192

74
193

76

DDR2-240 pin-T

DQS17_H
DQS17_L
DQS16_H
DQS16_L
DQS15_H
DQS15_L
DQS14_H
DQS14_L
DQS13_H
DQS13_L
DQS12_H
DQS12_L
DQS11_H
DQS11_L
DQS10_H
DQS10_L
DQS9_H
DQS9_L
DQS8_H
DQS8_L
DQS7_H
DQS7_L
DQS6_H
DQS6_L
DQS5_H
DQS5_L
DQS4_H
DQS4_L
DQS3_H
DQS3_L
DQS2_H
DQS2_L
DQS1_H
DQS1_L
DQS0_H
DQS0_L

SA2
SA1
SA0
SCL
SDA
BA2
BA1
BA0

A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0

CB7
CB6
CB5
CB4
CB3
CB2
CB1
CB0

CK0_H
CK0_L
CK1_H
CK1_L
CK2_H
CK2_L

RESET_L
CKE0

CKE1
RAS_L
CAS_L

S0_L
S1_L

VDD5

175

181

191

VDD6

VDD7

VDD8

VDD9

VDD10

VDD11

VDDQ1

VDDQ2

VDDQ3

5

A

5

A

4

3

2

1

D D

C C

HTCPU_DWNCLK06
HTCPU_DWNCLK0_6
HTCPU_DWNCLK16
HTCPU_DWNCLK1_6

HTCPU_DWNCNTL6
HTCPU_DWNCNTL_6
HTCPU_DWNCNTL16
HTCPU_DWNCNTL1_6

B B

HTCPU_DWN0
HTCPU_DWN_0
HTCPU_DWN1
HTCPU_DWN_1
HTCPU_DWN2
HTCPU_DWN_2
HTCPU_DWN3
HTCPU_DWN_3
HTCPU_DWN4
HTCPU_DWN_4
HTCPU_DWN5
HTCPU_DWN_5
HTCPU_DWN6
HTCPU_DWN_6
HTCPU_DWN7
HTCPU_DWN_7

HTCPU_DWN8
HTCPU_DWN_8
HTCPU_DWN9
HTCPU_DWN_9
HTCPU_DWN10
HTCPU_DWN_10
HTCPU_DWN11
HTCPU_DWN_11
HTCPU_DWN12
HTCPU_DWN_12
HTCPU_DWN13
HTCPU_DWN_13
HTCPU_DWN14
HTCPU_DWN_14
HTCPU_DWN15
HTCPU_DWN_15

HTCPU_DWNCLK0
HTCPU_DWNCLK0_
HTCPU_DWNCLK1
HTCPU_DWNCLK1_

HTCPU_DWNCNTL
HTCPU_DWNCNTL_
HTCPU_DWNCNTL1
HTCPU_DWNCNTL1_

HT_RXCALP
HT_RXCALN

HTCPU_DWN[15..0]6

HTCPU_DWN_[15..0]6 HTCPU_UP_[15..0] 6

HTCPU_DWN[15..0]
HTCPU_DWN_[15..0] HTCPU_UP_[15..0]

Y25
Y24
V22
V23
V25
V24
U24
U25
T25
T24
P22
P23
P25
P24
N24
N25

AC24
AC25
AB25
AB24
AA24
AA25

Y22

Y23
W21
W20

V21

V20

U20

U21

U19

U18

T22

T23

AB23
AA22

M22
M23

R21

R20

C23

A24

U1A

HT_RXCAD0P
HT_RXCAD0N
HT_RXCAD1P
HT_RXCAD1N
HT_RXCAD2P
HT_RXCAD2N
HT_RXCAD3P
HT_RXCAD3N
HT_RXCAD4P
HT_RXCAD4N
HT_RXCAD5P
HT_RXCAD5N
HT_RXCAD6P
HT_RXCAD6N
HT_RXCAD7P
HT_RXCAD7N

HT_RXCAD8P
HT_RXCAD8N
HT_RXCAD9P
HT_RXCAD9N
HT_RXCAD10P
HT_RXCAD10N
HT_RXCAD11P
HT_RXCAD11N
HT_RXCAD12P
HT_RXCAD12N
HT_RXCAD13P
HT_RXCAD13N
HT_RXCAD14P
HT_RXCAD14N
HT_RXCAD15P
HT_RXCAD15N

HT_RXCLK0P
HT_RXCLK0N
HT_RXCLK1P
HT_RXCLK1N

HT_RXCTL0P
HT_RXCTL0N
HT_RXCTL1P
HT_RXCTL1N

HT_RXCALP
HT_RXCALN

RS780D

PART 1 OF 6

HYPER TRANSPORT CPU

I/F

HT_TXCAD0P

HT_TXCAD0N

HT_TXCAD1P

HT_TXCAD1N

HT_TXCAD2P

HT_TXCAD2N

HT_TXCAD3P

HT_TXCAD3N

HT_TXCAD4P

HT_TXCAD4N

HT_TXCAD5P

HT_TXCAD5N

HT_TXCAD6P

HT_TXCAD6N

HT_TXCAD7P

HT_TXCAD7N

HT_TXCAD8P

HT_TXCAD8N

HT_TXCAD9P

HT_TXCAD9N
HT_TXCAD10P
HT_TXCAD10N
HT_TXCAD11P
HT_TXCAD11N
HT_TXCAD12P
HT_TXCAD12N
HT_TXCAD13P
HT_TXCAD13N
HT_TXCAD14P
HT_TXCAD14N
HT_TXCAD15P
HT_TXCAD15N

HT_TXCLK0P
HT_TXCLK0N
HT_TXCLK1P
HT_TXCLK1N

HT_TXCTL0P
HT_TXCTL0N
HT_TXCTL1P
HT_TXCTL1N

HT_TXCALP
HT_TXCALN

D24
D25
E24
E25
F24
F25
F23
F22
H23
H22
J25
J24
K24
K25
K23
K22

F21
G21
G20
H21
J20
J21
J18
K17
L19
J19
M19
L18
M21
P21
P18
M18

H24
H25
L21
L20

M24
M25
P19
R18

B24
B25

HTCPU_UP[15..0]

HT_TXCALP
HT_TXCALN

HTCPU_UP0
HTCPU_UP_0
HTCPU_UP1
HTCPU_UP_1
HTCPU_UP2
HTCPU_UP_2
HTCPU_UP3
HTCPU_UP_3
HTCPU_UP4
HTCPU_UP_4
HTCPU_UP5
HTCPU_UP_5
HTCPU_UP6
HTCPU_UP_6
HTCPU_UP7
HTCPU_UP_7

HTCPU_UP8
HTCPU_UP_8
HTCPU_UP9
HTCPU_UP_9
HTCPU_UP10
HTCPU_UP_10
HTCPU_UP11
HTCPU_UP_11
HTCPU_UP12
HTCPU_UP_12
HTCPU_UP13
HTCPU_UP_13
HTCPU_UP14
HTCPU_UP_14
HTCPU_UP15
HTCPU_UP_15

HTCPU_UPCLK0
HTCPU_UPCLK0_
HTCPU_UPCLK1
HTCPU_UPCLK1_

HTCPU_UPCNTL
HTCPU_UPCNTL_
HTCPU_UPCNTL1
HTCPU_UPCNTL1_

R27 301 1% 0402R26 301 1% 0402

HTCPU_UP[15..0] 6

HTCPU_UPCLK06
HTCPU_UPCLK0_6
HTCPU_UPCLK16
HTCPU_UPCLK1_6

HTCPU_UPCNTL6
HTCPU_UPCNTL_6
HTCPU_UPCNTL16
HTCPU_UPCNTL1_6

+V_CPU

C138
10UF 10V 0805 Y5V

C139
10UF 10V 0805 Y5V

C140

10UF 10V 0805 Y5V

C142
10UF 10V 0805 Y5V

HT LINK STITCHING CAPS

A

Title

Size Document Number Rev

Date: Sheet of

5

4

3

2

RS780-HT LINK

A78DG-A2T

15 48Friday, May 29, 2009

1

6.0B

5

A

4

3

2

1

D D

U1B

AE3
AD4
AE2
AD3
AD1
AD2

AA8
AA7
AA5

AA6

D4
C4
A3
B3
C2
C1
E5

F5
G5
G6
H5
H6

J6

J5

J7

J8

L5

L6
M8

L8
P7
M7
P5
M5
R8
P8
R6
R5
P4
P3

T4

T3

V5

W6

U5
U6
U8
U7

Y8

Y7

W5

Y5

GFX_RX0P
GFX_RX0N
GFX_RX1P
GFX_RX1N
GFX_RX2P
GFX_RX2N
GFX_RX3P
GFX_RX3N
GFX_RX4P
GFX_RX4N
GFX_RX5P
GFX_RX5N
GFX_RX6P
GFX_RX6N
GFX_RX7P
GFX_RX7N
GFX_RX8P
GFX_RX8N
GFX_RX9P
GFX_RX9N
GFX_RX10P
GFX_RX10N
GFX_RX11P
GFX_RX11N
GFX_RX12P
GFX_RX12N
GFX_RX13P
GFX_RX13N
GFX_RX14P
GFX_RX14N
GFX_RX15P
GFX_RX15N

GPP_RX0P
GPP_RX0N
GPP_RX1P
GPP_RX1N
GPP_RX2P
GPP_RX2N
GPP_RX3P
GPP_RX3N
GPP_RX4P
GPP_RX4N
GPP_RX5P
GPP_RX5N

SB_RX0P
SB_RX0N
SB_RX1P
SB_RX1N
SB_RX2P
SB_RX2N
SB_RX3P
SB_RX3N

PCIE I/F

GFX

GFX_TX0P
GFX_TX0N
GFX_TX1P
GFX_TX1N
GFX_TX2P
GFX_TX2N
GFX_TX3P
GFX_TX3N
GFX_TX4P
GFX_TX4N
GFX_TX5P
GFX_TX5N
GFX_TX6P
GFX_TX6N
GFX_TX7P
GFX_TX7N
GFX_TX8P
GFX_TX8N
GFX_TX9P

GFX_TX9N
GFX_TX10P
GFX_TX10N
GFX_TX11P
GFX_TX11N
GFX_TX12P
GFX_TX12N
GFX_TX13P
GFX_TX13N
GFX_TX14P
GFX_TX14N
GFX_TX15P
GFX_TX15N

GPP_TX0P

GPP_TX0N

GPP_TX1P

GPP_TX1N

GPP_TX2P

GPP_TX2N

GPP_TX3P

GPP_TX3N

GPP_TX4P

GPP_TX4N

GPP_TX5P

GPP_TX5N

SB_TX0P
SB_TX0N
SB_TX1P
SB_TX1N
SB_TX2P
SB_TX2N
SB_TX3P
SB_TX3N

PART 2 OF 6

PCIE I/F GPP

PCIE I/F SB

PCE_CALRP(PCE_BCALRP)
PCE_CALRN(PCE_BCALRN)

GFX_RX0P26
GFX_RX0N26
GFX_RX1P26
GFX_RX1N26
GFX_RX2P26
GFX_RX2N26
GFX_RX3P26
GFX_RX3N26
GFX_RX4P26
GFX_RX4N26
GFX_RX5P26
GFX_RX5N26
GFX_RX6P26
GFX_RX6N26
GFX_RX7P26
GFX_RX7N26
GFX_RX8P26
GFX_RX8N26
GFX_RX9P26
GFX_RX9N26

C C

B B

GFX_RX10P26
GFX_RX10N26
GFX_RX11P26
GFX_RX11N26
GFX_RX12P26
GFX_RX12N26
GFX_RX13P26
GFX_RX13N26
GFX_RX14P26
GFX_RX14N26
GFX_RX15P26
GFX_RX15N26

GPP_RX0P29
GPP_RX0N29
GPP_RX1P29
GPP_RX1N29

GBE_RXP47
GBE_RXN47

A_RX0P21
A_RX0N21
A_RX1P21
A_RX1N21
A_RX2P21
A_RX2N21
A_RX3P21
A_RX3N21

GFX_TX0P_CGFX_TX0P_C

A5

GFX_TX0N_CGFX_TX0N_C

B5

GFX_TX1P_CGFX_TX1P_C

A4

GFX_TX1N_C

B4

GFX_TX2P_CGFX_TX2P_C

C3

GFX_TX2N_CGFX_TX2N_C

B2

GFX_TX3P_CGFX_TX3P_C

D1

GFX_TX3N_CGFX_TX3N_C

D2

GFX_TX4P_CGFX_TX4P_C

E2

GFX_TX4N_CGFX_TX4N_C

E1

GFX_TX5P_CGFX_TX5P_C

F4

GFX_TX5N_CGFX_TX5N_C

F3

GFX_TX6P_CGFX_TX6P_C

F1

GFX_TX6N_CGFX_TX6N_C

F2

GFX_TX7P_CGFX_TX7P_C

H4

GFX_TX7N_CGFX_TX7N_C

H3

GFX_TX8P_CGFX_TX8P_C

H1

GFX_TX8N_CGFX_TX8N_C

H2

GFX_TX9P_C

J2

GFX_TX9N_C

J1

GFX_TX10P_C

K4

GFX_TX10N_C

K3

GFX_TX11P_C

K1

GFX_TX11N_C

K2

GFX_TX12P_C

M4

GFX_TX12N_C

M3

GFX_TX13P_C

M1

GFX_TX13N_C

M2

GFX_TX14P_C

N2

GFX_TX14N_C

N1

GFX_TX15P_C

P1

GFX_TX15N_C

P2

GPP_TX0P_C

AC1

GPP_TX0N_C

AC2

GPP_TX1P_C

AB4

GPP_TX1N_C

AB3
AA2
AA1

GPP_TX3P_C

Y1

GPP_TX3N_C

Y2
Y4
Y3
V1
V2

A_TX0P_CA_TX0P_C

AD7

A_TX0N_CA_TX0N_C

AE7

A_TX1P_CA_TX1P_C

AE6

A_TX1N_CA_TX1N_C

AD6

A_TX2P_C

AB6

A_TX2N_C

AC6

A_TX3P_C

AD5

A_TX3N_C

AE5

R28 1.27K 1% 0402

AC8

R29 2K 1% 0402

AB8

X7R

C143 0.1UF 16V X7R 0402
C144 0.1UF 16V X7R 0402
C145 0.1UF 16V X7R 0402
C146 0.1UF 16V X7R 0402
C147 0.1UF 16V X7R 0402
C148 0.1UF 16V X7R 0402
C149 0.1UF 16V X7R 0402
C150 0.1UF 16V X7R 0402
C151 0.1UF 16V X7R 0402
C152 0.1UF 16V X7R 0402
C153 0.1UF 16V X7R 0402
C154 0.1UF 16V X7R 0402
C155 0.1UF 16V X7R 0402
C156 0.1UF 16V X7R 0402
C157 0.1UF 16V X7R 0402
C158 0.1UF 16V X7R 0402
C159 0.1UF 16V X7R 0402
C160 0.1UF 16V X7R 0402
C161 0.1UF 16V X7R 0402
C162 0.1UF 16V X7R 0402
C163 0.1UF 16V X7R 0402
C164 0.1UF 16V X7R 0402
C165 0.1UF 16V X7R 0402
C166 0.1UF 16V X7R 0402
C167 0.1UF 16V X7R 0402
C168 0.1UF 16V X7R 0402
C169 0.1UF 16V X7R 0402
C170 0.1UF 16V X7R 0402
C171 0.1UF 16V X7R 0402
C172 0.1UF 16V X7R 0402
C173 0.1UF 16V X7R 0402
C174 0.1UF 16V X7R 0402

C175 0.1UF 16V X7R 0402
C176 0.1UF 16V X7R 0402
C177 0.1UF 16V X7R 0402
C178 0.1UF 16V X7R 0402

C179 0.1UF 16V X7R 0402
C180 0.1UF 16V X7R 0402

C181 0.1UF 16V X7R 0402
C182 0.1UF 16V X7R 0402
C183 0.1UF 16V X7R 0402
C184 0.1UF 16V X7R 0402
C185 0.1UF 16V X7R 0402
C186 0.1UF 16V X7R 0402
C187 0.1UF 16V X7R 0402
C188 0.1UF 16V X7R 0402

+1.1V

GFX_TX0P26
GFX_TX0N26
GFX_TX1P26
GFX_TX1N26
GFX_TX2P26
GFX_TX2N26
GFX_TX3P26
GFX_TX3N26
GFX_TX4P26
GFX_TX4N26
GFX_TX5P26
GFX_TX5N26
GFX_TX6P26
GFX_TX6N26
GFX_TX7P26
GFX_TX7N26
GFX_TX8P26
GFX_TX8N26
GFX_TX9P26
GFX_TX9N26
GFX_TX10P26
GFX_TX10N26
GFX_TX11P26
GFX_TX11N26
GFX_TX12P26
GFX_TX12N26
GFX_TX13P26
GFX_TX13N26
GFX_TX14P26
GFX_TX14N26
GFX_TX15P26
GFX_TX15N26

GPP_TX0P29
GPP_TX0N29
GPP_TX1P29

GPP_TX1N29

GBE_TXP47
GBE_TXN47

A_TX0P21
A_TX0N21
A_TX1P21
A_TX1N21
A_TX2P21
A_TX2N21
A_TX3P21
A_TX3N21

RS780D

A

Title

Size Document Number Rev

B

Date: Sheet of

5

4

3

2

RS780D PCI-E

A78DG-A2T

1

16 48Friday, May 29, 2009

6.0

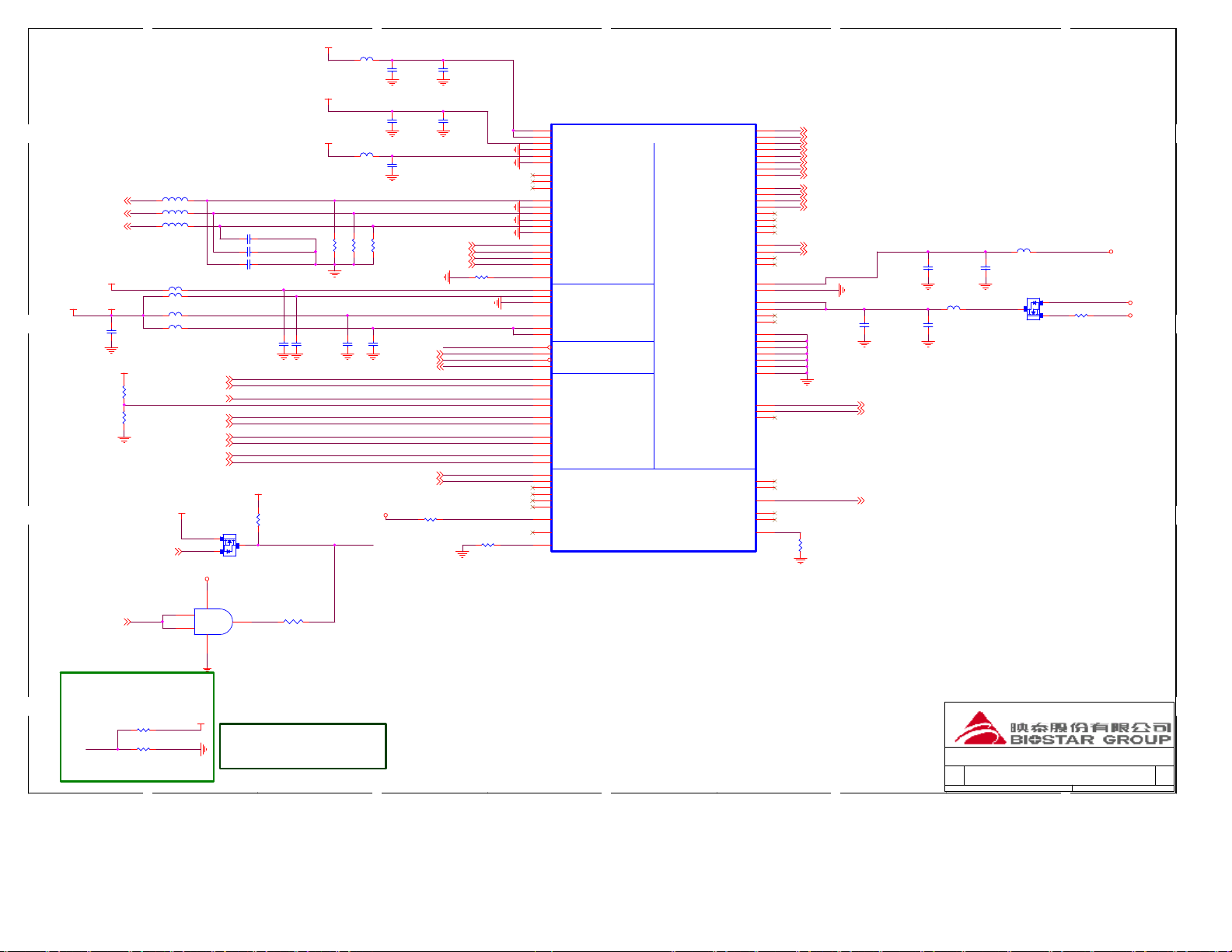

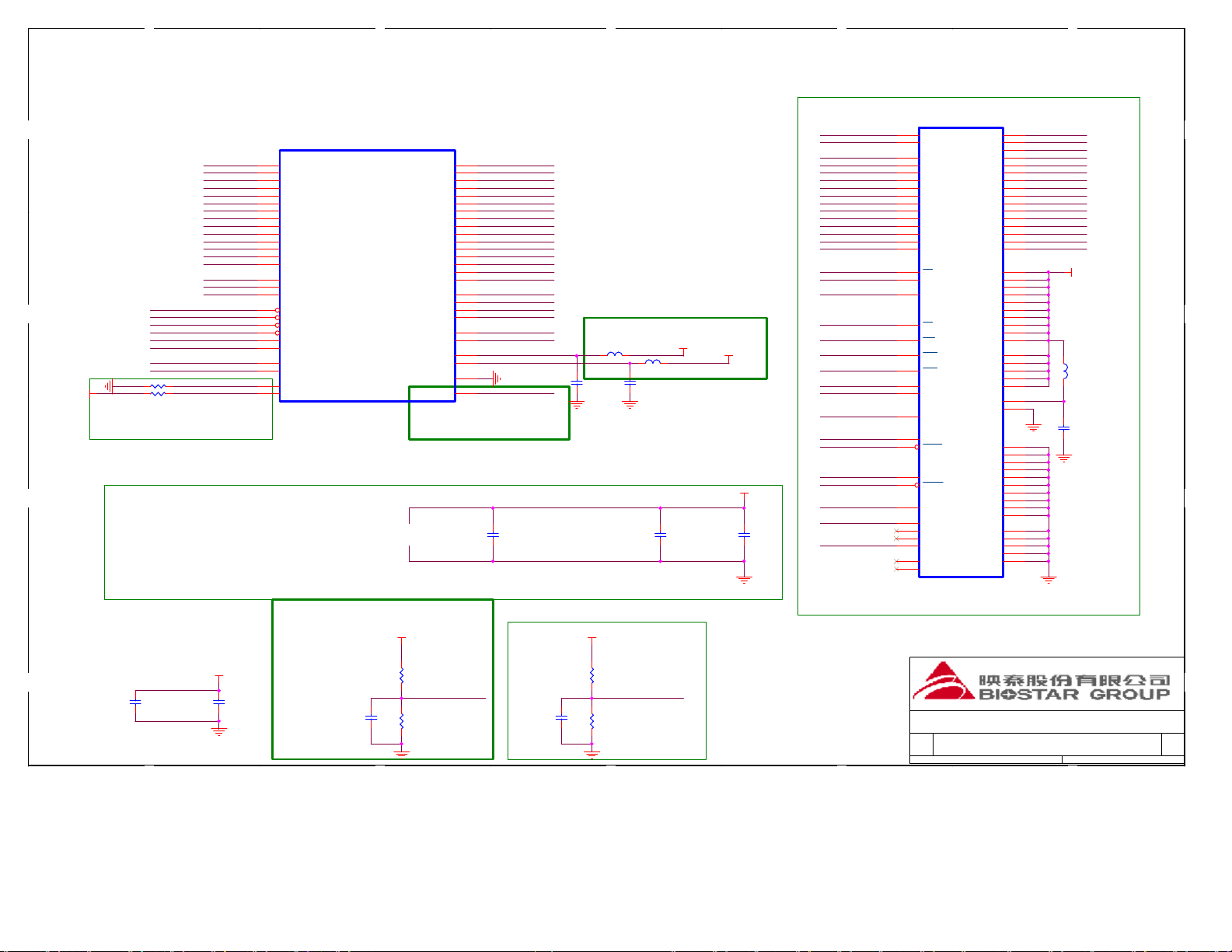

5

A

D D

INDUCTOR 68NH 300MA 0805
INDUCTOR 68NH 300MA 0805
INDUCTOR 68NH 300MA 0805

DAC_RED27
DAC_GREEN27
DAC_BLUE27

+1.8V +1.8V_PLL

C C

150 1% 0402

150 1% 0402

B B

L1
L2
L3

+1.1V

FB4
FB5 BEAD 60 0805 1A

FB7 BEAD 60 0805 1A
FB8 BEAD 60 0805 1A

C198
10UF 10V 0805 Y5V

+1.1V

R35

R36

LDT_RST#7,21

10P 50V NPO 0402

C381
C386 10P 50V NPO 0402
C390

10P 50V NPO 0402

BEAD 60 0805 1A

C199
10UF 10V 0805 Y5V
10UF 10V 0805 Y5V

NBHT_REFCLKP20
NBHT_REFCLKN20

OSC_14M_NB20

NBSRC_CLKP20
NBSRC_CLKN20

NBGPP_CLKP20
NBGPP_CLKN20

SBLINK_CLKP20
SBLINK_CLKN20

+3.3V

+1.8V

G

S

+3.3V

Q4

D

FDV301N SOT23

R39

4.7K 0402

NB_RST#_IN

+3.3V

+1.8V

+1.8V_PLL

C200

4

FB1 BEAD 60 0805 1A

FB2 BEAD 60 0805 1A

R30

C201

NB_RST#_IN

R32

R31

150 1% 0402
150 1% 0402
140 1% 0402

PLLVDD
PLLVDD18

C202
10UF 10V 0805 Y5V
10UF 10V 0805 Y5V

+3.3V

ALLOW_LDTSTOP21

C189
1UF 10V Y5V

C191
1UF 10V Y5V

WD_PWRGD22

LDT_STOP#7,21

I2C_CLK28
I2C_DATA28

C193
1UF 10V Y5V

HSYNC#27

DAC_SCL27
DAC_SDA27

VDDA18HTPLL
VDDA18PCIEPLL

R42 10K 0402

AVDD

C190
1UF 10V Y5V

AVDDDI

C192
1UF 10V Y5V

AVDDQ

HSYNC#
VSYNC#

VSYNC#27

R33 715 1% 0402

NB_RST#_IN
NB_PWRGD_IN
NB_LDT_STOP#

NBHT_REFCLKP
NBHT_REFCLKN

REFCLK_INP1
REFCLK_INN1

NBSRC_CLKP
NBSRC_CLKN

NBGPP_CLKP
NBGPP_CLKN

NBREF_CLKP
NBREF_CLKN

I2C_CLK
I2C_DATA

STRP_DATA

R37 150 0402

U1C

F12

AVDD1(NC)

E12

AVDD2(NC)

F14

AVDDDI(NC)

G15

AVSSDI(NC)

H15

AVDDQ(NC)

H14

AVSSQ(NC)

E17

C_Pr(DFT_GPIO5)

F17

Y(DFT_GPIO2)

F15

COMP_Pb(DFT_GPIO4)

G18

RED(DFT_GPIO0)

G17

REDb(NC)

E18

GREEN(DFT_GPIO1)

F18

GREENb(NC)

E19

BLUE(DFT_GPIO3)

F19

BLUEb(NC)

A11

DAC_HSYNC(PWM_GPIO4)

B11

DAC_VSYNC(PWM_GPIO6)

F8

DAC_SCL(PCE_RCALRN)

E8

DAC_SDA(PCE_TCALRN)

G14

DAC_RSET(PWM_GPIO1)

A12

PLLVDD(NC)

D14

PLLVDD18(NC)

B12

PLLVSS(NC)

H17

VDDA18HTPLL

D7

VDDA18PCIEPLL1

E7

VDDA18PCIEPLL2

D8

SYSRESETb

A10

POWERGOOD

C10

LDTSTOPb

C12

ALLOW_LDTSTOP

C25

HT_REFCLKP

C24

HT_REFCLKN

E11

REFCLK_P/OSCIN(OSCIN)

F11

REFCLK_N(PWM_GPIO3)

T2

GFX_REFCLKP

T1

GFX_REFCLKN

U1

GPP_REFCLKP

U2

GPP_REFCLKN

V4

GPPSB_REFCLKP(SB_REFCLKP)

V3

GPPSB_REFCLKN(SB_REFCLKN)

B9

I2C_CLK

B8

DDC_CLK0/AUX0P(NC)

A8

DDC_DATA0/AUX0N(NC)

B7

DDC_CLK1/AUX1P(NC)

A7

DDC_DATA1/AUX1N(NC)

B10

STRP_DATA

G11

RSVD

C8

AUX_CAL(NC)

RS780D

3

PART 3 OF 6

TXOUT_L2N(DBG_GPIO0)
TXOUT_L3N(DBG_GPIO2)

TXOUT_U1P(PCIE_RESET_GPIO3)
TXOUT_U1N(PCIE_RESET_GPIO2)

TXOUT_U3P(PCIE_RESET_GPIO5)

CRT/TVOUT

TXCLK_UP(PCIE_RESET_GPIO4)
TXCLK_UN(PCIE_RESET_GPIO1)

LVTM

PMCLOCKs PLL PWR

LVDS_DIGON(PCE_TCALRP)

LVDS_BLON(PCE_RCALRP)

LVDS_ENA_BL(PWM_GPIO2)

MIS.

SUS_STAT#(PWM_GPIO5)

TXOUT_L0P(NC)
TXOUT_L0N(NC)
TXOUT_L1P(NC)
TXOUT_L1N(NC)
TXOUT_L2P(NC)

TXOUT_L3P(NC)

TXOUT_U0P(NC)
TXOUT_U0N(NC)

TXOUT_U2P(NC)
TXOUT_U2N(NC)

TXOUT_U3N(NC)

TXCLK_LP(DBG_GPIO1)
TXCLK_LN(DBG_GPIO3)

VDDLTP18(NC)
VSSLTP18(NC)

VDDLT18_1(NC)
VDDLT18_2(NC)
VDDLT33_1(NC)
VDDLT33_2(NC)

VSSLT1(VSS)
VSSLT2(VSS)
VSSLT3(VSS)
VSSLT4(VSS)
VSSLT5(VSS)
VSSLT6(VSS)
VSSLT7(VSS)

TMDS_HPD(NC)I2C_DATA

HPD(NC)

THERMALDIODE_P
THERMALDIODE_N

TESTMODE

2

A22
B22
A21
B21
B20
A20
A19
B19

B18
A18
A17
B17
D20
D21
D18
D19

B16
A16
D16
D17

A13
B13

A15
B15
A14
B14

C14
D15
C16
C18
C20
E20
C22

E9
F7
G12

D9A9
D10

D12
AE8

AD8
D13

LPVDD

LVDDR18D

TEST_EN

TMDS_00P28
TMDS_00N28
TMDS_01P28
TMDS_01N28
TMDS_02P28
TMDS_02N28
TMDS_10P28
TMDS_10N28

TMDS_11P28
TMDS_11N28
TMDS_12P28
TMDS_12N28

TMDS_CLKP28
TMDS_CLKN28

R38

1.8K 0402

C196

0.1UF 16V Y5V 0402

COMM_EN26
TMDS_HPD228

SUS_STAT#22

C194

10UF 10V 0805 Y5V

FB6 BEAD 60 0805 1A

C197
10UF 10V 0805 Y5V

TO PCIE

FB3 BEAD 60 0805 1A

C195
10UF 10V 0805 Y5V

1

Q3 APM2300AAC SOT23

S

D

R34 4.7K 0402

G

+1.8V

+1.8V

+12V

U13C

147

A_RST#21,26,29,34

9

10

8

74AHC08D

R785

RS880

0 0402 /NI

6 side port Disable

A

6.0

HSYNC#

R45 3K 0402

R46 3K 0402 /NI

5

RS780: SIDE-PORT MEMORY ENABLE

+3.3V

Enables Side port memory

1. Disable
0 : Enable
RS780: pin HSYNC

Title

Size Document Number Rev

Custom

Date: Sheet of

4

3

2

RS780D SYSTEM

A78DG-A2T

1

17 48Friday, May 29, 2009

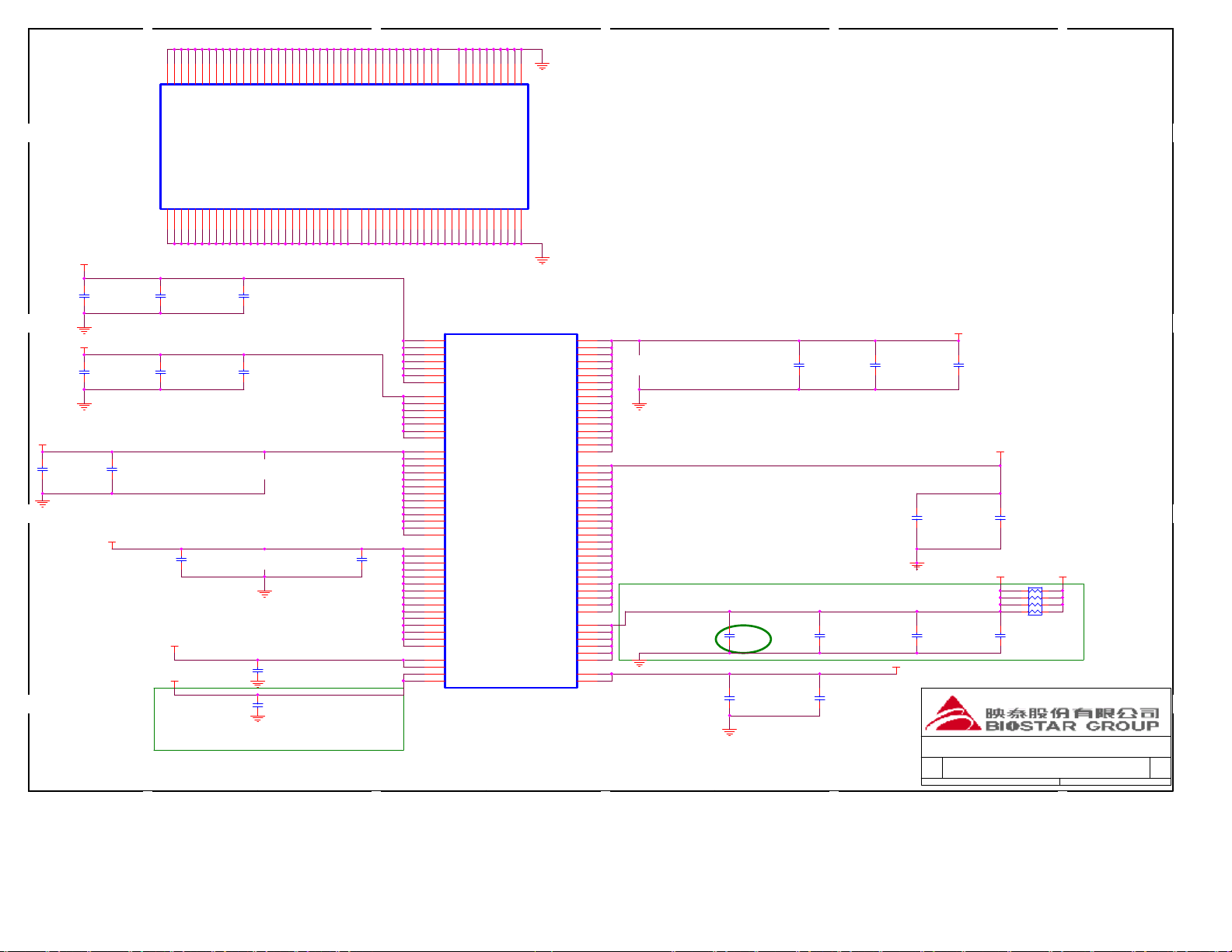

5

A

4

3

2

1

D D

SPM_A0
SPM_A1
SPM_A2
SPM_A3
SPM_A4
SPM_A5
SPM_A6
SPM_A7
SPM_A8
SPM_A9
SPM_A10
SPM_A11
SPM_A12
SPM_A13

SPM_BA0
SPM_BA1

SPM_RAS#

C C

VDD_MEM

SPM_CAS#
SPM_WE#
SPM_CS#
SPM_CKE
SPM_ODT

SPM_CLKP
SPM_CLKN

R4740.2 1% 0402 /NI

SPM_BA2

SPM_COMPP
SPM_COMPN

3 side port Disable

B B

NI

耚 タ

02/27 C213=>NI

U1D

AB12

MEM_A0(NC)

AE16

MEM_A1(NC)

V11

MEM_A2(NC)

AE15

MEM_A3(NC)

AA12

MEM_A4(NC)

AB16

MEM_A5(NC)

AB14

MEM_A6(NC)

AD14

MEM_A7(NC)

AD13

MEM_A8(NC)

AD15

MEM_A9(NC)

AC16

MEM_A10(NC)

AE13

MEM_A11(NC)

AC14

MEM_A12(NC)

Y14

MEM_A13(NC)

AD16

MEM_BA0(NC)

AE17

MEM_BA1(NC)

AD17

MEM_BA2(NC)

W12

MEM_RASb(NC)

Y12

MEM_CASb(NC)

AD18

MEM_WEb(NC)

AB13

MEM_CSb(NC)

AB18

MEM_CKE(NC)

V14

MEM_ODT(NC)

V15

MEM_CKP(NC)

W14

MEM_CKN(NC)

AE12

MEM_COMPP(NC)

AD12 AE18

MEM_COMPN(NC) MEM_VREF(NC)

RS780D

02/27 C214=>NI

PAR 4 OF 6

MEM_DQS0P/DVO_IDCKP(NC)

MEM_DQS0N/DVO_IDCKN(NC)

SBD_MEM/DVO_I/F

02/27 BC215=>NI

MEM_DQ0/DVO_VSYNC(NC)
MEM_DQ1/DVO_HSYNC(NC)

MEM_DQ2/DVO_DE(NC)

MEM_DQ3/DVO_D0(NC)

MEM_DQ4(NC)
MEM_DQ5/DVO_D1(NC)
MEM_DQ6/DVO_D2(NC)
MEM_DQ7/DVO_D4(NC)
MEM_DQ8/DVO_D3(NC)
MEM_DQ9/DVO_D5(NC)

MEM_DQ10/DVO_D6(NC)
MEM_DQ11/DVO_D7(NC)

MEM_DQ12(NC)

MEM_DQ13/DVO_D9(NC)
MEM_DQ14/DVO_D10(NC)
MEM_DQ15/DVO_D11(NC)

MEM_DQS1P(NC)
MEM_DQS1N(NC)

MEM_DM0(NC)

MEM_DM1/DVO_D8(NC)

IOPLLVDD18(NC)

IOPLLVDD(NC)
IOPLLVSS(NC)

4 side port Disable

0.1UF 16V Y5V 0402 /NI

AA18
AA20
AA19
Y19
V17
AA17
AA15
Y15
AC20
AD19
AE22
AC18
AB20
AD22
AC22
AD21

Y17
W18
AD20
AE21

W17
AE19

AE23
AE24

AD23

C217

SPM_DQ0
SPM_DQ1
SPM_DQ2
SPM_DQ3
SPM_DQ4
SPM_DQ5
SPM_DQ6
SPM_DQ7
SPM_DQ8
SPM_DQ9
SPM_DQ10
SPM_DQ11
SPM_DQ12
SPM_DQ13
SPM_DQ14
SPM_DQ15

SPM_DQS0P
SPM_DQS0N
SPM_DQS1P
SPM_DQS1N

SPM_DM0
SPM_DM1

SPM_VREF1

5 side port Disable

FB10 BEAD 60 0805 1A

FB11 BEAD 60 0805 1A

C203

02/27 BC218=>NI

C219

0.1UF 16V Y5V 0402 /NI

+1.8V

C204
10UF 10V 0805 Y5V
10UF 10V 0805 Y5VR4840.2 1% 0402 /NI

0.1UF 16V Y5V 0402 /NI

+1.1V

VDD_MEM

C220

SPM_BA0
SPM_BA1

SPM_A12
SPM_A11
SPM_A10
SPM_A9
SPM_A8
SPM_A7
SPM_A6
SPM_A5
SPM_A4
SPM_A3
SPM_A2
SPM_A1
SPM_A0

SPM_CLKN
SPM_CLKP

SPM_CKE

SPM_CS#
SPM_WE#
SPM_RAS#
SPM_CAS#
SPM_DM0

SPM_DM1

SPM_ODT

SPM_DQS0P
SPM_DQS0N

SPM_DQS1P
SPM_DQS1N

SPM_VREF
SPM_A13

SPM_BA2

U2

L2

BA0

L3

BA1

R2

A12

P7

A11

M2

A10/AP

P3

A9

P8

A8

P2

A7

N7

A6

N3

A5

N8

A4

N2

A3

M7

A2

M3

A1

M8

A0

K8

CK

J8

CK

K2

CKE

L8

CS

K3 G9

WE VDDQ10

K7

RAS

L7

CAS

F3

LDM

B3

UDM

K9

ODT

F7

LDQS

E8

LDQS

B7

UDQS

A8

UDQS

J2

VREF

R8

NC,A13

R3

NC,A14

R7

NC,A15

L1

NC,BA2

E2

NC

A2

NC

DDR2 K4N1G164QQ-HC20 /NI

DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9

VDD1
VDD2
VDD3
VDD4
VDD5

VDDL

VSSDL

VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
VSSQ6
VSSQ7
VSSQ8
VSSQ9

VSSQ10

VSS1
VSS2
VSS3
VSS4
VSS5

SPM_DQ15

B9

SPM_DQ11

B1

SPM_DQ13

D9

SPM_DQ12

D1

SPM_DQ8

D3

SPM_DQ10

D7

SPM_DQ9

C2

SPM_DQ14

C8

SPM_DQ3

F9

SPM_DQ7

F1

SPM_DQ1

H9

SPM_DQ6

H1

SPM_DQ5

H3

SPM_DQ0

H7

SPM_DQ4

G2

SPM_DQ2

G8

C1
C3
G1
G3
A9
C7
C9
E9
G7

A1
E1
R1
J9
M9

J1
J7

A7
B2
B8
D2
D8
F2
F8
H2
H8
E7

A3
E3
J3
N1
P9

VDD_MEM

NI

FB9
BEAD 60 0805 1A /NI

C205
1UF 10V Y5V /NI

RS780

4 side port Disable

VDD_MEM

R51
1K 1% 0402 /NI

R54
1K 1% 0402 /NI

A

Title

Size Document Number Rev

B

Date: Sheet of

3

2

RS780D SPMEM

A78DG-A2T

1

18 48Friday, May 29, 2009

6.0

0.1UF 16V Y5V 0402 /NI

C215

0.1UF 16V Y5V 0402 /NI

5

C216

VDD_MEM

C210

0.1UF 16V Y5V 0402 /NI

VDD_MEM

R50
1K 1% 0402 /NI

SPM_VREF1 SPM_VREF

R53
1K 1% 0402 /NI

NI

C211

0.1UF 16V Y5V 0402 /NI

4

5

A

A2B1D3D5E4G1G2G4H7J4R7L1L2L4L7

VSSAPCIE1

VSSAPCIE2

VSSAPCIE3

VSSAPCIE4

VSSAPCIE5

VSSAPCIE6

VSSAPCIE7

VSSAPCIE8

D D

M6N4P6R1R2R4V7U4V8V6W1W2W4W7W8Y6AA4

VSSAPCIE9

VSSAPCIE10

VSSAPCIE11

VSSAPCIE12

VSSAPCIE13

VSSAPCIE14

VSSAPCIE15

VSSAPCIE16

VSSAPCIE17

VSSAPCIE18

VSSAPCIE19

VSSAPCIE20

VSSAPCIE21

VSSAPCIE22

VSSAPCIE23

4

D11G8E14

E15

J12

K14

M11

VSS3

VSS4

J15

VSS5

VSS6

VSS7

VSS8

L15

VSS9

VSS10

U1F

RS780D

AB5

AB1

AB7

AC3

AC4

AE1

AE4

AB2

AE14

VSS2

VSS1

VSSAPCIE24

VSSAPCIE25

VSSAPCIE26

VSSAPCIE27

VSSAPCIE28

VSSAPCIE29

VSSAPCIE30

VSSAPCIE31

VSSAPCIE32

VSSAPCIE33

VSSAPCIE34

VSSAPCIE35

VSSAPCIE36

VSSAPCIE37

VSSAPCIE38

VSSAPCIE39

VSSAPCIE40

3

2

1

GROUND

PART 6/6

VSSAHT1

VSSAHT2

VSSAHT3

VSSAHT4

VSSAHT5

VSSAHT6

VSSAHT7

VSSAHT8

VSSAHT9

VSSAHT10

VSSAHT11

VSSAHT12

VSSAHT13

VSSAHT14

VSSAHT15

VSSAHT16

VSSAHT17

VSSAHT18

VSSAHT19

VSSAHT21

VSSAHT22

VSSAHT23

VSSAHT24

VSSAHT25

VSSAHT26

VSSAHT27

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

VSS18

VSS19

VSS20

VSS21

VSS22

VSS23

VSS24

VSS25

VSS26

VSS27

VSS28

VSS29

VSS30

VSS31

VSS32

VSSAHT20

A25

D23

E22

G22

G24

G25

H19

J22

L17

L22

L24

L25

M20

N22

P20

R19

R22

R24

R25

U22

V19

W22

W24

W25

Y21

AD25

L12

M14

N13

P12

P15

R11

R14

T12

U14

U11

U15

V12

W11

W15

AC12

AA14

H20

Y18

VSS34

VSS33

AB11

AB15

AB17

AB19

AE20

K11

AB21

+1.1V

C243

0.1UF 16V Y5V 0402 /NI

C221
10UF 10V 0805 Y5V /NI

C222

0.1UF 16V Y5V 0402 /NI

C C

+1.1V

02/27 +1.2Vэ+1.1V

+1.1V

C235
10UF 10V 0805 Y5V

C229
10UF 10V 0805 Y5V

C236

0.1UF 16V Y5V 0402

C231
10UF 10V 0805 Y5V

02/27 BC237=>NI

02/27 BC233=>NI

C232

0.1UF 16V Y5V 0402 /NI

02/27 BC239=>NI

B B

+1.8V

C249
10UF 10V 0805 Y5V

+1.8V

+1.8V

2 side port Disable

C503
1UF 10V Y5V /NI

C261
1UF 10V Y5V /NI

5

02/27 BC223=>NI

VDDA18PCIE

0.1UF 16V Y5V 0402

VDD18

VDD18_MEM

NB_VDDHT

VDDHTRX

VDDHTTX

C252

U1E

AE25
AD24
AC23
AB22
AA21

W19

AE11
AD11

J17

K16

L16
M16
P16
R16

T16
H18

G19

F20
E21
D22
B23
A23

Y20
V18

U17

T17
R17
P17
M17

J10
P10
K10
M10

L10

W9

H9

T10
R10

Y9
AA9
AB9
AD9
AE9
U10

F9

G9

VDDHT_1
VDDHT_2
VDDHT_3
VDDHT_4
VDDHT_5
VDDHT_6
VDDHT_7

VDDHTRX_1
VDDHTRX_2
VDDHTRX_3
VDDHTRX_4
VDDHTRX_5
VDDHTRX_6
VDDHTRX_7

VDDHTTX_1
VDDHTTX_2
VDDHTTX_3
VDDHTTX_4
VDDHTTX_5
VDDHTTX_6
VDDHTTX_7
VDDHTTX_8
VDDHTTX_9
VDDHTTX_10
VDDHTTX_11
VDDHTTX_12
VDDHTTX_13

VDDA18PCIE_1
VDDA18PCIE_2
VDDA18PCIE_3
VDDA18PCIE_4
VDDA18PCIE_5
VDDA18PCIE_6
VDDA18PCIE_7
VDDA18PCIE_8
VDDA18PCIE_9
VDDA18PCIE_10
VDDA18PCIE_11
VDDA18PCIE_12
VDDA18PCIE_13
VDDA18PCIE_14
VDDA18PCIE_15

VDD18_1
VDD18_2
VDD18_MEM1(NC)
VDD18_MEM2(NC)

RS780D

PART 5/6

POWER

VDD_MEM1(NC)
VDD_MEM2(NC)
VDD_MEM3(NC)
VDD_MEM4(NC)
VDD_MEM5(NC)
VDD_MEM6(NC)

VDD33_1(NC)
VDD33_2(NC)

VDDPCIE_1
VDDPCIE_2
VDDPCIE_3
VDDPCIE_4
VDDPCIE_5
VDDPCIE_6
VDDPCIE_7
VDDPCIE_8

VDDPCIE_9
VDDPCIE_10
VDDPCIE_11
VDDPCIE_12
VDDPCIE_13
VDDPCIE_14
VDDPCIE_15
VDDPCIE_16
VDDPCIE_17

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22

A6
B6
C6
D6
E6
F6
G7
H8
J9
K9
M9
L9
P9
R9
T9
V9
U9

K12
J14
U16
J11
K15
M12
L14
L11
M13
M15
N12
N14
P11
P13
P14
R12
R15
T11
T15
U12
T14
J16

AE10
AA11
Y11
AD10
AB10
AC10

H11
H12

4

VDD_PCIE

02/27 BC245=>NI

1 side port Disable

Voltage = 1.8 V nominal for DDR2 or 1.5 V for DDR3

VDD_MEM

02/27 C253=>NI

3

02/27 BC226=>NI

02/27 BC246=>NI

C254Enble side port 0.1UF 16V Y5V 0402
C254 disable side port 0 0402

0.1UF 16V Y5V 0402

C259

C254
0 0402

C227

0.1UF 16V Y5V 0402

02/27 BC242=>NI02/27 BC240=>NI 02/27 BC241=>NI

02/27 BC244=>NI

C255

0.1UF 16V Y5V 0402 /NI

C260

0.1UF 16V Y5V 0402

2

+1.1V

C230

10UF 10V 0805 Y5V

+3.3V

Title

Size Document Number Rev

Date: Sheet of

C228

1UF 10V Y5V

C247

1UF 10V Y5V

C501

0.1UF 16V Y5V 0402 /NI

Custom

+1.1V

C248
10UF 10V 0805 Y5V /NI

VDD_MEM

C502

0.1UF 16V Y5V 0402 /NI

+1.8V

78
56
34
12

RN32
0 8P4R 0402 /NI

RS780D PWOER

A78DG-A2T

1

19 48Friday, May 29, 2009

6.0

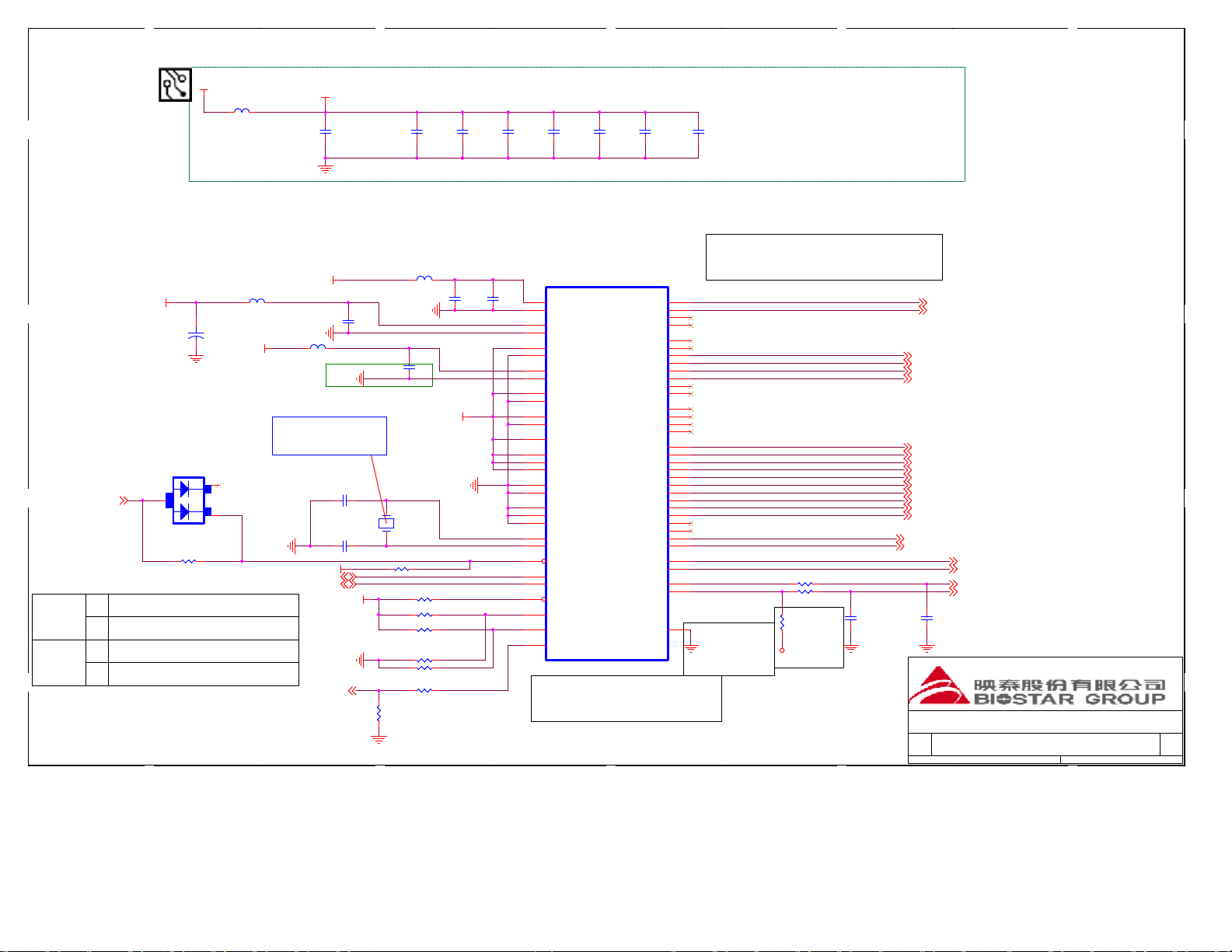

A

5

A

4

3

2

1

+3.3V

FB12 BEAD 60 0805 1A

D D

1- PLACE ALL THE SERIES TERMINATION
RESISTORS AS CLOSE TO U800 AS
POSSIBLE

2- ROUTE ALL SRCCLKTx AND SRCCLKCx
AS DIFFERENT PAIR RULE

3- PUT DECOUPLING CAPS CLOSE TO U800
POWER PIN

+3.3V

FB14 BEAD 60 0805 1A

C C

+

100UF 16V 5X11 2mm

MASTER_RST#22,38,44

B B

1

SEL_HTT66

SEL_SATA

* default

66MHz 3.3V single ended HTT clock

0*

100MHz differential HTT clock

1

100MHz non-spreading differential SATA clock

0*

100MHz differential spreading SRC clock

CT2

Q50

KA

BAT54A SOT23 /NI

R58 22 0402

+3.3V

A

K

5

CLK_VDD

C262
10UF 10V 0805 Y5V

+3.3V

C272

0.1UF 16V X7R 0402

FB15 BEAD 60 0805 1A

0.1UF 16V X7R 0402

Parallel Resonance
Crystal

C274 22P 50V NPO 0402

C275 22P 50V NPO 0402

CLK_VDD

SCLK13,14,22,43

SDATA13,14,22,43

CLK_VDD

OSC_14M_NB17

FB13 BEAD 60 0805 1A

R59 4.7K 0402 /NI

4

0.1UF эX7R

C263

1UF 10V Y5V

CLK_VDD48

C273

21

Y1

14.318MHZ 16PF 20PPM

R62 1K 0402
R63 8.2K 0402 /NI
R65 8.2K 0402 /NI

R66 8.2K 0402
R67 8.2K 0402

R68 150 1% 0402

R69

90.9 1% 0402

C271

0.1UF 16V X7R 0402

CLK_VDDREF

CLK_VDD

C264

CLK_VDDA

C265

C266

C270

U3A

44

VDDA

43

GNDA

60

VDDREF

61

GNDREF

39

VDDSATA

42

GNDSATA

64

VDD48

3

GND48

48

VDDCPU

47

GNDCPU

56

VDDHTT

53

GNDHTT

34

VDDATIG

11

VDDSRC1

16

VDDSRC2

25

VDDSB_SRC

28

GNDATIG1

33

GNDATIG2

10

GNDSRC1

17

GNDSRC2

24

GNDSB_SRC

62

X1

63

X2

52

RESTORE#

4

SMBCLK

5

SMBDAT

51

PD#

59

REF0/SEL_HTT66

58

REF1/SEL_SATA

57

REF2

RTM880N-793 QFN 64P

Clock chip has internal serial terminations
for differencial pairs, external resistors are
reserved for debug purpose.

CPUKG0T_LPRS

CPUKG0C_LPRS

CPUKG1T_LPRS

CPUKG1C_LPRS

SB_SRC0T_LPRS
SB_SRC0C_LPRS
SB_SRC1T_LPRS
SB_SRC1C_LPRS

SRC6T/SATAT_LPRS

SRC6C/SATAC_LPRS

HTT0T/66M_LPRS
HTT0C/66M_LPRS

3

C267

ATIG0T_LPRS

ATIG0C_LPRS

ATIG1T_LPRS

ATIG1C_LPRS

ATIG2T_LPRS

ATIG2C_LPRS

ATIG3T_LPRS

ATIG3C_LPRS

SRC0T_LPRS

SRC0C_LPRS

SRC1T_LPRS

SRC1C_LPRS

SRC2T_LPRS

SRC2C_LPRS

SRC3T_LPRS

SRC3C_LPRS

SRC4T_LPRS

SRC4C_LPRS

SRC5T_LPRS

SRC5C_LPRS

48MHz_0
48MHz_1

GND

C268

50
49
46
45

38
37
36
35
32
31
30
29

27
26
23
22

21
20
19
18
15
14
13
12
9
8
7
6
41
40

55
54

2
1

65

C269

0.1UF 16V X7R 0402

0.1UF 16V X7R 0402

0.1UF 16V X7R 0402

0.1UF 16V X7R 0402

Place R800/801 less than 500 mils away from U800
R851 less than 100 mils away from R800/801
route CPU clock as 100ohm differential pair

CPU_CLKIN_R_P
CPU_CLKIN_R_N

NBGFX_CLKP_R
NBGFX_CLKN_R
GFX_1CLKP_R
GFX_1CLKN_R

GFX_2CLKP =>PCIE-NI

0.1UF 16V X7R 0402

0.1UF 16V X7R 0402

0.1UF 16V X7R 0402

GFX_2CLKN =>PCIE-NI

NBGPP_CLKP_R
NBGPP_CLKN_R
GPP_CLK0P_R
GPP_CLK0N_R
GPP_CLK1P_R
GPP_CLK1N_R
GB_CLKP_R
GB_CLKN_R
NBSLINK_CLKP_R
NBSLINK_CLKN_R

SBSRC_CLKP_R
SBSRC_CLKN_R

NBHTREF_CLKP_R
NBHTREF_CLKN_R

SIO_CLOCK_R
48M_USB_R

Route a heat sink pad
beneath RTM880N-790

R60 33 0402
R61 33 0402

R64

8.2K 0402 /NI

6.0

+3.3V

2

SBSRC_CLKP21
SBSRC_CLKN21

C276

22P 50V NPO 0402 /NI

Title

Size Document Number Rev

Date: Sheet of

CPU_CLK7
CPU_CLK_7

NBSRC_CLKP17
NBSRC_CLKN17
GFX_1CLKP26
GFX_1CLKN26

NBGPP_CLKP17
NBGPP_CLKN17
GPP_CLK0P29
GPP_CLK0N29
GPP_CLK1P29
GPP_CLK1N29
GBE_CLKP47
GBE_CLKN47
SBLINK_CLKP17
SBLINK_CLKN17

NBHT_REFCLKP17
NBHT_REFCLKN17

CLK_48M_SIO34
CLK_48M_USB22

C277
22P 50V NPO 0402 /NI

B

CLOCK GEN

A78DG-A2T

1

20 48Friday, May 29, 2009

6.0

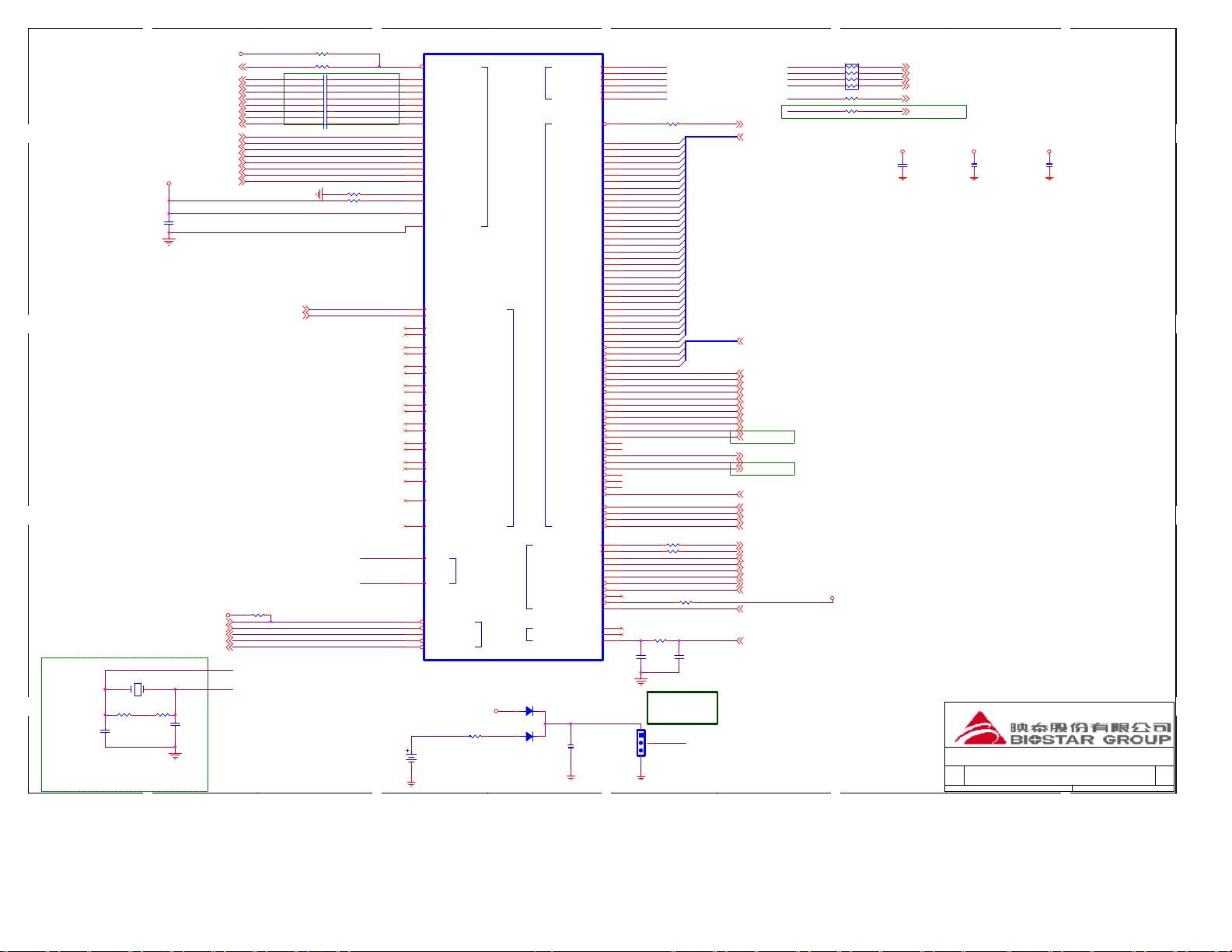

A

5

A

эX7R

D D

+1.2V

+3.3V

A_RST#17,26,29,34
A_RX0P16

A_RX0N16
A_RX1P16
A_RX1N16
A_RX2P16
A_RX2N16
A_RX3P16
A_RX3N16

A_TX0P16
A_TX0N16
A_TX1P16
A_TX1N16
A_TX2P16
A_TX2N16
A_TX3P16
A_TX3N16

C286 1UF 16V 0805 Y5V /NI

A_RST#

SBSRC_CLKP20
SBSRC_CLKN20

R293 4.7K 0402
R70 33 0402

C282 0.1UF 16V X7R 0402
C278 0.1UF 16V X7R 0402
C279 0.1UF 16V X7R 0402
C283 0.1UF 16V X7R 0402
C280 0.1UF 16V X7R 0402
C284 0.1UF 16V X7R 0402
C281 0.1UF 16V X7R 0402
C285 0.1UF 16V X7R 0402

C C

B B

+1.8V

R78 1K 0402

LDT_PG7
LDT_STOP#7,17
LDT_RST#7,17

32K_X1

Y2

2 1

32.768KHZ 12.5PF 20PPM
R81

R80

10M 0402

10M 0402
C289

22P 50V NPO 0402

PLACE THESE COMPONENTS CLOSE TO SB600,
AND USE GROUND GUARD FOR 32K_X1 AND
32K_X2

ALLOW_LDTSTOP17
CPU_PROCHOT#7

32K_X2

C290
22P 50V NPO 0402

5

4

R74 562 1% 0402
R72 2.05K 1% 0402

SB_NBLNK_CLKP1
SB_NBLNK_CLKN1

32K_X1

32K_X2

4

U4A

N2

A_RST#

V23

PCIE_TX0P

V22

PCIE_TX0N

V24

PCIE_TX1P

V25

PCIE_TX1N

U25

PCIE_TX2P

U24

PCIE_TX2N

T23

PCIE_TX3P

T22

PCIE_TX3N

U22

PCIE_RX0P

U21

PCIE_RX0N

U19

PCIE_RX1P

V19

PCIE_RX1N

R20

PCIE_RX2P

R21

PCIE_RX2N

R18

PCIE_RX3P

R17

PCIE_RX3N

T25

PCIE_CALRP

T24

PCIE_CALRN

P24

PCIE_PVDD

P25

PCIE_PVSS

N25

PCIE_RCLKP/NB_LNK_CLKP

N24

PCIE_RCLKN/NB_LNK_CLKN

K23

NB_DISP_CLKP

K22

NB_DISP_CLKN

M24

NB_HT_CLKP

M25

NB_HT_CLKN

P17

CPU_HT_CLKP

M18

CPU_HT_CLKN

M23

SLT_GFX_CLKP

M22

SLT_GFX_CLKN

J19

GPP_CLK0P

J18

GPP_CLK0N

L20

GPP_CLK1P

L19

GPP_CLK1N

M19

GPP_CLK2P

M20

GPP_CLK2N

N22

GPP_CLK3P

P22

GPP_CLK3N

L18

25M_48M_66M_OSC

J21

25M_X1

J20

25M_X2

A3

X1

B3

X2

F23

ALLOW_LDTSTP

F24

PROCHOT#

F22

LDT_PG

G25

LDT_STP#

G24

LDT_RST#

SB750

+3.3V_STBY

A_VBAT

R821K 1% 0402

BAT1
BATTERY HOLDER-1

RTC XTAL

SB700

Part 1 of 5

PCI EXPRESS INTERFACE

CLOCK GENERATOR

LPCRTC

LDRQ1#/GNT5#/GPIO68

BMREQ#/REQ5#/GPIO65

CPU

D1 SS12/5817 SMA

AK

VBATREF

AK

D2
SS12/5817 SMA

PCICLK5/GPIO41

PCI CLKS

PCI INTERFACE

DEVSEL#

REQ3#/GPIO70
REQ4#/GPIO71

GNT3#/GPIO72
GNT4#/GPIO73

CLKRUN#

INTE#/GPIO33
INTF#/GPIO34
INTG#/GPIO35
INTH#/GPIO36

LPCCLK0
LPCCLK1

LFRAME#

INTRUDER_ALERT#

3

P4

PCICLK0

P3

PCICLK1

P1

PCICLK2

P2

PCICLK3

T4

PCICLK4

T3

N1

PCIRST#

U2

AD0

P7

AD1

V4

AD2

T1

AD3

V3

AD4

U1

AD5

V1

AD6

V2

AD7

T2

AD8

W1

AD9

T9

AD10

R6

AD11

R7

AD12

R5

AD13

U8

AD14

U5

AD15

Y7

AD16

W8

AD17

V9

AD18

Y8

AD19

AA8

AD20

Y4

AD21

Y3

AD22

Y2

AD23

AA2

AD24

AB4

AD25

AA1

AD26

AB3

AD27

AB2

AD28

AC1

AD29

AC2

AD30

AD1

AD31

W2

CBE0#

U7

CBE1#

AA7

CBE2#

Y1

CBE3#

AA6

FRAME#

W5
AA5

IRDY#

Y5

TRDY#

U6

PAR

W6

STOP#

W4

PERR#

V7

SERR#

AC3

REQ0#

AD4

REQ1#

AB7

REQ2#

AE6
AB6
AD2

GNT0#

AE4

GNT1#

AD5

GNT2#

AC6
AE5
AD6
V5

LOCK#

AD3
AC4
AE2
AE3

G22
E22
H24

LAD0

H23

LAD1

J25

LAD2

J24

LAD3

H25
H22

LDRQ0#

AB8
AD7
V15

SERIRQ

C3

RTCCLK

C2
B2

VBAT

C291
10UF 10V 0805 Y5V

3

PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3

1UF 10V Y5V

1

3

R71 33 0402

PCI_AD[31..0]

PCI_CBE#[3..0]

R75 22 0402
R76 22 0402

BMREQ#

R77 10K 0402

+3.3V_VBAT

R79 510 0402

C287

C288

0.1UF 16V Y5V 0402

1-2: NORMAL
2-3: CMOS CLEAR

+3.3V_VBAT

2

JCMOS1
HEADER 1X3

PCICLK0
PCICLK2
PCICLK3
PCICLK4

PCICLK1
PCICLK5

2/13 => эPCI X 3(PCI_CLK1.4.5)

PCI_RST#30
PCI_AD[31..0] 30

PCI_CBE#[3..0] 30

PCI_FRAME#30
PCI_DEVSEL#30
PCI_IRDY# 30
PCI_TRDY# 30
PCI_PAR30
PCI_STOP#30
PCI_PERR#30
PCI_SERR#30
PCI_REQ#030
PCI_REQ#130
PCI_REQ#230

PCI_GNT#030
PCI_GNT#130
PCI_GNT#230

PCI_LOCK#30
PCI_INTA#30

PCI_INTB#30
PCI_INTC#30
PCI_INTD#30

LPC_CLK025
LPC_CLK125
LPC_AD034
LPC_AD134
LPC_AD234
LPC_AD334
LPC_FRAME_34
LPC_DRQ0#34

LPC_SERIRQ34

+3.3V_VBAT34

R73 22 0402
R771 22 0402

+3.3V

2

RN19

22 8P4R 0402

12
34
56
78

PCI_CLK034
PCI_CLK225
PCI_CLK325
PCI_CLK430

PCI_CLK130
PCI_CLK530

+3.3V +3.3V+3.3V

C334

0.1UF 16V Y5V 0402

EC2

0.1UF 16V Y5V 0402

4/03 EMI PCICLK

Title

Size Document Number Rev

Date: Sheet of

SB750 PCIE/PCI/CPU/LPC

Custom

2

1

EC3

0.1UF 16V Y5V 0402

A78DG-A2T

1

21 48Friday, May 29, 2009

6.0

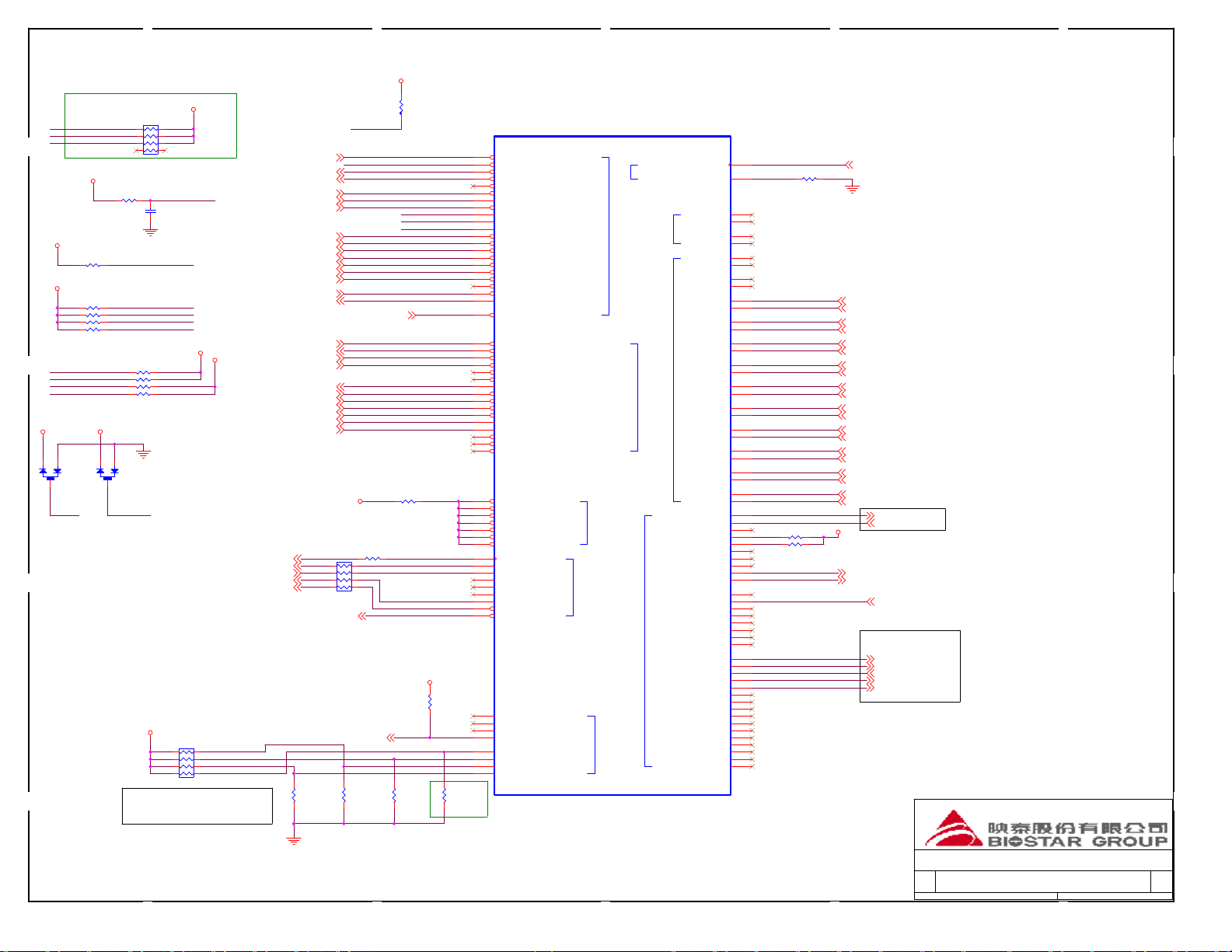

A

5

A

4

+3.3V_DUAL

3

2

1

78
56
34
12

C292
1UF 10V Y5V /NI

WD_PWRGD

GFX16_PCIERST#

SUS_STAT#
GFX_PRSNT#
GPP_PRSNT#

+3.3V_DUAL

RN3010K 8P4R 0402 /NI

+3.3V_DUAL

RSMRST#

+3.3V

78
56
34
12

箇痙 絬隔

+3.3V_DUAL

EXT_EVNT0#

PCI_PME#30

GFX16_PCIERST#26

SLP_S3#34,44

SB_PWRON#34

SB_PWRGD44,46
SUS_STAT#17

A20GATE34
SIO_KBRST_34
IO_PME_34

LPC_SMI#34
S3_STATE44

MASTER_RST#20,38,44

PCIE_WAKE26,29,47

CPU_THERMTRIP#7

WD_PWRGD17

FPAUD_PRESENCE#40

ROMCS#30

CPU_PRESENT#7

GPP_PRSNT#29

SPEAKER38

PDMA6631

GFX_PRSNT#26

AC_BITCLK39

AC_SDOUT39
AC_SDIN_039

AC_SYNC39
AC_RST_25,39

GPP_PCIERST#29

R300
510 0402 /NI

RSM_RST_OUT#34

SCLK13,14,20,43
SDATA13,14,20,43
SCLK126,29,30
SDATA126,29,30 USBN433

+3.3V

R91 22 0402

12
34
56
78

RN2222 8P4R 0402

IDE_RST#31

R301
510 0402 /NI

NI

SB_TEST0
SB_TEST2
SB_TEST1

D D

+3.3V_DUAL

+1.8V

R85 300 0402

+3.3V

R295 10K 0402
R285 10K 0402
R286 10K 0402
R287 10K 0402

C C

SCLK

SDATA
SDATA1
SCLK1

+3.3V

A

K

Q5

KA

BAV99 SOT23

SCLK

RN202.2K 8P4R 0402 /NI

22K /NI

R83

R281 2.2K 0402
R282 2.2K 0402
R283 2.2K 0402
R284 2.2K 0402

+3.3V

A

K

Q6

KA

BAV99 SOT23

SDATA

B B

D22.E24.E25.D23 side
port table

SR43
10K 0402

EXT_EVNT0#

GFX16_PCIERST#

SUS_STAT#

SB_TEST2
SB_TEST1
SB_TEST0

WD_PWRGD

GPP_PRSNT#

R289 1K 0402

AZ_BIT_CLK_R
AZ_SDATA_OUT_R
AZ_SDIN_0

AZ_SYNC_
AZ_RST_R#

+3.3V

R302
510 0402 /NI

RSMRST#

R97
10K 0402

R303
510 0402 /NI

U4D

E1

PCI_PME#/GEVENT4#

E2

RI#/EXTEVNT0#

H7

SLP_S2/GPM9#

F5

SLP_S3#

G1

SLP_S5#

H2

PWR_BTN#

H1

PWR_GOOD

K3

SUS_STAT#

H5

TEST2

H4

TEST1

H3

TEST0

Y15

GA20IN/GEVENT0#

W15

KBRST#/GEVENT1#

K4

LPC_PME#/GEVENT3#

K24

LPC_SMI#/EXTEVNT1#

F1

S3_STATE/GEVENT5#

J2

SYS_RESET#/GPM7#

H6

WAKE#/GEVENT8#

F2

BLINK/GPM6#

J6

SMBALERT#/THRMTRIP#/GEVENT2#

W14

NB_PWRGD

D3

RSMRST#

AE18

SATA_IS0#/GPIO10

AD18

CLK_REQ3#/SATA_IS1#/GPIO6

AA19

SMATVOLT1/SATA_IS2#/GPIO4

W17

CLK_REQ0#/SATA_IS3#/GPIO0

V17

CLK_REQ1#/SATA_IS4#/FANOUT3/GPIO39

W20

CLK_REQ2#/SATA_IS5#/FANIN3/GPIO40

W21

SPKR/GPIO2

AA18

SCL0/GPOC0#

W18

SDA0/GPOC1#

K1

SCL1/GPOC2#

K2

SDA1/GPOC3#

AA20

DDC1_SCL/GPIO9

Y18

DDC1_SDA/GPIO8

C1

LLB#/GPIO66

Y19

SMARTVOLT2/SHUTDOWN#/GPIO5

G5

DDR3_RST#/GEVENT7#

B9

USB_OC6#/IR_TX1/GEVENT6#

B8

USB_OC5#/IR_TX0/GPM5#

A8

USB_OC4#/IR_RX0/GPM4#

A9

USB_OC3#/IR_RX1/GPM3#

E5

USB_OC2#/GPM2#

F8

USB_OC1#/GPM1#

E4

USB_OC0#/GPM0#

M1

AZ_BITCLK

M2

AZ_SDOUT

J7

AZ_SDIN0/GPIO42

J8

AZ_SDIN1/GPIO43

L8

AZ_SDIN2/GPIO44

M3

AZ_SDIN3/GPIO46

L6

AZ_SYNC

M4

AZ_RST#

L5

AZ_DOCK_RST#/GPM8#

H19

IMC_GPIO0

H20

IMC_GPIO1

H21

SPI_CS2#/IMC_GPIO2

F25

IDE_RST#/F_RST#/IMC_GPO3

D22

IMC_GPIO4

E24

IMC_GPIO5

E25

IMC_GPIO6

D23

IMC_GPIO7

SB750

SB700

ACPI / WAKE UP EVENTS

USB OC

HD AUDIO

INTEGRATED uC

Part 4 of 5

USBCLK/14M_25M_48M_OSC

INTEGRATED uC

USB_RCOMP

USB_FSD13P

USB MISC

USB_FSD13N
USB_FSD12P

USB_FSD12N

USB 1.1

USB_HSD11P
USB_HSD11N

USB_HSD10P
USB_HSD10N

USB_HSD9P

USB_HSD9N

USB_HSD8P

USB_HSD8N

USB_HSD7P

USB_HSD7N

USB_HSD6P

USB_HSD6N

USB_HSD5P

USB_HSD5N

USB_HSD4P

USB 2.0

USB_HSD4N

USB_HSD3P

GPIO

USB_HSD3N

USB_HSD2P

USB_HSD2N

USB_HSD1P

USB_HSD1N

USB_HSD0P

USB_HSD0N

IMC_GPIO8
IMC_GPIO9

IMC_PWM0/IMC_GPIO10

SCL2/IMC_GPIO11

SDA2/IMC_GPIO12
SCL3_LV/IMC_GPIO13
SDA3_LV/IMC_GPIO14

IMC_PWM1/IMC_GPIO15

IMC_PWM2/IMC_GPO16
IMC_PWM3/IMC_GPO17

IMC_GPIO18
IMC_GPIO19
IMC_GPIO20
IMC_GPIO21
IMC_GPIO22
IMC_GPIO23
IMC_GPIO24
IMC_GPIO25

IMC_GPIO26
IMC_GPIO27
IMC_GPIO28
IMC_GPIO29
IMC_GPIO30
IMC_GPIO31
IMC_GPIO32
IMC_GPIO33
IMC_GPIO34
IMC_GPIO35
IMC_GPIO36
IMC_GPIO37
IMC_GPIO38
IMC_GPIO39
IMC_GPIO40
IMC_GPIO41

C8

R84

G8

E6
E7

F7
E8

H11
J10

E11
F11

A11
B11

C10
D10

G11
H12

E12
E14

C12
D12

B12
A12

G12
G14

H14
H15

A13
B13

B14
A14

A18
B18
F21
D21
F19
E20
E21
E19
D19
E18

G20
G21
D25
D24
C25
C24
B25
C23

B24
B23
A23
C22
A22
B22
B21
A21
D20
C20
A20
B20
B19
A19
D18
C18

11.8K 1% 0402

R8910K 0402
R9010K 0402

IMCJT_D0
IMCJT_D1
IMCJT_D2
IMCJT_D3
IMC_GPIO30

+3.3V_DUAL

CLK_48M_USB20

USBP933
USBN933

USBP833
USBN833

USBP733
USBN733

USBP633
USBN633

USBP533
USBN533

USBP433

USBP332
USBN332

USBP232
USBN232

USBP132
USBN132

USBP032
USBN032

IMC_DBREQ#42
IMC_DBRDY 42

IMC_GPIO1625
IMC_GPIO1725

IMC_CRST_L7

ACC/AOD
Extreme

IMC_TRST#42
IMC_TDO42
IMC_TDI42
IMC_TMS42
IMC_TCK42

side port memory type/NI

A

Title

Size Document Number Rev

Date: Sheet of

5

4

3

2

SB750 ACPI/GPIO/USB/AUD

Custom

A78DG-A2T

22 48Friday, May 29, 2009

6.0

1

5

A

4

3

2

1

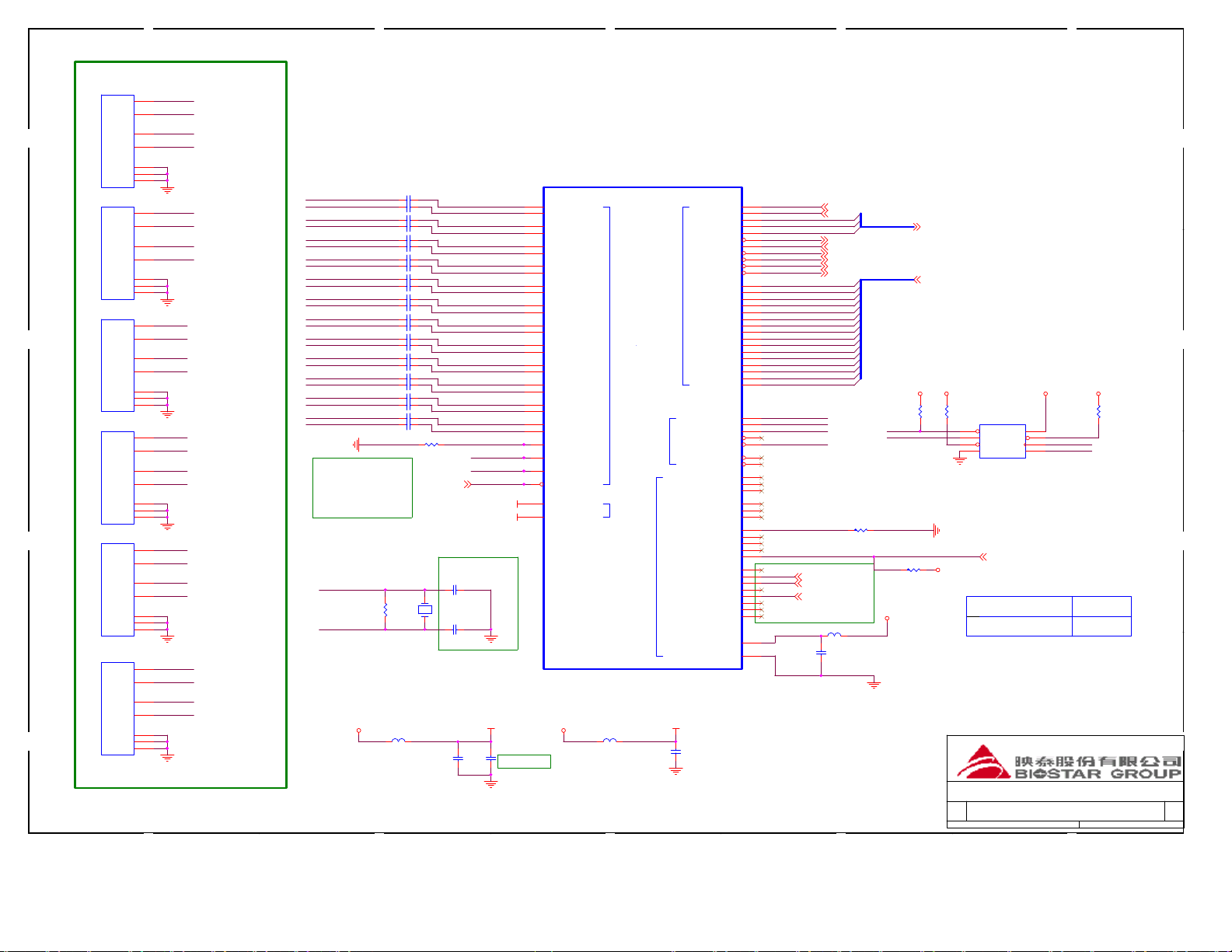

SATA1

D D

SATA CONNECTOR-T

SATA2

SATA CONNECTOR-T

SATA3

C C

SATA CONNECTOR-T

SATA4

SATA CONNECTOR-T

B B

SATA5

SATA CONNECTOR-T

SATA6

SATA CONNECTOR-T

GND
GND#4
GND#7

GND
GND#4
GND#7

GND
GND#4
GND#7

GND
GND#4
GND#7

GND
GND#4
GND#7

GND
GND#4
GND#7

SATA_TX0+_C

2

TX+

SATA_TX0-_C

3

TX-

SATA_RX0-_C

5

RX-

SATA_RX0+_C

6

RX+

1
4
7

SATA_TX0+_C

SATA_TX1+_C

2

TX+

SATA_TX1-_C

3

TX-

SATA_RX1-_C

5

RX-

SATA_RX1+_C

6

RX+

1
4
7

SATA_TX2+_C

2

TX+

SATA_TX2-_C

3

TX-

SATA_RX2-_C

5

RX-

SATA_RX2+_C

6

RX+

1
4
7

SATA_TX3+_C

2

TX+

SATA_TX3-_C

3

TX-

SATA_RX3-_C

5

RX-

SATA_RX3+_C

6

RX+

1
4
7

SATA_TX4+_C

2

TX+

SATA_TX4-_C

3

TX-

SATA_RX4-_C

5

RX-

SATA_RX4+_C

6

RX+

1
4
7

SATA_TX5+_C

2

TX+

SATA_TX5-_C

3

TX-

SATA_RX5-_C

5

RX-

SATA_RX5+_C

6

RX+

1
4
7

SATA_TX0-_C
SATA_RX0-_C

SATA_RX0+_C
SATA_TX1+_C

SATA_TX1-_C
SATA_RX1-_C

SATA_RX1+_C
SATA_TX2+_C

SATA_TX2-_C
SATA_RX2-_C

SATA_RX2+_C
SATA_TX3+_C

SATA_TX3-_C
SATA_RX3-_C

SATA_RX3+_C
SATA_TX4+_C

SATA_TX4-_C
SATA_RX4-_C

SATA_RX4+_C
SATA_TX5+_C

SATA_TX5-_C
SATA_RX5-_C

SATA_RX5+_C

PLACE R297 CLOSE
TO SB600 BALL

R297 IS 1K 1% FOR XTAL,

4.99K 1% FOR INTERNAL
CLK

SATA_X1

SATA_X2

5

C299 0.01UF 25V X7R 0402
C300 0.01UF 25V X7R 0402

C293 0.01UF 25V X7R 0402
C294 0.01UF 25V X7R 0402

C301 0.01UF 25V X7R 0402
C302 0.01UF 25V X7R 0402

C295 0.01UF 25V X7R 0402
C296 0.01UF 25V X7R 0402

C297 0.01UF 25V X7R 0402
C303 0.01UF 25V X7R 0402

C304 0.01UF 25V X7R 0402
C298 0.01UF 25V X7R 0402

C305 0.01UF 25V X7R 0402
C306 0.01UF 25V X7R 0402

C307 0.01UF 25V X7R 0402
C308 0.01UF 25V X7R 0402

C309 0.01UF 25V X7R 0402
C310 0.01UF 25V X7R 0402

C311 0.01UF 25V X7R 0402
C312 0.01UF 25V X7R 0402

C313 0.01UF 25V X7R 0402
C314 0.01UF 25V X7R 0402

C316 0.01UF 25V X7R 0402
C317 0.01UF 25V X7R 0402

1%

R101 1K 1% 0402

SATA_HDLED_38

02/18 27P 50V NPO=>33P 50V NPO

R104
10M 0402

2 1

+1.2V XTLVDD_SATA

FB17 BEAD 60 0805 1A

0.1UF 16V Y5V 0402 /NI

SATA_TX0+
SATA_TX0-

SATA_RX0­SATA_RX0+

SATA_TX1+
SATA_TX1-

SATA_RX1­SATA_RX1+

SATA_TX2+
SATA_TX2-

SATA_RX2­SATA_RX2+

SATA_TX3+
SATA_TX3-

SATA_RX3­SATA_RX3+

SATA_TX4+
SATA_TX4-

SATA_RX4­SATA_RX4+

SATA_TX5+
SATA_TX5-

SATA_RX5­SATA_RX5+

SATA_CAL

SATA_X1
SATA_X2

SATA_ACT#

PLLVDD_SATA
XTLVDD_SATA

C318 33P 50V NPO

Y3
25MHZ 20PF 30PPM

C319 33P 50V NPO

PLLVDD_SATA

C321

4

C323
1UF 10V Y5V

AB10
AC10

AE10
AD10

AD11
AE11

AB12
AC12

AE12
AD12

AD13
AE13

AB14
AC14

AE14
AD14

AD15
AE15

AB16
AC16

AE16
AD16

AA12

W11

AA11

W12

U4B

AD9
AE9

V12
Y12

SB750

SATA_TX0P
SATA_TX0N

SATA_RX0N
SATA_RX0P

SATA_TX1P
SATA_TX1N

SATA_RX1N
SATA_RX1P

SATA_TX2P
SATA_TX2N

SATA_RX2N
SATA_RX2P

SATA_TX3P
SATA_TX3N

SATA_RX3N
SATA_RX3P

SATA_TX4P
SATA_TX4N

SATA_RX4N
SATA_RX4P

SATA_TX5P
SATA_TX5N

SATA_RX5N
SATA_RX5P

SATA_CAL
SATA_X1
SATA_X2
SATA_ACT#/GPIO67

PLLVDD_SATA
XTLVDD_SATA

+3.3V

FB18 BEAD 60 0805 1A

3

SB700

Part 2 of 5

SATA PWR SERIAL ATA

IDE_D0/GPIO15
IDE_D1/GPIO16
IDE_D2/GPIO17
IDE_D3/GPIO18
IDE_D4/GPIO19
IDE_D5/GPIO20
IDE_D6/GPIO21
IDE_D7/GPIO22
IDE_D8/GPIO23

ATA 66/100/133

IDE_D9/GPIO24
IDE_D10/GPIO25
IDE_D11/GPIO26
IDE_D12/GPIO27
IDE_D13/GPIO28
IDE_D14/GPIO29
IDE_D15/GPIO30

SPI_DI/GPIO12

SPI_DO/GPIO11
SPI_CLK/GPIO47

SPI_HOLD#/GPIO31

SPI_CS1#/GPIO32

LAN_RST#/GPIO13

SPI ROM

ROM_RST#/GPIO14

FANOUT0/GPIO3

FANOUT1/GPIO48
FANOUT2/GPIO49

FANIN0/GPIO50

FANIN1/GPIO51

FANIN2/GPIO52

TEMP_COMM
TEMPIN0/GPIO61
TEMPIN1/GPIO62
TEMPIN2/GPIO63

TEMPIN3/TALERT#/GPIO64

HW MONITOR

C322
1UF 16V 0805 Y5V

IDE_IORDY

IDE_IRQ

IDE_A0
IDE_A1
IDE_A2

IDE_DACK#

IDE_DRQ
IDE_IOR#

IDE_IOW#

IDE_CS1#
IDE_CS3#

VIN0/GPIO53
VIN1/GPIO54
VIN2/GPIO55
VIN3/GPIO56
VIN4/GPIO57
VIN5/GPIO58
VIN6/GPIO59
VIN7/GPIO60

AVDD
AVSS

AA24
AA25
Y22
AB23
Y23
AB24
AD25
AC25
AC24
Y25
Y24

AD24
AD23
AE22
AC22
AD21
AE20
AB20
AD19
AE19
AC20
AD20
AE21
AB22
AD22
AE23
AC23

G6
D2
D1
F4
F3

U15
J1

M8
M5
M7

P5
P8
R8

C6
B6
A6
A5
B5

A4
B4
C4
D4
D5
D6
A7
B7

F6
G7

PDA_R0
PDA_R1
PDA_R2

PDD_R0
PDD_R1
PDD_R2
PDD_R3
PDD_R4
PDD_R5
PDD_R6
PDD_R7
PDD_R8
PDD_R9
PDD_R10
PDD_R11
PDD_R12
PDD_R13
PDD_R14
PDD_R15

SPI_DATAIN
SPI_DATAOUT
SPI_CLK

SPI_CS#

TEMP_COMM

SB_VIN137
SB_VIN237

SB_VIN437

HWM_AGND

PDIORDY#_R 31
SIRQI31

PDACK#_R31
PDREQ_R31
PDIOR#_R 31
PDIOW#_R31
PDCS1#_R31
PDCS3#_R31

R102 10K 0402 /NI

02/20

FB16BEAD 60 0805 1A

C320

0.1UF 16V Y5V 0402

2

+3.3V_DUAL

1K 0402

SPI_CS#
SPI_DATAIN

R103 10K 0402

HWM

+3.3V_DUAL

PDA_R[2..0] 31

PDD_R[15..0] 31

+3.3V_DUAL

+3.3V

R99
1K 0402

SST SPI ROM

U5

1
2
3
4

SPI MX25L8005 DIP

R98

CE#
SO

HOLD#
WP#
GND

THERMAL#34

VDD

SCK

SI

+3.3V_DUAL

8
7

SPI_CLK

6

SPI_DATAOUT

5

PIN NAME

Title

Size Document Number Rev

Custom

Date: Sheet of

SB750 SATA/IDE/SPI

A78DG-A2T

1

+3.3V_DUAL

BIOS

0 OR 1GPIO50 ~ GPIO60

R100
1K 0402

23 48Friday, May 29, 2009

6.0

A

5

A

4

3

2

1

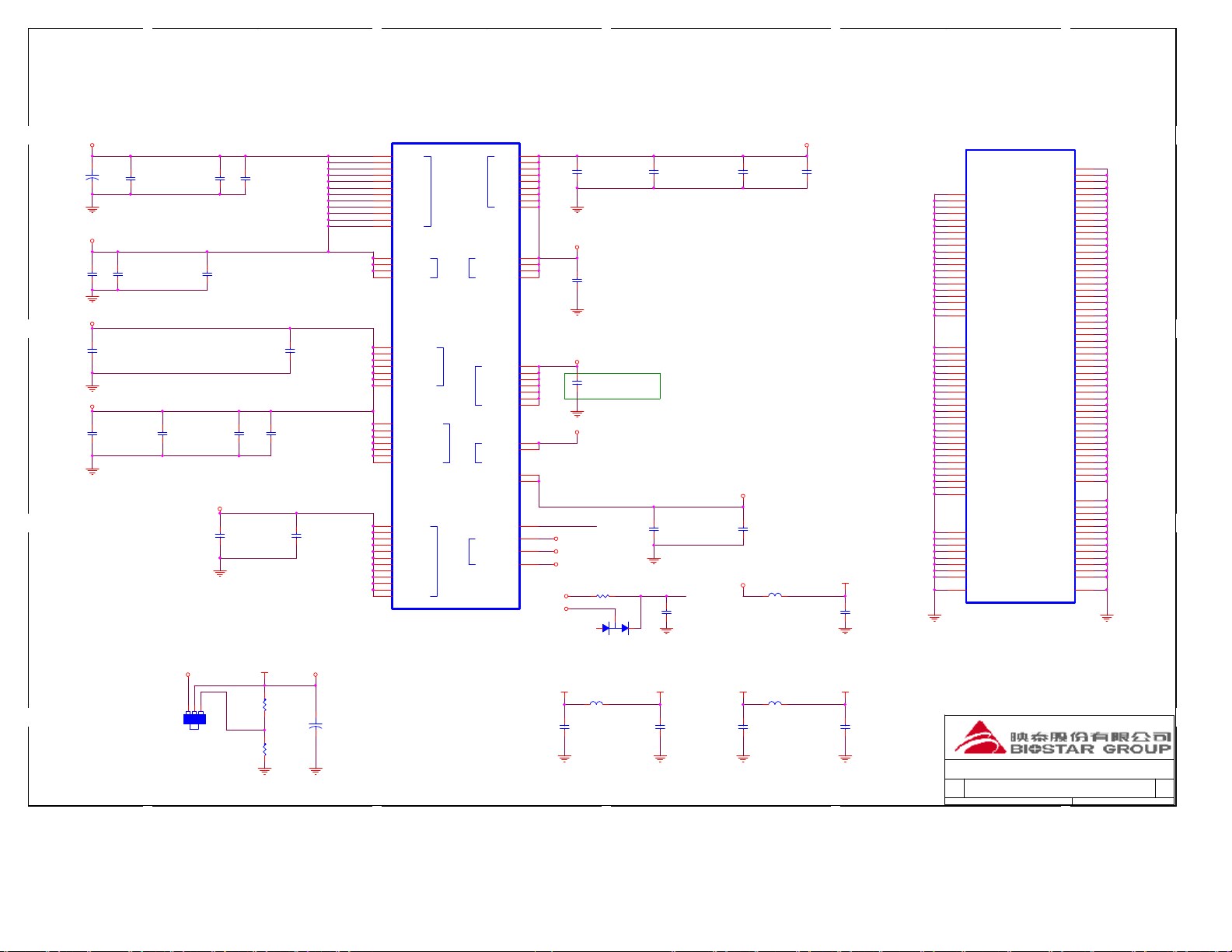

D D

1000UF 6.3V 8X12

1UF 16V 0805 Y5V

+3.3V

+

CT3

+3.3V

C331

C325

0.1UF 16V Y5V 0402 /NI

C332
1UF 16V 0805 Y5V

C326

C324

0.1UF 16V Y5V 0402 /NI

0.1UF 16V Y5V 0402 /NI

C333

0.1UF 16V Y5V 0402

AB21

AA21
AA22
AE25

T15

U16
U17

W7

AA4
AB5

Y20

L9

M9
U9

V8
Y6

U4C

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9
VDDQ_10
VDDQ_11
VDDQ_12

VDD33_18_1
VDD33_18_2
VDD33_18_3
VDD33_18_4

SB700

Part 3 of 5

PCI/GPIO I/O

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8

CORE S0

VDD_9

CKVDD_1.2V_1
CKVDD_1.2V_2
CKVDD_1.2V_3
CKVDD_1.2V_4

L15
M12
M14
N13
P12
P14
R11
R15
T16

L21
L22
L24
L25

C327

0.1UF 16V Y5V 0402

+1.2V

C336

0.1UF 16V Y5V 0402

C328

0.1UF 16V Y5V 0402

IDE/FLSH I/O

C C

+1.2V

AA14
AB18
AA15
AA17
AC18
AD17
AE17

4

P18
P19
P20

P21
R22
R24
R25

A16

B16
C16
D16
D17

E17

F15

F17

F18
G15
G17
G18

C338
1UF 16V 0805 Y5V

+1.2V

+3.3V_DUAL

C348

C352

10UF 10V 0805 Y5V

C346

1UF 16V 0805 Y5V /NI

C347
1UF 16V 0805 Y5V

B B

C342

0.1UF 16V Y5V 0402

C349

0.1UF 16V Y5V 0402 /NI

0.1UF 16V Y5V 0402

C353
10UF 10V 0805 Y5V

Vout=Vref (1.25V) X ( 1+R2/R1 )=1.2V

+3.3V_DUAL

OIA

Q8
AZ1117H-ADJ SOT-223

VREF=1.2V

R1

R2

R106

100 0402

R107

0 0402

+1.2VSB

USB_PHY

+

CT4
100UF 16V 5X11 2mm

5

PCIE_VDDR_1
PCIE_VDDR_2
PCIE_VDDR_3
PCIE_VDDR_4
PCIE_VDDR_5
PCIE_VDDR_6
PCIE_VDDR_7

AVDD_SATA_1
AVDD_SATA_4
AVDD_SATA_2
AVDD_SATA_3
AVDD_SATA_5
AVDD_SATA_6
AVDD_SATA_7

AVDDTX_0
AVDDTX_1
AVDDTX_2
AVDDTX_3
AVDDTX_4
AVDDTX_5
AVDDRX_0
AVDDRX_1
AVDDRX_2
AVDDRX_3
AVDDRX_4
AVDDRX_5

SB750

POWER

A-LINK I/O

3.3V_S5 I/OCORE S5

SATA I/O

USB_PHY_1.2V_1
USB_PHY_1.2V_2

PLL CLKGEN I/O

USB I/O

S5_3.3V_1
S5_3.3V_2
S5_3.3V_3
S5_3.3V_4
S5_3.3V_5
S5_3.3V_6
S5_3.3V_7

S5_1.2V_1
S5_1.2V_2

V5_VREF
AVDDCK_3.3V
AVDDCK_1.2V

AVDDC

A17
A24
B17
J4
J5
L1
L2

G2
G4

A10
B10

AE7
J16
K17
E9

+3.3V

+3.3V_AVDDC

+3.3V_DUAL

C344

0.1UF 16V Y5V 0402

+1.2VSB

V5_VREF

AVDDCK_3.3V
AVDDCK_1.2V
+3.3V_AVDDC

R105 1K 0402

+5V

A

Q7
BAV99 SOT23

FB21 BEAD 60 0805 1A

C364
1UF 10V Y5V

3

USB_PHY

C358
1UF 16V 0805 Y5V

V5_VREF

K

+3.3V_DUAL

C365

0.1UF 50V 0805 Y5V

C361
1UF 10V Y5V

KA

+1.2V

+3.3V

+1.2V

C329
10UF 10V 0805 Y5V

C359

0.1UF 16V Y5V 0402 /NI

FB19 BEAD 60 0805 1A

FB20 BEAD 60 0805 1A

C362

0.1UF 16V Y5V 0402 /NI

C330

0.1UF 16V Y5V 0402

AVDDCK_1.2V

C360
1UF 10V Y5V

AVDDCK_3.3V

C363
1UF 10V Y5V

2

U4E

SB700

T10

AVSS_SATA_1

U10

AVSS_SATA_2

U11

AVSS_SATA_3

U12

AVSS_SATA_4

V11

AVSS_SATA_5

V14

AVSS_SATA_6

W9

AVSS_SATA_7

Y9

AVSS_SATA_8

Y11

AVSS_SATA_9

Y14

AVSS_SATA_10

Y17

AVSS_SATA_11

AA9

AVSS_SATA_12

AB9

AVSS_SATA_13

AB11

AVSS_SATA_14

AB13

AVSS_SATA_15

AB15

AVSS_SATA_16

AB17

AVSS_SATA_17

AC8

AVSS_SATA_18

AD8

AVSS_SATA_19

AE8

AVSS_SATA_20

A15

AVSS_USB_1

B15

AVSS_USB_2

C14

AVSS_USB_3

D8

AVSS_USB_4

D9

AVSS_USB_5

D11

AVSS_USB_6

D13

AVSS_USB_7

D14

AVSS_USB_8

D15

AVSS_USB_9

E15

AVSS_USB_10

F12

AVSS_USB_11

F14

AVSS_USB_12

G9

AVSS_USB_13

H9

AVSS_USB_14

H17

AVSS_USB_15

J9

AVSS_USB_16

J11

AVSS_USB_17

J12

AVSS_USB_18

J14

AVSS_USB_19

J15

AVSS_USB_20

K10

AVSS_USB_21

K12

AVSS_USB_22

K14

AVSS_USB_23

K15

AVSS_USB_24

H18

PCIE_CK_VSS_1

J17

PCIE_CK_VSS_2

J22

PCIE_CK_VSS_3

K25

PCIE_CK_VSS_4

M16

PCIE_CK_VSS_5

M17

PCIE_CK_VSS_6

M21

PCIE_CK_VSS_7

P16

PCIE_CK_VSS_8

F9

AVSSC

SB750

Title

Size Document Number Rev

Custom

Date: Sheet of

PCIE_CK_VSS_9
PCIE_CK_VSS_10
PCIE_CK_VSS_11
PCIE_CK_VSS_12
PCIE_CK_VSS_13
PCIE_CK_VSS_14
PCIE_CK_VSS_15
PCIE_CK_VSS_16
PCIE_CK_VSS_17
PCIE_CK_VSS_18
PCIE_CK_VSS_19
PCIE_CK_VSS_20
PCIE_CK_VSS_21

Part 5 of 5

SB750 POWER

A78DG-A2T

GROUND

AVSSCK

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50

A2
A25
B1
D7
F20
G19
H8
K9
K11
K16
L4
L7
L10
L11
L12
L14
L16
M6
M10
M11
M13
M15
N4
N12
N14
P6
P9
P10
P11
P13
P15
R1
R2
R4
R9
R10
R12
R14
T11
T12
T14
U4
U14
V6
Y21
AB1
AB19
AB25
AE1
AE24

P23
R16
R19
T17
U18
U20
V18
V20
V21
W19
W22
W24
W25

L17

24 48Friday, May 29, 2009

1

6.0

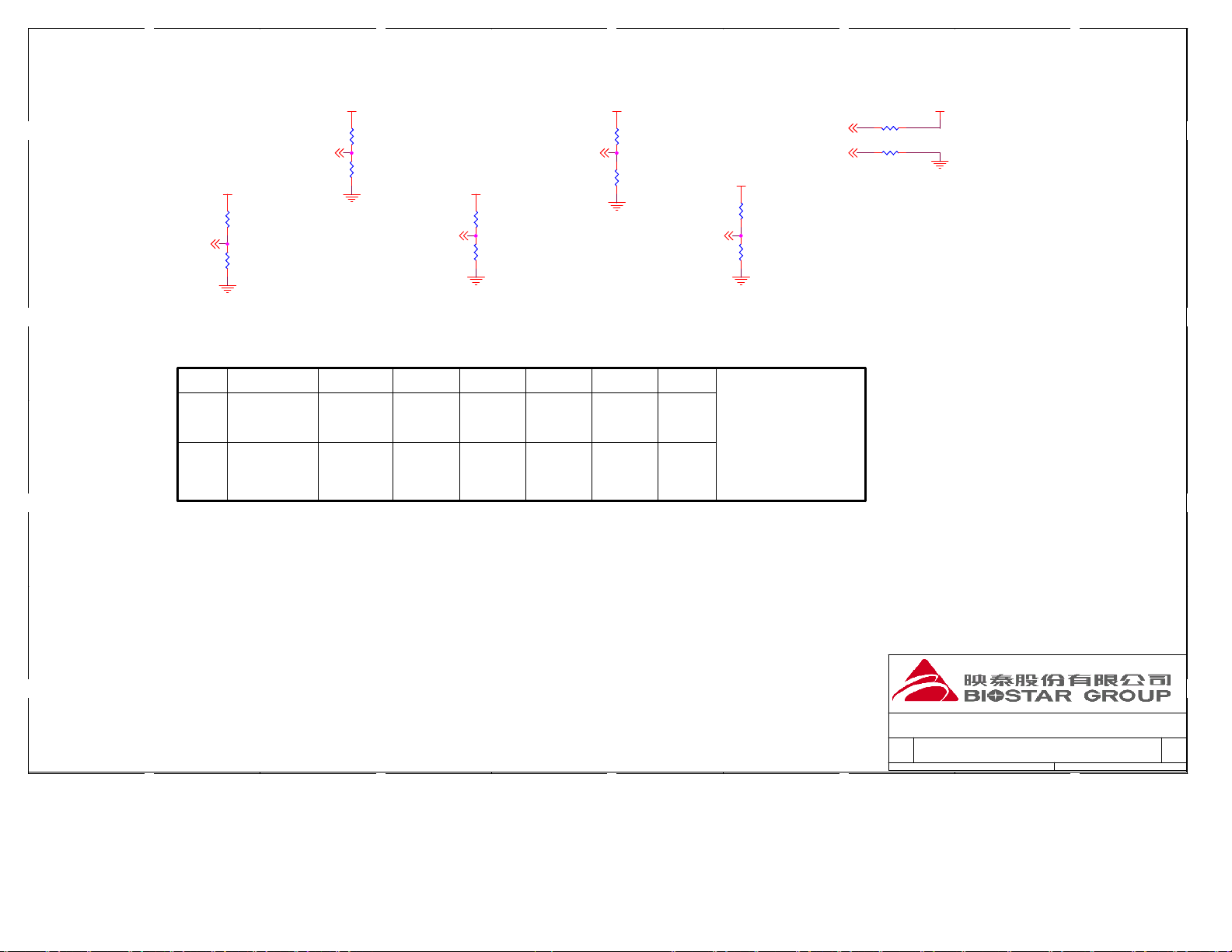

A

5

A

4

3

2

1

+3.3V

D D

PCI_CLK321

R114

2.2K 0402 /NI

PCI_CLK221

R117

2.2K 0402

R109

2.2K 0402 /NI

R112

2.2K 0402

+3.3V_DUAL+3.3V

R115

LPC_CLK021

2.2K 0402 /NI

R118

2.2K 0402

+3.3V_DUAL

R110

2.2K 0402 /NI

LPC_CLK121

INT

R113

2.2K 0402

EXT

+3.3V_DUAL

R116

2.2K 0402 /NI

AC_RST_22,39

R119

2.2K 0402

IMC_GPIO1722

IMC_GPIO1622

R108 2.2K 0402

R111 2.2K 0402

+3.3V_DUAL

C C

REQUIRED STRAPS

PCI_CLK2

PULL
HIGH

PULL
LOW

WATCHDOG TIMER
ON NB_PWRGD
ENABLED

WATCHDOG TIMER
ON NB_PWRGD
DISABLED

DEFAULT

USE
DEBUG
STRAPS

IGNORE
DEBUG
STRAPS

DEFAULT

NOTE: SB700 HAS INTERNAL 15K PULL UP RESISTOR FOR RTC_CLK

PCI_CLK4 AZ_RST#PCI_CLK3

RESERVED

PCI_CLK5

RESERVED

LPC_CLK0

IMC
ENABLED

ADO Extreme

IMC
DISABLED

DEFAULT

CLKGEN
ENABLED

CLKGEN
DISABLED

DEFAULT

IMC
ENABLED

IMC
DISABLED

DEFAULT

IMC_GPIO17

ROM TYPE:
H, L = SPI ROM

IMC_GPIO16LPC_CLK1

DEFAULT

B B

A

Title

Size Document Number Rev

Custom

Date: Sheet of

5

4

3

2

SB750 STRAP

A78DG-A2T

6.0

25 48Friday, May 29, 2009

1

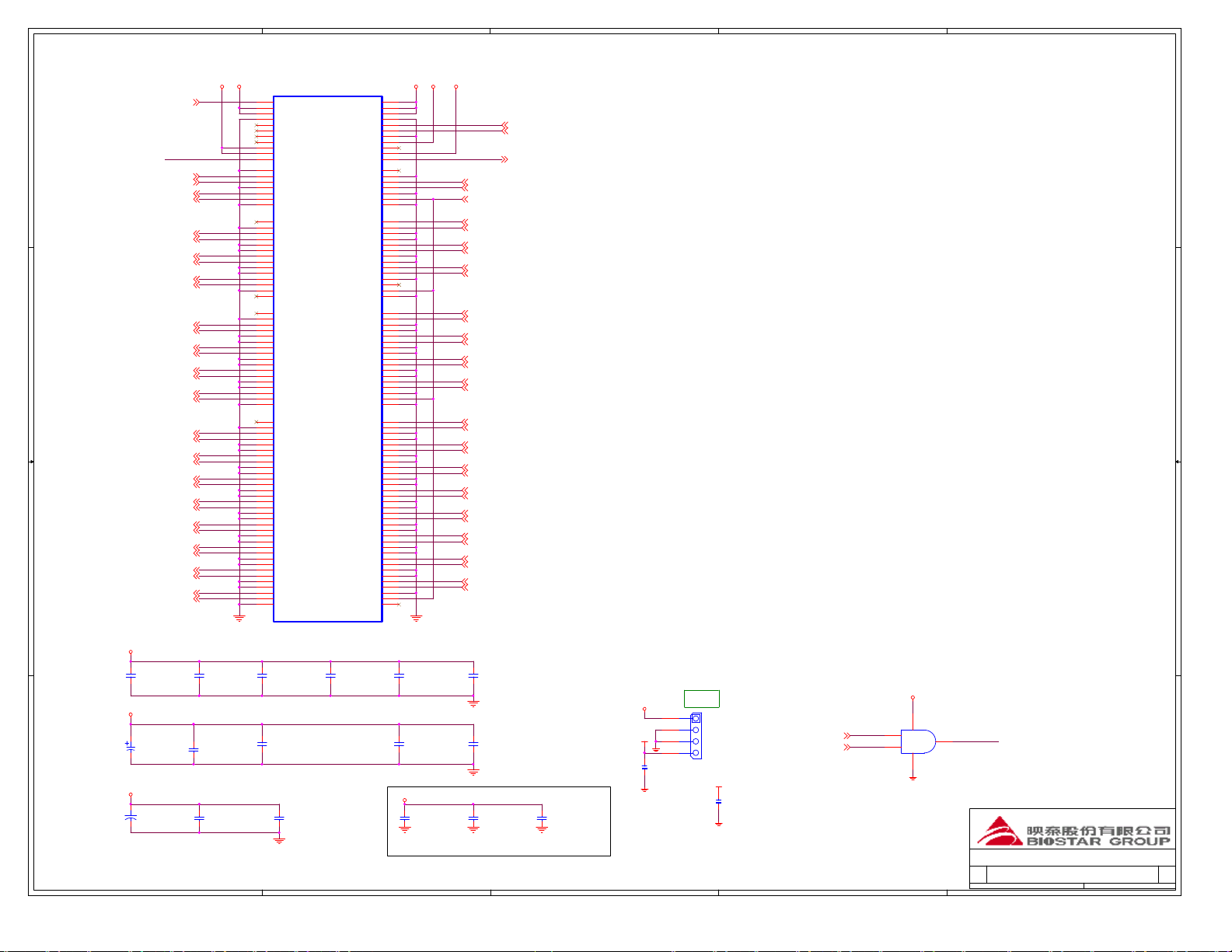

5

+12V +12V+3.3V

PEX16_1

COMM_EN17

D D

PCIEX16_REST

GFX_1CLKP20
GFX_1CLKN20

GFX_RX0P16
GFX_RX0N16

GFX_RX1P16
GFX_RX1N16

GFX_RX2P16
GFX_RX2N16

GFX_RX3P16
GFX_RX3N16

GFX_RX4P16
GFX_RX4N16

GFX_RX5P16

C C

B B

GFX_RX5N16

GFX_RX6P16
GFX_RX6N16

GFX_RX7P16
GFX_RX7N16

GFX_RX8P16
GFX_RX8N16

GFX_RX9P16
GFX_RX9N16

GFX_RX10P16
GFX_RX10N16

GFX_RX11P16
GFX_RX11N16

GFX_RX12P16
GFX_RX12N16

GFX_RX13P16
GFX_RX13N16

GFX_RX14P16
GFX_RX14N16

GFX_RX15P16
GFX_RX15N16

A1

PRSNT1#

A2

+12V#A2

A3

+12V#A3

A4

GND#A4

A5

TCK

A6

TDI

A7

TDO

A8

TMS

A9

+3.3V#A9

A10

+3.3V#A10

A11

PERST#

A12

GND#A12

A13

REFCLK+

A14

REFCLK-

A15

GND#A15

A16

PERp0

A17

PERn0

A18

GND#A18

A19

RSVD#A19

A20

GND#A20

A21

PERp1

A22

PERn1

A23

GND#A23

A24

GND#A24

A25

PERp2

A26

PERn2

A27

GND#A27

A28

GND#A28

A29

PERp3

A30

PERn3

A31

GND#A31

A32

RSVD#A32

A33

RSVD#A33

A34

GND#A34

A35

PERp4

A36

PERn4

A37

GND#A37

A38

GND#A38

A39

PERp5

A40

PERn5

A41

GND#A41

A42

GND#A42

A43

PERp6

A44

PERn6

A45

GND#A45

A46

GND#A46

A47

PERp7

A48

PERn7

A49

GND#A49

A50

RSVD#A50

A51

GND#A51

A52

PERp8

A53

PERn8

A54

GND#A54

A55

GND#A55

A56

PERp9

A57

PERn9

A58

GND#A58

A59

GND#A59

A60

PERp10

A61

PERn10

A62

GND#A62

A63

GND#A63

A64

PERp11

A65

PERn11

A66

GND#A66

A67

GND#A67

A68

PERp12

A69

PERn12

A70

GND#A70

A71

GND#A71

A72

PERp13

A73

PERn13

A74

GND#A74

A75

GND#A75

A76

PERp14

A77

PERn14

A78

GND#A78

A79

GND#A79

A80

PERp15

A81

PERn15

A82

GND#A82

Mechanical Key

End of the x1 Connector

End of the x4 Connector

End of the x8 Connector

+12V#B1
+12V#B2

RSVD#B3

GND#B4

SMCLK
SMDAT

GND#B7

+3.3V#B8

TRST#

3.3Vaux

WAKE#

RSVD#B12

GND#B13

PETp0
PETn0

GND#B16

PRSNT2#B17

GND#B18

PETp1

PETn1
GND#B21
GND#B22

PETp2

PETn2
GND#B25
GND#B26

PETp3

PETn3
GND#B29

RSVD#B30

PRSNT2#B31

GND#B32

PETp4

PETn4
GND#B35
GND#B36

PETp5

PETn5
GND#B39
GND#B40

PETp6

PETn6
GND#B43
GND#B44

PETp7

PETn7
GND#B47

PRSNT2#B48

GND#B49

PETp8

PETn8
GND#B52
GND#B53

PETp9

PETn9
GND#B56
GND#B57

PETp10

PETn10
GND#B60
GND#B61

PETp11

PETn11
GND#B64
GND#B65

PETp12

PETn12
GND#B68
GND#B69

PETp13

PETn13
GND#B72
GND#B73

PETp14

PETn14
GND#B76
GND#B77

PETp15

PETn15
GND#B80

PRSNT2#B81

RSVD#B82

4

+3.3V_DUAL

+3.3V

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32

B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82

SCLK1
SDATA1

PCIE_WAKE

GFX_TX0P16
GFX_TX0N16

GFX_PRSNT#22

GFX_TX1P16
GFX_TX1N16

GFX_TX2P16
GFX_TX2N16

GFX_TX3P16
GFX_TX3N16

GFX_TX4P16
GFX_TX4N16

GFX_TX5P16
GFX_TX5N16

GFX_TX6P16
GFX_TX6N16

GFX_TX7P16
GFX_TX7N16

GFX_TX8P16
GFX_TX8N16

GFX_TX9P16
GFX_TX9N16

GFX_TX10P16
GFX_TX10N16

GFX_TX11P16
GFX_TX11N16

GFX_TX12P16
GFX_TX12N16

GFX_TX13P16
GFX_TX13N16

GFX_TX14P16
GFX_TX14N16

GFX_TX15P16
GFX_TX15N16

SCLK122,29,30
SDATA122,29,30

PCIE_WAKE22,29,47

3

2

1

PCIEX16-164 PIN-Y

+12V

CT5
470UF 16V 8X11.5

C369
470UF 16V 8X11.5

C366

0.1UF 16V Y5V 0402 /NI

+3.3V

C376
1000UF 6.3V 8X12

A A

+3.3V_DUAL

+

CT6
100UF 16V 5X11 2mm

5

C377

0.1UF 16V Y5V 0402 /NI

C372

0.1UF 16V Y5V 0402 /NI

C378

0.1UF 16V Y5V 0402

C367

0.1UF 16V Y5V 0402 /NI

C368

0.1UF 16V Y5V 0402 /NI

4

C370

0.1UF 16V Y5V 0402 /NI

C373

0.1UF 16V Y5V 0402 /NI

+5V

C379

0.1UF 16V Y5V 0402 /NI

C371

0.1UF 16V Y5V 0402

C374

0.1UF 16V Y5V 0402 /NI

C397

0.1UF 16V Y5V 0402 /NI

EMI

C398

0.1UF 16V Y5V 0402 /NI

U13A
74AHC08D

1
2

+3.3V

147

PCIEX16_REST

3

Title

Size Document Number Rev

C

Date: Sheet of

PCI-E SLOT

A78DG-A2T

1

26 48Friday, May 29, 2009

6.0

C375
1UF 10V Y5V

FOR EMI

AUXPWR1

POWER-4P

1
2

90
ATXPWR

3

COMMON

4

GFX16_PCIERST#22

A_RST#17,21,29,34

+5V

C403
1UF 10V Y5V /NI

FOR EMI

2

+12V

+5V

3

5

A

4

3

D D

PLACE L2,L4,L6
90 DEGREE FROM
EACH OTHER

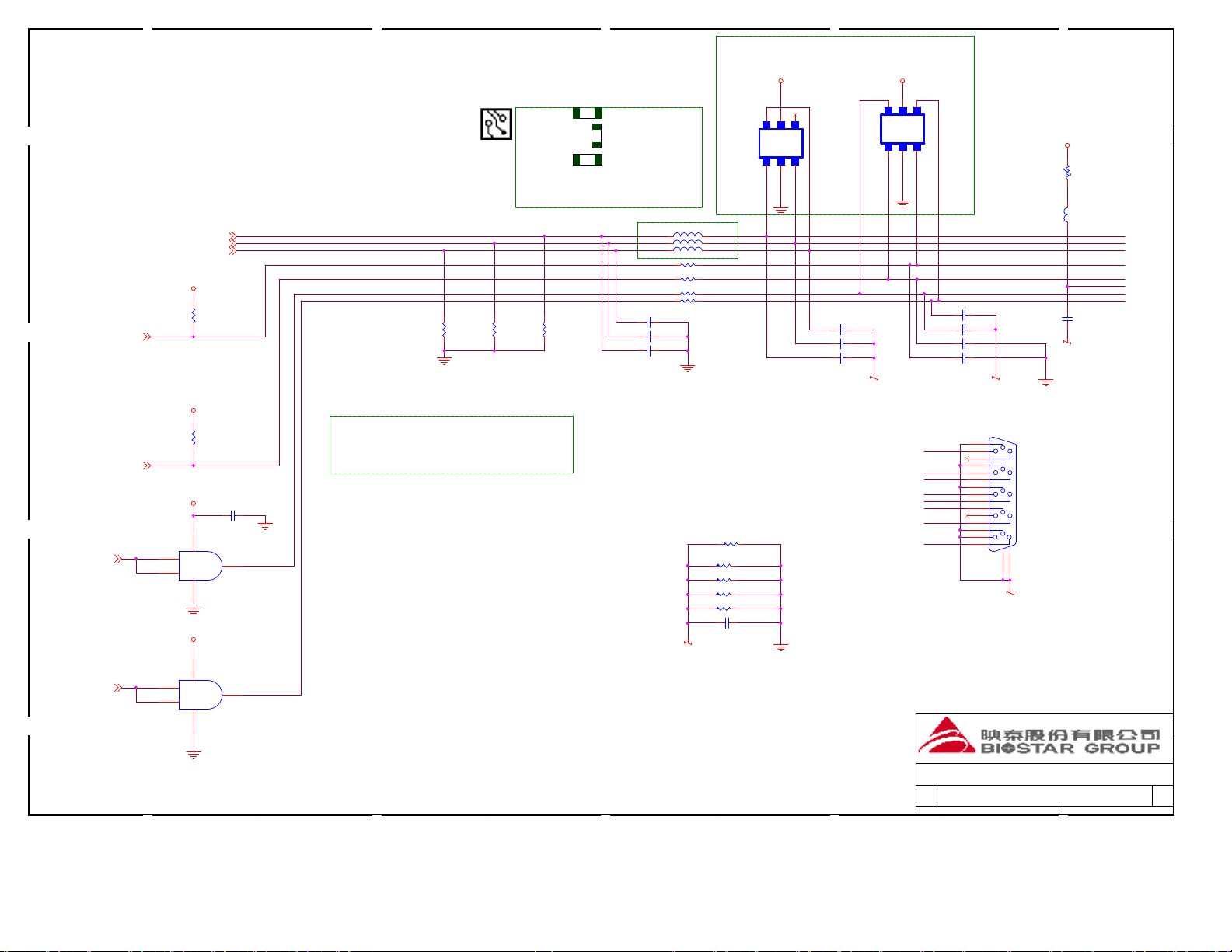

DAC_RED17
DAC_GREEN17
DAC_BLUE17

+5V

R125

6.8K 0402

C C

DAC_SDA17

R127
150 1% 0402

150 1% 0402

R128
140 1% 0402

L4 INDUCTOR 68NH 300MA 0805
L5 INDUCTOR 68NH 300MA 0805
L6 INDUCTOR 68NH 300MA 0805

R121 33 0402
R122 33 0402
R123 27 0402

R124 27 0402

C382
C387
C391

PLACE ESD PROTECTION DIODES
DIRECTLY ON SIGNAL TRACES

02/20 BAV99 change to CM1293

+3.3V

4

6

5

+

A2

A1

CM1293

-

B1B2

2

3

1

5P 50V NPO 0402
5P 50V NPO 0402
5P 50V NPO 0402

2

+5V

4

6

5

Q12

+

A2

Q9

CM1293 SOT23-6

C384 22P 50V NPO 0402
C388 22P 50V NPO 0402 C389 100P 50V NPO 0402 /NI
C392 22P 50V NPO 0402

A1

-

B1B2

2

1

CM1293 SOT23-6

CM1293

3

VGA_SCLK

C380 100P 50V NPO 0402 /NI
C385 100P 50V NPO 0402 /NI

C393 100P 50V NPO 0402 /NI

R_FILTER
G_FILTER
B_FILTER

VGA_SDATA

VGA_HSYNC
VGA_VSYNC

1

+5V

12

IO_GND

FS1

POLY FUSE 1.1A

R120
BEAD 60 0805 1A

VGA PWR

C383

0.1UF 16V Y5V 0402R126

+5V

R96-R98 EITHER CLOSE TO NB OR

R130

6.8K 0402

DAC_SCL17

+5V

C395

0.1UF 16V Y5V 0402

B B

HSYNC#17

VSYNC#17

SN74ACT08

1
2

U6B
SN74ACT08

4
5

147

3

+5V

147

6

5

CRT CONNECTOR, THE TRACE IMPEDANCE
BETWEEN TWO 150R RESISTORS SHOULD BE
50R+/-15%, THE TRACE IMPEDANCE BETWEEN
150R RESISTOR AND CONNECTOR SHOULD BE
75R+/-15%

4

03/02 ADD

R784 0 0805 /NIU6A

R133 0
R129 0
R131 0
R132 0
C394

0.1UF 16V Y5V 0402 /NI

IO_GND

3

2

02/13 э

R_FILTER

G_FILTER
VGA_SDATA

B_FILTER
VGA_HSYNC
VGA PWR

VGA_VSYNC

VGA_SCLK

VGA CONN PC99 SHORT

Title

Size Document Number Rev

Custom

Date: Sheet of

IO_GNDIO_GND

㎝

VALUE

JVG1A

6

6

1

1

11

11

7

7

2

2

12

12

8

8

3

3

13

13

9

9

4

4

14

14

10

10

5

5

15

15

G1

G2

G1

G2

IO_GND

DVI & CRT

A78DG-A2T

VGA CONNECTOR

6.0

27 48Friday, May 29, 2009

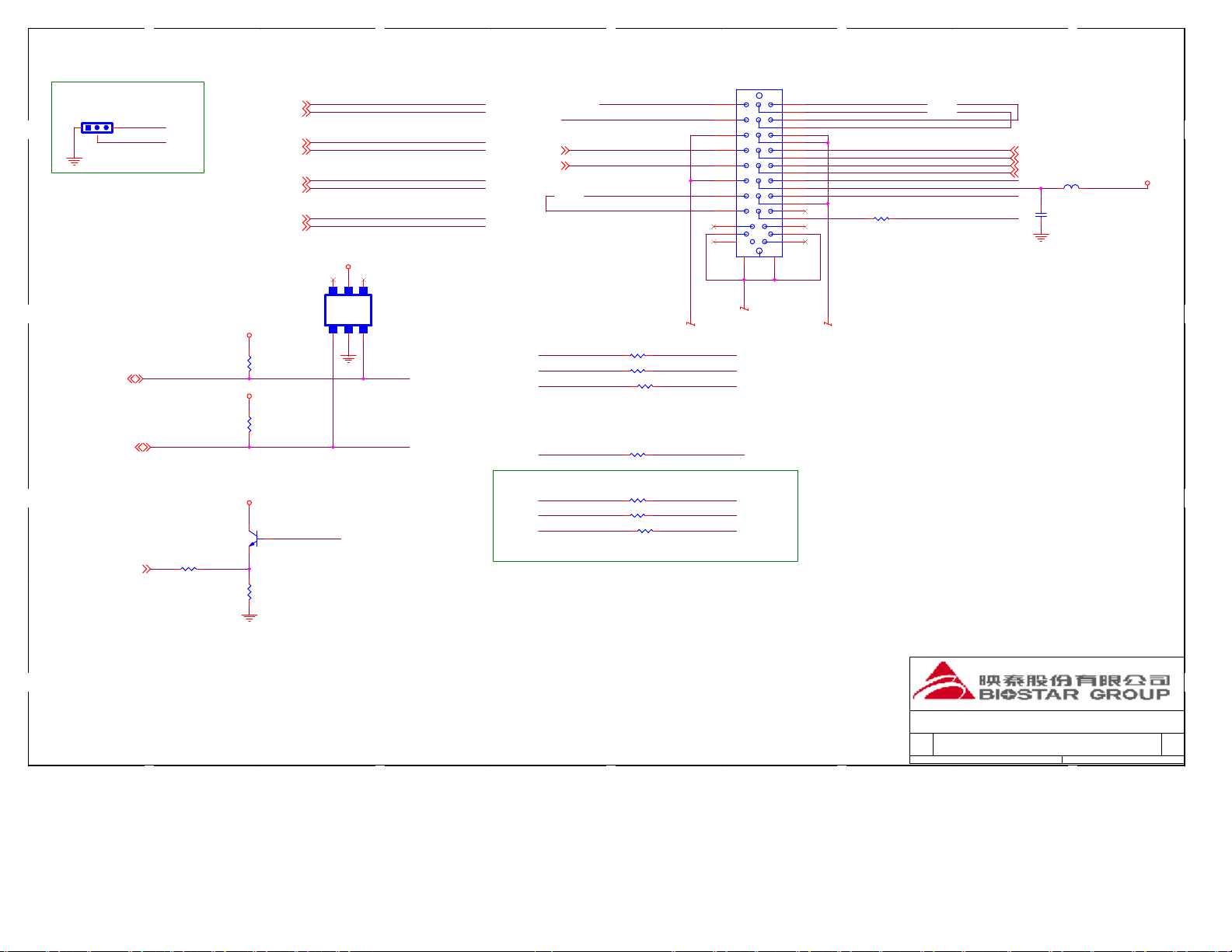

1

A

5

A

SHARE COMMON PADS
AVIOD STUB

Impedance Testing Coupon
5/5/5 95ohm

JP3 HEADER 1X3 D 150 /NI

TMDS_CLKN_DVI_D

1

D D

3

TMDS_CLKP_DVI_D

2

4/7

C C

I2C_CLK17

I2C_DATA17

TMDS_00N17

TMDS_00P17

TMDS_01N17

TMDS_01P17

TMDS_02N17

TMDS_02P17

TMDS_CLKN17
TMDS_CLKP17

02/20 BAV99 change to CM1293

+5V

R138

6.8K 0402

R141

6.8K 0402

DDC_CLK_CON

DDC_DATA_CON

+5V

+5V

6

5

+

A1

-

B1B2

2

1

4

4

SD1

A2

CM1293 SOT23-6

CM1293

3

TMDS_00N_DVI
TMDS_00P_DVI

TMDS_01N_DVI
TMDS_01P_DVI

TMDS_02N_DVI
TMDS_02P_DVI

TMDS_CLKN_DVI
TMDS_CLKP_DVI

3

2

02/13 э

JDVI1

TMDS_00N_DVI
TMDS_00P_DVI

TMDS_12N17
TMDS_12P17 TMDS_11P17

TMDS_CLKP_DVI
TMDS_CLKN_DVI

IO_GND IO_GND

TMDS_00N_DVI TMDS_00P_DVI
TMDS_01N_DVI TMDS_01P_DVI
TMDS_02N_DVI TMDS_02P_DVI

R272 110 1% 0402 /NI
R274 110 1% 0402 /NI
R273 110 1% 0402 /NI

C5A

17
18
19
20
21
22
23

24
C3
C4

IO_GND

1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
C1
C5
C2

DVI-I

25

26

4/7

TMDS_02N_DVI
TMDS_01N_DVI
TMDS_02P_DVI
TMDS_01P_DVI

R137 200K 0402

04/08 EMI04/08 EMI

DDC_CLK_CON
+5V_CON
DDC_DATA_CON

TMDS_HPD_CON

TMDS_11N17
TMDS_10N17

TMDS_10P17

FB22 BEAD 60 0805 1A

C396

0.1UF 16V Y5V 0402

HDMI

02/13 HDMI/NI

TMDS_CLKN_DVI TMDS_CLKP_DVI

R279 110 1% 0402 /NI

1

+5V

TMDS

B B

TMDS_HPD217

R146 33 0402

5

+3.3V

Q14
2N3904 SOT23

R147
10K 0402

TMDS_HPD_CON

4

TMDS_12N TMDS_12P
TMDS_11N TMDS_11P
TMDS_10N TMDS_10P

R307 110 1% 0402 /NI
R308 110 1% 0402 /NI
R309 110 1% 0402 /NI

3

Title

Size Document Number Rev

B

Date: Sheet of

2

DVI/HDMI

A78DG-A2T

1

28 48Friday, May 29, 2009

A

6.0

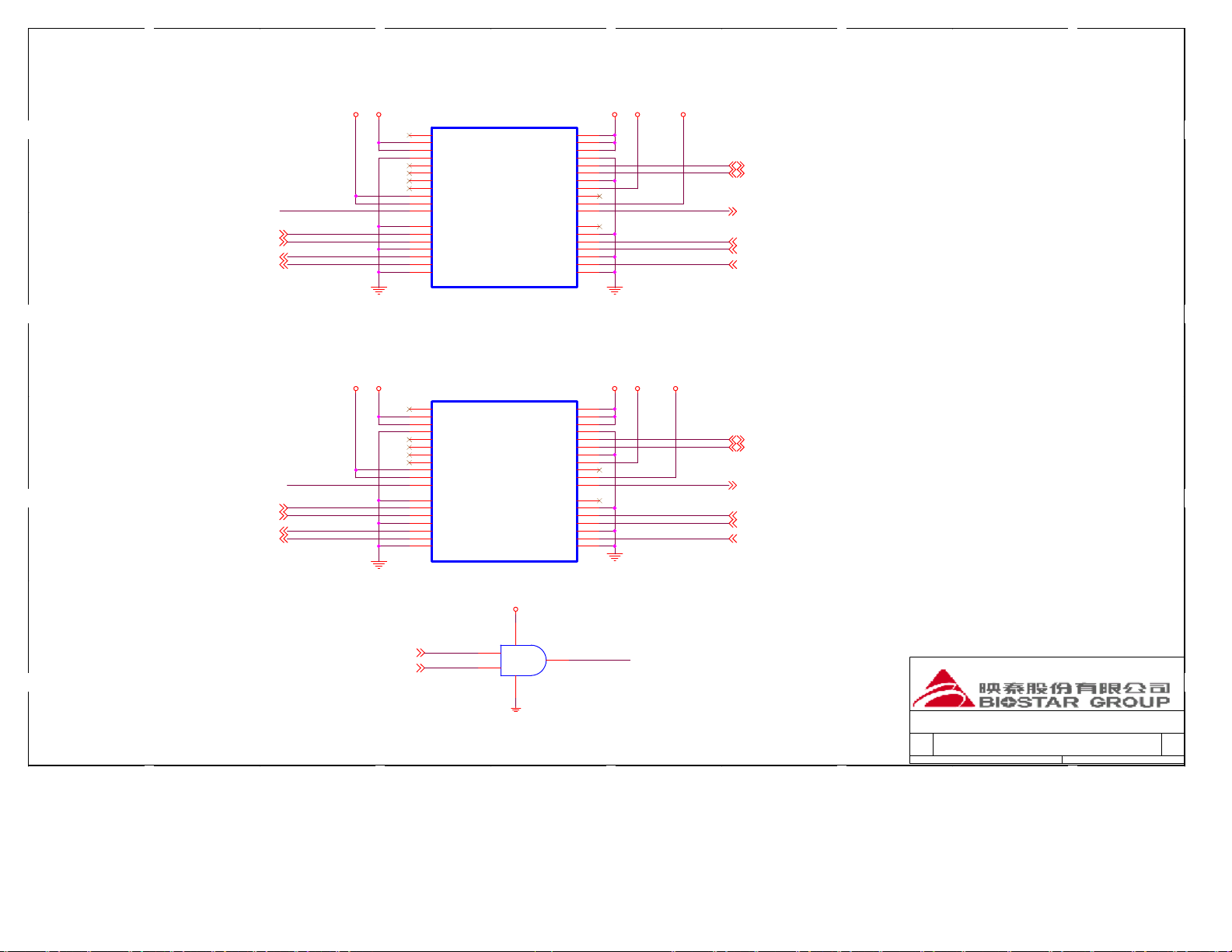

5

A

4

3

2

1

+3.3V

+3.3V_DUAL

SCLK122,26,30
SDATA122,26,30

PCIE_WAKE22,26,47

GPP_TX0P16
GPP_TX0N16

GPP_PRSNT#22

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

+12V

+3.3V

+12V

D D

PCIE_RST#

GPP_CLK0P20
GPP_CLK0N20

GPP_RX0P16
GPP_RX0N16

A10
A11

A12
A13
A14
A15
A16
A17
A18

A1
A2
A3
A4
A5
A6
A7
A8
A9

PEX1_1

PRSNT1#
+12V#A2
+12V#A3
GND#A4
TCK
TDI
TDO
TMS
+3.3V#A9
+3.3V#A10
PERST#

GND#A12
REFCLK+
REFCLK­GND#A15
PERp0
PERn0
GND#A18

3GPIOX1-T

Mechanical Key

+12V#B1
+12V#B2

RSVD#B3

GND#B4

SMCLK
SMDAT

GND#B7

+3.3V#B8

TRST#

3.3Vaux
WAKE#

RSVD#B12

GND#B13

PETp0
PETn0

GND#B16

PRSNT2#B17

GND#B18

C C

+3.3V_DUAL

+12V+3.3V +12V

PCIE_RST#

B B

GPP_CLK1P20
GPP_CLK1N20

GPP_RX1P16
GPP_RX1N16

A10
A11

A12
A13
A14
A15
A16
A17
A18

A1
A2
A3
A4
A5
A6
A7
A8
A9

PEX1_2

PRSNT1#
+12V#A2
+12V#A3
GND#A4
TCK
TDI
TDO
TMS
+3.3V#A9
+3.3V#A10
PERST#

GND#A12
REFCLK+
REFCLK­GND#A15
PERp0
PERn0
GND#A18

3GPIOX1-T

Mechanical Key

+12V#B1
+12V#B2

RSVD#B3

GND#B4

SMCLK
SMDAT

GND#B7

+3.3V#B8

TRST#

3.3Vaux
WAKE#

RSVD#B12

GND#B13

PETp0
PETn0

GND#B16

PRSNT2#B17

GND#B18

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11

B12
B13
B14
B15
B16
B17
B18

+3.3V

SCLK122,26,30
SDATA122,26,30

PCIE_WAKE22,26,47

GPP_TX1P16
GPP_TX1N16

GPP_PRSNT#22

+3.3V

U13B

147

74AHC08D

GPP_PCIERST#22

A_RST#17,21,26,34

4
5

PCIE_RST#

6

A

Title

Size Document Number Rev

B

Date: Sheet of

5

4

3

2

PCIE_X1&MDV_SOLT

A78DG-A2T

29 48Friday, May 29, 2009

1

6.0

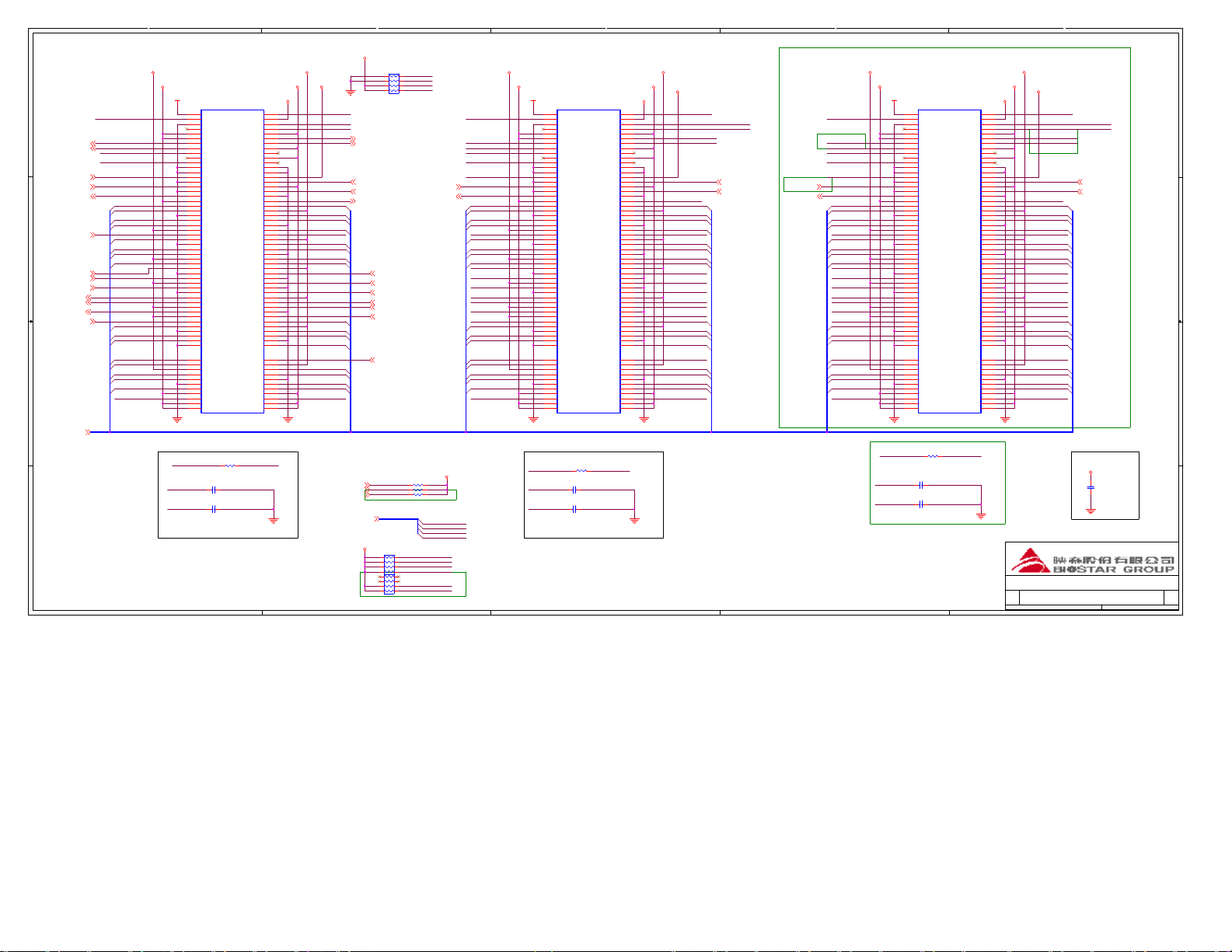

PCI_TCK

5

IDSEL:AD21 , INT:ABCD , REQ0 & GNT0 , PCI_CLK1

+3.3V

+5V +5V

ROMCS_

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

PCI_AD23
PCI_AD21

PCI_AD19
PCI_AD17

PCI_AD14
PCI_AD12

PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
PCI_AD3

PCI_AD1
PU1_A64J

5

PCI_SLOT 1 PCI_SLOT 3PCI_SLOT 2

PCI1

IDSEL_0

PRSNT1#1

PRSNT1#2

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

PCI SLOT 120PIN U-T

-12V
TCK
GND#B3
TDO
+5V#B5
+5V#B6
INTB#
INTD#
PRSNT1#
RESERVED#B10
PRSNT2#
GND#B12
GND#B13
RESERVED#B14
GND#B15
CLK
GND#B17
REQ#
+5Vi/o#B19
AD31
AD29
GND#B22
AD27
AD25
+3.3V#B25
C/BE#3
AD23
GND#B28
AD21
AD19
+3.3V#B31
AD17
C/BE#2
GND#B34
IRDY#
+3.3V#B36
DEVSEL#
GND#B38
LOCK#
PERR#
+3.3V#B41
SERR#
+3.3V#B43
C/BE#1
AD14
GND#B46
AD12
AD10
GND#B49

AD8
AD7
+3.3V#B54
AD5
AD3
GND#B57
AD1
+5Vi/o#B59
ACK64#
+5V#B61
+5V#B62

R161 100 0402

C400

0.1UF 16V Y5V 0402

C402

0.1UF 16V Y5V 0402

TRST#

+5V#A5

INTA#
INTC#

+5V#A8

RESERVED#A9

+5Vi/o#A10

RESERVED#A11

GND#A12
GND#A13

3.3Vaux

RESET#

+5Vi/o#A16

GND#A18

+3.3V#A21

GND#A24

IDSEL

+3.3V#A27

GND#A30

+3.3V#A33

FRAME#

GND#A35

TRDY#

GND#A37

STOP#

+3.3V#A39

RESERVED#A40

RESERVED

GND#A42

+3.3V#A45

GND#A48

C/BE#0

+5Vi/o

REQ64#

+5V#A61

+12V

TMS

TDI

GNT#
PME#

AD30
AD28

AD26
AD24

AD22
AD20

AD18
AD16

PAR

AD15
AD13

AD11

AD9

+3.3V

AD6
AD4

GND

AD2
AD0

+5V

PCI_AD21

+3.3V

+3.3V_DUAL

+5V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

PCI_TRST# PCI_TRST#
PCI_TMS

PCI_TDI

PCI_AD30
PCI_AD28

PCI_AD26
PCI_AD24

IDSEL_0
PCI_AD22

PCI_AD20

PCI_AD18
PCI_AD16

PCI_AD15
PCI_AD13

PCI_AD11
PCI_AD9

PCI_AD6
PCI_AD4

PCI_AD2
PCI_AD0

2/13 => эPCI X 3(PCI_CLK1.4 .5)

SB750 INTE# =>PCI_INTA
SB750 INTF# =>PCI_INTB
SB750 INTG# =>PCI_INTC
SB750 INTH# =>PCI_INTD

D D

PCI_INTB#21
PCI_INTD#21

PRSNT1#1
PRSNT1#2

ROMCS#22

PCI_CLK121

PCI_REQ#021 PCI_REQ#221

PCI_CBE#321

C C

PCI_CBE#221
PCI_IRDY#21

PCI_DEVSEL#21

PCI_LOCK#21
PCI_PERR#21

PCI_SERR#21
PCI_CBE#121

B B

PCI_AD[31..0]21

A A

PCI_REQ#121
PCI_REQ#021
PCI_REQ#221

PCI_CBE#[3..0]21

4

+5V

PCI_INTA# 21
PCI_INTC# 21

PCI_RST# 21
PCI_GNT#021
PCI_PME#22

PCI_FRAME# 21
PCI_TRDY# 21
PCI_STOP#21
SCLK122,26,29

SDATA122,26,29
PCI_PAR 21

PCI_CBE#0 21

PCI PULL UPS

+5V

4

1 2
3 4
5 6
7 8

R162 4.7K 0402
R163 4.7K 0402
R773 4.7K 0402

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

RN23

4.7K 8P4R 0402

PCI_TRST#
PCI_TCK
PCI_TMS
PCI_TDI

RN24

4.7K 8P4R 0402

RN31

4.7K 8P4R 0402

PCI_CLK421

PCI_REQ#121

2/13 =>ADD

PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3

PU2_R64J
PU2_A64J
PU1_R64J
PU1_A64J

PU3_R64J
PU3_A64J

3

+3.3V

+5V +5V

-12V

PCI2

IDSEL_1

PRSNT2#1

PRSNT2#2

B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

PCI SLOT 120PIN U-T

R160 100 0402

PCI_TCK

PCI_INTC#
PCI_INTA#
PRSNT2#1

PRSNT2#2

ROMCS_

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

PCI_CBE#3
PCI_AD23

PCI_AD21
PCI_AD19

PCI_AD17
PCI_CBE#2

PCI_IRDY#
PCI_DEVSEL#
PCI_LOCK#

PCI_PERR#
PCI_SERR# PCI_SERR#
PCI_CBE#1

PCI_AD14
PCI_AD12

PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
PCI_AD3

PCI_AD1
PU2_A64JPU1_R64J

+3.3V

2/13 =>ADD

-12V
TCK
GND#B3
TDO
+5V#B5
+5V#B6
INTB#
INTD#

RESERVED#A9

PRSNT1#
RESERVED#B10

RESERVED#A11

PRSNT2#
GND#B12
GND#B13
RESERVED#B14
GND#B15
CLK
GND#B17
REQ#
+5Vi/o#B19
AD31
AD29
GND#B22
AD27
AD25
+3.3V#B25
C/BE#3
AD23
GND#B28
AD21
AD19
+3.3V#B31
AD17
C/BE#2
GND#B34
IRDY#
+3.3V#B36
DEVSEL#
GND#B38
LOCK#

RESERVED#A40

PERR#
+3.3V#B41
SERR#
+3.3V#B43
C/BE#1
AD14
GND#B46
AD12
AD10
GND#B49

AD8
AD7
+3.3V#B54
AD5
AD3
GND#B57
AD1
+5Vi/o#B59
ACK64#
+5V#B61
+5V#B62

C399 0.1UF 16V Y5V 0402

C401 0.1UF 16V Y5V 0402

TRST#

+5V#A5

+5V#A8

+5Vi/o#A10

GND#A12
GND#A13

3.3Vaux

RESET#

+5Vi/o#A16

GND#A18

+3.3V#A21

GND#A24

+3.3V#A27

GND#A30

+3.3V#A33

FRAME#

GND#A35

TRDY#

GND#A37

STOP#

+3.3V#A39

RESERVED

GND#A42

+3.3V#A45

GND#A48

C/BE#0

REQ64#
+5V#A61

+12V

TMS

TDI

INTA#
INTC#

GNT#
PME#

AD30
AD28

AD26
AD24

IDSEL

AD22
AD20

AD18
AD16

PAR

AD15
AD13

AD11

AD9

+3.3V

AD6
AD4

GND

AD2
AD0

+5Vi/o

+5V

PCI_AD22

3

+3.3V

+3.3V_DUAL

+12V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

PCI_TRST#
PCI_TMS

PCI_TDI
PCI_INTB#

PCI_INTD#

PCI_PME#
PCI_AD30

PCI_AD28
PCI_AD26

PCI_AD24
IDSEL_1

PCI_AD22
PCI_AD20

PCI_AD18
PCI_AD16

PCI_FRAME#
PCI_TRDY#
PCI_STOP#
SCLK1

SDATA1
PCI_PAR

PCI_AD15
PCI_AD13

PCI_AD11
PCI_AD9

PCI_CBE#0
PCI_AD6

PCI_AD4
PCI_AD2

PCI_AD0
PU2_R64J

PCI_RST# 21
PCI_GNT#121

2

2/13 =>ADD

02/18 02/18

PCI_CLK521

IDSEL:AD23 , INT:DABC , REQ2 & GNT2 , PCI_CLK5IDSEL:AD22 , INT:BCDA , REQ1 & GNT1 , PCI_CLK4

02/18 INT:CDBA(105-B277XX-00D.PDF)

+3.3V

+5V

PCI_TCK

PCI_INTD#
PCI_INTB#
PRSNT3#1

PRSNT3#2

ROMCS_

PCI_AD31
PCI_AD29

PCI_AD27
PCI_AD25

PCI_CBE#3
PCI_AD23

PCI_AD21
PCI_AD19

PCI_AD17
PCI_CBE#2

PCI_IRDY#
PCI_DEVSEL#
PCI_LOCK#

PCI_PERR#

PCI_CBE#1
PCI_AD14

PCI_AD12
PCI_AD10

PCI_AD8
PCI_AD7

PCI_AD5
PCI_AD3

PCI_AD1
PU3_A64J

2

IDSEL_2

PRSNT3#1

PRSNT3#2

-12V-12V

PCI3

B1

-12V

B2

TCK

B3

GND#B3

B4

TDO

B5

+5V#B5

B6

+5V#B6

B7

INTB#

B8

INTD#

B9

PRSNT1#

B10

RESERVED#B10

B11

PRSNT2#

B12

GND#B12

B13

GND#B13

B14

RESERVED#B14

B15

GND#B15

B16

CLK

B17

GND#B17

B18

REQ#

B19

+5Vi/o#B19

B20

AD31

B21

AD29

B22

GND#B22

B23

AD27

B24

AD25

B25

+3.3V#B25

B26

C/BE#3

B27

AD23

B28

GND#B28

B29

AD21

B30

AD19

B31

+3.3V#B31

B32

AD17

B33

C/BE#2

B34

GND#B34

B35

IRDY#

B36

+3.3V#B36

B37

DEVSEL#

B38

GND#B38

B39

LOCK#

B40

PERR#

B41

+3.3V#B41

B42

SERR#

B43

+3.3V#B43

B44

C/BE#1

B45

AD14

B46

GND#B46

B47

AD12

B48

AD10

B49

GND#B49

B52

AD8

B53

AD7

B54

+3.3V#B54

B55

AD5

B56

AD3

B57

GND#B57

B58

AD1

B59

+5Vi/o#B59

B60

ACK64#

B61

+5V#B61

B62

+5V#B62

PCI SLOT 120PIN U-T

R772 100 0402

C488

0.1UF 16V Y5V 0402

C489

0.1UF 16V Y5V 0402

RESERVED#A9

RESERVED#A11

RESERVED#A40

TRST#

+5V#A5

+5V#A8

+5Vi/o#A10

GND#A12
GND#A13

3.3Vaux

RESET#

+5Vi/o#A16

GND#A18

+3.3V#A21

GND#A24

+3.3V#A27

GND#A30

+3.3V#A33

FRAME#

GND#A35

TRDY#

GND#A37

STOP#

+3.3V#A39

RESERVED

GND#A42

+3.3V#A45

GND#A48

C/BE#0

REQ64#

+5V#A61

PCI_AD23

INTA#
INTC#

GNT#
PME#

AD30
AD28

AD26
AD24

IDSEL
AD22

AD20
AD18

AD16

AD15
AD13

AD11

+3.3V

+5Vi/o

+12V

GND

TMS

TDI

PAR

AD9

AD6
AD4

AD2
AD0

+5V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

2/13 =>ADD

+12V+12V

Title

Size Document Number Rev
Custom

Date: Sheet of

+3.3V

+3.3V_DUAL

PCI_PME#
PCI_AD30

PCI_AD28
PCI_AD26

PCI_AD24
IDSEL_2

PCI_AD22
PCI_AD20

PCI_AD18
PCI_AD16

PCI_FRAME#
PCI_TRDY#
PCI_STOP#
SCLK1

SDATA1
PCI_PAR

PCI_AD15
PCI_AD13

PCI_AD11
PCI_AD9

PCI_CBE#0
PCI_AD6

PCI_AD4
PCI_AD2

PCI_AD0
PU3_R64J

PCI_TMS
PCI_TDI

PCI_INTC#
PCI_INTA#

1

PCI_RST# 21
PCI_GNT#221

FOR EMI NEAR C409

+5V

EC1

0.1UF 16V Y5V 0402

PCI SLOT

A78DG-A2T

1

6.0

30 48Friday, May 29, 2009

5

4

3

2

1

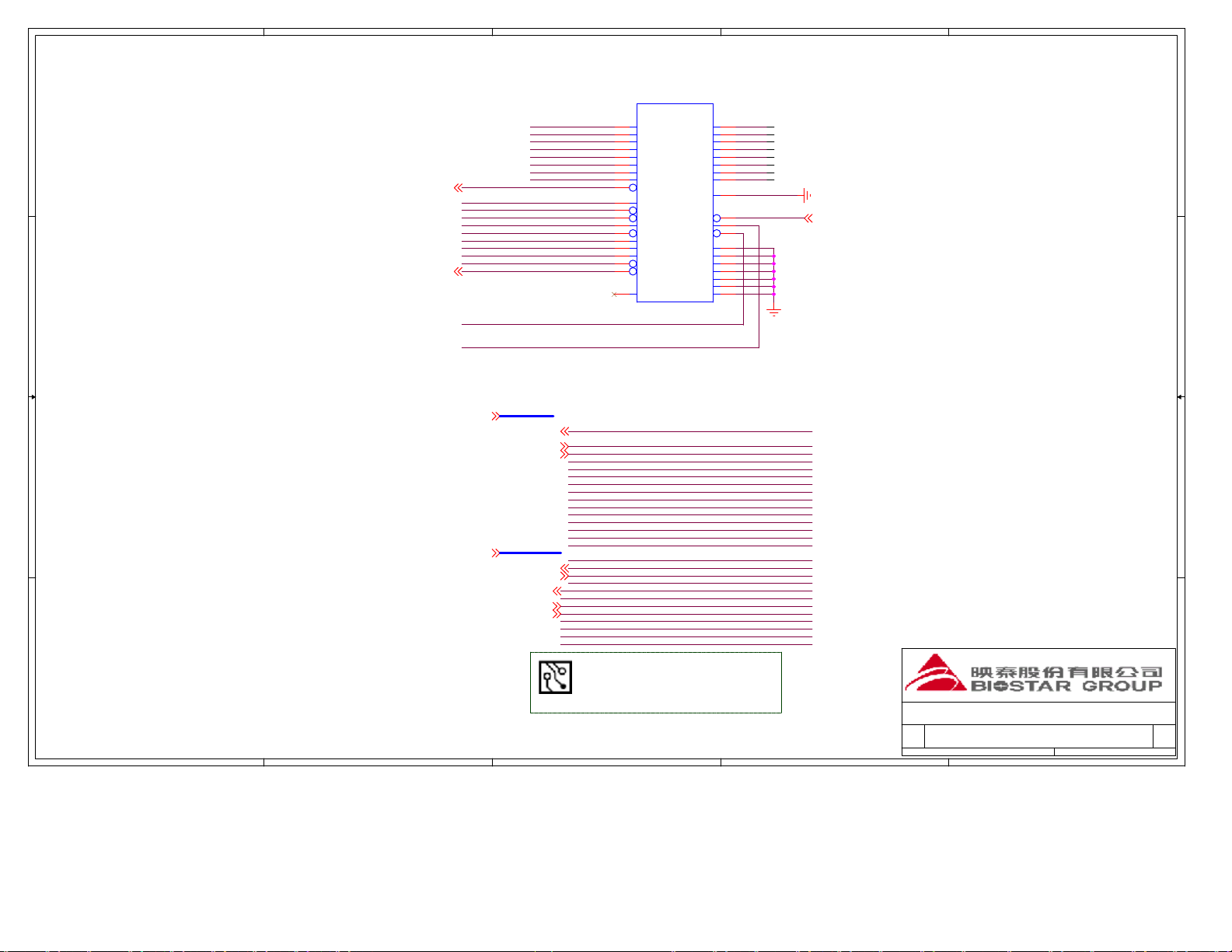

IDE1

D D

IDE_RST#22

IDEACTPJ38

C C

IDE_RST#
PDREQ

PDIOW#
PDIOR#
PDIORDY#
PDACK#
SIRQI_
PDAR1
PDAR0
PDCS1#
P_HDLED*

PDCS3#

PDDR7
PDDR6
PDDR5
PDDR4
PDDR3
PDDR2
PDDR1
PDDR0

3 4

DD7

5 6

DD6

7 8

DD5

9 10

DD4

11 12

DD3

13 14

DD2

15 16

DD1

17 18

DD0

1

RESET*

21

DMARQ

23

DIOW*

25
27

IORDY

29

DMACK*

31

INTRQ

33

DA1

35

DA0

37

CS0*

39

DASP*

32

NC GND

BOX 2X20 N20 T

DD8

DD9
DD10
DD11
DD12
DD13
DD14
DD15

CSEL

PDIAG*DIOR*

DA2
CS1*

GND

GND

GND

GND

GND

GND

PDDR8
PDDR9
PDDR10
PDDR11
PDDR12
PDDR13
PDDR14
PDDR15

PCSEL

28

PDMA66

34
36
38

2
19
22
24
26
30
40

PDMA6622

PDAR2

PDD_R[15..0]23

B B

PDA_R[2..0]23

A A

5

4

PDD_R[15..0]

PDREQ_R23

PDIOW#_R23

PDIOR#_R23

PDA_R[2..0]

PDIORDY#_R23

PDACK#_R23

PDCS1#_R23
PDCS3#_R23

PDD_R6 PDDR6
PDD_R9 PDDR9

PDD_R12 PDDR12
PDD_R3 PDDR3
PDD_R2 PDDR2
PDD_R0 PDDR0

SIRQI23

PDA_R2 PDAR2

PDD_R15 PDDR15

1) MATCH WHOLE IDE LINES (BEFORE AND
AFTER DAMPING RESISTORS) WITHIN 0.5"

2) ALL DAMPING RESISTORS CLOSE TO
IDE CONNECTORS.

3

PDREQ

PDIOW#
PDIOR#
PDDR7PDD_R7
PDDR8PDD_R8

PDDR5PDD_R5
PDDR10PDD_R10

PDDR4PDD_R4
PDDR11PDD_R11

PDAR1PDA_R1
PDIORDY#
PDACK#
PDAR0PDA_R0
SIRQI_

PDCS1#
PDCS3#
PDDR13PDD_R13
PDDR1PDD_R1
PDDR14PDD_R14

Title

Size Document Number Rev

B

2

Date: Sheet of

IDE ATA 133

A78DG-A2T

31 48Friday, May 29, 2009

6.0

1

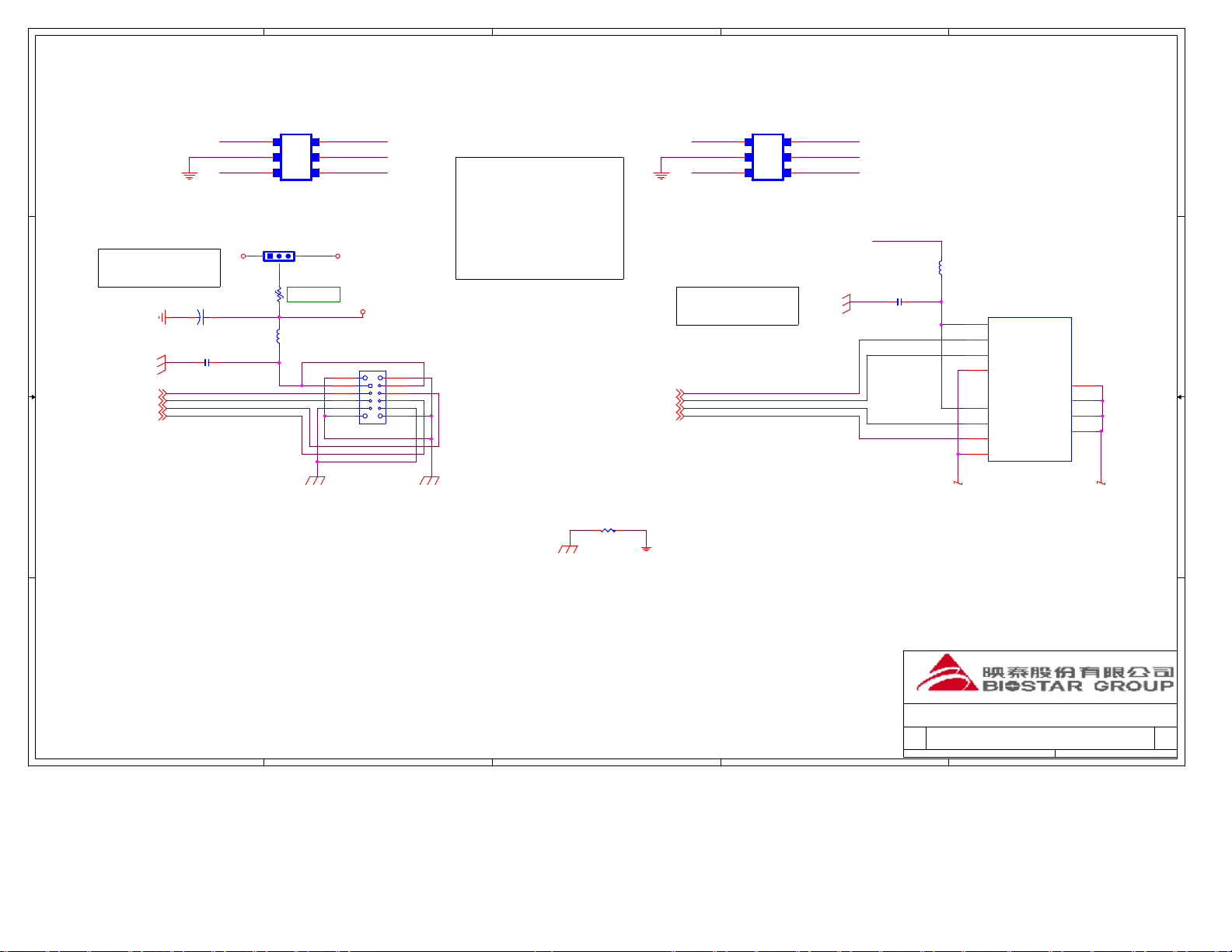

5

4

3

2

1

D D

BACK PANEL USB

C C

USBP222

USBN322

B B

+

CT7 1000UF 6.3V 8X12

0.1UF 16V Y5V 0402C467 USB1

USBN2
USBP2
USBN3
USBP3

SQ1

USBP2

1
2

USBN2

3

CM1293 SOT23-6

JUSBV1

+5V +5V_DUAL

HEADER 1X3

1

2

PS1
POLY FUSE 1.1A

FB25
BEAD 60 0805 1A

B1B2

­CM1293

3

USB_PWR

USBN3

6

A1

USB_PWR

5

+

USBP3

4

A2

02/23

USB_PWR

G3 G1

1
2
3
4

G4 G2

USB CONN

USBN1

USBP1

BACK PANEL USB

PLACE NEAR CONN

5
6
7
8

FOR EMI

R169

0 0805

USBN022USBN222
USBP022
USBN122
USBP122USBP322

USBN0
USBP0
USBN1
USBP1

SQ2

1

B1B2

2

-

3

CM1293 SOT23-6

A1

+

CM1293

A2

USBN0

6

USB_PWR

5

USBP0

4

USB_PWR

C461

0.1UF 16V Y5V 0402

FB24
BEAD 60 0805 1A

B1
B2
B3
B4

A1
A2
A3
A4

IO_GND

RJ45USB1A

VCC0
DATA0­DATA0+
GND0

VCC1
DATA1­DATA1+
GND1

LANUSB_GBMA

GND2
GND3
GND4
GND5

G3
G4
G5
G6

IO_GND

A A

Title

Size Document Number Rev

B

5

4

3

2

Date: Sheet of

USB CONN

A78DG-A2T

1

32 48Friday, May 29, 2009

6.0

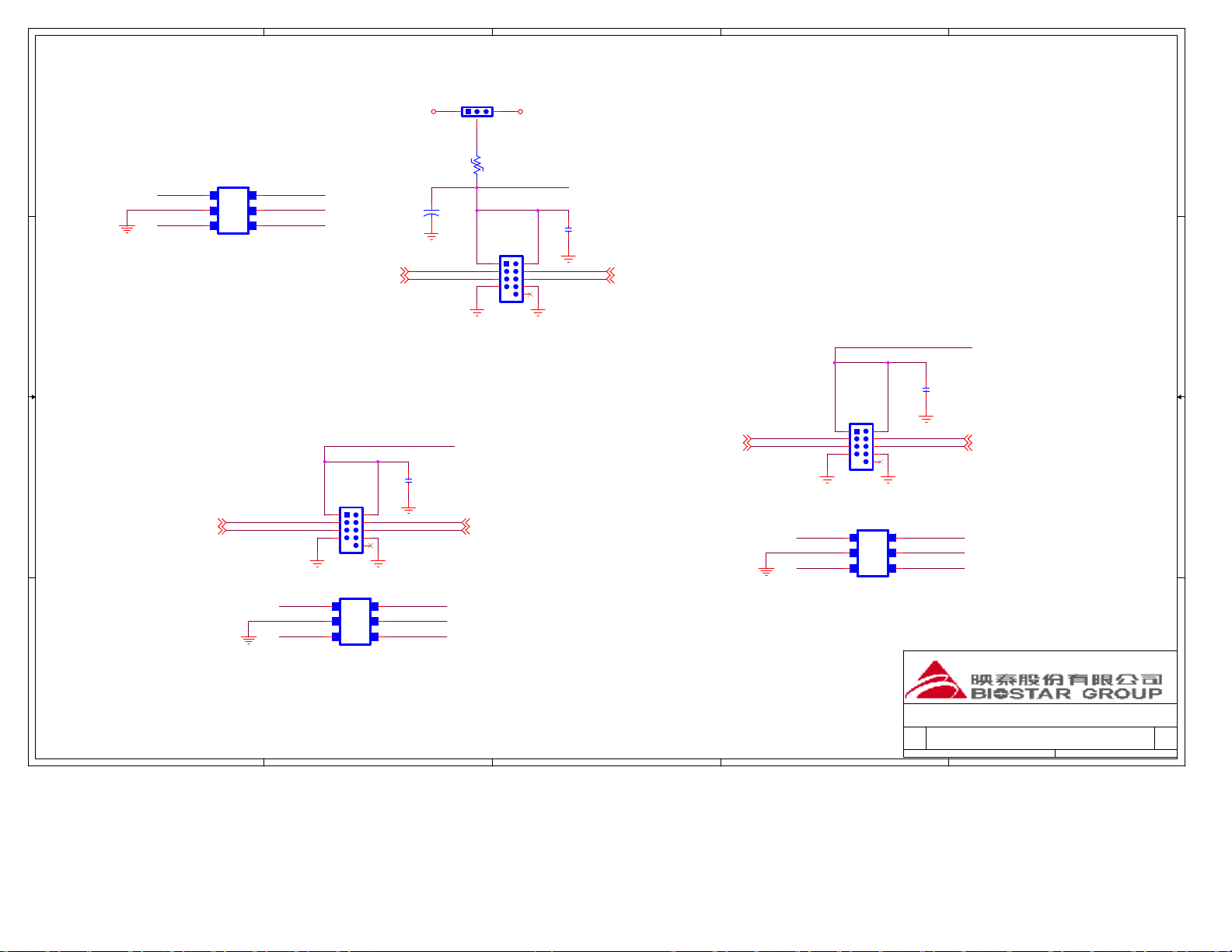

5

D D

SQ4

USBN4

1
2

USBP4

3

CM1293 SOT23-6

C C

B1B2

-

A1

+

CM1293

A2

6
5
4

USBN5
USBPWR
USBP5

4

POLY FUSE 2.0A

CT8

1000UF 6.3V 8X12

USBN422
USBP422

JUSBV2

+5V_DUAL+5V

HEADER 1X3

1

3

2
12

FS2

THERM

USBPWR

F_USB2

USBN4
USBP4

1 2
3 4
5 6
7 8

10

HEADER 2X5 N9 T

2/19 F_USB2㎝F_USB1 Change name(layout)

3

FRONT PANEL USB

C466

0.1UF 16V Y5V 0402

USBN5
USBP5

USBN522
USBP522

2

FRONT PANEL USB

1

USBPWR

C419
1UF 16V 0805 Y5V

FRONT PANEL USB

USBPWR

C420

6
5
4

USBN7
USBPWR
USBP7

1UF 16V 0805 Y5V

USBN7
USBP7

USBN722USBN622
USBP722

B B

USBP622

A A

2/19 F_USB2㎝F_USB1 Change name(layout)

USBN6
USBP6

USBN6

USBP6

F_USB1

1 2
3 4
5 6
7 8

10

HEADER 2X5 N9 T

SQ6

1

B1B2

A1

2

+

­CM1293

3

A2

CM1293 SOT23-6

USBN822
USBP822

USBN8
USBP8

USBN8

USBP8

F_USB3

1 2
3 4
5 6
7 8

10

HEADER 2X5 N9 T

SQ5

1

B1B2

A1

2

+

­CM1293

3

A2

CM1293 SOT23-6

USBN9

6

USBPWR

5

USBP9

4

USBN9
USBP9

USBN922
USBP922

Title

Size Document Number Rev

B

5

4

3

2

Date: Sheet of

FRONT USB

A78DG-A2T

1

33 48Friday, May 29, 2009

6.0

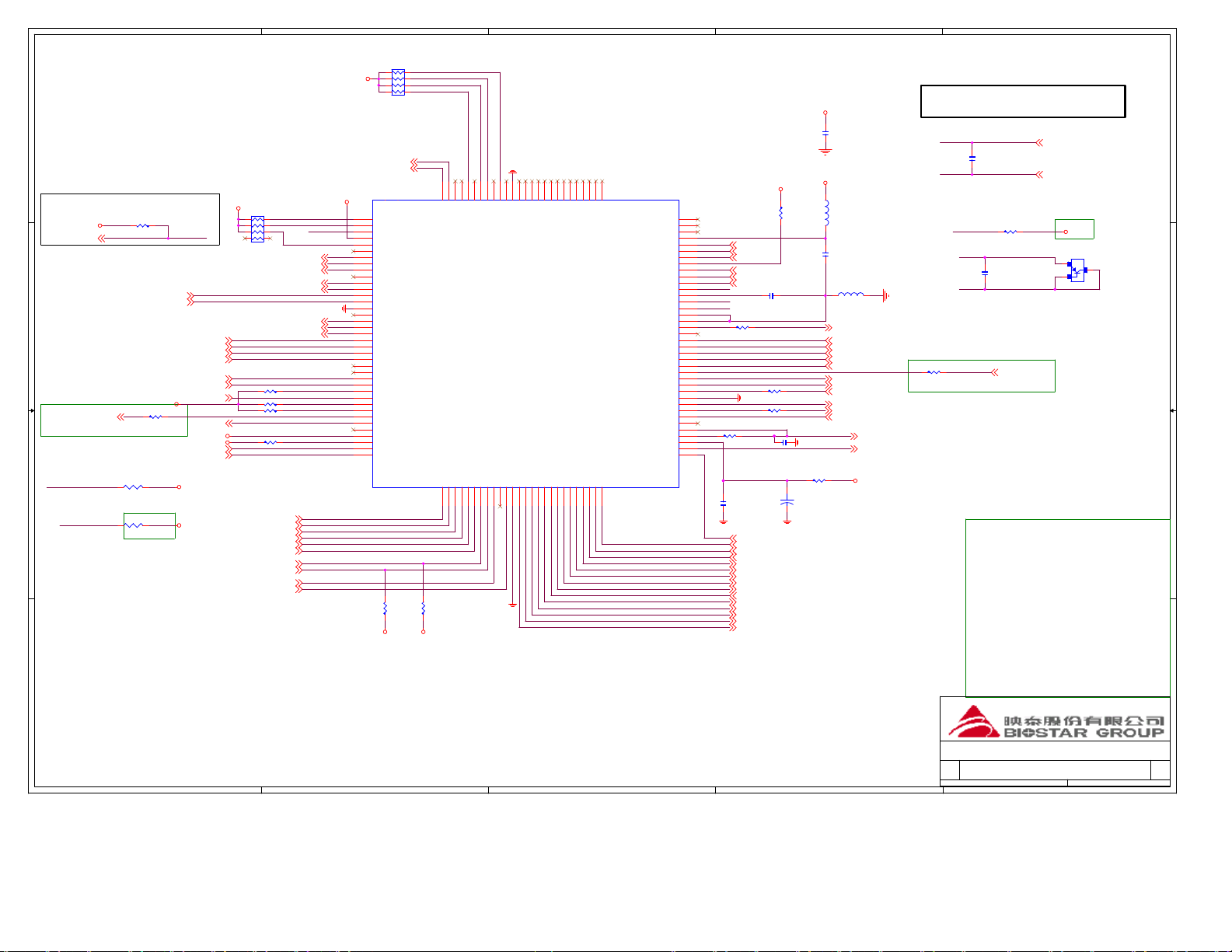

5

4

3

2

1

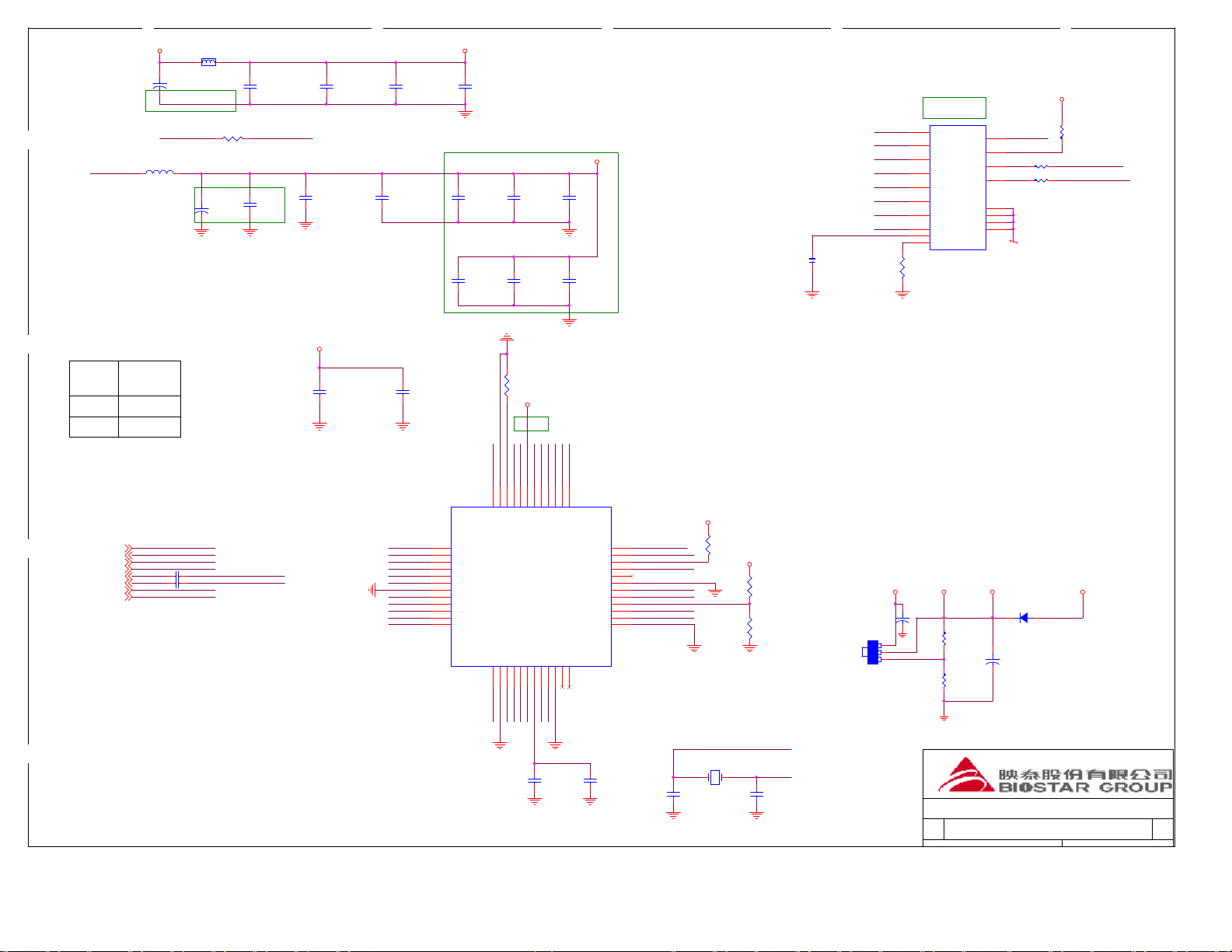

JP1 : SPI INTERFACE (PIN121)
1 : Disabled
0 : Eanbled

JP2 : VID Output Function(PIN122)
1 : Disabled
0 : Eanbled

JP3 : Chipset Select (PIN124)
1 : Chip 1

D D

0 : Chip 0

JP4 : PCIRST#1~4 Output Buffer (PIN1)
1 : Open-Drain
0 : Push-Pull

JP7 : WDT to Reset PWROK (PIN46)
1 : Disabled
0 : Enabled

CONTROL PWM AUTO PHASE GPIO

SR77 4.7K 0402

+5V_DUAL

EXT_SPI#37

C C

02/13

VCPU_NB0 =>NI
VCPU_NB1 =>NI

ATX_PWRGD35,44,45

02/18

TO LU2 RTL8111DL-GR LQFP48

PCIE_RST_OUT2#

B B

ATX_PWRGD

A A

箇痙

R177 1K 0402

R291 1K 0402 /NI

For over-voltage GPIO select
1 , Powered By VCCH
2, DIOD8 ( Open-Drain)
Pin 20~21 FOR CHIPSET CORE VOLTAGE
Pin 22~23 FOR CPU_VTT
Pin 24~25 FOR CPU VCORE
Pin 26, 27 & 70 FOR MEM. VOLTAGE

EXT_SPI#

VSP042
VSP142

VCHIP042

VCHIP142
VTT_FSB0_VHT042
VTT_FSB0_VHT142

VDIMM242
VDIMM142

VDIMM042

+3.3V

SR60 0 0402 /NI

PCIE_RST_OUT2#47

+5V

+3.3V

A_RST#17,21,26,29
LPC_DRQ0#21

+3.3V

+3.3V

+3.3V

SRN24.7K 8P4R 0402

78
56
34
12

PHASE_DETECT4#44
PHASE_DETECT3#44
PHASE_DETECT2#44

SR3 4.7K 0402
SR5 4.7K 0402

SR6 4.7K 0402

SR10 4.7K 0402

LPC_SERIRQ21
LPC_FRAME_21

LPC_AD021
LPC_AD121
LPC_AD221
LPC_AD321

SIO_KBRST_22
A20GATE22

PCI_CLK021
CLK_48M_SIO20

EXT_SPI#

FAN135
FAN_CTL135
FAN235

FAN335
FAN_CTL335

PCIE_RST_OUT2#

LPC_PD#

LPC_SERIRQ
LPC_FRAME_
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

SIO_KBRST_
A20GATE

LPCCLK_SIO
CLK_48M_SIO

1 2
3 4

+5V

5 6
7 8

DEBUG LED238
DEBUG LED138

+5V

1

JP4/DTR2#

2

JP5/RTS2#

3

DSR2#/GP64

4

VCC1

5

SOUT2/JP6

6

SIN2/GP63

7

FAN_TAC1

8

FAN_CTL1

9

FAN_TAC2/GP52

10

FAN_CTL2/GP51

11

FAN_TAC3/GP37

12

FAN_CTL3/GP36

13

VID_IN5/WTI#/GP35

14

VID_IN4/GP34

15

GNDD2

16

VID_IN3/GP33

17

VID_IN2/GP32

18

VID_IN1/GP31

19

VID_IN0/GP30

20

VID_OUT5/GP27/Powered by VCCH

21

VID_OUT4/GP26/Powered by VCCH

22

VID_OUT3/GP25/Powered by VCCH

23

VID_OUT2/GP24/Powered VCCH

24

SPI_SI/GP23/Powered by VCCH

25

SPI_SCK/GP22/Powered by VCCH

26

VID_OUT1/GP21/Powered by VCCH

27

VID_OUT0/GP20/Powered by VCCH

28

GP17

29

SPI_SO2/GP16

30

RESETCON#/CIRTX/GP15

31

PCIRST1#//GP14

32

PWROK1/GP13

33

PCIRST2#/GP12

34

PCIRST3#/GP11

35

VCC2

36

LPCPD#

37

LRESET#

38

LDRQ#

48 MHz

+3.3V

SRN14.7K 8P4R 0402

G1

G2

G1

G2

SR14

SR13

4.7K 0402

4.7K 0402

+3.3V

117

118

119

120

121

122

123

124

125

126

127

128

RI1#

SIN1

CTS1#

DSR1#

RI2#/GP66

CTS2#/GP65

DCD2#/GP67

LAD0

SERIRQ

LFRAME

39

40

DCD1#

RTS1#/JP2

DTR1#/JP1

SOUT1/JP3

LAD2

LAD1

LAD3

KRST#/GP62

GA20/JP7

PCICLK

CLKRUN#/GP50

CLKIN

434241

44

45464748495051525354555657585960616263

109

110

111

112

113

114

115

116

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PD7

GNDD4

Powered by VCCH/RSMRST#/CIRRX/GP55

GNDD1

DENSEL#

MTRA#

MTRB#

DRVA#

DRVB#

WDATA#

DIR#

STEP#

103

104

105

106

107

108

STB#

AFD#

ERR#

Powered by VCCH/PCIRST4#/GP10

Powered by VCCH/3VSBSW#/GP40

Powered by VCCH/PWROK2/GP41

Powered by VCCH/PANSWH#/GP43

Powered by VCCH/PWRON#GP44

HDSEL#

WGATE#

RDATA#

SU1

INIT#

ACK#

SLIN#

VID_IN7/VIN0
VID_IN6/VIN1

PCIRSTIN#/VIN7

TMPIN3/SPI_SO1

Powered by VCCH/GP56/MCLK
Powered by VCCH/GP57/MDAT

Powered by VCCH/GP60/KCLK

Powered by VCCH/GP61/KDAT

Powered by VCCH/RING#/GP53

Powered by VCCH/PSON#/GP42

Powered by VCCH/PME#/GP54

Powered by VCCH/IRRX/GP46

SKTOCC#/COPEN#

TRK0#

INDEX#

WPT#

64

BUSY

SLCT

AVCC

VIN2
VIN3
VIN4
VIN5
VIN6

VREF
TMPIN1
TMPIN2

GNDA

GNDD3

PSIN/GP45

VBAT

VCCH

IRTX/GP47

DSKCHG#

IT8718FHX

PE

102
101
100
99

VIN0

98

VIN1

97

VIN2

96
95

VIN4

94

VIN5

93

VIN6

92

VIN7

91

VREF

90

TMPIN1

89

TMPIN2

88
87

GNDA

86
85
84
83
82
81
80
79
78
77
76

IO_PWIN

75
74

IO_PME_

73

IO_POUT

72
71
70
69

SR9 1M 0402

68
67
66
65

VIN037
VIN137
VIN237

VIN437
VIN537
VIN637

SR16 0 0402

SR4 33 0402

SR7 33 0402

IO_VCCH

SC7

0.1UF 16V Y5V 0402

FDSKCHG-36
FWP-36
FINDEX-36
FTRAK0-36
FRDATA-36
FWEN-36
FHEAD-36
FSTEP-36
FDIR-36
FWD-36
FDSB-36
FDSA-36
FMOB-36
FMOA-36
FRWC-36

+5V

SR44
10K 0402

1UF 10V Y5VSC5

1UF 10V Y5VSC6

SR11 10 0805

+

SCT1
100UF 16V 5X11 2mm

+5V

SC2

0.1UF 16V Y5V 0402

+5V

SFB1
BEAD 60 0805 1A

SC4
10UF 10V 0805 Y5V

SFB2
BEAD 60 0805 1A

RSM_RST_OUT#22
MCLK36

MDAT36
KCLK36
KDAT36
LPC_SMI#22

ACPI_LED38
PS_ON_35
PWRBTN_38

IO_PME_22
SB_PWRON#22
SLP_S3#22,44

+3.3V_VBAT21

THERMAL#23

+5V_STBY

Temperature Sensing

SR610 0402 /NI

02/18

TMPIN1

SC1
2200P 50V X7R 0402

GNDA

NO USE FUNCTION ADD R4 -->10K

VIN7

SR12 10K 0402

TMPIN2

SC36
2200P 50V X7R 0402

GNDA

System Thermal sensor

PWRGD_PS

02/18 If without use these pins,

Please pull-up to VCC.

Don't let it floating

1.Pin 30:RESETCON#

2.Pin 91:VIN7/PCIRSTIN#

3.Pin 95:VIN3/ATXPG

4..Pin 71 :SUSB#/GP45

5..Power On Strapping Options pin

6.Pin 68 need pull up 1M to VBAT

From CPU
Routed by differential

R4

PWRGD_PS44

CPU_THERMDA7

CPU_THERMDC 7,37

02/18

+3.3V

SQ9
2N3906 SOT23

E
B

C

Title

Size Document Number Rev

Custom

5

4

3

2

Date: Sheet of

SUPER I/O ITE 8718

A78DG-A2T

34 48Friday, May 29, 2009

1

6.0

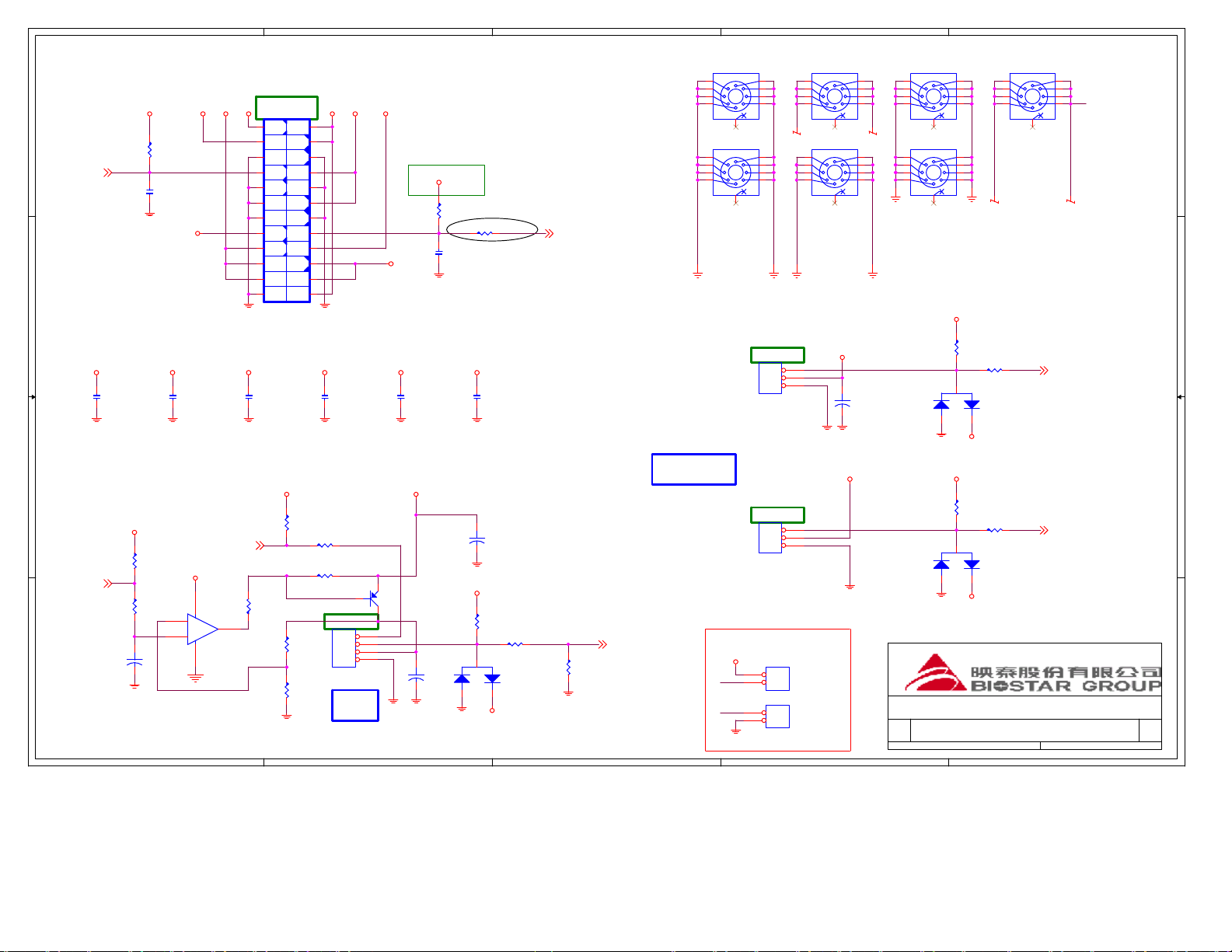

5

4

3

2

1

MH1

PAD200-8 /NI

POWER

+5V

+5V_STBY

D D

PS_ON_34

C C

EMI

POWER CONN DECOUPING

-5V

SC10
470P 50V X7R 0402

-12V

SR15
10K 0402

SC8
470P 50V X7R 0402

-5V

-12V

SC11
470P 50V X7R 0402

CONNECTOR

+3.3V

ATXPWR1

13

3.3V

14

-12V

15

GND

16

PSON

17

GND

18

GND

19

GND

20

NC

21

5V

22

5V

23

5V

24

GND

+5V_STBY

SC12
470P 50V X7R 0402

3.3V

3.3V

GND

GND

GND

POK

5VSB

12V
12V

DET

1
2
3
4

5V

5
6

5V

7
8
9
10
11
12

+12V

+5V_STBY

+3.3V

+5V

POWER CONN ATX 24P

SC13
470P 50V X7R 0402

+5V_STBY э+5V

+5V

SR17
10K 0402

SR18 0 0402

SC9

+12V

+5V

470P 50V X7R 0402 /NI

EMI

SC14
470P 50V X7R 0402

+3.3V

SC15
470P 50V X7R 0402

ATX_PWRGD34,44,45

1
2
3
4

MH5

PAD200-8 /NI

1
2
3
4

(NPTH)

(NPTH)

9

9

5
6
7
8

5
6
7
8

SYS_FAN2

WAFER 1X3

SYSTEM

SR28
470 0402

+5V

SR23

4.7K 0402
SR24 100 0402

SR26 1K 0402

B

SQ8
BCP69 SOT-223

CPU_FAN1

SR30
36K 1% 0402

SR33
22K 0402

4
3
2
1

WAFER 1X4 2.54MM

B B

+5V

SR25

4.7K 0402

FAN_CTL134

SR27
15K 0402

SCT5

A A

100UF 16V 5X11 2mm

+

FAN_CTL334

+12V

411

3

+

1

2

-

SU2A
LM324 SO14

CPU

5

EC

4

+12V

+

SCT6
100UF 16V 5X11 2mm

A

+

SCT4
100UF 16V 5X11 2mm

+12V

SR29

4.7K 0402
SR31 27K 0402

KA

SD5
BAV99 SOT23

K

+12V

SR32
22K 0402

FAN134

3

SYS_FAN1

WAFER 1X3

Impedance Testing Coupon

+3.3V

NC1

NC2

MH2

PAD200-8 /NI

1
2
3

(NPTH)

4

MH6

PAD200-8 /NI

1
2
3

(NPTH)

4

3
2
1

3
2
1

JP1

2
1

HEADER 1X2 D 150 /NI
JP2

2
1

HEADER 1X2 D 150 /NI

5
6
7
8

9

GND_AUDGND_AUD

5
6
7
8

9

+12V

+

SCT3
100UF 16V 5X11 2mm

+12V +5V

2

MH3

PAD200-8 /NI

1
2
3
4

MH7

PAD200-8 /NI

1
2
3
4

Title

Size Document Number Rev

Custom

Date: Sheet of

5
6
7

(NPTH)

8

9

5
6
7

(NPTH)

8

9

+5V

KA

A

KA

A

FAN&POWER CONN

MH4

PAD200-8 /NI

1
2
3

(NPTH)

4

GND_AUD

SR20
10K 0402

SR22 1K 0402

SD4
BAV99 SOT23

K

+5V

SR19
10K 0402

SR21 1K 0402

SD3
BAV99 SOT23

K

+5V

A78DG-A2T

5
6
7
8

9

GND_AUD

FAN334

FAN234

35 48Friday, May 29, 2009

1

6.0

5

D D

4

3

2

1

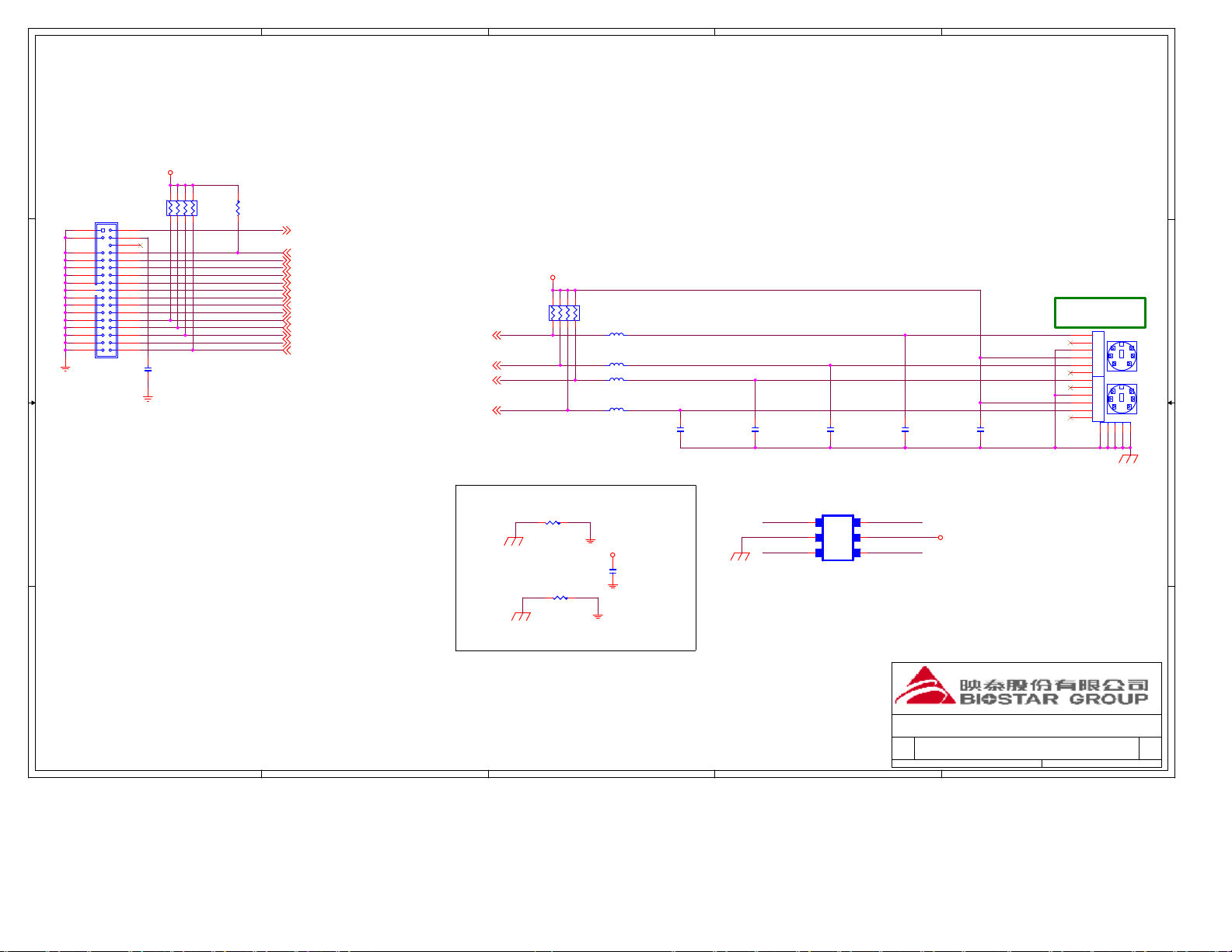

FLOPPY CONNECTOR

+5V

SRN3

SR34

FDD1

1

2

3 4

6
7 8
9

10

11

12

13 14

1615

17 18
19 20

22

21

24

C C

23
25
27
29
31
33

BOX 2X17 N5 T

26

28

30

32

34

150 8P4R 0402

1 2

3 4

5 6

7 8

SC16

0.1UF 16V Y5V 0402 /NI

150 0402

FRWC- 34

FINDEX- 34
FMOA-34
FDSB-34
FDSA-34
FMOB-34
FDIR- 34
FSTEP-34
FWD-34
FWEN-34
FTRAK0-34
FWP-34
FRDATA- 34
FHEAD- 34
FDSKCHG- 34

USB_PWR

SRN4

2.2K 8P4R 0402

1 2

3 4

5 6

KDAT FB_KDAT

KDAT34

KCLK

KCLK34

MDAT

MDAT34

MCLK

MCLK34

7 8

SFB3 BEAD 60 0603

SFB5 BEAD 60 0603

FOR KEYBOARD WITH MOUSE CONN.

KBMS1
MINI DIN CONN PC99

1
2
3

BEAD 60 0603SFB4

BEAD 60 0603SFB6

FB_KCLK
FB_MDAT

FB_MCLK

SC17
47P 50V NPO 0402

SC18
47P 50V NPO 0402

SC19
47P 50V NPO 0402

SC20
47P 50V NPO 0402

SC21

0.1UF 16V Y5V 0402

FOR EMI

4
5
6
7
8

9
10
11
12

MTH'S

G1G2G3G4G5

B B

FOR EMI

FOR EMI

A A

5

4

R178

0 0805

R179

0 0805

+5V

C3

0.1UF 16V Y5V 0402 /NI

3

FB_KCLK

FB_KDAT

SQ10

1

B1B2

A1

2

+

­CM1293

3

A2

CM1293 SOT23-6 /NI

2

FB_MCLK

6
5

FB_MDAT

4

Title

Size Document Number Rev

Date: Sheet of

Custom

USB_PWR

FDD / PS2 CONN

A78DG-A2T

36 48Friday, May 29, 2009

1

6.0

5

4

3

2

1

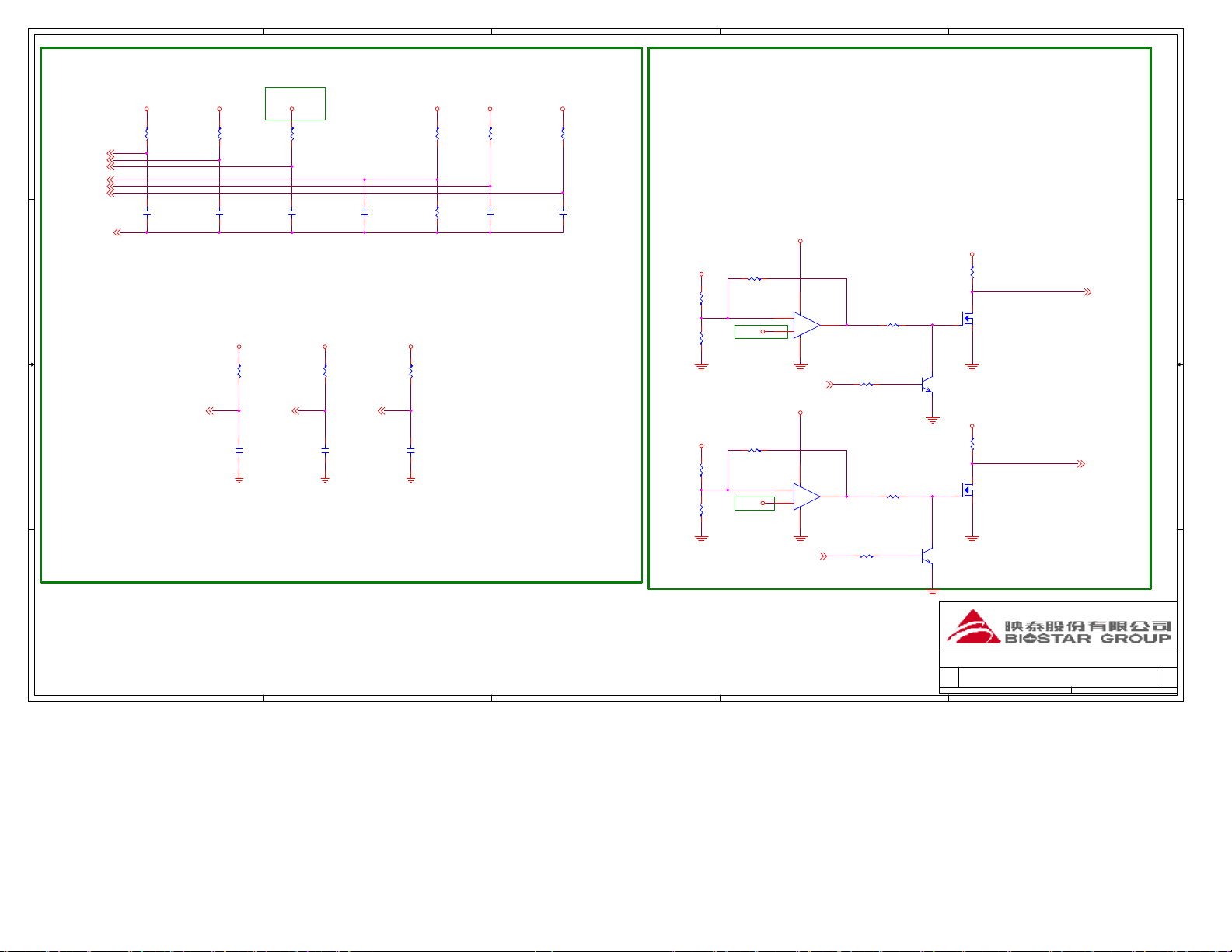

hardware monitor

+3.3V

D D

VIN034
VIN134
VIN234

VIN434
VIN534
VIN634

CPU_THERMDC7,34

C C

B B

SR35
10K 1% 0402

12

SC22

0.1UF 16V Y5V 0402

SR36
10K 1% 0402

12

SC23

0.1UF 16V Y5V 0402

SR41
10K 1% 0402

12

SC29

0.1UF 16V Y5V 0402

SB_VIN123 SB_VIN223SB_VIN423

SR37
10K 1% 0402

12

SC24

0.1UF 16V Y5V 0402

12

SC25

0.1UF 16V Y5V 0402

+1.8VILIM CPU_VDDNB

SR45
10K 1% 0402

12

SC30

0.1UF 16V Y5V 0402

Voltage Sensing

+12V+V_CPU +1.1V

SR38
30K 1% 0402

SR42
10K 1% 0402

SR46
10K 1% 0402

12

SC31

0.1UF 16V Y5V 0402

+1.8V_SUS

3/30 1.2V_SB

SR39
51 1% 0402

3/30 3/30

12

SC26

0.1UF 16V Y5V 0402

+1.2V

SR40
51 1% 0402

12

SC27

0.1UF 16V Y5V 0402

2K 1% 0402

442 1% 0402

2K 1% 0402

0.6125V

649 1% 0402

+2.5V

R360

0.45V

R361

+2.5V

R365

R366

R358 2M 0402

ILIM

R363 2M 0402

ILIM

+12V

411

5

+

7

6

-

SU4B
LM324 SO14

EXT_SPI#34

+12V

411

10

+

8

9

-

SU4C
LM324 SO14

EXT_SPI#34

R380 1K 0402

R381 10K 0402

R382 1K 0402

R383 10K 0402

B

B

ENDRV1

ENDRV2

+3.3V

G

C

PQ21
2N3904 SOT23

E

+3.3V

G

C

PQ22
2N3904 SOT23

E

R357
1K 0402

DS

Q60
2N7002 SOT23

R362
1K 0402

DS

Q61
2N7002 SOT23

PHASE343

PHASE443

A A

Title

Size Document Number Rev

5

4

3

2

Date: Sheet of

H/W MONITOR/PWM ON

Custom

A78DG-A2T

37 48Friday, May 29, 2009

1

6.0

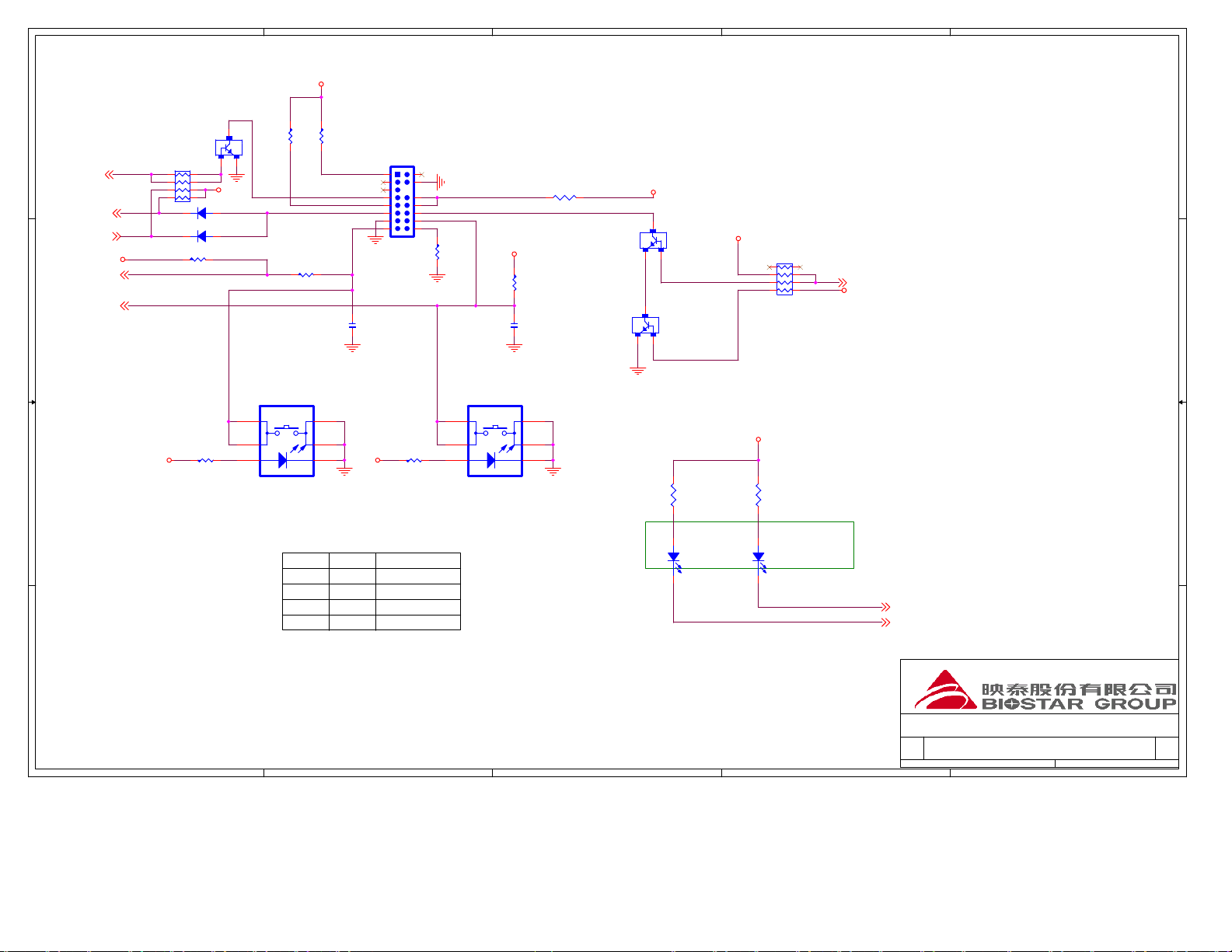

5

+5V

FPQ1

D D

FPRN2

4.7K 8P4R 0402

SPEAKER

SPEAKER22

IDEACTPJ31

SATA_HDLED_23

+3.3V_DUAL

MASTER_RST#20,22,44

C C

PWRBTN_34

7 8
5 6
3 4
1 2

FPD1 1N4148 SMD

FPD2 1N4148 SMD

FPR2 10K 0402

2N3904 SOT23

+5V

AK

AK

ECB

FPR5
330 0402

SPK_DAT
CRNT_LMT_HDDLED1
HDD_LED-

FPR3 33 0402

FPR6
68 0402

SPK_VCC

FPC1

0.1UF 16V Y5V 0402

4

PANEL1
HEADER 2X8 N_P11 /NI

1

9

2

10
3
4

12
5

13
6

14
7

15
8

16

POWER_LED+
POWER_LED-

FPR1
51 0402

R180 330 0402

+3.3V_DUAL

FPR4
10K 0402

FPC2
1UF 10V Y5V

3

+5V_DUAL

+5V_DUAL

FPRN25

1 2
3 4
5 6
7 8

2.2K 8P4R 0402

ECB

ECB

FPQ2
2N3904 SOT23

FPQ3

2N3904 SOT23

2

ACPI_LED34

+1.8V_SUS

1

SW_RST

LED_D2

OFF
OFF
ON
ON

1

LED_D1

OFF
ON
OFF
ON

R182 330

+5V

MESSAGE
ABNORMAL
MEMORY ERROR
VGA ERROR
NORMAL

4

3

R181 330

+5V

B B

A A

5

4 2

L1 L2

TP6151L

FOR T-SERIAL FOR T-SERIAL

SW_PWR

3

4 2

L1 L2

TP6151L

1

R183
300 0402

эNAME

LED_D2

RED CHIP LED 0805

+5V

R184
300 0402

LED_D1
RED CHIP LED 0805

LED_D1LED_D2

DEBUG LED134
DEBUG LED234

Title

Size Document Number Rev

Custom

3

2

Date: Sheet of

FRONT PANEL/LED

A78DG-A2T

1

38 48Friday, May 29, 2009

6.0

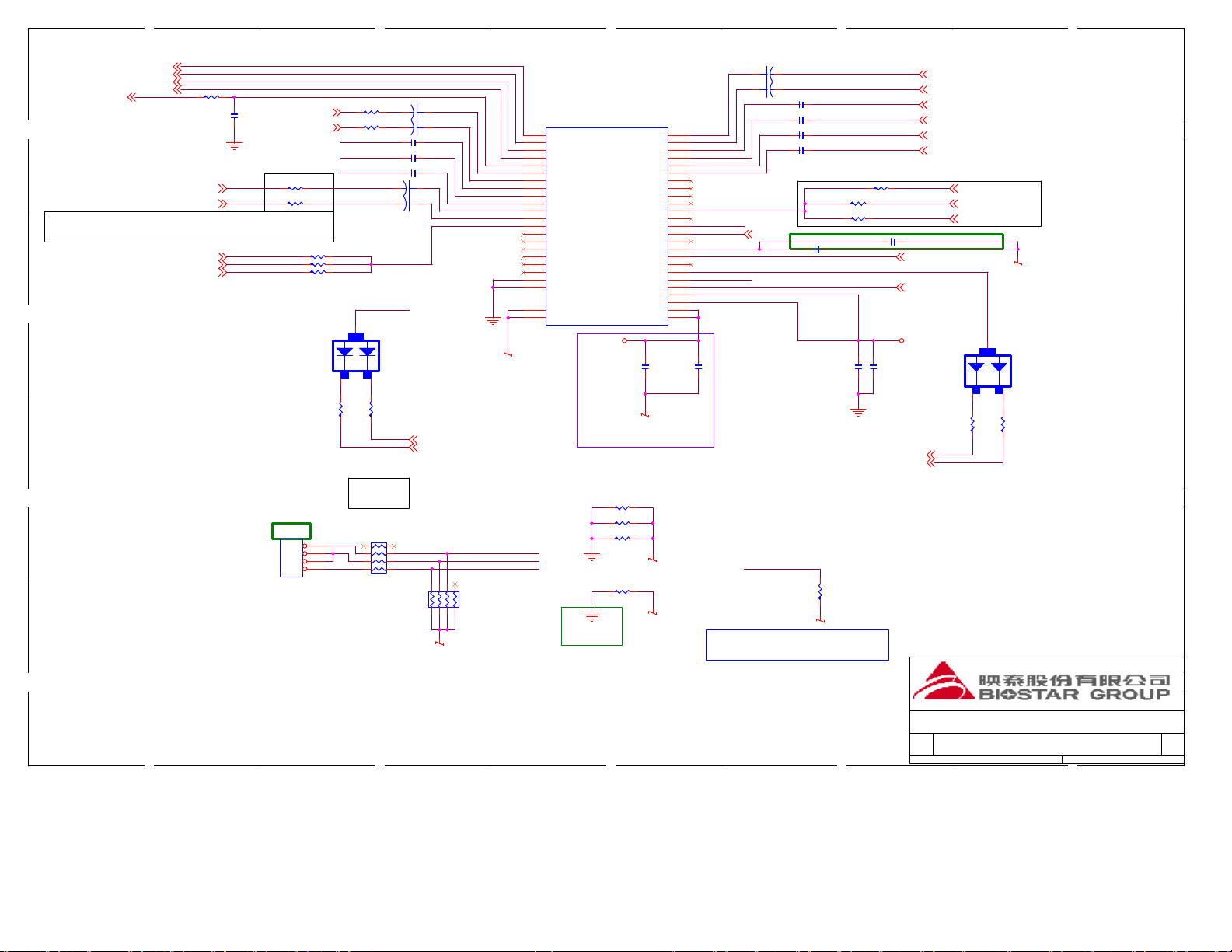

5

A

AC_RST_22,25

AC_SYNC22
AC_SDOUT22
AC_SDIN_022

AC_BITCLK22

D D

1. 75 Ohm for Re-tasking/dedicated Output functions;

2. 1K-ohm for dedicated input function may enhance
audio quality and ESD protection.

0 0402

AR49

4/03 EMI

AC26
10P 50V NPO 0402 /NI

MIC2_L

MIC2_L40

MIC2_R

MIC2_R40

FRONT_JD40 MIC1_VREFO_L40

MIC1_JD40

LINE1_JD40

FRONT_JD
MIC1_JD
LINE1_JD

LINE2_L40

LINE2_R40

AR43 1K 0402 AR3 47 0402
AR42 1K 0402

modify 08-11-17

AR4 5.1K 1% 0402
AR5 20K 1% 0402
AR6 10K 1% 0402

C C

AR7

2.2K 0402

AR1

AR2

CD_L
CD_GND
CD_R

LINE2_VREFO

KA

K

4

75 0402
75 0402

SENSE_A

A

AR8

2.2K 0402

LINE2-L
LINE2-R

BITCLK

+

ACT3 100UF 16V 5X11 2mm

+

ACT4 100UF 16V 5X11 2mm

1UF 10V Y5VAC6
1UF 10V Y5VAC8
1UF 10V Y5VAC4

+

ACT6 100UF 16V 5X11 2mm

+

ACT7 100UF 16V 5X11 2mm

AQ1
BAT54A SOT23

LINE2_L40
LINE2_R40

PORT-E-L
PORT-E-R

PORT-F-L
PORT-F-R

GND_AUD

ALC861VD : PORT D, E, F SUPPORT
RE-TASKING(PIN#14, 15, 16, 17, 35,

36)
ALC883/8 : B,C,E,F PORTS SUPPORT

RE-TASKING

AU1

11

RESET# (I)

10

SYNC (I)

5

SDOUT (I)

8

SDIN (O)

6

BITCLK (I)

14

LINE_IN2_L (B)

15

LINE_IN2_R (B)

18

CD_L (I)

19

CD_GND (I)

20

CD_R (I)

16

MIC2_L (B)

17 33

MIC2_R (B) DCVOL (I)

13

SENSE_A (I)

37

LINE1_VREFO_R (O)

45

SIDESURR_L (O)

46

SIDESURR_R (O)

12

PC_BEEP (I)

2

GPIO0 (B)

3

GPIO1 (B)

4

GND1 (P)

7

GND2 (P)

26

AGND1 (P)

42

AGND2 (P)

ALC662 LQFP48

3

FRONT_OUT_L (B)
FRONT_OUT_R (B)

LINE_IN1_L (B)

LINE_IN1_R (B)

MIC1_L (B)

MIC1_R (B)

CENTER_OUT (O)

LFE_OUT (O)

SURR_L (B)
SURR_R (B)
SENSE_B (I)

JDREF

SPDIFO (O)

SPDIFI/EAPD (B)

VREF (O)

MIC1_VREFO_L (O)

LINE1_VREFO-L (O)

MIC2_VREFO (O)

LINE2_VREFO (O)

MIC1_VREFO_R (O)

VCC3_1 (P)

VCC3_2 (P)

AVCC_1 (P)

AVCC_2 (P)

+5VA

AC13
1UF 10V Y5V

AC14
1UF 10V Y5V

GND_AUD

PLACE CLOSE TO CODEC Pin_38.
modify 08-11-17

35
36
23
24
21
22
43
44
39
41
34

40
48
47
27
28
29
30
31
32
1
9
25
38

+

ACT1 100UF 16V 5X11 2mm

+

ACT2 100UF 16V 5X11 2mm

PORT-D-R
PORT-C-L
PORT-C-R
PORT-B-L
PORT-B-R

JDREF
SPDIFO

MIC2_VREFO
LINE2_VREFO

SPDIFO40

For chipset include HDMI function,
USE AR87,AR51NI,

2

10UF 10V 0805 Y5VAC1
10UF 10V 0805 Y5VAC2
10UF 10V 0805 Y5VAC3
10UF 10V 0805 Y5VAC7

AR47 20K 1% 0402 /NI
AR48 39.2K 1% 0402 /NI

1UF 16V 0805 Y5VAC10

LINEOUT_L
LINEOUT_R

LINE1_L
LINE1_R
MIC1_LPORT-D-L
MIC1_R

0.1UF 16V Y5V 0402 /NIAC25

MIC1_VREFO_R40

+3.3V

AC12

0.1UF 16V Y5V 0402
BAT54A SOT23

AC11
10UF 10V 0805 Y5V

MIC2_R40
MIC2_L40

LINEOUT_L40
LINEOUT_R40
LINE1_L40
LINE1_R40
MIC1_L40
MIC1_R40

modify 08-11-17

FRONT_IO_SENSE40
MIC2_JD40
LINE2_JD40

AQ2

2.2K 0402

MIC2_R
MIC2_L

1

GND_AUD

KA

K

A

AR10

AR9

2.2K 0402

B B

CD_IN1

1
2
3
4

WAFER 1X4 BLACK

5

CD_IN

ARN1

47K 8P4R 0402

4

AR13 0 0805 /NI
AR14 0 0805 /NI

78
56
34
12

1 2

3 4

5 6

7 8

GND_AUD

ARN2

47K 8P4R 0402

CD_L

CD_GND

CD_R

AR15 0 0805

AR31 0 0805 /NI

4/03 EMI

3

GND_AUD

IO_GND

JDREF

AR12

20K 1% 0402

PLACE CLOSE TO CODEC Pin_40.

modify 08-11-17

888/861VD-->ADD 20K
861VC-->ADD 4.99K

GND_AUD

2

Title

Size Document Number Rev

B

Date: Sheet of

CODEC ALC 662

A78DG-A2T

39 48Friday, May 29, 2009

1

A

6.0

5

A

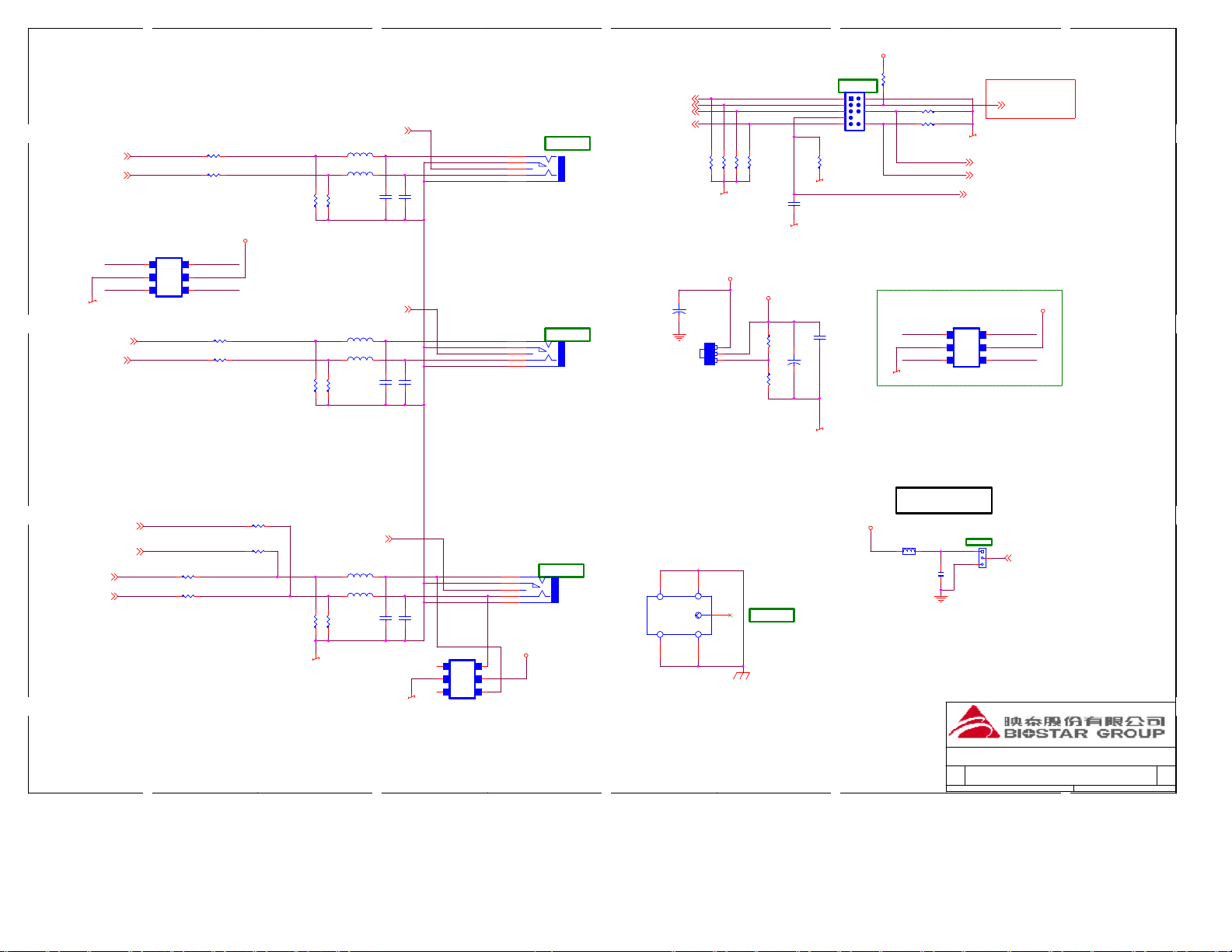

Rear Panel Onboard Analog I/O

D D

AQ67

B1B2

A1

+

­CM1293

A2

CM1293 SOT23-6

LINEOUT_L

LINEOUT_R

AR38 75 0402

AR39 75 0402

LINEOUT_LL

6
5

LINEOUT_RR

4

AR40 75 0402

AR41 75 0402

AR21

22K 0402 /NI

+5V

AR25

22K 0402

LINE1_L39

LINE1_R39

LINE1_LL

1
2

LINE1_RR

3

GND_AUD

C C

LINEOUT_L39

LINEOUT_R39

4

LINE1_JD39

AL1 BEAD 60 0805 1A

AL2 BEAD 60 0805 1A

AR22
22K 0402 /NI

AL3 BEAD 60 0805 1A

AL4 BEAD 60 0805 1A

AR26
22K 0402

AC15

100P 50V NPO 0402

FRONT_JD39

AC19

100P 50V NPO 0402

AC20
100P 50V NPO 0402

P07 : 3-Port & 6-Port Co-lay

LINE1_LL
LINE1_JD

LINE1_RR

AC16
100P 50V NPO 0402

LINEOUT_LL
FRONT_JD

LINEOUT_RR

32
33
34
35

1

AUDIO JACK 3HD

BLUE

PORT-C

BLUE JACK

22
23
24
25

1

AUDIO JACK 3HD

PORT-D

GREEN JACK

AUDIO2D

AUDIO2C

3

PORT-E

MIC2_L39
LINE2_R39
LINE2_L39

PORT-F

AR32

AR33

AR35

22K 0402

AUDIO ANALOG POWER

+

AC17

100UF 16V 5X11 2mm

Vout=Vref (1.25V) X ( 1+R2/R1 )
=+5V

AR34

22K 0402

22K 0402

GND_AUD

1000P 50V X7R 0402

+12V

AQ7

I
O
A

AZ1117H-ADJ SOT-223

22K 0402

+5VA

R1

R2

AC24

GND_AUD

AR23
110 1% 0402

AR24
330 1% 0402

2

1 2
3 4
5 6
7
9 10

AR46

0 0402 /NI

GND_AUD

12

AC18
1UF 10V Y5V

+

ACT5
100UF 16V 5X11 2mm

GND_AUD

+3.3V

AR16
10K 1% 0402

F_AUDIO1

HEADER 2X5 NON_PIN8

GND_AUD

0: INTEL HD AUDIO DONGLE CONNECTED
1: INTEL HD AUDIO DONGLE UNCONNECTED

CONNECT TO CHIPSET SB.

MIC2_JD39
LINE2_JD39

FRONT_IO_SENSE39

6

B1B2

A1

5

+

­CM1293

4

A2

FPAUD_PRESENCE# 22MIC2_R39

LINE2_L

AR18 20K 1% 0402
AR19 39.2K 1% 0402

GND_AUD

MIC2_JD
LINE2_JD

AQ66

MIC2_L

1
2

MIC2_R LINE2_R

3

CM1293 SOT23-6 /NI

1

+5V

B B

MIC1_VREFO_R39

MIC1_VREFO_L39

MIC1_L39

MIC1_R39

MIC1_VREFO_R

MIC1_VREFO_L

AR44 75 0402

AR45 75 0402

AR27 2.2K 0402

AR28 2.2K 0402

AR29

22K 0402 /NI

GND_AUD

MIC1_JD39

AL7 BEAD 60 0805 1A

AR30
22K 0402 /NI

AC22
100P 50V NPO 0402
100P 50V NPO 0402

GND_AUD

AC23

MIC1_RR

AQ70

1

B1B2

2

-

3

CM1293 SOT23-6

MIC1_LL
MIC1_JD

A1

+

CM1293

A2

6
5
4

2
3
4
5
1

AUDIO JACK 3HD

+5V

AUDIO2B

PORT-B

PINK JACK

G2

G1

G2

G1

H1

G3

G4G5

G4

G3

IO_GND

AUDIO2A
AUDIO JACK 3HD

*ALC883/888:B,C,E,F ports support I/P & O/P function.

But A,D,G,H ports not support MIC function.

5

4

3

+5V

0 0805

2 1

AL5

AC21AL6 BEAD 60 0805 1A

1UF 16V 0805 Y5V

2

SPDIF1

1

2

SPDIFO39

3

WAFER 1X3 BLACK

Title

Size Document Number Rev

Custom

Date: Sheet of

AUDIO CONNECTOR

A78DG-A2T

40 48Friday, May 29, 2009

1

SPDIF OUT

A

6.0

5

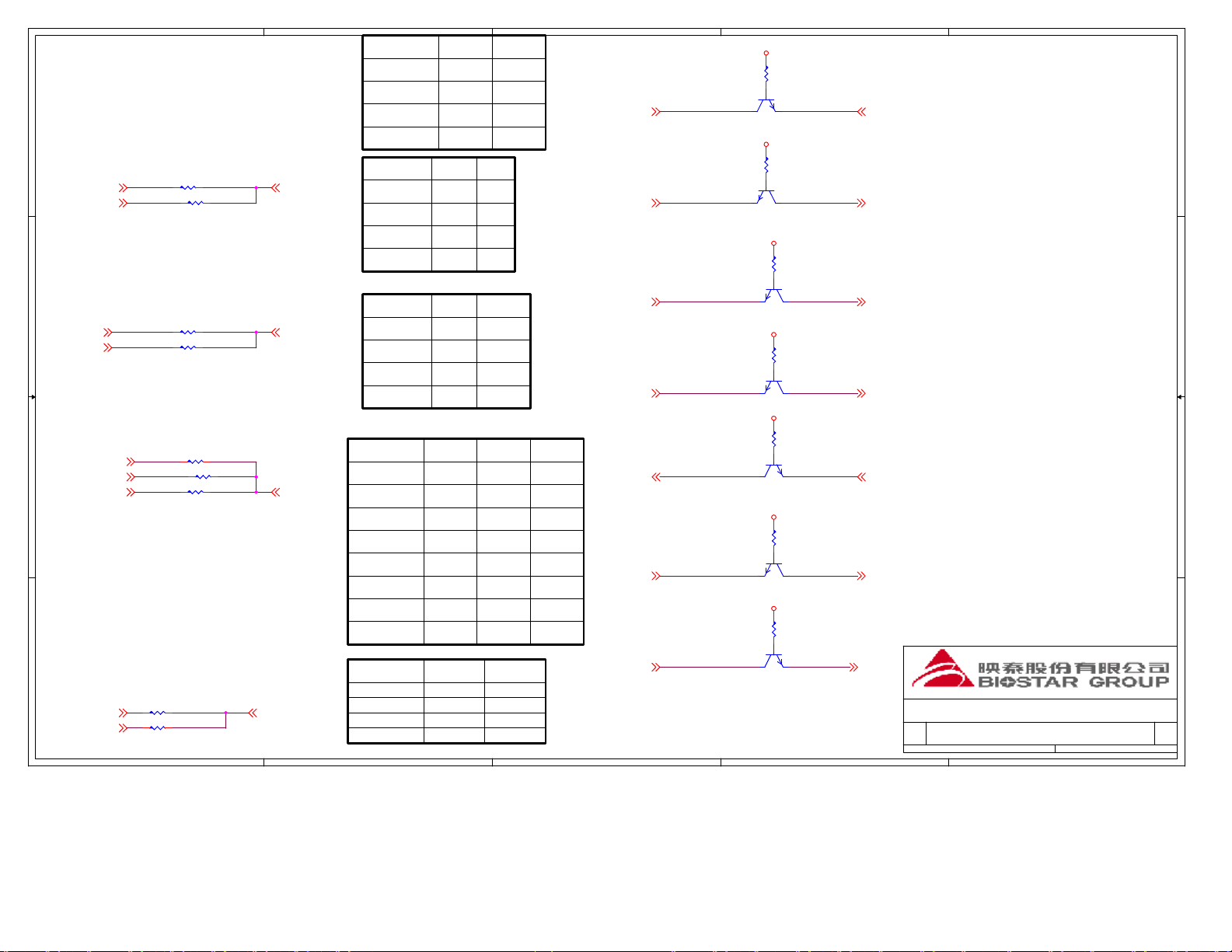

VCPU_NB0 =>NI

D D

VCPU_NB1 =>NI

3/30 1.2V_SB

VTT_FSB0_VHT034

VTT_FSB0_VHT134

C C

VSP034
VSP134

VDIMM034

B B

VDIMM134

VDIMM234

SU1 IT8718FHX U9 +1.8V_SUS(VREF 08.V)

A A

VCHIP034
VCHIP134

R208 249 1% 0402
R209 121 1% 0402

R214 309 1% 0402
R215 169 1% 0402

R290 2.94K 1% 0402
R294 1.47K 1% 0402
R296 732 1% 0402

R297 845 1% 0402
R298 442 1% 0402

5

OV_HT46

OV_SP46

+1.8VDIMM_FB45

3/30

OV_NB_CHIP46

4

CPU_NB

Default

+0.1

+0.2

+0.3

1.2V_SB

Default

1.23V

1.32V

1.43V

1.53V

SIDEPORT
Default

1.8V

1.9V

2.0V

2.1V

+1.8VDIMM_FB

Default

1.95V

2.05V

2.15V

2.25V

2.35V

2.45V 0

2.55V

2.65V

NB CORE

+1.25V
+1.35V
+1.45V
+1.55V

4

VCPU_NB0

1

0

1

0

1

0

1

0

VSP0

1

0

1

0

VDIMM0

1

0

1

0

1

0

1

0

OV_CHIP1

1
0
1
0

VCPU_NB1

1

1

0

0

VHT1VHT0

1

1

0

0

VSP1

1

1

0

0

VDIMM1

1

1

0

0

1

1

0

0

OV_CHIP0

1
1
0
0

VDIMM2

1

1

1

1

0

0

0

3

+1.8V

R185
10K 0402

B

Q17

IMC_TDI22

IMC_TRST#22

IMC_TDO22

IMC_TMS22

CPU_DBREQ#7

CPU_DBRDY7

CPU_TCK7

3

IMCJT_D2

IMCJT_D0

IMCJT_D1

IMCJT_D3

C

+1.8V

E

E

E

C

E

C

2N3904 SOT23

E

R188
10K 0402

B

Q18
2N3904 SOT23

C

+1.8V

R194
10K 0402

B

+1.8V

R200
10K 0402

B

+1.8V

R189
10K 0402

B

+1.8V

R195
10K 0402

B

+1.8V

R201
10K 0402

B

Q20
2N3904 SOT23

C

Q22
2N3904 SOT23

C

Q19
2N3904 SOT23

E

Q21
2N3904 SOT23

C

Q23
2N3904 SOT23

E

2

2

1

CPU_TDO7

CPU_TRST#7

CPU_TDI7

CPU_TMS7

IMC_DBREQ#22

IMC_DBRDY 22

IMC_TCK22

Title

OVER VOLTAGE & AOD

Size Document Number Rev

B

Date: Sheet of

A78DG-A2T

1

42 48Friday, May 29, 2009

6.0

5

4

3

2

1

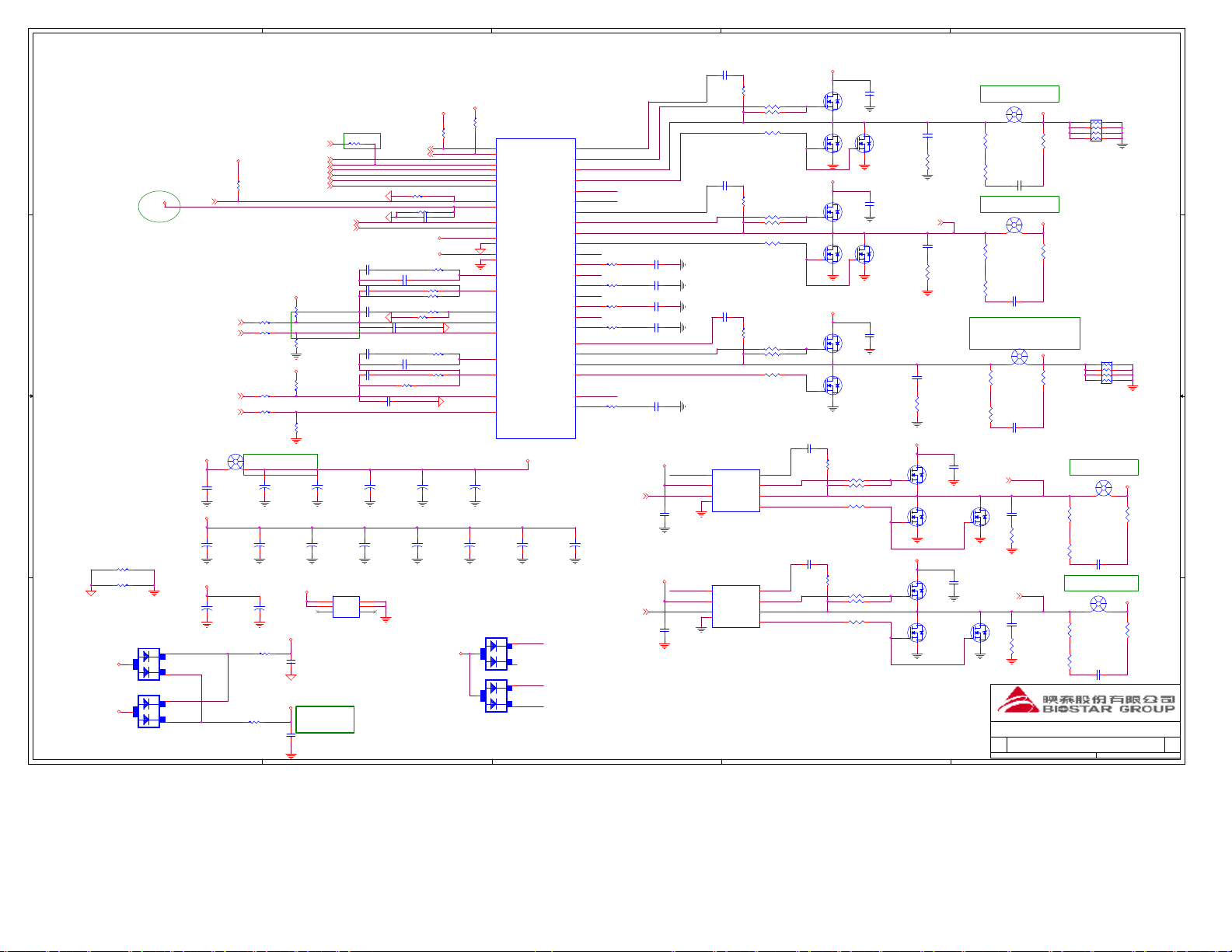

02/18 220nF X7R

PC29

0.1UF 25V X7R

PR46

PU4

2
4
3

6

PU5

2
4
3

6

02/18 220nF X7R

PC33

0.1UF 25V X7R

02/18 220nF X7R

PC36

0.1UF 25V X7R

PWM
VCC
EN

GND

L6743D SOP8

PWM
VCC
EN

GND

L6743D SOP8

2.2
PR50 2.7 0805

PR49 10K 0402

PR48 0 0805

PR53

2.2
PR57 2.7 0805

PR55 10K 0402

PR56 0 0805

PR70

2.2
PR72 2.7 0805

PR73 10K 0402

PR76 0 0805

BOOT3

1

BOOT

UGATE3

8

UGATE

PHASE_3

7

PHASE

LGATE3

5

LGATE

ST L6743

BOOT4

1

BOOT

UGATE4

8

UGATE

PHASE_4

7

PHASE

LGATE4

5

LGATE

ST L6743

NTD4858N TO252

+3.3V

+3.3V

PR83

D D

+3.3V

ILIM

PWM_EN44

4/13 LTB/NI PR121= 0 OHM ; PR81=NI ; PC51=NI

C C

B B

03/03 ADD

PR220 0 0805 /NI

SGND

PR84 0 0805

PD1

+12V

+5V_DUAL

KA

KA

BAT54A SOT23
PD4

BAT54A SOT23

5

A A

CPU_CORE_FB7

CPU_CORE_FB_7

VDDNB_FB_H7

VDDNB_FB_L7

+12V_ATX12V

PC53
1000P 50V X7R 0402

+V_CPU

+

PCT28
820UF-S 2.5V 6.3X8

CPU_VDDNB

+

PCT6
820UF-S 2.5V 6.3X8

K

A

K

A

CPU_CORE_TYPE7

PR219

100K 0402 /NI

2/24

PR106 0 0402
PR77 0 0402

PR115 100 0402

PR116 0 0402

PL8
INDUCTOR 1.2UH 22A 11X10.5

VIN

21

+

PCT23
270UF-S 16V 8X11.5

+

PCT29
820UF-S 2.5V 6.3X8

+

PCT18
820UF-S 2.5V 6.3X8

ST_VCC

PR74

10 0805

VCC_DRV

PR45

2.7 0805

PR13 0 0402

K8_VID07
K8_VID17
K8_VID27
K8_VID37
K8_VID47
K8_VID57

SCLK13,14,20,22
SDATA13,14,20,22

+V_CPU

PR65
100 0402

CPU_CORE_FB_R-VSEN
CPU_CORE_FB_R-FBG

PR64
100 0402

CPU_VDDNB

PR67
100 0402

PR66
100 0402

+

PCT19
270UF-S 16V 8X11.5

+

PCT24
820UF-S 2.5V 6.3X8

+12V_ATX12V

ATXPWR2

1

1

2 3

2 3

5 6

H1 H2

POWER CONN ATX12V 2X2

VCC

PC55
1000P 50V X7R 0402

VCCDRV

PC68 :closed PU3.42
PC68 :0.1UF<->1UF

(4/01) 0402->0805

PC68
1UF 16V 0805 Y5V

CPU_PWRGD46

PC49 22P 50V NPO 0402

PC51

220P 50V X7R 0402 /NI

PC39 10P 50V NPO 0402

PC47 33P 50V NPO 0402

PR69 2K 0402

PC41 10P 50V NPO 0402

+

PCT20
270UF-S 16V 8X11.5

+

PCT25
820UF-S 2.5V 6.3X8

4

4

4

PWM_PWROK7

K8_VID0
K8_VID1
K8_VID2
K8_VID3
K8_VID4
K8_VID5

PC48 220P 50V X7R 0402

PC46 2200P 50V X7R 0402

PC45 100P 50V NPO 0402

PR128 100K 0402 /NI

PR82 22K 0402
PC52 100P 50V NPO 0402

ST_VCC

VCC_DRV

PR75 10K 1% 0402

PR78 0 0402

PR81

1K 0402 /NI

PR121 0 0402

PR71 22.6K 1% 0402

PR68 0 0402

+

PCT21
270UF-S 16V 8X11.5

+

PCT26
820UF-S 2.5V 6.3X8

PR87

4.7K 0402

ILIM

FB

PR80
2K 0402

LTB

PR71 24K ->22.6K

NB_COMPNB_COMP

NB_FB

VDDNB_FB_H_R

VDDNB_FB_L_R

+

KA

ST_VCC

KA

4.7K 0402
PU3 L6717 VFQFPN48

35

PWRGOOD

1

PWROK

34

VID0 / V_FIX

33

VID1 /CORE_TYPE

32

VID2 /SVD

31

VID3 /SVC

30

VID4/ I2C_DIS

29

VID5 /ADDRESS

14

OSC /EN /FLT

13

ILIM

26

SCL /OS

25

SDA /OVP

3

VCC

2

SGND

42

VCCDRV

49

GND_PAD

4

COMP

5

FB

8

LTB

6

VSEN

7

FBG

9

NB_COMP

10

NB_FB

11

NB_VSEN

12

NB_FBG

+

PCT22
270UF-S 16V 8X11.5

PCT27
820UF-S 2.5V 6.3X8

PD3

K

A

BAT54A SOT23
PD2

NB_BOOT

K

A

BAT54A SOT23

ST L6717L

NB_UGATE
NB_PHASE

NB_LGATE

VIN

+

PCT30
820UF-S 2.5V 6.3X8

BOOT1

BOOT2

BOOT1
UGATE1
PHASE1
LGATE1

PWM3
PWM4

BOOT2
UGATE2
PHASE2
LGATE2

NB_BOOT

NB_CS+

NB_CS-

CS1+

CS1-

CS2+

CS2-

CS3+

CS3-

CS4+

CS4-

48
47
46
45

PWMDRV3

28

PWMDRV4

27
39
40
41
44

CS1+

15
16

PR60 2K 1% 0402PC50 3300P 50V X7R 0402

CS2+COMP

17
18

PR61 2K 1% 0402

CS3+

19
20

PR62 2K 1% 0402

CS4+

21
22

PR63 2K 1% 0402

36
37
38
43

NB_CS+

23
24

PR122 4.02K 1% 0402

+

PCT31
820UF-S 2.5V 6.3X8

3

BOOT1
UGATE1
PHASE_1
LGATE1

BOOT2
UGATE2
PHASE_2
LGATE2

PC40

0.1UF 16V X7R 0402

CS1-

PC42

0.1UF 16V X7R 0402

CS2-

PC43

0.1UF 16V X7R 0402

CS3-

PC44

0.1UF 16V X7R 0402

CS4-

NB_BOOT
NB_UGATE
NB_PHASE
NB_LGATE

PC66

0.1UF 16V X7R 0402

NB_CS-

PHASE337

PHASE437

ST_VCC

PWMDRV3

PC56
1UF 16V 0805 Y5V

ST_VCC

PWMDRV4

PC65
1UF 16V 0805 Y5V

G

G

PQ2

G

G

PQ14
NTD4858N TO252

G

G

02/18 220nF X7R

PC58

0.1UF 25V X7R

02/18 220nF X7R

PC62

0.1UF 25V X7R

VIN

DS

PQ10
NTD4863N TO252

DS

DS

G

VIN

DS

PQ15
NTD4863N TO252

DS

DS

G

VIN

DS

PQ24
NTD4863N TO252

DS

PQ23
NTD4858N TO252

NEAR LOW_SIDE_PIN D

PR85

2.2
PR91 2.7 0805

PR90 10K 0402

PR89 0 0805

PR114

2.2
PR99 2.7 0805

PR98 10K 0402

PR101 0 0805

2

PC31

4.7UF 16V Y5V 0805

PQ3
NTD4858N TO252 /NI

PC35

4.7UF 16V Y5V 0805

PQ4
NTD4858N TO252 /NI

PC38

4.7UF 16V Y5V 0805

G

G

G

G

PC30
4700P 50V X7R 0402

PR52

2.7 0805

PHASE_244

PC34
4700P 50V X7R 0402

PR59

2.7 0805

PC37
4700P 50V X7R 0402

PR79

2.7 0805

VIN

DS

PQ28
NTD4863N TO252

DS

PQ27
NTD4858N TO252

VIN

DS

PQ26
NTD4863N TO252

DS

PQ25
NTD4858N TO252

02/20

PL5
INDUCTOR 1UH 27A 11X11

CS1

PR47

68K 0402

PL6
INDUCTOR 1UH 27A 11X11

CS2

PR54

68K 0402

PL7
INDUCTOR 1.5UH 30A 13X12

PR103

82K 0402

PC60

4.7UF 16V Y5V 0805

PHASE_344

DS

G

PQ5
NTD4858N TO252 /NI

PC61

4.7UF 16V Y5V 0805

DS

G

PQ6

NTD4858N TO252 /NI

+V_CPU

2 1

PR123
ISEN_SHORT /NI

CS1+

2 1

PR124
ISEN_SHORT /NI

CS2+ CS2-

PR127
ISEN_SHORT /NI

NB_CS

NB_CS+

PHASE_444

Title

Size Document Number Rev

Custom

Date: Sheet of

PR51
ISEN_SHORT /NI

CS1-

PC28

0.01UF 25V X7R 0402

02/20

+V_CPU

PR58
ISEN_SHORT /NI

PC32

0.01UF 25V X7R 0402

CPU_VDDNB

2 1

PR111
ISEN_SHORT /NI

NB_CS-

PC67

0.01UF 25V X7R 0402

PC59
4700P 50V X7R 0402

PR93

2.7 0805

68K 0402

PC64
4700P 50V X7R 0402

PR96

2.7 0805

68K 0402

VCORE POWER SUPPLY

PL9
INDUCTOR 1UH 27A 11X11

PR125
ISEN_SHORT /NI

CS3

PR88

CS3+

PL10
INDUCTOR 1UH 27A 11X11

2 1

PR126
ISEN_SHORT /NI

CS4

PR95

CS4+

A78DG-A2T

1

PRN1

47 8P4R 0402

02/20

2 1

02/20

78
56
34
12

PRN2

78
56
34
12

47 8P4R 0402

+V_CPU

PR92
ISEN_SHORT /NI

CS3-

PC57

0.01UF 25V X7R 0402

+V_CPU

PR94
ISEN_SHORT /NI

CS4-

PC63

0.01UF 25V X7R 0402

43 48Friday, May 29, 2009

6.0

5

A

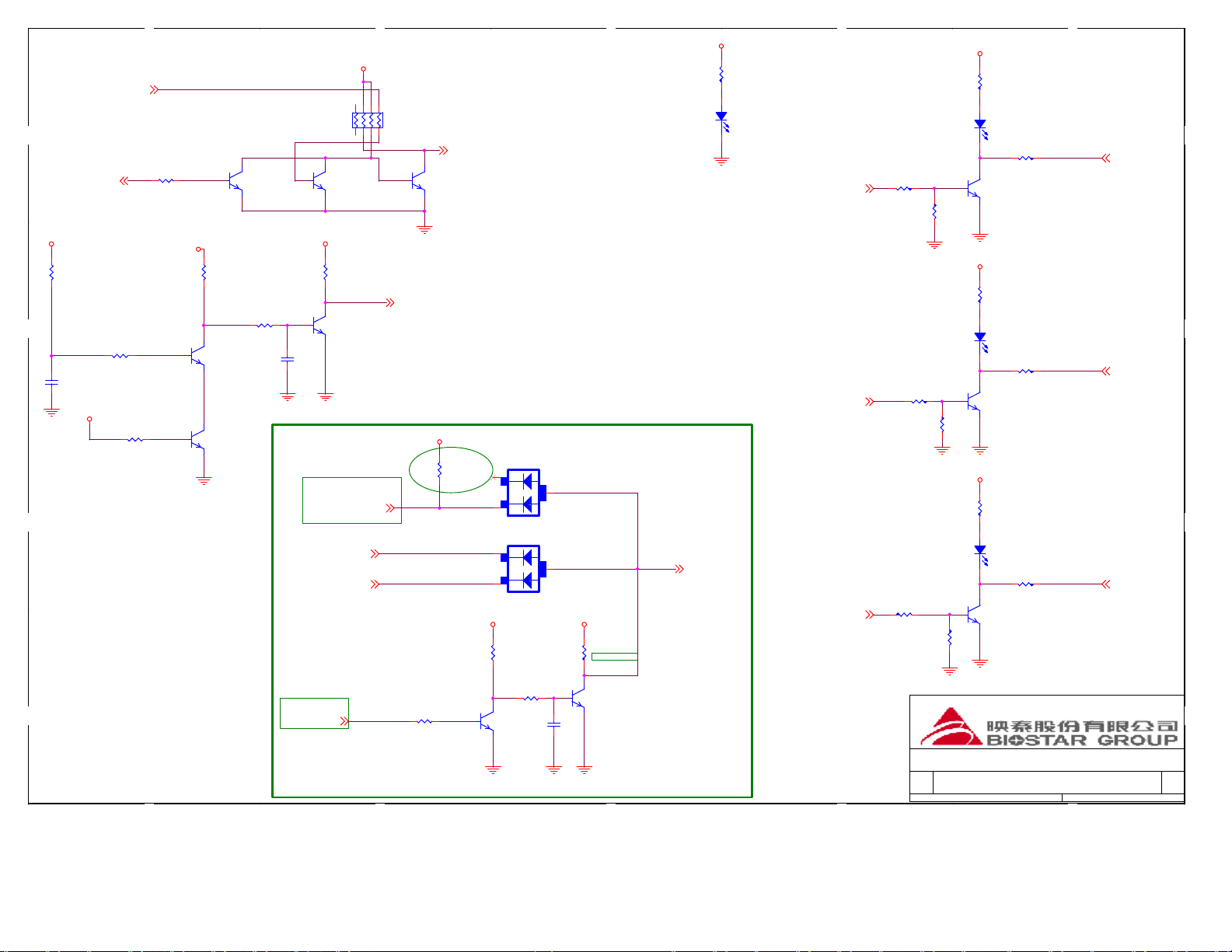

ATHLON64 POWER GOOD & ENABLES CIRCUIT

S3_STATE22

D D

C

ATX_PWRGD34,35,45

+1.8V_SUS +5V

R222
10K 0402

R218 10K 0402

+5V_DUAL

C C

R224 4.7K 0402

C422
1UF 16V 0805 Y5V

+12V

R225 10K 0402

Q24

B

4/1
+5V_STBY=>+5V_DUAL

R220
1K 0402

Q28

C

B

2N3904 SOT23

E

Q36

C

B

2N3904 SOT23

E

2N3904 SOT23

E

4.7K 0402

R223

Q25

B

Q27

3

B

1

2

C602
1UF 16V 0805 Y5V /NI

2/12 => э

2N3904 SOT23

2N3904 SOT23

B B

MASTER_RST#20,22,38

SLP_S3#22,34

ATX_PWRGD34,35,45

5

4

+5V_DUAL

RN26
10K 8P4R 0402

1 2

3 4

5 6

7 8

C

E

R219

10K 0402 /NI

C

E

2N7002 PIN1 gate (G) PIN2 source (S) PIN3 drain (D)
2N3904 PIN1 (B) PIN2 (E) PIN3 (C)

PWRGD_PS34

Q26

B

PWM_EN TO ST6717 PIN14 OSC_EN_FAULT

PWM_EN43

ASIC8M_VDIMM_DUAL_EN45

C

2N3904 SOT23

E

+3.3V_DUAL

R292
1K 0402 /NI

AQ9 BAT54A SOT23

MASTER_RST#

AQ10 BAT54A SOT23

R780

10K 0402

B

K

A

K

A

+3.3V_DUAL

R781
10K 0402

C

Q70
2N3904 SOT23

E

R782

10K 0402

4

KA

KA

+3.3V_DUAL

R783
10K 0402 /NI

C

Q71

B

2N3904 SOT23

E

C600
1UF 16V 0805 Y5V /NI

3

3

+5V

PR104
330 0402

PH1
RED CHIP LED 0805

SB_PWRGD22,46

2

PHASE_243

PHASE_343

PHASE_443

PR118 1K 0402

PR119 1K 0402

PR120 1K 0402

Title

Size Document Number Rev

Custom

Date: Sheet of

+3.3V

PR100
330 0402

PH2
RED CHIP LED 0805

PR102 330 0402

C

PQ16

B

2N3904 SOT23

E

PR108
330 0402

+3.3V

PR105
330 0402

PH3
RED CHIP LED 0805

PR107 330 0402

C

PQ18

B

2N3904 SOT23

E

PR221
330 0402

+3.3V

PR110
330 0402

PH4
RED CHIP LED 0805

PR112 330 0402

C

PQ19

B

2N3904 SOT23

E

PR222
330 0402

PWR GD / MISC POWER

A78DG-A2T

2

1

PHASE_DETECT2#34

PHASE_DETECT3#34

PHASE_DETECT4#34

6.0

44 48Friday, May 29, 2009

1

A

5

+5V_STBY

+12V

D D

钡 癬ノ

C C

Q37

2N3904 SOT23

ECB

R239 4.7K 0402

12

C433

1UF 10V Y5V

B B

+5V_DUAL

A A

5V_GATE

ATX_PWRGD34,35,44

5

R227 0 0805 /NI

K

A

1UF 16V 0805 Y5V

+5V_DUAL

R237
10K 0402

1 2

ECB

22K 0402 /NI

RN27

4.7K 8P4R 0402

D14

BAT54C SOT23

C425

GND VIA

R2

Q38

2N3904 SOT23

R241

1 2

78

ATX_PG

56

5V_GATE#

34
12

KA

2/13 =>2.7 э10

R226

10 0805

7

REFIN

R236
30K 1% 0402

5

BOOT

VCC

UGATE
PHASE

LGATEFB

GND

3

FP6321A SOP8

C434

0.1UF 16V Y5V 0402 /NI

+12V

4

U9

R229

2.7 0805

1

R230

2
8

0 0805

46

R232

R234

R1

42.2K 1% 0402 /NI

R240 4.7K 0402

12

ATX_PG

G

4

+5V_DUAL

L7

INDUCTOR 1.2UH 22A 11X10.5

Q32

Q34

NTD4863N TO252

G

5V_GATE#

Q35

2N7002 SOT23

NTD4863N TO252

02/27 Q53=>NI

+5V

DS

100K 0402

ASIC8M_VDIMM_DUAL_EN 44

DS

5V_GATE

Q33
2N7002 SOT23

D3

AK

SS12/5817 SMA

C426

0.1UF 16V Y5V 0402

L8 INDUCTOR 1.5UH 30A 13X12

2 1

R233

2.7 0805

C431
1000P 50V X7R 0402

S
G

Q31
NTD4863N TO252

1000UF 6.3V 8X12

+5V_DUAL

S

D

D

G

CT30

+

3

CT12

A K

3

CT13

+

+

1000UF 6.3V 8X12
1000UF 6.3V 8X12
1000UF 6.3V 8X12
1000UF 6.3V 8X12

D4
SS12/5817 SMA

CT15
100UF 16V 5X11 2mm

C424
10UF 10V 0805 Y5V

CT14

+

D6

A K

SS12/5817 SMA

+

+

CT28

+5V_STBY

CT9
560UF-S 6.3V 6.3X8

3/30

R235
360 1% 0402

3/30

R238
249 1% 0402

1UF 16V 0805 Y5V

+

CT10
100UF 16V 5X11 2mm

+1.8V_SUS

C432

0.1UF 16V Y5V 0402 /NI

C435

2

1.956V

+1.8VDIMM_FB42

+5V_STBY

3

6

VCTL

VCTL

4

Ref

Q39

FP6173A TO252

C436

0.1UF 16V Y5V 0402

2

GND

2

+1.8V_SUS

VOUT

1

1

Vin

5

Title

Size Document Number Rev

Custom

Date: Sheet of

5 6

7 8

2.2K 8P4R 0402

1 2

3 4

RN28

VTT_MEM

1

+

2

-

CT16

1000UF 6.3V 8X12

MEMORY POWER

A78DG-A2T

1

+0.9V_SUS

1

+

2

-

CT17
100UF 16V 5X11 2mm

45 48Friday, May 29, 2009

6.0

5

0.1UF 16V Y5V 0402

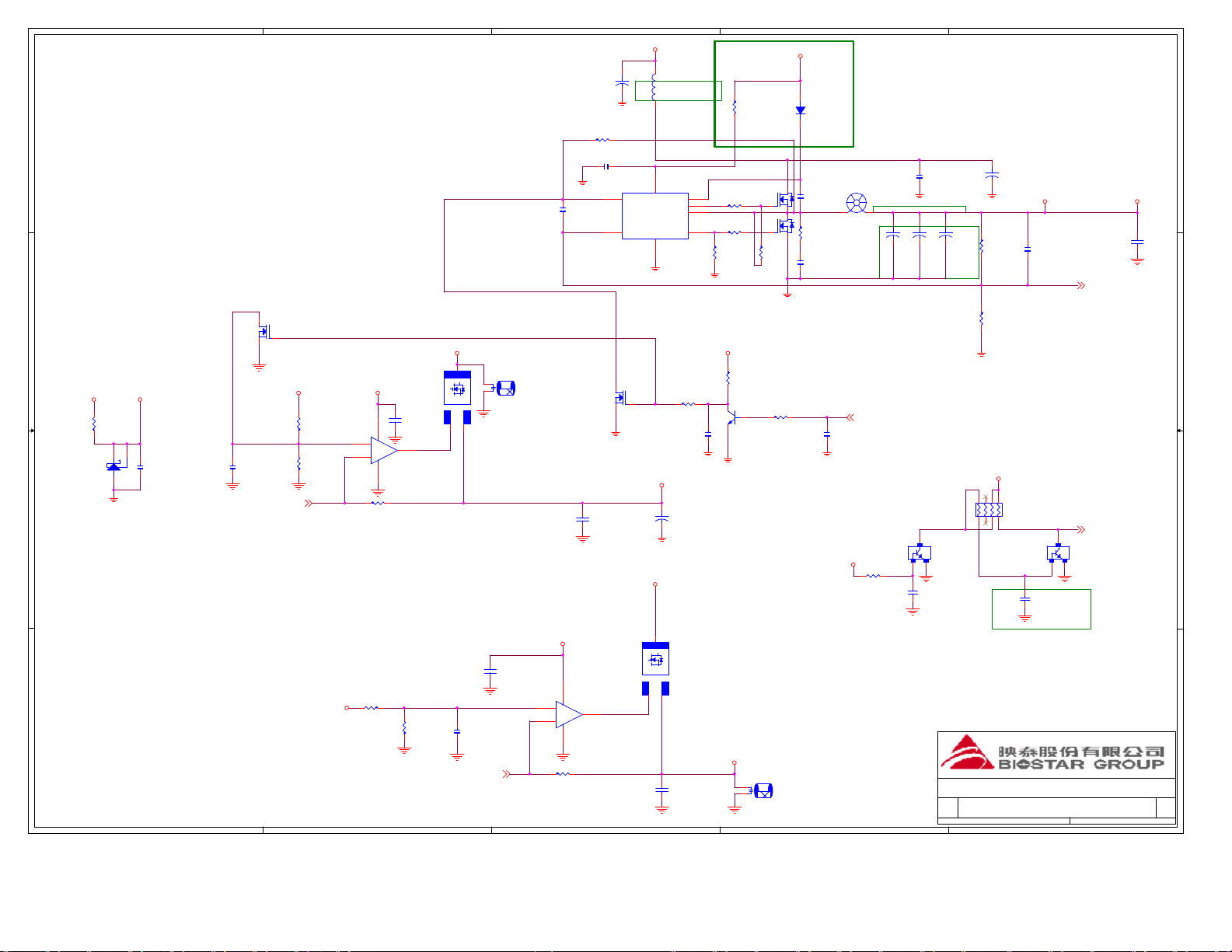

NB/SB +1.1V/+1.2V POWER 1.1V @3A FOR RX780/RS780
NB CORE POWER 1.1V @8A FOR RX780/RS780

D D

C C

+2.5V

+5V

R262
100 0402

R

U11

LM431 SOT23

B B

A C

C452

0.01UF 25V X7R 0402

C451
1UF 16V 0805 Y5V

uP6103-->ADD-->RA1,RA2,REMOVE-->RA3,RA4,CA1,DA1
RT9214-->REMOVE-->RA1,RA2,ADD-->RA3,RA4,CA1,DA1

Q42

DS

2N7002 SOT23

G

+2.5V

R257

6.65K 1% 0402

1.2347V

R260

6.49K 1% 0402

OV_HT42

Vout=1.20 X (1+R1/R2)

4

+12V

NTD4863N TO252

C446

0.1UF 16V Y5V 0402

411

V1

5

+

7

6

-

SU2B
LM324 SO14

R1

R261 20 1% 0402

3

+5V

VIN_5V

2/13 эFP6321A=>V CCэ12V

R242

10 0805

2/13 =>2.7 э10

NTD4863N TO252

R248 2.7 0805

R249 0 0805

R251

42.2K 1% 0402 /NI

RA2

+5V

R255
10K 0402

Q45
2N3904 SOT23

Q40

Q41
NTD4863N TO252
R252
100K 0402

R258 2.2K 0402

CT18

1000UF 6.3V 8X12

RT9202NC/RT9214

RA3

+

1
2

-

RT9202/RT9214NC

C440
15P 50V NPO 0402 /NI

CT22
1000UF 6.3V 8X12

Q44
2N7002 SOT23

+1.8V_SUS=>NI +3.3V=>NI

1.1V

+1.8V_SUS

D

D

Q43

G

S

G

S

+

INDUCTOR 1.2UH 22A 11X10.5

R243 30K 1% 0402

C437
1UF 16V 0805 Y5V

7

COMP

DS

G

C454
100UF 16V 5X11 2mm

2/13 => э

L9

5

BOOT

VCC

UGATE
PHASE

LGATEFB

GND

FP6321A SOP8

3

R256 4.7K 0402

1UF 10V Y5V /NI

+1.2V

CT23

+

1000UF 6.3V 8X12

+3.3V

U10

1
2
8

46

C450

1.24V

+12V

D5

AK

SS12/5817 SMA

C439

0.1UF 25V Y5V

R250

2.7 0805

C444
1000P 50V X7R 0402

DA1

RA4

CA1

2

2 1

CPU_PWRGD 43

C449
1UF 10V Y5V /NI

+1.1V

L10

INDUCTOR 1.5UH 30A 13X12

+

+

CT20

02/18

1000UF 6.3V 8X12
1000UF 6.3V 8X12
1000UF 6.3V 8X12

R263

4.7K 0402

C456
1UF 10V Y5V

Ring

C438
10UF 10V 0805 Y5V

+

CT29

CT27

Q46
2N3904 SOT23

ECB

1

NB

+1.1V @ 8A AMPS MAX

+

CT19
560UF-S 6.3V 6.3X8

2/27 э

R1

R253
110 1% 0402

3/30

R2

R254
200 1% 0402

+3.3V_DUAL

123456

C443

0.1UF 16V Y5V 0402 /NI

Vout=0.8(1+R1/R2)----for FP6321
R1 , R2

78

RN29

4.7K 8P4R 0402

C601
1UF 10V Y5V /NI

OV_NB_CHIP 42

ぃ璶匡禬筁

SB_PWRGD22,44

Q47
2N3904 SOT23

ECB

+1.2V_HT+1.1V

K ohm

1.24V

03/02 э3/30

C453

+12V

C455

C458
1UF 10V Y5V

OV_SP42

0.1UF 16V Y5V 0402

R266 20 1% 0402

411

10

+

8

9

-

SU2C
LM324 SO14

3

R264
562 1% 0402

+2.5V

A A

5

4

1.8186V

R265

1.5K 1% 0402

D

D

G

S

G

S

C459

0.1UF 16V Y5V 0402

Q48
NTD4863N TO252

+1.8V

+

1
2

-

1.84V

CT24

1000UF 6.3V 8X12

Title

Size Document Number Rev

Custom

2

Date: Sheet of

NB/SB CORE POWER

A78DG-A2T

46 48Friday, May 29, 2009

1

6.0

A

+3.3V_DUAL

LFB1 BEAD 60 0805 1A

2 1

+

LCT1
100UF 16V 5X11 2mm

LR170 0805

4 4

VCTRL12A

EVDD12 DVDD12

L12 INDUCTOR 4.7UH 1.3A DIP

+

LCT2
100UF 16V 5X11 2mm

LC1
1UF 10V Y5V

0.1UF 16V Y5V 0402 /NI

LC11
10UF 10V 0805 Y5V

DVDD12

LC21

LCT2 LC11 LC21 Close to L12

VDD33

1UF 10V Y5V /NI

LC2

B

LC3

0.1UF 16V Y5V 0402

LC18

1UF 10V Y5V

VDD33

0.1UF 16V Y5V 0402 /NI
LC4

0.1UF 16V Y5V 0402 /NI
LC5

LC8

0.1UF 16V Y5V 0402

for Pin 4,10,13,30,36,39

LC6

0.1UF 16V Y5V 0402

0.1UF 16V Y5V 0402 /NI
LC9

C

DVDD12

LC7

0.1UF 16V Y5V 0402

LC19

0.1UF 16V Y5V 0402

D

LC10

0.01UF 25V X7R 0402

MDI0+
MDI0­MDI1+
MDI1­MDI2+
MDI2­MDI3+
MDI3-

RJ45USB1B

2

TX+

3

TX-

4

RX+

5

N/C1

6

N/C2

7

RX-

8

N/C3

9 G8

N/C4 GND4

1

V_DAC

10

GNDP

LANUSB_GBMA
LR4
0 0805

GLED-

GLED+

YLED-

YLED+

GND1
GND2
GND3

11
12
13
14

G1
G2
G7

LED-LINK-A

IO_GND

+3.3V_DUAL

LR18 330
LR19 330

E

LR1
330

LED-100-A_EESK

LED-1000-A_EEDO

X7R
X7R

VDD33

CTRL12/VDD

LC22

0.1UF 16V Y5V 0402

B

10UF 10V 0805 Y5V

VDD33
MDI0+
MDI0-

MDI1+
MDI1-

MDI2+
MDI2­DVDD12
MDI3+
MDI3-

LC23

LU2

1

AVDD33

2

MDIP0

3

MDIN0

4

NC/FB12

5

MDIP1

6

MDIN1

7

GND

8

NC/MDIP2

9

NC/MDIN2

10

DVDD12/AVDD12

11

NC/MDIP3

12

NC/MDIN3

LR5

2.49K 1% 0402

VDD33

LR6 NI

VDD33

XTAL1

XTAL2

CTRL12/VDD

CTRL12/VDD

RSET

HSIP

DVDD12

4241404438

43

45

CKTAL2

CKTAL1

NC/VDDSR

NC/AVDD33

NC/ENSWREG

VCTR12DVDDSR

HSIN

REFCLK_P

REFCLK_N

EVDD12

HSOP

HSON

EVDD12

GBE_CLKP

GBE_TXNN

GBE_CLKN

GBE_RXPP

GBE_RXNN

LC15

1UF 10V Y5V

VCTRL12A

RSET

464847

GND

VCTRL12A/SROUT12

DVDD12

GND

1314151617181920212223

GBE_TXPP

DVDD12

VDD33

LED-LINK-A

37

39

LED0

VDD33

NC/LV_PLL

DVDD12

LED1/EESK

LED2/EEDI

LED3/EEDO

EECS

GND

DVDD12

VDD33

ISOLATEB

PERSTB

LANWAKEB

CLKREQB

EGND

NC/GPO

NC/NC

RTL8111DL-GR LQFP48

24

1UF 10V Y5V /NI
LC20

C

DVDD12

36

LED-100-A_EESK

35

LED2_EEDI

34

LED-1000-A_EEDODVDD12

33
32
31

DVDD12

30

VDD33

29

ISOLATEB

28

PCIE_RST_OUT2#

27

PE_WAKE_

26
25

+3.3V_DUAL

LR7

3.6K 0402

LY1

25MHZ 20PF 30PPM

LC16
33P 50V NPO

+3.3V

LR9
1K 0402

LR11
15K 0402

XTAL1

XTAL2

LC17
33P 50V NPO

+5V_DUAL +3.3V_STBY

LCT3

100UF 16V 5X11 2mm

Q56

I
O
A

AZ1117H-ADJ SOT-223

Vout=Vref (1.25V) X ( 1+R2/R1 )
=3.3V

D

+3.3V_DUAL

+

LR12

R1

200 1% 0402

LR13
330 1% 0402

R2

Title

RTL8111DL

Size Document Number Rev

Custom

Date: Sheet of

LD1 SS12/5817 SMA

AK

+

LCT4
1000UF 6.3V 8X12

A78DG-A2T

+3.3V

47 48Friday, May 29, 2009

E

6.0

3 3

Power
domain
chart

AVDD33

DVDD12

PCIE_RST_OUT2#34

2 2

RTL8111DL

3.3V

1.05V

PCIE_RST_OUT2#

PCIE_WAKE22,26,29
GBE_CLKN20
GBE_CLKP20

GBE_RXN16
GBE_RXP16
GBE_TXP16
GBE_TXN16

PE_WAKE_
GBE_CLKN
GBE_CLKP

LC13 0.1UF 16V X7R 0402

LC14 0.1UF 16V X7R 0402

GBE_TXPP
GBE_TXNN

GBE_RXNN
GBE_RXPP

1 1

A

5

A

4

(BAT1)

筿

3

2

1

D D

JUSBV1(1_2)
JUMPER 2P R

JUSBV2(1_2)
JUMPER 2P R

C C

JCMOS1(1_2)
JUMPER 2P B

(Y2)
X'TAL WIRE

PCB

PCB

A78DG-A2T V60

(PCB)

獁粗

POLON 305x220

B B

3V BATTERY SONY

(CPU1)

AM2RM-T
(U1)

爵床荐

NBHS-A78D

New JPANEL1
JPANEL1 2*8

JPANEL1(9_10)
HEADER 1X2

JPANEL1(11_14)
PLED

JPANEL1(1_4)

SPK

JPANEL1(5_6)

HLED

(U5)

FLASH ROM

SPI SOCKET 8PIN

(U4)

玭爵床荐

SBHS-A78G

4/13 э

JPANEL1(15_16)
HEADER 1X2

JPANEL1(7_8)
RST

A

Title

Size Document Number Rev

B

Date: Sheet of

5

4

3

2

BOM

A78DG-A2T

1

48 48Friday, May 29, 2009

6.0
