A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
Setup Manual

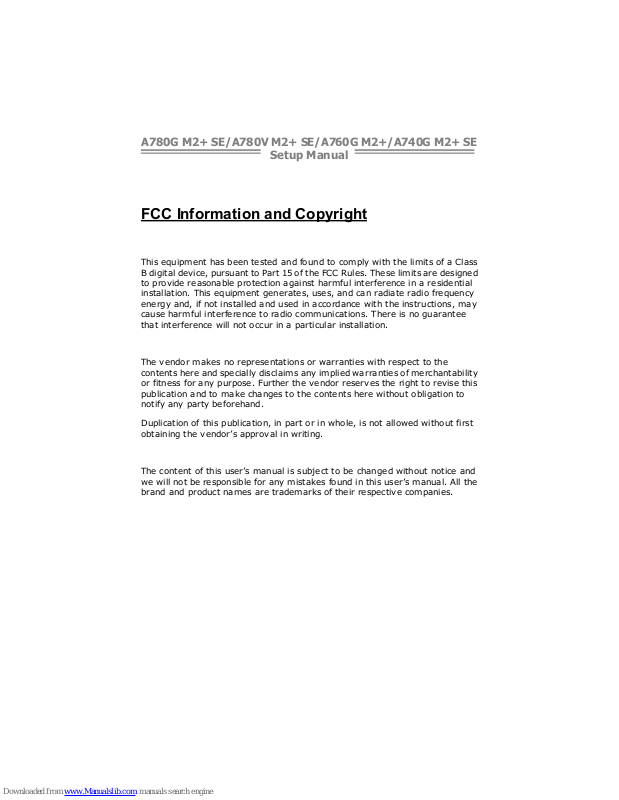

FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment ge nerates, uses, and can radiate radio frequency energy and, if not i nstalled and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user’s manual. All the brand and product names are trademarks of their respective companies.
Page 2
Table of Contents
Chapter 1: Introduction ............................................................ 1
1.1 Before You Start ................................................................................ 1
1.2 Package Checklist............................................................................. 1
1.3 Motherboard Features...................................................................... 2
1.4 Rear Panel Connectors ..................................................................... 3
1.5 Motherboard Layout......................................................................... 4
Chapter 2: Hardware Installation ............................................. 5
2.1 Installing Central Processing Unit (CPU)....................................... 5
2.2 FAN Headers...................................................................................... 7
2.3 Installing System Memory ................................................................ 8
2.4 Connectors and Slots....................................................................... 10
Chapter 3: Headers & Jumpers Setup ..................................... 13
3.1 How to Setup Jumpers .................................................................... 13
3.2 Detail Settings.................................................................................. 13
Chapter 4: Hybrid CrossFireX Function (for A780G M2+
SE/A780V M2+ SE/A760G M2+).......................... 20
4.1 Hybrid CrossFire X Requirements .................................................. 20
4.2 Hybrid CrossFireX Installation....................................................... 20
Chapter 5: RAID Functions ..................................................... 21
5.1 Operating System............................................................................ 21
5.2 Raid Arrays ...................................................................................... 21
5.3 How RAID Works............................................................................. 21
Chapter 6: Useful Help ............................................................ 24
6.1 Driver Installation Note.................................................................. 24
6.2 Software ............................................................................................ 25
6.3 Extra Information............................................................................ 29
6.4 AMI BIOS Beep Code....................................................................... 31
6.5 Troubleshooting............................................................................... 32
Appendix: SPEC In Other Languag es ...................................... 34
German.................................................................................................................. 34
French .................................................................................................................... 36
Ita lian..................................................................................................................... 38
Spanish ................................................................................................................... 40
Portugue se ............................................................................................................ 42
Polish...................................................................................................................... 44
Russian ................................................................................................................... 46
Arabic..................................................................................................................... 48
Japanese ................................................................................................................ 50
Page 3
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
1
CHAPTER 1: INTRODUCTION
1.1 B
EFORE YOU START
Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the computer from power outlet
before operation.
Before you take the motherboard out from anti-static
bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
Avoid touching the components on motherboard or the
rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short circuits which may damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
1.2 PACKAGE CHECKLIST
HDD Cable X 1 Serial ATA Cable X 1 Rear I/O Panel for ATX Case X 1 Installation Guide X 1 Fully Setup Driver CD X 1 (full version manual files inside) FDD Cable X 1 (optional) USB 2.0 Cable X1 (optional) S/PDIF out Cable X 1 (optional) Serial ATA Power Cable X 1 (optional)
Note: The package contents may be different due to area or your motherboard version.
Page 4
Motherboard Manual
2
1.3 MOTHERBOARD FEATURES
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Socket AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 x2 / Se mpro n / Pheno m process o rs AMD 64 Architecture enables 32 and 64 bit computing Supports Hyper Transport 3.0 and PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Socket AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 x2 / Se mpro n / Pheno m process o rs AMD 64 Architecture enables 32 and 64 bit computing Supports Hyper Transport 2.0 and PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
Suppo rt Hyp erTranspo rt 3.0 Suppo rts up to 5.2 GT /s Band width
Suppo rt Hyp erTranspo rt 2.0 Suppo rts up to 2.0 GT /s Band width
Chipset
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Super I/O
ITE 8718F Pr ovides th e most common ly us ed leg acy Sup er I/ O fun ctionalit y Low Pin Count Interface Environ ment Control init iatives H/W Monitor ITE's "Smart Guardian" function
ITE 8718F Pr ovides th e most co mmon ly us ed leg a cy Sup er I/O fun ctionalit y Low Pin Count Interface Environ ment Control init iatives H/W Monitor ITE's "Smart Guardian" function
Main Memo ry
DDR2 DIMM Slots x 2 Max Memor y Capacity 8GB Each DIMM supports 256MB/512MB/ 1GB/2GB/4GB DDR2 Dual Channel Mode DDR2 memory module Supports DDR2 533 / 667 / 800 Supports DDR2 1066 (for AM2+ CPU only) Regist ered DIMM and ECC D IMM is not supp ort ed
DDR2 DIMM Slots x 2 Max Memor y Capacity 8GB Each DIMM supports 256MB/512MB/ 1GB/2GB/4GB DDR2 Dual Channel Mode DDR2 memory module Supports DDR2 533 / 667 / 800 Supports DDR2 1066 (for AM2+ CPU only) Regist ered DIMM and ECC D IMM is not supp ort ed
Graphics
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Max Shared Video Memory is 512 MB DX10/HDCP (A780G M2+ SE & A780V M2+ SE on ly) support Hybrid Cross FireX suppo rt UVD support (for A780G M2+ SE only)
AT I Radeon 2100 Max Shared Video Memory is 512 MB HDCP support
IDE
Int egrated IDE Cont ro ller Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode supports PIO Mode 0~4,
Int egrated IDE Cont ro ller Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode supports PIO Mode 0~4,
SATA II
Int egrated Serial ATA C ont roller Data transfer rates up to 3 Gb/s SATA Vers ion 2 .0 spe cificat io n comp liant
Int egrated Serial ATA C ont roller Data transfer rates up to 3 Gb/s SATA Vers ion 2 .0 spe cificat io n comp liant
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) 10 / 100 /1000 Mb/s auto negotiation (A780G M2+ SE & A760G M2+) 10 / 100 Mb /s auto negotiat ion (A780V M2+ SE ) Half / Full dup lex capabilit y
Realtek RTL 8102EL 10 / 100 Mb /s auto n egot iat ion Half / Full dup lex capabilit y
Page 5
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
3
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
Sound
ALC662
5.1 channels audio out High Definition Audio
ALC662
5.1 channels audio out
High Definition Audio PCI Express Gen2 x16 slot x1 PCI Express x16 slot x1 PCI Express Gen2 x1 s lot x1 PCI Express x1 slot x1
Slots
PCI slot x2 PCI slot x2 Floppy connector x1 Floppy connector x1 IDE Conn ector x1 ID E Co nnecto r x1 SATA Connector x6 SATA Connector x6 Front Panel Connector x1 Front Panel Connector x1 Front Audio Connector x1 Front Audio Connector x1 CD-in Connector x1 CD-in Connector x1 S/PDIF out connector x1 S/PDIF out connector x1 CPU Fan header x1 CPU Fan header x1 System Fan header x1 System Fan header x1 CMOS clear header x1 CMOS clear header x1 USB connector x3 USB connector x3 Power Connector (24pin) x1 Power Connector (24pin) x1 Power Connector (4pin) x1 Power Connector (4pin) x1 Print er Port Conne cto r x1 Print er Port Conne cto r x1
On Board Conn ector
Se rial p ort Co nnector x1 Se rial p ort Co nnecto r x1
Back Panel I/O
PS/2 Keyboard x1 PS/2 Mouse x1 DVI port x1 VGA port x1 LAN port x1 USB Port x4 Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
DVI port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Board Size 200 mm(W) x 244 mm(L) 200 mm(W) x 244 mm(L) Spe cial Features
RAID 0 / 1 / 1+0 support RAID 0 / 1 / 1+0 support
OS Support
Windows XP / VISTA 32 / VISTA 64 Biostar Reserves the right to add or remove support for any OS With or without notice.
Windows XP / VISTA 32 / VISTA 64
Biostar Reserves the right to add or remove support
for any OS With or without notice.
1.4 R
EAR PANEL CONNECTORS
PS/2 Mou se
PS/ 2 Keyboard
USB X2USBX2
LAN
VGA
Line I n/ Surr oun d
Line Out
Mic In 1/ Bass/ Center
DVI-D
Page 6
Motherboard Manual
4
1.5 MOTHERBOARD LAYOUT
JKBMS1
JUSB1
JUSBLAN1
JAUDIO F1
Codec
JCDI N1
Super I/O
JCOM1
JUSB3 JUSB2
JSFAN1
JPANEL1
SATA3
SATA4
SAT A2
SATA 1
FDD1
IDE 1
JATXPWR1
JCFAN1
Socket AM2+
LAN
PCI1
PCI2
PEX1_1
PEX16 _1
JSPDIF _OU T1
AMD
SB700/
SB710
JCM OS1
JATXPW R2
VGA
DIMMA1
DIMMB1
BIO S
DVI
JAUDIO1
JPRNT1
JUSB V2
JUSBV1
SATA5
SATA6
JUSB4
AMD 780G/ 780V/ 760G/ 740G
BAT1
JKBV1
Note: represents the 1
st
pin.
Page 7
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 I
NSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only in the correct orientation.
Page 8
Motherboard Manual
6
Step 4: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU
transition, you may encounter the situation that the new system failed to boot while using new AM2+ CPUs. In this case, please install o ne standard AM2 CPU to boot your system, and update the latest BIOS from our website for AM2+ CPUs support.
Page 9
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
7

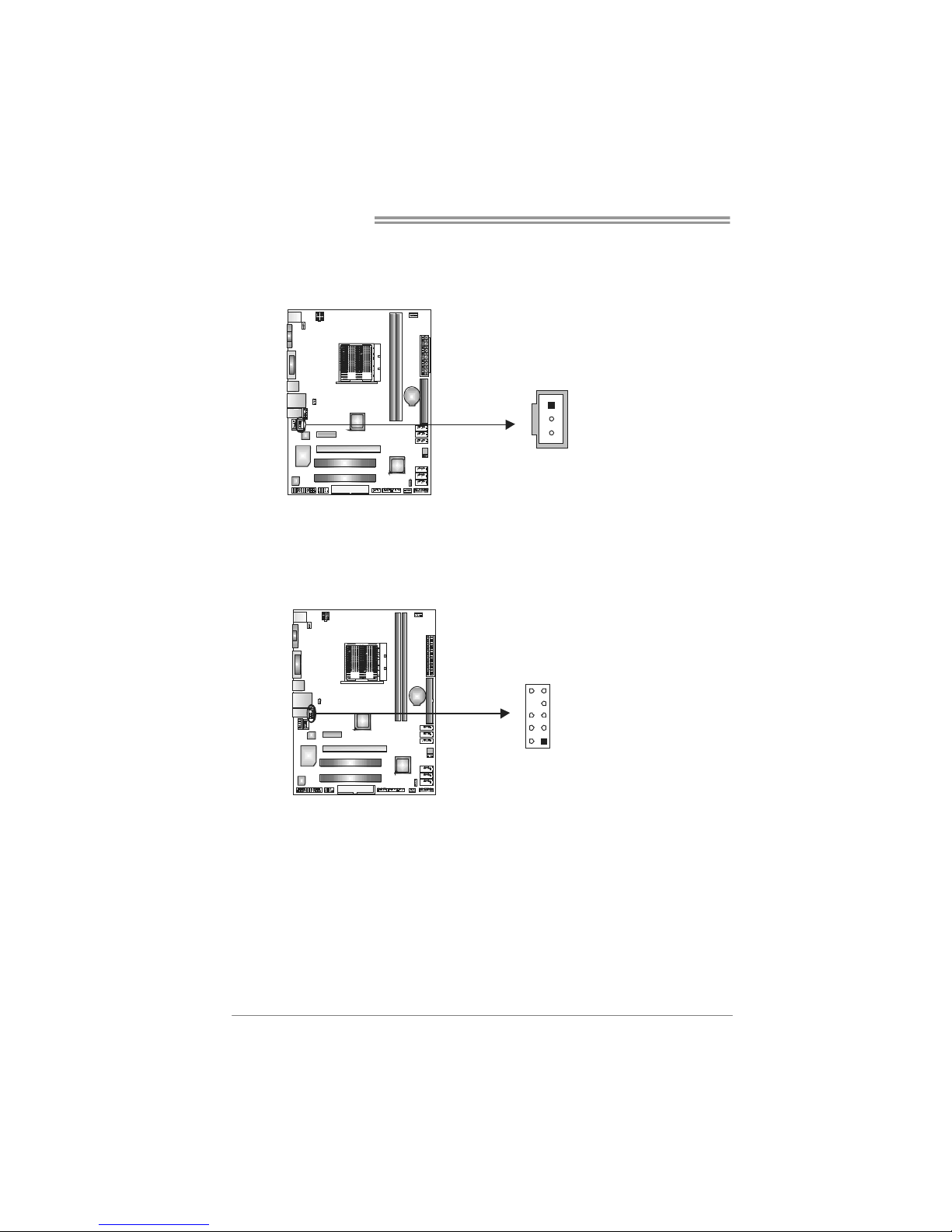

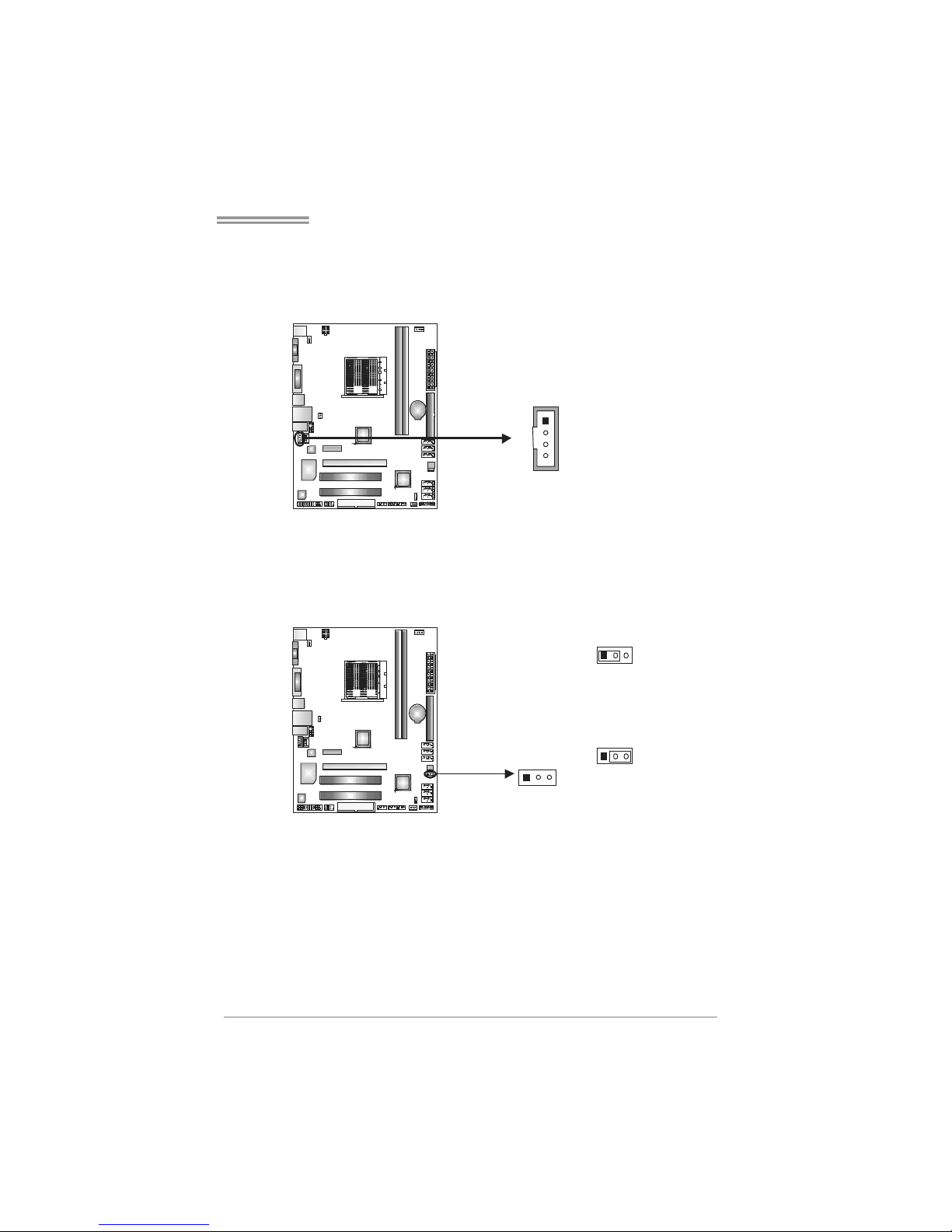

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground 2 +12V 3
FAN RPM r at e sense
14
4 Smart Fan
Control (By Fan)
JSFAN1: System Fan Header
Pin
Assignment
1 Ground 2 +12V
13
3 FAN RPM rate
sense
Note:
The JCFAN1 supports 4-pin head connector. The JSFAN1 supports 3-pin head connector. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pi n#2, and the black wire is Ground and should be connected to GND.
Page 10
Motherboard Manual
8
2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
DIMMB1
DIMMA1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated.
Page 11
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
9
B. Memory Capacity
DIMM Socket
Location
DDR2 Module
Total Mem o ry
Size
DIMMA1 256MB/512MB/1GB/2GB/4GB
DIMMB1 256MB/512MB/1GB/2GB/4GB
Max is 8GB.
C. Dual Channel Memory installation
To trigger the Dual Channel function of the motherboard, the memory module must meet the following requirements:
Install memory module of the same density in pairs, shown in the following table.
Dual Channel Status
DIMMA1
DIMMB1
Disabled X O
Disabled O X
Enabled O O
(O means memory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the same (x8 or x16)
Page 12
Motherboard Manual
10
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cable.
13
3
234
IDE1: IDE/ATAPI Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.
The IDE connector can connect a master and a slave drive, so you can connect up to two drives.
21
3940
Page 13
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
11

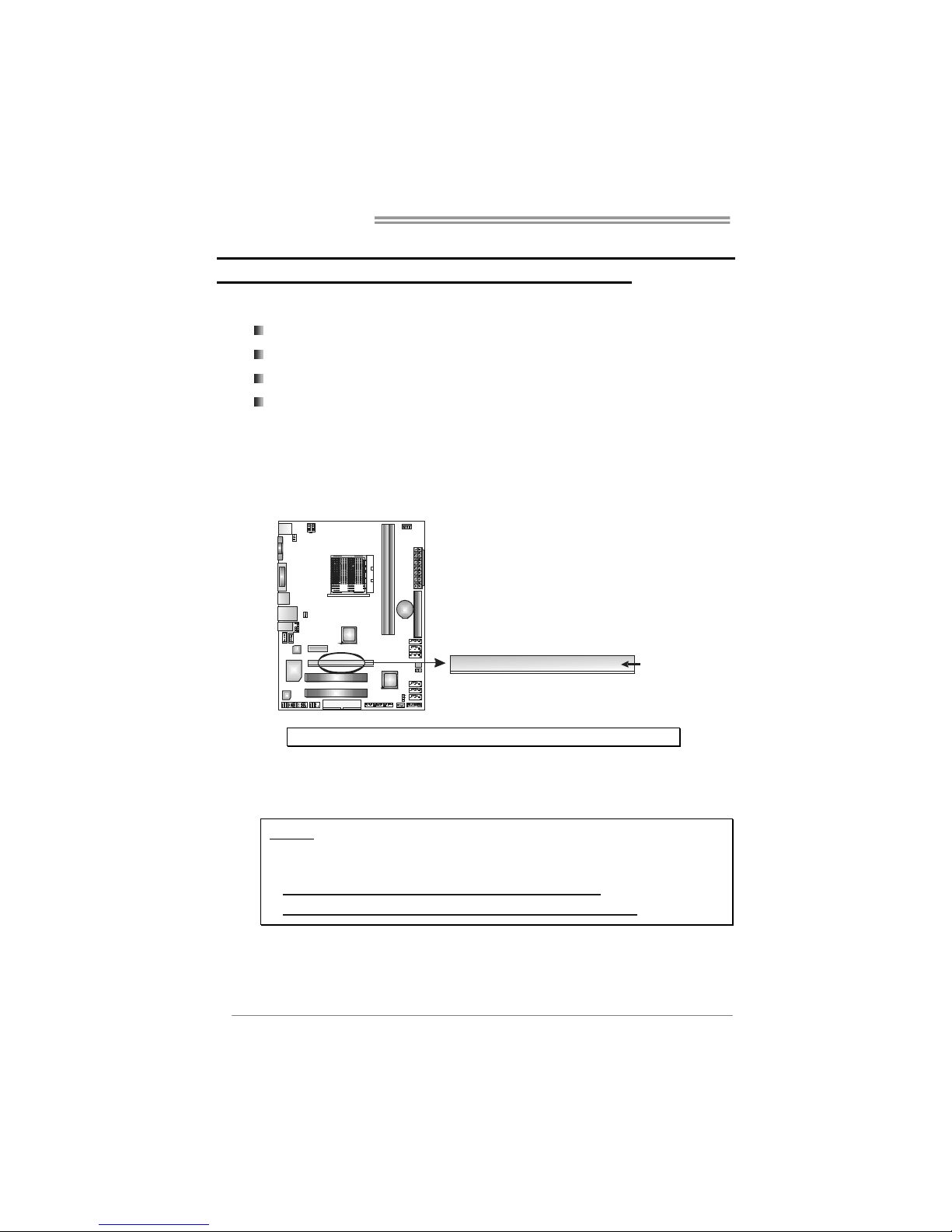

PEX16_1: PCI-Express Gen2 x16 Slot (for A780G M2+ SE/A780V M2+ SE/A760G M2+)
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s simultaneously per
direction, for an aggregate of 16GB/s totally.
PEX1_1: PCI-Express Gen2 x1 Slot (for A780G M2+ SE/A780V M2+ SE/A760G M2+)
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
- PCI-Express supports a raw bit-rate of 5.0Gb/s on the data pins.
- 2X bandwidth over the PCI-Express 1.1 architecture.
PEX16_1: PCI-Express x16 Slot (for A740G M2+ SE)
- PCI-Express 1.1 compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
PEX1_1: PCI-Express x1 Slot (for A740G M2+ SE)
- PCI-Express 1.1 compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5GB/s on the data pins.
- 2X bandwidth over the traditional PCI architecture.
PE X1_1
PEX16_1
Page 14
Motherboard Manual
12
PCI1~PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.
PCI1
PCI2
Page 15
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
13
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H
OW TO SETUP JUMPERS

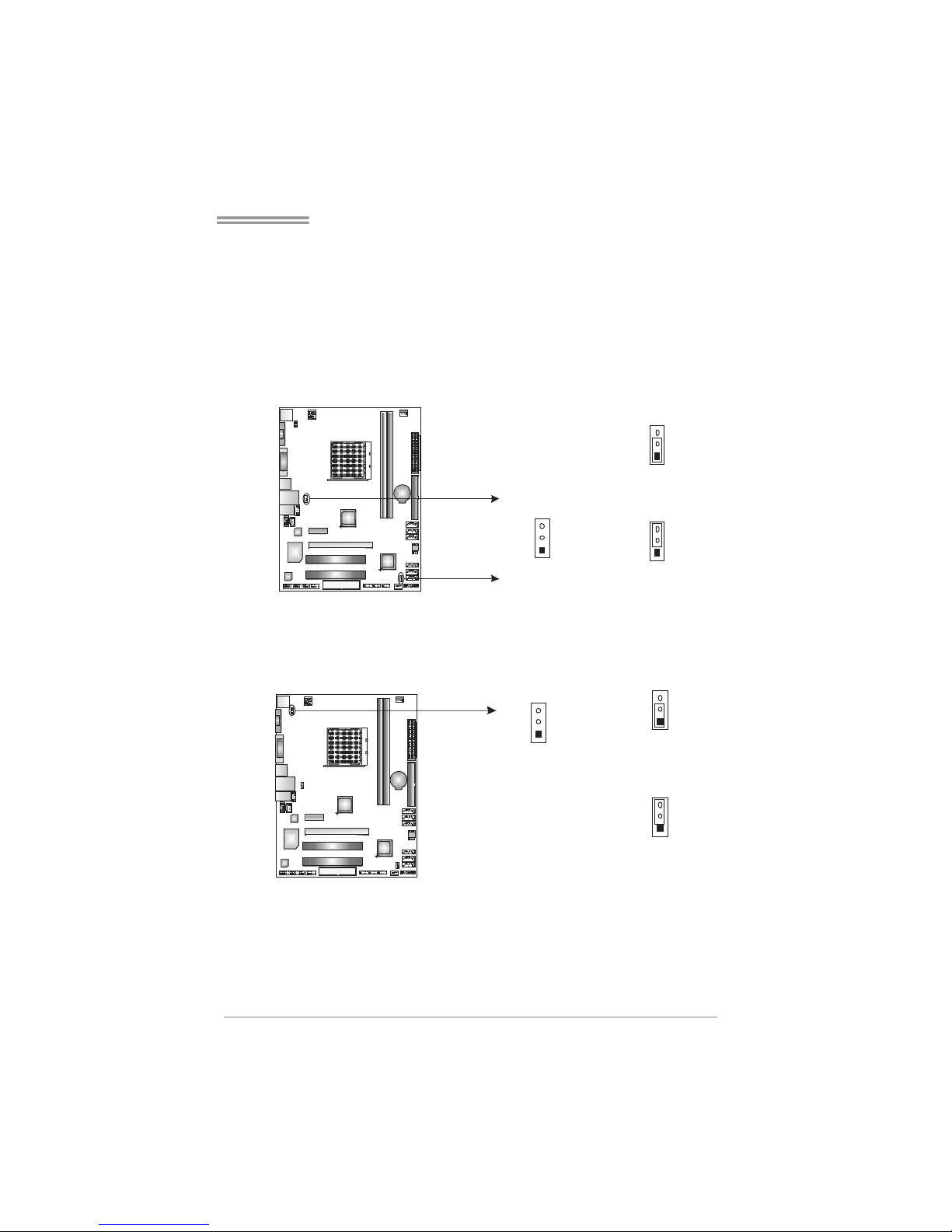

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
3.2 D
ETAIL SETTINGS

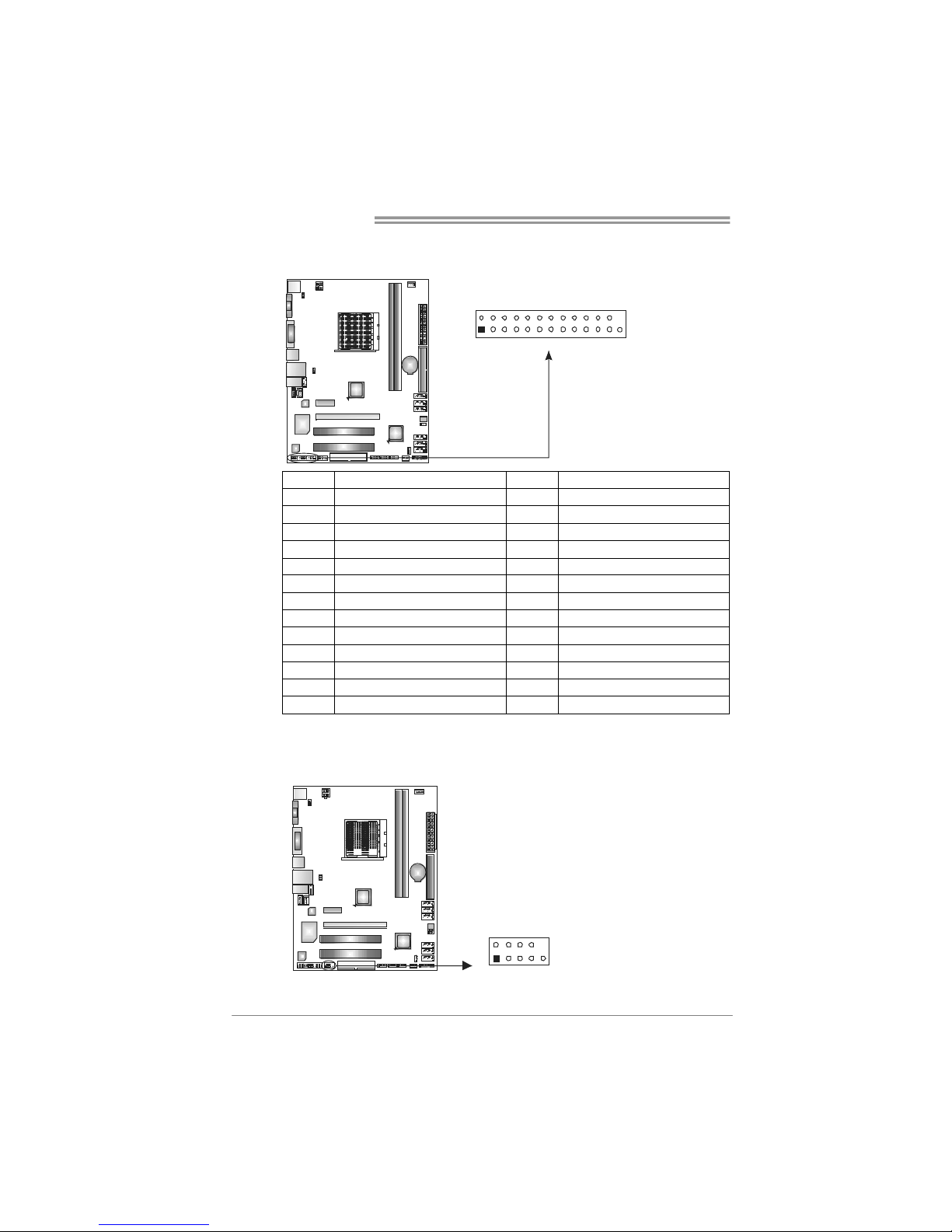

JPANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and speaker connection. It allows user to connect the PC case’s front panel switch functions.
1
8
16
PWR_LED
On/Off
RST
HL ED
SPK
++
+
9
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A 2 N/A 10 N/A
N/A
3 N/ A 1 1 N/ A N/ A 4 Speaker
Speaker Connector
12 Power LED (+) 5 HDD LED (+) 13 Power LED (+) 6 HDD LED (-)
Hard drive LED
14 Power LED (-)
Power LED
7 Ground 15 Power button 8 Reset control
Reset button
16 Ground
Power-on button
Page 16
Motherboard Manual
14
JATXPW R1: AT X Power Sourc e Connector
This connector allows user to connect 24-pin power connector on the ATX power supply.
1
12
13
24
Pin Assignm ent Pin Assignm ent
13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 Ground 3 Ground 16 PS_ON 4 +5V 17 Ground 5 Ground 18 Ground 6 +5V 19 Ground 7 Ground 20 NC 8 PW_OK 21 +5V 9 Standby Voltage+5V 22 +5V 10 +12V 23 +5V 11 +12V 24 Ground 12 +3.3V
JATXPW R2: AT X Power Sourc e Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V 2 +12V 3 Ground
12
34
4 Ground
Note:
Before power on the system, please make sure that both JATXPWR1 and JATXPWR2 connectors have been plugged-in.
Page 17
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
15
JUSB2/JUSB3/JUSB4: Headers for USB 2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused) 2 +5V (fused) 3 USB­4 USB­5 USB+ 6 USB+ 7 Ground 8 Ground 9 NC
19
210
JUSB4 JUSB3 JUSB2
10 Key

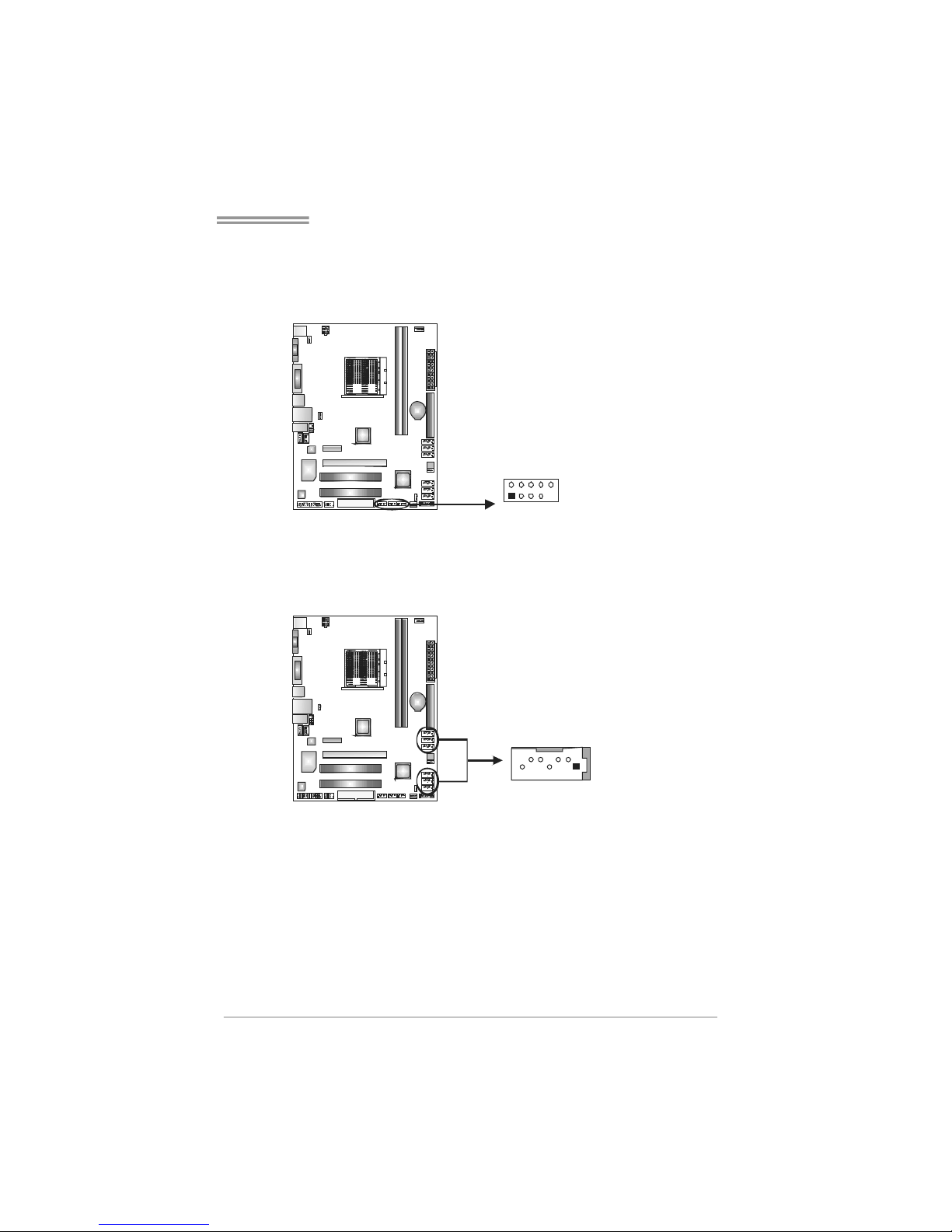

SATA1~SATA6: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 6 channels SATA interface, it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground 2 TX+ 3 TX­4 Ground 5 RX­6 RX+
14
7
SAT A6 SAT A5 SAT A4 SAT A3 SAT A2 SAT A1
7 Ground
Page 18
Motherboard Manual
16
JSPDIF_OUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V 2 SPDIF_OUT
1
3
3 Ground
JAUDIOF1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front panel. This header allows only HD audio front panel connector; AC’97 connector is not acceptable.
Pin Assignment
1 Mic Left in 2 Ground 3 Mic Right in 4 GPIO 5 Right line in 6 Jack Sense 7 Front Sense 8 Key 9 Left line in
1
9
2
10
10 Jack Sense
Page 19
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
17
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.
Pin
Assignment
1 Left Channel Input 2 Ground 3 Ground
1
4
4 Right Channel Input
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and the CMOS data, please carefully follow the procedures to avoid damaging the motherboard.
13
Pin 1-2 Close:
Normal Operation (default).
13
13
Pin 2-3 Close:
Clear CMOS data.
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
Page 20
Motherboard Manual
18
JPRNT1: Printer Port Connector
This header allows you to connector printer on the PC.
125
2
Pin Assignment Pin Assignment
1 -Strobe 14 Ground 2 -ALF 15 Data 6 3 Data 0 16 Ground 4 -Error 17 Data 7 5 Data 1 18 Ground 6 -Init 19 -ACK 7 Data 2 20 Ground 8 -Scltin 21 Busy
9 Data 3 22 Ground 10 Ground 23 PE 11 Data 4 24 Ground 12 Ground 25 SCLT 13 Data 5 26 Key
JCOM1: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin
Assignment
1 Carrier detect 2 Received data 3 Transmitted data 4 Data terminal ready 5 Signal ground 6 Data set ready 7 Request to send 8 Clear to send 9 Ring indicator
19
210
10 NC
Page 21
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
19
JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at JUSB1/JUSBLAN1. JUSBV2: +5V for USB ports at front panel (JUSB2/JUSB3/JUSB4).
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at JUSB1/JUSBLAN1. JUSBV2: +5V STB for USB ports at front panel (JUSB2/JUSB3/JUSB4).
1
3
Pin 1-2 close
1
3
JUSBV2
JUSBV1
1
3
Pin 2-3 close
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
1
3
Pin 1-2 close
+5V for PS/2 keyboard and mouse.
1
3
1
3
Pin 2-3 close
+5V STB for PS/2 keyboard and mouse.
Page 22
Motherboard Manual
20
CHAPTER 4: HYBRID CROSSFIREX FUNCTION (FOR A780G M2+ SE/A780V M2+ SE/A760G M2+)
4.1 H
YBRID CROSSFIREX REQUIREMENTS
Only Windows Vista supports Hybrid CrossFireX function.
A graphics card with Radeon HD3450/HD3470 GPU.
The graphics card driver should support Hybrid CrossFireX technology.
The power supply unit must provide at least the minimum power required by
the system, or the system will be unstable. A power supply above 450W is recommended under Hybrid CrossFireX mode.
4.2 HYBRID CROSSFIREX INSTALLATION
Step 1: Insert the Hybrid CrossFireX-Ready graphics card into PEX16_1.
PEX16_1
R a de on H D 3 4 5 0 R a de on H D 3 4 7 0
Notice: Make sure the card is seated into slot completely.
Step 2: In the graphics card configuration program, choose “Hybrid CrossFireX” function. Installation completes.
NOTE
For more detail information of Hybrid CrossFireX function, please visit following web-sites:
http://game.amd.com/us-en/crossfirex_hybrid.aspx
http://ati.amd.com/technology/hybridgraphics/index.html
Page 23
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
21
CHAPTER 5: RAID FUNCTIONS
5.1 O
PERATING SYSTEM
Supports Windows XP Home/Professional Edition, and Windows Vista 32 / Vista 64.
5.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 1+0: RAID 1+0 combines the techniques used in RAID 0 and RAID 1.
5.3 HOW RAID WORKS

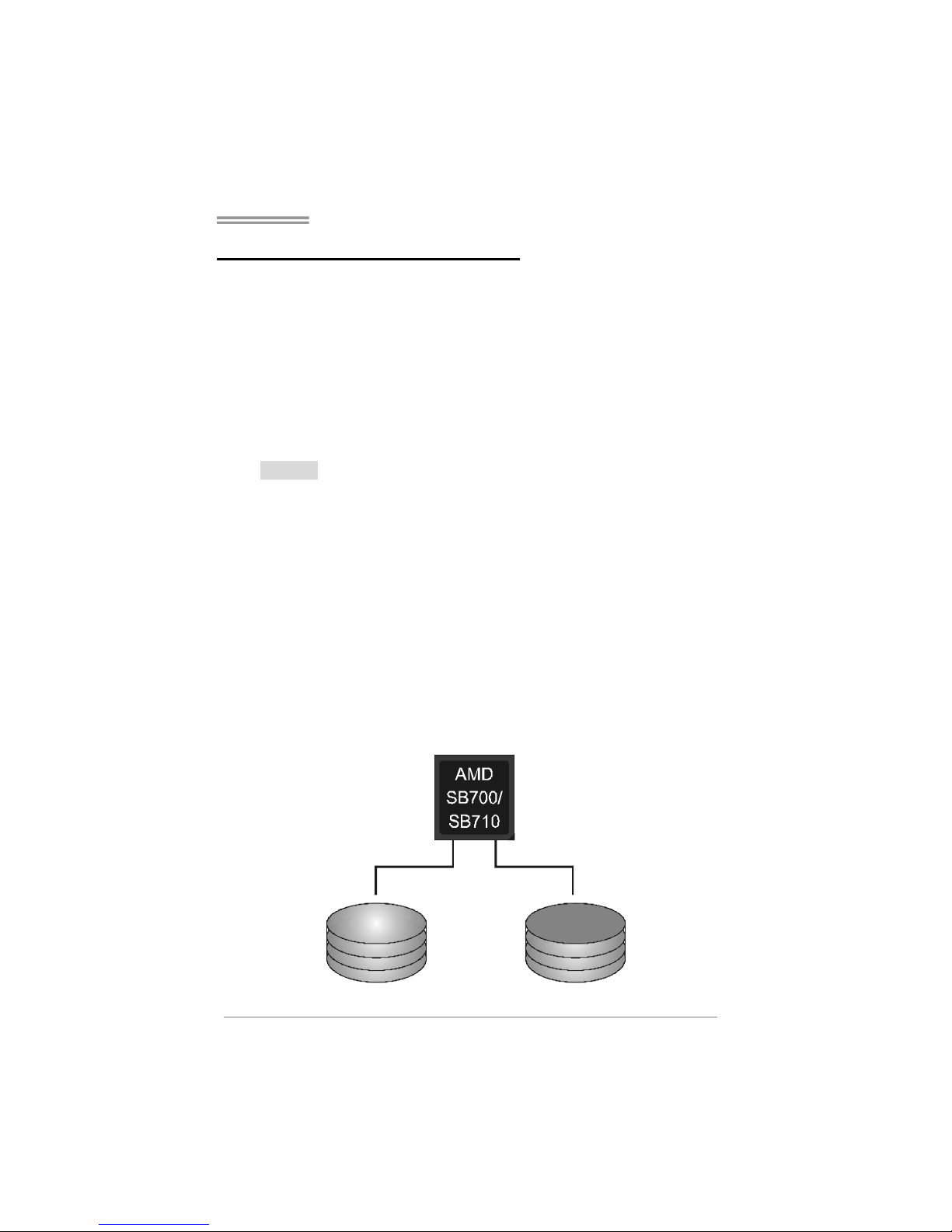

RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks up a large file into smaller blocks and performs disk reads and writes across multiple drives in parallel. The size of each block is determined by the stripe size parameter, which you set during the creation of the RAID set based on the system environment. This technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
- Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
- Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
- Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
- Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
- Fault Tolerance: No.
Block 1 Block 3 Block 5
Block 2 Block 4 Block 6
Page 24
Motherboard Manual
22
RAID 1:
Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1 array system. The mirrored (backup) copy of the data can reside on the same disk or on a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if the active volume or drive is corrupted or becomes unavailable because of a hardware failure.
RAID techniques can be applied for high-availability solutions, or as a form of automatic backup that eliminates tedious manual backups to more expensive and less reliable media.
Features and Benefits
- Drives: Minimum 2, and maximum is 2.
- Uses: RAID 1 is ideal for small databases or any other application that
requires fault tolerance and minimal capacity.
- Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
- Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
- Fault Tolerance: Yes.
Block 1 Block 2 Block 3
Block 1 Block 2 Block 3
Page 25
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
23

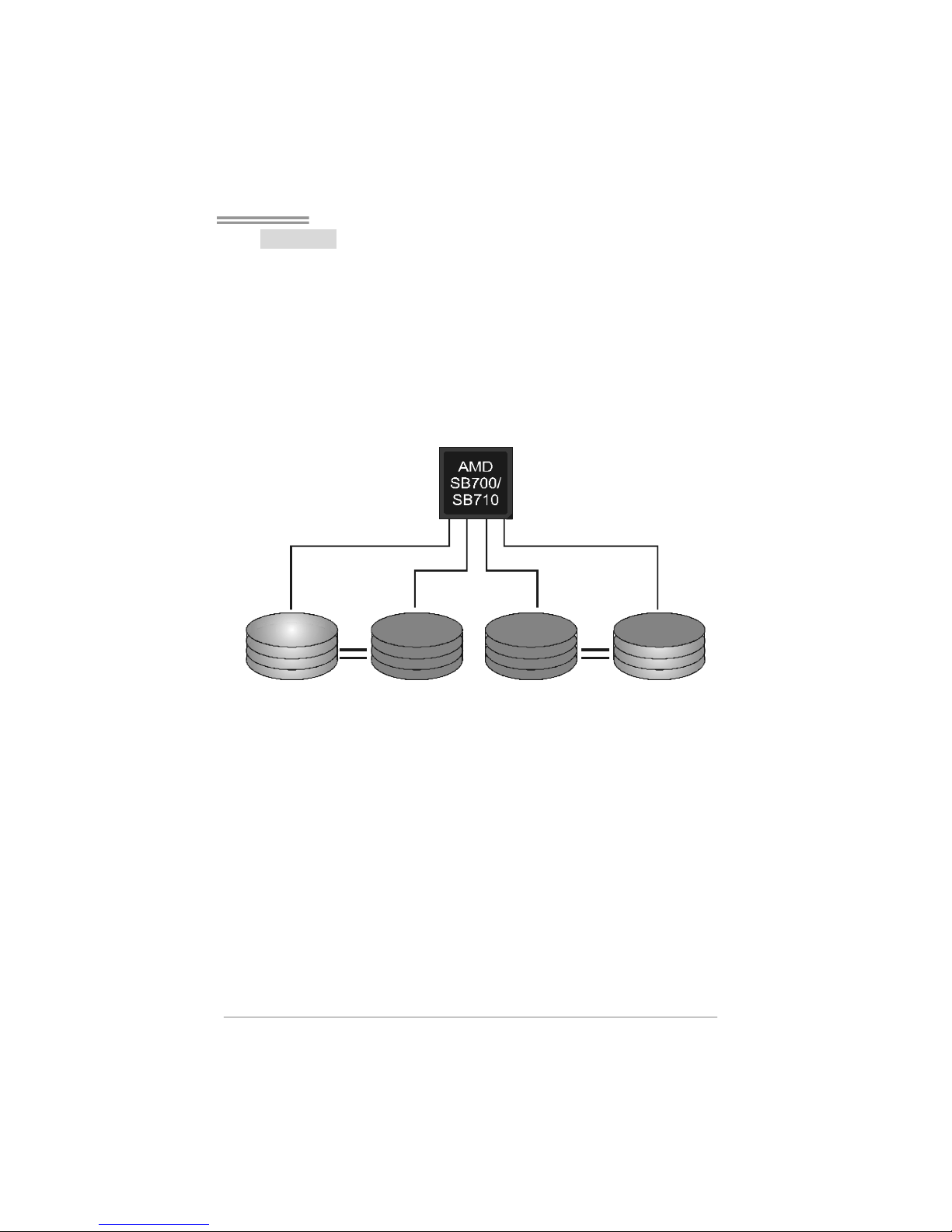

RAID 1+0:
RAID 1 drives can be stripped using RAID 0 techniques. Resulting in a RAID 1+0 solution for improved resiliency, performance and rebuild performance.
Features and Benefits
- Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
- Benefits: Optimizes for both fault tolerance and performance, allowing for
automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
- Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
- Fault Tolerance: Yes.
Block 1 Block 3 Block 5
Block 2 Block 4 Block 6
Block 1 Block 3 Block 5
Block 2 Block 4 Block 6
Page 26
Motherboard Manual
24
CHAPTER 6: USEFUL HELP
6.1 D
RIVER INSTALLATION NOTE
After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance.

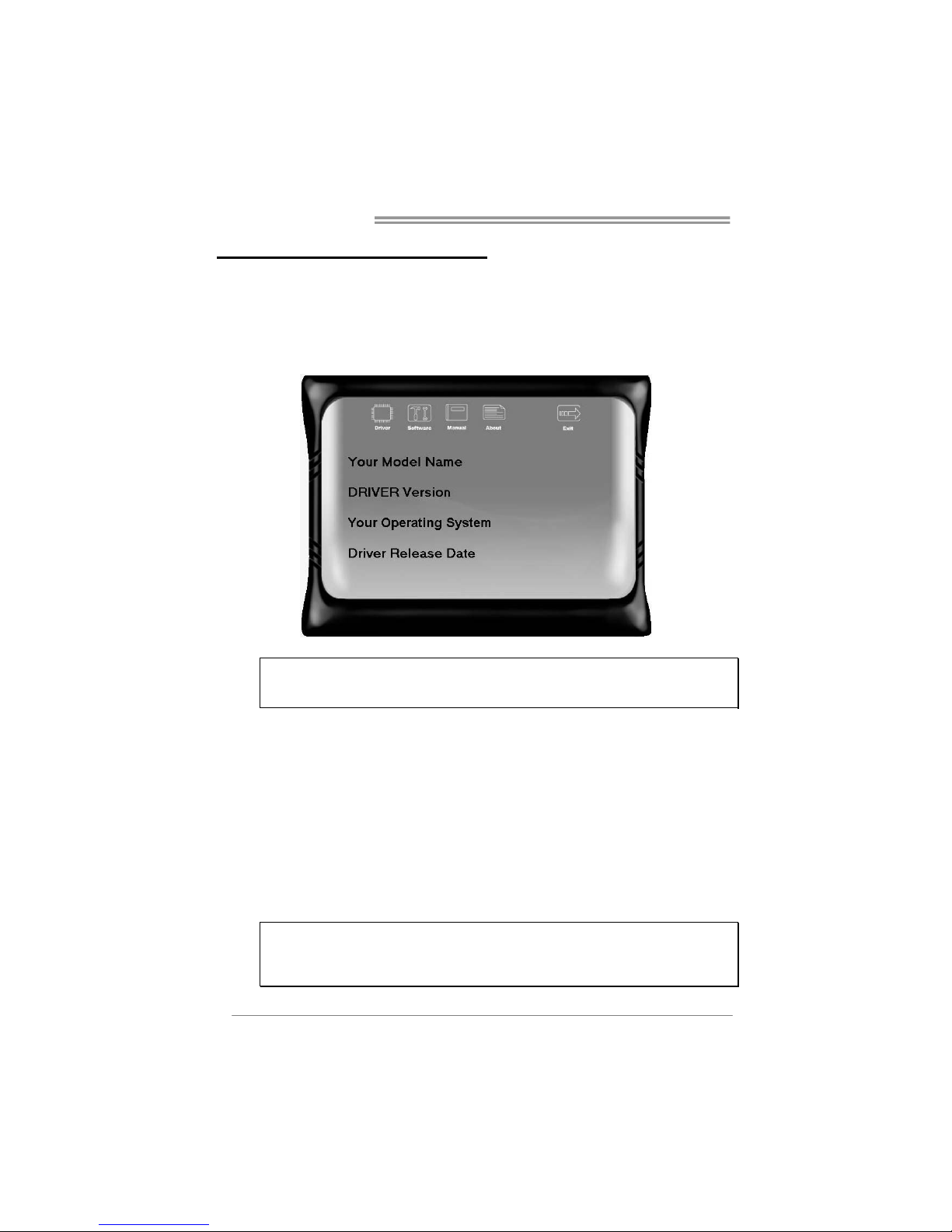

You will see the following window after you insert the CD
The setup guide will auto detect your motherboard and operating system.
Note:
If this window didn’t show up after you insert the Driver CD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
A. Driver Installation
To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.
B. Software Installation
To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.
C. Manual
Aside from the paperback manual, we also provide manual in the Driver CD. Click on the Manual icon to browse for available manual.
Note:
You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://www.adobe.com/products/acrobat/readstep2.html
Page 27
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
25
6.2 SOFTWARE
Installing Software
1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Autorun function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.
Launching Software

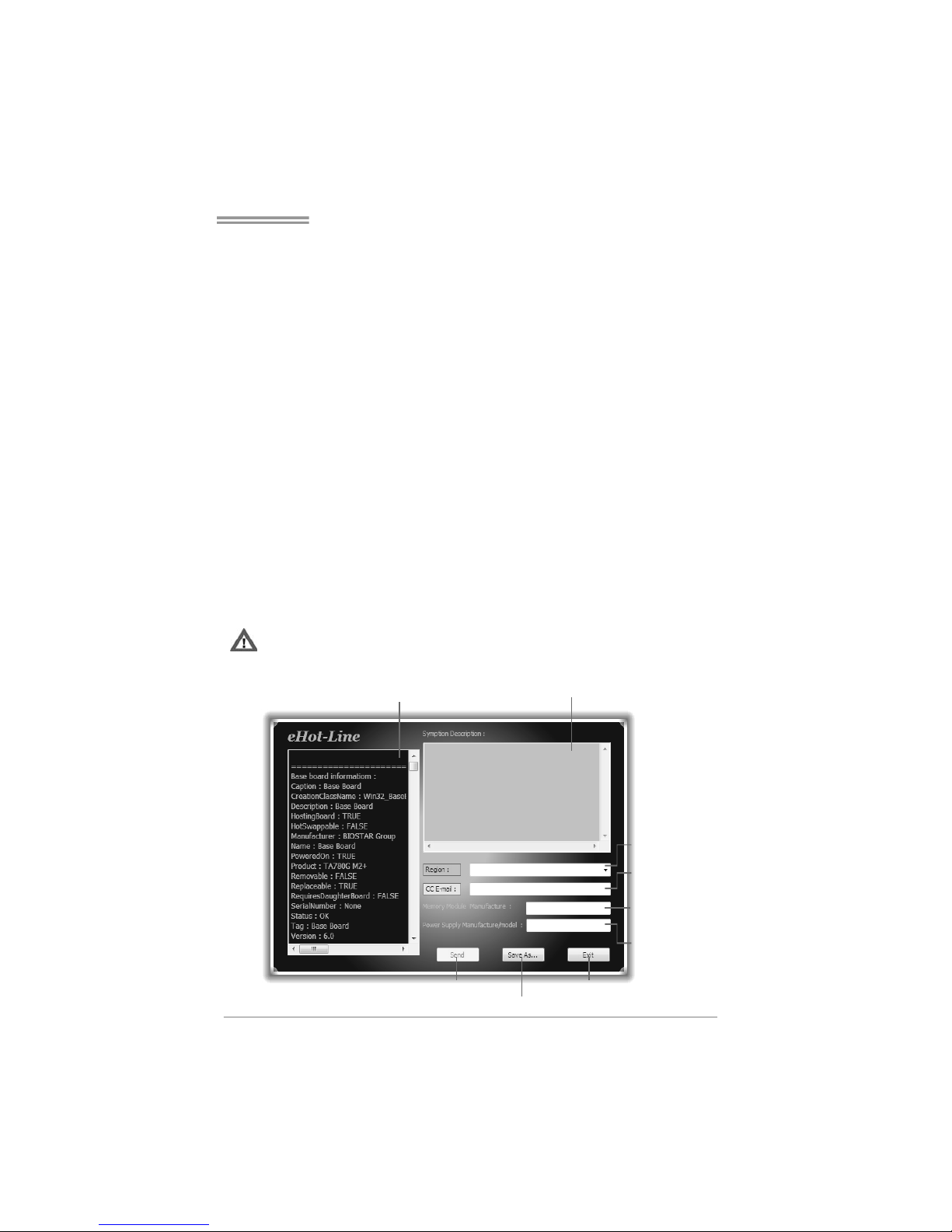

After the installatio n process, you will see the software icon “eHOT Line” / “BIOS Update” appears on the desktop. Double-click the icon to launch the utility.
eHot-Line (Optional)
eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.
Before you use this utility, please set Outlook Express as your default e- mail c lient applicatio n progra m.
This block will show the information which would be collected in the mail.
Provide the e-ma il address that you would like to send the copy to.
Provide the name of th e powe r su ppl y manufacturer and the model no.
Se nd th e mai l out .
Sav e the se in for ma tion to a .txt fil
e
Exit this dialog.
Select your area or the area close to you.
*
Pr ovid e th e name of the memory module manufacturer.
*
Describe condition of your system.
*
*
re pres ent s im port ant information that you must provide. Without this information, you may not be able to send out the mail.
Page 28
Motherboard Manual
26

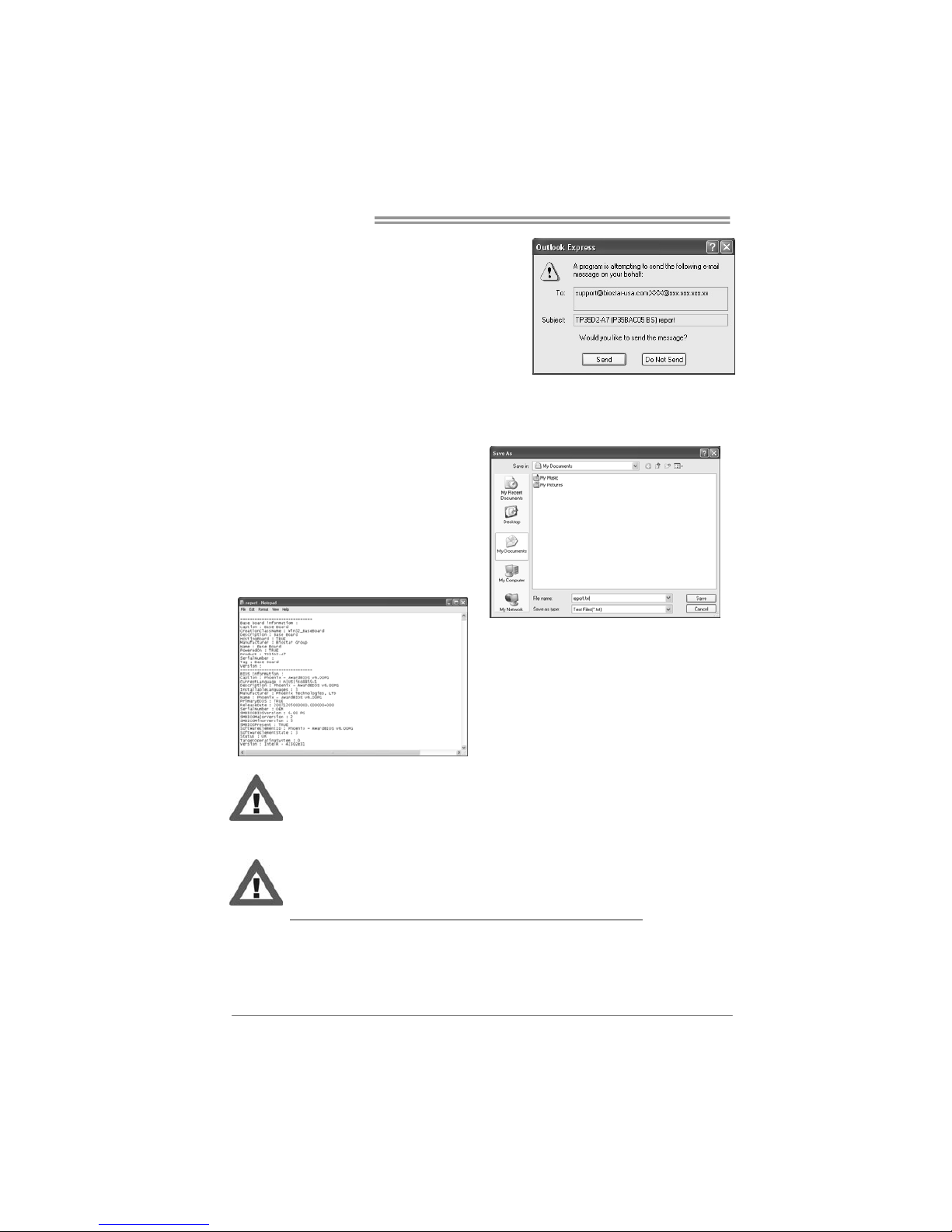

After filling up this information, click “Send” to send the mail out. A warning dialog would appear asking for your confirmation; click “Send” to confirm or “Do Not Send” to cancel.
If you want to save this information to a .txt file, click “Save As…” and then you will see a saving dialog appears asking you to enter file name.
Enter the file name and then click “Save”. Your system information will be saved to a .txt file.
Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/ device/OS information. This information is also concluded in the sent mail.
We will not share customer’s data with any other third parties, so please feel free to provide your system information while using eHot-Line service.
If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web
http://www.biostar.com.tw/app/en-us/about/contact.php for getting
our contact information.
Page 29
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
27

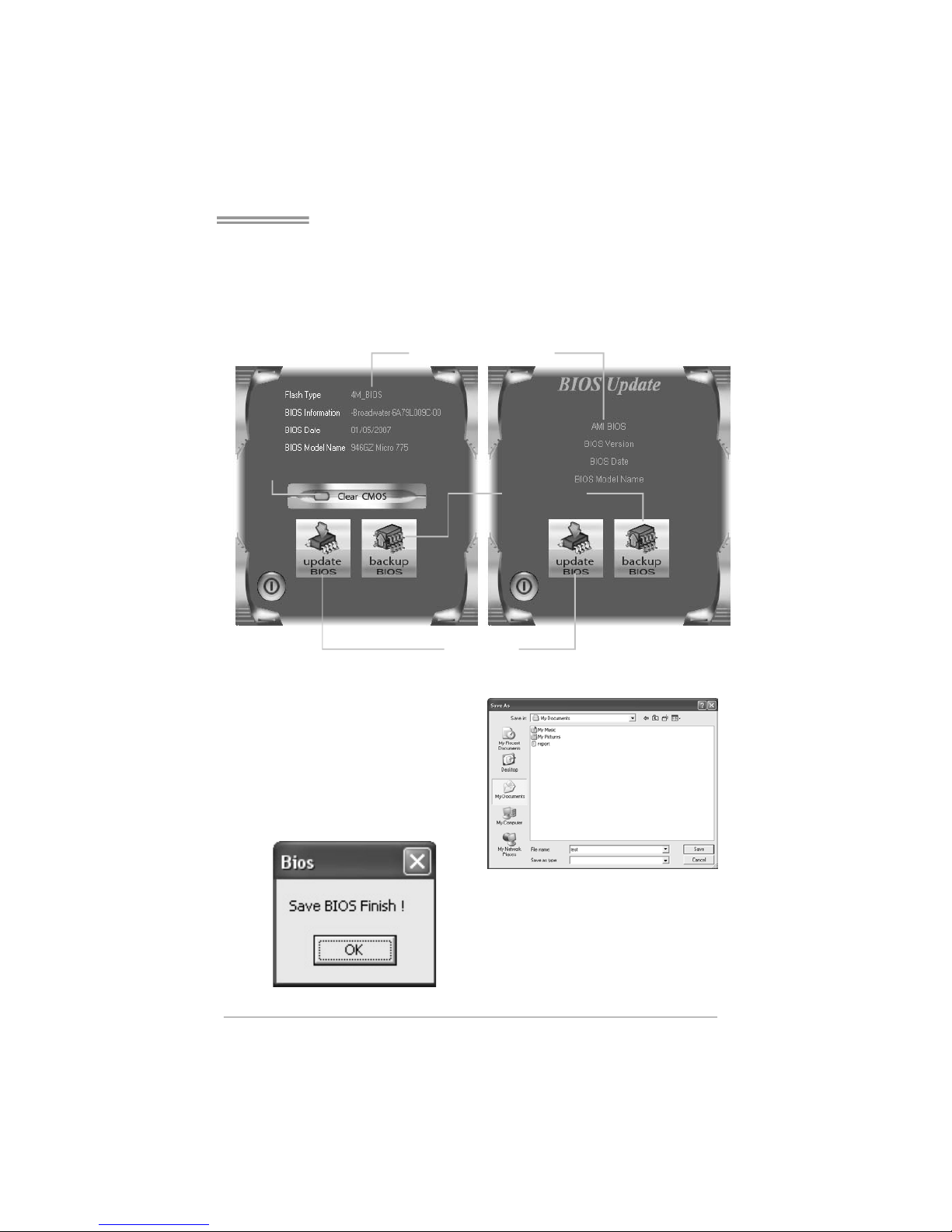

BIOS Update
BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system.
Update BIOS
with a BIOS file
Clear CMOS function
(Only for AWARD BIOS)
Show current BIOS information
Save cur rent B IOS
to a .bin file
AWARD BIOS AMI BIOS
<Backup BIOS>
Once click on this button, the saving dialog will show. Choose the position to save file a nd enter file name. (We recommend that the file name should be English/number and no longer than 7 characters.) Then click Save.
After the saving process, finish dialog will show. Click on OK to complete the BIOS Backup procedure.
Page 30
Motherboard Manual
28
<Update BIOS>
Before doing this, please download the proper BIOS file from the website.
For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first.
Then click Update BIOS button, a dialog will show for asking you backup current BIOS. Click Yes for BIOS backup and refer to the Backup BIOS procedure; or click No to skip this procedure.
After the BIOS Backup procedure, the open dialog will show for requesting the BIOS file which is going to be updated. Please choose the proper BIOS file for updating, then click on Open.
The utility will update BIOS with the proper BIOS file, and this process may take minutes. Please do not open any other applications during this process.
After the BIOS Update process, click on OK to restart the system.
While the system boots up and the full screen logo shows, press <Delete> key to enter BIOS setup.
In the BIOS setup, use the Load Optimized Defaults function and then Save and Exit Setup to exit BIOS setup. BIOS Update is completed.
All the information and content above about the software are subject to be changed without notice. For better performance, the software is being co ntinuously updated. The information and pictures described above are for your reference only. The actual information and settings on board may be slightly different from this manual.
Page 31
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
29
6.3 EXTRA INFORMATION
CPU Overheated
If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdow n automatically to avoid a damage of the CPU, and the system may not power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data. (See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
Page 32
Motherboard Manual
30

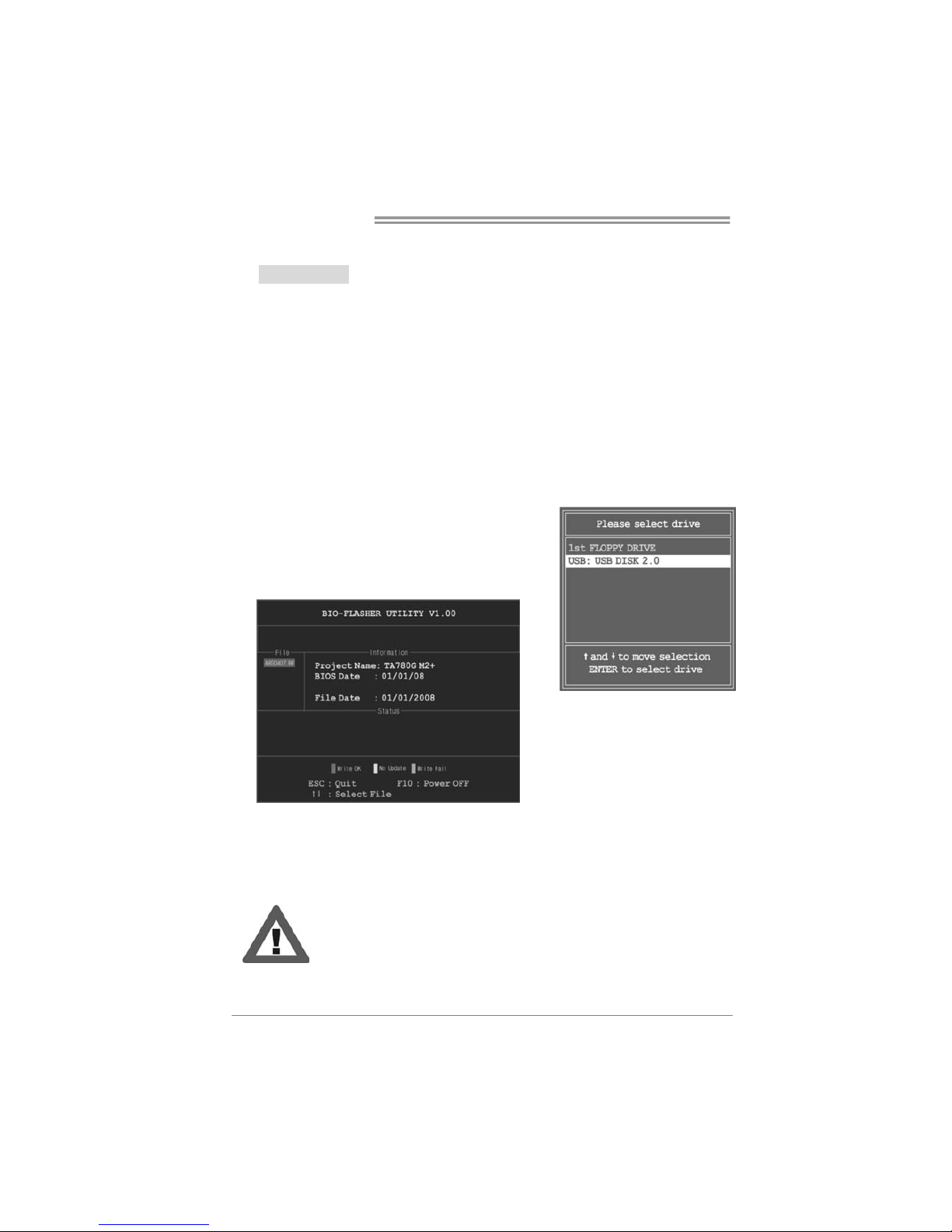

BIO-Flasher
BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk.
The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12> during the Power-On Self Tests (POST) procedure while booting up.
Updating BIOS with BIO-Flasher
1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, save the BIOS file into a USB pen drive or a floppy disk.
3. Insert the USB pen drive or the floppy disk that contains the BIOS file to the USB port or the floppy disk drive.
4. Power on or reset the computer and then press <F12> during the POST process. A select dialog as the picture on the right appears. Select the device contains the BIOS file and press <Enter> to enter the utility.
5. The utility will show the BIOS files and their respective information. Select the proper BIOS file and press <Enter> then <Y> to perform the BIOS update process.
6. After the update process, the utility will ask you to reboot the system. Press <Y> to proceed. BIOS update completes.
z This utility only allows storage device with FAT32/16 format and single
parti tion.
z Shutting down or resetting the system while updating the B IOS will lead to
system boot failure.
Page 33
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
31
6.4 AMI BIOS BEEP CODE
Boot Block Beep Codes
Number of Beeps Description
1 No media present. (Insert diskette in floppy drive A:)
2
“AMIBOOT.ROM” file not found in root directory of diskette in
A: 3 Insert next diskette if multiple diskettes are used for recovery 4 Flash Programming successful 5 File read error 7 No Flash EPROM detected
10 Flash Erase error 11 Flash Program error 12 “AMIBOOT.ROM” file size error
13
BIOS ROM image mismatch (file layout does not match
image present in flash device)
POST BIOS Beep Codes
Number of Beeps Description
1 Memory refresh timer error 3 Base memory read/write test error 6 Keyboard controller BAT command failed 7 General exception error (processor exception interrupt error) 8 Display memory error (system video adapter)
Troubleshooting POST BIOS Beep Codes
Number of Beeps Troubleshooting Action
1, 3 Reseat the memory, or replace with known good modules.
6, 7
Fatal error indicating a serious problem with the system.
Consult your system manufacturer. Before declaring the
motherboard beyond all hope, eliminate the possibility of
interference by a malfunctioning add-in card. Remove all
expansion cards except the video adapter.
z If beep codes are generated when all other expansion
cards are absent, consult your system manufacturer’s technical support.
z If beep codes are not generated when all other expansion
cards are absent, one of the add-in cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.
8
If the system video adapter is an add-in card, replace or
reseat the
video adapter. If the video adapter is an integrated part of the
system board, the board may be faulty.
Page 34
Motherboard Manual
32
6.5 TROUBLESHOOTING
Probable Solution
1. No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on.
2. Indicator light on keyboard does not turn on.
1. Make sure power cable is securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperative. Keyboard lights are on, power indicator lights are lit, and hard drive is spinning.
Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from hard disk drive, can be booted from optical drive.
1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.
2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from optical drive. Hard disk can be read and applications can be used but booting from hard disk is impossible.
1. Back up data and applications files.
2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message says “Invalid Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure correct information is in setup.
Cannot boot system after installing second hard drive.
1. Set master/slave jumpers correctly.
2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.
Page 35
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
33
This page is intentionally left blank.
Page 36
Motherboard Manual
34
APPENDIX: SPEC IN OTHER LANGUAGES
G
ERMAN
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Sockel AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempro n / Pheno m Proz esso ren Die AMD 64-Architektur unterstützt eine 32-Bit- und 64-Bit-Datenverarbeitung Unterstützt Hyper Transport 3.0 und PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Sockel AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempro n / Pheno m Proz esso ren Die AMD 64-Architektur unterstützt eine 32-Bit- und 64-Bit-Datenverarbeitung Unterstützt Hyper Transport 2.0 und PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
Unterstützt HyperTransport 3.0 mit einer Bandbreite von bis zu 5.2 GT/s
Unterstützt HyperTransport 2.0 mit einer Bandbreite von bis zu 2.0 GT/s
Chipsatz
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Super E/A
ITE8718F Bietet die häufig verwendeten alten Super E/A-Funktionen. Low Pin Count-Schnittstelle Umg ebungs kontrolle, Hardware-Überwachung "Smart Guardian"-Funktion von ITE
ITE8718F Bietet die häufig verwendeten alten Super E/A-Funktionen. Low Pin Count-Schnittstelle Umg ebungs kontrolle, Hardware-Überwachung "Smart Guardian"-Funktion von ITE
Arbeitsspeiche r
DDR2 DIMM-Steckplätze x 2 Max. 8GB Arbeitsspeicher Jeder DIMM unterstützt 256MB/512MB/ 1GB/2GB/4GB DDR2. Dual-Kanal DDR2 Speichermodu l Unt erstützt DDR2 533 / 667 / 800 Unterstützt DDR2 1066 (for AM2+ CPU only) reg istrierte DIMMs. ECC DIMMs werden nicht unterstützt.
DDR2 DIMM-Steckplätze x 2 Max. 8GB Arbeitsspeicher Jeder DIMM unterstützt 256MB/512MB/ 1GB/2GB/4GB DDR2. Dual-Kanal DDR2 Speichermodu l Unt erstützt DDR2 533 / 667 / 800 Unterstützt DDR2 1066 (for AM2+ CPU only) reg istrierte DIMMs. ECC DIMMs werden nicht unterstützt.
Grafik
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Max. 512MB gemeinsam benutzter Videospeicher Unt erstützt DX10/HDCP (A 780G M2+ SE & A780V M2+ SE nur) Unterstützt Hybrid CrossFireX Unterstützt UVD (for A780G M2+ SE only)
AT I Radeon 2100 Max. 512MB gemeinsam benutzter Videospeicher Unterstützt HDCP
IDE
Int egrierter IDE-Controller Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus Unterstützt PIO-Modus 0~4,
Int egrierter IDE-Controller Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus Unterstützt PIO-Modus 0~4,
SATA
Int egriert er Se rial ATA-Contro ller Datentr ansfe rrate b is zu 3 Gb /s Konform mit d er SATA-Spezif ikation Version 2.0.
Int egriert er Se rial ATA-Contro ller Datentr ansfe rrate b is zu 3 Gb /s Konform mit d er SATA-Spezif ikation Version 2.0.
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE)
Realtek RTL 8102EL 10 / 100 Mb /s Auto- Negot iation
Page 37
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
35
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
10 / 100 /1000 Mb/s Auto-Negotiation (A780G M2+ SE & A760G M2+) 10 / 100 Mb /s Auto- Negot iation (A780V M2+ SE ) Halb-/ Vollduplex-Fun ktion
Halb-/ Vollduplex-Fun ktion
HD Audio-Unterst ützung
ALC662
5.1-Kanal-Audioausgabe Unterstützt High-Definit ion Audio
ALC662
5.1-Kanal-Audioausgabe
Unterstützt High-Definit ion Audio PCI Express Gen2 x16 Steckplatz x1 PCI Express x16 Steckplatz x1 PCI Express Gen2 x1 Steckplatz x1 PCI Express x1 Steckplatz x1
Steckplätze
PCI-Steckplatz x2 PCI-Steckplatz x2 Diskettenlaufwerkanschluss x1 Diskettenlaufwerkanschluss x1 IDE-Anschluss x1 IDE-Anschluss x1
SATA-Anschluss x6 SATA-Anschluss x6 Fronttafelanschluss x1 Fronttafelanschluss x1
Front-Audioanschluss x1 Front-Audioanschluss x1 CD-IN-Anschluss x1 CD-IN-Anschluss x1 S/PDIF- Ausgangsanschluss x1 S/PDIF- Ausgangsanschluss x1 CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1 System-Lüfter-Sockel x1 System-Lüfter-Sockel x1 "CMOS löschen"-Sockel x1 "CMOS löschen"-Sockel x1 USB-Anschluss x3 USB-Anschluss x3 Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1 Stromanschluss (4-polig) x1 Stromanschluss (4-polig) x1 Druckeranschluss Anschluss x1 Druckeranschluss Anschluss x1
Onbo ard-Ansc hluss
Serieller Anschluss x1 S erieller Anschluss x1
Rückseiten-E/ A
PS/2-Tastatur x1 PS/2-Maus x1 VGA-Anschluss x1 LAN-Anschluss x1 USB-Anschluss x4 Audioanschluss x3 DVI-Anschluss x1
PS/2-Tastatur x1
PS/2-Maus x1
VGA-Anschluss x1
LAN-Anschluss x1
USB-Anschluss x4
Audioanschluss x3
DVI-Anschluss x1
Platinengröße 2 00 mm (B) X 244 mm (L) 200 mm (B) X 244 mm (L) Sonderfunktio nen
Unterstützt RAID 0 / 1 / 1+0 Unterstützt RAID 0 / 1 / 1+0
OS- Unterstütz ung
Windows XP / VISTA 32 / VISTA 64 Biostar behält sich das Recht vor, ohne Ankündigung die Unterstützung für ein Betriebssystem hinzuzufügen oder zu entfernen.
Windows XP / VISTA 32 / VISTA 64
Biostar behält sich das Recht vor, ohne Ankündigung
die Unterstützung für ein Betriebssystem
hinzuzufügen oder zu entfernen.
Page 38
Motherboard Manual
36
FRENCH
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
UC
Socket AM2+ / AM2 Processeurs AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom L'architect ure AMD 64 permet le calcul 32 et 64 bits Prend en charge Hyper Transport 3.0 et PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Socket AM2+ / AM2 Processeurs AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom L'architect ure AMD 64 permet le calcul 32 et 64 bits Prend en charge Hyper Transport 2.0 et PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Bus frontal
Prend en charge Hyper Transport 3.0 jusqu'à une bande passante de 5.2 GT/s
Prend en charge Hyper Transport 2.0 jusqu'à une bande passante de 2.0 GT/s
Chipset
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Super E/S
ITE 8718F Four nit la f onctionn alité de Sup er E /S patr imoniales la plus utilis ée. Interface à faible compte de broches Init iat ives de cont rô le environ nementales, Mon iteur d e matérie l Fon ction "G ard ien int elligent" de l'IT E
ITE 8718F Four nit la f onctionn alité de Sup er E /S patr imoniales la plus utilis ée. Interface à faible compte de broches Init iat ives de cont rô le environ nementales, Mon iteur d e matérie l Fon ction "G ard ien int elligent" de l'IT E
Mémo ire principale
Fentes DDR2 DIMM x 2 Capacité mémoire maximale d e 8 Go Chaque DIMM prend en charge des DDR2 de 256 Mo/512 Mo et 1Go /2Go/4Go Module de mémoire DDR2 à mode à double voie Prend en charge la DDR2 533 / 667 / 800 Prend en charge la DDR2 1066 (for AM2+ CPU only) Les DIMM à registres et DIMM avec code correct eurs d'erreurs ne sont pas prises en charge
Fentes DDR2 DIMM x 2 Capacité mémoire maximale d e 8 Go Chaque DIMM prend en charge des DDR2 de 256 Mo/512 Mo et 1Go /2Go/4Go Module de mémoire DDR2 à mode à double voie Prend en charge la DDR2 533 / 667 / 800 Prend en charge la DDR2 1066 (for AM2+ CPU only) Les DIMM à registres et DIMM avec code correct eurs d'erreurs ne sont pas prises en charge
Graphiques
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Mémoire vidéo partagée maximale de 512 Mo Pris e en charge DX1 0/HDCP (A78 0G M2+ SE & A780V M2+ SE seulement) Pris e en ch arg e Hybrid Cross FireX Prise en charge UVD (for A780G M2+ SE only)
AT I Radeon 2100 Mémoire vidéo partagée maximale de 512 Mo Prise en charge HDCP
IDE
Contrô leur IDE intégré Mode principale de Bus Ultra DMA 33 / 66 / 100 / 133 Prend en charge le mode PIO 0~4,
Contrô leur IDE intégré Mode principale de Bus Ultra DMA 33 / 66 / 100 / 133 Prend en charge le mode PIO 0~4,
SATA
Contrôleur Serial ATA int égr é Taux de transfert jusqu'à 3 Go/s. Conf orme à la s pécifica tion S ATA Vers io n 2.0
Contrôleur Serial ATA int égr é Taux de transfert jusqu'à 3 Go/s. Conf orme à la s pécifica tion S ATA Vers io n 2.0
Page 39
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
37
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) 10 / 100 /1000 Mb/s négociation automatique (A780G M2 + SE & A760G M2 +) 10 / 100 Mb/s négociation automatique (A780V M2+ SE) Half / Full dup lex capabilit y
Realtek RTL 8102EL 10 / 100 Mb /s négociation auto mat ique Half / Full dup lex capabilit y
Prise en charge audio HD
ALC662 So rtie au dio à 5. 1 vo ie s Prise en charge de l'audio haute définition
ALC662 So rtie au dio à 5. 1 vo ie s
Prise en charge de l'audio haute définition Fe nt e PC I Exp res s G en2 x1 6 x1 F ent e PC I Ex pr ess x 16 x1 Fe nt e PC I Exp res s G en2 x1 x 1 Fe nt e PC I Exp res s x 1 x1
Fentes
Fente PCI x2 Fente PCI x2 Connecteur de disquette x1 Connecteur de disquette x1 Connecteur IDE x1 Co nnecteur IDE x1 Connecteur SATA x6 Co nnect eur SATA x6 Connecte ur du p anneau avant x1 Co nnect eur d u panne au avant x 1 Connecte ur Aud io d u pann eau avant x1 Co nnect eur Au dio du pa nneau avant x1 Conne cte ur d'e ntrée C D x1 Co nnect eur d 'entr ée C D x1 Conne cte ur de sort ie S/ PDIF x1 Co nnect eur d e sortie S /PDIF x1 Embase de ventilateur UC x1 Embase de ventilateur UC x1 Embase de ventilateur système x1 Embase de ventilateur système x1 Embase d'effacement CMOS x1 Embase d'effacement CMOS x1 Connecteur USB x3 Conn ecteur USB x3 Connecteur d'alimentation x1 (24 broches)
Connecteur d'alimentation x1
(24 broches) Connecteur d'alimentation x1 (4 broches)
Connecteur d'alimentation x1
(4 broches) Connecteur de Port d'imprimante x1 Connecteur de Port d'imprimante x1
Connecteur embarqué
Connecteur de Port série x1 Connecteur de Port série x1
E/S du panne au arrière
Clavier PS/2 x1 Souris PS/2 x1 Port VGA x1 Port LA N x1 Port USB x4 Fiche audio x3 Port DV I x1
Clavier PS/2 x1
Souris PS/2 x1
Port VGA x1
Port LA N x1
Port USB x4
Fiche audio x3
Port DV I x1
Dime nsions de la carte
200 mm (l) X 244 mm (H) 200 mm (l) X 244 mm (H)
Fonctionnalit és s péciale s
Prise en charge RAID 0 / 1 / 1+0 Prise en charge RAID 0 / 1 / 1+0
Suppo rt SE
Windows XP / VISTA 32 / VISTA 64 Biostar se réserve le droit d' ajout er ou de suppr imer le s upport de SE avec ou sa ns p réavis.
Windows XP / VISTA 32 / VISTA 64
Biostar se réserve le droit d' ajout er ou de suppr imer
le s upport de SE avec ou sa ns p réavis.
Page 40
Motherboard Manual
38
ITALIAN
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Socket AM2+ / AM2 Processori AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom L’architettura AMD 64 abilita la comput azione 32 e 64 bit Supporto di Hyper Transport 3.0 e PowerNow At hlon Max . Po wer:12 5W ; Pheno m Ma x. Pow er:9 5W
Socket AM2+ / AM2 Processori AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom L’architettura AMD 64 abilita la comput azione 32 e 64 bit Supporto di Hyper Transport 2.0 e PowerNow At hlon Max . Po wer:12 5W ; Pheno m Ma x. Pow er:9 5W
FSB
Supporto di HyperTransport 3.0 fino a 5.2 GT/s di larghezza di banda
Supporto di HyperTransport 2.0 fino a 2.0 GT/s di larghezza di banda
Chipset
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Super I/O
ITE 8718F
Fo rnis ce le f unzion al it à leg a cy S uper I/O usate più comunemente. Interfaccia LPC (Low Pin Count) Funzioni di controllo dell’ambiente: Monitoraggio hardware Funzione "Smart Guardian" di ITE
ITE 8718F
Fo rnis ce le f unzion al it à leg a cy S uper I/O usate più comunemente. Interfaccia LPC (Low Pin Count) Funzioni di controllo dell’ambiente: Monitoraggio hardware Funzione "Smart Guardian" di ITE
Memoria principale
Alloggi DIMM DDR2 x 2 Capacità massima della memoria 8GB Ciascun DIMM supporta DDR2 256MB/512MB e 1GB/2GB/4GB Modulo di memoria DDR2 a canale doppio Supporto di DDR2 533 / 667 / 800 Supporto di DDR2 1066 (for AM2+ CPU only) DIMM registrati e DIMM ECC non sono supportati
Alloggi DIMM DDR2 x 2 Capacità massima della memoria 8GB Ciascun DIMM supporta DDR2 256MB/512MB e 1GB/2GB/4GB Modulo di memoria DDR2 a canale doppio Supporto di DDR2 533 / 667 / 800 Supporto di DDR2 1066 (for AM2+ CPU only) DIMM registrati e DIMM ECC non sono supportati
Grafica
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +)
La memo ria vid eo condivisa massima è di 512 MB Supporto DX10/HDCP (A780G M2+ SE & A780V M2+ SE soltanto) Supporto Hybrid CrossFireX Supporto UVD (for A780G M2+ SE only)
ATI Radeon 2100 La memo ria vid eo condivisa massima è di 512 MB Supporto HDCP
IDE
Co n troller IDE int eg rat o Modalità Bus Master Ultra DMA 33 / 66 / 100 / 133 Supporto modalità PIO Mode 0-4
Co n troller IDE int eg rat o Modalità Bus Master Ultra DMA 33 / 66 / 100 / 133 Supporto modalità PIO Mode 0-4
SATA
Co ntroller Ser ia l ATA in t eg rato Velocità di trasferimento dei dati fino a 3 Gb/s. Co mp at ib ile s p ec if iche S ATA Vers io n e 2 .0.
Co ntroller Ser ia l ATA in t eg rato Velocità di trasferimento dei dati fino a 3 Gb/s. Co mp at ib ile s p ec if iche S ATA Vers io n e 2 .0.
Page 41
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
39
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE)
Negoziazione automatica 10 / 100 /1000Mb/s (A780G M2+ SE & A760G M2+) Negoziazione automatica 10 / 100 Mb/s (A780V M2+ S E)
Capacità Half / Full Duplex
Realtek RTL 8102EL
Negoziazione automatica 10 / 100 Mb/s
Capacità Half / Full Duplex
Supporto audio HD
ALC662 Uscita audio 5.1 canali Supporto audio High-Definition (HD)
ALC662 Uscita audio 5.1 canali
Supporto audio High-Definition (HD) Alloggio PCI Express Gen2 x16 x1 Alloggio PCI Express x16 x1 Alloggio PCI Express Gen2 x1 x1 Alloggio PCI Express x1 x1
Allo g g i
Allo g g io PC I x 2 Allo g gio PC I x 2 Connettore floppy x1 Connettore floppy x1 Connettore IDE x1 Connettore IDE x1 Connettore SATA x 6 Con netto re SATA x6 Connettore pannello frontale x1 Connettore pannello frontale x1 Connettore audio frontale x1 Connettore audio frontale x1 Connettore CD-in x1 Connettore CD-in x1 Connettore output SPDIF x1 Connettore output SPDIF x1 Co llett o r e ventolina C PU x 1 Co llet t o re vent o lin a C PU x 1 Co llett o r e ventolina sistema x1 Collet t ore vent o lina s is t em a x1 Co llett o r e cance llaz ione CMO S x 1 Co llet t o re cancellaz ion e C MOS x 1 Connettore USB x3 Connettore USB x3 Connettore alimentaz ione x 1 (24 pin)
Connettore alimentaz ione x 1
(24 pin) Connettore alimentaz ione x 1 (4 pin)
Connettore alimentaz ione x 1
(4 pin) Connettore Porta stampante x1 Connettore Porta stampante x1
Connettori su scheda
Connett ore Porta seriale x1 Connettore Po rta s eriale x 1
I/O pannello posteriore
Tas t iera PS /2 x 1 Mou s e PS/2 x 1 Porta VGA x1 Port a LAN x1 Port a USB x4 Connettore audio x3 Port a DVI x1
Tas t iera PS /2 x 1
Mou s e PS/2 x 1
Porta VGA x1
Port a LAN x1
Port a USB x4
Connettore audio x3
Port a DVI x1
Dimension i scheda
200 mm (larghezza) x 244 mm (altezza) 200 mm (larghezza) x 244 mm (altezza)
Caratterist iche speciali
Supporto RAID 0 / 1 / 1+0 Supporto RAID 0 / 1 / 1+0
Sistemi op erat ivi supportati
Windows XP / VISTA 32 / VISTA 64 Biostar si riserva il diritto di aggiungere o rimuovere il supporto di qualsiasi sistema operativo senza preavviso.
Windows XP / VISTA 32 / VISTA 64
Biostar si riserva il diritto di aggiungere o
rimuovere il supporto di qualsiasi sistema
operativo senza preavviso.
Page 42
Motherboard Manual
40
SPANISH
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Conector AM2+ / AM2 Procesadores AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom La arquit ectura AMD 64 permite el procesado de 32 y 64 bits So porta las tecnolo gías Hyper Transpo rt 3 .0 y PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Conector AM2+ / AM2 Procesadores AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom La arquit ectura AMD 64 permite el procesado de 32 y 64 bits So porta las tecnolo gías Hyper Transpo rt 2 .0 y PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
Admite HyperTransport 3.0 con un ancho de banda de hasta 5.2 GT/s
Admite HyperTransport 2.0 con un ancho de banda de hasta 2.0 GT/s
Conjunto de chips
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G
AMD SB700
Súper E/S
ITE 8718F Le ofrece las funcionalidades heredadas de uso más común Súper E/S. Interfaz de cuenta Low Pin Iniciativas de contro l d e entor no, Monitor hardware Función "Gu ard ia int eligent e" de ITE
ITE 8718F Le ofrece las funcionalidades heredadas de uso más común Súper E/S. Interfaz de cuenta Low Pin Iniciativas de contro l d e entor no, Monitor hardware Función "Gu ard ia int eligent e" de ITE
Memo ria principal
Ranuras DIMM DDR2 x 2 Capacidad máxima d e memoria d e 8GB Cada DIMM admite DDR de 256MB/512MB y 1GB/2GB/4GB Módulo de memoria DDR2 de canal Doble Admite DDR2 de 533 / 667 / 800 Admite DDR2 de 1066 (for AM2+ CPU only) No admit e DIMM r egistrados o DIMM compatibles con ECC
Ranuras DIMM DDR2 x 2 Capacidad máxima d e memoria d e 8GB Cada DIMM admite DDR de 256MB/512MB y 1GB/2GB/4GB Módulo de memoria DDR2 de canal Doble Admite DDR2 de 533 / 667 / 800 Admite DDR2 de 1066 (for AM2+ CPU only) No admit e DIMM r egistrados o DIMM compatibles con ECC
Gráficos
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Memoria máxima de vídeo compartida de 512 MB Admite DX10/HDCP (A780G M2+ SE & A780V M2+ SE solamente) Admite Hybrid CrossFireX Admite UVD (for A780G M2+ SE only)
AT I Radeon 2100 Memoria máxima de vídeo compartida de 512 MB Admite HDCP
IDE
Cont ro lador IDE integrado Modo bus maestro Ultra DMA 33 / 66 / 100 / 133 Soporte los Modos PIO 0~4,
Cont ro lador IDE integrado Modo bus maestro Ultra DMA 33 / 66 / 100 / 133 Soporte los Modos PIO 0~4,
SATA
Controlador ATA Serie Integrado Tasas de transferencia de hasta 3 Gb/s. Compat ible con la vers ión SATA 2.0.
Controlador ATA Serie Integrado Tasas de transferencia de hasta 3 Gb/s. Compat ible con la vers ión SATA 2.0.
Page 43
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
41
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
Red Local
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) Negociación de 10 / 100 /1000 Mb/s (A780G M2+ SE & A760G M2+) Negociación de 10 / 100 Mb/s (A780V M2+ SE) Funcion es Half / Full dú plex
Realtek RTL 8102EL Negociación de 10 / 100 Mb/s Funcion es Half / Full dú plex
Soport e de sonido HD
ALC662 Salida de sonido de 5.1 canales Sopo rte de son ido Alta Definició n
ALC662 Salida de sonido de 5.1 canales
Sopo rte de son ido Alta Definició n Ranura PCI Exp ress Gen2 x16 X1 Ranur a PCI Express x16 X1 Ranura PCI Exp ress Gen2 x1 X1 Ranura PCI Express x1 X1
Ranuras
Ranura PCI X2 Ranura PCI X2 Con ector d isco f lex ible X 1 Con ector disco f lex ible X 1 Con ecto r IDE X1 Conector IDE X1 Conector SATA X6 Cone ctor SATA X6 Conector de panel frontal X1 Conector de panel frontal X1 Conector de sonido frontal X 1 Conector de sonido frontal X1 Conector de entrada de CD X1 Conector de entrada de CD X1 Con ector d e salida S/ PDIF X1 Conector d e sa lida S/PDIF X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de CPU X1 Cabecera de ventilador de sistema X1 Cabecera de ventilador de sistema X1 Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1 Con ecto r USB X 3 Con ecto r USB X 3 Con ector d e aliment ación X1 (24 pat illas )
Con ector d e aliment ación X1
(24 pat illas ) Con ector d e aliment ación X1 (4 pat illas)
Con ector d e aliment ación X1
(4 pat illas) Co n e cto r Pu erto de impr esor a X1 Co nect o r Pu ert o de impreso r a X1
Con ectores en placa
Con ecto r Puerto serie X1 Co nector Pu erto serie X 1
Panel trasero de E/S
Tec lado PS /2 X 1 Ratón PS/2 X1 Puerto VGA X 1 Puerto de red local X1 Puerto USB X4 Conector de sonido X3 Puerto DVI X1
Tec lado PS /2 X 1
Ratón PS/2 X1
Puerto VGA X 1
Puerto de red local X1
Puerto USB X4
Conector de sonido X3
Puerto DVI X1
Tam año d e la placa
20 0 mm. (A) X 24 4 Mm. (H) 200 mm. (A ) X 244 Mm. (H)
Funciones especiales
Admite RAID 0 / 1 / 1+0 Admite RAID 0 / 1 / 1+0
Soport e de sistema operativo
Windows XP / VISTA 32 / VISTA 64 Biostar se reserva el derecho de añadir o retirar el soporte de cualquier SO con o sin aviso previo.
Windows XP / VISTA 32 / VISTA 64
Biostar se reserva el derecho de añadir o retirar el
soporte de cualquier SO con o sin aviso previo.
Page 44
Motherboard Manual
42
PORTUGUESE
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Socket AM2+ / AM2 Processadores AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom A arquitectura AMD 64 permite uma computação de 32 e 64 bits Supo rt a as tecno log ias H yp e r Tra ns po rt 3.0 e PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Socket AM2+ / AM2
Processadores AMD Athlon 64 / Athlon 64 FX / Athlon
64 X2 / Sempron / Phenom
A arquitectura AMD 64 permite uma computação de
32 e 64 bits
Supo rt a as tecno log ias H yp e r Tra ns po rt 2.0 e
PowerNow
Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
Suporta a tecnologia HyperTrans po rt 3. 0 co m u ma largura de banda até 5.2 GT/s
Suporta a tecnologia HyperTrans po rt 2. 0 co m u ma
largura de banda até 2.0 GT/s
Chipset
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Especificaçã o Super I/O
ITE 8718F Proporciona as funcionalid ades mais utiliz ad as em termos da especificação Super I/O. Interface LPC (Low Pin Count). Iniciat ivas para contro lo do ambient e Monitorização do hardware Fu nç ão "S mart G uard ian" da ITE
ITE 8718F
Proporciona as funcionalid ades mais utiliz ad as em
termos da especificação Super I/O.
Interface LPC (Low Pin Count).
Iniciat ivas para contro lo do ambient e
Monitorização do hardware
Fu nç ão "S mart G uard ian" da ITE
Memó ria principal
Ranhuras DIMM DDR2 x 2 Capacidade máxima de memória: 8 GB Cada módulo DIMM suporta uma memória DDR2 de 25 6 MB/512 MB & 1 GB/2 GB/4 GB Módulo de memória DDR2 de canal duplo Suporta módulos DDR 2 533 / 667 / 800 Suporta módulos DDR 2 1066 (for AM2+ CPU only) Os módulos DIMM regist ados e os D IMM ECC não são suportados
Ranhuras DIMM DDR2 x 2
Capacidade máxima de memória: 8 GB
Cada módulo DIMM suporta uma memória DDR2 de
25 6 MB/512 MB & 1 GB/2 GB/4 GB
Módulo de memória DDR2 de canal duplo
Suporta módulos DDR 2 533 / 667 / 800
Suporta módulos DDR 2 1066 (for AM2+ CPU only)
Os módulos DIMM regist ados e os D IMM ECC não
são suportados
Placa gráfica
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Memória de vídeo máxima partilhada: 512 MB Supo rt a as fun çõ es DX10/HD CP (A 780G M2 + SE
&
A780V M2+ SE so mente) Suporta as funções Hybrid CrossFireX Suporta as funções UVD (for A780G M2+ SE only)
AT I Radeon 2100
Memória de vídeo máxima partilhada: 512 MB
Supo rt a as fun çõ es HDCP
IDE
Cont ro lador IDE integrado Modo Bus master Ultra DMA 33 / 66 / 100 / 133 Supo rta o modo PIO 0~4 ,
Cont ro lador IDE integrado
Modo Bus master Ultra DMA 33 / 66 / 100 / 133
Supo rta o modo PIO 0~4 ,
SATA
Controlador Serial ATA integrado Velocidades de transmissão de dados até 3 Gb/s. Compatibilidade com a esp ecificação SATA vers ão
2.0.
Controlador Serial ATA integrado
Velocidades de transmissão de dados até 3 Gb/s.
Compatibilidade com a esp ecificação SATA vers ão
2.0.
Page 45
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
43
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) Auto negociação de 10 / 100 /100 0 Mb /s (A780G M2+ SE & A760G M2+) Auto negociação de 10 / 100 Mb/s (A780V M2+ SE) Capacidade semi/full-duplex
Realtek RTL 8102EL
Auto negociação de 10 / 100 Mb/s
Capacidade semi/full-duplex
Suporte para áudio de alta definição
ALC662 Saída de áudio de 5.1 canais Suporta a especificação High-Definition Audio
ALC662
Saída de áudio de 5.1 canais
Suporta a especificação High-Definition Audio
Ra nhura PCI Ex press G en2 x16 x 1 R anhura PCI Exp ress x 16 x 1 Ra nhura PC I Expr ess G en2 x 1 x1 Ranhu ra PCI Exp ress x 1 x 1
Ranhur as
Ranhur a PCI x2 Ranhura PCI x2 Conector da unidade de disquetes x1 Conector da unidade de disquetes x1 Con ecto r IDE x1 Conector IDE x1 Conector SATA x6 Con ector SATA x6 Co necto r do pain el fro ntal x1 Cone cto r do p ainel front al x1 Conector de áudio frontal x1 Conector de áudio frontal x1 Conector para entrada de CDs x1 Conector para entrada de CDs x1 Con ector d e saíd a S/PD IF x1 Co nector de s aída S /PDIF x 1 Conector da ventoinha da CPU x1 Conector da ventoinha da CPU x1 Conector da ventoinha do sistema x1 Conector da ventoinha do sistema x1 Conector para limpeza do CMOS x1 Conector para limpeza do CMOS x1 Con ecto r USB x3 Co nector USB x3 Conector de alimentação x1 (24 pinos)
Conector de alimentação x1
(24 pinos) Conector de alimentação x1 (4 pinos)
Conector de alimentação x1
(4 pinos) Conect or da para impressora x1 Conector da para impressora x1
Con ectores na placa
Conect or d a Porta série x1 Conector d a Porta série x1
Entradas/Sa
í
das no painel traseiro
Tec lado PS /2 x 1 Rato PS/2 x1 Porta VGA x1 Porta LA N x1 Porta USB x4 Tomada de áudio x3 Porta DV I x1
Tec lado PS /2 x 1
Rato PS/2 x1
Porta VGA x1
Porta LA N x1
Porta USB x4
Tomada de áudio x3
Porta DV I x1
Tam a n ho d a placa
200 mm (L) X 244 mm (A) 200 mm (L) X 244 mm (A)
Característic as especiais
Suporta as funções RAID 0 / 1 / 1+0 Suporta as funções RAID 0 / 1 / 1+0
Sistemas operativos suportados
Windows XP / VISTA 32 / VISTA 64 A Biostar reserva-se o direito de adicionar ou remover suporte para qualquer sistema operativo com ou sem aviso prévio.
Windows XP / VISTA 32 / VISTA 64
A Biostar reserva-se o direito de adicionar ou
remover suporte para qualquer sistema operativo
com ou sem aviso prévio.
Page 46
Motherboard Manual
44
POLISH
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
Procesor
Socket AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom Procesory Architektura AMD 64 umożliwia przetwarz anie 32 i 64 bitowe Obsługa Hyper Transport 3.0 oraz PowerNow Athlon Max. Power:125W ; Phenom Max. Power:95W
Socket AM2+ / AM2
AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 /
Sempron / Phenom Procesory
Architektura AMD 64 umożliwia przetwarz anie 32 i
64 bitowe
Obsługa Hyper Transport 2.0 oraz PowerNow
Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
Obsługa HyperTransp ort 3 .0 o s zerokości pasma do
5.2 GT/s
Obsługa HyperTransp ort 2 .0 o s zerokości pasma do
2.0 GT/s
Chipset
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Pamięć główna
Gniazda DDR2 DIMM x 2 Maks. wielkość pamięci 8GB Każde gniazdo DIMM obs ługuje moduły 256MB/512MB oraz 1GB/2GB/4GB DDR2 Modu ł pamięci DDR2 z trybem podwójnego kanału Obsługa DDR2 533 / 667 / 800 Obsługa DDR2 1066 (for AM2+ CPU only) Brak obsłu gi Registe red DIMM oraz E CC DIMM
Gniazda DDR2 DIMM x 2
Maks. wielkość pamięci 8GB
Każde gniazdo DIMM obs ługuje moduły
256MB/512MB oraz 1GB/2GB/4GB DDR2
Modu ł pamięci DDR2 z trybem podwójnego kanału
Obsługa DDR2 533 / 667 / 800
Obsługa DDR2 1066 (for AM2+ CPU only)
Brak obsłu gi Registe red DIMM oraz E CC DIMM
Super I/O
ITE 8718F Zapewnia najbardziej powszechne funkcje Super I/O. Interfejs Low Pin Count Funkcje kontroli war unków pracy, Mon itor H/W Fu nkcja ITE "S mart Gu ardian "
ITE 8718F
Zapewnia najbardziej powszechne funkcje Super
I/O.
Interfejs Low Pin Count
Funkcje kontroli war unków pracy,
Mon itor H/W
Fu nkcja ITE "S mart Gu ardian "
Grafika
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) Maks. wielkość ws pó łdzielo nej pa mięci video wynosi 512 MB Obsługa DX10/HDCP (A780G M2+ SE & A780V M2+ SE Tylko) Obsługa Hybrid CrossFireX Obsługa UVD (for A780G M2+ SE only)
AT I Radeon 2100
Maks. wielkość ws pó łdzielo nej pa mięci video wynosi
512 MB
Obsługa HDCP
IDE
Zintegro wany kontroler ID E Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master obsługa PIO tryb 0~4,
Zintegro wany kontroler ID E
Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master
obsługa PIO tryb 0~4,
SATA
Zintegro wany kontroler Serial ATA Transfer danych do 3 Gb/s. Zgodność ze specyfikacją SATA w wersji 2.0.
Zintegro wany kontroler Serial ATA
Transfer danych do 3 Gb/s.
Zgodność ze specyfikacją SATA w wersji 2.0.
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) 10 / 100 /1000 Mb/s z automatyczną negocjacją
Realtek RTL 8102EL
10 / 100 Mb /s z automatyczną negocjacją sz ybko ści
Działan ie w t rybie p ołowicznego / pełn ego dup leksu
Page 47
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
45
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
sz yb kości (A780G M2+ SE & A760G M2+) 10 / 100 Mb /s z automatyczną negocjacją sz ybko ści (A780V M2+ SE) Działan ie w t rybie p ołowicznego / pełn ego dup leksu
Obsługa audio HD
ALC662
5.1 kanałowe wyjście audio Obsługa High-D ef inition Audio
ALC662
5.1 kanałowe wyjście audio
Obsługa High-D ef inition Audio Gniazdo PCI Express Gen2 x16 x1 Gn iazdo PCI Express x16 x1 Gniazdo PCI Express Gen2 x1 x1 Gniazdo PCI Express x1 x1
Gniazda
Gniazdo PCI x2 Gniazdo PCI x2 Złącze napędu dyskietek x1 Złą cze napędu dyskietek x1 Złącze IDE x1 Złącze IDE x1 Złącze SATA x6 Złącze SATA x6 Złącze panela przedniego x1 Złącze panela przedniego x1 Przednie z łącze au d io x1 Prz ednie złącz e audio x1 Złącze wejścia CD x1 Złącze wejścia CD x1 Złącze wyjścia S/PDIF x1 Z łącze wyjścia S/PDIF x1 Złącze główkowe wentylatora procesora x1 Złącze główkowe wentylatora procesora x1 Złącze główkowe wentylatora systemowego x1 Złącze główkowe wentylatora systemowego x1 Złącze główkowe kasowania CMOS x1 Z łącze g łó wkowe kasowania CMOS x1 Złącze USB x3 Złącze USB x3 Złącze z asilania (24 p inowe ) x1 Złącze zasila nia (24 p inowe) x 1 Złącze zasilania (4 pinowe) x1 Złącze z asilania (4 pinowe) x1 Złącze Port drukarki x1 Złącze Port drukarki x1
Złącza wbudowane
Złącze Port szeregowy x1 Złącze Port szeregowy x1
Back Panel I/O
Klawiatura PS/2 x1 Mysz PS/2 x1 Port VGA x1 Port LA N x1 Port USB x4 Gniazdo audio x3 Port DV I x1
Klawiatura PS/2 x1
Mysz PS/2 x1
Port VGA x1
Port LA N x1
Port USB x4
Gniazdo audio x3
Port DV I x1
Wymiary płyty
200 mm (S) X 244 mm (W) 200 mm (S) X 244 mm (W)
Funkcje specjalne
Obsługa RAID 0 / 1 / 1+0 Obsługa RAID 0 / 1 / 1+0
Obsluga systemu operacyjneg o
Windows XP / VISTA 32 / VISTA 64 Bios tar zastrz ega sob ie prawo dodawan ia lub odwoływania obsługi do wolne go syst emu operacyjnego bez powiado mien ia.
Windows XP / VISTA 32 / VISTA 64
Bios tar zastrz ega sob ie prawo dodawan ia lub
odwoływania obsługi do wolne go syst emu
operacyjnego bez powiado mien ia.
Page 48
Motherboard Manual
46
RUSSIAN
A 780G M2+ SE/ A780V M2+ SE/ A760G M2+
A740G M2+ SE
CPU (центральный
проц ессор)
Гнездо AM2+ / AM2 Процессоры AMD Athlon 64 / Athlon 64 FX / Athlon
64 X2 / Sempron / Phenom
Архитектура AMD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyp er Transport 3.0 и Po werNo w
Athlon Max. Power:125W; Phenom Max. Power:95W
Гнездо AM2+ / AM2 Процессоры AMD Athlon 64 / Athlon 64 FX / Athlon
64 X2 / Sempron / Phenom
Архитектура AMD 64 разрешать обработка данных на 32 и 64 бит Поддержка Hyp er Transport 2.0 и Po werNo w
Athlon Max. Power:125W; Phenom Max. Power:95W
FSB
Поддержка Hyp erTranspo rt 3.0 с пропускной способностью до 5.2 GT/s
Поддержка Hyp erTranspo rt 2.0 с пропускной способностью до 2.0 GT/s
Набор микросхем
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
Основная память
Слоты DDR2 DIMM x 2 Максимальная ёмкость памяти 8 ГБ Каждый модуль DIMM поддерживает 256МБ /512МБ & 1ГБ /2ГБ/4ГБ DDR2 Мод уль памяти с двухканальным режимом
DDR2
Поддержка DDR2 533 / 667 / 800 Поддержка DDR2 10 66 (for AM2 + CPU only) Не подд ержива ет зарегистрированные модули
DIMM an d ECC DIMM
Слоты DDR2 DIMM x 2 Максимальная ёмкость памяти 8 ГБ Каждый модуль DIMM поддерживает 256МБ /512МБ & 1ГБ /2ГБ/4ГБ DDR2 Мод уль памяти с двухканальным режимом
DDR2
Поддержка DDR2 53 3 / 667 / 800 Поддержка DDR2 10 66 (for AM2 + CPU only ) Не подд ержива ет зарегистрированные модули
DIMM an d ECC DIMM
Super I/O
ITE 8718F
Об есп ечи в ает наиболее использ уем ые действующие функциональ ные возмо жно ст и
Super I/O.
Интерфейс с низким кол и чест во м выводов Инициативы по охране окружающей среды, Аппаратный монит ор Функци я ITE "Smart Guardian"
(Интеллектуальная защита)
ITE 8718F
Об есп ечи в ает наиболее использ уем ые действующие функциональ ные возмо жно ст и
Super I/O.
Интерфейс с низким кол и чест во м выводов Инициативы по охране окружающей среды, Аппаратный монит ор Функци я ITE "Smart Guardian" (Интеллектуальная защита)
Графика
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +)
Максимальная совместно испол ьзуем ая видео память составляет 512 МБ Поддержка DX10 /HDCP (A780G M2 + SE & A780V M2+ SE только) Поддержка Hybrid CrossF ireX Поддержка UVD (for A780G M2+ SE only)
AT I Radeon 2100
Максимальная совместно испол ьзуем ая видео память составляет 512 МБ Поддержка HDCP
IDE
Встро енно е устройс т во управления встроенными инт ерфейс ами устр о йс тв Режим "хозяина" шины Ultra DMA 33 / 66 / 100 /
133
Поддержка режима PIO 0~4,
Встро енно е устройс т во управления встроенными инт ерфейс ами устр о йс тв Режим "хозяина" шины Ultra DMA 33 / 66 / 100 /
133 Поддержка режима PIO 0~4,
SATA
Встро енно е пос л едо ва т ель но е устро йс т во управления ATA скорость передачи данных до 3 гигабит/с. Соотве тств ие спецификации SATA версия 2.0.
Встро енно е пос л едо ва т ель но е устро йс т во управления ATA скорость передачи данных до 3 гигабит/с. Соотве тств ие спецификации SATA версия 2.0.
Page 49
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
47
A 780G M2+ SE/ A780V M2+ SE/ A760G M2+
A740G M2+ SE
Локальная сеть
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE)
Ав том ати чес ко е сог л ас о ван и е 10 / 100 / 1000 Мб/с (A78 0G M2+ SE ) Ав том ати чес ко е сог л ас о ван и е 10 / 100 Мб/с
(A780V M2+ SE & A760G M2+) Частичная / пол ная дуплексная способность
Realtek RTL 8102EL
Ав том ати чес ко е сог л ас о ван и е 10 / 100 Мб/с Частичная / пол ная дуплексная способность
Звуковая поддержка жесткого диска
ALC662 Звуковая поддержка High- Definition
5.1канальный звуковой выход
ALC662 Звуковая поддержка High- Definition
5.1канальный звуковой выход
Слот PCI Express Gen2 x16 x1 Слот PCI Express x16 x1 Слот PCI Express Gen2 x1 x1 Слот PCI Express x1 x1
Слоты
Слот PCI x2 Слот PCI x2 Разъём НГМД x1 Разъём НГМД x1 Разъём IDE x1 Разъём ID E x1 Разъём SATA x6 Разъём SATA x6 Разъём на лицевой панели x1 Разъём на лицевой панели x1 Входно й звуковой разъём x1 Входно й звуковой разъём x1 Разъём ввода для CD x1 Разъём ввода для CD x1 Разъём вывода для S/PDIF x1 Разъём вывода для S/PDIF x1 Контактирующее присп особл ени е вентилятора центрального проц ессора x1
Контактирующее присп особл ени е вентилятора центрального
проц ессора x1 Контактирующее присп особл ени е вентилятора системы x1
Контактирующее присп особл ени е вентилятора
системы x1 Открытое ко нт актир ующе е приспособление CMOS x1
Открытое ко нт актир ующе е
приспособление CMOS x1 USB-разъём x3 USB-разъём x3 Разъем пита ния (24 вывод) x1 Разъем пит ани я (2 4 вывод) x1 Разъем пита ния (4 выво д ) x1 Разъем питани я (4 выво д) x1 Разъём Порт подключен ия принтера x1
Разъём Порт подключен ия
принтера x1
Встроенный разъём
Разъём Пос л едо ва т ел ьн ый порт x1 Разъём Пос л едо ват ел ьный порт x1
Задняя панель средств ввода-вывода
Клавиатура PS /2 x1 Мышь PS/2 x1 Порт VGA x1 Порт LAN x1 USB-пор т x4 Гнездо для подключения наушников x3 Порт DVI x1
Клавиатура PS /2 x1
Мышь PS/2 x1
Порт VGA x1
Порт LAN x1
USB-пор т x4
Гнездо для подключения
наушников x3
Порт DVI x1
Размер панели 200 мм (Ш) X 244 мм (В) 200 мм (Ш) X 244 мм (В) Специальные технические характеристик и
Поддержка RAID 0 / 1 / 1+0 Поддержка RAID 0 / 1 / 1+0
Поддержка OS
Windows XP / VISTA 32 / VISTA 64 Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без предварительного уведомления.
Windows XP / VISTA 32 / VISTA 64
Biostar сохраняет за собой право добавлять или
удалять средства обеспечения для OS с или без
предварительного уведомления.
Page 50
Motherboard Manual
48
ARABIC
A740G M2+ SE A 780 G M2 + SE/A 7 80V M2+ SE/ A7 60 G M2+
ﺲﺒﻘﻣAM2+ / AM2
تﺎﺠﻟﺎﻌ ﻣAMD Athlon 64 / Athlon 6 4 FX / Sempron /
Phenom / Athlon 64 X2
ﻦﻜﻤﺗ ﻴﻨﻘﺗﺔ AMD 64 ءاﺮﺝإ تﺎﻴﻠﻤﻌﻟا ﺔﻴﺏﻮﺳﺎﺤﻟا ﺔﻋﺮ ﺴﺏ 32 و64 ﺖﺏ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 2.0 Po we rNo w
Athlon Max. Power:125W; Phenom Max. Power:95W
ﺲﺒﻘﻣAM2+ / AM2
تﺎﺠﻟﺎﻌ ﻣAMD Athlon 64 / Athlon 6 4 FX / Sempron /
Phenom / Athlon 64 X2
ﻦﻜﻤﺗ ﺔﻴﻨﻘﺗ AMD 64 ءاﺮﺝإ ﻴﻠﻤ ﻌﻟاتﺎ ﺔﻴﺏﻮﺳﺎﺤﻟا ﺔﻋ ﺮ ﺴﺏ 32 و64 ﺖﺏ
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗHyper Transport و 3.0 Po we rNo w
Athlon Max. Power:125W; Phenom Max. Power:95W
ةﺪﺡو ﺔﺠﻟﺎﻌﻤﻟا ﺔیﺰ آ ﺮﻤ ﻟا
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ Hyp erTransport ددﺮﺘﺏ ﻞﺼی ﻰﻟإ2.0 2.0 GT/s ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ Hyp erTransport ددﺮﺘﺏ ﻞﺼی ﻰﻟإ3.0 5.2 GT/s ﻞﻗﺎﻨﻟا ﻷاﻲﻣﺎﻣ ﻲﺒﻥﺎﺠﻟا
AMD 740G
AMD SB700
AMD 780G (A780G M2+ SE)
AMD 780V (A780V M2+ SE)
AMD 760G (A760G M2+)
AMD SB700(A780G M2+ SE & A780V M2+ SE)
AMD SB710 (A760G M2+)
ﺔﻋﻮ ﻤ ﺠﻣ ﺢﺋا ﺮﺸ ﻟ ا
ITE 8718F
ﺮﻓﻮﺗ ﺔﻔ ﻴﻇو Super I/O ﺮﺜآﻷا ًﺎﻣ ا ﺪﺨﺘﺳا.
ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface
ﻞﺋﺎﺳو ﻢﻜﺤﺘﻟا ﻲﻓ ﺔﺌﻴﺒﻟا:
ﺐﻗاﺮﻣ ﺔﻓ ﺮﻌ ﻤﻟ ﺔﻟﺎﺡ ةﺰ ﻬﺝﻷ ا
ﺔﻔ ﻴﻇ و "Smart Guardian" ﻦﻣ ITE
ITE 8718F
ﺮﻓﻮﺗ ﺔﻔ ﻴﻇو Super I/O ﺮﺜآﻷا ًﺎﻣ ا ﺪﺨﺘﺳا.
ﺗﻢﻋﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface
ﻞﺋﺎﺳو ﻢﻜﺤﺘﻟا ﻲﻓ ﺔﺌﻴﺒﻟا: ﺐﻗاﺮﻣ ﺔﻓ ﺮﻌ ﻤﻟ ﺔﻟﺎﺡ ةﺰ ﻬﺝﻷ ا
ﺔﻔ ﻴﻇ و "Smart Guardian" ﻦﻣ ITE
Super I/O
ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2
ﺔﻌﺳ ةﺮآاذ ىﻮ ﺼﻗ 8 ﺎﺠﻴﺝ ﺖیﺎﺏ
ﻢﻋﺪﺗ ﻞآ ﺔﺤﺘﻓ DIMM ﻢﻋﺪﺗ ةﺮ آا ذ ﻦﻣ عﻮﻥ DDR2 ﺔﻌﺳ 256/512 ﺎﺠ ﻴﻣ ﺖیﺎﺏ
و1/ و2/ و4 ﺎﺠﻴﺝ ﺖیﺎﺏ
ةﺪﺡو ةﺮآاذ DDR2 ﺔﺝودﺰﻣ ﻘﻟاةﺎﻨ
ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻥ DDR2 تﺎﻌﺳ 533 / 66 7 / 800 ﺎﺠﻴﻣ ﺖیﺎﺏ
ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻥ DDR2 تﺎﻌ 10 66 ﺎﺠﻴﻣ ﺖیﺎﺏ
(DDR2 1066 is for AM2+ CPU only)
ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮ آاﺬ ﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻖﻓا ﻮﺘﺗ ﻊﻣ ECC
ﺔﺤﺘﻓDDR2 DIMM دﺪﻋ2
ﺔﻌﺳ ةﺮآاذ ىﻮ ﺼﻗ 8 ﺎﺠﻴﺝ ﺖیﺎﺏ
ﻢﻋﺪﺗ ﻞآ ﺔﺤﺘﻓ DIMM ﻢﻋﺪﺗ ةﺮ آا ذ ﻦﻣ عﻮﻥ DDR2 ﺔﻌﺳ 256/512 ﺎﺠ ﻴﻣ ﺖیﺎﺏ
و1/ و2/ و4 ﺎﺠﻴﺝ ﺖیﺎﺏ
ةﺪﺡو ةﺮآاذ DDR2 ﺔﺝودﺰ ﻘﻟاةﺎﻨ
ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻥ DDR2 تﺎﻌﺳ 533 / 66 7 / 800 ﺎﺠﻴﻣ ﺖیﺎﺏ
ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻣ عﻮﻥ DDR2 تﺎﻌﺳ 1066 ﺎﺠﻴﻣ ﺖیﺎﺏ
(DDR2 1066 is for AM2+ CPU only)
ﻻ ﻢﻋﺪﺗ ﻖﺋﺎﻗر ةﺮ آاﺬ ﻟا DIMM ﻚﻠﺗو ﻲﺘﻟا ﻻ ﻖﻓا ﻮﺘﺗ ﻊﻣ ECC
ةﺮآاﺬﻟا ﺔﻴﺴﻴﺋﺮﻟا
ATI Radeon 2100
ﻰﺼﻗأ ﺔﻌ ﺳ ةﺮآاﺬﻟ ﻮیﺪﻴﻔﻟا ﺔآ ﺮﺘﺸﻤ ﻟا 512 ﺎﺠﻴﻣ ﺖی ﺎﺏ
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ HDCP
ATI Radeon HD 3200 (A780G M2+ SE)
ATI Radeon 3100 (A780V M2+ SE)
ATI Radeon 3000 (A760G M2+)
ﻰﺼﻗأ ﺔﻌﺳ ةﺮآاﺬﻟ ﻮیﺪﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 512 ﺎﺠﻴﻣ ﺖیﺎﺏ
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ HDCP/DX10 (A780G M2+ SE & A780V
M2+ S E ﻂﻘﻓ)
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ Hybr id Cro s s F ir eX
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ UVD(for A780G M2+ SE only)
ﺔﻗﺎﻄ ﺏ تﺎﻣﻮ ﺳﺮﻟا
ﻢﻜﺤﺘﻣ IDE ﻞﻣﺎﻜﺘﻣ
ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUlt ra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0~4
ﻢﻜﺤﺘﻣ IDE ﻞﻣﺎﻜﺘﻣ
ﺔﻴﻨﻘﺘﺏ ﻞﻗﺎﻥUlt ra DMA 33 / 66 / 100 / 133ﻲﺴﻴﺋر ﻊﺿو
ﻊﺿو ﻢﻋدPIO Mode 0~4
ﺬﻔﻨﻣ IDE
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣ ﺎﻜ ﺘﻣ
ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟ ا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.
ﺔﻘﺏﺎﻄ ﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
ﻢﻜﺤﺘﻣ Serial ATA ﻞﻣ ﺎﻜ ﺘﻣ
ﻞﻘﻥ تﺎﻥﺎﻴﺒﻟ ا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎﺙ.
ﺔﻘﺏﺎﻄ ﻣ تﺎﻔﺹاﻮﻤﻟ SATA راﺪﺹﻹا 2.0.
SATA
Realtek RTL 8102EL
ضوﺎ ﻔ ﺗ ﻲﺋﺎﻘ ﻠﺗ 10/10 0 ﻴﻣﺎﺠ ﺖیﺎﺏ /ﺔﻴﻥﺎﺙ
ﺔﻴﻥﺎﻜﻣإ ﻞﻘﻨﻟا جودﺰﻤﻟا ﻞﻣﺎﻜﻟا/ﻲﻔ ﺼﻨﻟ ا
Realtek RTL 8111C (A780G M2+ SE & A760G M2+)
Realtek RTL 8102EL (A780V M2+ SE)
ﻲﺋﺎﻘﻠﺗ ضوﺎ ﻔ ﺗ10/10 0/1000 ﺖیﺎﺏ ﺎﺠﻴﻣ /ﺔﻴﻥﺎﺙ (A780G M2+ SE &
ﺔﻜﺒﺵ ﺔﻴﻠﺥاد
Page 51
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
49
A740G M2+ SE A 780 G M2 + SE/A 7 80V M2+ SE/ A7 60 G M2+
A760G M2+)
ضوﺎ ﻔ ﺗ ﻲﺋﺎﻘ ﻠﺗ 10/10 0 ﺎﺠﻴﻣ ﺖیﺎﺏ /ﺔﻴﻥﺎﺙ (A780V M2+ SE )
ﻣإﺔﻴﻥﺎﻜ ﻞﻘﻨﻟ ا جودﺰﻤﻟا ﻞﻣﺎﻜﻟا/ﻲﻔﺼﻨﻟ ا
ALC662
5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ تﻮﺼ ﻟا ﻲﻟﺎﻋ ﻒیﺮﻌﺘﻟا ﻦﻣ
ALC662
5.1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼﻟا
ﻢﻋﺪﺗ ﺔﻴﻨﻘﺗ تﻮﺼ ﻟا ﻲﻟﺎﻋ ﻒیﺮﻌﺘﻟا ﻦﻣ
ﻢﻋد تﻮ ﺼﻟا ﻲﻟﺎﻋ
ﻒیﺮﻌ ﺘﻟا
ﺔﺤﺘﻓx16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x16 PCI Express دﺪﻋ1 ﺔﺤﺘﻓx1 PCI Express دﺪﻋ1 ﺔﺤﺘﻓGen2 x1 PCI Express دﺪﻋ1 ﺔﺤﺘﻓPCI دﺪﻋ2 ﺔﺤﺘﻓPCI دﺪﻋ2
ﺘﻔﻟاتﺎﺤ
ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻥﺮﻣ صاﺮﻗأ كﺮﺤﻣ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻔﻨﻣIDE دﺪﻋ1 ﺬﻔﻨﻣIDE دﺪﻋ1 ﺬﻔﻨﻣSATA دﺪﻋ6 ﺬﻔﻨﻣSATA دﺪﻋ6
ﺔﻴﻣﺎﻣﻷا ﺔﺡﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻴﻣﺎﻣﻷا ﺔﺡﻮﻠﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻣﺎ ﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻣﺎ ﻣﻷا تﻮﺼﻟا ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻔﻨﻣCD-IN دﺪﻋ1 ﺬﻔﻨﻣCD-IN دﺪﻋ1
جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻣS/PDIF دﺪﻋ1
ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ1 ﺔیﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺡو ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ1
ﺔﻠﺹومﺎﻈﻨﻟا ﺔﺡوﺮﻣ دﺪﻋ1 مﺎﻈﻨﻟا ﺔﺡوﺮﻣ ﺔﻠﺹو دﺪﻋ1
ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1 ﺢﺴﻣ ﺔﻠﺹوCMOS دﺪﻋ1
ﺬﻔﻨﻣUSB دﺪﻋ3 ﺬﻔﻨﻣUSB دﺪﻋ3 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)4سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻣ)4سﻮﺏد( دﺪﻋ1
ﺔﻌﺏﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1 ﺔﻌﺏﺎﻃ ﺬﻔﻨﻣ دﺪﻋ1
ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ دﺪﻋ1 ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻓﺎﻨﻤ ﻟا ﻰﻠﻋ ﺢﻄﺳ ﺔﺡﻮ ﻠﻟ ا
ﺢﻴﺗﺎﻔﻣ ﺔﺡﻮﻟPS/2 دﺪﻋ1
سوﺎﻣ PS/2 دﺪﻋ1
ﺬﻔﻨﻣVGA دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻓﺎﻨﻣUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻣ ﺪﻋ3
ﺬﻓﺎ ﻨ ﻣDVI دﺪﻋ1
ﺢﻴﺗﺎﻔﻣ ﺔﺡﻮﻟPS/2 دﺪﻋ1
سوﺎﻣ PS/2 دﺪﻋ1
ﺬﻔﻨﻣVGA دﺪﻋ1
ﺔﻴﻠﺤﻣ لﺎﺼﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻣ دﺪﻋ1
ﺬﻓﺎﻨﻣUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻣ ﺪﻋ3
ﺬﻓﺎ ﻨ ﻣDVI دﺪﻋ1
ﺬﻓﺎﻨﻣ ﻞﺥد/جﺮﺥ ﺔﺡﻮﻠﻟا
ﺔﻴﻔ ﻠﺨ ﻟ ا
200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺗرا( 200 ﻢﻣ)ضﺮﻋ (X 244 ﻢﻣ)عﺎﻔﺗرا(
ﻢﺠﺡ ﺔﺡﻮﻠ ﻟا
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 1+0
ﺔﻴﻨﻘﺗ ﻢﻋﺪﺗRAID 0 / 1 / 1+0 ﺎیا ﺰﻣ ﺔﺹ ﺎ ﺥ
Windows XP / VISTA 32 / VISTA 64
ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿ إ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎﻄﺥﺈﺏ وأ نوﺪﺏ
رﺎﻄﺥإ.
Windows XP / VISTA 32 / VISTA 64
ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓ ﺎﺿ إ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎﻄﺥﺈﺏ وأ نوﺪﺏ
رﺎﻄﺥإ.
ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻟا
Page 52
Motherboard Manual
50
JAPANESE
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
CPU
Socket AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom プロセッサ AMD 64アーキテクチャでは、32ビットと64ビット計算が
可能です ハイパートランスポート3.0とクールアンドクワイアットを サポートします
Athlon Max. Power:125W ; Phenom Max. Power:95W
Socket AM2+ / AM2 AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 / Sempron / Phenom プロセッサ AMD 64アーキテクチャでは、32ビットと64ビット計算が
可能です ハイパートランスポート2.0とクールアンドクワイアットを サポートします
Athlon Max. Power:125W ; Phenom Max. Power:95W
FSB
5.2 GT/sのバンド幅までハイパートランスポート3.0をサ ポートします
2.0 GT/sのバンド幅までハイパートランスポート2.0をサ
ポートします
チップセット
AMD 780G (A780G M2+ SE) AMD 780V (A780V M2+ SE) AMD 760G (A760G M2+) AMD SB700 (A780G M2+ SE & A780V M2+ SE) AMD SB710 (A760G M2+)
AMD 740G AMD SB700
メインメモリ
DDR2 DIMMスロット x 2
最大メモリ容量8GB 各DIMMは 256MB/512MB & 1GB/2GB/4G B DDR 2を サポート デュアル チャンネルモードDDR2メモリモジュール
DDR 2 533 / 667 / 800 をサポート DDR 2 1066 をサポート (for AM2+ C PU only) 登録済みDIMMとECC DIMMはサポートされません
DDR2 DIMMスロット x 2
最大メモリ容量8GB 各DIMMは 256MB/512MB & 1GB/2GB/4G B DDR 2を サポート デュアル チャンネルモードDDR2メモリモジュール
DDR 2 533 / 667 / 800 をサポート DDR 2 1066 をサポート (for AM2+ C PU only) 登録済みDIMMとECC DIMMはサポートされません
Super I/O
ITE 8718F
もっとも一般に使用されるレガシーSuper I/O機能を採用 しています。 低ピンカウントインターフェイス 環境コントロールイニシアチブ、
H/Wモニター ITEの「スマートガーディアン」機能
ITE 8718F
もっとも一般に使用されるレガシーSuper I/O機能を採用 しています。 低ピンカウントインターフェイス 環境コントロールイニシアチブ、
H/Wモニター ITEの「スマートガーディアン」機能
グラフィック ス
ATI Radeon HD 32 00 (A780 G M2+ SE) AT I Radeon 31 00 (A7 80V M2 + SE) AT I Radeon 30 00 (A7 60G M2 +) 最大の共有ビデオメモリは512MBです DX10/HDCP のサポート (A780G M2+ SE & A780V M2+ SE ただ) Hybrid Cross FireX のサポート UVDのサポート (fo r A 78 0G M2 + SE on ly )
AT I Radeon 2100 最大の共有ビデオメモリは512MBです HDCP のサポート
IDE
統合ID Eコントローラ Ultra DMA 33 / 66 / 100 / 133バスマスタモード PIO Mode 0~4のサポート、
統合ID Eコントローラ Ultra DMA 33 / 66 / 100 / 133バスマスタモード PIO Mode 0~4のサポート、
SATA
統合シリアルATA コントローラ 最高3G b/秒のデータ転送速度 SATAバージョン2.0仕様に準拠。
統合シリアルATA コントローラ 最高3G b/秒のデータ転送速度
SATAバージョン2.0仕様に準拠。
LAN
Realtek RTL 8111C (A780G M2+ SE & A760G M2+) Realtek RTL 8102EL (A780V M2+ SE) 10 / 100 / 1000 Mb/秒のオートネゴシエーション
Realtek RTL 8102EL 10 / 100 Mb /秒のオートネゴシエーション /全二重機能
Page 53
A780G M2+ SE/A780V M2+ SE/A760G M2+/A740G M2+ SE
51
A7 80 G M2+ SE/A780V M2 + SE/ A760 G M2+
A740G M2+ SE
(A780G M2 + SE & A760G M2 +) 10 / 100 Mb /秒のオートネゴシエーション (A780V M2 + SE) /全二重機能
HDオーディ オのサポート
ALC662
5.1チャンネルオーディオアウト ハイデフィニションオーディオのサポート
ALC662
5.1チャンネルオーディオアウト
ハイデフィニションオーディオのサポート PCI Express Gen2 x16スロット x1 PCI Express x16スロット x1 PCI Express Gen2 x1スロット x1 PCI Express x1スロット x1
スロット
PCIスロット x2 PCIスロット x2
フロッピーコネクタ x1 フロッピーコネクタ x1 IDE コネクタ x1 IDEコネクタ x1 SATAコネクタ x6 SATAコネクタ x6
フロントパネルコネクタ x1 フロントパネルコネクタ x1 フロントオーディオコネクタ x1 フロントオーディオコネクタ x1
CDインコネクタ x1 CDインコネクタ x1 S/PDIFアウトコネクタ x1 S/PDIFアウトコネクタ x1 CPUファンヘッダ x1 CPUファンヘッダ x1 システムファンヘッダ x1 システムファンヘッダ x1 CMOSクリアヘッダ x1 CMOSクリアヘッダ x1 USBコネクタ x3 USBコネクタ x3
電源コネクタ(24ピン) x1 電源コネクタ(24ピン) x1 電源コネクタ(4ピン) x1 電源コネクタ(4ピン) x1 プリンタポートコネクタ x1 プリンタポートコネクタ x1
オンボードコ ネクタ
シリアルポートコネクタ x1 シリアルポートコネクタ x1
背面パネル
I/O
PS/2キーボード x1 PS/2マウス x1 VGAポート x1 LANポート x1 USBポート x4 オーディオジャック x3 DVIポート x1
PS/2キーボード x1
PS/2マウス x1
VGAポート x1
LANポート x1
USBポート x4
オーディオジャック x3
DVIポート x1
ボードサイズ 20 0 mm (幅) X 244 mm (高さ) 20 0 mm (幅) X 244 mm (高さ) 特殊機能 RAID 0 / 1 / 1+0 のサポート RAID 0 / 1 / 1+0 のサポート
OSサポート
Windows XP / VISTA 32 / VISTA 64 Biostarは事前のサポートなしにOS サポートを追加または 削除する権利を留保します。
Windows XP / VISTA 32 / VISTA 64
Biostarは事前のサポートなしにOS サポートを追加または
削除する権利を留保します。
2009/01/15
Loading...
