Biostar A58MG Setup Manual

A58MD / A58MG / A58ML Setup Manual

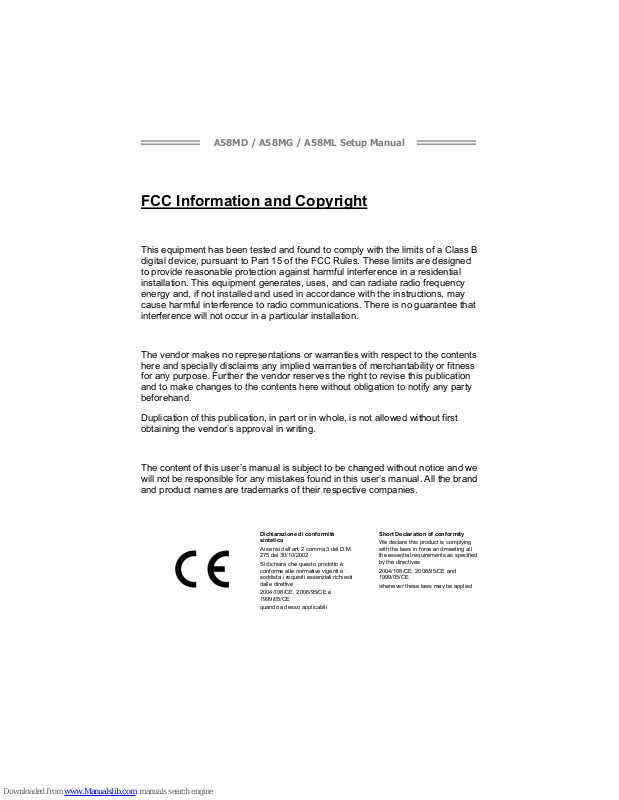

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee that
interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents
here and specially disclaims any implied warranties of merchantability or fitness
for any purpose. Further the vendor reserves the right to revise this publication
and to make changes to the contents here without obligation to notify any party
beforehand.

Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the brand
and product names are trademarks of their respective companies.

Dichiarazione di conformità
sintetica

Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002

Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive

2004/108/CE, 2006/95/CE e
1999/05/CE

quando ad esso applicabili

Short Declaration of conformity

We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives

2004/108/CE, 2006/95/CE and
1999/05/CE

whenever these laws may be applied

Table of Contents

Chapter 1: Introduction ...............................................................1

1.1 Before You Start......................................................................... 1

1.2 Package Checklist..................................................................... 1

1.3 Motherboard Specifications....................................................... 2

1.4 Rear Panel Connectors ............................................................. 3

1.5 Motherboard Layout .................................................................. 4

Chapter 2: Hardware Installation................................................5

2.1 Install Central Processing Unit (CPU) ....................................... 5

2.2 Install a Heatsink ....................................................................... 5

2.3 Connect Cooling Fans............................................................... 7

2.4 Install System Memory .............................................................. 8

2.5 Expansion Slots....................................................................... 10

2.6 Jumper Setting .........................................................................11

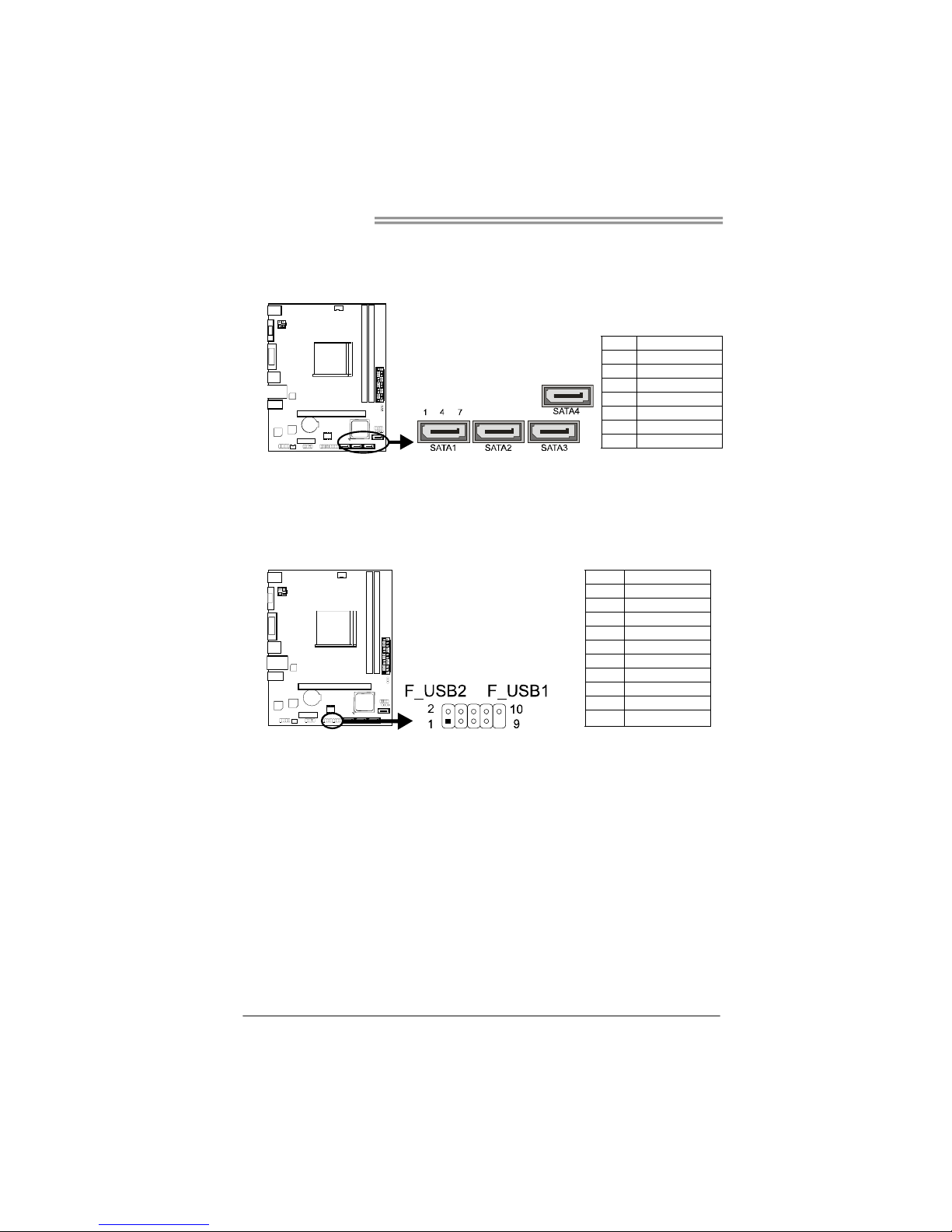

2.7 Headers & Connectors ............................................................ 12

Chapter 3: UEFI BIOS & Software.............................................16

3.1 UEFI BIOS Setup .................................................................... 16

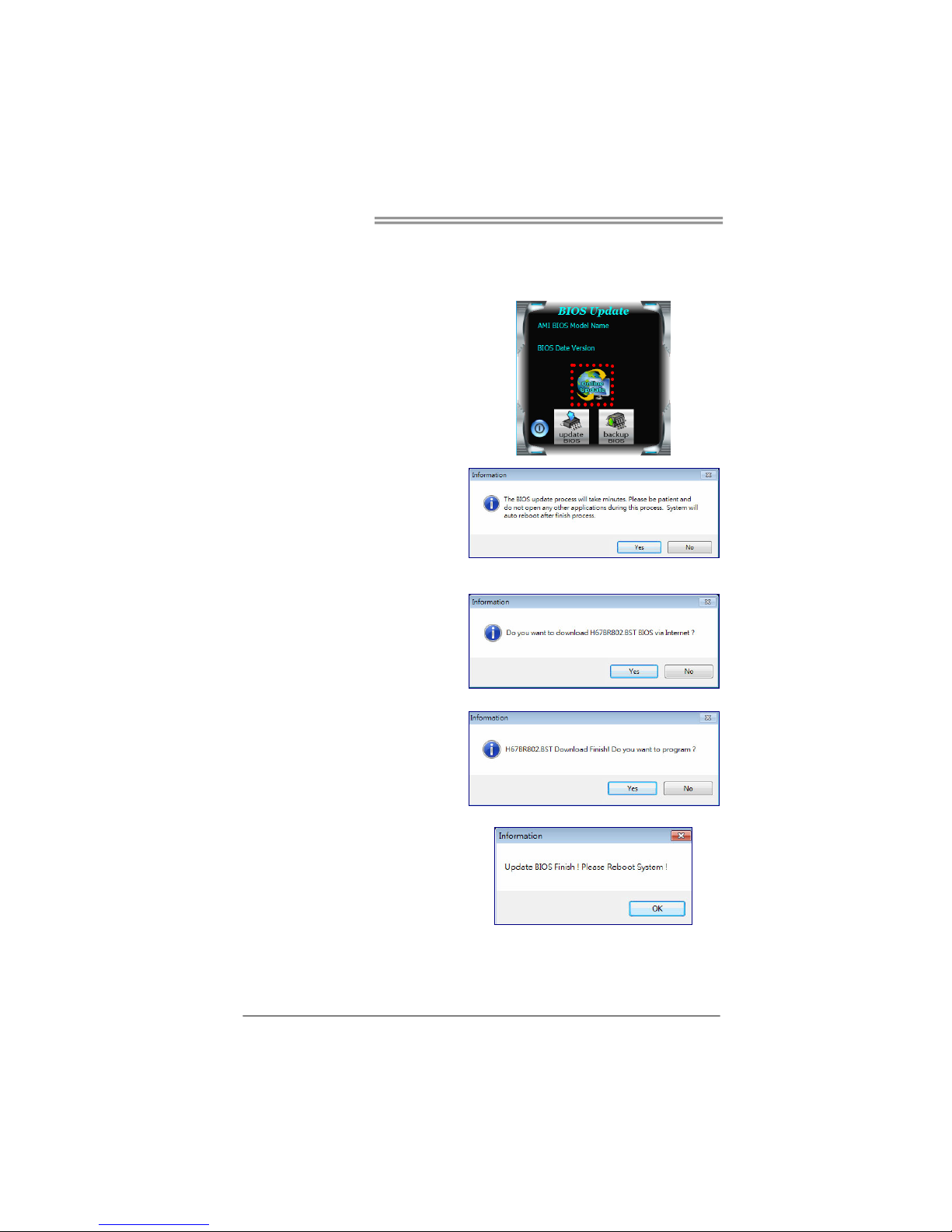

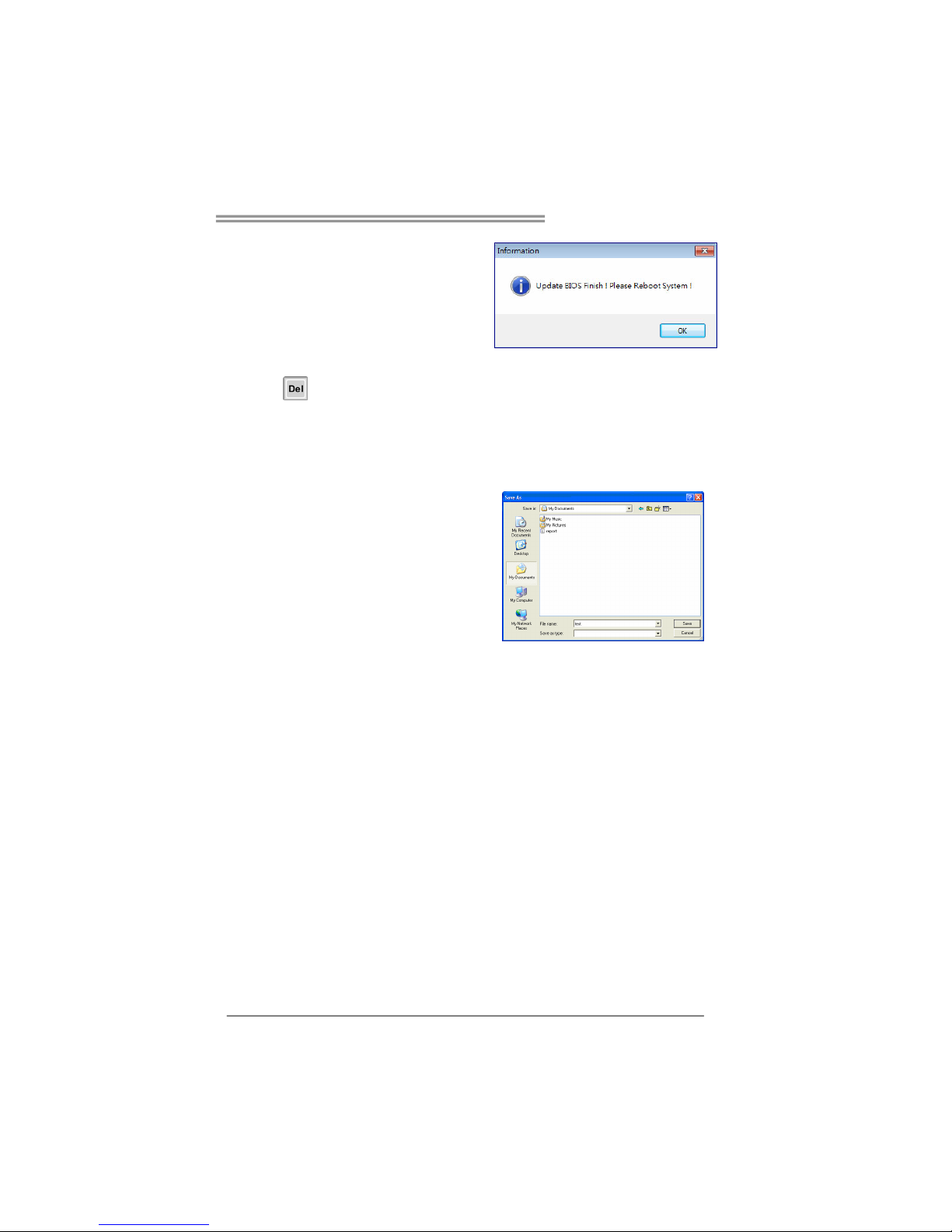

3.2 BIOS Update ........................................................................... 16

3.3 Software................................................................................... 21

Chapter 4: Useful Help .............................................................. 24

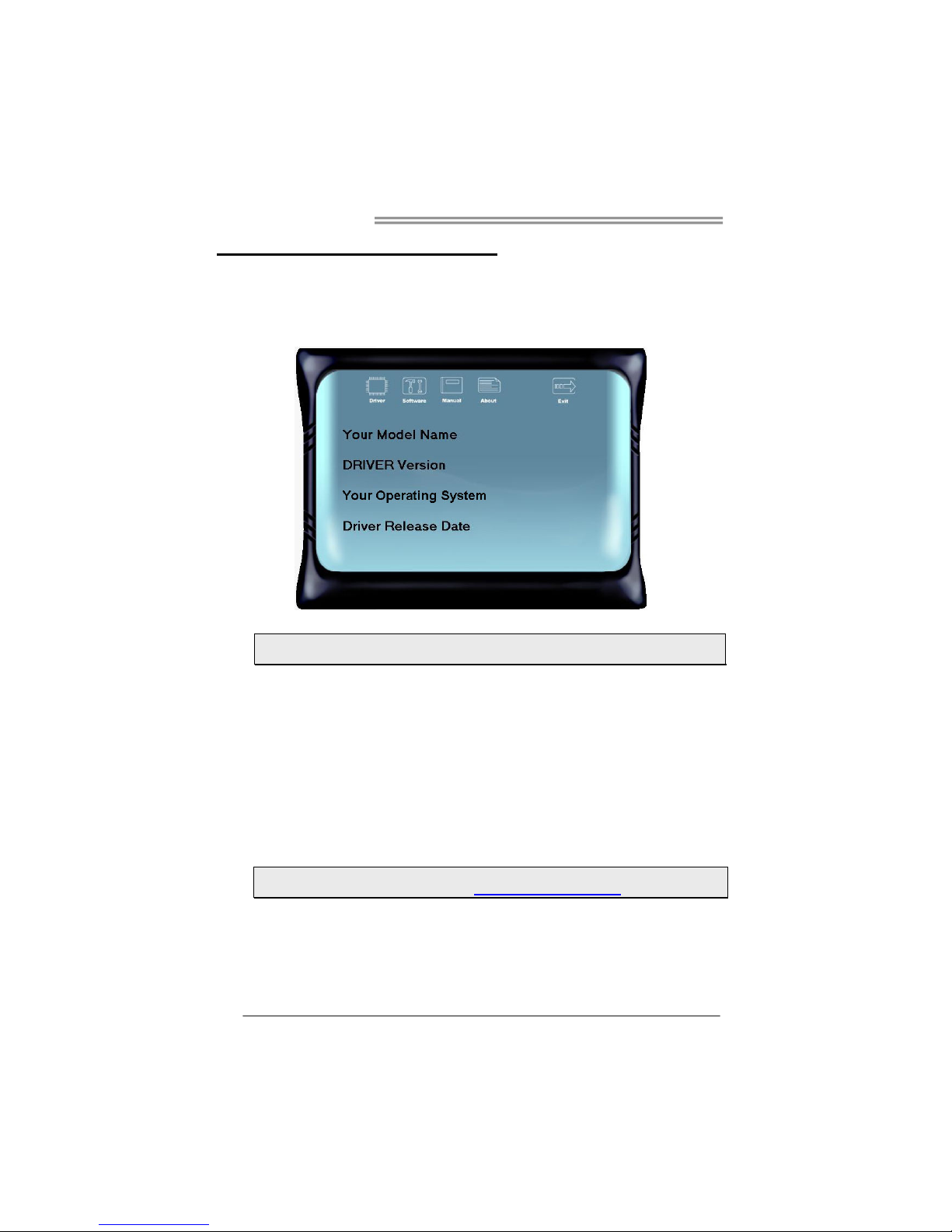

4.1 Driver Installation..................................................................... 24

4.2 AMI BIOS Beep Code.............................................................. 25

4.3 Troubleshooting....................................................................... 25

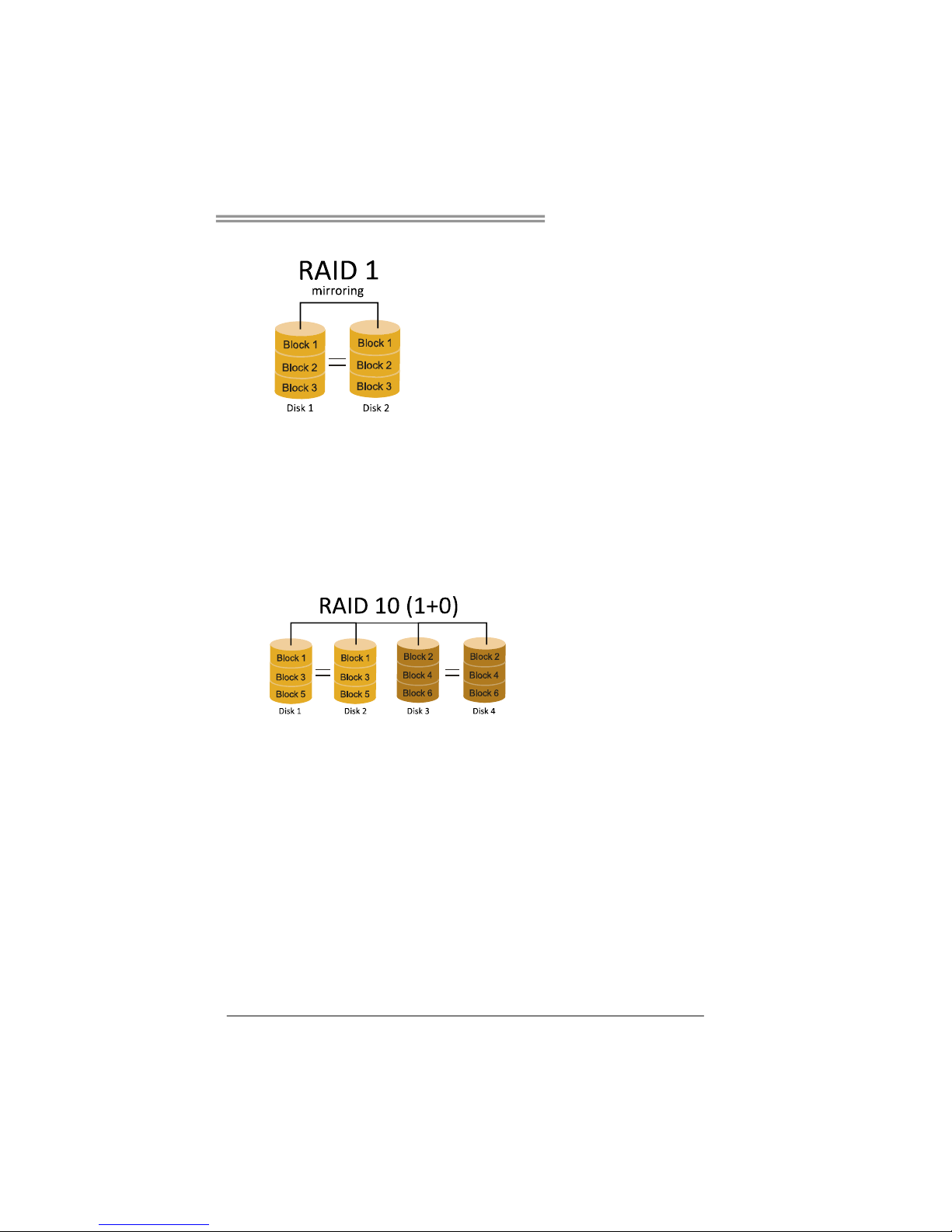

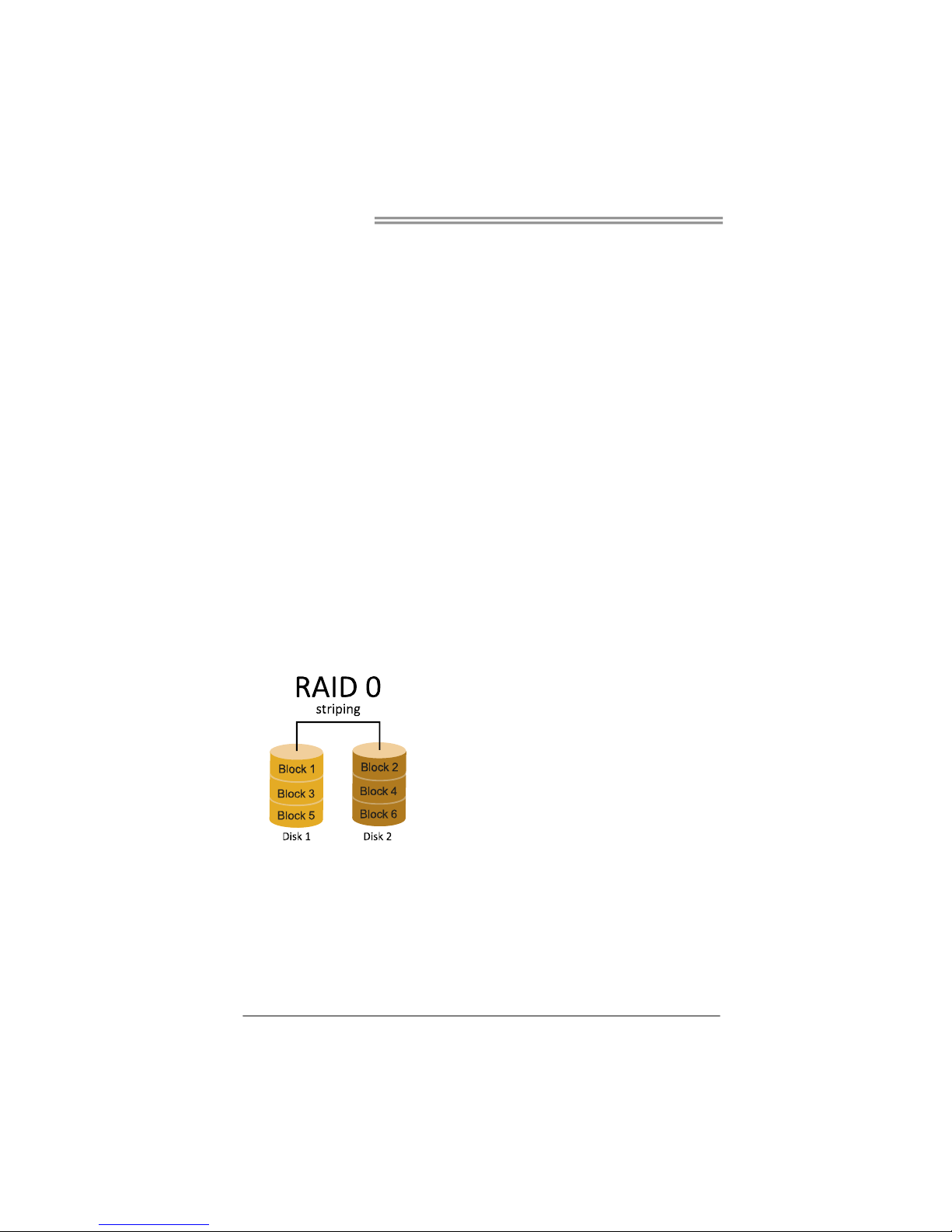

4.4 RAID Functions ....................................................................... 26

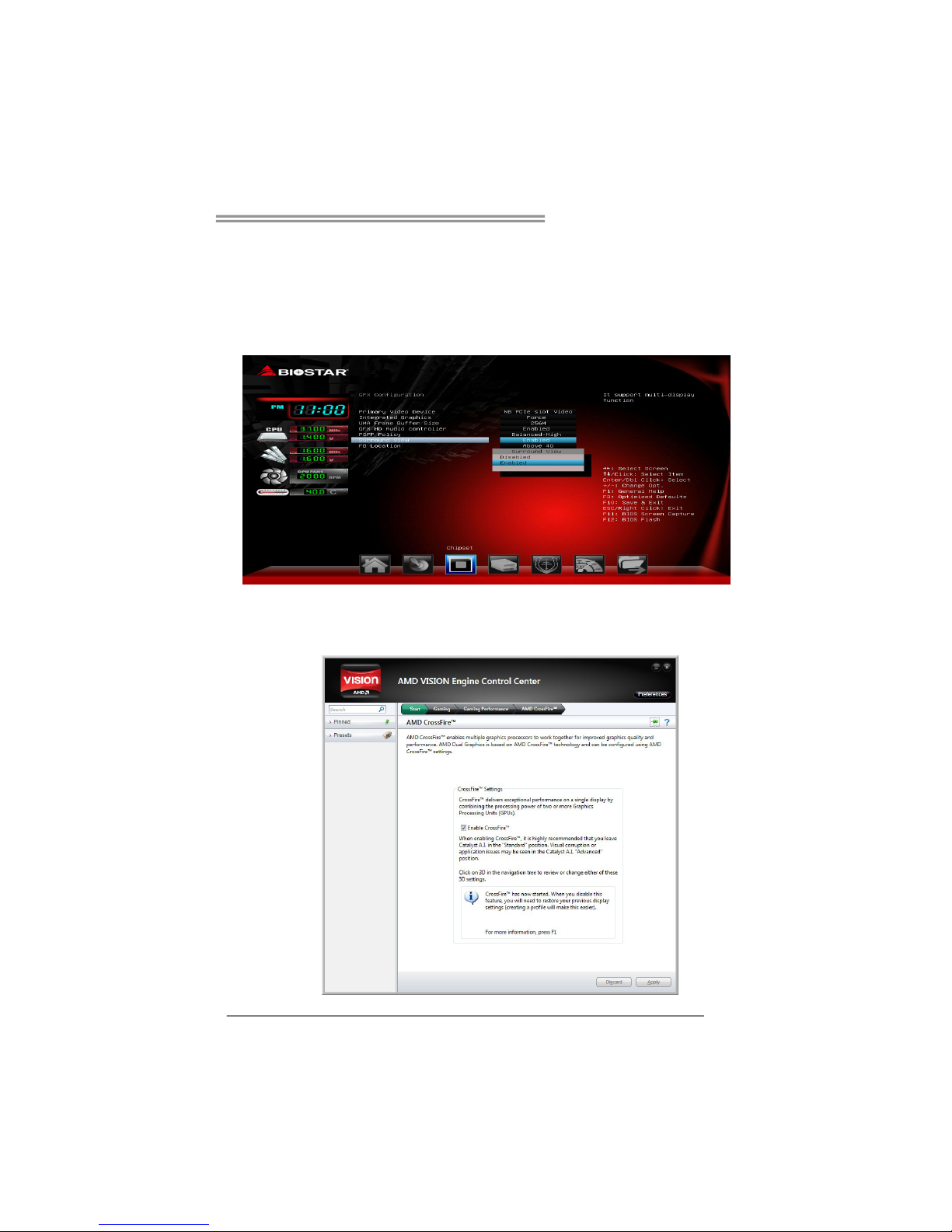

4.5 AMD DUAL Graphics Technology ........................................... 28

Appendix: Specifications In Other Languages .......................30

Arabic ......................................................................................................... 30

French ........................................................................................................ 32

German....................................................................................................... 34

Italian.......................................................................................................... 36

Japanese.................................................................................................... 38

Polish.......................................................................................................... 40

Portuguese ................................................................................................. 42

Russian....................................................................................................... 44

Spanish....................................................................................................... 46

A58MD/A58MG/A58ML

1

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:

 Prepare a dry and stable working environment with

sufficient lighting.

 Always disconnect the computer from power outlet before

operation.

 Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded
appliance, or use grounded wrist strap to remove the static
charge.

 Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the
edge, do not try to bend or flex the board.

 Do not leave any unfastened small parts inside the case

after installation. Loose parts will cause short circuits which
may damage the equipment.

 Keep the computer from dangerous area, such as heat

source, humid air and water.

 The operating temperatures of the computer should be 0 to

45 degrees Celsius.

 To avoid injury, be careful of:

Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit

1.2 Package Checklist

; Serial ATA Cable x2
; Rear I/O Panel for ATX Case x1
; Installation Guide x1
; Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was
sold. For more information about the standard package in your region, please contact your dealer
or sales representative.

Motherboard Manual

2

1.3 Motherboard Specifications

Specifications

CPU Support

Socket FM2+/FM2 for AMD A-series processor
Maximum CPU TDP (Thermal Design Power): 100Watt
* Please refer to www.biostar.com.tw

for CPU support list.

Chipset AMD A58/A55 FCH

Memory

Supports Dual Channel DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/
2600(OC)
2 x DDR3 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3 module
* Please refer to www.biostar.com.tw

for Memory support list.

Storage

AMD A58/A55 FCH
4x SATA 3Gb/s Connector
Supports RAID 0,1,10 & AHCI

LAN

Realtek RTL 8111G (A58MD, A58MG)
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Realtek RTL 8106E (A58ML)
10/ 100 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec

ALC662

5.1 Channels, High Definition Audio

USB

AMD A58/A55 FCH
8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

Expansion Slots

1x PCIe x1 Slot
1x PCIe 3.0 x16 Slot (Only FM2+ processors can support PCIe 3.0.)

Rear I/Os

1x PS/2 Mouse
1x PS/2 Keyboard
1x VGA Port
1x DVI Port (A58MD)
1x LAN port
4x USB 2.0 Port
3x Audio Jack

Internal I/Os

4x SATA 3.0Gb/s Connector
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Serial Port Header
1x Chassis Speaker Header

Form Factor microATX Form Factor, 218 mm x 174 mm

OS Support

Windows XP / 7 / 8 / 8.1
Biostar reserves the right to add or remove support for any OS with or without
notice.

A58MD/A58MG/A58ML

3

1.4 Rear Panel Connectors

A58MD

A58MG/ A58ML

Note 1: DVI-D / VGA Output require an AMD family processor with intedrated graphics.
Note 2: The mainboard supports two independent display outputs. (A58MD)
Note 3: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external
microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 4: Maximum resolution:

Outputs Maximum resolution Bit Depth

1920 x 1200 @60Hz 30 bpp

DVI-D

2560 x 1600 @60Hz 24 bpp

VGA 1920 x 1600 @60Hz --

Motherboard Manual

4

1.5 Motherboard Layout

Note: ■ represents the 1st pin.

A58MD/A58MG/A58ML

5

CHAPTER 2: HARDWARE INSTALLATION

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Step 2: Pull the socket locking out from the socket and then raise the lever up

to a 90-degree angel.

Step 3: Look for the white triangle on socket, and the gold triangle on CPU

should point towards this white triangle. The CPU will fit only in the
correct orientation.

Motherboard Manual

6

Step 4: Hold the CPU down firmly, and then close the lever to locked the

position

2.2 Install a Heatsink

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the

heatsink clip with the socket mounting-lug. Hook the spring clip to the
mounting-lug.

Step 2: On the other side, push the retention clip straight down to lock into the

plastic lug on the retention frame, and then press down the locker until it
stops.

Note1: Do not forget to connect the CPU fan connector.
Note2: For proper installation, please kindly refer to the installation manual of your CPU
heatsink.

A58MD/A58MG/A58ML

7

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and
connector may be different according to the fan manufacturer. Connect the fan
cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control(By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground
2 +12V
3

FAN RPM rate sense

Note: CPU_FAN1, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting
with wires onto connectors, please note that the red wire is the positive and should be
connected to pin#2, and the black wire is Ground and should be connected to GND.

Motherboard Manual

8

2.4 Install System Memory

A. DDR3 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips

snap back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

A58MD/A58MG/A58ML

9

B. Memory Capacity

DIMM Socket Location

DDR3 Module

Total Memory Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB/16GB
DDR3_B1 512MB/1GB/2GB/4GB/8GB/16GB

Max is 32GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_B1

Disabled O X
Disabled X O

Enabled O O

(O means memory installed, X means memory not installed.)

Note: The DRAM bus width of the memory module must be the same (x8 or x16)

Motherboard Manual

10

2.5 Expansion Slots

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- Only FM2+ processors can support PCIe 3.0.

PEX1_1: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the
expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the
computer.

3. Place a card in the expansion slot and press down on the card until it is
completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the
expansion card.

7. Install related driver for the expansion card.

A58MD/A58MG/A58ML

11

2.6 Jumper Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Header

Placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.

31

Pin 1-2 Close:

Normal Operation (default).

31

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6.

Load Optimal Defaults and save settings in CMOS.

Motherboard Manual

12

2.7 Headers & Connectors

ATXPWR1: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power
supply for this connector. Make sure to find the correct orientation before
plugging the connector.

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

ATXPWR2: ATX Power Source Connector

This connector will provide +12V to CPU power circuit.

Pin Assignment

1 +12V
2 +12V
3 Ground
4 Ground

Note1: Before you power on the system, please make sure that both ATXPWR1 and
ATXPWR2 connectors have been plugged-in.
Note2: Insufficient power supplied to the system may result in instability or the
peripherals not functioning properly. Use of a PSU with a higher power output is
recommended when configuring a system with more power-consuming devices.

A58MD/A58MG/A58ML

13

JPANEL1: Front Panel Header

This connector includes Power-on, Reset, HDD LED and Power LED
connections. It allows user to connect the PC case’s front panel switch functions.

Pin Assignment Function Pin Assignment Function

1 N/A N/A 2 Power LED (+)

3 HDD LED(+) 4 Power LED (+)

5 HDD LED(-)

HDD LED

6 Power LED (-)

Power LED

7 Ground 8 Power Button

9 Reset Control

Reset Button

10 Ground

Power-On Button

JSPKR1: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin Assignment

1 +5V
2 N/A
3 N/A
4 Speaker

Motherboard Manual

14

SATA1~SATA4: Serial ATA 3.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground
2 TX+
3 TX­4 Ground
5 RX­6 RX+
7 Ground

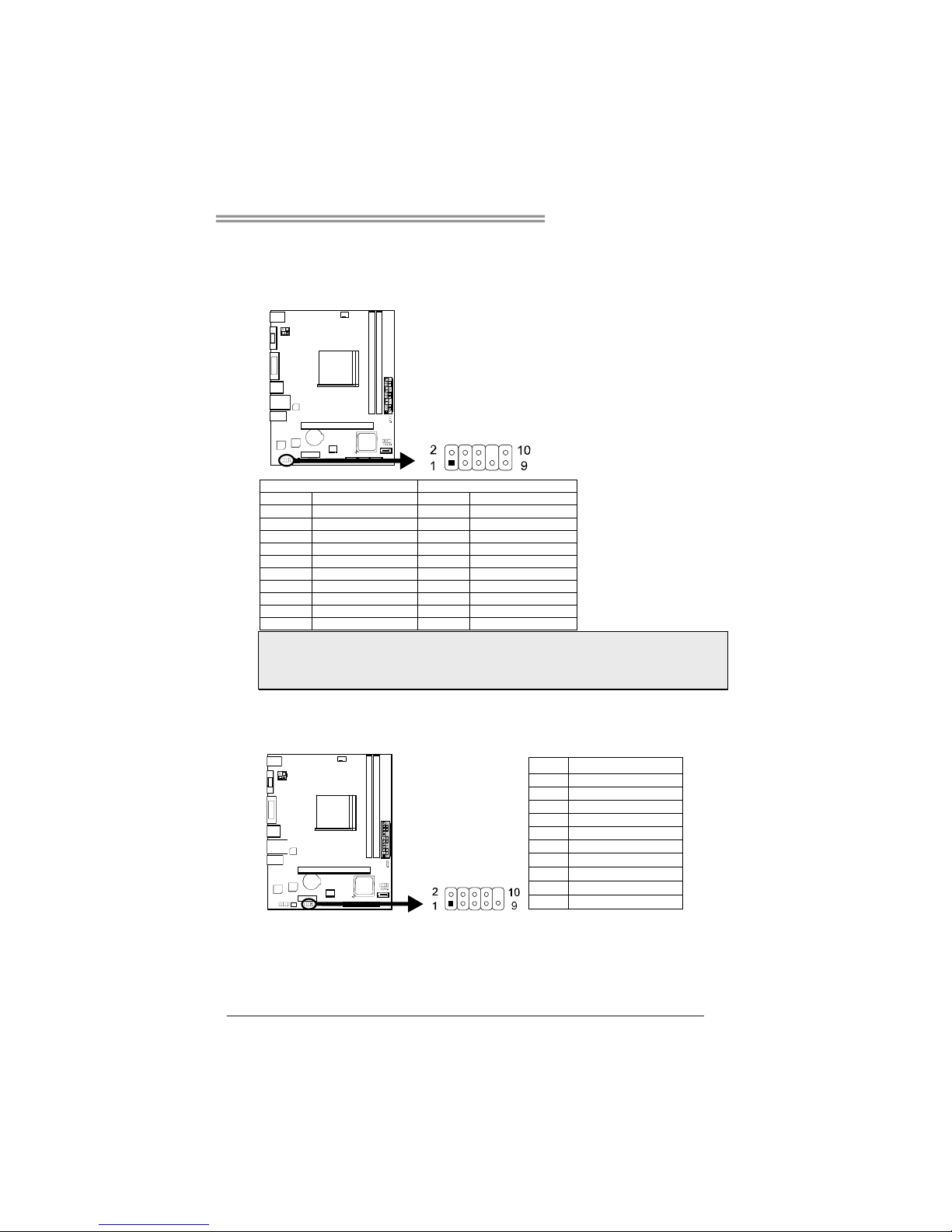

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with a wide range of simultaneously accessible
external Plug and Play peripherals.

Pin Assignment

1 +5V (fused)
2 +5V (fused)
3 USB­4 USB­5 USB+
6 USB+
7 Ground
8 Ground
9 NC

10 Key

A58MD/A58MG/A58ML

15

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the front audio output cable with the PC front
panel. This header supports HD and AC’97 audio front panel connector.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved

8 Key 8 Key

9 Left line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note1: It is recommended that you connect a high-definition front panel audio module to
this connector to avail of the motherboard's high definition audio capability.
Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an
AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

J_COM1: Serial Port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Pin Assignment

1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5Signal ground
6 Data set read

y

7 Request to send
8 Clear to send
9 Ring indicator

10 NC

Motherboard Manual

16

CHAPTER 3: UEFI BIOS & SOFTWARE

3.1 UEFI BIOS Setup

 For better system performance, the UEFI BIOS firmware is being

continuously updated. The UEFI BIOS information described below in this
manual is for your reference only and the actual UEFI BIOS information
and settings on board may be different from this manual

 For further information of setting up the UEFI BIOS, please refer to the

UEFI BIOS Manual in the Setup DVD.

3.2 BIOS Update

There are three ways to update the BIOS:
BIOS Update Utility, BIOS Online Update Utility and BIOS Flasher.

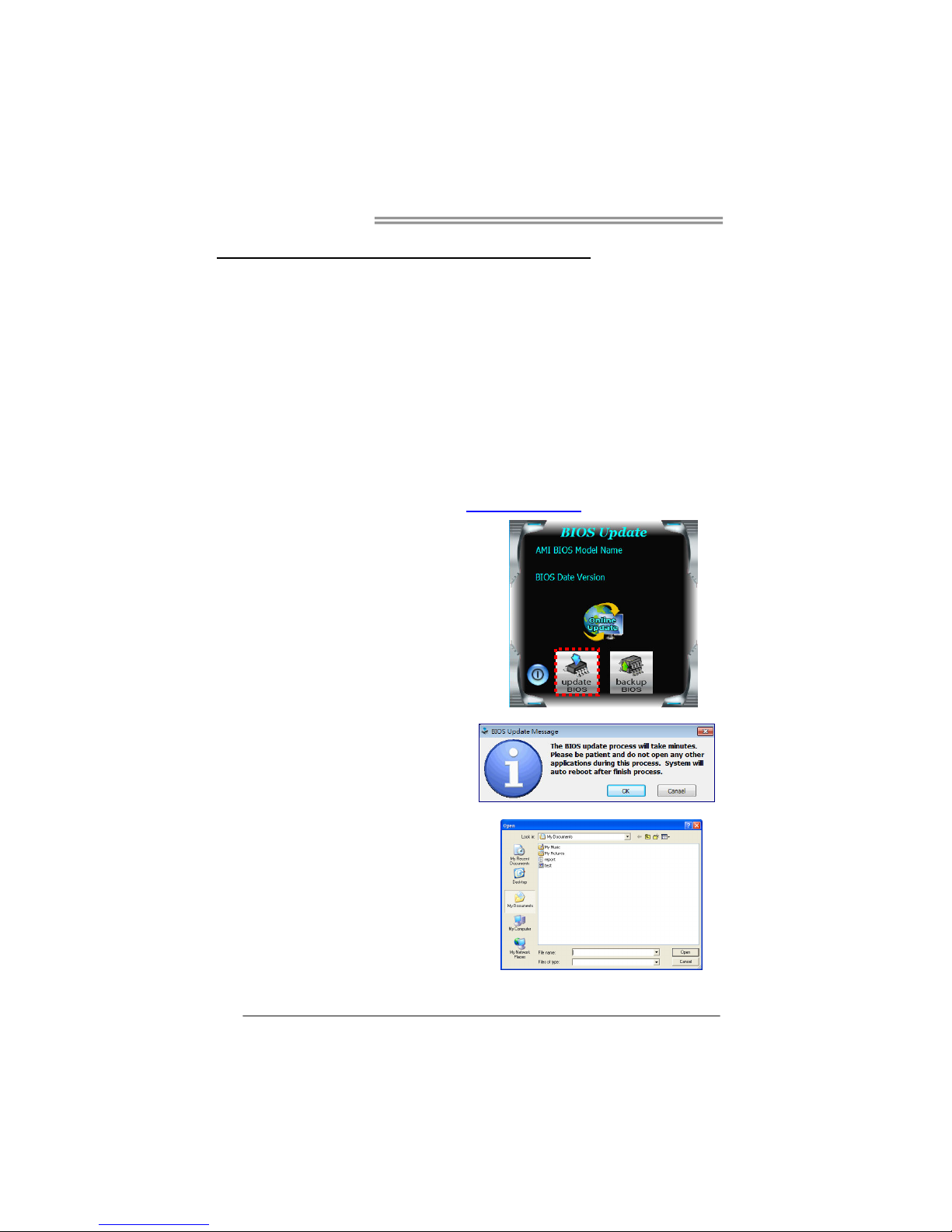

1. BIOS Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from www.biostar.com.tw .

3. Open BIOS Update Utility and
click the Update BIOS button on
the main screen.

4. A warning message will show
up to request your agreement to
start the BIOS update. Click OK to
start the update procedure.

5. Choose the location for your
BIOS file in the system. Please
select the proper BIOS file, and
then click on Open. It will take
several minutes, please be
patient.

A58MD/A58MG/A58ML

17

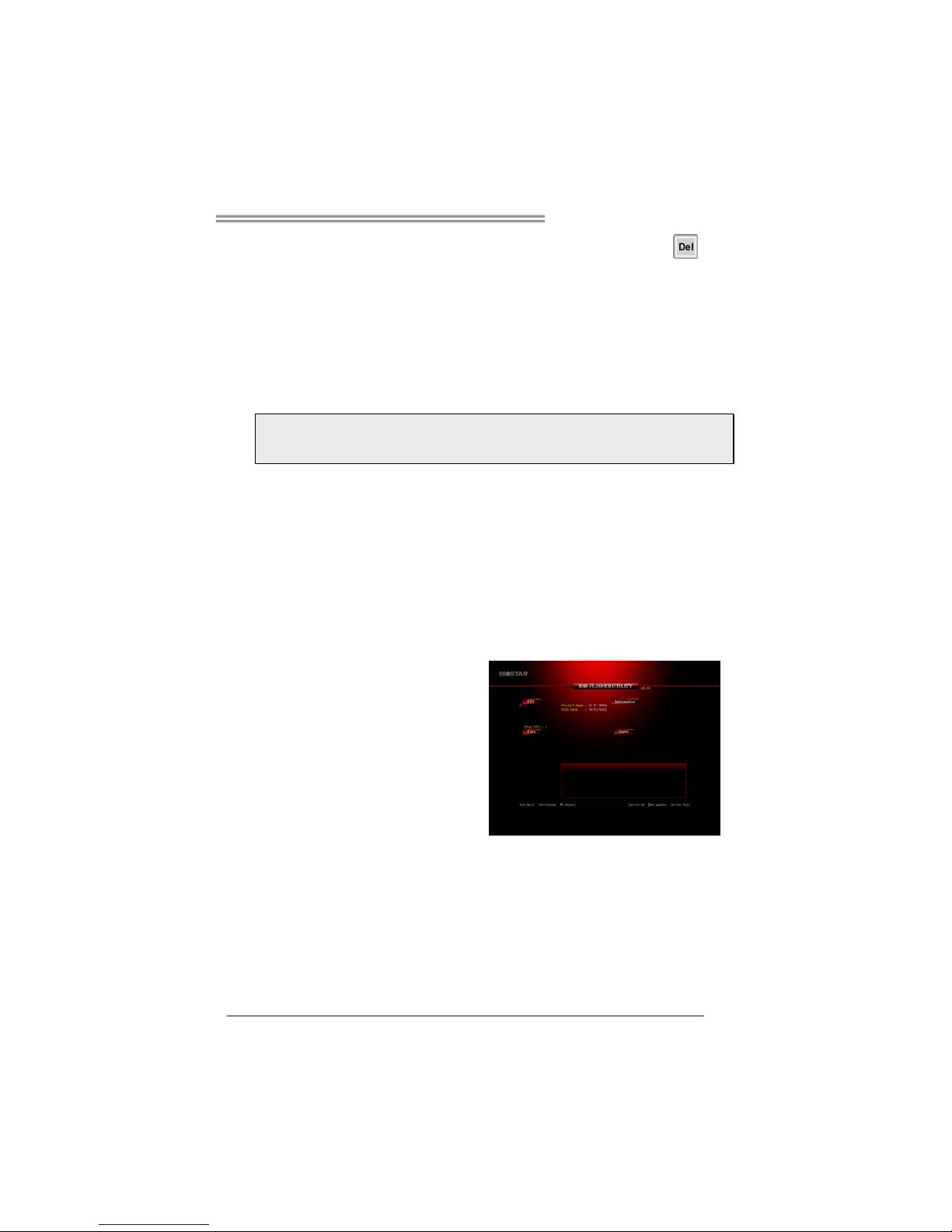

6. After the BIOS Update process is
finished, click on OK to reboot the
system.

7. While the system boots up and the full screen logo shows up, please press

the

<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the
main screen for the backup of BIOS,
and select a proper location for your
backup BIOS file in the system, and
click Save.

Motherboard Manual

18

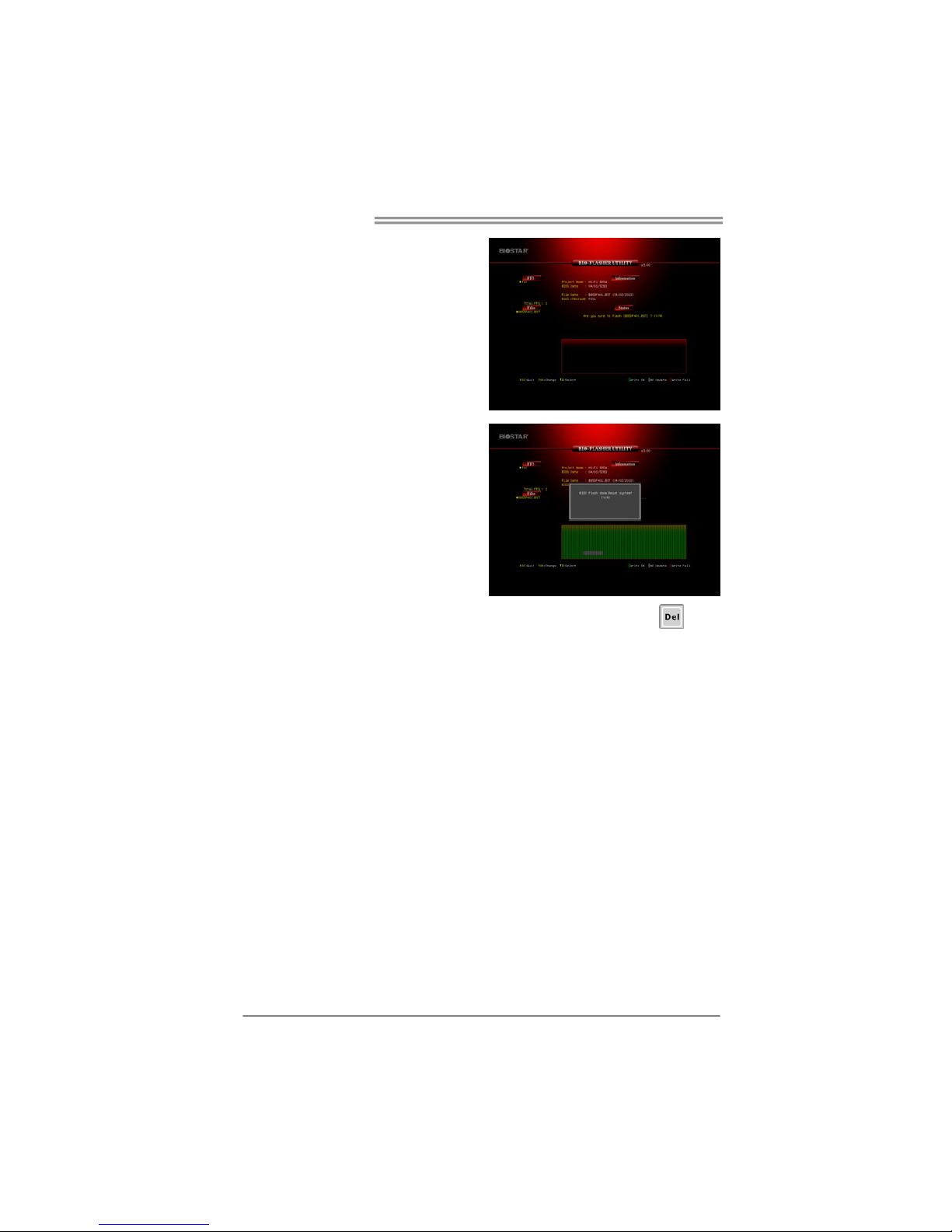

2. Online Update Utility

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this
function.

3. Open BIOS Update Utility and

click the Online Update button
on the main screen.

4. An open dialog will show up to

request your agreement to
start the BIOS update. Click
Yes to start the online update
procedure.

5. If there is a new BIOS version,

the utility will ask you to
download it. Click Yes to
proceed.

6. After the download is

completed, you will be asked
to program (update) the BIOS
or not. Click Yes to proceed.

7. After the updating process is

finished, you will be asked you
to reboot the system. Click OK
to reboot.

A58MD/A58MG/A58ML

19

8. While the system boots up and the full screen logo shows up, press
<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.

3. BIOSTAR BIOS Flasher

BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and
simple way to update your BIOS via USB pen drive.

Note1: This utility only allows storage device with FAT32/16 format and single partition.
Note2: Shutting down or resetting the system while updating the BIOS will lead to system

boot failure.

The BIOSTAR BIOS Flasher is built in the BIOS ROM. To enter the utility, press

<F12> during the Power-On Self Tests (POST) procedure while booting up.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.

2. Then, copy and save the BIOS file into a USB flash (pen) drive.

3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press <F12> during the POST process.

5. After entering the POST screen, the
BIOS-FLASHER utility pops out.
Choose [fs0] to search for the BIOS
file.

Motherboard Manual

20

6. Select the proper BIOS file, and a
message asking if you are sure to
flash the BIOS file. Click Yes to start
updating BIOS.

7. A dialog pops out after BIOS flash is
completed, asking you to restart the
system. Press the [Y] key to restart
system.

8. While the system boots up and the full screen logo shows up, press
<Delete> key to enter BIOS setup.

After entering the BIOS setup, please go to the Save & Exit, using the Restore

Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.

A58MD/A58MG/A58ML

21

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would
appear if the Autorun function has been enabled.

2. Select Software Installation, and then click on the respective software title.

3. Follow the on-screen instructions to complete the installation.

Note1: All the information and content about following software are subject to be changed
without notice. For better performance, the software is being continuously updated.

Note2: The information and pictures described below are for your reference only. The actual
information and settings on board may be slightly different from this manual.

Launching Software

After the installation process is completed, you will see the software icon showing on
the desktop. Double-click the icon to launch it.

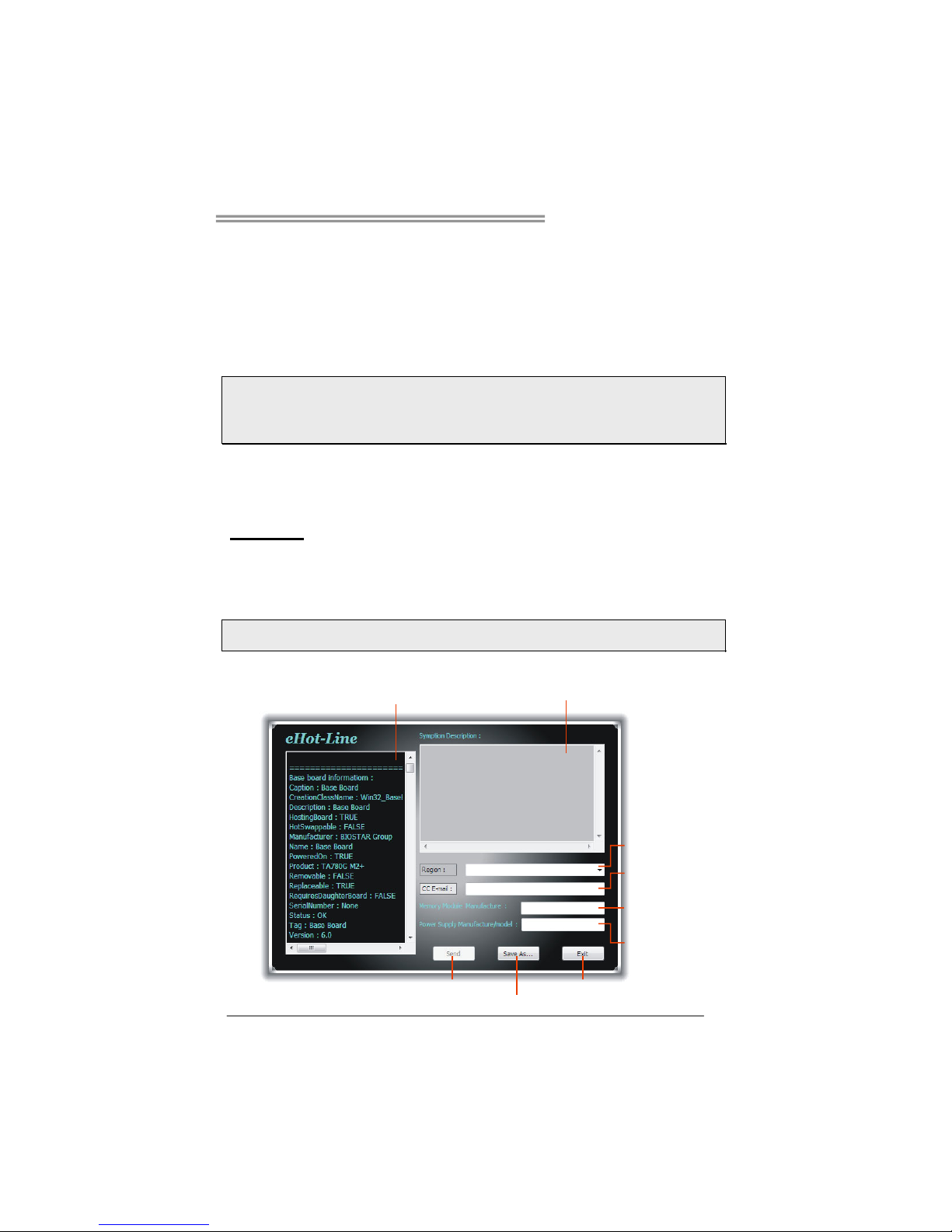

eHot-Line

eHot-Line is a convenient utility that helps you to contact with our Tech-Support
system. This utility will collect the system information which is useful for analyzing the
problem you may have encountered, and then send these information to our
tech-support department to help you fix the problem.

Note: Before you use this utility, please set Outlook Express as your default e-mail client application
program.

This block will show
th e info rmat ion w hich
would be collected in
the mail.

Provide the e-mail
address that you would
like to send the copy to.

Provide the name of
the power supply
manufacturer and the
model no.

Send the mail out.

Save these informa tion to a .txt fi le

Exit this dialog.

Select your area or
th e area c lose t o yo u.

*

Provide the name of
the memory module
manufacturer.

*

Describe condition
of your system.

*

*

represent s important
in forma tio n that you
must provide. Without
this information, you may
not be able to send out
the mail.

Motherboard Manual

22

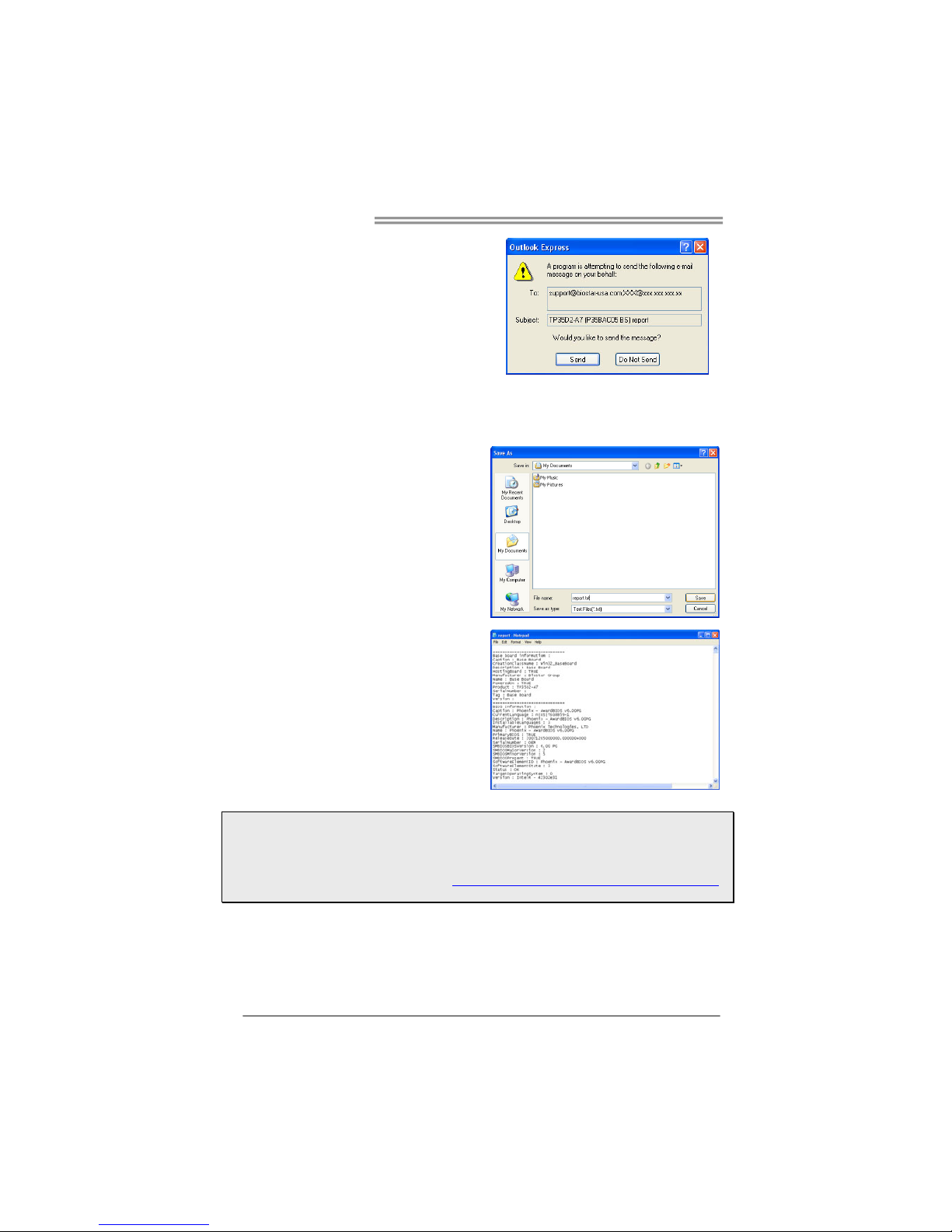

After filling up this information, click “Send”
to send the mail out. A warning dialog would
appear asking for your confirmation; click
“Send” to confirm or “Do Not Send” to cancel.

If you want to save this information to a .txt file, click “Save As…” and then you will
see a saving dialog appears asking you to enter file name.

Enter the file name and then click “Save”.
Your system information will be saved to
a .txt file.

Open the saved .txt file, you will see
your system information including
motherboard/BIOS/CPU/video/
device/OS information. This information
is also concluded in the sent mail.

Note1: We will not share customer’s data with any other third parties, so please feel free to
provide your system information while using eHot-Line service.

Note2: If you are not using Outlook Express as your default e-mail client application, you may
need to save the system information to a .txt file and send the file to our tech support with other
e-mail application. Go to the following web http://www.biostar.com.tw/app/en/about/contact.php
for getting our contact information.

A58MD/A58MG/A58ML

23

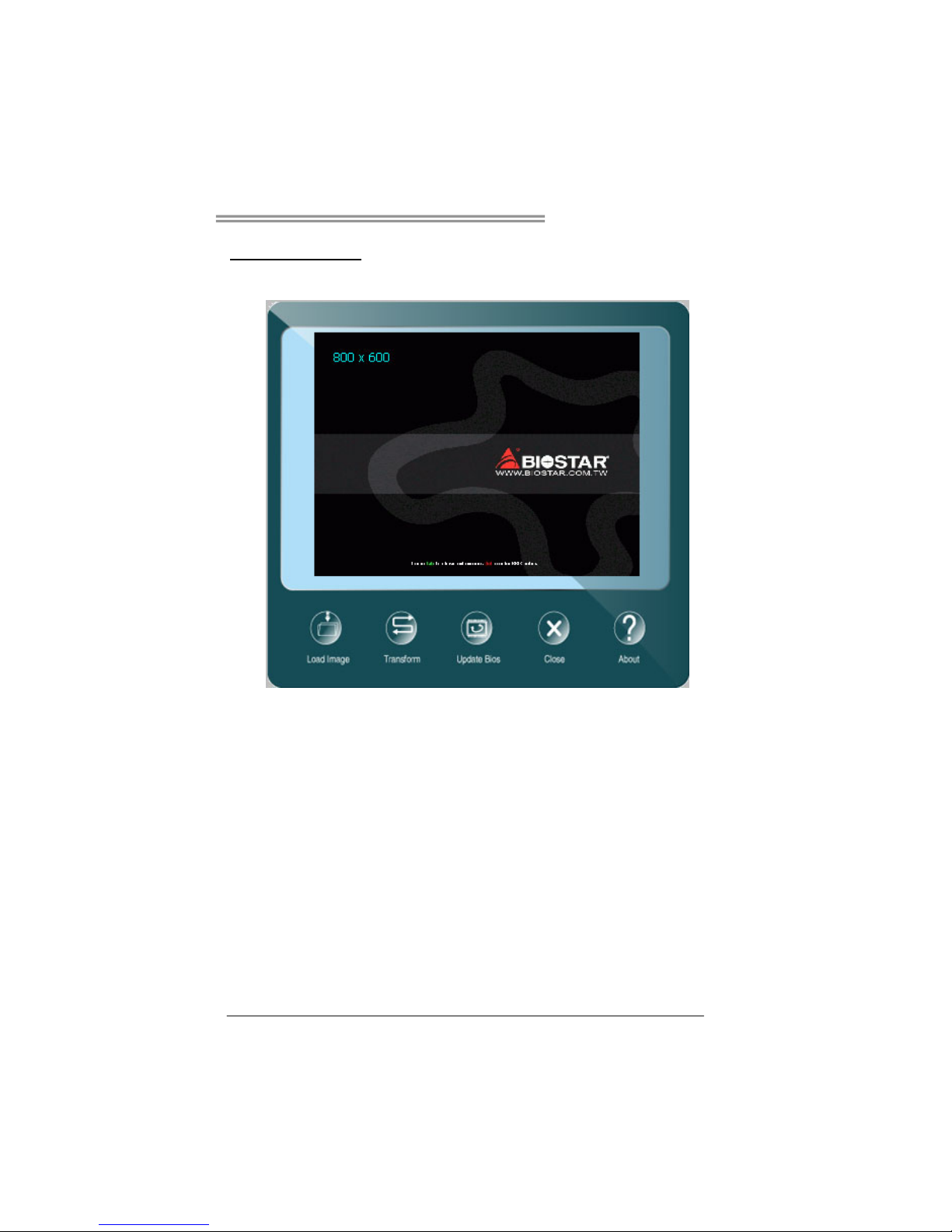

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as
your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

z Load Image：Choose the picture as the boot logo.

z Transform：Transform the picture for BIOS and preview the result.

z

Update Bios：Write the picture to BIOS Memory to complete the update

Motherboard Manual

24

CHAPTER 4: USEFUL HELP

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver
DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

Note: If this window didn’t show up after you insert the Driver DVD, please use file
browser to locate and execute the file SETUP.EXE under your optical drive.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the
compatible driver for your motherboard and operating system. Click on each
device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will
list the software available for your system, click on each software title to launch
the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD.
Click on the Manual icon to browse for available manual.

Note: You will need Acrobat Reader to open the manual file. Please download the latest
version of Acrobat Reader software from http://get.adobe.com/reader/

A58MD/A58MG/A58ML

25

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description

1 Success booting.
8 Display memory error (system video adapter)

4.3 Troubleshooting

Probable Solution

1. There is no power in the system.
Power LED does not shine; the fan
of the power supply does not work

2. Indicator light on keyboard does
not shine.

1. Make sure power cable is securely
plugged in.

2. Replace cable.

3. Contact technical support.

System is inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drives are running.

Using even pressure on both ends of the
DIMM, press down firmly until the module
snaps into place.

System does not boot from a hard disk
drive, but can be booted from optical
drive.

1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged in;
check the drive type in the standard
CMOS setup.

2. Backing up the hard drive is
extremely important. All hard disks
are capable of breaking down at any
time.

System only boots from an optical
drive. Hard disks can be read,
applications can be used, but system
fails to boot from a hard disk.

1. Back up data and applications files.

2. Reformat the hard drive. Re-install
applications and data using backup
disks.

Screen message shows “Invalid
Configuration” or “CMOS Failure.”

Review system’s equipment. Make sure
correct information is in setup.

System cannot boot after user installs
a second hard drive.

1. Set master/slave jumpers correctly.

2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility with
other drives.

Motherboard Manual

26

CPU Overheated

If the system shutdown automatically after power on system for seconds,
that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically
to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated normally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection
function.

1. Remove the power cord from power supply for seconds.

2. Wait for seconds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)

2. Wait for seconds.

3. Power on the system again.

4.4 RAID Functions

RAID Definitions

RAID 0:

In a RAID 0 system data are split up in blocks that get
written across all the drives in the array. By using multiple
disks (at least 2) at the same time, this offers superior I/O
performance. This performance can be enhanced further
by using multiple controllers, ideally one controller per
disk.

Features and Benefits

 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
 Uses: Intended for non-critical data requiring high data throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increased data throughput, especially for large files. No capacity

loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all

data is lost.

 Fault Tolerance: No.
 Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

A58MD/A58MG/A58ML

27

RAID 1:

Data are stored twice by writing them to both the data
disk (or set of data disks) and a mirror disk (or set of
disks). If a disk fails, the controller uses either the data
drive or the mirror drive for data recovery and continues
operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

 Drives: Minimum 2, and maximum is 2.
 Uses: RAID 1 is ideal for small databases or any other application that requires fault

tolerance and minimal capacity.

 Benefits: Provides 100% data redundancy. Should one drive fail, the controller

switches to the other drive.

 Drawbacks: Requires 2 drives for the storage space of one drive. Performance is

impaired during drive rebuilds.

 Fault Tolerance: Yes .

RAID 10:

RAID 10 combines the advantages
(and disadvantages) of RAID 0 and
RAID 1 in one single system. It
provides security by mirroring all data
on a secondary set of disks (disk 3 and
4 in the drawing below) while using
striping across each set of disks to
speed up data transfers.

Features and Benefits

 Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
 Benefits: Optimizes for both fault tolerance and performance, allowing for automatic

redundancy. May be simultaneously used with other RAID levels in an array, and
allows for spare disks.

 Drawbacks: Requires twice the available disk space for data redundancy, the same

as RAID level 1.

 Fault Tolerance: Yes .

Motherboard Manual

28

4.5 AMD DUAL Graphics Technology

AMD Dual Graphics Technology Introduction

When user adds a PCIE display adapter, it can be integrated with IGD to
show better performance. To make the two video devices work
simultaneously and normally, please refer to the following setting.

AMD Dual Graphics Requirement

 Dual Graphics only supports with dual channel memory configuration

 Operating System: Windows 7 / Windows 8 / Windows 8.1

 Supported Dual Graphics Combinations:

Kaveri APUs

AMD Radeon™ Graphics Card

A10-Series

Radeon™ R7

A8-Series

Radeon™ R7

A6-Series

Radeon™ R5

“Oland” XT, R7 250 ●(Note2) ●(Note2)
“Oland” Pro 6CU, R7 240 ●(Note2) ●(Note2)
“Oland” Pro 5CU, R7 240 ●(Note2) ●(Note2)

“Oland” Pro 64b, R7 240 -- --

Under

Investigation

Richland APUs

AMD Radeon™ Graphics Card

A10-Series

HD 8670D

A8-Series
HD8570D

A6-Series

HD 8470D

“Oland” XT, HD 8870 ● ● ●(Note2)

“Oland” Pro, HD 8850 ● ● ●

“Turks” XT, HD 6670 ● ● ●

“Turks” Pro, HD 6570 ● ● ●

“Caicos” Pro, HD 6450 ● ● ●

Trinity APUs

AMD Radeon™ Graphics Card

A10-Series

HD 7660D

A8-Series
HD7560D

A6-Series

HD 7540D

“Turks” XT, HD 6670 ● ● --

“Turks” Pro, HD 6570 ● ● ●

“Caicos” Pro, HD 6450 -- -- ●

● Recommended graphics cards for AMD dual-graphics

Note 1: A4-Series CPUs do not support Dual Graphics.
Note 2: Only available for DDR3 graphics memory
Note 3: The information described above in this manual is for your reference only and the

actual information and settings on board may be different from this manual. For further AMD
Dual Graphics information, please visit the following website: http://www.amd.com

A58MD/A58MG/A58ML

29

AMD Dual Graphics Setup

Step 1: Insert Dual Graphics-Ready graphics card into PEX16_1 slot.

Step 2: Set the BIOS setting as follows:

[Chipset]→[North Bridge]→[GFX Configuration]
→[Surround View]→[Enabled]

Step 3: Install Driver DVD Chipset Driver, and reboot the system. Activate

AMD VISION Engine Control Center to make sure CrossFire has
been enabled.

Motherboard Manual

30

APPENDIX: Specifications In Other Languages

Arabic

تﺎﻔﺻاﻮﻤﻟا

ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ةﺪﻋﺎﻗ

ﺔﻳﺰآﺮﻤﻟا

ﺬﺧﺄﻤﻟاFM2+/FM2 ىد مإ ﻪﻳا ﺞﻟﺎﻌﻤﻟ AMD ﻞﺴﻠﺴﺗA

ﻢﻴﻤﺼﺗ ﻲﻓ ﺔﻳراﺮﺤﻟا ﺔﻗﺎﻄﻠﻟ ﻰﺼﻗﻷا ﺪﺤﻟا ﺞﻟﺎﻌﻤﻟا )TDP – thermal design power :(100طاو .

* ﻊﻗﻮﻤﻟا ﻰﻟإ عﻮﺟﺮﻟا ﻰﺟﺮﻳwww.biostar.com.tw ﺎﻘﻟﺞﻟﺎﻌﻤﻟا ﻢﻋد ﺔﻤﺋ CPU.

ﺢﺋاﺮﺸﻟا ﺔﻋﻮﻤﺠﻣ ىد مإ ﻪﻳا AMD A58/A55 FCH

ةﺮآاﺬﻟا

يد ﺔﺟودﺰﻣ ةﺎﻨﻗ ﻢﻋﺪﺗ .يد .را .DDR3 800 / 1066 / 1333 / 1600 /1866 /2133/2400(OC)/

2600(OC)

2x يد .يد .را .DDR3 ﺔﺟودﺰﻤﻟا ةﺮآاﺬﻟا تﺎﺤﺘﻓ DIMMﻰﺼﻗأ ﺪﺤآ ﻞﻤﺤﺘﺗ ، 32ةﺮآاذ ﺖﻳﺎﺑﺎﺠﻴﺟ

ﺔﺟودﺰﻣ ﺔﺤﺘﻓ ﻞآ DIMM نود ﻞﻤﺤﺘﺗ ECC 512 ﺖﻳﺎﺑ ﺎﺠﻴﻣ/1/2/4/8/16يد ﺖﻳﺎﺑﺎﺠﻴﺟ .يد . راDDR3

* ﻊﻗﻮﻤﻟا ﻰﻟإ عﻮﺟﺮﻟا ﻰﺟﺮﻳwww.biostar.com.tw ةﺮآاﺬﻟا ﻢﻋد ﺔﻤﺋﺎﻘﻟ.

ﻦﻳﺰﺨﺘﻟا

ىد مإ ﻪﻳاAMD A58/A55 FCH:

ﺔﻠﺻوx4 ﺎﺗﺎﺳSATA 3 ﺖﻳﺎﺑ ﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

ﺪﻳار ﻞﻤﺤﺘﺗ RAID 0 / 1 / 10 / AHCI

ﺔﻴﻠﺤﻣ ﺔﻜﺒﺷLAN

ل تر ﻚﻴﺘﻟﺎﻴﻳرRTL 8111G (A58MD, A58MG), REALTEK

10 / 100 / 1000 ﺖﻳﺎﺑﺎﺠﻴﻣ / ﻒﺼﻨﻟا ، ﻲﺋﺎﻘﻠﺗ ﺪﻳﺪﺤﺗ ، ﺔﻴﻧﺎﺜﻟا /ﺔﺟودﺰﻤﻟا ىﻮﺼﻘﻟا ةرﺪﻘﻟا

ل تر ﻚﻴﺘﻟﺎﻴﻳرRTL 8106E (A58ML), REALTEK

10 / 100 ﺖﻳﺎﺑﺎﺠﻴﻣ / ﻒﺼﻨﻟا ، ﻲﺋﺎﻘﻠﺗ ﺪﻳﺪﺤﺗ ، ﺔﻴﻧﺎﺜﻟا /ﺔﺟودﺰﻤﻟا ىﻮﺼﻘﻟا ةرﺪﻘﻟا

ﻴﻣﺮﺘﻟاﻲﺗﻮﺼﻟا ﺰ

ALC662

5.1ﺔﻗﺪﻟا ﺔﻴﻟﺎﻋ تاﻮﻨﻗ

مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ

USB

ىد مإ ﻪﻳ AMD A58/A55 FCH

ﺬﻓﺎﻨﻣ 8 xمﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 )4 ﺔﻴﻔﻠﺨﻟا جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا ﻲﻓ و 4 ﻲﻠﺧاﺪﻟا عزﻮﻤﻟا لﻼﺧ ﻦﻣ(

ﻊﺳﻮﺘﻟا تﺎﺤﺘﻓ

1x ﺔﻴﻓﺎﺿﻹا تﺎﻘﺤﻠﻤﻟا ﺬﻔﻨﻣ ﺔﺤﺘﻓ PCIe x1

1 xﺔﺤﺘﻓ ﻹا تﺎﻘﺤﻠﻤﻟا ﺬﻔﻨﻣﺔﻴﻓﺎﺿ PCIe 16 x3.0

جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا

ﺔﻴﻔﻠﺨﻟا

1 x PS/2ةرﺎﻔﻟا

x 1 PS/2 تﻮﻴﺒﻤﻜﻠﻟ ﺢﻴﺗﺎﻔﻤﻟا ﺔﺣﻮﻟ

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ 1 x ﻲﺋﺮﻤﻟا ضﺮﻌﻟا ﺔﻣﻮﻈﻨﻣ VGA

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ 1 x ﺔﻴﻤﻗر ﺔﻴﺋﺮﻣ ﺔﻬﺟاو (A58MD) DVI

دﺪﻋ ﻞﻴﺻﻮﺘﻟ ﺔﺤﺘﻓ 1 x ﺔﻴﻠﺤﻤﻟا ﺔﻜﺒﺸﻟا LAN

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ 4 x ﺴﺘﻣ ﻞﻗﺎﻧمﺎﻋ ﻞﺴﻠ USB 2.0

دﺪﻋ ﻞﻴﺻﻮﺗ ﺔﺤﺘﻓ 3 x تﻮﺼﻠﻟ كﺎﺟ

A58MD/A58MG/A58ML

31

تﺎﻔﺻاﻮﻤﻟا

جرﺎﺨﻤﻟاو ﻞﺧاﺪﻤﻟا

ﺔﻴﻠﺧاﺪﻟا

ﺔﻠﺻو4 x SATA 3 ﺖﻳﺎﺑﺎﺠﻴﺟ /ﺔﻴﻧﺎﺜﻟا

عزﻮﻣ2x مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ USB 2.0 ) مﺎﻋ ﻞﺴﻠﺴﺘﻣ ﻞﻗﺎﻧ ﻦﻴﺘﺤﺘﻓ ﻞﻤﺤﺘﻳ عزﻮﻣ ﻞآUSB 2.0(

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻﻮﻣ1 x 4ﺲﻴﺑﺎﺑد

ﺔﻗﺎﻄﻠﻟ ﺔﻠﺻو1x 24سﻮﺑد

ﺔﻠﺻو1 xﻳﺮﺒﺗ ﺔﺣوﺮﻣ ﺔﻳﺰآﺮﻤﻟا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺪ

ﺔﻠﺻو1xﺔﻣﻮﻈﻨﻤﻟا ﺪﻳﺮﺒﺗ حواﺮﻣ

عزﻮﻣ1 xﺔﻴﻣﺎﻣﻷا ﺔﺣﻮﻠﻟا

عزﻮﻣ1xﻲﻣﺎﻣﻷا تﻮﺼﻟا

عزﻮﻣ1xﺮﺷﺎﺒﻣ سﻮﻤﻴﺳ

عزﻮﻣ1xﺔﻴﻠﺴﻠﺴﺗ ﺔﺤﺘﻓ

عزﻮﻣ 1x ﻞﻜﻴﻬﻟا ﺲﻴﺋر ﻞﺻﻮﻣ

ﻞﻜﺸﻟا ﻞﻣﺎﻋ ﺔﻣﺪﻘﺘﻤﻟا ﺎﻴﺟﻮﻟﻮﻨﻜﺘﻟا دﺪﻣ ﻞﻜﺷ ﻞﻣﺎﻋmicroATX ، 218 ﻢﻣ x 174 ﻢﻣ

ﻞﻴﻐﺸﺘﻟا ﺔﻤﻈﻧأﺔﻣﻮﻋﺪﻤﻟا

ﻲﺑ ﺲآإ زوﺪﻨﻳوwindows xp / زوﺪﻨﻳو7 / زوﺪﻨﻳو8 / زوﺪﻨﻳو8.1

رﺎﺘﺳﻮﻴﺑBIOSTARرﺎﻈﻧأ نوﺪﺑ وأ ﻊﻣ ﻞﻴﻐﺸﺗ مﺎﻈﻧ يﻷ ﻢﻋﺪﻟا ﺔﻟزأ وأ ﺔﻓﺎﺿإ ﻖﺤﺑ ﻆﻔﺘﺤﺗ .

Motherboard Manual

32

French

Spécifications

Support Unité
Centrale

Interface de connexion FM2+/FM2 pour série A AMD

Enveloppe thermique Unité Centrale maximum : 100Watt

* Veuillez vous reporter à

www.biostar.com.tw pour la liste des supports modèles

d'Unité Centrale.

Jeu de puces AMD A58/A55 FCH

Mémoire

Supporte mémoire DDR3 double canal 800/ 1066/ 1333/ 1600/ 1866/ 2133/
2400(OC)/ 2600(OC)

Banc de mémoire 2 x DDR3 DIMM, Supporte max. jusqu’à une mémoire de 32 GB

Chaque module DIMM supporte module DDR3 non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB

* Veuillez vous reporter à

www.biostar.com.tw pour la liste des soutien de la

mémoire.

Stockage

AMD A58/A55 FCH

Connecteur 4 x SATA 3Gb/s

Supporte système RAID 0,1,10 & AHCI

Réseau local

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb/s auto négociation, capacité bidirectionnelle à l'alternat /
bidirectionnelle simultanée

Realtek RTL 8106E (A58ML)

10/ 100 Mb/s auto négociation, capacité bidirectionnelle à l'alternat / bidirectionnelle
simultanée

Codec audio

ALC662

Canaux 5.1, écoute audio de haute définition

USB

AMD A58/A55 FCH

Port 8x USB 2.0 (4 sur les I/O arrières et 4 en interne)

Connecteur
d’extension

1x PCIe x1 Fente

1x PCIe 3.0 x16 Fente

I/O arrirèes

1x PS/2 Clavier

1x PS/2 Souris

1x Port VGA

1x Port DVI (A58MD)

1x port LAN

4x Port USB 2.0

3x entrées audio

A58MD/A58MG/A58ML

33

Spécifications

I/O en interne

4x Connecteur SATA 3.0Gb/s

2x embases USB 2.0 (chaque embase supporte 2 Ports USB 2.0)

1x 4-Broche de carte

1x 24-Broche de carte

1x Connecteur ventilateur unité centrale

1x Connecteur ventilateur système

1x Fiche panneau avant

1x Fiche audio avant

1x Fiche mémoire CMOS vide

1x Embase port série

1x Connecteur Audio du panneau avant

Facteur
d'encombrement

Facteur d'encombrement microATX, 218 mm x 174 mm

Support SE

Windows XP / 7 / 8 / 8.1

Biostar se réserve le droit d’ajouter ou d'enlever le support pour toute SE avec ou
sans préavis.

Motherboard Manual

34

German

Spezifikationen

CPU-Unterstützung

Anschluss-FM2+/FM2 für AMD A-Serie

Maximale CPU TDP (Thermal Design Power): 100 Watt

* Bitte konsultieren Sie

www.biostar.com.tw für CPU-Unterstützungsliste

Chipset AMD A58/A55 FCH

Festplattenspeicher

Unterstützt zweikanaliges DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/
2600(OC)

2 x DDR3 DIMM-SpeicherSlot, Max. Uterstützung bis zu 32 GB-Speicher

Jedes DIMM unterstützt nicht-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3-Module

* Bitte konsultieren Sie

www.biostar.com.tw für für Speicherunterstützung Liste.

Arbeitsspeicher

AMD A58/A55 FCH:

4x SATA 3Gb-Verbindung

Unterstützt RAID 0,1,10 & AHCI

LAN

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb Auto-Negotiation, Halb- / Voll-Duplex-fähig

Realtek RTL 8106E (A58ML)

10/ 100/ 1000 Mb Auto-Negotiation, Halb- / Voll-Duplex-fähig

Audio-Codec

ALC662

5.1 Kanäle, HD-Audio

USB

AMD A58/A55 FCH:

8x USB 2.0-Port (4 hintere I/Os und 4 via interne Header)

Erweiterungsanschl
üsse

1x PCIe x1-Slot

1x PCIe 3.0 x16-Slot

Hintere I/Os

1x PS/2-Maus

1x PS/2-Keyboard

1x VGA-Port

1x DVI-Port (A58MD)

1x LAN-Port

4x USB 2.0-Port

3x Audio Jack

A58MD/A58MG/A58ML

35

Spezifikationen

Interne I/Os

4x SATA 3.0Gb/s-Verbinung

2x USB 2.0-Header (jeder Header unterstützt 2 USB 2.0-Ports)

1x 4-Pin-Stromverbindung

1x 24-Pin-Stromverbindung

1x CPU-Ventilatorverbindung

1x System-Ventilatorverbindung

1x Header für Frontpanel

1x Header für Frontaudio

1x Header für klares CMOS

1x Serieller Port-Header

1x Chassis Lautsprecher-Header

Formfaktor microATX Formfaktor, 218 mm x 174 mm

OS-Unterstützung

Windows XP / 7 / 8 / 8.1

Biostar reserves the right to add or remove support for any OS with or without notice.

Motherboard Manual

36

Italian

Specificazioni

Supporto
processore

Slot FM2+/FM2 per processore AMD serie-A

Alimentazione di Proiezione Termico (TDP – Thermal Design Power): 100Watt

* Si prega di consultare

www.biostar.com.tw per la lista di supporto del

processore.

Tipo scheda AMD A58/A55 FCH

Memoria

Supporta DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) Doppio
Canale

2 x DDR3 DIMM Slot di Memoria Supporta fino a 32 GB Memoria

Ogni DIMM supporta non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3 moduli

* Si prega di consultare

www.biostar.com.tw per la lista di supporto del memoria.

Memorizzazione

AMD A58/A55 FCH:

Connettore 4x SATA 3Gb/s

Supporta RAID 0,1,10 & AHCI

Catena

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb auto negoziazione, capacita di duplex Meta / Completo

Realtek RTL 8106E (A58ML)

10/ 100 Mb auto negoziazione, capacita di duplex Meta / Completo

Codec Audio

ALC662

Canali Audio di Alta Definizione 5.1

USB

Piattaforma AMD A58/A55 FCH:

Slot 8x USB 2.0 (4 nei ingressi/ uscite posteriore e 4 da distributori interni)

Slot di espansione

Slot 1x PCIe x1

Slot 1x PCIe 3.0 x16

Ingressi/ Uscite
Posteriore

Mouse 1x PS/2

Tastiera 1x PS/2

Slot 1x VGA

Slot 1x DVI (A58MD)

Slot 1x LAN

Slot 4x USB 2.0

Jack audio 3x

A58MD/A58MG/A58ML

37

Specificazioni

Ingressi/ Uscite
Interni

Connettore 4x SATA 3.0Gb/s

Distributore 2x USB 2.0(ogni distributore supporta 2 slot USB 2.0)

Connettore con 4 pin x1

Connettore con 24 pin x1

Connettore Ventilatore processore x1

Connettore Ventilatore Sistema x1

Distributore Pannello Frontale x1

Distributore Audio Frontale x1

Distributore CMOS Diretto x1

Distributore Slot Serie x1

Distributore casse telaio x1

Fattore di Forma Fattore di Forma microATX, 218 mm x 174 mm

Supporto SO

Windows XP / 7 / 8 / 8.1

Biostar si riserva il diritto di aggiungere o ritirare il supporto per qualsiasi
SO

con o senza preavviso.

Motherboard Manual

38

Japanese

仕様

CPU サポート

AMD A-シリーズ プロセッサの Socket FM2+/FM2

最大 CPU TDP （Thermal Design Power 最大放熱量）:100 W

*CPU サポート リストについては、

www.biostar.com.twを参照してください。

チップセット AMD A58/A55 FCH

メモリ

デュアルチャンネル DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC)
をサポート

2 x DDR3 DIMM メモリ スロット、 最大 32 GB メモリまでサポート

各 DIMM は、 非-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3 モジュールをサポートしてい
ます

*サポートされているメモリのリストについては、

www.biostar.com.twを参照してく

ださい。

保存スペース

AMD A58/A55 FCH:

4x SATA 3Gb/s コネクタ

RAID 0,1,10 & AHCI のサポート

LAN

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb/s オートネゴーシエーション、半/全 二重通信

Realtek RTL 8106E (A58ML)

10/ 100 Mb/s オートネゴーシエーション、半/全 二重通信

オーディオ コーデ
ック

ALC662

5.1 チャンネル, ハイ デフィニション オーディオ

USB

AMD A58/A55 FCH:

8x USB 2.0 ポート (後部 I/O に4つ 及び 内蔵ヘッダー経由に4つ)

拡張スロット

1x PCIe x1 スロット

1x PCIe 3.0 x16 スロット

後部 I/O

1x PS/2 キーボード

1x PS/2 マウス

1x VGA ポート

1x DVI ポート (A58MD)

1x LAN ポート

4x USB 2.0 ポート

3x オーディオ ジャック

A58MD/A58MG/A58ML

39

仕様

内蔵 I/O

4x SATA 3.0Gb/s コネクタ

2x USB 2.0 ヘッダー (各ヘッダーは、2つの USB 2.0 ポートをサポートしています)

1x 4-Pin パワー コネクタ

1x 24-Pin パワー コネクタ

1x CPU ファン コネクタ

1x システム ファン コネクタ

1x フロント パネル ヘッダー

1x フロント オーディオ ヘッダー

1x クリア CMOS ヘッダー

1x シリアル ポート ヘッダー

1x シ ャーシスピーカーヘッダー

フォーム ファクタ microATX フォーム ファクタ、218 mm x 174 mm

サポート OS

Windows XP / 7 / 8 / 8.1

Biostar には、通知なしでサポート OS を変更する権限があります。

Motherboard Manual

40

Polish

Specyfikacje techniczne

Obsługa procesora

Gniazdo procesora (Socket) FM2+/FM2 dla procesorów AMD seria-A

Moc Wydzielanego Ciepła (TDP - Thermal Design Power): 100Watt

* Proszę sprawdzić listę obsługiwanych procesorów na stronie internetowej

www.biostar.com.tw

Rodzaj płyty AMD A58/A55 FCH

Pamięć

Obsługa pamięci DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC)
Dwukanałowa

2 x DDR3 DIMM Pamięć Gniazda procesora (Slot), Maksymalna wielkość pamięci 32
GB

Każdy DIMM obsługuje jeden moduł non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3

* Proszę sprawdzić listę obsługiwanych pamięć na stronie internetowej

www.biostar.com.tw

Przechowywanie

AMD A58/A55 FCH:

Złącze 4x SATA 3Gb/s

Obsługa RAID 0,1,10 & AHCI

LAN

Układ RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb auto negocjacja, pojemność dupleks Połowe / Pełny

Układ RTL 8106E (A58ML)

10/ 100 Mb auto negocjacja, pojemność dupleks Połowe / Pełny

Codec Audio

ALC662

Kanały Audio wysokiej Definicji 5.1

USB

Płyta AMD A58/A55 FCH:

8 x złącza USB 2.0 (4 przez tylne porty wejścia/ wyjścia oraz 4 przez wewnętrzne
porty)

Złącza rozszerzeń

złącza 1x PCIe x1 (Slot)

złącza 1x PCIe 3.0 x16 (Slot)

Tylne porty wejścia/
wyjścia

Myszka 1x PS/2

Klawiatura 1x PS/2

Port 1x VGA

Port 1x DVI (A58MD)

Port 1x LAN

Porty 4x USB 2.0

Porty audio 3x

A58MD/A58MG/A58ML

41

Specyfikacje techniczne

Wewnętrzne porty

wejścia/ wyjścia

Złącza 4x SATA 3.0Gb/s

Złącza 2x USB 2.0 (każde złącze obsługuje dodatkowe 2 porty USB 2.0)

Złącza 4 pionowe x 1

Złącza 24 pionowe x 1

Złącze wentylatora CPU x 1

Złącze wentylatora obudowy x 1

Złącze przedniego panelu x1

Złącze audio przedniego panelu x1

Złącze bezpośrednie CMOS x1

Port szeregowy x1

złącze głośników Podwozie x1

Obudowa Obudowa microATX, 218 mm x 174 mm

Obsługa OS

Windows XP / 7 / 8 / 8.1

Biostar zastrzega sobie prawo do dodania lub wycofania obsługi dla OS, z
wypowiedzeniem lub bez wypowiedzenia.

Motherboard Manual

42

Portuguese

Especificações

Suporte
Processador

Porta FM2+/FM2 para processador AMD série-A

Alimentação de Design Térmico (TDP – Thermal Design Power): 100Watt

* Por favor consulte

www.biostar.com.tw para obter uma lista de suporte do

processador.

Tipo Placa Mãe AMD A58/A55 FCH

Memória

Suporta DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) Canal Duplo

2 x DDR3 DIMM Slot de memória Suporta até 32 GB Memória

Cada DIMM suporta non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3 módulo

* Por favor consulte

www.biostar.com.tw para obter uma lista de suporte do

memória.

Armazenamento

AMD A58/A55 FCH:

Conector 4x SATA 3Gb/s

Suporta RAID 0,1,10 & AHCI

LAN

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb auto negociação, capacidade duplex Metade / Cheio

Realtek RTL 8106E (A58ML)

10/ 100 Mb auto negociação, capacidade duplex Metade / Cheio

Codec de Audio

ALC662

Canais de Áudio de Alta Definição 5.1

USB

Plataforma AMD A58/A55 FCH:

Porta 8x USB 2.0 (4 nas entradas/saídas traseiras e 4 pelos Dispositivos internos)

Slots de expansão

Porta 1x PCIe x1

Porta 1x PCIe 3.0 x16

Entradas/Saídas
no painel traseiro

Mouse 1x PS/2

Teclado 1x PS/2

Porta 1x VGA

Porta 1x DVI (A58MD)

Porta 1x LAN

Porta 4x USB 2.0

Soquete audio 3x

A58MD/A58MG/A58ML

43

Especificações

Conectores na
placa

Conector 4x SATA 3.0Gb/s

Dispositivo 2x USB 2.0 (cada Dispositivo suporta 2 portas USB 2.0)

Conector de 4 pinos x1

Conector de 24 pinos x1

Conector de Ventoinha processador x1

Conector de Ventoinha Sistema x1

Dispositivo Painel Frontal x1

Dispositivo de Audio Frontal x1

Dispositivo CMOS Direct x1

Dispositivo Porta Série x1

Chassis Speaker Header x1

Fator de Fôrma Fator de Fôrma microATX, 218 mm x 174 mm

Suporte OS

Windows XP / 7 / 8 / 8.1

Biostar reserva seu direito de adicionar ou retirar o suporte para qualquer OS com ou
sem notificação.

Motherboard Manual

44

Russian

Спецификации

Поддержка
центрального
процессора

Сокет FM2+/FM2 для процессоров AMD серии A

Максимальный термопакет центрального процессора (TDP): 100 ватт

* Перечень поддержки центрального процессора смотрите на

www.biostar.com.tw.

Набор микросхем AMD A58/A55 FCH

Память

Поддерживает двухканальный DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/

2600(OC)

2 гнезда платы памяти DDR3 DIMM, максимальная память до 32 Гб

Каждый модуль DIMM поддерживает модуль не-ECC 512 Мб/ 1/ 2/ 4/ 8/ 16 Гб
DDR3

* Перечень поддержки памяти смотрите на

www.biostar.com.tw.

Накопитель

AMD A58/A55 FCH:

Соединитель 4x SATA 3 Гб/с

Поддерживает RAID 0,1,10 & AHCI

Локальная сеть

Realtek RTL 8111G (A58MD, A58MG)

Автосогласование 10/ 100/ 1000 Мб/с, работает в полно/полудуплексном режиме

Realtek RTL 8106E (A58ML)

Автосогласование 10/ 100 Мб/с, работает в полно/полудуплексном режиме

Аудиокодек

ALC662

Каналы 5.1, высококачественное аудио

USB

AMD A58/A55 FCH:

8 портов USB 2.0 (4 сзади ввода-вывода и 4 через внутренние контакты)

Гнезда расшир.

1x гнезда PCIe x1

1x PCIe 3.0 x16 гнездо

Задняя плата
ввода-вывода

1 мышь PS/2

1 клавиатура PS/2

1 порт VGA

1 порт DVI (A58MD)

1 порт локальной сети

4 порта USB 2.0

3 гнезд для подключения наушников

A58MD/A58MG/A58ML

45

Спецификации

Внутр. Плата
ввода-вывода

Соединитель 4x SATA 3 Гб/с

2 контакта USB 2.0 (каждый контакт поддерживает 2 порта USB 2.0)

1 4-выводный разъем питания

1 24-выводный разъем питания

1 разъем вентилятора ЦП

1 разъема вентилятора системы

1 контакт передней панели

1 контакт передней аудиопанели

1 контакт микросхемы Clear CMOS

1 контакт последовательного порта

1 Шасси спикер заголовка

Конструктив Форм-фактор microATX, 218 мм x 174 мм

Поддержка ОС

Windows XP / 7 / 8 / 8.1

Biostar оставляет за собой право добавлять или удалять поддержку любой ОС, с
уведомлением или без.

Motherboard Manual

46

Spanish

Especificaciones

Compatibilidad
con el procesador

Ranura FM2+/FM2 para procesador AMD serie - A

Alimentación de Proyección Térmica (TDP – Thermal Design Power): 100Watt

*Por favor consultar con

www.biostar.com.tw para la lista de compatibilidad con el

procesador.

Tipo de Placa AMD A58/A55 FCH

Memoria

Soporta DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) Doble Canal

2x DDR3 DIMM Ranura de memoria Soporta hasta 32 GB Memoria

Cada DIMM soporta un modulo non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR3

*Por favor consultar con

www.biostar.com.tw para la lista de compatibilidad con el

memoria.

Almacenamiento
de información

AMD A58/A55 FCH:

Conector 4x SATA 3Gb/s

Soporta RAID 0,1,10 & AHCI

LAN

Realtek RTL 8111G (A58MD, A58MG)

10/ 100/ 1000 Mb/s auto negociación, capacidad dúplex Mitad/Completo

Realtek RTL 8106E (A58ML)

10/ 100 Mb/s auto negociación, capacidad dúplex Mitad/Completo

Códec Audio

ALC662

Canales Audio de Alta Definición 5.1

USB

Plataforma AMD A58/A55 FCH:

Ranura 8x USB 2.0 (4 en las entradas/salidas posteriores y 4 por los distribuidores
internos)

Ranuras de
Extinción

Ranura 1x PCIe x1

Ranura 1x PCIe 3.0 x16

Panel trasero de
E/S

Ratón 1x PS/2

Teclado 1x PS/2

Ranura 1x VGA

Ranura 1x DVI (A58MD)

Ranura 1x LAN

Ranura 4x USB 2.0

Socket audio 3x

A58MD/A58MG/A58ML

47

Especificaciones

Conectores en
placa

Conector 4x SATA 3Gb’s

Distribuidor 2x USB 2.0 (cada distribuidor soporta 2 ranuras USB 2.0)

Conector con 4 patillas x1

Conector con 24 patillas x1

Conector Ventilador procesador x1

Conector Ventilador Sistema x1

Distribuidor Panel Frontal x1

Distribuidor Audio Frontal x1

Distribuidor CMOS Directo x1

Distribuidor Ranura Serie x1

Cabezal del altavoz del chasis x1

Factor de Forma Factor de Forma microATX, 218 mm x 174 mm

Soporte OS

Windows XP / 7 / 8 / 8.1

Biostar reserva su derecho de añadir o retirar el soporte para cada OS con o sin
notificación.

2014/02/10
