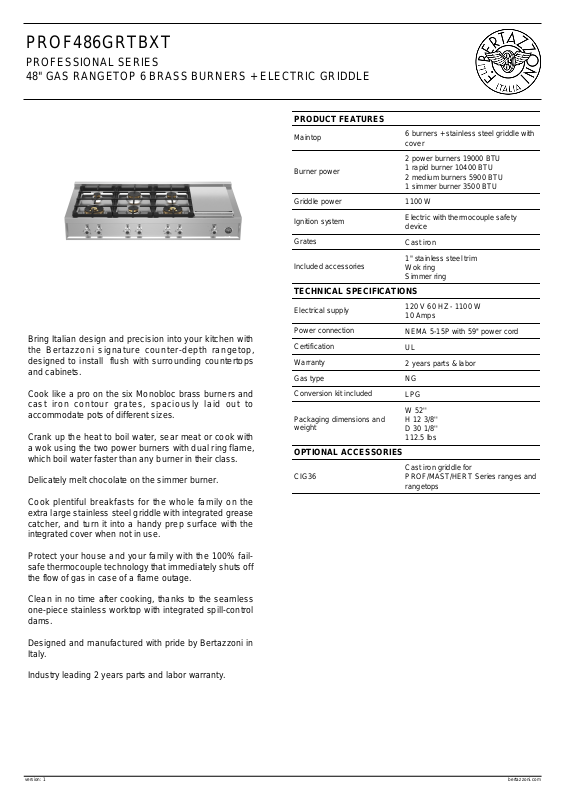

Bertazzoni PROF486GRTBXT Specifications
PROF486GRTBXT
PROFESSIONAL SERIES
48" GAS RANGETOP 6 BRASS BURNERS + ELECTRIC GRIDDLE
PRODUCT FEATURES
Maintop
Burner power
Griddle power
Ignition system
Grates
Included accessories
TECHNICAL SPECIFICATIONS
Electrical supply
Bring Italian design and precision into your kitchen with
the Bertazzoni signature counter-depth rangetop,
designed to install flush with surrounding countertops
and cabinets.
Cook like a pro on the six Monobloc brass burners and
cast iron contour grates, spaciously laid out to
accommodate pots of different sizes.
Crank up the heat to boil water, sear meat or cook with
a wok using the two power burners with dual ring flame,
which boil water faster than any burner in their class.
Delicately melt chocolate on the simmer burner.
Power connection
Certification
Warranty
Gas type
Conversion kit included
Packaging dimensions and
weight
OPTIONAL ACCESSORIES
CIG36
6 burners + stainless steel griddle with
cover
2 power burners 19000 BTU
1 rapid burner 10400 BTU
2 medium burners 5900 BTU
1 simmer burner 3500 BTU
1100 W
Electric with thermocouple safety
device
Cast iron
1" stainless steel trim
Wok ring
Simmer ring
120 V 60 HZ - 1100 W
10 Amps
NEMA 5-15P with 59'' power cord
UL
2 years parts & labor
NG
LPG
W 52''
H 12 3/8''
D 30 1/8''
112.5 lbs
Cast iron griddle for
PROF/MAST/HERT Series ranges and
rangetops
Cook plentiful breakfasts for the whole family on the
extra large stainless steel griddle with integrated grease
catcher, and turn it into a handy prep surface with the
integrated cover when not in use.
Protect your house and your family with the 100% failÂsafe thermocouple technology that immediately shuts off
the flow of gas in case of a flame outage.
Clean in no time after cooking, thanks to the seamless
one-piece stainless worktop with integrated spill-control
dams.
Designed and manufactured with pride by Bertazzoni in
Italy.
Industry leading 2 years parts and labor warranty.
bertazzoni.comversion: 1
PROF486GRTBXT
TOP VIEW
FRONT VIEW
SIDE VIEW
PRODUCT DIMENSIONS
CUTOUT DIMENSIONS
ELECTRICAL & GAS
CONNECTION
SIDE VIEW FRONT VIEW
TOP VIEW
INSTALLATION
REQUIREMENTS
A
n agency-approved,
properly-sized manual
shut-off valve should be
installed according to this
drawing.
A
properly-grounded,
horizontally-mounted electrical
receptacle should be installed
according to this drawing.
E
G
Combustible material cannot be
installed within shaded area.
For installation with an updraft or
downdraft hood as well as any OTR,
refer to the hood/OTR manufacturer’s
installation requirements.
18"
457
36"
915
13"
330
6"
152
48"
1218
6 5/8"
168
25"
635
29 3/8"
746
3 1/2"
90
25 1/4"
641
47 7/8"
1216
6 5/8"
168
1"
26
7 5/8"
194
21 5/8"
550
36"
914
1 5/8"
40
36"
914
AREA FOR ELECTRIC
AND GAS CONNECTION
E
G
10 5/8"
270
COUNTERTOP
15"
381
15"
381
PROFESSIONAL SERIES
48" GAS RANGETOP 6 BRASS BURNERS + ELECTRIC GRIDDLE
For installation of multiple products in combination, refer to the Design Guide at us.bertazzoni.com or ca.bertazzoni.com
Disclaimer: while every effort has been made to ensure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change it at any time without notice.
For detailed installation instructions, consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
bertazzoni.comversion: 1
