Benq Joybee 210 User Manual
Joybee 210 (DA210)
MP3 Player
User Manual
Welcome
Copyright
All rights reserved. No part of this publication may be reproduced, transmitted,
recorded, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, recording,
photocopying, or otherwise, without the prior permission of the BenQ Corporation.
Disclaimer
The BenQ Corporation shall make no warranty or representation, either
expressed or implied, with respect to the quality, accuracy or fitness for any particular purpose of this document. The information in this document is subject
to change without notice. The content of this manual has been checked and
proofread prior to publication.
*Windows is the registered trademark of Microsoft Corporation. All trademarks or product names appearing in this manual are registered property of their respective owners.
Important Information
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Accessories precautions
Batteries:
Li-polymer batteries are recyclable. You can help to preserve our environment by
returning your used rechargeable batteries to the authorized collection and recycling outlet. For detailed locations of the recycle outlets in each country, please
call your environment protection agency for detail.
Use this unit to recharge the battery pack.
The battery pack is not waterproof. Do not use the battery outside if it is snowing or raining.
Do not get dirt, sand, liquids, or other foreign matter on the terminals.
Do not touch the plug terminals with metal objects.
Do not disassemble, remodel, heat or throw into fire.
War nings
To reduce the risk of fire, electric shock or product damage, do not expose
this apparatus to rain, moisture, dripping or splashing and that no
objects filled with liquids shall be placed on the apparatus.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure. Do not open covers and do not repair yourself. Refer
servicing to qualified personnel.
Table of Contents
Copyright .....................................................................................................................i
Disclaimer ....................................................................................................................i
Important Information ...............................................................................................ii
FCC Compliance ..........................................................................................................ii
Accessories precautions ..............................................................................................iii
Warnings ....................................................................................................................iii
Introduction ................................................................................................................1
Before Use ................................................................................................................... 2
Check your package contents ...................................................................................... 2
Check your computer specification ............................................................................ 3
Charging battery by USB cable .................................................................................... 3
Touring the Joybee 210 MP3 player ............................................................................ 4
Installing relevant software .......................................................................................... 5
Remove the Joybee 210 from your PC ........................................................................ 6
Basic operations .......................................................................................................... 8
Basic idea on operation 8
Listen to music ............................................................................................................... 9
Listen to FM radio.......................................................................................................... 9
Record voice ................................................................................................................... 9
Listen to recorded voice file........................................................................................... 9
Record FM radio ............................................................................................................ 9
Turning off the Joybee 210 ............................................................................................ 9
Joybee 210 menu tree ................................................................................................. 10
Advanced Operations ............................................................................................... 11
Using QMusic .............................................................................................................11
Overview of QMusic .................................................................................................... 11
Adding music to the Joybee 210 using QMusic.......................................................... 14
Adding music from an audio CD to Joybee 210 .................................................14
Adding files from a PC to Joybee 210 ..................................................................17

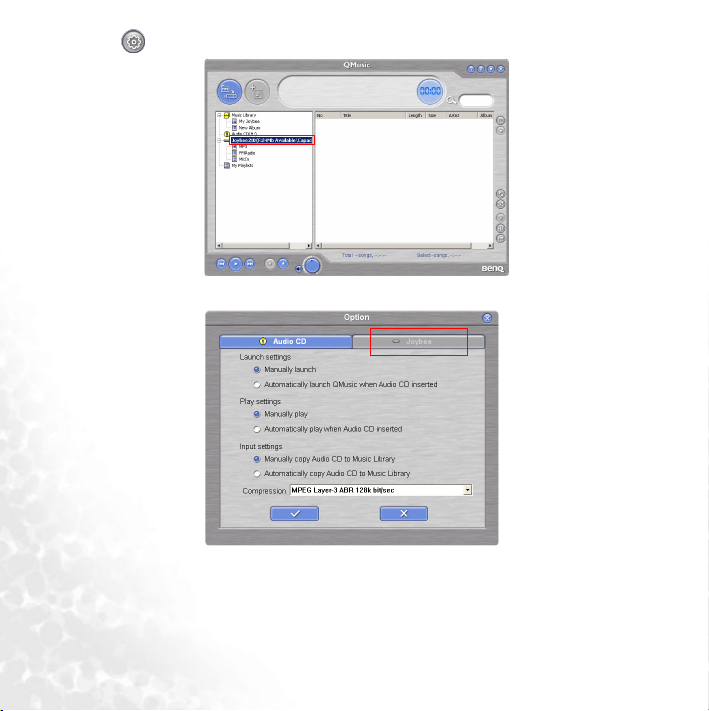

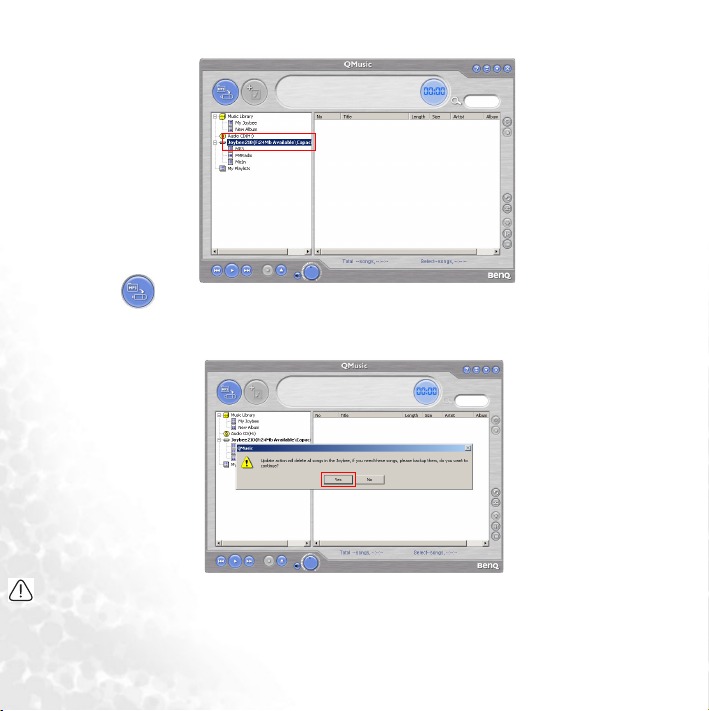

Updating Joybee 210 automatically with QMusic...................................................... 19
Deleting files using QMusic......................................................................................... 21
Music Mode ................................................................................................................23
Segment Repeat ............................................................................................................ 23
Delete Files....................................................................................................................23
Voice Mode .................................................................................................................23
Delete Files....................................................................................................................23
Record Mode ...............................................................................................................24
Record Voice ................................................................................................................ 24
FM Radio Mode ..........................................................................................................24
Program preset channel ............................................................................................... 24
Select preset channel to listen...................................................................................... 24
Record FM Radio ......................................................................................................... 24
Adjust volume in FM Mode......................................................................................... 25
Setup Mode .................................................................................................................25
Format Memory ........................................................................................................... 25
Idle time to power off automatically........................................................................... 25
Idle time to turn off the Backlight............................................................................... 25
Adjust Screen Contrast ................................................................................................ 25
Select Language ............................................................................................................ 26
Lyrics Display ............................................................................................................... 27
Notes ......................................................................................................................... 31
Frequently Asked Questions .................................................................................... 32
Introduction
Thank you for purchasing the BenQ 210 MP3 player!
Joybee 210 not only serves as a MP3 player of high quality audio playback with
exclusive design but also functions as a mobile USB flash drive, a digital voice
recorder, FM radio and language learning device.
Joybee 210-More than a MP3 player
A.MP3/ WMA/ WAV digital audio file formats supportable
-Embedded BenQ sound effect technology and 6 equalizers to
enhance sound performance.
-Supports lyrics synchronization.
- Multi-languages supportable
B.Mobile flash drive with USB interface
- Hot plug and play. Driverless except Windows 98SE
- Files copy-and-paste even with Windows Explorer
C.Digital Voice recorder
-Built-in microphone, records up to 500 minutes(WAV/128MB)
D.FM receiver
-20 preset channels
E.Languages learning device
- Supports segment repeat
Powerful 5 in 1 multi-function MP3 player
Built-in rechargeable li-polymer battery and up to
8 hours continuous playback
Bundled with QMusic and other free software
Charged by USB connected to active PC
1
Before Use
Check your package contents
Joybee 210 MP3
player
Software/User manual
2
USB cable
Joybee 210 QSG
Please contact your retailer if anything is
missing when you open the package.
Earphones
Warr ant y card
Check your computer specification
To perform Joybee 210 best with your computer, please meet the system requirements below.
•OS: Microsoft Windows 98SE/2000/ME/XP (QMusic supports Windows 2000/XP)
•CPU: Pentium 200 MHz or faster
•I/O port: USB (1.1 or higher)
•Device: CD-ROM
•Hard disk space: 60 MB (minimum)
•System memory: 32 MB (minimum)
Charging battery by USB cable
Connect your Joybee 210 with USB provided to active PC. It takes about 5 hours for first
charging and 2.5 hours hereafter.
3
Touring the Joybee 210 MP3 player
LCD display
Play/ pause/ stop/
confirm selection
Next/ fast forward
Previous/ fastrewind
Buttons lock/ A-B
repeat
Power on and off/
menu
Earphones jack
USB port
Power switch
Built-in microphone
Strap holes
4
Installing relevant software
Insert the CD-ROM and you'll see an autorun screen. Click the item to start installing the
program you want.
Item Description
Install QMusic QMusic is an easy-to-use file manager that allows you to play an audio CD and
Install BenQ
Joybee 210
Driver
Install Windows
Media Player
Install Direct X QMusic requires Direct X 8.1 to be installed on your system. Click this item to
Install Acrobat
Reader
Read User
Manual
MP3 files, convert music on an audio CD into MP3 files, create playlists, and
save your MP3 files on CDs if your computer is equipped with a CD burner.
With QMusic, you can save your m
and update the data stored on the Joybee 210
on Windows 2000/XP. Windows 2000 does not support the CD burning
function.
The player software includes driver for Windows 98SE, you must install the
driver before connecting the
QMusic requires Windows Media Player 9 to be installed on your system. Click
this item to install Windows Media Player 9 if you do not have it installed.
install Direct X if you do not have it installed.
Install the Acrobat Reader to read the electronic documentation for your MP3
player.
Click to read the User Manual in the language of your choice. Choose from
English, Simplified Chinese, Traditional Chinese, Japanese, French, Spanish,
and Portuguese.
usic files on the Joybee 210, and organize
. Note that QMusic works only
Joybee 210 to your PC.
5
Remove the Joybee 210 from your PC
Double click the USB device icon on the task bar.
1. A dialog box as shown below appears on the screen. Select USB Mass Storage Device in the
dialog box and press Stop.

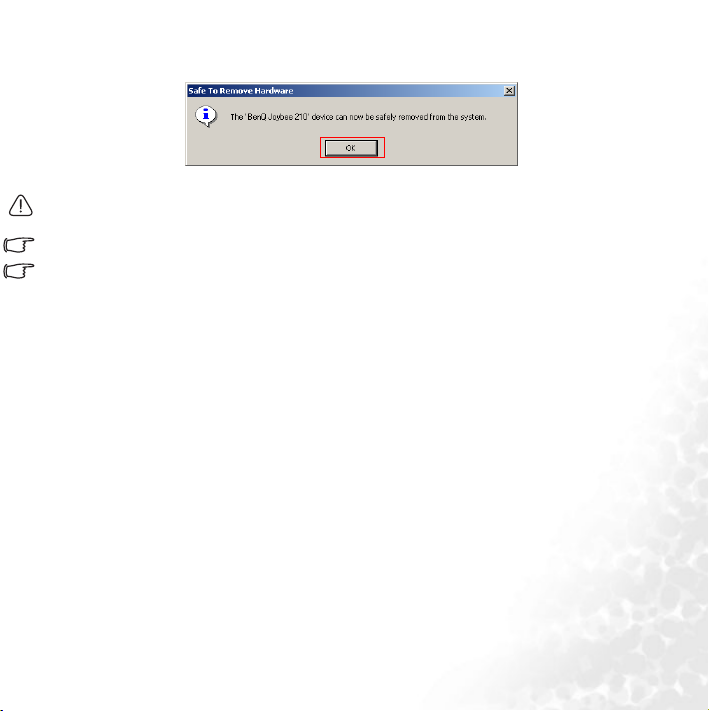

2. Another dialog box as shown below appears on the screen. Select BenQ Joybee 210 USB
Device and press OK.
6
