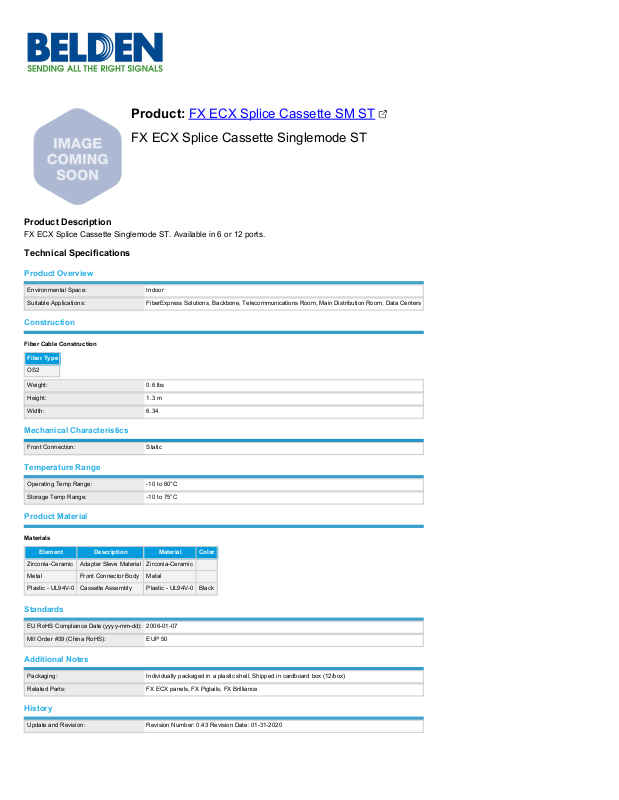

Belden FCSX06STFS Data Sheet

Product: FX ECX Splice Cassette SM ST

FX ECX Splice Cassette Singlemode ST

Product Description

FX ECX Splice Cassette Singlemode ST. Available in 6 or 12 ports.

Technical Specifications

Product Overview

Environmental Space: Indoor

Suitable Applications: FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Fiber Cable Construction

Fiber Type

OS2

Weight: 0.6 lbs

Height: 1.3 m

Width: 6.34

Mechanical Characteristics

Front Connection: Static

Temperature Range

Operating Temp Range: -10 to 60°C

Storage Temp Range: -10 to 75°C

Product Material

Materials

Element Description Material Color

Zirconia-Ceramic Adapter Sleve Material Zirconia-Ceramic

Metal Front Connector Body Metal

Plastic - UL94V-0 Cassette Assembly Plastic - UL94V-0 Black

Standards

EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-07

MII Order #39 (China RoHS): EUP 50

Additional Notes

Packaging: Individually packaged in a plastic shell, Shipped in cardboard box (12/box)

Related Parts: FX ECX panels, FX Pigtails, FX Brilliance

History

Update and Revision: Revision Number: 0.43 Revision Date: 01-31-2020
