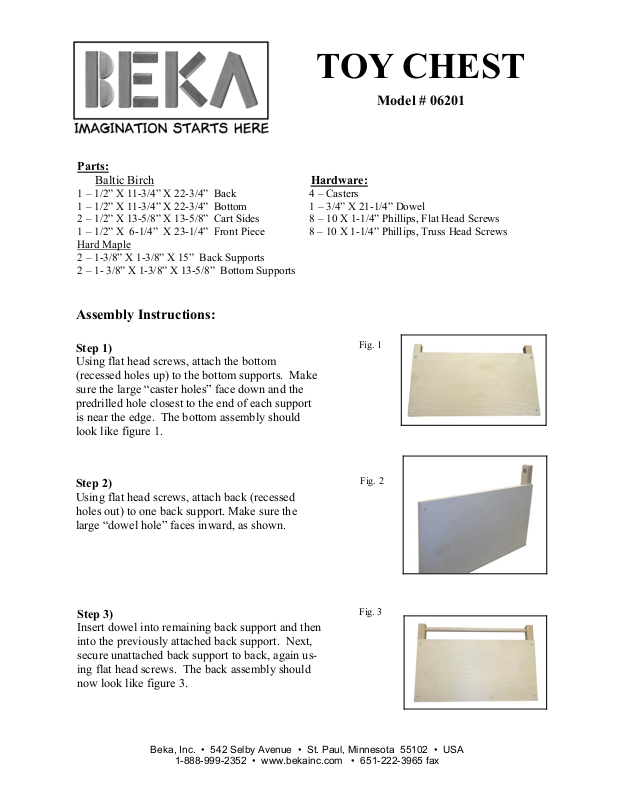

Beka Toy chest User Manual

TOY CHEST

Model # 06201

Parts:

Baltic Birch Hardware:

1 – 1/2” X 11-3/4” X 22-3/4” Back 4 – Casters
1 – 1/2” X 11-3/4” X 22-3/4” Bottom 1 – 3/4” X 21-1/4” Dowel
2 – 1/2” X 13-5/8” X 13-5/8” Cart Sides 8 – 10 X 1-1/4” Phillips, Flat Head Screws
1 – 1/2” X 6-1/4” X 23-1/4” Front Piece 8 – 10 X 1-1/4” Phillips, Truss Head Screws
Hard Maple
2 – 1-3/8” X 1-3/8” X 15” Back Supports
2 – 1- 3/8” X 1-3/8” X 13-5/8” Bottom Supports

Assembly Instructions:

Step 1)

Using flat head screws, attach the bottom
(recessed holes up) to the bottom supports. Make
sure the large “caster holes” face down and the
predrilled hole closest to the end of each support
is near the edge. The bottom assembly should
look like figure 1.

Step 2)

Using flat head screws, attach back (recessed
holes out) to one back support. Make sure the
large “dowel hole” faces inward, as shown.

Step 3)

Insert dowel into remaining back support and then
into the previously attached back support. Next,
secure unattached back support to back, again us­ing flat head screws. The back assembly should
now look like figure 3.

Fig. 1

Fig. 2

Fig. 3

Beka, Inc. • 542 Selby Avenue • St. Paul, Minnesota 55102 • USA

1-888-999-2352 • www.bekainc.com • 651-222-3965 fax

Step 4)

Using truss head screws, attach one chest side to
the bottom assembly., as shown in fig. 4.

Note: Slots on chest sides should face inward.

Fig. 4

Slotted side

Step 5)

Using the remaining truss head screws attach the
back assembly to the same side piece. Attach re­maining chest side, holding the bottom and back
assemblies in place.

NOTE: Back assembly should rest on bottom
supports.

Step 6)

Carefully push casters’ metal stem into holes lo­cated on the underside of chest so they are fully
seated.

Fig. 5

Fig. 6

Step 7)

Slide front piece into the slots provided on the
chest sides until it rests evenly on the bottom.

Fig. 7
