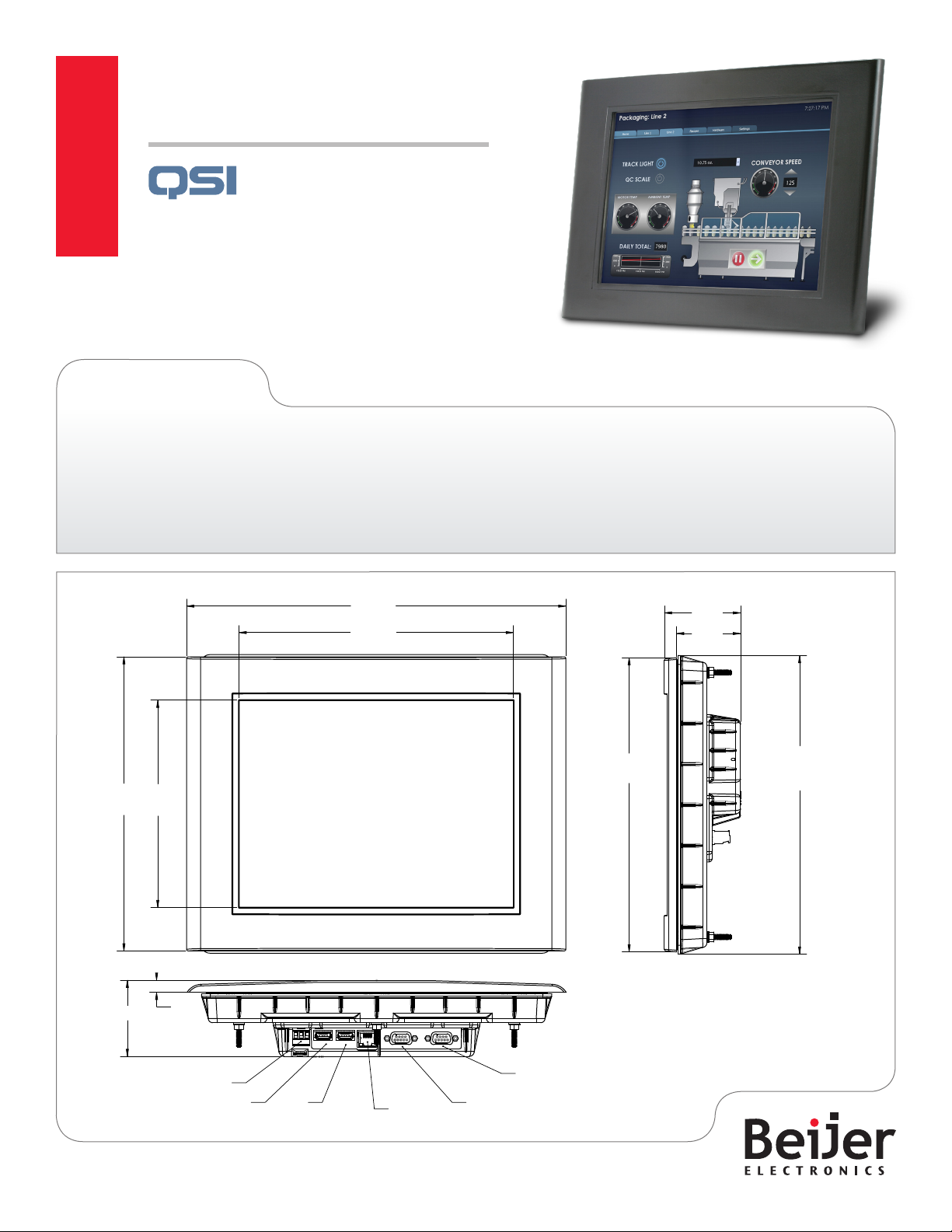

Data Sheet
69.1
58.1
267
Front Panel
271
Terminal
Ring (Clamp)
344
267
188
249
69.1
11
Power
USB USB
Ethernet
Secondary Serial
COM2
Primary Serial
COM1
QTERM®-A12
Large, 12.1” Graphics with Versatile Software and
Universal Connectivity
automation equipment. The QTERM-A12 includes a large
touch screen display, is NEMA-4X and IP66 rated and can
operate in -30 to 70 °C.
Product Highlights
800 x 600 pixel SVGA, 12.1” (307 mm) diagonal, LED lighted, TFT color LCD touch screen display f
-30 to 70 °C operating temperature f
UL listed Class 1 Div 2 Certified f
NEMA-4X and IP66 sealing for harsh environments f
iX Software for automation control or Windows Embedded CE 6.0 development f
The rugged QTERM-A12 human
machine interface can connect to all your
Beijer Electronics • www.BeijerElectronicsInc.com • 801-466-8770
Dimensions shown in mm.
QTERM-A12 Specications
Feature Detail Description
Display Typ e 800 x 600 SVGA, TF T color LCD
Size 12.1” (307 mm) diagonal
Lighting LED
Touch Screen Typ e Analog-resistive
Interface Ethernet 10/100Base-T, RJ-45
Serial One EIA-232/422/485 DB9f; one EIA-232 DB9f
USB Two 2.0 full-speed host ports (Type A connectors)
™
Processor Typ e XScale
Memory RAM 128 MB
Flash 4 GB
Realtime Clock Standard Battery-backed, 1 second resolution
Audio Speaker 8 Ohms 0.7 Watts
Power Input 10 to 32 VDC
Consumption 9 Watts @ 24 VDC (typical), 13 Watts @ 24 VDC (max)
PoE 10.5 Watts @ 48 VDC (typical), 14.2 Watts @ 48 VDC (max)
Mechanical Typ e Panel-mount
Size 344.4 (W) x 267 (H) x 69.1 (D) mm
Mass 2.05 kg
Housing Material Polymer
PXA 300 ARM 624 MHz
Environmental Sealing - Front Panel UL 50 Type 4X, IP66, NEM A-4X
Tem per atu re Operating: -30 to 70 ºC; Storage: -40 to 85 ºC
Humidity 5 to 95%, non-condensing
Vibration 4 g 10-1500 Hz
Certications Hazardous Locations ANSI/ISA 12.12.01 (formerly UL 1604) Class I, Div 2
UL UL 508
CE EN55022, EN55024 and EN60950
EMC FCC Part 15
®
Software Operating System Windows
Development Environments Visual Studio
Development Languages Visual Basic
Embedded CE 6.0
®
, iX Developer
®
, Visual C#®, Visual C++®, iX Software
Runtime Environments .NET Compact Framework, iX Runtime
US Ofce
Beijer Electronics, Inc.
2212 South West Temple #50
Salt Lake City, Utah 84115-2648 USA
www.BeijerElectronicsInc.com / 801-466-8770
Headquarters
Beijer Electronics Products AB
P.O. Box 426
201 24 Malmö, Sweden
www.BeijerElectronics.com / +46 40 35 86 00
M01-040-00 REV 04
Copyright © 2011 Beijer Electronics. All rights reserved.
The information at hand is provided as available at the time of printing.
Beijer Electronics reserves the right to change any information without
updating this publication. Beijer Electronics does not assume any
responsibility for any errors or omissions in this publication.
4 AUGUST 2011
