Behringer DI20 Product Information

Product Information Document

DI Boxes

ULTRA-DI
DI20

Professional Active 2-Channel
DI-Box/Splitter

Professional and multi-purpose

#

direct injection box for stage and
studio applications

Provides impedance and signal

#

matching for the direct connection
of instruments to mixers
and ampli ers

Converts 2 independent unbalanced

#

¼ " TRS line inputs into 2 balanced
XLR outputs

Additional Split mode (channel 1

#

assigns signal to both XLR outputs)

Ultra- at frequency response due to

#

servo-balanced operation

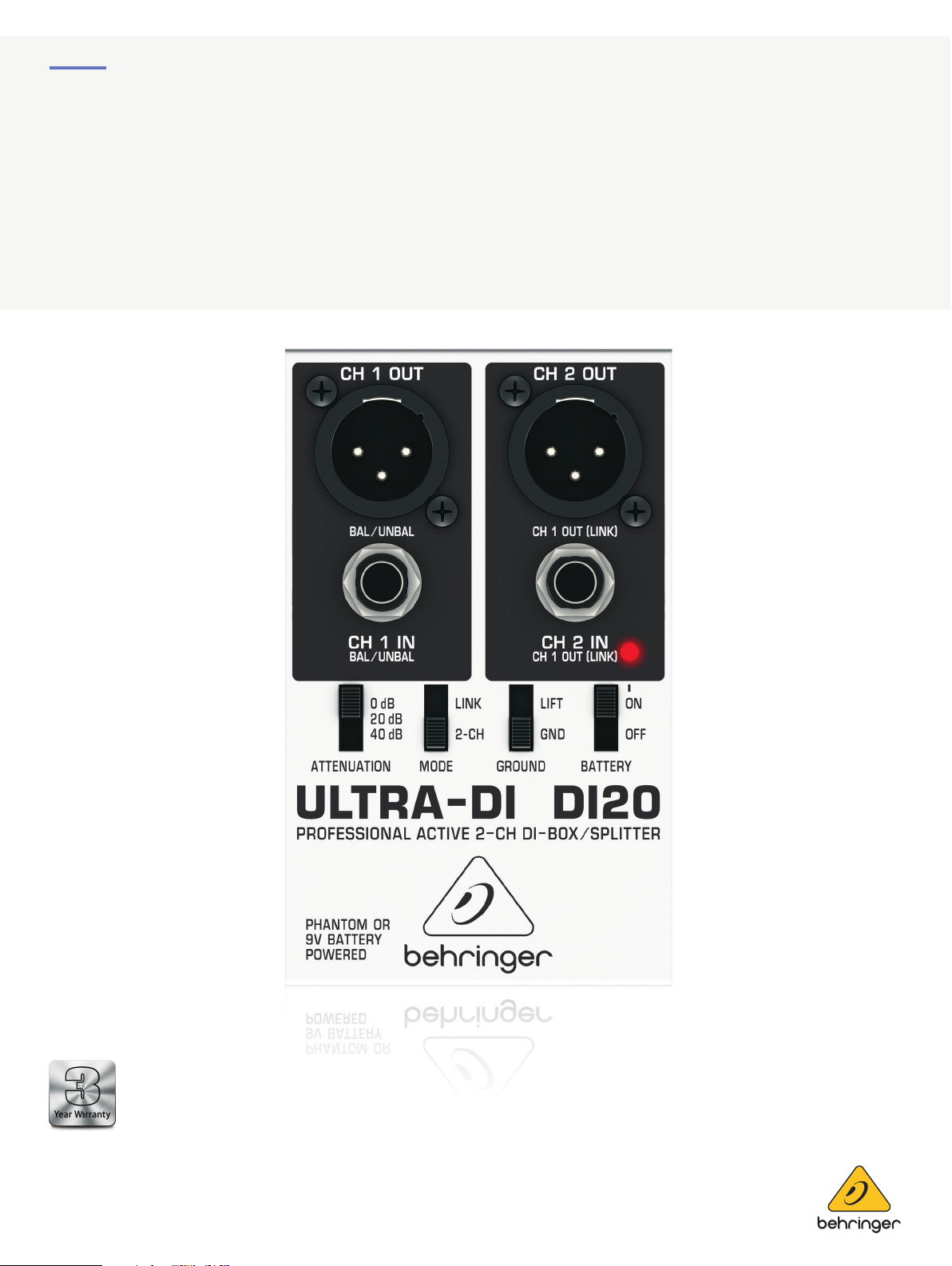

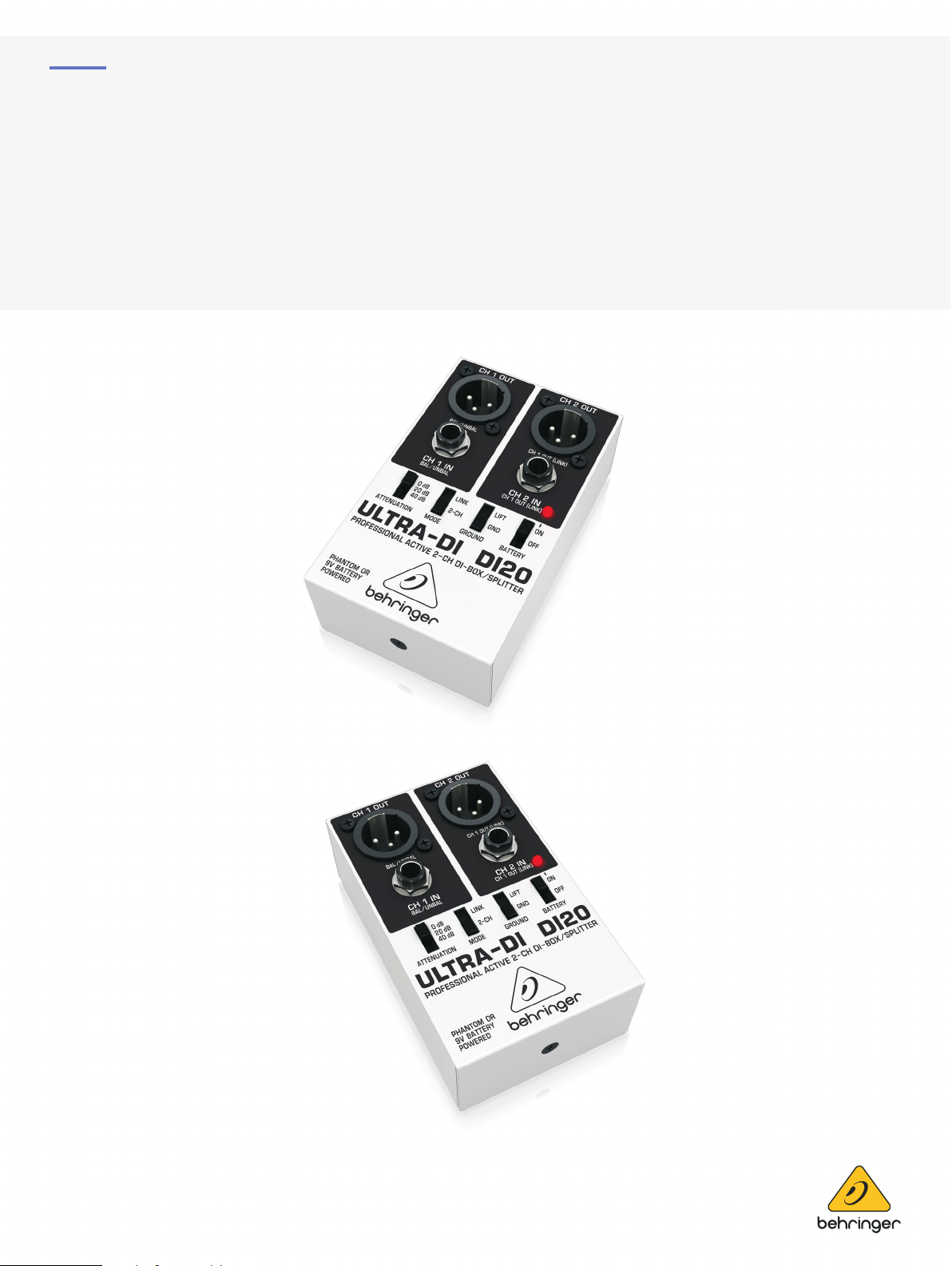

The ULTRA-DI DI20 is a one-of-a-

kind DI (Direct Injection) box that

can convert up to two separate,

unbalanced ¼ " TRS lines into two

balanced XLR outputs – or function

as a signal splitter. Electric guitarists,

keyboardists and bassists will love the

 exibility the incredible DI20 provides

both in the studio and on the stage.

Internal battery automatically shuts

#

o when phantom power is applied

Allows direct connection to speaker

#

outputs with up to 3,000 Watts

Ground Lift switch eliminates typical

#

ground loop problems

Input 2 usable as channel 1 Link

#

output (additional to XLR output)

¼" TRS and gold-plated

#

XLR connectors

Ultra-rugged, road-suitable

#

metal case

High-quality components and

#

exceptionally rugged construction
ensure long life

Conceived and designed by

#

BEHRINGER Germany

Mono, Stereo or Double
the Amps

By  ipping a switch, you can use the DI20 as a
launching pad for two separate mono signals,
a stereo signal – or a split-signal feeding
two separate amps. The DI20 also features a
superb ground-lift switch, and the 3-position
input attenuator can accommodate input
levels of up to +48 dBu. This handy built-in
attenuator also allows you to connect directly
to your ampli er’s speaker outputs, even
amps rated as high as 3,000 Watts. You can
power the DI20 with either a 9 V battery or
your mixer’s phantom power supply (+18 to
+48 V DC). The whole package is wrapped in
an ultra compact, road-suitable and rugged
metal housing.

*Warrant y details can be fo und at music-group.c om.

Product Information Document

DI Boxes

ULTRA-DI
DI20

Professional Active 2-Channel
DI-Box/Splitter

Be Direct

If you’re a working musician who demands uncompromising functionality and durability, the ULTRA­DI DI20 will astound you – and so will its ultra-a ordable price tag! See what the DI20 can do for your
sound at your nearest BEHRINGER dealer – or get yours online today.

You Are Covered

We always strive to provide the best possible Customer Experience. Our products are made in our
own MUSIC Group factory using state-of-the-art automation, enhanced production work ows and
quality assurance labs with the most sophisticated test equipment available in the world. As a result,
we have one of the lowest product failure rates in the industry, and we con dently back it up with a
generous 3-Year Warranty program.
