1.Introduction

The B-CONTROL is an extremely flexible control surface suitable for a wide array of applications. Regardless of whether you want to intuitively control your sequencer software with mixers, plug-ins and virtual instruments, or if you wish to use its broad MIDI functions for controlling rack synthesizers, general MIDI sound generators or effect processors, the B-CONTROL offers you tremendous ease of use that leaves no wishes open.

To ensure the highest possible operating safety, our equipment is manufactured according to the highest quality standards in the audio industry.

Additionally, we produce our equipment adhering to the ISO9000 certified management system.

The following user’s manual is intended to familiarize you with the unit’s control elements, so that you can master all the functions. After having thoroughly read the user’s manual, store it at a safe place for future reference.

1.1 Before you get started

1.1.1 Shipment

The B-CONTROL was carefully packed at the assembly plant to assure

secure transport. Should the condition of the cardboard box suggest that damage may have taken place, please inspect the unit immediately and look for physical indications of damage.

Damaged equipment should NEVER be sent directly to us. Please inform the dealer from whom you acquired the unit immediately as well as the transportation company from which you took delivery of the unit. Otherwise, all claims for replacement / repair may be rendered invalid.

To assure optimal protection of your B-CONTROL during use or transport, we recommend utilizing a carrying case.

Please always use the original packaging to avoid damage due to storage or shipping.

Never let unsupervised children play with the B-CONTROL or with its packaging.

Please dispose of all packaging materials in an environmentallyfriendly fashion.

1.1.2 Initial operation

Please make sure the unit is provided with sufficient ventilation, and never place the B-CONTROL on top of an amplifier or in the vicinity of a heater to avoid the risk of overheating.

A power supply unit which meets the necessary safety requirements is enclosed for connecting the B-CONTROL to the mains.

1.1.3 Warranty

Please take a few minutes and send us the completely filled out warranty card within 14 days of the date of purchase to assure unproblematic warranty processing in the future. You may also register online at behringer.com.

The serial number needed for the registration is located at the top of the unit. Failure to register your product may void future warranty claims.

1.2 System requirements

For USB operation:

Up-to-date Windows PC or MAC with a USB connection

The B-CONTROL supports WINDOWS XP and MAC OS X “USB MIDI compatibility”. Soon, you will be able to download drivers for other operating systems, for multi unit support, new presets as well as a WINDOWS editor software free of charge. Just click behringer.com to get it for free.

The BCF2000 / BCR2000 can also be operated stand-alone without a PC as a pure MIDI controller. Software control via MIDI is also possible, provided your computer has a MIDI interface.

1.3 Online registration

Please register your new BEHRINGER equipment right after your purchase by visiting http://behringer.com and read the terms and conditions of our warranty carefully.

Should your BEHRINGER product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased. Should your BEHRINGER dealer not be located in your vicinity, you may directly contact

one of our subsidiaries. Corresponding contact information is included in the original equipment packaging (Global Contact Information/European Contact Information). Should your country not be listed, please contact the distributor nearest you. A list of distributors can be found in the support area of our website (http://behringer.com).

Registering your purchase and equipment with us helps us process your repair claims more quickly and efficiently.

Thank you for your cooperation!

2. Introduction to MIDI

2.1 MIDI control for beginners

Application possibilities for both B-CONTROL models, the BCF2000 and the BCR2000, are truly wide-ranging. We’ll start with a couple of general

explanations and examples that should quickly let you get a good understanding of MIDI basics.

What exactly does the B-CONTROL do?

Simply put, this a remote control for all kinds of MIDI equipment. Using the faders (BCF2000 only), encoders (infinitely variable rotary controls) and keys, an entire array of control functions can be performed. Adjusting these parameters, you can control various functions of external (hardware or software) equipment in real time. For example, countless software mixers, sound generators or effects can be remotely controlled. With these software applications, you are dealing with simulations of “real” equipment in your computer, whereby they are visually represented on the computer screen, while the computer takes over the function of replicating their respective functions.

And how does it work?

You can assign particular MIDI data to each control element on the B-CONTROL; for example, you can assign the so-called “MIDI-Controller 7” (CC 07) that adjusts the volume of a MIDI device to one of the controls on your BCF2000 / BCR2000. If you move / turn the corresponding control on your B-CONTROL, you can hear how the volume on the receiving MIDI device also changes (provided it is also connected to an audio output). Keep the following in mind:

◊ MIDI data is only control data and contains no audio information!

6 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

What settings do I have to make? Where? How?

Often, you can assign MIDI control data numbers, the so-called control change or CC numbers, to individual MIDI parameters. That’s particularly the case with music software such as software sequencers, mixers and sound generators as well as the so-called “plug-ins” (effect units or sound generators integrated into the software).

Basically, you have 2 options:

You either set the desired control numbers at the B-CONTROL and transmit them to the software you are controlling, or you can set the desired control data

directly on your MIDI device and let the B-CONTROL receive the information about number assignment using the LEARN procedure.

Example:

On a software synthesizer, you want to control filter frequency, filter resonance and volume using the MIDI controllers 5, 6 and 7.

To receive MIDI data, you’ll need to perform the following settings on your software synthesizer:

set filter frequency to CC 05

set filter resonance to CC 06 (receive)

set volume to CC 07 (receive)

To get detailed information on how to assign them, please refer to chapter 4.3.2 “Programming in the EDIT mode” on page 13.

Now, define in the B-CONTROL the control elements that will control these

3 parameters. You can either use the Learn function if the software synthesizer gives you the option to send its CC data via MIDI, or you can implement the following settings manually:

Assign the push encoder 1 CC 05 to filter frequency control via dial rotation

Assign the push encoder 2 CC 06 to filter resonance control via dial rotation

Assign the push encoder 3 CC 07 to volume control via dial rotation

How do I wire the B-CONTROL?

Several classic examples can be found in the explanations of different operating modes (see chapter 4.1 “The Operating Modes”). Basically, the following applies:

If you want to control hardware MIDI equipment, use the MIDI connectors

To control software MIDI equipment, you can either use the MIDI connectors on your B-CONTROL – provided your computer has a MIDI interface –

or you can use a USB connection

To remotely control both hardware and software equipment,

several combination modes are available. These are explained in chapter 4.1

What kinds of equipment can I control with the B-CONTROL?

You can basically control any device supporting the MIDI format. Both hardware and software MIDI devices are controlled exactly the same. The only difference is in the wiring.

Here are a couple of suggestions on how you can use your B-CONTROL:

Editing sound parameters of (virtual) synthesizers, sound samplers, GM/GS/XG sound generators

Controlling parameters on effects equipment / software plug-ins such as effects processors, reverbs, compressors, equalizers etc.

Remotely controlling software mixers (volume, panorama, equalizers etc.)

Remotely controlling transport functions (playback, forward, stop etc.) on sequencers, hard disk recorders, drum computers etc.

Using BCF2000 faders as drawbar control for virtual or digital organ expanders

Controlling MIDI-enabled lighting equipment

Live control of volume and sound parameters on expanders

Triggering (i.e. playing live) short samples, drum loops, shouts, effects etc.

Remotely controlling groove boxes, step sequencers, MIDI generators (such as arpeggiators etc.), DJ software and other “live” software

Program changes and volume control on sound generators (just like on a master keyboard)

Likewise, applicable to band keyboardists, solo entertainers, organists, electronic music performers, DJs, sound engineers, home / project studio owners, theater technicians etc.

2.2 The MIDI standard

The MIDI standard (Musical Instruments Digital Interface) was developed in the early ’80s to make communication between equipment from different manufacturers possible. Over the years, the MIDI interface has become hugely popular; it has become a matter of fact that complete studios can be connected via MIDI.

At the center of any such network is at least one computer that controls peripheral equipment. You can use the B-CONTROL in such a studio to control your sequencer or other software tools running on your computer (e.g. software mixers, VST instruments, effect plug-ins). But even if you don’t use a computer, you can use the B-CONTROL as a central control surface in your studio for comfortably editing your rack synthesizers, GM/GS/XG sound generators and effects equipment.

2.3 MIDI connections

The MIDI connections in the back of your B-CONTROL feature the standard 5-pin DIN connectors. You will require MIDI cables to connect your B-CONTROL to other MIDI equipment. In general, commercially available ready-to-use cables can and should be used. Their length should not exceed 15 m (50 ft.).

MIDI IN: Used for receiving MIDI data (parameter feedback, SysEx data), or to mix MIDI signals with the B-CONTROL signals (merge function).

MIDI OUT A / B: Data for controlling other MIDI equipment can be sent through the MIDI outputs.

The B-CONTROL has two MIDI outputs. MIDI OUT B can be configured as MIDI Thru, so that the incoming data at MIDI IN can be passed through unaffected.

2.4 The MIDI format

Although your B-CONTROL is very easy to use, it still makes sense to review some information about this data format. Each MIDI command, also called message, consists of a status byte and up to two data bytes. The status byte defines the command type, and the data bytes contain the corresponding values. Different types of MIDI messages used by the B-CONTROL are explained next:

Note messages:

Among keyboard hotshots, Note On and Note Off messages are among the essential MIDI messages. Playing MIDI instruments from a master keyboard or computer is only possible with these messages. The B-CONTROL can also send Note Messages; however, this is not absolutely necessary to play music.

This way, note events are also used to trigger drumloops or individual notes from a sampler. Many effects processors also allow rhythmic entering of delay times or song tempos with note commands.

7 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

Note On and Note Off messages have the following data format:



Status Byte

Data Byte 1

Data Byte 2

Note Off

&8n (n = channel #)

Note #

Velocity









Note On

&9n (n = channel #)

Note #

Velocity









Table 2.1: Data format of Note On and Note Off messages

The value range for channel numbers is between 1 and 16; for data bytes it is 0 to 127. Even though Note Off messages are not really used by keyboarders anymore, the B-CONTROLs support sending this status information.

Velocity corresponds to the key pressure, and therefore to the volume of a touch-sensitive keyboard (piano). Since the B-CONTROL does not feature touch-sensitive keys, the velocity value is transmitted with a fixed value that can be set during programming.

A note command can only be assigned to keys, footswitches and push functions of the encoder.

Control Change (CC):

Control Change Messages are some of the most “powerful” MIDI messages. Using them, a vast number of parameters and functions can be recalled and automated. Individual control elements (faders, rotary dials, keys etc.) can be assigned to CC messages on your B-CONTROL. Because not only keys but also faders and rotary dials can be used, control values can be controlled in real time either statically or dynamically. A list with the standard controller numbers can be found in this user manual’s appendix.

NRPN:

Additionally, controllers that have no standardized assignment can also be used, and can therefore be assigned according to no predetermined rule. These controllers are called NRPNs (Non-Registered Parameter Numbers). NRPNs are further subdivided into MSB (Most Significant Byte) and LSB

(Least Significant Byte) in order to achieve a higher resolution. A lower resolution is particularly easy to observe during fader movement of a mixer, in which 7-bit (= 128 values) jumps in the signal level can be heard. By subdividing NRPNs

into MSB and LSB, you can achieve 14-bit resolution of faders and rotary dials, which means that the movement of a fader is divided into more than 16,000 steps (214)! In addition to NRPNs, there are also RPNs (Registered Parameter Numbers). RPN commands are defined as GM (general MIDI), GS (Roland) and XG (Yamaha) MIDI standards.

Pitch Bend:

The pitch-bend wheel of a keyboard is used for tone modulation and has its own commands in the MIDI format.

After Touch:

MIDI keyboards featuring After Touch can respond to varying key pressure even after you release the key (i.e. after the keystroke is over) and can send this data via MIDI. This function either reacts key-specific (key pressure) or it reacts to all notes at the same time (channel pressure).

MIDI Machine Control (MMC):

With MIDI Machine Control, you can assign transport functions­ of a sequencer or drum computer (e.g. start, stop, FFW / RWD) and locator points to individual keys with a permanently adjustable time position (locate, punch in / out points).

Program Change Messages and MIDI Bank Select:

Program change messages are used to recall programs / presets in MIDI devices connected to your B-CONTROL. 128 program numbers can be recalled. For devices with more than 128 presets, use the bank select function, which lets you select a storage bank before sending a program change.

Running Status:

Because the MIDI interface is a serial data transmission format (meaning that its data is transmitted as a succession of individual data segments), it became apparent very quickly that it may not be fast enough. To avoid perceptible delays in the output of MIDI data, Running Status was designed. It suppresses the transmission of the status byte when the same MIDI messages are transmitted in succession. This means that, for example, during a continuous change of

the data byte of a controller (e.g. volume), the status byte is only sent once. The only thing that is transmitted are the changes in the data byte. This goes on until another status byte is sent. 8 bits are saved for each message sent.

SysEx Dump:

System-Exclusive data refer to a function that makes transmission of nonspecific data via MIDI possible. This is often used for reading out memory contents and storing them externally.

The status byte notes the data type (SysEx); the first three data bytes are a manufacturer ID, so that when you have a large MIDI network, you can still “talk” to the correct MIDI device.

To make using several identical B-CONTROLs at the same time possible, you can assign a device number (device ID) in the global setup menu to each B-CONTROL, which assures that only the correct device receives the data intended for it.

3. Control Elements and Connections

In this chapter, we will describe various control elements of your B-CONTROL. All controls and connectors are explained in detail, and we’ll give you useful tips on how to use them.

(1)The 8 infinitely variable PUSH ENCODERS are used to send MIDI data. They have two functions (turn and press) that can be assigned to different MIDI commands.

(2)Each of these 16 KEYS can send one MIDI command.

(3)The four-digit LED display indicates the current operating software version briefly during startup. After that, it shows the selected preset number. When in play mode, activating one of the control elements indicates

value changes on the LED in real time. When in programming mode,

it indicates the type of MIDI commands, program / channel numbers and parameter values.

(4)Using the ENCODER GROUP keys, four so-called encoder groups per preset can be recalled, so that eight PUSH encoders for a total of 64 different MIDI functions are at your disposal.

(5)These LEDs indicate the following:

MIDI IN, OUT A and OUT B illuminate if MIDI data flows through the respective connectors.

USB Mode illuminates if a USB connection to a computer is active (your computer must be on).

The FOOT SW LEDs illuminate if the footswitch is pressed.

FOOT CTRL LED (BCF2000 only) illuminates when the footcontroller is actuated (MIDI data is sent).

8 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual



(1)

(3)









































































(2)(4)

(5)



(6)

(10)

(8)





(9)

(7)



BCR2000

BCF2000







Fig. 3.1: The control surface of the B-CONTROLs













CAUTION



B–CONTROL



TO REDUCE THE RISK OF ELECTRIC SHOCK

BCF2000





DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS





INSIDE: REFER SERVICING TO QUALIFIED PERSONNEL.





CAUTION









TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

USBMIDIFADERCONTROLLER

(13)

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.









MIDI











:BCF2000











:Behringer











Holdings (Pte)











Ltd

(14)



































OUT B/ THRU

OUT A

IN

CONTROLLER

SWITCH

(15)

(16)

(17)



(12)

(11)

Fig.3.2: The back of the BCF2000 (control elements (13) to (17) coincide with the BCR2000)

(6)Permanently fixed functions are assigned to this key section: STORE saves presets.

LEARN gets you to the LEARN mode. EDIT gets you to the EDIT mode.

Using the EXIT key, you exit a programming level (edit mode / global setup). Use it also to cancel a store or copy procedure.

(7)The eight 100-mm faders of the BCF2000 are freely assignable for controlling MIDI commands. They are motorized, so they automatically slide into the predetermined position when you switch to another preset. If the software you are controlling or the MIDI device to which your B-CONTROL is connected support parameter feedback, the fader positions change automatically.

(8)Using the PRESET keys, 32 presets can be recalled. The preset number is shown in the display.

(9)These four keys can be assigned to any MIDI command of your choice.

9B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

(10)The 24 infinitely variable rotary controls (encoders) of the BCR2000 can be programmed to send MIDI control commands. The LED circle show the current value.

(11)These are the SWITCH connectors for connecting a footswitch.

Its polarity is automatically detected. On the BCR2000, the first connector (SWITCH 1) can also be used to connect a double footswitch with stereo jacks. In this case, SWITCH 2 must remain unused.

(12)CONTROLLER connector (BCF2000 only). Here, you can connect an expression pedal that can be used for controlling assignable MIDI data.

(13)The POWER switch turns your B-CONTROL on. The POWER switch should always be in its “Off” position when connecting the unit to the mains.

Please keep in mind: The POWER switch does not fully disconnect your B-CONTROL from the mains. Always unplug the power cord from the mains if you don’t intend to use your B-CONTROL for longer periods of time.

(14)The connection to the mains is established using a standard connection socket. A matching cable is included in the shipment.

(15)SERIAL NUMBER. Please take the time to fill out and return the warranty card within 14 days after the date of purchase to benefit from our extended warranty. The serial number is located on the top side of your REV2496. You can also register online at behringer.com.

:BCR2000

MIDI

(11)

Fig. 3.3: The footswitch connectors on the BCR2000

(16)The USB connector is used for connecting to a computer with a compatible USB input.

(17)These are the MIDI connectors of your B-CONTROL. Depending on the operating mode, MIDI OUT B doubles as MIDI THRU.

4. Operation

4.1 The operating modes

Depending on how you want to use your B-CONTROL, you should first select an operating mode.

You can use it as a pure USB controller for your computer applications

(software mixers, sequencers, soft synths, VST-effects etc.), as a stand-alone MIDI controller, or as a combination of both with different MIDI interface configuration possibilities. Here is how you select an operating mode:

Keep the EDIT key pressed, and press the STORE key at the same time

You are now in the global setup menu and you can let go of both keys

Now, select an operating mode by turning the PUSH encoder 1.

You can select USB modes U-1 to U-4 and stand-alone modes S-1 to S-4. The modes are described in detail in chapter 4.1.1 and further, and examples about their use are also given there. Please see also chapter 4.3.3

To exit global setup, please press the EXIT key

The settings made in the global setup menu are automatically stored and do not have to be separately saved.

The USB connection is briefly interrupted if you switch within a USB mode, or when you switch from a USB mode to a stand-alone mode and vice versa.

If a USB connection is made or lost while your B-CONTROL is on, the selected operating mode is retained.

4.1.1 USB modes

USB mode U-1:

Software Sequencer

push

Software Mixer

turn

move/

fade

push

Software Synthesizer

turn

move/

fade push

MIDI IN OUT A OUT B/THRU





















































































































































































BCF/BCR2000









MIDI IN



































B-CONTROL





MIDI OUT A



































MIDI Data Send





MIDI OUT B/































Parameter









THRU



































Feedback

to Computer



USB







Computer







from Computer































Fig. 4.1: Routing and use in USB mode 1

In USB mode 1, the B-CONTROL is connected to your PC by using a USB cable. It sends MIDI data and receives parameter feedback from the computer, provided that the music software you are controlling supports these functions.

This way, current parameter values can be shown on the LED, or can be indicated by the fader position.

All MIDI ports of the B-CONTROL are off. This mode is optimal for controlling software tools (mixers, sequencers, synths, VST-effects etc.) if you don’t need any additional MIDI ports. This mode is also very useful if you are already using other multi-channel MIDI interfaces on your computer and can’t address any additional ones.

10 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual





USB-Mode U-2:



USB-Mode U-3:





Software Sequencer



Software Sequencer



push



push



Software Mixer



Software Mixer

MIDI Keyboard

turn

MIDI Keyboard

turn



move/



move/



fade



fade



push



push

MIDI OUT

Software Synthesizer

MIDI OUT

Software Synthesizer

Sampler

turn



turn

MIDI-Expander A











move/









move/

fade









fade

VOLUME

MUTE

DEMO

FILTER

LEVEL

push

push









PHONES

PROG

TYPE

COMBI

PLAY

POWER

MIDI IN



MIDI IN





MIDI-Expander B



MIDI-Expander





VOLUME

MUTE DEMO FILTER LEVEL

VOLUME

MUTE DEMO FILTER LEVEL

PHONES

PROG

TYPE

COMBI

PLAY

POWER

PHONES

PROG

TYPE

COMBI

PLAY

POWER



MIDI

IN



MIDI IN





OUT B/THRU





MIDI IN

OUT A

USB

MIDI IN

OUT A OUTB/THRU USB



















MIDI Keyboard































MIDI Keyboard

















































































































































































































































































































































BCF/BCR2000



MIDI IN









BCF/BCR2000









MIDI IN















































































B-CONTROL

MIDI OUT A











Sampler

B-CONTROL







MIDI OUT A











MIDI-Expander A



























































MIDI Data Send

MIDI OUT B/











MIDI-Expander B

MIDI Data Send







MIDI OUT B/











MIDI-Expander B





































Parameter



THRU







Parameter









THRU













to Computer

















to Computer

















Feedback

USB







Computer

Feedback



USB











Computer





from Computer















from Computer





















































Fig. 4.2: Routing and use in USB mode 2















Fig. 4.3: Routing and use in USB mode 3

















Your B-CONTROL sends MIDI data to the computer and receives parameter feedback, provided that the software you are controlling supports this function. MIDI IN and OUT A are available as a 16-channel MIDI interface for your computer. OUT B functions as MIDI THRU and forwards MIDI IN data unchanged. OUT B is not accessible from the computer, and doesn’t send any control data from the B-CONTROL. This mode is ideal for applications in which you control music software on your computer and at the same time need a USB MIDI interface with one IN and one OUT. Additionally, a MIDI keyboard can be tapped into at the MIDI THRU (OUT B) connector. This way, you can use a master keyboard to import your arrangements into the sequencer, or to play back software synths. OUT A controls a hardware sampler, while a MIDI expander (sound generator without a keyboard; e.g. a rack synthesizer or a pure preset unit), an effects processor or similar can be connected at OUT B, whereby it is directly controlled only from the keyboard or is controlled only via program changes.

This is surely the most often used “standard mode” with computer applications.

This setting is optimal for controlling software while all MIDI connectors are used as a USB-MIDI interface for the computer. With this function, there are 16 input channels and 32 output channels available to your music software (IN and OUT A + OUT B).

The B-CONTROL transmits its data via USB to the computer. The availability of parameter feedback from the computer to the B-CONTROL depends on the

software your are controlling. MIDI expanders can not be directly accessed from the keyboard in this operating mode. This operating mode is only used to import MIDI tracks into the sequencer.

11 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

USB-Mode U-4 (expanded):

Software Mixer

Software Synthesizer

Software Sequencer

turn

push



turn



move/fade



push

move/fade





push

MIDI-Expander



VOLUME

MUTE

DEMO

FILTER

LEVEL





PHONES

PROG

TYPE

COMBI

PLAY POWER



MIDI

IN











USB













MIDI IN OUT A

OUT B/THRU







MIDI IN

OUT B/THRU

Unit 1

Unit 2

Fig. 4.4: Application in USB mode 4 (expanded)

BCF/BCR2000

Param. Feedb.

MIDI IN









UNIT 2

MIDI OUT A



MIDI Data Send









MIDI OUT B/







THRU







USB



BCF/BCR2000



MIDI IN



UNIT 1

MIDI OUT A



MIDI Data Send

MIDI OUT B/

MIDI-Expander







THRU



Parameter

Merge





to Computer





Feedback

USB

Computer

from Computer









Fig. 4.5: Routing in USB mode 4

This operating mode should be selected if you want to couple two B-CONTROLs (e.g. 1x BCF2000 & 1x BCR2000) to control your software using both B-CONTROLS through a common USB port. Additionally, MIDI OUT B of the first controller (unit 1) can be used from the computer as a 16-channel MIDI output. The data

of both B-CONTROLs is mixed and is sent to the host computer via USB. Select stand-alone mode 3 for the second unit (unit 2).

4.1.2 Stand-alone modes

The stand-alone modes come into play when the B-CONTROL is not used as a USB-controller for controlling PC applications but as a pure MIDI controller. With all stand-alone modes, all MIDI connectors can be used simultaneously,

and these modes differ only in how the data is transmitted on the MIDI outputs. Of course, not only sound generators can be remotely controlled (as shown in the illustrations) but also effects processors, groove boxes, hardware sequencers, lighting equipment, compact ­studios, portable keyboards, e-pianos etc. – basically any equipment with a MIDI input. This can also be your computer with its own MIDI interface. The USB connector can not be used while your B-CONTROL is in one of the stand-alone modes. A merge function that makes mixing MIDI data from two different sources to one output possible is active at output A in stand-alone modes S-1 to S-3.



12 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual















Stand Alone-Mode S-1:

Stand Alone-Mode S-2:





MIDI Keyboard

MIDI Keyboard











































































































MIDI

OUT









MIDI

OUT



MIDI-Expander A











Sampler



VOLUME

MUTE

DEMO

FILTER

LEVEL







PHONES

PROG

TYPE

COMBI

PLAY

POWER



MIDI IN

MIDI-Expander B

MIDI IN



MIDI-Expander





VOLUME

MUTE

DEMO

FILTER

LEVEL

















PHONES

PROG

TYPE

COMBI

PLAY

POWER

VOLUME

MUTE

DEMO

FILTER

LEVEL



MIDI

IN











PHONES

PROG

TYPE

COMBI

PLAY

POWER









MIDI

IN

































MIDI IN

OUT A

OUT B/THRU









MIDI IN

OUT A

OUT B/THRU























































Parameter Feedback



MIDI IN







MIDI Keyboard











B-CONTROL









MIDI OUT A









MIDI-Expander A

































MIDI Data Send



Merge

MIDI OUT B/









MIDI-Expander B













BCF/BCR2000









THRU











to Computer

USB





























from Computer

Fig. 4.6: Routing and use in stand-alone mode 1

S-1 is probably the most frequently used standard operating mode among the stand-alone applications. We recommend using it when you for example want to control two sound generators from your B-CONTROL, whereby both sound generators are played simultaneously from a master keyboard.

To do this, MIDI data from the B-CONTROL and the keyboard have to be mixed and transmitted on both MIDI OUTs. This is done using the integrated merge function. The master keyboard is connected to the MIDI input of the B-CONTROL. Both expanders played from the master keyboard and controlled by the B-CONTROL are connected at the MIDI outputs. Control data for the

BCF2000 / BCR2000 will probably be program change and real-time controller commands, while the keyboard will typically transmit keyboard commands (note on/off, velocity, after touch, pitch bend).











































































Parameter Feedback



MIDI IN







MIDI Keyboard











B-CONTROL







MIDI OUT A









Sampler





























MIDI Data Send



Merge

MIDI OUT B/









MIDI-Expander B













BCF/BCR2000







THRU









to Computer

USB



























from Computer

Fig. 4.7: Routing and use in stand-alone mode 2

Say you want to control just one sound generator from your B-CONTROL because the tone generator allows extensive editing (e.g. it’s a rack synthesizer or a sampler, as shown above). The MIDI keyboard should be able to play both sound generators. In this case, S-2 is the optimal setup. The second sound module can be a pure preset unit that doesn’t allow any programming. However, it can also be an effects unit that only receives program commands from the keyboard.

This operating mode is also very useful when the data received by the second unit is undesired and could otherwise disrupt operation (e.g. to MIDI functions that cannot be switched off or the MIDI channel can not be changed).

13 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

Stand Alone-Mode S-3:

MIDI Keyboard

MIDI OUT

MIDI-Expander A

VOLUME

MUTE

DEMO

FILTER

LEVEL



PHONES

PROG

TYPE

COMBI

PLAY

POWER

MIDI IN

MIDI-Expander B











VOLUME

MUTE

DEMO

FILTER

LEVEL



PHONES

PROG

TYPE

COMBI

PLAY

POWER

MIDI IN

MIDI IN

OUT A OUT B/THRU

If you don’t require the response function during software control, you can connect as many BCF2000 / BCR2000s as you want per MIDI. The last B-CONTROL in the chain is then connected to the MIDI IN input of your computer. This way, you can control nearly as many channels of a software mixer as you wish. However, keep in mind that all devices must share 16 MIDI channels.

Stand Alone Mode S-4:













Software Sequencer













push



MIDI OUT



MIDI IN



Software Mixer





















turn













move/













fade













push













Software Synthesizer

MIDI-Expander









turn











VOLUME

MUTE

DEMO

FILTER

LEVEL



move/

PHONES

PROG

TYPE

COMBI

PLAY

POWER

fade













push

MIDI IN

MIDI IN OUT A

OUT B/THRU























Parameter Feedback



MIDI IN







MIDI Keyboard











B-CONTROL

Merge MIDI OUT A









MIDI-Expander A







MIDI Data Send



MIDI OUT B/









MIDI-Expander B













BCF/BCR2000





THRU







to Computer

USB























from Computer

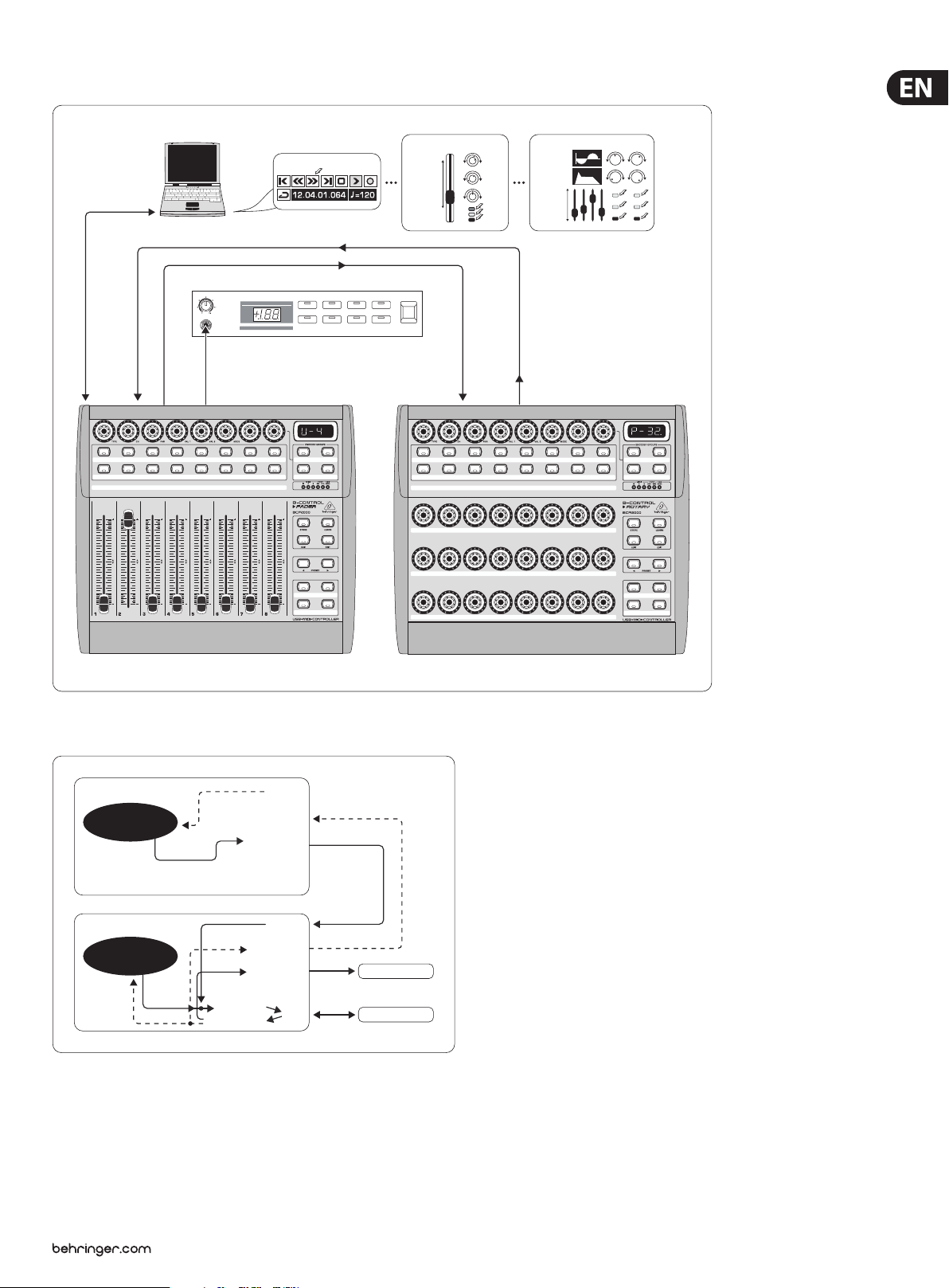

Fig. 4.8: Routing and use in stand-alone mode 3

In this mode, MIDI data from the BCF2000 / BCR2000 is mixed with the data coming in at the MIDI input (merge function), but is exported exclusively on output A. Only control data of the B-CONTROL is available at output B.

This way, you can control two MIDI devices from your B-Control, but only the device connected at OUT A can additionally be played from the MIDI keyboard.

If you want to daisy-chain two B-CONTROLs to jointly control several MIDI devices, you need to connect OUT A of the first B-CONTROL to MIDI IN of the second B-CONTROL. OUT A of the second B-CONTROL needs to be connected to the MIDI input of the effects unit. If additional MIDI devices need to be

“talked to,” please connect the THRU port of one MIDI device to the IN port of the next MIDI device. This way, with different MIDI channel assignments,­ each MIDI device can be controlled from each one of the B-CONTROLs.

If additional MIDI inputs are needed, then external MIDI merge boxes must be used. For example, if your sound module only has one MIDI IN connector, and you want to control if from several MIDI controllers and from a keyboard, you will need a 2-in / 1-out merge box.

If additional MIDI outputs are required, you will need external thru boxes. With more complex MIDI setups, thru boxes are preferred to using longer thru chains to prevent data transmission problems.

Parameter Feedback

MIDI IN





MIDI OUT A

Computer

B-CONTROL







MIDI Data Send

MIDI OUT B/

MIDI-Expander





THRU



BCF/BCR2000

to Computer

USB







from Computer



Fig. 4.9: Routing and use in stand-alone mode 4

The Stand Alone mode “S-4” is very similar to mode “S-2”, with the difference that the merge function is not available. This mode is ideally suited for connecting to the MIDI interface of a computer without a USB connector.

The B-CONTROL routes the incoming data to the MIDI output B (the Thru function). MIDI control commands are laid out at output A. This way, parameter feedback is possible without the danger of creating a MIDI loop.

Connect the MIDI output on the MIDI interface of your computer to the MIDI IN input on the B-CONTROL. Connect OUT A to the MIDI input on the interface. An additional MIDI receiver can be connected to OUT B. An expansion using a second B-CONTROL is also conceivable. To do that, connect the B output with

MIDI IN on the next MIDI receiver. To send MIDI commands from several units to your PC, use an external MIDI merge box.

14 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

Important information about stand-alone modes:

With the wiring examples shown here, the parameter values of the controlled devices can be shown on the B-CONTROL’s LEDs (parameter feedback). If this is important to you, you will have to connect MIDI IN to the MIDI output of the device you are controlling. Of course, the hardware unit you are using has to

support sending back the parameter values. If in doubt, check the user manual of the equipment you are using.

Parameter feedback is enabled in all stand-alone modes. Other stand-alone modes may cause undesirable MIDI loops. In stand-alone mode 3, the control data of your B-CONTROL is routed to the MIDI output B without the

merge function.

Your B-CONTROL can also control your computer via MIDI (without a USB connection) as long as your computer features a MIDI interface. In this case, all stand-alone modes can be used. To utilize parameter feedback, you should

still use the stand-alone mode 4. Alternatively, you can also use S-3 and connect the computer via MIDI OUT B so that no MIDI feedback loop is created.

4.2 “Play” mode menu

The Play mode menu is the highest menu level in the B-CONTROL. Use it during normal operation for real-time control of MIDI data.

Display:

After switching on the unit, the current system software version is briefly displayed. Value changes are shown when using one of the control elements, provided that they have been activated.

Control elements:

You can use several keys, encoders and faders simultaneously and send their MIDI data. The classification of MIDI data types is explained in chapter 4.4. According to its assigned MIDI data type, each control element shows the current parameter value in the corresponding LED or LED ring.

The position of the faders changes automatically as soon as you choose another preset or during incoming parameter messages.

LED display:

The encoder LED ring displays or the status LEDs of the buttons change automatically when running controller recordings in a sequencer, provided,

of course, all connections have been made correctly, the correct operating mode is enabled and the software sequencer supports sending parameter values.

Button illumination varies according to the controller mode: if a button is in “Toggle on” mode, the button LED illuminates as soon as the button is pressed. Only when you press the button once again, the LED goes out. If a button is

in “Toggle off” mode, the corresponding LED will be lit only for the time the button is pressed.

The performance of the control elements, the display and the LED displays can be individually set up and is explained in chapter 4.3 “Programming”.

4.2.1 Selecting a preset

Select a preset with the Preset button (8). The new preset number is indicated in the display

Alternatively, you may select a preset by pressing and holding down the preset button while moving one of the push encoders (1)

As soon as you release the Preset button, the new preset is active

4.2.2 Copy / Store presets

Press the STORE button to save a preset. The button LED starts to flash

Select a memory number using the PRESET buttons or by holding down one of the PRESET buttons while moving a push encoder at the same time. The new preset number flashes in the display

By pressing STORE again, the STORE LED and the display stop flashing

If you want to overwrite the current preset, press the STORE button twice (step 2 can be cancelled)

Cancel the store procedure by pressing the EXIT button

We deliberately did not include an autostore function. That way,

you can assign a new MIDI control to a control element without changing the currentpreset. If you want to restore a preset, just select another preset briefly and again return to editing. Now, the old data has been restored.

4.2.3 Copying encoder groups

With this function you are able to copy an entire encoder group within a preset. This saves a lot of programming effort if all encoder groups within a preset consist of the same basic functions (e.g. MIDI channel, CC number for turn and push function).

Press the encoder group button of the group you want to copy.

Press STORE; the STORE button LED flashes

Now select the destination encoder group. The destination encoder button LED flashes

Press STORE again, the STORE button LED is no longer lit

Cancel the store procedure at any time by pressing EXIT

To permanently store encoder group settings, carry out the preset store function as explained in chapter 4.2.2.

To copy an encoder group into a different preset, you have to copy an entire preset! After that, you can copy or rearrange the encoder groups in the new preset as described above.

4.3 Programming

4.3.1 The LEARN function

The easiest way to assign MIDI functions to individual control elements is to use the LEARN function. Here, the MIDI data is assigned remotely. For example,

MIDI data sent from a MIDI sequencer to your B-CONTROL is assigned to a control element selected beforehand.

With LEARN, not only CC, NRPN and note commands can be received but almost any type of MIDI data, including short SysEx strings.

Press and hold the LEARN button while operating any control element. This can be a fader (BCF2000 only), an encoder BCR2000 only),

a PUSH encoder, button, footswitch or sustain pedal (BCF2000 only). The control element is shown in the display (e.g. E 24 or Fd 8)

When using push encoders, select an encoder group beforehand.

In addition, you have to differentiate between turn and push function.

Now, release the LEARN button. The B-CONTROL is waiting to receive MIDI data

Start transmitting MIDI data from your sequencer. As soon as the data is received by the BCF2000 / BCR2000, it is shown in the display

After correct data transmission, the display shows “GOOD” or “BAD” if wrong, faulty or too extensive data has been sent

To leave or cancel LEARN, press the EXIT button

15B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

4.3.2Programming in EDIT mode

Various types of MIDI commands (Pitchbend, After Touch, MMC etc.) are assigned to the individual control elements in EDIT mode.

To activate the EDIT mode, press and hold the EDIT button and operate a control element. This can be a fader, sustain pedal (BCF2000 only), an encoder (BCR2000 only), a push encoder, a button or footswitch. The control element is indicated in the display (e.g. E 24 or Fd 8)

When using push encoders, select an encoder group beforehand.

In addition, you have to differentiate between turn and push function.

Release EDIT; you are now in the EDIT mode

Using the push encoders, you can now assign MIDI commands to the selected control element. You will find all possible MIDI function in tables 4.1 and 4.2, including all accompanying explanations

If you want to assign MIDI data to additional control elements, just press and hold the EDIT button and move one of the control elements. Now, let go of both controls and use the push encoders to assign a function to it

(see tables 4.1 and 4.2)

To leave the EDIT mode, press EXIT

Initially, all settings made here are stored temporarily! If you intend to store them in a preset, please see chapter 4.2.2.

The detailed EDIT functions are described in the following two tables.

With the assignable control elements, we differentiate between CONTINUOUS and SWITCH types.

CONTINUOUS-type control elements (table 4.1) include the eight BCF2000 faders and sustain pedal, the 24 encoders of the BCR2000, the turn function of the push encoders

SWITCH-type control elements (table 4.2) are buttons, press functions for push encoders and footswitches

CONTINUOUS TYPE CONTROLLERS (encoders, turn function of Push Encoders, faders, foot controller)













PUSH ENCODER













1

2

3

4

5

6

7

8

MIDI Data Type



MIDI Send Channel



Parameter



Value 1



Value 2



Controller MODE



Controller Option



Display Value

PROGRAM CHANGE



1-16



Off, Bank Select MSB



Off, Bank Select LSB







See below 1*



Value indication:





























On/Off

















































Absolute





























Absolute (14-Bit)









CC



















Relative 1











1-16



CC-0-127



Min. value:



Max. value:



Relative 2



See below 1*



Value indication:

(Control Change)







0-127/16383



0-127/16383



Relative 3





On/Off









































Relative 1 (14-Bit)





























Relative 2 (14-Bit)





























Relative 3 (14-Bit)





























Absolute





























Absolute (14-Bit)









NRPN



















Relative 1















NRPN Parameter



Min. value:



Max. value:



Relative 2







Value indication:

(Non Registered



1-16









Relative 3



See below 1*







Number



0-127/16383



0-127/16383







On/Off

Parameter Number)













Relative 1 (14-Bit)





















































Relative 2 (14-Bit)





























Relative 3 (14-Bit)





























Inc/Dec









PITCH BEND



1-16





Range 0-127







See below 1*



Value indication:















On/Off





































Key number





















AFTER TOUCH



1-16



0-127, ALL



Min. value:



Max. value:





See below 1*



Value indication:





(All = Channel



0-127



0-127







On/Off































Aftertouch)





























Select GS/XG-Main





















GS/XG



1-16



Control-parameter



Min. value:



Max. value:





See below 1*



Value indication:





with clear text



0-127"



0-127"







On/Off































indication





















1*) Controller option:





























a)Push Encoders LED behaviour: Off, 1d (1 LED on), 1d- (1 LED on, but value 0 = LED off), 2d, 2d-, Bar, Bar-, Spread, Pan, Qual(ity 'Q'), Cut(off), Damp(ing)

b)Faders: Move, Pick-Up, Motor (only BCF2000)

c)Foot controller: Move, Pick-Up (only BCF2000)

Tab. 4.1: Assignment of the push encoders in EDIT mode (CONTINUOUS types)

16

B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual













SWITCH TYPE CONTROLLERS (buttons, foot switches, push function of Push Encoders)

































PUSH ENCODER































1

2

3

4

5

6

7

8





MIDI Data Type

MIDI Send Channel

Parameter

Value 1

Value 2

Controller MODE

Controller Option

Display Value















Fixed Program





Value indication:























PROGRAM CHANGE

1-16

Off, Bank Select MSB

Off, Bank Select LSB

Change-value:





On/Off















Off, 0 - 127



















































CC











Toggle On

In case of

Value indication:







1-16

CC-0-127

On-value: 0-127

Off-Value: Off, 0-127

Toggle Off

'Increment' Steps:





(Control Change)

On/Off













Increment

-127...+127













































NRPN





NRPN Parameter





Toggle On

In case of

Value indication:





(Non Registered

1-16

On-value: 0-12

Off-Value: Off, 0-127

Toggle Off

'Increment' Steps:





Number

On/Off





Parameter Number)







Increment

-127...+127









































NOTE (MIDI notes)

1-16

MIDI Note Number:

Fixed velocity-value:

Toggle On

Value indication:





0-127

0-127

Toggle Off

On/Off















































Key number







In case of







AFTER TOUCH

1-16

0-127, ALL

Min. value:

Max. value:



Value indication:





'Increment' Steps:





(All = Channel

0-127

0-127

On/Off













-127...+127











Aftertouch





























































Select:

If Frame rate not Off

Frame Rate:

































Locate position time

Locate position time

Off









MMC





Play, Pause, Stop,













24









(MIDI machine

MIDI Device number:

Fwd, Rew

(1st part): hh:mm

(2nd part): ss:ff



Value indication:





25





control)

0-126, ALL

Locate

Locate position

(Frames) Locate

On/Off





30













Punch In

always sent first

position always sent















30d















Punch Out

(before MMC-

first (before MMC-















(drop frame)

















command)

command)























































Select GS/XG-Main















GS/XG

1-16

Control-parameter

On-value: 0-127

Off-value: Off, 0-127

Toggle On

Value indication:





with clear text

Toggle Off

On/Off



























indication

































Tab. 4.2: Assignment of the push encoders in EDIT mode (CONTINUOUS types)

Table explanation:

All settings in the EDIT mode are made by turning the push encoders. Pressing the push encoder displays its current value. In addition, the setting options depend on whether the selected control element is a SWITCH type or CONTINUOUS type.

In the EDIT mode, Push Encoder 1 selects (by turning) the type of command assigned to a control element.

With Push Encoder 2, select a MIDI channel through which that control element’s data is sent.

Push Encoders 3 - 5 set parameters and values for the selected MIDI type.

They vary depending on the MIDI function. More details about this subject can be found later in this chapter.

Push Encoder 6 (Controller Mode) selects how the previously selected control element behaves, depending on whether it is a SWITCH or a CONTINUOUS type

CONTINUOUS-type elements:

CONTINUOUS-type element controls are divided into “Absolute,” “Absolute

(14 bit),” “Relative 1” (2nd complement), “Relative 2” (binary offset), “Relative 3” (MSB, most significant bit), “Relative 1 (14 bit),” “Relative 2 (14 bit),” “Relative 3 (14 bit)” and “Increment/Decrement.” Absolute means absolute data values although jumps may occur when changing values. With Relative, the current parameter value is continued independently from the position of the control. Absolute (14-Bit) or one of the Relative (14-Bit) modes are standard modes

for value changes at NRPNs with high resolution. This is necessary with some software mixers if more than 128 steps are needed. Increment / Decrement serves as a step-by-step increase or decrease of values by using the Data Increment / Decrement commands (see list 5.1 in the appendix).

The classic controler mode for most applications is “absolute”. All other modes have to be supported by the MIDI software or the device to be controlled.

Using Push Encoder 7, you can adjust how control elements display information. Depending on whether you are dealing with an encoder, push encoder, fader or foot pedal, there are different options available:

LED display of the push encoders:

OFF

The LED circle remains off.

1d

(1 digit): Only one LED lights up (standard setting).

1d-

The LED circle operates similar to “1d”, but when the value is 0,



no LED lights up.

2d

The display of the LED circles occurs in two stages. If you slowly turn the



encoder from left to right, at first only one LED lights up, and then the



next LED lights up while the previous LED goes out, and so on. This way,



even the slightest value changes can be accurately represented.

2d-

Just like “2d”, but when the value is 0, no LED lights up.

Bar

Bar display: when the value is changed, all LEDs light up successively



(for volume etc.).

Bar-

Just like bar display, but when the value is 0, no LED lights up.

Sprd

Spread: When the value is 0, the upper middle LED lights up; when the



value is increased, the LED circle gradually lights up in both directions



(left and right).

Pan

In the middle position (value = 64), only the upper middle LED is on.



With lower values, the LED circle lights up toward the left; with higher



values, the LED circle lights up toward the right (panorama adjustment).

17 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

Qual

(Quality Q) has the opposite effect from spread: the LED circle lights



up gradually when you decrease the value. This setting is used for



indicating filter quality with parametric equalizers.

Cut

Cutoff is optimal for controlling the cutoff frequency of a low-pass filter,



for example on a synthesizer. When the value is 0, all LEDs light up.



The LEDs go out successively as you increase the value.

Damp

Damping: used for damping filters. When the value is 0, the outer right



LED lights up. If the values are increased, the LED circle fans out from



right to left until all LEDs light up. This way, increasing damping is best



represented when a value goes up.

Encoder LED display (BCR2000):

1d (1 digit): Only one LED lights up at a time (standard setting).

1dThe LED circle operates similar to “1d”, but when the value is 0, no LED lights up.

Fader functions (BCF2000):

Move

If you move the fader by hand, it sends a new value directly. In doing so,



jumps in the parameter value may occur if the current value doesn’t



correspond to the fader position. This can sometimes happen because in



this mode parameter feedback doesn’t cause fader movement.

P-UP

Pick up: The fader ignores the parameter feedback. However,



value jumps are avoided because the fader only sends values if the



current value (different from the fader setting) is exceeded.

Mot

Motor: With parameter feedback, the motorized fader engages



automatically and always indicates the current value.

Foot controller function:

Move

The pedal immediately sends value changes. Value jumps may result.

P-UP

Pick-Up: The foot pedal become active and sends values only if the set



value is exceeded.

SWITCH-type elements:

Switch-type control elements have three different modes: “Toggle On”, “Toggle Off” and “Increment”. Toggle On is similar to a switching function (e.g. a light switch). Each time you press the switch, the value sent alternates

between the “on” value (set by encoder 4) and the “off” value (set by encoder 5). This setting is perfect for triggering drum loops from a sampler (press once = start, press again = stop).

The Toggle Off mode corresponds to a momentary-contact button, comparable to the switch of an electric door opener. The “on” value is sent only as long as the button is pressed. After releasing the button, the “off” value is sent. Use this control type to trigger short sound FX or samples (similar to using a keyboard) by sending Note On and Offs.

The Increment option only works for buttons, and only on CC, NRPN and after touch command types. This mode lets you gradually increase the controller value with each new keystroke. Set up increment size using encoder 7. If you repeatedly press a button, the value sent will be increased each time by the preset amount selected here. If increment size is set to “10,” values 0, 10, 20, 30 ...

110, 120, 0, 10 and so on will be successively sent one after another. You can also enter negative values (e.g. -10) to achieve a gradual decrease in the value. If you use encoders 4 and 5 to delineate the lowest and the highest value that are to be sent, the values always stay within that range here as well. With this function, you have the option to use your B-CONTROL to control software buttons with more than two switch positions.

The value display activated using Push Encoder 8 is identical for switch and continuous elements. If this value display is active, the current value is indicated in the four-digit display when you actuate a control element. The display shows the preset number again as soon as you release the control element.

4.4 MIDI messages

Program Change:

With the encoders 3 and 4 you can select bank numbers. If a MIDI device contains more than 128 presets / programs, first a bank change command has to be sent. Even though this is a controller command, it has to be sent before the program change (and is therefore adjustable) since it is linked to the preset change.

If the bank select message is not needed, simply select “off”.

Encoder 5 selects the program number. If the selected control element is a control dial (continuous type), the program number is directly selected when turning the dial. Pressing the switch directly selects the assigned program number. This can be useful if you always want to start from the same preset.

Control Change CC:

A control change consists of a controller number and its respective value. Encoder 3 sets the controller number. With buttons, different values can be sent when pressing and releasing (to be set with encoders 4 and 5). This function is useful if fixed parameter settings are to be sent.

With faders and control dials (continuous type), the value range can be determined by using encoders 4 (minimum value) and 5 (maximum value).

Alternatively, you can invert the value scale by assigning 127 as the minimum value and 0 as maximum value (scale inversion).

A classic application is the draw bar control of virtual or digital organs or organ expanders. If assigning controller 7 (volume) to the faders of the BCF2000 this way, the signal becomes quieter when moving up the fader. Moving down the fader is similar to moving out the draw bars, and the volume increases.

NRPN:

A NRPN is needed if none of the 127 standardized controller numbers are available for a certain function.

Encoder 3 selects the parameter number. For assigning mixer faders,

we recommend the high resolution (“Absolute 14 bit”), provided that the control hardware / software supports it.

Note:

Of course, a note can only be assigned to one SWITCH element. The note is set with encoder 3. Note C3 (C key) corresponds with note number 60. Encoder 4 sets the note velocity (note volume).

Pitch Bend:

Pitch bend is assignable to only one CONTINUOUS element. Since this is a type of command with its own status byte, selecting a MIDI channel (Encoder 2) and Range (Encoder 4) is sufficient.

After Touch:

Normally, “ALL” is selected here. This means that After Touch affects all notes equally (“Channel Pressure”). If you want to use a polyphonic After Touch (“Key Pressure”), the single note on which After Touch should have an effect can be selected using encoder 3. Since this process is only supported by a few tone generators, channel After Touch will be best most of the time. When a switch element has been selected, an “on” and “off” value can also be set (release dynamic). Therefore, you can limit the modulation range (FX depth) using After Touch.

18 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

MMC:

MIDI Machine Control data is only assignable to button elements.

Encoder 4 (Value 1) sets “Locate Time” hour and minute values, while encoder 5 (Value 2) sets seconds and frames. The Locate Position is always sent before the MMC command. We therefore have the following logic-switching sequence:

If the “Locate” parameter has been selected, the sequencer or hard drive recorder always jumps to the set position. If “Play” has been selected as the parameter (for a button), the sequencer always starts from the set locator point as soon

as the button is pressed. “Rewind” always begins at the chosen locator point. Select the frame rate with encoder 6: 24, 25, 30 (non-drop), 30d (drop frame) or “off” (in this case only the MMC message is sent, without any information of the locate position).

GS / XG:

Encoder 3 directly selects the most important “Main Control” parameters.

The display indicates them as a (shortened) text (table 4.2). In this case, these are CCs or NRPNs (no SysEx data).

GS / XG-Parameter

Type

Display

Filter Cutoff

NRPN

CUTF

Filter Resonance

NRPN

RESO

Vibrato Rate

NRPN

RATE

Vibrato Depth

NRPN

DEPT

Vibrato Delay

NRPN

DLY

EG Attack

NRPN

ATC

EG Decay

NRPN

DCY

EG Release

NRPN

RELS

Modulation

CC 1

MODU

Portamento Time

CC 5

PORT

Volume

CC 7

VOL

Pan

CC 10

PAN

Reverb Send

CC 91

REVB

Chorus Send

CC 93

CRS

Delay / Variation Send

CC 94

VARS

Table 4.3: GS / XG Parameter Main Controls

Encoders 4 and 5 let you confine or invert each controllers’ value range.

4.5 Settings in the global setup menu

Settings that have an effect on all presets are made in the global setup menu.

Keep the EDIT key pressed and at the same time press the STORE key

You are now in the global setup menu, and can let go of both keys

Now, turn the push encoders 1 to 8 to get the desired setting. This is how the push encoders are allocated

Encoder

Function

Select

1

Operating Mode

U-1 ... U-4, S-1 ... S-4

2

Global RX Channel

Off, 1 ... 16

3

Footswitch

Auto / Normal / Inverted

4

Start-Preset

1

... 32, Last

5

Device ID

1

... 16

6

SysEx Dump

Single/All

7

8

MIDI Data Interval

(ms)

Table 4.4: Push encoder allocation in global setup menu

To exit the global setup menu, press EXIT

The settings in the global setup menu take effect immediately and do not have to be separately stored

Operating Mode:

The operating modes are described in chapter 4.1. You can select USB modes U-1 to U-4 and stand-alone modes S-1 to S-4.

Global RX Channel:

The B-CONTROL receives program change commands on this channel.

Footswitch type:

Because there are different kinds of footswitches (depending on their switching behavior), the polarity of the footswitch connector can be set (normal / inverted), or it can be automatically detected during power startup (auto recognition).

Start Preset Number:

Each of the 32 presets can be selected as the startup preset. Additionally, with the “Last” function, at startup you have the option to always load the preset that was used last.

Device ID Number:

You should change the ID number settings only if you work with several BCF2000s or BCR2000s at the same time, and problems with recognizing the correct device start occurring during a SysEx Dump procedure.

Please keep in mind that SysEx Dumps can only be received at the device number to which they were sent!

SysEx Dump Select:

Turning push encoder 6 lets you select between the current preset (single) or the entire memory contents of the 32 presets (all) should be sent as a SysEx dump. One press on encoder 6 triggers the dump.

To receive a SysEx dump, you don’t have to change any settings on your equipment. If you send a single preset to the B-CONTROL, the data is written to a temporary memory; to be stored permanently, the data has to be stored on a storage slot of your choice (preset store function).

WARNING: If you send an “ALL-Dump” to the B-CONTROL, the entire memory contents are directly overwritten! No request to confirm will be made, and the memory has no redundant safety function!

To cancel a SysEx dump, press the EXIT key

MIDI Data Interval:

This is where you adjust the data transmission rate. This setting only has an effect on MIDI data packs such as SysEx dumps and not on controlling of MIDI commands (they are carried out in real time anyway). The transmission rate is adjustable in milliseconds.

19B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

4.6Additional functions

Temporary “Local Off”:

“Local Off” means that when you move a control element on the B-CONTROL, no MIDI data is transmitted. If the position of a control element deviates from the current value in the software, you can readjust its position until the correct position is found by using this function. After that, the control can be moved again without creating an audible value deviation.

Deviations between the position of a control element and the current parameter value can occur if no parameter feedback is being sent while a value is being changed in the software (e.g. mixer automation).

Press the EXIT key and keep it pressed

Move the desired control element until you get the correct value

Let go of the EXIT key. The control element can now be moved again

Panic Reset:

This function resets the most important MIDI data to their factory settings.

Press EDIT and keep it pressed

Now press EXIT. The reset is performed as soon as you press EXIT. “PAnC” (for “Panic”) appears in the display

As soon as the reset is over, your B-CONTROL goes automatically into the play mode, and the current preset is shown in the display

Data Request:

Current value settings of the MIDI device connected to your B-CONTROL can be transmitted to your B-CONTROL using the data request function (provided that the MIDI device supports this function, and a request command was defined using the editor software). In this case, the MIDI device doesn’t send data;

the B-CONTROL requests them instead.

Press the LEARN key while the EDIT key is kept pressed. The request takes place, and the B-CONTROL indicates the controller values of the receiving MIDI device on the LED ring or through fader positions

Snapshot Send:

A Snapshot Send lets you send all current controller values in order to transmit the B-CONTROL settings to the connected MIDI device.

Press the “◄PRESET” key while the EDIT key is kept pressed. The B-CONTROL now sends the current controller settings

Single Preset Dump:

In addition to the SysEx Dump function in the global setup menu, the following key combination lets you send all settings of the current presets:

Press the “ PRESET ►” key while the EDIT key is kept pressed

If you want to cancel the dump, press the EXIT key

Snapshot Send and Single Preset Dump differ in the kind of data that is being sent: With Snapshot Send, only current control values are transmitted in order to synchronize them with the connected MIDI device. With Single Preset Dump, the entire contents of the current preset including the current control assignments are sent. With this function, you can easily archive certain presets, or swap them with other B-CONTROL users.

Motor Off Function (BCF2000):

The BCF2000 fader motors can be temporarily disengaged. To do that, one or several fader(s) is / are assigned a key that disengages the fader’s motor for the duration of the keystroke. All 20 programmable keys ((2) and (9)) are available.

Press the EDIT key and keep it pressed

Move the fader(s) whose motors you wish to disengage

Press the key to which you want to assign the motor-off function

Exit with EXIT

The MIDI command assigned to a key remains preserved. This way, that MIDI function can be used simultaneously with the fader motor being disengaged when the key is pressed.

20B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

5.Appendix

Standard MIDI Controller (CC) Numbers

























00



Bank Select



32



Bank Select LSB



64



Damper Pedal (Sustain)



96



Data Entry +1 (Increment)















01



Modulation



33



Modulation LSB



65



Portamento On / Off



97



Data Entry -1 (Decrement)

02



Breath Controller



34



Breath Controller LSB



66



Sostenuto On / Off



98



NRPN LSB

03



Controller 3 (undefined)



35



Controller 35 (undefined)



67



Soft Pedal On / Off



99



NRPN MSB

04



Foot Controller



36



Foot Controller LSB



68



Legato Footswitch



100



RPN LSB

05



Portamento Time



37



Portamento Time LSB



69



Hold 2



101



RPN MSB

06



Data Entry MSB



38



Data Entry LSB



70



Sound Controller 1



102



Controller 102 (undefined)











(Sound Variation)

































07



Channel Volume



39



Channel Volume LSB



71



Sound Controller 2



103



Controller 103 (undefined)



(formerly Main Volume)





(formerly Main Volume)





(Resonance / Timbre)





























08



Balance



40



Balance LSB



72



Sound Controller 3 (Release Time)



104



Controller 104 (undefined)

09



Controller 9 (undefined)



41



Controller 41 (undefined)



73



Sound Controller 4



105



Controller 105 (undefined)

10



Pan



42



Pan LSB



74



Sound Controller 5



106



Controller 106 (undefined)

11



Expression



43



Expression LSB



75



Sound Controller 6



107



Controller 107 (undefined)

12



Effect Control 1



44



Effect Control 1 LSB



76



Sound Controller 7 (Vibrato Rate)



108



Controller 108 (undefined)

13



Effect Control 2



45



Effect Control 2 LSB



77



Sound Controller 8 (Vibrato Depth)



109



Controller 109 (undefined)

14



Controller 14 (undefined)



46



Controller 46 (undefined)



78



Sound Controller 9 (Vibrato Delay)



110



Controller 110 (undefined)

15



Controller 15 (undefined)



47



Controller 47 (undefined)



79



Sound Controller 10 (undefined)



111



Controller 111 (undefined)

16



General Purpose 1



48



General Purpose 1 LSB



80



General Purpose 5



112



Controller 112 (undefined)

17



General Purpose 2



49



General Purpose 2 LSB



81



General Purpose 6



113



Controller 113 (undefined)

18



General Purpose 3



50



General Purpose 3 LSB



82



General Purpose 7



114



Controller 114 (undefined)

19



General Purpose 4



51



General Purpose 4 LSB



83



General Purpose 8



115



Controller 115 (undefined)

20



Controller 20 (undefined)



52



Controller 52 (undefined)



84



Portamento Control



116



Controller 116 (undefined)

21



Controller 21 (undefined)



53



Controller 53 (undefined)



85



Controller 85 (undefined)



117



Controller 117 (undefined)

22



Controller 22 (undefined)



54



Controller 54 (undefined)



86



Controller 86 (undefined)



118



Controller 118 (undefined)

23



Controller 23 (undefined)



55



Controller 55 (undefined)



87



Controller 87 (undefined)



119



Controller 119 (undefined)

24



Controller 24 (undefined)



56



Controller 56 (undefined)



88



Controller 88 (undefined)



120



All Sound Off

25



Controller 25 (undefined)



57



Controller 57 (undefined)



89



Controller 89 (undefined)



121



Reset All Controllers

26



Controller 26 (undefined)



58



Controller 58 (undefined)



90



Controller 90 (undefined)



122



Local Control On/Off

27



Controller 27 (undefined)



59



Controller 59 (undefined)



91



Effects 1 Depth (Reverb)



123



All Notes Off

28



Controller 28 (undefined)



60



Controller 60 (undefined)



92



Effects 2 Depth (Tremolo)



124



Omni Mode Off

29



Controller 29 (undefined)



61



Controller 61 (undefined)



93



Effects 3 Depth (Chorus)



125



Omni Mode On

30



Controller 30 (undefined)



62



Controller 62 (undefined)



94



Effects 4 Depth



126



Poly Mode Off / Mono Mode On

31



Controller 31 (undefined)



63



Controller 63 (undefined)



95



Effects 5 Depth (Phaser)



127



Poly Mode On / Mono Mode Off

Table 5.1: Standard MIDI Controller

21 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

GS / XG-Parameter



Type



Display









Filter Cutoff



NRPN



CUTF











Filter Resonance



NRPN



RESO





Vibrato Rate



NRPN



RATE





Vibrato Depth



NRPN



DEPT





Vibrato Delay



NRPN



DELY





EG Attack



NRPN



ATTA





EG Decay



NRPN



DECY





EG Release



NRPN



RELS





Modulation



CC 1



MODU





Portamento Time



CC 5



PORT





Volume



CC 7



VOL





Pan



CC 10



PAN





Reverb Send



CC 91



REVB





Chorus Send



CC 93



CHOR





Delay/Variation Send



CC 94



VARI



Table 5.2: GS / XG Parameter Main Controls









Musical Note

MIDI Note Number

C-2



0

C#-2 / Db-2

1

D-2

2

D#-2 / Eb-2

3

E-2

4

F-2

5

F#-2 / Gb-2

6

G-2

7

G#-2 / Ab-2

8

A-2

9

A#-2 / Bb-2

10

B-2

11

C-1

12

C0

24

C1

36

C2

48

C3 (Clef C)

60 (Yamaha-Convention)

C4

72

C5

84

C6

96

C7

108

C8

120

G8

127

Table 5.3: MIDI note number assignment

22 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

6. Specifications

USB Interface



Type

Full-speed 12 MBit/sec. USB MIDI





class-compliant

MIDI Interface





Type

5-pin DIN connectors IN, OUT A, OUT B / THRU

Control Elements



BCF2000





Controls

8 motorized 100-mm faders





8 infinitely variable push encoders with





LED rings



Keys

20 keys 10 system keys (4x Encoder Group,





4x programming, 2x Preset)

BCR2000





Controls

4 infinitely variable encoders with LED rings





8 infinitely variable push encoders with





LED rings



Keys

20 keys 10 system keys (4x Encoder Group,





4x programming, 2x Preset)

Display





Type

4-digit 7-segment LED display

Switched Inputs



BCF2000





Footswitch

1 x 1/4" TS connector with automatic





polarity detection



Foot pedal

1 x 1/4" TRS connector

BCR2000



Footswitch





Input 1

1/4" TRS stereo connector for dual-footswitch



Input 2

1/4" TS connector both with automatic





polarity detection

Power Supply



Voltage

100 to 240 V~, 50/60 Hz



Power Consumption

max. 10 W



Fuse

T 1 A H 250 V



Mains Connection

Standard IEC receptacle

Dimensions / Weight



BCF2000





Dimensions (H x W x D)

approx. 13 x 4 x 11 4/5" / 330 x 100 x 300 mm



Weight

approx. 5.9 lbs / 2.7 kg

BCR2000





Dimensions (H x W x D)

approx. 13 x 4 x 11 4/5" / 330 x 100 x 300 mm



Weight

approx. 5.1 lbs / 2.3 kg

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.

23 B-CONTROL FADER BCF2000/ROTARY BCR2000 User Manual

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

B-CONTROL FADER BCF2000/

B-CONTROL ROTARY BCR2000

Responsible Party Name:

MUSIC Group Services US Inc.

Address:

18912 North Creek Parkway,



Suite 200 Bothell, WA 98011,



USA

Phone/Fax No.:

Phone: +1 425 672 0816



Fax: +1 425 673 7647

B-CONTROL FADER BCF2000/

B-CONTROL ROTARY BCR2000

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)this device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment.

We Hear You
