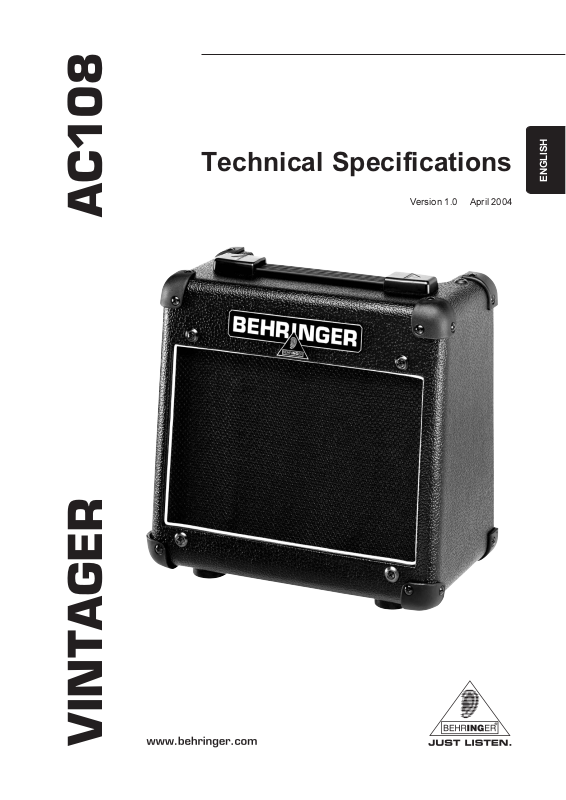

Technical Specifications
AC108
ENGLISH
Version 1.0 April 2004
VINTAGER
VINTAGER AC108
VINTAGER
15-Watt Vintage Guitar Amp with Vacuum Tube
s Extremely versatile guitar amplifier with hand-selected 12AX7 vacuum tube
s Authentic vintage design with ULTRATUBE circuitry for classic tube sound
s Powerful 20-Watt, 8" vintage-tuned guitar speaker
s 2-channel tube preamp and wide-range gain control for super-fat sounds with all pickup types
s Dedicated 2-band EQ plus mid-shift button for creative sound-shaping
AC108
s CD input allows you to play along to your favorite music
s Dedicated master level control and powerful headphone output
s Rugged construction for years of trouble-free use
s Designed in Germany. Manufactured under ISO9000 certified management system
2
VINTAGER AC108
SPECIFICATIONS
AUDIO INPUTS
Guitar input 1/4" TS connector
CD input 1/4" TRS connector
AUDIO OUTPUTS
Headphone output 1/4" TRS connector
SYSTEM DATA
Output stage power 15 Watts RMS into 4 Ohms
LOUDSPEAKER
Type 8" vintage design
Impedance 4 Ohms
Power rating 20 Watts
POWER SUPPLY
Mains voltage
DIMENSIONS/WEIGHT
Dimmensions
(H x W x D) approx. 322 mm (13 1/8")
Weight approx. 5.6 kg (11 lbs. 3 oz.)
guitar loudspeaker
USA/Canada 120 V~, 60 Hz
U.K./Australia 230 V~, 50 Hz
Europe 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
x 357 mm (14 1/16")
x 162 mm (6 3/8")
BEHRINGER is constantly striving to maintain the highest professional standards. As a
result of these efforts, modifications may be made from time to time to existing products without
prior notice. Specifications and appearance may differ from those listed or shown.
3
VINTAGER AC108
Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of
printing. The names of companies, institutions or publications pictured or mentioned and their respective logos are registered
trademarks of their respective owners. Their use neither constitutes a claim of the trademarks by BEHRINGER® nor affiliation of the
trademark owners with BEHRINGER®. BEHRINGER® accepts no liability for any loss which may be suffered by any person who relies
either wholly or in part upon any description, photograph or statement contained herein. Colours and specification may vary slightly
from product. Products are sold through our authorised dealers only. Distributors and dealers are not agents of BEHRINGER® and
have absolutely no authority to bind BEHRINGER® by any express or implied undertaking or representation. No part of this manual may
be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any
kind, for any purpose, without the express written permission of BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER® is a
registered trademark.
ALL RIGHTS RESERVED. © 2004 BEHRINGER Spezielle Studiotechnik GmbH,
Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany.
Tel. +49 2154 9206 0, Fax +49 2154 9206 4903
