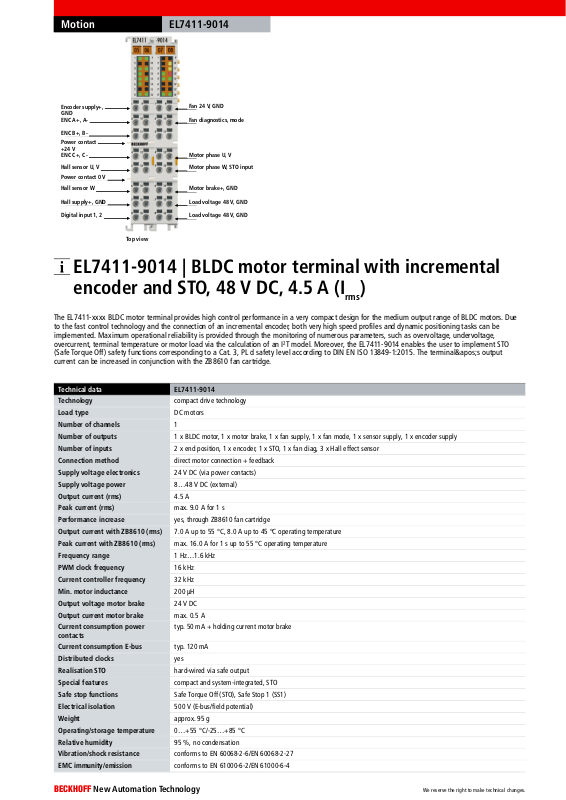

BECKHOFF EL7411-9014 Technical data
Motion
EL7411-9014
Power contact
+24 V
Power contact 0 V
Encoder supply+,
GND
ENC A+, A-
ENC B+, B-
ENC C+, C-
Hall sensor U, V
Hall sensor W
Hall supply+, GND
Digital input 1, 2
Fan 24 V, GND
Fan diagnostics, mode
Motor phase U, V
Motor phase W, STO input
Motor brake+, GND
Load voltage 48 V, GND
Load voltage 48 V, GND
Top view
EL7411-9014 | BLDC motor terminal with incremental
encoder and STO, 48 V DC, 4.5 A (I
rms
)
The EL7411-xxxx BLDC motor terminal provides high control performance in a very compact design for the medium output range of BLDC motors. Due
to the fast control technology and the connection of an incremental encoder, both very high speed profiles and dynamic positioning tasks can be
implemented. Maximum operational reliability is provided through the monitoring of numerous parameters, such as overvoltage, undervoltage,
overcurrent, terminal temperature or motor load via the calculation of an I²T model. Moreover, the EL7411-9014 enables the user to implement STO
(Safe Torque Off) safety functions corresponding to a Cat. 3, PL d safety level according to DIN EN ISO 13849-1:2015. The terminal's output
current can be increased in conjunction with the ZB8610 fan cartridge.
Technical data EL7411-9014
Technology compact drive technology
Load type DC motors
Number of channels 1
Number of outputs 1 x BLDC motor, 1 x motor brake, 1 x fan supply, 1 x fan mode, 1 x sensor supply, 1 x encoder supply
Number of inputs 2 x end position, 1 x encoder, 1 x STO, 1 x fan diag, 3 x Hall effect sensor
Connection method direct motor connection + feedback
Supply voltage electronics 24 V DC (via power contacts)
Supply voltage power 8…48 V DC (external)
Output current (rms) 4.5 A
Peak current (rms) max. 9.0 A for 1 s
Performance increase yes, through ZB8610 fan cartridge
Output current with ZB8610 (rms) 7.0 A up to 55 °C, 8.0 A up to 45 °C operating temperature
Peak current with ZB8610 (rms) max. 16.0 A for 1 s up to 55 °C operating temperature
Frequency range 1 Hz…1.6kHz
PWM clock frequency 16 kHz
Current controller frequency 32 kHz
Min. motor inductance 200 µH
Output voltage motor brake 24 V DC
Output current motor brake max. 0.5 A
Current consumption power
contacts
typ. 50 mA + holding current motor brake
Current consumption E-bus typ. 120 mA
Distributed clocks yes
Realisation STO hard-wired via safe output
Special features compact and system-integrated, STO
Safe stop functions Safe Torque Off (STO), Safe Stop 1 (SS1)
Electrical isolation 500 V (E-bus/field potential)
Weight approx. 95 g
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
EL7411-9014Motion
Power contact
+24 V
Power contact 0 V
Encoder supply+,
GND
ENC A+, A-
ENC B+, B-
ENC C+, C-
Hall sensor U, V
Hall sensor W
Hall supply+, GND
Digital input 1, 2
Fan 24 V, GND
Fan diagnostics, mode
Motor phase U, V
Motor phase W, STO input
Motor brake+, GND
Load voltage 48 V, GND
Load voltage 48 V, GND
Top view
Motion
EL7411-9014
BECKHOFF New Automation Technology
We reserve the right to make technical changes.
Protect. class/installation pos. IP 20/see documentation
Approvals/markings CE, UL
Accessories
ZB85xx shield busbar with mounting rail holder, shield busbar clamps
ZKxxx-xxxx-xxxx supply cables for compact Drive Technology
Product announcement
estimated market release on request
