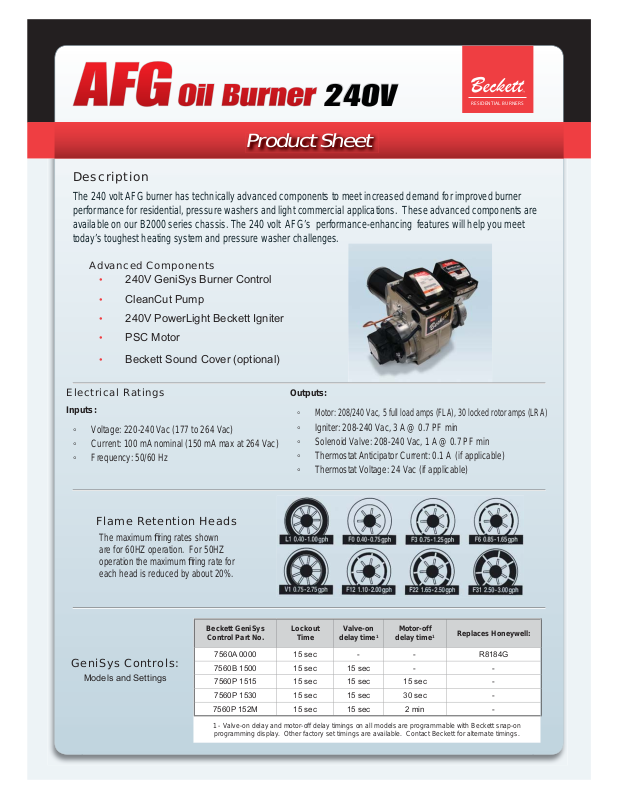

AFG

Oil Burner 240V

240V

RESIDENTIAL BURNERS

Product Sheet

Description

The 240 volt AFG burner has technically advanced components to meet increased demand for improved burner
performance for residential, pressure washers and light commercial applications. These advanced components are
available on our B2000 series chassis. The 240 volt AFG’s performance-enhancing features will help you meet

today’s toughest heating system and pressure washer challenges.

Advanced Components

• 240V GeniSys Burner Control

• CleanCut Pump

• 240V PowerLight Beckett Igniter

• PSC Motor

• Beckett Sound Cover (optional)

Electrical Ratings

Inputs:

◦ Voltage: 220-240 Vac (177 to 264 Vac)
◦ Current: 100 mA nominal (150 mA max at 264 Vac)
◦ Frequency: 50/60 Hz

Flame Retention Heads

The maximum fi ring rates shown
are for 60HZ operation. For 50HZ
operation the maximum fi ring rate for
each head is reduced by about 20%.

Beckett GeniSys

Control Part No.

GeniSys Controls:

Models and Settings

7560A 0000 15 sec - - R8184G

7560B 1500 15 sec 15 sec - -

7560P 1515 15 sec 15 sec 15 sec -

7560P 1530 15 sec 15 sec 30 sec -

7560P 152M 15 sec 15 sec 2 min -

1 - Valve-on delay and motor-off delay timings on all models are programmable with Beckett snap-on

programming display. Other factory set timings are available. Contact Beckett for alternate timings.

Outputs:

◦ Motor:
◦ Igniter: 208-240 Vac, 3 A @ 0.7 PF min
◦ Solenoid Valve: 208-240 Vac, 1 A @ 0.7 PF min
◦ Thermostat Anticipator Current: 0.1 A (if applicable)
◦ Thermostat Voltage: 24 Vac (if applicable)

Lockout

Time

208/240 Vac, 5 full load amps (FLA), 30 locked rotor amps (LRA)

Valve-on

delay time

1

Motor-off

delay time

Replaces Honeywell:

1

AFG

Oil Burner 240V

Product Sheet

Beckett GeniSys Control 240V

Features

◦ Welded Relay Protection
◦ Limited Recycle
◦ Limited Reset
◦ 3 Status Lights
◦ 15 Second Lockout Time
◦ Disable Function
◦ Communication Ports (2)
◦ Technician Pump Priming Mode
◦ Interrupted or Intermittent Duty Ignition

◦ Valve-On Delay / Motor-Off Delay

(Field programmable with Beckett add-on Display)

◦ Thermostat / Operating (if applicable) and Limit Control

Compatible

Description / Applications

The Beckett GeniSysTM Advanced Burner Control is a 208/240
Vac, 50/60 Hz primary safety control for residential and light
commercial oil burners used in boiler, furnace, and water
heater applications having fi ring rates less than 20 GPH.
The GeniSys is used with a suitable cad cell fl ame sensor
to control the oil burner motor, igniter, and optional solenoid
valve. It has 24 Vac thermostat terminals (if applicable)
compatible with both mechanical and many power stealing
thermostats. It can also provide interrupted or intermittent
duty ignition.

Chassis Plan

▫

Reduces Investment Up To 65%

▫ Reduces Storage Up To 85%
▫ Speeds Service Calls

The Beckett Chassis Plan lets you stock a minimum number
of oil burners and still get maximum installation fl exibility. The
chassis represents 90% of the total burner cost, but one chassis
adapts to all fi ring rates commonly encountered in upgrading and
replacement jobs.

de

240V

Other AFG Components

240V PowerLight Beckett Igniter

• Electrodes last approx. 50% longer.

• Higher output voltage for reliable ignition.

• Approximately 75% lower input amps.

CleanCut Pump

• Integrated solenoid (50/60 Hz) valve.

• Higher capacity design delivers up to 3

GPH at 100psi on the AFG burner.

• The CleanCut has fewer moving parts
and reduces motor load.

PSC Motor - 50/60 Hz

• Lower amp draw & cooler operation.

• Delivers more power with the PSC

design (permanent split capacitor).

• Proven durability after 10 years of high
reliability in the fi eld.

• Ball bearings for longer life.

Beckett Sound Cover (optional)

• Reduces near-burner air and
component noise.

• Enhances burner appearance.

• Easy to use knockout and adapter kit

when ducted air is required.

How to Order

Order Burner Chassis

1. Model AFG Burner Chassis

2. Type of Fuel Unit (single or two-stage)

3. Primary Control

Order Accessories

1. Specify type of supports required

2. Add any other items such as spare parts, related
controls, valves, etc.

RESIDENTIAL BURNERS

USA: R.W. Beckett Corporation • ph: [phone] • fax: [phone] | Canada: R.W. Beckett Canada Ltd. • ph: [phone] • fax: [phone]

www.beckettcorp.com

Form No. 61283, Printed in the USA 02/11
