Bacharach MGS-450 Specifications

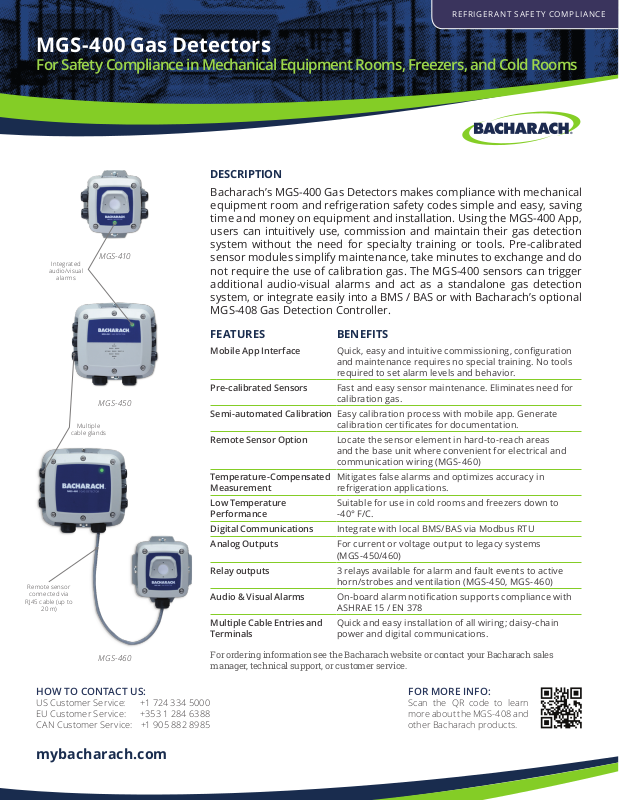

REFRIGERANT SAFET Y COMPLIANCE

MGS-400 Gas Detectors

For Safety Compliance in Mechanical Equipment Rooms, Freezers, and Cold Rooms

DESCRIPTION

Bacharach’s MGS-400 Gas Detectors makes compliance with mechanical
equipment room and refrigeration safety codes simple and easy, saving
time and money on equipment and installation. Using the MGS-400 App,
users can intuitively use, commission and maintain their gas detection
system without the need for specialty training or tools. Pre-calibrated

Integrated

audio/visual

alarms

MGS- 410

sensor modules simplify maintenance, take minutes to exchange and do
not require the use of calibration gas. The MGS-400 sensors can trigger
additional audio-visual alarms and act as a standalone gas detection
system, or integrate easily into a BMS / BAS or with Bacharach’s optional
MGS-408 Gas Detection Controller.

Remote sensor

connected v ia

RJ45 cable (up to

20 m)

Multiple

cable glands

MGS-450

FEATURES BENEFITS

Mobile App Interface Quick, easy and intuitive commissioning, conguration

and maintenance requires no special training. No tools
required to set alarm levels and behavior.

Pre-calibrated Sensors Fast and easy sensor maintenance. Eliminates need for

calibration gas.

Semi-automated Calibration Easy calibration process with mobile app. Generate

calibration certicates for documentation.

Remote Sensor Option Locate the sensor element in hard-to-reach areas

and the base unit where convenient for electrical and
communication wiring (MGS-460)

Temperature-Compensated
Measurement

Low Temperature
Performance

Digital Communications Integrate with local BMS/BAS via Modbus RTU

Analog Outputs For current or voltage output to legacy systems

Relay outputs 3 relays available for alarm and fault events to active

Audio & Visual Alarms On-board alarm notication supports compliance with

Multiple Cable Entries and
Terminals

Mitigates false alarms and optimizes accuracy in
refrigeration applications.

Suitable for use in cold rooms and freezers down to

-40° F/C.

(MGS-450/460)

horn/strobes and ventilation (MGS-450, MGS-460)

ASHR AE 15 / EN 378

Quick and easy installation of all wiring; daisy-chain
power and digital communications.

MGS-460

HOW TO CONTACT US:

US Customer Service: [phone]
EU Customer Service: [phone]
CAN Customer Service: [phone]

mybacharach.com

For ordering information see the Bacharach website or contact your Bacharach sales
manager, technical support, or customer service.

FOR MORE INFO:

Scan the QR code to learn
more about the MGS-408 and
other Bacharach products.

PRODUCT CONFIGURATIONS MGS-410 MGS-450 MGS-460

Enclosure Rating IP66 IP41, IP66 IP66

Congurable Relays Settings n/a SPDT, Low (1), High (2), Fault (3)

Rating Rating 1 A @ 30 VDC

Digital Communications Modbus RTU

Analog Output Single

n/a 4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V

congurable

Sensor Integrated Integrated Remote

Size 5.1” × 5.1” × 2.7” (130

× 130 × 68 mm)

IP41: 6.5” × 6.5” ×

3.0” (165 × 165 × 77
mm)
IP66: 6.5” × 6.5” ×

3.4” (165 × 165 × 87
mm)

Base Unit: 6.5” × 6.5”

× 3.4” (165 × 165 × 87

mm)
Remote Unit: 4.5” ×

5.4” × 2.7” (115 × 136 ×
68 mm)

Weight (Approx) 9.2oz (260 g) 1lb, 1oz (480 g) 1lb, 11.7oz (758 g)

SPECIFICATIONS MGS-410 MGS-450 MGS-460

Gases and Range HFC’s/HFO 1,000 ppm

CO

2

NH

3

O

2

CO 500 ppm

Combustible -

Semiconductor (R-290,
R-600, R-50, R-600a,
H C-12a , R- 7 17 )

Combustible - NDIR
(R-600, R-50, R-290)

Combustible -

Catalytic (R-600, R-50,
R-290, R-717)

NO

2

Status Indicator Single Tri-color LED (green, red, orange)

Audio Alarm Buzzer, 72db @ 10cm

Power 24V AC or DC (auto selecting), 4W (max)

Approvals CE, UL / CSA / IEC EN 61010-1

Ambient Conditions Temperature

Semiconductor -40 to 122°F / -40 to +50°C

Electrochemical NH3 100 / 1,000 ppm: -40 to 40°C

Infrared -40 to 122°F / -40 to +50°C

Catalytic Bead -40 to 122°F / -40 to +50°C

Humidity 5 to 90 % RH, non-condensing

Pressure 23.6 to 32.5 inch Hg / 800 to 1,100 mbar

5,000 / 10,000 / 20,000 / 30,000 / 40,000 / 50,000 ppm

100 / 1,000 / 5,000 / 10,000 / 100% LEL

30 Vol%

5,000 ppm

100% LEL

100% LEL

20 ppm

NH3 5,000 ppm: -20 to 40°C CO 500 ppm: -40 to 50°C NO2 20 ppm:

-20 to 40°C
O2 30% Volume: -20 to 50°C
