Avital 3300L User Manual

Model 3300L

➤

Owner’s Guide

i

© 2008 directed electronics—all rights reserved

limited lifetime consumer warranty

For a period of one calendar year from the date of purchase of this auto-security device,
Directed Electronics promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model), free of cost, any electronic control module
which proves to be defective in workmanship or material under normal use, SO LONG
AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFES­SIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYS­TEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you must have
a clear copy of your sales receipt containing all of the information shown on the follow­ing page.

After the first calendar year, from the date of purchase of this auto-security device,
Directed Electronics, promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model) any electronic control module which proves to
be defective in workmanship or material under normal use FOR A CHARGE OF $45.00,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A
PROFESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH
THE SYSTEM WAS ORIGINALLY INSTALLED. If warranty service is necessary you
must have a clear copy of your sales receipt containing all of the information shown on
the following page.

This warranty contains the entire agreement relating to warranty and supersedes all pre­vious and contemporaneous representations or understandings, whether written or oral.
IN ANY EVENT, DIRECTED ELECTRONICS IS NOT LIABLE FOR THE THEFT
OF THE VEHICLE AND/OR ITS CONTENTS.

This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or con­struction. This warranty is nontransferable and does not apply to any unit that has been
modified or used in a manner contrary to its intended purpose and does not cover bat­teries. The unit in question must be returned to the manufacturer, postage prepaid. This
warranty does not cover labor costs for the removal, diagnosis, troubleshooting or rein­stallation of the unit. For service on an out-of-warranty product a flat rate fee by model is
charged. Contact your authorized dealer to obtain the service charge for your unit.

These systems are a deterrent against possible theft. Directed Electronics is not offering a
guarantee or insuring against the theft of the automobile or its contents and disclaims any
liability for the theft of the vehicle and/or its contents. Directed Electronics does not
authorize any person to create for it any other obligation or liability in connection with
this security system.

ii

© 2008 directed electronics—all rights reserved

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WAR­RANTIES ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY
PARTICIPATING IN THE STREAM OF COMMERCE THEREWITH. THIS
EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLUSION OF ANY
AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR­RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL
WARRANTY OF NON-INFRINGEMENT OF PATENTS, IN THE UNITED
STATES OF AMERICA AND/OR ABROAD. NEITHER THE MANUFACTURER
OR ANY ENTITIES CONNECTED THEREWITH SHALL BE RESPONSIBLE OR
LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMIT­ED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOW­ING, REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON­TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con­sequential damages. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

$$22,,550000 LLiimmiitteedd TThheefftt PPrrootteeccttiioonn GGuuaarraanntteeee

Terms and Conditions. Available only in the USA. In the event that your vehicle is stolen
and not recovered, Directed Electronics will refund to the original purchaser of the
Hornet system up to $2,500 of your insurance deductible. This vehicle protection guar­antee is valid only if:

1. The installation was performed by an authorized Hornet dealer.

2. The warranty registration card is completed and mailed within ten (10) days of
purchase.

3. At the time of the theft, the system was fully functional and not in “valet mode.”

4. The vehicle and its contents were insured at the time of the theft.

5. The insurance company and the police have been notified and a written stolen vehicle
report was issued by the Police Department.

6. No less than thirty (30) days after the police report was issued, you mail Directed
Electronics clear photocopies of the following documents:
a. Proof of Purchase OR provide the system model and name of the company that

installed the system.
b. The stolen vehicle report issued by the police.
c. Insurance coverage documents for the stolen vehicle, clearly showing all the details,

including the vehicle identification number and the insurance deductible amount.
d. A dated declaration signed by you the owner of the vehicle, attesting that the

vehicle has been stolen for more than thirty (30) days and has not been recovered.

iii

© 2008 directed electronics—all rights reserved

This vehicle theft protection is effective for one (1) year from the date of purchase and is
limited to one claim. This vehicle theft protection guarantee is valid only for the theft of
the entire vehicle and specifically excludes any other considerations, including, but not
limited to, damage caused to the vehicle, theft of parts, contents or any other consequen­tial damages. Once Directed Electronics verifies that all the above listed terms and condi­tions have been met, a check for the insurance deductible (up to $2,500) will be mailed
within thirty (30) days.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

➤ Date of purchase
➤ Your full name and address
➤ Authorized dealer's company name and address
➤ Type of alarm installed
➤ Year, make, model and color of the automobile
➤ Automobile license number
➤ Vehicle identification number
➤ All security options installed on automobile
➤ Installation receipts

iv

© 2008 directed electronics—all rights reserved

1

© 2008 directed electronics—all rights reserved

table of contents

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii

rreemmoottee ccoonnffiigguurraattiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33

LCD 2-way configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

standard 4-button configuration (both remotes) . . . . . . . . . . . . . . . . . . . . . . . . . 4

LCD 2-way remote additional controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

wwhhaatt iiss iinncclluuddeedd .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 77

iimmppoorrttaanntt iinnffoorrmmaattiioonn .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 77

system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Standard LCD 2-way icon configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

LLCCDD 22--wwaayy rre

emmoottee ooppeerraattiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1155

system signal paging features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

uussiinngg yyoouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. 1166

active arming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

passive arming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

warn away® response description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

triggered response description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

high security disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

disarming without a remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

valet mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

nuisance prevention® circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ddiiaaggnnoossttiiccss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2255

arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

system status chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

ccooddee hhooppppiinngg .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2288

hhiigghh ffrreeqquueennccyy .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

rraappiidd rreessuummee llooggiicc .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

pprrooggrraammmmiinngg ooppttiioonnss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3300

iinnssttaallllaattiioonn ooppttiioonnss .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3322

gglloossssaarryy ooff tteerrm

mss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3322

2

© 2008 directed electronics—all rights reserved

3

© 2008 directed electronics—all rights reserved

remote configurations

LCD 2-way configuration

1234

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

➜

4

© 2008 directed electronics—all rights reserved

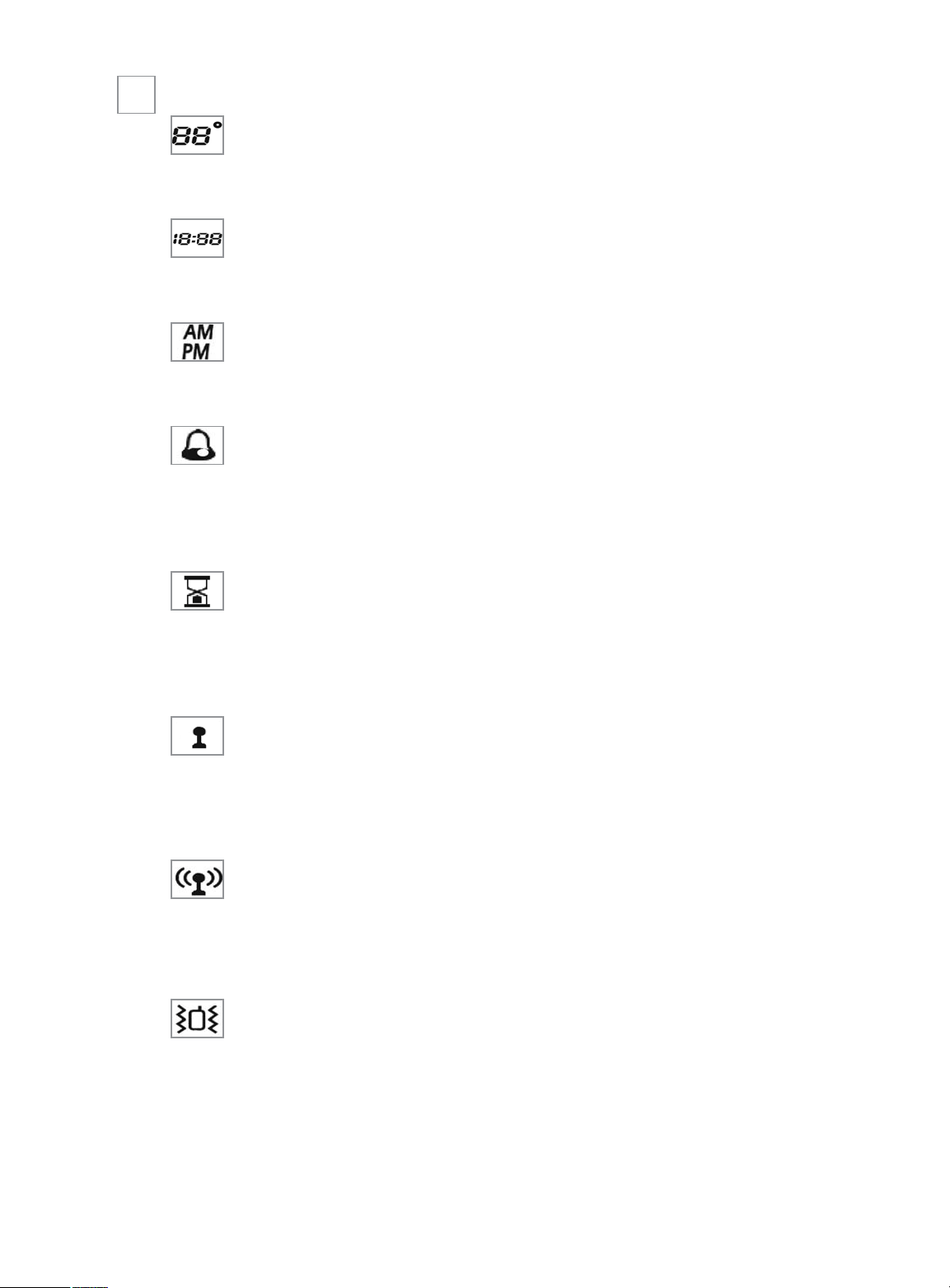

1 Vehicle Interior Temperature Indicator
2 Numeric Display
3 AM/PM Indicator
4 Alarm Clock Mode Indicator
5 Timer Function Indicator
6 Transmit Range Indicator
7 Transmission Indication
8 Vibrate/Beep Mode Indicator
9 Power Saver Mode Indicator
10 Remote Start Timer Mode Indicator
11 No Function
12 Vehicle Page Mode Indicator
13 Full Trigger Shock Sensor Indicator
14 Hood/Trunk Open or Trigger Indicator
15 Parking Light Indicator
16 Door Open or Trigger Indicator
17 Arm/Lock Button
18 Disarm/Unlock Button
19 Remote Start Indicator
20 Hood/Trunk Open or Trigger Indicator
21 Remote Start Button
22 Valet Mode Indicator
23 Remote Start Safety Shutdown Indicator
24 Battery Level Indicator
25 Auxiliary Button
26 Temperature-Controlled Remote Start Indicator
27 Silent Arm/Disarm Mode Indicator
28 Full Trigger Alert Indicator
29 Arm/Disarm Indicator
30 Function Button
31 Celsius/Fahrenheit Indicator

5

© 2008 directed electronics—all rights reserved

standard 4-button configuration (both remotes)

controls the Arm and Panic On/Off function. The

arming is controlled by pressing this button. The panic alarm is

triggered by pressing and holding this button. Press again to

cancel the panic alarm

controls the

DDiissaarrmm

and

PPaanniicc

Off function. Press this

button to disarm the system or to cancel the panic alarm.

controls

SSiilleenntt MMooddee™™

and

AAuuxxiilliiaarryy

channel 22output.

Silent mode works by pressing this button for less than one

second before arming or disarming. And optional auxiliary func-

tion, such as trunk release, can be controlled by pressing and

holding this button for 1.5 seconds.

The auxiliary output controls __________________________.

controls the

PPaanniicc

function by pressing and holding this

button for 1.5 seconds.

and pressed together control channel 33output,

and optional auxiliary convenience or expansion function that

you have added to your system.

The auxiliary output controls __________________________.

➜

6

© 2008 directed electronics—all rights reserved

and pressed together control channel 44output,

and optional auxiliary convenience or expansion function that

you have added to your system..

The auxiliary output controls __________________________.

LCD 2-way remote additional controls

The LCD backlighting will turn on when pressed for less

than one second; when held for more than five seconds the trans-

ceiver will enter adjustment mode allowing the setting of the

clock, timer mode, and audible melody selection. For more infor-

mation, please refer to the Function Button Configurations section

of this guide.

and Buttons

The numeric display toggles between the time of the day and the

alarm clock when these buttons are pressed simultaneously.

and Buttons

Press these buttons simultaneously to activate the parking timer.

Each additional press will toggle through the available options

(10 min., 20 min., 30 min., 1 hour, 1.5 hours, 2 hours, and off).

note: The controls listed below are applicable only to the
LCD 2-way remote.

➜

7

© 2008 directed electronics—all rights reserved

and Buttons

When pressed simultaneously these buttons toggle between beep

notification and vibrate notification.

and Buttons

When pressed simultaneously these buttons activate battery saver

mode, which will drop power consumption on the transceiver

battery to zero when the alarm is inactive or disarmed.

what is included

➤ Control module

➤ 544N transceiver/antenna

➤ One 4-button remote

➤ One 2-way LCD remote

➤ Impact sensor on-board control module

➤ High powered siren

➤ Fault-proof starter interrupt relay on-board control module

➤ Status LED indicator light

➤ Push-button Valet button

➤ Your warranty registration

8

© 2008 directed electronics—all rights reserved

important information

Congratulations on the purchase of your state-of-the-art vehicle

security system. This system has been designed to provide years

of trouble-free operation. By carefully reading this guide prior to

using your system, you will maximize the use of this product and

its features.

By carefully reading this Owner's Guide prior to using your

system, you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing our web site at www.directed.com.

system maintenance

The system requires no specific maintenance other than battery

replacement for the remotes.

LCD 2-Way Remote Battery Replacement

The 2-way remote is powered by a 1.5V AAA battery. The

Battery Level indicator has three level indicators that serve as a

visual indication of battery charge. When the battery reaches a

low charge level that requires replacement, the transceiver will

generate a single notification chirp, and the Battery Level indi-

cator will flash continuously.

➜

9

© 2008 directed electronics—all rights reserved

To replace the battery, gently pull the battery cover release tab, then

slide the door down to expose the battery and remove the expired

battery. Place the new battery into the transceiver observing the

correct polarity. When power is returned the transceiver will light

all icons in the LCD and generate a musical tone.

4-Button Remote Battery Replacement

Your remote is powered by a small, lightweight 3-volt lithium

battery (CR2032) that will last approximately one year under

normal use. When the battery begins to weaken, operating range

will be reduced and the LED on the remote will dim.

your warranty

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

fcc/id notice

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesirable operation.

➜

➜

10

© 2008 directed electronics—all rights reserved

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate this device.

Tested to Comply
with FCC Standards

Directed Electronics, Inc. 474V/P/S Series

Tested to Comply
with FCC Standards

Directed Electronics, Inc. 477T Series

Tested to Comply
with FCC Standards

Directed Electronics, Inc. 544 Series

11

© 2008 directed electronics—all rights reserved

Standard LCD 2-way icon configuration

Icon

The vehicle interior temperature icon has no functions

Icon

The numeric display icon will show the hours and minutes.

Icon

The AM/PM icon indicates the time before or after noon.

Icon

The alarm clock mode icon indicates that the alarm clock mode

is active.

Icon

The timer function icon flashes during timed functions including

parking timer.

Icon

The transmit range indicator icon stays visible as long as the

system is within operating range.

Icon

The remote transmission indicator icon displays when the trans-

ceiver is transmitting a signal.

Icon

The vibrate/beep mode icon appears when the transceiver is set

to vibrate mode.

➜

12

© 2008 directed electronics—all rights reserved

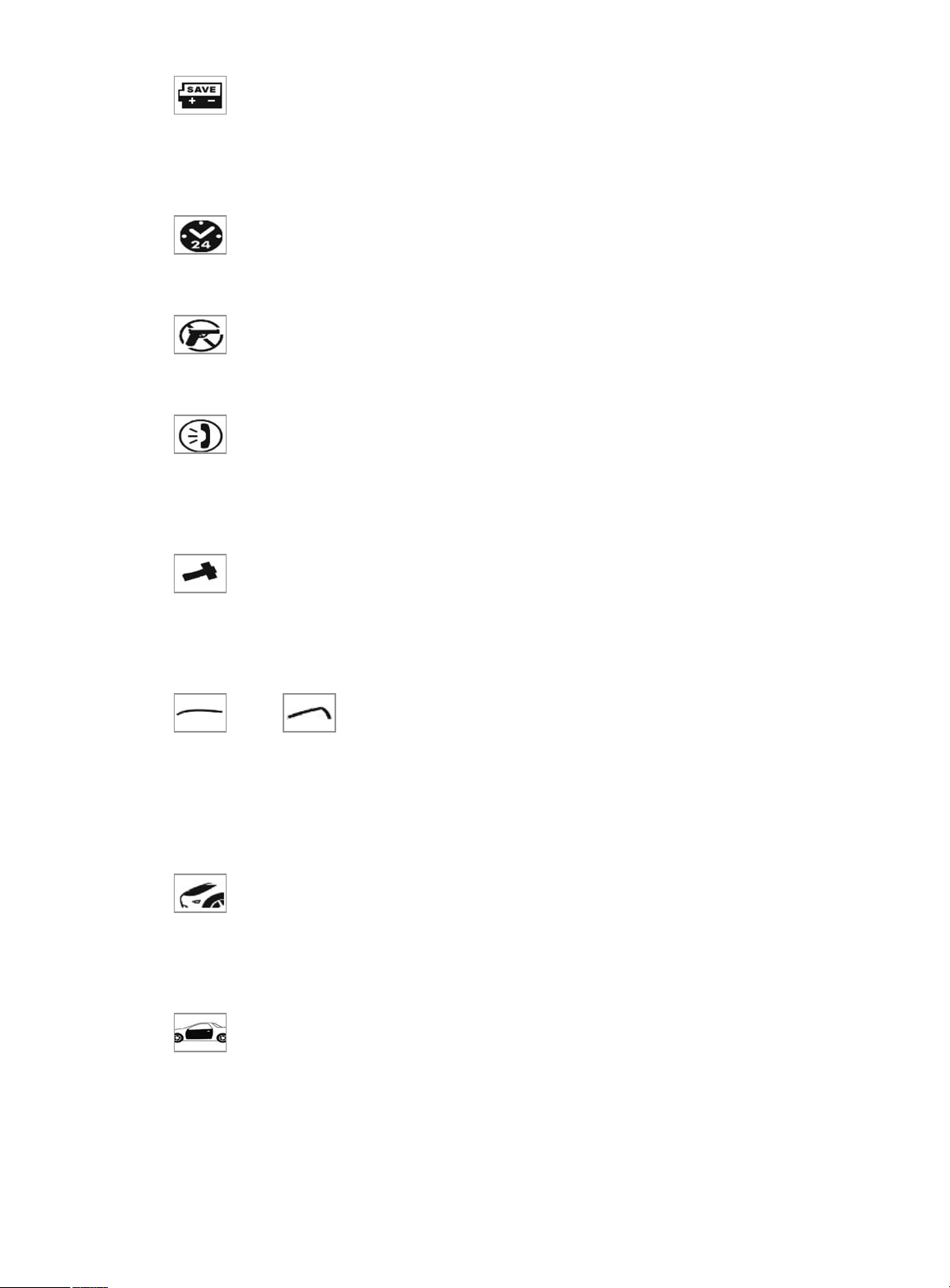

Icon

The power saver mode can be turned on or off with the trans-

ceiver. This icon displays the status.

Icon

The remote start timer mode icon has no function.

Icon

No function.

Icon

The vehicle page mode icon displays when the alarm module is

paging the transceiver.

Icon

The full trigger shock sensor icon indicates that the shock sensor

has been triggered by a hard shock.

and Icons

The hood/trunk open or trigger icon illuminates when the hood

or trunk trigger has been activated or the hood or trunk is open,

and bypasses those zones until it is closed.

Icon

The parking light icon will flash twice when armed or disarmed.

The icon also flashes during WarnAway.

Icon

The door open or trigger icon illuminates when the door trigger

has been activated or the door is open, and bypasses that zone

until it is closed.

13

© 2008 directed electronics—all rights reserved

Icon

The remote start icon has no function.

Icon

The Valet mode icon appears when the system is in Valet mode.

Icon

The remote start safety shut down icon has no function.

Icon

The battery level icon indicates the level of power remaining in
the battery.

Icon

The temperature-controlled remote start icon has no function.

Icon

The silent arm/disarm icon appears when the system has been
armed or disarmed in the silent mode.

Icon

The full trigger alert icon illuminates when the security system
has been triggered by a heavy impact, door trigger violation,
optional sensor violation, or a hood/trunk trigger.

Icon

The arm icon appears when the vehicle is armed and locked. The
disarm icon appears when the vehicle is disarmed and unlocked.

Icon

Celsius/Fahrenheit icon indicates the current mode of the
displayed temperature either in Celsius or Fahrenheit.

14

© 2008 directed electronics—all rights reserved

Standard LCD 2-way button functions

AAuuddiibbllee

FFuunnccttiioonn BBuuttttoonn IIccoonn IInnddiiccaattiioonn

Lamp On
(10 sec)

Power-Saver Mode*

+

Melody

Beep/Vibrate Mode

+

4 Vibrations/

1 Beep

Time Adjust for 5 Seconds 2 Beeps
Mode (hour)**

Time Adjust 1 Time***
Mode (min)**

Alarm Clock 2 Times***
Set Mode (hour)**

Alarm Clock 3 Times***

Set Mode (min)**

Alarm Clock Music 4 Times*** 5 Selections
or Power on Music 1/2/3/4/5
Selection**

Alarm Clock Adjust 5 Times***
Mode (on/off)**

Timer Count Down 6 Times***
Adjust Mode
(hour)**

Timer Count Down 7 Times***
Adjust Mode
(min)**

Timer Count 8 Times*** 5 Selections
Down Ending Melody 1/2/3/4/5
Selection 1**

RS Timer Count 9 Times***
Down Mode (on/off)* (where applicable)

15

© 2008 directed electronics—all rights reserved

Remote Start On 10 times*** 5 Selections
Melody Selection 2 (where applicable) 1/2/3/4/5

10 Min Parking

+

1 Time Melody

Count Down Mode

20 Min Parking

+

2 Times Melody

Count Down Mode

30 Min Parking

+

3 Times Melody

Count Down Mode

60 Min Parking

+

4 Times Melody

Count Down Mode

90 Min Parking

+

5 Times Melody

Count Down Mode

120 Min Parking

+

6 Times Melody

Count Down Mode

Parking Count Down

+

7 Times Melody

Off Mode

Alarm Clock Mode

+

Melody

On/Off****

Celsius/Fahrenheit

+ +

or

Melody

Select Mode

* This function will operate in the disarmed state only.

** The button will advance the selection upward. The
button will advance the selection downward or select the off set­ting.

*** Be sure to hold down for five seconds prior to entering
timer clock adjust mode operation.

**** Press once to have the alarm clock on. Press twice to have the
alarm clock off.

The remote will revert to normal operation from the set mode
when 15-seconds has elapsed without a button entry.

16

© 2008 directed electronics—all rights reserved

LCD 2-way remote operation

The remote start system operates at 434 MHz and incorporates

Directed’s proprietary A.S.K. out-board two-way transceiver. The

high frequency combined with Binary Data communication

achieves superior range with two-way communication.

system signal paging features

A page is the signal the control module sends to the transceiver as

confirmation of receipt of a command or alarm system status.

When the transceiver receives a page it will generate a page notifi-

cation to the user (notifications are audible beeps or the remote

vibrates) and the LCD icons will display the current system status.

Command Page

When a command (arm/disarm, or auxiliary channel) from the

transceiver is sent and received, the system will send a command

page back to confirm receipt.

Page Recognition Mode

The transceiver will leave a zone icon illuminated when it has

received a triggered response and will wait for violation recogni-

tion. Press any button on the transceiver, the LCD information

and alarm page alerts will be cleared.

note: The transceiver buttons will not send a command
to the system until the alarm page is cleared.

➜

17

© 2008 directed electronics—all rights reserved

using your system

active arming

You can arm the system by pressing of your remote for one

second. When the system arms, you will hear a short siren sound,

or chirp, and see the parking lights flash once. If the power door

locks are controlled by the system, the doors will also lock. While

the system is armed, the status LED will flash approximately once

per second, indicating that the system is actively protecting your

vehicle. If you hear a second chirp after arming and note that the

status LED is flashing in groups, see the Diagnostics Section of

this guide. This extra chirp is called Bypass Notification, which

indicates that a security sensor or switch has been bypassed and

the system is not monitoring that area (zone) of the vehicle.

passive arming

The system can be programmed to arm itself automatically (called

passive arming). If the system is programmed for passive arming, it

will automatically arm 30 seconds after the ignition is turned off

and the last protected entry has been closed. (e.g. the system detects

that you have left the vehicle by opening and closing a door.)

Whenever the system is in its 30-second passive arming countdown,

the status LED will flash twice as fast as it does when the system is

armed. If the system is programmed for Passive Arming, care must

be taken to prevent the keys from being locked in the vehicle.

➜

➜

important: Due to the complexity of this system, instal­lation of this product must only be performed by an
authorized Directed dealer.

18

© 2008 directed electronics—all rights reserved

When armed your vehicle is protected as follows:

➤ Light impacts trigger the Warn Away

®

signal. When triggered,

the siren chirps and the parking lights flash for a few seconds.

➤ Heavy impacts trip a Triggered Sequence. The sequence

consists of the siren sounding continuously and the parking

lights flashing for 30 seconds.

➤ If a door is opened, the system will immediately start

chirping the siren and flashing the parking lights. Three

seconds later, the siren output changes to a continuous blast.

This progressive response gives you time to disarm the system

with your remote if you inadvertently open the door while

the system is armed.

➤ Turning on the ignition key will trip the same progressive re-

sponse as opening a door.

➤ The starter kill prevents the vehicle’s starter from cranking.

warn away®response description

A Warn Away®Response consists of an alarm page along with the

responses described below.

➤

SShhoocckk SSeennssoorr

- Light impacts to the vehicle will flash the

vehicle lights and chirp the siren for a few seconds.

➤

RReemmoottee CCoonnttrrooll NNoottiiffiiccaattiioonn

- Ten quick beeps (or vibra-

tions).

➜

note: If any protected entry point (such as a door or a
switch-protected trunk or hood) is open, the system will
not passively arm. Additionally, each time a protected
entry is opened (triggered) during the arming count­down, the 30-second countdown starts over.

19

© 2008 directed electronics—all rights reserved

➤

RReemmoottee CCoonnttrrooll LLCCDD

- The full trigger alert icon (28) will

dimly illuminate for two seconds

➤ The transceiver will enter Page Recognition Mode and

operate alarm page alerts.

triggered response description

A Triggered Response can be activated by any of the triggers listed

below and consists of an alarm page along with the response

described for each trigger. The Triggered Response duration is 30

seconds.

➤

SSeennssoorr TTrriiggggeerr

- Heavy impacts to the vehicle will instantly

sound the siren and flash the lights for the programmed

duration and report Zone 2.

➤

DDoooorr TTrriiggggeerr

- If a door is opened the siren will chirp for three

seconds, then the siren will sound and the lights will flash for

the programmed duration and report Zone 3. The three

seconds allow the user time to disarm the system with a

minimum of noise should a door be opened inadvertently

while the system is armed.

➤

HHoooodd TTrriiggggeerr

- Opening the hood (if connected) will sound

the siren, flash the lights for the programmed duration, and

report Zone 1.

➤

TTrruunnkk TTrriiggggeerr

- Opening the trunk (if connected) will

instantly sound the siren and flash the lights for the

programmed duration and report Zone 1.

➜

note: Icons 13 and 14 represent alarm system zone
inputs. For more information about icons and the zones
they represent refer to the Standard Remote Configurations
section.

20

© 2008 directed electronics—all rights reserved

➤

IIggnniittiioonn TTrriiggggeerr

- If the ignition is turned on the siren will

chirp for three seconds, then the siren will sound and the lights

will flash for the programmed duration and the remote will

flash.

When a Triggered Response is activated the transceiver will:

➤ Repeat four quick beeps (or vibrate) for 15 seconds.

➤ The full trigger alert icon (28) will turn on for 15 seconds.

➤ The zone icons will turn on and remain on until a transceiver

button is pressed, clearing the page alert.

➤ The transceiver will enter page recognition mode and

generate alarm page alerts.

disarming

To disarm the security system, press . You will hear two

chirps, and the parking lights will flash twice. If the power locks

are controlled by the system, the doors will also unlock. If the

siren chirps more than twice and the LED continues to flash after

pressing the button, the system was triggered in your

absence (Tamper Alert). Refer to the disarming discussion in the

Diagnostics Section of this guide.

➜

note: Icons 13, 14, 16, and 20 represent alarm system
triggered sequence zone inputs. For more information
about icons and the zones they represent refer to the
Standard Remote Configurations section.

21

© 2008 directed electronics—all rights reserved

high security disarm

This security system offers High Security Disarm. High Security

Disarm is a feature that makes it possible to silence and reset the

system while it is triggering, without disarming the system. If the

system is triggered and the siren has been sounding for longer

than six seconds, pressing on the remote will stop the trigger

and return the unit to the armed state. The system will not

disarm, but rather reset. This prevents you from disabling the

system should you wish to disarm it without visually checking the

vehicle. Pressing after resetting the system will disarm the

system; pressing this button during the first six seconds of the

triggered sequence will disarm the security system immediately.

The six second timer is provided for your convenience, in case the

system is accidentally triggered.

disarming without a remote

If your remote is lost or damaged, you can manually disarm your

vehicle security system. To disarm the system without a remote,

you must have the vehicle's ignition key and know where the

Valet button is located. Be sure to check with your installer at the

time of installation for the location of the Valet button.

➜

➜

22

© 2008 directed electronics—all rights reserved

To disarm the security system,

turn the ignition to the ON posi-

tion. Press the Valet button

within 15 seconds. After five

seconds, the system will disarm. If

the system does not disarm, you

may have waited too long; turn

the ignition off and on and try

again.

Location of Valet Button_________________________________

silent mode

To temporarily turn off the arm or disarm chirps, use Silent

Mode™. Simply press for less than one second before

arming or disarming, and the confirmation chirp(s) will be elim-

inated for that one operation only. If you want the arm/disarm

chirps turned off permanently, your dealer can do this for you.

note: The Warn Away®response to lighter impacts is
bypassed if the system is armed using Silent Mode. This
ensures that no chirps will be emitted by the siren in an
area you want chirp-free. The system is still fully capable
of triggering by heavy impacts. Only the Warn Away

®

response is bypassed.

➜

DRW-35

23

© 2008 directed electronics—all rights reserved

panic mode

If you are threatened in or near your vehicle, you can attract

attention by triggering the system with your remote. Just press

for 1.5 seconds, and you will enter Panic Mode. The siren

will sound and the parking lights will flash for the programmed

siren duration. To stop Panic Mode at any time, press

,,

or .

The LCD 2-way remote will beep (or vibrate) continuously when

the system enters panic mode. The 2-way remote will not

generate a page notification when panic mode is exited.

valet mode

You can prevent your security system from automatically arming

and triggering by using Valet Mode. This is very useful when

washing the vehicle or having it serviced. In Valet Mode, the

security system will not arm, even with the remote, but all conve-

nience functions (door locks, trunk release, etc.) will continue to

work normally. You can access Valet Mode either manually or

with the remote.

To enter or exit Valet Mode manually:

1. Turn the ignition on.

2. Turn the ignition off.

3. Press and release the Valet

button within 10 seconds.

The status LED will light solidly if you are entering Valet Mode,

and it will go out if you are exiting Valet Mode.

DRW-35

➜

➜

24

© 2008 directed electronics—all rights reserved

To enter or exit Valet Mode using the remote:

Steps 2 through 3 must be quickly and smoothly completed.

1. Open any vehicle door.

2. Press .

3. Press .

4. Press again.

The status LED will light solidly if you are entering Valet Mode,

and it will go out if you are exiting Valet Mode.

setting the clock

To set the clock press and hold for five seconds, the trans-

ceiver will chirp twice and the hour selection will start flashing.

Immediately press to advance the hour selection or to

reverse the hour selection. Once the correct hour is displayed

press again and the minute selection will start flashing. Then

press to advance the minute selection or to reverse the

minute selection. Once the correct time is displayed simply stop

pressing any buttons for 15 seconds and the transceiver will auto-

matically exit the clock mode.

nuisance prevention®circuitry

Your system has Directed’s Nuisance Prevention®Circuitry

(NPC

®

). It prevents annoying repetitive trigger sequences due to

faulty door pin switches or environmental conditions such as

thunder, jackhammers, airport noise, etc.

➜

➜

25

© 2008 directed electronics—all rights reserved

Example

If the alarm triggers three times within a 60-minute period and

each time the same sensor or switch triggers the alarm, NPC

®

will

interpret those triggers as false alarms. After the third trigger,

NPC

®

ignores, or bypasses, that sensor or switch (along with any

other sensors or switches sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the security system while it

is being bypassed, the 60-minute bypass period will start over.

This ensures that a sensor that is continually being triggered will

remain bypassed.

The vehicle doors are protected by NPC

®

differently. If your

security system is triggered by an open door for three, full 30-

second cycles (one and one half minutes), the system will bypass

the doors until the trigger ceases.

note: Arming and disarming the system does not reset
this function! The only ways to reset a bypassed zone are
for it to not trigger for 60 minutes, or to turn on the igni­tion. If testing your system, it is important to remember
that the NPC

®

programming can cause zones to be
bypassed and appear to stop working. If five chirps are
heard when disarming, NPC

®

has been engaged. If you

wish to clear the NPC®memory, turn the ignition on.

26

© 2008 directed electronics—all rights reserved

diagnostics

The microprocessor at the heart of your system is constantly

monitoring all of the switches and sensors connected to it. It is

designed to detect any faulty switches and sensors and prevents

them from disabling the entire system. The microprocessor will

also record and report any triggers that occurred during your

absence. Refer to the System Status Chirps and Table of Zones

sections of this guide for diagnostic information.

arming diagnostics

If the security system is armed at the same time that an input is

active (such as a door opening or sensor triggering), you will hear

one siren chirp to indicate arming and a second siren chirp to indi-

cate Bypass Notification. A Bypass Notification chirp means that

the security system ignores the input that was active when the

system was armed, until that input ceases. Three seconds after that

input ceases, the security system will resume normal monitoring.

For example, if your vehicle has an interior light exit delay and you

arm your security system before the interior light turns off, you

may hear a second Bypass Notification chirp. Three seconds after

the light turns off, however, the security system resumes normal

monitoring.

note: Bypass Notification does not occur when the sys­tem is in Silent Mode or if the notification chirps have
been programmed off by the installer.

➜

27

© 2008 directed electronics—all rights reserved

disarming diagnostics

Extra chirps that are heard when disarming the system are the

Tamper Alert. If four chirps are heard when disarming the

system, then the security system was triggered in your absence. If

five chirps are heard when disarming the system, a zone was trig-

gered so many times that the Nuisance Protection

®

Circuitry has

bypassed that zone. In either case, the status LED will indicate

which zone was involved (see Table of Zones section). The secu-

rity system will retain this information in its memory and chirp

four or five times each time it is disarmed, until the next time

that the ignition is turned on.

system status chirps

The siren will chirp when arming/disarming the system. The

pattern of chirps will audibly report the system’s status as

described below.

Action Number of Chirps Description

Arm 1 System armed

Arm 1 (3-second delay), 1 System armed with

Bypass Notification

Disarm 2 System disarmed

Disarm 4 System disarmed with

Tamper Alert

Disarm 5 System disarmed NPC

®

active

➜

➜

28

© 2008 directed electronics—all rights reserved

table of zones

A zone is represented by the number of LED flashes used by the

system to identify a particular type of input. Standard input

assignments are listed in the following table, along with spaces to

write in any optional sensors or switches that have been installed.

ZONE

(Number of DEALER-INSTALLED

LED Flashes) DESCRIPTION OPTIONS

11

Instant trigger for optional
hood or trunk pin

22

Instant trigger - a heavier impact
detected by the on-board shock sensor

33

Door switch trigger

55

Ignition trigger

code hopping

The receiver and remotes use a mathematical formula called an

algorithm to change their code each time the remote is used.

This technology has been developed to increase the security of

the unit. The control unit knows what the next codes should be.

This helps to keep the remote “in sync” with the control unit

even if you use the remote control out of range of the vehicle.

However, if the remote has been pressed many times out of range

of the vehicle, or the battery has been removed, it may fall out of

sync with the control unit and fail to operate the system. To re-

sync the remote simply press several times within range of

➜

29

© 2008 directed electronics—all rights reserved

the vehicle. The alarm will automatically re-sync and respond to

the remote normally.

high frequency

Your system transmits and receives at 434 MHz. This provides a

cleaner spectrum with less interference and a more stable signal.

Enjoy a phenomenal increase in range, even in areas with high

radio interference.

rapid resume logic

This Directed system will store its current state to non-volatile

memory. If power is lost and then reconnected the system will

recall the stored state from memory. This means if the unit is in

Valet Mode and the battery is disconnected for any reason, such

as servicing the car, when the battery is reconnected the unit will

still be in Valet Mode. This applies to all states of the system

including arm, disarm, and Valet Mode.

30

© 2008 directed electronics—all rights reserved

programming options

Programming options control your system's normal, operational

set-up. Most options do not require additional parts, but some

may require installation labor.

The following is a list of the programmable options, with the

factory settings in Bold.

➤

AAccttiivvee

arming (from remote only) or passive arming (auto-

matic arming 30 seconds after the last door has been closed).

➤ Arming/disarming siren chirps

oonn

or off.

➤ The ignition controlled door lock feature

oonn

or off: When this

feature is programmed on, the doors will lock three seconds

after the ignition is turned on, and unlock when the ignition

is turned off.

➤ Passive door locking (with passive arming) or

aaccttiivvee ddoooorr

lloocckkiinngg

(only when arming with the remote). Passive locking

allows the vehicle's doors to lock when the security system

passively arms (after the 30-second countdown). This

feature only works if passive arming has been programmed.

➤ Siren tones and chirp volume. The output of the Revenger

™

Soft Chirp™siren consists of six different tones in sequence.

Any of these tones can be eliminated by a dealer, resulting in a

unique, easily identifiable siren sound. The chirps can be either

full volume or

66 ddeecciibbeellss qquuiieetteerr

than the full alarm blast.

31

© 2008 directed electronics—all rights reserved

security & convenience expansions

Listed below are some of the many expansion options available.

Please consult your dealer for a complete explanation of all the

options available to you.

Audio Sensor:

Metal on glass, glass cracking, and breaking

glass produce distinctive acoustic signatures. The 506T audio

sensor uses a microphone to pick up sounds, then analyzes them

with proprietary acoustic software to determine if the glass has

been struck.

Backup Battery:

The 520T keeps the system armed, triggers the

alarm and keeps the starter interrupt active if main battery is dis-

connected.

Field Disturbance Sensor:

An invisible dome of coverage is estab-

lished by installing the 508D “radar” sensor. Your system can

react to any intrusions into this field with the full triggered

sequence.

Power Locks:

This system offers lock outputs that can control

some manufacturers' power door lock systems. For other

systems, additional parts may be required.

Power Trunk Release:

The accessory output of the system can op-

erate a factory power release for the vehicle’s trunk or hatch.

Although the on-board relay can control most power trunk re-

leases, sometimes an optional relay is required. If the factory

release is not power-activated, Directed

®

's 522T trunk release

solenoid can often be added.

32

© 2008 directed electronics—all rights reserved

Power Window Control:

Automatic power window control is pro-

vided with the 529T and 530T systems. These can operate

power windows, and can roll them up automatically when the

system is armed, roll them down, or both up and down.

installation options

Installation options may require additional parts or labor. Please

consult your dealer.

PPrrooggrreessssiivvee UUnnlloocckkiinngg::

With electric power door locks, the

system can be configured so that when disarmed, only the

driver’s door unlocks. A second press of the disarm button within

15 seconds of disarming unlocks the remaining doors.

HHoorrnn HHoonnkk::

If connected, the horn will sound if the alarm is

either triggered by an intrusion or activated by Panic Mode. (In

most vehicles, this feature requires that an additional relay be

installed.)

IInntteerriioorr LLiigghhtt IIlllluummiinnaattiioonn::

The interior domelight can be

configured to illuminate for 30 seconds after the alarm is

disarmed. If the system is rearmed during that 30-second period,

the interior light illumination will terminate until the alarm is

disarmed once again.

33

© 2008 directed electronics—all rights reserved

glossary of terms

Control Unit:

The “brain” of your system. Usually hidden under-

neath the dash area of the vehicle. The control unit houses the

microprocessor which monitors your vehicle and controls all

system functions.

Fault-Proof Starter Interrupt:

An automatic switch controlled by

your system that prevents the vehicle’s starter from cranking

whenever the system is armed. The vehicle is never prevented

from cranking when the system is disarmed, in Valet mode, or if

the starter interrupt switch itself fails. Your system has feature-

ready circuitry for the starter interrupt, however installation may

require additional labor.

Input:

A physical connection to the system. An input can be

provided by a sensor, pinswitch or by existing systems in the

vehicle, such as ignition or courtesy lights.

LCD 2-Way Remote:

A hand-held, transceiver which operates and

monitors the various functions of your system.

LED:

A red light mounted at a discretionary location inside the

vehicle. It is used to indicate the status of your system.

Shock Sensor:

This system has a dual zone shock sensor. This

sensor is mounted in the vehicle and designed to pick up impacts

to the vehicle or glass.

34

© 2008 directed electronics—all rights reserved

Trigger or Triggered Sequence:

This is what happens when the

alarm “goes off” or “trips.” The triggered sequence of your

system consists of the siren sounding and parking lights flashing

for the programmed duration.

Valet Button:

A small push-button switch mounted at a discre-

tionary location inside the vehicle. It is used to override the

starter interrupt when a remote is lost or damaged, or to enter or

exit Valet Mode.

Warning Zone Response:

Lighter impacts to the vehicle will

generate the Warning Zone response. It consists of several

seconds of siren chirps and parking light flashes.

Zone:

A zone is a separate input that the alarm can recognize as

unique. Each input to the system is connected to a particular

zone. Often two or more inputs may share the same zone.

35

© 2008 directed electronics—all rights reserved

QUICK REFERENCE GUIDE

Arming

■ To arm, press . When the system arms, you will hear a short chirp, and
the parking lights will flash once.

Disarming

■ To disarm, press . You will hear two chirps, and the parking lights will
flash twice.

High security disarm

■ For high security disarm, press on your remote and the siren will stop
sounding. To completely disarm the security system, press again and the
system will chirp 4 or 5 times (reporting the trigger).

Disarming without a remote

■ Turn on the ignition. Press the Valet button within 15 seconds. The system
should now disarm. If it does not, you may have waited too long, so turn the
ignition off and on and try again.

Silent Mode

™

■ Pressing briefly before arming or disarming will eliminate the confirma-
tion chirp(s) for that one operation only.

Panic Mode

■ Press for 2 seconds, and you will enter Panic Mode. The siren will sound
and the parking lights will flash for 30 seconds. To stop Panic Mode at any
time, press on the remote again.

Location of Valet switch_________________________________

Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.

✂

✂

The company behind this system is Directed Electronics.

Since its inception, Directed Electronics has had one purpose, to provide consumers with
the finest vehicle security and car stereo products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field of advanced electronic
technology, Directed is ISO 9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America
and around the world.

Vista, CA 92081

www.directed.com

© 2008 Directed Electronics - All rights reserved

G3300L 2008-12

Directed Electronics is committed to delivering world class quality products

and services that excite and delight our customers.
