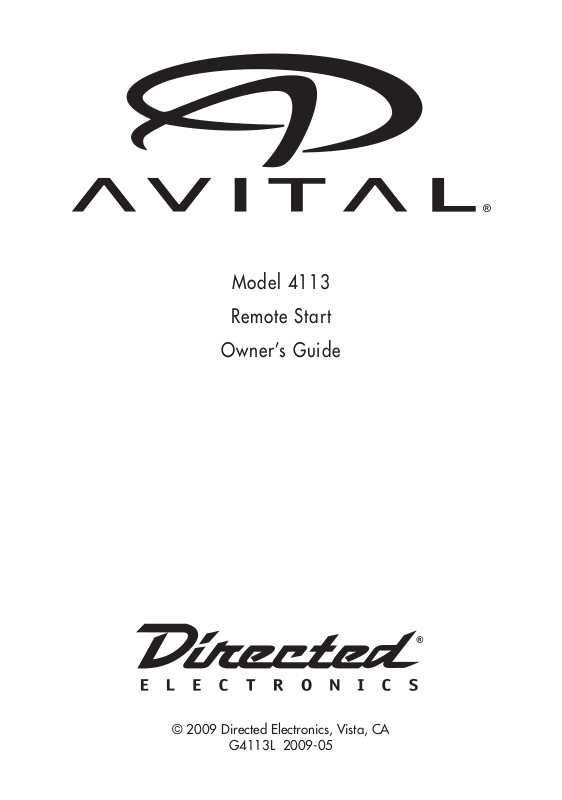

Model 4113
Remote Start
Owner’s Guide
© 2009 Directed Electronics, Vista, CA
G4113L 2009-05
Contents |
|
Government Regulations..................................................................................... |
5 |
Warning! Safety first.......................................................................................... |
6 |
What is Included ............................................................................................ |
8 |
Important Information......................................................................................... |
8 |
System Maintenance.................................................................................. |
8 |
Your Warranty.......................................................................................... |
8 |
Using Your System ........................................................................................... |
9 |
Unlocking................................................................................................. |
9 |
Car Finder................................................................................................ |
9 |

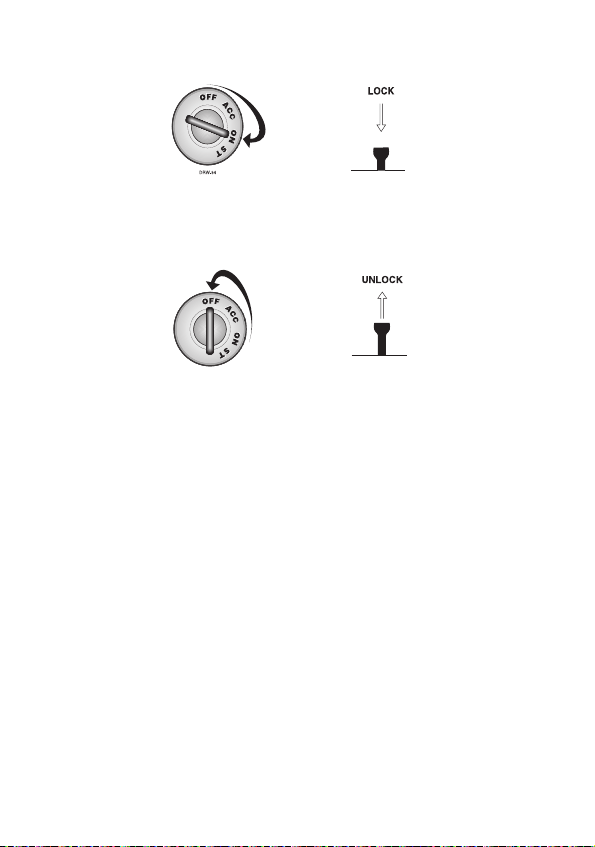

Ignition Controlled Door Locks.................................................................. |
10 |
Remote Start........................................................................................... |
11 |
Valet Take-Over....................................................................................... |
12 |
Starter Anti-Grind Circuitry....................................................................... |
13 |
Disabling the Remote Start System............................................................. |
13 |
Rapid Resume Logic ........................................................................................ |
14 |
Programming Options...................................................................................... |
15 |
Glossary of Terms............................................................................................ |
16 |
Quick Reference Guide.................................................................................... |
17 |
Notes............................................................................................................. |
18 |
Limited Consumer Warranty.............................................................................. |
21 |
Government Regulations
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio / TV technician for help.
This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful interference to services authorized by IC. In addition, the user of this device must accept any radio interference that may be received, even if this interference could affect the operation of the device.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device.
© 2009 Directed Electronics. All rights reserved. |
5 |
Warning! Safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via a command signal from the remote control remote control. Therefore, never operate the system in an enclosed area or partially enclosed area without ventilation (such as a garage). When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote start system must be disabled using the installed toggle switch. It is the user’s sole responsibility to properly handle and keep out of reach from children all remote control remote controls to assure that the system does not unintentionally remote start the vehicle. THE USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the sole responsibility of the user.
Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or death. (1) Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user must also have the neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in the product installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the authorized Directed dealer to fix the problem.
6 |
© 2009 Directed Electronics. All rights reserved. |
After the remote start module has been installed, contact your authorized dealer to have him or her test the remote start module by performing the Safety Check outlined in the product installation guide. If the vehicle starts when performing the Neutral Safety Shutdown Circuit test, the remote start unit has not been properly installed. The remote start module must be removed or the installer must properly reinstall the remote start system so that the vehicle does not start in gear. All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.
This product is designed for fuel injected, automatic transmission vehicles only. Use of this product in a standard transmission vehicle is dangerous and contrary the product's intended use.
© 2009 Directed Electronics. All rights reserved. |
7 |
What is Included
•The control module
•An HX receiver/antenna
•Two 1-button remote controls (P/N 7111L)
•A push-button programming switch
•Your warranty card
•A shut-down toggle switch
Important Information
Congratulations on the purchase of your remote start keyless entry system. This system has been designed to provide years of trouble-free operation. By carefully reading this owner’s guide prior to using your system, you will maximize the use of this system and its features. Addi-
tional or replacement copies of this guide can be printed by accessing the Directed Electronics internet website at www.avital.com.
System Maintenance
The system requires no specific maintenance. Your remote is powered by a miniature 3V lithium battery that lasts approximately one year under normal use. When the battery weakens, the LED on the remote will dim and operating range will be reduced.
Your Warranty
Your warranty card must be completely filled out and returned within 10 days of purchase. Your product warranty will not be honored if your warranty card is not returned. Make sure that you receive the warranty card from your dealer. You may also register online at www.prodregister.com/directed.
8 |
© 2009 Directed Electronics. All rights reserved. |
