Avision AV3850SU, AV3750 User Manual

High Speed Document Scanner

User's Manual

Regulatory model: 300500001/300500002

Trademarks

Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International
Business Machines Corp.
ENERGY STAR

®

is a U.S. registered mark.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.

Copyright

All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without th e prior
written permission of Avision Inc.

Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright
laws, the customer is solely responsible for complying w ith all
such laws and regulations.

Warranty
The information contained in this document is subject to

change without notice.
Avision makes no warranty of any kind with regard to this

material, including, but not limited to, t he implied warrant ies
of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.

ii

User’s Manual

FCC Radio Frequency Interference Statement

This product has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of
the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation. The FCC Class B limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If t his
equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

 Consult your point of purchase or service representative

for additional suggestions.

CE Warning

This product satisfies the Class B limits of EN55022, EN55024
and safety requirements of EN 60950.

iii

Disposal of Waste Equipment by Users in Private Union

This symbol on the product or on its packaging indicates that
the product can not be disposed of with your other household
waste. Instead it should be sent to appropriate facilities for
recovery and recycling in an effort to protect human health and
the environment. Fore more information about where you can
drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or
the shop where you purchased the product.

As an ENERGY STAR® Partner, Avision Inc. has
determined that this product meets the ENERGY STAR
guidelines for energy efficiency.

iv

User’s Manual

Table of Contents

1. Introduction ................................................................1-1

2. Installation ..................................................................2-1

2.1 Unlocking the Shipping switch........................2-1

2.1.1 unlocking the scanner ................................2-2

2.1.2 locking the Shipping switch.......................2-3

2.2 SCSI ID......................................................2-4

2.3 USB Interface..............................................2-6

2.4 ADF Paper Chute..........................................2-6

2.5 ADF Output Tray..........................................2-7

2.6 Document Loading .......................................2-8

2.7 ADF Scanning..............................................2-9

2.8 Connecting the Cable.................................. 2-10

3. Requirements & software installation....................3-1

3.1 Scanner Driver Installation ............................3-1

3.2 Verifying Your Scanner Installation .................3-3

3.1.1 A Glance of the Scanner Properties Dialog

Box.................................................................3-7

4. Using the Scanner Properties Dialog Box..............4-1

4.1 Buttons on the Scanner Properties Dialog Box..4-2

4.2 The Image Tab ............................................4-4

4.2.1 The Image Selection Box..........................4-5

4.2.2 Other Image Options .................................4-7

4.2.3 Scanning color images.............................4-13

4.2.4 Scanning grayscale images....................4-14

4.2.5 Scanning B&W images.............................4-14

4.2.6 Editing Profiles...........................................4-15

4.3 The Compression Tab ................................. 4-18

4.4 The Color Dropout Tab................................ 4-20

4.4.1 Color Dropout Selection ..........................4-20

v

Other Color Dropout Options..................4-21

4.4.2

4.5 The Paper Tab ........................................... 4-23

4.5.1 Cropping .....................................................4-24

4.5.2 Other Paper Selection..............................4-27

4.5.3 Relative to Document ..............................4-32

4.6 The Preview Tab ........................................ 4-35

4.7 The Options Tab......................................... 4-36

4.8 The Setting Tab ......................................... 4-41

4.9 The Information Tab................................... 4-44

5. ISIS Interface Operation..........................................5-1

6. Maintenance................................................................6-1

6.1 Cleaning the ADF .........................................6-1

6.2 Cleaning the Glass........................................6-3

6.3 Replacing the ADF snap-in pad module............6-4

6.4 Replacing the ADF Paper Feed Roller...............6-6

7. Trouble shooting ........................................................7-1

7.1 Question and Answer....................................7-1

7.2 Paper Jam in the ADF ...................................7-5

8. Technical Service .......................................................8-1

9. Specifications..............................................................9-1

vi

User’s Manual

1. Introduction

Congratulations on your purchase of the document scanner.
Before you install and operate the scanner, please take a

few minutes to read through this manual. It provides you
with the proper instructions on how to unpack, install,
operate and maintain the scanner.

Figure 1-1 shows how the scanner is packed. You can
check all items against your “checklist”, inclu d ed with
your scanner.

1-1

p

r

Power Cord

SCSI Cable

A

Adapter

Output
Pa

EPS

C

D

er Tray

E-2

B

Foam

EPS
Foam

Scanne

Carton

S/N LABEL

Figure 1-1 Scanner Packing

1-2

SCANNER

F

User’s Manual

2. Installation

Please unpack the scanner carefully, and check the contents
against the checklist. If any items are missing or damaged,
please contact your authorized local dealer immediately.

Precautions

• Keep the scanner out of direct sunlight. Direct
exposure to the sun or excessive heat may cause
damage to the unit.

• Do not install the scanner in a humid or dusty place.

• Use only the AC adapter (HEG42-240200-7L by

Hitron) included with the machine. Using other AC
adapters may damage the machine and void the
warranty.

• Place the scanner securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.

• Retain the scanner box and packing materials for
shipping purposes.

2.1 Unlocking the Shipping switch

The scanner has a shipping switch that locks the carrier
mechanism for transportation purposes. This switch must
be unlocked before using the scanner.

Before proceeding, turn the power off, disconnect all cables
and follow the instructions below to unlock the shipping
switch.

2-1

2.1.1 unlocking the scanner

i). Carefully place the scanner in an upright position on

its front.

ii). Unlock the scanner by moving the lock switch beneath

the scanner to the “Unlock” position (See Figure 2-1).

iii). Gently place the scanner back to its normal position.

Figure 2-1 Unlocking the Shipping Switch

2-2

User’s Manual

2.1.2 locking the Shipping switch

Whenever you need to move the scanner to a new location
it is advisable to lock the shipping switch to avoid causing
damage to the scanners’ internal mechanism. Please follow
the instructions below to lock the shipping switch.

1). Turn off the scanner.

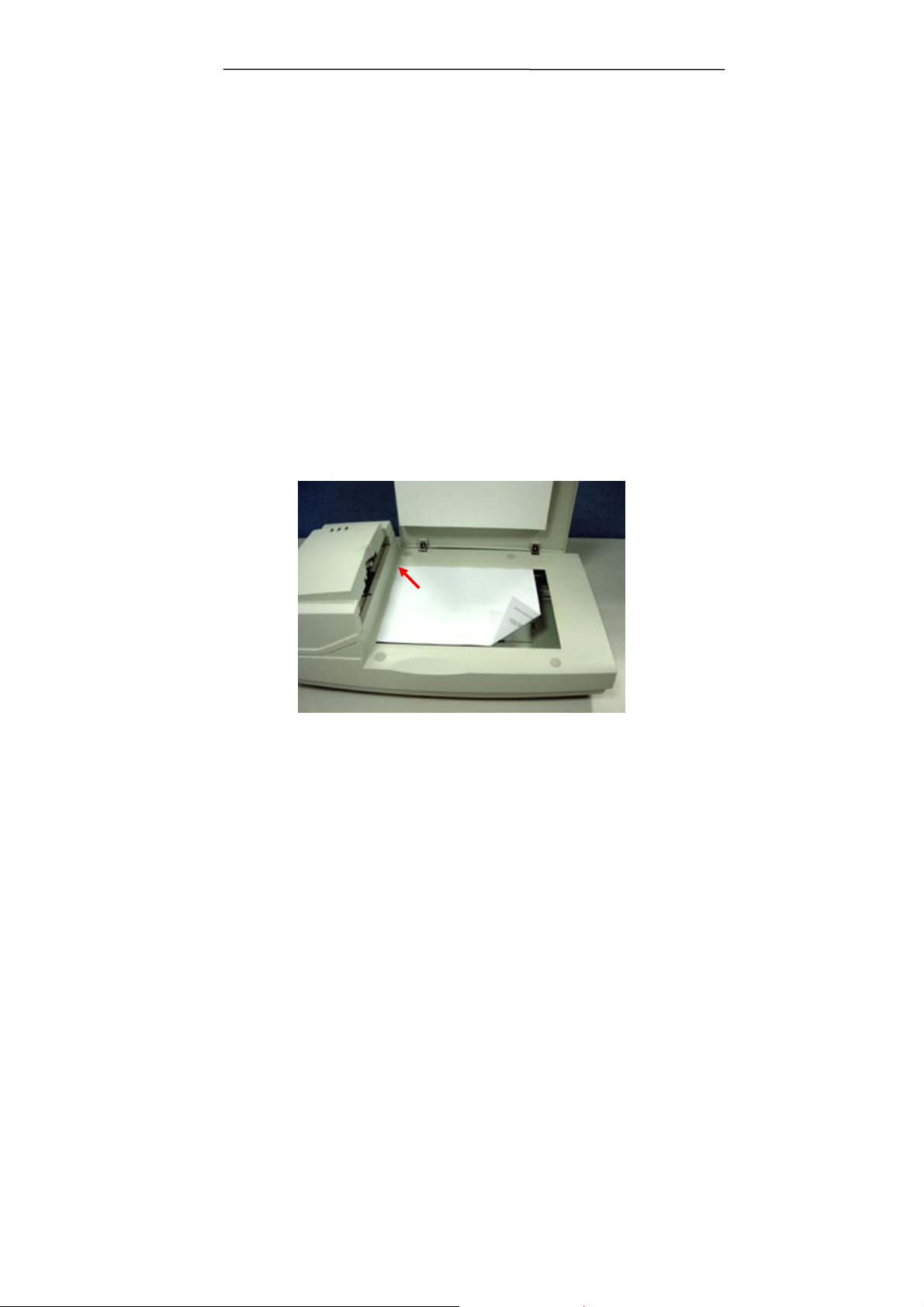

2). Lift the Document cover to reveal the flatbed glass and

scanning unit.

3). Turn on the scanner.

4). Turn off the scanner again while the scanning unit

moved to the end for a few seconds.

5). Place your scanner in an upright position on its front

side.

6). Lock your scanner by moving the lock switch to the

"Locked position".

7). Place the scanner back to its normal position.

2-3

2.2 SCSI ID

When you have several devices on a SCSI chain, you may
need to adjust the SCSI ID selector setting located on the
back of the scanner. This setting assigns a specific "device
ID" to the scanner. If the assignment conflicts with an
existing SCSI device, please select a new ID. (See Figure 2-

2)

Note: The factory setting for scanner is ID 6. Usually, ID 0 is
assigned to an internal hard disk drive, and ID 7, ID 8 ,and
ID 9 are not in actual use.

Using a suitable tool, turn the selector switch until the arrow
points to the desired ID number.

2.3 Setting SCSI Terminator

The scanner is equipped with a built-in terminator switch on
the rear of the scanner. (See Figure 2-2). The scanner is
equipped with a built-in terminator switch on the rear of the
scanner. Turn the terminator switch on if the scanner is to be
connected to the computer as the only or the last SCSI
device. Turn the terminator switch off if the scanner is to be
located between the computer and the other SCSI device.

2-4

SCSI ID Selector

SCSI Termination

Switch

Figure 2-2 Adjusting the SCSI ID setting

User’s Manual

2-5

2.3 USB Interface

Note that the machine is designed with two ports, SCSI and
USB, to connect with the computer. If you are using the
USB port, be sure to install the scanner driver before
connecting the USB cable to your computer. Otherwise, the
scanner may not work properly.

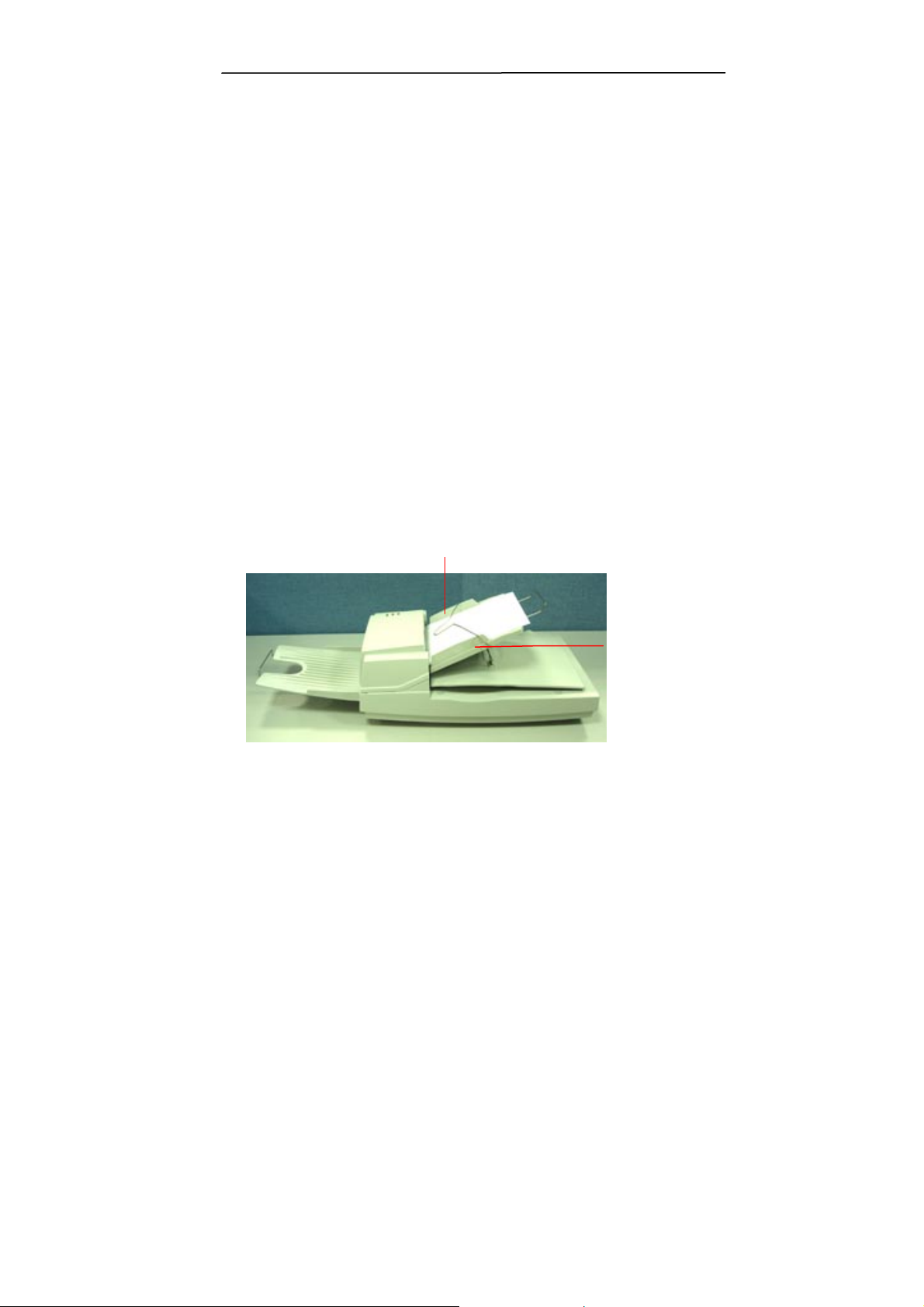

2.4 ADF Paper Chute

i). Lift the paper chute to about 45 degrees.
ii). Pull the paper-chute wire leg down to the grips on the

document cover.

iii). Slightly press the paper chute to snap the wire leg

into the grips on the document cover.

iv). Pull out the paper chute extension to the length you

want.

Paper Chute
Extension

ADF Paper Chute

Paper Chute
Wire Legs

Figure 2-3 Setting the ADF

2-6

User’s Manual

2.5 ADF Output Tray

i). Hold the output paper tray some 30 degrees aslant as

shown in Figure 2-4.

ii). Insert the three protrusions on the output paper tray

to the three slots on the ADF.

iii). Release the paper tray gently. Make sure the tray is

firmly attached to the ADF.

iv). Pull out the output paper tray extension wire to the

desired length.

Output Tray
Extension Wire

Figure 2-4 Install the ADF Output Paper Tray

2-7

2.6 Document Loading

For flatbed scanning

Documents that can not be scanned using the ADF can be
placed on the flatbed for scanning. (See Figure 2-5)

i). Place the document to be scanned onto the document

glass face down.

ii). Position the document so that the upper-right

corner is aligned with the reference mark.

Figure 2-5 Place Document on the scanner

2-8

User’s Manual

2.7 ADF Scanning

Multiple documents can be fed automatically using the ADF.
Refer to Figure 2-6.

i). To prevent occasional paper jam when automatically

feeding multiple documents, fan the paper before
loading.

ii). Lift the balance wire.
iii). Place the documents onto the ADF paper chute in

either paper side (face-down, face-up), with the
leading edge in the auto feeder entrance.

Let the balance wire rest on the top of the documents.
iv). Adjust the left and right guides so that they are snug

against the sides of the documents.

Balance Wire

Paper Guide

Figure 2-6 Loading Multiple Document

2-9

2.8 Connecting the Cable

i). Turning the Power Off

Depress the side marked “O” to turn the power off.

Connect the power cable and SCSI signal cable as shown

in Figure 2-7.

ii). Turning the Power On

Depress the side marked “I” to turn the power on. The
POWER LED will light. If not, please check the power
source.

iii). SCSI Termination/USB Port

The scanner is designed with both the USB and SCSI port.

If you wish to connect the scanner with a USB port, please

install the scanner driver first and then connect the USB

cable. If you wish to connect the scanner with SCSI port,

please note the following:

The scanner comes complete with a built in SCSI

terminator. If the scanner is the last device in a SCSI

chain, the terminator should be switched on. If the

scanner is not the last device, the terminator should be

off. The terminator on/off switch is located on the back of

the scanner, to the left of the SCSI cable connectors.

2-10

User’s Manual

Host PC Scanner SCSI Device

Term.

Term.

(Terminator Off)

Host PC Scanner

Term.

(Terminator On)

Figure 2-2 Terminator ON/OFF

2-11

Power Switch

USB Port

Figure 2-7 Cable Connection

SCSI Port

2-12

User’s Manual

3. Requirements & software
installation

To run the scanner at rated speed recommended, you must
have the following minimum requirements:

• IBM compatible PC 586, Pentium or higher

• Microsoft Windows 95 /NT/98/98SE/Me/2000/XP

• One SCSI card installed on your computer; or a USB port

on your computer

• 100M bytes of available hard disk space for installation;

• 128M bytes of RAM

• A CD-ROM drive.

3.1 Scanner Driver Installation

Important!

If you wish to connect the scanner with a USB port, please
install the scanner driver first and then connect the USB cable.

1. Start your PC and Windows application.

2. Insert the scanner bundled CD to your CD-ROM drive.

3. The software installation graphic should appear as

below:

3-1

If not, press the Start button, choose RUN,and type
d:\driver\twain driver (or ISIS driver)\setup.exe (d means the
letter indicating your current CD-ROM drive). Click on the OK
button.

4. Follow the subsequent instructions on the screen to

complete the driver and application installation.

3-2

User’s Manual

3.2 Verifying Your Scanner Installation

To verify if your scanner installation is correct, Avision provides
you a useful test program called Avision Capture Tool. With
this tool, you can perform simple scans and view the captured
images. In addition, it helps you complete your scan at a rated
speed.

The following procedure describes how to verify your scanner
installation. If the installation is not correct, please review t he
preceding section to check if the cable connection and scanner
driver have been successfully installed.

Before you begin, be sure the scanner is on.

1. Select Start>Programs>Avision AVxxx Scanner>Avision

Capture Tool.

The Select Scanner Model dialog box will be displayed.

2. Select your driver type and scanner model and click OK.

The following Avision Capture Tool dialog box will be
displayed.

3-3

Setup

Scan

File Format

Fit
Page

Save File Path

Actual
Size

3. Choose your desired file format from the File Format drop

down list box. (Default is BMP, other choice in cludes TIFF,
GIF, and JPEG.)

4. Type your desired folder name and file name in the File

Path box. (Default is C:\My Scan\Image.)

Note: If you do not wish to save the scanned image,
deselect the Save button since default is Save Enable. In
this case, the thumbnail view will be disabled. And
therefore, after viewing all the scanned images, only the
last one will remain on the screen.

5. Click the Setup button (

) or choose Setup from the

File menu to prompt the Scanner Properties dialog box.

3-4

User’s Manual


Selection

Box

6. From the Image Selection Box, choose your desired image

type for your scanned image. (Default is Front B&W) If
you have a duplex scanner, choose Front and Rear to scan
both sides of your document.

7. Click OK to quit the Scanner Properties dialog box. (To

learn more details about the Scanner Properties dialog box,
please see the subsequent chapter, Using the Scanner
Properties Dialog Box.)

8. Place your document face down on the document glass or

face up in the auto document feeder.

9. In the Scan Validation dialog box, click the Scan button

(

) or choose Scan from the File menu.

10. The document will be scanned and displayed in the Scan

Validation screen. After the scanned images have been
displayed, your scanner installation verification is
completed.

3-5

Thumbnail View

Status Bar

Fit Page View

11. You can view the scanned image in Fit Page (

Actual Size (100%) button (

) from the Viewing toolbars

) or

at the right side.

12. Click the Close box or Quit f r om the File menu to exit the

Scan Validation Tool.

3-6

User’s Manual

3.1.1 A Glance of the Scanner Properties Dialog Box

1

2

8

3
4
5
6

7

1. Tab Options Choice: Image, Compression, Color Dropout,

Paper, Options, Settings, Information.

2. Image

Selection Box

3. Brightness: Adjust the brightness level f rom –100 to +100.

4. Contrast Adjust the contrast level from –100 to +100.

5. Resolution

6. Invert Reverse the color of your scanned image.

7. Scan Source Choice: Auto Document Feeder, Flatbed,

8. Defaults Reset all values on the tabs to the factory

Choose your image type and the side of
document you wish to scan. Options vary
based on type of scanner.

Determine the quality of the scanned image.
The industry standard is 200 dpi.

Flatbed (Book), Automatic (varies due to
different scanner model)

default settings.

3-7

User’s Manual

4. Using the Scanner

Properties Dialog Box

The Scanner Properties dialog box allows you to configure the
scanner’s settings. It consists of several tabbed windows each
of which will be described in this chapter.

The Scanner Properties dialog box

4-1

4.1 Buttons on the Scanner Properties Dialog Box

The buttons on the Scanner Properties dialog box

Buttons

Description

Defaults Click the Defaults button, the factory default

settings will be shown on each tab.

Scan After all the scan settings are satisfactory, click

the Scan button to start scanning your
document.

Close Click the Close button to leave the Scanner

Properties dialog box.

4-2

The following table shows the default settings：

Tab name Default settings
Image Image：Front B&W

Binarization：Dynamic Threshold
Resolution：200 dpi
Invert：Blank on White
Scan Source：Auto Document Feeder
Threshold：None
Brightness：None
Contrast：None

Compression None
Color Dropout None
Paper Cropping：Automatic

Deskew：Yes
Orientation：Portrait
OverScan：0.00
Multifeed Detection：None
Unit：Inch

User’s Manual

Options Rotation Degrees：None

Blank Page Removal：None
Edge Fill：White，0 mm
Image Control Option：None

Setting Enable Energy Saver：Enable, 15

minutes after last scan action
Show Scanning Progress：Yes

Show Warning Message：Yes
Save Settings after Closing：Yes

4-3

4.2 The Image Tab

The Image tab allows you to choose the front side and (or) the
rear side of your document, the type of image, and to set
several basic scan settings. Note that except for the resolution,
you can set individual scan settings for the front side and the
rear side. For example, all settings in the Image tab,
Compression tab, Color Dropout tab can be set individually for
the front and the rear side. However, the settings in the Paper
tab, the Option tab, and the Setting tab have to be set the
same for the front and rear side.

The Image tab dialog box

4-4

User’s Manual

4.2.1 The Image Selection Box

The Image Selection box includes
the image type and document side
option. If you wish to scan both the
front side and the rear side of your
color document, you can check both
Front Color and Rear Color at the
same time. Note the options vary
based on type of scanner.

Example 1：Scanning a two-sided color document, both

sides in color

Side/Image

Selection

Front

Rear

4-5

Example 2：Scanning a two-sided color document, one
in B&W(Drop Blue Color：Threshold：10, Background：

79), the other in color

Side/Image
Selection

Front

Rear

Image Type Description
Color Choose Color if you wish to scan a color

image for your original in color.

Gray Choose Gray image if your original contains

actual shades of gray.

B&W Ch oose B&W if your original contains only text

pencil or ink sketch.

B&W Gray Color

4-6

4.2.2 Other Image Options

Binarization This is the process of converting a

grayscale or color image to a bi-tonal
image. There are several different
methods of performing this conversion.
Two of the options are Dynamic

Threshold and Fixed Processing.
Dynamic Threshold: Selecting

Dynamic Threshold allows the scanner

to dynamically evaluate each document
to determine the optimal threshold value
to produce the highest quality image.
This is used to scan mixed document
containing faint text, shaded background,
or color background with a single setting.
If Dynamic Threshold is selected,
Threshold, Brightness, and Contrast are
not available.

Fixed Processing: Used for black-and­white and other high contrast documents.
A single level is set to determine the
black-and-white transition. The threshold
is programmable over the entire density
range. Fixed Processing sets Contrast
to 0. If Fixed Processing is selected,
Contrast is not available.

User’s Manual

4-7

Threshold Used to convert a grayscale image to a

bi-tonal image. The value ranges from 0 to

255. A low threshold value produces a
lighter image, and can be used to subdue
backgrounds and subtle, unneeded
information. A high threshold value produces
a darker image, and can be used to help pick
up faint images.
Adjust the threshold setting by dragging the
Threshold sliding bar to the left or right to
achieve the desired threshold setting.

200 dpi,
Threshold:80,
Brightness: 0

200 dpi,
Threshold:170,
Brightness: 0

4-8

Brightness

Contrast

User’s Manual

Adjusts the lightness or darkness of an
image. The higher the value, the brighter
the image. Drag the slider to the right or
left to increase or decrease the brightness.

The range is from –100 to +100.

Adjusts the range between the darkest and
the lightest shades in the image. The
higher the contrast, the bigger the different
grayscale. Drag the slider to the right or
left to increase or decrease the contrast.

The range is from –100 to +100.

Brightness: -50 Brightness: 0

(Normal)

Contrast: -50 Contrast: 0

(Normal)

4-9

Brightness: +50

Contrast: +50

Resolution

A good control of the resolution results a
good detail of an image that scans. The
resolution is measured by dots per inch
(dpi). Normally, the greater the dpi number,
the higher the resolution and the image file
size. Be aware that greater resolution takes
more time to scan, and more disk space for
the scanning image. For your information,
an A4 size color image scanned at 300 dpi at
True Color mode consumes approximately 25
MB of disk space. A higher resolution
(usually means over 600 dpi) is only
recommended when you need to scan a
small area at True Color mode.

Choose a resolution value from the drop
down list. The default value is 200 dpi.
Available resolutions are 75, 100, 150,
200,300, 400 and 600. Or you may choose
your desired value by clicking the box in the
right side of the drop down list and press the
arrow key to select your desired value and
then click the Add button to include it in the
drop down list.

Resolution: 75 dpi

Resolution: 150 dpi

4-10

User’s Manual

Invert Reverses the brightness and the colors in the

image. The default setting is Black on a White
background. Reverse mode is White on a Black
background. For color images, each pixel will be
changed into its complementary color at the
command of Invert.

Black on White

White on Black

4-11

Scan
Source

Choice:

y Auto Document Feeder: Used to scan

multiple pages.

y Flatbed: Used to scan a single page. For

example, pages from newspaper clipping,
paper with wrinkles or curls.

y Flatbed (book): Used to scan several

inside pages from book.

y Automatic: Allow the scanner automatically

set its scan source. If Automatic is selected
and there is document in both the auto
document feeder (ADF) and the flatbed, then
the scan source will be automatically set to
ADF. If Automatic is selected and there is
document only in flatbed, then the scan
source will be set to flatbed.

Note the options vary based on type of scanner.

4-12

Color
Adjustment

User’s Manual

Adjusts the color quality of the image so
that it comes close to that of the original.
This function uses default parameters to
adjust the image.

Normal

After Color Adjustment

4.2.3 Scanning color images

The following options are available for scanning color images.

y Brightness
y Contrast
y Resolution
y Invert

4-13

4.2.4 Scanning grayscale images

The following options are available for scanning gray images.

y Brightness
y Contrast
y Resolution
y Invert

4.2.5 Scanning B&W images

The following options are available for scanning B&W images.

y Binarization (Dynamic Threshold)
y Resolution
y Invert

Or

y Binarization (Fix Processing)
y Threshold
y Brightness
y Resolution
y Invert

4-14

User’s Manual

4.2.6 Editing Profiles

The Scanner Properties dialog box allows you to change and
save your frequently used scan settings into a profile. You can
edit these profiles by renaming or deleting them.

To add a new profile,

1. Customize your settings. (For example, change your

resolution, image type, cropping method, scan size, or
other scan settings.)

2. Click the Image tab and then choose “Profiles” to prompt

the “Edit Your Profile” dialog box.

3. Click “Add” to enter the name of the profile and then

choose “Save”.

4. The new profile will be saved and shown in the “Profiles”

dropdown list box.

4-15

To load a profile,

1. From the Image tab dialog box, choose your favorable

profile from the “Profiles” dropdown list box.

2. Your favorable profile will be immediately loaded and

displayed on Scanner Properties dialog box.

To delete a profile,

1. From the Image tab dialog box, click “Profiles” to prompt

the Edit Your Profile dialog box.

2. Choose the profile you want to delete from the dropdown

list box.

3. Click “Delete”. A Confirm message “Are you sure you

want to delete this profile?” is prompted.

4. Choose “Yes” to delete or “Cancel” to quit.

4-16

User’s Manual

To rename a profile,

1. From the Image tab dialog box, click “Profiles” to prompt

the Edit Your Profile dialog box.

2. Choose the profile you want to rename from the dropdown

list box and then click the Rename button.

3. Enter new name for the profile.

4. Choose “Save” to save the new profile or “Cancel” to quit.

Note:

The preset default profiles include Flatbed, Simplex-B&W, 200
dpi, Simplex-Gray, 200 dpi, Simplex-Color, 200 dpi, Duplex­B&W, 200 dpi, Duplex-Gray, 200 dpi, Duplex-Color, 200 dpi. If
you have a simplex or a sheetfed scanner, the duplex or the
flatbed option will not be available.

4-17

4.3 The Compression Tab

The Compression tab allows you to compress your scanned
image and choose the level of compression. Bi-tonal images
are normally compressed using CCITT standard called Group 4
(G4). Color and grayscale images are often compressed using
JPEG technology. Move the JPEG Quality slider to the right or
left to increase or decrease the level of compression. Note the
greater the compression level, the lower image quality. Default
is 50%.

Note that the compression depends on your image editing
application. If your image editing application does not support
the type of compression format, then either a warning
message will appear or the image quality of the compressed file
will not be acceptable.

JPEG (Joint Photographic Editor Group). This group developed
and lent their name to a file compression standard for color and
grayscale images that is widely used by scanners, and software
applications. On Microsoft Windows-based systems, a file with
the extension .jpg has normally been compressed using this
standard.

For scanning color or gray images, the following compressions
are available:

y None
y JPEG

For scanning B&W images, the following compressions are

available:

y None
y G4

4-18

User’s Manual

The Compression tab dialog box

4-19

4.4 The Color Dropout Tab

4.4.1 Color Dropout Selection

Color Dropout tab allows you to drop either of the red, blue, or
green color in your scanned image. If your image contains red
color watermark or background, choose the R (Red) channel
then any red watermark or background will be removed. This
feature is used to sharpen your text when using OCR (Optical
Character Recognition) software.

Note that this function supports only black & white and gray
images. Therefore, be sure to choose any black & white or
gray image type while applying this function.

The Color Dropout dialog box

4-20

User’s Manual

4.4.2 Other Color Dropout Options

Advanced Processing provides two options that can adjust

your scanned image in the best optimal result.

Filter

Threshold

This value is used to determine the color
which will be dropped out. A lower value will
drop more of the selected color out, while a
higher value will leave more of the selected
color in.

Background

Level

The pixel which is higher than the
background value will be adjusted to the
lightest point. Adjust the value for both the
Filter Threshold and Background Level to
produce the best optimal result.

Example, slightly adjusting the background value makes
your text more clear.

Original

4-21

Remove Blue, Threshold: 20, Background:
255

Remove Blue, Threshold: 20,
Background Level: 210

4-22

User’s Manual

4.5 The Paper Tab

The Paper tab allows you to define values relating to image
output (i.e., Auto Crop or not, Scan Area, OverScan, Multi-Feed
Detection).

The Paper tab dialog box

4-23

4.5.1 Cropping

Cropping allows you to capture a portion of the document
being scanned. Choice: Automatic, Fixed to

Transport, EOP (End of Page) Detection.

Options Description
Automatic Automatic adjusts the cropping window

according to different document sizes. Use
this option for batches of mixed-sized
documents.

Fixed to
Transport

EOP (End of
Page)
Detection

This feature allows you to define the area
or zone to be imaged. Use for batches of
same-sized documents. If you select this
option, you can use the arrow keys to
define the x and y offset values, width and
length to redefine your scanned area. The
Display window will show image placement
as you change the values.

This feature allows you to define the area
or zone to be imaged. Use for batches of
same-width but different length
documents. If you select this option, you
can use the arrow keys to define the x and
y offset values, width and length to
redefine your scanned area. The Display
window will show image placement as you
change the values.

4-24

User’s Manual

The following options are only available when Fixed to
Transport is selected.

y X-Offset — the distance from the left end of the

scanner to the left edge of the scanning area.

y Y-Offset — the position from the top end of the

document to the top end of the scanning area.

y Width — the width of the scanning area.
y Length — the length of the scanning area.
y Center: automatically calculates the x-offset for center-

fed feeding based upon document size selected.

y — relocate the scan area by click the arrow key on

the cross sign while retain the scan size. View the result
from the Display window.

4-25

A

T

Example： Redefine your scan area ( x-offset: 2.25 inches；y­offset:1.13 inches)

Scan

rea

Display
window

Original

he Redefined Scan Area

After Fixed to

Transport

4-26

User’s Manual

4.5.2 Other Paper Selection

Deskew

Use this option to automatically deskew a document.

Note: If the skew angle is
too great, some of the
image may be cut off.

Scan Area

Choose your desired paper size with the drop-down list box. Or
you may select a custom paper size by clicking the Scan Area
box and then click Add to include in the choice.

Choice: None, US Letter- 8.5”x 11”, US Legal – 8.5” x 14”,
ISO A4 – 21 x 29.7 cm, ISO A5 – 14.8 x 21 cm, ISO A6 – 10.5
x 14.8cm, ISO A7 – 7.4 x 10/5 cm, ISO B5 – 17.6 x 25 cm,
ISO B6 – 12.5 x 17.6 cm, ISO B7 – 8.8 x 12.5 cm, JIS B5 –

18.2 x 25.7 cm, JIS B6 – 12.8 x 18.2 cm, JIS B7 – 9.1 x 12.8

cm, Scanner Maximum, Long Page.

Long Page:

When you need to scan documents whose length exceeds
scanner maximum, please choose Long Page. Note if Long
Page is selected, the Multi-Feed Detection will n ot be available.
Options: Unknown Length, Enter Length (Note: This option
varies due to type of scanner.)

4-27

Choose “Unknown Length” if you have a batch of long page
document with unknown length. Choose “Enter Length” to
enter the length and width of your documents or your desired
scan size on documents. This is useful when you have a batch
of documents with the same scan size or a batch of same-sized
documents.

OverScan

Overscan allows you to add a specific margin at top and bottom
or right and left (Options vary based on the type of scanner) of
the edge of the image. This is used to reduce possible corner
clipping on the skewed images and often applied to a batch of
skewed document to be scanned in the auto document feeder.
Select a value between 0 and +5 mm. Note the overscan
result will not be shown in the Display window an d that the
availability of the function varies based on type of scann er.

Multi-Feed Detection

Multi-Feed Detection allows you to detect overlapped document
that go through the auto document feeder. Multi-Feed usually
occurs due to stapled documents, adhesives on documents, or
electro-statically charged document. Note： The availability of

the function varies based on type of scanner.

Additional Length Detection

Additional Length Detection allows you to define the length of
document being multi-fed. This value indicates the additional
length exceeding your scan area. The Display window will
show the size of the document as you change the value. A
value of 0 indicates no additional length detection. The
Additional Length Detection is best used when scanning same­size documents in the auto document feeder.

4-28

User’s Manual

Example：Additional Length Detection：Set Additional
Length to be 2.02 inches

2.02”

4-29

Ultrasonic Detection

Ultrasonic Detection allows you to set overlapped document by
detecting paper thickness between documents. Note： The

availability of the function varies based on type of scann er.

There are two options available if Multi-Feed is detected.

z Stop Scanning after Multi-Feed

If this is selected, the scanner will stop the feeder and
display the following Warning dialog box if multi-feed is
detected.

Action:

1. Follow the instruction on the Warning dialog box to
remove the rest pages on the feeder.

2. Click OK to close the Warning dialog box.

3. Scan the rest pages.

4-30

User’s Manual

z Sound Alarm on Multi-Feed

If a wave file is added, the scanner will make a sound
alarm if multi-feed is detected yet no Warning dialog box
will be displayed.

If “Stop Scanning after Multi-Feed” is selected, the scanner
will stop the feeder.

If “Stop Scanning after Multi-Feed” has not been selected,
the scanner will continue to scan till the end of your
document.

Action:

1. If “Stop Scanning after Multi-Feed” is selected, follow
the action described in the preceding section “Stop
Scanning after Multi-Feed” on the previous page to
complete your job.

2. If “Stop Scanning after Multi-Feed” has not been
selected, rescan the pages where multi-feed is
detected.

How to add the sound alarm：

1. Click the Browse button on the right side of the speaker
icon. The Open dialog box appears.

2. Choose your wave file.

3. Click the Open button. The wave file is added.

Units

Defines the primary measurement system. Inches,

Millimeters, and Pixels are available.

4-31

4.5.3 Relative to Document

Relative to Document: (used for batches of same-sized

documents)
This option allows you to crop different areas on your

documents and deliver these images in B&W, Gray, or Color
separately. For example, there are applications which require
you to store the entire document in B&W and a part of the
document in color to save storage space. This is useful for
documents where a photograph, or signature appears in a
consistent area on the document such as resumes, and so on.

The following procedure describes how to reproduce the entire
document in B&W and a portion of document (picture) in color.

1. On the Paper tab, choose “Relative to Document” or “Fixed
to Transport” from the Cropping option.

2. Choose your scan size from the Scan Area option. The
selected scan size will be displayed in a red rectangular
box. This is also the scan size of your entire document.
(For example, ISO B5. If you have not chosen a scan area
and leave the selection as None, then the default area will
be the scanner’s maximum.)

1

2

A red
rectangular
box

4-32

User’s Manual

T

T

T

3. Click the Preview tab to display the Preview window. A
black rectangular box appears to indicate the max. scan
size your have just selected.

The Image

Selection

he selected


Box

A black
rectangular
box

4. Click the Preview button to view the entire image in low
resolution to correctly crop your relative scan area.

he Preview


he Preview

Button

5. Select image type from the Image Selection box. The
selected image will appear in highlighted color. (For
example, Front Color)

6. Place your cursor on the Preview window and click your
left mouse button. A cross sign will appear as illustrated.
Create your relative scan size diagonally by dragging the
left mouse button to your preferable size. The selected
area will appear in a red box as illustrated.

4-33

A Cross

Sign

The
Relative
Area

7. Check the B&W image from the Image Selection box to
scan the entire document.

8. Click the Scan button to start scanning the document in
two image types and sizes. (See the result in below.)

The entire document in B&W The relative area in color

4-34

User’s Manual

4.6 The Preview Tab

The Preview tab allows you to preview (a low- resolution scan)
your image before final scan. This preview image lets you
allocate your scan area. You can choose your scan area by the
“Scan Area” drop down list box or placing your cursor on the
Display window and dragging it diagonally on the Display
window. Then, a red rectangle box will appear to indicate the
selected area.

Note: If you choose “Automatic Cropping” on the “Paper Tab”,
then to select a scan area on the Preview tab is not allowed.

The Display
Window

The Preview Tab

4-35

4.7 The Options Tab

The Options tab allows you to set following additional image

processing settings.

The Option tab dialog box

4-36

User’s Manual

Flip Side

Rotation

Select “fanfold” to rotate the image
of the reverse side to 180 degrees.

This is applied to double-sided
document which are viewed in
portrait are sometime fed into the
scanner in landscape or vice versa.

Choice: Book, Fanfold.

If “Book” is selected, the image of
the reverse side will not be rotated.

The following illustration shows the documents which should
be viewed in portrait are fed into the scanner in landscape

4-37

Rotate Image Choose the rotation angle from the

drop down list if you wish to rotate
your scanned image.

Choice: None, 90°CW(clockwise),
90°CCW(counter clockwise),
180°.

Blank Page

Removal

Original

Rotate
90°CCW

Check if you wish to remove the
blank page and move the slider to
the left or right to your desired
threshold.

4-38

Rotate 90°CW

Rotate 180°

Edge

Fill

User’s Manual

Check White or Black if you wish to add white or
black edge on the border of your scanned
image. Enter the value from 0 to 5 mm. Default
value is 0.


Control
Option

Original

Edge Fill: 5mm (Black)

Check the Mirror box if you wish to reverse the
right and left side of your image.

Original

The Mirror Effect

4-39

Background
Setting

This option allows you to set your scan
background.

Choice: White Background, Black
Background.

*This option varies based on type of scanner
and is available for the front page in the ADF
(auto document feeder) only. For the rear
page, only the white background is
available.

White Background

Black Background

4-40

User’s Manual

4.8 The Setting Tab

The Setting tab allows you to set the following settings:

Energy Saving
Control

The Setting tab dialog box

Check the Enable Energy Saver box
and move the slider to the right to set
the amount of time to start the energy
saver after your last action. The range
is from 1 to 240 minutes. The default
is 15 minutes.

4-41

Batch Scan
Setting

•Batch Scan

To increase the scanning speed, the
scanner first scans a few pages of your
document and then sends these scanning
data to the application. Therefore, during

scanning, the numbers of pages been

scanned on the scanner is somehow
different with the numbers of pages
displayed on your computer screen.
Choose this mode if you wish to complete
your scanning task at the fastest speed.

•Page Scan

If you choose Page Scan, during scanning,
the scanner will first scan only one page of
your document and then send the scanned
data to the application and then scan the
next page and send the next data to the
application, and so on. Therefore, in this
mode, the scanning speed is slower yet this
helps to keep the same scanning progress
between the scanner and your computer
screen.

Barcode
Detection

Check this option to enable detecting and
recognizing barcode in your document.
After the detecting process, an
avbarcode.ini file will be generated and
stored in your system drive, for example,
Windows\avbarcode.ini.
Note: The availability of this feature varies
based on type of scanner.

4-42

Show Scanning
Progress

User’s Manual

Check and the scanning progress bar
will be shown during scanning.

Show Warning
Message

Save Settings
after Closing

Check to show the warning messages
such as “ADF pad count exceeds
50,000 scans (the number varies based
on type of scanner). Please replace the
ADF pad and reset the pad count.”

Check to save your scanner properties
settings after leaving the dialog box.
Next time when you open the Scanner
Properties dialog box, the previously
saved settings will be shown.

4-43

4.9 The Information Tab

The Information tab displays the following system and scanner
information.

The Information tab dialog box

The “Report” button：

If you encounter any error message while using the scanner,
click the Report button. A report.txt file (C:\AVxxx) will be
generated. Please send this file to the nearest service center
for trouble shooting.

4-44

User’s Manual

The “Reset Pad Count” button」：
After scanning approximately 50,000 pages (the number varies

based on type of scanner) through the Auto Document Feeder
(ADF), the ADF pad may be worn out and you may experience
problems with document feeding. In this case, it is highly
recommended to replace the ADF pad with a new one. (Please
refer to the manual for proper replacing procedure.) For
ordering the ADF pad, please consult your nearest dealer.
After replacing the ADF pad, click the “Reset Pad Count”
button to reset the pad count.

The “Reset Roller Count” button」：
After scanning approximately 200,000 pages (the number

varies based on type of scanner) through the ADF, the ADF
roller may be worn out and you may experience problems with
document feeding. In this case, it is highly recommended to
replace the ADF roller with a new one. (Note the replacement
of the ADF roller has to be performed only by authorized
service center. Therefore, please return your scanner for roller
replacement.) After replacing the ADF roller, click the “Reset

Roller Count” button to reset the roller count.

Note：

The lifetime and the replacing procedure vary based on type of
scanner. Please consult your nearest dealer for more details.

4-45

User’s Manual

5. ISIS Interface Operation

The ISIS driver operation method is similar to the TWAIN’s.
Every function on the ISIS interface screen is briefly described
as below:

Mode: Select one of scan modes, including B&W, gray, color

options.

Dither: 5 halftone levels available, can be disabled.
Dots per inch: Select your desired resolution.
Paper Size: Select your desired paper size.
Brightness: Adjust your scan image brightness or darkness.
Contrast: Adjust the range between the darkest and the

lightest shades in the image.

Default: Click to reset all settings.
Area: Select your desired scan area or position.

5-1

User’s Manual

6. Maintenance

6.1 Cleaning the ADF

The scanner is designed to be maintenance free. However,
it still needs to be cleaned occasionally to ensure optimum
image quality and performance.

From time to time the pad assembly and feeding rollers
may become contaminated with ink, toner particles or
paper dust. In this case the scanner may not feed
documents smoothly or several documents may feed at
once. If this occurs please follow the cleaning procedures
to return your scanner to its original state.

The cleaning procedures

i). Moisten a cotton swab with isoprophyl alcohol (95%).

(Cleaner kits are available from PictureVision.)

ii). Carefully open the ADF to the left . Wipe the feeding

rollers by moving the swab from side to side. Rotate
the rollers forward with your finger and repeat the
above cleaning procedures until the rollers are clean.
Be careful not to snag or damage the pick springs.

iii). Wipe the pad in the direction from top to bottom. Be

careful not to hook the pick springs.

iv). Close the ADF unit. Your scanner is now ready for

use.

6-1

ADF Pad

ADF Roller

ADF Unit

6-2

User’s Manual

6.2 Cleaning the Glass

The procedures:

i). Soak a cotton swab with some isoprophy alcohol

(95%).

ii). Open the ADF unit and document cover as shown in

Figure 6-2. Wipe the glass of flatbed area and ADF
area by moving the swab from side to side.

iii). Close the ADF unit and document cover. Your scanner

is
now ready for use.

Glass

Figure 6-2 The Cleaning Area

6-3

6.3 Replacing the ADF snap-in pad module

After scanning approximately 20,000 pages through the
ADF, the separation pad may be worn out and you may
experience problems with document feeding. In this case, it
is highly recommended to replace the pad module with a
new one. For ordering the pad module, please consult your
nearest dealer and follow the procedure below to replace it.

Disassembling Procedure

1. Open the ADF cover.

2. Remove the ADF snap-in pad module by pulling out
the upper part of the pad clamp as shown in Figure 6-

3.

A. ADF Pad

Figure 6-3 Remove the ADF Pad

6-4

User’s Manual

Assembling Procedure

1. Take out the ADF pad module from the box.

2. Hold the upper part of the pad clamp and place it
gently to the pad holder as shown in Figure 6-4.

A. ADF

Pad

Figure 6-4 Installing the ADF Pad

6-5

6.4 Replacing the ADF Paper Feed Roller

1. Open the ADF cover.

ADF cover

2. Lift the tabs.

Tab

6-6

3. Remove the paper feed roller cover.

4. Remove the paper feed roller.

User’s Manual

ADF roller
cover

ADF paper
feed roller

6-7

5. Insert the new paper feed roller by aligning the tabs

into the slots and pressing the roller into place.

Slot

6. Reinsert the paper feed roller cover and snap it into

place.

7. Close the ADF cover.

6-8

User’s Manual

7. Trouble shooting

The scanner will automatically perform a simple self-test
each time it is turned on. This will help spot major system
errors in the scanner itself.

When the test is initiated, the READY LED is flashing. When
the test is completed, if no error occurs, the READY LED is
steadily on.

If you have problems with the operation of your scanner,
please check the following troubleshooting hints.

7.1 Question and Answer

Question: The LED indicates that the scanner is ready,

but the scanner does not respond to the
scan command from the host computer.

Answer: a) Please check if the signal cable is firmly

seated, and invoke the scan command
again. If there is still no response, please
reset the scanner by turning it off and then
on again, and reboot your host computer as
well.

b) Check if the driver is correct ly installed.

Question: Paper becomes jammed during scanning.
Answer: a) Open the ADF unit.

b) Pull out the jammed paper carefully.

c) Close the ADF unit.

7-1

Question: More than one sheet of paper were fed into

the scanner.

Answer: a) Open ADF unit.
b) Remove the multi-fed sheets of paper.
c) Close the ADF unit.
d) Flatten the corners and edges; loosen the

paper before reloading it in the paper
guide.

e) Check the feeding roller condition and

do the cleaning if necessary.

Question: Paper becomes skewed in the scanner.

Answer: a) Check the feeding roller cond ition; do the

cleaning if necessary.

b) Use the paper guide when feeding the

paper.

Question: When I power on the scanner, it makes

noises and will not stand ready.

Answer: There are two possibilities:

a) You forgot to remove the shipping switch

from the scanner. Please remove the
shipping retainer first.

b) You did not place the scanner on a flat

desktop surface. This may cause the
scanner to function improperly.

7-2

User’s Manual

Question: When I power on the scanner, the lamp

does not light.

Answer: The possibilities are as follows:

a) The lamp is out of order. In that case,

contact your authorized local dealer to
change the lamp. The life time of the lamp
is about 5000 hours.

b) Check whether the power LED on ADF
cover steadily lights or not.

If it flashes, the power adapter malfunctions
or the main board is short-circuited.

Contact your authorized local dealer to
replace the power adapter or main board.

Question: Getting image from the scanner is not a

problem, but when scanning, the scanner or
system will often crash.

Answer: Please check

a) If the SCSI cable or the USB cable is

firmly seated;

b) Only two SCSI terminators can be connected

to your SCSI daisy chain. One is at the end of
the SCSI device, and another is already in your
host adapter.

Question: The scanned image always comes out to be

too dark.

Answer: a) Use your application to modify the

Gamma setting to 2.2 and 1.8 for your
printer and monitor respectively.

b) Use Brightness setting from the TWAIN

user interface to get a brighter image.

7-3

Question: The scanner works well otherwise, but for

the line art, the lines scanned seem much
thicker than those of the original.

Answer: Use the Brightness or Threshold setting to

adjust the line art image.

7-4

User’s Manual

7.2 Paper Jam in the ADF

In the event of paper jam, please follow the procedures
below.

i). Open the ADF cover as shown in Figure 7-1.
ii). Pull the paper out of the ADF unit carefully.

ADF Unit

Document

Figure 7-1 ADF Paper Jam - Removing the Paper

7-5

User’s Manual

8. Technical Service

Technical support for Avision scanner is provided at Avision
Technical Assistance Center (ATAC). Before contact with
ATAC, please prepare the following information.

• Scanner serial & revision number (located on the
bottom
of the scanner)

• Hardware configuration (e.g., your host CPU type, RAM
size, free disk space, display card, interface card, etc.)

• The name and version of your software application

• The version of your scanner driver.

Please call us at:

US and Canada Area: Avision Labs., Inc.

Address: 6815 Mowry Ave. Newark CA 94560, USA
Telephone: [phone]
Fax number: [phone]
Web Site: http://www.avision.com
E-mail: [e-mail]

Other Area: Avision Inc.

Address: No.20, Creation Road I, Hsinchu Science

Park, Taiwan, R.O.C.
Telephone: [phone]
Fax number: [phone]
Web Site: http://www.avision.com
Email: [e-mail]

8-1

9. Specifications

Model Number

300500001
300500002

Scanning Mode B&W

Optical
Resolution

Light Source Cold Cathode fluorescent lamp
ADF Capacity 50 sheets
Scan Area Flatbed: up to European A4

Interface SCSI-2/USB 2.0
Power

Requirement
Power

Consumption
Operation

Temperature
Storage

Temperature
Dimension 567 x 350 x 199 mm
Weight 7.2 kg (15.87 lbs)

(Simplex Scanner)
(Duplex Scanner)

Gray
Color

600 x 600 dpi

(8.5” x 11.69”)
ADF: 3.7” x 5.5”(Min)
ADF: 8.5” x 14”(Max)

24Vdc/2A

< 48 watts

5°C to 35°C

-40°C to 60°C

User’s Manual

9-1
