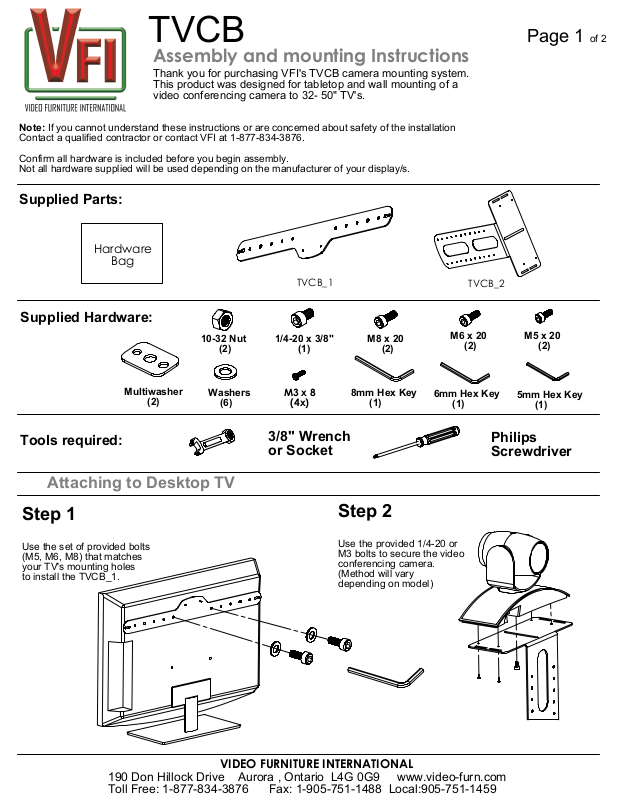

AVF TVCB User Manual
TVCB
Assembly and mounting Instructions
Thank you for purchasing VFI's TVCB camera mounting system.
This product was designed for tabletop and wall mounting of a
video conferencing camera to 32- 50" TV's.
Note:
If you cannot understand these instructions or are concerned about safety of the installation
Contact a qualified contractor or contact VFI at 1-877-834-3876.
Confirm all hardware is included before you begin assembly.
Not all hardware supplied will be used depending on the manufacturer of your display/s.
Supplied Parts:
Hardware
Bag
Page 1
of 2
Supplied Hardware:
Multiwasher
(2)
Tools required:
Attaching to Desktop TV
Step 1
Use the set of provided bolts
(M5, M6, M8) that matches
your TV's mounting holes
to install the TVCB_1.
10-32 Nut
(2)
Washers
(6)
TVCB_1
1/4-20 x 3/8"
(1)
M3 x 8
(4x)
8mm Hex Key
3/8" Wrench
or Socket
Step 2
Use the provided 1/4-20 or
M3 bolts to secure the video
conferencing camera.
(Method will vary
depending on model)
M8 x 20
(2)
(1)
TVCB_2
M6 x 20
(2)
6mm Hex Key
(1)
Philips
Screwdriver
M5 x 20
(2)
5mm Hex Key
(1)
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Attaching to Desktop TV
Attaching to Wall Mount
Page 2
Step 3
Set the TVCB_2 to a desired
height using the location
holes. Secure it into place
with the provided
10-32 nuts.
of 2
Step A
Use the provided multiwashers
and bolts to attach the TVCB
and wall mount brackets
to the TV.
Step B
Next, follow previous steps 2
and 3 to install the camera
mount and video conferencing
camera.
Step C
Hang assembled unit
onto wall mount. If necessary,
adjust camera position to
ensure wall clearance.
Use provided multiwashers
to level the wall bracket
with the TVCB.
Wall mount
from any manufacturer
Your Done!
