PMS-FL
Assembly and mounting Instructions
Thank you for purchasing VFI's universal display mounting system.
This products is designed for free standing mounting of a
single or dual plasma/lcd displays sized 32-50" and weighing
no more than 160lbs each. (dual requires extra bracket )
Some larger TV's will fit, check mfg spec online, max hole location is 700mm x 440mm
Note:
Keep your original packaging until assembly is complete.
Two persons are required to attach plasma/lcd displays to this mount.
If you cannot understand these instructions or are concerned about safety of the
installation. Contact a qualified contractor or contact VFI at 1-877-834-3876.

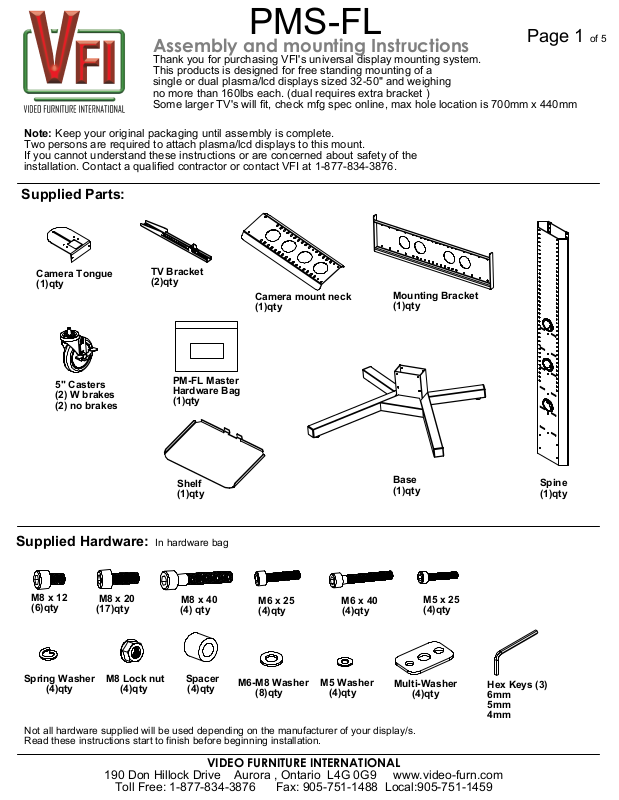

Supplied Parts:
Page 1
of 5
Camera Tongue
(1)qty
5" Casters
(2) W brakes
(2) no brakes
Supplied Hardware:
TV Bracket
(2)qty
PM-FL Master
Hardware Bag
(1)qty
Shelf
(1)qty
In hardware bag
Camera mount neck
(1)qty
Mounting Bracket
(1)qty
Base
(1)qty
Spine
(1)qty
M8 x 12
(6)qty
Spring Washer
(4)qty
Not all hardware supplied will be used depending on the manufacturer of your display/s.
Read these instructions start to finish before beginning installation.
M8 x 20
(17)qty
M8 Lock nut
(4)qty
M8 x 40
(4) qty
Spacer
(4)qty
M6 x 25
(4)qty
M6-M8 Washer
(8)qty
M6 x 40
(4)qty
M5 Washer
(4)qty
Multi-Washer
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 905-751-1488 Local:905-751-1459
M5 x 25
(4)qty
(4)qty
Hex Keys (3)
6mm
5mm
4mm
Page 2
Step 1
Hex Keys
Attaching TV Brackets
1.Place TV face down on blanket or non abrasive, clean surface such as cardboard.
2.Check to see if your TV came with mounting hardware or not.
If not,we have supplied the most common hardware.
Most displays under 42" will use the M6 bolt. Most 42"+ will use the M8 Bolts.
See which bolt length you need by hand tightening only.
3.Place TV brackets so you can see the TV mounting holes through the bracket
and insert Bolt through appropriate hole in multi-washer.
4.Use the Hex key to tighten until there is resistance, then give a quarter turn.
Check TV manual for maximum depth allowance for bolts, use spacers to adjust
bolt depth if necessary.
DO NOT OVERTIGHTEN AS THIS CAN DAMAGE or PUNCTURE THE TV
Note
.Have two people lift the TV as it can be very heavy and awkward.
Some TV's require non standard hardware.
This bracket was made to accomodate up to M10 bolts which can be found
at your local hardware store along with longer versions of the included hardware.
Page 2
of 5
Optional Spacer mounting
M8 X 40
Spacer is used when the back of TV is
not flat or the mount holes are sunk into
the back of the TV. (Rarely used)
M6 X 40
Multi-Washer
TV Bracket
Spacer
M8 X 20
M6 X 25
OR
M5 X 25
Multi-Washer
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 905-751-1488 Local:905-751-1459
Page 3
Step 2
Largest(6mm)
Hex Key

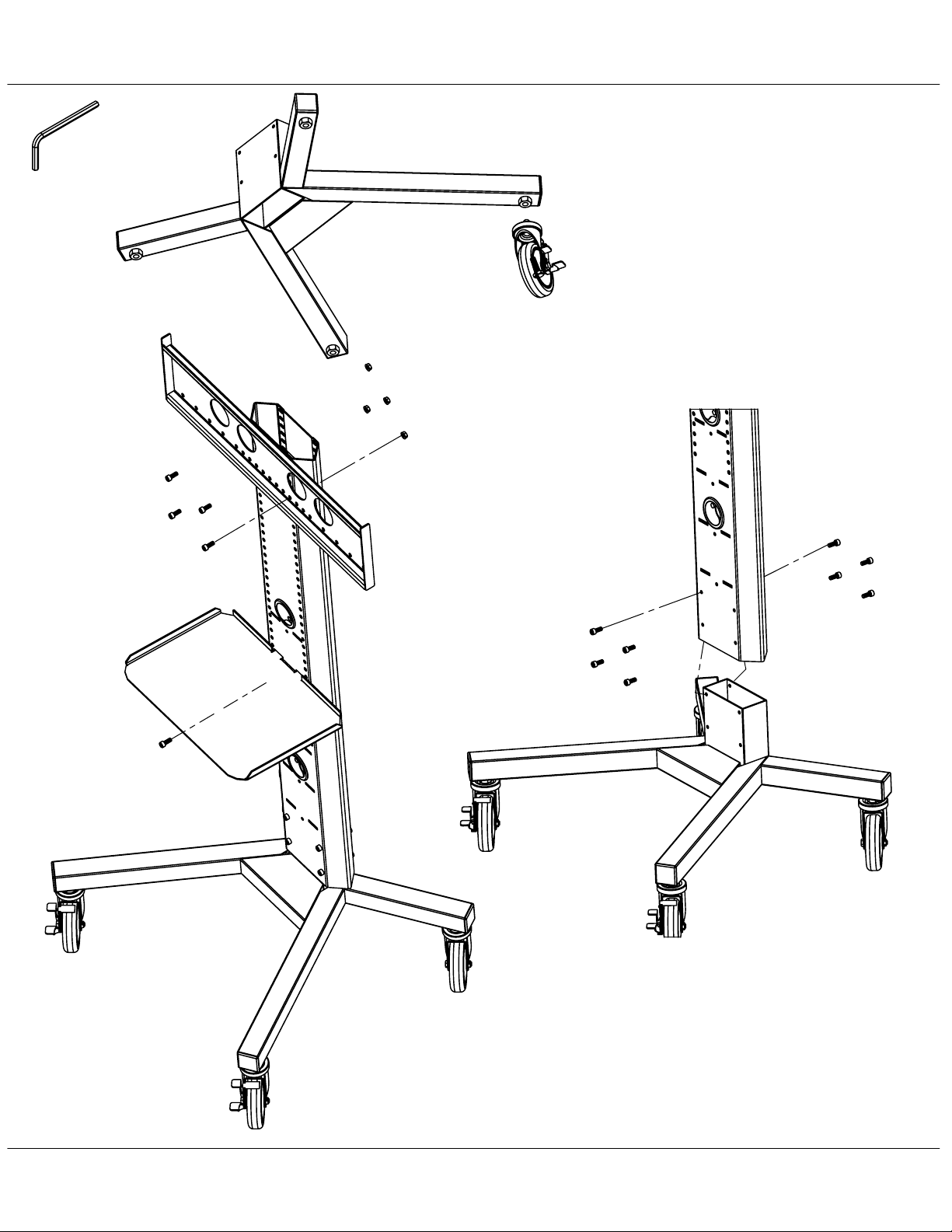

Attaching Base,Bracket and Shelf
1.Turn Casters into threads on base.
Place 2 locking caster in front.
2.Insert main spine column onto base.
Hand tighten all eight M8x20 bolts before
securely tightening with hex key.
Page 3
of 5
3.Install bracket at desired position using
M8x20 nuts and bolts.
Install shelf at preffered height with a single
M8x20.
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 905-751-1488 Local:905-751-1459
Page 4
Step 3

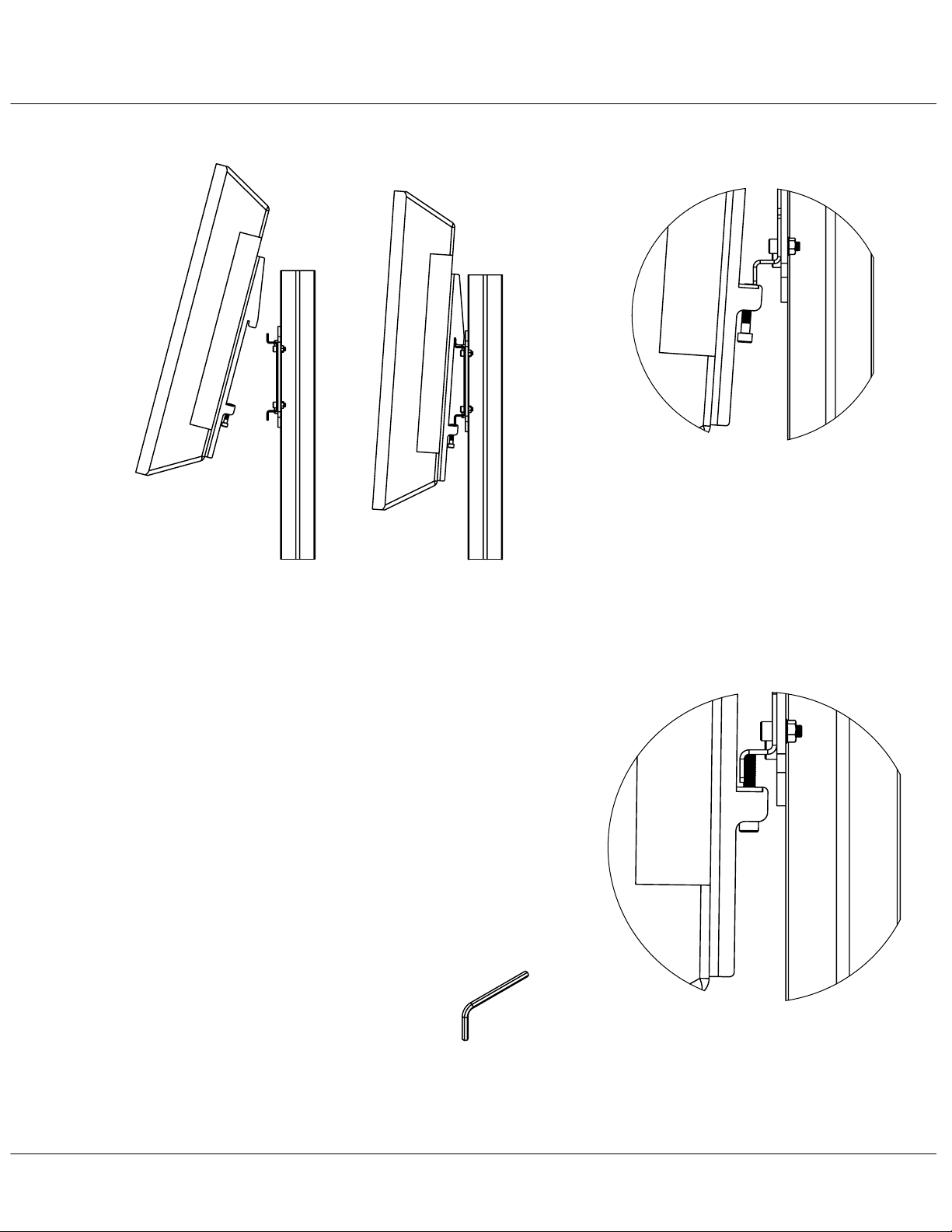

Hanging TV's and locking into place
Page 4
of 5
Make sure bolts clear bracket, TV will tilt
until its flush with the mount.
Tighten bolts till they almost touch the bracket.
Hang the TV , First hooking the top of the mounting bracket
rail then allowing the TV to rest on the rail.
Note:
the TV as it can be very heavy and
awkward.
Two people should lift and secure
Center your TV on bracket.
Largest(6mm)
Hex Key
Completely tighten bolts against bracket
to prevent movement side to side.
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 905-751-1488 Local: 905-751-1459
Page 5
Step 4
Largest(6mm)
Hex Key

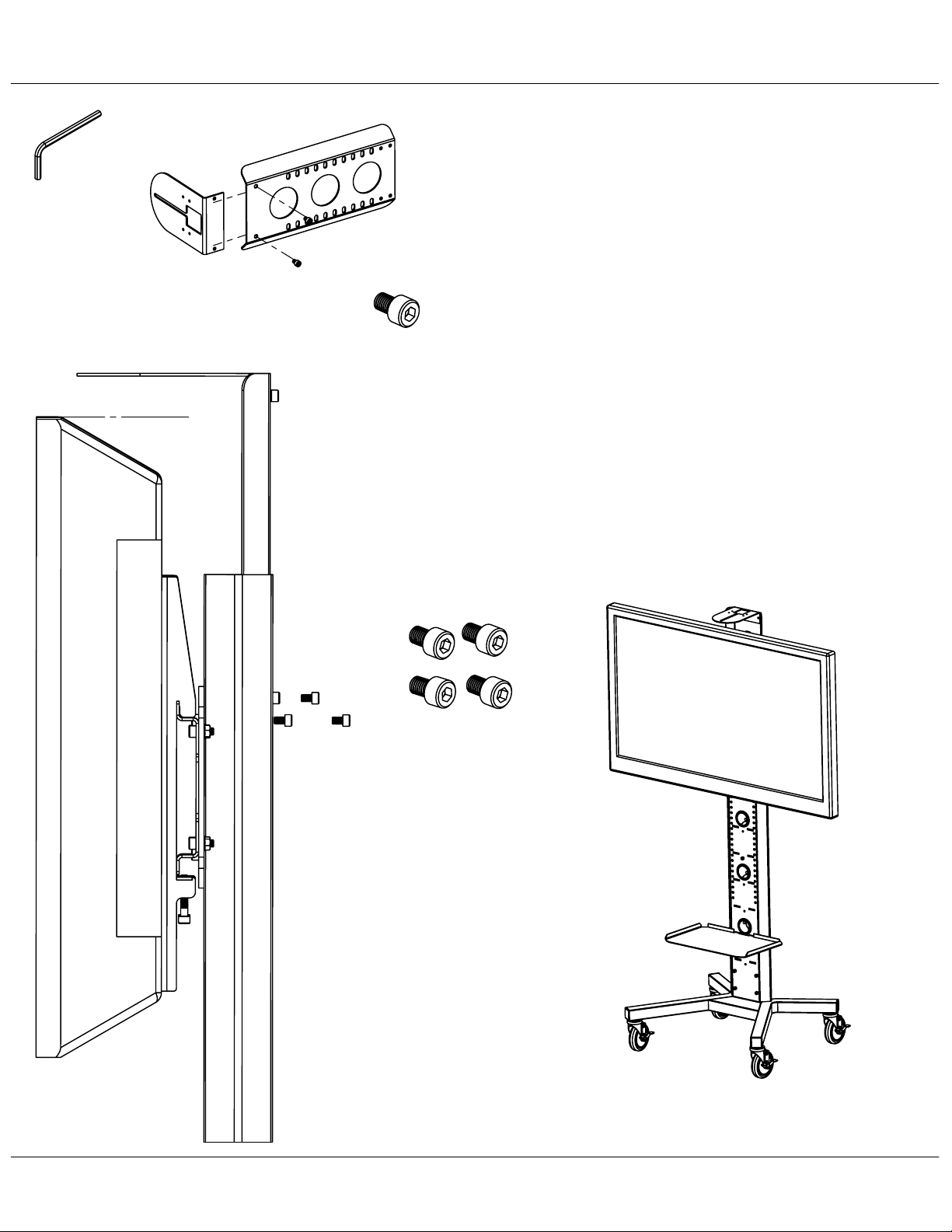

The Camera mount
Page 5
1.Install tongue in camera mount neck if using with
camera for videoconferencing. Remove if not required
2.If using tongue, Insert mount neck into main pillar
until tongue is approximately 1" from the top of the tv.
You will notice you have a bit of hardware left over
which you may need in the future.
We suggest placing this in a small bag and taping it
inside the bottom back of the main pillar.
If you have any problems,questions or suggestions,
we value your feedback. Toll free 1-877-834-3876
For our latest listing of compatible monitors
email our sales department [email protected]
of 5
M8 X 20
