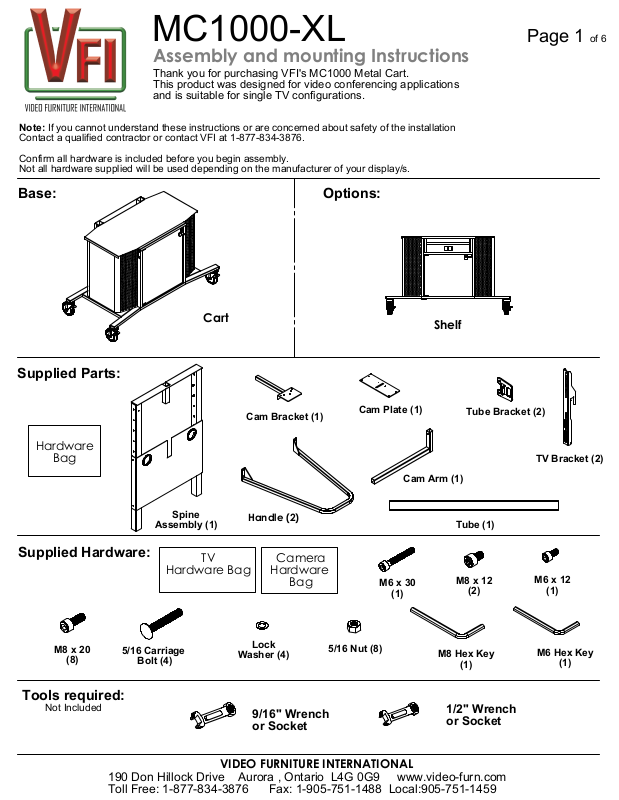

AVF J MC1000 User Manual
MC1000-XL
Assembly and mounting Instructions
Thank you for purchasing VFI's MC1000 Metal Cart.
This product was designed for video conferencing applications
and is suitable for single TV configurations.
Note:
If you cannot understand these instructions or are concerned about safety of the installation
Contact a qualified contractor or contact VFI at 1-877-834-3876.
Confirm all hardware is included before you begin assembly.
Not all hardware supplied will be used depending on the manufacturer of your display/s.
Page 1
of 6
Base:
Supplied Parts:
Hardware
Bag
Cart

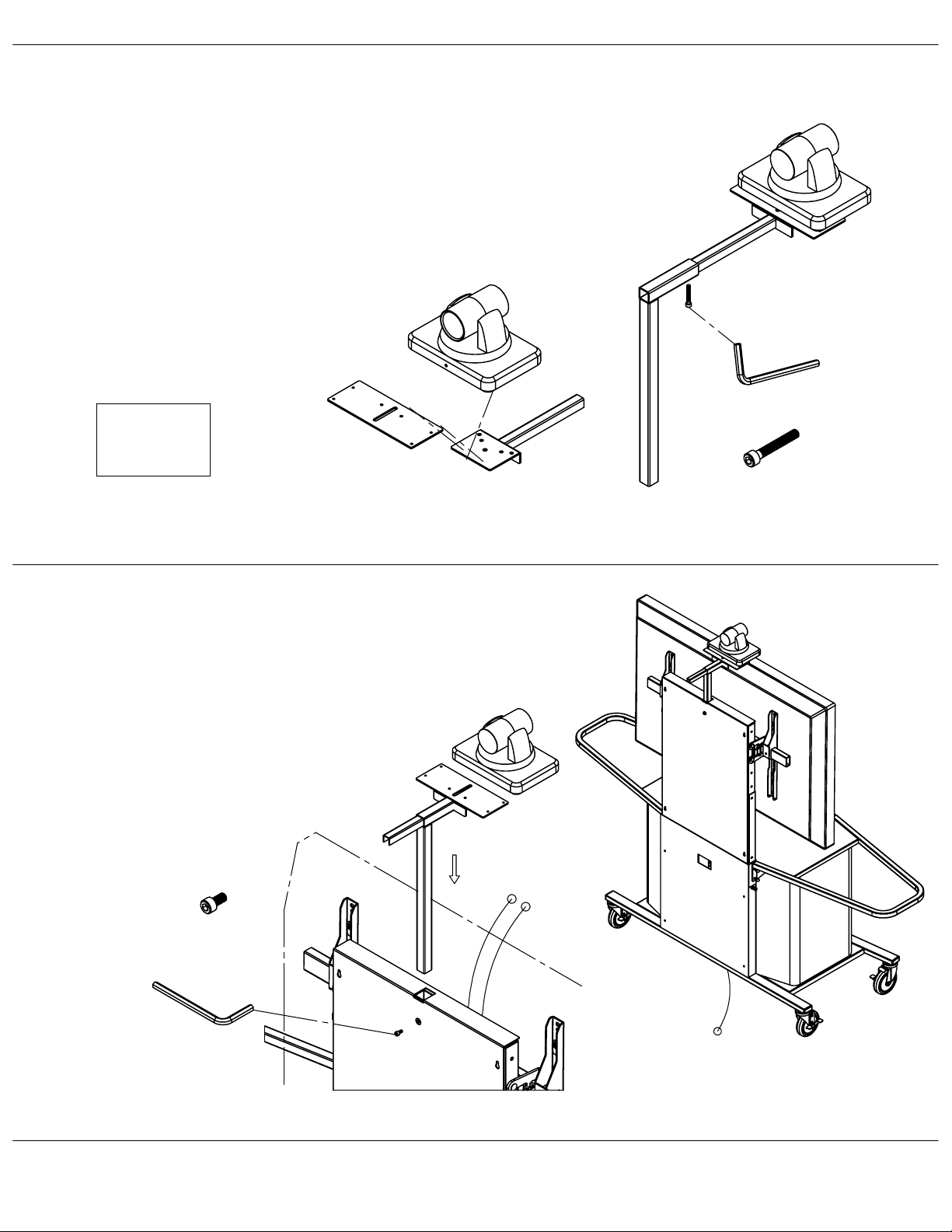

Cam Bracket (1)
Options:
Cam Plate (1)
Shelf
Tube Bracket (2)

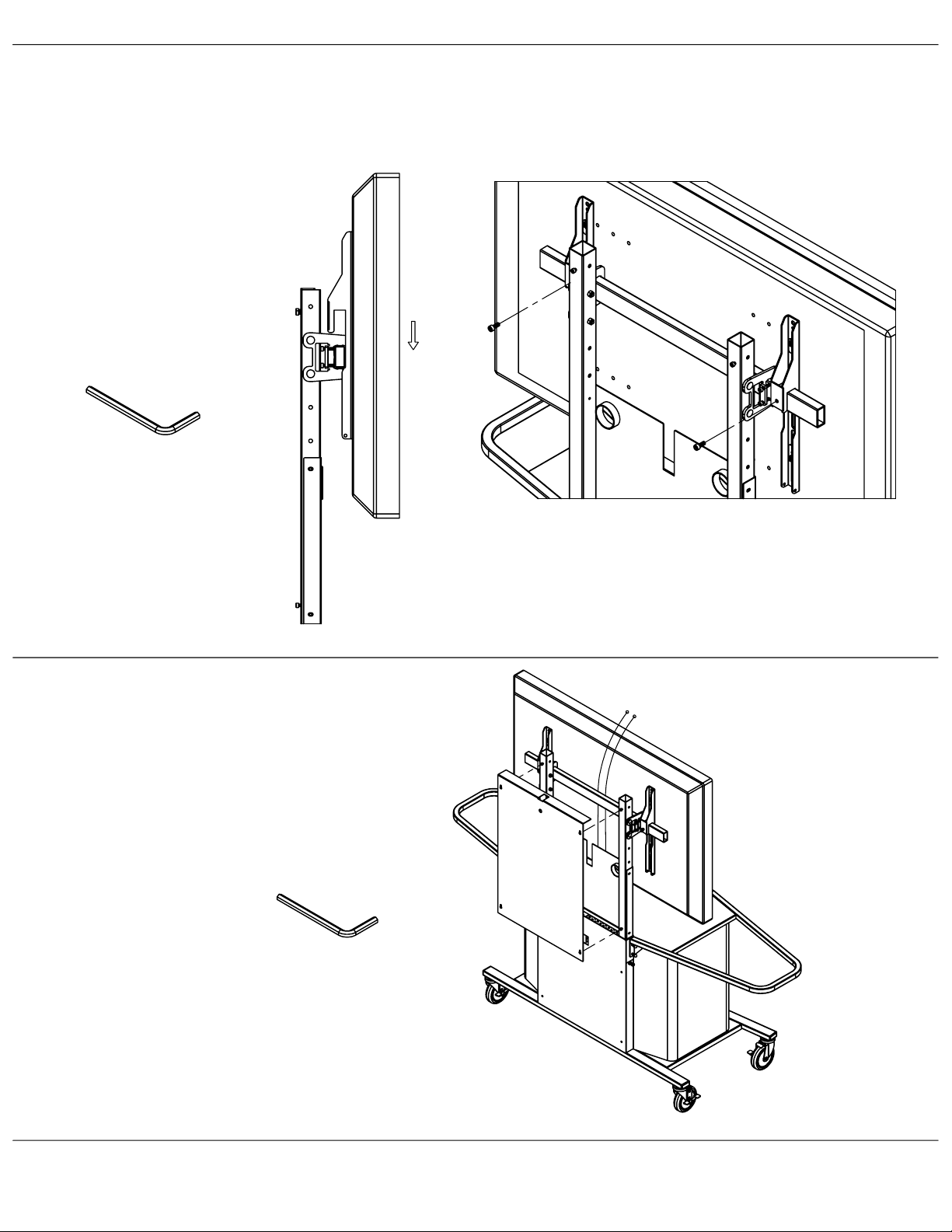

TV Bracket (2)
Cam Arm (1)
Supplied Hardware:
M8 x 20
(8)
5/16 Carriage
Bolt (4)
Tools required:
Not Included
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
Spine
Assembly (1)
TV
Hardware Bag
Handle (2)
Camera
Hardware
Bag
Lock
Washer (4)
9/16" Wrench
or Socket
5/16 Nut (8)
M6 x 30
(1)
Tube (1)
M8 x 12
(2)
M8 Hex Key
(1)
1/2" Wrench
or Socket
M6 x 12
(1)
M6 Hex Key
(1)
Attaching Handles
Step 1
Align handles with the matching
locations on the sides of the cart. Use
an M8 bolt and hex key to secure the
front side and a 1/2" wrench or socket
to secure the back side.
1/2" Wrench
or Socket
M8 Hex Key
Page 2
of 6

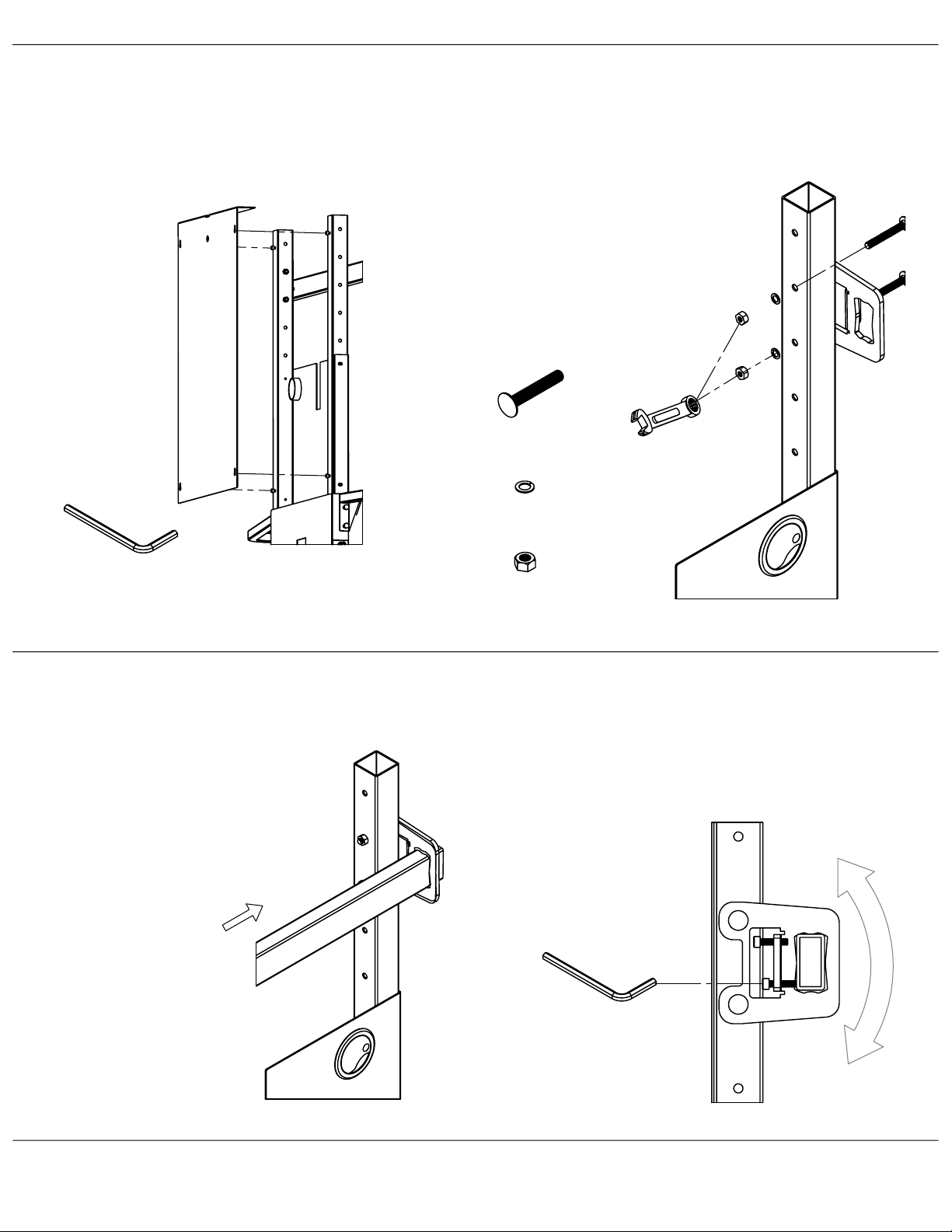

Installing Spine Assembly
Step 2
Slide the spine assembly into the
locations on the top of the cart with
the large cover facing the back.
Secure in place with an M8 bolt on
each side.
5/16 Nut (4)
M8 x 20
(4)
M8 Hex Key
VIDEO FURNITURE INTERNATIONAL
190 Don Hillock Drive Aurora , Ontario L4G 0G9 www.video-furn.com
Toll Free: 1-877-834-3876 Fax: 1-905-751-1488 Local:905-751-1459
M8 x 12
(2)
