AVer FV2006 quick guide

FV2006

Mini Vantal Dome IP Camera

Quick User Guide

Table of Contents

Before Installation ................................................................................................................. 1

I. Camera Introduction .................................................................................................... 1

1. Package Contents ............................................................................................... 1

2. Hardware Installation ........................................................................................... 2

2.1 Factory Default ................................................................................................. 5

3. SD card Compatibility List.................................................................................... 6

II. Monitor Setting ............................................................................................................. 7

III. IP Assignment .............................................................................................................. 8

Finding IP Camera by using “NXU Lite recording software” ............................................ 8

Finding IP Camera by using “AVer IPCam Utility” ......................................................... 11

Using NON-DHCP Server/Router Network ................................................................... 13

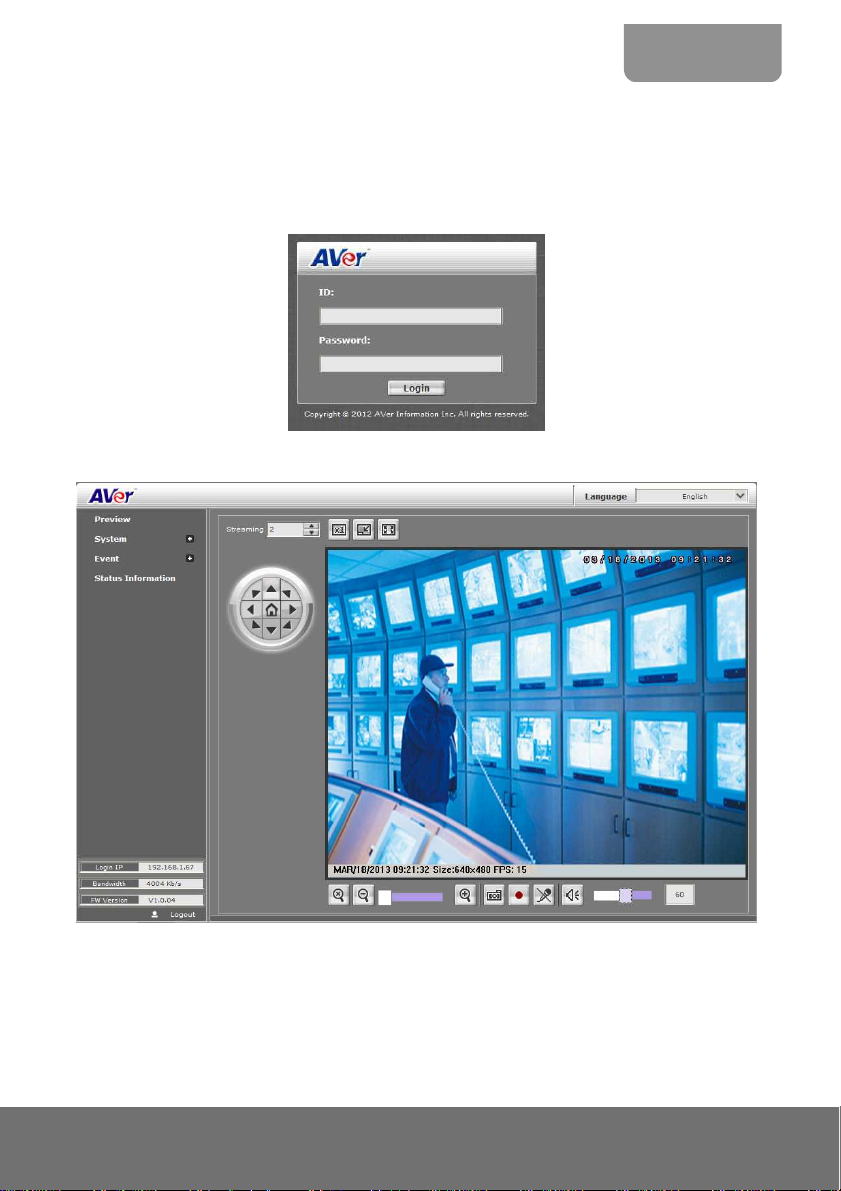

IV. Connecting the IP Camera ......................................................................................... 15

COPYRIGHT ...................................................................................................................... 16

NOTICE .............................................................................................................................. 16

WARNING .......................................................................................................................... 16

Limited Warranty .............................................................................................................. 17

Governing Law and Your Rights ..................................................................................... 18

ENGLISH

Before Installation

Before installation, please be sure to read this quick installation guide and user’s manual carefully to
complete the installation.

I. Camera Introduction

The following section introduces package contents, hardware installation, factory default reset, and SD
card Compatibility List of each type camera.

1. Package Contents

Item Descriptions

1. FV1306

2. Accessory pack

3. Conversion ring

4. Power Adaptor(DC 12V/0.5A) (Optional)

5. CD (User’s Manual, Quick Guide, and NVR
software are included)

**If any of the above items are missing, please contact your dealer immediately.

1

2.

Hardware Installation

1. Set the camera
 Locate cable from bottom

a. Use three screws to lock the base of camera on the ceiling or the wall.
b. Put back the cover, and turn it tightly to get waterproof.

2

 Locate cable from side

a. Open the conversion ring package in accessory. It includes a conversion ring

and two set of screws.
b. Use three screws to lock the conversion ring on the ceiling or the wall.
c. Use three screws to combine the base of camera with the conversion ring. The

cable can pass through the hole on the side of conversion ring.
d. Put back the cover, and turn it tightly to get waterproof.

ENGLISH

3

2. When removing the dome cover, you can see the Micro SD card slot and the reset button.

3. I/O Interface

I/O Connection

a. Please connect the GND & DO pin to the external relay (buzzer) device.
b. Please connect the GND & DI pin to the external trigger device.

4
