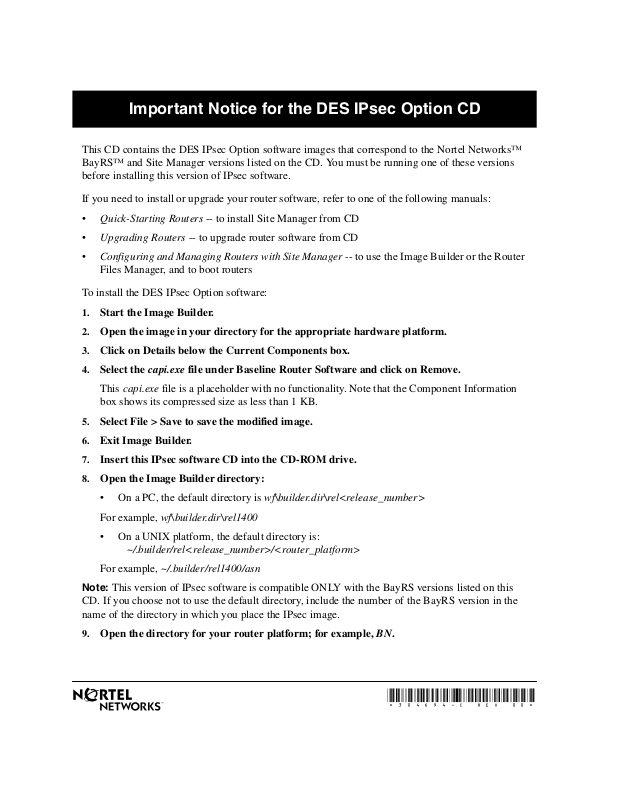

Important Notice for the DES IPsec Option CD

This CD contains the DES IPsec Option software images that correspond to the Nortel Networks™ BayRS™ and Site Manager versions listed on the CD. You must be running one of these versions before installing this version of IPsec software.

If you need to install or upgrade your router software, refer to one of the following manuals:

• Quick-Starting Routers -- to install Site Manager from CD

• Upgrading Routers -- to upgrade router software from CD

• Configuring and Managing Routers with Site Manager -- to use the Image Builder or the Router Files Manager, and to boot routers

To install the DES IPsec Option software:

Start the Image Builder.

Open the image in your directory for the appropriate hardware platform.

Click on Details below the Current Components box.

Select the

This capi.exe file is a placeholder with no functionality. Note that the Component Information box shows its compressed size as less than 1 KB.

Select File > Save to save the modified image.

Exit Image Builder.

Insert this IPsec software CD into the CD-ROM drive.

Open the Image Builder directory:

• On a PC, the default directory is wf\builder.dir\rel<release_number>

For example, wf\builder.dir\rel1400

• On a UNIX platform, the default directory is:

For example, ~/.builder/rel1400/asn

Note:

This version of IPsec software is compatible ONLY with the BayRS versions listed on this CD. If you choose not to use the default directory, include the number of the BayRS version in the name of the directory in which you place the IPsec image.

Open the directory for your router platform; for example, BN.

capi.exe

~/.builder/rel<release_number>/<router_platform>

file under Baseline Router Software and click on Remove.

*304694-C_Rev_00*

10.

Copy the file

<release_number>/<router_platform>/capi.exe

from the CD-ROM to this

directory.

router_platform must correspond with the router platform identified on the packing list that

Note:

accompanies this software. The use of any other router platform software contained on this CD constitutes a violation of the accompanying software license agreement.

Note that when you copy the capi.exe file to an HP platform, it is automatically renamed CAPI.EXE;1. You must rename the file back to capi.exe. You can do this by issuing the following command:

mv “CAPI.EXE;1”capi.exe

Note that you must use quotation marks before and after CAPI.EXE;1.

11.

Start the Image Builder again and open the image from which you removed

12.

Click on Details in the Available Components box, select

13.

Check the size of the

capi.exe

file.

capi.exe

, and click on Add.

capi.exe.

If it is less than 1 KB, you have not loaded IPsec software. Repeat this procedure, or call the Nortel Networks Technical Solutions Center for assistance.

14.

Save the modified image that includes IPsec to a new directory and exit the Image Builder.

15.

Use the Router Files Manager to transfer the new image to the router.

16.

Perform a named boot with the new image, following the directions in

Configuring and

Managing Routers with Site Manager.

You can now use IPsec on the router.

Note:

There is a file on the CD called .IPSEC_CD. Ignore this file.
