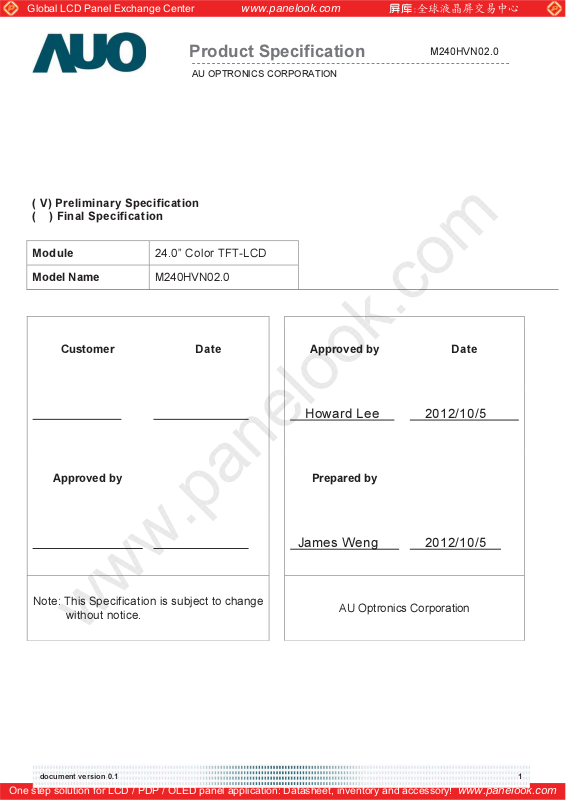

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
( V) Preliminary Specification
( ) Final Specification
Module
Model Name
24.0” Color TFT-LCD
M240HVN02.0
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Approved by Date
Howard Lee 2012/10/5
Prepared by
James Weng 2012/10/5
AU Optronics Corporation
document version 0.1 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
Content
1 HANDLING PRECAUTIONS.......................................................................................................... 4
2 GENERAL DESCRIPTION.............................................................................................................5
2.1 Display Characteristics ............................................................................................................................. 5
2.2 Optical Characteristics.............................................................................................................................. 6
3 FUNCTIONAL BLOCK DIAGRAM ..............................................................................................10
4 ABSOLUTE MAXIMUM RATINGS ..............................................................................................11
4.1 TFT LCD Module .................................................................................................................................... 11
4.2 Backlight Unit.......................................................................................................................................... 11
4.3 Absolute Ratings of Environment........................................................................................................... 11
5 ELECTRICAL CHARACTERISTICS ...........................................................................................13
5.1 TFT LCD Module .................................................................................................................................... 13

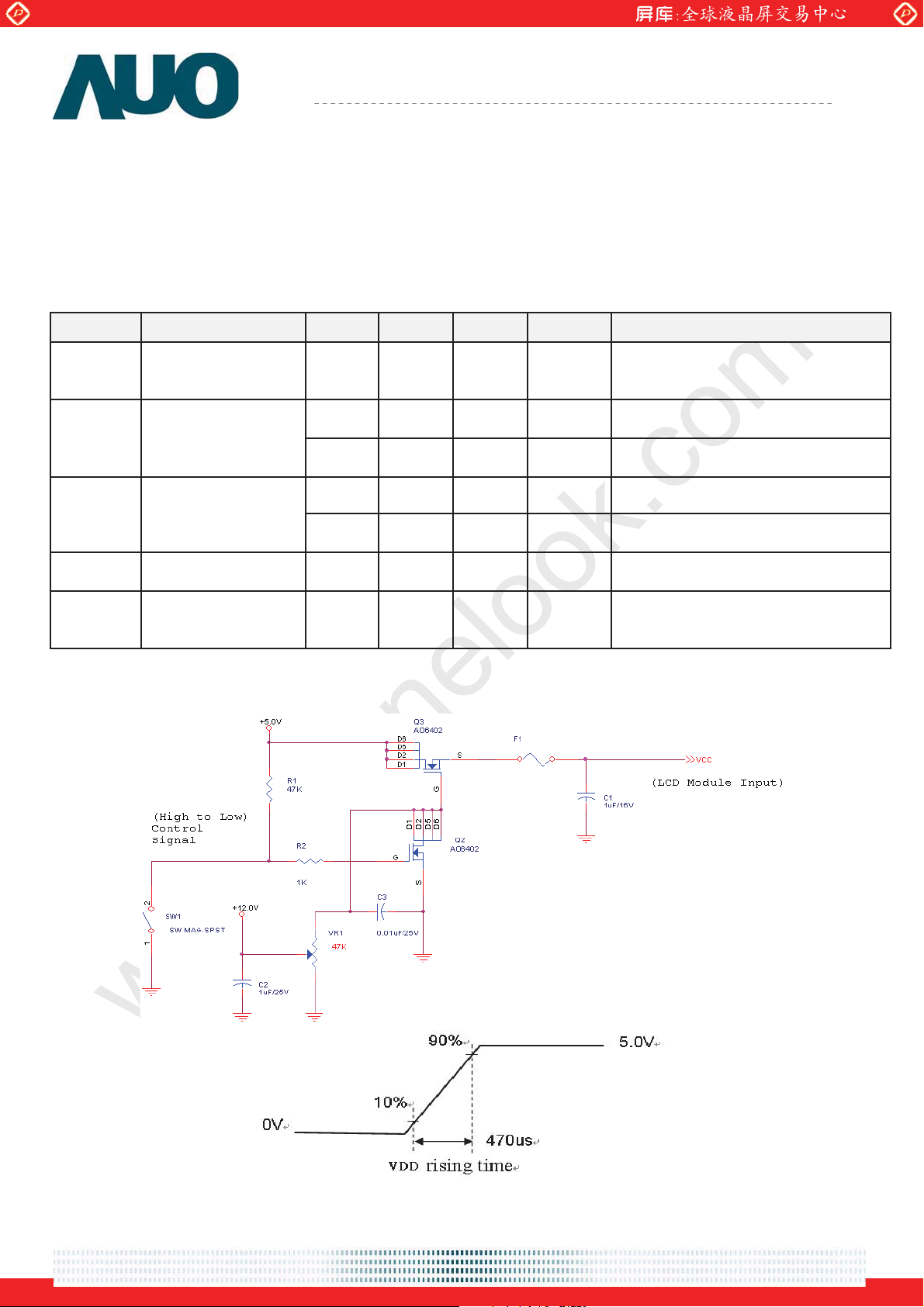

5.1.1 Power Specification ........................................................................................................................................ 13

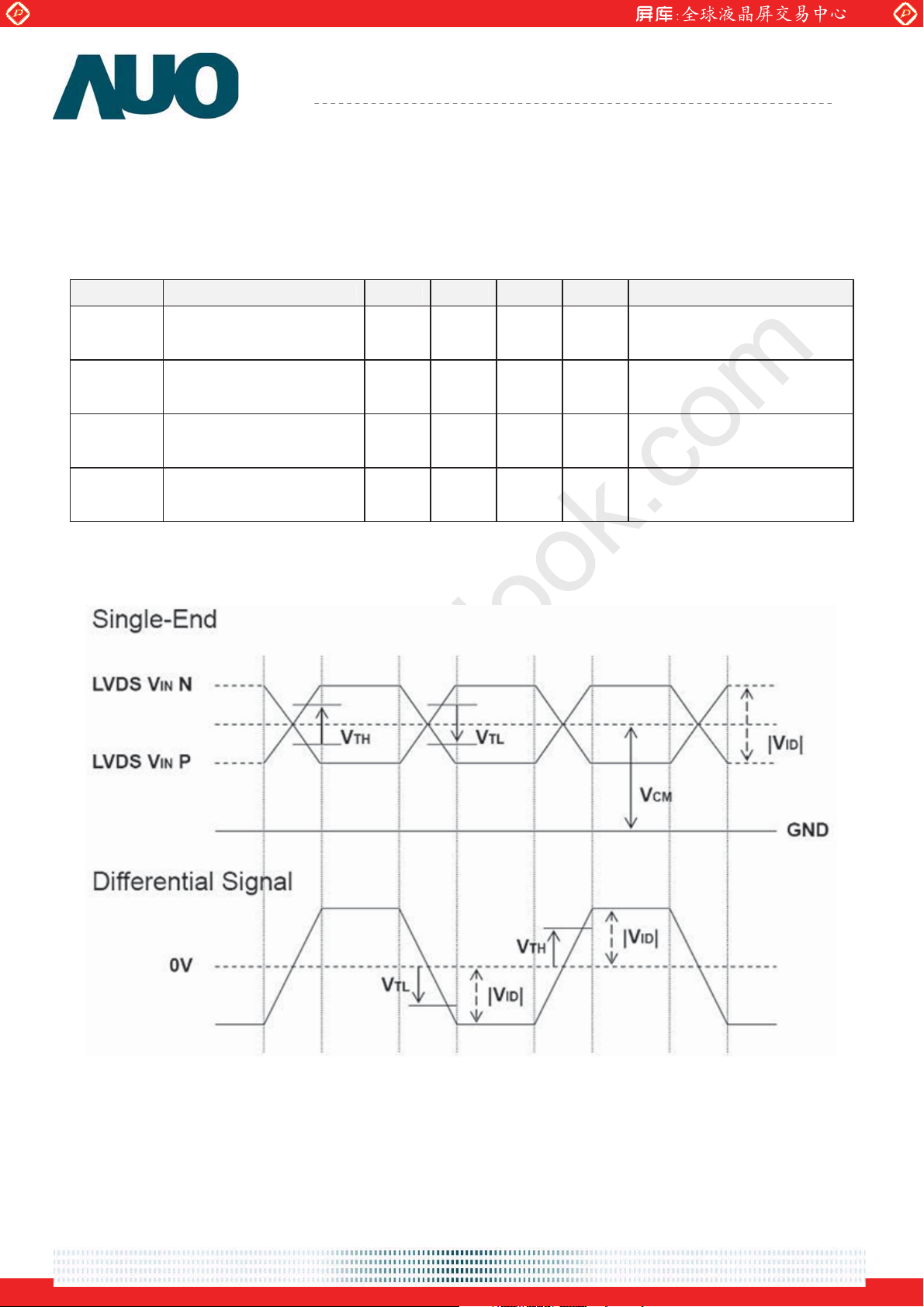

5.1.2 Signal Electrical Characteristics ..................................................................................................................... 14
5.2 Backlight Unit.......................................................................................................................................... 16
6 SIGNAL CHARACTERISTICS..................................................................................................... 17
6.1 Pixel Format Definition ........................................................................................................................... 17

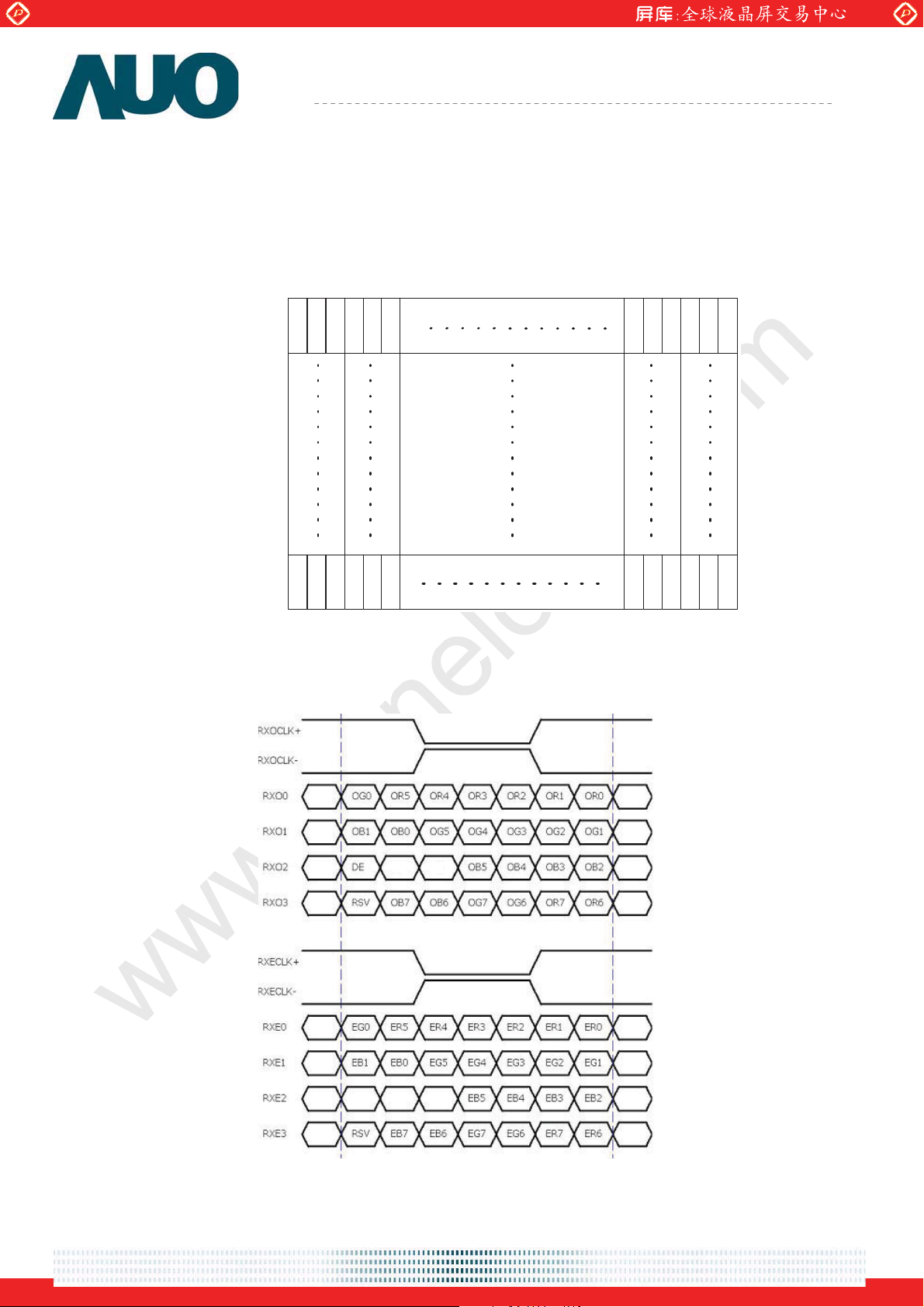

6.2 Input Data Format Definition .................................................................................................................. 17
6.3 Signal Description................................................................................................................................... 18
6.4 Timing Characteristics............................................................................................................................ 20

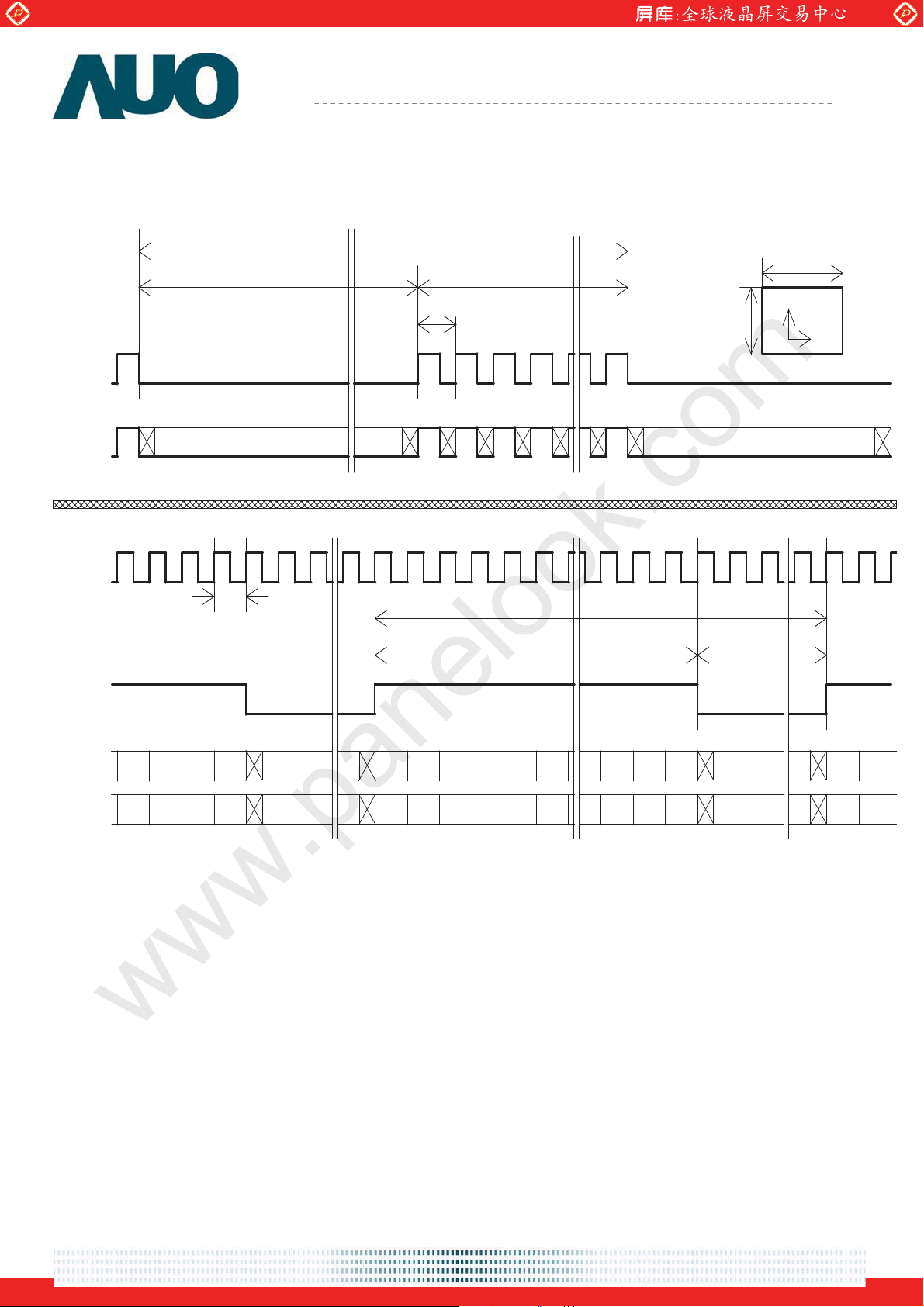

6.5 Timing Diagram ...................................................................................................................................... 21
6.6 Power ON/OFF Sequence ..................................................................................................................... 22

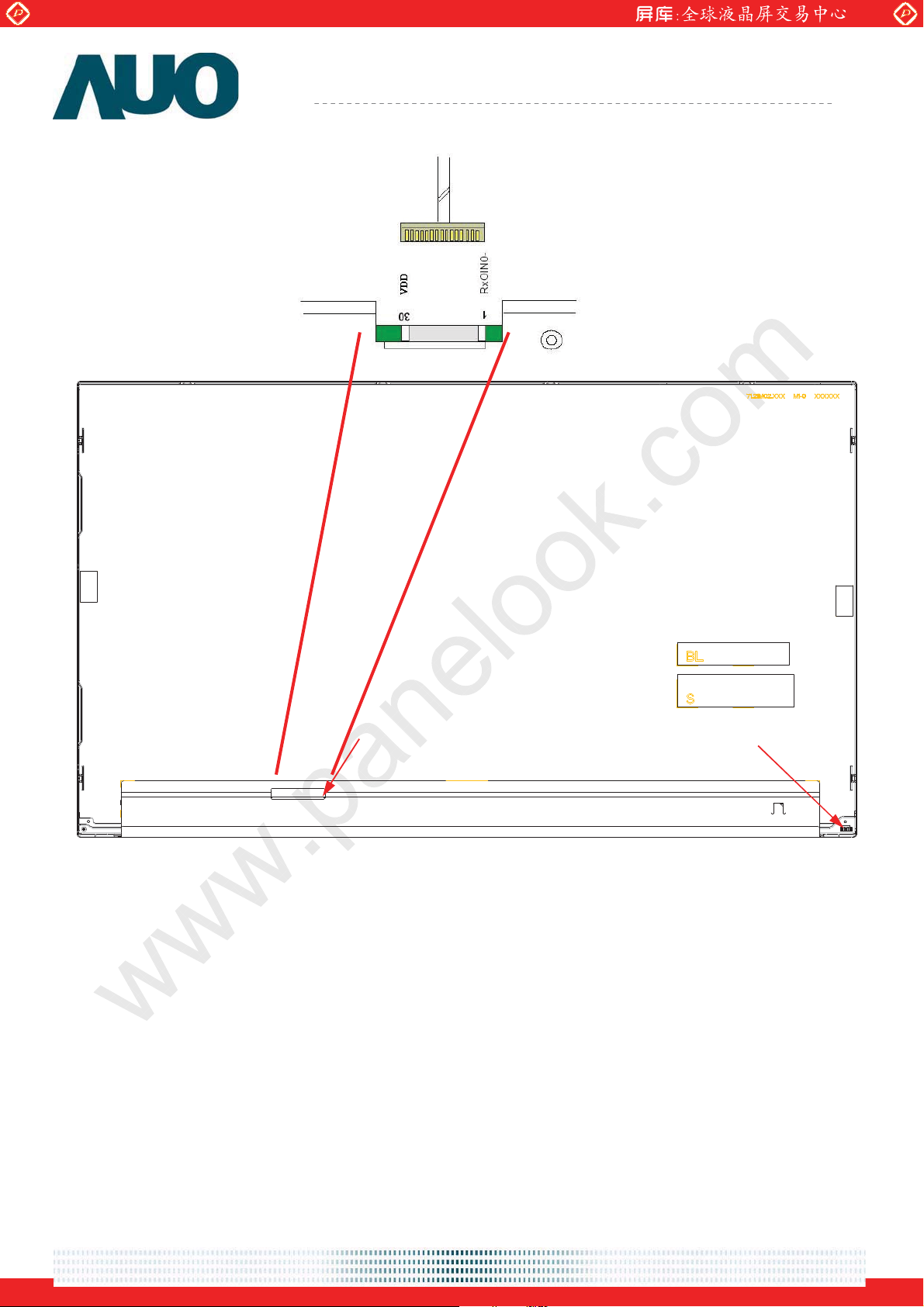

7 CONNECTOR AND PIN ASSIGNMENT ..................................................................................... 23
7.1 TFT LCD Module .................................................................................................................................... 23
7.1.1 Pin Assignment............................................................................................................................................... 23

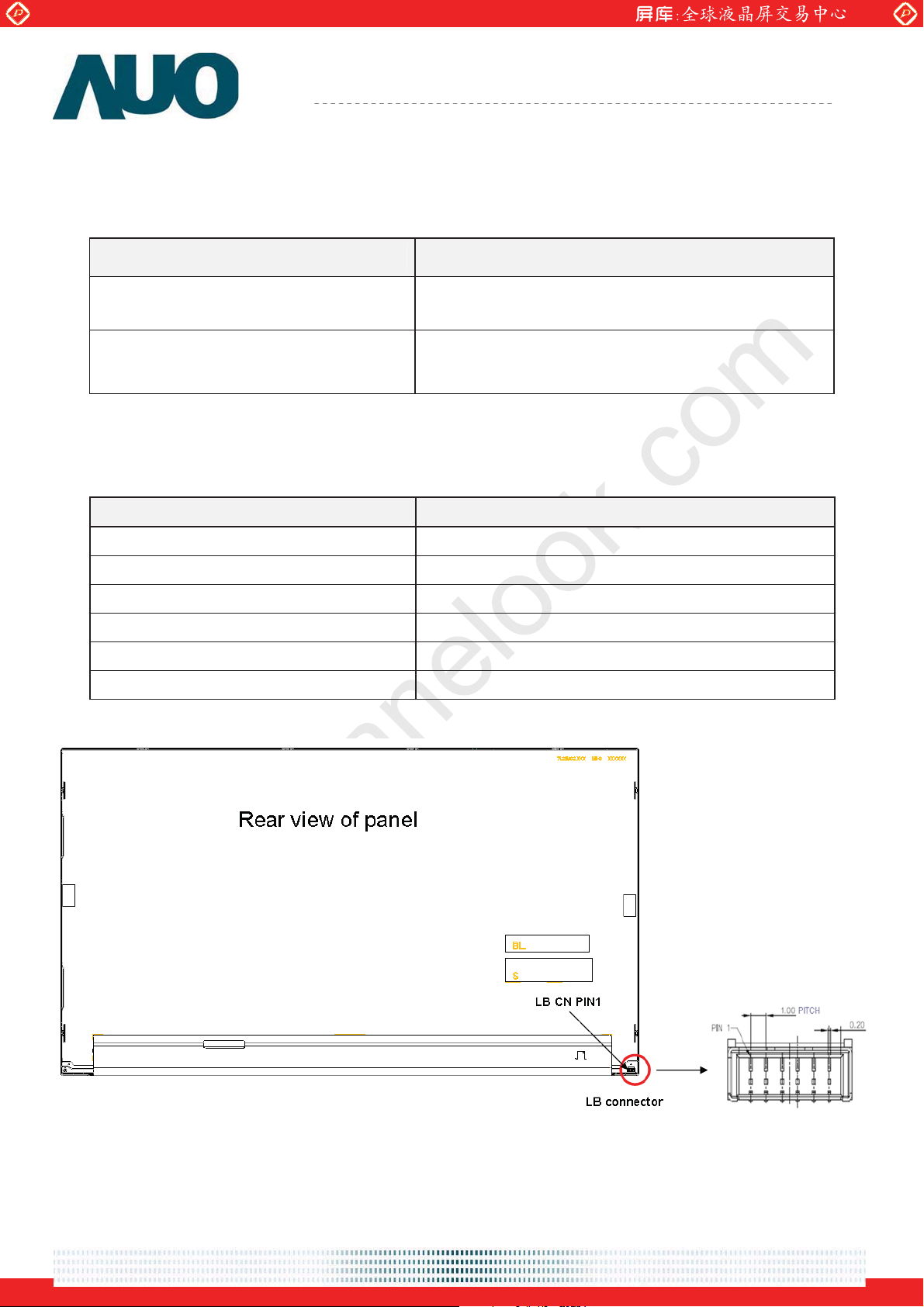

7.2 LED Connector on Backlight Unit........................................................................................................... 24
7.2.1 LED Pin assignment ....................................................................................................................................... 24

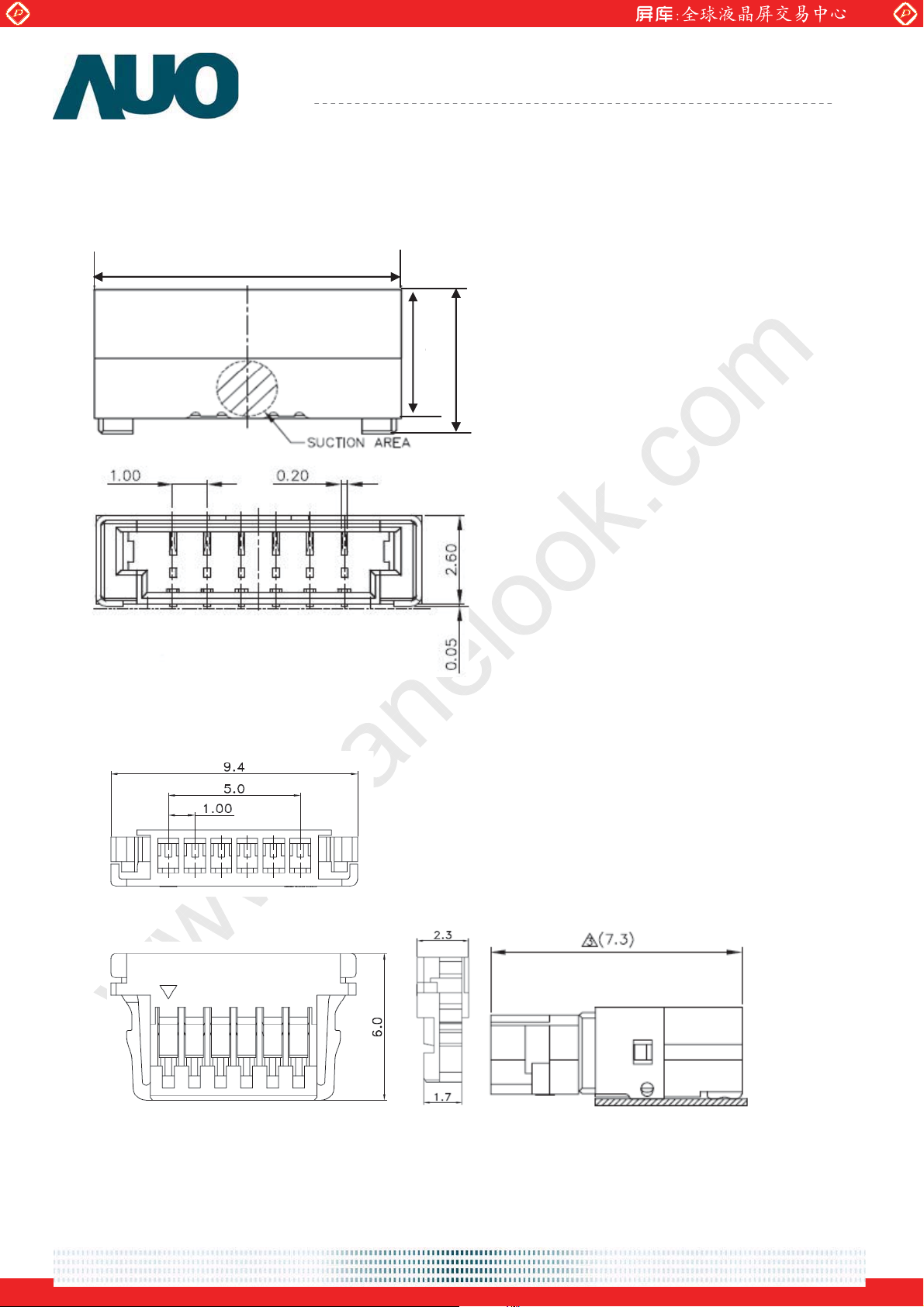

7.2.2 LED Connector Dimension ............................................................................................................................. 25
7.2.3 LED Mating housing dimension...................................................................................................................... 25
8 RELIABILITY TEST...................................................................................................................... 26
9 SHIPPING LABEL ........................................................................................................................27

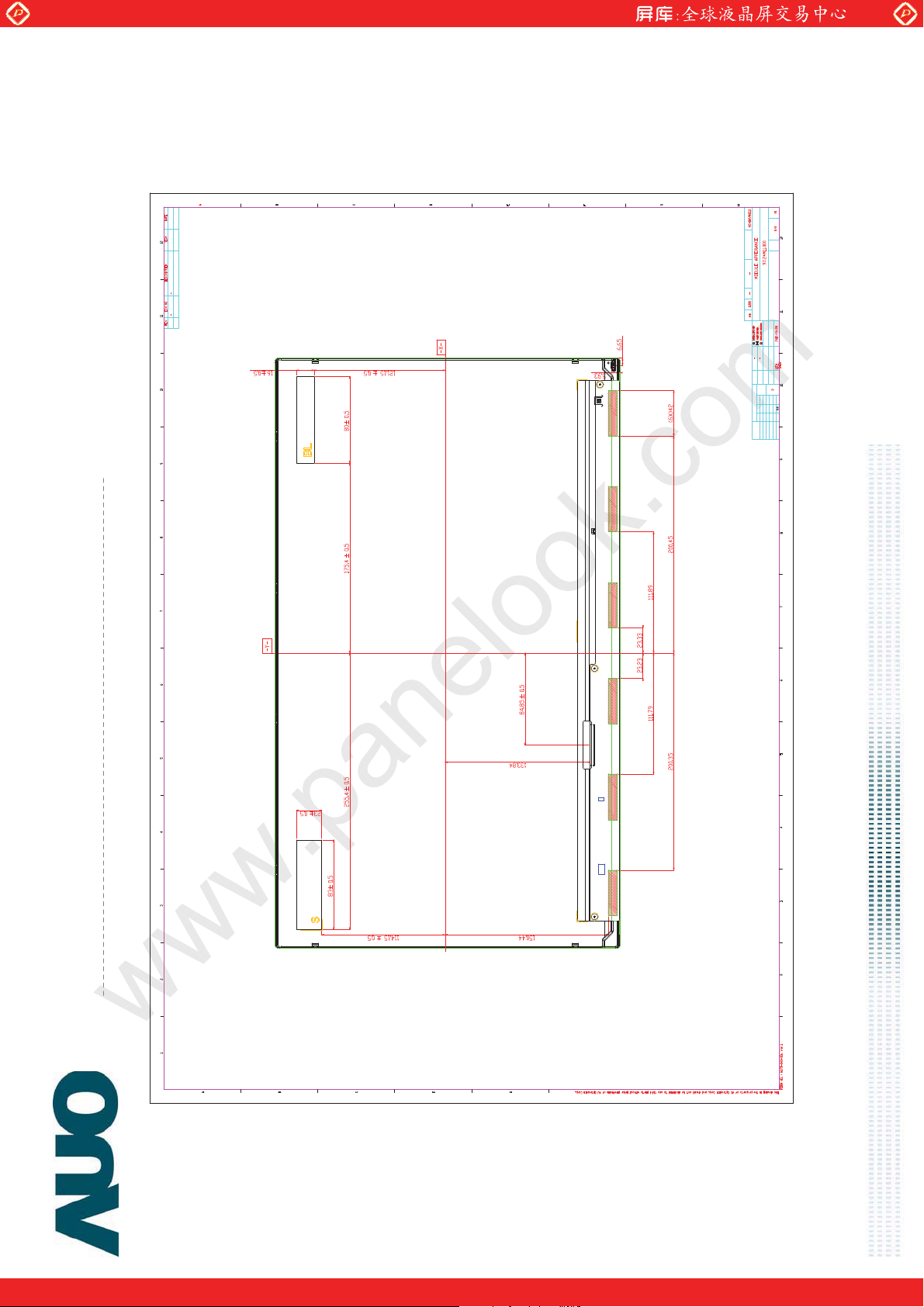

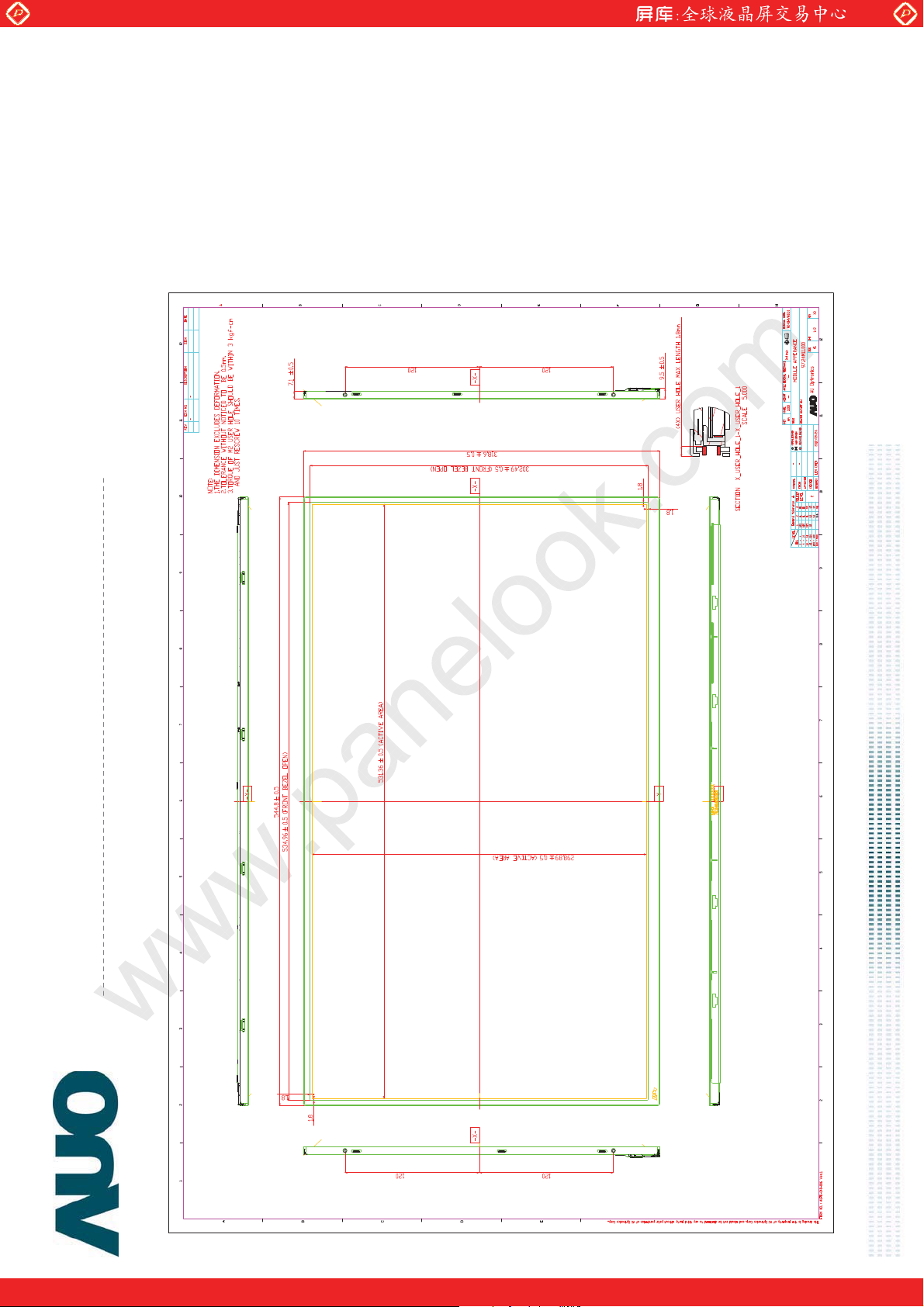

10 MECHANICAL CHARACTERISTICS.......................................................................................... 28
11 PACKING SPECIFICATION ........................................................................................................30

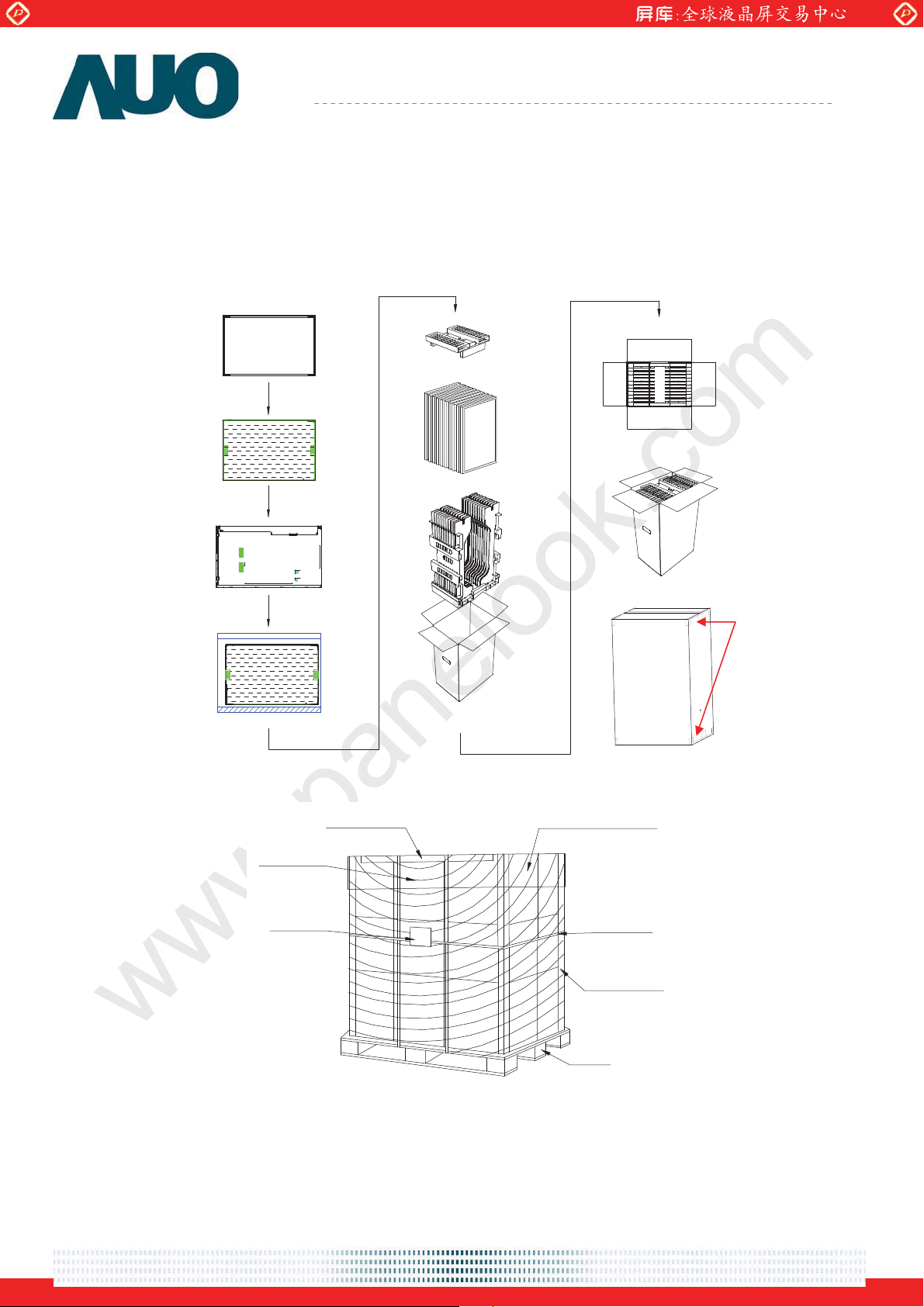

11.1 Packing Flow .......................................................................................................................................... 30
11.2 Pallet and Shipment Information ............................................................................................................ 31
document version 0.1 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
Records of Revision
Version and Date Page Old description New Description Remark
document version 0.1 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends
of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD
module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Avoid touching COF position while doing mechanical design.
14) While storing modules as spares for a long time, the following precautions are necessary:
Store modules in a dark place. Do not expose them to sunlight or fluorescent light.
Keep the temperature between 5°C and 35°C at normal humidity.
document version 0.1 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
2 General Description
This specification applies to the 24 inch-FHD color a-Si TFT-LCD Module M240HVN02.0. The
display supports the FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit data).
The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface
and this module doesn’t contain a driver for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25°C condition:
Items Unit Specification
Screen Diagonal [mm] 609.6 (24.0”)
Active Area [mm] 531.36 (H) x 298.89 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch [um] 276.75 (per one triad) ×276.75
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode VA Mode, Normally Black
White Luminance ( Center ) [cd/m2] 250 (Typ.)
Contrast Ratio 3000 (Typ.)
Optical Response Time [msec] 12(Typ., on/off)
Nominal Input Voltage VDD [Volt] + 5.0 V
Power Consumption
(VDD line + LED line)
Weight [g] TBD (Typ.)
Physical Size [mm] 544.8 (W) x 318.6 (H) x 9.5 (D) (Typ.)
Electrical Interface Dual channel LVDS
Support Color 16.7M colors (RGB 8-bit)
Surface Treatment Anti-Glare, 3H
Temperature Range
[Watt]
19.65 (typ)
VDD line : PDD (typ), All white pattern at 60Hz =5.25
LED line : PBLU (typ) = 14.4
Operating
Storage (Shipping)
RoHS Compliance RoHS Compliance
TCO Compliance TCO 6.0 Compliance
document version 0.1 5
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
[°C]
[°C]
0 to +50
-20 to +60
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25°C:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast Ratio Normal Direction
Response Time [msec]
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Rising Time (TrR) - 7 9
Falling Time (TrF) - 5 7
75
75
75
75
1800 3000 - 3
89
89
89
89
-
-
-
-
2
4
Rising + Falling - 12 16
Red x
Red y
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
Central Luminance [cd/m2] 200 250 - 6
Luminance Uniformity [%] 75 80 - 7
Crosstalk (in 60Hz) [%] 1.5 8
Flicker dB -20 9
Green x
Green y
Blue x
Blue y
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
5
document version 0.1 6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
Note 1: Measurement Method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt
temperature change during measuring (at surface 35°C). In order to stabilize the luminance, the
measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and
dark room.
Photo Detector
Measured Distance
LCD Panel
TFT-LCD Module
Center of the screen
Note 2: Definition of Viewing Angle measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the screen
rotated about its center to develop the desired measurement viewing angle.
document version 0.1 7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
Note 8: Crosstalk defined as below and measured by TOPCON SR-3
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
AU OPTRONICS CORPORATION
M240HVN02.0
Note 9: Test Pattern Sub-checker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
AC
DC
Time
log20(dB)Flicker =
Level DC
document version 0.1 9
Hz) 30Level(at AC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
3 Functional Block Diagram
The following diagram shows the functional block of the 24.0 inch Color TFT-LCD Module:
LVDS
+5V
Connector
Receiver
LVDS
AUO
ASIC
Timing
Controller
miniLVDS
Transmitter
G1
Y-Driver IC
1920(x3) x 1080
G1080
D1
TFT-LCD
Pixels
X-Driver IC
D5760
LED
Backlight
DC/DC
Converter
I/F + X-PCB
I/F PCB Interface:
MSCKT2407P30HB
AL230F-A0G1D-P
Mating Type:
FI-X30HL(Locked Type)
Gamma
Correction
DC
LED Driver on system
document version 0.1 10
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are listed as follows:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
LED ˙orward Current
LED ˣ˿˸ Forward Current
AU OPTRONICS CORPORATION
VDD -0.3 6.0 [Volt] Note 1, 2
IRLED1
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
0 150
- 300
[mA]
[mA]
M240HVN02.0
Note 1,2,5
100% duty
Note 1,2,5
10% duty @100Hz
LED forward Voltage variation
(per string variation)
ӔVf
- 3
[Volt]
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [°C] Note 3
Glass Surface Temperature
(Operation)
TGS 0 +65 [°C]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [°C]
Storage Humidity HST 5 90 [%RH]
Note 1: With in Ta (25 °C)
Note 2: Permanent damage to the device may occur if exceeding maximum values
Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta Љ39°C)
2. Max wet-bulb temperature at 39°C or less. ( Ta Љ39°C)
3. No condensation
Note 4: Function Judged only
Note3
Note4
Note 3
Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
document version 0.1 11
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Operating Range
Product Specification
AU OPTRONICS CORPORATION
Storage Range
M240HVN02.0
document version 0.1 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
5 Electrical Characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are listed as follows:
Symbol Description Min Typ. Max Unit Conditions
VDD
Logic/LCD Drive
Voltage
IDD1 Input Current
PDD1 VDD Power
4.5
-
-
5.0
1.05 1.26
1.18 1.42
5.25 6.3
5.9 7.1
5.5
[Volt] +/-10%
[A] VDD= 5.0V, All White Pattern at 60 Hz
[A] VDD= 5.0V, All White Pattern at 75 Hz
[Watt] VDD= 5.0V, All White Pattern at 60 Hz
[Watt] VDD= 5.0V, All White Pattern at 75 Hz
IRush Inrush Current -
VDDrp
Note 1: Measurement Conditions:
The duration of rising time of power input is 470 us.
Allowable Logic/LCD
-
Drive Ripple Voltage
- 3
- 500
[mV] p-p VDD= 5.0V, All White Pattern at 75 Hz
[A] Note 1
document version 0.1 13
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
5.1.2 Signal Electrical Characteristics
(1) DC Characteristics of each signal are as following:
Symbol Description Min Typ Max Units Conditions
VTH
VTL
│VID│
VCM
Differential Input High
Threshold
Differential Input Low
Threshold
Input Differential
Voltage
Differential Input
Common Mode Voltage
- - +100
-100 - -
100 - 600
+1.0 +1.2 +1.5
[mV]
[mV]
[mV] Note 1
[V]
V
TH-VTL
V
CM
V
CM
= 200MV (max)
= 1.2V
Note 1
= 1.2V
Note 1
Note 1
Note 1: LVDS Signal Waveform
document version 0.1 14
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0

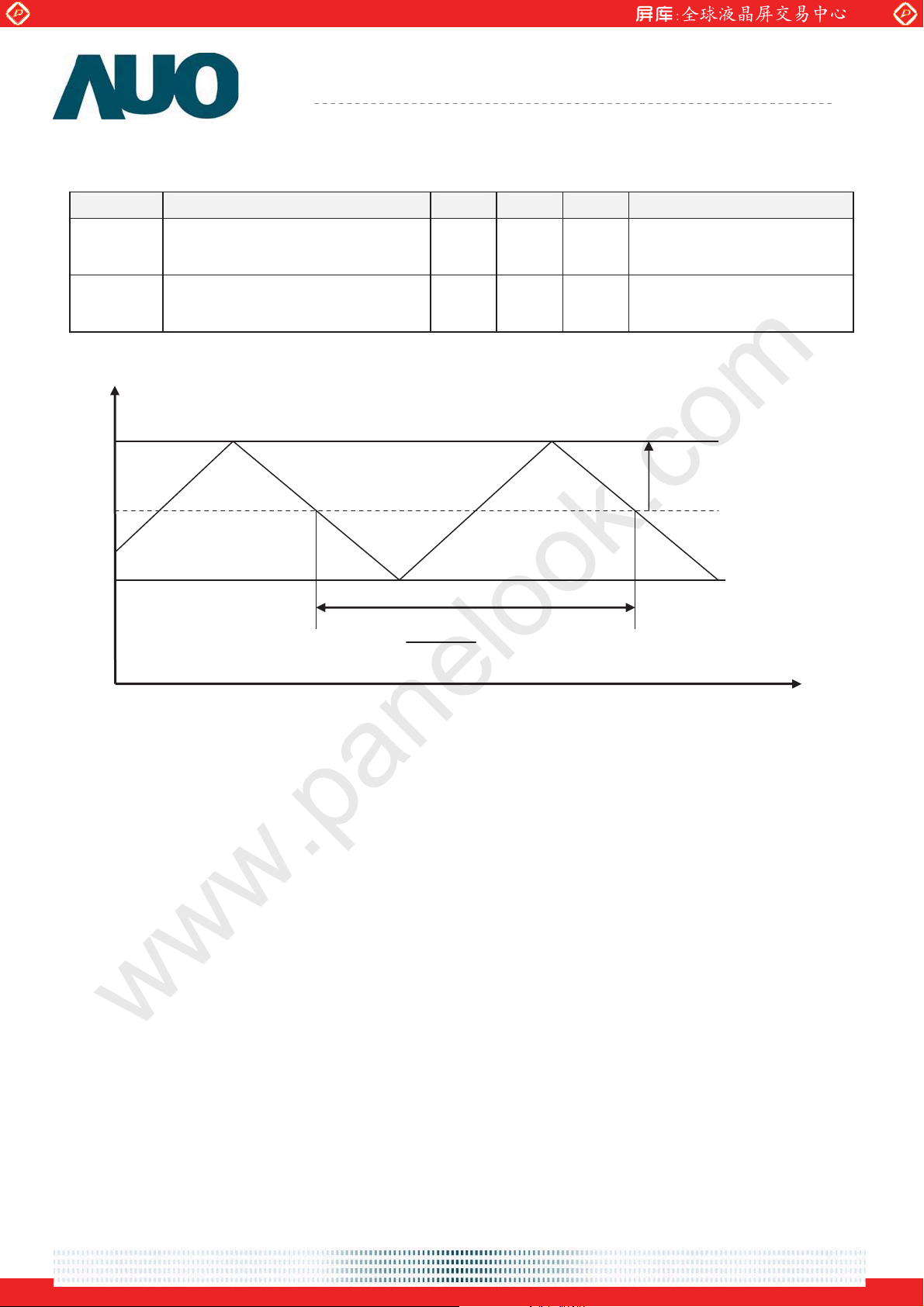

(2) AC Characteristics
Symbol Description Min Max Units Conditions
F
F
DEV
MOD
Maximum deviation of input clock
frequency during SSC
Maximum modulation frequency
of input clock during SSC
- ± 3 %
- 200 KHz
Freq
F
max
F
center
* F
DEV
F
min
1
F
MOD
Time
< Spread Spectrum>
document version 0.1 15
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
5.2 Backlight Unit
Parameter guideline for LED driving is under stable conditions at 25
Symbol Description Min.
IRLED LED Forward Current - 80 84
Light Bar Operation Voltage
VLB
(for reference)
PBLU BLU Power Consumption (for reference) 12.96 14.4 15.84 [Watt] Note 3
LTLED LED Life Time (Typical) 30,000 - -
Typ. Max. Unit Note
40.5 45 49.5 [Volt] Note 2
°C (Room Temperature):
[mA]
[Hour]
Note 1
Note 4
Each module consists of 60 pcs LED ( 4 strings x 15 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as per
strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life
time of LED unit is on the condition of IRLED = 60mA and 25±2°C (Room Temperature).
document version 0.1 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
6 Signal Characteristics
6.1 Pixel Format Definition
Following figure shows the relationship between the input signals and LCD pixel format.
1st Line
1 2 1919 1920
R G B R G B
R G B R G B
1080 Line
R G B R G B
6.2 Input Data Format Definition
R G B R G B
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
document version 0.1 17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
)
V
V
V
www.panelook.com
Product Specification
6.3 Signal Description
PIN # SIGNAL NAME DESCRIPTION
RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 GND Power Ground
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Power Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No connection (for AUO test only. Do not connect)
26 NC No connection (for AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28
29
30
DD Power +5V
DD Power +5V
DD Power +5V
AU OPTRONICS CORPORATION
M240HVN02.0
Note 1: Input signals of odd and even clock shall be the same timing.
document version 0.1 18
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
LVDS C/N PIN 1
L/B C/N PIN 1
document version 0.1 19
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v)
Section
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Horizontal
Active Tdisp(h)
Section
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Clock
Frequency Freq
Frame
Frame rate
rate
AU OPTRONICS CORPORATION
F
1092 1130 1793
1080 1080 1080
12 50 713
1004 1050 1100
960 960 960
44 90 140
11.1 14.0 18.2
54.8 71.2 90.0
50 60 76
M240HVN02.0
Th
Th
Th
Tc lk
Tc lk
Tc lk
ns
MHz
Hz
Hsync
Frequency
Note 1: DE mode only
Hsync
Frequency
HFreq
55 68 90
KHz
document version 0.1 20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
6.5 Timing Diagram
DE
RGB Data
N
Line
Invalid Data
Tblk(v)
Product Specification
AU OPTRONICS CORPORATION
Tv
Tdisp(v)
Th
4
1
32
LineLine
LineLine
N
Line
M240HVN02.0
M pixel
Y
N Line
Invalid Data
X
CLK
RGB Data
(Odd)
RGB Data
(Even)
Tclk
DE
Pixel
Pixel
M-7
Pixel
M-6
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
Pixel
Pixel
1
Pixel Pixel
2
Pixel
5
3
Pixel
4
6M-2
Th
Tdisp(h)
Pixel
7
Pixel
8M
Pixel
10
119
12
Pixel
M-5
Pixel
M-4
Pixel
Pixel
Pixel
Pixel
M-3
Pixel
M-1
PixelPixel
Tblk(h)
Invalid Data
Invalid Data
Pixel
Pixel
Pixel
3
1
Pixel
2M-4
4
document version 0.1 21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
6.6 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the
chart. Signals from any system shall be Hi-Z state when VDD is off.
90%
T5
T6
10%
T7
Power Supply VDD
T1
90%
10%
T2
LVDS Signal
VALID
DATA
T3
T4
Backlight On
Power Sequence Timing
Value
Parameter
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 - 50
T6 5 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
Unit
[ms]
Note1,2
[ms]
Note1,2
document version 0.1 22
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
7 Connector and Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface Card
SIN SHENG
Manufacturer
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
P-TWO
MSCKT2407P30HB
AL230F-A0G1D-P
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 GND 8 RxOCLKIN9 RxOCLKIN+ 10 RxOIN311 RxOIN3+ 12 RxEIN013 RxEIN0+ 14 GND
15 RxEIN1- 16 RxEIN1+
17 GND 18 RxEIN219 RxEIN2+ 20 RxECLKIN21 RxECLKIN+ 22 RxEIN323 RxEIN3+ 24 GND
NC (for AUO test only. Do not
25
connect)
26
NC (for AUO test only. Do not
connect)
27
29 VDD 30 VDD
document version 0.1 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
NC (for AUO test only. Do not
28 VDD
connect)
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.2 LED Connector on Backlight Unit
This connector is mounted on LED light bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD.
Type Part Number
7.2.1 LED Pin assignment
Pin# Signal Name
AU OPTRONICS CORPORATION
3707K-X06N-0AL
(Wire Harness)
M240HVN02.0
1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)
document version 0.1 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.2.2 LED Connector Dimension
9.5
9.5
AU OPTRONICS CORPORATION
4.25
4.25
)(0.1,57.42.659.5 mmunitPitchDVH ==××=××
4.75
4.75
M240HVN02.0
7.2.3 LED Mating housing dimension
)(0.1,6.02.39.4 mmunitPitchDVH ==××=××
document version 0.1 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M240HVN02.0
8 Reliability Test
Environment test conditions are listed as following table.
Items Required Condition Note
Temperature Humidity Bias (THB) Ta= 50°C, 80%RH, 300 hours
High Temperature Operation (HTO) Ta= 50°C, 50%RH, 300 hours
Low Temperature Operation (LTO) Ta= 0°C, 300 hours
High Temperature Storage (HTS) Ta= 60°C, 300 hours
Low Temperature Storage (LTS) Ta= -20°C, 300 hours
Acceleration: 1.5 Grms
Vibration Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 Hz
Duration: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 46 cm, package test
Thermal Shock Test (TST) -20°C/30min, 60°C/30min, 100 cycles Note 1
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (Electro Static Discharge)
Altitude Test
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
15 points, 25 times/ point
Note 2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
15 points, 25 times/ point
Operation: 18,000 ft
Non-Operation: 40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
°C to 60°C, and back again. Power is not applied during the test. After temperature cycling, the
-20
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed:
No data lost
Self-recoverable
No hardware failures
document version 0.1 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
A
www.panelook.com
Product Specification
9 Shipping Label
The label on the panel is shown as below:
Note 1: For Pb Free products, AUO will add for identification.
Note 2: For RoHS compatible products, AUO will add
AU OPTRONICS CORPORATION
Manufactured XX/XX
Model No: M240HVN02.0
U Optronics
for identification.
M240HVN02.0
Note 3: For China RoHS compatible products, AUO will add
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 0.1 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 28
Global LCD Panel Exchange Center
www.panelook.com
M240HVN02.0
AU OPTRONICS CORPORATION
Product Specification
10 Mechanical Characteristics
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 28
www.panelook.com
Page 29
Global LCD Panel Exchange Center
www.panelook.com
M240HVN02.0
AU OPTRONICS CORPORATION
Product Specification
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 0.1 29
www.panelook.com
Page 30
Global LCD Panel Exchange Center
p
r
p
www.panelook.com
11 Packing Specification
11.1 Packing Flow
Module
Paste protect film
Product Specification
AU OPTRONICS CORPORATION
To
cove
10 pcs/carton
M240HVN02.0
Put top cover
Paste lamp wire
1pcs Module/ESD
Stretch film
Label
Corner angle
Cushion
Carton
Moi sture-proof fi lm
PET band
Corner angle
” H ” Ta
e
Pall et
document version 0.1 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 31
Global LCD Panel Exchange Center
w
w
www.panelook.com
Product Specification
11.2 Pallet and Shipment Information
1 Panel
2 Cushion
3 Box
4 Packing Box
5 Pallet
6 Pallet after Packing
Item
10 pcs/Box 406(L)mm x 281(W)mm x 651(H)mm 19.9
boxes/pallet
AU OPTRONICS CORPORATION
Q'ty Dimension Weight(kg)
1 544.8(H)mm x 318.6(V)mm x 9.5(D)mm 1.7
1 -- 1.7
1 406(L)mm x 281(W)mm x 651(H)mm 1.2
1 1140(L)mm x 830(W)mm x 138(H)mm 12
16
1140(L)mm x 830(W)mm x 142.2(H)mm 330.4
M240HVN02.0
Specification
Remark
Note 1
ithout Panel & cushion
Note 1
ith panel & cushion
Note 1
Note 1
Note 1
Note 1: Estimated value which is subject to change based on real measured data.
document version 0.1 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
