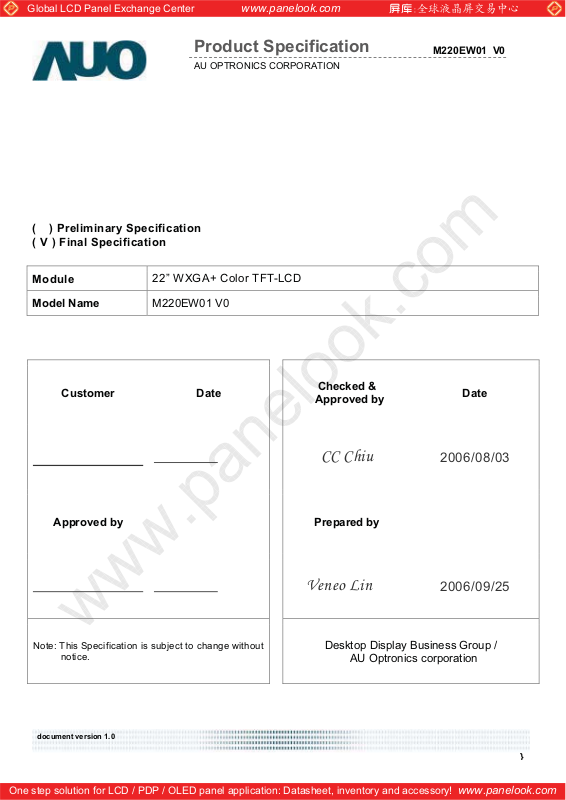

Product Specification
AU OPTRONICS CORPORATION
Weight [Grams]TBD
Period Tclk 11.76 13.86 -ns
Clock
Frequency Freq.- 72.1 85 MHz
Frame
Frequency 1/Tv- 60 75 Hz
Rate
Inrush current (MAX) = TBD
Weight [Grams] 2800
Period Tclk 11.76 13.86 16.67 ns
Clock
Frequency Freq. 60 72.1 85 MHz
Frame
Frequency 1/Tv50 60 75 Hz
Rate
Inrush Current (MAX) =
M220EW01 V0
Revised
Revised
2.5 A
Revised
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
2. General Description
This specification applies to the 22 inch-wide Color TFT-LCD Module M220EW01.
The display supports the WSXGA+ (1680(H) x 1050(V)) screen format and 16.7M colors. All input signals are 2
Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
ItemsUnitSpecifications
Active Area [mm] 473.76 (H) x 296.1(V)
Pixels H x V 1680x3(RGB) x 1050
Pixel Pitch [mm] 0.282x 0.282
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode,Normally White
White Luminance [cd/m2]
300 cd/m
2 @ 7.0mA
(Typ)
Contrast Ratio 1000:1 (Typ)
Optical ResponseTime [msec] 5 (Typ, on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line +CCFL line)
[Watt]
Weight [Grams]
28.5W (Typ)
(Without Invertor, All black pattern)
2800 Note1
Physical Size (H x V x D) [mm] 493.7(W) x 320.1(H) x 16.5(D) (Typ)
Electrical Interface Dual Channel LVDS
Support Colors 16.7M colors (6-bits + HiFRC)
Temperature Range
Operating
Storage (Shipping)
o
[
C]
o
[
C]
0 to +50
-20 to +60
Surface Treatment Hard-coating (3H), Non-glare type
RoHS Compliance RoHS Compliance
Note1: 3000 gm (Max)
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
ItemUnitConditionsMin.Typ. Max.Note
Horizontal
(Right)+ (Left)
CR = 10
Viewing Angle [degree]
Vertical
(Up) + (Down)
CR = 10
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 3.6
Optical Response Time [msec]
Falling -
160 170 -
150 160 -
5.7
1.4 2.3
1
4, 6
Color / Chromaticity
Coordinates
(CIE 1931)
White Luminance
(At CCFL= 7.0mA)
[cd/m2 ]
Rising + Falling -
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
0.6160.646 0.676
0.3090.339 0.369
0.2600.290 0.320
0.5730.603 0.633
0.1150.145 0.175
0.0350.065 0.095
0.2830.313 0.343
0.2990.329 0.359
250 300 - 4
5 8
4
Contrast Ratio Normal Direction 800 1000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle: measured by ELDIM (
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The measurement
direction is typically perpendicular to the display surface with the screen rotated about its center to
develop the desired measurement viewing angle.
EZContrast 88)
M220EW01 V0
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
M220EW01 V0
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0

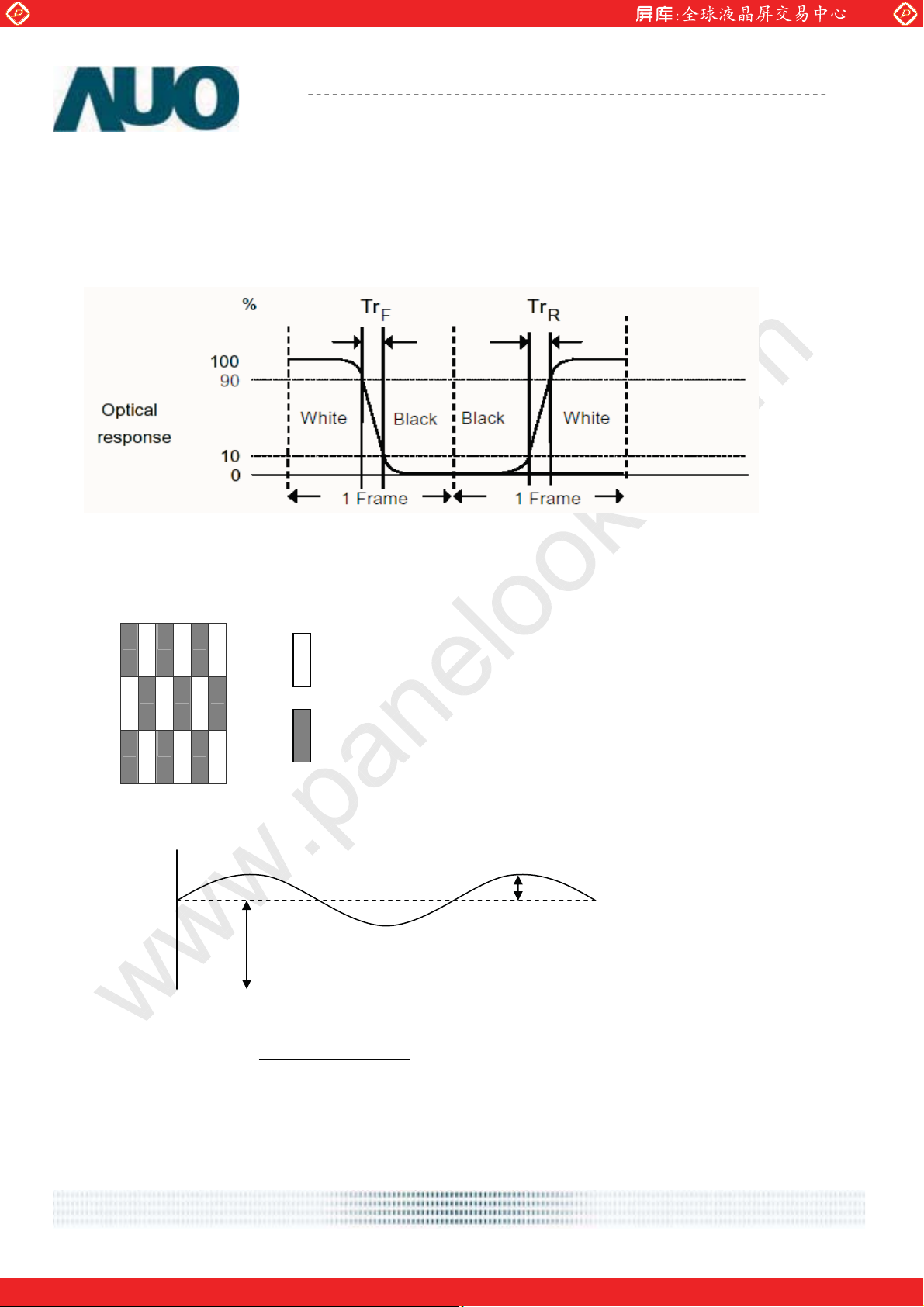

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker
Level DC
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M220EW01 V0
AU OPTRONICS CORPORATION

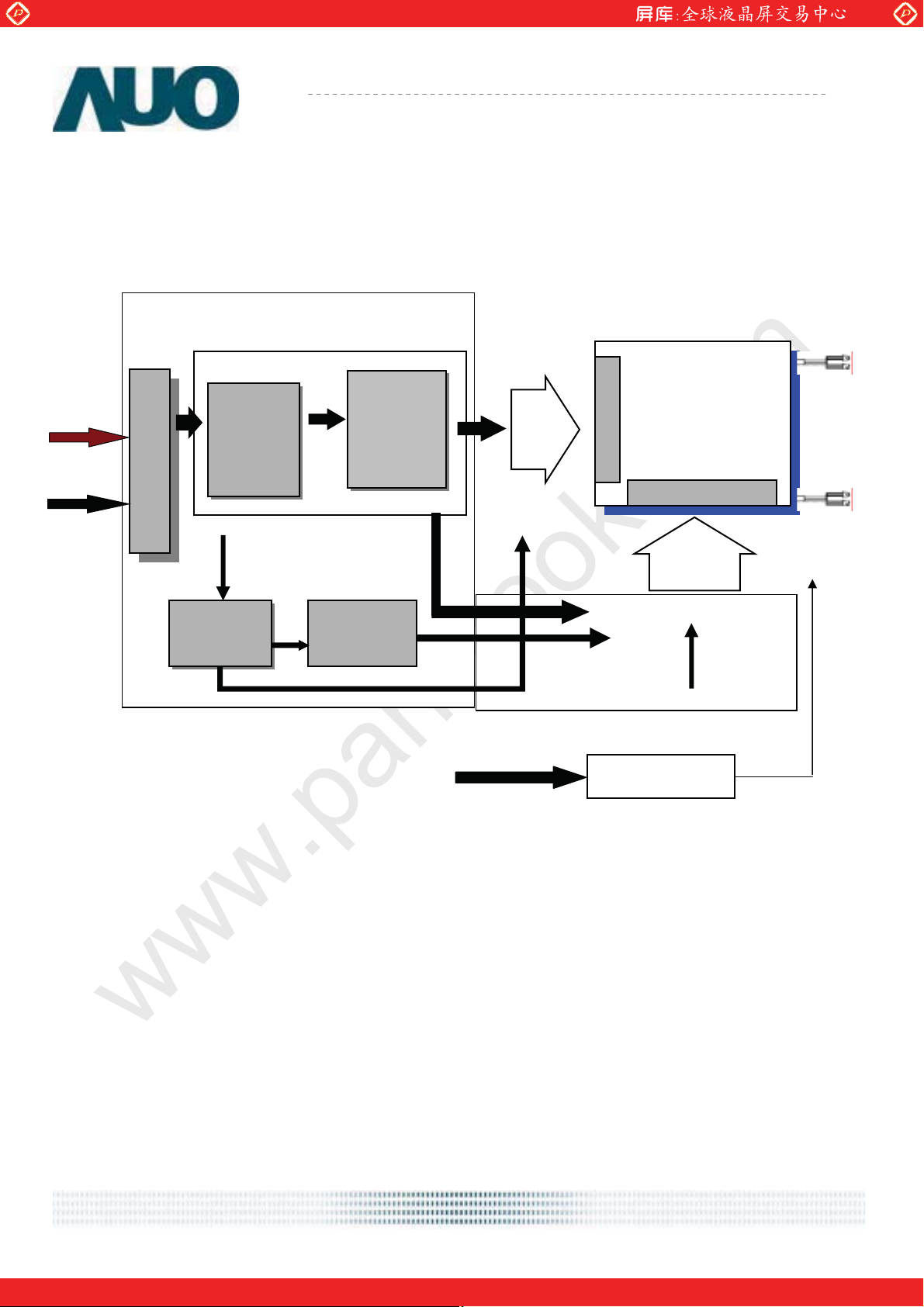

3. Functional Block Diagram
The following diagram shows the functional block of the 22 inches wide Color TFT-LCD Module:
+5V
Connector
DC/DC
Converter
I/F + X-PCB
LVDS
Receiver
Timing
Controller
Gamma
Correction
G1
G1050
-
TFT-LCD
1680*(3)*1050
Pixels
-
D1 D5040
4 CCFL
Inverter
JAE FI-XB30SSRL-HF16
Mating Type: FI-X30S-H
document version 1.0
YEON HO 35001HS-02L
Mating Type: 35001WR-02L or
SM02B-BHSS-1-TB
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
4. Absolute Maximum Ratings
Absolutely maximum rating of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
ItemSymbol Min.Max.UnitConditions
Logic/LCD Drive
Volta
e
VDD -0.3 +5.5 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
ItemSymbol Min.Max.UnitConditions
CCFL Current ICFL - 8 [mA] rms Note 1, 2
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
4.3 Absolute Ratings of Environment
ItemSymbol Min.Max.UnitConditions

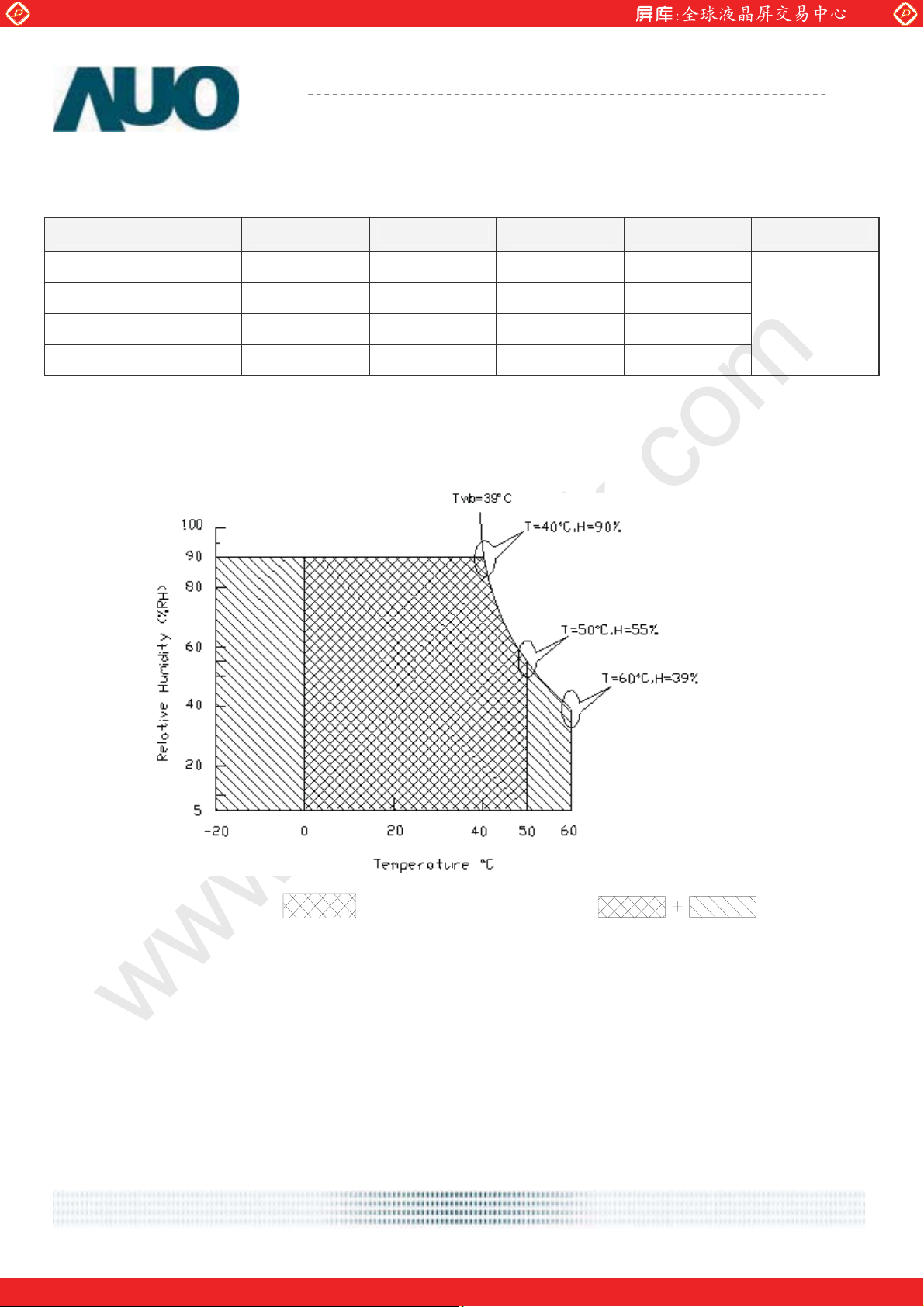

Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
8 90
Note 1: With in Ta= 25к
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
[%RH]
Note 3
Operating Range Storage Range
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M220EW01 V0
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble ParameterMin.Typ. Max.UnitCondition
VDD
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt]
IDD Input Current - 1000 1400 [mA]
PDD VDD Power - 5 7 [Watt]
IRush Inrush Current - - 2.5 [A] Note 2
ᇹ10%
VDD= 5.0V, All Black Pattern
At 60Hz
VDD= 5.0V, All Black Pattern
At 60Hz , Note 1
Note 1: The variance of VDD power consumption is ±10%.

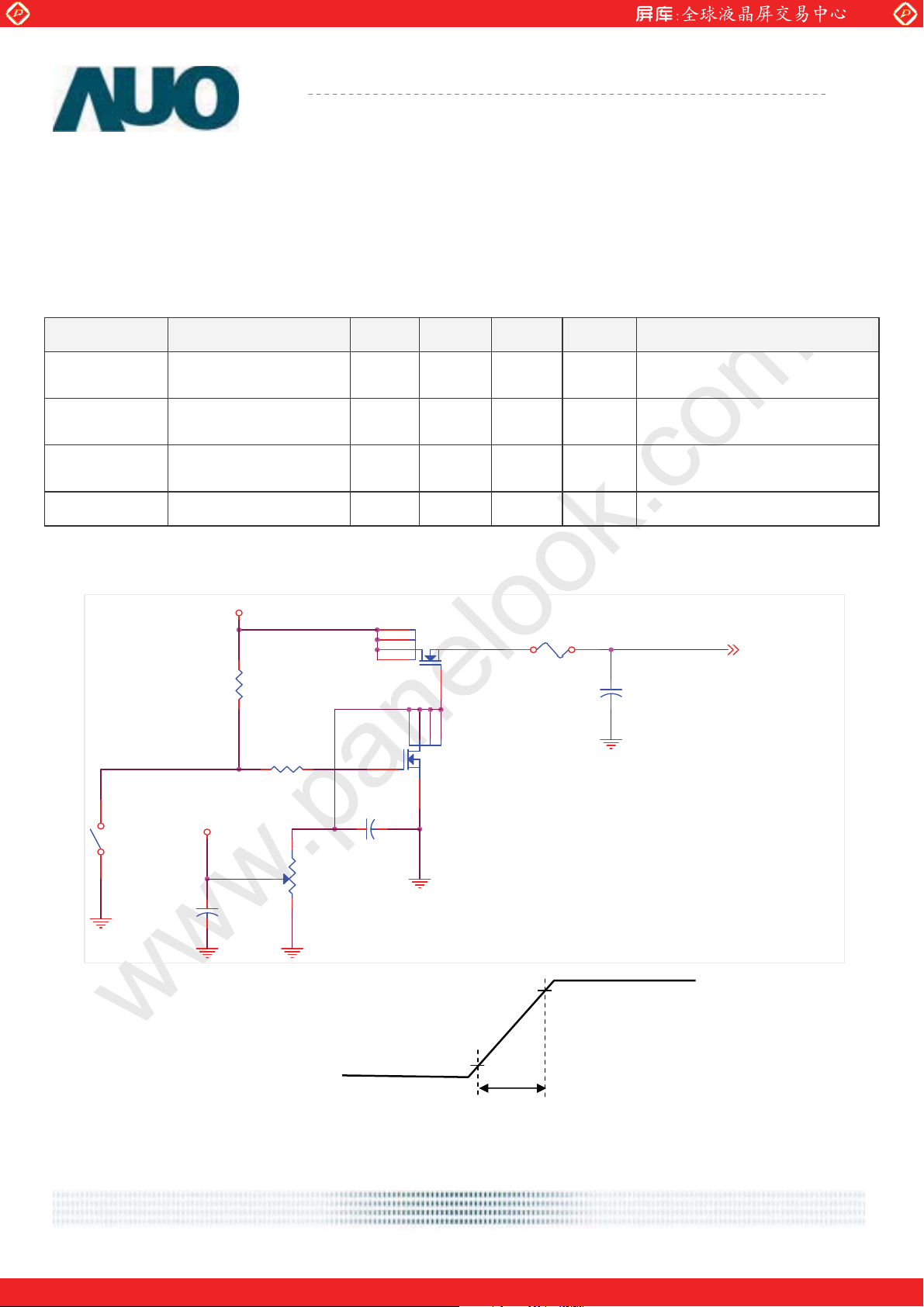

Note 2: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
12
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
D6
D5
D2S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
90%
F1
VCC
(LCD Module Input)
C1
1uF/16V
5.0V
VDD rising time
0V
10%
0.5ms
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min TypMax Units Condition
VTH
VTL
│VID│
Differential Input
High Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
VICM
Common Mode
Voltage
- -
-100 -
100 400600 [mV]
0.3 - 1.25 [V]
100 [mV]
- [mV]
VICM = 1.2V Note
VICM = 1.2V Note
Note
VDD=
%05.03.3rV

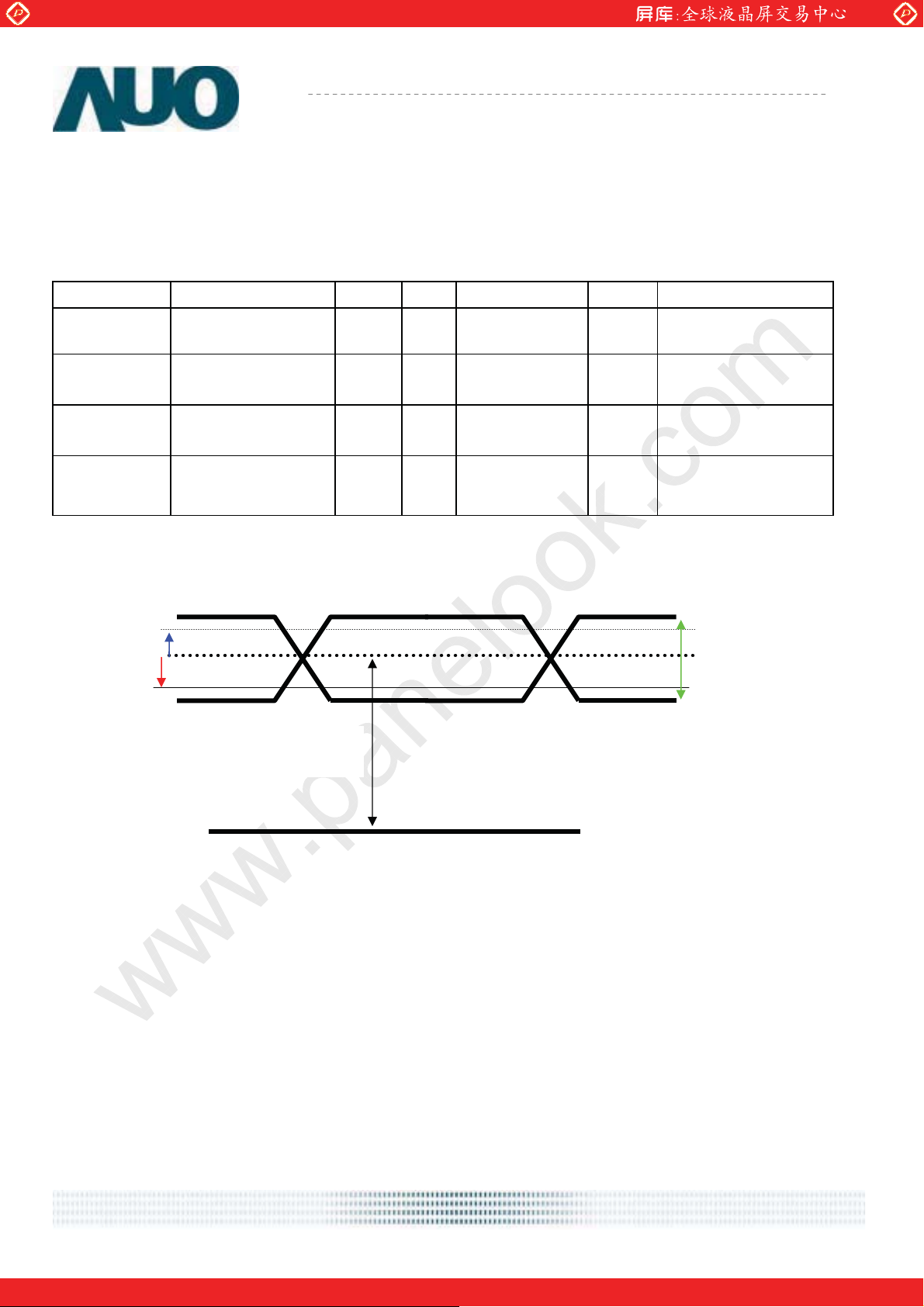

Note: LVDS Signal Waveform
VTH
VTL
VSS
ѨVIDѨ
VICM
5.2 Backlight Unit
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):к
CCFL Ignition Voltage(ViCFL, Ta= 0)к
(End of the lamp wire connector)
CCFL Ignition Voltage(ViCF, Ta= 25)к
(End of the lamp wire connector)
CCFL Operation Voltage (VCFL) -
1730 - - [Volt] rms
1330 - - [Volt] rms
800
(@ 7.0mA)
[mA] rms Note 2
Note 5
[Volt] rms Note 6
CCFL Power Consumption(PCFL) - 22.4 24.5 [Watt] Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,500
voltage. Lamp units need 1,500 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4 = PCFL)
Note 7: Definition of CCFL life Time (LTCFL): brightness becomes 50%. (The typical life time of CCFL is on
the condition at 7.0 mA lamp current).
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
121679 1680
1st Line
R G B R G B
R G B R G B
M220EW01 V0
1050 Line
R G B R G B
R G B R G B
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com

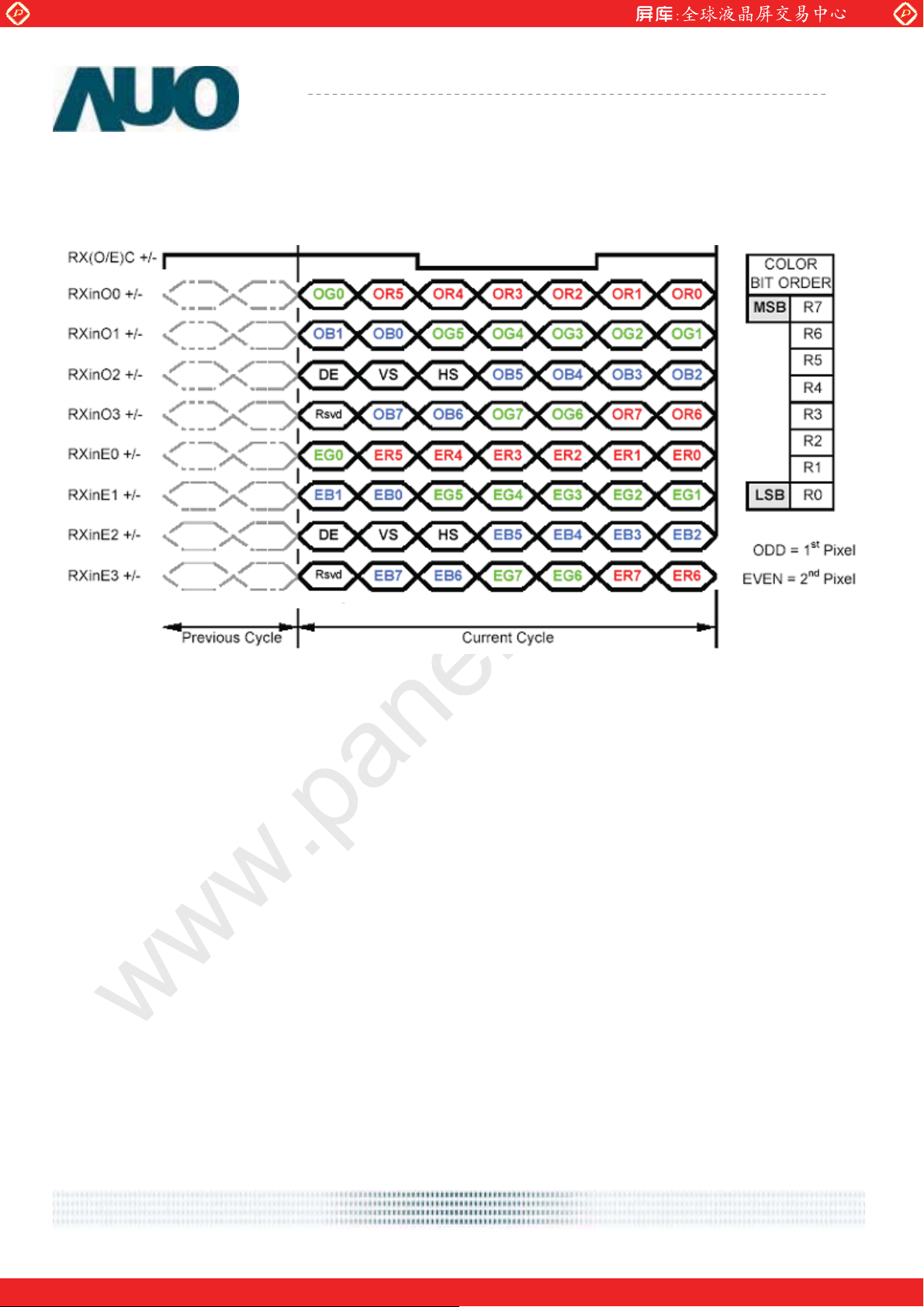

6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: 8-bits signal input.
Note3: L:NS alike H:Thine alike
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC No contact (For AUO test only)
26 NC No contact (For AUO test only)
27 NC No contact (For AUO test only)
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
RxO
IN
0
VCC
www.panelook.com
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
Connector
30
M220EW01 V0
-
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
6.4 Interface Timing
6.4.1 Timing Characteristics
SignalItemSymbol MinTyp MaxUnit
Period Tv
Vertical
Active Tdisp(v) 1050 1050 1050 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 8 16 998 Th
Period Th 880 1128 2048 Tclk
Horizontal
Active Tdisp(h) 840 840 840 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 40 288 1208 Tclk
Period Tclk 11.76 13.86 16.67 ns
Clock
Frequency Freq. 60 72.1 85 MHz
Product Specification
AU OPTRONICS CORPORATION
1058 1066 2048 Th
M220EW01 V0
Frame Rate Frequency 1/Tv 50 60 75 Hz
Note : DE mode only
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com

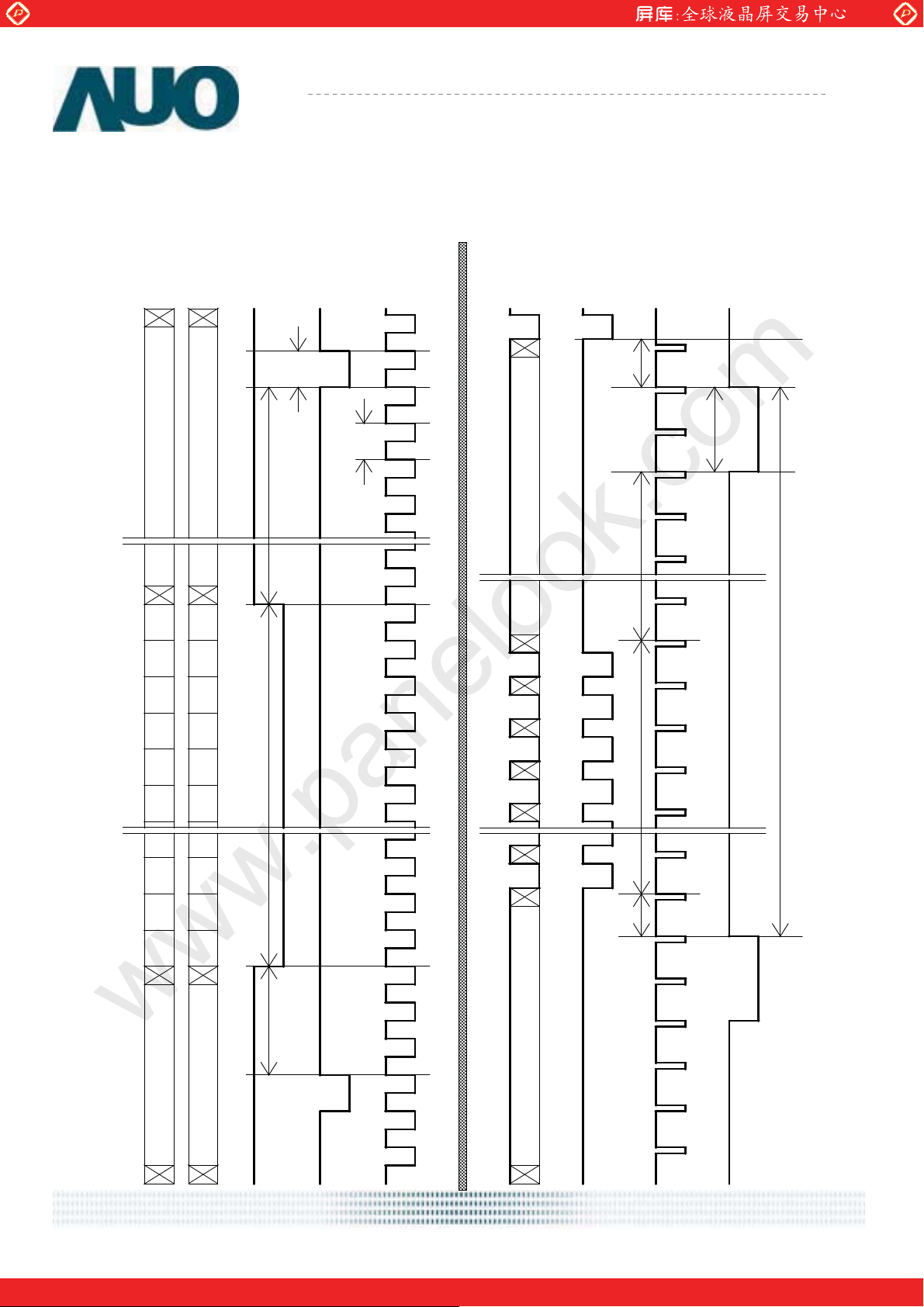

6.4.2 Timing Diagram
RGB Data
(Even)
(Odd)
Invalid Data
Invalid Data
RGB Data
DE
Tbp(h)
Product Specification
AU OPTRONICS CORPORATION
RGB Data
LineLineLineLineLineLine
N
Invalid Data
PWhs
Hsync
CLK
Tclk
DE
Tfp(v)
Tbp(v)
M220EW01 V0
Hsync
PWvs
Vsync
Pixel
2
Pixel Pixel
4
6
Pixel Pixel PixelPixel Pixel Pixel
8
10
12
M-4
M-2
M
Invalid Data
Pixel
1
Pixel
39M-1
Pixel
5M-3
7
11
PixelPixelPixelPixel
M-5
PixelPixel
Invalid Data
Tdisp(h)
Tfp(h)
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0

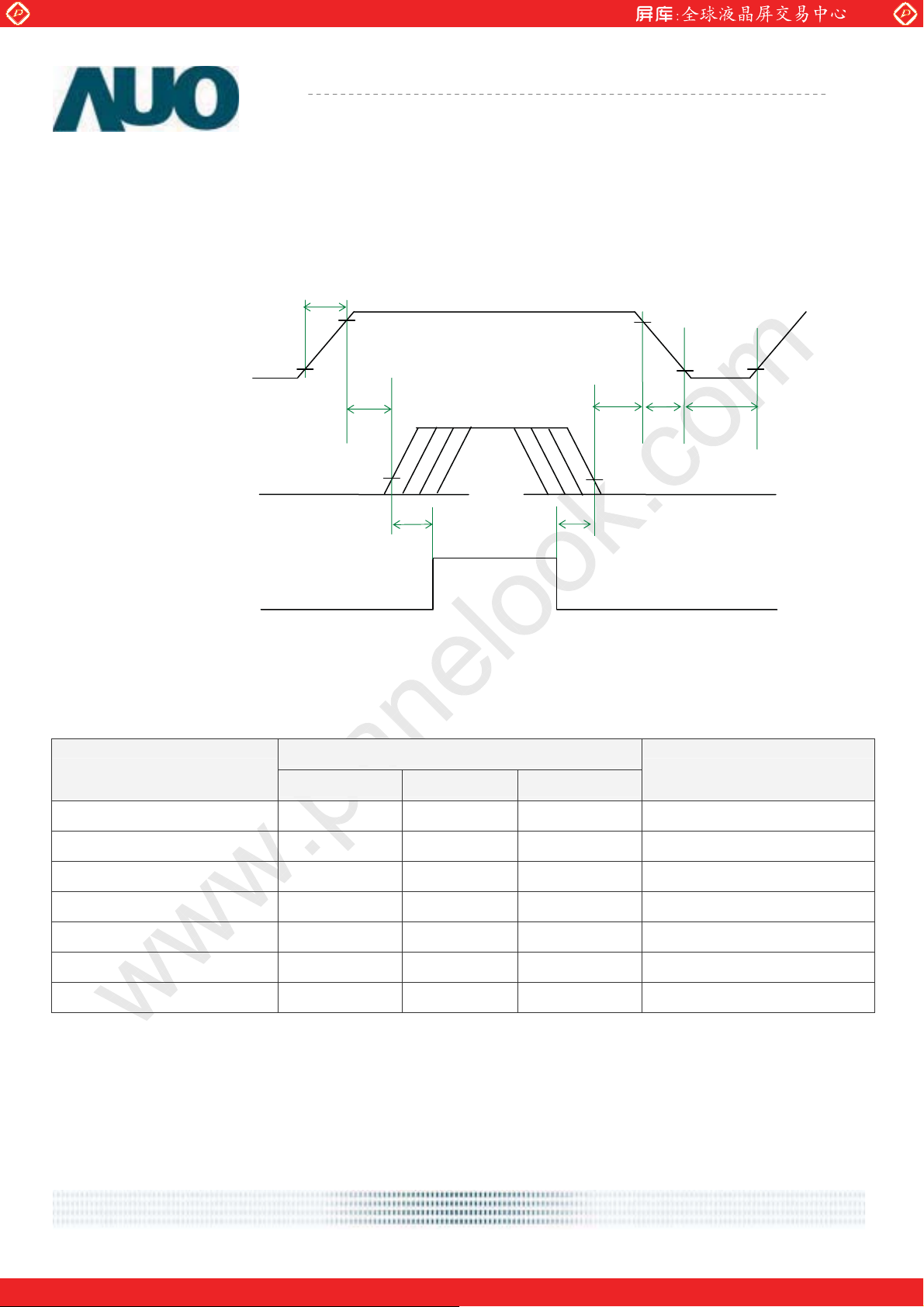

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
10%
T1
90%
T2
T3
Power Sequence Timing
VALID
DATA
T4
90%
T5
T6
10%
T7
Parameter
Unit
Min.Typ. Max.
T1 0.5 - 10 [ms]
T2 0 40 50 [ms]
T3 200 - - [ms]
T4 200 - - [ms]
T5 0.5 16 50 [ms]
T6 - - 100 [ms]
T7 1000 - - [ms]
document version 1.0
Value
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0

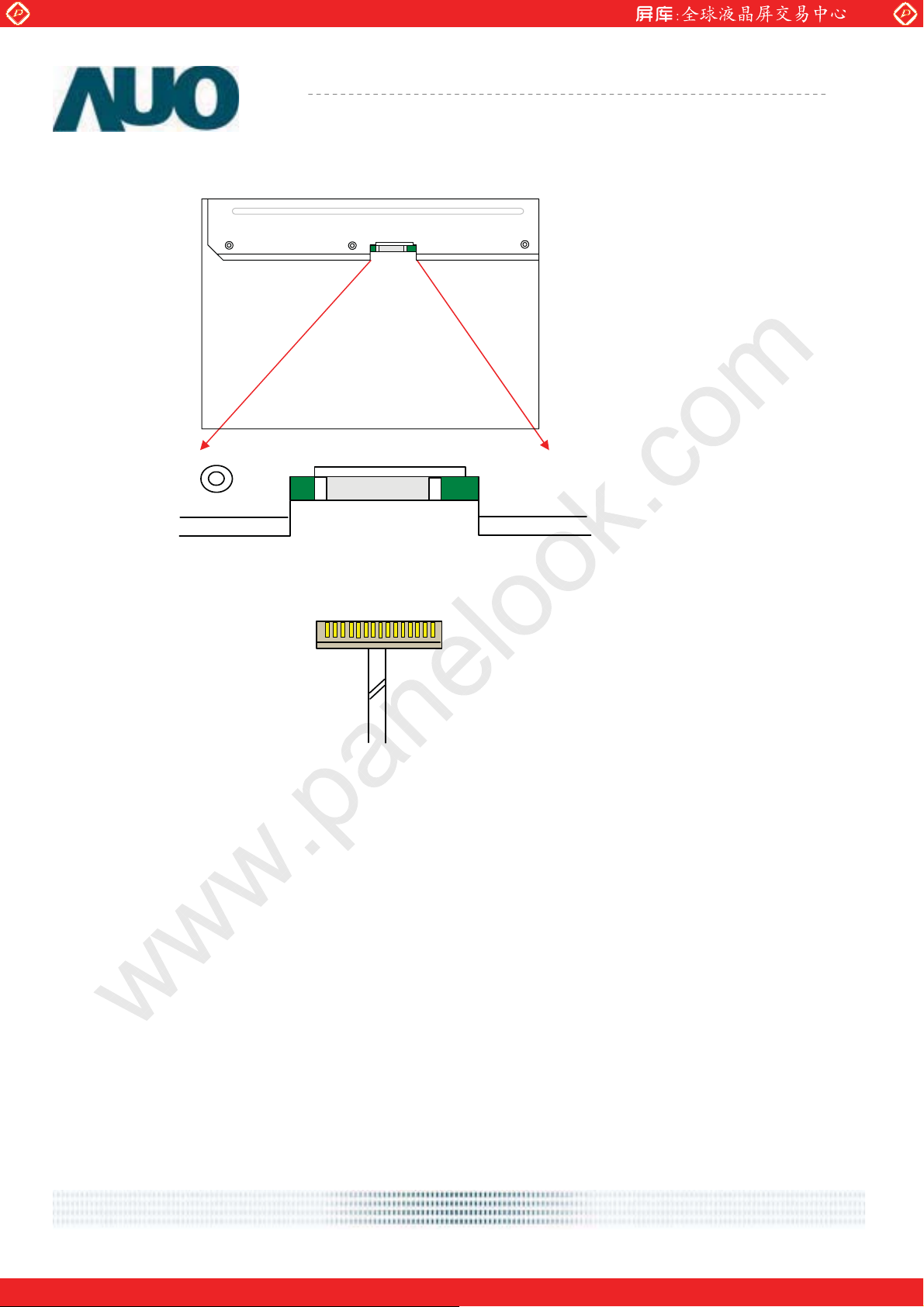

7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer
Type Part Number
Mating Housing Part Number
LVDS: HIROSE/ JAE compatible
LVDS :MDF76URW-30S-1H/ FI-XB30SSRL-HF16
FI-X30S-H ( Unlocked Type ) or equivalent
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14
15 RxEIN1- 16 RxEIN1+
17
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24
25 NC 26 NC
27 LVDS Format 28 VCC
29 VCC 30 VCC
GND
GND
8 RxOCLKIN-
GND
18 RxEIN2-
GND
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer
Type Part Number
Mating Type Part Number
YEONHO
35001HS-02L
35001WR-02L or SM02B-BHSS-1-TB
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
1 Hot1 Sky Blue High Voltage (Lamp 1)
2 Cold1
1 Hot2 Pink High Voltage (Lamp 2)
2 Cold2
1 Hot1 Sky Blue High Voltage (Lamp 3)
2 Cold1 Black Low Voltage (Lamp 3)
1 Hot2 Pink High Voltage (Lamp 4)
2 Cold2 White Low Voltage (Lamp 4)
Upper
Lower
CN1
CN2
Connector No. Pin No. Input Color Function
CN3
CN4
Black Low Voltage (Lamp 1)
White Low Voltage (Lamp 2)
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
ItemsRequired Condition
Temperature Humidity Bias (THB) Ta= 50, к 80%RH, 300hours
High Temperature Operation (HTO) Ta= 50, к 50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0, 300hoursк
High Temperature Storage (HTS) Ta= 60, 300hoursк
Low Temperature Storage (LTS) Ta= -20, 300hoursк
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
M220EW01 V0
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20к/30min, 60к/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
ESD (ElectroStatic Discharge)
Altitude Test
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
Contact Discharge: ± 8KV, 150pF(330 ) 1sec,
8 points, 25 times/ point.
Air Discharge: ± 15KV, 150pF(330 ) 1sec
8 points, 25 times/ point.
Operation:10,000 ft
Non-Operation:30,000 ft
1
2
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label
The shipping label format is shown as below.
M220EW01 V0
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

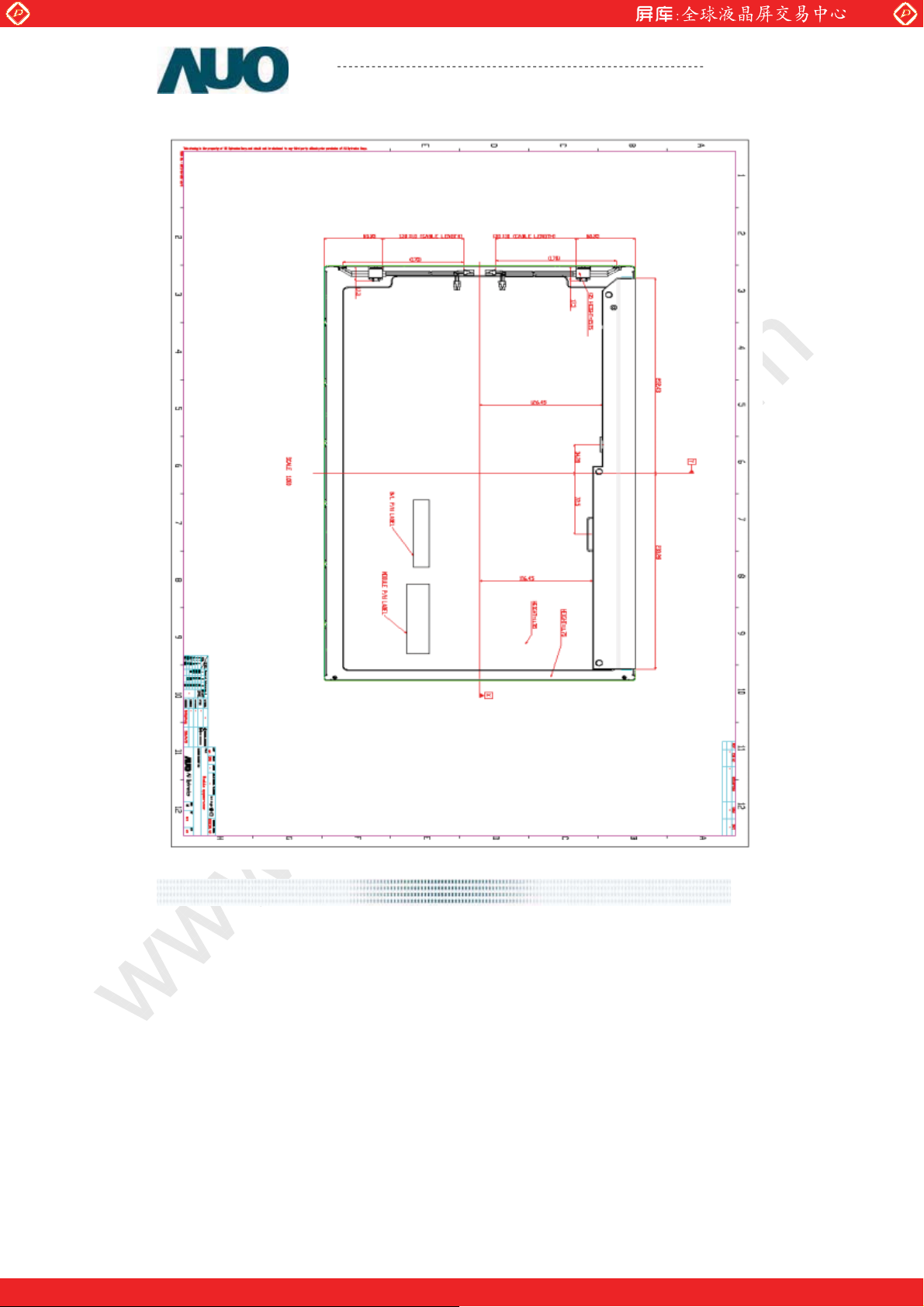

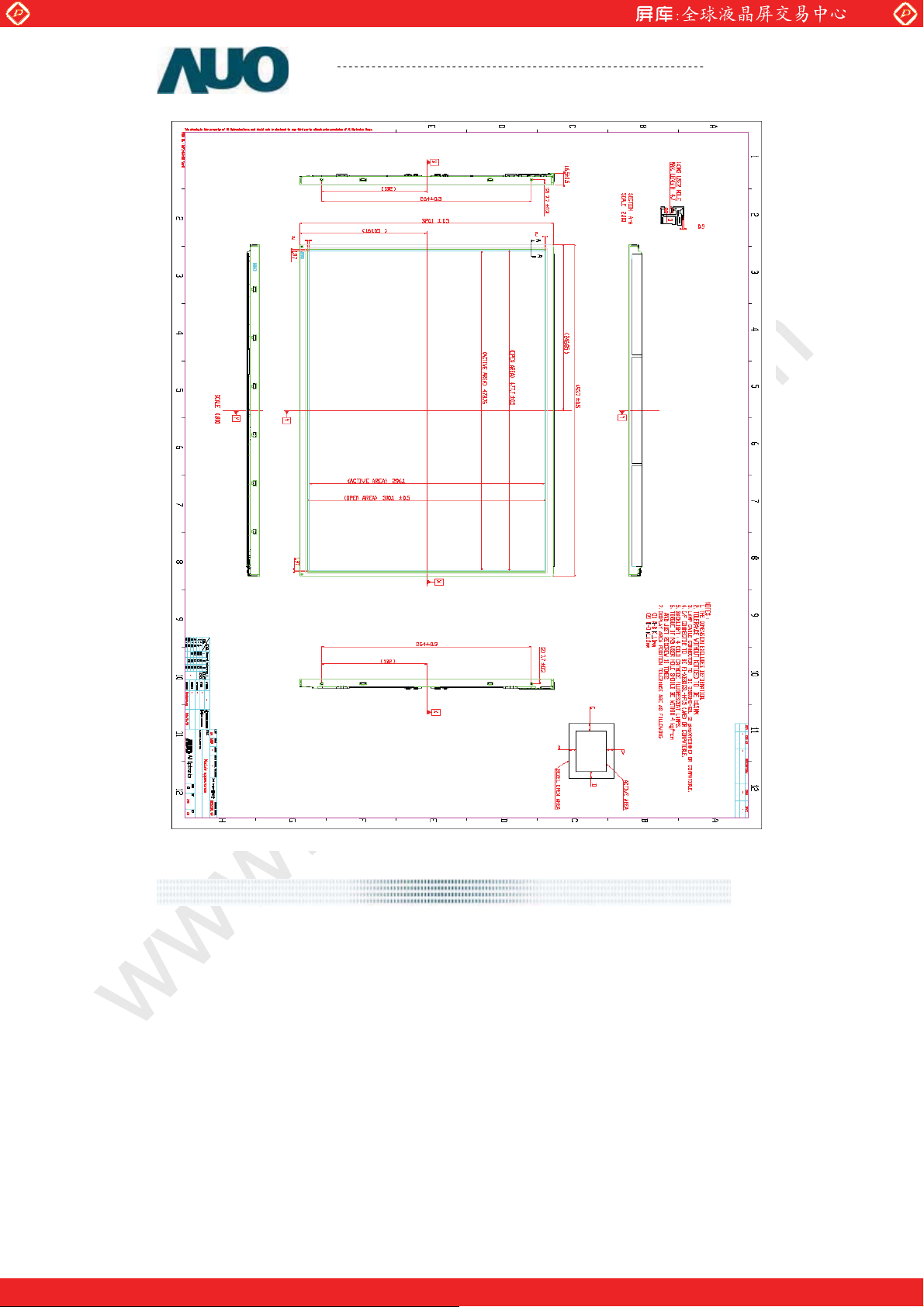

10. Mechanical Characteristics
M220EW01 V0
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M220EW01 V0
document version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
