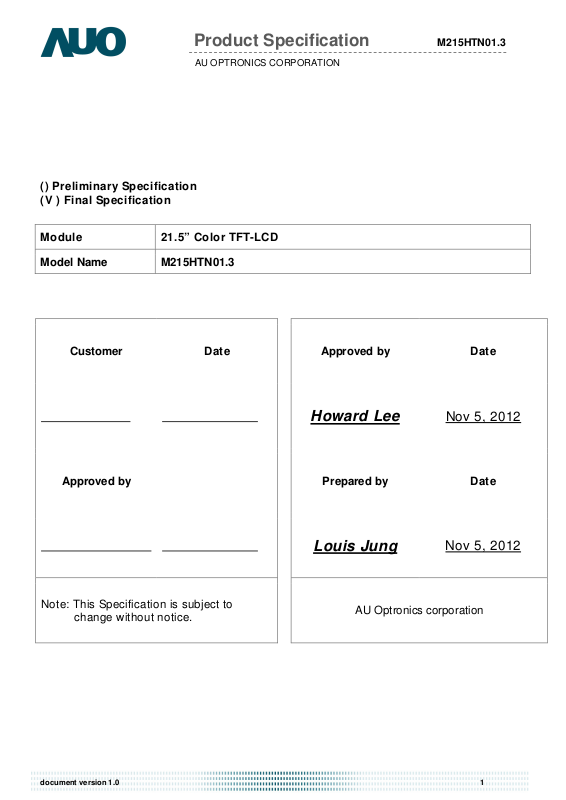

Product Specification
Preliminary Specification
() (V ) Final Specification
Module 21.5” Color TFT-LCD
Model Name M215HTN01.3
AU OPTRONICS CORPORATION
M215HTN01.3
Customer Date
Approved by
Approved by Date
Howard Lee
Prepared by Date
Louis Jung
Nov 5, 2012
Nov 5, 2012
Note: This Specification is subject to
change without notice.
AU Optronics corporation
Page 2
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
Contents
1 Handling Precautions................................................................4
2 General Description ..................................................................5
2.1 Display Characteristics....................................................................................................... 5
2.2 Optical Characteristics ....................................................................................................... 6
3 Functional Block Diagram .......................................................10
4 Absolute Maximum Ratings ....................................................11
4.1 TFT LCD Module.............................................................................................................. 11
4.2 Backlight Unit ................................................................................................................... 11
4.3 Absolute Ratings of Environment..................................................................................... 11
5 Electrical characteristics.........................................................13
5.1 TFT LCD Module.............................................................................................................. 13
5.1.1 Power Specification....................................................................................................... 13
5.1.2 Signal Electrical Characteristics .................................................................................... 14
6.0 Signal Characteristic............................................................17
6.1 Pixel Format Definition ..................................................................................................... 17
6.2 Input Data Format Definition ............................................................................................ 17
6.3 Signal Description ............................................................................................................ 18
6.4 Timing Characteristics...................................................................................................... 20
6.5 Timing diagram ................................................................................................................ 21
6.6 Power ON/OFF Sequence ............................................................................................... 22
7 Connector & Pin Assignment...................................................23
7.1 TFT LCD Module.............................................................................................................. 23
7.1.1 Pin Assignment ............................................................................................................. 23
7.2 LED Connector on Backlight Unit..................................................................................... 24
7.2.1 LED Pin assignment ..................................................................................................... 24
7.2.2 LED Connector dimension ............................................................................................ 25
7.2.3 LED Mating housing dimension .................................................................................... 25
8 Reliability Test........................................................................26
9 Shipping Label ........................................................................27
10 Mechanical Characteristics....................................................28
11. Packing Specification...........................................................29
11.1 Packing Flow.................................................................................................................. 29
11. 2 Pallet and shipment information.................................................................................... 30
Page 3
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
Version and Date Page
0.1 2012/06/26 All First Edition for Customer -
Old description New Description Remark
M215HTN01.3
2012/11/5 28
20
6.4 Tim ing Characteris ti cs
10 3. Functonal Block Diagram
6
6.4 Tim ing Characteris ti cs
3. Functonal Block Diagram
Revised
Revised
Revised
Revised
22
1.0 2012/11/5 Final version 1.0
Revised
Page 4
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
1 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out from the container, do not press the center of the LED lightbar edge. Instead, press at the far ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module should be supplied by power complied with requirements of Limited Power Source (IEC60950 or UL1950), or be applied exemption.
13) Pls avoid touching COF position while you are doing mechanical design.
14) When storing modules as spares for a long time, the following precaution is necessary:
Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep
the temperature between 5℃ and 35℃ at normal humidity.
Page 5
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
2 General Description
This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HTN01.3The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel LVDS interface and this module doesn’t contain an driver board for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm]
546.86(21.53”)
Active Area [mm] 476.64 (H) x 268.11 (V) Pixels H x V 1920(x3) x 1080 Pixel Pitch [um] 248.25 (per one triad) ×248.25 Pixel Arrangement R.G.B. Vertical Stripe Display Mode TN Mode, Normally White White Luminance ( Center ) [cd/m2] Contrast Ratio
200cd/m
600 (Typ.)
Optical Response Time [msec] 5ms (Typ., on/off) Nominal Input Voltage VDD [Volt] +5.0 V Power Consumption (VDD line + LED line)
[Watt] 13.97W (Typ)
VDD line : PDD (typ), All black pattern at 60Hz = 5.65W LED line : PBLU (typ) =8.32 W
Weight [Grams] 1750 Physical Size [mm] 495.6(W) × 292.2(H) × 10.3(D) Typ. Electrical Interface Dual channel LVDS Support Color 16.7M colors (RGB 6-bit + Hi_FRC ) Surface Treatment Anti-Glare, 3H Temperature Range Operating Storage (Shipping)
[oC] [oC]
0 to +50
-20 to +60 RoHS Compliance RoHS Compliance TCO Compliance No Compliance
2
(Typ.)
document version 1.0 5
Page 6
2.2 Optical Characteristics
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
Contrast ratio Normal Direction 360
Response Time [msec]
CR = 10 (Left)
Vertical (Up) CR = 10 (Down)
Raising Time (TrR)
Falling Time (TrF)
Raising + Falling
Red x
Red y
Color / Chromaticity Coordinates (CIE)
Green x
Green y
Blue x
Blue y
Color Coordinates (CIE) White
White x
White y
Central Luminance [cd/m2] 160 200 - 6
Luminance Uniformity
Crosstalk (in 60Hz)
Flicker
[%]
[%]
dB
40 40
15 40
-
-
-
0.615 0.645 0.675
0.302 0.332 0.362
0.290 0.320 0.350
0.595 0.625 0.655
0.127 0.157 0.187
0.030 0.060 0.090
0.283 0.313 0.343
0.299 0.329 0.359
75 80
45 45
20 45
6
00
3.8
1.2 2.5
5 8
-
-
-
-
-
5.5
-
1.5 8
-20
2
3
4
5
7
9
document version 1.0 6
Page 7
Product Specification
TFT-LCD Module
LCD Panel
AU OPTRONICS CORPORATION
M215HTN01.3
Note 1: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change during measuring (at surface 35℃). In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Measured distance
Note 2: Definition of viewing angle measured by ELDIM (EZContrast 88) Viewing angle is the measurement of contrast ratio ≧10, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is
broken down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low
(down). The measurement direction is typically perpendicular to the display surface with the
screen rotated about its center to develop the desired measurement viewing angle.
Center of the screen
document version 1.0 7
Page 8
Product Specification
90
1 Frame
AU OPTRONICS CORPORATION
M215HTN01.3
Note 3: Contrast ratio is measured by TOPCON SR-3
Note 4: Definition of Response time measured by Westar TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full
Black” to “Full White” (rising time, TrR), and from “Full White” to “Full Black” (falling time, TrF),
respectively. The response time is interval between the 10% and 90% (1 frame at 60 Hz) of
amplitudes.
%
Optical
Optical
response
response
100
100
10
10
%
White
0
0
T
rF
Black
Black
1 Frame
T
rR
White
TrR + TrF = 5 msec (typ.).
Note 5: Color chromaticity and coordinates (CIE) is measured by TOPCON SR-3
Note 6: Central luminance is measured by TOPCON SR-3
Note 7: Luminance uniformity of these 9 points is defined as below and measured by
TOPCON SR-3
Note 8: Crosstalk is defined as below and measured by TOPCON SR-3
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 1.0 8
Page 9
Product Specification
Level
DC
AU OPTRONICS CORPORATION
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
M215HTN01.3
Note 9: Test Patern: Subchecker Pattern measured by TOPCON SR-3
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with TRD-100
Amplitude
DC
AC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
document version 1.0 9
Page 10
Product Specification
DC
VDD
AUO ASIC
Connector
Transmitter
LVD
S
X-Driver IC
AU OPTRONICS CORPORATION
M215HTN01.3

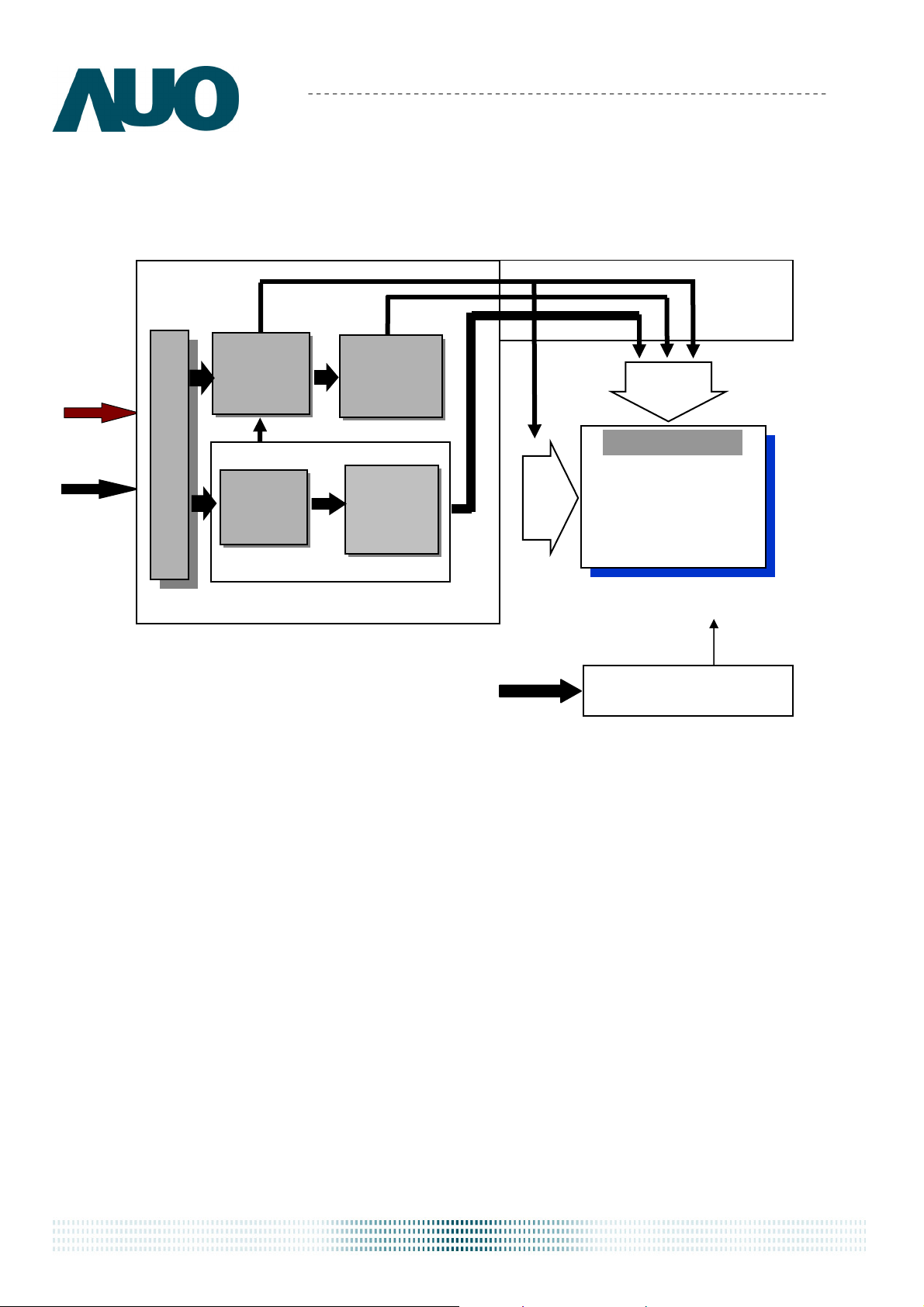

3 Functional Block Diagram
The following diagram shows the functional block of the 21.5 inch Color TFT-LCD Module:
DC/DC
Converte
LVDS
Receive
AUO ASIC
Gamma
Correction
Timing
Controller
Mini LVDS
G1
G2160
D1
TFT-LCD
1920(x3) x 1080
D2880
Pixels
LED Backlight
I/F + X-PCB
LED Driver on system
document version 1.0 10
Page 11
Product Specification
AU OPTRONICS CORPORATION
4 Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
VDD -0.3 6.0 [Volt] Note 1,2
IRLED1
M215HTN01.3
LED Forward Current
LED
Pulse
Forward Current
LED forward Voltage variation
(per string variation)
IRLED2
IRLED3
IRLED4
IPLED1
IPLED2
IPLED3
IPLED4
Δ
Vf
0 90
- 150
- 2
[mA]
[mA]
[Volt]
Note 1,2,5
100% duty
Note 1,2,5
10% duty @100Hz
Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 3
Glass surface temperature
(operation)
Operation Humidity HOP 5 90 [%RH]
TGS 0 +65 [oC] Note 3, Note 4
Note 3
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25℃) Note 2: Permanent damage to the device may occur if exceeding maximum values

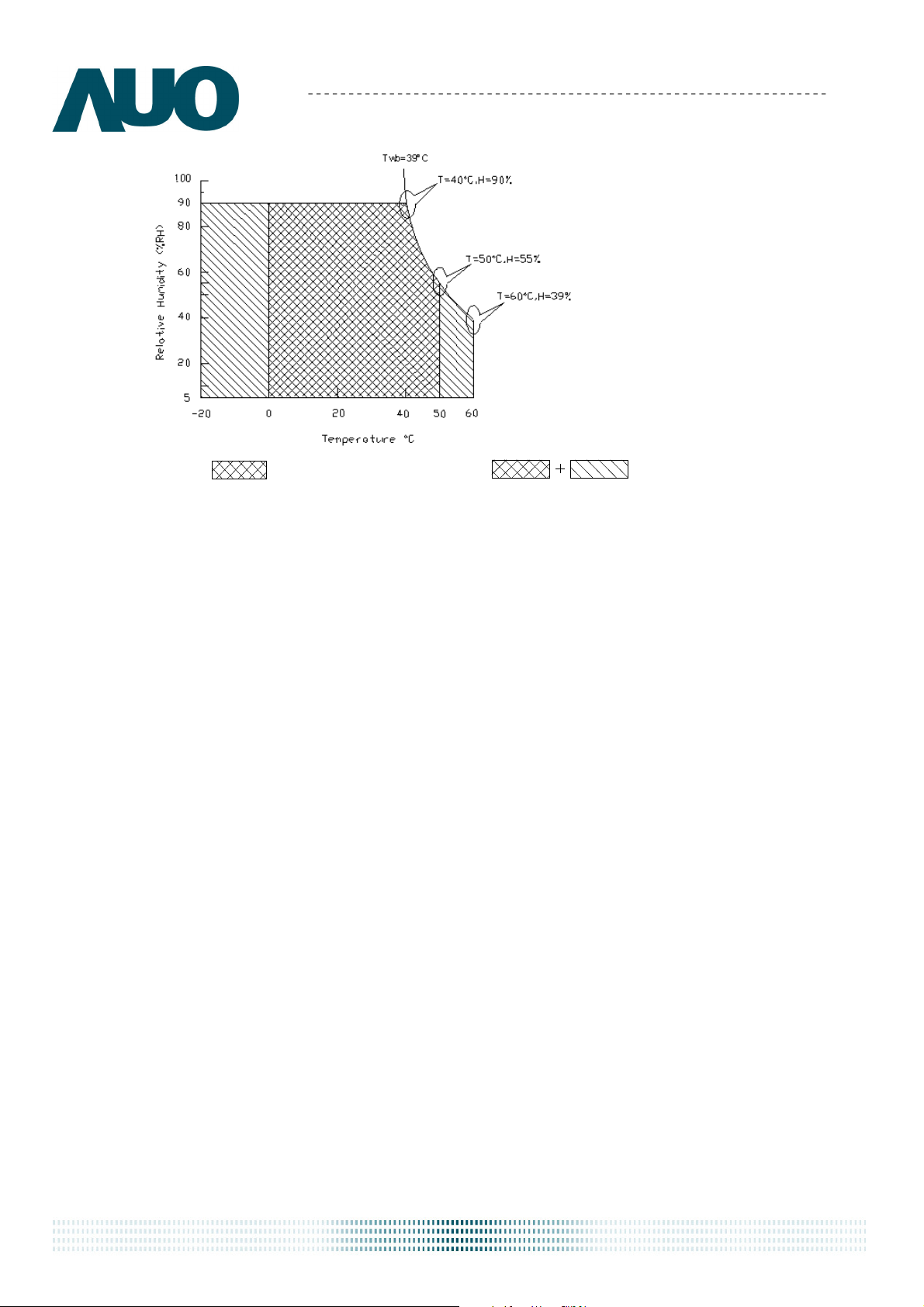

Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta
2. Max wet-bulb temperature at 39
3. No condensation
Note 4: Function Judged only Note 5: IRLED1,2,3,4 and IPLED1,2,3,4 define as per strings LED current.
document version 1.0 11
≦39℃)
℃ or less. ( Ta ≦39℃)
5 90
[%RH]
Page 12
Product Specification
AU OPTRONICS CORPORATION
Operating Range Storage Range
M215HTN01.3
document version 1.0 12
Page 13
Product Specification
AU OPTRONICS CORPORATION
5 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as following:
M215HTN01.3
Symbol
Parameter Min Typ Max Unit Conditions
VDD Logic/LCD Drive Voltage 4.5 5.0 5.5 [Volt] +/-10%
IDD Input Current
PDD VDD Power
IRush Inrush Current
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
- 1.13 1.36
1.34 1.61
- 5.65 6.80
6.7 8.05
-
-
- 3 [A]
- 500 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz
[A] VDD= 5.0V, All Black Pattern At 60Hz
[A] VDD= 5.0V, All Black Pattern At 75Hz
[Watt] VDD= 5.0V, All Black Pattern At 60Hz

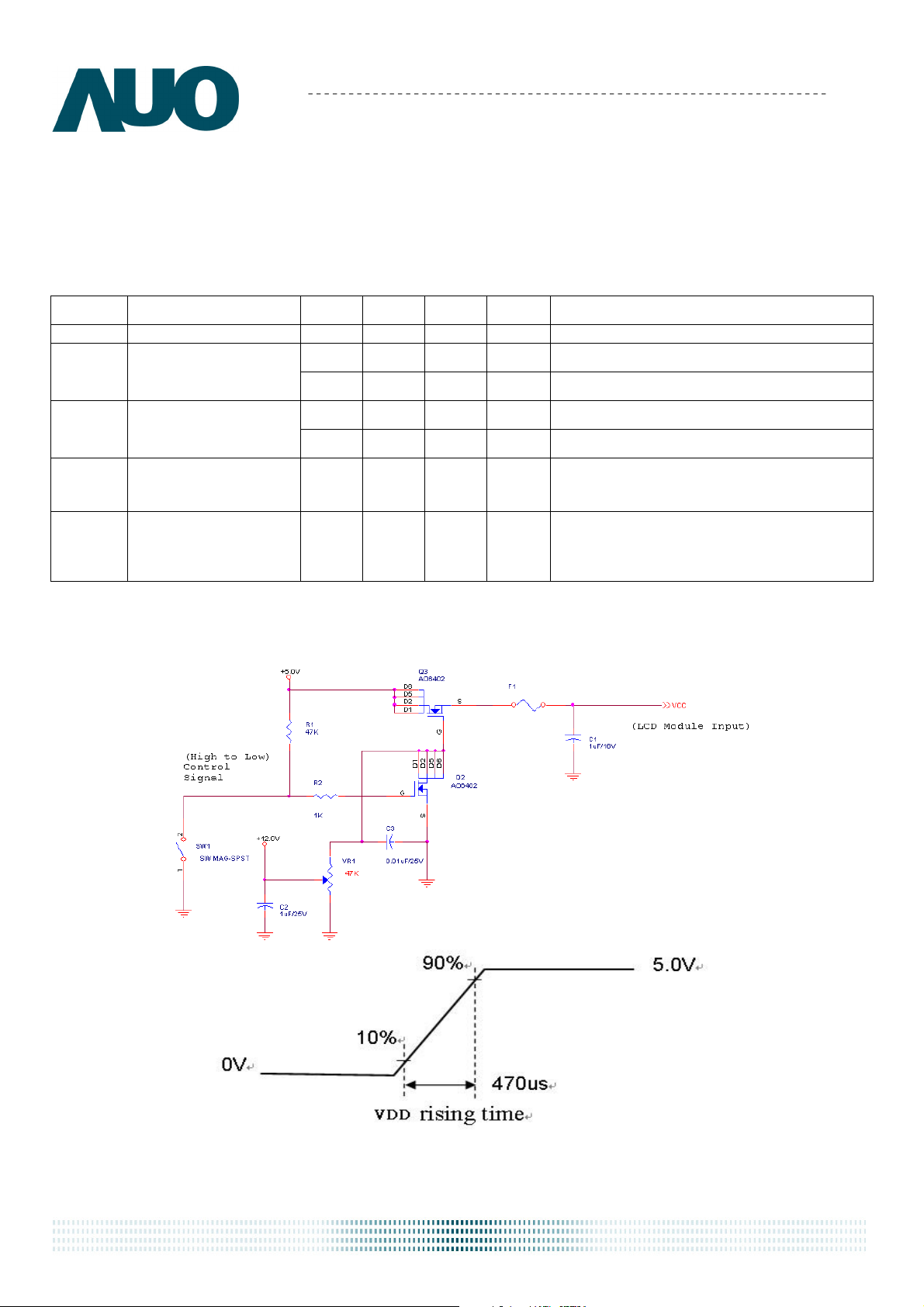

[Watt] VDD= 5.0V, All Black Pattern At 75Hz
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
Note 1
document version 1.0 13
Page 14
Product Specification
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
M215HTN01.3
1. DC Characteristics of each signal are as following:
Symbol Parameter Min Typ Max Units
VTH
VTL
│
VID│ Input Differential Voltage 100 - 600 [mV] Note 1
VICM
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5 [V]

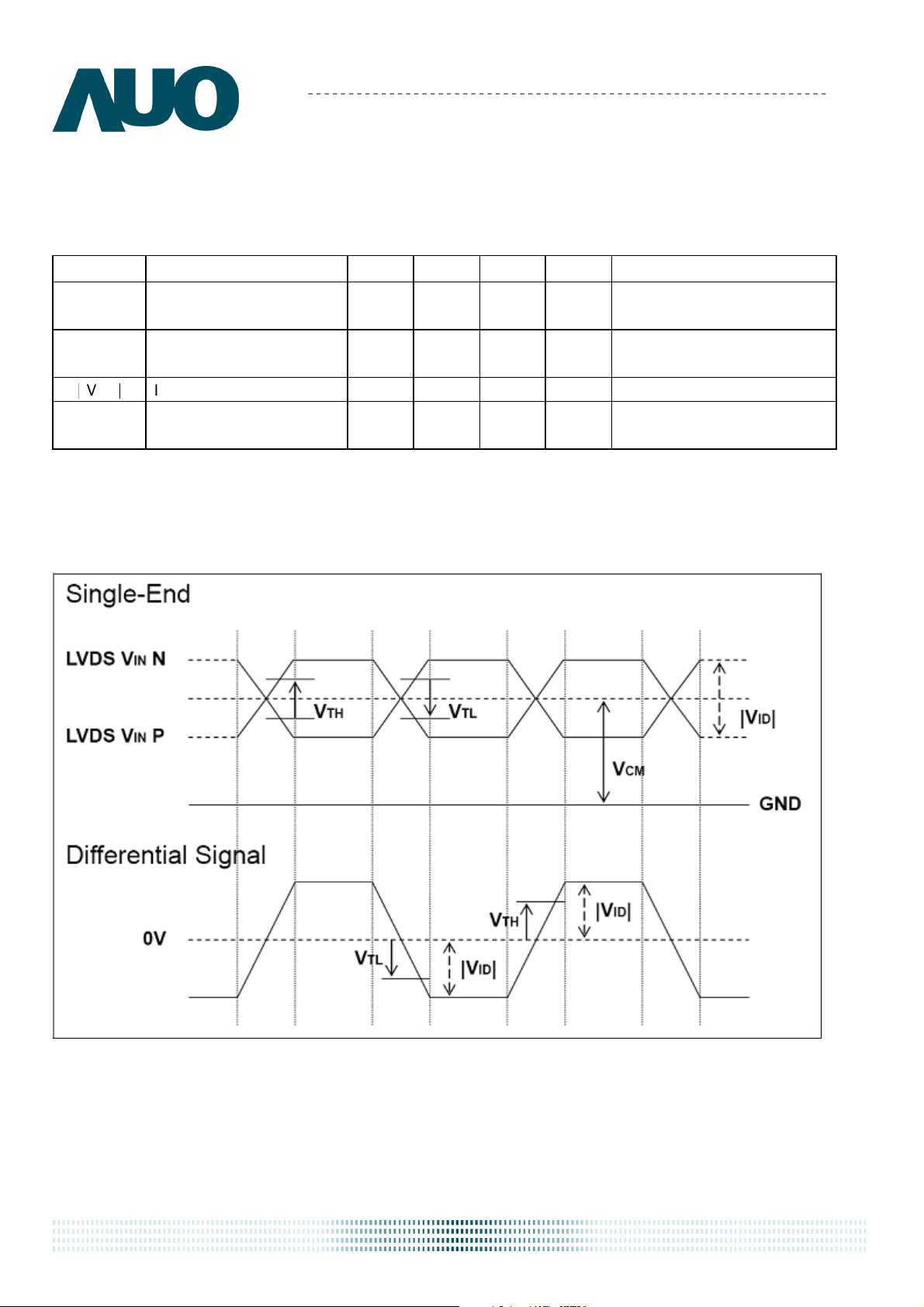

Note 1: LVDS Signal Waveform
Condition
VICM = 1.2V
Note 1
VICM = 1.2V
Note 1
VTH-VTL = 200MV (max)
Note 1
document version 1.0 14
Page 15
Freq
F
max
F
center
F
min
F
center
* F
DEV

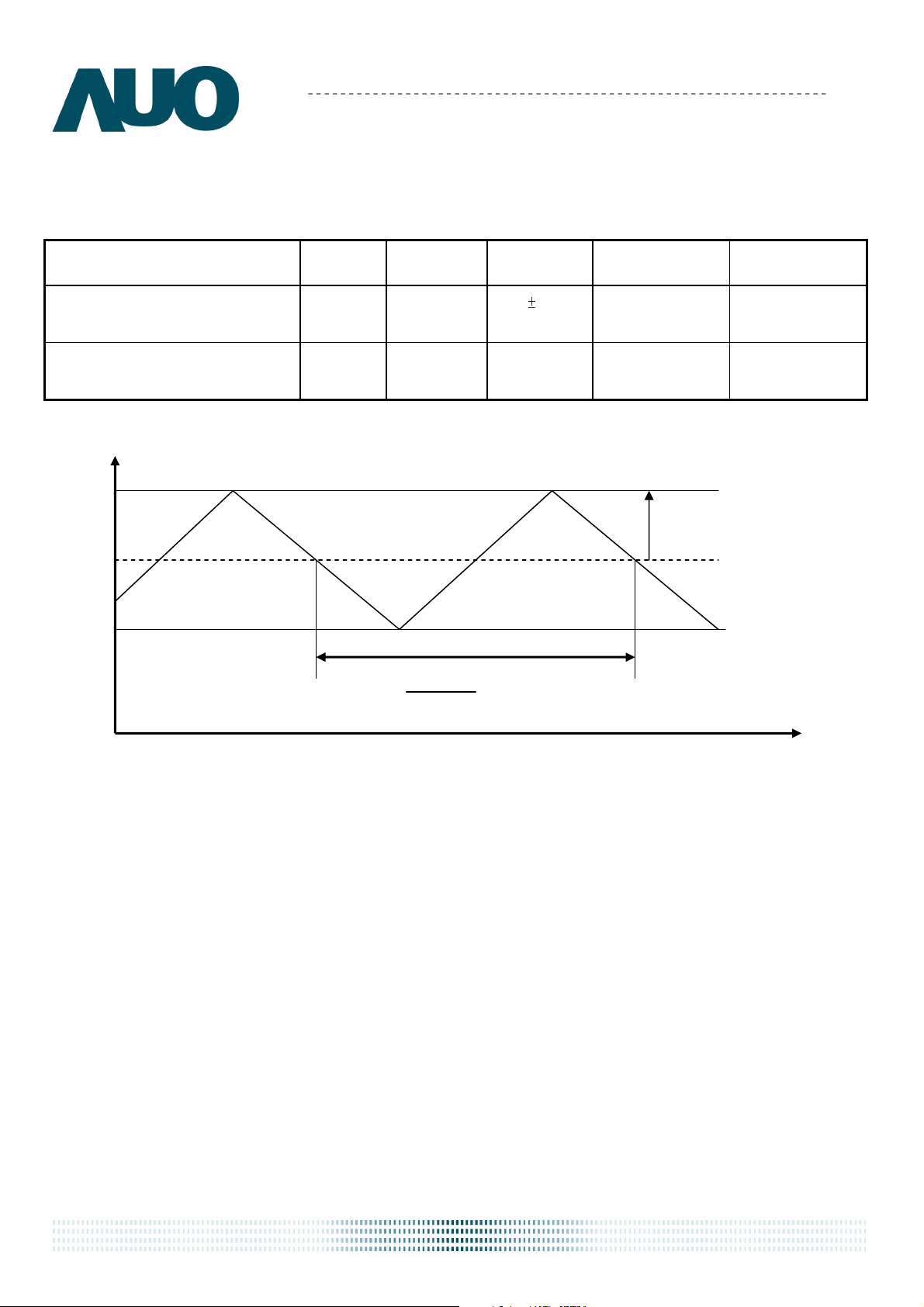

< Spread Spectrum>
time
2. AC Characteristics
Description Symbol Min Max Unit Note
Maximum deviation of input
clock frequency during SSC
Product Specification
AU OPTRONICS CORPORATION
±
F
DEV
-
3
M215HTN01.3
%
Maximum modulation frequency
of input clock during SSC
F
MOD
-
F
200 KHz
1
MOD
document version 1.0 15
Page 16
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
5.2 Backlight Unit
Parameter guideline for LED driver is under stable conditions at 25℃(Room Temperature):
Symbol Description Min.
IRLED1
IRLED2
LED Forward Current -
IRLED3
IRLED4
VLED Light Bar Operation Voltage
PBLU BLU Power Consumption -
LTLED LED Life Time (Typical) 30,000
30
Typ. Max. Unit Note
8.32 9.792
65
32 36
- - [Hour]
68
[mA] Note 1
[Volt]
[Watt]
Note 2
Note 3
Note 4
Each module consists of 40 pcs LED ( 4 strings x 10 pcs / string )
Note 1: The specified current is 100% duty of LED chip input current, IRLED1,2,3,4 define as per strings LED current.
Note 2: The value showed is one string operation voltage.
Note 3: PBLU = VLED *( IRLED1+IRLED2+IRLED3+IRLED4)
Note 4: Definition of life time: Brightness becomes to 50% of its original value. The minimum life
time of LED unit is on the condition of IRLED = 65mA and 25±2°C (Room Temperature).
document version 1.0 16
Page 17
R G B R G B
R G B R G B
R G B R G B
R G B R G B
1 2 1
919 1
920
1st Line
1080
Line
6.0 Signal Characteristic
6.1 Pixel Format Definition
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3

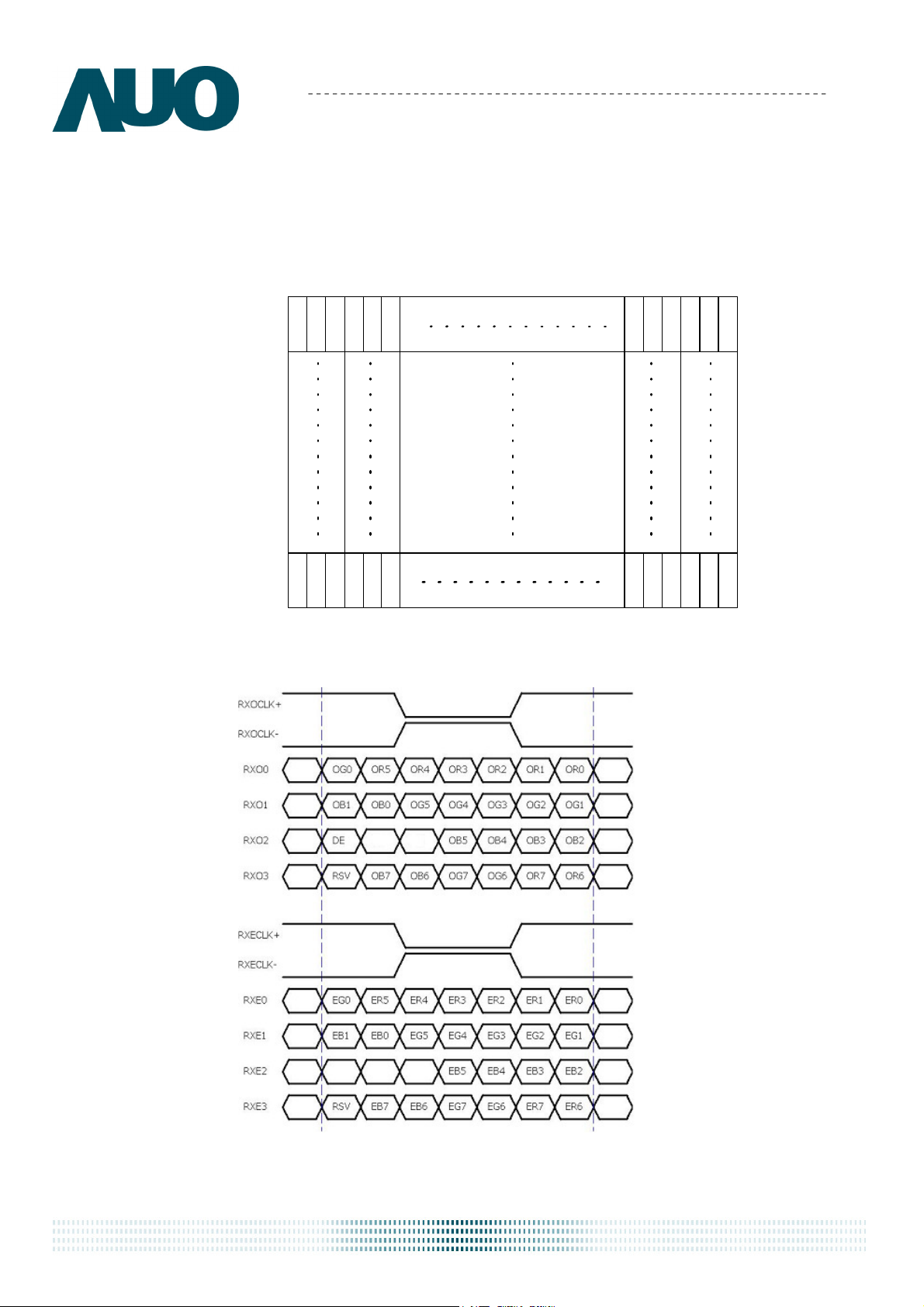

Following figure shows the relationship of the input signals and LCD pixel format.
6.2 Input Data Format Definition
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB O = “Odd Pixel Data” E = “Even Pixel Data”
document version 1.0 17
Page 18
PIN #
SIGNAL NAME
DESCRIPTION
1 RxO0
- Negative LVDS differential data input (Odd data)
2 RxO0+
Positive LVDS di
fferential data input (Odd data)
3 RxO1
- Negative LVDS differential data input (Odd data)
4 RxO1+
Positive LVDS differential data input (Odd data)
5 RxO2
- Negative LVDS differential data input (Odd data)
6 RxO2+
Positive LVDS differential data input (O
dd data)
7 GND
Power Ground
8 RxOC
LK-
Negative LVDS differential clock input (Odd clock)
9 RxOC
LK+
Positive LVDS differential clock input (Odd clock)
10 RxO3
- Negative LVDS differential data input (Odd data)
11 RxO3+
Positive LVDS differential data in
put (Odd data)
12 RxE0
- Negative LVDS differential data input (Even
data)
13 RxE0+
Positive LVDS differential data input (Even data)
14 GND
Power Ground
15 RxE1
- Negative LVDS differential data input (Even data)
16 RxE1+
Positive LVDS differential dat
a input (Even data)
17 GND
Power Ground
18 RxE2
- Negative LVDS differential data input (Even data)
19 RxE2+
Positive LVDS differential data input (Even data)
20 RxEC
LK-
Negative LVDS differential clock input (Even clock)
21 RxEC
LK+
Positive LVDS diffe
rential clock input (Even clock)
22 RxE3
- Negative LVDS differential data input (Even data)
23 RxE3+
Positive LVDS differential data input (Even data)
24 GND
Power Ground
25 NC No connectio
n (for AUO test only. Do not connect)
26 NC No connection (for
AUO test only. Do not connect)
27 NC No connection (for AUO test only. Do not connect)
28 VDD
Power
+5V
29 VDD
Power
+5V
30 VDD
Power
+5V
6.3 Signal Description
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
Note 1: Input signals of odd and even clock shall be the same timing.
document version 1.0 18
Page 19
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
document version 1.0 19
Page 20
Product Specification
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
The input signal timing specifications are shown as the following table
Signal
Item
Symbol
Min
Typ
M215HTN01.3
Max
Unit
Period Tv
Vertical Section
Active Tdisp(v)
Blanking Tbp(v)+Tfp(v)+PWvs
Period Th
Horizontal Section
Active Tdisp(h)
Blanking Tbp(h)+Tfp(h)+PWhs
Period Tclk
Clock
Frequency Freq
Frame rate Frame rate F
Hsync
Hsync Frequency
Frequency
Note : DE mode only
1092 1130 1818
1080 1080 1080
12 50 738
1034 1050 1100
960 960 960
74 90 140
10.6 14.0 17.7
56.5 71.2 94.0
50 60 76
Th
Th
Th
Tclk
Tclk
Tclk
ns
MHz
Hz
HFreq 55 68 91 KHz
document version 1.0 20
Page 21
Product Specification
M215HTN01.3
AU OPTRONICS CORPORATION

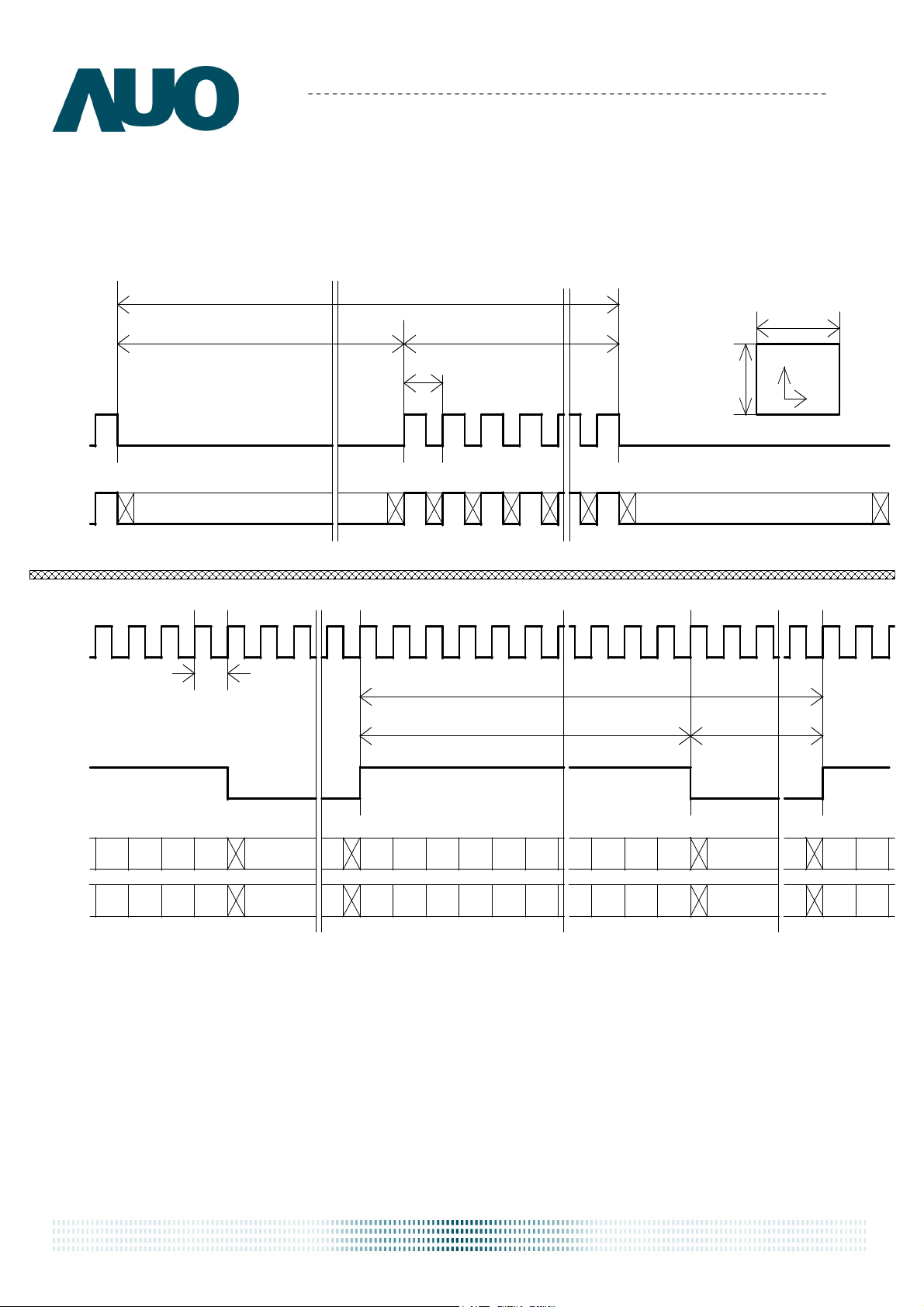

6.5 Timing diagram
Tblk(v)
DE
RGB Data
N
Line
Invalid Data
CLK
Tclk
DE
RGB Data
(Odd)
RGB Data
(Even)
Pixel
M-7
Pixel
M-6
Pixel
M-5
Pixel
Pixel
M-3
Pixel
M-2
Pixel
M-1
Pixel
M
Invalid Data
Invalid Data
document version 1.0 21
Tv
Tdisp(v)
Th
32
LineLine
Th
Tdisp(h)
Pixel
Pixel
10
4
LineLine
Pixel
119
12
1
Pixel
1
Pixel Pixel
2
Pixel
Pixel
3
4
Pixel
7
5
Pixel
Pixel
6 M-2
8 M
N
Line
Pixel
M-5
Pixel
M-4
Pixel
M-3
Pixel
Pixel
M-1
PixelPixel
N Line
Invalid Data
Tblk(h)
Invalid Data
Invalid Data
M pixel
Y
X
Pixel
Pixel
1
3
Pixel
Pixel
4
2M-4
Page 22
Product Specification
T5 T2
T1
T6
AU OPTRONICS CORPORATION
M215HTN01.3

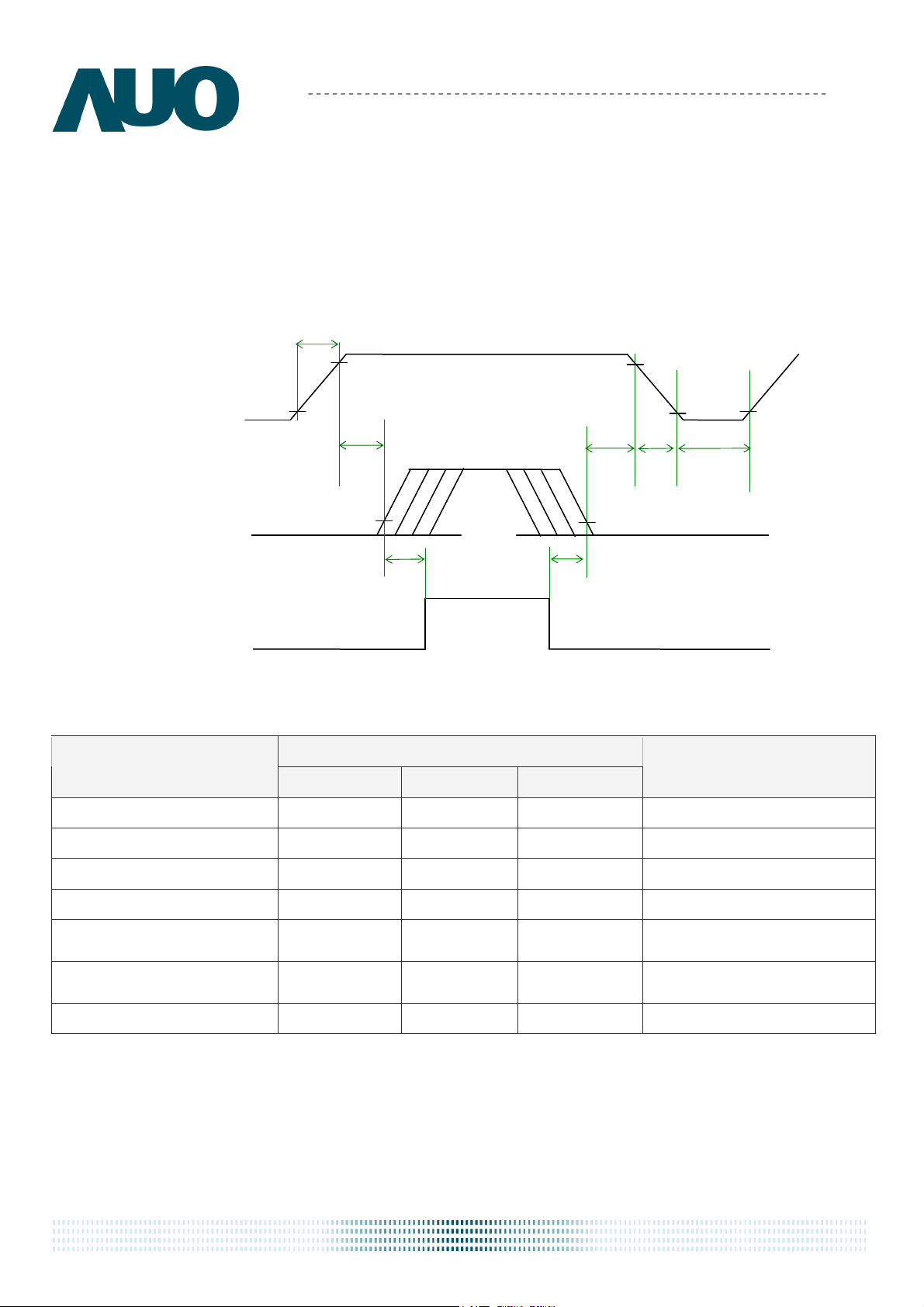

6.6 Power ON/OFF Sequence
VDD power and backlight on/off sequence are as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when VDD is off.
VALID DATA
90%
10%
T7
T4
Power Supply VDD
LVDS Signal
Backlight On
90%
10%
T3
Power Sequence Timing
Parameter
Value
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 500 - - [ms]
T4 100 - - [ms]
T5 0 50
T6 0 - 100
T7 1000 - - [ms]
Note1 : Recommend setting T5 = 0ms to avoid electronic noise when VDD is off.
Note2 : During T5 and T6 period , please keep the level of input LVDS signals with Hi-Z state.
Unit
[ms]
Note1,2
[ms]
Note1,2
document version 1.0 22
Page 23
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3

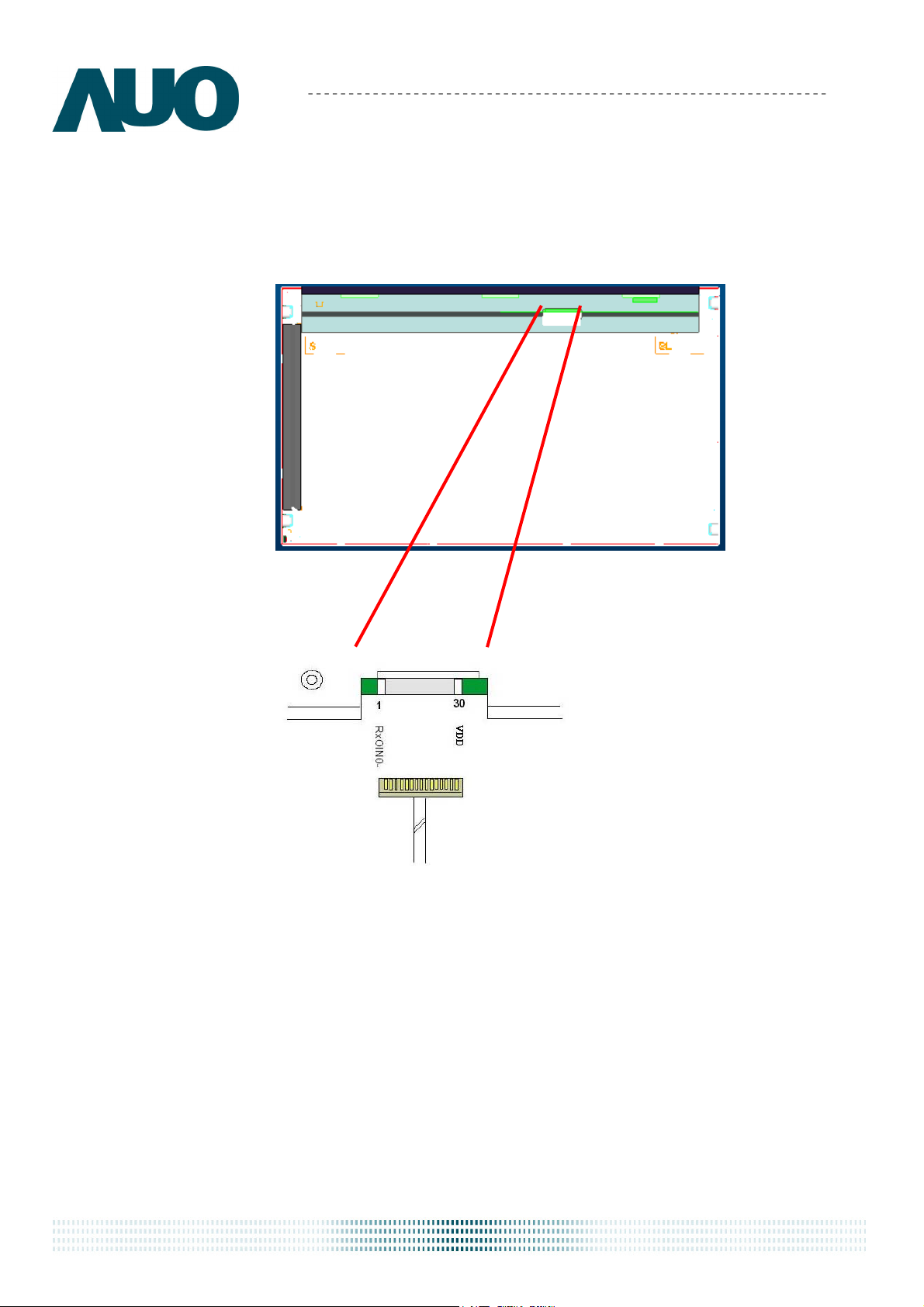

7 Connector & Pin Assignment
Physical interface is described as for the connector on module. These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer P-TWO, STM
Type Part Number
Mating Housing Part Number FI-X30HL (Locked Type)
P-TWO AL230F-A0G1D-P STM MSCKT2407P30HB
7.1.1 Pin Assignment
Pin# Signal Name Pin# Signal Name
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxO0-
RxO1-
RxO2-
GND
RxOCLKIN+
RxO3+
RxE0+
RxE1-
GND
RxE2+
RxECLKIN+
RxE3+
NC
(for AUO test only. Do not
connect)
NC
connect)
(for AUO test only. Do not
VDD
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxO0+
RxO1+
RxO2+
RxOCLKIN-
RxO3-
RxE0-
GND
RxE1+
RxE2-
RxECLKIN-
RxE3-
GND
NC
(for AUO test only. Do not
connect)
VDD
VDD
document version 1.0 23
Page 24
Product Specification
AU OPTRONICS CORPORATION

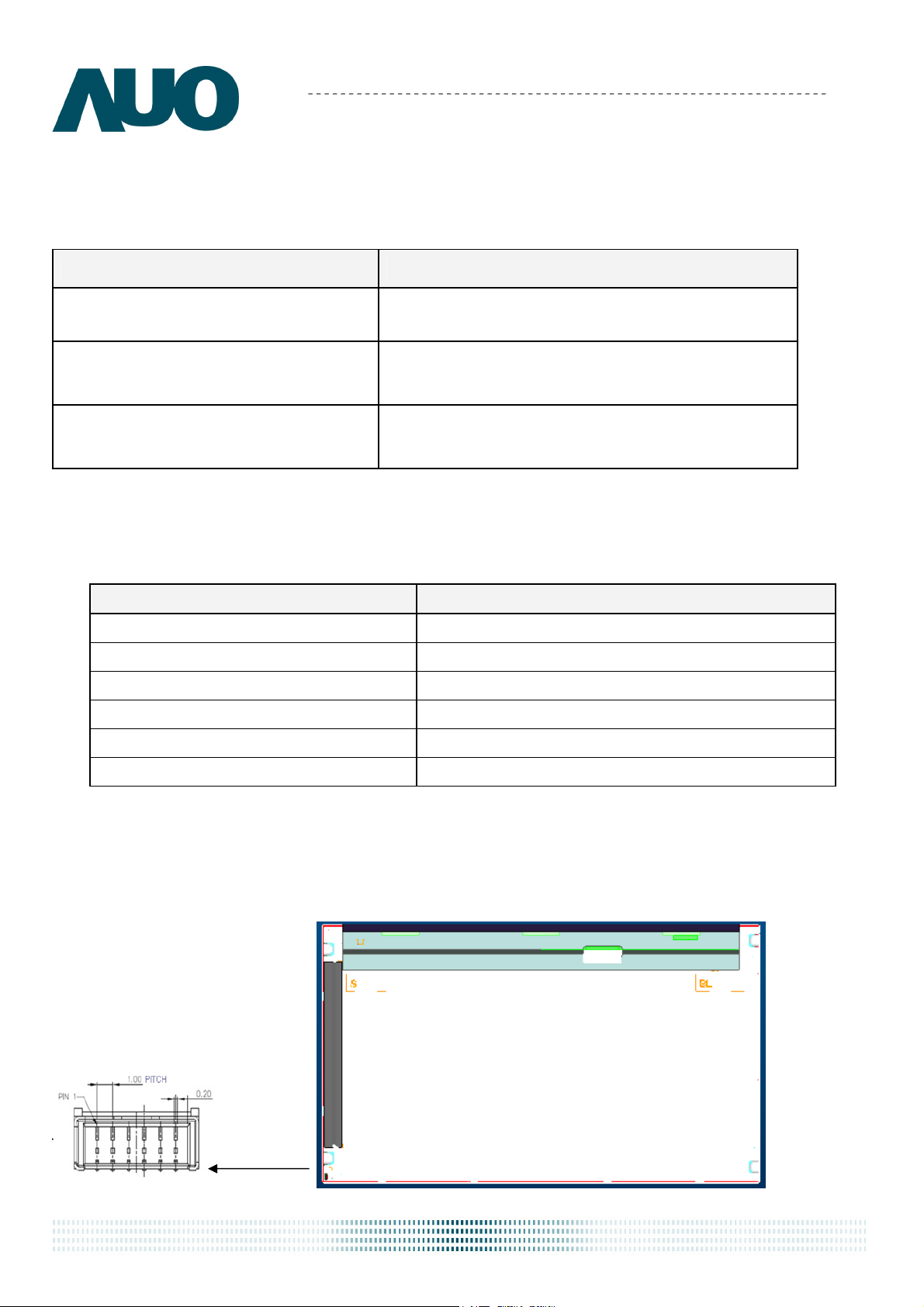

7.2 LED Connector on Backlight Unit.
M215HTN01.3
This connector is mounted on LED light-bar.
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY
Type Part Number 3707K-S06N-21R
Mating Type Part Number
ENTERY Non-Locking type: H112K-P06N-00B
Locking type: H112K-P06N-03B
7.2.1 LED Pin assignment
Pin# Signal Name
1 IRLED1 (current out)
2 IRLED2 (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED3 (current out)
6 IRLED4 (current out)
document version 1.0 24
Page 25
Product Specification
==××=××
AU OPTRONICS CORPORATION

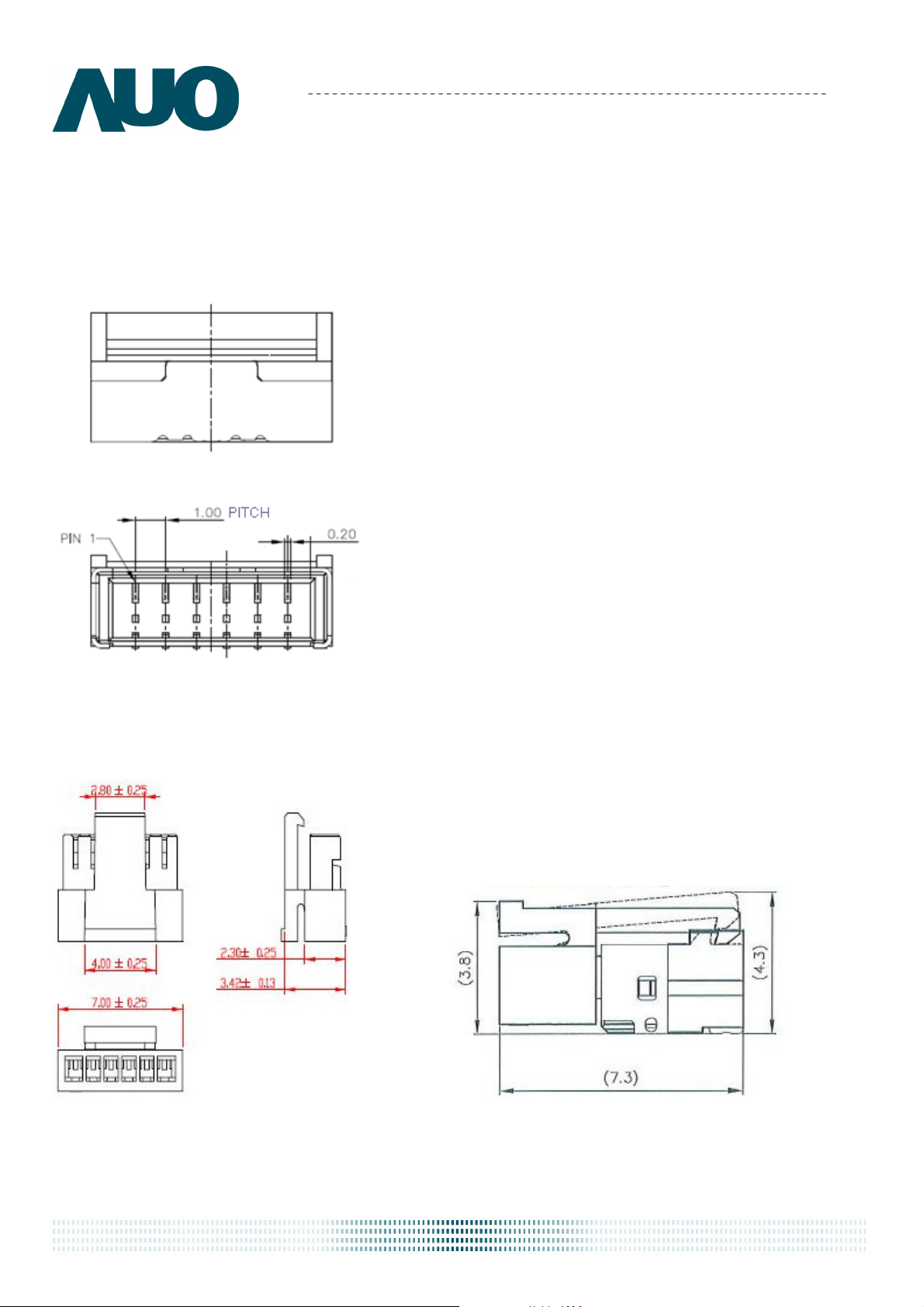

7.2.2 LED Connector dimension
M215HTN01.3
)(0.1,25.400.39.13 mmunitPitchDVH
7.2.3 LED Mating housing dimension
document version 1.0 25
Page 26
8 Reliability Test
Product Specification
AU OPTRONICS CORPORATION
M215HTN01.3
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS)
Vibration Test (Non-operation)
Shock Test (Non-operation)
Drop Test Height: 60 cm, package test
Ta= 50℃, 80%RH, 300hours
Ta= 50℃, 50%RH, 300hours
Ta= 0℃, 300hours
Ta= 60℃, 300hours
Ta= -20℃, 300hours
Acceleration: 1.5 Grms Wave: Random Frequency: 10 - 200 Hz Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G Wave: Half-sine Active Time: 20 ms Direction: ±X, ±Y, ±Z (one time for each Axis)
Note
Thermal Shock Test (TST)
On/Off Test On/10sec, Off/10sec, 30,000 cycles
-20℃/30min, 60℃/30min, 100 cycles
1
Contact Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point.
ESD (Electro Static Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec 8 points, 25 times/ point.
Altitude Test
Operation:18,000 ft Non-Operation:40,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20 to 60 , and back again. Power is not applied during the test. After temperature cycling, the ℃ ℃ unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: EN61000-4-2, ESD class B: Certain performance degradation allowed
No data lost Self-recoverable No hardware failures.
document version 1.0 26
Page 27
Product Specification
AU OPTRONICS CORPORATION
9 Shipping Label

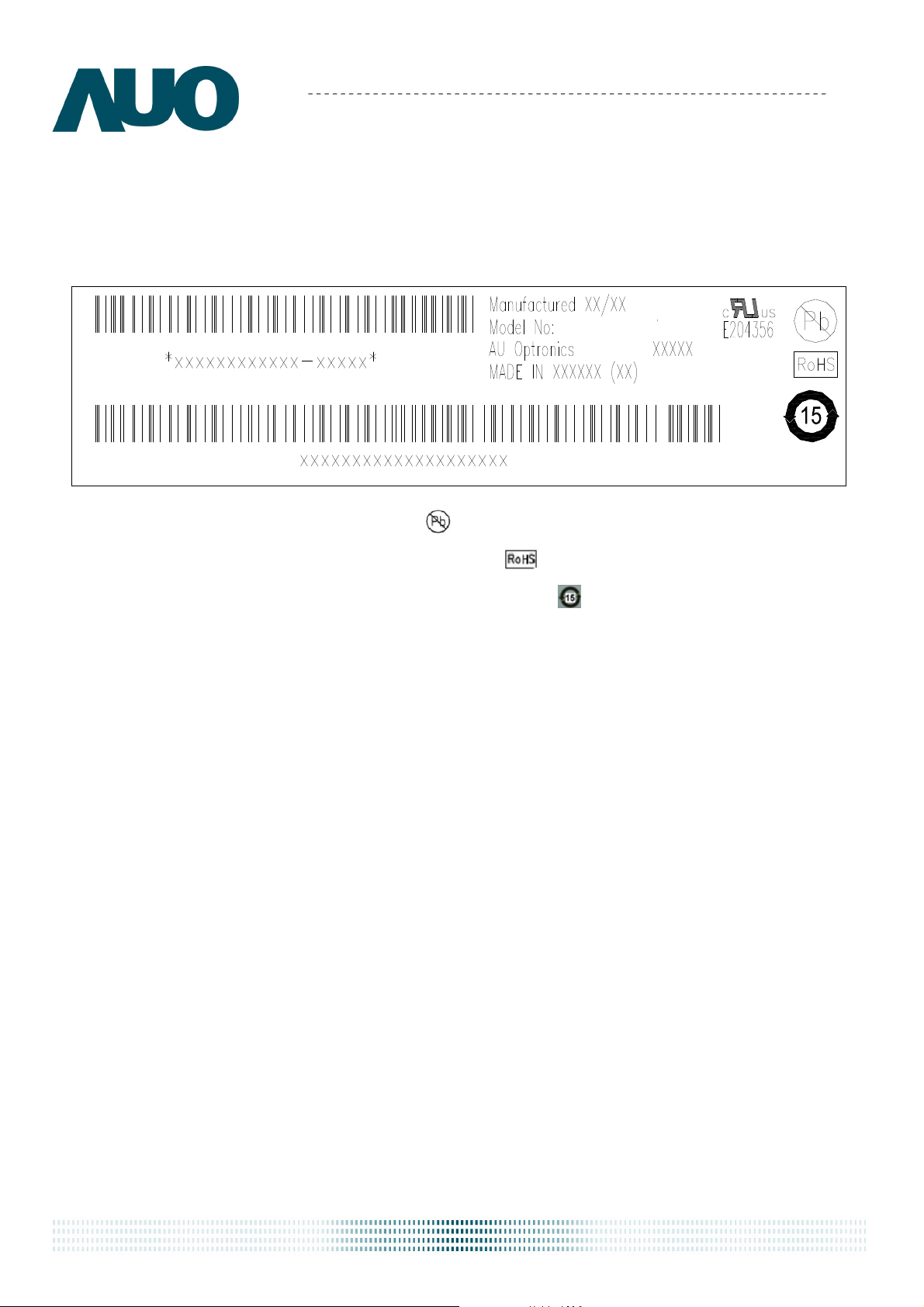

The label is on the panel as shown below:
Note 1: For Pb Free products, AUO will add for identification.
M215HTN01.3
M215HTN01.3
Note 2: For RoHS compatible products, AUO will add for identification.
Note 3: For China RoHS compatible products, AUO will add for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by
AUO Internal Green Team.
document version 1.0 27
Page 28

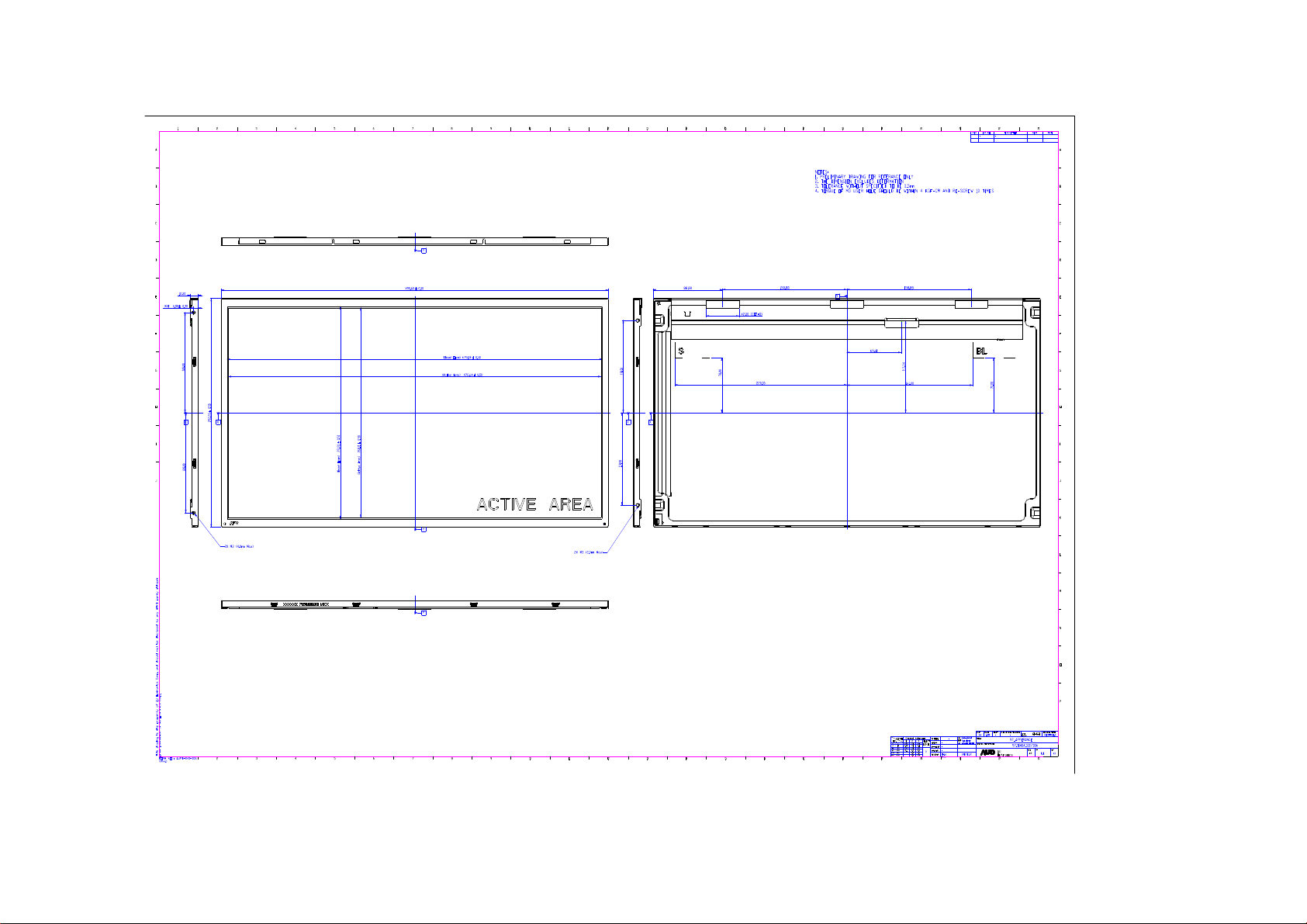

10 Mechanical Characteristics
Avoid touching COF position when doing mechanical design
Ver 1.0
Page 29
11. Packing Specification

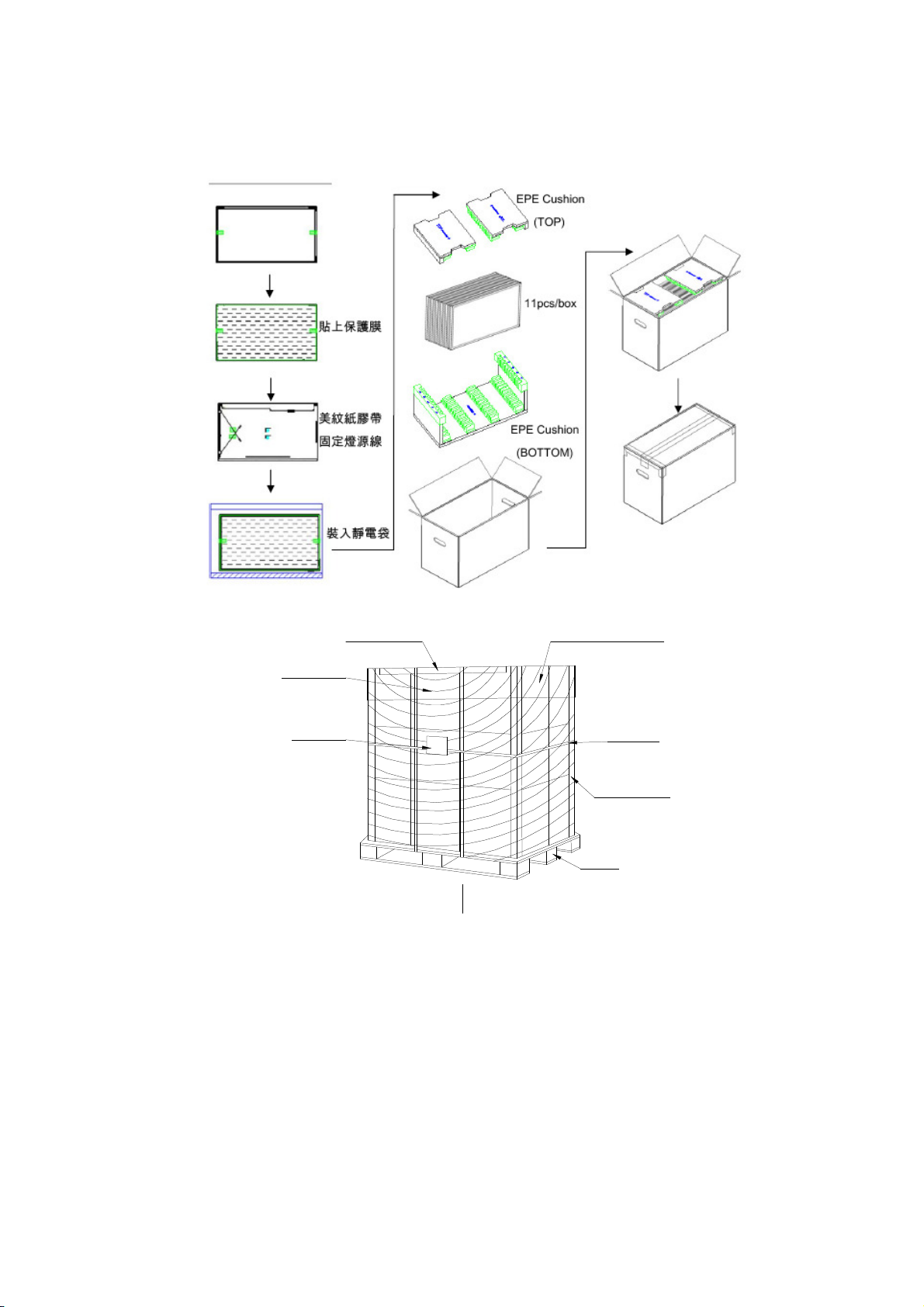

11.1 Packing Flow
Corner angle
Stretch film
Label
Moisture-proof film
PET band
Corner angle
Pallet
Ver 1.0
Page 30
11. 2 Pallet and shipment information
Item
Specification
Panel
Cushion
Box
Pallet
Q'ty
1
1
1
11 pcs/Box
1
495.6(W)mm × 292.2(H)mm × 10.3(D)mm
556(L)mm x 292(W)mm x 375(H)mm
556(L)mm x 292(W)mm x 375(H)mm
1150(L)mm x 910(W)mm x 132(H)mm
Dimension
1
2
3
4
5
Packing Box
-
6 Pallet after Packing 18 boxes/pallet 1150(L)mm x 910(W)mm x 1257(H)mm
Weight(kg)
1.75
0.40
0.95
20.6
12.00
382.8
Remark
without Panel & cushion
with panel & cushion
Ver 1.0
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
