M190PW01 V0
Document Version: 0.1
Date: 2006/04/17
Product Functional Specification
19 inch WSXGA+ Color TFT LCD Module
Model Name: M190PW01 V0
(u) Preliminary Specification
( ) Final Specification
Note: This Specification is subject to change without notice.
(C) Copyright AU Optronics Ver 0.1 1/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
AU OPTRONICS CORPORATION
Product Specification
19”Wide SXGA+ Color TFT-LCD Module
Model Name: M190PW01 V.0
Approved by Prepared by
DDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
(C) Copyright AU Optronics Ver 0.1 2/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
Contents
1.0 Handling Precautions.............................................................5
2.0 General Description...............................................................6
2.1 Display Characteristics ..............................................................................................................6
2.2 Optical Characteristics...............................................................................................................6
3.0 Functional Block Diagram....................................................10
4.0 Absolute Maximum Ratings..................................................11
4.1 TFT LCD Module ......................................................................................................................11
4.2 Backlight Unit............................................................................................................................11
4.3 Absolute Ratings of Environment............................................................................................11
5.0 Electrical characteristics......................................................11
5.1 TFT LCD Module ......................................................................................................................11
5.1.1 Power Specification...............................................................................................12
5.1.2 Signal Electrical Characteristics..............................................................................12
5.2 Backlight Unit............................................................................................................................13
6.0 Signal Characteristic............................................................14

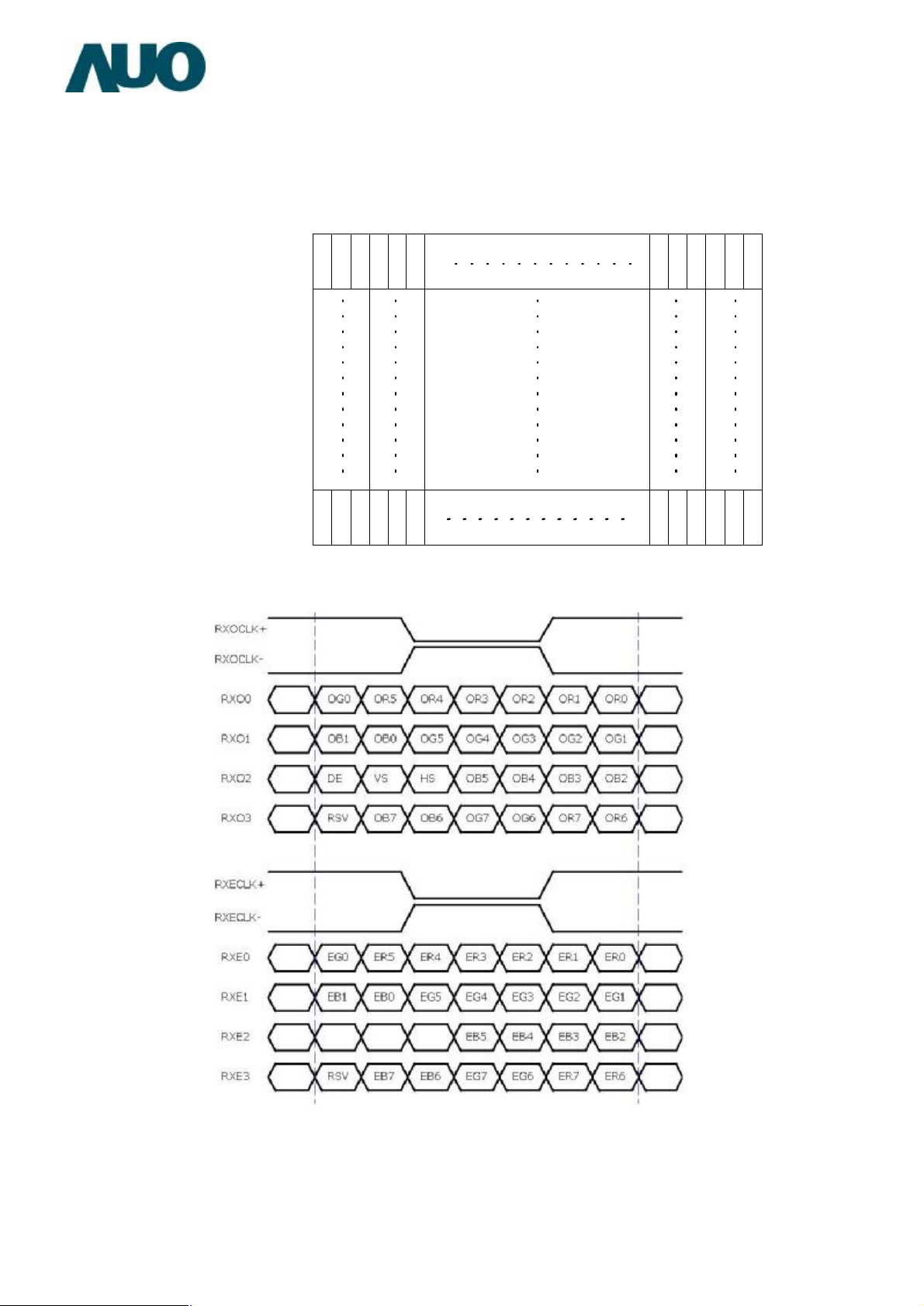

6.1 Pixel Format Image...................................................................................................................14
6.2 The input data format ...............................................................................................................15
6.3 Signal Description ....................................................................................................................16
6.4 Timing Characteristics..............................................................................................................17
6.4.1 Timing diagram....................................................................................................18
6.5 Power ON/OFF Sequence.......................................................................................................19

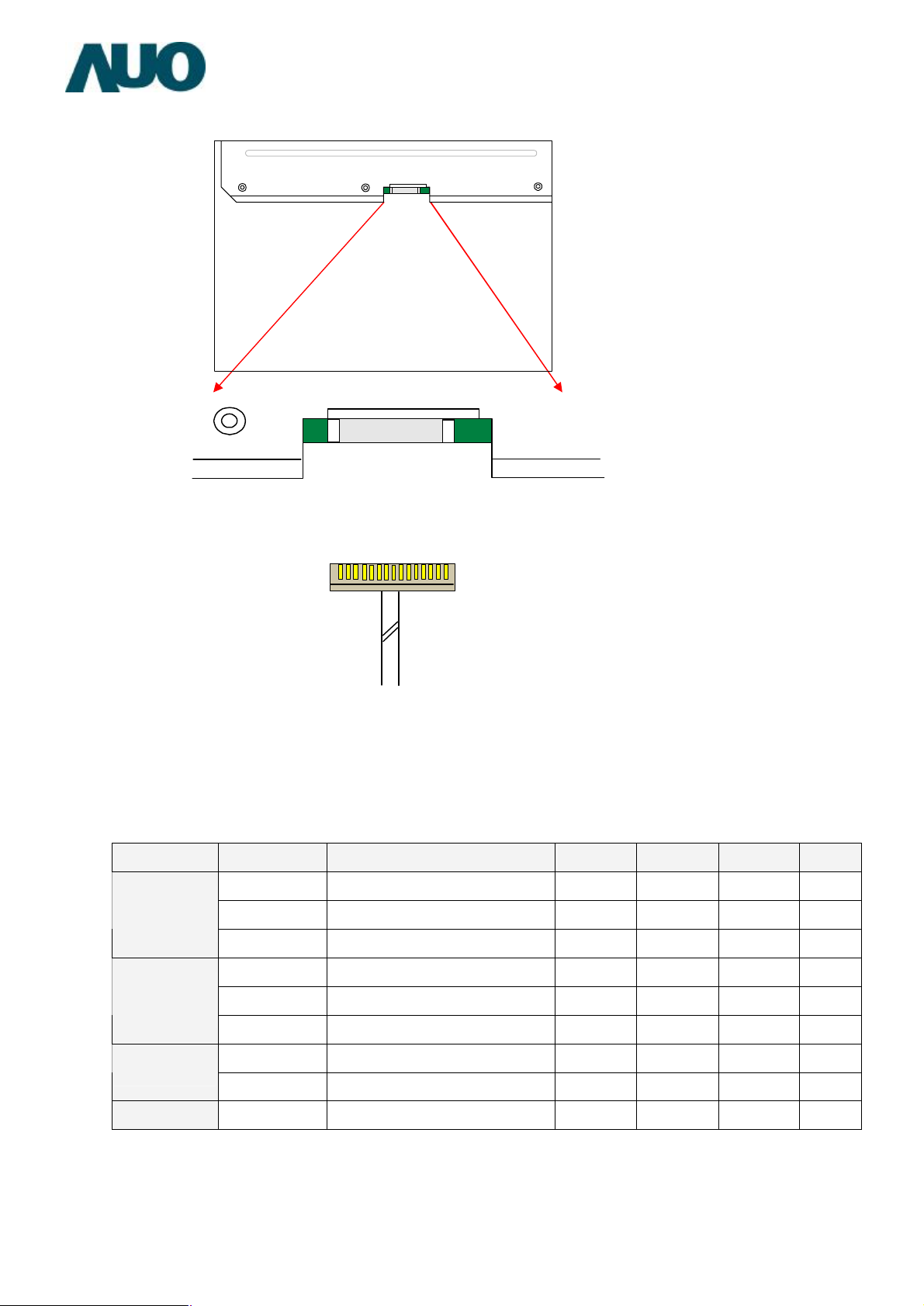

7.0 Connector & Pin Assignment................................................20
7.1 TFT LCD Module ......................................................................................................................20
7.2 Backlight Unit............................................................................................................................20
7.3 Signal for Lamp connector.......................................................................................................21
8.0 Reliability............................................................................21
9.0 Environment........................................................................22
9.1 Temperature and Humidity.......................................................................................................22
9.1.1 Operating Conditions............................................................................................22
9.1.2 Shipping Conditions..............................................................................................22
9.2 Atmospheric Pressure..............................................................................................................22
10.0 Reliability..........................................................................23
(C) Copyright AU Optronics Ver 0.1 3/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
9.3 Thermal Shock..........................................................................................................................22
10.1 Failure Criteria........................................................................................................................23
10.2 Failure Rate ............................................................................................................................23
10.2.1 Usage................................................................................................................23
10.2.1 Component De-rating..........................................................................................23
M190PW01 V0
10.3 On/OFF Cycle.........................................................................................................................23
11.0 Safety................................................................................23
11.1 Sharp Edge Requirements.....................................................................................................23
11.2 Materials..................................................................................................................................23
11.2.1 Toxicity.............................................................................................................23
11.2.2 Flammability......................................................................................................24
11.3 Capacitors................................................................................................................................24
12.0 Other requirement.............................................................24
12.1 National Test Lab Requirement.............................................................................................24
12.2 Label........................................................................................................................................24
13.0 Mechanical Characteristics...................................................2
Record of Revision
Version and
Date
0.1 2006/04/17 All First Edition for Customer All
Page
Old description New Description Remark
(C) Copyright AU Optronics Ver 0.1 4/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open nor modify the Module Assembly.
8) Do not press or pat the panel surface by fingers,hand or tooling
9) Do not press the reflector sheet at the back of the module to any directions.
10) In case if a module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL
reflector edge softly. Otherwise the TFT module may be damaged.
11) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT module.
12) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twist nor
bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that
no bending/twisting forces are applied to the TFT module from outside. Otherwise the TFT module may be
damaged.
(C) Copyright AU Optronics Ver 0.1 5/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
2.0 General Description
This specification applies to the 19 inch-wide Color TFT-LCD Module M190PW01.
The display supports the WSXGA+ (1440(H) x 900(V)) screen format and 16.7M colors. All input signals are 2 Channel
LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
ITEMS Unit SPECIFICATIONS
Active Area [mm] 408.24 (H) x 255.15(V)
Pixels H x V 1440(x3) x 900
Pixel Pitch [mm] 0.2835x 0.2835
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode TN Mode,Normally White
White Luminance ( Center ) [cd/m2]
Contrast Ratio 800 : 1 (Typ)
Optical Response Time [msec] 5ms (Typ, on/off)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2500 (Typ)
Physical Size [mm] 428.0(W) x 278.0(H) x 19.0(D) (Typ)
Electrical Interface LVDS
Support Color 16.7M colors
Temperature Range
Operating
Storage (Shipping)
Surface Treatment Hard-coating (3H)
RoHS RoHS compliance
[Watt] 19.5W (Typ)
[oC]
[oC]
300 cd/m
0 to +50
-20 to +60
2 @6.5mA
(Typ)
(C) Copyright AU Optronics Ver 0.1 6/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃:
Item Unit Conditions Min. Typ. Max. Note
Viewing Angle
[degree]
[degree]
Contrast ratio Normal Direction
Response Time
[msec] Raising Time
[msec] Falling Time
[msec] Rising + Falling
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
White Luminance at CCFL 6.5mA
(central point)
Luminance Uniformity
Crosstalk (in75Hz)
Flicker
[cd/m2]
[%]
[%]
DB
Horizontal
(Right)+ (Left)
CR = 10
Vertical
(Up) + (Down)
CR = 10
Red x
Red y
Green x
Green y
Blue x
Blue y
White x
White y
150
150
600 800
-
160
160
3.6
-
-
-
-
5.7 Note 1
- 1.4 2.3 Note 1
- 5 8 Note 1
0.61 0.64 0.67
0.32 0.35 0.38
0.26 0.29 0.32
0.59 0.62 0.65
0.11 0.14 0.17
0.04 0.07 0.1
0.28 0.31 0.34
0.3 0.33 0.36
250 300 -
75 80 - Note 2
1.5 Note 3
-20 Note 4
Equipment: Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A ,
BM 7 ,CS-1000, & EZContrast* )
Aperture : 1
∘
with 100cm viewing distance (VD) or 2∘with 50cm viewing distance (VD)
Test Point: Center (VESA point 9)
Environment: < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
/CS-1000
measuring distance
Module Driving Equipment
*’ EZ Contrast is different measurement tool with very close viewing distance.
(C) Copyright AU Optronics Ver 0.1 7/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
” (rising
”(falling time), respectively. The response time is interval between the 10% and
90 %

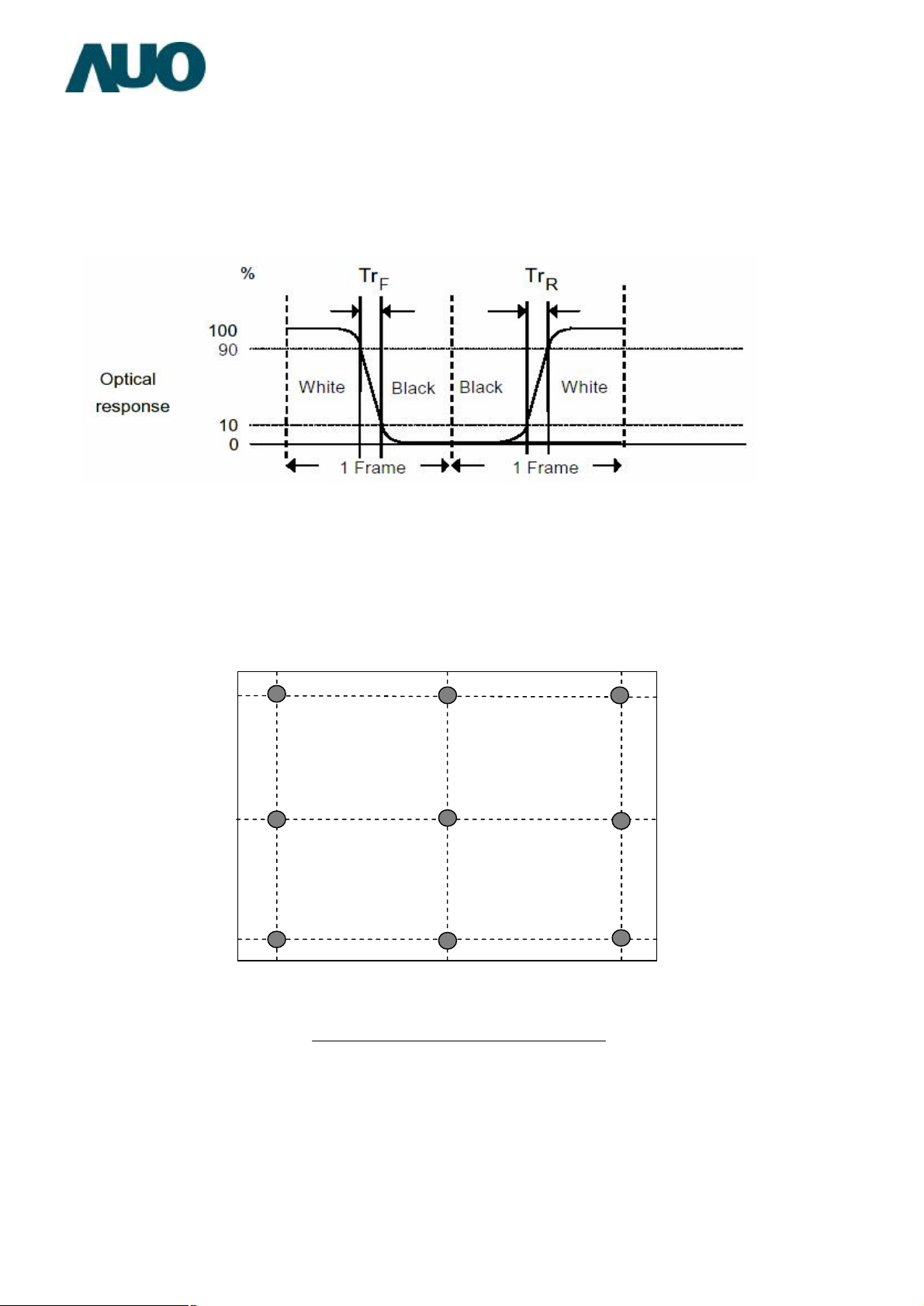

Note 1: Definition of Response time
The output signals of photo detector are measured when the input signals are changed from “Black” to “White
time), and from “White” to “Black
90% of amplitudes.
Note 2: Brightness uniformity of these 9 points is defined as below
90 %
50 %
10 %
10 %
50 %
Uniformity =
(C) Copyright AU Optronics Ver 0.1 8/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
9)-(1 points 9in Luminance Minimum
x 100%
9)-(1 Points 9in Luminance Maximum
M190PW01 V0
R G B R G B R G B R G B
Level
DC
1/2
1/2
1/6
1/6 A B
1/2
1/2
1/6
1/6
2/3 1/3
1/3 2/3 A’ B’
Note 3: Crosstalk is defined as below :
184 gray level 184 gray level
Unit: percentage of dimension of display area
l LA-LA’ l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B
l LB-LB’ l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
0 gray level
Note 4: Test Paterm: Subchecker Pattern
R G B R G B
Gray Level = L127
Gray Level = L0
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
AC
Time
(C) Copyright AU Optronics Ver 0.1 9/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
log20(dB)Flicker =
Hz) 30Level(at AC
M190PW01 V0
X-Driver IC
+ 5V
Connector
DC POWER
AUO ASIC
LVDS
3.0 Functional Block Diagram
The following diagram shows the functional block of the 19 inches wide Color TFT/LCD Module:
Converter
LVDS
Receiver
DC/DC
Correction
Timing
Controller
Gamma
1440*(3)*900
G900
D1 D4320
Inverter
JAE FI-XB30SSL-HF15 JST BHSR-02VS-1
Mating Type: FI-X30HL Mating Type: SM02B-BHSS-1-TB
(C) Copyright AU Optronics Ver 0.1 10/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
TFT-LCD
Pixels
4 CCFL
M190PW01 V0
Relative Humidity %
Temperature
C
-20
95
5 100
Operation range
Storage
Storage
80
40 20
T=40
,H=9
5%
T=60
,H=39%
T=50
,H=55%

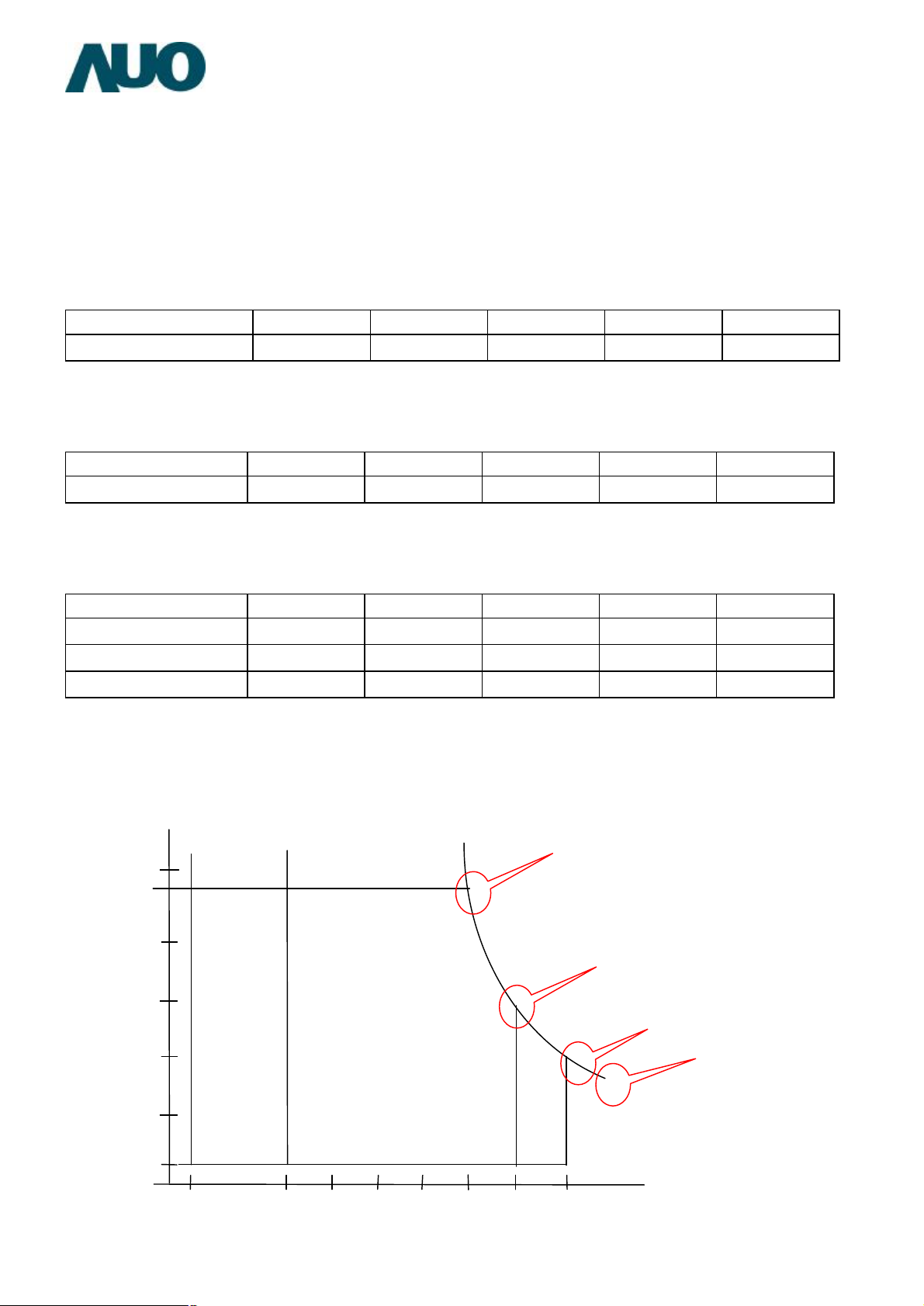

4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL - 8 [mA] rms Note 1,2
VIN -0.3 +5.5 [Volt] Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 95 [%RH] Note
Storage Temperature TST -20 +60 [
Storage Humidity HST 8 95 [%RH] Note
Note 1: With in Ta (25℃ )
Note 2: Permanent damage to the device may occur if exceed maximum values
60
range
Twb=39℃
℃
range
o
C] Note
℃
℃
T=65℃,H=29%
(C) Copyright AU Optronics Ver 0.1 11/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
0
0 60 50
M190PW01 V0
Vin rising time
0V 5.0V
470 us
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units
VDD
IDD VDD current - 1500 1900
Logic/LCD Drive
Voltage
4.5 5 5.5 [Volt] ±10%
[mA]
Irush LCD Inrush Current - - 2.5 [A] Note
PDD VDD Power 7.5 9.75 [Watt]
VDDrp
VDDns
Allowable Logic/LCD
Drive Ripple Voltage
Allowable Logic/LCD
Drive Ripple Voltage
100
100
[mV]
p-p
[mV]
p-p
Note: Measurement conditions:
+5.0V
R1
47K
Q3
AO6402
D6
D5
D2 S
D1
G
F1
Condition
Vin=5V, All Black Pattern,
+30%, at frame rate 75Hz
Vin=5V, All Black Pattern
+30%, at frame rate 75Hz
VCC
(LCD Module Input)
C1
1uF/16V
D2SD1D5
(High to Low)
Control Signal
SW
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
G
C3
0.01uF/25V
D6
Q3
AO6402
(C) Copyright AU Optronics Ver 0.1 12/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
VID│
VSS
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units
VTH
VTL
│VID│ Input Differential Voltage 100 400 600 [mV] Note
VICM
Note: LVDS Signal Waveform
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
VICM
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5 [V]
Condition
VICM = 1.2V
Note
VICM = 1.2V
Note
VTH/VTL = ±100MV
Note
│
(C) Copyright AU Optronics Ver 0.1 13/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
CCFL inverter should be able to give out a power
.
.The typical life
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Symbol
ISCFL CCFL standard current 6.0 6.5 7.0
IRCFL CCFL operation range
Parameter Min. Typ. Max. Unit Condition
3.0 6.5 8.0
[mA]
rms
[mA]
rms
(Ta=25oC) Note 1
(Ta=25oC)
FCFL CCFL Frequency 40 50 80 [KHz] (Ta=25oC) Note 2
ViCFL
(0oC)
ViCF
(25oC)
VCFL
PCFL
CCFL Ignition Voltage
(End of the lamp wire
connector)
CCFL Ignition Voltage
(End of the lamp wire
connector)
CCFL Operation Voltage
CCFL Power consumption (for
reference)
1700 -
1200 -
720
@6.5mA
[Volt]
rms
[Volt]
rms
[Volt]
rms
(Ta=0oC) Note 3
(Ta=25oC) Note 3
(Ta=25oC) Note 4
- 19.6 22 [Watt] (Ta=25oC) Note 5
LTCFL CCFL life Time 40,000 50,000 - [Hour] (Ta=25oC) Note 6
Note 1: CCFL standard current is measured at 25±2℃.
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: ViCFL means Ignition Voltage for both ends of the lamp, and
that has a generating capacity of over ViCFL for ignition
Note 4: CCFL operation voltage is measured at 25±2℃.
Note 5: The variance of CCFL power consumption is ±10%. Power is calculated for reference (ICFL×VCFL×4=PCFL)
Note 6: Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.
time of CCFL is on the condition at 7.0 mA lamp current.
(C) Copyright AU Optronics Ver 0.1 14/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
R G B R G B
R G B R G B
R G B R G B
R G B R G B 1 2 1
439 1
440 1st Line
900
Line
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
6.2 The input data format
O = “First Pixel Data”
(C) Copyright AU Optronics Ver 0.1 15/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
Note 1: R/G/B data 7:MSB, R/G/B data 0:LSB
E = “Second Pixel Data”
M190PW01 V0
PIN #
SIGNAL NAME
DESCRIPTION
1
RxO0
- Negative LVDS differential data input (Odd data)
2
RxO0+
Positive LVDS differential data input (Odd data)
3
RxO1
- Negative LVDS differential data
input (Odd data)
4
RxO1+
Positive LVDS differential data input (Odd data)
5
RxO2
- Negative LVDS differential data input (Odd data, H
-
Sync,V
-
Sync,DSPTMG)
6
RxO2+
Positive LVDS differential data input (Odd data, H
-
Sync,V
-
Sync,DSPTMG)
7
GND
Power Ground
8
RxOC
- Negative LVDS differential clock input (Odd clock)
9
RxOC+
Positive LVDS differential clock input (Odd clock)
10
RxO3
- Negative LVDS differential data input (Odd data)
11
RxO3+
Positive LVDS differential data input (Odd data)
12
RxE0
- Negative
LVDS differential data input (Even clock)
13
RxE0+
Positive LVDS differential data input (Even data)
14
GND
Power Ground
15
RxE1
- Negative
LVDS differential data input (Even data)
16
RxE1+
Positive
LVDS differential data input (Even data)
17
GND
Powe
r Ground
18
RxE2
- Negative LVDS differential data input (Even data)
19
RxE2+
Positive LVDS differential data input (Even data)
20
RxEC
- Negative LVDS differential clock input (Even clock)
21
RxEC+
Positive LVDS differential clock input (Even clock)
22
RxE3
- Negative LVDS differential data input (Even data)
23
RxE3+
Positive LVDS differential data input (Even data)
24
GND
Power Ground
25 NC
No contact (For AUO test only)
26 NC
No contact (For AUO test only)
27 NC
No contact (For AUO test only)
28
POWER
Power
29
POWER
Power
30
POWER
Power
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while
the second LVDS port(RxExxx) transmits even pixels.
(C) Copyright AU Optronics Ver 0.1 16/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
Connector
RxO
IN
0
-
VCC
Note1: Start from left side
30
Note2: Input signals of odd and even clock shall be the same timing.
6.4 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 900 900 900 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 10 16 1148 Th
910 916 2048 Th
Note : DE mode only
(C) Copyright AU Optronics Ver 0.1 17/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
Horizontal
Period Th 760 864 2048 Tclk
Active Tdisp(h) 720 720 720 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 40 144 1328 Tclk
Period Tclk 22.2 21.1 15.4 ns
Clock
Frequency Freq 45 47.5 64 MHz
Frame rate Frame rate F 55 60 75 Hz
M190PW01 V0
6.4.1 Timing diagram
RGB Data
(Even)
RGB Data
(Odd)
Invalid Data
Invalid Data
Pixel
Pixel
2
1
PixelPixel
Pixel
3 9 M-1
4
Pixel
65
PixelPixelPixel PixelPixelPixel
7
8
10
12
11
M-4
PixelPixelPixelPixel
M-5
M-2
M-3
M
PixelPixel
Invalid Data
Invalid Data
DE
Tbp(h)
Tdisp(h)
Tfp(h)
PWhs
Hsync
Tclk
CLK
RGB Data
Line LineLineLineLine Line
N
Invalid Data
2
43
N1
Invalid Data
DE
Tfp(v)
Tbp(v)
Tdisp(v)
Th
Hsync
Vsync
PWvs
Tv
(C) Copyright AU Optronics Ver 0.1 18/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
6.5 Power ON/OFF Sequence
Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when Vin is off.
90%90%
90%90%
90%90%
10%
10%
Vin10%
Vin10%
Vin10%
0V
0V
0V
Signal
Signal
Signal
0V
0V
0V
10%
T2T5T6T7
T2T5T6T7
T2T5T6T7
T1
T1
T1
T4
T4
T3
T3
T3
T4
10%
10%
10%
Lamp
Lamp
Lamp
0V
0V
0V
Symbol
Min Typ Max
T1 0.5 - 10 [ms]
T2 0.5 40 50 [ms]
T3 200 - - [ms]
T4 200 - - [ms]
T5 0.5 16 50 [ms]
T6 - - 10 [ms]
T7 1000 - - [ms]
Values
Unit
(C) Copyright AU Optronics Ver 0.1 19/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE or compatible
Type Part Number FI-XB30SSL-HF15
Mating Housing Part Number
Pin# Signal Name Pin# Signal Name
1 RxO0- 2 RxO0+
3 RxO1- 4 RxO1+
5 RxO2- 6 RxO2+
7 GND 8 RxOC9 RxOC+ 10 RxO3-
11 RxO3+ 12 RxE013 RxE0+ 14 GND
15 RxE1- 16 RxE1+
17 GND 18 RxE219 RxE2+ 20 RxEC21 RxEC+ 22 RxE323 RxE3+ 24 GND
25 NC 26 NC
FI-X30HL-T ( Locked Type )
FI-X30S-H ( Unlocked Type ) or equivalent
7.2 Backlight Unit
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer YEON HO
Type Part Number 35001HS-02L
Mating Type Part Number 35001WR-02LP or equivalent
(C) Copyright AU Optronics Ver 0.1 20/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
27 NC 28 Power
29 Power 30 Power
M190PW01 V0
7.3 Signal for Lamp connector
Connector No.
Pin No. Color Function
CN1
Upper
CN2
CN3
Lower
CN4
8.0 Reliability
Reliability test condition
1 Blue High Voltage (Lamp 1)
2 Black Low Voltage (Lamp 1)
1 Pink High Voltage (Lamp 2)
2 White Low Voltage (Lamp 2)
1 Blue High Voltage (Lamp 3)
2 Black Low Voltage (Lamp 3)
1 Pink High Voltage (Lamp 4)
2 White Low Voltage (Lamp 4)
No Test Item Test Condition
1 Temperature Humidity Bias (THB)
2 High Temperature Operation (HTO)
3 Low Temperature Operation (LTO)
4 High Temperature Storage (HTS)
5 Low Temperature Storage (LTS)
6 Thermal Shock Test (TST)
50℃, 80%, 300hours
50℃, 300hours
0℃, 300hours
60℃, 300hours
-20℃, 300hours
-20℃/30min, 60℃/30min, 100 cycles
7 On/Off Test On/10sec, Off/10sec, 30,000 cycles
8 Shock Test (Non-Operating) 50G, 20ms, Half-sine wave (+ X, +Y, +Z)
9 Vibration Test (Non-Operating) 1.5G(10~200Hz P- P), 30 Minutes each Axis (X, Y, Z)
10 ESD (ElectroStatic Discharge) Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
11 Altitude Test Operation:10,000 ft
Non-Operation:30,000 ft
(C) Copyright AU Optronics Ver 0.1 21/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
9.0 Environment
The display module will meet the provision of this specification during operating condition or after storage or
shipment condition specified below. Operation at 10% beyond the specified range will not cause physical damage
to the unit.
9.1 Temperature and Humidity
9.1.1 Operating Conditions
The display module operates error free, when operated under the following conditions;
Temperature 0 0C to 50 0C
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0 0C
9.1.2 Shipping Conditions
The display module operates error free, after the following conditions;
Temperature -20 0C to 60 0C
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0 0C
9.2 Atmospheric Pressure
The display assembly is capable of being operated without affecting its operations over the pressure
range as following specified;
Pressure Note
Maximum Pressure 1040hPa 0m = sea level
Minimum Pressure 674hPa 3048m = 10.000 feet
Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.
9.3 Thermal Shock
The display module will not sustain damage after being subjected to 100 cycles of rapid temperature
change. A cycle of rapid temperature change consists of varying the temperature from -200C to 600C,
and back again.
Thermal shock cycle -20 0C for 30min
60 0C for 30min
Power is not applied during the test. After temperature cycling, the unit is placed in normal room
ambient for at least 4 hours before powering on.
(C) Copyright AU Optronics Ver 0.1 22/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
on cycle till 1,000 hours later) will not exceed 1.0%.
The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7% per 1000
10.0 Reliability
This display module and the packaging of that will comply following standards.
10.1 Failure Criteria
The display assembly will be considered as failing unit when it no longer meets any of the requirements
stated in this specification. Only as for maximum white luminance, following criteria is applicable.
l Maximum white Luminance shall be 125cd/m2 or more.
10.2 Failure Rate
The average failure rate of the display module (from first power-
hours.
10.2.1 Usage
The assumed usage for the above criteria is:
l 220 power-on hours per month
l 500 power on/off cycles per month
l Maximum brightness setting
l Operation to be within office environment (250C typical)
10.2.1 Component De-rating
All the components used in this device will be checked the load condition to meet the failure rate criteria.
10.3 On/OFF Cycle
The display module will be capable of being operated over the following ON/OFF Cycles.
ON/OFF Value Cycles
+Vin and CCFL power 30,000 10 seconds on / 10 seconds off
11.0 Safety
11.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
11.2 Materials
(C) Copyright AU Optronics Ver 0.1 23/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
11.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,
they will be reviewed and approved by the responsible ADT Toxicologist.
11.2.2 Flammability
All components including electrical components that do not meet the flammability grade UL94-V1 in the
module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL flammability
rating will be printed on the printed circuit board.
11.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep them from
being inserted backwards.
12.0 Other requirement
12.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment
(European Norm for IEC950)
12.2 Label
The label is on the panel as shown below: (TBD)
(C) Copyright AU Optronics Ver 0.1 24/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
M190PW01 V0
13.0 Mechanical Characteristics
Please refer to the next 2 pages.
(C) Copyright AU Optronics Ver 0.1 25/27
2004 All Rights Reserved.
No Reproduction and Redistribution Allowed.
Loading...
