User’s manual

TL90070

DECT 6.0 expansion handset for use with AT&T models TL91270/TL91370/TL92220/ TL92270/TL92320/TL92370/ TL92420/TL92470

cordless telephone with BLUETOOTH® wireless technology

Congratulations

on purchasing your new AT&T product. Before using this AT&T product, please thoroughly read this user’s manual for the information necessary to install your new AT&T product. For complete instructions, please refer to the manual provided with your TL91270/TL91370/TL92220/TL92270/TL92320/TL92370/ TL92420/TL92470 telephone. For customer service or product information, please visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

Model #:

TL90070

Type:

DECT 6.0 expansion handset

Serial #:



Purchase date:





Place of purchase:









Both the model and serial number of your AT&T product can be found on the bottom of the telephone base.

Save your sales receipt and orginal packaging in case it is necessary to return your telephone for warranty service.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.

© 2009 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China.

Compatible with Hearing Aid T-Coil

T

TIA-1083

Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license.

The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines.

Parts checklist

Your telephone package contains the following items.

User’s manual

TL90070

DECT 6.0 expansion handset for use with AT&T models TL91270/TL91370/TL92220/ TL92270/TL92320/TL92370/ TL92420/TL92470

cordless telephone with BLUETOOTH® wireless technology

User’s manual

Cordless handset

Charger for cordless









handset with power









adapter installed











Battery for cordless handset

Battery compartment cover

User’s manual

TL90070

DECT 6.0 expansion handset for use with AT&T models TL91270/TL91370/TL92220/ TL92270/TL92320/TL92370/ TL92420/TL92470

cordless telephone with BLUETOOTH® wireless technology

Table of contents



Getting started



Quick reference guide................

1

Installation.......................................

5

Charger installation.....................

6

Battery installation and



charging.............................................

7

Battery charging............................

9

Adding handset to your



telephone base



Adding and registering



handsets..........................................

10

Appendix



Expand your telephone



system..............................................

11

Add and register a



handset......................................

11

Replace a handset......................

12

Troubleshooting...........................

13

Maintenance..................................

23

Important safety



information....................................

24

Safety information................

24

Especially about corded



telephones................................

25

Precautions for users



of implanted cardiac



pacemakers..............................

26

Pacemaker patients.............

26

Especially about telephone

answering systems...............

26

FCC Part 68 and ACTA.............

27

FCC Part 15...................................

29

Limited warranty.........................

30

Technical specifications...........

33

DECT 6.0 digital



technology................................

33

Telephone operating



range...........................................

33

Extended range and



clarity..........................................

34

Getting started

Quick reference guide

CID/-VOLUME

Press to scroll down while in menus.

Press to decrease the volume level during a call.

Press to show the caller ID history when the telephone is not in use.

While entering names or numbers in the directory, press to move the cursor to the left.

CELLULAR

Press to make or answer a cell call.

During a cell call, press to answer an incoming call when you hear a call waiting alert.

Flashes quickly when there is an incoming cell call.

Flashes slowly when a cell call is on hold.

HOME/FLASH

Press to make or answer a home call.

During a home call, press to answer an incoming call when you hear a

call waiting alert

Flashes quickly when there is an incoming

home call.

Flashes slowly when a home call is on hold.

CHARGE light (blue ring around MENU/SELECT)

On when the handset is charging in the telephone base or charger.

DIR/VOLUME+

Press to scroll up while in menus.

Press to increase the volume level during a call.

Press to show directory entries when the telephone is not in use.

While entering names or numbers in the directory, press to move the cursor to the right.

REDIAL/PAUSE

Press repeatedly to view the last 20 numbers dialed.

While entering numbers, press and hold to insert a dialing pause.

MENU/SELECT

Press to display the menu.

Once in the menu, press to select an item or save an entry or setting.

Getting started

Quick reference guide

1

While reviewing a caller ID history entry, press repeatedly to add or remove 1 in front of the telephone number before dialing or saving it in the directory.

TONE

Press to switch to tone dialing temporarily during a call if you have pulse service.

/SPEAKER

Press to turn on the handset speakerphone. Press again to resume normal handset use.

HOLD

Press to put a HOME or CELLULAR call on hold.

OFF/CLEAR

While using menus, press to cancel an operation, back up to the previous menu, or exit the menu display.

During a call, press to hang up.

Press and hold while the telephone is not in use to erase the missed calls message.

#

Press repeatedly to display other dialing options when reviewing a caller ID history entry.

MUTE/DELETE

During a call, press to mute the microphone.

While predialing, press to delete digits.

While reviewing the redial list, directory or caller ID history, press to delete an individual entry.

Getting started

Quick reference guide

EQ

During an outside call, intercom call, message or announcement playback, press to change the quality of the audio to best suit your hearing.

Using menus

1.Press MENU/SELECT in idle mode (when the telephone is not in use) to enter the main menu.

2.Use CIDor DIR to scroll through menu items

3.Press MENU/SELECT to select or save the highlighted item.

-OR-

Press OFF/CLEAR to cancel an operation, back up to the previous menu or exit the menu display.

-OR-

Press and hold OFF/CLEAR to return to idle mode.

NOTE: If no key is pressed, the handset automatically returns to idle mode after 30 seconds.

Getting started

Quick reference guide

Main menu

The selected menu item is highlighted.

For TL92220/TL92270/TL92320/TL92370/TL92420/TL92470:

Play messages

Feature menu

Answering sys

Play messages

Directory

Answering sys

Call log

Directory

Intercom



Call log



Intercom



Bluetooth



Ringers



Settings

Menu

Website

For TL91270/TL91370:



Directory

Feature menu

Call log

Directory

Intercom

Bluetooth

Call log

Ringers

Intercom



Bluetooth



Ringers



Settings



Website

Menu



Getting started

Installation

You must install and charge the handset battery before using the cordless handset.

See pages 7-9 for easy instructions.

Your product may be shipped with a protective sticker covering the handset or telephone base display - remove it before use.

For customer service or product information, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

Avoid placing the telephone base too close to:

Communication devices such as: television sets, VCRs, or other cordless telephones.

Excessive heat sources.

Noise sources such as a window with traffic outside, motors, microwave ovens, refrigerators, or fluorescent lighting.

Excessive dust sources such as a workshop or garage.

Excessive moisture.

Extremely low temperature.

Mechanical vibration or shock such as on top of the washing machine or work bench.

Getting started

Charger installation

Plug the power adapter into an electrical outlet not controlled by a wall switch.

IMPORTANT INFORMATION:

1.Use only the power adapter(s) provided with this product. To obtain a replacement, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial

1 (866) 288-4268.

2.The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.

Getting started

Battery installation and charging

Install the battery as shown below.

Step 1

Step 2







Plug the battery connector

Align the cover flat against

securely into the socket

the battery compartment, then

inside the handset battery

slide it upwards until it clicks

compartment, matching the

into place.







color-coded label. Insert the









supplied battery with the label









THIS SIDE UP facing up as









indicated.









CHARGE light Step 3













Charge the handset by placing it











SET DATE





face up in the telephone base or

--/--/--





charger. The CHARGE light is on





MM/DD/YY





when charging.













After you install your telephone





















or power returns following a











SET TIME





power outage, the handset will





--:-- --





prompt you to set the date and











time. To skip setting the date











and time, press OFF/CLEAR.

















Getting started

Battery installation and charging

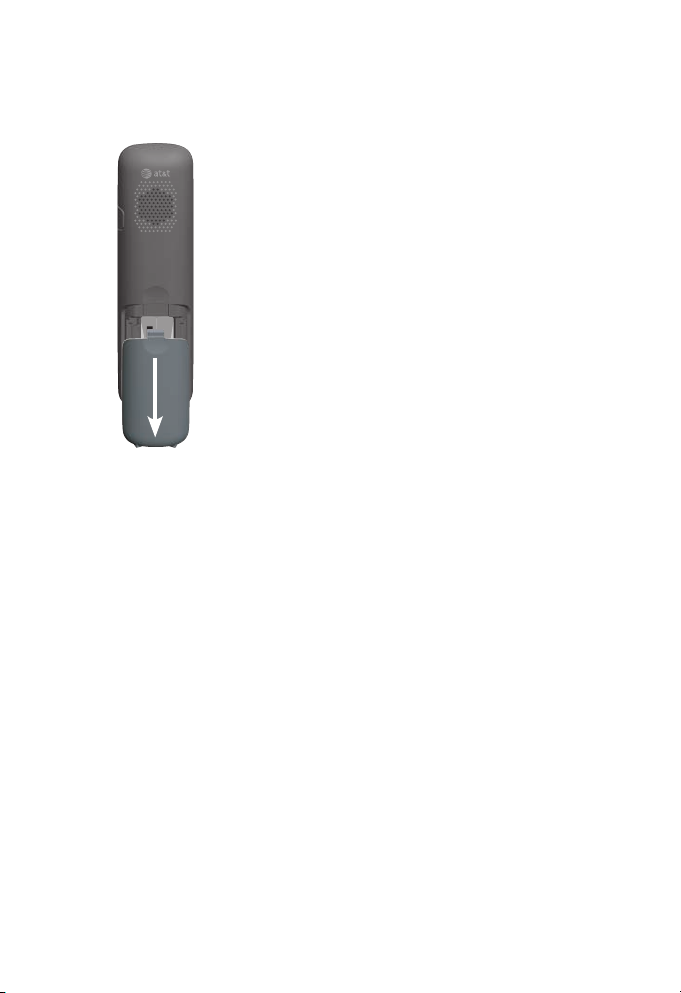

To replace the battery, press the tab and slide the battery compartment cover downwards. Lift out the old battery and disconnect it from the handset. Follow the instructions above to install and charge the new battery.

IMPORTANT INFORMATION:

1.Use only the supplied rechargeable battery or replacement battery (model BT166342). To order, visit our website at

www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.

2.If you do not use the handset for a long time, disconnect and remove the battery to prevent possible leakage.

Getting started

Battery charging

Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 16 hours

of continuous charging. See the table on page 33 for battery operating times.

If the screen shows Low battery, you need to charged the battery without interruption for at least 30 minutes to give the handset enough charge to use the telephone for a short time. The following table summarizes the battery charge indicators and actions to take.

Battery indicators

Battery status

Action











The screen is blank or

The battery has no

Charge without

shows Place in charger.

charge or very little

interruption until the







charge. The handset

screen shows







cannot be used.

Low battery or Handset









X (at least 30 minutes).











The screen shows

Battery has enough

Charge without

Low battery and





charge to be used for a

interruption until the



flashes.

short time.

screen shows HANDSET









X (at least 30 minutes).











The screen shows

Battery is charged.

To keep the battery

HANDSET X.



charged, place it in









the telephone base or









charger when not in use.











NOTE: If you are on a phone call in low battery mode, you hear four short beeps every minute.

Adding handset to your telephone base

Adding and registering handsets

Before using a new TL90070 handset, you must register it with the AT&T TL91270/TL91370/TL92220/TL92270/TL92320/ TL92370/TL92420/TL92470 telephone system (purchased separately). The AT&T TL91270/TL91370/TL92220/TL92270/ TL92320/TL92370/TL92420/TL92470 telephone system can accommodate up to 12 handsets.

The handsets provided with the TL91270/TL92220/TL92270 come pre-registered as HANDSET 1 and HANDSET 2. You can register up to 10 additional handsets to the telephone base, and they will be assigned numbers in the order they are registered (HANDSET 3, HANDSET 4, HANDSET 5 and so on).

The handsets provided with the TL91370/TL92320/TL92370 come pre-registered as HANDSET 1, HANDSET 2 and HANDSET 3. You can register up to nine additional handsets to the telephone base, and they will be assigned numbers in the

order they are registered (HANDSET 4, HANDSET 5, HANDSET 6 and so on).

The handsets provided with the TL92420/TL92470 come pre-registered as HANDSET 1, HANDSET 2, HANDSET 3 and

HANDSET 4 You can register up to eight additional handsets to the telephone base, and they will be assigned numbers in the order they are registered (HANDSET 5, HANDSET 6, HANDSET 7 and so on).

10

Appendix

Expand your telephone system

Add and register a handset

When first purchased, each expansion handset shows

Press and hold HANDSET LOCATOR on base for 4 sec, then press # on handset after a battery is installed. Each handset should be charged without interruption for at least 30 minutes before registering to the telephone base. For more details on battery charging, see the table on page 9.

To register a handset:

1.Press and hold

/HANDSET LOCATOR on the telephone base for about four seconds until the red IN USE light turns on.

2.Press # on the handset. Its screen shows Registering...Please wait and it takes up to 60 seconds

to complete the registration. The handset shows HANDSET X Registered (X represents the

handset number assigned) and you hear a beep when the registration is completed.

For TL92320/TL92370/

TL92420/TL92470

For TL91270/TL91370

NOTES:

1.If the registration fails, the handset shows Registration failed for a few seconds and then Press and hold HANDSET LOCATOR on base for

4 sec, then press # on handset. Try the registration process again.

2.You cannot register a handset if any other system handset is in use.

11

Appendix

Replace a handset

If you want to replace a handset or re-assign the designated handset number of a registered handset, you must deregister all the handsets and then individually register each handset.

To make deregistration easier, read all of the instructions on this page before you begin.

To deregister all handsets:

1.Press and hold /HANDSET LOCATOR on the telephone base for about 10 seconds until the IN USE light flashes, then release /HANDSET LOCATOR.

2.Press /HANDSET LOCATOR again. You must press

/HANDSET LOCATOR while the IN USE light is still flashing. The IN USE light flashes for about seven seconds.

3.All system handsets show Out of range OR No power at base for a few seconds and then show Press and hold HANDSET LOCATOR on base for 4 sec, then press # on handset when the deregistration is completed. The deregistration process takes about 10 seconds to complete.

If deregistration fails, you may need to reset the telephone and try again.

To reset:

Press and hold OFF/CLEAR or place the handset back in the telephone base.

-OR-

Unplug the power from the telephone base, then plug it back in.

After deregistering, register each handset individually. See

Add and register a handset on page 11.

NOTE: You cannot deregister the handsets if any other system handset is in use.

12

Appendix

Troubleshooting

If you have difficulty with your telephone, please try the suggestions below. For Customer Service, or to purchase

accessories or replacement parts, visit our website at www. telephones.att.com, or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Have the serial number, found on the underside of your telephone, available when contacting customer service.

My phone doesn’t work at all.

Make sure the power cord is securely plugged in.

Make sure that the battery connector is securely plugged into the cordless handset.

Make sure the telephone line cord is securely and firmly plugged into the telephone base and the telephone wall jack.

Charge the battery in the cordless handset for at least 16 hours. For optimum daily performance, return the cordless handset to the telephone base or charger when not in use.

If the battery is depleted, it may take approximately ten minutes to charge the handset before it shows Low battery, refer to page 9 for details.

Reset the telephone base. Unplug the electrical power. Wait for approximately 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.

You may need to purchase a new battery. Please refer to

Battery installation and charging (pages 7-9) in this user’s manual.

13

Appendix

Troubleshooting

I cannot get a dial tone.

First try all the suggestions above.

Move the cordless handset closer to the telephone base. You might have moved out of range.

If the previous suggestions don’t work, disconnect the telephone base from the telephone jack and connect to a different phone. If there is no dial tone on that phone either, the problem is in your wiring or local service. Contact your telephone service provider.

Your line cord might be malfunctioning. Try installing a new line cord.

I cannot dial out.

First try all the suggestions in I cannot get a dial tone above.

Make sure you have a dial tone before dialing. The cordless handset may take a second or two to find the telephone base and produce a dial tone. This is normal. Wait an extra second before dialing.

Eliminate any background noise. Noise from a television, radio or other appliances may cause the phone to not dial out properly. If you cannot eliminate the background noise, first try muting the cordless handset before dialing, or dialing from another room in your home with less background noise.

If the other phones in your home are having the same problem, the problem is in your wiring or local service. Contact your telephone service provider (charges may apply).

14

Appendix

Troubleshooting

My cordless handset isn’t performing normally.

Make sure the power cord is securely plugged into the telephone base. Plug the power adapter into a different, working electrical outlet not controlled by a wall switch.

Move the cordless handset closer to the telephone base. You might have moved out of range.

Reset the telephone base. Unplug the electrical power. Wait for 15 seconds then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.

Other electronic products can cause interference to your cordless phone. Try installing your phone as far away from these types of electronic devices as possible: television sets, VCRs, or other cordless telephones.

The handset registration is unsuccessful.

Follow the steps below to re-register the handset.

1.Make sure the handset is out of the telephone base or charger and shows NOT REGISTERED before you begin registration.

2.Press and hold /HANDSET LOCATOR for about four seconds (until the red IN USE light on the telephone base is on) and then release the button.

3.Place the unregistered handset into telephone base

or charger.

Refer to the Add and register a handset section on page 11 for details.

15

Appendix

Troubleshooting

Out of range OR No power at base appears on my cordless handset.

Ensure that the telephone base is powered up.

Place the cordless handset in the telephone base for one minute to allow the cordless handset and base to resynchronize channels.

Move the cordless handset closer to the telephone base. You might have moved out of range.

Reset the telephone base. Unplug the unit’s electrical power. Wait for 15 seconds then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.

Other electronic products can cause interference with your cordless phone. Try installing your phone as far away from these types of electronic devices as possible: television sets, VCRs, or other cordless telephones.

The batteries do not hold a charge.

If the cordless handset is in the telephone base or charger and the charge light does not come on, refer to The charge light is off (page 21) in this Troubleshooting guide.

Charge the battery in the cordless handset for at least 16 hours. For optimum daily performance, return the cordless handset to the telephone base or charger when not in use.

If the battery is depleted, it may take approximately ten minutes to charge the handset before it shows Low battery, refer to page 9 for details.

You may need to purchase a new battery. Please refer to

Battery installation and charging (pages 7-9) in this user’s manual.

16

Appendix

Troubleshooting

I get noise, static, or a weak signal even when I’m near the telephone base.

If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone lines, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference. Please contact your DSL service provider for more information about DSL filters.

You may be able to improve the performance of your cordless phone by installing your new telephone base as far as possible from any other existing cordless telephone system that may already be installed.

Other electronic products can cause interference to your cordless phone. Try installing your phone as far away from the following electronic devices as possible: television sets, VCRs, or other cordless telephones.

Do not install this phone near a microwave oven or on the same electrical outlet. You may experience decreased performance while the microwave oven is operating.

If your phone is plugged in with a modem or a surge protector, plug the phone (or modem/surge protector) into a different location. If this doesn’t solve the problem, relocate your phone or modem farther apart from one another, or use a different surge protector.

Relocate your phone to a higher location. The phone may have better reception when installed in a high area.

If the other phones in your home are having the same problem, the problem is in your wiring or local service. Contact your telephone service provider (charges may apply).

17

Appendix

Troubleshooting

I experience poor sound quality when using the speakerphone.

For increased sound quality while using the speakerphone, place the handset on a flat surface with the dial pad facing up.

When using a speakerphone, controlling background noise in your environment is essential. While you are listening to your party, press DELETE/MUTE to temporarily turn your microphone off. When it is your turn to speak, remember to press DELETE/MUTE again to turn the microphone on.

Excessive background noise will cause a speakerphone to fade

in and out. Try controlling the background noise by turning off any audio devices near the speakerphone. Also, try to avoid interrupting the person at the other end of the conversation while they are speaking. If background noise cannot be controlled, you should terminate speakerphone operation and return to normal handset mode.

I hear other calls while using my phone.

Disconnect the telephone base from the telephone jack, and plug in a different telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your telephone service provider.

My cordless handset does not ring when I receive a call.

Make sure that the ringer is not turned off. Refer to Ringer volume section in the manual provided with your TL91270/TL91370/TL92220/TL92270/TL92320/TL92370/ TL92420/TL92470 telephone.

Make sure the telephone line cord is plugged securely into the telephone base and the telephone jack. Make sure the power cord is securely plugged in.

18

Appendix

Troubleshooting

The cordless handset may be too far from the telephone base.

Charge the battery in the cordless handset for at least 16 hours. For optimum daily performance, return the cordless handset to the telephone base or charger when not in use.

You may have too many extension phones on your telephone line to allow all of them to ring simultaneously. Try unplugging some of the other phones.

The layout of your home or office might be limiting the operating range. Try moving the telephone base to another location, preferably to a higher location.

If the other phones in your home are having the same problem, the problem is in your wiring or local service. Contact your telephone service provider (charges may apply).

Test a working phone at the phone jack. If another phone has the same problem, the problem is the phone jack. Contact your telephone service provider (charges may apply).

Other electronic products can cause interference with your cordless phone. Try installing your phone as far away as possible from electronic devices such as wireless routers, or other cordless telephones.

Re-install the battery, and place the cordless handset in the telephone base. Wait for the cordless handset to re-establish its connection with the telephone base. Allow up to one minute for this to take place.

Your line cord might be malfunctioning. Try installing a new line cord.

19

Appendix

Troubleshooting

My calls cut in and out while I’m using my cordless handset.

Other electronic products can cause interference with your cordless phone. Try installing your phone as far away as possible from electronic devices such as wireless routers, or other cordless telephones.

Do not install this phone near a microwave oven or on the same electrical outlet. You may experience decreased performance while the microwave oven is operating.

If you plug your phone in with a modem or surge protector, plug the phone (or modem/surge protector) into a different location. If this doesn’t solve the problem, relocate your phone or modem farther apart from one another, or use a different surge protector.

Relocate your telephone base to a higher location. The phone may have better reception when installed in a high area.

If the other phones in your home are having the same problem, the problem is in your wiring or local service. Contact your telephone service provider (charges may apply).

Excessive background noise will cause a speakerphone to fade in and out. Try controlling the background noise by turning off any audio devices near the speakerphone. Also, try to avoid interrupting the person at the other end of the conversation while they are speaking. If background noise cannot be controlled, you should stop speakerphone operation and return to normal handset mode.

When using a speakerphone, controlling background noise in your environment is essential. While you are listening to your party press DELETE/MUTE to temporarily turn your microphone off. When it is your turn to speak, remember to press DELETE/MUTE to turn the microphone on.

20

Appendix

Troubleshooting

The charge light is off.

Make sure the power and line cords are plugged in correctly and securely.

Unplug the electrical power. Wait for 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.

Clean the cordless handset and telephone base charging contacts each month using a pencil eraser or cloth.

My caller ID isn’t working.

Caller ID is a subscription service. You must subscribe to this service from your telephone service provider for this feature to work on your phone.

The caller must be calling from an area that supports caller ID.

Both your and your caller’s telephone service providers must use caller ID compatible equipment.

If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone lines, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference. Please contact your DSL service provider for more information about DSL filters.

System does not receive caller ID when on a call.

Make sure you subscribe to caller ID with call waiting features provided by your telephone service provider. Caller ID features work only if both you and the caller are in areas

offering caller ID service, and if both telephone companies use compatible equipment.

21

Appendix

Troubleshooting

I subscribe to a non-traditional telephone service that uses my computer to establish connections, and my telephone doesn’t work.

Make sure your computer is powered on.

Make sure your Internet connection is working properly.

Make sure that the software is installed and running for your non-traditional telephone service.

Make sure to plug your USB telephone adapter into a dedicated USB port on your computer. Do not plug into a multiple port USB hub (USB splitter) that is not powered.

In a few rare instances, the USB port on your computer may not have enough power. In these instances, try using a USB hub with its own external power supply.

If you are using a firewall, it may prevent access to your nontraditional telephone service provider. Contact your service provider for more information.

Common cure for electronic equipment:

If the telephone is not responding normally, try resetting the telephone. Do the following in the order listed:

1.Disconnect the power to the telephone base.

2.Disconnect the cordless handset battery, and spare battery, if applicable.

3.Wait a few minutes.

4.Connect power to the telephone base.

5.Re-install the battery, and place the cordless handset into the telephone base.

6.Wait for the cordless handset to re-establish its connection with the telephone base. Allow up to one minute for this to take place.

22

Appendix

Maintenance

Taking care of your telephone

Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.

Avoid rough treatment.

Place the handset down gently.

Save the original packing materials to protect your telephone if you ever need to ship it.

Avoid water

Your telephone can be damaged if it gets wet. Do not use the handset in the rain, or handle it with wet hands. Do not install the telephone base near a sink, bathtub or shower.

Electrical storms

Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electric appliances during storms.

Cleaning your telephone

Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with water or a mild soap.

Do not use excess water or cleaning solvents of any kind.

Remember that electrical appliances can cause serious injury if used when you are wet or standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND

TELEPHONE LINE CORDS FROM THE WALL. Then pull the telephone out by the unplugged cords.

23

Appendix

Important safety information

This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

Safety information

Read and understand all instructions in the user’s manual. Observe all markings on the product.

Avoid using a telephone during a thunderstorm. There might be a slight chance of electric shock from lightning.

Do not use a telephone in the vicinity of a gas leak. If you suspect a gas leak, report it immediately, but use a telephone away from the area where gas is leaking. If this product is a cordless model, make sure the base is also away from the area.

Do not use this product near water, or when you are wet. For example, do not use it in a wet basement or shower, or next to a swimming pool,

bathtub, kitchen sink, or laundry tub. Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquids, unplug any line or power cord immediately. Do not plug the product back in until it has dried thoroughly.

Install this product in a protected location where no one can trip over any line or power cords. Protect cords from damage or abrasion.

If this product does not operate normally, read the Troubleshooting section on pages 13-22 of this user’s manual. If you cannot solve the problem, or

if the product is damaged, refer to the Limited warranty section on pages 30-32. Do not open this product except as may be directed in your user’s manual. Opening the product or reassembling it incorrectly may expose you to hazardous voltages or other risks.

Replace batteries only as described in your user’s manual (pages 7-9). Do not burn or puncture batteries — they contain caustic chemicals.

This power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.

CAUTION: Use only the power adapter provided with this product. To obtain a replacement, visit our website at www.telephones.att.com,

or call 1 (800) 222–3111. In Canada, dial 1 (866) 288-4268.

24

Appendix

Important safety information

Especially about corded telephones

Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think

of cordless telephone conversations as being as private as those on corded telephones.

Electrical power: The telephone base of this cordless telephone must be connected to a working electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset if the telephone base is unplugged, switched off or if the electrical power is interrupted.

Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries. Exercise care in handling batteries in order not to create a short circuit with conductive material such as rings, bracelets, and keys. The battery or conductor may overheat and cause harm. Observe proper polarity between the battery and the battery charger.

Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.

The RBRC™ Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel-metal hydride rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center. Or you may call 1 (800) 8- BATTERY for locations accepting spent Ni-MH batteries.

25

Appendix

Important safety information

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

Should keep wireless telephones at least six inches from the pacemaker.

Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it is turned ON.

Should use the wireless telephone at the ear opposite the pacemaker.

WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless telephones.

Especially about telephone answering systems

Two-way recording: This unit does not sound warning beeps to inform the other party that the call is being recorded. To ensure that you are in compliance

with any federal or state regulations regarding recording a telephone call, you should start the recording process and then inform the other party that you are recording the conversation.

SAVE THESE INSTRUCTIONS

26

Appendix

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This identifier must be provided to your telephone service provider upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used

for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In

most, but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact your telephone service provider.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable the alarm equipment, consult your telephone service provider or a qualified installer.

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty.

If this equipment is causing harm to the telephone network, the telephone service provider may temporarily discontinue your telephone service. The telephone service provider is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone service provider is required to inform you of your right to file a complaint with the FCC. Your telephone service provider may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone service provider is required to notify you if such changes are planned.

27

Appendix

FCC Part 68 and ACTA

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:

Remain on the line and briefly explain the reason for the call before hanging up.

Perform such activities in off-peak hours, such as early morning or late evening.

Industry Canada

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation.

The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada technical specifications were met.

The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five.

This product meets the applicable Industry Canada technical specifications.

28

Appendix

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules.

These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20cm (8 inches) or more.

This Class B digital apparatus complies with Canadian ICES-003.

29

Appendix

Limited warranty

The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to: In the United States of America, call 1 (800) 222-3111 or visit www.

telephones.att.com; in Canada, call 1 (866) 288-4268.

1.What does this limited warranty cover?

The manufacturer of this AT&T-branded product warrants to the holder of a valid proof of purchase (“CONSUMER” or “you”) that the product and all

accessories provided in the sales package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for products purchased and used in the United States of America and Canada.

2.What will be done if the PRODUCT is not free from defects in materials and workmanship during the limited warranty period (“materially defective PRODUCT”)?

During the limited warranty period, the manufacturer’s authorized service representative repairs or replaces at the manufacturer’s option, without charge, a materially defective PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace it with a new or refurbished PRODUCT of the same or similar design. The manufacturer retains the defective parts, modules, or equipment. Repair or replacement

of the PRODUCT, at the manufacturer’s option, is your exclusive remedy. The manufacturer returns the repaired or replacement products to you in working condition. You should expect the repair or replacement to take approximately 30 days.

3.How long is the limited warranty period?

The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the terms of this limited warranty, this limited warranty also applies to repaired or replacement PRODUCT for a period of either (a) 90 days from the date the repaired or replacement PRODUCT is shipped to you or (b) the time remaining on the original one-year limited warranty; whichever is longer.

30

Appendix

Limited warranty

4.What is not covered by this limited warranty?

This limited warranty does not cover:

PRODUCT that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water, or other liquid intrusion; or

PRODUCT that has been damaged due to repair, alteration, or modification by anyone other than an authorized service representative of the manufacturer; or

PRODUCT to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or

PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or

PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic serial numbers have been removed, altered or rendered illegible; or

PRODUCT purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or institutional purposes (including but not limited to products used for rental purposes); or

PRODUCT returned without a valid proof of purchase (see item 6 below); or

Charges for installation or setup, adjustment of customer controls, and installation or repair of systems outside the unit.

5.How do you get warranty service?

To obtain warranty service in the United States of America, visit

www.telephones.att.com or call 1 (800) 222-3111;

in Canada, please dial 1 (866) 288-4268. NOTE: Before calling for service, please review the user’s manual. A check of the PRODUCT’s controls and features might save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery or handling charges incurred in the transport of the PRODUCT(s) to the service location. The manufacturer will return repaired or replaced PRODUCT under this limited warranty. Transportation, delivery or handling charges are prepaid. The manufacturer assumes no risk for damage or loss of the PRODUCT in transit. If the PRODUCT failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, the manufacturer notifies you and requests that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of products that are not covered by this limited warranty.

31

Appendix

Limited warranty

6.What must you return with the PRODUCT to get warranty service?

You must:

a.Return the entire original package and contents including the PRODUCT to the service location along with a description of the malfunction or difficulty; and

b.Include “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased (PRODUCT model) and the date of purchase or receipt; and

c.Provide your name, complete and correct mailing address, and telephone number.

7.Other limitations

This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT. It supersedes all other written or oral communications related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT. There are no other express warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any such modification.

State/Provincial Law Rights: This warranty gives you specific legal rights, and you might also have other rights that vary from state to state or province to province.

Limitations: Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited to one year from date of purchase. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation might not apply to you. In no event shall the manufacturer be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the PRODUCT or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of

this PRODUCT. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion might not apply to you.

Please retain your original sales receipt as proof of purchase.

32

Appendix

Technical specifications

RF frequency band

1921.536MHz — 1928.448MHz





Channels

5





Operating temperature

32°F — 122°F



0°C — 50°C





Handset voltage

2.4 — 3.2 VDC





Charger voltage

6VAC @300mA

(AC adapter output)







Replacement battery

2.4V 750mAH





Operating time*

Talk time (handset): up to eight hours



Talk time (speakerphone): up to five hours



Standby: up to seven days





* Operating times varies depending on your actual use and the age of the battery.

DECT 6.0 digital technology

The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is achieved through a unique antenna design and advances in noise-filtering technology.

An independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in range competitions. Now calls can be taken in the basement, backyard and garage with exceptional sound quality.

Telephone operating range

This cordless telephone operates within the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance — which can vary with the locations of the telephone base and handset, the weather, and the construction of your home or office.

33

Appendix

Technical specifications

Extended range and clarity

This telephone base comes with an antenna which gives much better clarity and covers a longer range than before.

34

www.telephones.att.com

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.

© 2009 Advanced American Telephones. All Rights Reserved.

AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219.

Printed in China. Issue 1 AT&T 12/09.
