AT&T 2.1.1 User Manual

Download

AT&T FAX Attendant Release 2.1.1

AT&T 555-107-100 Issue 1 January 1993

For MERLIN LEGEND

Communications System

System Manager’s Guide

Notice

While reasonable effort was made to ensure that the information in this document was complete and accurate at the time of printing, AT&T cannot assume responsibility for any errors. Changes and/or corrections to the information contained in this document may be incorporated into future issues.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Security

As a customer of new telecommunications equipment, you should be aware of the signiﬁcant and growing problem of theft of long distance services by third parties, known commonly as "toll fraud." It is particularly important that you understand and take appropriate steps to deal with this crime because under applicable tariffs, you will be responsible for payment of associated charges. AT&T cannot be responsible for such charges and will not make any allowance or give any credit resulting from toll fraud.

Toll fraud can occur despite the preventive efforts of network providers and equipment manufacturers. Toll fraud is a potential risk for every customer with telecommunications equipment having one or more of the following features: (1) remote access, (2) automated attendant, (3) voice mail, (4) remote administration and maintenance, and (5) call forwarding (remote). This is not a product or design defect, but a risk associated with equipment having one or more of the features described above. If your new telecommunications equipment possesses any of these features, please consult the relevant portion of your documentation for further details and speciﬁc procedures to reduce the risk of toll fraud or contact your AT&T dealer for further details.

Trademarks

AUDIX, Voice Power, and AT&T FAX Attendant System are trademarks of AT&T. DEFINITY is a registered trademark of AT&T. UNIX is a registered trademark of AT&T UNIX System Laboratories, Inc. Phillips is a registered trademark of the Phillips Screw Company. HP and LaserJet are registered trademarks of Hewlett-Packard Company. Centronics is a registered trademark of Centronics Data Computer Corp.

Ordering Information

To order copies of this manual, call the Customer Information Center at 1-800-432-6600 and include document number 555-007-103 with your order.

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

Contents

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

About This Guide 9

Purpose and Scope ix How to Use This Guide xi Related Documents xiii

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

1 Introduction 1-1

Overview 1-1 FAX Attendant Services 1-2 FAX Attendant Features 1-2 Telephone System Interface 1-8

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

2 Feature and Planning Review 2-1

Review of System Planning 2-1 Planning for FAX Attendant on the MERLIN LEGEND

System 2-1 Planning the FAX Attendant System 2-3 Planning Your Fax Response Service 2-11 Customizing Voice Prompts 2-12

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

3 Implementing FAX Attendant 3-1

Entering FAX Attendant Data 3-1 Custom Voice Prompts 3-41

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

4 Fax Response Administration 4-1

Entering Fax Response Data 4-1 Accessing Fax Response 4-1 Implementing a New Fax Response Service 4-5 Administering the Main Menu 4-10 Administering the Touch-Tone Gate Prompt and

Goodbye Message 4-18 Fax Response Coversheet Administration 4-23

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

Contents

Modifying Your Existing Fax Response Service 4-25 Helpful Hints: Creating and Loading Fax Response

Service 4-34

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

5 System Operations 5-1

Introduction 5-1 System Management Operations 5-2 Operating FAX Attendant 5-6 Backing Up Files 5-12 Fax Equipment Operations 5-12

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

6 Report Generation 6-1

Generating FAX Attendant Reports 6-1

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

7 Troubleshooting 7-1

Troubleshooting 7-1

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

A User Interface A-1

User Interface Information A-1

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

B System Messages B-1

Introduction to System Messages B-1 Software Architecture B-3 System Message Format B-4 System Message Listings B-5

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

Contents

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

C FAX Attendant Menu Tree C-1

FAX Attendant Menu Trees C-1

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

IN Index IN-1

iii

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

Figures

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

About This Guide

1. Typical Function Key Labels xii

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

3 Implementing FAX Attendant

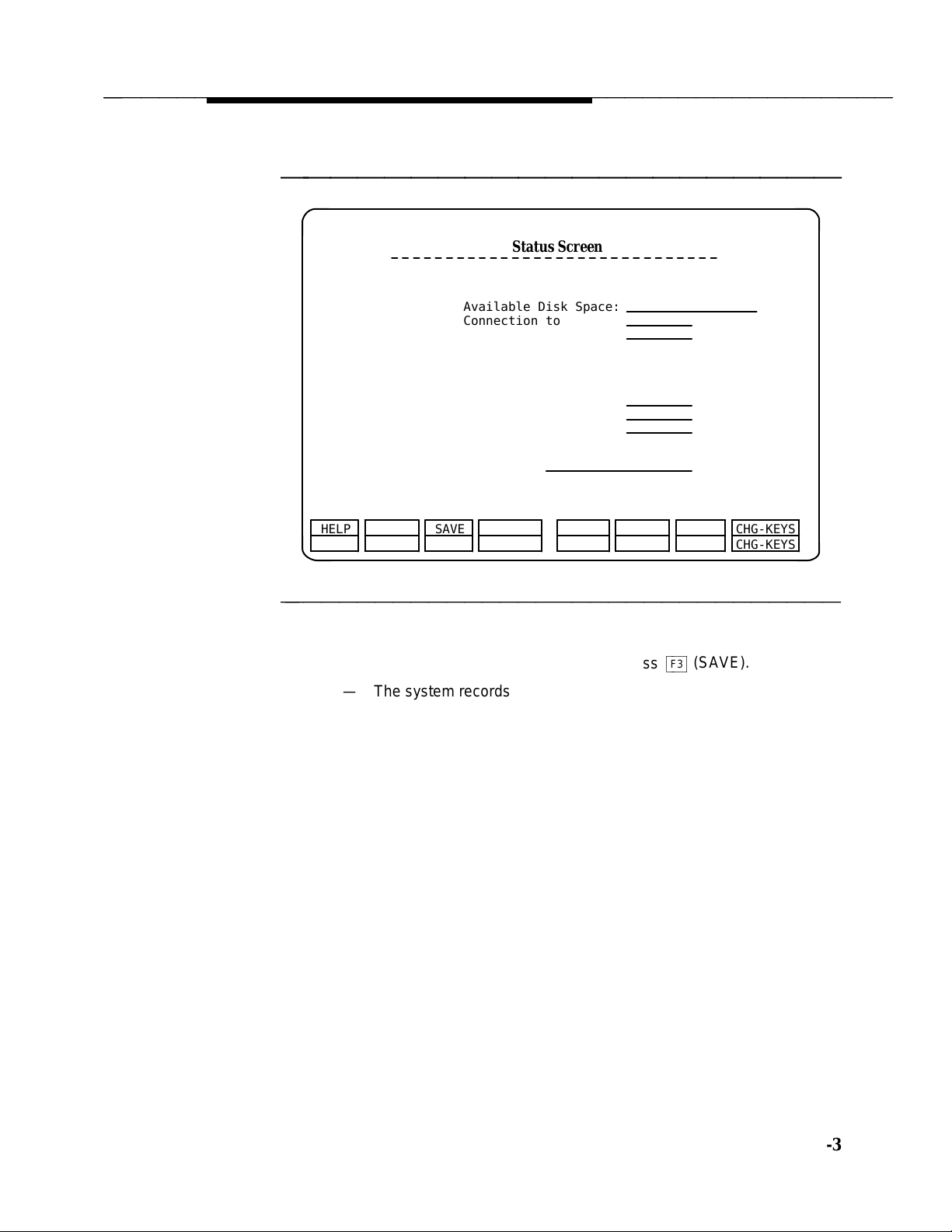

3-1. Status Screen 3-3 3-2. Integrated Solution III Main Menu 3-4 3-3. AUDIX Voice Power/FAX Attendant Menu 3-5 3-4. Fax System Parameters Administration Menu 3-6 3-5. General Fax Parameter Administration Form 3-7 3-6. Voice System Parameter Administration Form 3-8 3-7. Fax System Parameters Administration Menu 3-10 3-8. Account Code Parameter Administration Form 3-11 3-9. Fax System Parameters Administration Menu 3-13 3-10. Account Code List Administration Form 3-14 3-11. Extension Directory Screen 3-16 3-12. AUDIX Voice Power User Screen 3-17 3-13. Subscriber Administration Screen, Page 1 of 2 3-18 3-14. Subscriber Administration Screen, Page 2 of 2 3-19 3-15. Extension Directory Screen 3-21 3-16. Special Purpose Extension Screen 3-22 3-17. AUDIX Voice Power User Screen 3-23 3-18. Subscriber Administration Screen, Page 1 of 2 3-24 3-19. Subscriber Administration Screen, Page 2 of 2 3-25 3-20. Extension Directory Screen 3-26 3-21. AUDIX Voice Power User Screen 3-27 3-22. Subscriber Administration Screen, Page 1 of 2 3-28 3-23. Subscriber Administration Screen, Page 2 of 2 3-29 3-24. Service Administrator Registration Form 3-33 3-25. Outcalling Administration Form 3-34 3-26. Fax Group List Administration Form 3-36 3-27. Fax Group List Editing Form 3-37 3-28. Fax Group List Administration Form 3-38 3-29. Fax Group List Administration Form 3-40

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

Figures

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

4 Fax Response Administration

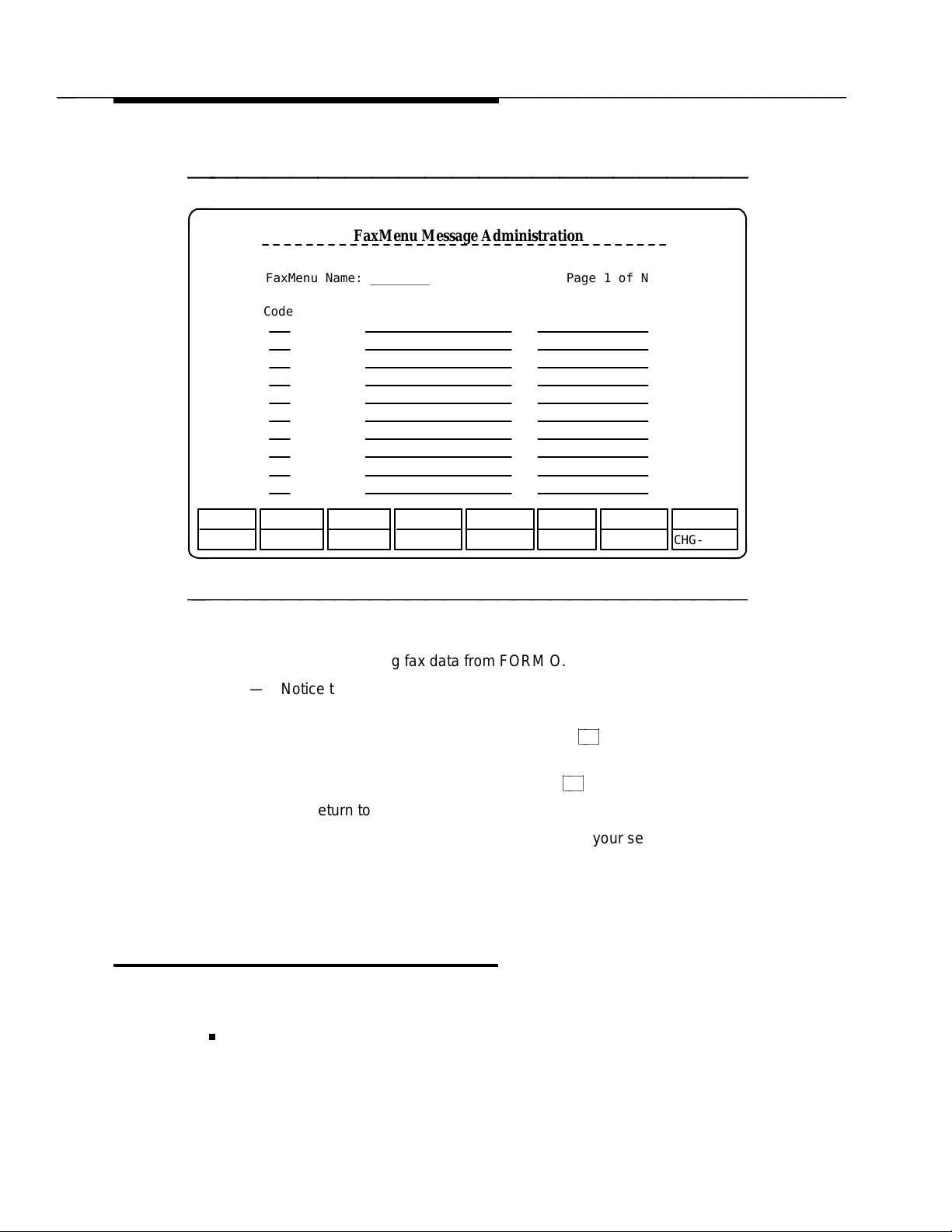

4-1. Status Screen 4-2 4-2. Integrated Solution III Main Menu 4-3 4-3. AUDIX Voice Power/FAX Attendant Menu 4-4 4-4. Fax Response Administration Menu. 4-5 4-5. Fax Response Workspace Administration Menu 4-6 4-6. Edit Workspace/Edit Inactive Fax Messages Form 4-7 4-7. Edit FaxMenu Form. 4-9 4-8. FaxMenu Message Administration Form 4-10 4-9. Fax Response Coversheet Administration Screen 4-24 4-10. Fax Response Workspace Administration Menu 4-26 4-11. Copy Service Into Workspace Menu 4-27 4-12. Edit FaxMenu Form 4-31 4-13. FaxMenu Message Administration Form 4-32 4-14. View Service screen 4-36

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

5 System Operations

5-1. Integrated Solution III Main Menu 5-13 5-2. Fax Equipment Operations Screen 5-14 5-3. Fax Channel Administration Screen 5-15 5-4. Change State of Fax Equipment Form 5-16 5-5. Administer Fax Line Extension screen 5-17 5-6. Fax Equipment Diagnostics Screen 5-20 5-7. Fax Equipment Diagnostics - Results Screen 5-21

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

6 Report Generation

6-1. Reports Menu 6-2 6-2. AUDIX Voice Power/FAX Attendant Reports Menu 6-3 6-3. System Reports Menu 6-8

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbb

About This Guide

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

bbbbbbbb

Purpose and Scope

The information in this guide is organized to help System Managers perform day-to-day management and operation of the FAX Attendant System. In addition, basic information is offered about connections to, and administration of the MERLIN LEGEND Communications System as it is affected by the FAX Attendant System. The MERLIN LEGEND, however, requires detailed installation and administration. The replace the documents that accompany your communications system. The

AT&T AUDIX Voice PowerTM/FAX Attendant System Implementation

to be followed for initial implementation. This guide describes each feature of FAX Attendant and provides information on

administration and daily operation. This guide is divided into the following chapters and appendices:

Chapter 1: Introduction presents an overview of FAX Attendant features and configurations.

Chapter 2: Feature and Planning Review provides a condensed description of system features, system planning, and system planning forms. System planning is covered in more detail in the

Voice PowerTM/FAX Attendant System

document.

document discusses the specific tasks and sequences of tasks

System Manager’s Guide

is not intended to

Planning and

Planning and Implementation

AT&T AUDIX

Chapter 3: Implementing FAX Attendant explains how to enter the data from the system planning forms to administer system-wide features when setting up your FAX Attendant system. It also describes system-wide

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

About This Guide

tasks, with related menus and windows, required to administer the system. Additionally, this chapter explains how to enter the voice phrases for FAX Attendant services.

Chapter 4: Fax Response Administration describes how to plan, implement, and modify a Fax Response service for your company.

Chapter 5: System Operations describes operational procedures that need to be performed on a regular basis. Operational procedures include backup, system shut-down, system re-boot, system reset, voice system startup and shutdown.

Chapter 6: Report Generation explains how to generate reports on telephone and message space usage, as well as other system reports.

Chapter 7: Troubleshooting explains general problem resolution. Appendix A: User Interface Information explains how to use menus and

windows, describes function keys and their use, and gives general information that is particularly helpful to the novice system user.

Appendix B: Error Messages gives a full listing of system error messages together with suggested responses.

Appendix C: FAX Attendant Menu Tree provides an overall picture of the menu structure.

Intended Audience

bbbbbbbbbbbbbbb

This guide is for System Managers. The information is organized to help System Managers perform day-to-day the management and operation of the system. Each feature of FAX Attendant is described along with information on administration and daily operation.

Assistance

bbbbbbbbbbbbbbb

If you have questions or problems with FAX Attendant, please try to resolve them by using this guide and other related documents. If you are still unable to resolve the problem, contact the National Service Assistance Center (NSAC) at 1-800-628-2888 for assistance or your AT&T Authorized Dealer.

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

About This Guide

bbbbbbbb

How to Use This Guide

This guide contains a complete description of the FAX Attendant system. During initial implementation, the System Manager should become familiar with

the FAX Attendant System by reading all of this guide and the

Voice PowerTM/FAX Attendant System

document. For day-to-day operations, the System Manager and the Service Administrators

should read those portions of this guide and of the

PowerTM/FAX Attendant System

are related to their job responsibilities.

Conventions Used in this Guide

bbbbbbbbbbbbbbb

The following conventions are used in this guide:

Planning and Implementation

AT&T AUDIX

AT&T AUDIX Voice

document that

Commands and text you should type appear Values, instructions, and prompts that appear on the screen are in this

style of type. Key names that are always located on the keyboard in the same place

appear in smooth-cornered boxes, as in Touch-tone keys on the telephone set keypad are enclosed in squares,

such as Functions keys (keys that start with an F, followed by a number), appear

in boxes with the current meaning following in parentheses such as (SAVE).

The current meanings of the function keys are shown by labels at the bottom of the screen. On the screen diagrams in this manual, each label box may contain two labels (top and bottom). On the actual screen, either the top set of labels or the bottom set of labels will show, not both.

On the screen diagrams, the top label is the meaning of the function key when the screen first appears. These meanings have been selected to be the most useful for that screen. The bottom label is the meaning of the function key after the

bbb

F8 (CHG-KEYS) again restores the top labels.) A typical set of key labels

cbbbc

on a screen diagram might be:

3 and

cbbc

bbb

# .

cbbbc

bbb

F8 (CHG-KEYS) key has been pressed. (Pressing

cbbbc

in this style of type

Enter

bbb

cbbbc

bbbbb

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

About This Guide

bbbbbbbbbbbbbbbbbbbbb

Any screen information

HELP

LST-MENU

LST-ANNS

DISPLAY CANCEL

SPCM-ADMDEL-MENU

DEFINESAVECHOICES

FRM-MGMT

CHG-KEYS CHG-KEYS

bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

Figure 1. Typical Function Key Labels

xii
