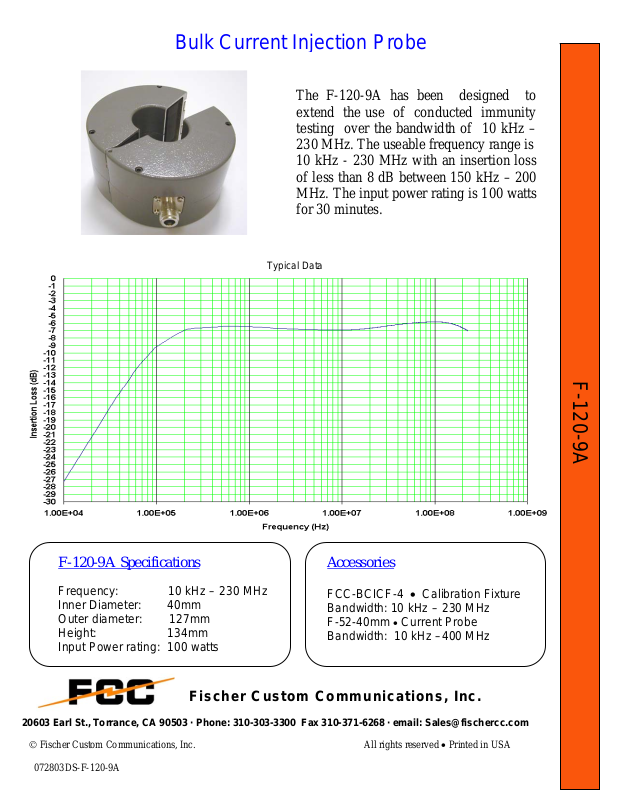

Bulk Current Injection Probe

The F-120-9A has been designed to
extend the use of conducted immunity
testing over the bandwidth of 10 kHz
230 MHz. The useable frequency range is
10 kHz - 230 MHz with an insertion loss
of less than 8 dB between 150 kHz – 200
MHz. The input power rating is 100 watts
for 30 minutes.

Typical Data

F-120-9A Specifications

Frequency: 10 kHz – 230 MHz
Inner Diameter: 40mm
Outer diameter: 127mm
Height: 134mm
Input Power rating: 100 watts

Accessories

FCC-BCICF-4  Calibration Fixture
Bandwidth: 10 kHz – 230 MHz
F-52-40mm
Bandwidth: 10 kHz –400 MHz

 Current Probe

F-120-9A

Fischer Custom Communications, Inc.

20603 Earl St., Torrance, CA 90503 · Phone: [phone] Fax [phone] · email: [e-mail]

 Fischer Custom Communications, Inc.

072803DS-F-120-9A
