FTB-200 Compact Platform
THE INTELLIGENT PLATFORM BUILT FOR THE SUPERTECH
PART OF THE
2011
GLOBAL PORTABLE FIBER OPTIC
TEST EQUIPMENT MARKET
SHARE LEADERSHIP AWARD
The FTB-200 delivers the best performance on the market for optical, Ethernet and multiservice testing.
KEY FEATURES
Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize
fi eld testing, plus third-party applications
Like a PC: Intel processor with Windows Embedded
Standard operating system
EXFO Connect-compatible: automated asset
management; data goes through the cloud and into a
dynamic database
GPS capabilities: accurate coordinates under the same
conditions as a regular satellite GPS receiver
SPEC SHEET
FTB-200 Compact Platform
Ports
and
GigE/
10 GigE
Fibre
Channel
First-class
ergonomics
handle
Multiservice
Angled
stance
ROADM
and PTN
ROADM
Service
Activation
CWDM Turn-Up Testing
Integrate two metro/CWDM OTDRs to test through CWDM-based mux/demux at ITU-recommended wavelengths.
40G and ROADM Commissioning
House an OSA into a compact portable solution for fast and accurate DWDM commissioning and high-speed networking—up to
40 Gbit/s.
Fibre
Channel
First-class
ergonomics
ROADM
and PTN
ROADM
Service
Activation
Multiservice Testing
Simultaneously run a 10 gigabit next-generation SONET/SDH analyzer, as well as 1 gigabit and 10 gigabit Ethernet analyzers,
delivering IPTV test capabilities and TCP throughput assessment.
Ethernet
testing
Fibre
Channel
First-class
ergonomics
Multiservice
ROADM
and PTN
ROADM
ROADM/
POTS
10
Gbit/s
Service
Activation
100 Gbit/s
Distributed
PMD
Fiber
analysis
Fiber Characterization and Construction
Combine PMD, CD and OTDR testing in a single solution, and incorporate an OTDR with a multitest module,
for in-depth link characterization.
Fibre
Channel
ROADM
and PTN
ROADM
Business Service Activation
Join an FTTx PON/MDU OTDR featuring a dynamic range of up to 39 dB with a 1/10 gigabit Ethernet testing module,
to simplify and speed up the deployment of Ethernet services.
Ports
and
stylus
GigE/
10 GigE
Fibre
Channel
First-class
ergonomics
handle
Multiservice
Angled
stance
ROADM
and PTN
ROADM
Service
Activation
Carrier Ethernet Testing from 10 Mbit/s to 10 Gbit/s
Benefit from a comprehensive suite of Ethernet testing capabilities, including EtherSAM (ITU-T Y.1564),
for turning up and troubleshooting mobile backhaul, commercial and wholesale services.
THE POWER YOU NEED, NO MATTER THE APPLICATION
The FTB-200 delivers the processing power of a high-end platform for a variety of advanced applications—all in a conveniently
sized go-anywhere field-testing tool.
CWDM
ROADM
and PTN
Multiservice
Fiber
Service
Activation
Carrier
Ethernet
FTB-200 Compact Platform
TRANSPORT AND DATACOM TEST MODULES
DSn/PDH and SONET/SDH Electrical Test Module FTB-8105 Transport Blazer
SONET/SDH Test Module FTB-8115 Transport Blazer
Next-Generation SONET/SDH Test Modules FTB-8120/8130 Transport Blazer
Multiservice Test Modules FTB-8120NGE/8130NGE Power Blazer
Ethernet Test Modules FTB-8510B Packet Blazer
10 Gigabit Ethernet Test Module FTB-8510G Packet Blazer
Fibre Channel and Ethernet Test Modules FTB-8525/8535 Packet Blazer
ONE PLATFORM, OVER 30 MODULES
Optimized for all phases of the network lifecycle, the FTB-200 houses any of EXFO’s FTB one- or two-slot modules to meet
your evolving needs. Configure your platform by combining optical, transport and datacom modules to cover a wide range of
applications. Offering power, speed and modularity in a compact format, the FTB-200 is the perfect tool for the field.
Optical Test Modules
Discover the industry’s most renowned line of OTDRs, the most advanced dispersion analyzers and optical spectrum analyzers.
OPTICAL TEST MODULES
OTDR FTB-7xxx (D-E Series)
MultiTest Module FTB-3930
Optical Spectrum Analyzers
Single-Ended Dispersion Analyzer FTB-5700
FTB-5240S
FTB-5240S-P
Transport and Datacom Test Modules
Choose from the most compact and powerful SONET/SDH, OTN, Fibre Channel and Ethernet analyzers—the new standards
in next-generation network testing.
FTB-200 Compact Platform
DELIVERING UNIQUE PERFORMANCE
Providing the same compatibility as its predecessor, the FTB-200 platform now leverages a powerful Intel ATOM processor to
deliver unmatched speed and performance for the most demanding test applications.
IN-BAND 64 ACQUISITIONS
OSA
10x faster
Baseline
RE-ANALYSIS
FTB-200
OTDR
Baseline
TRACE LOADING
Baseline
RE-ANALYSIS
Baseline
REAL-TIME ACQUISITION
44 % faster
Baseline
8x faster
FTB-200
14x faster
FTB-200
FTB-200
20x faster
T&D
FTB-200
SPEED
AVERAGE EXECUTION
3x faster
Baseline
RESULT PROCESSING
Baseline
FTB-200
10x faster
FTB-200
SPEEDSPEED
SOFTWARE TEST TOOLS
SOFTWARE UTILITIES
Update Manager
Ensure that your entire fleet of platforms is up-to-date with the latest software, and easily manage your maintenance contracts.
VNC configuration
The Virtual Network Computing utility allows technicians to easily communicate settings to remote colleagues.
Microsoft Internet Explorer
Access the Web directly from your platform interface.
Bluetooth file-sharing
Share files from your FTB-200 to any Bluetooth-enabled device.
Wi-Fi connection
Display available Wi-Fi connections and save your default settings.
THIRD-PARTY TEST TOOLS
Wireshark
This live-network packet-capture utility makes it possible to look “inside” the packets and obtain data such as transmission time,
source, destination, protocol type, etc. Users can then diagnose a problem or root out suspicious behavior. Wireshark is a standard
utility on all FTB-200 platforms.
JPerf
This TCP performance testing tool can create TCP and UDP data streams, which measure the throughput of a network that is
carrying them. Thanks to various user-definable parameters, technicians can rely on JPerf to optimize or tune a network under test.
Network Stumbler
Network Stumbler verifies wireless network configurations, enabling field technicians to identify areas that have poor coverage or
wireless interference, and helping them to aim antennas for full effect and find unauthorized access points.
EXpert TEST TOOLS
FTB-200 Compact Platform
EXpert VoIP generates a voice-over-IP call directly from the test platform to validate performance during service turn-up and
troubleshooting.
Supports a wide range of signaling protocols, including SIP, SCCP, H.248/Megaco and H.323
›
Supports MOS and R-factor quality metrics
›
Simplifies testing with configurable pass/fail thresholds and RTP metrics
›
EXpert IP integrates six commonly used datacom test tools into one platform-based application to ensure that field technicians
are prepared for a wide range of testing needs.
Rapidly performs debugging sequences with VLAN scan and LAN discovery
›
Validates end-to-end ping and traceroute
›
Verifies FTP performance and HTTP availability
›
This powerful IPTV quality assessment solution enables set-top-box emulation and passive monitoring of IPTV streams, allowing
quick and easy pass/fail verification of IPTV installations.
Real-time video preview
›
Analyzes up to 10 video streams
›
Comprehensive QoS and QoE metrics including MOS score
›
SOFTWARE APPLICATIONS
Providing lightning-fast results in the first step of fiber-link testing, ConnectorMax is the industry’s first platform-based, automated
inspection application; it delivers quick pass/fail assessment of connector endfaces and is specifically designed to save both time
and money in the field.
FTB-200 Compact Platform
CONNECTED ANYWHERE, ANYTIME
The value of connectivity resides in the ability to connect your platform anywhere, at any time. That’s why we have equipped our
platforms with the technology to be as flexible as possible. Whether to transfer data to the cloud, to a device or to acquire a
platform’s location via GPS, you have what it takes.
GPS
Secure VPN communications
We have brought VPN capabilities to our platforms to provide a secured connection for those who
need it. And, we cover 99% of the world’s VPN connection types, thanks to Cisco, Juniper and
Checkpoints* technologies. Secure communications are now within your reach.
a,b
3G mobility
Our 3G universal USB angle is ready to house most service provider SIM cards. In fact, it is
compatible with over 80% of the worldwide 3G coverage offered by all the main 3G service
providers using unlocked SIM cards.
b,c
Remote control
Use remote assistance to troubleshoot units in the field, trigger tests remotely or help a technician
with a problem. Working without it is hard to imagine.
Instant messaging
Since our platforms are Windows-based, they are just like a PC. You can install chat tools to quickly
communicate with your team.
Notes
a. Please refer to the User Guide to learn how to set up your VPN connection, as required by your IT department.
b. Current FTB platform must be updated to the latest version supporting these options.
c. Please refer to the User Guide when installing this device on your compatible FTB platform.
FTB-200 Compact Platform

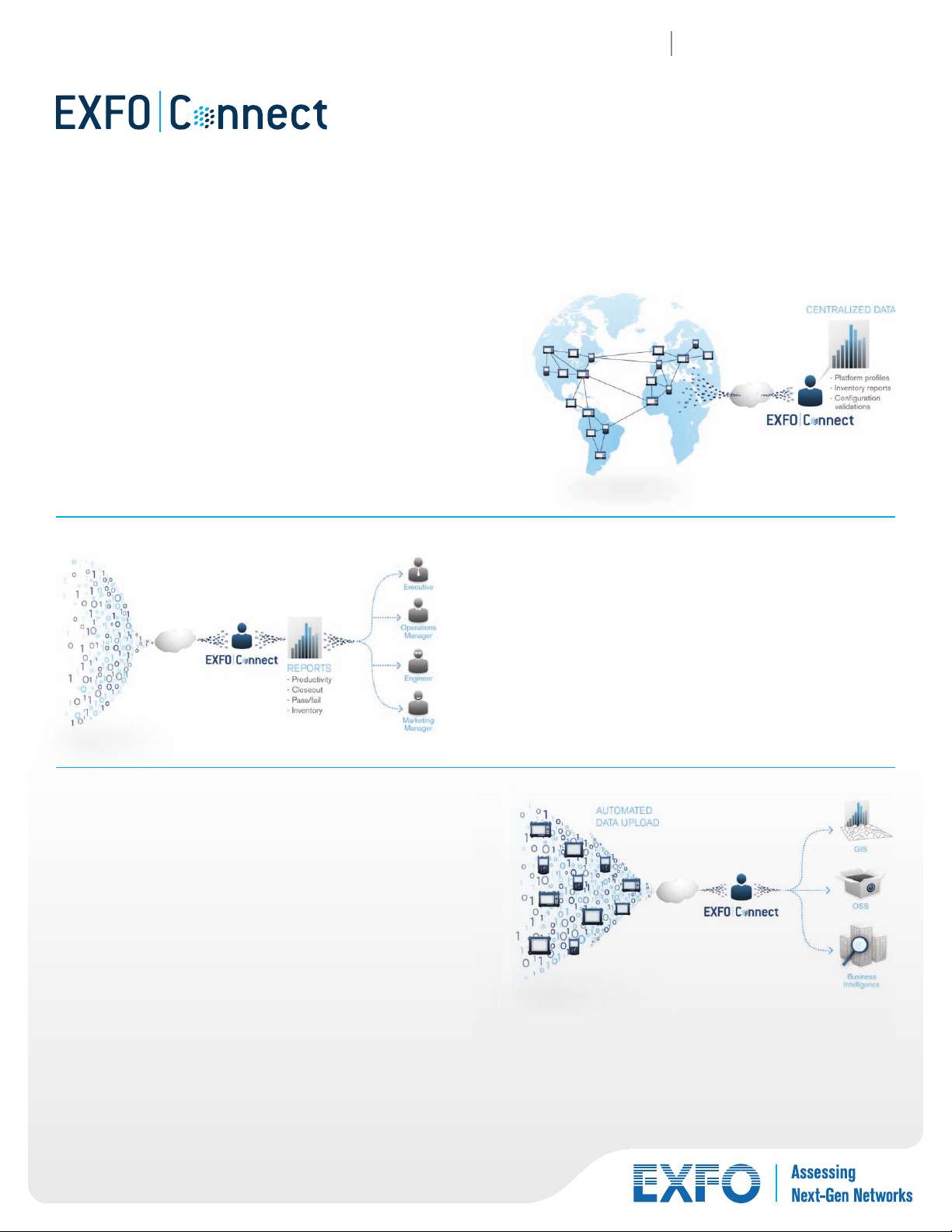

EXFO CONNECT MAKES YOUR DATA MEAN BUSINESS
EXFO Connect lets you store and push equipment and test data automatically to our cloud-based servers, allowing you to
streamline test operations, from build-out to maintenance.
Centralize and automate inventory management to
provide global visibility
Test Equipment Manager, a component of EXFO Connect, deals
with the constant demands of software updates, keeping track
of the equipment and ensuring that field technicians involved
in network construction, maintenance or troubleshooting are
properly equipped. The best part? It’s all automated.
Create and customize reports from collected data
EXFO Connect tracks and updates your test gear, giving you
fingertip access to all the data and allowing for quick correlation
and tailored reporting for any member of the organization.
Store and consolidate test data across
the entire company
Test Data Manager, another component of EXFO Connect,
allows managers to make the most of their test investment.
It extracts the full value out of the generated test data to help
you optimize network efficiency, all through a highly automated,
secure and centralized environment.
3
UPDATE MANAGER
Stay current with the FTB-1 Update Manager, which enables you to easily manage the
applications developed for your test solution. Thanks to EXFO’s feature enhancement
program, it has never been easier to benefit from our latest innovation. Based on customer
feedback, acute market trend analysis and compliance with the latest standards, EXFO is
committed to ensuring that your product is at its best.
DESIGNED FOR EFFICIENCY
4
5
6
7
FTB-200 Compact Platform
LED indicators
1
Switch application and keyboard
2
Knob
3
Power meter and VFL
4
Battery
5
Stylus
6
Two slots to house modules
7
USB 2.0 port
8
1 GigE port
9
FIP port
10
Head set
11
AC adapter
12
Two extra USB 2.0 ports
13
8
9
10
11
12
13
FTB-200 Compact Platform
SPECIFICATIONS
a
Display Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in)
Interfaces Two USB 2.0 ports
RJ-45 LAN 10/100/1000 Mbit/s
Fiber inspection probe connector port (video)
Built-in Bluetooth and Wi-Fi (hardware option)
Storage 8 GB internal memory (flash)
Battery
Rechargeable lithium-ion batteries
8 hours of operation as per Telcordia (Bellcore) GR-196
Power supply
AC/DC adapter, input 100-240 VAC, 50-60 Hz,
1.6 A max, output: 24 VDC, 90 W
Computer
Intel ATOM processor
Windows Embedded Standard
GENERAL SPECIFICATIONS
Temperature
Operating
Storage
b
0 °C to 50 °C (32 °F to 122 °F)
–40 °C to 60 °C (–40 °F to 140 °F)
Relative humidity 0 % to 95 % non-condensing
Size (H x W x D)
322 mm x 197 mm x 109 mm
(12
11
/16 in x 7 ¾ in x 4 5/16 in)
Weight b 2.1 kg (4.6 lb)
Vibration <1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock <760 mm on six sides and eight main edges
(compliant to GR-196-CORE)
VISUAL FAULT LOCATOR (VFL) (OPTIONAL)
Laser, 650 nm ±10 nm
CW
Typical P
out
in 62.5/125 µm: 3 dBm (2 mW)
ACCESSORIES
FP4S 400x Fiber Inspection Probe GP-2028 Computer security cable kit
FP4D 200x/400x Fiber Inspection Probe GP-2112 3G Universal USB Dongle
GP-10-070 Rigid FTB-200 carrying case GP-2113 GPS USB Dongle
GP-10-072 Semi-rigid FTB-200 carrying case GP-2116 Single-slot storage module
GP-302 USB mouse GP-2137 USB-to-RS-232 converter
GP-1002 Headset GP-2138 DC car adapter/inverter
GP-1008 VFL adapter (2.5 mm to 1.25 mm) GP-2144 USB 16G micro-drive
GP-2001 USB keyboard GP-2155 Carry-on size backpack
c
GP-2016 10 feet RJ-45 LAN cable
PM-200 BUILT-IN POWER METER SPECIFICATIONS
d
Calibrated wavelengths (nm) 850, 1300, 1310, 1490, 1550, 1625, 1650
Optional CWDM calibrated
wavelengths (nm)
1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490,
1510, 1530, 1550, 1570, 1590, 1610, 1383, 1625
Power range (dBm) 10 to —86 (InGaAs)
26 to —64 (GeX)
Uncertainty (%)
e
±5 % ± 3 pW (InGaAs)
±5 % ± 0.4 nW (GeX)
Display resolution (dB)
InGaAs
GeX
0.01 = max to —76 dBm
0.1 = —76 dBm to —86 dBm
1 = —86 dBm to min
0.01 = max to —54 dBm
0.1 = —54 dBm to —64 dBm
1 = —64 dBm to min
Automatic offset nulling range
f
Max power to —63 dBm for InGaAs
Max power to —40 dBm for GeX
Tone detection (Hz) 270/1000/2000
LASER SAFETY
21 CFR 1040.10 AND IEC 60825-1:2007
CLASS 3R WITH VFL OPTION
This product complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to Laser
Notice No.50 dated 2001.
If VFL option is available
Notes
a. All specifications valid at 23
b. Not including internal batteries. Battery maximum storage temperature: 60
c. The selected model may change without notice.
d. At 23 ºC ± 1 ºC, 1550 nm and FC connector. With modules in idle mode. Battery operated.
e. Up to 5 dBm.
f. For ±0.05 dB, from 18 ºC to 28 ºC.
o
C (73 oF).
o
C (140 oF).
IEC 60825-1:2007
21 CFR 1040.10
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
l: 650 ±10 nm
P
maximum < 5mW (into free space)
out
ORDERING INFORMATION
FTB-200-V2-XX-XX-XX-XX-XX-XX
FTB-200 Compact Platform
Model
FTB-200-v2 = Compact modular platform
Display
S1 = TFT active screen
S2 = Outdoor-enhanced screen
Wi-Fi/Bluetooth hardware option
00 = Without RF components
RF = With RF capability (Wi-Fi and Bluetooth)
Power meter
00 = Without power meter
VPM2X = VFL platform; PM; GeX detector
VPM3 = VFL; PM; InGaAs detector
VPM2X-CWDM = VFL platform; PM; GeX detector;
CWDM wavelengths calibrated
(from 1270 nm to 1610 nm)
VPM3-CWDM = VFL; PM; InGaAs detector;
CWDM wavelengths calibrated
(from 1270 to 1610 nm)
Example: FTB-200-v2-S1-RF-VPM2X-FOA-16-FP4S-IPT-FPSA
Software option
00 = Without any software option
IPT = Ping and traceroute functionalities
FPSA = ConnectorMax analysis software
FPSAMF = ConnectorMax kit: single-fiber analysis and reporting; multiple-fiber
connector assessment wizard and reporting
Expert-VoIP = RTP-based call testing software application, including packet loss
analysis, jitter measurement and complete voice quality metrics
Expert-IP = IP/Ethernet test suite, with tests including FTP performance, HTTP
availability, VLAN scan, LAN discovery, ping, traceroute, IP/Ethernet
port statistics (license for a single platform)
EXpert-IPTV = IPTV test suite
EXpert-TPP = Triple-play bundle for voice, video and data testing; includes
EXpert IP Test Tools, EXpert IPTV Test Tools, EXpert VoIP Test
EXpert-SIP = SI P call signaling support
EXpert-SCCP = SCCP call signaling support
EXpert-H.323 = H.323 call signaling support
EXpert-H.248 = H.248/Megaco call signaling support
Tools and EXpert SIP
a
a
a
a
Probe
00 = Without probe
FP4S = Inspection probe (400x)
FP4D = Inspection probe (200x/400x)
Connector adapter
FOA-12 = Biconic
b
FOA-14 = NEC D4: PC, SPC, UPC
FOA-16 = SMA/905, SMA-906
FOA-22 = FC/PC, FC/SPC, FC/ UPC, FC/APC
FOA-28 = DIN 47256, DIN 47256/APC
FOA-32 = ST: ST/PC, ST/SPC, ST/UPC
FOA-54 = SC: SC/PC, SC/SPC, SC/UPC, SC/APC)
FOA-78 = Radiall EC
FOA-96B = E-2000 E-2000/APC
FOA-98 = LC
FOA-99 = MU
WC2 = FOA-FC-ST-SC-LC
Notes
a. If EXpert VoIP is selected.
b. If power meter is selected.
EXFO Corporate Headquarters > 400 Godin Avenue, Quebec City (Quebec) G1M 2K2 CANADA | Tel.: +1 418 683-0211 | Fax: +1 418 683-2170 | info@EXFO.com
Toll-free: +1 800 663-3936 (USA and Canada)
EXFO America 3400 Waterview Parkway, Suite 100 Richardson, TX 75080 USA Tel.: +1 972 761-9271 Fax: +1 972 761-9067
EXFO Asia 100 Beach Road, #22-01/03 Shaw Tower SINGAPORE 189702 Tel.: +65 6333 8241 Fax: +65 6333 8242
EXFO China 36 North, 3
Room 1207, Tower C, Global Trade Center
EXFO Europe Omega Enterprise Park, Electron Way Chandlers Ford, Hampshire S053 4SE ENGLAND Tel.: +44 23 8024 6810 Fax: +44 23 8024 6801
EXFO Finland Elektroniikkatie 2 FI-90590 Oulu, FINLAND Tel.: +358 (0)403 010 300 Fax: +358 (0)8 564 5203
EXFO Service Assurance 270 Billerica Road Chelmsford, MA 01824 USA Tel.: +1 978 367-5600 Fax: +1 978 367-5700
EXFO is certified ISO 9001 and attests to the quality of these products. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EXFO has made every effort to ensure that the information contained in
this specification sheet is accurate. However, we accept no responsibility for any errors or omissions, and we reserve the right to modify design, characteristics and products at any time without obligation. Units
of measurement in this document conform to SI standards and practices. In addition, all of EXFO’s manufactured products are compliant with the European Union’s WEEE directive. For more information, please
visit www.EXFO.com/recycle. Contact EXFO for prices and availability or to obtain the phone number of your local EXFO distributor.
For the most recent version of this spec sheet, please go to the EXFO website at www.EXFO.com/specs.
In case of discrepancy, the Web version takes precedence over any printed literature.
rd
Ring Road East, Dongcheng District Beijing 100013 P. R. CHINA Tel.: + 86 10 5825 7755 Fax: +86 10 5825 7722
|
www.EXFO.com
SPFTB200.9AN © 2012 EXFO Inc. All rights reserved.
2008
Printed in Canada 12/03
Loading...
