Atec Epoch-600 User Manual

ULTRASONIC FLAW DETECTOR

EPOCH 600

• CompactandRugged

• VividVGADisplay

• IntuitiveInterface

• EN12668-1Compliant

920-213F-EN

www.olympus-ims.com

EPOCH 600 Ultrasonic Flaw Detector:
Economical Size, Quality Performance

The EPOCH 600 Digital Ultrasonic Flaw Detector combines
Olympus’ industry leading conventional flaw detection capabili­ties with the efficiency of a highly portable, intuitive instrument.
The EPOCH 600 flaw detector’s blend of efficient menus and
direct access keys allows you to take advantage of the highest
quality flaw detection platform with exceptional ease of use.

The large, full VGA transflective display combined with our
patent-pending digital high dynamic range receiver provides a
stable, striking A-scan representation in any lighting condition.
Available in two hardware configurations, the EPOCH 600 offers
you the choice to adjust parameters with a knob or with a naviga­tion area on the keypad. The EPOCH 600 is designed to meet the
requirements of EN12668-1 and allows a full range of standard
and optional flaw detection features. The rugged, ergonomic
design allows use in nearly any inspection environment, while
the flexible PerfectSquare™ pulser and digital filtering capabilities
can tackle nearly any application.

Economy with Quality

The EPOCH 600 combines the efficiency of a basic flaw detector
with the quality of Olympus’ most powerful fully digital ultrasonic
instruments. A full range of dynamic, reliable inspection features
are packaged with economy of size and ease of use. This optimal
balance brings powerful flaw detection features within reach of
any level of inspector.

Key Features

■ Designed to meet the requirements of EN12668-1

■ PerfectSquare

■ Digital high dynamic range receiver

■ Eight digital filters for enhanced signal-to-noise ratio

■ 2 kHz PRF for rapid scanning

■ Knob or navigation pad adjustment configurations

■ Large, full VGA sunlight readable display

■ Long battery life, supporting lithium-ion or alkaline batteries

■ Standard dynamic DAC/TVG and onboard DGS/AVG

■ 2 GB MicroSD memory card for data transfers and storage

■ USB On-The-Go (OTG) for PC communication

■ Alarm and VGA outputs

■ Optional analog output

™

tunable square wave pulser

2

Simple and Durable Operation

The EPOCH 600 design is focused on providing a very high level
of flaw detection with the simplicity of a basic instrument. The
EPOCH 600 is designed to be ergonomic, intuitive, and practical
for both experienced and novice ultrasonic inspectors.

Intuitive User Interface

The EPOCH 600 user interface is based on the industry approved
EPOCH 1000 Series imaging flaw detector. The EPOCH 600 com­bines a simple menu structure for instrument settings, calibration
and software feature adjustment, with the EPOCH brand’s hall­mark direct-access key approach for critical inspection functions
such as gain and gate adjustment, screen freeze, and file save.
Supported in multiple languages, the EPOCH 600 user interface is
intuitive for any level of operator.

Portable Design for All Inspection Environments

The EPOCH 600 is designed for use in nearly any inspection
environment, from bench top testing in a laboratory to extreme
outdoor and hazardous conditions. Designed for IP rating in
either knob (IP66) or navigation pad (IP67) configurations, and
tested to very high environmental and reliability standards,
the EPOCH 600 allows users in any inspection environment
to feel confident in both the performance and durability of
the instrument. The instrument is tested for vibration, shock,
explosive atmosphere, and wide temperature ranges. And with
a battery life to exceed 12 hours, the EPOCH 600 is the perfect
solution for remote inspection locations.

Vibrant Full VGA Display

The EPOCH 600 features a full VGA (640 x 480 pixels) resolu­tion display. The horizontal design of the EPOCH 600 optimizes
the A-scan size and readability on this high quality display. Built
with transflective technology, this VGA display provides excel­lent clarity in indoor, low lighting conditions using its powerful
backlight, as well as in direct sunlight by using the ambient light
as a pseudo-backlight.

3

www.olympus-ims.com

Optimized Access to Powerful Features

The EPOCH 600 provides excellent quality ultrasonic perfor­mance. Based on the same digital architecture as the EPOCH XT,
LTC and EPOCH 1000 Series, the EPOCH 600 provides flexible,
powerful pulsing and receiving features to accommodate the
needs of most flaw detection inspections.

Pulser/Receiver

The EPOCH 600 comes standards with powerful flaw detection
capabilities, such as:

• PerfectSquare

• Digital high dynamic range receiver

• Eight 100% digital filter sets

• Auto or manually adjustable PRF from 10 Hz to 2000 Hz

• Pulser voltage from 100 V to 400 V

• Amplitude resolution to ± 0.25%

• Five customizable digital measurements

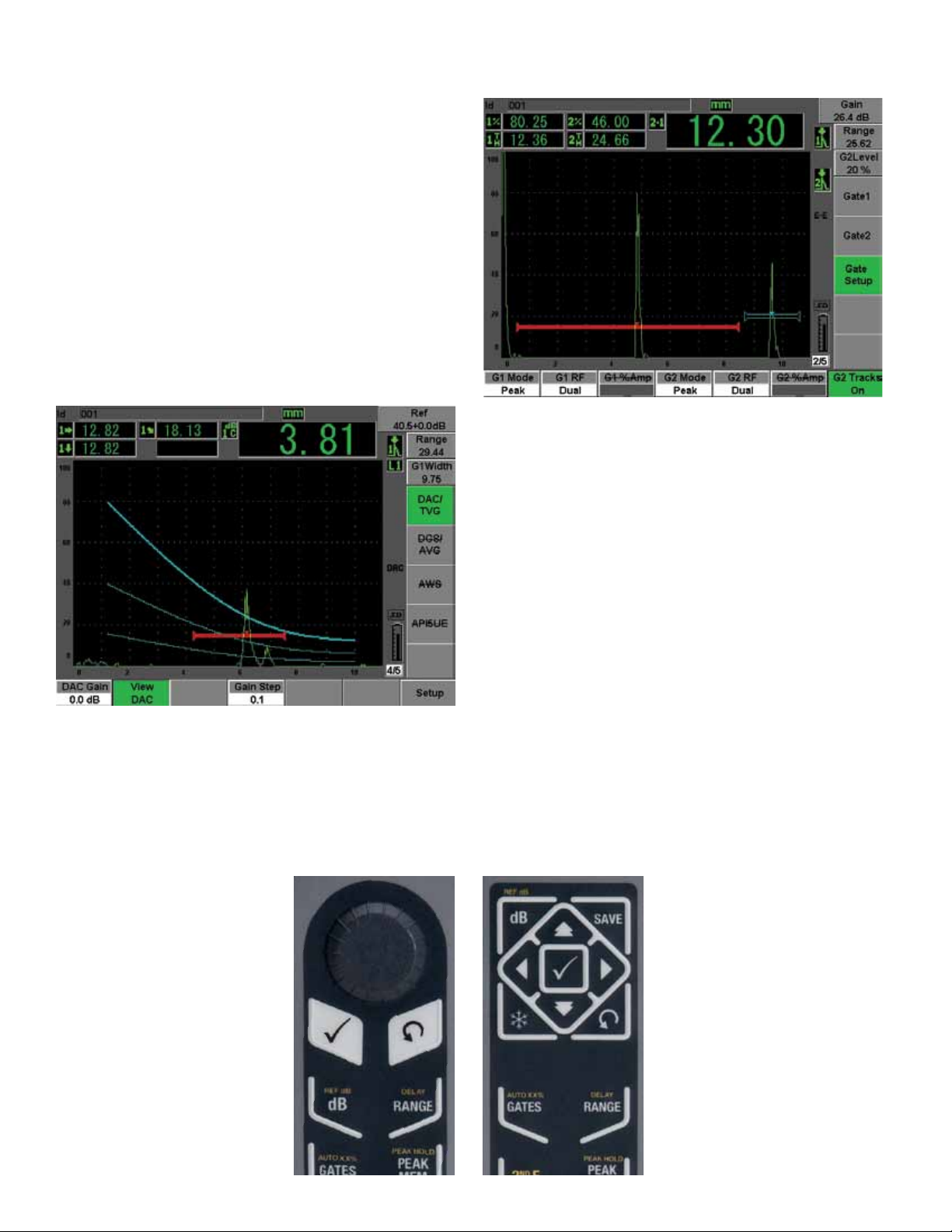

EPOCH 600 Dynamic DAC/TVG Feature

™

tunable square wave pulser

EPOCH 600 Echo to Echo with Gate Tracking

Standard Software Features

Dynamic DAC/TVG: Calculates signal amplitude as a percent­age or decibel level compared to a DAC curve or a reference
echo amplitude fixed at a time-varied gain. DAC versions include
ASME, ASME 3, JIS, and Custom. Also includes several key fea­tures: dynamically adjustable DAC curves, switchable DAC and
TVG views, and custom DAC warning curves.

DGS/AVG: This flaw sizing technique allows echo signals to be
evaluated with a DGS/AVG diagram associated to a particular
type of probe and material. The DGS/AVG diagram illustrates the
relationships between echo height, flaw size, and distance from
the transducer.

Curved surface correction: Corrects sound path information when
using an angle beam transducer to circumferentially inspect a
curved surface for either tubular or bar inspections.

Options for Comfortable Navigation

In order to accommodate different user needs and preferences, the EPOCH 600 is available in
two hardware configurations: one with an adjustment knob and the other with a navigation area
on the keypad. The adjustment knob and the arrow keys on the navigation pad are responsible for
parameter adjustment and value slewing.

Knob

The adjustment knob on the EPOCH
600 is used along with the CHECK
and ESC keys to adjust parameter
values in either coarse or fine incre­ments. You have the ability to lock
the knob to prevent accidental pa­rameter value changes during an in­spection. This configuration provides
smooth value slewing for customers
who prefer adjusting parameters us­ing a knob. The knob configuration
is designed to meet the requirements
of IP66.

4

Navigation Pad

The EPOCH 600 navigation pad is a
hallmark feature of the EPOCH flaw
detectors. The up and down arrows
on the navigation pad are used for
coarse parameter adjustment, and
the left and right arrows for fine
adjustment. The navigation pad also
contains additional functions and
frequently used parameters such as
gain, save, and the CHECK and ESC
keys. The navigation pad configura­tion is designed to meet the require­ments of IP67.

Versatility Through Optional Performance

Optional Software Features

AWS D1.1 and D1.5: Provides a dynamic reflector indication
rating for various AWS weld inspection applications. This allows
more efficient inspections by eliminating manual calculations.

Template Storage: Allows on-screen comparison of a live
waveform with a saved reference waveform. Saved templates can
be dynamically toggled on and off with a single key press for fast
waveform comparison. Gain adjustment feature allows each
saved template a unique base gain for inspections requiring
varying sensitivity levels. Excellent for spotweld analysis and other
applications.

API 5UE: Allows defect sizing according to API Recommended
Practice 5UE. Uses the Amplitude Distance Differential Technique
(ADDT) to measure the size of potential defects during the prove­up process of OCTG pipe. The measurement process is simple
and repeatable since all ADDT variables are captured from a Peak
Memory envelope.

Waveform Averaging: This feature allows the live A-scan view to
represent an average of successively acquired A-scans. Waveform
averaging improves signal-to-noise ratio when static flaws are
detected. Averaging in 2X, 4X, 8X, 16X, and 32X.

Interface Gate

This optional third measurement gate enables real-time tracking
of a variable interface echo in order to maintain consistent digital
measurements.

EPOCH 600 Dynamic DGS/AVG Feature

EPOCH 600 Template Storage Feature

5

www.olympus-ims.com

Data Logging and PC Interfacing

Data Management

The EPOCH 600 allows several methods of storing, archiving and
reporting inspection and calibration data. The instrument features
up to 50,000 points of onboard memory, augmented by an
additional 2 GB of removable memory. It is also fully compatible
with Olympus NDT’s PC interface program, GageView
quick file setup functions and flexible data management, logging
and reporting inspection data is simple and efficient.

™

Pro. With

GageView™ Pro

The EPOCH 600 is fully compatible with our PC interface pro­gram, GageView
measurements on a PC, export measurements and calibration
data to common spreadsheet programs, back up calibration and
inspection data from the instrument, and perform basic operations
such as instrument firmware upgrades and screen captures.

™

Pro. You can download inspection data, review

Data Logger

The EPOCH 600 features on onboard data logger for calibration
and inspection file storage. The instrument comes standard with
two primary files types: calibration (CAL) and incremental (INC)
files. CAL files allows you to save a virtually unlimited number of
parameter setups for fast and easy recall to live settings. INC files
store multiple pieces of inspection data under a single file name
for downloading and reporting by inspection.

The onboard data logger can be enhanced to feature full corro­sion-style data logger file types through the Expanded Datalogger
software option. This option includes the following data file types:
sequential, sequential with custom point, 2-D grid, 2-D grid with
custom point, 3-D grid, boiler, 2-D EPRI.

MicroSD

The EPOCH 600 utilizes 2 GB MicroSD memory cards for both
onboard and removable memory. Through removable memory,
you are able to store screen images in bitmap format for easy
reporting, as well as exporting current or saved measurement and
calibration data in .csv format. A second 2 GB MicroSD card is
mounted to the PC board inside the instrument, and is respon­sible for all onboard data storage. In the event the instrument is
damaged beyond repair, this MicroSD card can be removed at an
authorized service center, allowing the operator to recover critical
data from the damaged instrument.

C

D

B

G

A

6

Portable, Rugged, and Ergonomic

Standard Package

• EPOCH 600 Digital ultrasonic flaw detector, AC or battery

operation

• Charger/AC adapter (100 VAC, 115 VAC, 230 VAC ,

50 Hz or 60 Hz)

• Rechargeable lithium-ion battery

• AA battery tray

• Transport case

• Basic operation user’s manual

• Quick reference card

• Comprehensive operation manual (CD)

F

E

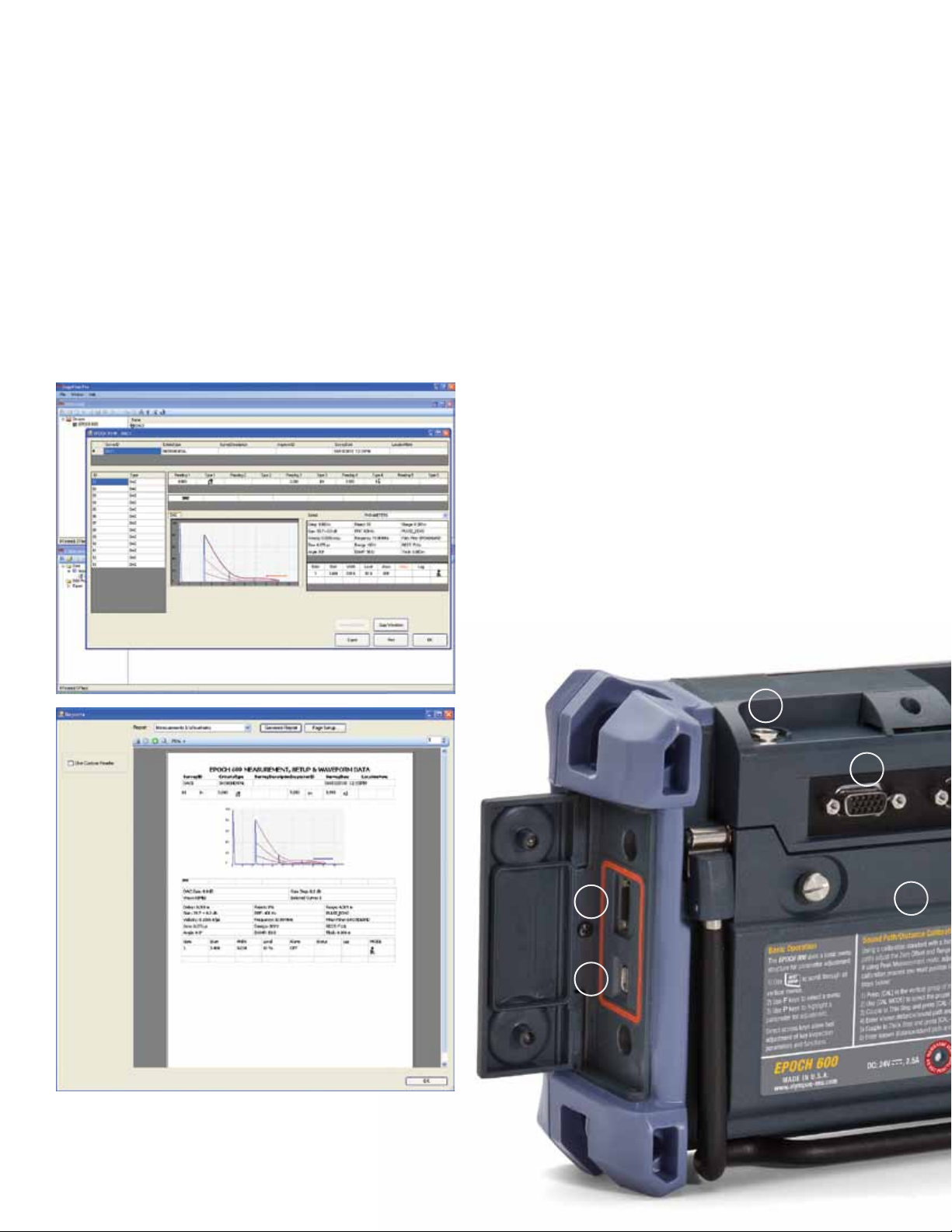

Physical Features – Rear

A – USB On-The-Go port
B – MicroSD card
C – DC power connector
D – VGA port
E – RS-232/Alarm port
F – Transducer connectors (2)
G – Battery door
H – Pipe stand

Physical Features

The EPOCH 600 is a lightweight, portable flaw detector built to
be rugged and flexible for nearly any inspection. Some key physi­cal features include:

• Large, full VGA resolution transflective display for vivid clarity

in any indoor lighting and direct sunlight conditions

• Rubber overmolded bumpers on all four corners for shock

absorption and anti-marring considerations

• Four-point harness connection for chest straps

• “No tools” access to battery compartment and side I/O door

• Continuous position stand with right angle crook for improved

stability from 0 to 180 degrees

• Gasketed side door for USB OTG connection and removable

memory

• Standard internal, rechargeable lithium-ion battery

• Standard AA battery tray for extended portable use

• Lightweight, ergonomic design for increased portability and

ease of use

Instrument Inputs/Outputs

USB ports USB On-The-Go (OTG)

RS-232 port Yes

Video output VGA output standard

Analog output

Digital output 3 alarm outputs, 5 V TTL, 10 mA

Environmental Ratings

IP rating

Explosive atmosphere

Shock tested

Vibration tested

Operating temperature –10 °C to 50 °C (14 °F to 122 °F)

Battery storage temperature 0 °C to 50 °C (32 °F to 122 °F)

1 analog output (optional), Selectable 1 V/10 V Full
Scale, 4 mA max

Designed to meet the standards of the Ingress Protec­tion (IP) rating number IP67 (navigation pad version)
or IP66 (knob version) per IEC 60529-2004 (Degrees
of Protection provided by enclosures – IP Code).
The product design was confirmed to meet the IP
rating by means of Olympus NDT’s internal design
verification test process that occurs prior to the release
of the product to production.

Safe operation as defined by Class I, Division 2,
Group D, as defined in the National Fire Protection
Association Code (NFPA 70), Article 500, and tested
using MIL-STD-810F, Method 511.4, Procedure I.

MIL-STD-810F, Method 516.5 Procedure I,
6 cycles each axis, 15g, 11 ms half sine.

MIL-STD-810F, Method 514.5, Procedure I, Annex C,
Figure 6, general exposure: 1 hour each axis

The EPOCH Flaw Detector Family: The EPOCH flaw detector line
features vertical and horizontal layout instruments that span the

H

range of inspection capabilities from basic to advanced.
The EPOCH 600 and EPOCH 1000 Series flaw detectors feature
horizontal layout instruments for enlarged A-scan and image
representation in a portable format, and provide an exceptionally
high quality of digital flaw detection technology.

7

www.olympus-ims.com

[e-mail]

EPOCH 600 Specifications*

General

Overall dimensions (W x H x D) 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.)
Weight 1.68 kg (3.72 lb), including lithium-ion battery
Keypad English, International, Japanese, Chinese
Languages English, Spanish, French, German, Japanese, Chinese, Portuguese
Transducer connections BNC or Number 1 LEMO
Data storage 50,000 IDs onboard, removable 2 GB MicroSD card (standard)
Battery type Single lithium-ion rechargeable standard
Battery life 12 h to 13 h (lithium-ion), 3 h (alkaline)
Power requirements AC Mains: 100 VAC to120 VAC, 200 VAC to240 VAC, 50 Hz to 60 Hz
Display type Full VGA (640 x 480 pixels) transflective color LCD, 60 Hz update rate
Display dimensions (W x H, Diag.) 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.)

Pulser

Pulser Tunable Square Wave
PRF 10 Hz to 2000 Hz in 10 Hz increments
Energy settings 100 V, 200 V, 300 V or 400 V
Pulse width Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare
Damping 50, 100, 200, 400 Ω

Receiver

Gain 0 to 110 dB
Maximum input signal 20 V p-p
Receiver input impedance 400 Ω ± 5%
Receiver bandwidth 0.2 MHz to 26.5 MHz at –3 dB

Digital filter settings

Rectification Full-wave, Positive Half-wave, Negative Half-wave, RF
System linearity Horizontal : ± 0.2% FSW
Resolution 0.25% FSH, amplifier accuracy ± 1dB
Reject 0 to 80% FSH with Visual Warning
Amplitude measurement 0 to 110% full screen height with 0.25% resolution
Measurement rate Equivalent to PRF in all modes

Eight digital filter sets standard (0.2-10 MHz, 2.0-21.5 MHz, 8.0-26.5 MHz,

0.5-4 MHz, 0.2-1.2 MHz, 1.5-8.5 MHz, 5-15 MHz, DC-10 MHz)

Calibration

Automated calibration

Test modes Pulse Echo, Dual, or Through Transmission
Units Millimeters, inches, or microseconds
Range 3.36 mm to 13,405 mm (0.132 in. to 527 in.) @ 5,900 m/s (0.2320 in./µs)
Velocity 635 m/s to 15240 m/s (0.0250 in./µs to 0.6000 in./µs)
Zero offset 0 to 750 µs
Display delay –59 mm to 13401 mm (–2.323 in. to 527.6 in.) @ longitudinal velocity in steel
Refracted angle 0° to 85° in 0.1° increments

Velocity, Zero Offset
Straight Beam (First Backwall or Echo-to-Echo)
Angle Beam (Soundpath or Depth)

Gates

Measurement gates 2 fully independent gates for amplitude and TOF measurements
Gate start Variable over entire displayed range
Gate width Variable from Gate Start to end of displayed range
Gate height Variable from 2 to 95% full screen height
Alarms Positive and Negative Threshold, Minimum Depth (Gate 1 and Gate 2)

Measurements

Measurement display locations 5 locations available (manual or auto selection)

Gate (1, 2)

Echo-to-Echo Standard Gate 2-Gate 1, Optional IF Gate Tracking

Other measurements

DAC/TVG Standard
DAC points Up to 50 points, 110 dB dynamic range
Special DAC modes Custom DAC (up to 6 curves)
Curved surface correction Standard OD or Bar correction for Angle Beam measurements

Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight,
Min./Max. Depth, Min./Max. Amplitude

Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for
DGS/AVG, AWS D1.1/D1.5 rating (D), Reject Value

™

technology

Software Options

EP600-AWS (U8140147):
AWS D1.1/D1.5 Weld Rating

EP600-TEMPLATE (U8140148):

Template Storage

EP600-API5UE (U8140149):

API 5UE Flaw Sizing

EP600-XDATA (U8140150):

Expanded Data Logger File Types

EP600-AVERAGE (U8140151):

Waveform Averaging

EP600-IG (U8140153):

Interface Gate

Optional Accessories

600-BAT-L (U8760056): Rechargeable
lithium-ion battery

600-BAT-AA (U8780295): AA battery tray

EP4/CH (U8140055): Chest harness

600-TC (U8780294): Transport case

EPLTC-C-USB-A-6 (U8840031):

USB host cable to PC

600-C-RS232-5 (U8780299):

RS232 communication cable

EP1000-C-9OUT-6 (U8779017):

Alarm output cable

600-C-VGA-5 (U8780298):

VGA output cable

MICROSD-ADP-2GB (U8779307):

2 GB MicroSD memory card

48 Woerd Avenue, Waltham, MA 02453, USA, Tel.: [phone]
12569 Gulf Freeway, Houston, TX 77034, USA, Tel.: [phone]

505, boul. du Parc-Technologique, Québec (Québec) G1P 4S9, Tel.: [phone]
1109 78 Ave, Edmonton (Alberta) T6P 1L8

EPOCH600_EN_201204• Printed in the USA • Copyright © 2012 by Olympus NDT.
*All specications are subject to change without notice.
All brands are trademarks or registered trademarks of their respective owners and third party entities.

isISO9001and14001certied.
