ASUS Prime H410M-R Service Manual

PRIME H410M-R

Motherboard

E16888
First Edition

June 2020

Copyright © 2020 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from https://www.asus.com/support/
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location

where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.
Legal Compliance Dept.
1F., No. 15, Lide Rd.,
Beitou Dist., Taipei City 112
Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source

Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [e-mail], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

ii

Contents

Safety information ...................................................................................................... iv

About this guide .......................................................................................................... v

Package contents ....................................................................................................... vi

PRIME H410M-R specifications summary................................................................ vi

Chapter 1 Product Introduction

1.1 Before you proceed ...................................................................................... 1-1

1.2 Motherboard overview ................................................................................. 1-1

1.3 Central Processing Unit (CPU) .................................................................... 1-7

1.4 System memory ............................................................................................ 1-8

Chapter 2 BIOS Information

2.1 Knowing BIOS ...............................................................................................2-1

2.2 BIOS Setup program .................................................................................... 2-2

2.3 ASUS EZ Flash 3 ...........................................................................................2-3

2.4 ASUS CrashFree BIOS 3 .............................................................................. 2-4

Appendix

Notices ..................................................................................................................... A-1

ASUS contact information ...................................................................................... A-6

iii

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.

• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.

• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.

• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.

• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.

• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

iv

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product Introduction

This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.

• Chapter 2: BIOS Information

This chapter tells how to boot into the BIOS and upgrade BIOS using the EZ Flash
Utility.

Where to find more information

Refer to the following sources for additional information and for product and software
updates.

1. ASUS website

The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.

CAUTION: Information to prevent damage to the components and injuries to
yourself when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

v

Package contents

Check your motherboard package for the following items.

Motherboard

Cables

Miscellaneous

Application DVD

Documentation

If any of the above items is damaged or missing, contact your retailer.

1 x PRIME H410M-R motherboard

2 x SATA 6Gb/s cables

1 x I/O Shield

1 x Support DVD

1 x User manual

PRIME H410M-R specifications summary

Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold and

Celeron® Processors*

Supports up to Intel® 65W CPU

CPU

Chipset Intel® H410 Chipset

Memory

Graphics

Expansion Slots

Storage

Ethernet

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max

Technology 3.0**

*Refer to www.asus.com for CPU support list.

®

**Intel

Turbo Boost Max Technology 3.0 support depends on the CPU types.

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC,

Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Prole (XMP)

OptiMem

* For 10th Gen Intel® processors, only Core™ i9/i7 CPUs support 2933/2800/2666/

2400/2133 natively, others will run at the maximum transfer rate of DDR4
2666MHz.

**Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

1 x HDMI™1.4b

1 x D-Sub

1 x DVI-D

*Graphics specifications may vary between CPU types.

Intel® 10th Gen Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

Intel® H410 Chipset

1 x PCIe 3.0 x1 slot

Total supports 4 x SATA 6Gb/s ports
Intel® H410 Chipset

4 x SATA 6Gb/s ports

1 x Realtek RTL8111H 1Gb Ethernet

(continued on the next page)

vi

PRIME H410M-R specifications summary

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

USB

Audio

Back Panel I/O Ports

Internal I/O
Connectors

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC887 7.1 Surround Sound High Denition Audio CODEC*

- Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1

Surround Sound audio output.

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMITM port

1 x D-Sub port

1 x DVI-D port

1 x Realtek RTL8111H 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage related

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x Speaker header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin System Panel header

(continued on the next page)

vii

PRIME H410M-R specifications summary

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core

Special Features

Software
Features

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows 10 - 64 bit

Form Factor

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance and Power Saving Utility

TurboV EVO
EPU

DIGI+ VRM

PC Cleaner

- EZ update

AI Charger

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

mATX Form Factor

8.4 inch x 7.2 inch (21.3 cm x 18.3 cm)

viii

Specications are subject to change without notice.

Product Introduction

16 146912 10

8

15

11

13

1

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change
any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.

• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.

1.2 Motherboard overview

5 1 24

18.3cm(7.2in)

CPU_FAN

DIGI

+VRM

5

EATXPWR

DDR4 DIMM_B1* (64bit, 288-pin module)

DDR4 DIMM_A1* (64bit,288-pin module)

®

Intel
H410

SPEAKER

SATA6G_2SATA6G_1

F_PANEL

U32G1_12

SATA6G_4SATA6G_3

COM_DEBUG

21.3cm(8.4in)

7

6

Place this

side towards

the rear of the

chassis

KBMS

ATX12V

DVI

VGA

ASM
1442K

HDMI

U32G1_34

Realtek
8111H

LGA1200

4

LAN_USB56

CHA_FAN

LPT

AUDIO

3

Super

I/O

COM

ALC
887

3

AAFP

PCIEX1

CHASSIS

BATTERY

CLRTC

USB910

128Mb
BIOS

PCIEX16

TPM

USB78

Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.

ASUS PRIME H410M-R

1-1

1.2.1 Layout contents

PIN 1

1. CPU socket

The motherboard comes with a surface mount Intel® Socket LGA1200 designed for 10th Gen
Intel® CoreTM, Pentium® Gold and Celeron® Processors.

• Supports up to Intel® 65W CPU.

• For more details, refer to Central Processing Unit (CPU).

2. DDR4 DIMM slots

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.

For more details, refer to System memory.

3. Expansion slots

This motherboard supports one PCIe x16 graphic card and one PCIe 3.0 x1 network card,

SCSI card or other card that comply with the PCI Express specication.

4. Fan headers

The Fan headers allow you to connect fans to cool the system.

5. Power connectors

These Power connectors allow you to connect your motherboard to a power supply. The

power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.

Ensure to connect the 4-pin power plug.

FAN IN

FAN PWR

FAN PWM

GND

FAN PWM

FAN IN

FAN PWR

GND

For a fully congured system, we recommend that you use a power supply unit (PSU) that
complies with ATX 12V Specication 2.0 (or later version) and provides a minimum power

of 350 W.

• We recommend that you use a PSU with a higher power output when conguring a

system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.

• If you are uncertain about the minimum power supply requirement for your system, we
recommend you to refer to online resources for Power Supply Wattage Calculator.

6. SATA 6Gb/s ports

The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and
hard disk drives via a SATA cable.

7. USB 3.2 Gen 1 header

The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen
1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
header provides data transfer speeds of up to 5 Gb/s.

1-2

The USB 3.2 Gen 1 module is purchased separately.

USB3+5V

IntA_P2_SSRX-

IntA_P2_SSRX+

IntA_P2_SSTX-

IntA_P2_SSTX+

IntA_P2_D-

IntA_P2_D+

Chapter 1: Product introduction

USB3+5V
IntA_P1_SSRX­IntA_P1_SSRX+
GND
IntA_P1_SSTX-

GND

IntA_P1_SSTX+
GND
IntA_P1_D-

GND

IntA_P1_D+
GND

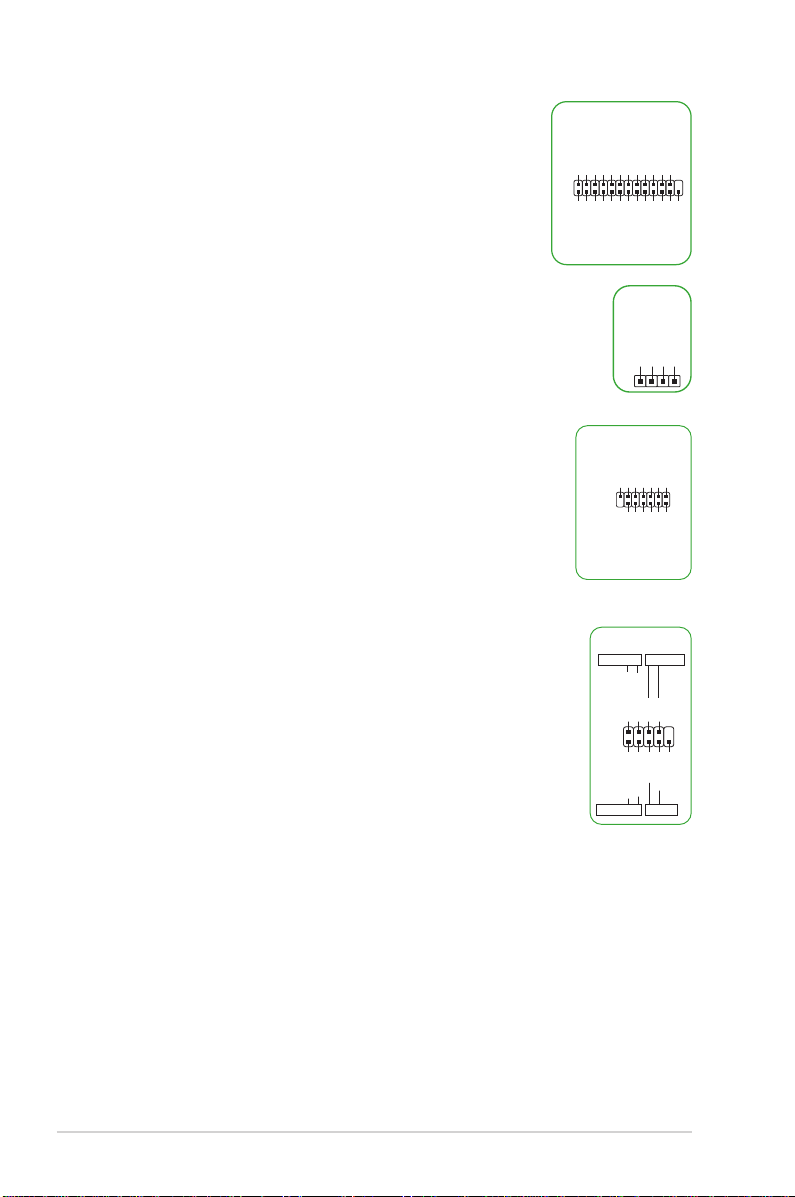

8. USB 2.0 headers

PIN 1

PIN 1

COM

DCD

TXD

GND

RTS

RI

RXD

DTR

DSR

CTS

AAFP

AGNDNCSENSE1_RETUR

SENSE2_RETUR

PORT1 L

PORT1 R

PORT2 R

SENSE_SEND

PORT2 L

HD-audio-compliant

pin definition

+5VSB_MB

Chassis Signal

GND

CHASSIS

The USB 2.0 headers allow you to connect USB modules for additional USB

2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480
Mb/s.

DO NOT connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!

The USB 2.0 module is purchased separately.

USB+5V

USB_P1-

USB_P1+

GND

NC

PIN 1

GND

USB+5V

USB_P2-

USB_P2+

9. Chassis intrusion header (4-1 pin CHASSIS)

This header is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector. The chassis intrusion sensor or switch sends a high-level signal to
this connector when a chassis component is removed or replaced. The signal
is then generated as a chassis intrusion event.

By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a
jumper cap. Remove the jumper caps only when you intend to use the chassis
intrusion detection feature.

10. Clear CMOS header

This header allows you to clear the CMOS RTC RAM data of the system setup
information such as date, time, and system passwords.

CLRTC

To erase the RTC RAM:

+3V_BAT

1. Turn OFF the computer and unplug the power cord.

GND

2. Use a metal object such as a screwdriver to short the two pins.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS Setup to re-

enter data.

If the steps above do not help, remove the onboard battery and short the two pins again to
clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

11. COM Port header

This header is for a serial (COM) port. Connect the serial port module cable
to this header, then install the module to a slot opening at the back of the
system chassis.

12. Front panel audio header

This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio
I/O module cable to this header.

• We recommend that you connect a high-denition front panel

audio module to this header to avail of the motherboard’s high-

denition audio capability.

• If you want to connect a high-denition front panel audio module

ASUS PRIME H410M-R

to this header, set the Front Panel Type item in the BIOS Setup
to [HD Audio]. By default, this header is set to [HD Audio].

1-3

13. LPT header

PIN 1

O_LPT_XSTB#_R

O_LPT_XPD0_R

O_LPT_XPD1_R

O_LPT_XPD2_R

O_LPT_XPD3_R

O_LPT_XPD4_R

O_LPT_XPD5_R

O_LPT_XPD6_R

O_LPT_XPD7_R

O_LPT_ACK#_R

O_LPT_BUSY_R

O_LPT_PE_R

O_LPT_SLCT_R

O_LPT_XAFD#_R

O_LPT_ERROR#_R

O_LPT_XINIT#_R

O_LPT_XSLIN#_R

GND

GND

GND

GND

GND

GND

GND

GND

TPM

PIN 1

T_SPI_MOSI

T_SPI_CLK

GND

F_BIOS_WP#_R

S_SPI_TPM_CS2#

S_SPI_TPM_IRQ#

F_SPI_HOLD#_R

T_SPI_MISO

F_SPI_CS0#_R

+3V_SPI

F2_SPI_CS1#_R

S_PLTRST#

VCCSPI

The LPT (Line Printing Terminal) header supports devices such as
a printer. LPT standardizes as IEEE 1284, which is the parallel port
interface on IBM PC-compatible computers.

14. Speaker header

SPEAKER

The 4-pin header is for the chassis-mounted system warning speaker. The
speaker allows you hear system beeps and warnings.

PIN 1

15. SPI TPM header

This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys,

digital certicates, passwords, and data. A TPM system also helps

enhance network security, protects digital identities, and ensures platform
integrity.

16. 10-1 pin System Panel header

This header supports several chassis-mounted functions.

• System power LED (2-pin +PWR_LED-)

F_PANEL

+PWR_LED-

This 2-pin header is for the system power LED. Connect the chassis
power LED cable to this header. The system power LED lights up
when you turn on the system power, and blinks when the system is in
sleep mode.

PWR_LED+

PIN 1

• Hard disk drive activity LED (2-pin +HDD_LED-)

This 2-pin header is for the HDD Activity LED. Connect the HDD
Activity LED cable to this header. The HDD LED lights up or flashes

HDD_LED+

+HDD_LED- RESET

when data is read from or written to the HDD.

• Power button/Soft-off button (2-pin PWR_BTN)

This header is for the system power button.

• Reset button (2-pin RESET)

This 2-pin header is for the chassis-mounted reset button for system reboot without
turning off the system power.

+5V

GND

GND

PWR_BTN

PWR_LED-

PWR

GND

Ground

HWRST#

HDD_LED-

Speaker Out

(NC)

1-4

Chapter 1: Product introduction

1.2.2 Rear panel connectors

7 10 11

98

1 2

1. PS/2 Mouse (green) port. This port is for a PS/2 mouse.

2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

3. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus (USB) ports

connect to USB 3.2 Gen 1 devices.

4. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub. Refer to the table below for the Ethernet port LED indications.

Ethernet port LED indications

Activity/Link LED Speed LED
Status Description Status Description

Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange (Blinking) Data activity GREEN 1Gbps connection
Orange (Blinking

then steady)

Ready to wake
up from S5 mode

3 4 5 6

Activity Link

LED

Ethernet port

Speed

LED

5. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio

sources.

6. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel,

5.1-channel, and 7.1-channel congurations, the function of this port becomes Front

Speaker Out.

7. PS/2 keyboard (purple) port. This port is for a PS/2 keyboard.

8. DVI-D port. This port is for any DVI-D compatible device.

DVI-D can not be converted to output from RGB Signal to CRT and is not compatible with
DVI-I.

9. HDMITM port. This port is for a High-Denition Multimedia Interface (HDMITM)

connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other
protected content.

10. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0 devices.

ASUS PRIME H410M-R

1-5

11. Microphone port (pink). This port connects a microphone.

Refer to the audio conguration table for the function of the audio ports in 2, 4, 5.1, or

7.1-channel conguration.

Audio 2, 4, 5.1 or 7.1-channel configuration

Port

Light Blue

(Rear panel)

Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center

Lime (Front panel) — — — Side Speaker Out

To configure a 7.1-channel audio output:

Use a chassis with HD audio module in the front panel to support a 7.1-channel audio

Headset

2-channel

Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out

output.

4-channel 5.1-channel 7.1-channel

1-6

Chapter 1: Product introduction

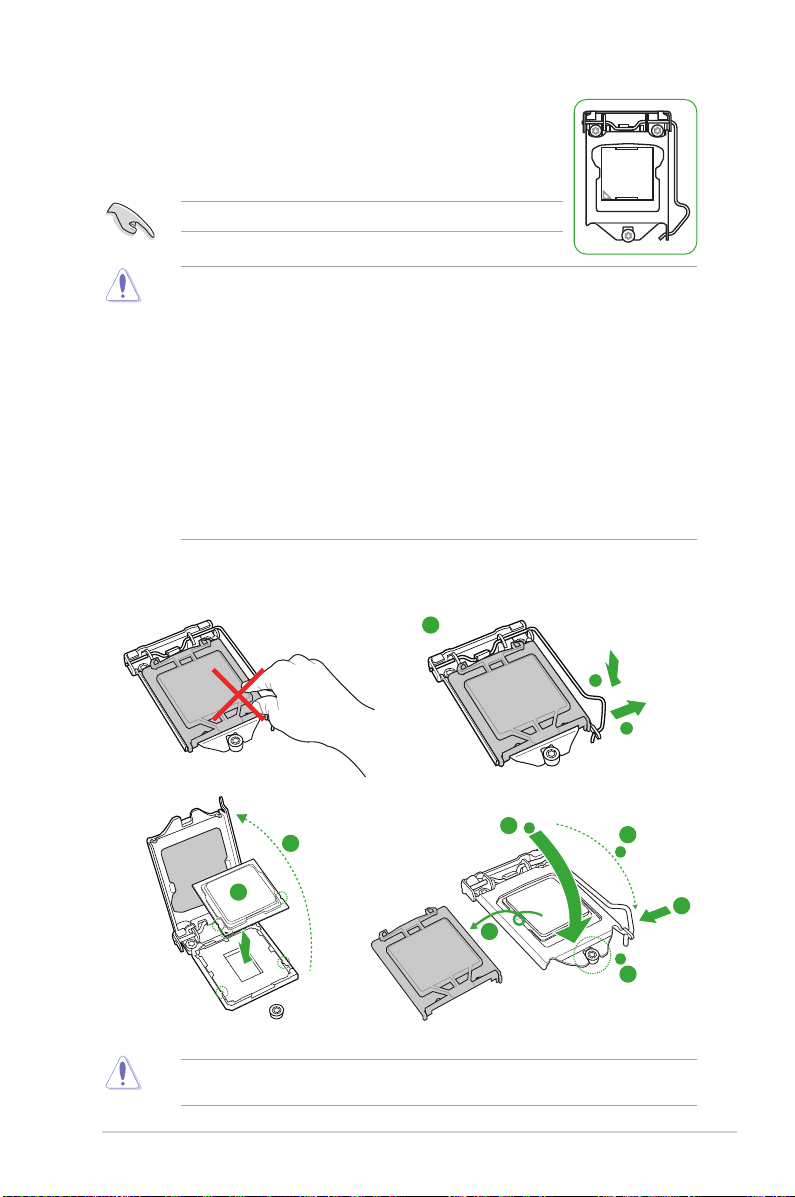

1.3 Central Processing Unit (CPU)

This motherboard comes with a surface mount Intel® Socket LGA1200
designed for 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors.

Unplug all power cables before installing the CPU.

• Supports up to Intel® 65W CPU.

• Ensure that you install the correct CPU designed for the LGA1200 socket only. DO
NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets
on the LGA1200 socket.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1200 socket.

• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

Installing the CPU

1

3

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.

ASUS PRIME H410M-R

A

B

4

2

A

4

C

5

D

5

B

4

1-7

1.4 System memory

DIMM_B1*

DIMM_A1*

DIMM_A1*

DIMM_B1*

DIMM_B1*

DIMM_A1*

This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory Module

(DIMM) sockets. The gure illustrates the location of the DDR4 DIMM sockets:

Channel Sockets

Channel A DIMM_A1*

• You may install varying memory sizes in Channel A and Channel B. The system

maps the total size of the lower-sized channel for the dual-channel conguration. Any

excess memory from the higher-sized channel is then mapped for single-channel
operation.

• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.

• For 10th Gen Intel® processors, only Core™ i9/i7 CPUs support 2933/2800/2666/2400/
2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.

• For system stability, use a more efcient memory cooling system to support a full

memory load (2 DIMMs).

• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).

Recommended memory configurations

Channel B DIMM_B1*

1-8

Chapter 1: Product introduction

Installing a DIMM

1 2

To remove a DIMM

A

B

A

A

B

ASUS PRIME H410M-R

1-9

1-10

Chapter 1: Product introduction

BIOS Information

2

2.1 Knowing BIOS

The new ASUS UEFI BIOS is a Unied Extensible Interface that complies with UEFI
architecture, offering a user-friendly interface that goes beyond the traditional keyboard­only BIOS controls to enable a more flexible and convenient mouse input. You can easily
navigate the new UEFI BIOS with the same smoothness as your operating system. The
term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specied.

BIOS (Basic Input and Output System) stores system hardware settings such as storage
device conguration, overclocking settings, advanced power management, and boot
device conguration that are needed for system startup in the motherboard CMOS. In
normal circumstances, the default BIOS settings apply to most conditions to ensure
optimal performance. DO NOT change the default BIOS settings except in the following
circumstances:

• An error message appears on the screen during the system bootup and requests you

to run the BIOS Setup.

• You have installed a new system component that requires further BIOS settings or

update.

Inappropriate BIOS settings may result to instability or boot failure. We strongly

recommend that you change the BIOS settings only with the help of a trained service
personnel.

• When downloading or updating the BIOS le, rename it as PH410MR.CAP for this

motherboard.

• BIOS settings and options may vary due to different BIOS release versions. Please
refer to the latest BIOS version for settings and options.

For more information on BIOS congurations, please refer to
https://www.asus.com/support, or download the BIOS manual
by scanning the QR code.

ASUS PRIME H410M-R

2-1

2.2 BIOS Setup program

Use the BIOS Setup to update the BIOS or congure its parameters. The BIOS screens
include navigation keys and brief onscreen help to guide you in using the BIOS Setup
program.

Entering BIOS at startup

To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test
(POST). If you do not press <Delete> or <F2>, POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press <Ctrl>+<Alt>+<Delete> simultaneously.

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.

After doing either of the three options, press <Delete> key to enter BIOS.

• Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS Setup program.

• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey <F5>.

• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value.

• The BIOS Setup program does not support Bluetooth devices.

BIOS menu screen

The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from Setup Mode in Boot menu or by pressing the <F7> hotkey.

2-2

Chapter 2: BIOS information

2.3 ASUS EZ Flash 3

The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based
utility.

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select
the Load Optimized Defaults item under the Exit menu or press hotkey <F5>.

To update the BIOS by USB:

• This function can support devices such as a USB flash disk with FAT 32/16 format and
single partition only.

• DO NOT shut down or reset the system while updating the BIOS to prevent system
boot failure!

1. Insert the USB flash disk that contains the latest BIOS le to the USB port.

2. Enter the Advanced Mode of the BIOS Setup program. Go to the Tool menu to select
ASUS EZ Flash 3 Utility and press <Enter>.

3. Select via Storage Device(s).

4. Press <Tab> to switch to the Drive eld.

5. Press the Up/Down arrow keys to nd the USB flash disk that contains the latest BIOS,
and then press <Enter>.

6. Press <Tab> to switch to the Folder eld.

7. Press the Up/Down arrow keys to nd the BIOS le, and then press <Enter> to perform
the BIOS update process. Reboot the system when the update process is done.

ASUS PRIME H410M-R

2-3

2.4 ASUS CrashFree BIOS 3

The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the
BIOS le when it fails or gets corrupted during the updating process. You can restore a
corrupted BIOS le using the motherboard support DVD or a USB flash drive that contains
the BIOS le.

The BIOS le in the motherboard support DVD may be older than the BIOS le published
on the ASUS ofcial website. If you want to use the newer BIOS le, download the le at
https://www.asus.com/support/ and save it to a USB flash drive.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the motherboard support DVD to the optical drive, or the USB flash drive
containing the BIOS le to the USB port.

3. The utility automatically checks the devices for the BIOS le. When found, the utility
reads the BIOS le and enters ASUS EZ Flash 3 automatically.

4. The system requires you to enter BIOS Setup to recover the BIOS setting. To ensure
system compatibility and stability, we recommend that you press <F5> to load default
BIOS values.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!

2-4

Chapter 2: BIOS information

Appendix

Notices

FCC Compliance Information

Responsible Party: Asus Computer International

Address: 48720 Kato Rd., Fremont, CA 94538, USA

Phone / Fax No: [phone] / [phone]

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.

ASUS PRIME H410M-R

A-1

Compliance Statement of Innovation, Science and Economic
Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence
exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

Déclaration de conformité de Innovation, Sciences et
Développement économique Canada (ISED)

Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.

CAN ICES-3(B)/NMB-3(B)

VCCI: Japan Compliance Statement

Class B ITE

KC: Korea Warning Statement

A-2

Appendices

Google™ License Terms

Copyright© 2020 Google Inc. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the “License”); you may not use this le

except in compliance with the License. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the
License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF
ANY KIND, either express or implied.

See the License for the specic language governing permissions and limitations under the

License.

Declaration of compliance for product environmental
regulation

ASUS follows the green design concept to design and manufacture our products, and
makes sure that each stage of the product life cycle of ASUS product is in line with global
environmental regulations. In addition, ASUS disclose the relevant information based on
regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on
regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.

EU RoHS

This product complies with the EU RoHS Directive. For more details, see
http://csr.asus.com/english/article.aspx?id=35

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits
use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and
polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in
homogenous materials and 0.01% by weight in homogenous materials for cadmium, except
for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of
the Vietnam Circular 30/2011/TT-BCT.

Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng
các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.

Turkey RoHS

AEEE Yönetmeliğine Uygundur

ASUS PRIME H410M-R

A-3

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling
information in different regions.

DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.

Regional notice for California

WARNING

Cancer and Reproductive Harm ­www.P65Warnings.ca.gov

A-4

Appendices

English ASUSTeK Computer Inc. hereby declares that this device is in
compliance with the essential requirements and other relevant provisions of
related Directives. Full text of EU declaration of conformity is available at:
www.asus.com/support

Français AsusTek Computer Inc. déclare par la présente que cet appareil est
conforme aux critères essentiels et autres clauses pertinentes des directives
concernées. La déclaration de conformité de l’UE peut être téléchargée à
partir du site Internet suivant : www.asus.com/support

Deutsch ASUSTeK Computer Inc. erklärt hiermit, dass dieses Gerät mit
den wesentlichen Anforderungen und anderen relevanten Bestimmungen
der zugehörigen Richtlinien übereinstimmt. Der gesamte Text der EU­Konformitätserklärung ist verfügbar unter: www.asus.com/support

Italiano ASUSTeK Computer Inc. con la presente dichiara che questo
dispositivo è conforme ai requisiti essenziali e alle altre disposizioni
pertinenti con le direttive correlate. Il testo completo della dichiarazione di
conformità UE è disponibile all’indirizzo: www.asus.com/support

Русский Компания ASUS заявляет, что это устройство соответствует
основным требованиям и другим соответствующим условиям
соответствующих директив. Подробную информацию, пожалуйста,
смотрите на www.asus.com/support

Български С настоящото ASUSTeK Computer Inc. декларира, че това
устройство е в съответствие със съществените изисквания и другите
приложими постановления на свързаните директиви. Пълният текст на
декларацията за съответствие на ЕС е достъпна на адрес:

www.asus.com/support
Hrvatski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj sukladan

s bitnim zahtjevima i ostalim odgovarajućim odredbama vezanih direktiva.
Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support

Čeština Společnost ASUSTeK Computer Inc. tímto prohlašuje, že
toto zařízení splňuje základní požadavky a další příslušná ustanovení
souvisejících směrnic. Plné znění prohlášení o shodě EU je k dispozici na
adrese: www.asus.com/support

Dansk ASUSTeK Computer Inc. erklærer hermed, at denne enhed er i
overensstemmelse med hovedkravene og andre relevante bestemmelser i
de relaterede direktiver. Hele EU-overensstemmelseserklæringen kan ndes
på: www.asus.com/support

Nederlands ASUSTeK Computer Inc. verklaart hierbij dat dit apparaat
voldoet aan de essentiële vereisten en andere relevante bepalingen van
de verwante richtlijnen. De volledige tekst van de EU-verklaring van
conformiteit is beschikbaar op: www.asus.com/support

Eesti Käesolevaga kinnitab ASUSTeK Computer Inc, et see seade vastab
asjakohaste direktiivide oluliste nõuetele ja teistele asjassepuutuvatele
sätetele. EL vastavusdeklaratsiooni täielik tekst on saadaval järgmisel
aadressil: www.asus.com/support

Suomi ASUSTeK Computer Inc. ilmoittaa täten, että tämä laite on
asiaankuuluvien direktiivien olennaisten vaatimusten ja muiden tätä
koskevien säädösten mukainen. EU-yhdenmukaisuusilmoituksen koko teksti
on luettavissa osoitteessa: www.asus.com/support

Ελληνικά Με το παρόν, η AsusTek Computer Inc. δηλώνει ότι αυτή
η συσκευή συμμορφώνεται με τις θεμελιώδεις απαιτήσεις και άλλες
σχετικές διατάξεις των Οδηγιών της ΕΕ. Το πλήρες κείμενο της δήλωσης
συμβατότητας είναι διαθέσιμο στη διεύθυνση: www.asus.com/support

Magyar Az ASUSTeK Computer Inc. ezennel kijelenti, hogy ez az eszköz
megfelel a kapcsolódó Irányelvek lényeges követelményeinek és egyéb
vonatkozó rendelkezéseinek. Az EU megfelelőségi nyilatkozat teljes szövege
innen letölthető: www.asus.com/support

Latviski ASUSTeK Computer Inc. ar šo paziņo, ka šī ierīce atbilst saistīto
Direktīvu būtiskajām prasībām un citiem citiem saistošajiem nosacījumiem.
Pilns ES atbilstības paziņojuma teksts pieejams šeit: www.asus.com/support

Lietuvių „ASUSTeK Computer Inc.“ šiuo tvirtina, kad šis įrenginys atitinka
pagrindinius reikalavimus ir kitas svarbias susijusių direktyvų nuostatas. Visą
ES atitikties deklaracijos tekstą galima rasti: www.asus.com/support

Norsk ASUSTeK Computer Inc. erklærer herved at denne enheten er i
samsvar med hovedsaklige krav og andre relevante forskrifter i relaterte
direktiver. Fullstendig tekst for EU-samsvarserklæringen nnes på:
www.asus.com/support

Polski Firma ASUSTeK Computer Inc. niniejszym oświadcza, że
urządzenie to jest zgodne z zasadniczymi wymogami i innymi właściwymi
postanowieniami powiązanych dyrektyw. Pełny tekst deklaracji zgodności
UE jest dostępny pod adresem: www.asus.com/support

Português A ASUSTeK Computer Inc. declara que este dispositivo está em
conformidade com os requisitos essenciais e outras disposições relevantes
das Diretivas relacionadas. Texto integral da declaração da UE disponível em:
www.asus.com/support

Română ASUSTeK Computer Inc. declară că acest dispozitiv se conformează
cerinţelor esenţiale şi altor prevederi relevante ale directivelor conexe. Textul
complet al declaraţiei de conformitate a Uniunii Europene se găseşte la:
www.asus.com/support

Srpski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj u saglasnosti
sa osnovnim zahtevima i drugim relevantnim odredbama povezanih Direktiva.
Pun tekst EU deklaracije o usaglašenosti je dostupan da adresi:
www.asus.com/support

Slovensky Spoločnosť ASUSTeK Computer Inc. týmto vyhlasuje, že toto
zariadenie vyhovuje základným požiadavkám a ostatým príslušným
ustanoveniam príslušných smerníc. Celý text vyhlásenia o zhode pre štáty EÚ
je dostupný na adrese: www.asus.com/support

Slovenščina ASUSTeK Computer Inc. izjavlja, da je ta naprava skladna z
bistvenimi zahtevami in drugimi ustreznimi določbami povezanih direktiv.
Celotno besedilo EU-izjave o skladnosti je na voljo na spletnem mestu:
www.asus.com/support

Español Por la presente, ASUSTeK Computer Inc. declara que este dispositivo
cumple los requisitos básicos y otras disposiciones pertinentes de las
directivas relacionadas. El texto completo de la declaración de la UE de
conformidad está disponible en: www.asus.com/support

Svenska ASUSTeK Computer Inc. förklarar härmed att denna
enhet överensstämmer med de grundläggande kraven och andra
relevanta föreskrifter i relaterade direktiv. Fulltext av EU-försäkran om
överensstämmelse nns på: www.asus.com/support

Українська ASUSTeK Computer Inc. заявляє, що цей пристрій відповідає
основним вимогам та іншим відповідним положенням відповідних
Директив. Повний текст декларації відповідності стандартам ЄС доступний
на: www.asus.com/support

Türk çe AsusTek Computer Inc., bu aygıtın temel gereksinimlerle ve ilişkili
Yönergelerin diğer ilgili koşullarıyla uyumlu olduğunu beyan eder. AB
uygunluk bildiriminin tam metni şu adreste bulunabilir:
www.asus.com/support

Bosanski ASUSTeK Computer Inc. ovim izjavljuje da je ovaj uređaj usklađen
sa bitnim zahtjevima i ostalim odgovarajućim odredbama vezanih direktiva.
Cijeli tekst EU izjave o usklađenosti dostupan je na: www.asus.com/support

ASUS PRIME H410M-R

A-5

ASUS contact information

ASUSTeK COMPUTER INC.

Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan
Telephone [phone]
Fax [phone]
Web site https://www.asus.com

Technical Support

Telephone [phone]
Online support https://qr.asus.com/techserv

ASUS COMPUTER INTERNATIONAL (America)

Address 48720 Kato Rd., Fremont, CA 94538, USA
Telephone [phone]
Fax [phone]
Web site https://www.asus.com/us/

Technical Support

Support fax [phone]
Telephone [phone]
Online support https://qr.asus.com/techserv

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkortstrasse 21-23, 40880 Ratingen, Germany
Web site https://www.asus.com/de
Online contact https://www.asus.com/support/Product/ContactUs/

Services/questionform/?lang=de-de

Technical Support

Telephone (DE) [phone]
Telephone (AT) [phone]
Online support https://www.asus.com/de/support

A-6

Appendices
