Asrock Z590M Phantom Gaming 4 Quick Installation Guide

Version 1.0
Published January 2021
Copyright©2021 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel

: [phone] ext.123 (Standard International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

INTEL END USER SOFTWARE LICENSE AGREEMENT

IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.

LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Soware
only in its unmodied and binary form, (with the accompanying documentation, the
“Soware”) for Licensee’s personal use only, and not commercial use, in connection with
Intel-based products for which the Soware has been provided, subject to the following
conditions:

(a) Licensee may not disclose, distribute or transfer any part of the Soware, and You agree
to prevent unauthorized copying of the Soware.

(b) Licensee may not reverse engineer, decompile, or disassemble the Soware.

(c) Licensee may not sublicense the Soware.

(d) e Soware may contain the soware and other intellectual property of third party
suppliers, some of which may be identied in, and licensed in accordance with, an enclosed
license.txt le or other text or le.

(e) Intel has no obligation to provide any support, technical assistance or updates for the
Soware.

OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Soware
remains with Intel or its licensors or suppliers. e Soware is copyrighted and protected
by the laws of the United States and other countries, and international treaty provisions.
Licensee may not remove any copyright notices from the Soware. Except as otherwise
expressly provided above, Intel grants no express or implied right under Intel patents,
copyrights, trademarks, or other intellectual property rights. Transfer of the license termi­nates Licensee’s right to use the Soware.

DISCLAIMER OF WARRANTY. e Soware is provided “AS IS” without warranty of
any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PUR­POSE.

LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS
WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG

ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN
IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LICENSE TO USE COMMENTS AND SUGGESTIONS. is Agreement does NOT
obligate Licensee to provide Intel with comments or suggestions regarding the Soware.
However, if Licensee provides Intel with comments or suggestions for the modication,
correction, improvement or enhancement of (a) the Soware or (b) Intel products or
processes that work with the Soware, Licensee grants to Intel a non-exclusive, worldwide,
perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under
Licensee’s intellectual property rights, to incorporate or otherwise utilize those comments
and suggestions.

TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license
at any time if Licensee is in breach of any of its terms or conditions. Upon termination,
Licensee will immediately destroy or return to Intel all copies of the Soware.

THIRD PARTY BENEFICIARY. Intel is an intended beneciary of the End User License
Agreement and has the right to enforce all of its terms.

U.S. GOVERNMENT RESTRICTED RIGHTS. e Soware is a commercial item (as
dened in 48 C.F.R. 2.101) consisting of commercial computer soware and commercial
computer soware documentation (as those terms are used in 48 C.F.R. 12.212), consistent
with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide
the Soware to the U.S. Government. Contractor or Manufacturer is Intel Corporation,
2200 Mission College Blvd., Santa Clara, CA 95054.

EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee’s subsidiaries will
export/re-export the Soware, directly or indirectly, to any country for which the U.S.
Department of Commerce or any other agency or department of the U.S. Government
or the foreign government from where it is shipping requires an export license, or other
governmental approval, without rst obtaining any such required license or approval. In
the event the Soware is exported from the U.S.A. or re-exported from a foreign destina­tion by Licensee, Licensee will ensure that the distribution and export/re-export or import
of the Soware complies with all laws, regulations, orders, or other restrictions of the U.S.
Export Administration Regulations and the appropriate foreign government.

APPLICABLE LAWS. is Agreement and any dispute arising out of or relating to it will
be governed by the laws of the U.S.A. and Delaware, without regard to conict of laws
principles. e Parties to this Agreement exclude the application of the United Nations
Convention on Contracts for the International Sale of Goods (1980). e state and federal
courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising
out of or relating to this Agreement. e Parties consent to personal jurisdiction and venue
in those courts. A Party that obtains a judgment against the other Party in the courts iden­tied in this section may enforce that judgment in any court that has jurisdiction over the
Parties.

Licensee’s specic rights may vary from country to country.

Motherboard Layout

Intel

Z590

ATXP WR 1

4

CPU_FAN1

5

1

PCIE1

15

16

19

CMOS

Battery

DDR4 _A2 (64 b it, 288 -pin mo dule)

DDR4 _A1 (64 b it, 288 -pin mo dule)

DDR4 _B2 (64 b it, 288 -pin mo dule)

DDR4 _B1 (64 b it, 288 -pin mo dule)

7

6

ATX12V1

13

14

12

1

HD_AUDIO1

Top:
RJ-45

HDM I1

PCIE3

9

10

3

11

SATA3_1

CHA_FAN2/WP

CPU_FAN2/WP

USB3_4

SATA3_0

18

28

PCIE2

1

USB3_7_ 8

30

1

USB 3.2 Gen1
T: USB3_3
B: USB3_4

USB 3.2 Gen1
T: USB3_1
B: USB3_2

M2_3

ATX12V2

2

RGB_LED2

1

ADDR_LED2

8

SPI_TPM_J1

17

CHA_FAN3/WP

ADDR_LED1

1

RGB_LED1

1

CHA_FAN4/WP

2526

27

USB1_2

23

M2_2

M2_1

1

1

USB 3.2 Gen2
T: USB31_TA_1
B: USB31_TA_2

SATA3_2

SATA3_3

BIOS
ROM

LAN

AUDIO
CODEC

22

HDLED RESET

PLED PWRBTN

1

1

1

CHA_FAN1/WP

PANEL1

24

T B1

1

29

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

USB3_5_6

1

CPU

DRAM

VGA

BOOT

21

1

20

CLRMOS1

SPK_CI1

RoHS

PH A NT O M G AM I NG 4

Z5 9 0M

Z590M Phantom Gaming 4

English

1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 ATX 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

7 RGB LED Header (RGB_LED2)

8 Addressable LED Header (ADDR_LED2)

9 ATX Power Connector (ATXPWR1)

10 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

11 SATA3 Connector (SATA3_0)

12 SATA3 Connector (SATA3_1)

13 USB 3.2 Gen1 Header (USB3_7_8)

14 SATA3 Connector (SATA3_2)(Upper)

15 SATA3 Connector (SATA3_3)(Lower)

16 System Panel Header (PANEL1)

17 Chassis Intrusion and Speaker Header (SPK_CI1)

18 SPI TPM Header (SPI_TPM_J1)

19 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

20 Clear CMOS Jumper (CLRMOS1)

21 Post Status Checker (PSC)

22 USB 3.2 Gen1 Header (USB3_5_6)

23 USB 2.0 Header (USB3_4)

24 USB 2.0 Header (USB1_2)

25 Addressable LED Header (ADDR_LED1)

26 RGB LED Header (RGB_LED1)

27 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

28 Front Panel Audio Header (HD_AUDIO1)

29 underbolt AIC Connector (TB1)

30 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

2

I/O Panel

Z590M Phantom Gaming 4

2

1

3

8

6

5

47

No. Description No. Description

1 LAN RJ-45 Port* 5 USB 3.2 Gen2 Ports (USB31_TA_1_2)

2 Line In (Light Blue)** 6 USB 3.2 Gen1 Ports (USB3_3_4)

3 Front Speaker (Lime)** 7 USB 3.2 Gen1 Ports (USB3_1_2)

4 Microphone (Pink)** 8 HDMI Port

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English

3

Chapter 1 Introduction

ank you for purchasing ASRock Z590M Phantom Gaming 4 motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the upd ated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Z590M Phantom Gaming 4 Motherboard (Micro ATX Form Factor)

•

ASRock Z590M Phantom Gaming 4 Quick Installation Guide

•

ASRock Z590M Phantom Gaming 4 Support CD

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

3 x Screws for M.2 Sockets (Optional)

•

1 x I/O Panel Shield

•

English

4

1.2 Specications

Platform

CPU

Chipset

Memory

•

•

•

•

•

•

•

•

•

•

•

•

* 11th Gen Intel® CoreTM (i9/i7/i5) support DDR4 up to 2933;
CoreTM (i3), Pentium® and Celeron® support DDR4 up to 2666.
* 10th Gen Intel® CoreTM (i9/i7) support DDR4 up to 2933; CoreTM
(i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)

•

•

•

Z590M Phantom Gaming 4

Micro ATX Form Factor
Solid Capacitor design

Suppor ts 10th Gen Intel® CoreTM Processors and 11th Gen
Intel® CoreTM Processors (LGA1200)
Digi Power design
8 Power Phase design
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® K-Series unlocked CPUs

Intel® Z590

Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots

11th Gen Intel® CoreTM Processors support DDR4 non-ECC,
un-buered memory up to 4800+(OC)*
10th Gen Intel® CoreTM Processors support DDR4 non-ECC,
un-buered memory up to 4600+(OC)*

Supports ECC UDIMM memory modules (operate in non­ECC mode)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Prole (XMP) 2.0

Expansion
Slot

11th Gen Intel® CoreTM Processors

1 x PCI Express 4.0 x16 Slot (PCIE1)

•

10th Gen Intel® CoreTM Processors

1 x PCI Express 3.0 x16 Slot (PCIE1)

•

* Supports NVMe SSD as boot disks

English

5

Graphics

1 x PCI Express 3.0 x4 Slot

•

1 x PCI Express 3.0 x1 Slot

•

Supports AMD Quad CrossFireXTM and CrossFireXTM

•

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

•

and Intel® CNVi (Integrated WiFi/BT)

Intel® UHD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU
integrated.
11th Gen Intel® CoreTM Processors support Intel® Xe Graphics

•

Architecture (Gen 12). 10th Gen Intel® CoreTM Processors
support Gen 9 Graphics
Graphics, Media & Compute: Microso DirectX 12, OpenGL

•

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /
Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut),

•

Microso PlayReady 3.0, UHD/HDR Blu-ray Disc
Supports HDMI 2.0 with max. resolution up to 4K x 2K

•

(4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant
HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 Port

•

Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port

•

* 11th Gen Intel® CoreTM Processors support HDMI 2.0. 10th Gen
Intel® CoreTM Processors support HDMI 1.4.

English

6

Audio

LAN

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

•

Supports Surge Protection

•

Nahimic Audio

•

Gigabit LAN 10/100/1000 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Rear Panel
I/O

Storage

Z590M Phantom Gaming 4

3 x Antenna Mounting Points

•

1 x HDMI Port

•

2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD

•

Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

•

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

18), NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will
be disabled.

1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2

•

PCI Express module up to Gen4x4 (64 Gb/s) (Only
supported with 11th Gen Intel® Core™ Processors) **
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2

•

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x4 (32 Gb/s)**
** Supports Intel® OptaneTM Tech nolo gy
** Supports NVMe SSD as boot disks
* *Supports ASRock U.2 Kit

Connector

1 x SPI TPM Header

•

1 x Chassis Intrusion and Speaker Header

•

2 x RGB LED Headers

•

* Support in total up to 12V/3A, 36W LED Strip

2 x Addressable LED Headers

•

* Support in total up to 5V/3A, 15W LED Strip

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

•

Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.

English

7

BIOS
Feature

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

•

Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_
FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin
fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector (Hi-Density Power

•

Connec tor)

1 x 4 pin 12V Power Connector (Hi-Density Power

•

Connec tor)

1 x Front Panel Audio Connector

•

1 x underbolt AIC Connector (5-pin) (Supports ASRock

•

underbolt 4 AIC Card)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

•

ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

•

(Supports ESD Protection)

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VC-

•

CIO, VCCIO,VCCST, VCCSA Voltage Multi-adjustment

English

8

Hardware
Monitor

OS

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

•

Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

•

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

•

Water Pump Fans

CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore,

•

DRAM, VPPM, VCCIN_AUX, VCCSA, VCCIO, VCCPLL,

ATX+5VSB

Microso® Windows® 10 64-bit

•

FCC, CE

Certica­tions

* For detailed product information, please visit our website: http://www.asrock .com

Please realize that the re is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

•

Z590M Phantom Gaming 4

English

9

Chapter 2 Installation

is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

10

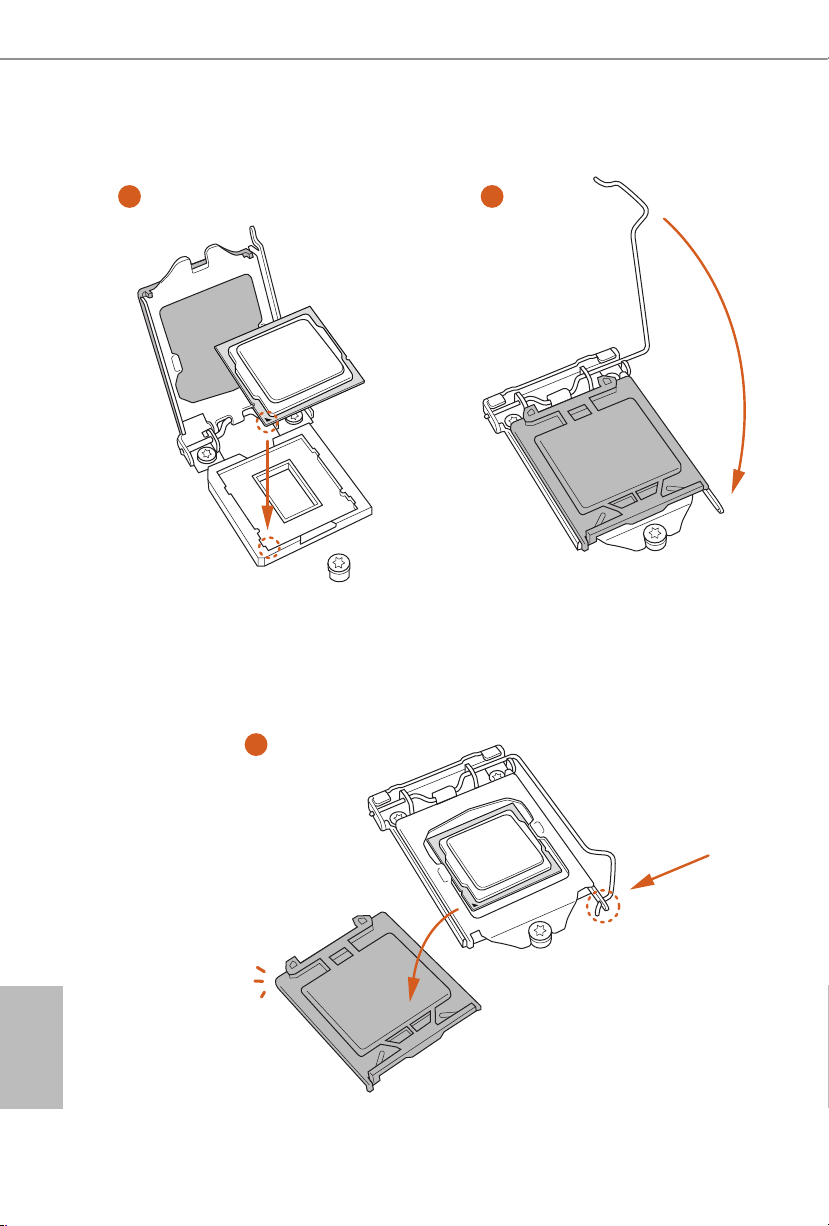

2.1 Installing the CPU

1

1. Before you insert the 1200-Pin CPU into the socket, please check if the Pn P cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the sock et. Do not
force to in sert the CPU into the socket if above situation is found . Otherwise, the CPU
will be seriously damaged.

2. Unplug all power cables before in stalling the CPU.

Z590M Phantom Gaming 4

A

B

2

11

English

3

5

4

English

12

Z590M Phantom Gaming 4

Please save and replace the cover if the processor i s removed. e cover must be placed if
you wish to return the motherboard for aer service.

13

English

2.2 Installing the CPU Fan and Heatsink

1 2

English

14

CPU_FAN

Z590M Phantom Gaming 4

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration , you always need to in stall identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Du al Channel Memory Technology with only one or three

memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4

slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated Populated Populated

e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.

15

English

1

2

English

16

3

Z590M Phantom Gaming 4

2.4 Expansion Slots (PCI Express Slots)

ere are 3 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.

PCIe slots:

11th Gen Intel® CoreTM Processors:

PCIE1 (PCIe 4.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 3.0 x4 slot) is used for PCI Express x4 lane width graphics cards.

10th Gen Intel® CoreTM Processors:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 3.0 x4 slot) is used for PCI Express x4 lane width graphics cards.

17

English

11th Gen Intel® CoreTM Processors:

PCIE1 PCIE3

Single Graphics Card Gen4x16 N/A

Two Graphics Cards in

CrossFireXTM Mode

Gen4x16 Gen3x4

10th Gen Intel® CoreTM Processors:

PCIE1 PCIE3

Single Graphics Card Gen3x16 N/A

Two Graphics Cards in

CrossFireXTM Mode

For a better ther mal environment, please connect a ch assis fan to the motherboard’s
chassis fan connector (CHA_ FAN1/WP, CHA_ FA N2/WP, CHA_FAN3/WP or
CHA_ FAN4/WP) when using multiple graphics cards.

Gen3x16 Gen3x4

English

18

Z590M Phantom Gaming 4

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is

“Open”.

Clear CMOS Jumper
(CLRMO S1)
(see p.1, No. 20)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short the pins on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed. Please remember toremove the jumper cap aer clearing the CMOS.

2-pin Jumper

If you clear the CMOS, the case open may be detected. Pl ease adjust the BIOS option
“Clear Status” to clear the record of previou s chassis intrusion status.

English

19

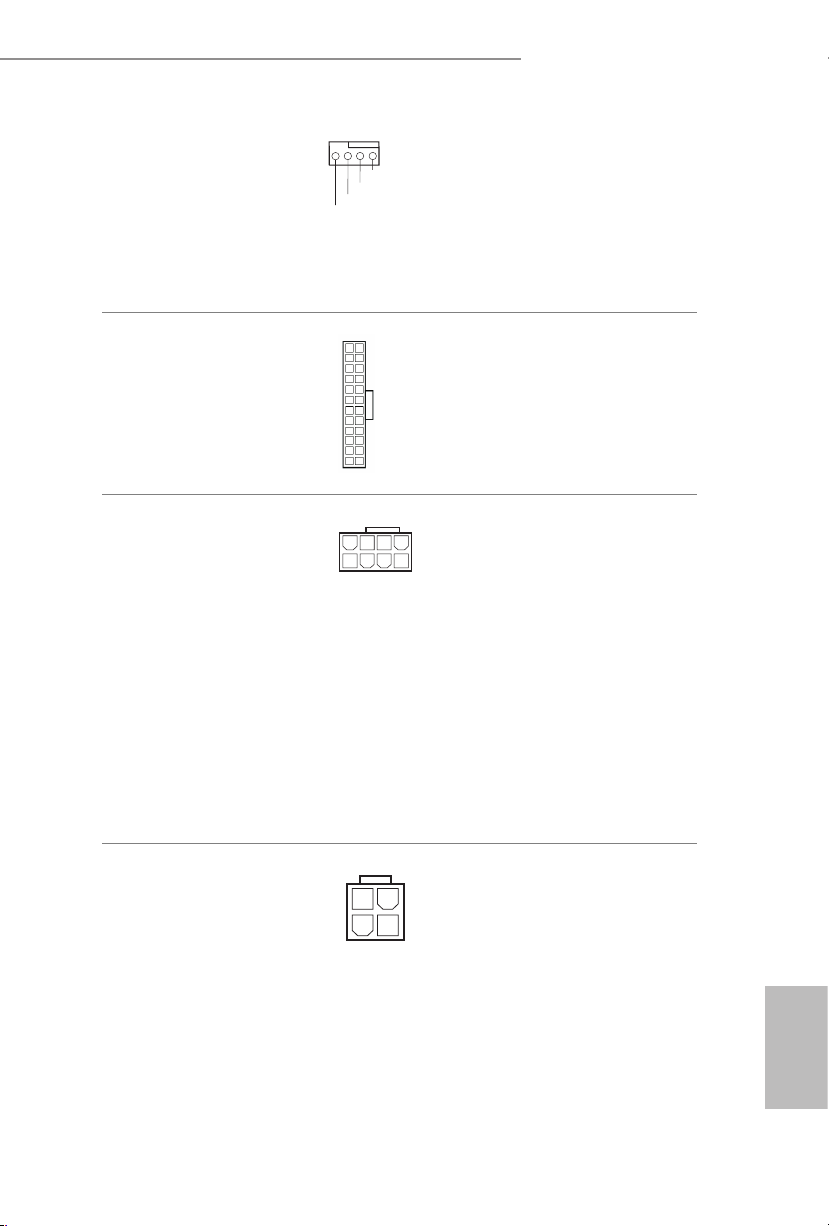

2.6 Onboard Headers and Connectors

1

1

+5V

DUMMY

SIGNAL

GND

DUMMY

SPEAKER

DUMMY

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

System Panel Header
(9-pi n PANEL1)
(see p.1, No. 16)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to
turn o your system using the power switch.

RESET (Reset Switch):
Connec t to the reset switch on the chassi s front panel. Press the reset sw itch to restart
the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED):
Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive activity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel design may dier by chassis. A front panel module mainly consists
of power switch, reset switch, power LED, hard drive activity LED, speak er and etc.
When connecting your chassis front panel module to this header, make sure the wire
assig nments and the pin assig nments are matched correctly.

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

GND

Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.

English

20

Chassis Intrusion and
Speaker Header
(7-pi n SPK_CI1)
(see p.1, No. 17)

Please connect the
chassis intrusion and the
chassis speaker to this
header.

Z590M Phantom Gaming 4

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

IntA_P_D+

IntA_P_SSRX-

1

Serial ATA3 Connectors
Ver tica l:
(SATA3_0:
see p.1, No. 11)
(SATA3_1:
see p.1, No. 12)
Right Angle:
(SATA3_2:
see p.1, No. 14)(Upper)
(SATA3_3:
see p.1, No. 15)(Lower)

USB 2.0 Headers
(9-pin USB1_2)
(see p.1, No. 24)
(9-pin USB3_4)
(see p.1, No. 23)

USB 3.2 Gen1 Headers
(19-pin USB3_5_6)
(see p.1, No. 22)

ID

SATA3_2

IntA_P_D-

GND

IntA_P_D-

IntA_P_D+

IntA_P_SSTX+

IntA_P_SSTX-

GND

IntA_P_SSTX-

IntA_P_SSTX+

GND

SATA3_0

SATA3_1

SATA3_3

IntA_P_SSRX+

IntA_P_SSRX-

Vbus

IntA_P_SSRX+

GND

ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to

6.0 Gb/s data transfer rate.
* If M2_2 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.

ere are two USB

2.0 headers on this
motherboard. Each USB

2.0 header can support
two ports.

ere are two USB 3.2
Gen1 headers on this
motherboard. Each USB

3.2 Gen1 header can
support two ports.

Vbus

(19-pin USB3_7_8)
(see p.1, No. 13)

IntA_PA_SSRX-

IntA_PA_SSRX+

IntA_PA_SSTX-

IntA_PA_SSTX+

IntA_PA_D-

IntA_PA_D+

Vbus

VbusVbus

IntA_PB_SSRX-

IntA_PB_SSRX+

GND

IntA_PB_SSTX-

GND

IntA_PB_SSTX+

GND

IntA_PB_D-

GND

IntA_PB_D+

Dummy

English

21

Front Panel Audio Header

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

FAN_SPEED_CONTROL

4

GND

OL

GND

OL

FA

1

2

3

4

(9-pin HD_ AUDIO1)
(see p.1, No. 28)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function cor rectly. Please follow the instr uctions in our
manual and chassis manual to in stall your system.

2. If you use an AC’97 audio panel , please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connec t them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

is header is for
connecting audio devices
to the front audio panel.

English

22

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.1, No. 30)

(4-pin CHA_FAN2/WP)
(see p.1, No. 10)

(4-pin CHA_FAN3/WP)
(see p.1, No.19)
(4-pin CHA_FAN4/WP)
(see p.1, No.27)

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 3)

FAN_VOLTAGE

FAN_SPEED

FAN_SPEED_CONTR

1 2 3 4

CHA_FAN_SPEED

FAN_VOLTAGE

FAN_VOLTAGE

FAN_SPEED

FAN_SPEED_CONTR

1 2 3 4

N_SPEED_CONTROL

FAN_SPEED

+12V

GND

GND

is motherboard
provides four 4-Pin water
cooling

chassis
connectors. If you plan to
connect a 3-Pin
water cooler fan, please
connect it to Pin 1-3.

3
2
1

is motherboard pro­vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

fan

chassis

Z590M Phantom Gaming 4

4

1

8 5

4 3 2 1

CPU/Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.1, No. 6)

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 9)

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)

GND

FAN_VOLTAGE

CPU_F

AN_SPEED

FAN_SPEED_CONTROL

12

24

1

13

is motherboard
provides a 4-Pin water
cooling CPU fan
connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.

is motherboard pro­vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin

13.

is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.

*Warning: Please make

sure that the power cable

connected is for the CPU

and not the graphics

card. Do not plug the

PCIe power cable to this

connector.

ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.1, No. 2)

Please connect an ATX
12V power supply to this
connector.
*e power supply plug
ts into this connector in
only one orientation.
*Connecting an ATX 12V
4-pin cable to ATX12V2
is optional. For advanced
overclocking, we suggest
using this connector
together with ATX12V1.

English

23

underbolt AIC

1

1

SPI_DQ3

#

DO_ADDR

1

1

B

Connector
(5-pin TB1)
(see p.1, No. 29)

Please connect a underbolt™
add-in card (AIC) to this
connector via the GPIO cable.
*Please install the underbolt™
AIC card to PCIE4 (default slot).

English

24

SPI TPM Header
(13 -pi n SPI_TPM _J1)
(see p.1, No. 18)

RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 26)

(4-pi n RGB _LED2)
(see p.1, No. 7)

Addressable LED Headers
(3-pin A DDR_LE D1)
(see p.1, No. 25)

(3-pin A DDR_LE D2)
(see p.1, No. 8)

+3.3V

Dummy

CLK

RSMRST#

SPI_MISO

SPI_CS0

SPI_DQ2

+12V GRB

R

G

+12V

1

DO_ADDR

VOUT

1

SPI_MOSI

SPI_TPM_CS

GND

GND

GND

VOUT

RST#

TPM_PIRQ

is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.

RGB LED headers are used to
connect RGB LED extension
cables which allow users to
choose from various LED light­ing eects.

Caution: Never install the RGB

LED cable in the wrong orienta-

tion; otherwise, the cable may

be damaged.

*Please refer to page 32 for for
further instructions on this
header.

e headers are used to connect
Addressable

LED extension ca­bles which allow users to choose
from various LED lighting
eects.

Caution: Never install the

Addressable LED cable in the

wrong orientation; otherwise,

the cable may be damaged.

*Please refer to page 33 for
further instructions on this
header.

Z590M Phantom Gaming 4

2.7 Post Status Checker

Post Status Checker (PSC) diagnoses the computer when users power on the
machine. It emits a red light to indicate whether the CPU, memory, VGA or stor­age is dysfunctional. e lights go o if the four mentioned above are functioning
normally.

25

English

2.8 M.2_SSD (NGFF) Module Installation Guide
(M2_1 and M2_2)

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2
Socket (M2_1) supports M Key type 2280 M.2 PCI Express module up to Gen4x4
(64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors). e Ultra M.2 Socket
(M2_2) supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express
module up to Gen3 x4 (32 Gb/s).

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

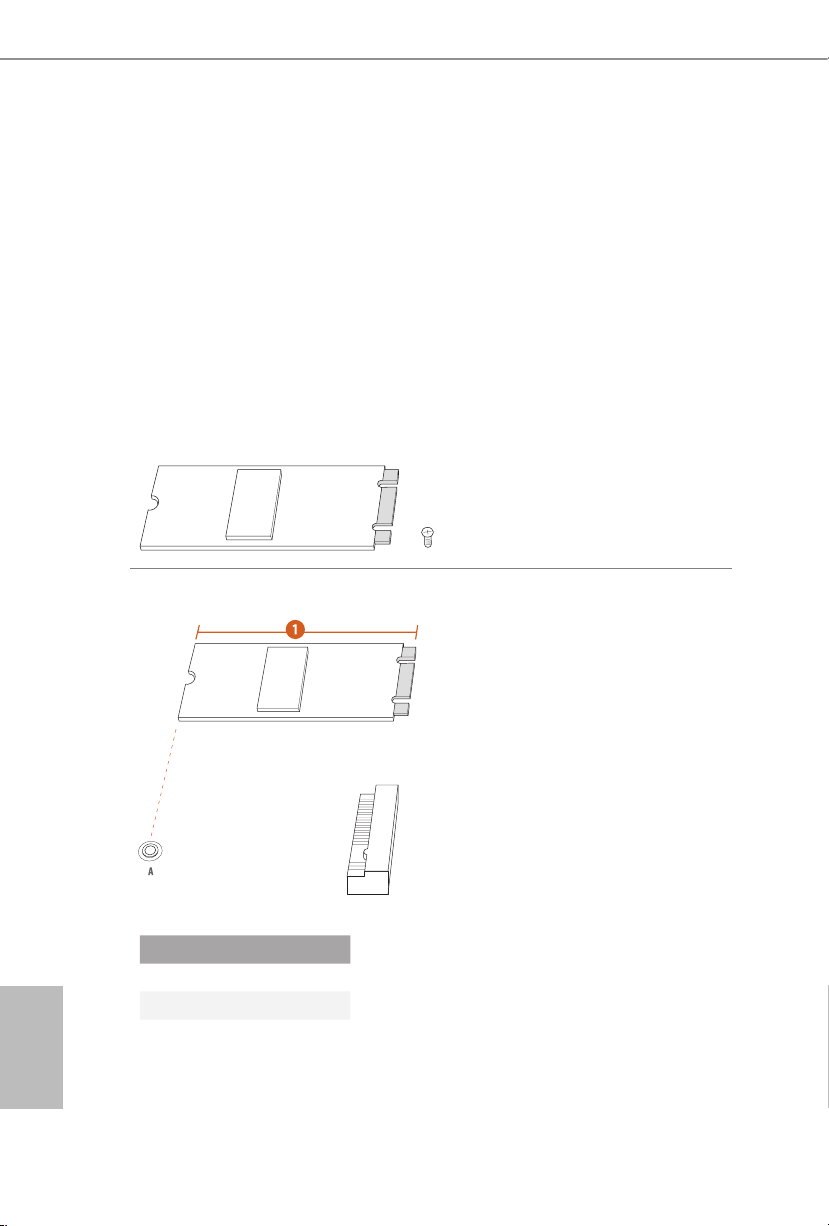

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module
and the screw.

Step 2

Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.

English

26

No. 1

Nut Location A

PCB Length 8cm

Module Type Type2280

Z590M Phantom Gaming 4

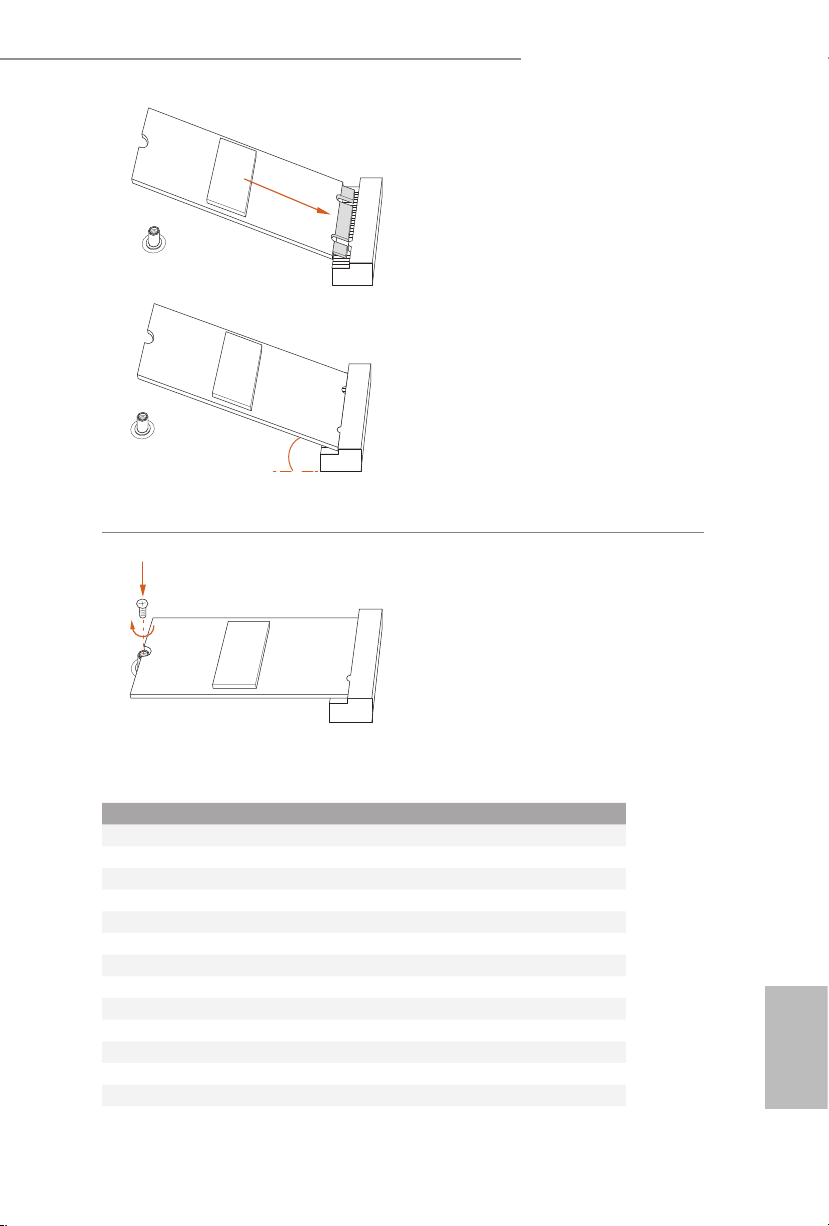

Step 3

Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only ts in one

A

orientation.

A

o

20

Step 4

Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.

NUT1NUT2

M.2_SSD (NGFF) Module Support List (M2_1)

Vendor Interface P/N

ADATA PCIe3 x4 ASX7000NP-128GT-C
ADATA PCIe3 x4 ASX8000NP-256GM-C
ADATA PCIe3 x4 ASX7000NP-256GT-C
ADATA PCIe3 x4 ASX8000NP-512GM-C
ADATA PCIe3 x4 ASX7000NP-512GT-C
Apacer PCIe3 x4 AP240GZ280
Corsair PCIe3 x4 CSSD-F240GBMP500
Intel PCIe3 x4 SSDPEKKF256G7
Intel PCIe3 x4 SSDPEKKF512G7
Kingston PCIe3 x4 SKC1000/480G
Kingston PCIe2 x4 SH2280S3/480G
OCZ PCIe3 x4 RVD400-M2280-512G (NVME)
PATR IOT PCIe3 x4 PH240GPM280SSDR NVME

English

27
