Asrock Z270 Killer SLI Quick Installation Guide

Version 1.0
Published November 2016
Copyright©2016 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Motherboard Layout

Intel

Z270

DDR 4_A2 (6 4 bit, 28 8-pin mo dule)

DDR 4_A1 (6 4 bit, 28 8-pin mo dule)

DDR 4_B2 (6 4 bit, 28 8-pin mo dule)

DDR 4_B1 (6 4 bit, 28 8-pin mo dule)

ATX12V1

ATXP WR 1

Top:

Central/Bass

Center :

REAR SPK

Top:

LINE IN

Center :

FRONT

Bottom :

Optica l

SPDIF

Bottom :

MIC I N

HDLED R ESET

PLED PW RBTN

PANEL1

1

1

SPK_PLE D1

1

HD_AUDI O1

SATA_4_5

USB_1_2

1

CPU_FAN1

1

TPMS1

CHA_FAN3 /W_PU MP

USB3_5_ 6

1

CLRMOS1

1

M2_W IFI1*

BIOS
ROM

RGB_LED 1

1

PCIE1

M2_1

CTCTCT CT24

23

22 21

CHA_FAN2

CHA_FAN1

COM1

1

PCIE2

RoH S

Ult ra M.2

PCIe Ge n3 x4

HDMI 1

USB 3.0

T:U SB1

B: USB2

PS2

Keybo ard

/Mous e

DVI 1

Top:
RJ-45

USB 3. 0
T: USB3
B: USB 4

USB 3.0
T:US B3_TA_ 1
B: USB3_ TC_1

PCIE3

PCIE5

PCIE6

PCIE4

CMO S

Bat tery

M2_2

CTCTCT CT24

23

22 21

SATA_2_3

SATA_0_1

USB_3_4

1

USB_5

1

TB2

1

TB1

1

CI1

1

Z270 Killer SLI/ac / Z270 Killer SLI

English

1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

4 CPU Fan Connector (CPU_FAN1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_5_6)

7 SATA3 Connectors (SATA_4_5)

8 SATA3 Connectors (SATA_2_3)

9 SATA3 Connectors (SATA_0_1)

10 System Panel Header (PANEL1)

11 Power LED and Speaker Header (SPK_PLED1)

12 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/W_PUMP)

13 Chassis Fan Connector (CHA_FAN1)

14 USB 2.0 Header (USB_1_2)

15 USB 2.0 Header (USB_3_4)

16 Chassis Intrusion Header (CI1)

17 USB 2.0 Header (USB_5)

18 AURA RGB LED Header (RGB_LED)

19 Clear CMOS Jumper (CLRMOS1)

20 underbolt AIC Connector (TB2)

21 TPM Header (TPMS1)

22 COM Port Header (COM1)

23 Front Panel Audio Header (HD_AUDIO1)

24 underbolt AIC Connector (TB1)

25 Chassis Fan Connector (CHA_FAN2)

* e Wirele ss LAN is supported on Z270 Killer SLI/ac only.

English

2

I/O Panel

Z270 Killer SLI/ac

1

Z270 Killer SLI/ac / Z270 Killer SLI

6

2

3

547

15

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 9 Optical SPDIF Out Port

2 USB 3.0 Type-A Port (USB3_TA_1) 10 USB 3.0 Ports (USB3_3_4)

3 LAN RJ-45 Port* 11 USB 3.0 Type-C Port (USB3_TC_1)

4 Central / Bass (Orange) 12 DVI-D Port

5 Rear Speaker (Black) 13 Antenna Ports

6 Line In (Light Blue) 14 USB 3.0 Ports (USB3_1_2)

7 Front Speaker (Lime)** 15 HDMI Port

8 Microphone (Pink)

891013 111214

English

3

Z270 Killer SLI

1

6

2

3

547

English

14

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 Microphone (Pink)

2 USB 3.0 Type-A Port (USB3_TA_1) 9 Optical SPDIF Out Port

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_3_4)

4 Central / Bass (Orange) 11 USB 3.0 Type-C Port (USB3_TC_1)

5 Rear Speaker (Black) 12 DVI-D Port

6 Line In (Light Blue) 13 USB 3.0 Ports (USB3_1_2)

7 Front Speaker (Lime)** 14 HDMI Port

8910111213

4

Z270 Killer SLI/ac / Z270 Killer SLI

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK L ED

SPEED LE D

LAN Por t

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** If you use a 2- channel speaker, plea se connect the speake r’s plug into “Front Speaker Jack”. See the table below
for connection d etails in accordance w ith the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the
front panel audio header. Aer restarting your computer, you will nd the “Mixer”
tool on your system. Plea se select “Mixe r ToolBox” , click “Enable playback
multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then
you are allowed to select “Realtek HDA Primary output” to u se the Rear Speak er,
Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to u se
the front panel audio.

Line In
(No. 6)

English

5

Chapter 1 Introduction

ank you for purchasing ASRock Z270 Killer SLI/ac / Z270 Killer SLI
motherboard, a reliable motherboard produced under ASRock’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock’s commitment to quality and endurance.

Becau se the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please vi sit our website for s pecic information about the model
you are using. You may nd the l atest VGA cards and CPU suppor t list on ASRock’s
website a s well. ASRock website http://www.a srock.com.

1.1 Package Contents

ASRock Z270 Killer SLI/ac / Z270 Killer SLI Motherboard (ATX Form Factor)

•

ASRock Z270 Killer SLI/ac / Z270 Killer SLI Quick Installation Guide

•

ASRock Z270 Killer SLI/ac / Z270 Killer SLI Support CD

•

1 x I/O Panel Shield

•

2 x Serial ATA (SATA) Data Cables (Optional)

•

1 x ASRock SLI_HB_Bridge_2S Card (Optional)

•

2 x Screws for M.2 Sockets (Optional)

•

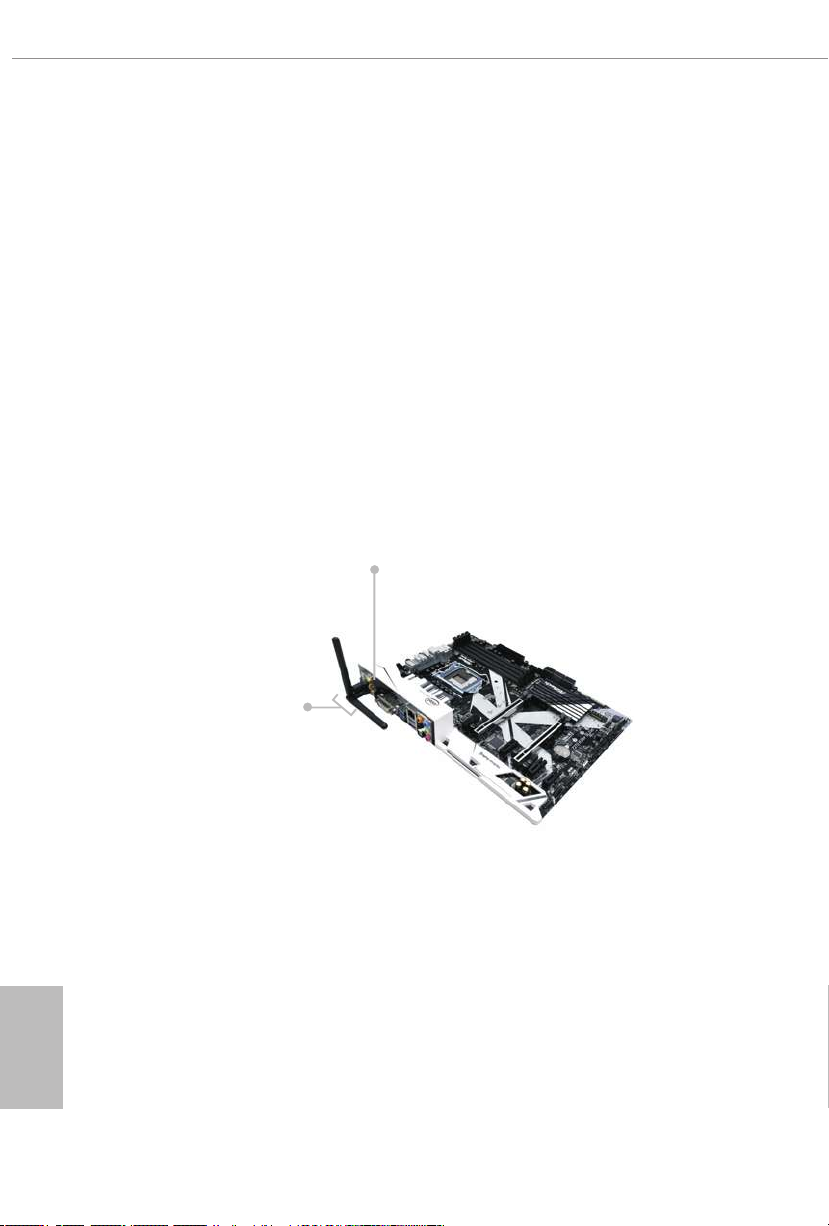

2 x ASRock WiFi 2.4/5 GHz Antennas (Optional) (for Z270 Killer SLI/ac only)

•

English

6

1.2 Specications

Platform

CPU

Chipset

Memory

* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
** 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel®
CPU supports DDR4 up to 2133.

Z270 Killer SLI/ac / Z270 Killer SLI

ATX Form Factor

•

Supports 7th and 6th Generation Intel® CoreTM i7/i5/i3/

•

Pentium®/Celeron® Processors (Socket 1151)
Digi Power design

•

8 Power Phase design

•

Supports Intel® Turbo Boost 2.0 Technology

•

Supports Intel® K-Series unlocked CPUs

•

Supports ASRock BCLK Full-range Overclocking

•

Intel® Z270

•

Dual Channel DDR4 Memory Technology

•

4 x DDR4 DIMM Slots

•

Supports DDR4 3733+(OC)*/3600(OC)/3200(OC)/2933(OC)

•

/2800(OC)/2400**/2133 non-ECC, un-buered memory

Supports ECC UDIMM memory modules (operate in non-

•

ECC mode)
Max. capacity of system memory: 64GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

15μ Gold Contact in DIMM Slots

•

Expansion
Slot

2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16

•

(PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))*

* Supports NVMe SSD as boot disks

4 x PCI Express 3.0 x1 Slots (Flexible PCIe)

•

Supports AMD Quad CrossFireXTM and CrossFireXTM

•

Supports NVIDIA® Quad SLITM and SLI

•

1 x Vertical M.2 Socket (Key E) with the bundled WiFi-

•

802.11ac module (on the rear I/O)
15μ Gold Contact in VGA PCIe Slot (PCIE2)

•

TM

English

7

Graphics

Intel® HD Graphics Built-in Visuals and the VGA outputs

•

can be supported only with processors which are GPU
integrated.
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

•

Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics
Gen9 LP, DX11.3, DX12

•

HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For

•

7th Gen Intel® CPU)
HWA Encode/Decode: VP8 , HEVC 8b; GPU/SWEncode/

•

Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
Max. shared memory 1024MB

•

* e size of maximum shared memory may vary from dierent
operating systems.

Dual graphics output: Support DVI-D and HDMI ports by

•

independent display controllers
Supports HDMI with max. resolution up to 4K x 2K

•

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @

•

60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

•

HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports

•

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

•

and HDMI Ports

English

8

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892

•

Audio Codec)
Premium Blu-ray Audio support

•

Supports Surge Protection (ASRock Full Spike Protection)

•

Nichicon Fine Gold Series Audio Caps

•

LAN

Wireless
LAN (for
Z270 Killer
SLI/ac
only)

Rear Panel
I/O

Z270 Killer SLI/ac / Z270 Killer SLI

Gigabit LAN 10/100/1000 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

•

Protection)
Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

•

Intel® 802.11ac WiFi Module (Free Bundle)

•

Supports IEEE 802.11a/b/g/n/ac

•

Supports Dual-Band (2.4/5 GHz)

•

Supports high speed wireless connections up to 433Mbps

•

Supports Bluetooth 4.0 / 3.0 + High speed class II

•

2 x Antenna Ports (for Z270 Killer SLI/ac only)

•

1 x PS/2 Mouse/Keyboard Port

•

1 x DVI-D Port

•

1 x HDMI Port

•

1 x Optical SPDIF Out Port

•

5 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock

•

Full Spike Protection))
1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock

•

Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

•

LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

•

Front Speaker / Microphone

Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

•

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
15 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will
be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will
be disabled.

2 x Ultra M.2 Sockets, support type 2230/2242/2260/2280

•

M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module

up to Gen3 x4 (32 Gb/s)**

English

9

Connector

** Supports Intel® OptaneTM Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

1 x COM Port Header

•

1 x TPM Header

•

1 x Chassis Intrusion Header

•

1 x Power LED and Speaker Header

•

1 x AURA RGB LED Header

•

1 x CPU Fan Connector (4-pin)

•

* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.

2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Con-

•

trol)
1 x Chassis Optional/Water Pump Fan Connector (4-pin)

•

(Smart Fan Speed Control)
* e Chassis Optional/Water Pump Fan supports the water
cooler fan of maximum 1.5A (18W) fan power.
* CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector

•

1 x Front Panel Audio Connector

•

1 x underbolt AIC Connector (5-pin)

•

1 x underbolt AIC Connector (10-pin)

•

* Only one underbolt AIC Card is supported.

3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

•

ESD Protection (ASRock Full Spike Protection))

English

10

BIOS
Feature

AMI UEFI Legal BIOS with multilingual GUI support

•

ACPI 6.0 Compliant wake up events

•

SMBIOS 2.7 Support

•

CPU, GT_CPU, DRAM, VPP, PCH 1.0V, VCCIO, VCCST,

•

VCCSA, VCCPLL Voltage Multi-adjustment

Hardware
Monitor

OS

Z270 Killer SLI/ac / Z270 Killer SLI

CPU / Chassis / Chassis Optional/Water Pump temperature

•

sensing
CPU / Chassis / Chassis Optional/Water Pump Fan Tachom-

•

eter
CPU / Chassis / Chassis Optional/Water Pump Quiet Fan

•

(Auto adjust chassis fan speed by CPU temperature)
CPU / Chassis / Chassis Optional/Water Pump Fan multi-

•

speed control
CASE OPEN detection

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

•

VPP, PCH 1.0V, VCCIO, VCCSA, VCCST

Microso® Windows® 10 64-bit (For 7th Gen Intel® CPU)

•

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

•

bit (For 6th Gen Intel® CPU)
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 169 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock ’s
website for details: http://www.asrock.com

FCC, CE, WHQL, RCM, BSMI

Certica­tions

* For detailed product information, please visit our website: http://ww w.asrock.com

Please realize that the re is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tool s. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

•

ErP/EuP ready (ErP/EuP ready power supply is required)

•

English

11

1.3 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz
Antenna (for Z270 Killer SLI/ac only)

WiFi-802.11ac + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to­use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v4.0 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 4.0 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs.

* e transmission speed may vary according to the environment.

WiFi + BT Module
(pre-installed Intel® Dual Band
Wireless-AC 3160)

ASRock WiFi 2.4/5 GHz Antennas
(included in the package)

English

12

WiFi Antennas Installation Guide

Z270 Killer SLI/ac / Z270 Killer SLI

Step 1

Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.

Step 2

Connect the two WiFi 2.4/5 GHz Antennas to
the antenna connectors. Turn the antenna clock­wise until it is securely connected.

Step 3

Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.

*You may need to adjust the direction of
the antenna for a stronger signal.

English

13

Chapter 2 Installation

is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard

•

components. Failure to do so may cause physical injuries and damages to motherboard
components.
In order to avoid damage from static electricity to the motherboard’s components,

•

NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

•

in the bag that comes with the components.
When placing screws to secure the motherboard to the chassis, please do not over-

•

tighten the screws! Doing so may damage the motherboard.

English

14

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP c ap
is on the socket, if the CPU sur face is unclean, or if there are any b ent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Other wise, the CPU will be seriously d amaged.

2. Unplug all power cables be fore installing the CPU.

1

Z270 Killer SLI/ac / Z270 Killer SLI

A

B

2

English

15

3

4

English

16

5

Z270 Killer SLI/ac / Z270 Killer SLI

Please save and replace the cover if the processor i s removed. e cover must be
placed if you wish to return the motherboard for aer service.

17

English

2.2 Installing the CPU Fan and Heatsink

1 2

English

18

FAN

CPU_

Z270 Killer SLI/ac / Z270 Killer SLI

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.

1. For dual channel conguration, you always need to install identical (the same

brand, speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memor y Technology with only one or three

memory module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4

slot; otherwise, this motherboard and DIMM may be damaged.

Dual Channel Memory Conguration

Priority DDR4_ A1 DDR4_ A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

e DIMM only ts in one correct orientation. It will cause permanent damage to
the mothe rboard and the DIMM if you force the DIMM into the slot at incor rect
orientation.

19

English

1

2

English

20

3

Z270 Killer SLI/ac / Z270 Killer SLI

2.4 Expansion Slots (PCI Express Slots)

ere are 6 PCI Express slots on the motherboard.

Before installing an ex pansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Plea se read the documentation of the
expan sion card and make necessary hardware settings for the card before you start
the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
PCIE5 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE6 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIe Slot Congurations

PCIE2 PCIE4

Single Graphics Card x16 N/A

Two Graphics Cards in

CrossFireXTM or SLITM

Mode

For a better ther mal environment, please connect a chassi s fan to the motherboard’s
chassis fan connector (CHA_ FAN1, CHA_ FA N2 or CHA_FAN3 ) when using mul­tiple graphics cards.

x8 x8

English

21

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 19)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.

Clear CMOSDefault

English

22

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over
these headers and connectors. Placing jumper caps over the headers and connectors
will cause permanent damage to the motherboard.

Z270 Killer SLI/ac / Z270 Killer SLI

System Panel Header
(9-pin PANEL1)
(see p.1, No. 10)

PWRBTN (Power Switch):

Connec t to the power switch on the chassi s front panel. You may congure the way to
turn o your system using the power switch.

RESET (Reset Switch):

Connec t to the reset switch on the chassis front panel. Press the reset sw itch to restart
the computer if the compute r freezes and fails to perform a normal restart.

PLED (Syste m Power LED):

Connec t to the power status indicator on the chassis front panel. e LED i s on when
the system is ope rating. e LED keeps blinking when the system i s in S1/S3 sleep
state. e LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):

Connec t to the hard drive activity LED on the chassis front panel. e LED is on
when the hard drive i s reading or writing data.

e front panel design may dier by chassis. A front panel module mainly consists
of power switch, reset switch, power LED, hard dr ive activity LED, speak er and etc.
When connecting your chassis front panel module to this head er, make sure the wire
assig nments and the pin assig nments are matched correctly.

1

PLE D+

PLE D-

HDL ED-

HDL ED+

PWR BTN#

GND

RES ET#

GND

GND

Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.

23

English

Power LED and Speaker

PLE D-

Header
(7-pin SPK_PLED1)
(see p.1, No. 11)

DUM MY

+5V

1

PLE D+

SPE AKER

DUM MY

PLE D+

Please connect the
chassis power LED and
the chassis speaker to this
header.

English

Serial ATA3 Connectors
(SATA_0_1:
see p.1, No. 9)
(SATA_2_3:
see p.1, No. 8)
(SATA_4_5:
see p.1, No. 7)

USB 2.0 Headers
(9-pin USB_1_2
(see p.1, No. 14)
(9-pin USB_3_4)
(see p.1, No. 15)

(9-pin USB_5)
(see p.1, No. 17)

USB 3.0 Header
(19-pin USB3_5_6)
(see p.1, No. 6)

SATA_4

SATA_2

SATA_0

USB _PWR

1

USB _PWR

1

USB _PW R

IntA _PA_SS RX-

IntA _PA_SS RX+

IntA _PA_SS TX-

IntA _PA_SS TX+

IntA _PA_D-

IntA _PA_D+

Vbus

GND

GND

ese six SATA3
connectors support SATA

SATA_5

data cables for internal
storage devices with up to

6.0 Gb/s data transfer rate.

SATA_3

* If M2_1 is occupied by
a SATA-type M.2 device,
SATA_5 will be disabled.

SATA_1

* If M2_2 is occupied by
a SATA-type M.2 device,
SATA_0 will be disabled.

ere are three headers

P-

P+

GND

DUM MY

on this motherboard.
Each USB 2.0 header can
support two ports.

GND

P+

P-

GND

P-

P+

VbusVbus

IntA _PB_S SRX-

IntA _PB_S SRX+

GND

IntA _PB_S STX-

IntA _PB_S STX+

GND

IntA _PB_D -

IntA _PB_D +

Dumm y

1

ere is one header on
this motherboard. Each
USB 3.0 header can
support two ports.

24

Z270 Killer SLI/ac / Z270 Killer SLI

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 23)

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_ L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adju st “Recording Volume”.

Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 13)
(4-pin CHA_FAN2)
(see p.1, No. 25)

GND

PRE SENCE #

MIC _RET

1

J_S ENSE

OUT 2_R

MIC 2_R

MIC 2_L

FAN _SP EED _CO NTR OL

CHA _FA N_S PEE D

FAN _VO LTA GE

OUT _RET

OUT 2_L

is header is for
connecting audio devices
to the front audio panel.

Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.

GND

Chassis Optional/Water
Pump Fan Connector
(4-pin CHA_FAN3/W_
PUMP)
(see p.1, No. 12)

FAN _SP EED _CO NTR OL

CHA _FA N_S PEE D

FAN _VO LTA GE

is motherboard
provides two 4-Pin water
cooling

chassis

connectors. If you plan to

GND

connect a 3-Pin
water cooler fan, please
connect it to Pin 1-3.

fan

chassis

English

25

CPU Fan Connector

FAN_ SPEED _CONT ROL

1

DUM MY

(4-pin CPU_FAN1)
(see p.1, No. 4)

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)

CPU _FAN_S PEED

FAN _VOLT AGE

GND

1 2 3 4

24

12

1

13

is motherboard pro­vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

is motherboard pro­vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin

13.

English

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)

underbolt AIC
Connectors
(10-pin TB1)
(see p.1, No. 24)

(5-pin TB2)
(see p.1, No. 20)

Serial Port Header
(9-pin COM1)
(see p.1, No. 22)

8

I2C _DATA

1

PLU G_EVE NT

FRC _PWR

RRXD 1

1

DDCD #1

I2C _CLOC K

SLP _S4#

SLP _S3#

DDTR #1

DDSR #1

CCTS #1

RRTS #1

GND

TTXD 1

IRQ

GND

GND

RRI# 1

5

is motherboard pro­vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.

Please connect a underbolt™
add-in card (AIC) to the
underbolt AIC connector via
the GPIO cable.
* Please install the underbolt™
AIC card to PCIE4 (default
slot).
* Only one underbolt AIC
Card is supported on this
motherboard.

is COM1 header
supports a serial port
module.

26

Z270 Killer SLI/ac / Z270 Killer SLI

Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 16)

TPM Header
(17-pin TPMS1)
(see p.1, No. 21)

AURA RGB LED Header
(4-pin RGB_LED)
(see p.1, No. 18)

GND

1

PCIC LK

1

12V G R B

SMB_ CLK_M AIN

FRAM E

1

Sig nal

is motherboard

GND

supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.

is connector supports Trusted
Platform Module (TPM) system,

SMB_ DATA_ MAIN

LAD2

GND

LAD1

S_PW RDWN#

which can securely store keys,

SERI RQ#

GND

digital certicates, passwords,
and data. A TPM system also

+3V

LAD3

LAD0

PCIR ST#

helps enhance network security,

GND

+3VS B

protects digital identities, and
ensures platform integrity.

AURA RGB LED header is used
to connect RGB LED exten­sion cable which allows users to
choose from various LED light­ing eects.

27

English

2.7 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket (M2_1 and M2_2) supports SATA3 6.0 Gb/s module and M.2 PCI Express module
up to Gen3 x4 (32 Gb/s).
* If M2_1 is occupied by a SATA-type M.2 device, SATA_5 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA_0 will be disabled.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module
and the screw.

Step 2

Depending on the PCB type and

A

BCD

length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.

English

28

No. 1 2 3 4

Nut Location A B C D

PCB Length 3cm 4.2cm 6cm 8cm

Module Type Type2230 Type 2242 Type2260 Type 2280
