Asrock Z170 Extreme6 User Manual

Version 1.0

Published June 2015

Copyright©2015 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.

Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

© DTS, Inc., All Rights Reserved.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 7

1.4 I/O Panel 9

1.5 ASRock Front USB 3.1 Panel (for Z170 Extreme6+ only) 11

Chapter 2 Installation 14

2.1 Installing the CPU 15

2.2 Installing the CPU Fan and Heatsink 18

2.3 Installing Memory Modules (DIMM) 19

2.4 Expansion Slots (PCI Express Slots) 21

2.5 Jumpers Setup 22

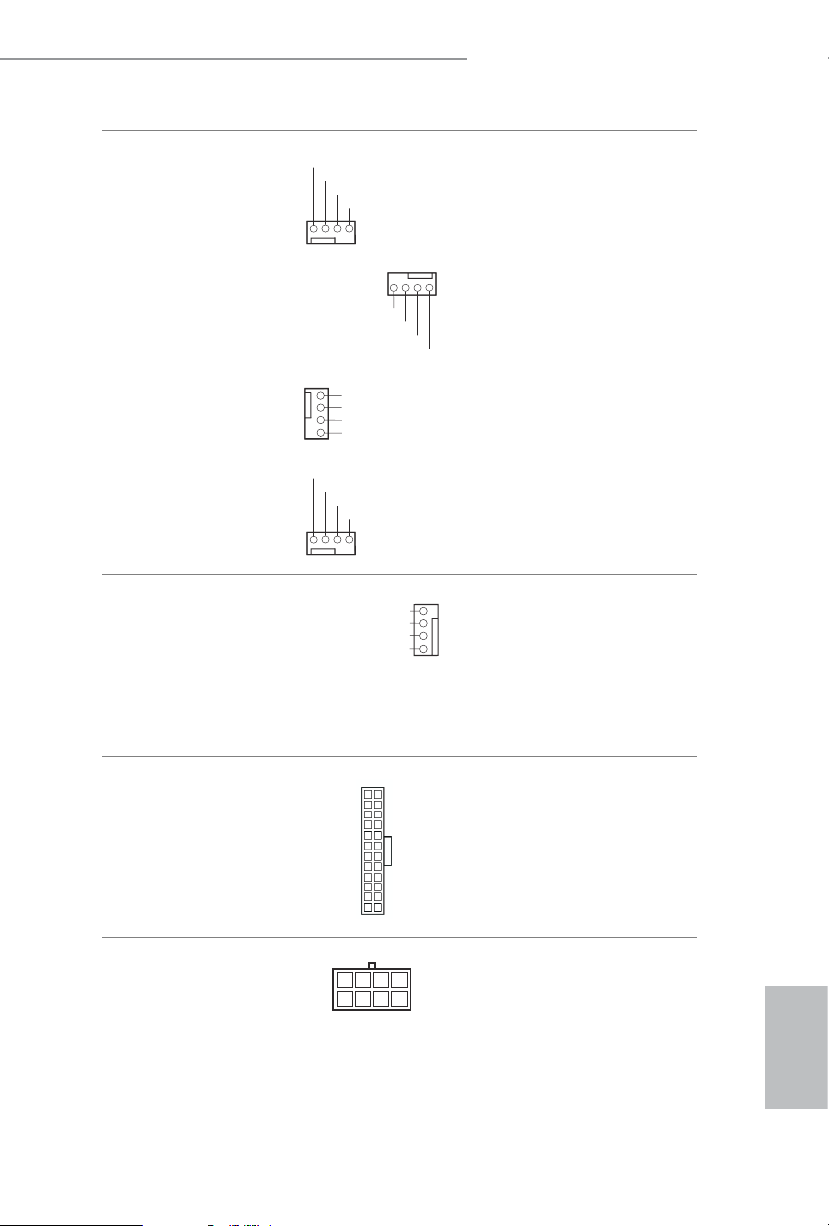

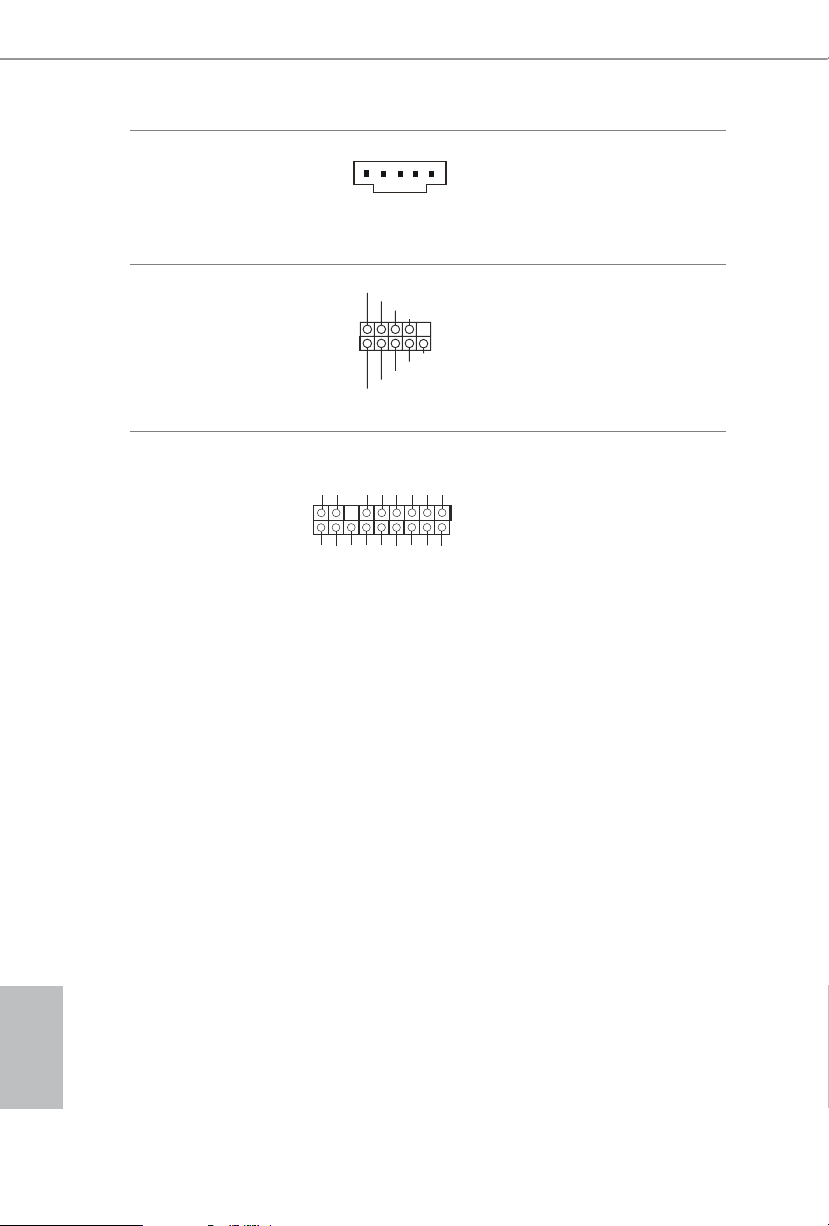

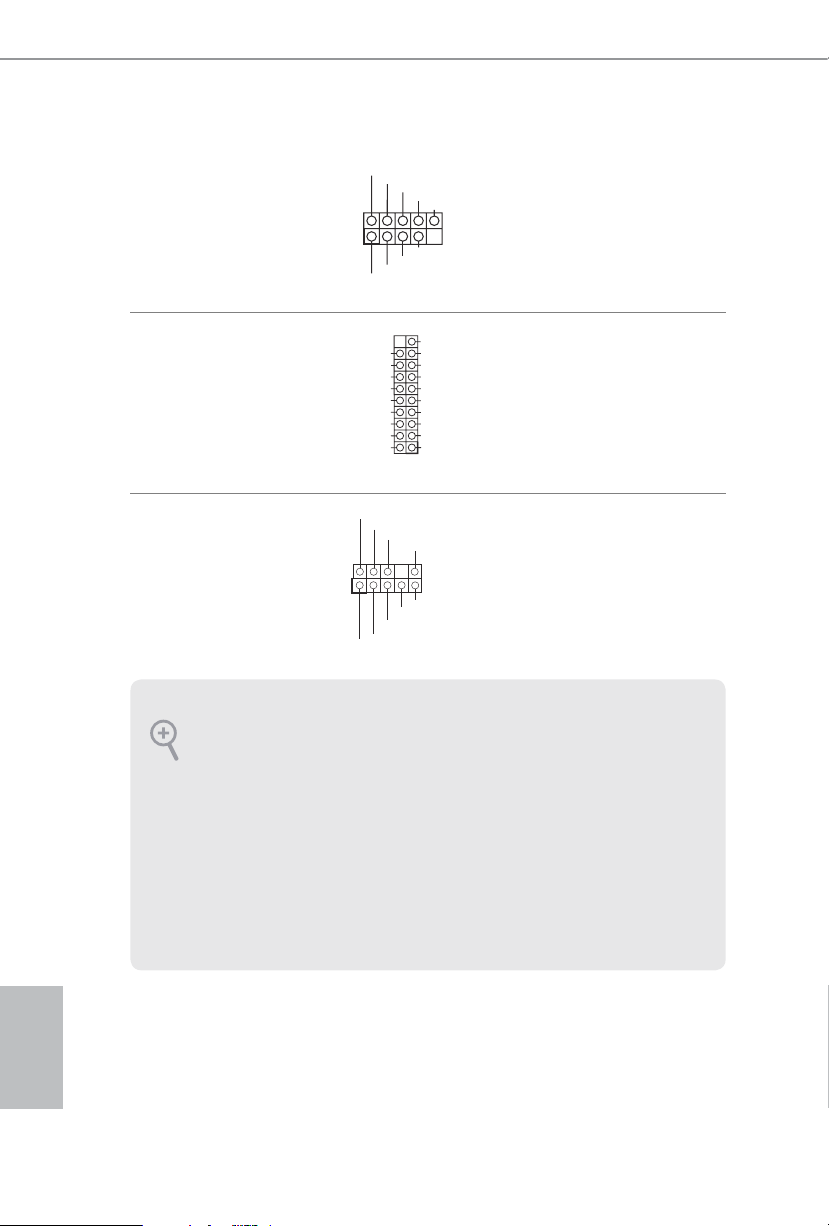

2.6 Onboard Headers and Connectors 24

2.7 Smart Switches 29

2.8 Dr. Debug 30

2.9 SLI

TM

and Quad SLITM Operation Guide 32

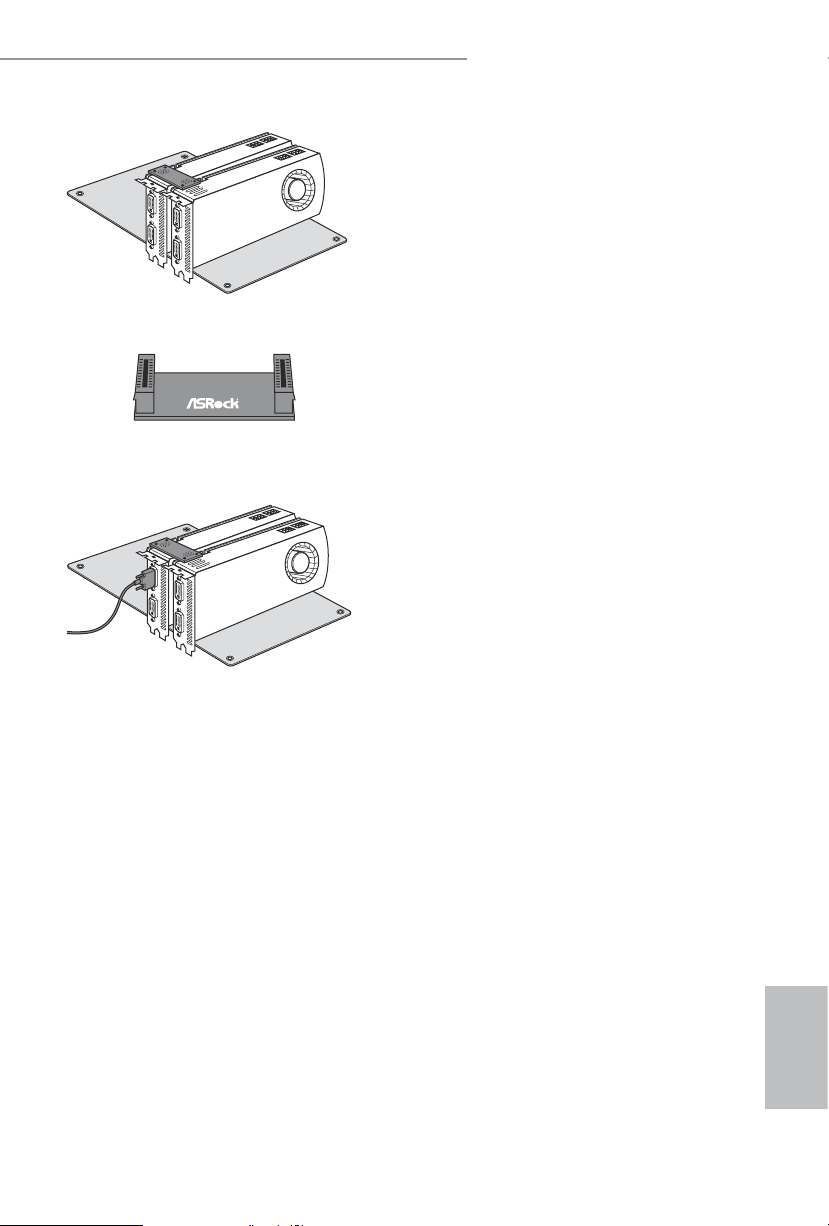

2.9.1 Installing Two SLI

TM

-Ready Graphics Cards 32

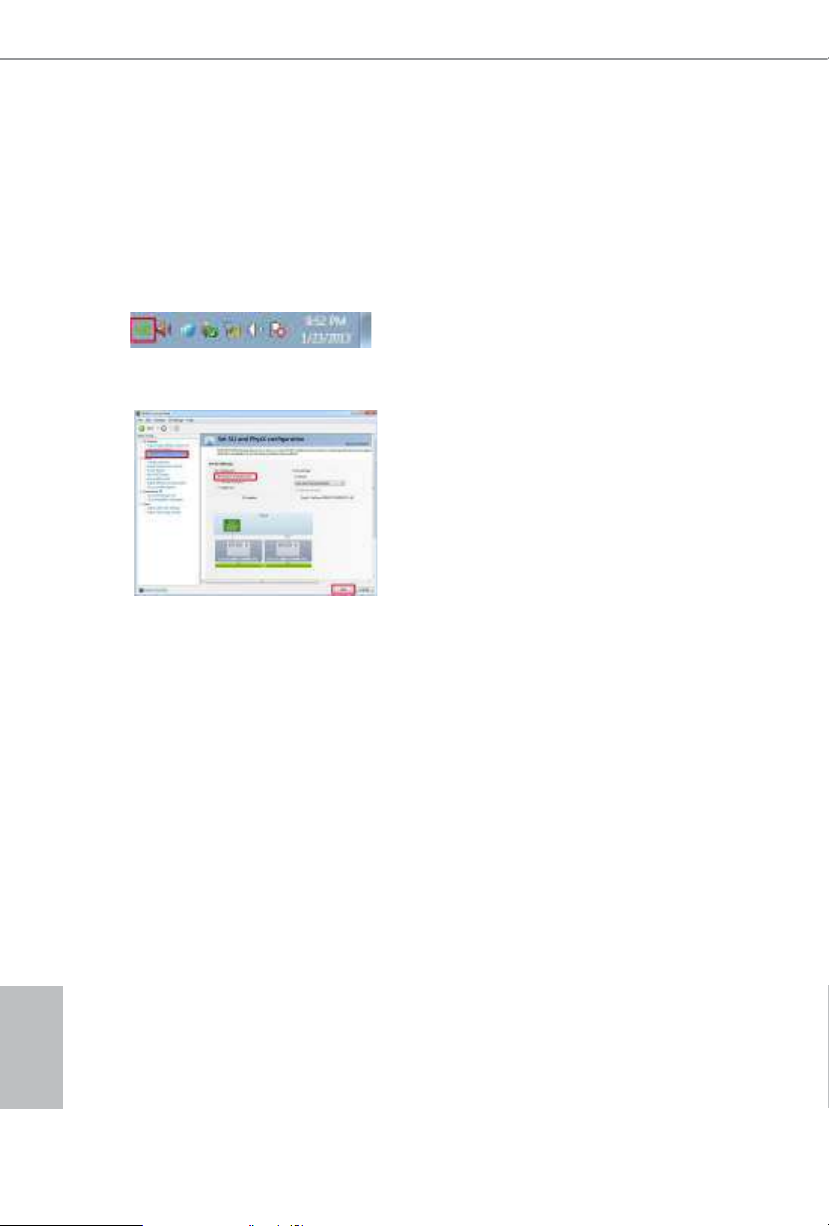

2.9.2 Driver Installation and Setup 34

2.10 CrossFireX

TM

, 3-Way CrossFireXTM and Quad CrossFireXTM

Operation Guide 35

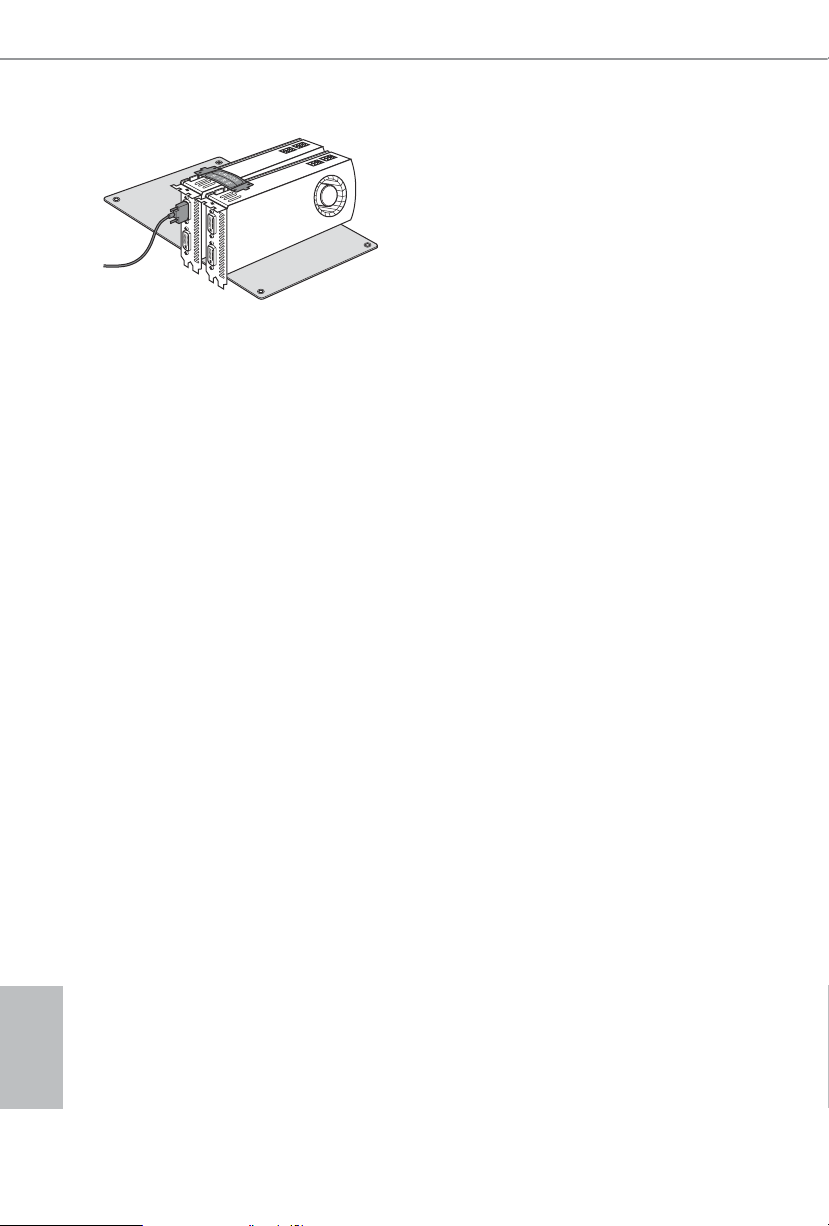

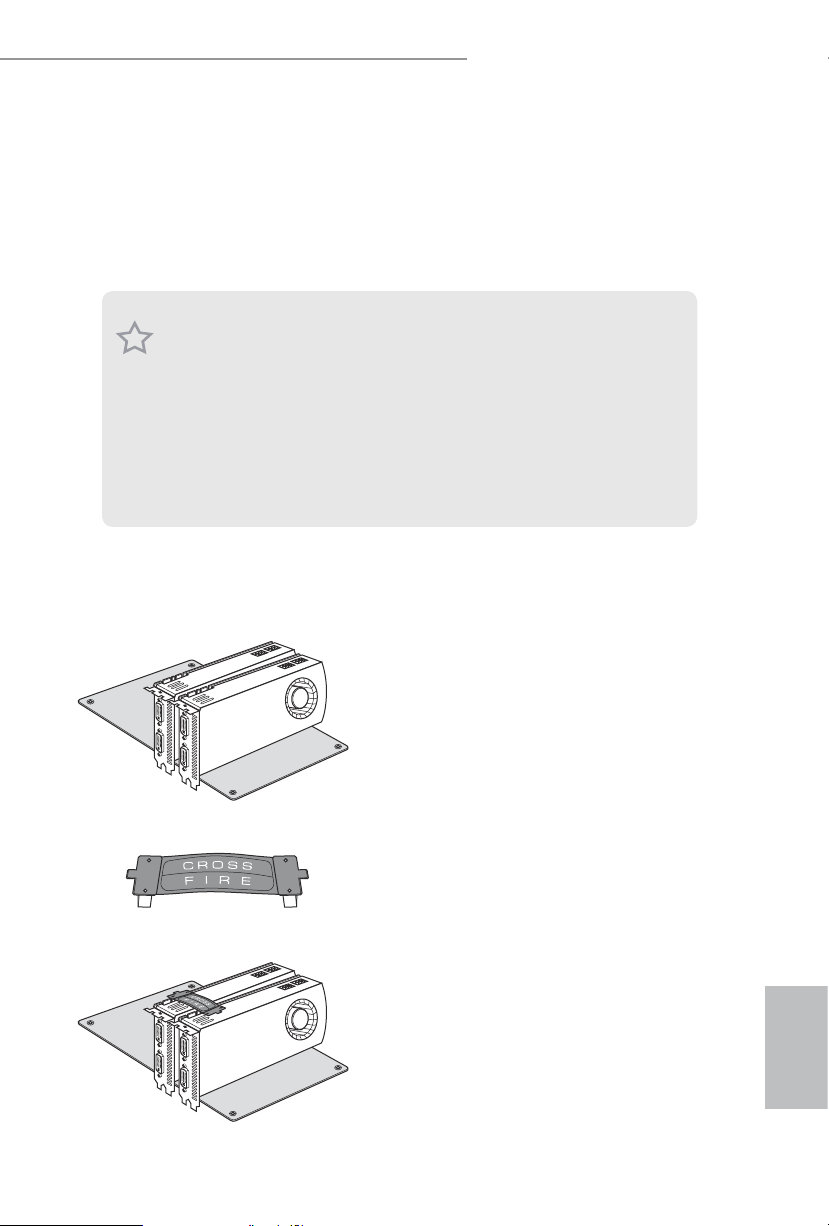

2.10.1 Installing Two CrossFireX

TM

-Ready Graphics Cards 35

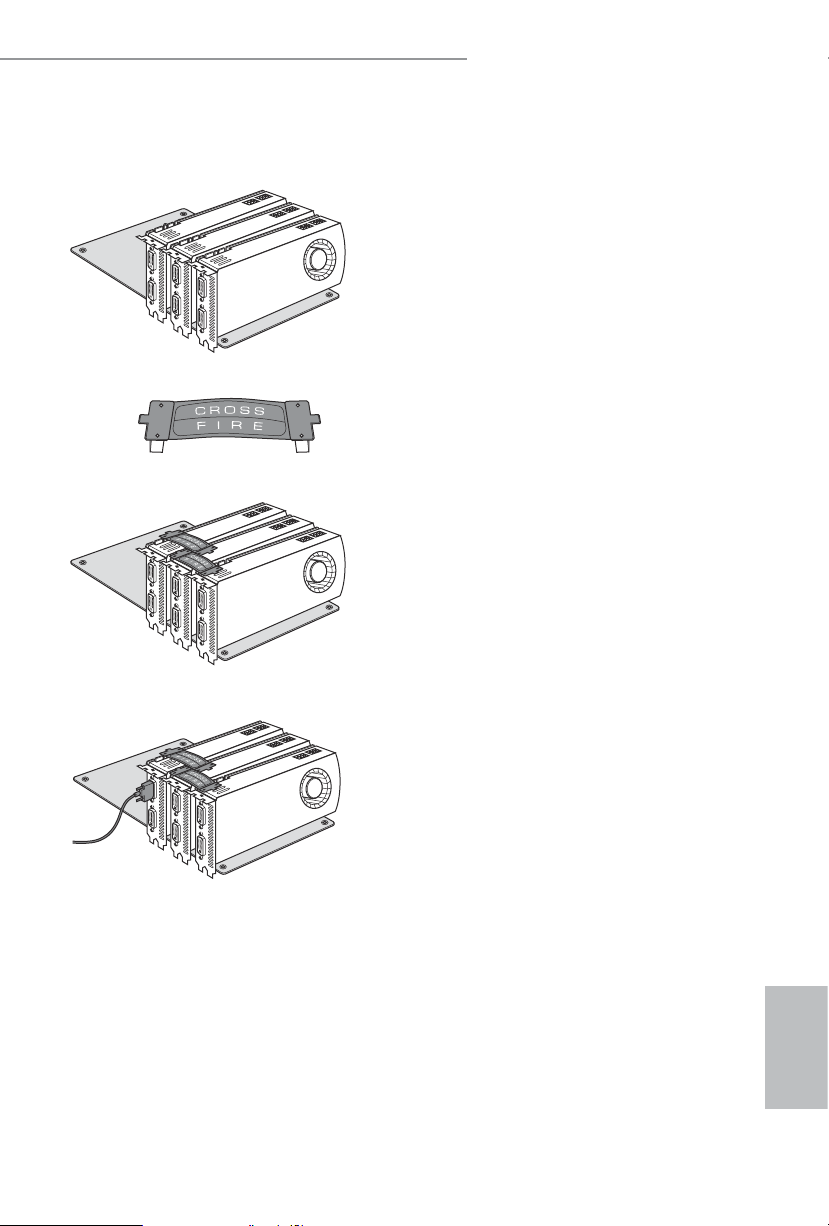

2.10.2 Installing Three CrossFireX

TM

-Ready Graphics Cards 37

2.10.3 Driver Installation and Setup 38

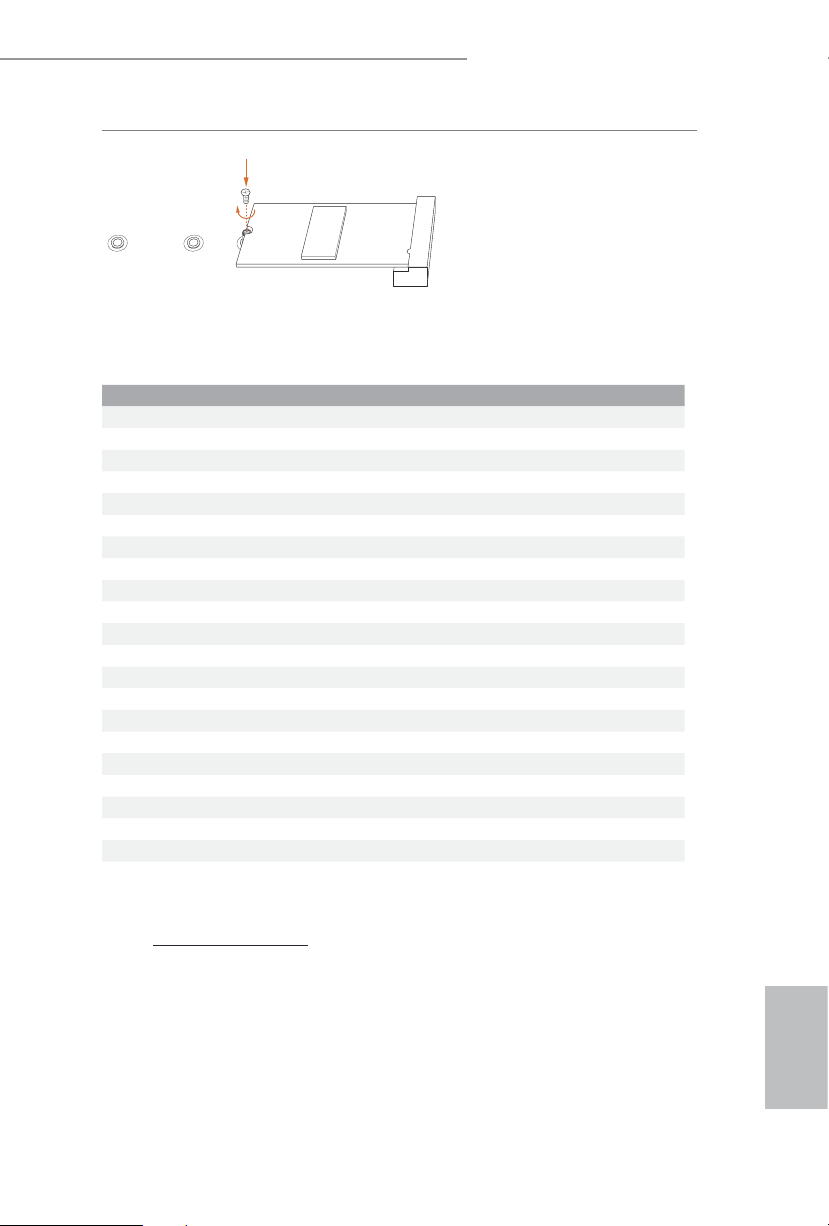

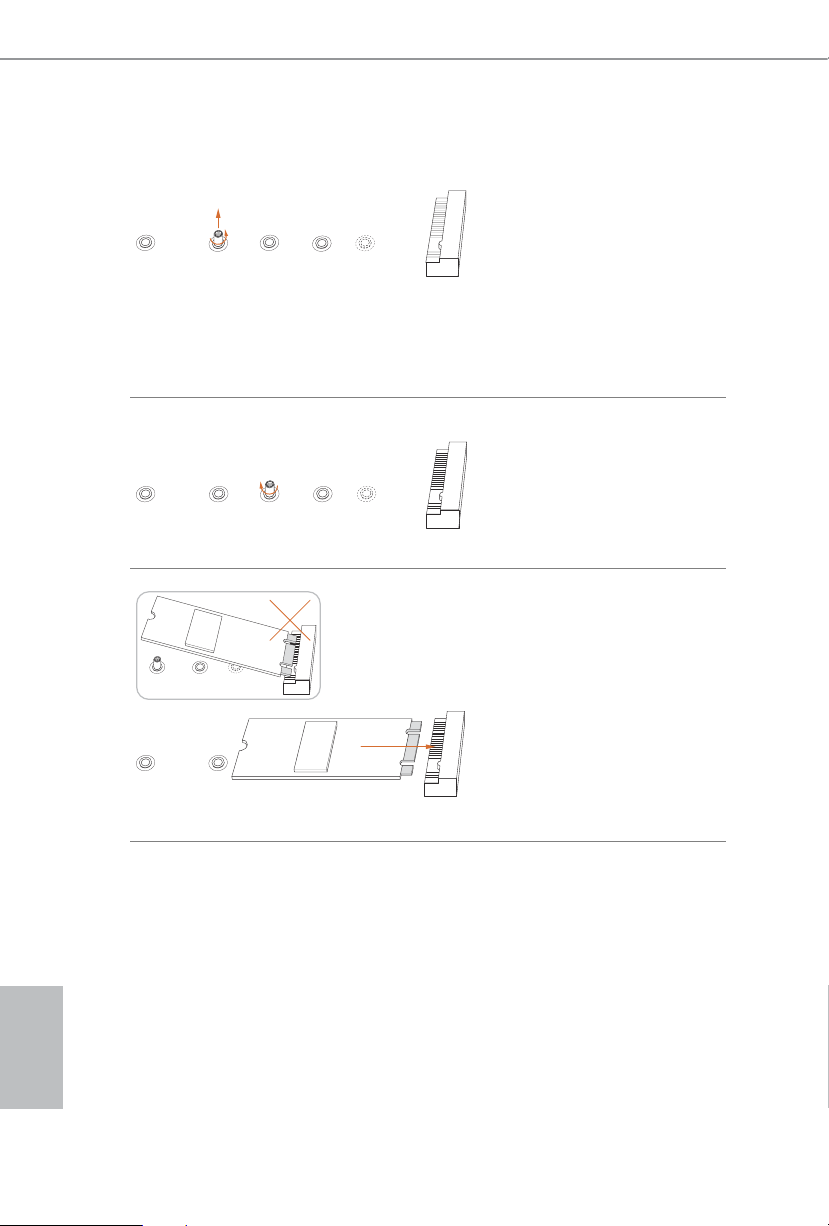

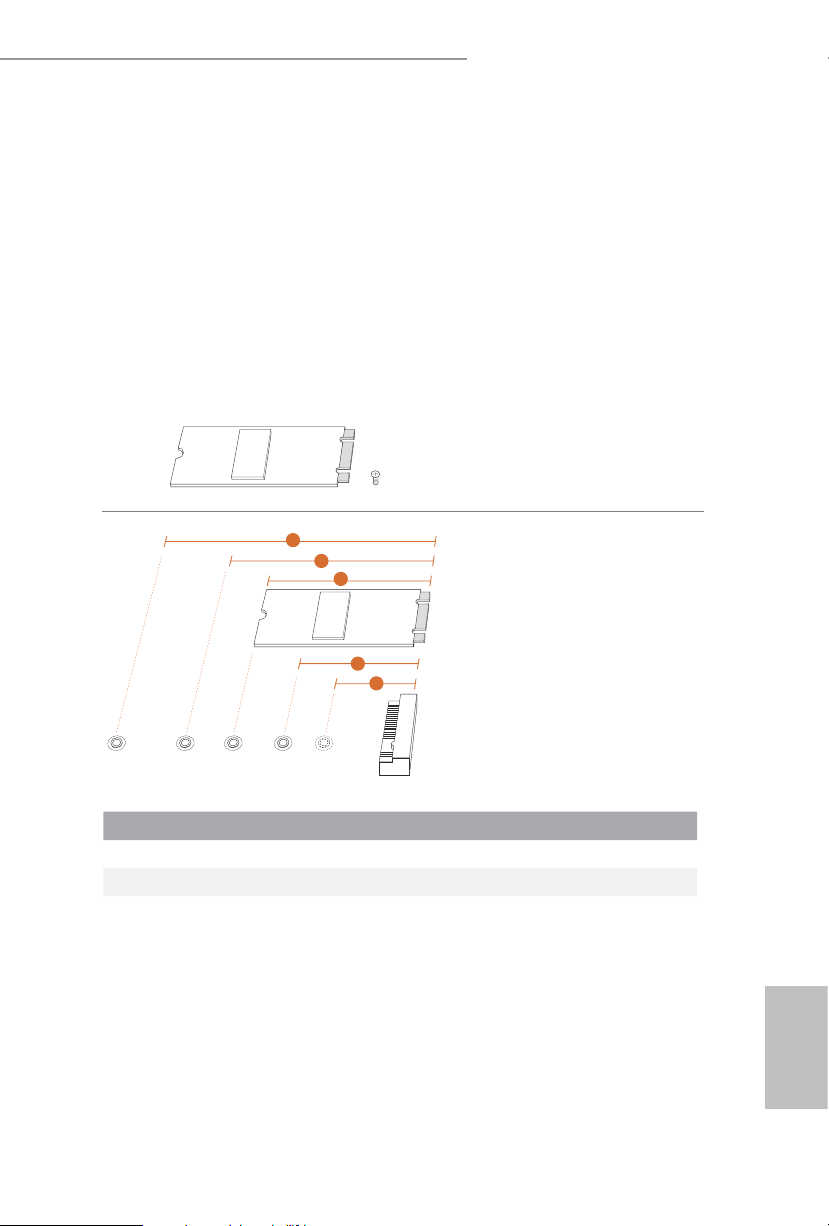

2.11 M.2_SSD (NGFF) Module Installation Guide 39

Chapter 3 Software and Utilities Operation 42

3.1 Installing Drivers 42

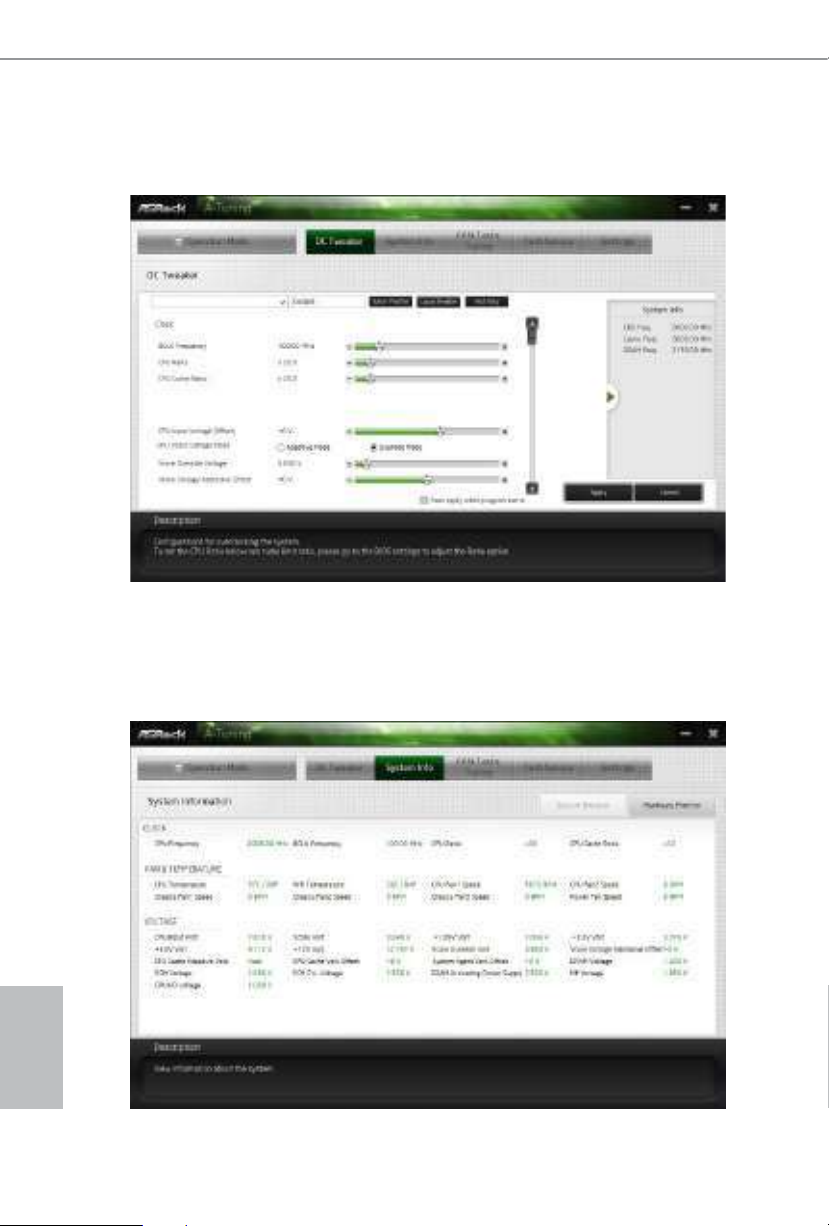

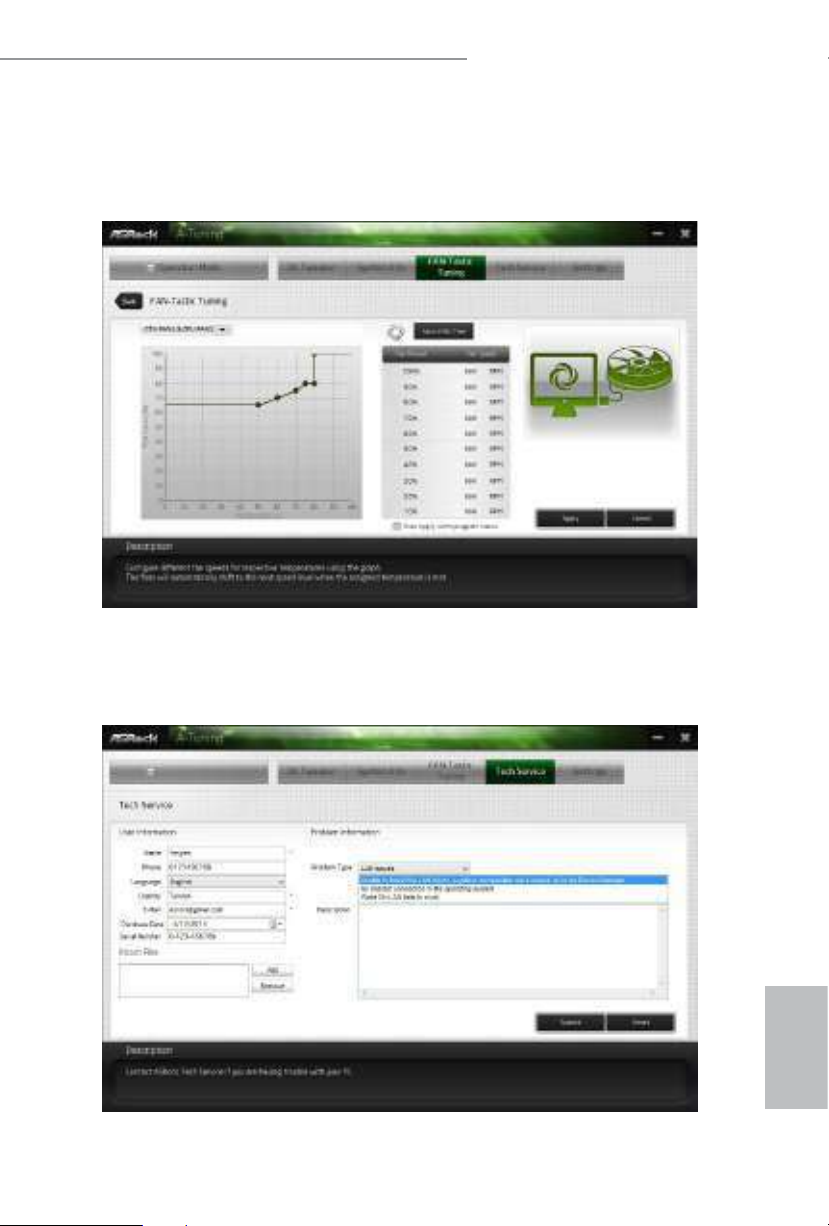

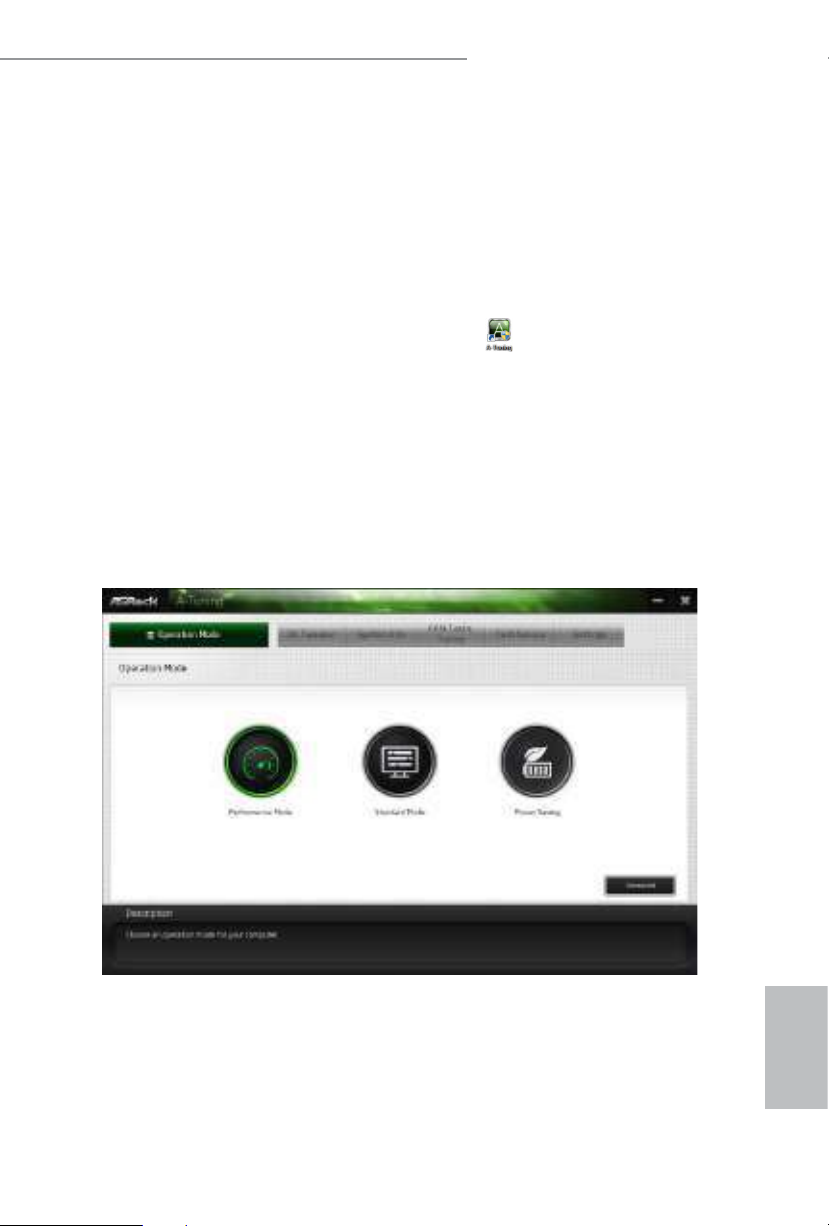

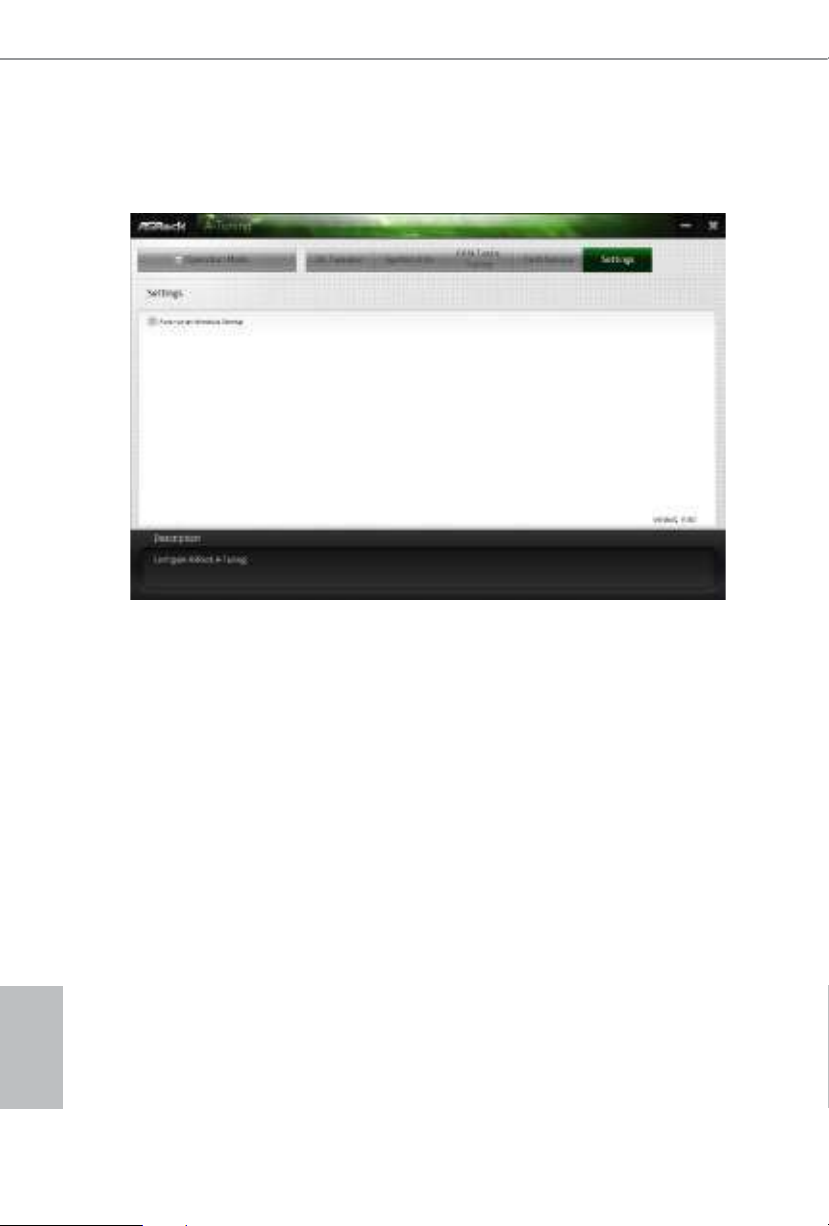

3.2 A-Tuning 43

3.3 ASRock Live Update & APP Shop 47

3.3.1 UI Overview 47

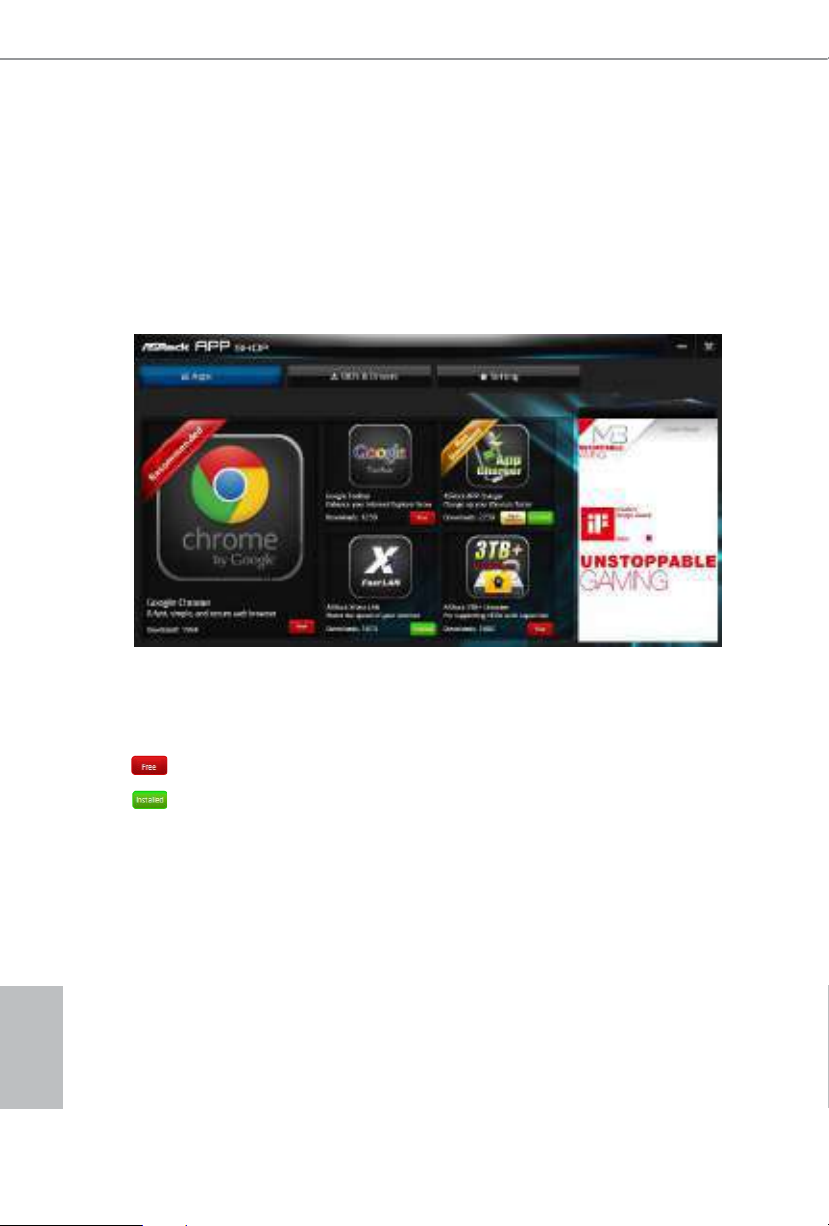

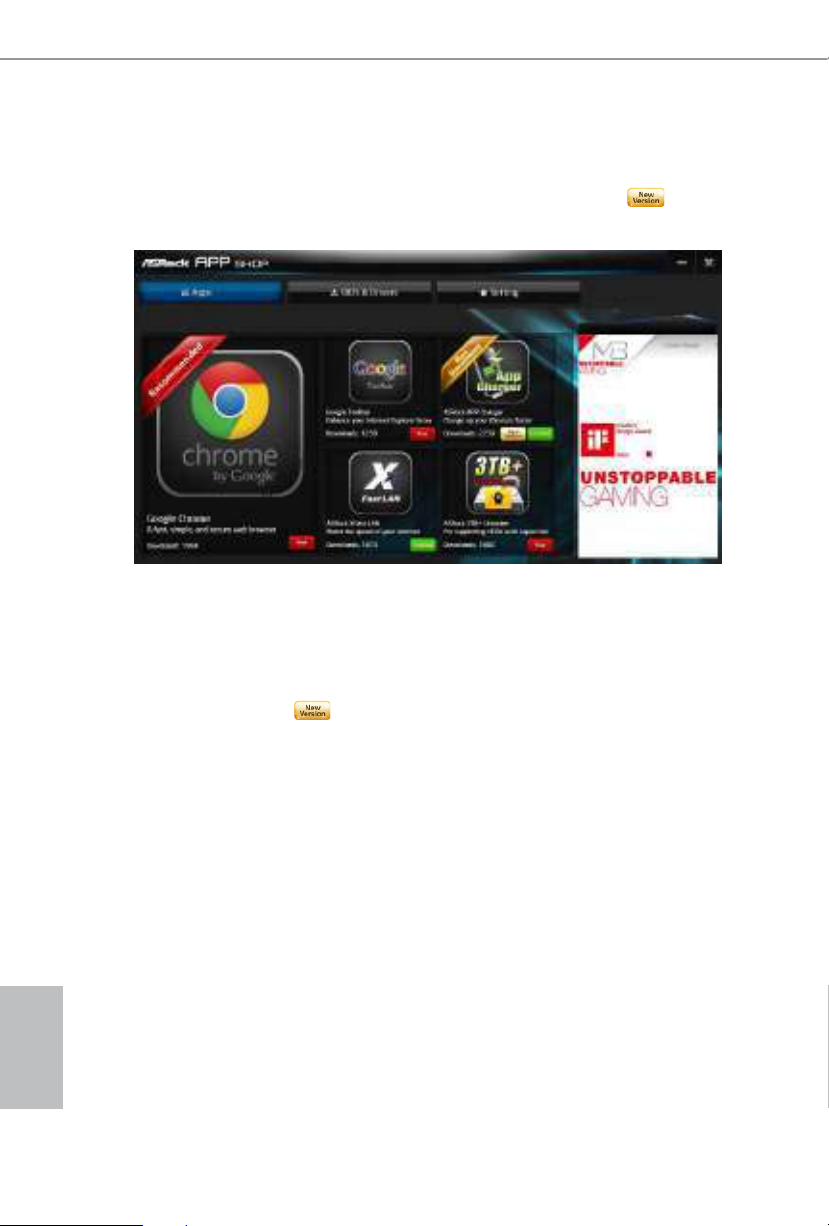

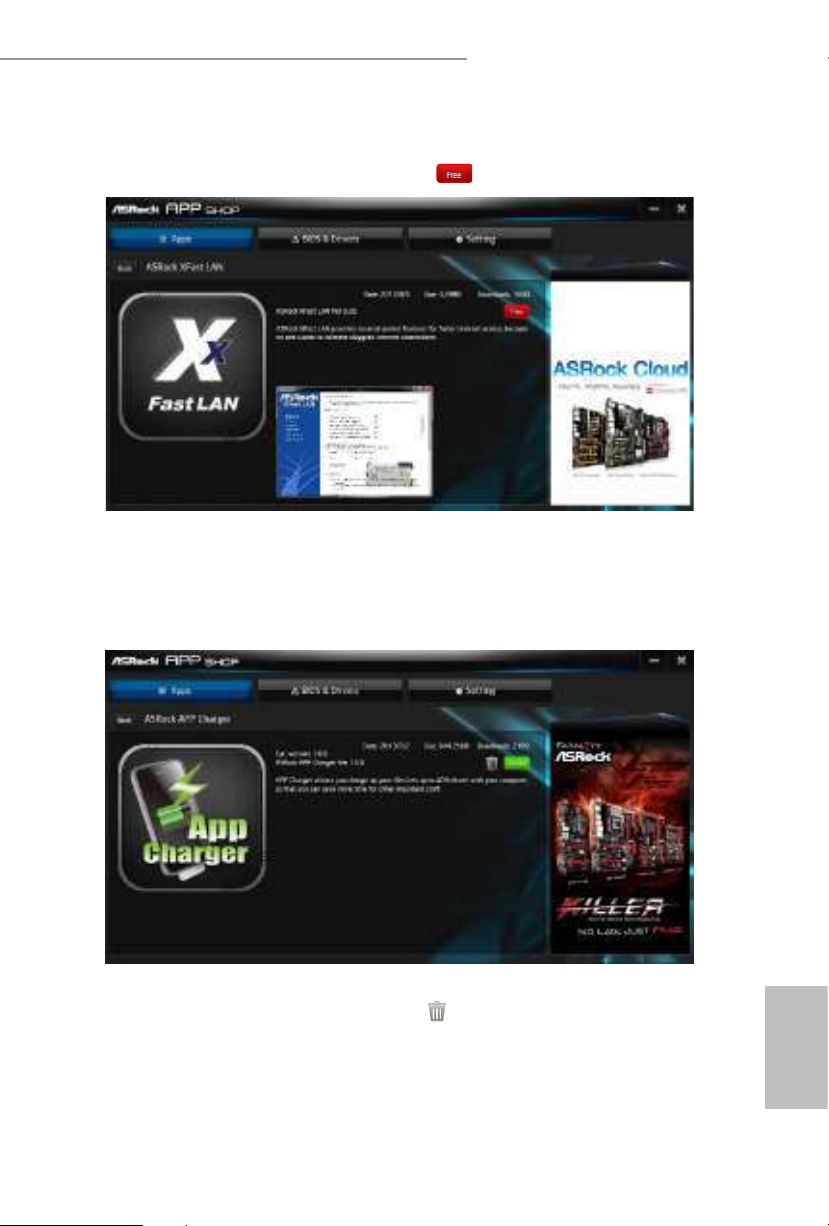

3.3.2 Apps 48

3.3.3 BIOS & Drivers 51

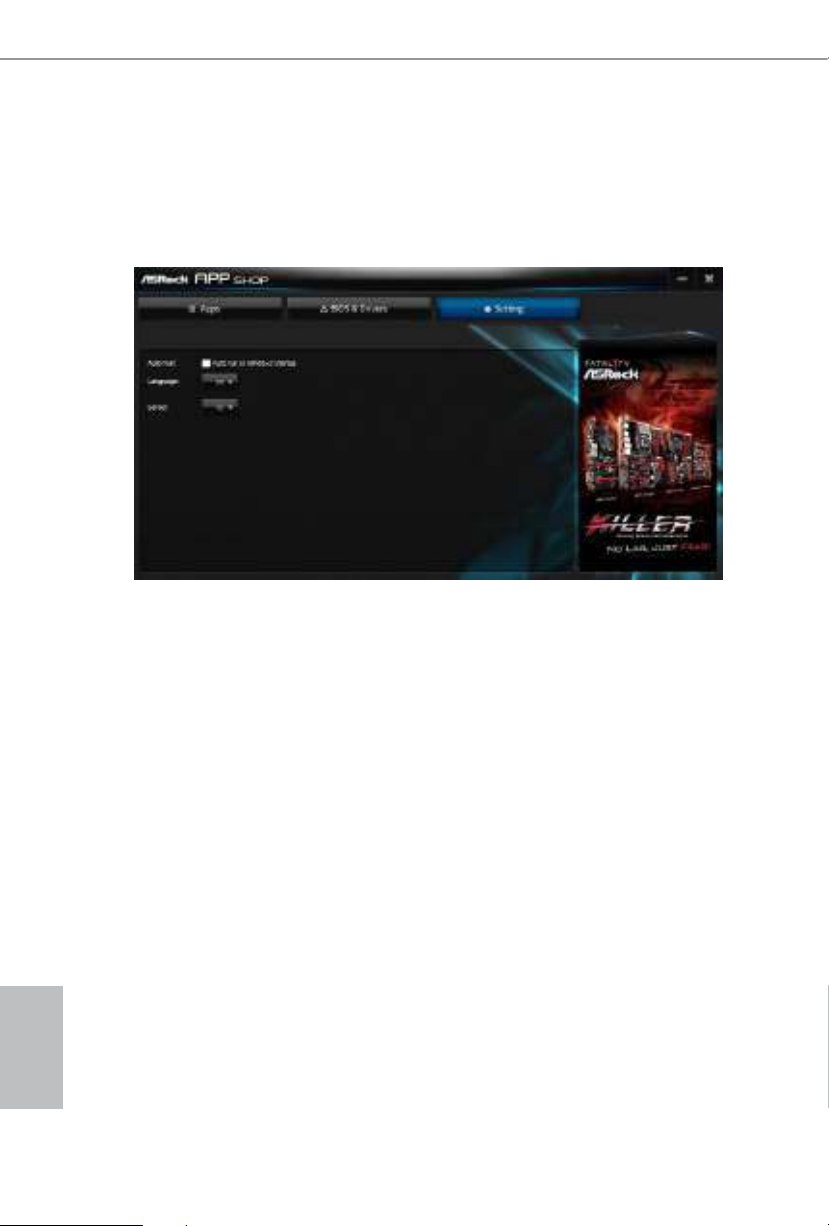

3.3.4 Setting 52

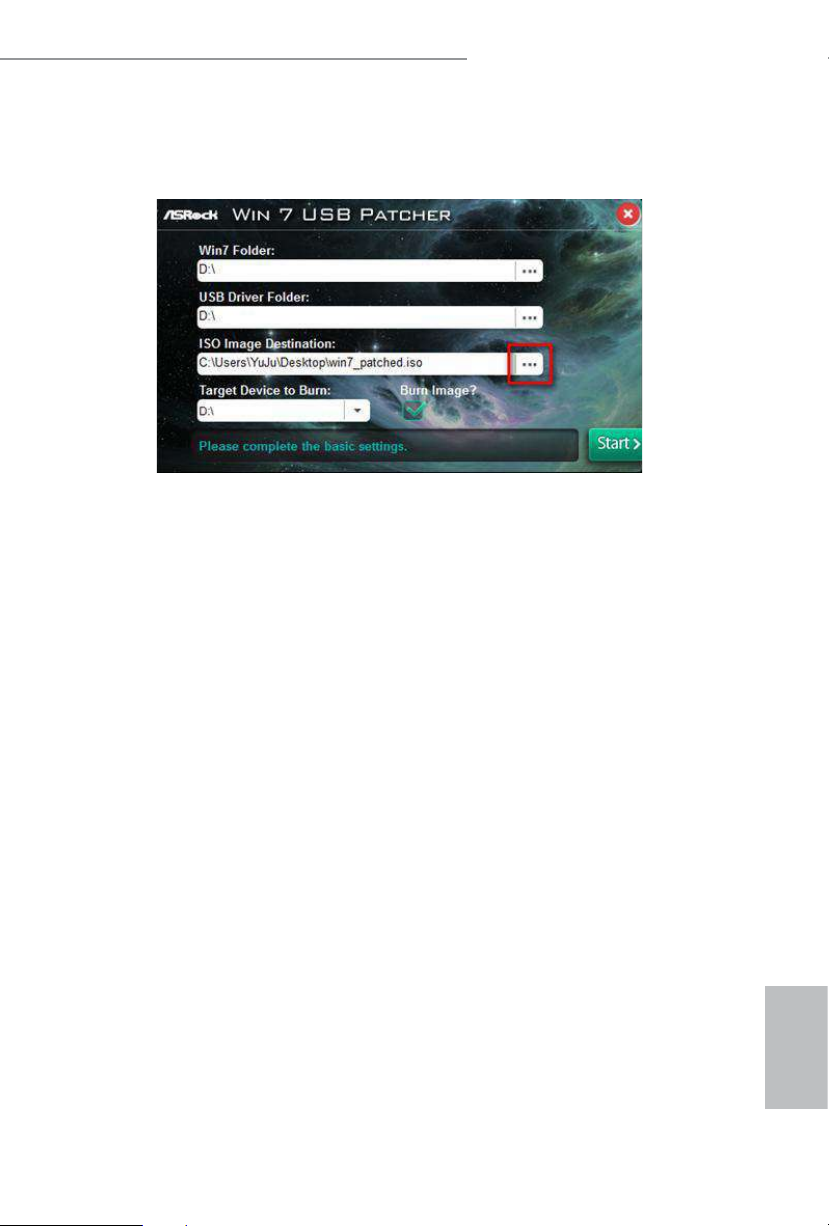

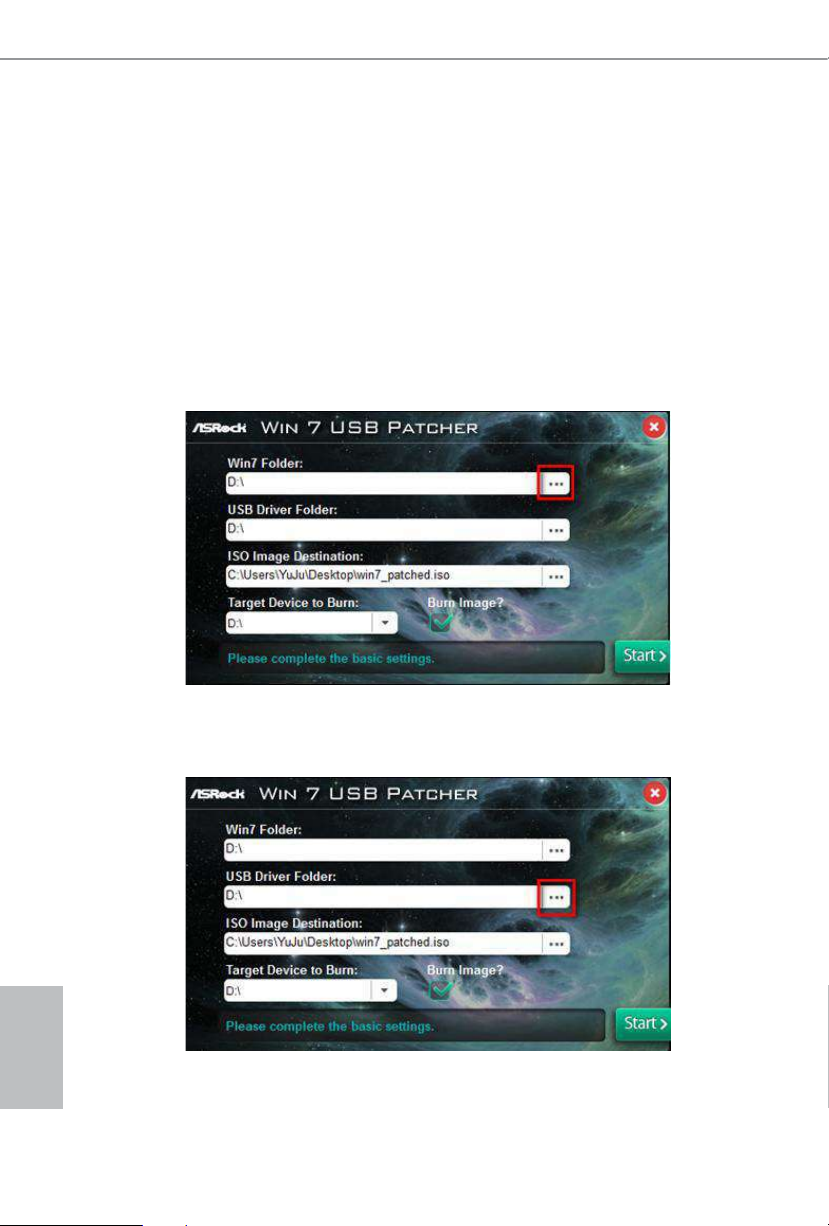

3.4 Enabling USB Ports for Windows® 7 Installation 53

Chapter 4 UEFI SETUP UTILITY 56

4.1 Introduction 56

4.1.1 UEFI Menu Bar 56

4.1.2 Navigation Keys 57

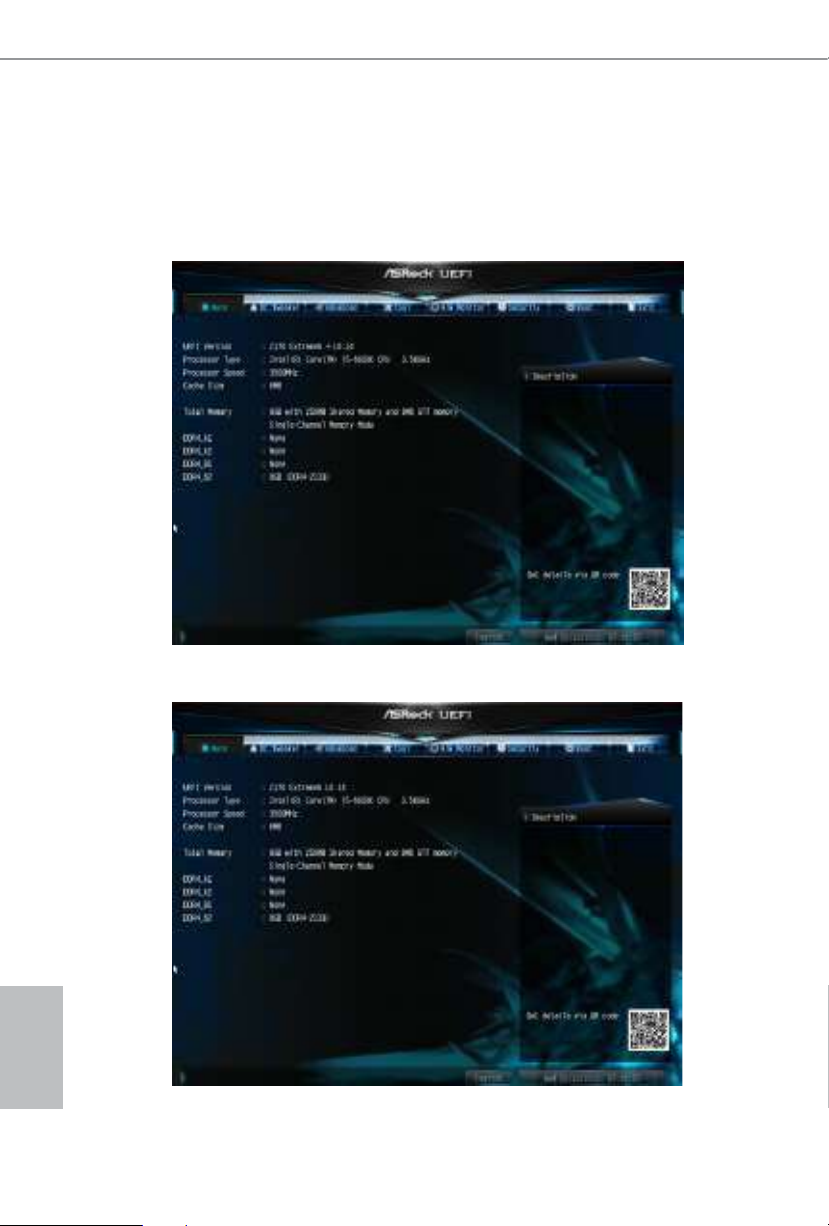

4.2 Main Screen 58

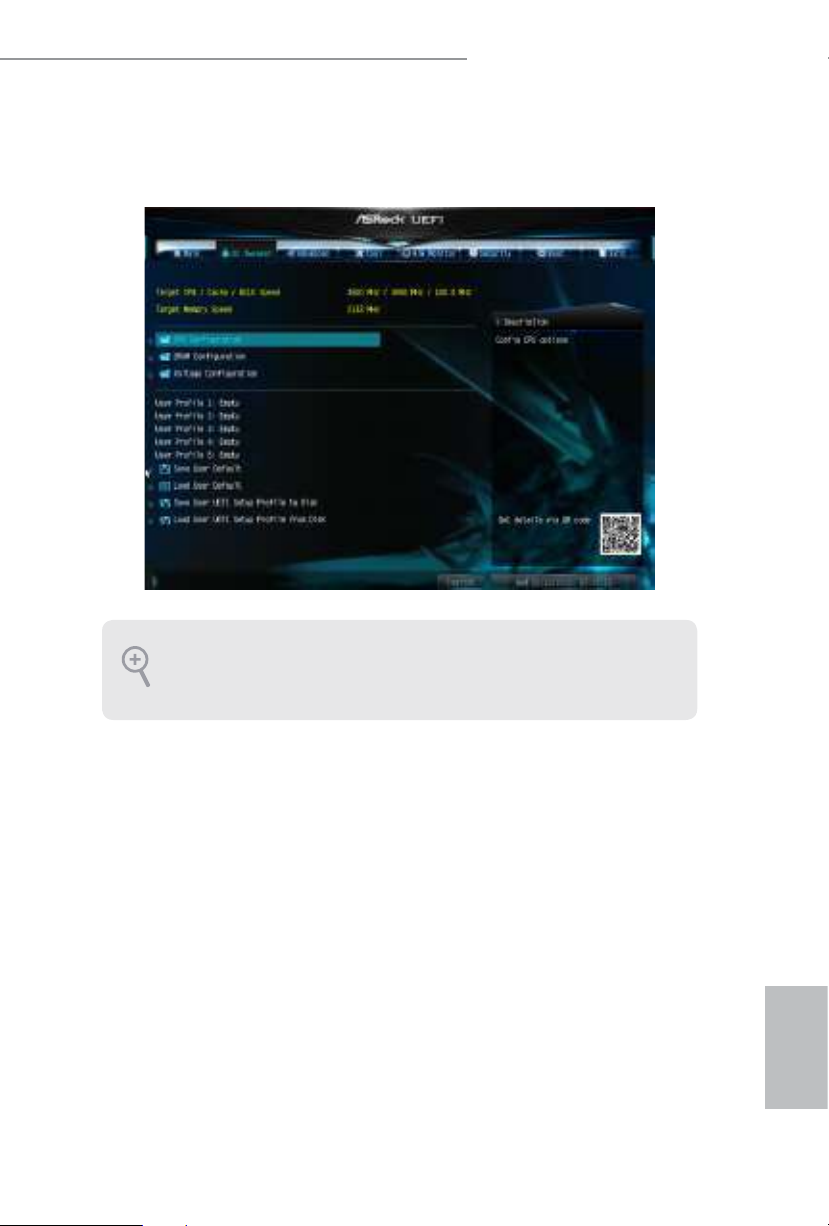

4.3 OC Tweaker Screen 59

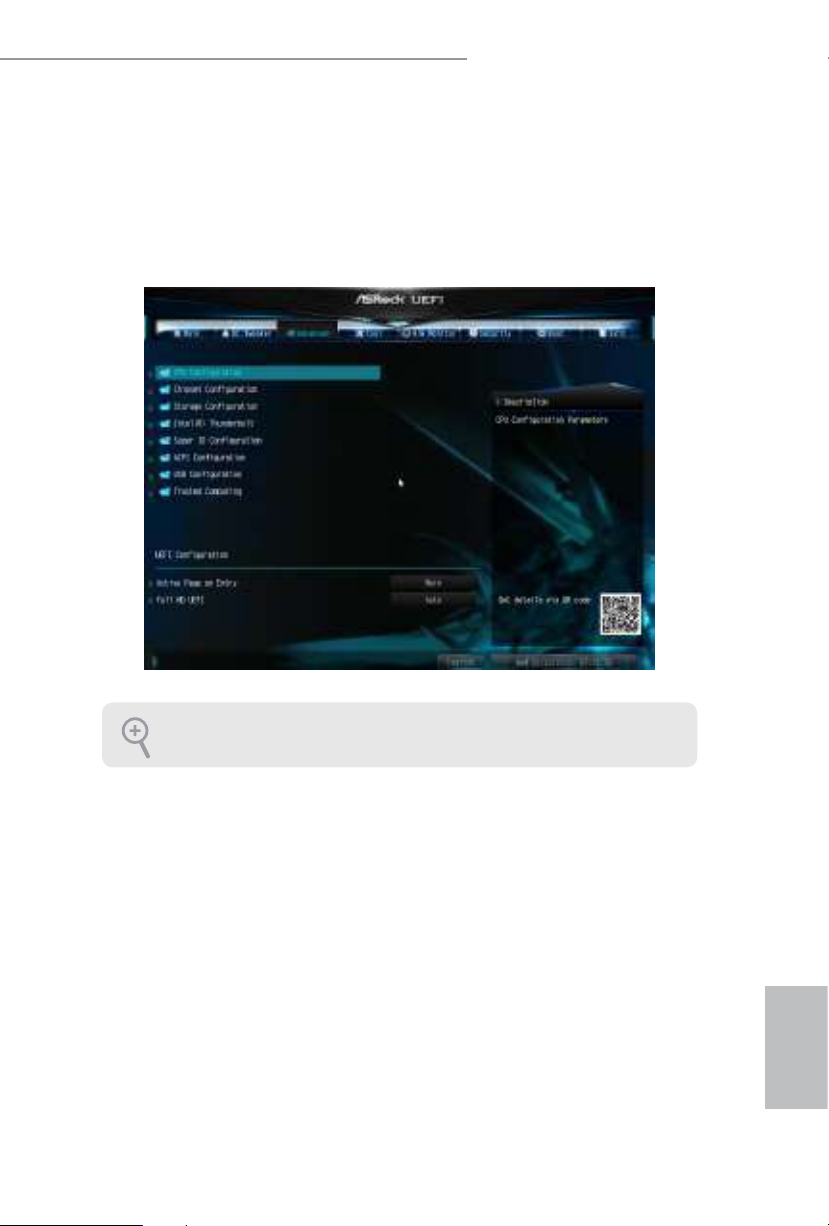

4.4 Advanced Screen 69

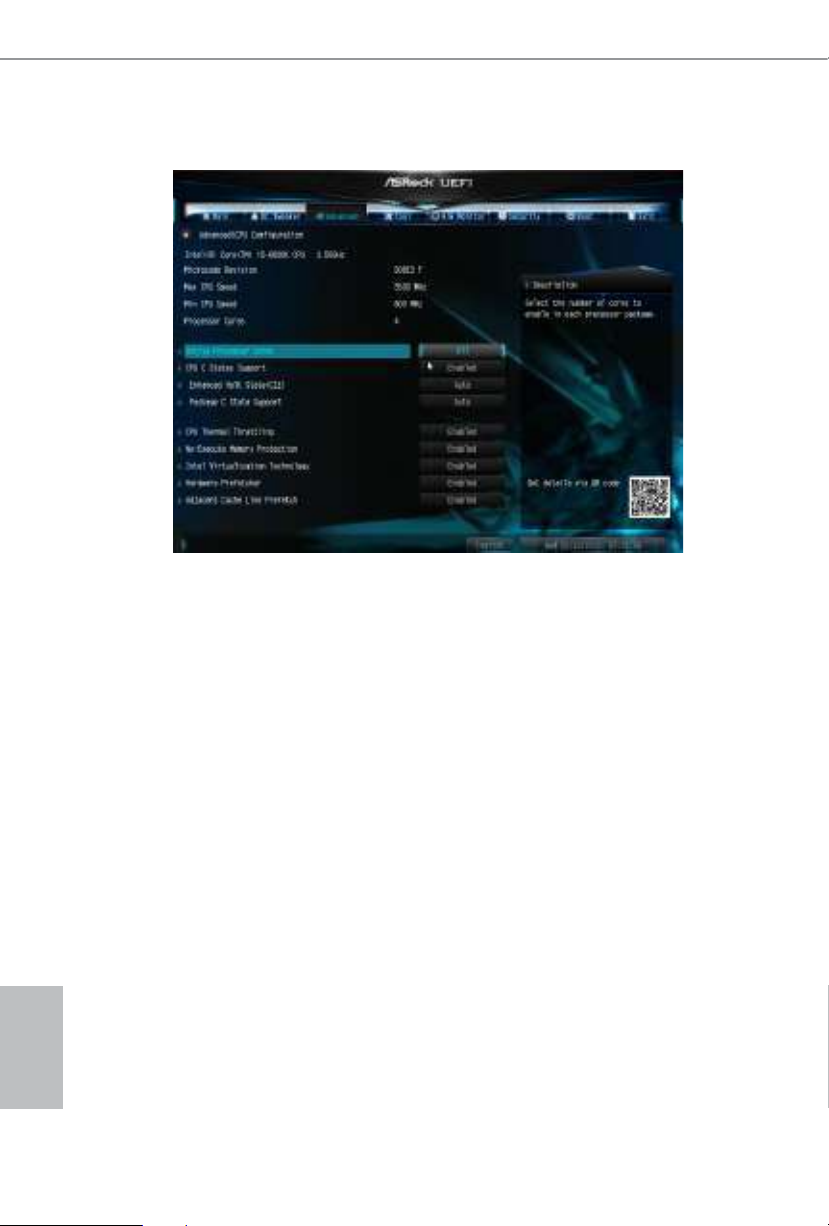

4.4.1 CPU Conguration 70

4.4.2 Chipset Conguration 72

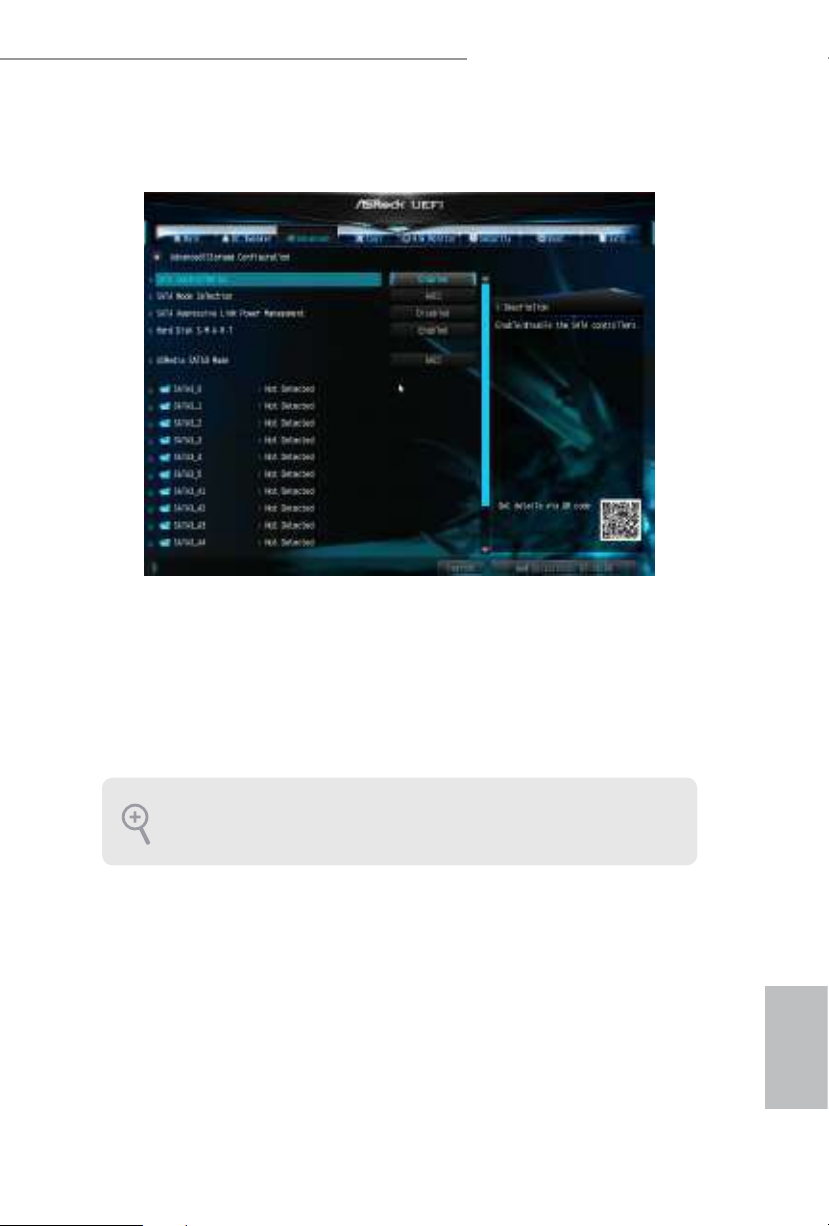

4.4.3 Storage Conguration 75

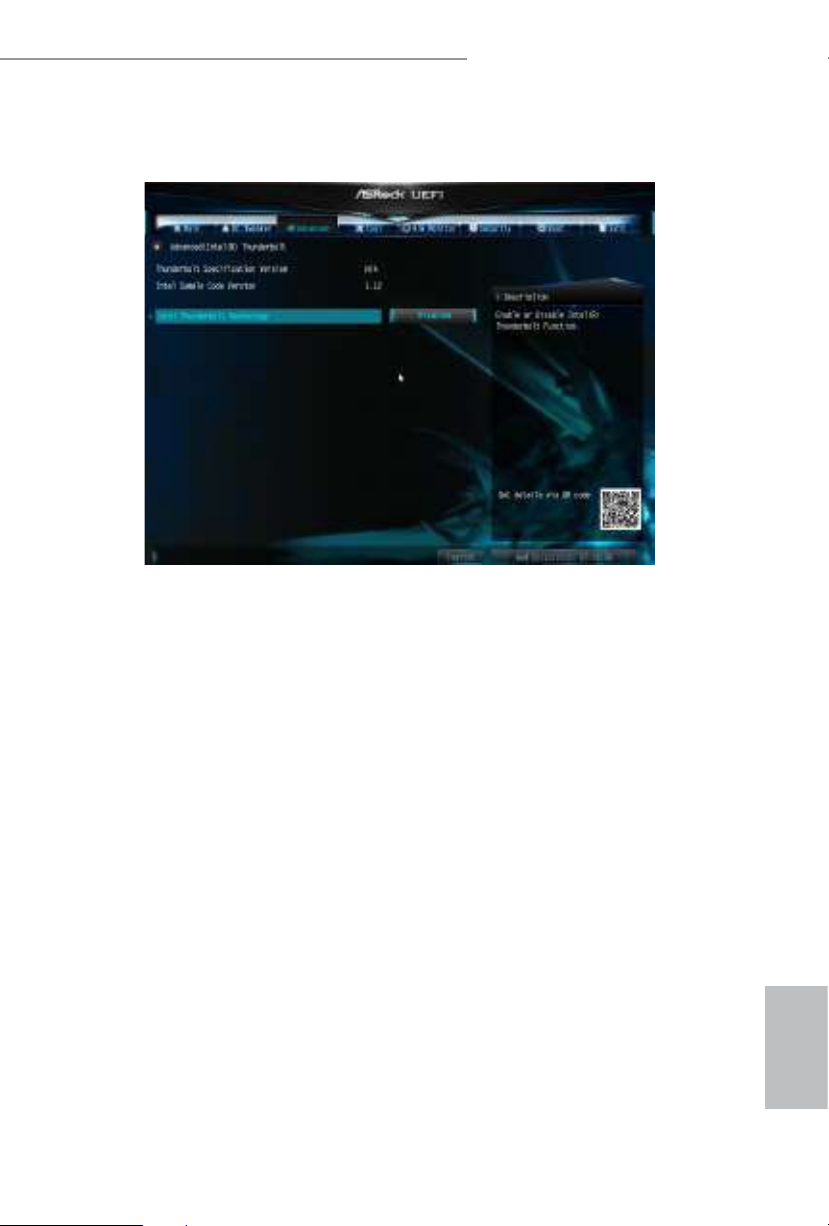

4.4.4 Intel® Thunderbolt™ 2 77

4.4.5 Super IO Conguration 78

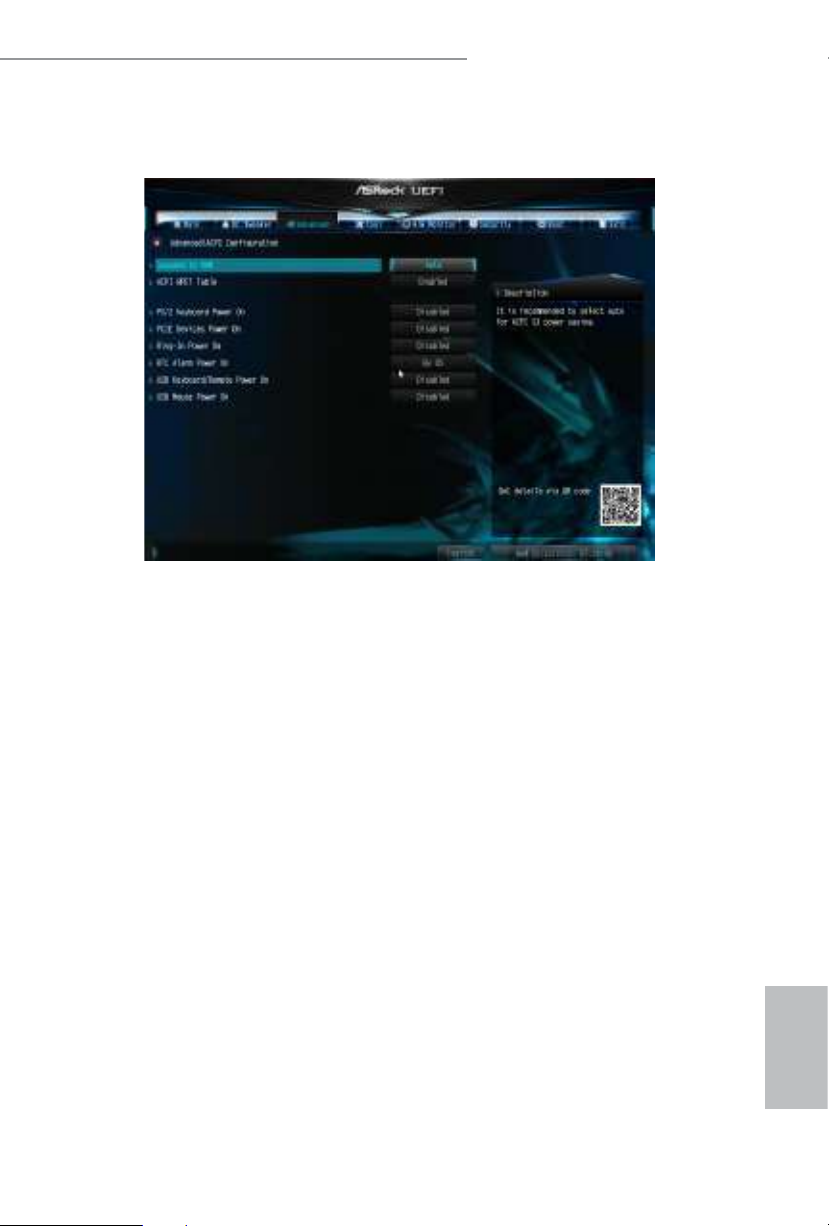

4.4.6 ACPI Conguration 79

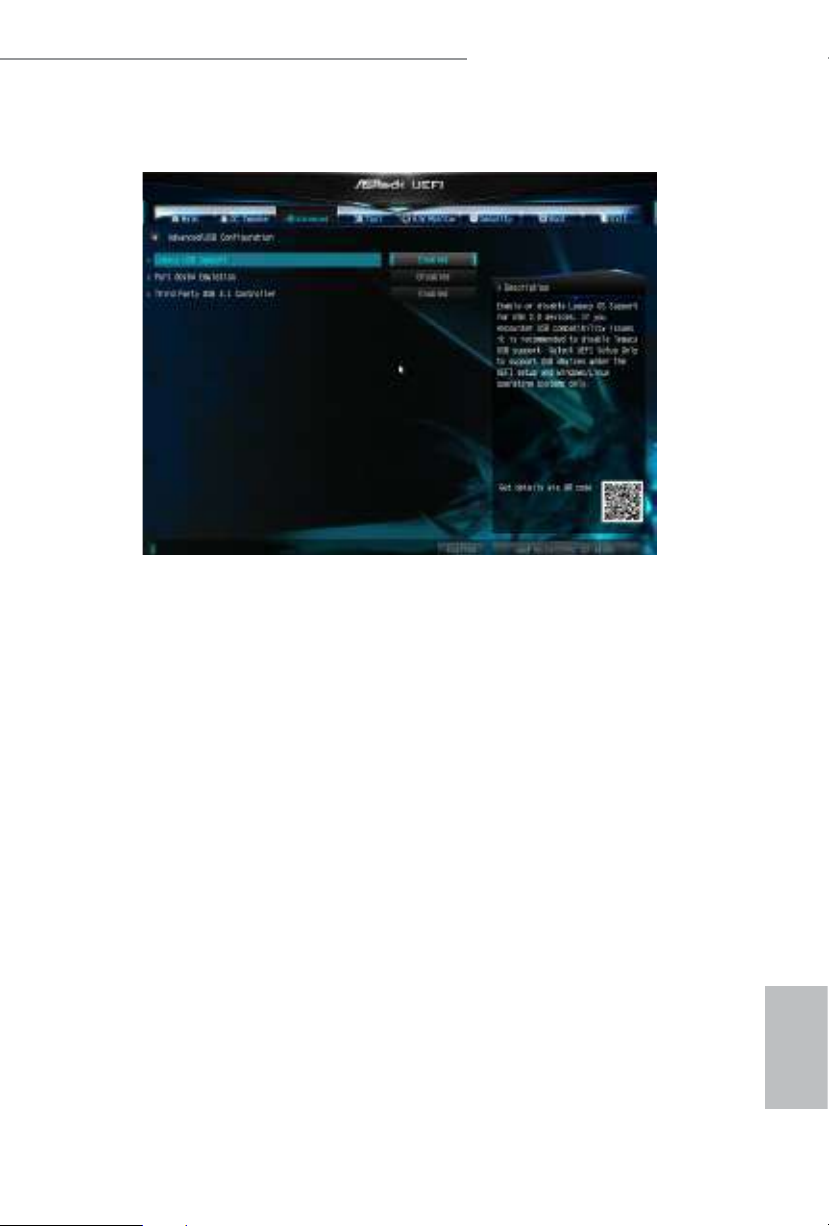

4.4.7 USB Conguration 81

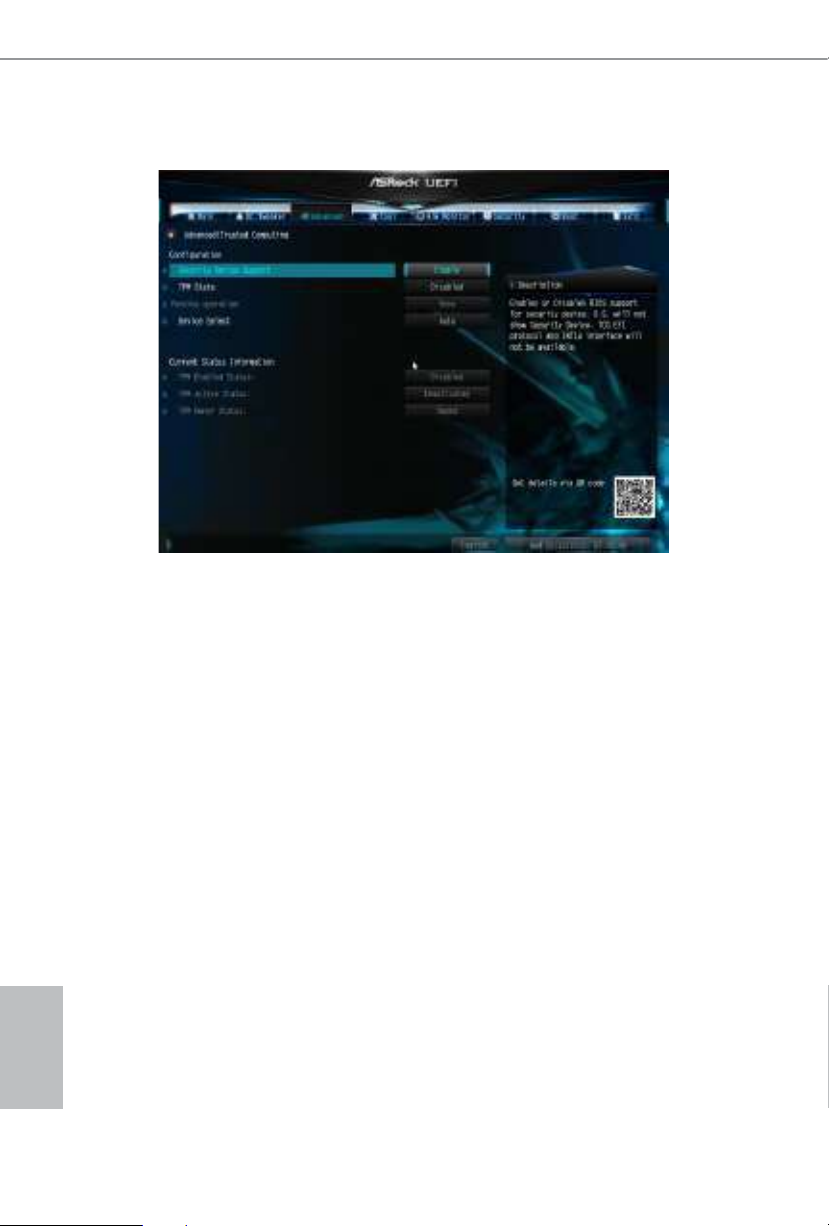

4.4.8 Trusted Computing 82

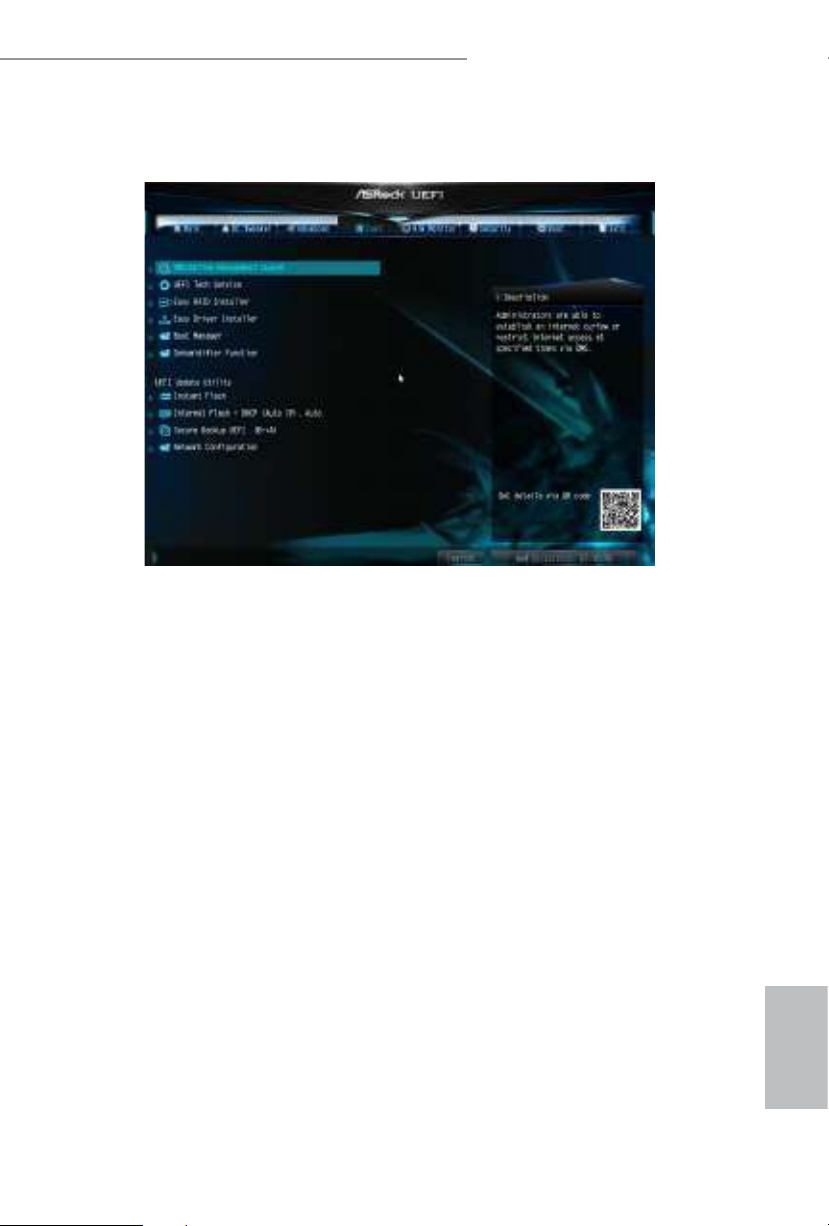

4.5 Tools 83

4.6 Hardware Health Event Monitoring Screen 87

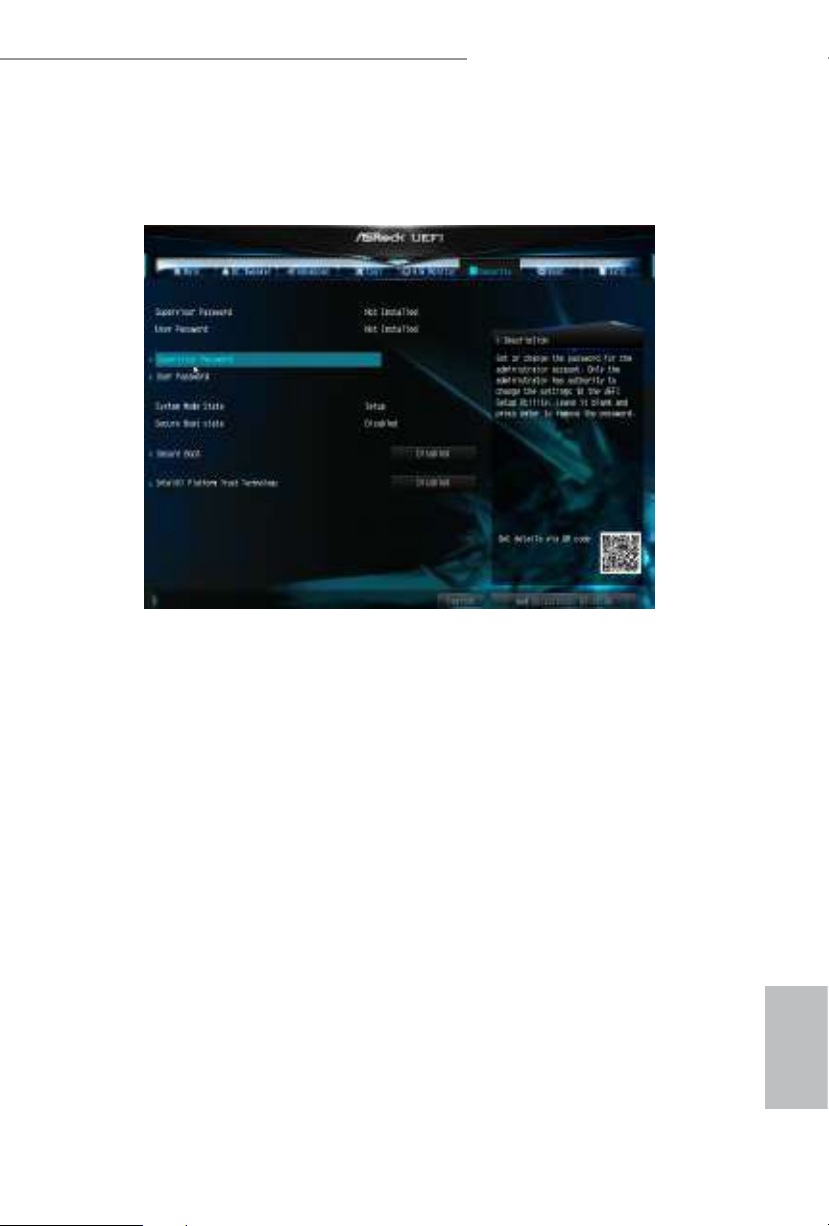

4.7 Security Screen 89

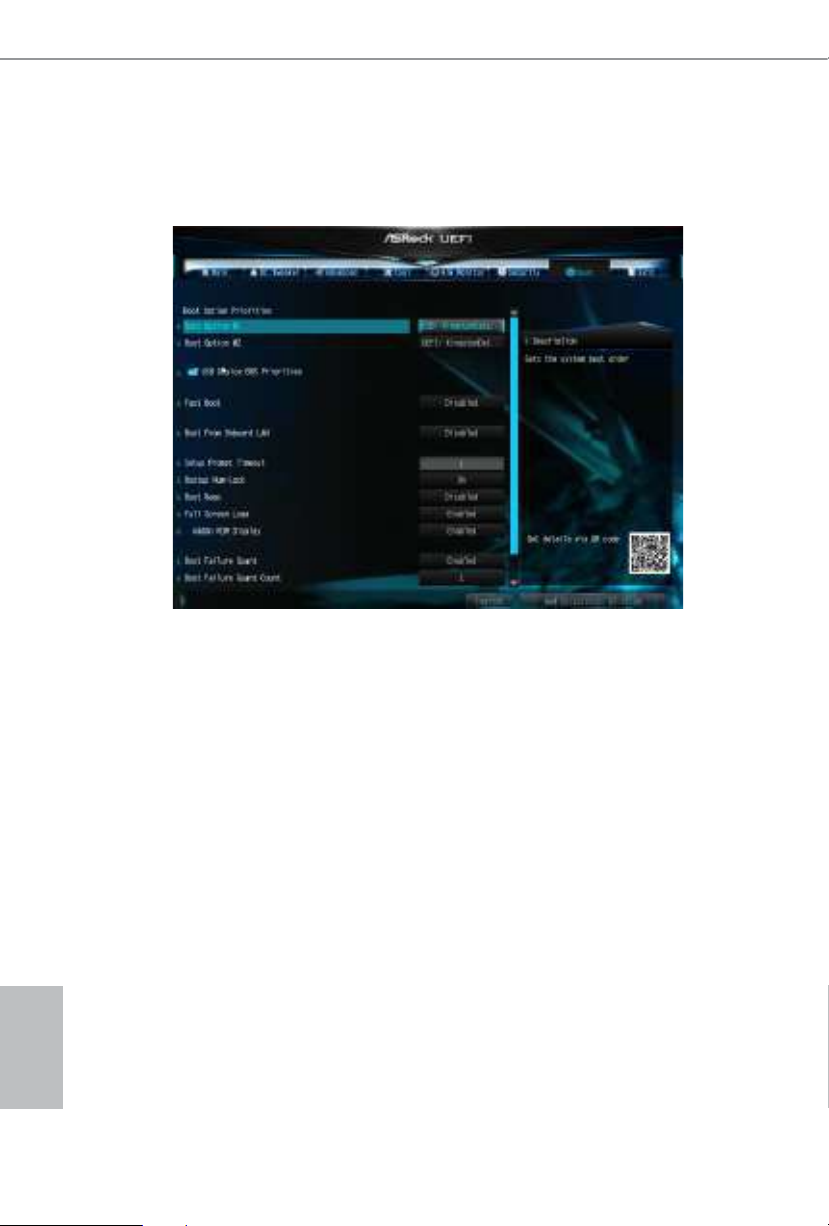

4.8 Boot Screen 90

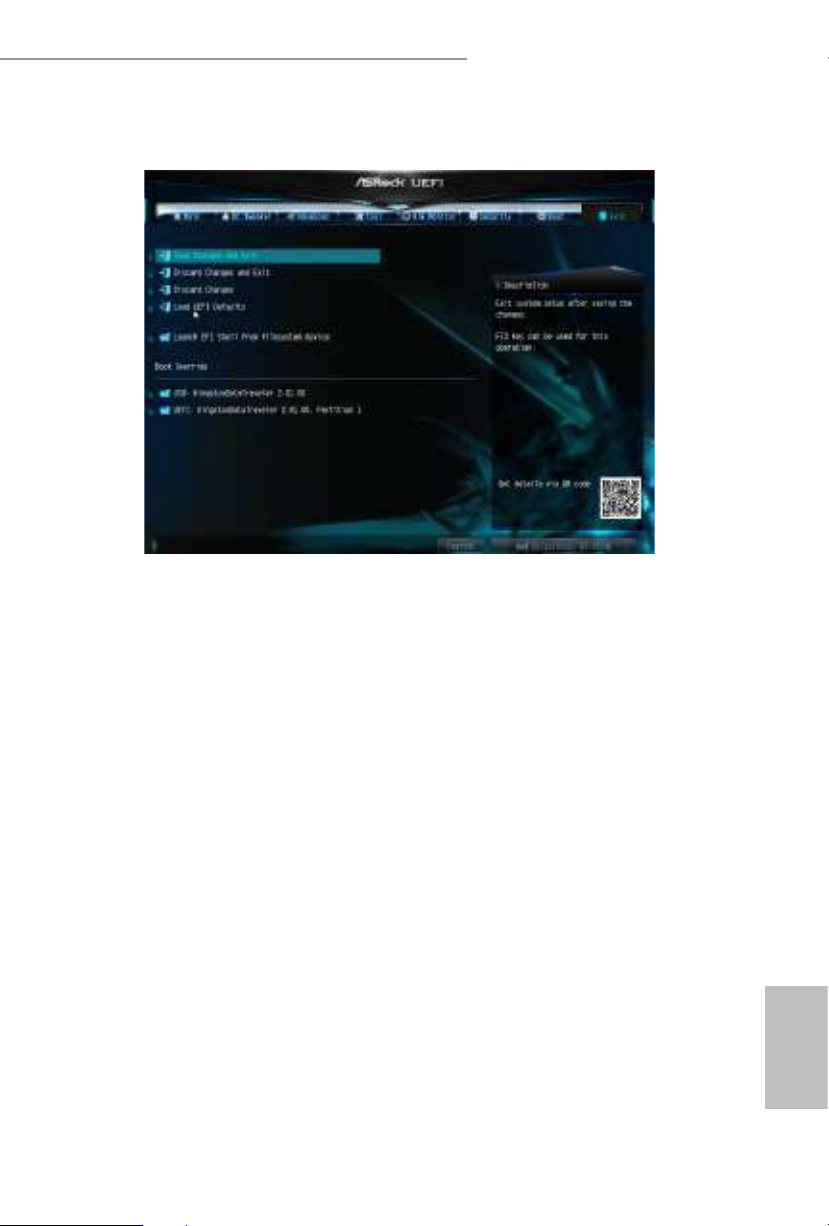

4.9 Exit Screen 93

1

English

Z170 Extreme6+ / Z170 Extreme6

Chapter 1 Introduction

ank you for purchasing ASRock Z170 Extreme6+ / Z170 Extreme6 motherboard,

a reliable motherboard produced under ASRock’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

In this documentation, Chapter 1 and 2 contains the introduction of the

motherboard and step-by-step installation guides. Chapter 3 contains the operation

guide of the soware and utilities. Chapter 4 contains the conguration guide of

the BIOS setup.

1.1 Package Contents

•

ASRock Z170 Extreme6+ / Z170 Extreme6 Motherboard (ATX Form Factor)

•

ASRock Z170 Extreme6+ / Z170 Extreme6 Quick Installation Guide

•

ASRock Z170 Extreme6+ / Z170 Extreme6 Support CD

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

1 x ASRock SLI_Bridge_2S Card

•

1 x Screw for M.2 Socket

•

1 x ASRock Front USB 3.1 Panel (for Z170 Extreme6+ only)

•

4 x Screws for Front USB 3.1 Panel (for Z170 Extreme6+ only)

•

1 x SATA Express Cable (for Z170 Extreme6+ only)

•

1 x USB Power Cable (for Z170 Extreme6+ only)

Becau se the motherboard speci cations and the BIOS soware might be updated, the
content of this doc umentation will be subject to change without notice. In case any modi­cations of this documentation occ ur, the updated vers ion will be available on ASRock’s
website w ithout further notice . If you require technical suppor t related to this mother­board, please v isit our website for specic information about the model you are using. You
may nd the l atest VGA cards and CPU support list on ASRock’s website as well . ASRock
website http://www.asrock.com.

2

English

1.2 Specications

Platform

•

ATX Form Factor

•

High Density Glass Fabric PCB

CPU

•

Supports 6

th

Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1151)

•

Digi Power design

•

12 Power Phase design

•

Supports Intel® Turbo Boost 2.0 Technology

•

Supports Intel® K-Series unlocked CPUs

•

Supports ASRock BCLK Full-range Overclocking

•

Supports ASRock Hyper BCLK Engine

Chipset

•

Intel® Z170

Memory

•

Dual Channel DDR4 Memory Technology

•

4 x DDR4 DIMM Slots

•

Supports DDR4 3600+(OC)*/3200(OC)/2933(OC)/2800(OC)

/2400(OC)/2133 non-ECC, un-buered memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

•

Max. capacity of system memory: 64GB

•

Supports Intel® Extreme Memory Prole (XMP) 2.0

•

15 Gold Contact in DIMM Slots

Expansion
Slot

•

3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single

at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8

(PCIE2) / x8 (PCIE4) / x4 (PCIE6))

•

3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

•

Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM

and CrossFireXTM

•

Supports NVIDIA® Quad SLITM and SLI

TM

•

15 Gold Contact in VGA PCIe Slot (PCIE2)

Graphics

•

Intel® HD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

3

English

Z170 Extreme6+ / Z170 Extreme6

•

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTru

TM

3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

•

Pixel Shader 5.0, DirectX 12

•

Max. shared memory 1792MB

•

ree graphics output options: DVI-D, HDMI and

DisplayPort 1.2

•

Supports Triple Monitor

•

Supports HDMI with max. resolution up to 4K x 2K

(4096x2304) @ 24Hz

•

Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•

Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz

•

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

•

Supports Accelerated Media Codecs: HEVC, VP8, VP9

•

Supports HDCP with DVI-D, HDMI and DisplayPort 1.2

Ports

•

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,

HDMI and DisplayPort 1.2 Ports

Audio

•

7.1 CH HD Audio with Content Protection (Realtek

ALC1150 Audio Codec)

•

Premium Blu-ray Audio support

•

Supports Surge Protection (ASRock Full Spike Protection)

•

Supports Purity SoundTM 3

- Nichicon Fine Gold Series Audio Caps

- 115dB SNR DAC with Dierential Amplier

- TI® NE5532 Premium Headset Amplier (Supports up to

600 Ohms headsets)

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

•

Supports DTS Connect

4

English

LAN

•

Gigabit LA N 10/100/10 00 Mb/s

•

Giga PHY Intel® I219V

•

Supports Wake-On-LAN

•

Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

•

Supports Energy Ecient Ethernet 802.3az

•

Supports PXE

Rear Panel
I/O

•

1 x PS/2 Mouse/Keyboard Port

•

1 x DVI-D Port

•

1 x HDMI Port

•

1 x DisplayPort 1.2

•

1 x Optical SPDIF Out Port

•

1 x USB 3.1 Type-A Port (10 Gb/s) (ASMedia ASM1142)

(Supports ESD Protection (ASRock Full Spike Protection))

•

1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142)

(Supports ESD Protection (ASRock Full Spike Protection))

•

6 x USB 3.0 Ports (Intel® Z170) (Supports ESD Protection

(ASRock Full Spike Protection))

•

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LE D)

•

1 x Clear CMOS Switch

•

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

ASRock
Front USB

3.1 Panel

(for Z170

Extreme6+

only)

•

1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection

(ASRock Full Spike Protection))

•

1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection

(ASRock Full Spike Protection))

Storage

•

6 x SATA3 6.0 Gb/s Connectors by Intel® Z170, support

RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid

Storage Technology 14 and Intel Smart Response

Technology), NCQ, AHCI and Hot Plug

•

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

5

English

Z170 Extreme6+ / Z170 Extreme6

•

2 x SATA Express 10 Gb/s Connectors*

* Support to be announced

* M2_1, SATA3_0, SATA3_1 and SATA_EXP0 share lanes. If

either one of them is in use, the others will be disabled.

•

1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module

and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

* Supports ASRock U.2 Kit

Connector

•

1 x COM Port Header

•

1 x TPM Header

•

1 x Power LED and Speaker Header

•

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

•

4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed

Control)

•

1 x 24 pin ATX Power Connector

•

1 x 8 pin 12V Power Connector (Hi-Density Power

Connec tor)

•

1 x Front Panel Audio Connector

•

1 x underbolt AIC Connector

•

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

ESD Protection (ASRock Full Spike Protection))

•

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

ESD Protection (ASRock Full Spike Protection))

•

1 x Dr. Debug with LED

•

1 x Power Switch with LED

•

1 x Reset Switch with LED

BIOS
Feature

•

2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI

support (1 x Main BIOS and 1 x Backup BIOS)

•

Supports Secure Backup UEFI Technology

•

ACPI 1.1 Compliant wake up events

•

SMBIOS 2.3.1 Support

•

CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VC-

CPLL, VCCSA Voltage Multi-adjustment

Hardware
Monitor

•

CPU/Chassis temperature sensing

•

CPU/Chassis Fan Tachometer

•

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

6

English

•

CPU/Chassis Fan multi-speed control

•

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU,

DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

OS

•

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

bit

* To install Windows® 7 OS, a modied installation disk with

xHCI drivers packed into the ISO le is required. Please refer to

page 53 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock’s

website for details: http://www.asrock.com

Certica­tions

•

FCC, CE, WHQL

•

ErP/EuP Ready (ErP/EuP ready power supply is required)

Please realize that there i s a certain risk involved with o verclocking, including adjusting
the setting in the BIOS , applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cau se damage to
the components and devices of your system. It should be done at your own r isk and expense.
We are not responsible for possible damage caused b y overclocking.

* For detailed product information, please v isit our website: http://www.asrock .com

7

English

Z170 Extreme6+ / Z170 Extreme6

Intel

Z170

DDR4 _A2 (64 b it, 288 -pin mo dule)

DDR4 _A1 (64 b it, 288 -pin mo dule)

DDR4 _B2 (64 b it, 288 -pin mo dule)

DDR4 _B1 (64 b it, 288 -pin mo dule)

ATX12V1

USB 3.0

T: USB5

B: USB6

ATXP WR1

LAN

PCIE2

Top:
RJ-45

USB 3.0
T: USB3
B: USB4

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

PCIE4

HDLED RESET

PLED PWRBTN

PANEL1

1

USB1_2

1

1

SPK_PLED1

COM1

1

1

HD_AUDIO1

Z170 Extreme6

PCIE6

SATA3_2_3

SATA3_0_4

SATA3_1_5

PCIE1

CPU_FAN1

RoHS

8

6

7

11

13

14

15

16

17

18

19

22

24

2728

DVI1

CLRC
BTN2

HDMI1

USB 3.0
T: USB1
B: USB2

SATA3_A0_ A1

1

3

2

26

Dr.

Debug

Purity

Sound 3

TM

20

Ult ra M.2

PCIe Ge n3 x4

BIOS_B1

BIOS_A1

BIOS_A_LED

128Mb
BIOS

128Mb
BIOS

BIOS_B_LED

PS2

Keybo ard

/Mous e

CMOS

Battery

CLRMOS1

1

BIOS_SE L1

1

PCIE3

M2_1

CT2CT3CT4CT5

T B1

1

25

10

4

USB3_7_ 8

1

21

CPU_FAN2

CHA_FAN1

CHA_FAN2

12

9

CHA_FAN3

SATA_EXP_ 0_1

USB3_4

1

23

1

TPMS1

PCIE5

DISPLAY 1

USB 3.1
T: USB31_TA_1
B: USB31_TC_1

CT1

ResetPower

5

CHA_FAN4

1.3 Motherboard Layout

8

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

4 Chassis Fan Connector (CHA_FAN1)

5 Power Switch (PWRBTN1)

6 Reset Switch (RSTBTN1)

7 Chassis Fan Connector (CHA_FAN4)

8 ATX Power Connector (ATXPWR1)

9 Chassis Fan Connector (CHA_FAN3)

10 CPU Fan Connector (CPU_FAN2)

11 USB 3.0 Header (USB3_7_8)

12 CPU Fan Connector (CPU_FAN1)

13 SATA3 Connectors (SATA3_A0_A1)

14 SATA3 Connectors (SATA3_2_3)

15 SATA3 Connectors (SATA3_0_4)

16 SATA3 Connectors (SATA3_1_5)

17 SATA Express Connectors (SATA_EXP_0_1)

18 BIOS Selection Jumper (BIOS_SEL1)

19 Clear CMOS Jumper (CLRMOS1)

20 System Panel Header (PANEL1)

21 Power LED and Speaker Header (SPK_PLED1)

22 Chassis Fan Connector (CHA_FAN2)

23 USB 2.0 Header (USB3_4)

24 USB 2.0 Header (USB5_6)

25 underbolt AIC Connector (TB1)

26 TPM Header (TPMS1)

27 COM Port Header (COM1)

28 Front Panel Audio Header (HD_AUDIO1)

9

English

Z170 Extreme6+ / Z170 Extreme6

1.4 I/O Panel

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 10 USB 3.1 Type-A Port (USB31_TA_1)

2 DVI-D Por t 11 USB 3.1 Type-C Port (USB31_TC_1)

3 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_34)

4 Central / Bass (Orange) 13 USB 3.0 Ports (USB3_12)

5 Rear Speaker (Black) 14 DisplayPort 1.2

6 Line In (Light Blue) 15 HDMI Port

7 Front Speaker (Lime)** 16 Clear CMOS Switch

8 Microphone (Pink) 17 USB 3.0 Ports (USB3_56)

9 Optical SPDIF Out Port

1

17 8910

11

1213141516

2 3 547

6

10

English

* ere are two LEDs on each LAN port. Plea se refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection

** If you use a 2- channel speaker, please connec t the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in a ccordance with the t ype of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

Line In

(No. 6)

2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel au dio header. Aer restarting your computer, you will nd the “Mixer” tool on your
system. Please select “Mixer ToolBox” , click “Enable playback multi-s treaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to use the Rear Speaker, Central/Bas s, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Por t

11

English

Z170 Extreme6+ / Z170 Extreme6

1.5 ASRock Front USB 3.1 Panel (for Z170 Extreme6+ only)

Specications

Dimension •

75mm (W) x 42.8mm (H) x 148mm (L)

Controller •

ASMedia ASM1142 Controller

Front Panel

I/O

•

1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection

(ASRock Full Spik

e Protection))

* For charging Type-A USB devices, we suggest using the Type-A

connectors on your mot herboard.

•

1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection

(ASRock Full Spike Protection))

* is por t supports power outputs up to 5V/3A. For charging Type-C
USB devices, the device should support Type-C sta ndards to adjust the
current because it will be dierent in Power On state (3 Amp) and Sleep
state (1 Amp).
* Some Type-C USB devices may only be charged by its own adapter.

Connector

•

1 x SATA Express 10 Gb/s Connector

•

1 x USB Power Connector

OS

•

Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

* It is recommended to insta ll the ASRock Front USB 3.1 Panel into the drive bay of

your chassis before connecting other USB devices.

12

English

ASRock Front USB 3.1 Panel Installation Guide

Step 1

Prepare the bundled ASRock Front USB 3.1 Panel,

SATA Express Cable, USB Power Cable and screws.

Step 2

Connect one end of the SATA Express Cable to the

SATA Express Connector on the ASRock Front USB

3.1 Pa nel.

Step 3

Connect one end of the USB Power Cable to the

USB Power Connector on the ASRock Front USB 3.1

Panel.

Step4

Install ASRock Front USB 3.1 Panel into the drive

bay of the chassis.

Fro

n

t

USB

3.1

Pa

n

el

F

ro

n

t

U

SB

3

.1

Pa

n

el

F

ro

n

t

U

SB

3

.1

Pa

n

e

l

13

English

Z170 Extreme6+ / Z170 Extreme6

Step 5

Screw ASRock Front USB 3.1 Panel to the

drive bay with screws.

Step 6

Connect the PSU’s SATA Power Cable to

the SATA Power Connector.

Step 7

Connect the other end of the SATA Express

Cable to the SATA Express Connector on

the motherboard.

Step 8

Connect the other end of the USB Power

Cable to the USB 2.0 Header on the

motherboard.

U

S

B

3

.

0

U

S

B

3

.

0

SA

T

A

_

E

X

P

0

SA

T

A

3

_

1

_

3

S

A

T

A

3

_

A

1

_

A

2

SA

T

A

3

_

4

_

5

SA

T

A

3

_

A

3

_

A

4

SA

T

A

3

_

0

_

2

US

B
3

_
4

SA

T

A

_

E

X

P

0

SA

T

A

3

_

1

_

3

S

A

T

A

3

_

A

1

_

A

2

SA

T

A

3

_

4

_

5

SA

T

A

3

_

A

3

_

A

4

S

A

T

A

3

_

0

_

2

US

B
3

_
4

14

English

is is an ATX form factor motherboard. Before you install the motherboard, study

the conguration of your chassis to ensure that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

•

Make sure to unplug the power cord before installing or removing the motherboard

components. Failure to do so may cause physical injuries and damages to motherboard

components.

•

In order to avoid damage from static electricity to the motherboard’s components,

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

•

Hold components by the edges and do not touch the ICs.

•

Whenever you uninstall any components, place them on a grounded anti-static pad or

in the bag that comes with the components.

•

When placing screws to secure the motherboard to the chassis, please do not over-

tighten the screws! Doing so may damage the motherboard.

Chapter 2 Installation

15

English

Z170 Extreme6+ / Z170 Extreme6

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into th e socket , please check if the PnP cap is on the
socket, if the CPU sur face is unclean, or if the re are any bent pins in the socket . Do not
force to in sert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.

2. Unplug all power c ables be fore installing the CPU.

1

2

A

B

16

English

4

5

3

17

English

Z170 Extreme6+ / Z170 Extreme6

Please save and replace the cover if the processor is removed. e cove r must be placed if
you wish to return the motherboard for ae r service.

18

English

2.2 Installing the CPU Fan and Heatsink

1 2

CPU_

FAN

19

English

Z170 Extreme6+ / Z170 Extreme6

2.3 Installing Memory Modules (DIMM)

is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,

and supports Dual Channel Memory Technology.

Dual Channel Memory Conguration

e DIMM only ts in one correct orientation. It wil l cause permane nt damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orie ntation .

Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated

1. For dual channel conguration, you always need to install identical (the same brand,

speed , size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Me mory Technol ogy with only one or three memory
module installed.

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this mothe rboard and DI MM may be damaged.

20

English

1

2

3

21

English

Z170 Extreme6+ / Z170 Extreme6

2.4 Expansion Slots (PCI Express Slots)

ere are 6 PCI Express slots on the motherboard.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.

PCIE5 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE6 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.

PCIe Slot Congurations

For a better thermal environment, please connect a ch assis fan to the motherboard ’s chas­sis fan connector (CHA_FAN1, CHA_FAN2, CHA_FAN3 or CHA_ FAN4) when using
multiple graphics cards.

Before installing an expansion card, plea se make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.

PCIE2 PCIE4 PCIE6

Single Graphics Card x16 N/A N/A

Two Graphics Cards in

CrossFireX

TM

or SLITM

Mode

x8 x8 N/A

ree Graphics Cards in

3-Way CrossFireX

TM

Mode

x8 x8 x4

22

English

2.5 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper

(C LR MOS 1)

(see p.7, No. 19)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS batter y is

removed.

Clear CMOS

Default

e Clear CMOS Switch h as the sam e function as the Cl ear CMOS jumper.

23

English

Z170 Extreme6+ / Z170 Extreme6

BIOS Selection Jumper

(B IOS _ SEL1)

(see p.7, No. 18)

is motherboard has two BIOS onboard, a main BIOS (BIOS_A) and a backup

BIOS (BIOS_B), which enhances protection for the safety and stability of your

system. Normally, the system works on the main BIOS. However, if the main BIOS

is corrupted or damaged, please use a jumper cap to short pin2 and pin3, then

the backup BIOS will take over on the next system boot. Aer that, use “Secure

Backup UEFI“ in BIOS setup utility to copy the BIOS le to the main BIOS to

ensure normal system operation. For the sake of system safety, users cannot

update the backup BIOS manually. Users may refer to the BIOS LED (BIOS_A_

LED or BIOS_B_LED) to identif y which BIOS is activated currently.

Backup BIOS

Default

(Main BIOS)

24

English

2.6 Onboard Headers and Connectors

System Panel Header

(9-p i n PA NE L1)

(see p.7, No. 20)

Connect the power

switch, reset switch and

system status indicator on

the chassis to this header

according to the pin

assignments below. Note

the positive and negative

pins before connecting

the cables.

GND

RESET#

PWRBTN#

PLED-

PLED+

GND

HDLED-

HDLED+

1

GND

PWRBTN (Power Switch):

Connec t to the power switch on the cha ssis front pan el. You may congure the way to turn
o your system using the power switch.

RESET (Reset Sw itch):
Connec t to the reset switch on the cha ssis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to pe rform a normal re start.

PLED (Syste m Power LED):
Connec t to the power status indicator on the ch assis front panel. e LED i s on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).

HDLED (Ha rd Drive Activity LED):
Connec t to the hard drive ac tivity LED on the cha ssis front panel. e LED is on when the
hard drive is reading or writing data.

e front panel des ign may dier by chassis. A f ront panel modul e mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc . When connect­ing your ch assis front panel module to this header, make sure the wire assignme nts and the
pin assignment s are matched cor rectly.

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
heade rs and connectors. Placing jumper caps over the heade rs and conn ectors w ill cause
permanent damage to the motherboard.

25

English

Z170 Extreme6+ / Z170 Extreme6

Power LED and Speaker

Header

(7-pin SPK_PLED1)

(see p.7, No. 21)

Please connect the

chassis power LED and

the chassis speaker to this

header.

Serial ATA3 Connectors

(SATA3_0_4:

see p.7, No. 15)

(SATA3_1_5:

see p.7, No. 16)

(SATA3_2_3:

see p.7, No. 14)

(SATA3_A0_A1:

see p.7, No. 13)

ese eight SATA3

connectors support SATA

data cables for internal

storage devices with up

to 6.0 Gb/s data transfer

rate. e SATA3_0,

SATA3_1 are shared with

the SATA_EXP_0. e

SATA3_4, SATA3_5 are

shared with the SATA_

EXP_ 1.

To minimize the boot

time, use Intel® Z170

SATA ports (SATA3_0)

for your bootable devices.

Serial ATA Express

Connectors

(SATA_EX P_0_1:

see p.7, No. 17)

Please connect either

SATA or PCIe storage

devices to these

connectors. e upper

SATA Express Connector

(SATA_EXP_0) is shared

with the SATA3_0,

SATA3_1 and the Ultra

M.2 Socket (M2_1).

1

+5V

DUMMY

PLED+

PLED+

PLED-

DUMMY

SPEAKER

SATA3_0SATA3_1

SATA3_A0SATA3_2_

SATA3_4SATA3_5

SATA3_A1SATA3_3

SATA3_0

SATA3_4

SATA3_1

SATA3_5

SATA_EXP_0

SATA_EXP_1

26

English

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

USB 2.0 Headers

(9-pin USB1_2

(see p.7, No. 24)

(9-pin USB3_4)

(see p.7, No. 23)

ere are two headers

on this motherboard.

Each USB 2.0 header can

support two ports.

USB 3.0 Header

(19-pin USB3_7_8)

(see p.7, No. 11)

Besides si x USB 3.0 ports

on the I/O panel, there

is one header on this

motherboard. Each USB

3.0 header can support

two ports.

Front Panel Audio Header

(9-pin HD_AU DIO1)

(see p.7, No. 28)

is header is for

connecting audio devices

to the front audio panel.

1

IntA_PB_D+

Dummy

IntA_PB_D-

GND

IntA_PB_SSTX+

GND

IntA_PB_SSTX-

IntA_PB_SSRX+

IntA_PB_SSRX-

VbusVbus

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

1. High Denition Audio supports Jack Sensing, but the panel wire on the chas sis must sup­port HDA to function correc tly. Please follow the instructions in our manual and chassis
manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio heade r by the
steps below:
A. Connect Mic_ IN (MIC) to MIC2_L.
B. Conne ct Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.

27

English

Z170 Extreme6+ / Z170 Extreme6

Chassis Fan Connectors

(4-pin CHA_FAN1)

(see p.7, No. 4)

(4-pin CHA_FAN2)

(see p.7, No. 22)

(4-pin CHA_FAN3)

(see p.7, No. 9)

(4-pin CHA_FAN4)

(see p.7, No. 5)

Please connect fan cables

to the fan connectors and

match the black wire to

the ground pin.

CPU Fan Connectors

(4-pin CPU_FAN1)

(see p.7, No. 12)

(4-pin CPU_FAN2)

(see p.7, No. 10)

is motherboard pro-

vides a 4-Pin CPU fan

(Quiet Fan) connector.

If you plan to connect a

3-Pin CPU fan, please

connect it to Pin 1-3.

ATX Power Connector

(24-pin AT XPW R1)

(see p.7, No. 8)

is motherboard pro-

vides a 24-pin ATX power

connector. To use a 20-pin

ATX power supply, please

plug it along Pin 1 and Pin

13.

ATX 12V Power

Connector

(8-pin ATX12V1)

(see p.7, No. 1)

is motherboard pro-

vides an 8-pin ATX 12V

power connector. To use a

4-pin ATX power supply,

please plug it along Pin 1

and Pin 5.

GND

CHA_FAN_SPEED

FAN_SPEED_CONTR

OL

FAN_VOLTAGE

GND

CHA_FAN_SPEED

FAN_SPEED_CONTR

OL

FAN_VOLTAGE

GND

FAN_VOLTAGE

CHA_FAN_SPEED

FAN_SPEED_CONTR

OL

GN

D

FAN_VOLTAGE

CHA_FAN_SPEED

F

AN_SPEED_CONTROL

FAN_VOLTAGE

GND

FAN_SPEED

FAN_SPEED_CONTROL

1

2

3

4

12

1

24

13

5

1

8

28

English

underbolt AIC

Connector

(5-pin TB1)

(see p.7, No. 25)

Please connect a underbolt™

add-in card (AIC) to this

connector via the GPIO cable.

Serial Port Header

(9-pin COM1)

(see p.7, No. 27)

is COM1 header

supports a serial port

module.

TPM Header

(17-pi n TPMS1)

(see p.7, No. 26)

is connector supports Trusted

Platform Module (TPM) system,

which can securely store keys,

digital certicates, passwords,

and data. A TPM system also

helps enhance network security,

protects digital identities, and

ensures platform integrity.

CCTS#1

RRTS#1

DDSR#1

DDTR#1

RRXD1

GND

TTXD1

DDCD#1

1

RRI#1

1

GN D

LAD 2

LAD 1

GN D

S_P WRDW N #

SER IRQ #

GN

D

PC ICL K

PC IRST

#

LAD 3

+3 V

LAD 0

+3V S B

GN D

FRA ME

SMB _CLK _MAI N

29

English

Z170 Extreme6+ / Z170 Extreme6

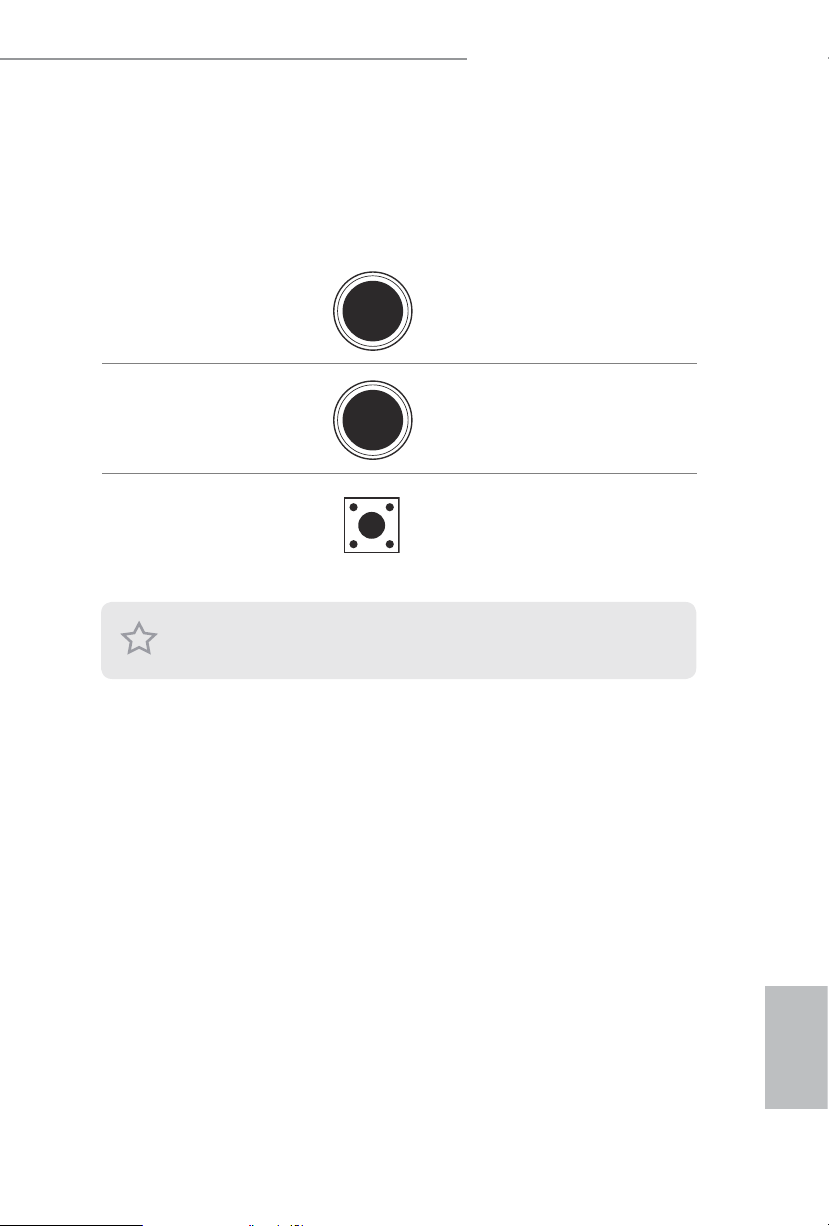

2.7 Smart Switches

e motherboard has three smart switches: Power Switch, Reset Switch and Clear

CMOS Switch, allowing users to quickly turn on/o the system, reset the system or

clear the CMOS values.

Power Switch

(PWRBTN)

(see p.7, No. 7)

Power Switch allows users

to quickly turn on/o the

system.

Reset Switch

(RSTBTN)

(see p.7, No. 6)

Reset Switch allows

users to quickly reset the

system.

Clear CMOS Switch

(CLRCBTN)

(see p.9, No. 16)

Clear CMOS Switch

allows users to quickly

clear the CMOS values.

is function is workable only when you power o your computer and unplug the power
supp ly.

Power

Reset

30

English

2.8 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even

easier. Please see the diagrams below for reading the Dr. Debug codes.

Code Description

00 Please check if the CPU is installed correctly and then clear

CMOS.

0d Problem related to memory, VGA card or other devices.

Please clear CMOS, re-install the memory and VGA card,

and remove other USB, PCI devices.

01 - 54

(except 0d),

5A- 60

Problem related to memory. Please re-install the CPU and

memory then clear CMOS. If the problem still exists, please

install only one memory module or try using other memor y

modules.

55 e Memory could not be detected. Please re-install the

memory and CPU. If the problem still exists, please install

only one memory module or tr y using other memory

modules.

61 - 91 Chipset initialization error. Please press reset or clear

CMOS.

92 - 99 Problem related to PCI-E devices. Please re-install PCI-E

devices or try installing them in other slots. If the problem

still exists, please remove all PCI-E devices or try using

another VGA card.

A0 - A7 Problem related to IDE or SATA devices. Please re-install

IDE and SATA devices. If the problem still exists, please

clear CMOS and try removing all SATA devices.

b0 Problem related to memor y. Please re-install the CPU and

memory. If the problem still exists, please install only one

memory module or try using other memory modules.

31

English

Z170 Extreme6+ / Z170 Extreme6

b4 Problem related to USB devices. Please try removing all

USB devices.

b7 Problem related to memory. Please re-install the CPU and

memory then clear CMOS. If the problem still exists, please

install only one memory module or try using other memor y

modules.

d6 e VGA could not be recognized. Please clear CMOS and

try re-installing the VGA card. If the problem still exists,

please try installing the VGA card in other slots or use other

VGA c ards .

d7 e Keyboard and mouse could not be recognized. Please

try re-installing the keyboard and mouse.

d8 Invalid Password.

FF Please check if the CPU is installed correctly and then clear

CMOS.

32

English

2.9 SLITM and Quad SLITM Operation Guide

is motherboard supports NVIDIA® SLITM and Quad SLITM (Scalable Link

Interface) technology that allows you to install up to two identical PCI Express x16

graphics cards.

2.9.1 Installing Two SLITM-Ready Graphics Cards

Step 1

Insert one graphics card into PCIE2 slot

and the other graphics card to PCIE4 slot.

Make sure that the cards are properly

seated on the slots.

Step 2

If required, connect the auxiliary power

source to the PCI Express graphics cards.

Requirements

1. You should only use identical SLI

TM

-ready g raphics cards that are NVIDI A® certied.

2. Make sure that your graphic s card driver supports N VIDIA

®

SLITM technology. Download

the drivers from the NVIDI A

®

website: www.nvidia.com

3. Make sure that your power supply unit (PSU) c an provide at least the minimum power
your system requires. It is recommended to use a NVIDIA

®

certied PSU. Plea se refer to

the NVIDIA

®

website for detail s.

33

English

Z170 Extreme6+ / Z170 Extreme6

Step 3

Align and insert the ASRock SLI_

Bridge_2S Card to the goldngers on each

graphics card. Make sure the ASRock SLI_

Bridge_2S Card is rmly in place.

Step 4

Connect a VGA cable or a DVI cable to the

monitor connector or the DVI connector of

the graphics card that is inserted to PCIE2

slot.

ASRock SLI_Bridge_2S Card

SLI_Bridge_2S Card

34

English

2.9.2 Driver Installation and Setup

Install the graphics card drivers to your system. Aer that, you can enable the

Multi-Graphics Processing Unit (GPU) in the NVIDIA® nView system tray utility.

Please follow the below procedures to enable the multi-GPU.

For SLITM and Quad SLITM mode

Step 1

Double-click the NVIDIA Control Panel

icon in the Windows® sy stem tray.

Step 2

In the le pane, click Set SLI and PhysX

conguration. en select Maximize 3D

performance and click Apply.

Step 3

Reboot your system.

Step 4

You can freely enjoy the benets of SLI

TM

or Quad SLITM.

35

English

Z170 Extreme6+ / Z170 Extreme6

2.10 CrossFireXTM , 3-Way CrossFireXTM and Quad CrossFireXTM
Operation Guide

is motherboard supports CrossFireXTM, 3-way CrossFireXTM and Quad

CrossFireXTM that allows you to install up to three identical PCI Express x16

graphics cards.

2.10.1 Installing Two CrossFireXTM-Ready Graphics Cards

Step 1

Insert one graphics card into PCIE2 slot

and the other graphics card to PCIE4 slot.

Make sure that the cards are properly

seated on the slots.

Step 2

Connect two graphics cards by installing

a CrossFire Bridge on the CrossFire Bridge

Interconnects on the top of the graphics

cards. (e CrossFire Bridge is provided

with the graphics card you purchase, not

bundled with this motherboard. Please

refer to your graphics card vendor for

deta ils .)

1. You should only use identical CrossFireXTM-ready g raphics cards that are AMD certied .

2. Make sure that your graphics card dr iver supports AMD CrossFireX

TM

technology.

Download the dr ivers from the AMD’s website: ww w.amd.com

3. Make sure that your power supply unit (PSU) c an provide at least the minimum power
your system requires. It is recommended to use a AMD certied PSU. Plea se refer to the
AMD’s website for details.

4. If you pair a 12-pipe CrossFireX

TM

Edition card with a 16-pipe card, both cards will oper-

ate as 12-pipe cards while in CrossFireX

TM

mode.

5. Dierent CrossFireX

TM

cards may require dierent methods to enable CrossFireXTM.

Please refer to AMD graphics card manuals for d etailed installation guide.

CrossFire Bridge

36

English

Step 3

Connect a VGA cable or a DVI cable to the

monitor connector or the DVI connec-

tor of the graphics card that is inserted to

PCIE2 slot.

37

English

Z170 Extreme6+ / Z170 Extreme6

2.10.2 Installing Three CrossFireXTM-Ready Graphics Cards

Step 1

Insert one graphics card into PCIE2 slot,

another graphics card to PCIE4 slot, and

the other graphics card to PCIE6 slot.

Make sure that the cards are properly

seated on the slots.

Step 2

Use one CrossFire Bridge to connect

the graphics cards on PCIE2 and PCIE4

slots, and use the other CrossFire Bridge

to connect the graphics cards on PCIE4

and PCIE6 slots. (e CrossFire Bridge

is provided with the graphics card

you purchase, not bundled with this

motherboard. Please refer to your graphics

card vendor for details.)

Step 3

Connect a VGA cable or a DVI cable to the

monitor connector or the DVI connec-

tor of the graphics card that is inserted to

PCIE2 slot.

CrossFire Bridge

38

English

Step 1

Power on your computer and boot into OS.

Step 2

Remove the AMD drivers if you have any VGA drivers installed in your system.

Step 3

Install the required drivers and CATALYST Control Center then restart your

computer. Please check AMD’s website for details.

2.10.3 Driver Installation and Setup

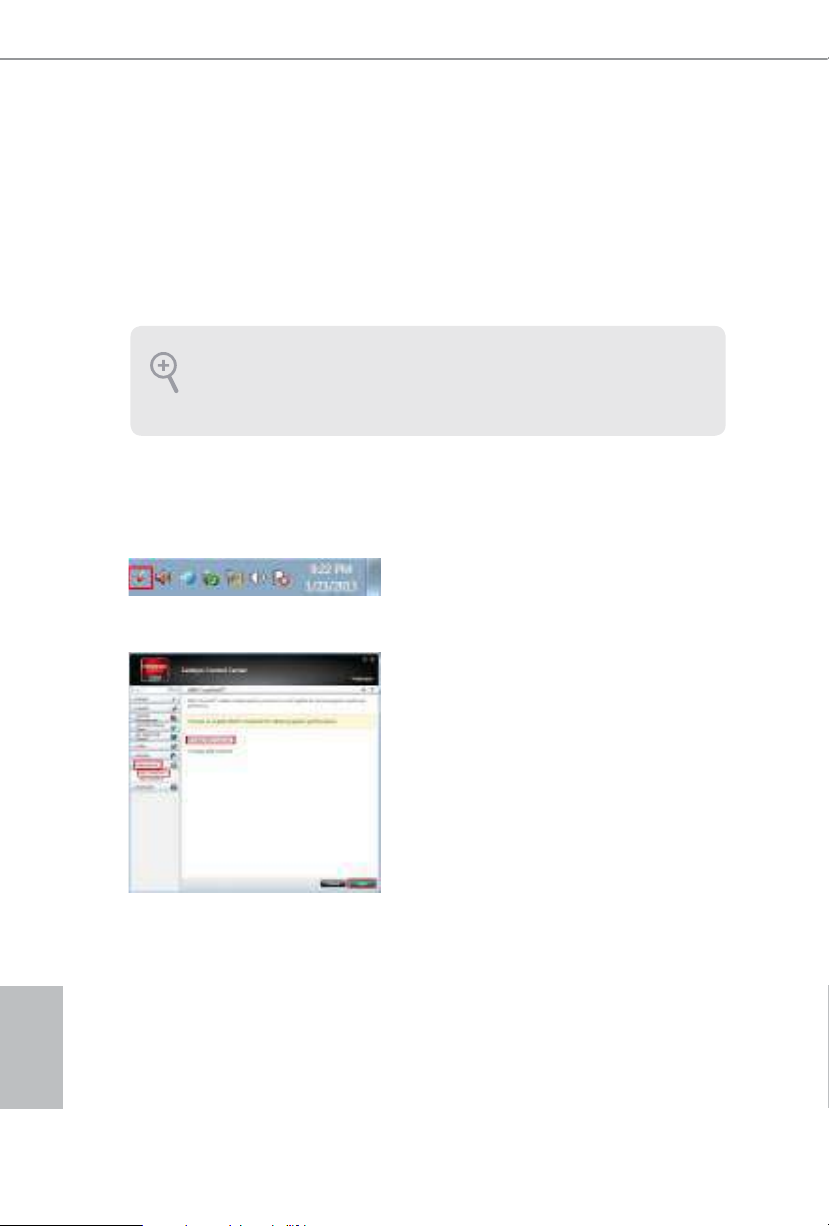

Step 4

Double-click the AMD Catalyst Control

Center icon in the Windows® sy stem tray.

Step 5

In the le pane, click Performance and

then AMD CrossFireX

TM

. en select

Enable AMD CrossFireX and click Apply.

Select the GPU number according to your

graphics card and click Apply.

AMD Catalyst Control Center

e Catalyst Uninstaller is an optiona l download. We recommend using this utility to un­install any previously in stalled Catalyst drive rs prior to installation. Plea se check A MD’s
website for AMD driver updates.

39

English

Z170 Extreme6+ / Z170 Extreme6

2.11 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Nex t Generation Form Factor (NGFF), is a sma ll size and

versatile card edge connector that aims to replace mPCIe and mSATA. The U ltra M.2

Socket (M2_1) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Please be noted that the Ultra M.2 Socket (M2_1) is shared with the SATA3_0, SATA3_1

and the SATA Express connector (SATA_EXP0). If either one of them is in use, the others

will be disabled.

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

3

2

4

5

BCDE

A

1

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2 3 4 5

Nut Location A B C D E

PCB Length 3cm 4.2cm 6cm 8cm 11cm

Module Type Typ e223 0 Ty pe 22 42 Ty pe22 60 Ty pe 22 80 Type 2 2110

40

English

BCDE

A

Step 3

Move the stando based on the

module type and length.

e stando is placed at the nut

location D by default. Skip Step 3

and 4 and go straight to Step 5 if you

are going to use the default nut.

Otherwise, release the stando by

hand.

BCDE

A

Step 4

Peel o the yellow protective lm on

the nut to be used. Hand tighten the

stando into the desired nut location

on the motherboard.

BC

A

ABCDE

Step 5

Align and gently insert the M.2

(NGFF) SSD module into the M.2

slot. Please be aware that the M.2

(NGFF) SSD module only ts in one

orientation.

41

English

Z170 Extreme6+ / Z170 Extreme6

NUT1NUT2DE

Step 6

Tighten the screw with a screwdriver

to secure the module into place.

Please do not overtighten the screw

as this might damage the module.

M.2_SSD (NGFF) Module Support List

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for

details: http://ww w.asrock.com

Vendor Size Interface Length P/N

ADATA 128GB SATA3 2280 AXNS381E-128GM-B
ADATA 256GB SATA3 2280 A XNS3 81E-256GM-B
ADATA 32GB SATA3 2230 AXNS330E-32GM-B
Crucial 120GB SATA3 2280 CT120M500SSD4
Crucial 240GB SATA3 2280 CT240M500SSD4
Intel 80GB SATA3 2280 Intel SSDSCKGW080A401/80G
Kingston 120GB SATA 3 2280 SM2280S3
Kingston 480GB PCIe2 x4 2280 SH2280S3/480G
Plextor 256GB PCIe 2280 PX- G256M6e
Plextor 512GB PCIe 2280 PX-G512M6e
Samsung 256GB PCIe3 x4 2280 SM951 (MZHPV256HDGL)
Samsung 512 GB PCIe3 x4 2280 SM951 (M ZH PV512HDGL)
Samsung 512GB PCIe x4 2280 XP941-512G (MZHPU512HCGL)
SanDisk 128GB PCIe 2260 SD 6PP4M-12 8G
SanDisk 256GB PCIe 2260 SD6PP4M-256G
Te am 128GB SATA3 2242 TM4PS4128GMC105
Te am 128GB SATA3 2280 TM8PS4128GMC105
Te am 256GB SATA3 2280 TM8PS4256GMC105
Te am 256GB SATA3 2242 TM4PS4256GMC105
Tra nscend 256GB SATA3 2242 TS256GMTS400
Tra nscend 512GB SATA3 2280 TS512GMTS800
Tra nscend 512GB SATA3 2260 TS512GMTS600

42

English

Chapter 3 Software and Utilities Operation

3.1 Installing Drivers

e Support CD that comes with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard’s features.

Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. e CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu does not appear automatically, locate and double click on the le

“ASRSETUP.EXE” in the Support CD to display the menu.

Drivers Menu

e drivers compatible to your system will be auto-detected and listed on the

support CD driver page. Please click Install All or follow the order from top to

bottom to install those required drivers. erefore, the drivers you install can work

properly.

Utilities Menu

e Utilities Menu shows the application soware that the motherboard supports.

Click on a specic item then follow the installation wizard to install it.

To improve Windows 7 compatibility, please download and install the following hot  x
provided by Microso.
“KB2720599”: http://support.microso.com/kb/2720599/en-us

43

English

Z170 Extreme6+ / Z170 Extreme6

3.2 A-Tuning

A-Tuning is ASRock’s multi purpose soware suite with a new interface, more new

features and improved utilities.

3.2.1 Installing A-Tuning

When you install the all-in-one driver to your system from ASRock’s support CD,

A-Tu n in g will be auto-installed as well. Aer the installation, you will nd the icon

“A- Tun i ng “ on your desktop. Double-click the “A-Tu n in g“ icon, A-Tu n in g

main menu will pop up.

3.2.2 Using A-Tuning

ere are six sections in A-Tuning main menu: Operation Mode, OC Tweaker,

System Info, FAN-Tastic Tuning, Tech Service and Settings.

Operation Mode

Choose an operation mode for your computer.

44

English

OC Tweaker

Congurations for overclocking the system.

System Info

View information about the system.

*e System Browser tab may not appear for certain models.

45

English

Z170 Extreme6+ / Z170 Extreme6

FAN-Tastic Tuning

Congure up to ve dierent fan speeds using the graph. e fans will automatically shi

to the next speed level when the assigned temperature is met.

Tech Ser vice

Contact Tech Service if you have problems with your computer. Please leave your

contact information along with details of the problem.

46

English

Settings

Congure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you

want A-Tuning to be launched when you start up the Windows operating system.

47

English

Z170 Extreme6+ / Z170 Extreme6

3.3 ASRock Live Update & APP Shop

e ASRock Live Update & APP Shop is an online store for purchasing and

downloading soware applications for your ASRock computer. You can quickly and

easily install various apps and support utilities, such as USB Key, XFast LAN, XFast

RAM and more. With ASRock APP Shop, you can optimize your system and keep

your motherboard up to date simply with a few clicks.

Double-click

on your desktop to access ASRock Live Update & APP Shop

ut ili ty.

*You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop.

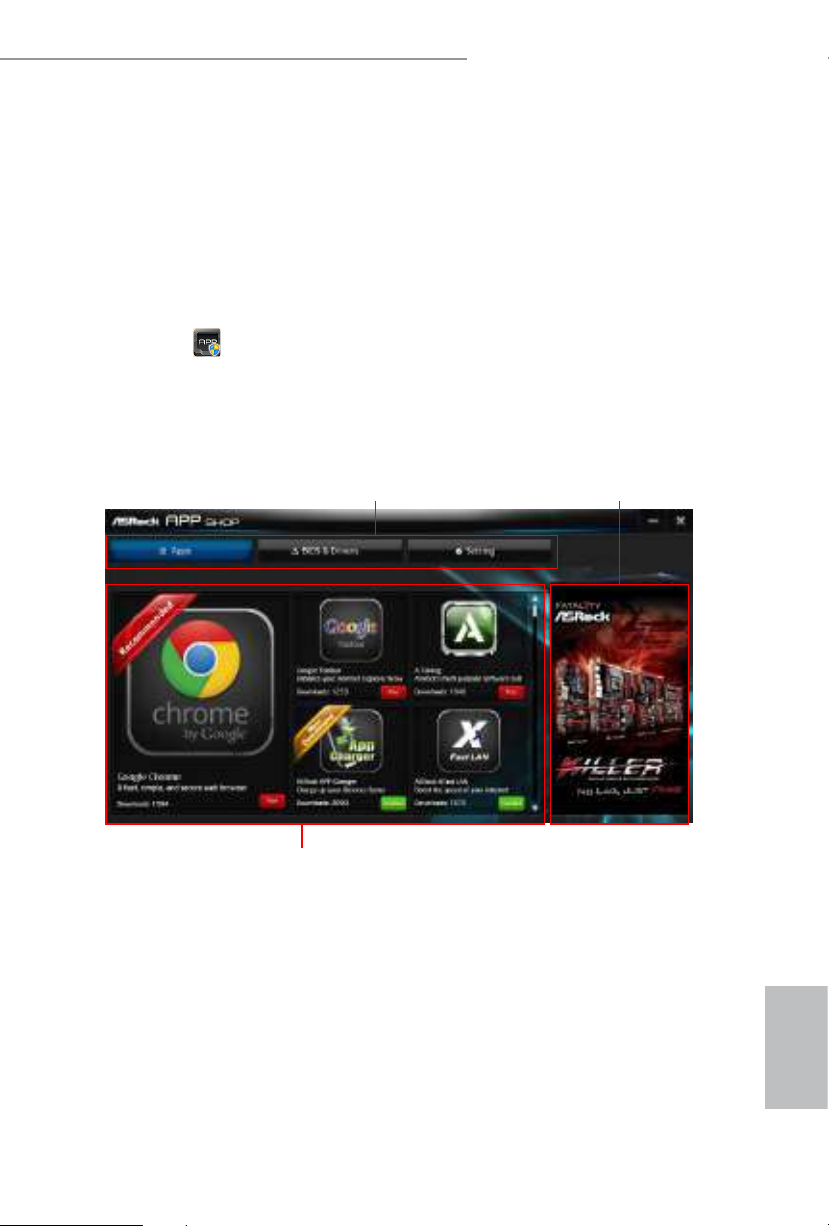

3.3.1 UI Overview

Category Panel: e category panel contains several category tabs or buttons that

when selected the information panel below displays the relative information.

Information Panel: e information panel in the center displays data about the

currently selected category and allows users to perform job-related tasks.

Hot News: e hot news section displays the various latest news. Click on the image

to visit the website of the selected news and know more.

Information Panel

Hot News

Category Panel

48

English

3.3.2 Apps

When the "Apps" tab is selected, you will see all the available apps on screen for you

to download.

Installing an App

Step 1

Find the app you want to install.

e most recommended app appears on the le side of the screen. e other various

apps are shown on the right. Please scroll up and down to see more apps listed.

You can check the price of the app and whether you have already intalled it or not.

- e red icon displays the price or "Free" if the app is free of charge.

- e green "Installed" icon means the app is installed on your computer.

Step 2

Click on the app icon to see more details about the selected app.

49

English

Z170 Extreme6+ / Z170 Extreme6

Step 3

If you want to install the app, click on the red icon

to start downloading.

Step 4

When installation completes, you can nd the green "Installed" icon appears on the

upper right corner.

To uninstall it, simply click on the trash can icon .
*e trash icon may not appear for certain apps.

50

English

Upgrading an App

You can only upgrade the apps you have already installed. When there is an

available new version for your app, you will nd the mark of "New Version"

appears below the installed app icon.

Step 1

Click on the app icon to see more details.

Step 2

Click on the yellow icon

to start upgrading.

51

English

Z170 Extreme6+ / Z170 Extreme6

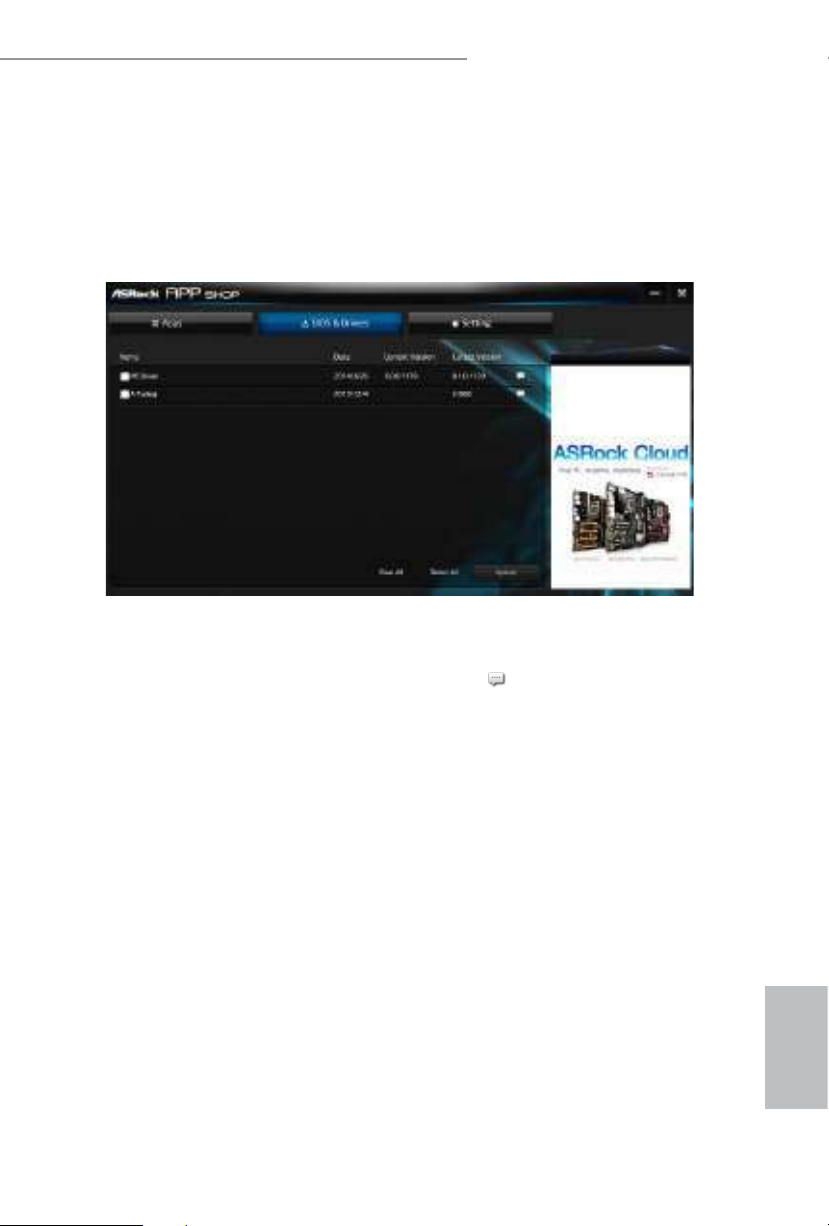

3.3.3 BIOS & Drivers

Installing BIOS or Drivers

When the "BIOS & Drivers" tab is selected, you will see a list of recommended or

critical updates for the BIOS or drivers. Please update them all soon.

Step 1

Please check the item information before update. Click on

to see more details.

Step 2

Click to select one or more items you want to update.

Step 3

Click Update to start the update process.

52

English

3.3.4 Setting

In the "Setting" page, you can change the language, select the server location, and

determine if you want to automatically run the ASRock Live Update & APP Shop

on Windows startup.

53

English

Z170 Extreme6+ / Z170 Extreme6

3.4 Enabling USB Ports for Windows® 7 Installation

Intel® Braswell and Skylake has removed their support for the Enhanced Host

Controller Interface (EHCI – USB2.0) and only kept the eXtensible Host Controller

Interface (XHCI – USB3.0). Due to that fact that XHCI is not included in the

Windows 7 inbox drivers, users may nd it dicult to install Windows 7 operating

system because the USB ports on their motherboard won’t work. In order for the

USB ports to function properly, please create a Windows® 7 installation disk with

the Intel® USB 3.0 eXtensible Host Controller (xHCI) drivers packed into the ISO

le.

Requirements

•

A Windows® 7 installation disk or USB drive

•

USB 3.0 drivers (included in the ASRock Support CD or website)

•

A Windows® PC

•

Win7 USB Patcher (included in the ASRock Support CD or website)

Scenarios

You have an ODD and PS/2 ports:

If there is an optical disc drive, PS/2 ports and PS/2 Keyboard or mouse on your computer,

you can skip the instructions below and go ahead to install Windows® 7 OS.

You only have an ODD (For Intel Skylake platforms only):

If there is an optical disc drive but no PS/2 ports on your computer, please enable the “PS/2

Simulator” option in UEFI SETUP UTILITY > Advanced > USB Conguration, which

allows the USB port to function as a PS/2 port, and then you can install the Windows® 7

OS. Please set PS/S Simulator back to disabled aer the installation.

You’ve got nothing:

If you do not have an optical disc drive, please nd another computer and follow the

instructions below to create a new ISO le with the “Win7 USB Patcher”. en use the new

patched Windows® 7 installation USB drive to install Windows® 7 OS.

54

English

Instructions

Step 1

Insert the Windows® 7 installation disk or USB drive to your system.

Step 2

Extract the tool (Win7 USB Patcher) and launch it.

Step 3

Select the “Win7 Folder” from Step1 by clicking the red circle as shown as the picture

below.

Step 4

Select the “USB Driver Folder” by clicking the red circle as shown as the picture below.

If you are using ASRock ’s Support CD for the USB 3.0 driver, please select your CD-ROM.

55

English

Z170 Extreme6+ / Z170 Extreme6

Step 5

Select where to save the ISO le by pressing the red circle as shown as the picture below.

Step 6

If you want to burn the patched image to a CD, please check “Burn Image” and select “Target

Device to Burn”. If not, the patched ISO image will be exported to the destination selected

in Step5. en Press “Start” to proceed.

Step 7

Now you are able to install Windows® 7 on Braswell or Skylake with the new burned CD.

Or please use the patched ISO image to make an OS USB drive to install the OS.

56

English

Chapter 4 UEFI SETUP UTILITY

4.1 Introduction

is section explains how to use the UEFI SETUP UTILITY to congure your

system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right

aer you power on the computer, otherwise, the Power-On-Self-Test (POST) will

continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer

POST, restart the system by pressing <Ct l> + <Alt> + <Delete>, or by pressing the

reset button on the system chassis. You may also restart by turning the system o

and then back on.

4.1.1 UEFI Menu Bar

e top of the screen has a menu bar with the following selections:

Main

For setting system time/date information

OC Tweaker

For overclocking congurations

Advanced

For advanced system congurations

Tool

Useful tools

H/W Monitor

Displays current hardware status

Boot

For conguring boot settings and boot priority

Security

For security settings

Exit

Exit the current screen or the UEFI Setup Utility

Becau se the UEFI soware is constantly being updated, the following UEFI setup screens
and descriptions are for re ference purpose only, and they may not exactly match what you
see on your screen.

57

English

Z170 Extreme6+ / Z170 Extreme6

4.1.2 Navigation Keys

Use < > key or < > key to choose among the selections on the menu bar, and

use < > key or < > key to move the cursor up or down to select items, then

press <Enter> to get into the sub screen. You can also use the mouse to click your

required item.

Please check the following table for the descriptions of each navigation key.

Navigation Key(s) Description

+ / -

To change option for the selected items

<Ta b>

Switch to next function

<PGUP>

Go to the previous page

<PGDN>

Go to the next page

<HOME>

Go to the top of the screen

<END>

Go to the bottom of the screen

<F1>

To display the General Help Screen

<F5>

Add / Remove Favorite

<F7>

Discard changes and exit the SETUP UTILITY

<F9>

Load optimal default values for all the settings

<F10>

Save changes and exit the SETUP UTILITY

<F 12>

Print screen

<ESC>

Jump to the Exit Screen or exit the current screen

58

English

4.2 Main Screen

When you enter the UEFI SETUP UTILITY, the Main screen will appear and

display the system overview.

Z170 Extreme6+:

Z170 Extreme6:

Favorite

Display your collection of BIOS items. Press F5 to add/remove your favorite items.

59

English

Z170 Extreme6+ / Z170 Extreme6

4.3 OC Tweaker Screen

In the OC Tweaker screen, you can set up overclock ing features.

Advanced Turbo

You can use this option to increase your system performance. is option appears only

when your CPU supports this function. is option appears only when you adopt K-Series

CPU.

Load Optimized CPU OC Setting

You can use this option to load optimized CPU overclocking setting. Please note that

overclocking may cause damage to your CPU and motherboard. It should be done at your

own risk and expense.

Load Optimized GPU OC Setting

You can use this option to load optimized GPU overclocking setting. Please note that

overclocking may cause damage to your GPU and motherboard. It should be done at your

own risk and expense. is option appears only when you adopt K-Series CPU.

Becau se the UEFI soware is constantly being updated, the following UEFI setup screens
and descriptions are for re ference purpose only, and they may not exactly match what you
see on your screen.

60

English

CPU Conguration

Multi Core Enhancement

Improve the system's performance by forcing the CPU to perform the highest

frequency on all CPU cores simultaneously. Disable to reduce power consumption .

CPU Ratio

e CPU speed is determined by the CPU Ratio multiplied with the BCLK.

Increasing the CPU Ratio will increase the internal CPU clock speed without

aecting the clock speed of other components.

CPU Cache Ratio

e CPU Internal Bus Speed Ratio. e maximum should be the same as the CPU

Ratio.

Minimum CPU Cache Ratio

Set the minimum CPU Internal Bus Speed Ratio.

BCLK Frequency

e CPU speed is determined by the CPU Ratio multiplied with the BCLK.

Increasing the BCLK will increase the internal CPU clock speed but also aect the

clock speed of other components.

BCLK Step

Congure the BCLK Step Value.

BCLK Reset Range

Congure the BCLK Reset Range.

Spread Spectrum

Enable Spread Spectrum to reduce electromagnetic interference for passing EMI

tests. Disable to achieve higher clock speeds when overclocking.

CPU Amplitude

Congure the CPU Amplitude.

Boot Performance Mode

Select the performance state that the BIOS will set before OS hando.

Reliability Stress Restrictor

Disable or Enable Reliability Stress Restrictor feature.

61

English

Z170 Extreme6+ / Z170 Extreme6

FCLK Frequency

Congure the FCLK Frequency.

Intel SpeedStep Technology

Intel SpeedStep technology allows processors to switch between multiple frequen-

cies and voltage points for better power saving and heat dissipation.

Intel Turbo Boost Technology

Intel Turbo Boost Technolog y enables the processor to run above its base operating

frequency when the operating system requests the highest performance state.

Long Duration Power Limit

Congure Package Power Limit 1 in watts. When the limit is exceeded, the CPU

ratio will be lowered aer a period of time. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

Long Duration Maintained

Congure the period of time until the CPU ratio is lowered when the Long

Duration Power Limit is exceeded.

Short Duration Power Limit

Congure Package Power Limit 2 in watts. When the limit is exceeded, the CPU

ratio will be lowered immediately. A lower limit can protect the CPU and save

power, while a higher limit may improve performance.

System Agent Current Limit

Congure the current limit of the system agent. A lower limit can protect the CPU

and save power, while a higher limit may improve performance.

CPU Core Current Limit

Congure the current limit of the CPU core. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

GT Slice Current Limit

Congure the current limit of the GT slice. A lower limit can protect the CPU and

save power, while a higher limit may improve performance.

GT Slice Frequency

Congure the frequency of the integrated Slice GPU.

62

English

DRAM Conguration

DRAM Tweaker

Fine tune the DRAM settings by leaving marks in checkboxes. Click OK to conrm and

apply your new settings.

DRAM Timing Conguration

Load XMP Setting

Load XMP settings to overclock the memory and perform beyond standard specications.

DRAM Reference Clock

Select Auto for optimized settings.

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s) inserted

and assign the appropriate frequency automatically.

DRAM Frequency OC Preset

If the DRAM frequency is selected, the corresponding DRAM and BCLK frequency for

overclocking will be set.

Primary Timing

CAS# Latency (tCL)

e time between sending a column address to the memory and the beginning of the data

in response.

RAS# to CAS# Delay and Row Precharge (tRCDtRP) O

RAS# to CAS# Delay : e number of clock cycles required between the opening of

a row of memory and accessing columns within it.

Row Precharge: e number of clock cycles required between the issuing of the

precharge command and opening the next row.

RAS# Active Time (tRAS)

e number of clock cycles required between a bank active command and issuing the

precharge command.

Command Rate (CR)

e delay between when a memory chip is selected and when the rst active command can

be issued.

63

English

Z170 Extreme6+ / Z170 Extreme6

Secondary Timing

Write Recovery Time (tWR)

e amount of delay that must elapse aer the completion of a valid write operation,

before an active bank can be precharged.

Refresh Cycle Time (tRFC)

e number of clocks from a Refresh command until the rst Activate command to

the same rank.

RAS to RAS Delay (tRRD_L)

e number of clocks between two rows activated in dierent banks of the same

rank.

RAS to RAS Delay (tRRD_S)

e number of clocks between two rows activated in dierent banks of the same

rank.

Write to Read Delay (tWTR_L)

e number of clocks between the last valid write operation and the next read command to

the same internal bank.

Write to Read Delay (tWTR_S)

e number of clocks between the last valid write operation and the next read command to

the same internal bank.

Read to Precharge (tRTP)

e number of clocks that are inserted between a read command to a row pre-

charge command to the same rank.

Four Activate Window (tFAW)

e time window in which four activates are allowed the same rank.

CAS Write Latency (tCWL)

Congure CAS Write Latency.

Third Timing

tREFI

Congure refresh cycles at an average periodic interval.

64

English

tCKE

Congure the period of time the DDR4 initiates a minimum of one refresh

command internally once it enters Self-Refresh mode.

tRDRD_sg

Congure between module read to read delay.

tRDRD_dg

Congure between module read to read delay.

tRDRD_dr

Congure between module read to read delay.

tRDRD_dd

Congure between module read to read delay.

tRDWR_sg

Congure between module read to write delay.

tRDWR_dg

Congure between module read to write delay.

tRDWR_dr

Congure between module read to write delay.

tRDWR_dd

Congure between module read to write delay.

tWRRD_sg

Congure between module write to read delay.

tWRRD_dg

Congure between module write to read delay.

tWRRD_dr

Congure between module write to read delay.

tWRRD_dd

Congure between module write to read delay.

65

English

Z170 Extreme6+ / Z170 Extreme6

tWRWR_sg

Congure between module write to write delay.

tWRWR_dg

Congure between module write to write delay.

tWRWR_dr

Congure between module write to write delay.

tWRWR_dd

Congure between module write to write delay.

RTL (CH A)

Congure round trip latency for channel A.

RTL (CH B)

Congure round trip latency for channel B.

IO-L (CH A)

Congure IO latency for channel A.

IO-L (CH B)

Congure IO latency for channel B.

Fourth Timing

twRPRE

Congure twRPRE.

Write_Early_ODT

Congure Write_Early_ODT.

tAONPD

Congure tAONPD.

tXP

Congure tXP.

tXPDLL

Congure t XPDLL.

66

English

tPRPDEN

Congure tPRPDEN.

tRDPDEN

Congure tRDPDEN.

twRPDEN

Congure twRPDEN.

OREF_RI

Congure OREF_RI.

tREFIx9

Congure tREFIx9.

txSDLL

Congure txSDLL.

txs_oset

Congure txs_oset.

tZQOPER

Congure tZQOPER.

tMOD

Congure tMOD.

ZQCS_period

Congure ZQCS_period.

tZQCS

Congure tZQCS.

Advanced Setting

ODT WR (CH A)

Congure the memor y on die termination resistors' WR for channel A.

ODT WR (CH B)

Congure the memor y on die termination resistors' WR for channel B.

67

English

Z170 Extreme6+ / Z170 Extreme6

ODT PARK (CH A)

Congure the memor y on die termination resistors' PARK for channel A.

ODT PARK (CH B)

Congure the memor y on die termination resistors' PARK for channel B.

ODT NOM (CH A)

Use this to change ODT (CH A) Auto/Manual settings. e default is [Auto].

ODT NOM (CH B)

Use this to change ODT (CH B) Auto/Manual settings. e default is [Auto].

MRC Fast Boot

Enable Memory Fast Boot to skip DRAM memory training for booting faster.

Voltage Conguration

Power Saving Mode

Enable Power Saving Mode to reduce power consumption.

CPU Vcore Voltage

Congure the voltage for the CPU Vcore.

CPU Load-Line Calibration

CPU Load-Line Calibration helps prevent CPU voltage droop when the system is

under heav y load.

GT Voltage

Congure the voltage for the integrated GPU.

SET OV

is funtion allows override of normal operation to overvoltage of 2.455.

GT Load-Line Calibration

GT Load-Line Calibration helps prevent integrated GPU voltage droop when the

system is under heavy load.

DRAM Voltage

Use this to congure DRAM Voltage. e default value is [Auto].

68

English

DRAM Activating Power Supply

Congure the voltage for the DRAM Activating Power Supply.

PCH +1.0 Voltage

Congure the chipset voltage (1.0V).

VCCIO Voltage

Congure the voltage for the VCCIO.

VCC PLL Voltage

Congure the chipset voltage (1.50V).

VCCSA Voltage

Congure the voltage for the VCCSA.

Save User Default

Type a prole name and press enter to save your settings as user default.

Load User Default

Load previously saved user defaults.

69

English

Z170 Extreme6+ / Z170 Extreme6

4.4 Advanced Screen

In this section, you may set the congurations for the following items: CPU

Conguration, Chipset Conguration, Storage Conguration, Intel® underbolt,

Super IO Conguration, ACPI Conguration, USB Conguration and Trusted

Computing.

UEFI Conguration

Active Page on Entry

Select the default page when entering the UEFI setup utility.

Full HD UEFI

When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor

supports Full HD resolution. If the monitor does not support Full HD resolution,

then the resolution will be set to 1024 x 768. When [Disable] is selected, the

resolution will be set to 1024 x 768 directly.

Setting wrong values in this section may cause the system to malfunction.

70

English

4.4.1 CPU Conguration

Intel Hyper Threading Technology

Intel Hyper reading Technology allows multiple threads to run on each core, so

that the overall performance on threaded soware is improved.

Active Processor Cores

Select the number of cores to enable in each processor package.

CPU C States Support

Enable CPU C States Support for power saving. It is recommended to keep C3, C6

and C7 all enabled for better power saving.

Enhanced Halt State (C1E)

Enable Enhanced Halt State (C1E) for lower power consumption.

Package C State Support

Enable CPU, PCIe, Memory, Graphics C State Support for power saving.

CPU Thermal Throttling

Enable CPU internal thermal control mechanisms to keep the CPU from overheat-

ing.

71

English

Z170 Extreme6+ / Z170 Extreme6

No-Execute Memory Protection

Processors with No-Execution Memory Protection Technology may prevent certain

classes of malicious buer overow attacks.

Intel Virtualization Technology

Intel Virtualization Technology allows a platform to run multiple operating systems

and applications in independent partitions, so that one computer system can

function as multiple virtual systems.

Hardware Prefetcher

Automatically prefetch data and code for the processor. Enable for better

performance.

Adjacent Cache Line Prefetch

Automatically prefetch the subsequent cache line while retrieving the currently

requested cache line. Enable for better performance.

72

English

4.4.2 Chipset Conguration

Primary Graphics Adapter

Select a primary VGA.

VT-d

Intel® Virtualization Technology for Directed I/O helps your virtual machine

monitor better utilize hardware by improving application compatibility and

reliability, and providing additional levels of manageability, security, isolation, and

I/O performance.

PCIE2 Link Speed

Select the link speed for PCIE2.

PCIE4 Link Speed

Select the link speed for PCIE4.

PCIE6 Link Speed

Select the link speed for PCIE6.

PCIE ASPM Support

is option enables/disables the ASPM support for all CPU downstream devices.

73

English

Z170 Extreme6+ / Z170 Extreme6

PCH PCIE ASPM Support

is option enables/disables the ASPM support for all PCH PCIE devices.

DMI ASPM Support

is option enables/disables the control of ASPM on CPU side of the DMI Link.

PCH DMI ASPM Support

is option enables/disables the ASPM support for all PCH DMI devices.

Share Memory

Congure the size of memory that is allocated to the integrated graphics processor when

the system boots up.

IGPU Multi-Monitor

Select disable to disable the integrated graphics when an external graphics card is installed.

Select enable to keep the integrated graphics enabled at all times.

Render Standby

Power down the render unit when the GPU is idle for lower power consumption.

Inte(R) Ethernet Connection I219-V

Enable or disable the onboard network interface controller (Intel® I219V).

Inte(R) Ethernet Connection I211

Enable or disable the onboard network interface controller (Intel® I211AT).

Onboard HD Audio

Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and

automatically disable it when a sound card is installed.

Front Panel

Enable/disable front panel HD audio.

WAN Radio

Enable/disable the WiFi module's connectivity.

Deep Sleep

Congure deep sleep mode for power saving when the computer is shut down.

74

English

Restore on AC/Power Loss

Select the power state aer a power failure. If [Power O ] is selected, the power will

remain o when the power recovers. If [Power On] is selected, the system will start

to boot up when the power recovers.

Good Night LED

By enabling Good Night LED, the Power/HDD LEDs will be switched o when the

system is on. It will also automatically switch o the Power and Keyboard LEDs

when the system enters into Standby/Hibernation mode.

Onboard Debug Port LED

Enable/disable the onboard Dr. Debug LED.

75

English

Z170 Extreme6+ / Z170 Extreme6

4.4.3 Storage Conguration

SATA Controller(s)

Enable/disable the SATA controllers.

SATA Mode Selection

AHCI: Supports new features that improve performance.

RAID: Combine multiple disk drives into a logical unit.

SATA Aggressive Link Power Management

SATA Aggressive Link Power Management allows SATA devices to enter a low

power state during periods of inactivity to save power. It is only supported by AHCI

mode.

Hard Disk S.M.A.R.T.

S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a

monitoring system for computer hard disk drives to detect and report on various

indicators of reliability.

AHCI (Advanc ed Host Controller Interface) supports NCQ and other new features that
will improve SATA disk pe rformance but IDE mode does not have these advantages.

76

English

ASMedia SATA3 Mode

IDE: For better compatibility.

AHCI: Supports new features that improve performance.

77

English

Z170 Extreme6+ / Z170 Extreme6

4.4.4 Intel® Thunderbolt™ 2

Intel(R) Thunderbolt Technonogy

Enable/Disable the Intel(R) underbolt function.

78

English

4.4.5 Super IO Conguration

Serial Port

Enable or disable the Serial port.

Serial Port Address

Select the address of the Serial port.

PS2 Y-Cable

Enable the PS2 Y-Cable or set this option to Auto.

79

English

Z170 Extreme6+ / Z170 Extreme6

4.4.6 ACPI Conguration

Suspend to RAM

Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI

S3 power saving.

ACPI HEPT Table

Enable the High Precision Event Timer for better performance.

PS/2 Keyboard Power On

Allow the system to be waked up by a PS/2 Keyboard.

PCIE Devices Power On

Allow the system to be waked up by a PCIE device and enable wake on LAN.

Ring-In Power On

Allow the system to be waked up by onboard COM port modem Ring-In signals.

RTC Alarm Power On

Allow the system to be waked up by the real time clock alarm. Set it to By OS to let

it be handled by your operating system.

80

English

USB Keyboard/Remote Power On

Allow the system to be waked up by an USB keyboard or remote controller.

USB Mouse Power On

Allow the system to be waked up by an USB mouse.

81

English

Z170 Extreme6+ / Z170 Extreme6

4.4.7 USB Conguration

Legacy USB Support

Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB

compatibility issues it is recommended to disable legacy USB support. Select UEFI

Setup Only to support USB devices under the UEFI setup and Windows/Linux

operating systems only.

Port 60/64 Emulation

Enable the support of I/O port 60h/64h emulation. is should be enabled for the

complete USB keyboard legacy support for non-USB aware OS.

*Enable this option if you install Windows 7.

Third Party USB 3.1 Controller

Enable or disable all of the USB 3.1 ports controlled by ird Party chips.

82

English

4.4.8 Trusted Computing

Security Device Support

Enable or disable BIOS support for security device.

83

English

Z170 Extreme6+ / Z170 Extreme6

4.5 Tools

System Browser

ASRock System Browser shows the overview of your current PC and the devices

connected.

OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict internet access

at specied times via OMG. You may schedule the starting and ending hours of

internet access granted to other users. In order to prevent users from bypassing

OMG, guest accounts without permission to modify the system time are required.

UEFI Tech Service

Contact ASRock Tech Service if you are having trouble with your PC. Please setup

network conguration before using UEFI Tech Service.

Easy RAID Installer

Easy R AID Installer helps you to copy the RAID driver from the support CD to

your USB storage device. Aer copying the drivers please change the SATA mode to

RAID, then you can start installing the operating system in RAID mode.

84

English

Easy Driver Installer

For users that don’t have an optical disk drive to install the drivers from our support

CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver

to your system via an USB storage device, then downloads and installs the other

required drivers automatically.

Boot Manager

Boot Manager is specically designed for the dual OS platform/multi-OS platform

users to easily customize and manage the boot menu.

*Please connect more than one boot devices to use this tool.

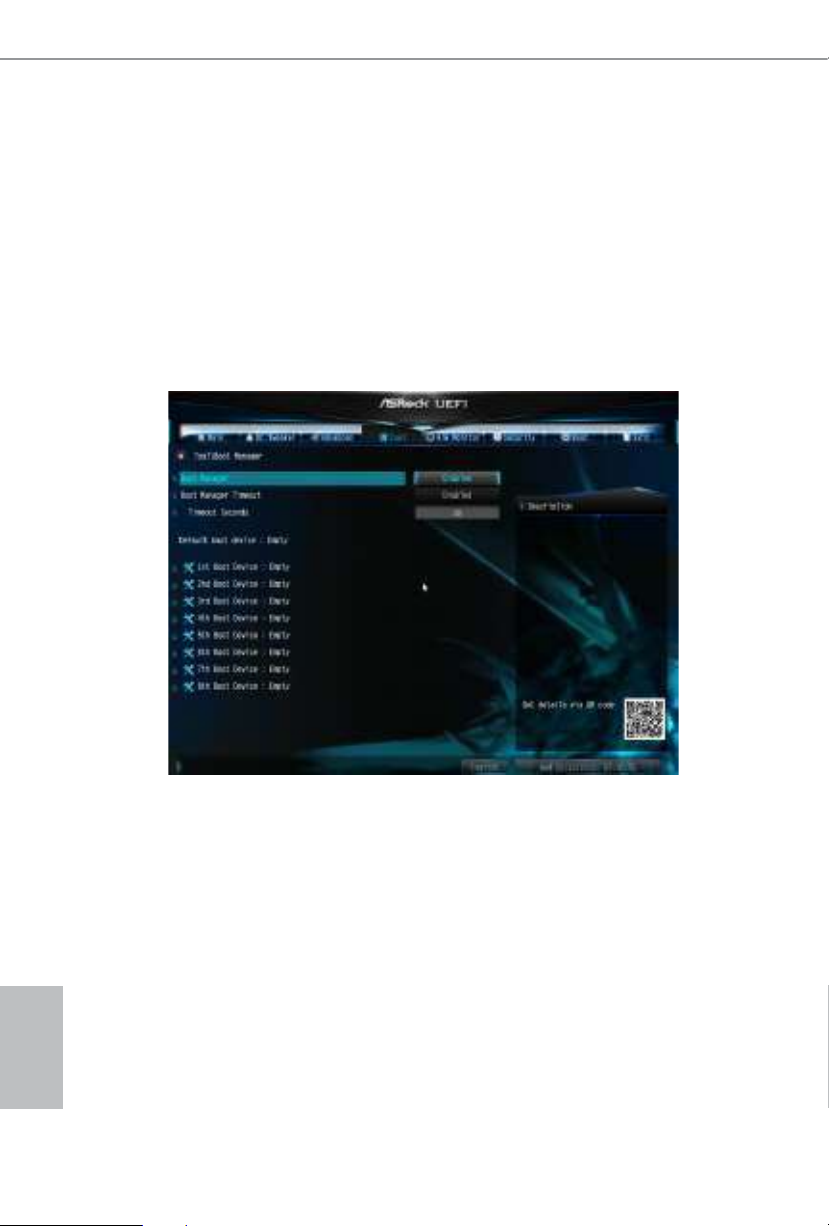

Boot Manager

Enable/disable the Boot Manager.

Boot Manager Timeout

Enable/disable the Boot Manager Timeout.

Timeout Seconds

Congure the number of seconds to wait for the Boot Manager.

Dehumidier Function

If Dehumidier Function is enabled, the computer will power on automatically to

dehumidify the system aer entering S4/S5 state.

85

English

Z170 Extreme6+ / Z170 Extreme6

Dehumidier Period

Congure the period of time until the computer powers on and enables

Dehumidier aer entering S4/S5 state.

Dehumidier Duration

Congure the duration of the dehumidifying process before it returns to S4/S5

state.

Dehumidier CPU Fan Setting

Congure the speed of the CPU fan while Dehumidier is enabled. e higher the

value, the faster the fan speed.

Max: 255

Min: 1

Instant Flash

Save UEFI les in your USB storage device and run Instant Flash to update your

UEFI.

Internet Flash - DHCP (Auto IP), Auto

ASRock Internet Flash downloads and updates the latest UEFI rmware version

from our servers for you. Please setup network conguration before using Internet

Flash.

*For BIOS backup and recovery purpose, it is recommended to plug in your USB

pen drive before using this function.

Secure Backup UEFI

Whenever one of the ROM images are outdated or corrupted, switch to the other

ash ROM and execute Secure Backup UEFI to duplicate the current working ROM

image to the secondary ash ROM.

86

English

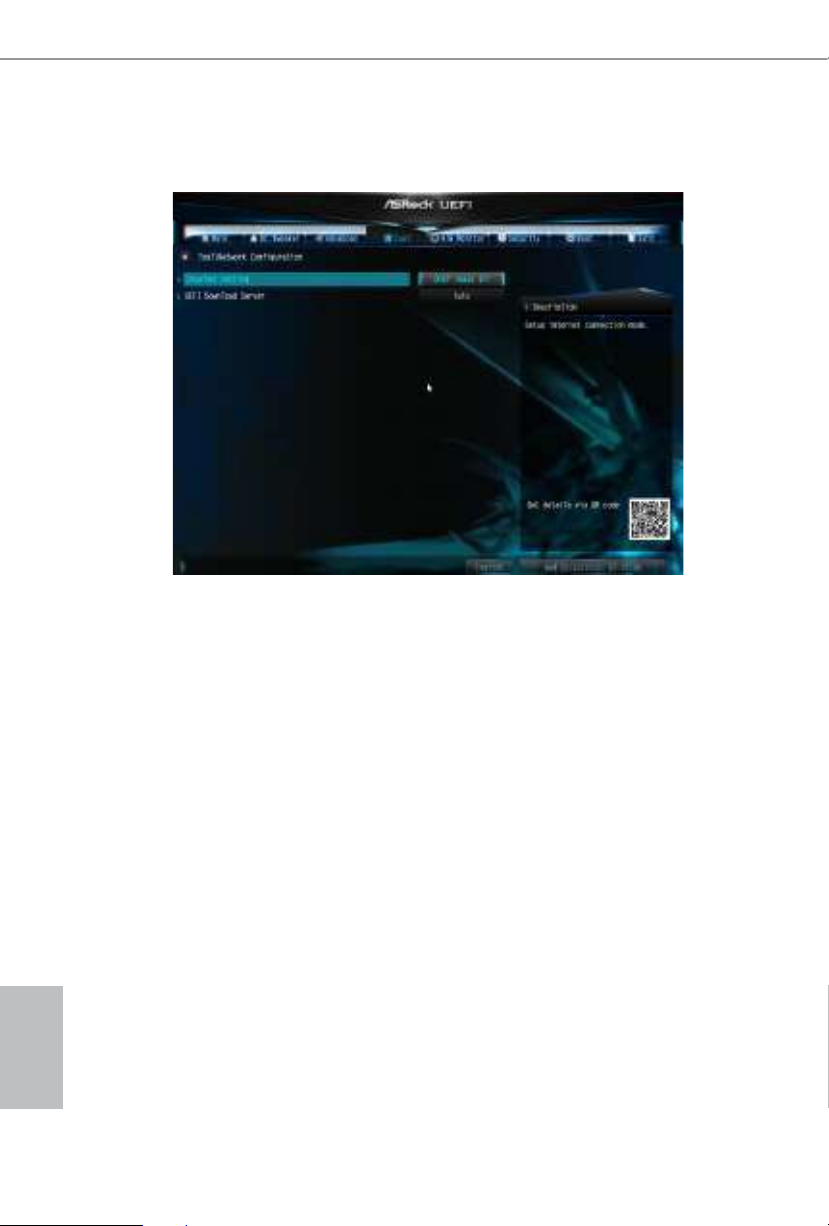

Network Conguration

Use this to congure internet connection settings for Internet Flash.

Internet Setting

Enable or disable sound eects in the setup utility.

UEFI Download Server

Select a server to download the UEFI rmware.

87

English

Z170 Extreme6+ / Z170 Extreme6

4.6 Hardware Health Event Monitoring Screen

is section allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, fan

speed and voltage.

Fan-Tastic Tuning

Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU

temperatures and assign a respective fan speed for each temperature.

CPU Fan 1 Setting

Select a fan mode for CPU Fans 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

CPU Fan 2 Setting

Select a fan mode for CPU Fans 2, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 1 Setting

Select a fan mode for Chassis Fan 1, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 1 Temp Source

Select a fan temperature source for Chassis Fan 1.

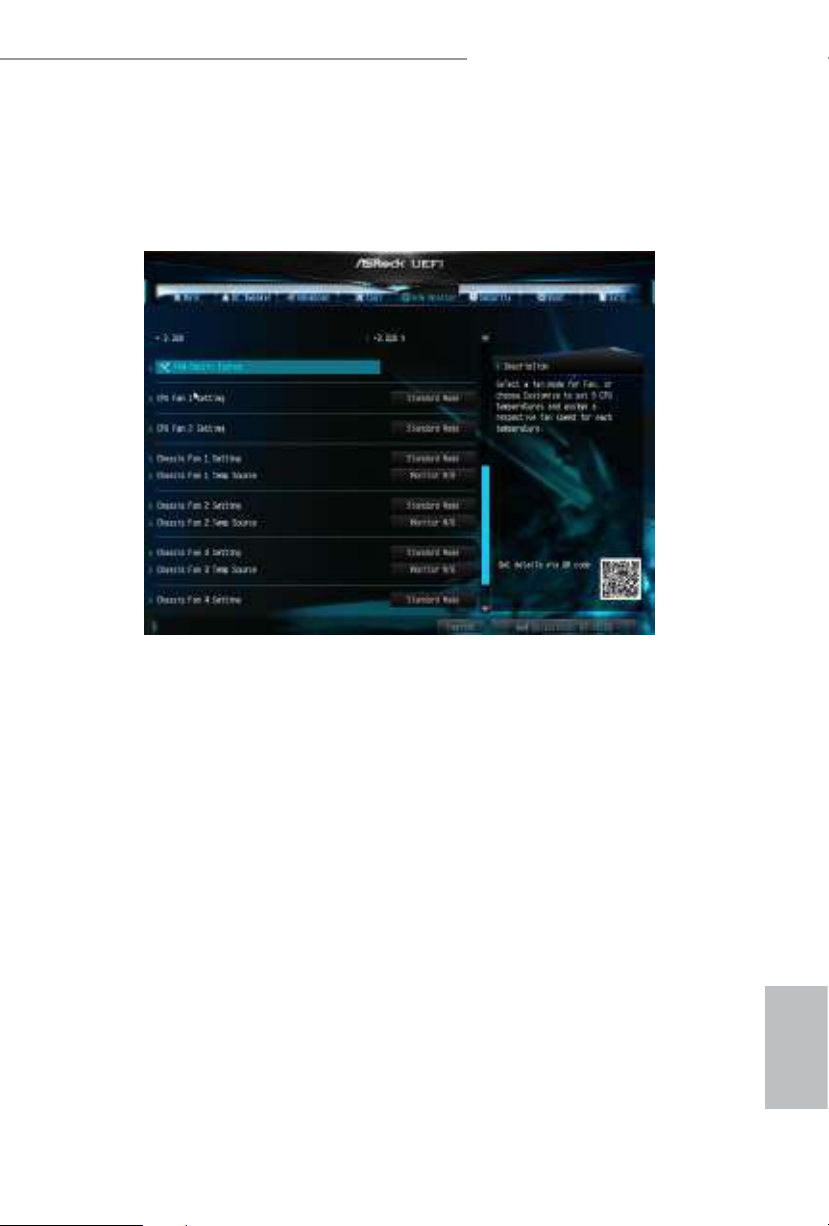

88

English

Chassis Fan 2 Setting

Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 2 Temp Source

Select a fan temperature source for Chassis Fan 2.

Chassis Fan 3 Setting

Select a fan mode for Chassis Fan 3, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 3 Temp Source

Select a fan temperature source for Chassis Fan 3.

Chassis Fan 4 Setting

Select a fan mode for Chassis Fan 4, or choose Customize to set 5 CPU temperatures

and assign a respective fan speed for each temperature.

Chassis Fan 4 Temp Source

Select a fan temperature source for Chassis Fan 4.

Over Temperature Protection

When Over Temperature Protection is enabled, the system automatically shuts

down when the motherboard is overheated.

89

English

Z170 Extreme6+ / Z170 Extreme6

4.7 Security Screen

In this section you may set or change the supervisor/user password for the system.

You may also clear the user password.

Supervisor Password

Set or change the password for the administrator account. Only the administrator

has authority to change the settings in the UEFI Setup Utility. Leave it blank and

press enter to remove the password.

User Password

Set or change the password for the user account. Users are unable to change the

settings in the UEFI Setup Utility. Leave it blank and press enter to remove the

password.

Secure Boot

Use this item to enable or disable support for Windows 8.1 Secure Boot.

Intel(R) Platform Trust Technology

Enable/disable Intel PTT in ME. Disable this option to use discrete TPM Module.

90

English

4.8 Boot Screen

is section displays the available devices on your system for you to congure the

boot settings and the boot priority.

Fast Boot

Fast Boot minimizes your computer's boot time. In fast mode you may not boot

from an USB storage device. Ultra Fast mode is only supported by Windows 8.1

and the VBIOS must support UEFI GOP if you are using an external graphics card.

Please notice that Ultra Fast mode will boot so fast that the only way to enter this

UEFI Setup Utility is to Clear CMOS or run the Restart to UEFI utility in Windows.

Boot From Onboard LAN

Allow the system to be waked up by the onboard LAN.

Setup Prompt Timeout

Congure the number of seconds to wait for the setup hot key.

Bootup Num-Lock

Select whether Num Lock should be turned on or o when the system boots up.

Boot Beep

Select whether the Boot Beep should be turned on or o when the system boots up. Please

note that a buzzer is needed.

91

English

Z170 Extreme6+ / Z170 Extreme6

Full Screen Logo

Enable to display the boot logo or disable to show normal POST messages.

AddOn ROM Display

Enable AddOn ROM Display to see the AddOn ROM messages or congure the

AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.

Boot Failure Guard

If the computer fails to boot for a number of times the system automatically restores

the default settings.

Boot Failure Guard Count

Congure the number of attempts to boot until the system automatically restores

the default settings.

92

English

CSM (Compatibility Support Module)

CSM

Enable to launch the Compatibility Support Module. Please do not disable unless

you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your

devices support UEFI, you may also disable CSM for faster boot speed.

Launch PXE OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

Launch Storage OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

Launch Video OpROM Policy

Select UEFI only to run those that support UEFI option ROM only. Select Legacy

only to run those that support legacy option ROM only. Select Do not launch to not

execute both legacy and UEFI option ROM.

93

English

Z170 Extreme6+ / Z170 Extreme6

4.9 Exit Screen

Save Changes and Exit

When you select this option the following message, “Save conguration changes

and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP

UTILITY.

Discard Changes and Exit

When you select this option the following message, “Discard changes and exit

setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving

any changes.

Discard Changes

When you select this option the following message, “Discard changes?” will pop

out. Select [OK] to discard all changes.

Load UEFI Defaults

Load UEFI default values for all options. e F9 key can be used for this operation.

Launch EFI Shell from lesystem device

Copy shellx64.e to the root directory to launch EFI Shell.

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer

for further information. For technica l questions, please submit a support request

form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

e Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]
