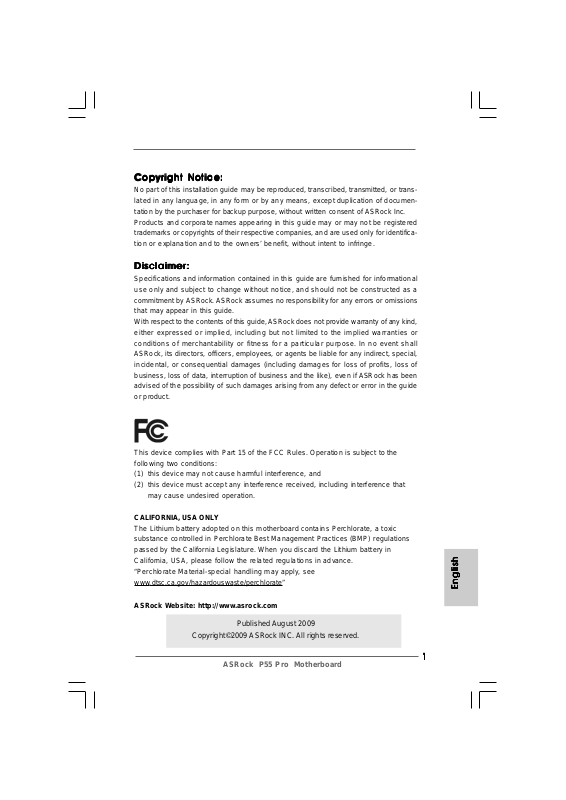

No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published August 2009

ASRock P55 Pro Motherboard

EnglishEnglish

English

EnglishEnglish

Motherboard LayoutMotherboard Layout

Motherboard Layout

Motherboard LayoutMotherboard Layout

1 PS2_USB_PWR1 Jumper 21 Infrared Module Header (IR1) 2 ATX 12V Power Conne ctor (A TX12V1) 22 System Panel Header (P ANEL1, Orange) 3 1156-Pin CPU Socket 23 USB 2.0 Header (USB12_13, Blue) 4 2 x 240-pin DDR3 DIMM Slots 24 USB 2.0 Header (USB10_11, Blue)

(Dual Channel: DDR3_A2, DDR3_B2, Blue) 25 USB 2.0 Header (USB8_9, Blue)

5 2 x 240-pin DDR3 DIMM Slots 26 Front Panel IEEE 1394 Header

(Dual Channel: DDR3_A1, DDR3_B1, White) (FRONT_1394, Red) 6 ATX Power Connector (ATXPWR1) 27 Floppy Connector (FLOPPY1) 7 Chassis Fan Connector (CHA_FAN1) 28 COM Port Header (COM1) 8 Chassis Fan Connector (CHA_FAN2) 29 HDMI_SPDIF Header 9 SAT AII Connector (SA T AII_1_2, Red) (HDMI_SPDIF1, Yellow) 10 SAT AII Connector (SA T AII_3_4, Red) 30 Front Panel Audio Header 11 SAT AII Connector (SA T AII_5_6, Red) (HD_AUDIO1, Lime) 12 Chassis Fan Connector (CHA_FAN3) 31 Internal Audio Connector: CD1 (Black) 13 Intel P55 Chipset 32 PCI Slots (PCI1-2) 14 Primary IDE Connector (IDE1, Blue) 33 PCI Express 2.0 x16 Slot (PCIE4, Orange) 15 Clear CMOS Jumper (CLRCMOS1) 34 PCI Express 2.0 x1 Slot (PCIE3, White) 16 16Mb SPI Flash 35 PCI Express 2.0 x16 Slot (PCIE2, Blue) 17 Dr. Debug 36 PCI Express 2.0 x1 Slot (PCIE1, White) 18 Reset Switch (RSTBTN) 37 CPU Fan Connector (CPU_FAN1) 19 TPM Header (TPM1) 38 Power Fan Connector (PWR_FAN1) 20 Power Switch (PWRBT N)

ASRock P55 Pro Motherboard

I/O PI/O P

I/O P

I/O PI/O P

* 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB01)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

anelanel

anel

anelanel

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime) 2 Coaxial SPDIF Out Port 11 Microphone (Pink) 3 Powered eSAT AII/USB Connector 12 USB 2.0 Ports (USB45) 4 IEEE 1394 Port (IEEE 1394) 13 USB 2.0 Ports (USB23)

6 Side Speaker (Gray) 15 Powered eSATAII/USB Conne ctor 7 Rear Speaker (Black) 16 Optical SPDIF Out Port 8 Central / Bass (Orange) 17 Clear CMOS Switch (CLRCBTN) 9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

2 V -- -- -4VV---6 VVV-8 VVVV

LAN Port LED Indications

TABLE for Audio Output Connection

(No. 10) (No. 7) (No. 8) (No. 6)

ACT/LINK LED

LAN Port

SPEED LED

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.

ASRock P55 Pro Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

1. Introduction1. Introduction

Thank you for purchasing ASRock P55 Pro motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard a nd step-by-ste p installation guide. More detailed information of the motherboard can be f ound in the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1.1 Package Contents1.1 Package Contents

ASRock P55 Pro Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm) ASRock P55 Pro Quick Installation Guide ASRock P55 Pro Support CD 1 x 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable 1 x Ribbon Cable for a 3.5-in Floppy Drive 4 x Serial ATA (SATA) Data Cables (Optional) 1 x Serial ATA (SATA) HDD Power Cables (Optional) 1 x I/O Panel Shield

English

EnglishEnglish

ASRock P55 Pro Motherboard

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

CPU - Supports the Intel® CoreTM i7 and Intel® CoreTM i5 Processors

in the LGA1156 Package

- Advanced V8 + 2 Power Phase Design

- Supports Intel® Turbo Boost Technology

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports EM64T CPU

Chipset - Intel® P55 Memory - Dual Channel DDR3 Memory T echnology (see CAUTION 3)

- 4 x DDR3 DIMM slots

- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/ 1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB (see CAUTION 4)

- Supports Intel® Extreme Memory Profile (XMP) (see CAUTION 5)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (at x16 mode)

- 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)

- 2 x PCI Express 2.0 x1 slots (2.5GT/s)

- 2 x PCI slots

- Supports ATITM CrossFireXTM and Quad CrossFireX

Audio - 7.1 CH Windows® VistaTM Premium Level HD Audio with

Content Protection

- DAC with 110dB dynamic range (ALC890 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL81 11DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x Powered eSATAII/USB Connectors

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

EnglishEnglish

English

ASRock P55 Pro Motherboard

English

EnglishEnglish

- 1 x IEEE 1394 Port

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 6)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Matrix Storage), NCQ, AHCI and “Hot Plug” functions (see CAUTION 7)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- 1 x TPM header

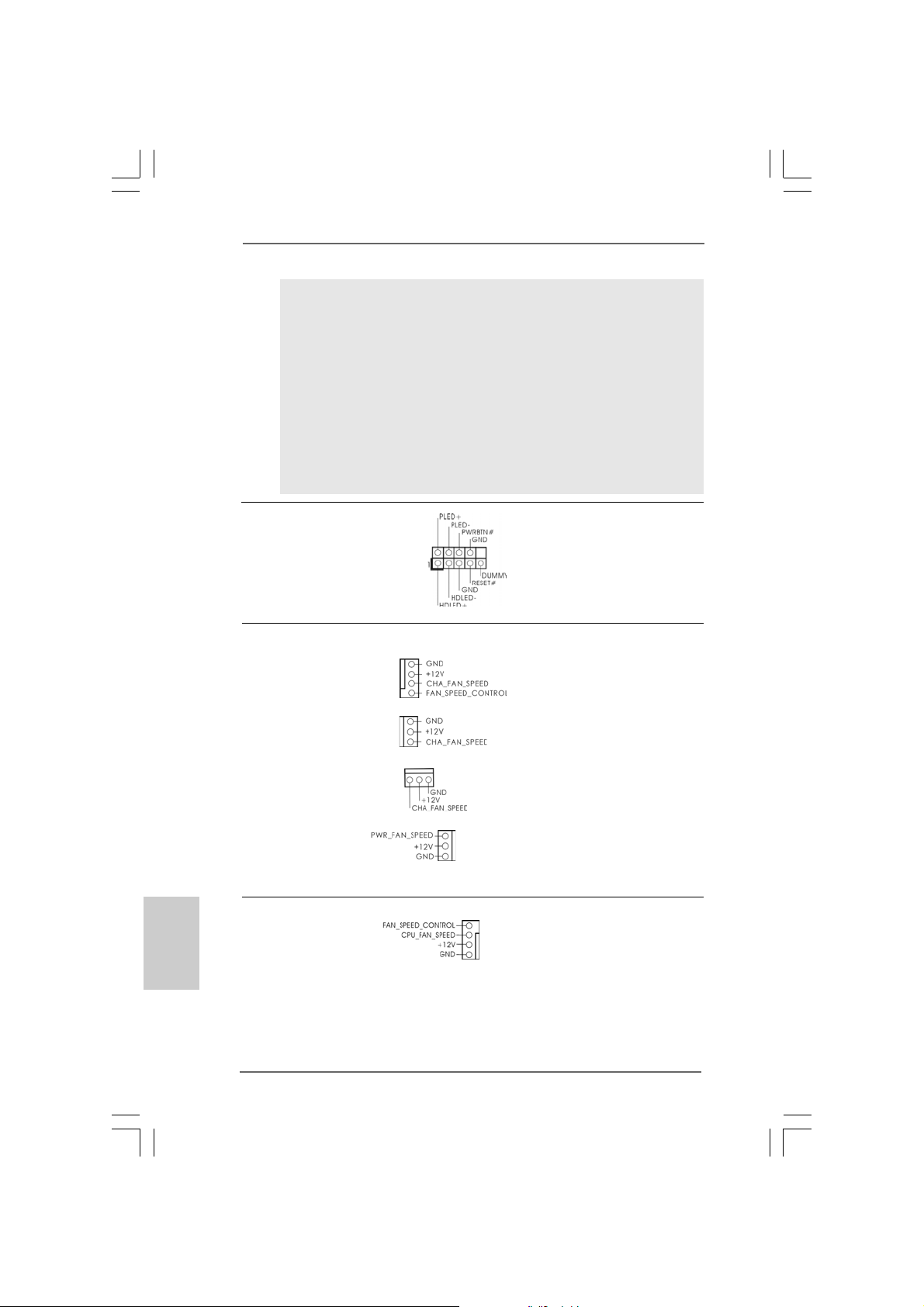

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

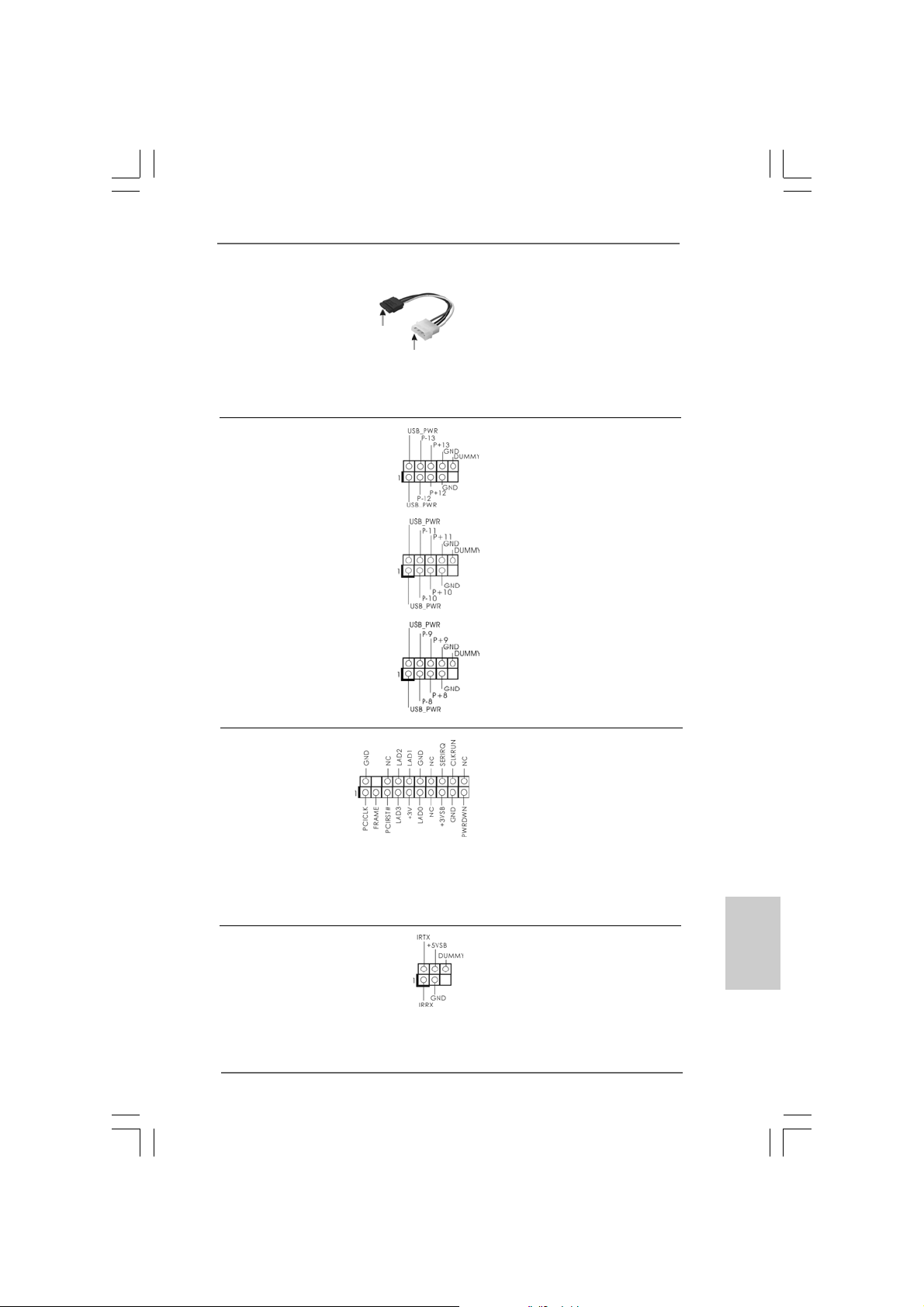

- 3 x USB 2.0 headers (support 6 USB 2.0 ports) (see CAUTION 8)

- 1 x Dr. Debug (7-Segment Debug LED)

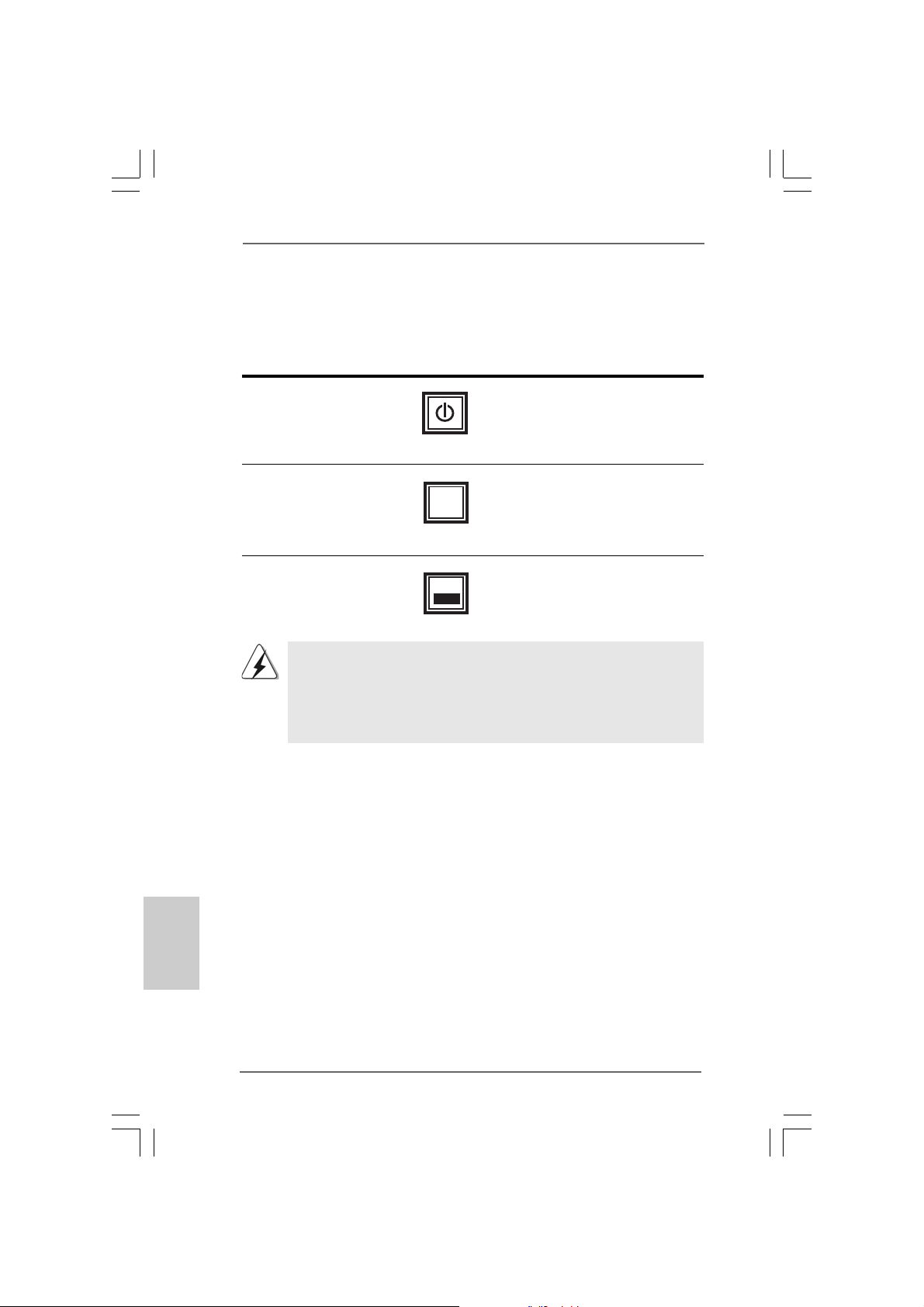

Smart Switch - 1 x Clear CMOS Switch with LED

- 1 x Power Switch with LED

- 1 x Reset Switch with LED

BIOS Feature - 16Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compli ance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, VCCM, SB, VTT , VCCM REF, PCH_PLL V oltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Unique Feature - ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Instant Boot

- ASRock Instant Flash (see CAUTION 11)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 12)

ASRock P55 Pro Motherboard

- ASRock U-COP (see CAUTION 13)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 14)

- Good Night LED Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft® Windows® XP / XP 64-bit / Vista

/ VistaTM 64-bit

/ Win7 compliant

Certifications - FCC, CE, WHQL

- EuP Ready (EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the thirdparty overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 55 of “User Manual” in the support CD.

2. This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 31 for details.

3. This motherboard supports Dual Cha nnel Me mory Technology . Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 13 for proper installation.

4. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® VistaTM. For Windows® XP 64-bit and Windows® VistaTM 64bit with 64-bit CPU, there is no such limitation.

5. For those CPU that only support up to DDR3 1333, the XMP DDR3 1600 is supported through overclocking.

6. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection.

EnglishEnglish

English

ASRock P55 Pro Motherboard

English

EnglishEnglish

7. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 36 of “User M a nual” in the support CD to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly.

8. Power Management for USB 2.0 works fine under Microsoft® Windows

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows® environment. Please visit our website for the operation procedures of ASRock OC Tuner. ASRock website: http://www.asrock.com/feature/OCTuner/index.htm

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers unparalleled power savings. In other words, it is able to provide exceptional power saving and improve power efficiency without sacrificing computing performance. Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com/feature/IES/index.html

11. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS without entering operating systems first like MS-DOS or Windows®. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

12. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

13. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU a nd the he atsink when you install the PC syste m.

14. Combo Cooler Option (C.C.O.) provides the flexible option to adopt two

different CPU cooler types, Socket LGA 775 and LGA 1156. Please be noticed that not all the 775 CPU Fan can be used.

15. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system. According to EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP standard, an EuP ready motherboard and an EuP ready power supply are required. According to

ASRock P55 Pro Motherboard

Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details.

TMTM

1.31.3

1.3

1.31.3

wo CrossFwo CrossF

wo CrossF

wo CrossFwo CrossF

(for Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit)

Chipset Model Name C h ipset Name Driver Vendor ATI

* The graphics cards with * mark are supported under Windows® VistaTM / VistaTM 64-bit only. * For the latest updates of the supported PCI Express VGA card list for CrossFireXTM Mode, please visit our website for details. ASRock website: http://www.asrock.com/support/index.htm

MSI RX2600PRO-T2D256EZ Radeon HD 2600PRO Catalyst 9.1 Gigabyte GV -RX26T256HP-B Radeon HD 2600XT Catalyst 9.1 ASUS EAH4350 SILENT/DI/512MD2/A RADEON HD 4350 Catalyst 9.1 ASUS EAH4870X2/HDTI/2G * RADEON HD 4870X2 Catalyst 9.1

TMTM

ireXireX

Graphics Card Suppor Graphics Card Suppor

ireX

Graphics Card Suppor

ireXireX

Graphics Card Suppor Graphics Card Suppor

t Listt List

t List

t Listt List

ASRock P55 Pro Motherboard

EnglishEnglish

English

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.12.1

CPU InstallationCPU Installation

2.1

CPU Installation

2.12.1

CPU InstallationCPU Installation

For the installation of Intel 1156-Pin CPU, please follow the steps below.

English

EnglishEnglish

1010

1156-Pin Socket Overview

Before you insert the 1156-Pin CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

ASRock P55 Pro Motherboard

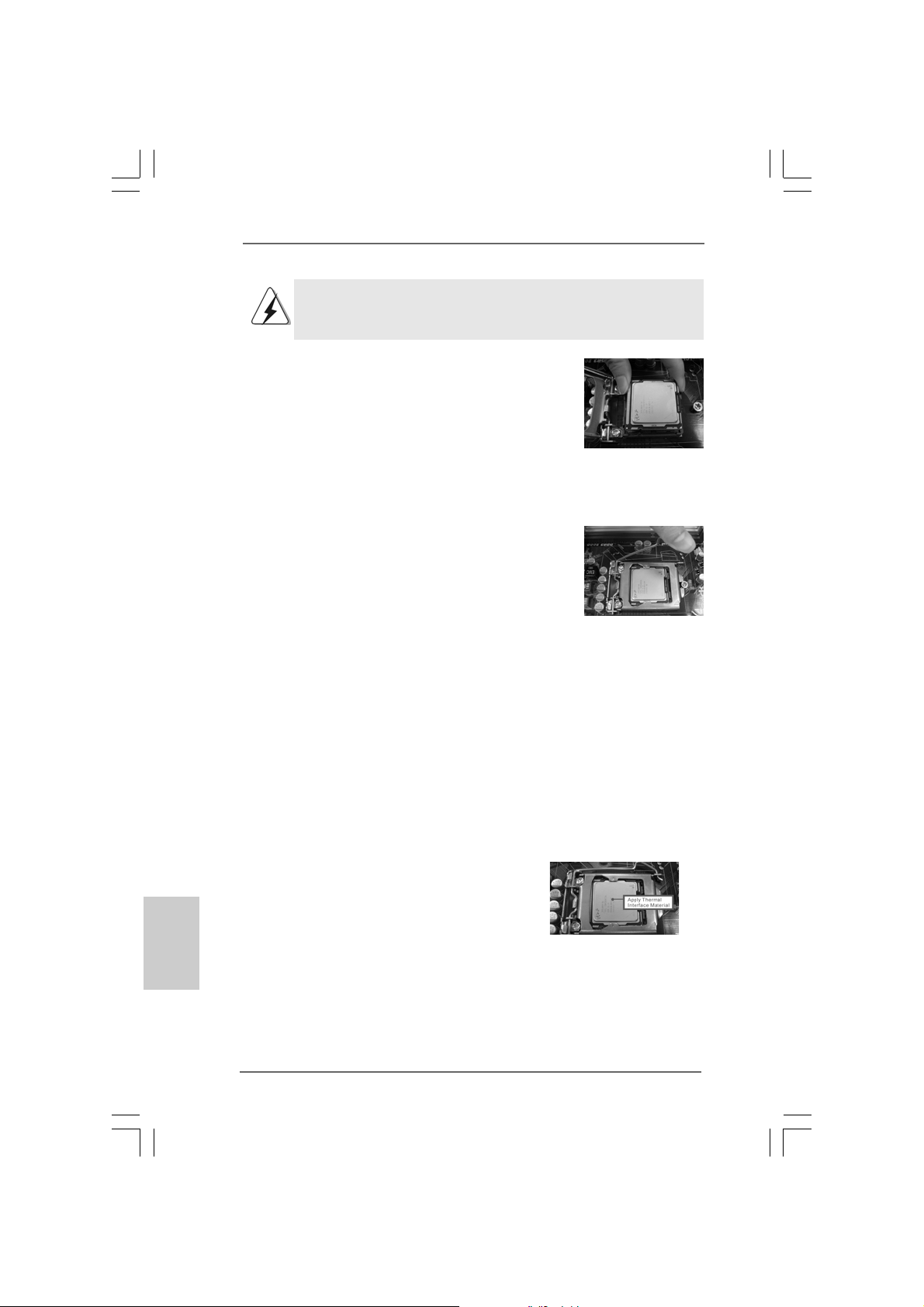

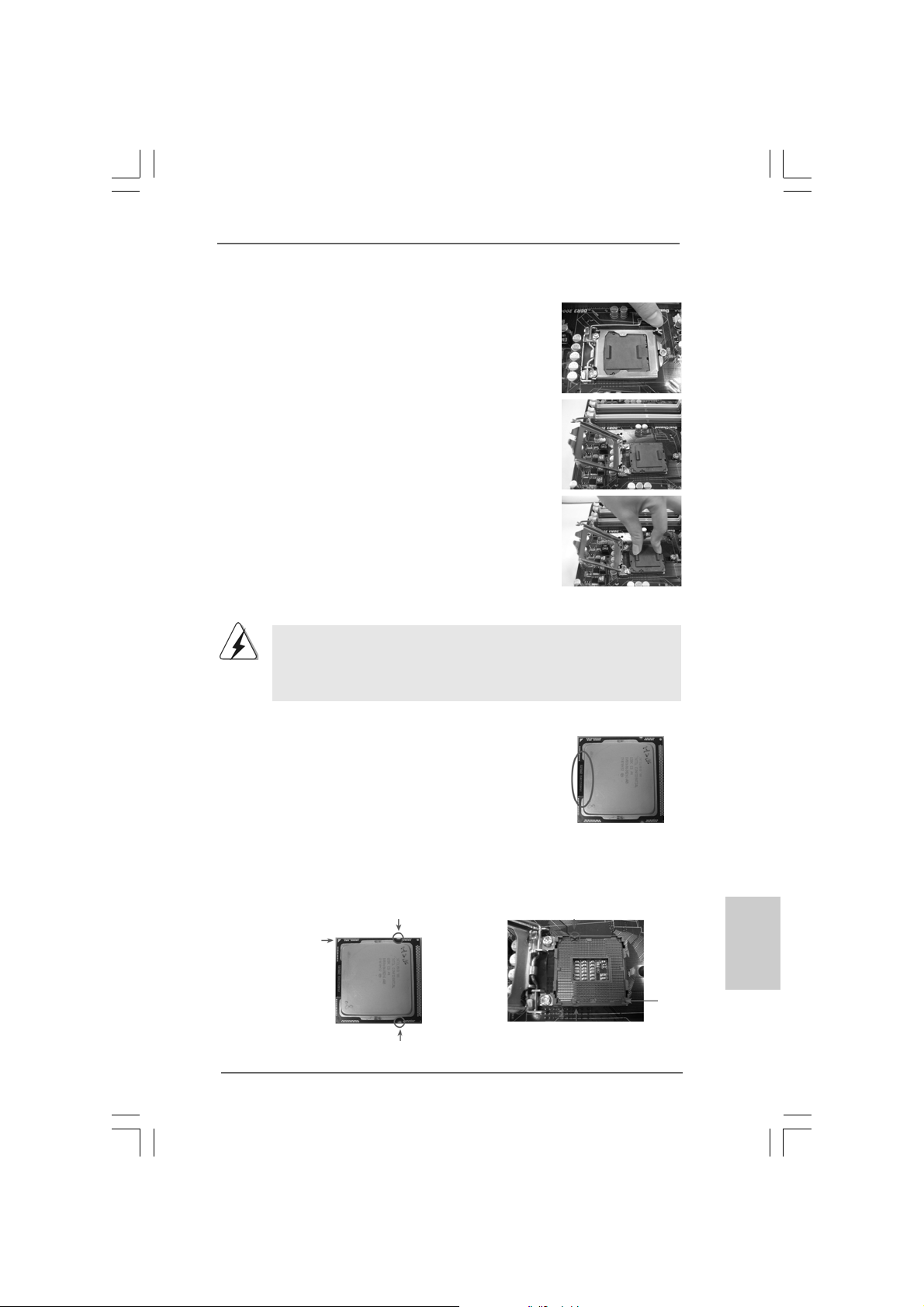

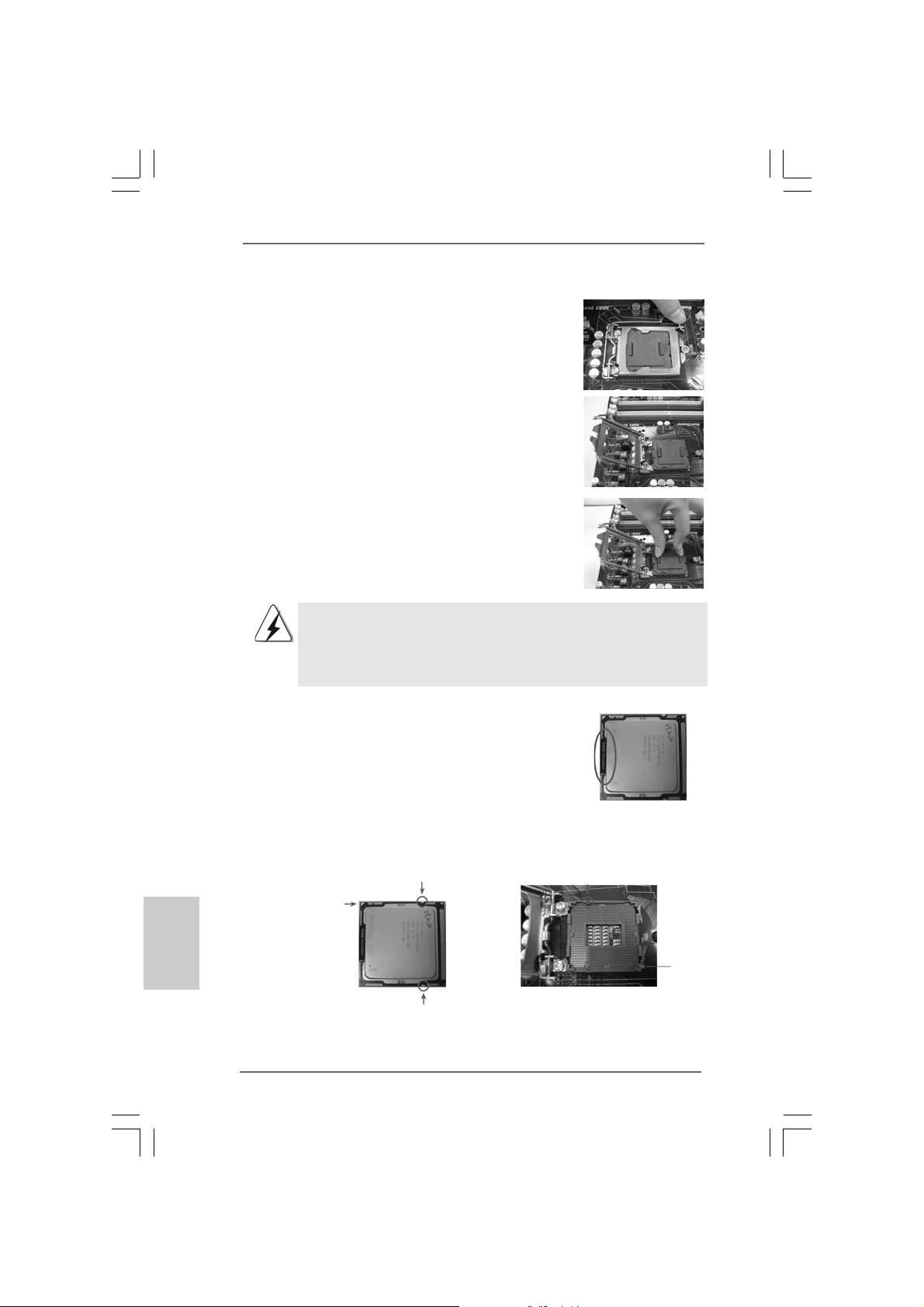

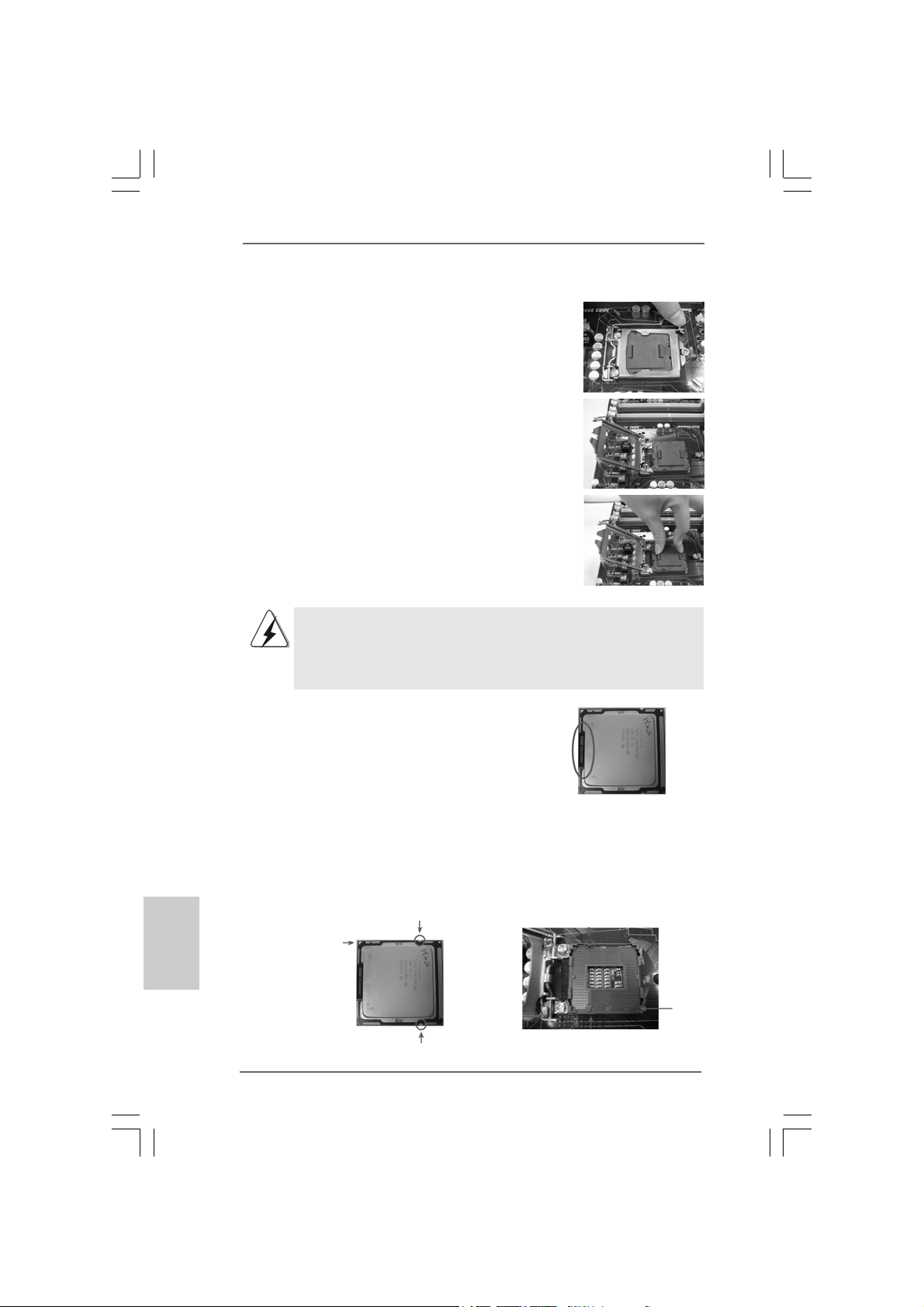

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear retention tab.

Step 1-2. Rotate the load lever to fully open posi-

tion at approxi mately 135 degrees .

Step 1-3. Rotate the load plate to fully open posi-

tion at approxi mately 100 degrees .

Step 2. Remove PnP Cap (Pick a nd Pla ce Cap).

1. It is recommended to use the cap tab to handle and avoid kicking off the PnP cap.

2. This cap must be placed if returning the motherboard for after service.

Step 3. Insert the 1 156-Pin CPU:

Step 3-1. Hold the CPU by the edges where are

marked with black lines.

black line

Step 3-2. Orient the CPU with IHS (Integrated Heat

Sink) up. Locate Pin1 and the two orientation key notches.

orientation key notch

Pin1

orientation key notch

1156-Pin CPU

For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket.

ASRock P55 Pro Motherboard

alignment key

1156-Pin Socket

Pin1

1111

EnglishEnglish

English

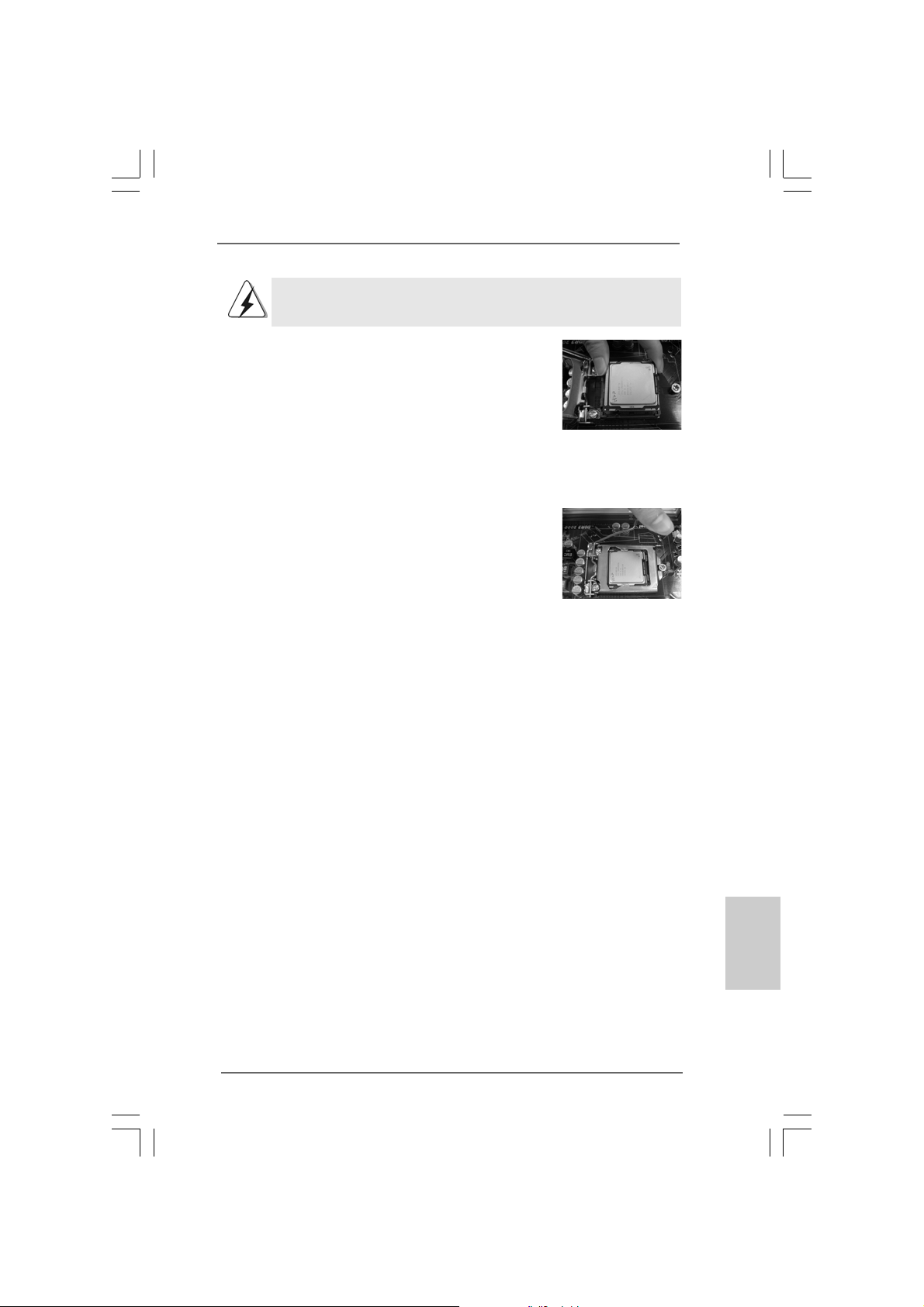

Step 3-3. Carefully pla ce the CPU into the socket

by using a purely vertical motion.

Step 3-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

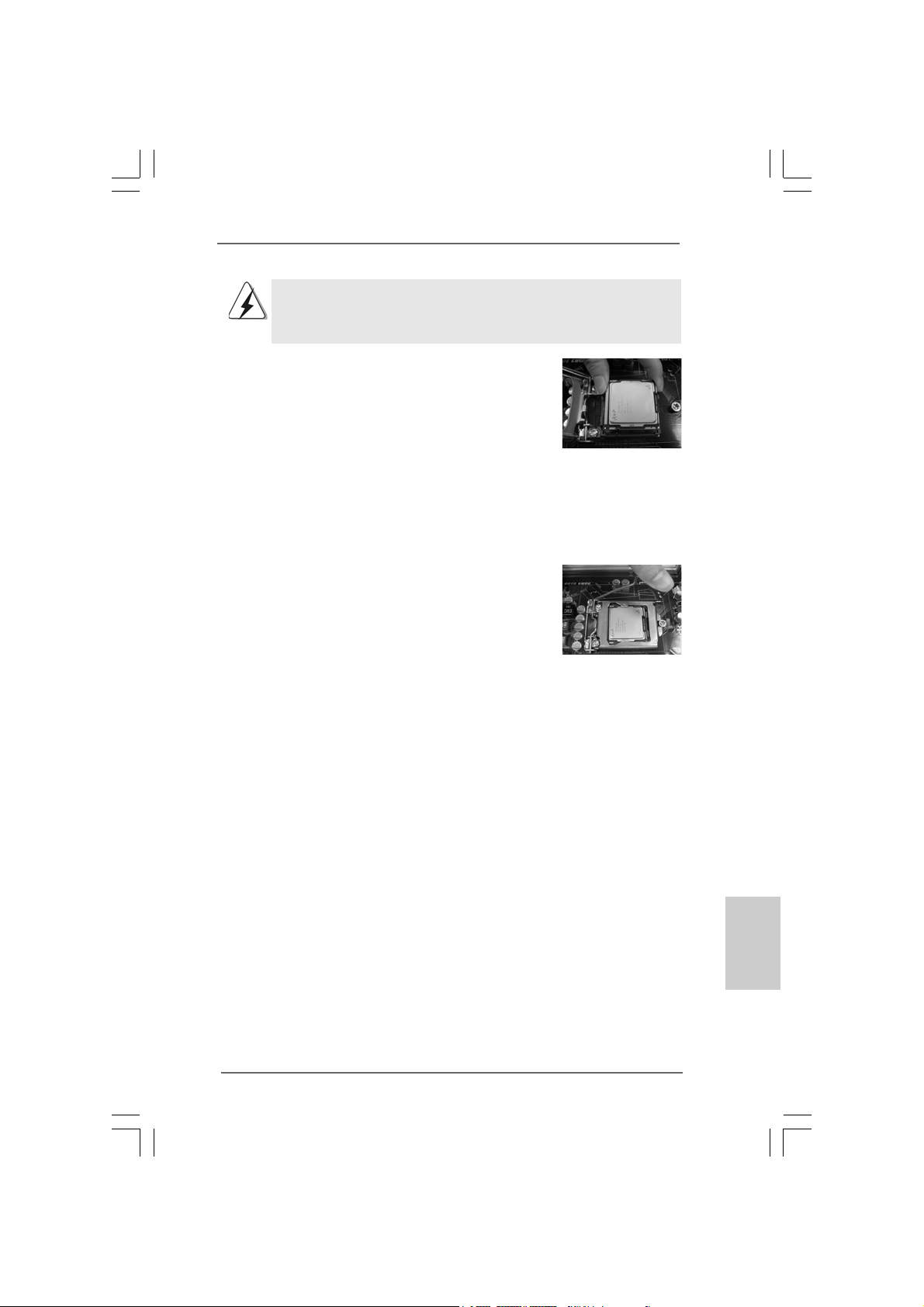

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS. Step 4-2. While pressing down lightly on load

plate, engage the load lever.

Step 4-3. Secure load lever with load plate tab

under retention tab of load lever.

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.2

Installation of CPU Fan and Heatsink

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

For proper installation, plea se kindly refer to the instruction ma nuals of your CPU fan a nd heatsink.

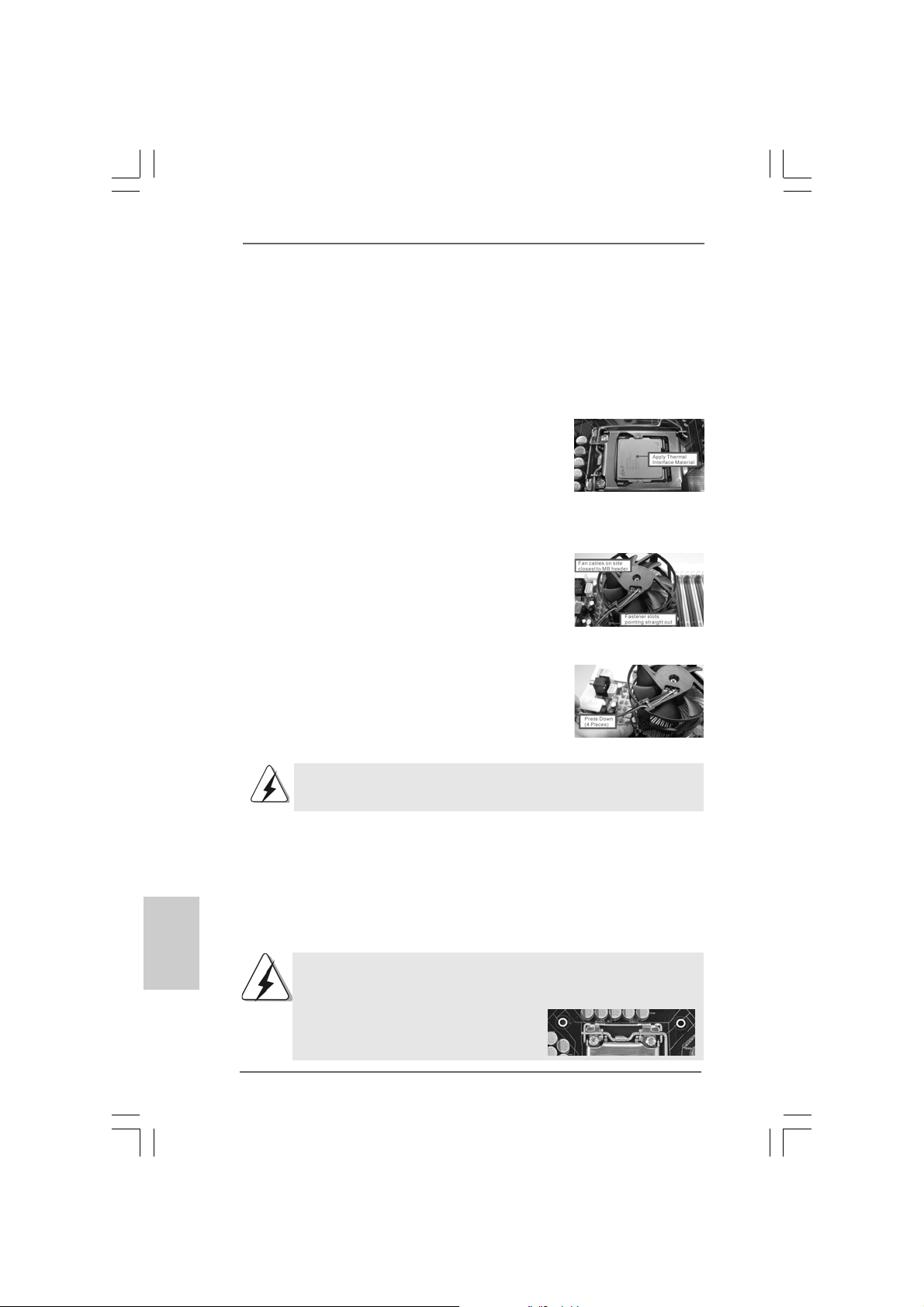

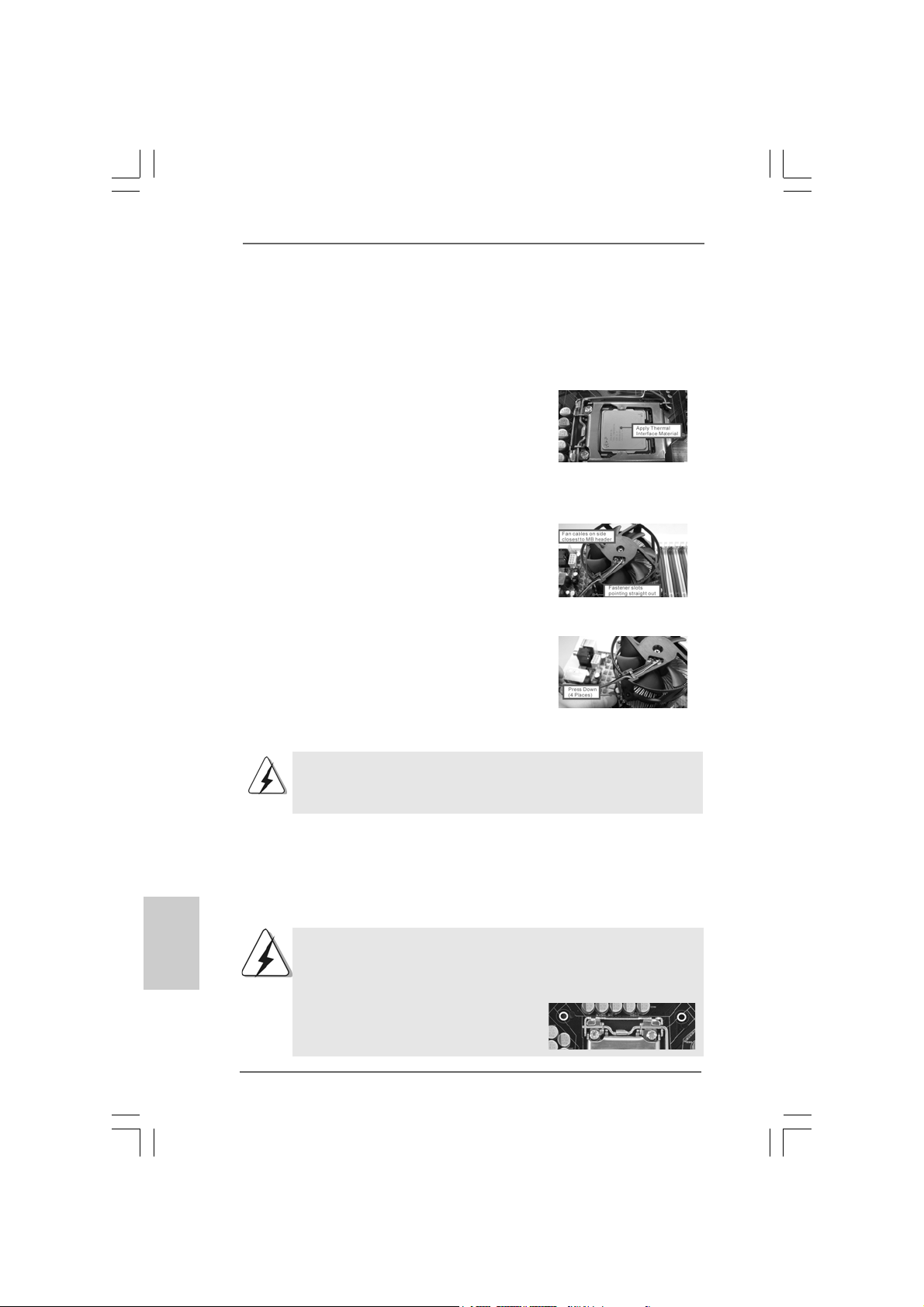

Below is an example to illustrate the installation of the heatsink for 1156-Pin CPU. Step 1. Apply thermal interface material onto center of

IHS on the socket surface.

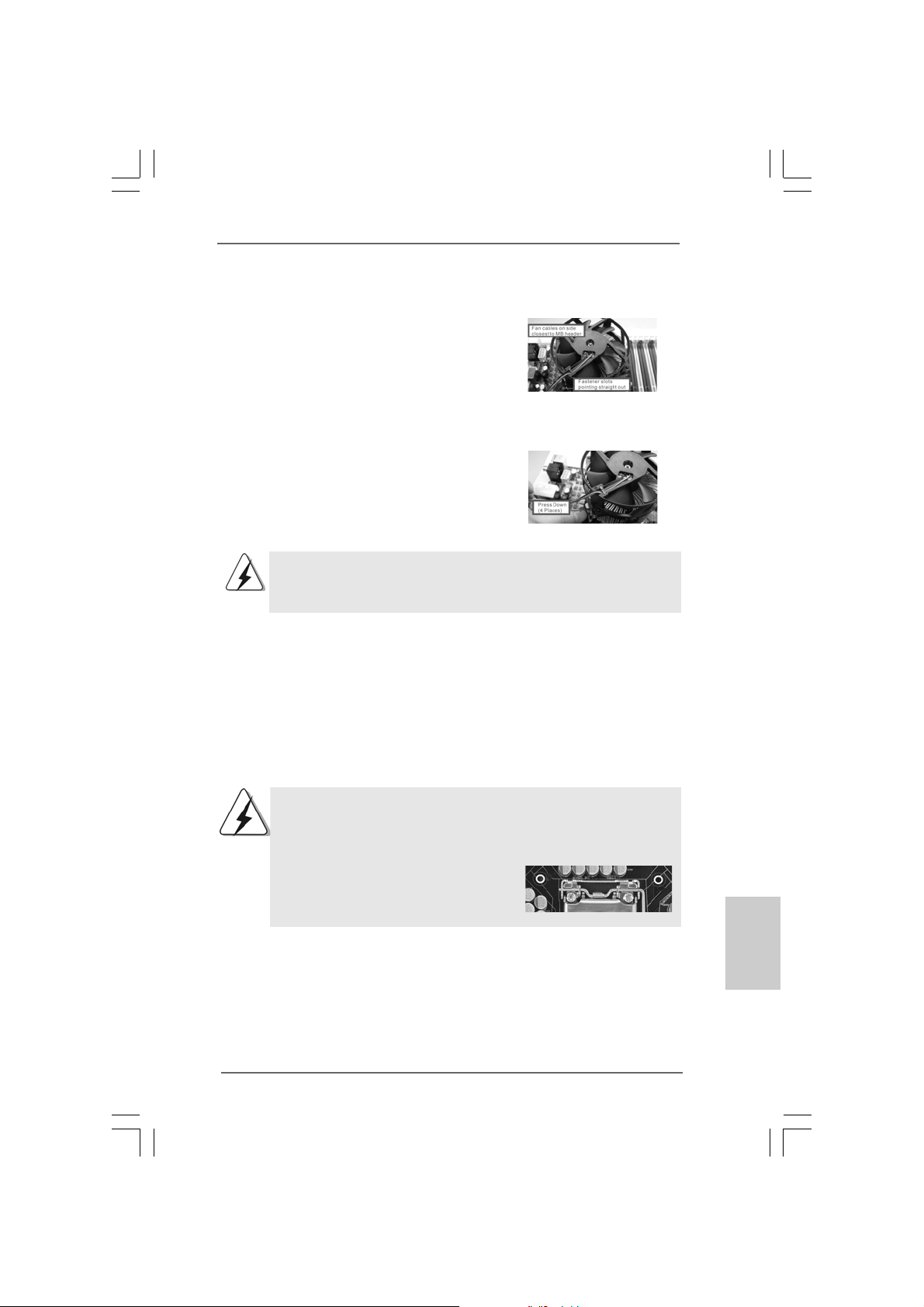

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU_FAN1, see page 2, No. 37).

Step 3. Align fasteners with the motherboard

throughholes.

Step 4. Rotate the fastener clockwise, then press down

on fastener caps with thumb to install and lock. Repeat with remaining fasteners.

English

EnglishEnglish

1212

If you press down the fasteners without rotating them clockwise, the heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard. Step 6. Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

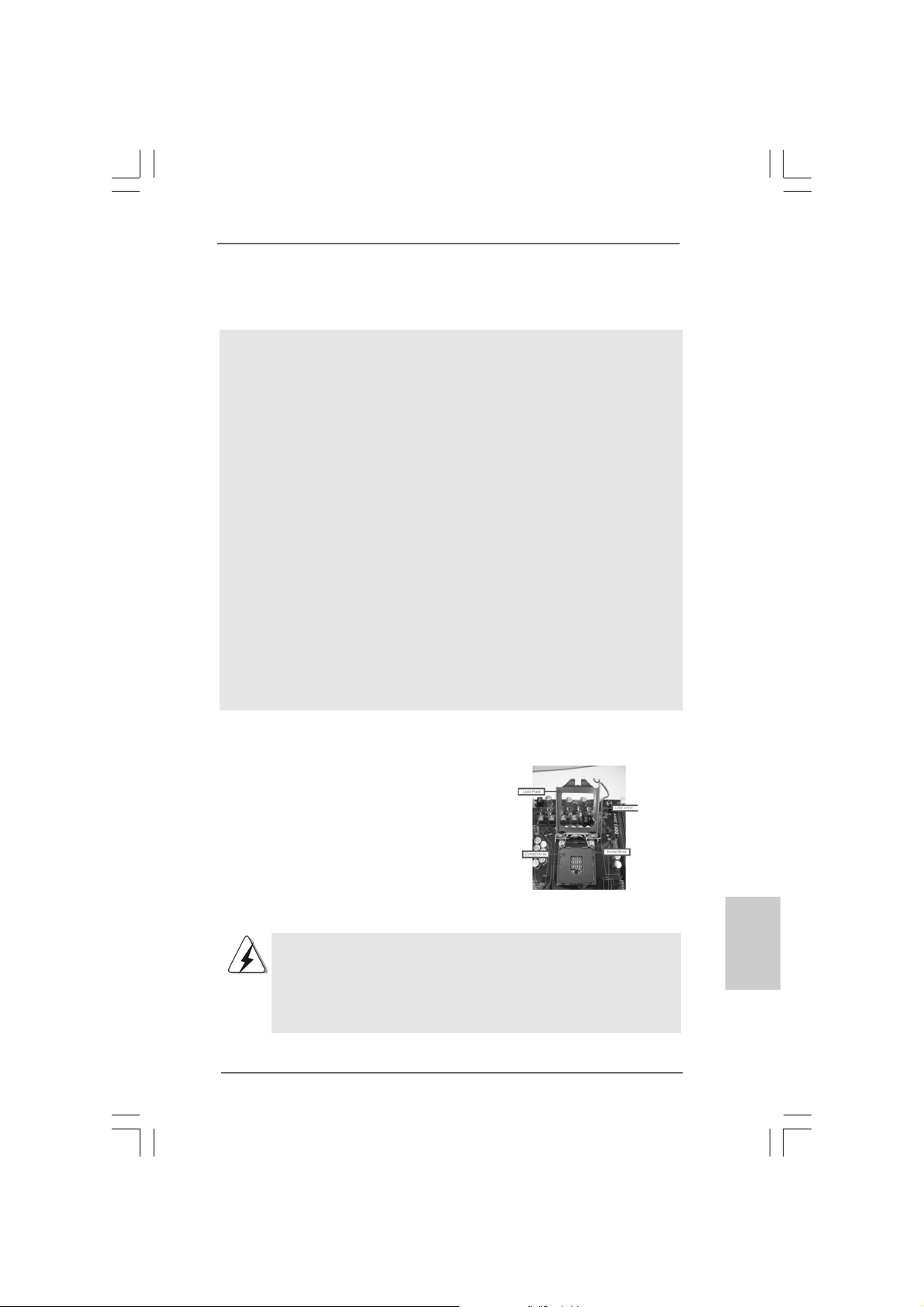

Please be noticed that this motherboard supports Combo Cooler Option (C.C.O.), which provides the flexible option to adopt two different CPU cooler types, Socket LGA 775 and LGA 1156. The white throughholes are for Socket LGA 1156 CPU fan.

ASRock P55 Pro Motherboard

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)

2.3 Installation of Memory Modules (DIMM)2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chiptype) DDR3 DIMM pair in the slots of the same color. In other words, you have to install identical DDR3 DIMM pair in Dual Channel (DDR3_A1 and DDR3_B1; white slots; see p.2 No.5), so that Dual Channel Memory Technology can be activated. This motherboard also allows you to install four DDR3 DIMMs for dual channel configuration, and please install identical DDR3 DIMMs in all four slots. You may refer to the Dual Channel Memory Configuration Table below.

Dual Channel Memory Configurations

DDR3_A2 DDR3_A1 DDR3_B2 DDR3_B1

(Blue Slot) (White Slot) (Blue Slot) (White Slot) (1) - Populated - Populated (2)* Populated Populated Populated Populated

* For the configuration (2), please install identical DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility and reliability, it is recommended to install them in the slots of the same color. In other words, install them either in the set of white slots (DDR3_A1 and DDR3_B1).

2. If only one memory module or three memory modules are installed in the DDR3 DIMM slots on this motherboard, it is unable to activate the Dual Channel Memory Technology.

3. It is not allowed to install a DDR or DDR2 memory module into DDR3 slot;otherwise, this motherboard and DIMM may be damaged.

4. Please install the memory module into the white slot (DDR3_B1) for the first priority.

ASRock P55 Pro Motherboard

1313

EnglishEnglish

English

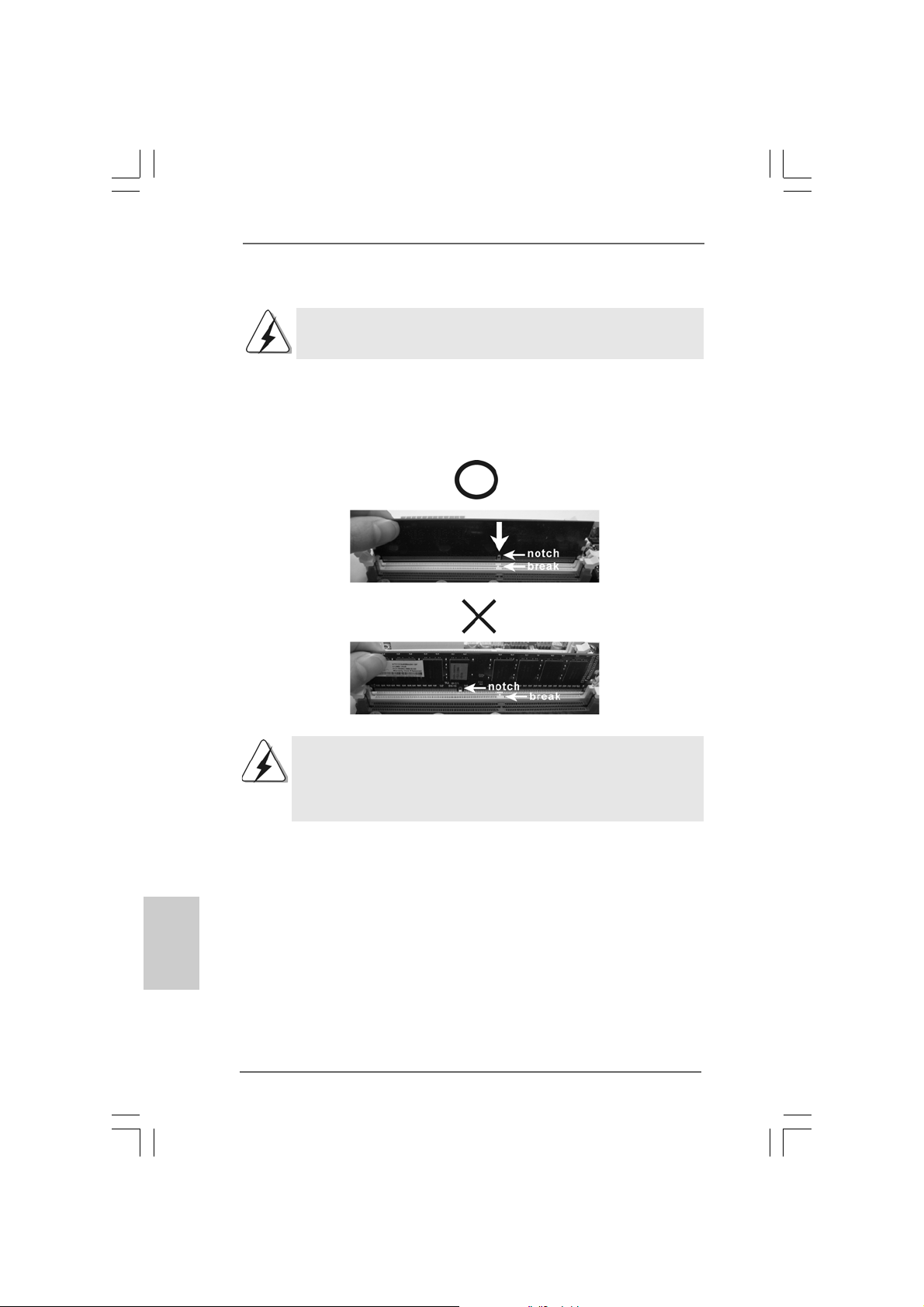

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

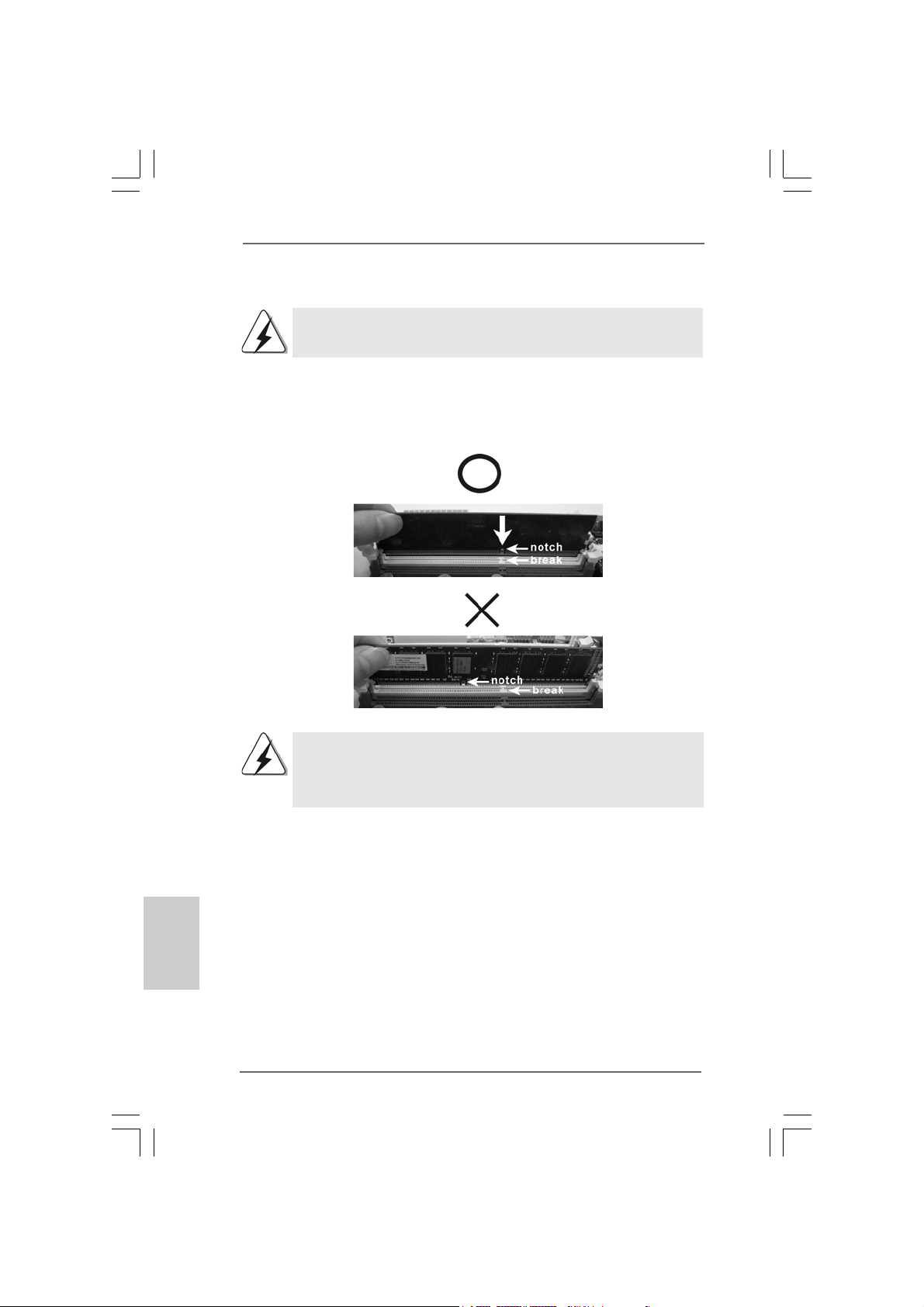

Step 1. Unlock a DIMM slot by pre ssing the retaining cli ps outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matche s the brea k

on the slot.

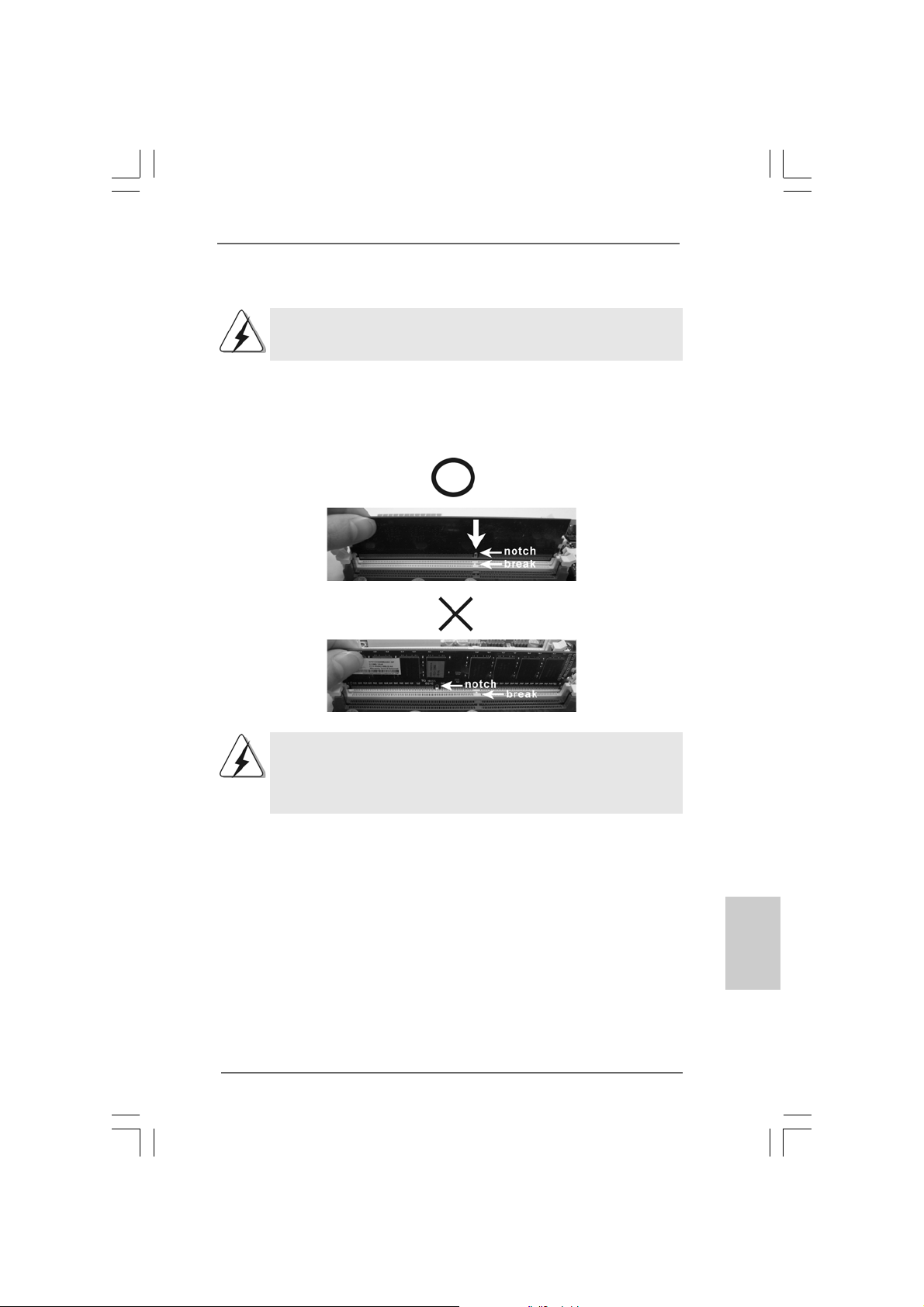

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

English

EnglishEnglish

1414

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

sna p back in place and the DIMM is properly seated.

ASRock P55 Pro Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 4 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots:

PCIE1 / PCIE3 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc. PCIE2 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width graphics cards, or used to install PCI Express graphics cards to support CrossFireXTM function. PCIE4 (PCIE x16 slot; Orange) is used for PCI Express x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc., or used to install PCI Express graphics cards to support CrossFireXTM function.

1. In single VGA card mode, it is recommended to install a PCI Express x16 graphics card on PCIE2 slot.

2. In CrossFireXTM mode, please install PCI Express x16 graphics cards on PCIE2 and PCIE4 slots. Therefore, PCIE2 slot will work at x16 bandwidth while PCIE4 slot will work at x4 bandwidth.

3. Please connect a chassis fan to motherboard chassis fan connector (CHA_FAN1 or CHA_FAN2) when using multiple graphics cards for better thermal environment.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in

a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover.

EnglishEnglish

English

ASRock P55 Pro Motherboard

1515

TMTM

2.52.5

CrossFireXCrossFireX

2.5

CrossFireX

2.52.5

CrossFireXCrossFireX

GuideGuide

Guide

GuideGuide

This motherboard supports CrossFireXTM and Quad CrossFireXTM feature. CrossFireXTM technology offers the most advantageous means available of combining multiple high performance Graphics Processing Units (GPU) in a single PC. Combining a range of different operating modes with intelligent software design and an innovative interconnect mechanism, CrossFireXTM enables the highest possible level of performance and image quality in any 3D application. Currently CrossFireXTM feature is supported with Windows® XP with Service Pack 2 and VistaTM OS. Quad CrossFireX AMD website for ATITM CrossFireXTM driver updates.

2.5.1 Graphics Cards Setup2.5.1 Graphics Cards Setup

2.5.1 Graphics Cards Setup

2.5.1 Graphics Cards Setup2.5.1 Graphics Cards Setup

feature are supported with Windows® VistaTM OS only. Please check

1. If a customer incorrectly configures their system they will not see the

performance benefits of CrossFireXTM. All three CrossFireXTM components, a

CrossFireXTM Ready graphics card, a CrossFireXTM Ready motherboard and a

CrossFireXTM Edition co-processor graphics card, must be installed correctly to

benefit from the CrossFireXTM multi-GPU platform.

2. If you pair a 12-pipe CrossFireXTM Edition card with a 16-pipe card, both cards

will operate as 12-pipe cards while in CrossFireXTM mode.

TMTM

and Quad CrossFireX and Quad CrossFireX

and Quad CrossFireX

and Quad CrossFireX and Quad CrossFireX

TMTM

Operation Operation

Operation

Operation Operation

English

EnglishEnglish

1616

Different CrossFireXTM cards may require different methods to enable CrossFireX feature. In below procedures, we use Radeon HD 3870 as the example graphics card. For other CrossFireXTM cards that ATITM has released or will release in the future, please refer to ATITM graphics card manuals for detailed installation guide.

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots.

ASRock P55 Pro Motherboard

Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.)

CrossFire Bridge

Step 2. Connect the DVI monitor cable to the DVI connector on the Radeon graphics

card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.)

ASRock P55 Pro Motherboard

1717

EnglishEnglish

English

2.5.2 Driver Installation and Setup2.5.2 Driver Installation and Setup

2.5.2 Driver Installation and Setup

2.5.2 Driver Installation and Setup2.5.2 Driver Installation and Setup

Step 1. Power on your computer and boot into OS. Step 2. Remove the A TITM driver if you have any VGA driver installed in your system.

The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation. Please check AMD website for ATITM driver updates.

Step 3. Install the required drivers to your system.

For Windows® XP OS:

A. ATITM recommends Windows® XP Service Pack 2 or higher to be installed (If you have Windows® XP Service Pack 2 or higher installed

in your system, there is no need to download it again): http://www.microsoft.com/windowsxp/sp2/default.mspx B. You must have Microsoft .NET Framework installed prior to downloading and installing the CATALYST Control Center. Please check Microsoft website for details.

For Windows® VistaTM OS:

Install the CA TALYST Control Center. Please check AMD website f or details.

Step 4. Restart your computer. Step 5. Install the VGA card drivers to your system, and restart your computer.

Then you will find “ATI Catalyst Control Center” on your Windows® taskbar.

(Driver Version: 8-12_vista32_dd_ccc_wdm_enu_72275.exe)

English

EnglishEnglish

1818

ATI Catalyst Control Center

Step 6. Double-click “ATI Catalyst Control Center”. Click “View”, select

“CrossFireXTM”, and then check the item “Enable CrossFireXTM”. Select the

option according to the total GPU number on the Radeon graphics cards.

Click “Apply”.

ASRock P55 Pro Motherboard

Although you have selected the option “Enable CrossFireTM”, the CrossFireX function may not work actually. Your computer will automatically reboot. After restarting your computer, please confirm whether the option “Enable CrossFireTM” in “ATI Catalyst Control Center” is selected or not; if not, please select it again, and then you are able to enjoy the benefit of CrossFireX

feature.

Step 7. You can freely enjoy the benefit of CrossFireXTM or Quad CrossFireX

feature.

* CrossFireXTM appearing here is a registered trademark of ATITM Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe. * For further information of ATITM CrossFireXTM technology, please check AMD website for updates and details.

ASRock P55 Pro Motherboard

1919

EnglishEnglish

English

2.6 Surround Display Feature2.6 Surround Display Feature

2.6 Surround Display Feature

2.6 Surround Display Feature2.6 Surround Display Feature

This motherboard supports Surround Display upgrade. With the external add-on PCI Express V GA cards, you can easily enjoy the benefits of Surround Display feature. For the detailed instruction, plea se refer to the document at the f ollowing path in the Support CD:

..\ Surround Display Information

2.7 Jumpers Setup2.7 Jumpers Setup

2.7 Jumpers Setup

2.7 Jumpers Setup2.7 Jumpers Setup

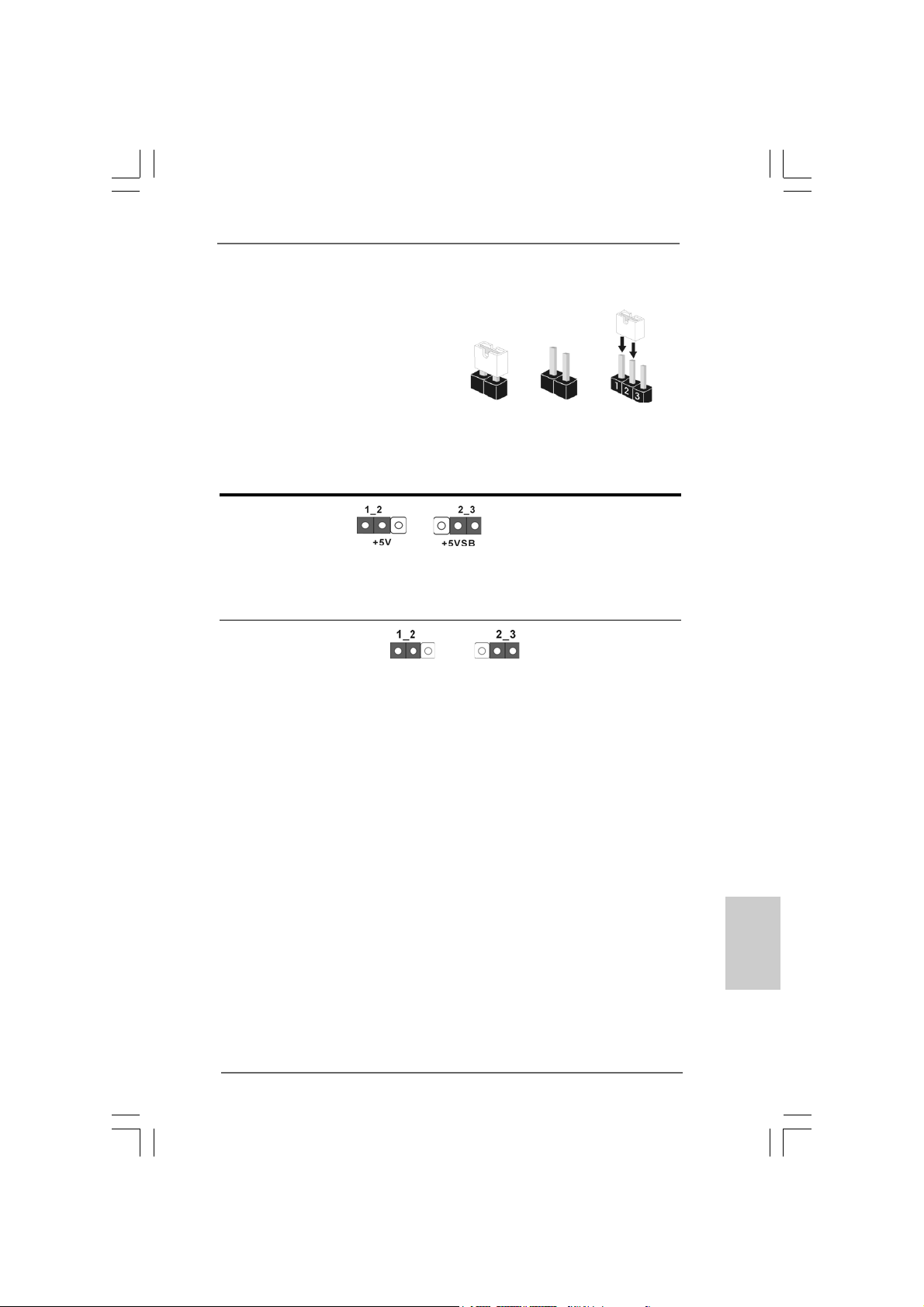

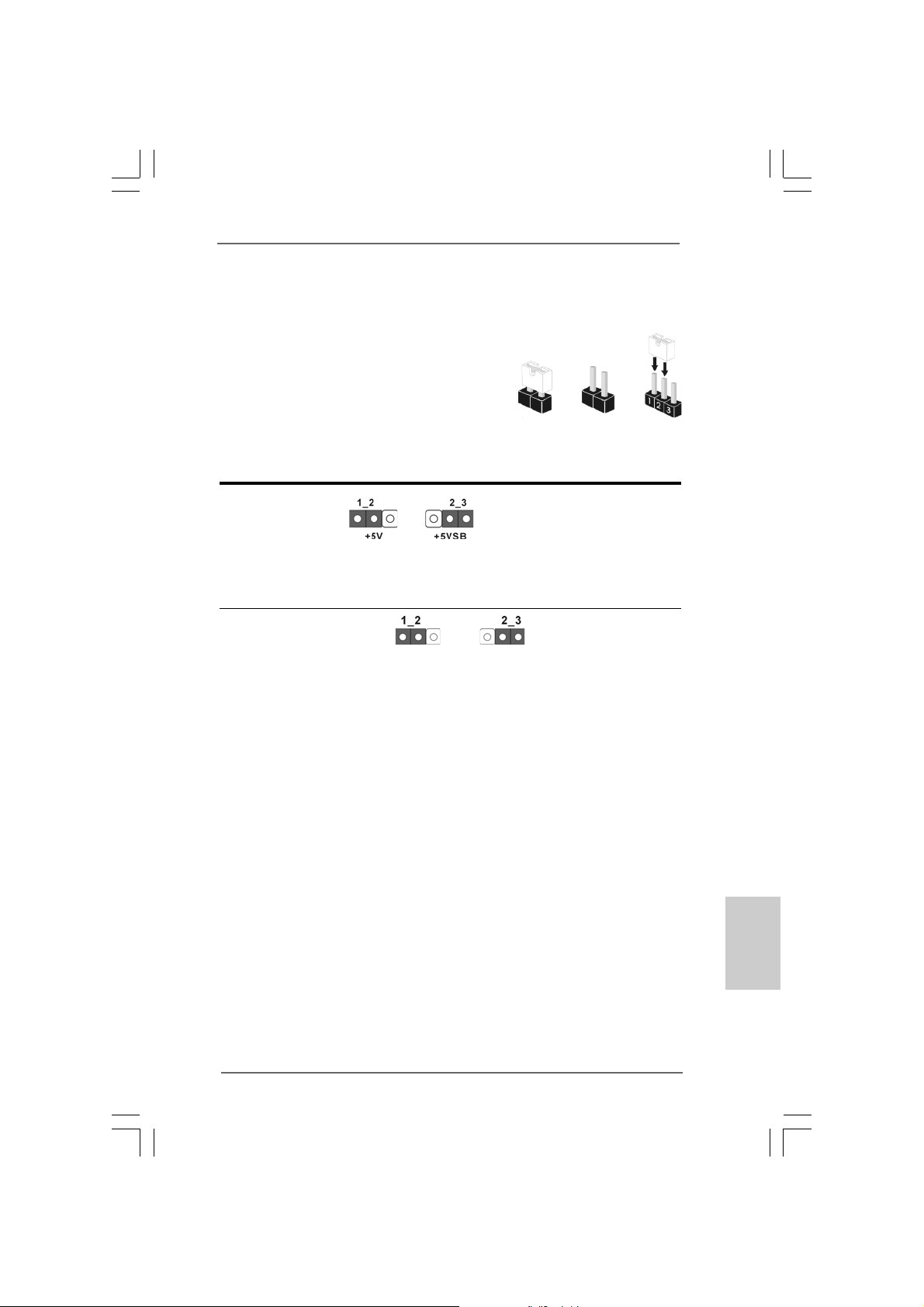

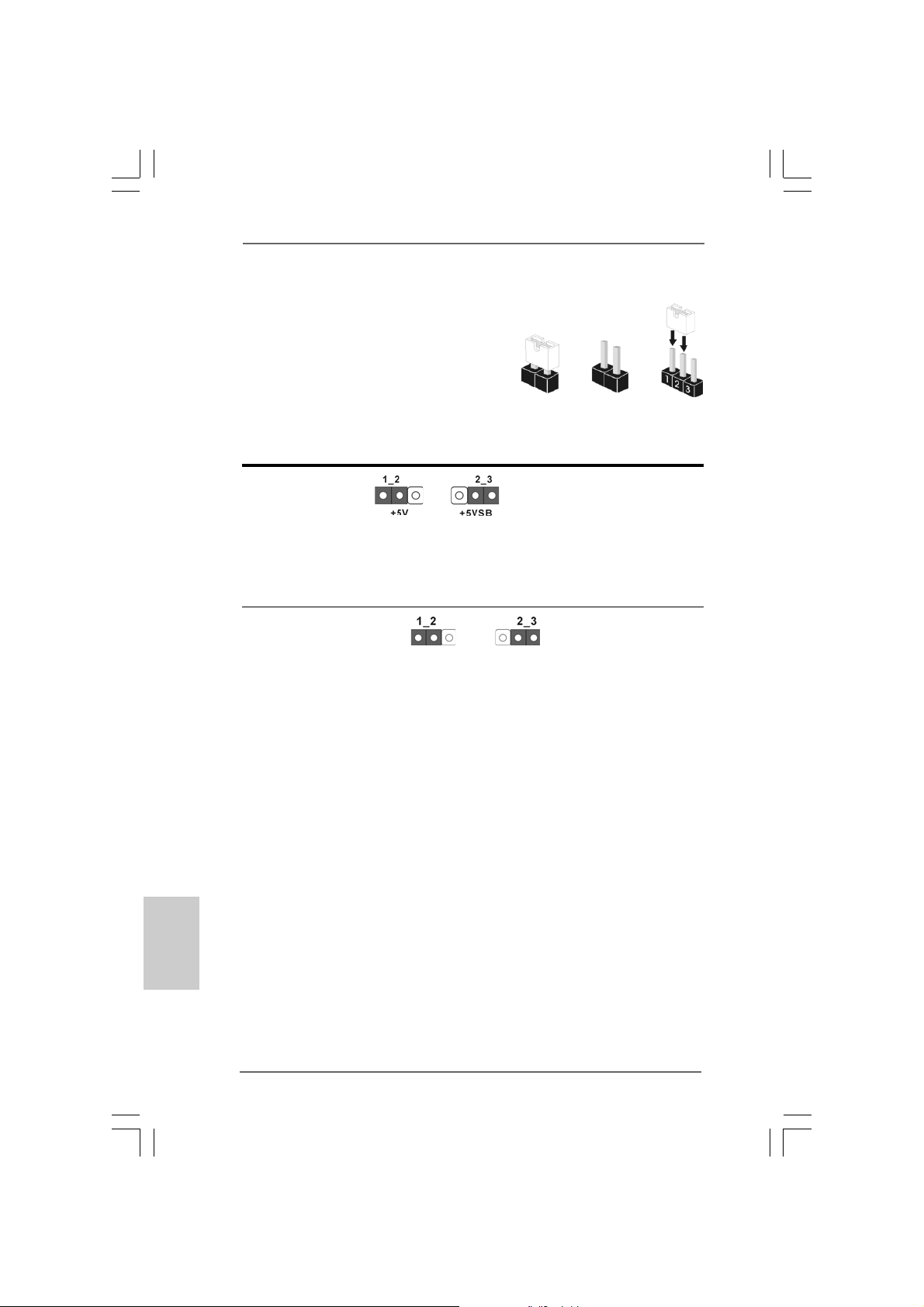

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.2 No. 1) +5VSB (standby) for PS/2

Note: To select +5VSB, it requires 2 Amp and higher sta ndby current provided by power

supply.

Clear CMOS Jumper

(CLRCMOS1) (see p.2 No. 15)

Clear CMOSDefault

Short Open

or USB wake up events.

English

EnglishEnglish

2020

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn of f the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper ca p to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However , please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clearCMOS action.

ASRock P55 Pro Motherboard

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

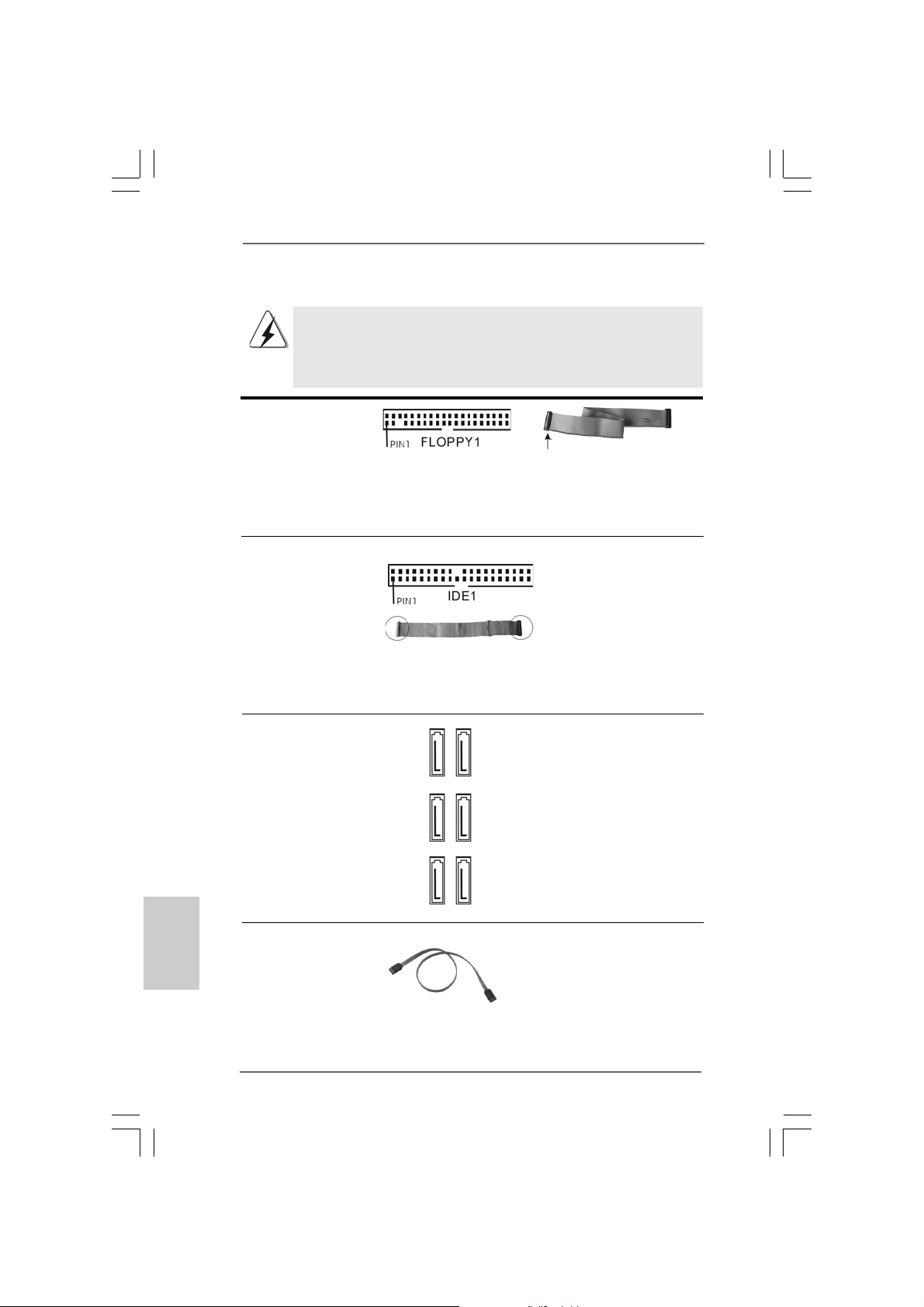

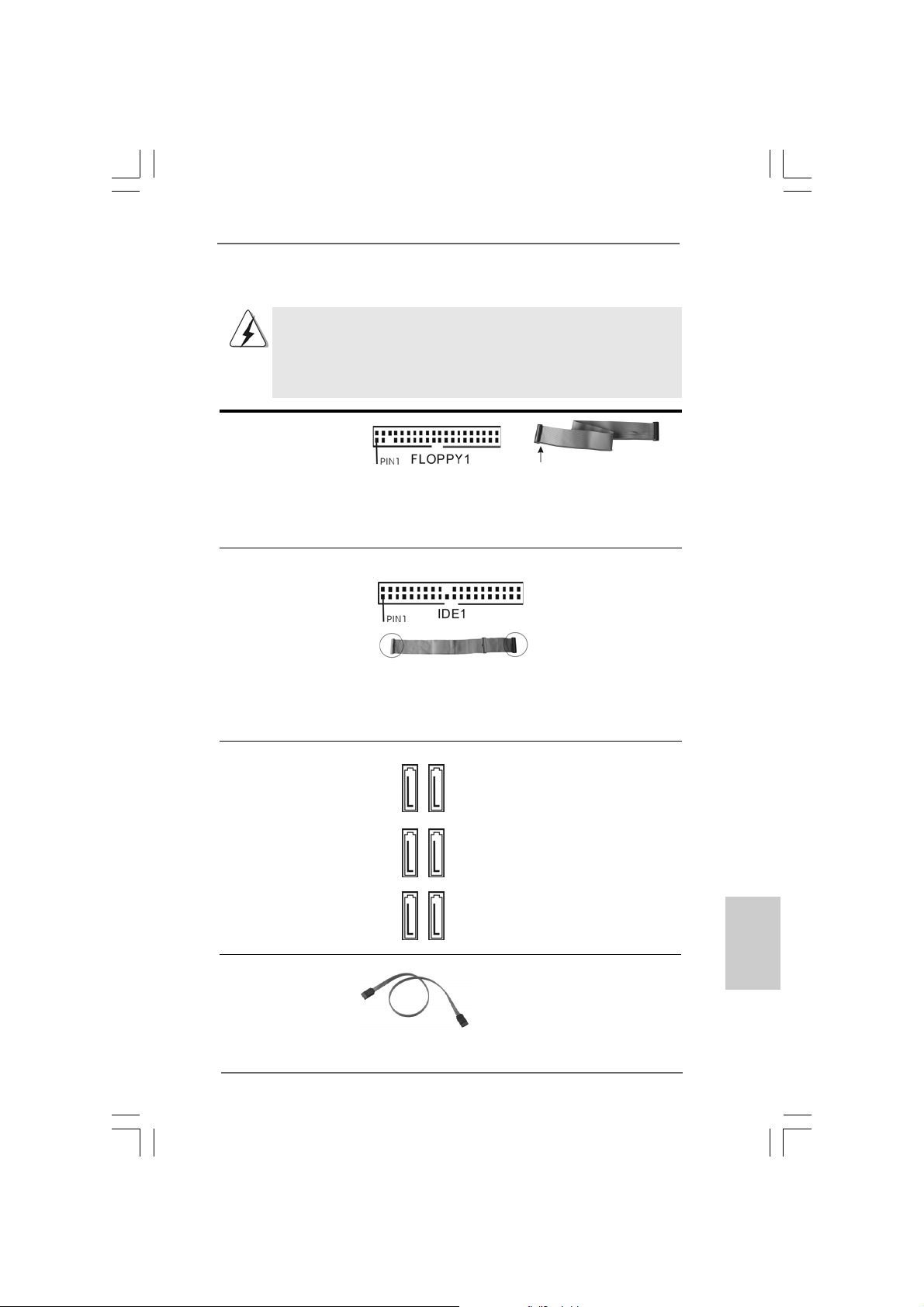

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

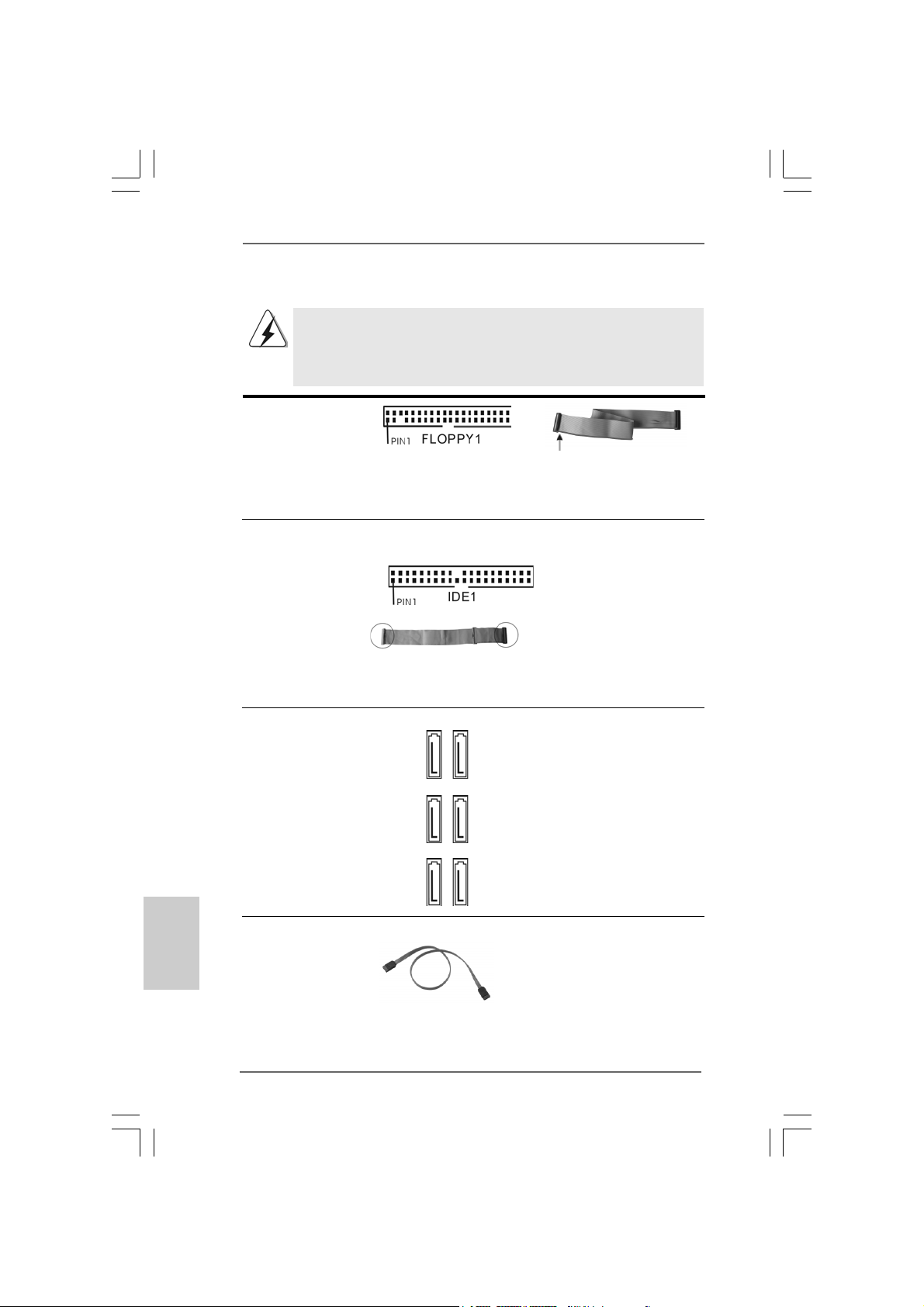

FDD connector

(33-pin FLOPPY1) (see p.2 No. 27)

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 14)

connect the blue end

to the motherboard

connect the black end to the IDE devices

80-conductor ATA 66/100/133 cable

Note: P l e ase re f e r t o t h e i nstruction of your IDE device vendor for the details.

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SAT AII_1_2: connectors support SATA data see p.2, No. 9) cables for internal storage (SAT AII_3_4: devices. The current SATAII see p.2, No. 10) interface allows up to 3.0 Gb/s (SAT AII_5_6: data transfer rate. see p.2, No. 1 1)

SAT AII_5_6 SA T AII_3_4 SA T AII_1_2

Serial A TA (SATA) Either end of the SATA data cable Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.

ASRock P55 Pro Motherboard

2121

EnglishEnglish

English

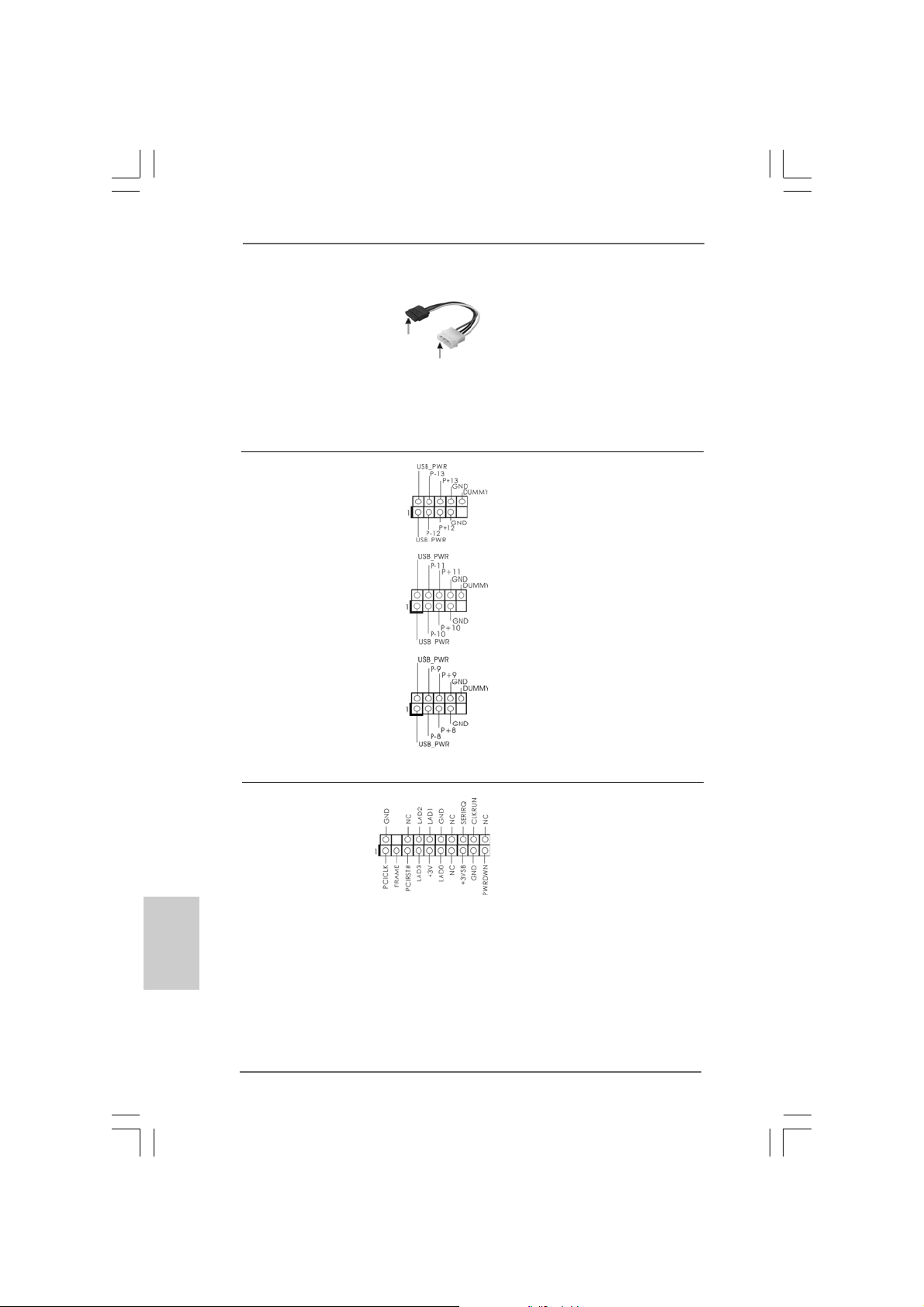

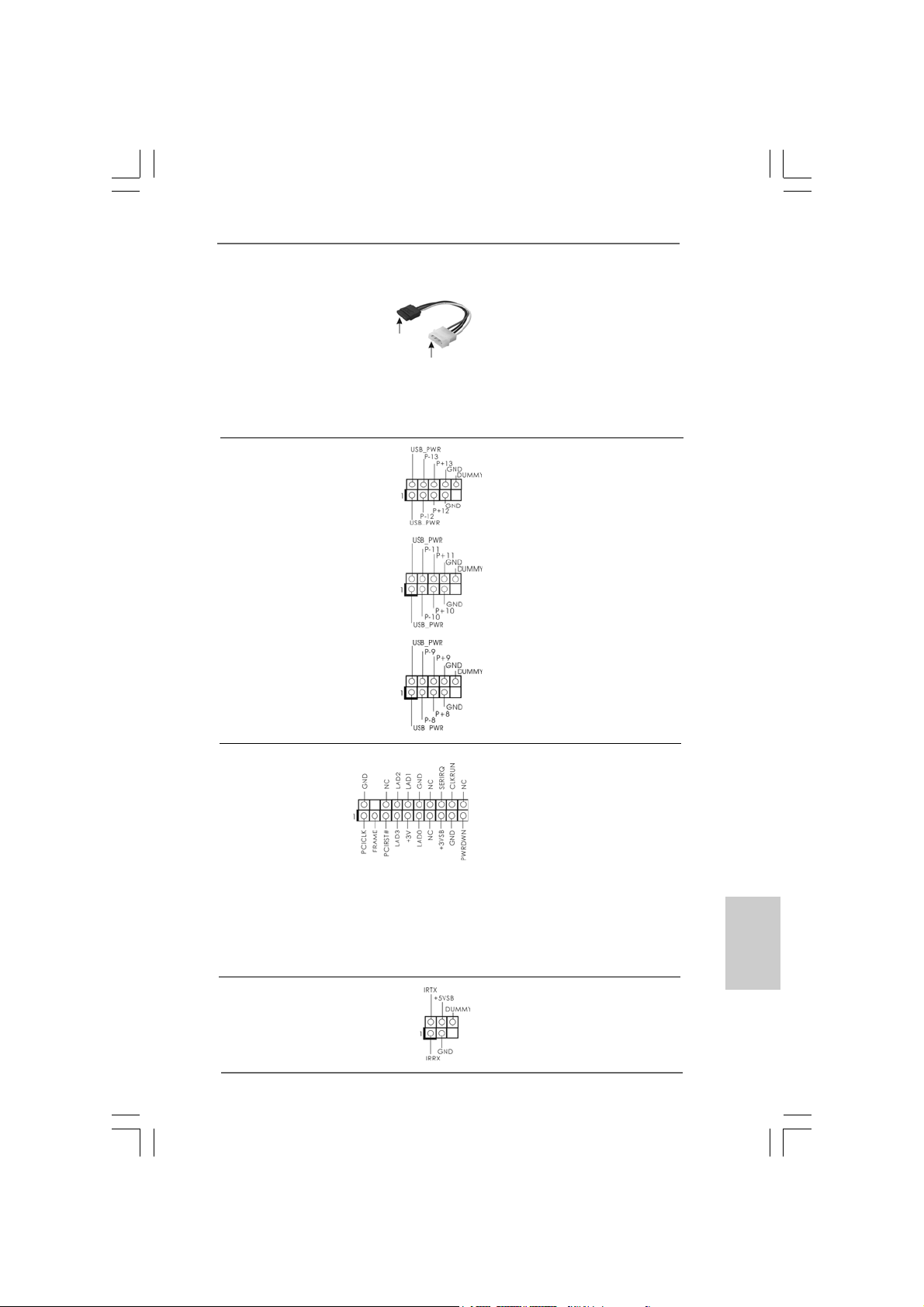

Serial ATA (SATA) Please connect the black end of Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect to the SAT A

HDD power connector

connect to the power supply

connect the white end of SATA power cable to the power connector of the power supply.

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB12_13) ports on the I/O panel, there are (see p.2 No. 23) three USB 2.0 headers on this

motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB10_11) (see p.2 No. 24)

(9-pin USB8_9) (see p.2 No. 25)

English

EnglishEnglish

2222

TPM Header This connector supports a

(19-pin TPM1) Trusted Platform Module (TPM) (see p.2 No. 19) system, which can securely

store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Infrared Module Header This header supports an optional

(5-pin IR1) wireless transmitting and (see p.2 No. 21) receiving infrared module.

ASRock P55 Pro Motherboard

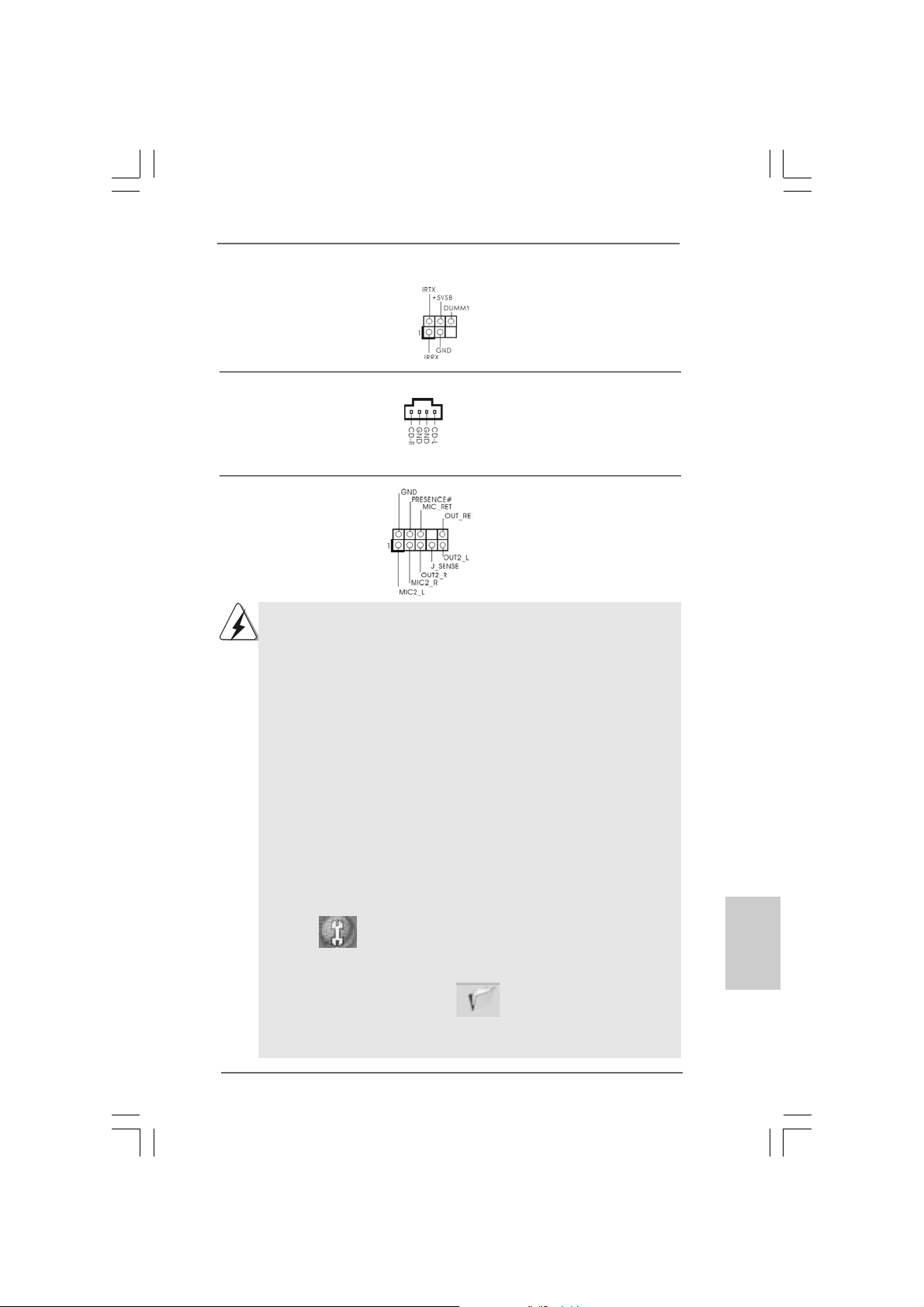

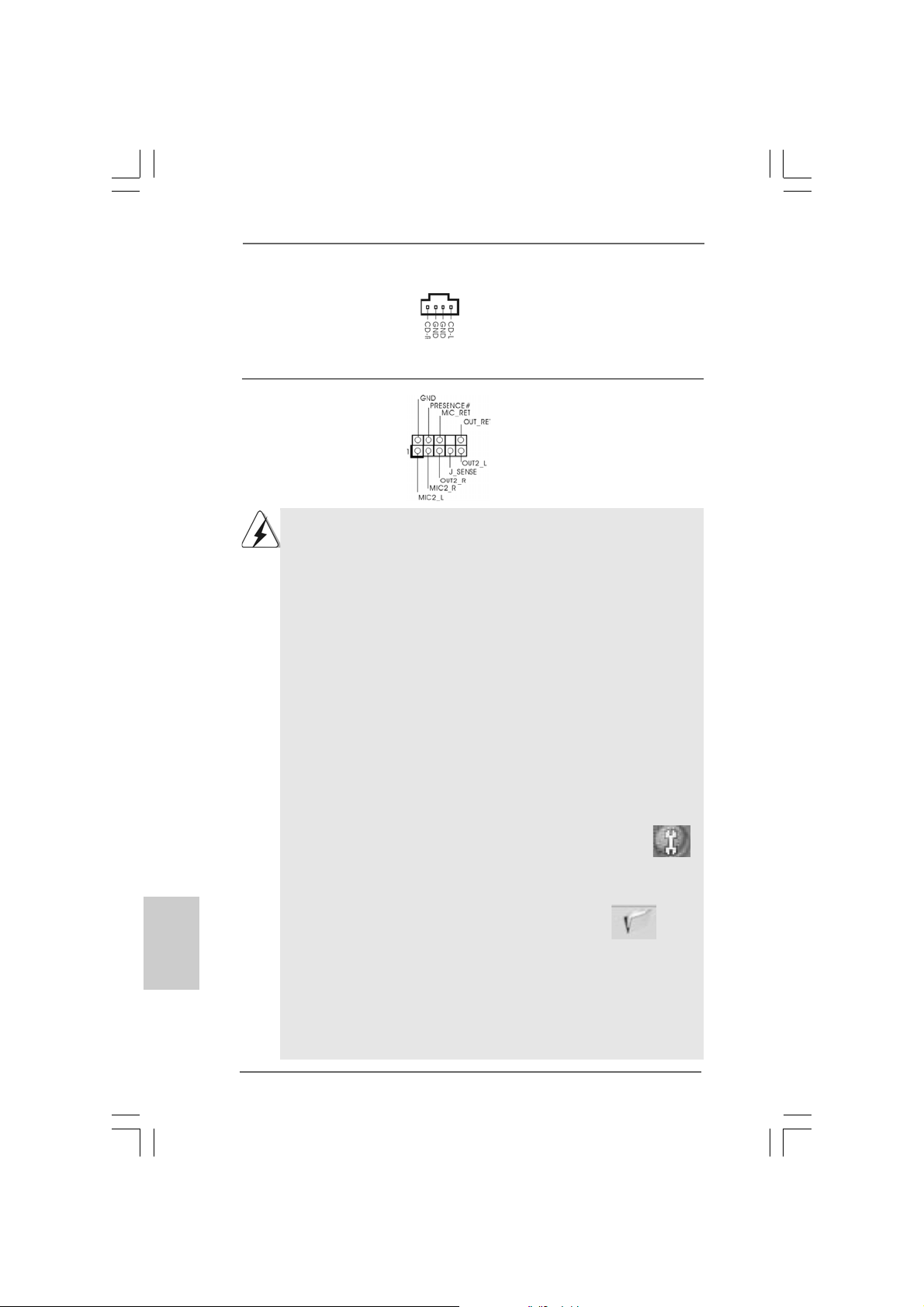

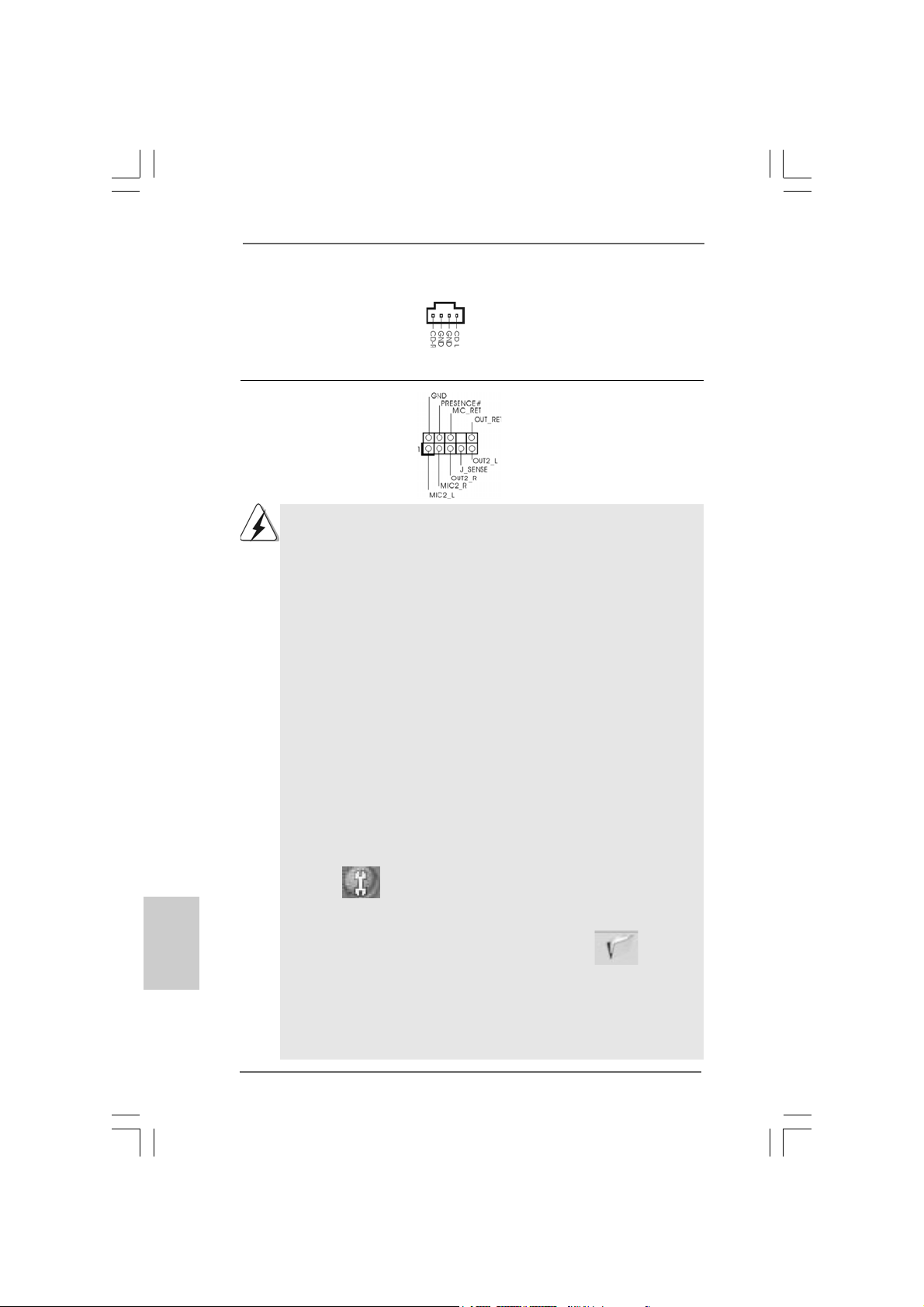

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input (CD1: see p.2 No. 31) from sound sources such as

CD1

a CD-ROM, D VD-ROM, TV tuner card, or MPEG card.

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows (see p.2 No. 30) convenient connection and

control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

F. Enter Windows system. Click the icon on the lower right hand

taskbar to enter Realtek HD Audio Manager.

For Windows® XP / XP 64-bit OS:

Click “Audio I/O”, select “Connector Settings” , choose

“Disable front panel jack detection”, and save the change by

clicking “OK”.

For Windows® VistaTM / VistaTM 64-bit OS:

Click the right-top “Folder” icon , choose “Disable front

panel jack detection”, and save the change by clicking “OK”.

G. To activate the front mic.

For Windows® XP / XP 64-bit OS:

Please select “Front Mic” as default record device.

If you want to hear your voice through front mic, please deselect "Mute"

icon in “Front Mic” of “Playback” portion.

For Windows® VistaTM / VistaTM 64-bit OS:

Go to the "Front Mic" Tab in the Realtek Control panel.

Click "Set Default Device" to make the Front Mic as the default record

device.

ASRock P55 Pro Motherboard

2323

EnglishEnglish

English

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel (see p.2 No. 22) functions.

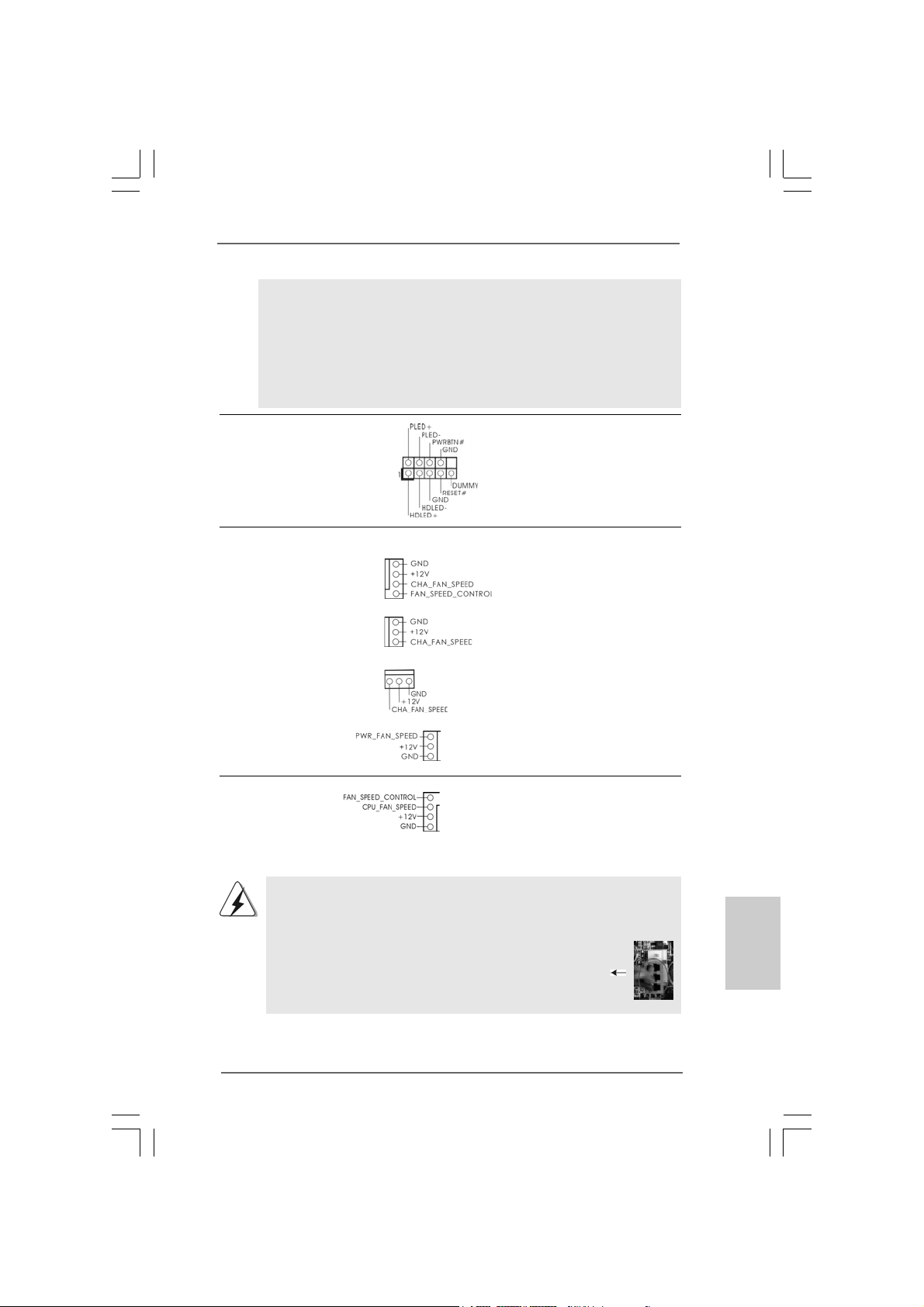

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1) to the fan connectors and (see p.2 No. 7) match the black wire to the

ground pin.

(3-pin CHA_FAN2) (see p.2 No. 8)

(3-pin CHA_FAN3) (see p.2 No. 12)

(3-pin PWR_FAN1) (see p.2 No. 38)

English

EnglishEnglish

2424

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match (see p.2 No. 37) the black wire to the ground pin.

4 3 2 1

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

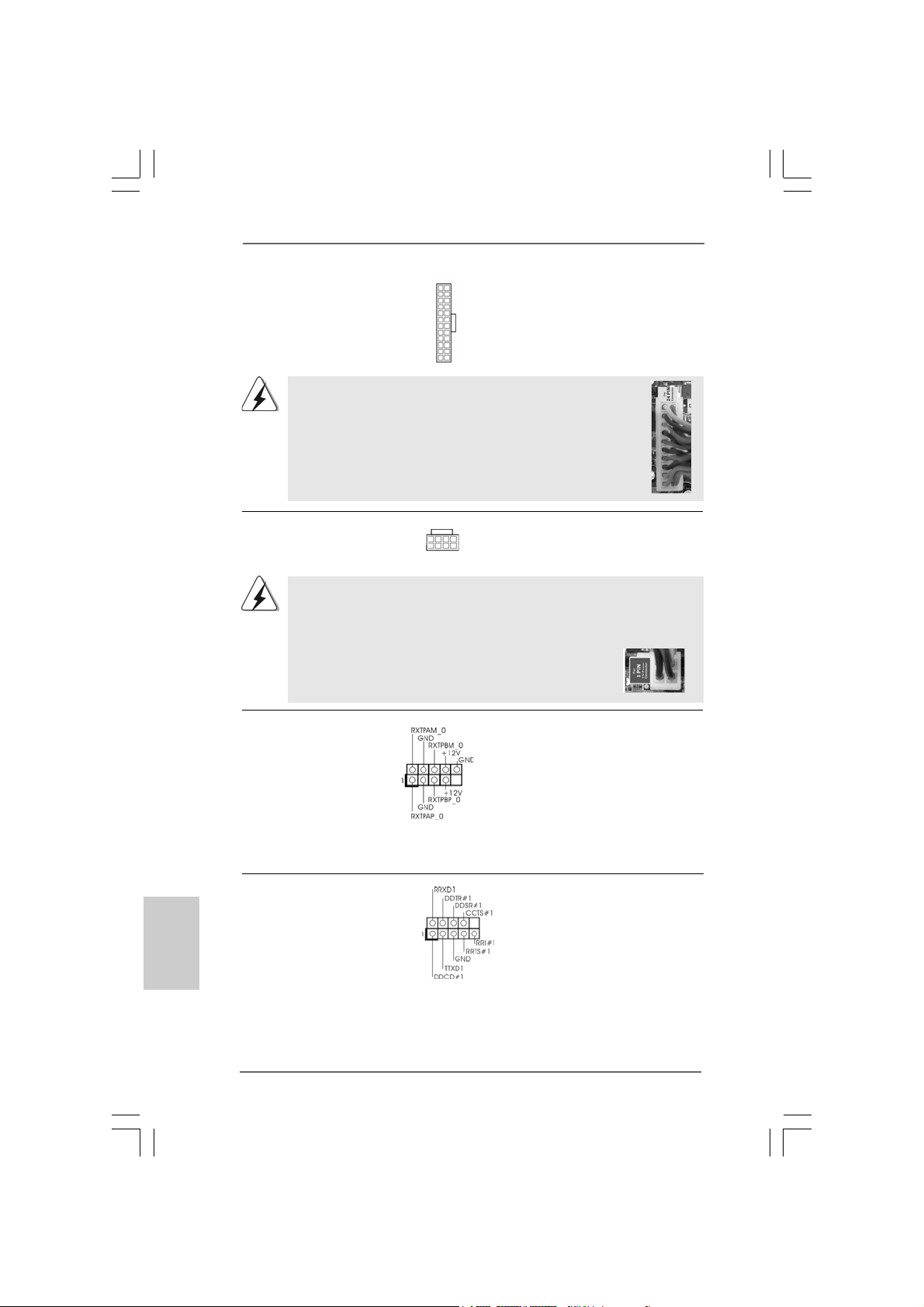

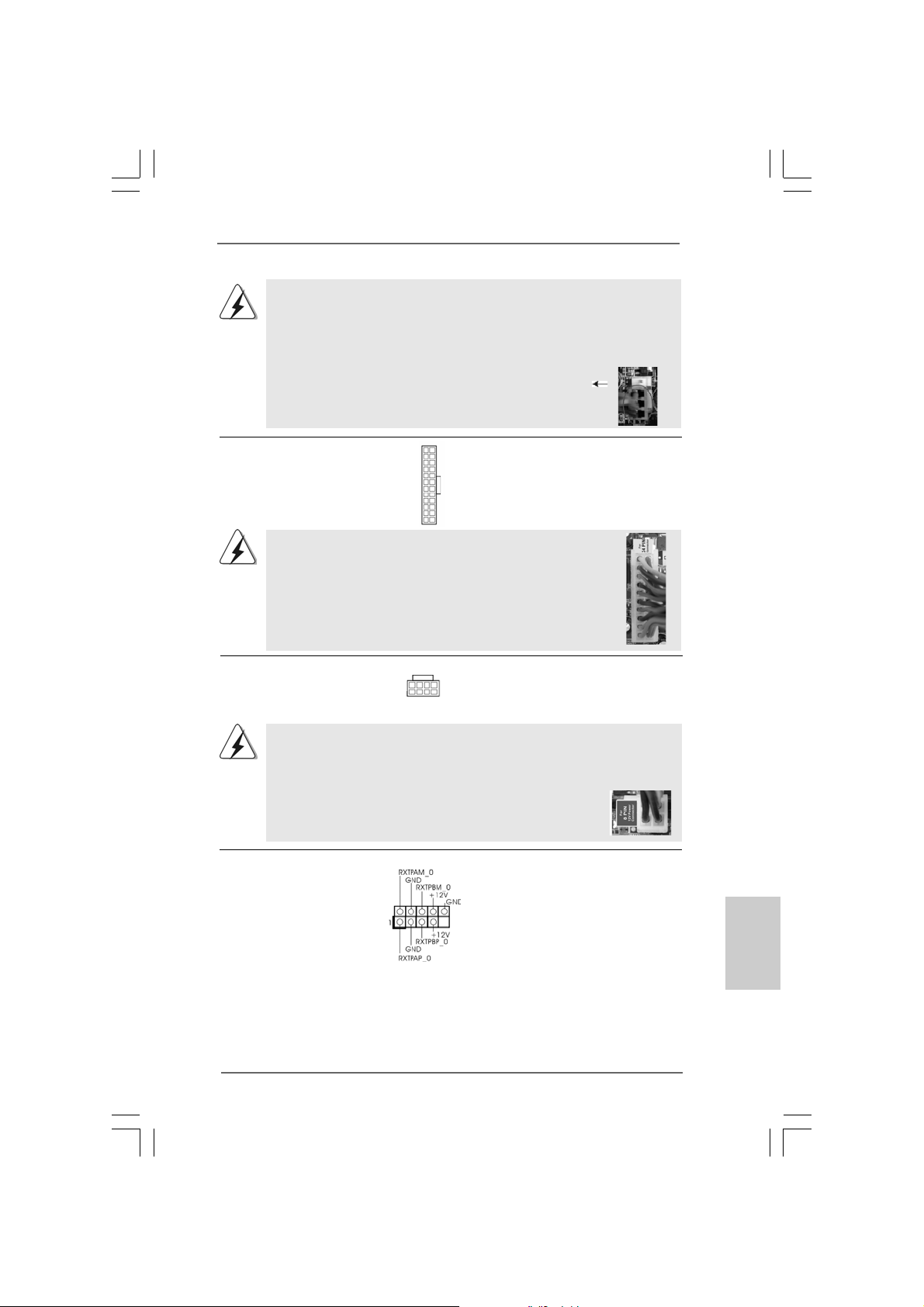

ATX Power Connector Please connect an ATX power

(24-pin ATXPW R1) supply to this connector. (see p.2, No. 6)

Though this motherboard provides 24-pin ATX power connector,

12 124

it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

20-Pin A TX Power Supply Installation

ASRock P55 Pro Motherboard

ATX 12V Power Connector Please connect an ATX 12V

(8-pin A TX12V1) power supply to this connector. (see p.2 No. 2)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

8 5

4 1

8 5

4-Pin ATX 12V Power Supply Installation

4 1

IEEE 1394 Header Besides one default IEEE 1394

(9-pin FRONT_1394) port on the I/O panel, there is one (see p.2 No. 26) IEEE 1394 header

(FRONT_1394) on this motherboard. This IEEE 1394 header cansupport one IEEE 1394 port.

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module. (see p.2 No.28)

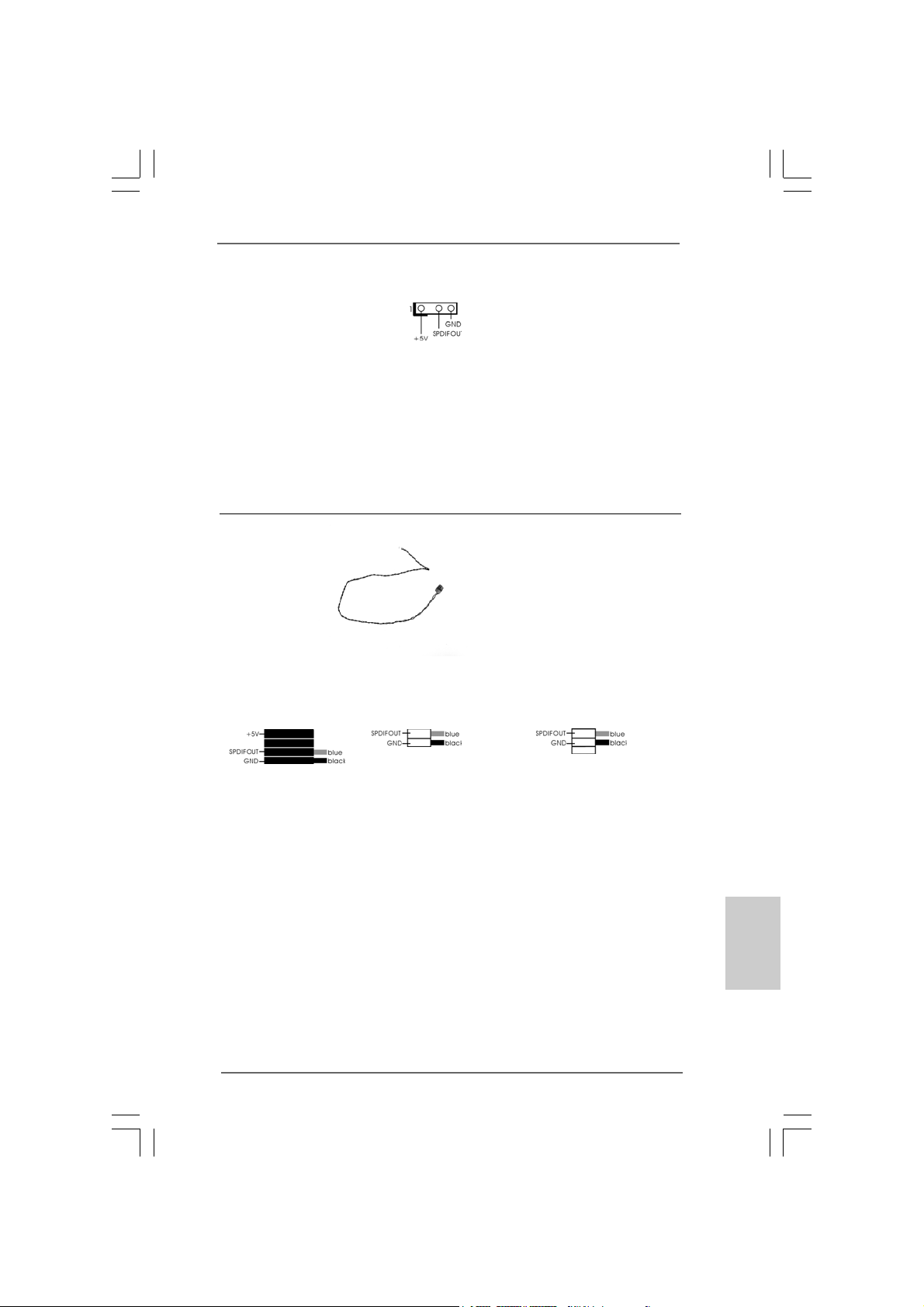

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI V GA (see p.2 No. 29) card, allows the system to

connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header.

EnglishEnglish

English

2525

ASRock P55 Pro Motherboard

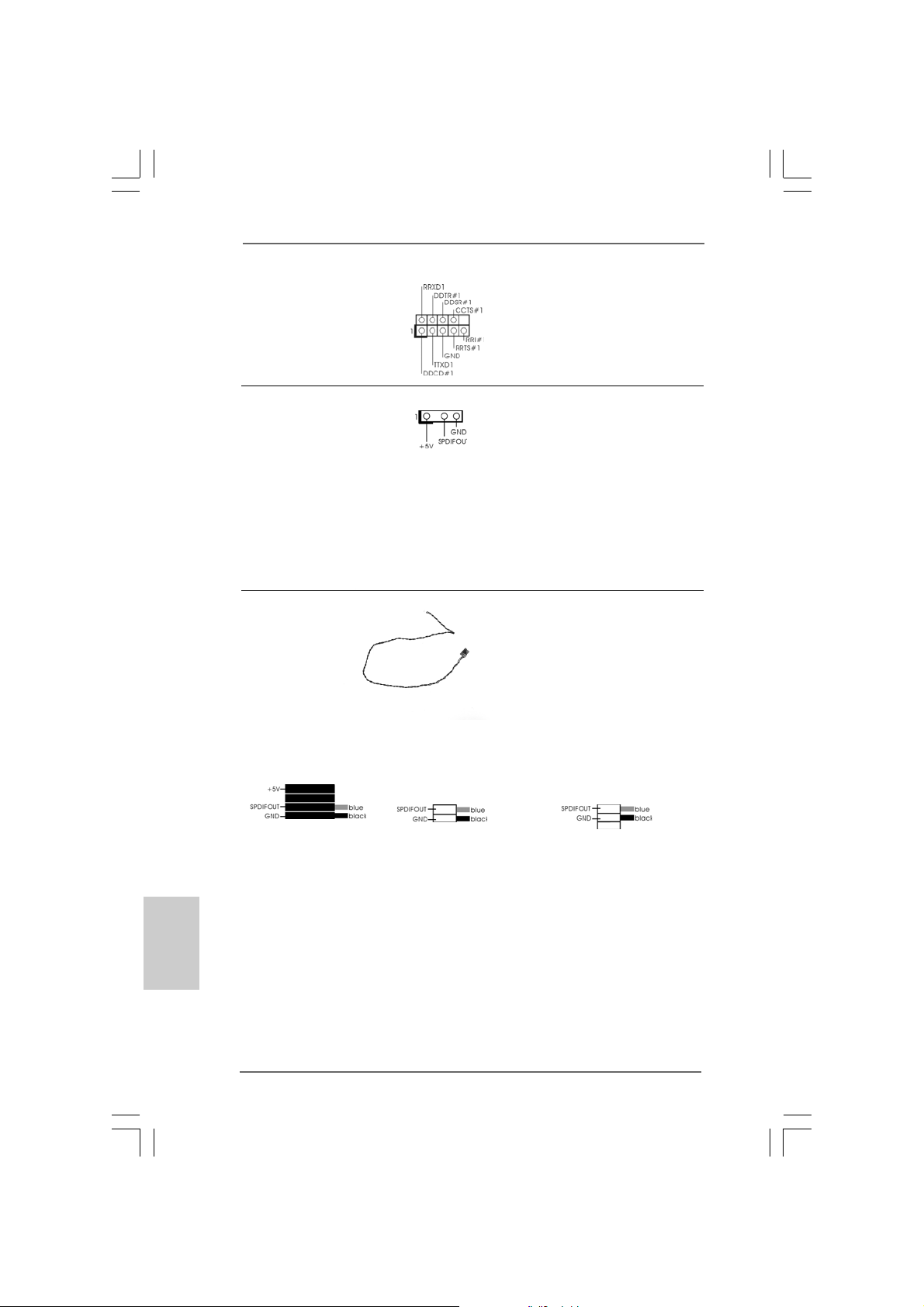

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the motherboard. Then connect the white end (B or C) of HDMI_SPDIF cable to the HDMI_SPDIF connector of HDMI VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

2.9 Smart Switches2.9 Smart Switches

2.9 Smart Switches

2.9 Smart Switches2.9 Smart Switches

This motherboard has three smart switches: power switch, reset switch and clear CMOS switch, allowing users to quickly turn on/off or reset the system or clear the CMOS values.

Power Switch Power Switch is a smart switch,

(PWRBTN) allowing users to quickly turn (see p.2 No. 20) on/off the system.

Reset Switch Reset Switch is a smart switch,

(RSTBTN) allowing users to quickly reset (see p.2 No. 18) the system.

English

EnglishEnglish

2626

Clear CMOS Switch Clear CMOS Switch is a smart

(CLRCBTN) switch, allowing users to quickly (see p.3 No. 17) clear the CMOS values

You are not allowed to use Clear CMOS switch function if you set up the system password. If you want to clear the CMOS values, please clean your system password in advance or refer to page 20 “Clear CMOS jumper” description instead.

ASRock P55 Pro Motherboard

2.10 Dr. Debug2.10 Dr. Debug

2.10 Dr. Debug

2.10 Dr. Debug2.10 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes.

The Bootblock initialization code sets up the chipset, memory and other components before system memory is available. The following table describes the type of checkpoints that may occur during the bootblock initialization portion of the BIOS:

Checkpoint Description

Before D1 Early chipset initialization is done. Early super I/O initialization is done

D1 Perform keyboard controller BAT test. Check if waking up from power

D0 Go to flat mode with 4GB limit and GA20 enabled. Verify the bootblock

D2 Disable CACHE before memory detection. Execute full memory sizing

D3 If memory sizing module not executed, start memory refresh and do

D4 Test base 512KB memory. Adjust policies and cache first 8MB. Set stack. D5 Bootblock code is copied from ROM to lower system memory and control

D6 Both key sequence and OEM specific method is checked to determine if

D7 Restore CPUID value back into register. The Bootblock-Runtime interface

D8 The Runtime module is uncompressed into memory. CPUID information is

D9 Store the Uncompressed pointer for future use in PMM. Copying Main BIOS

DA Restore CPUID value back into register. Give control to BIOS POST

including RTC and keyboard controller. NMI is disabled.

management suspend state. Save power-on CPUID value in scratch CMOS.

checksum.

module. Verify that flat mode is enabled.

memory sizing in Bootblock code. Do additional chipset initialization. Re-enable CACHE. Verify that flat mode is enabled.

is given to it. BIOS now executes out of RAM.

BIOS recovery is forced. Main BIOS checksum is tested. If BIOS recovery is necessary, control flows to checkpoint E0.

module is moved to system memory and control is given to it. Determine whether to execute serial flash.

stored in memory.

into memory. Leaves all RAM below 1MB Read-Write including E000 and F000 shadow area s but closing SMRAM.

(ExecutePOSTKernel).

ASRock P55 Pro Motherboard

2727

EnglishEnglish

English

EnglishEnglish

The POST code checkpoints are the largest set of checkpoints during the BIOS pre-boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS:

Checkpoint Description

03 Disable NMI, Parity, video for EGA, and DMA controllers.

Initialize BIOS, POST, Runtime data area. Also initialize BIOS modules on POST entry and GPNV area. Initialized CMOS as mentioned in the Kernel V ari able “wCMOSFlags.”

04 Check CMOS diagnostic byte to determine if battery power is OK and

CMOS checksum is OK. Verify CMOS checksum manually by reading storage area. If the CMOS checksum is bad, update CMOS with power-on default values and clear passwords. Initialize status register A. Initializes data variables that are based on CMOS setup questions. Initializes both the 8259 compatible PICs in the system

05 Initializes the interrupt controlling hardware (generally PIC) and interrupt

vector table.

06 Do R/W test to CH-2 count reg. Initialize CH-0 as system timer. Install the

POSTINT1Ch handler. Enable IRQ-0 in PIC for system timer interrupt. Traps INT1Ch vector to “POSTINT1ChHandlerBlock.”

08 Initializes the CPU. The BAT test is being done on KBC. Program the

keyboard controller command byte is being done after Auto detection of

KB/MS using AMI KB-5. C0 Early CPU Init Start — Disable Cache - Init Local APIC C1 Set up boot strap proccessor Information C2 Set up boot strap proccessor for POST C5 Enumerate and set up application proccessors C6 Re-enable cache for boot strap proccessor C7 Early CPU Init Exit 0A Initializes the 8042 compatible Key Board Controller. 0B Detects the presence of PS/2 mouse. 0C Detects the presence of Keyboard in KBC port. 0E Testing and initialization of different Input Devices. Also, update the Kernel

Variables. Traps the INT09h vector, so that the POST INT09h handler gets

control for IRQ1. Uncompress all available language, BIOS logo, and Silent

logo modules. 13 Early POST initialization of chipset registers. 24 Uncompress and initialize any platform specific BIOS modules. 30 Initialize System Management Interrupt. 2A Initializes different devices through DIM.

See DIM Code Checkpoints section of document for more information. 2C Initializes different devices. Detects and initializes the video adapter

installed in the system that have optional ROMs. 2E Initializes all the output devices. 31 Allocate memory for ADM module and uncompress it. Give control to ADM

module for initialization. Initialize language and font modules for ADM.

Activate ADM module.

2828

ASRock P55 Pro Motherboard

33 Initializes the silent boot module. Set the window for displaying text

information.

37 Displaying sign-on message, CPU information, setup key message, and

any OEM specific information. 38 Initializes different devices through DIM. 39 Initializes DMAC-1 & DMAC-2. 3A Initialize RTC date/time. 3B Test for total memory installed in the system. Also, Check for DEL or ESC

keys to limit memory test. Display total memory in the system. 3C Mid POST initialization of chipset registers. 40 Detect different devices (Parallel ports, serial ports, and coprocessor in

CPU, etc.) successfully installed in the system and update the BDA,

EBDA, etc. 50 Programming the memory hole or any kind of implementation that needs an

adjustment in system RAM size if needed. 52 Updates CMOS memory size from memory found in memory test.

Allocates memory for Extended BIOS Data Area from base memory. 60 Initializes NUM-LOCK status and programs the KBD typematic rate. 75 Initialize Int-13 and prepare for IPL detection. 78 Initializes IPL devices controlled by BIOS and option ROMs. 7A Initializes remaining option ROMs. 7C Generate and write contents of ESCD in NVRam. 84 Log errors encountered during POST. 85 Display errors to the user and gets the user response for error. 87 Execute BIOS setup if needed / requested. 8C Late POST initialization of chipset registers. 8D Build ACPI tables (if ACPI is supported) 8E Program the peripheral parameters. Enable/Disable NMI as selected 90 Late POST initialization of system management interrupt. A0 Check boot password if installed. A1 Clean-up work needed before booting to OS. A2 Takes care of runtime image preparation for different BIOS modules. Fill

the free area in F000h segment with 0FFh. Initializes the Microsoft IRQ

Routing Table. Prepares the runtime language module. Disables the system

configuration display if needed. A4 Initialize runtime language module. A7 Displays the system configuration screen if enabled. Initialize the CPU’s

before boot, which includes the programming of the MTRR’s. A8 Prepare CPU for OS boot including final MTRR values. A9 Wait for user input at config display if needed. AA Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the ADM

module. AB Prepare BBS for Int 19 boot. AC End of POST initialization of chipset registers. B1 Save system context for ACPI. 00 Passes control to OS Loader (typically INT19h).

EnglishEnglish

English

ASRock P55 Pro Motherboard

2929

2.112.11

Driver Installation Guide Driver Installation Guide

2.11

Driver Installation Guide

2.112.11

Driver Installation Guide Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

English

EnglishEnglish

®®

2.122.12

Installing WindowsInstalling Windows

2.12

Installing Windows

2.122.12

Installing WindowsInstalling Windows 64-bit With RAID Functions64-bit With RAID Functions

64-bit With RAID Functions

64-bit With RAID Functions64-bit With RAID Functions

If you want to install Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit on your SATA / SATAII HDDs with RAID functions, ple ase refer to the document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

2.132.13

Installing WindowsInstalling Windows

2.13

Installing Windows

2.132.13

Installing WindowsInstalling Windows 64-bit Without RAID Functions64-bit Without RAID Functions

64-bit Without RAID Functions

64-bit Without RAID Functions64-bit Without RAID Functions

If you want to install Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit OS on your SATA / SATAII HDDs without RAID functions, ple a se follow below procedure s a ccording to the OS you install.

2.13.1 Installing Windows2.13.1 Installing Windows

2.13.1 Installing Windows

2.13.1 Installing Windows2.13.1 Installing Windows Functions Functions

Functions

Functions Functions

If you want to install Windows® XP / XP 64-bit OS on your SATA / SATAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs without NCQ function

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen Storage Configuration. B. Set the option “SATAII Operation Mode” to [IDE].

STEP 2: Install Windows® XP / XP 64-bit OS on your system.

®®

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

XP / XP 64-bit / Vista

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

®®

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

XP / XP 64-bit / Vista

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

®®

XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID

XP / XP 64-bit Without RAID

XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID

TM TM

/ Vista/ Vista

/ Vista

/ Vista/ Vista

TM TM

/ Vista/ Vista

/ Vista

/ Vista/ Vista

TMTM

3030

ASRock P55 Pro Motherboard

+ 191 hidden pages

ASROCK P55 Pro User Manual [fr]

Specifications and Main Features

Frequently Asked Questions

User Manual
