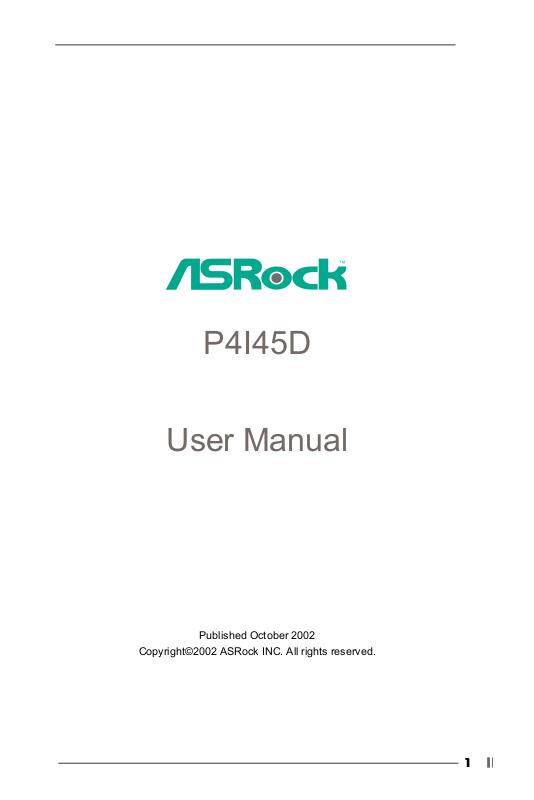

ASRock P4I45D User Manual

P4I45D

User Manual

Published October 2002

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

ContentsContents

Contents

ContentsContents

1 Introduction1 Introduction

1 Introduction

1 Introduction1 Introduction

1.1 Package Contents ......................................................... 4

1.2 Specifications ................................................................ 4

1.3 Motherboard Layout ...................................................... 6

1.4 ASRock I/OTM.................................................................. 7

2 Installation2 Installation

2 Installation

2 Installation2 Installation

2.1 Screw Holes ................................................................. 8

2.2 Pre-installation Precautions ........................................... 8

2.3 CPU Installation .............................................................. 8

2.4 Installation of Heatsink and CPU fan ............................. 9

2.5 Installation of Memory Modules (DIMM) ......................... 9

2.6 Expansion Slots ............................................................. 10

2.7 Jumpers Setup .............................................................. 11

2.8 Connectors .................................................................... 11

3 BIOS Setup3 BIOS Setup

3 BIOS Setup

3 BIOS Setup3 BIOS Setup

3.1 BIOS Setup Utility ........................................................... 14

3.1.1 BIOS Menu Bar ....................................................... 14

3.1.2 Legend Bar ............................................................. 14

3.2 Main Menu ...................................................................... 15

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 17

4 Software Support4 Software Support

4 Software Support

4 Software Support4 Software Support

4.1 Installing Operating System ........................................... 18

4.2 Support CD Information ................................................. 18

4.2.1 Running Support CD ............................................... 18

4.2.2 Drivers Menu .......................................................... 18

4.2.3 Utilities Menu ........................................................... 18

4.2.4 ASRock Live Demo Program .................................. 18

4.2.5 Contact Information ................................................ 18

Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup

Appendix: Advanced BIOS Setup

Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup

1. Advanced Menu ............................................................... 19

2. Security Menu ................................................................... 21

3. Power Menu ..................................................................... 22

4. Boot Menu ......................................................................... 23

5. Exit Menu .......................................................................... 23

......................................................................................................

...................................................

......................................................................................................

..........................................................................................................

.....................................................

..........................................................................................................

.....................................................

..........................................................................................................

......................................................................................

...........................................

......................................................................................

......................................

...................

......................................

4 4

8 8

14 14

18 18

19 19

Chapter 1 IntroductionChapter 1 Introduction

Chapter 1 Introduction

Chapter 1 IntroductionChapter 1 Introduction

Thank you for purchasing ASRock P4I45D motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and Support CD information.

For advanced users’ reference, the Appendix offers more advanced BIOS setup

information.

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1.1 Package Contents1.1 Package Contents

ASRock P4I45D motherboard (ATX form factor: 12" x 9.6", 30.5 x 24.4 cm)

ASRock P4I45D Quick Installation Guide

ASRock Intel-Intel Series Support CD

1 Cable for IDE devices (1 x ATA 66/100)

1 Cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1.2 Specifications1.2 Specifications

1.2 Specifications

1.2 Specifications1.2 Specifications

Platform: ATX form factor (12" x 9.6", 30.5 x 24.4 cm)

CPU: Socket 478 for Intel® Pentium® 4/ Celeron® processor

Chipsets: North Bridge: Intel® 845D chipsets, standard FSB 400 MHz,

Max. 533 MHz;

South Bridge: Intel® ICH2

Clock Generator:100 MHz - 200MHz

Memory: 2 slots for DDR: DIMM1 and DIMM2 (PC1600/ PC2100), Max. 2GB;

2 slots for SDR: DIMM3 and DIMM4 (PC100/ PC133), Max. 2GB

IDE: IDE1: ATA 100 / Ultra DMA Mode 5;

IDE2: ATA 100 / Ultra DMA Mode 5;

Can connect up to 4 IDE devices

Floppy Port: Supports floppy disk drive

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

CPU overheat shutdown to protect CPU life (ASRock U-COP)

(see CAUTION 1);

Chassis temperature sensing;

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 5 PCI slots (see CAUTION 2)

AGP slot: 1 AGP slot, supports 1.5v, 4X / 2X / 1X AGP card

(see CAUTION 3)

USB 2.0: 2 default USB 2.0 ports and one extra set of USB 2.0 header to

support two additional USB 2.0 ports upgrade

USB 1.1: 2 rear default USB 1.1 ports with legacy support

(It is recommended to attach USB keyboard / mouse to the

USB 1.1 ports: USB 2,3, see page 7 item 7.)

ASRock I/OTM: PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port;

2 rear default USB 1.1 ports;

2 rear default USB 2.0 ports;

1 serial port: COM1;

1 parallel port: ECP/EPP support;

Audio Jack: Line Out/ Line In/ Microphone + 1 Game port

BIOS: AMI legal BIOS;

Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4);

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically

shutdown. Please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve

heat dissipation, remember to spray thermal grease between

the CPU and the heatsink when you install the PC system.

2. PCI 5 supports PCI slave mode only [ DO NOT use the slot

PCI 5 if there is USB device working on any of the USB 2.0

ports : USB 0,1 (see page 7, item 8) and USB 4,5 (see page 6,

item 13). ]

3. Do NOT use 3.3v AGP card on P4I45D’s AGP slot! It may cause

permanent damage!

4. Although P4I45D offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the

recommended CPU bus frequency may cause the instability of

the system or damage the CPU.

1.3 Motherboard Layout1.3 Motherboard Layout

1.3 Motherboard Layout

1.3 Motherboard Layout1.3 Motherboard Layout

124

24.4cm (9.6 in)

Intel ICH2

CPU_FAN1

DDR DIMM2(64/72 bit, 184-pinmodule)

DDR DIMM1(64/72 bit, 184-pinmodule)

CLRCMOS1

2MB BIOS

USB45

(USB2.0)

SDR DIMM1(64 bit, 168-pinmodule)

CMOS

Battery

IR1

HDLED RST

SDR DIMM2(64 bit, 168-pinmodule)

FLOPPY1

CHA_FAN1

SPEAKER1

PLED PWRBTN

30.5cm (12.0 in)

IDE2

IDE1

PANEL1

PS/2

Mouse

PS/2

Keyboard

PARALLEL PORT

COM1

LAN

USB0

USB1

USB01

(USB2.0)

USB23

USB3

USB2

(USB1.1)

Lineout

PS2_USB_PWR1

Line

Line in

Mic

GAME AUDIO1

Mic in

GAME AUDIO1

23 24 20

AUDIO1

Audio CODEC

PCI

LAN

ATXPWR1

AUX1

CD1

PCI 1

PCI 2

PCI 3

mPGA478B

Intel 845D

Chipset

AGP1

PCI 4

Super

I/O

PCI 4

P4I45D

PCI 5

1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)

2 CPU socket 15 Speaker connector (SPEAKER1)

3 CPU fan connector (CPU_FAN1) 16 South Bridge controller

4 North Bridge controller 17 CLRCMOS1

5 184-pin DDR DIMM slots (DDR1, DDR2, blue) 18 PCI slots

6 168-pin SDRAM DIMM slots (SDR1, SDR2, black) 19 Audio CODEC

7 Primary IDE connector (IDE1, blue) 20 Front panel audio connector (AUDIO1)

8 Secondary IDE connector (IDE2, black) 21 PCI LAN

9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper

10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (white)

11 BIOS FWH chip 24 Internal audio connectors: CD1 (black)

12 System panel connector (PANEL1) 25 AGP slot

13 USB2.0 header (USB45) 26 CPU heatsink retention module

878

10 11

1.4 ASRock I/O1.4 ASRock I/O

1.4 ASRock I/O

1.4 ASRock I/O1.4 ASRock I/O

TMTM

1 Parallel port 7 USB 1.1 ports (USB 2,3)

2 RJ-45 port 8 USB 2.0 ports (USB 0,1)

3 Game port 9 Serial port (COM1)

4 Microphone (Pink) 10 PS/2 keyboard port (Purple)

5 Line In (Light Blue) 11 PS/2 mouse port (Green)

6 Line Out (Lime)

910

4567

Chapter 2 InstallationChapter 2 Installation

Chapter 2 Installation

Chapter 2 InstallationChapter 2 Installation

P4I45D is an ATX form factor (12" x 9.6", 30.5 x 24.4 cm) motherboard. Before you

install the motherboard, study the configuration of your chassis to ensure that the

motherboard fits into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you

and damages to motherboard components.

2.1 Screw Holes2.1 Screw Holes

2.1 Screw Holes

2.1 Screw Holes2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard

to the chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

2.2 Pre-installation Precautions

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is switched

off or the power cord is detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals, and/or components.

2.3 CPU Installation2.3 CPU Installation

2.3 CPU Installation

2.3 CPU Installation2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90 angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

+ 16 hidden pages

ASRock P4I45D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
