ASRock P45R2000, P45R2000-WIFI User Manual

Download

P45R2000-WiFi /

P45R2000 /

P45TurboTwins2000

User Manual

Version 1.1

Published September 2008

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ContentsContents

Contents

ContentsContents

1 Introduction1 Introduction

1 Introduction

1 Introduction1 Introduction

1.1 Package Contents .......................................................... 5

1.2 Specifications ................................................................. 6

1.3 Minimum Hardware Requirement Table for Windows

VistaTM Premium 2008 and Basic Logo......................... 10

1.4 Motherboard Layout (P45R2000-WiFi / P45R2000) ........ 11

1.5 Motherboard Layout (P45TurboTwins2000) ..................... 12

1.6 ASRock DualLAN_SPDIF I/O (P45R2000-WiFi /

P45R2000) ...................................................................... 13

1.7 ASRock SPDIF I/O Plus (P45TurboTwins2000) .............. 14

1.8 ASRock WiFi-802.11g Module Specifications

(For P45R2000-WiFi Only) .............................................. 15

2 Installation2 Installation

2 Installation

2 Installation2 Installation

2.1 Screw Holes ................................................................... 16

2.2 Pre-installation Precautions ............................................ 16

2.3 CPU Installation .............................................................. 17

2.4 Installation of Heatsink and CPU fan ............................... 19

2.5 Installation of Memory Modules (DIMM) ......................... 20

2.6 Expansion Slots (PCI and PCI Express Slots) ..................... 22

2.7 CrossFireTM Operation Guide .......................................... 24

2.8 Surround Display Feature ............................................... 28

2.9 Jumpers Setup ............................................................... 29

2.10 Onboard Headers and Connectors .................................. 30

2.11 HDMI_SPDIF Header Connection Guide ......................... 36

2.12 eSATAII Interface Introduction ......................................... 37

2.13 SATAII Hard Disk Setup Guide ........................................ 40

2.14 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ...................................................................... 41

2.15 Hot Plug and Hot Swap Functions for SATA / SATAII

HDDs and eSATAII Devices ......................................... 42

2.16 SATA / SATAII HDD Hot Plug Feature and Operation

Guide ............................................................................. 43

2.17 Driver Installation Guide ................................................... 45

2.18 Installing Windows® XP / XP 64-bit / Vista

64-bit With RAID Functions (For P45R2000-WiFi /

P45R2000Only). ............................................................. 45

2.18.1 Installing Windows® XP / XP 64-bit With RAID

Functions ............................................................ 45

2.18.2 Setting Up a “RAID Ready” System .................... 46

......................................................................................................

...................................................

......................................................................................................

..........................................................................................................

.....................................................

..........................................................................................................

/ Vista

5 5

16 16

2.18.3 Migrating a “RAID Ready” System to RAID 0,

RAID 1 or RAID 5 ................................................ 47

2.18.4 Installing Windows® VistaTM / VistaTM 64-bit With

RAID Functions ................................................... 48

2.19 Installing Windows® 2000 / XP / XP 64-bit / Vista

VistaTM 64-bit Without RAID Functions ........................... 49

2.19.1 Installing Windows® 2000 / XP / XP 64-bit Without

RAID Functions ................................................... 49

2.19.2 Installing Windows® VistaTM / VistaTM 64-bit Without

RAID Functions ................................................... 50

2.20 Teaming Function Operation Guide

(For P45R2000-WiFi / P45R2000 Only) ......................... 51

2.21 Untied Overclocking Technology ................................... 53

3 BIOS S3 BIOS S

3 BIOS S

3 BIOS S3 BIOS S

4 Software Support4 Software Support

4 Software Support

4 Software Support4 Software Support

ETUP UTILITYETUP UTILITY

ETUP UTILITY

ETUP UTILITYETUP UTILITY

3.1 Introduction ..................................................................... 54

3.1.1 BIOS Menu Bar ..................................................... 54

3.1.2 Navigation Keys .................................................... 55

3.2 Main Screen ................................................................... 55

3.3 Advanced Screen ............................................................ 57

3.3.1 CPU Configuration ................................................ 58

3.3.2 Chipset Configuration ............................................ 60

3.3.3 ACPI Configuration ................................................ 63

3.3.4 IDE Configuration .................................................. 64

3.3.5 PCIPnP Configuration ........................................... 67

3.3.6 Floppy Configuration ............................................. 68

3.3.7 Super IO Configuration .......................................... 68

3.3.8 USB Configuration ................................................ 69

3.4 Hardware Health Event Monitoring Screen ...................... 70

3.5 Boot Screen ................................................................... 71

3.5.1 Boot Settings Configuration ................................... 71

3.6 Security Screen .............................................................. 72

3.7 Exit Screen .................................................................... 73

4.1 Install Operating System ................................................ 74

4.2 Support CD Information ................................................... 74

4.2.1 Running Support CD ............................................. 74

4.2.2 Drivers Menu ......................................................... 74

4.2.3 Utilities Menu ........................................................ 74

4.2.4 Contact Information ............................................... 74

....................................................................................

..........................................

....................................................................................

..........................................

....................................................................................

54 54

74 74

Chapter 1: IntroductionChapter 1: Introduction

Chapter 1: Introduction

Chapter 1: IntroductionChapter 1: Introduction

Thank you for purchasing ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000

motherboard, a reliable motherboard produced under ASRock’s consistently stringent

quality control. It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

ackack

1.1 P

1.1 P1.1 P

ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock P45R2000-WiFi / P45R2000 / P45TurboT wins2000 Quick Installation Guide ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Support CD ASRock WiFi-802.11g Module Operation Guide (For P45R2000-WiFi Only)

age Contentsage Contents

ack

age Contents

ackack

age Contentsage Contents

http://www.asrock.com

Motherboard Accessories

One ASRock SLI/XFire Switch Card

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Four Serial ATA (SATA) Data Cables (Optional)

One Serial ATA (SATA) HDD Power Cable (Optional)

One HDMI_SPDIF Cable (Optional)

One “ASRock DualLAN_SPDIF I/O” I/O Panel Shield (P45R2000-WiFi / P45R2000)

One “ASRock SPDIF I/O Plus” I/O Panel Shield (P45TurboTwins2000)

WiFi Accessories (For P45R2000-WiFi Only)

One ASRock WiFi-802.11g Module

One Antenna

One WiFi Bracket

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- All Solid Capacitor design

CPU - LGA 775 for Intel

CoreTM 2 Extreme / CoreTM 2 Quad / Core

2 Duo / Pentium® Dual Core / Celeron®, supporting Penryn Quad

Core Yorkfield and Dual Core Wolfdale processors

- Compatible with FSB2000/1600/1333/1066/800 MHz (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset - Northbridge: Intel

P45

- Southbridge: Intel® ICH10R (P45R2000-WiFi / P45R2000)

- Southbridge: Intel® ICH10 (P45TurboTwins2000)

Memory - Dual Channel DDR3/DDR2 Memory Technology

(see CAUTION 4)

- 4 x DDR3 DIMM slots

- Support DDR3 1333/1066 non-ECC, un-buffered memory (see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

- 2 x DDR2 DIMM slots

- Support DDR2 1066/800/667 non-ECC, un-buffered memory (see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - Supports ATI

CrossFire

(see CAUTION 7)

- 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio P45R2000-WiFi / P45R2000

- 7.1 CH Windows® VistaTM Premium Level HD Audio with

Content Protection

- DAC with 110dB dynamic range (ALC890 Audio Codec)

P45TurboTwins2000

- 7.1 CH Windows® VistaTM Premium Level HD Audio

(ALC888 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B/RTL8111C

- Supports Wake-On-LAN

- Supports Dual LAN with Teaming function

(For P45R2000-WiFi / P45R2000 Only)

Wireless LAN - ASRock WiFi-802.11g module (For - 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b P45R2000-WiFi - Supports Software Access Point mode (AP mode) and Only) Station mode (Infrastructure mode and Ad-hoc mode) Rear Panel I/O P45R2000-WiFi / P45R2000

ASRock DualLAN_SPDIF I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 2 x RJ-45 LAN Ports with LED

(ACT/LINK LED and SPEED LED)

- 1 x IEEE 1394 Port

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 8)

P45TurboTwins2000

ASRock SPDIF I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 8)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Matrix Storage), NCQ, AHCI and “Hot Plug” functions (see CAUTION 9)

* RAID functions are for P45R2000-WiFi / P45R2000 only

- 2 x eSATAII 3.0Gb/s connectors (shared with 2 SATAII connectors) (see CAUTION 10)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header (P45R2000-WiFi / P45R2000)

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 11)

- 1 x WiFi/E header (see CAUTION 12)

BIOS Feature - 8Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

- CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version) Unique Feature - ASRock OC Tuner (see CAUTION 13)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 14)

- ASRock U-COP (see CAUTION 15)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft

Vista

64-bit compliant (see CAUTION 16)

Windows® 2000 / XP / XP 64-bit / Vista

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WAR NING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. Some CPU you adopt may be overclocked to FSB2000 MHz, in this

situation, please adopt DDR3 1333 memory modules on this

motherboard. This motherboard supports native FSB1600/1333/1066/

800 MHz. For normal operation, you do no need to adjust the jumper

settings. For special overclocking mode, please refer to page 29 for

proper jumper settings.

2. About the setting of “Hyper Threading Technology”, please check page

58.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 53 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 20 for proper

installation.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1600 DDR2 800, DDR2 1066,

DDR3 1066, DDR3 1333

1333 DDR2 667, DDR2 800, DDR2 1066,

DDR3 1066, DDR3 1333

1066 DDR2 667, DDR2 800, DDR2 1066,

DDR3 1066

800 DDR2 667, DDR2 800

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows

and Windows

VistaTM. For Windows® XP 64-bit and Windows® Vista

64-bit with 64-bit CPU, there is no such limitation.

7. This motherboard supports ATI

use CrossFire

function, please follow the instructions on page 25 to

CrossFireTM technology. If you want to

reverse the direction of ASRock SLI/XFire Switch Card in advance.

8. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-

channel, 6-channel, and 8-channel modes. Please check the table on

page 13 and 14 for proper connection.

9. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 40 to adjust your SATAII hard

disk drive to SATAII mode. You can also connect SATA hard disk to SATAII

connector directly.

10. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 37

for details about eSATAII and eSATAII installation procedures.

11. Power Management for USB 2.0 works fine under Microsoft

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

Windows

12. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or

WiFi-802.11n module, an easy-to-use wireless local area network

(WLAN) adapter. It allows you to create a wireless environment and

enjoy the convenience of wireless network connectivity. Please visit our

website for the availability of ASRock WiFi-802.11g or WiFi-802.11n

module. ASRock website

13. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows

environment. Please visit our website for the operation procedures of

ASRock OC Tuner. ASRock website:

14. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

15. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

16. ASRock WiFi-802.11g module and RAID / AHCI functions are not

supported under Windows® 2000 OS. It is recommended to use IDE

mode under Windows

1.31.3

Minimum Hardware RMinimum Hardware R

1.3

Minimum Hardware R

1.31.3

Minimum Hardware RMinimum Hardware R

® ®

WindowsWindows

Windows

WindowsWindows

® ®

VistaVista

Vista

VistaVista

http://www.asrock.com

2000. Please refer to page 64 for detailed setup.

equirement Tequirement T

equirement T

equirement Tequirement T

TMTM

Premium 2008 and Basic Logo Premium 2008 and Basic Logo

Premium 2008 and Basic Logo

Premium 2008 and Basic Logo Premium 2008 and Basic Logo

able forable for

able for

able forable for

For system integrators and users who purchase this motherboard and

plan to submit Windows® VistaTM Premium 2008 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron 420

Memory 1GB system memory (Premium)

512MB Single Channel (Basic)

VGA DX10 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2008, all Windows

minimum hardware requirements in order to qualify for Windows

Premium 2008 logo.

VistaTM systems are required to meet above

1010

Vista

1.4 Motherboard L1.4 Motherboard L

1.4 Motherboard L

1.4 Motherboard L1.4 Motherboard L

ayout (P45R2000-ayout (P45R2000-

ayout (P45R2000-

ayout (P45R2000-ayout (P45R2000-

iFiF

i / P45R2000)i / P45R2000)

i / P45R2000)

iFiF

i / P45R2000)i / P45R2000)

24.4cm (9.6in)

Keyboard

Mouse

PS2

CPU_FAN1

Coaxial

SPDIF

Optical

SPDIF

eSATAII_BOTTOM (Port5)

eSATAII_TOP

Bottom:

ESATAII_BOTTOM

(Port4)

Center:

ESATAII_TOP

Top:

IEEE1394

USB2.0 T: US B0 B:USB1

USB2.0 T:U SB 2 B:USB3

USB2.0 T: US B4 B:USB5

CTRBASS

MICIN

35 34

ATX12V1

Top: RJ-45

Top:

SIDESPK

Bottom:

Center:

REARSPK

Bottom:

Top:

LINEIN

Center:

FRONT

LAN PHY

PCIE1/DE

ATXPWR1

PCI Express2.0

Intel

Chipset

P45

PCIE2

PCIE3

LAN PHY

PCIE4

1394a

PCI1

PCI2

WIFI/E

PCI3

FLOPPY1

3031

HD_AUDIO1

Super

I/O

CD1

AUDIO CODEC

HDMI_SPDIF1

COM1

FSB2000

8Mb

BIOS

IR1

VT6308S

FRONT_1394

RoHS

VIA

PS2_USB_PWR1

DDR2 1066

CHA_FAN1

DDR3 1333

DDRII_1(64 bit, 240-pinmodule)

Dual Channel

Quad CoreCPU

FSB3 FSB2

ICH10R

PANEL1

DDR3_A1(64 bit, 240-pinmodule)

Intel

USB8_9

USB6_7

PLEDPWRBTN

HDLED RESET

FSB1

DDR3_A2(64 bit, 240-pinmodule)

SPEAKER1

SATAII_1(Port0)

SATAII_2(Port1)

DDRII_2(64 bit, 240-pinmodule)

DDR3_B1(64 bit, 240-pinmodule)

SATAII_6(Port5)

CMOS Battery

SATAII_3(Port2)

SATAII_4(Port3)

DDR3_B2(64 bit, 240-pinmodule)

CLRCMOS1

SATAII_5(Port4)

IDE1

30.5cm (12.0in)

10 11 12

14 15 16

1 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB8_9, Blue) 2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 23 System Panel Header (PANEL1) 3 eSATAII Connector (eSATAII_TOP (Port 4)) 24 USB 2.0 Header (USB6_7, Blue) 4 775-Pin CPU Socket 25 Chassis Fan Connector (CHA_FAN1) 5 PS2_USB_PWR1 Jumper 26 SPI BIOS Chip 6 2 x 240-pin DDR2 DIMM Slots 27 Front Panel IEEE 1394 Header

(Dual Channel A: DDRII_1, DDRII_2; Yellow) (FRONT_1394)

7 2 x 240-pin DDR3 DIMM Slots 28 DeskExpress Hot Plug Detection Header

(Dual Channel B: DDR3_A1, DDR3_B1; Green) (IR1)

8 2 x 240-pin DDR3 DIMM Slots 29 Floppy Connector (FLOPPY1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 COM Port Header (COM1) 9 IDE1 Connector (IDE1, Blue) 31 WiFi/E Header (WIFI/E) 10 FSB3 Jumper 32 Front Panel Audio Header (HD_AUDIO1) 11 FSB2 Jumper 33 HDMI_SPDIF Header (HDMI_SPDIF1) 12 FSB1 Jumper 34 Internal Audio Connector: CD1 (Black) 13 South Bridge Controller 35 PCI Slots (PCI1 - 3) 14 Clear CMOS Jumper (CLRCMOS1) 36 PCI Express 2.0 x16 Slot (PCIE4, Blue) 15 Chassis Speaker Header (SPEAKER 1) 37 SLI/XFire Switch Card Retention Slot 16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express x1 Slot (PCIE3) 17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express 2.0 x16 Slot (PCIE2, Green) 18 SATAII Connector (SATAII_3 (Port2), Red) 40 PCI Express x1 Slot (PCIE1/DE) 19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX Power Connector (ATXPWR1) 20 SATAII Connector (SATAII_1 (Port0), Red) 42 ATX 12V Connector (ATX12V1) 21 SATAII Connector (SATAII_2 (Port1), Red)

1111

1.5 Motherboard L1.5 Motherboard L

1.5 Motherboard L

1.5 Motherboard L1.5 Motherboard L

ayout (P45Tayout (P45T

ayout (P45T

ayout (P45Tayout (P45T

urboTurboT

urboT

urboTurboT

wins2000)wins2000)

wins2000)

wins2000)wins2000)

24.4cm (9.6in)

Keyboard

Mouse

PS2

CPU_FAN1

Coaxial

SPDIF

Optical

SPDIF

eSATAII_BOTTOM (Port5)

eSATAII_TOP

ESATAII_BOTTOM

(Port4)

ESATAII_TOP

USB2.0 T: US B0 B:USB1

USB2.0 T:USB2 B:USB3

USB2.0 T: US B4 B:USB5

CTRBASS

MICIN

34 33

ATX12V1

Top: RJ-45

Top:

SIDESPK

Bottom:

Center:

REARSPK

Bottom:

Top:

LINEIN

Center:

FRONT

LAN PHY

PCIE1/DE

ATXPWR1

PCI Express2.0

Intel

P45

Chipset

PCIE2

PCIE3

PCIE4

Super

HD_AUDIO1

I/O

CD1

AUDIO

CODEC

HDMI_SPDIF1

PCI1

PCI2

WIFI/E

PCI3

FLOPPY1

COM1

3031

FSB2000

RoHS

P45TurboTwins2000

8Mb BIOS

IR1

PS2_USB_PWR1

DDR2 1066

DDR3 1333

IDE1

DDR3_B1(64 bit, 240-pinmodule)

DDR3_B2(64 bit, 240-pinmodule)

DDRII_2(64 bit, 240-pinmodule)

DDR3_A1(64 bit, 240-pinmodule)

DDR3_A2(64 bit, 240-pinmodule)

DDRII_1(64 bit, 240-pinmodule)

Dual Channel

Quad CoreCPU

FSB3

FSB2

FSB1

Intel

ICH10

SPEAKER1

USB8_9

SATAII_1(Port0)

USB6_7

CHA_FAN1

SATAII_2(Port1)

PLEDPWRBTN

PANEL1

HDLED RESET

SATAII_6(Port5)

CMOS

Battery

SATAII_3(Port2)

SATAII_4(Port3)

30.5cm (12.0in)

10 11 12

CLRCMOS1

14 15 16

SATAII_5(Port4)

1 CPU Fan Connector (CPU_FAN1) 21 SATAII Connector (SATAII_2 (Port1), Red)

2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 22 USB 2.0 Header (USB8_9, Blue)

3 eSATAII Connector (eSATAII_TOP (Port 4)) 23 System Panel Header (PANEL1)

4 775-Pin CPU Socket 24 USB 2.0 Header (USB6_7, Blue)

5 PS2_USB_PWR1 Jumper 25 Chassis Fan Connector (CHA_FAN1)

6 2 x 240-pin DDR2 DIMM Slots 26 SPI BIOS Chip

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 27 DeskExpress Hot Plug Detection Header

7 2 x 240- pi n D DR 3 D I MM Sl ot s (IR1)

(Dual Channel B: DDR3_A1, DDR3_B1; Green) 28 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR3 DIMM Slots 29 COM Port Header (COM1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 WiFi/E Header (WIFI/E) 9 IDE1 Connector (IDE1, Blue) 31 Front Panel Audio Header (HD_AUDIO1) 10 FSB3 Jumper 32 HDMI_SPDIF Header (HDMI_SPDIF1) 11 FSB2 Jumper 33 Internal Audio Connector: CD1 (Black) 12 FSB1 Jumper 34 PCI Slots (PCI1 - 3) 13 South Bridge Controller 35 PCI Express 2.0 x16 Slot (PCIE4, Blue) 14 Clear CMOS Jumper (CLRCMOS1) 36 SLI/XFire Switch Card Retention Slot 15 Chassis Speaker Header (SPEAKER 1) 37 PCI Express x1 Slot (PCIE3) 16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express 2.0 x16 Slot (PCIE2, Green) 17 SATAII Connector (SATAII_5 (Port4), Orange) 3 9 PCI Express x1 Slot (PCIE1/DE) 18 SATAII Connector (SATAII_3 (Port2), Red) 40 ATX Power Connector (ATXPWR1) 19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX 12V Connector (ATX12V1) 20 SATAII Connector (SATAII_1 (Port0), Red)

1212

1.61.6

ASRock DualLAN_SPDIF I/OASRock DualLAN_SPDIF I/O

1.6

ASRock DualLAN_SPDIF I/O

1.61.6

ASRock DualLAN_SPDIF I/OASRock DualLAN_SPDIF I/O

(P45R2000-(P45R2000-

(P45R2000-

(P45R2000-(P45R2000-

iFiF

i / P45R2000)i / P45R2000)

i / P45R2000)

i / P45R2000)i / P45R2000)

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime) 2 Coaxial SPDIF Out Port 11 Microphone (Pink) 3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port 13 USB 2.0 Ports (USB23) * 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB01)

6 Side Speaker (Gray) 15 eSATAII Port (eSA TAII_TOP) 7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM) 8 Central / Bass (Orange) 17 Optical SPDIF Out Port 9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

LAN Port LED Indications

TABLE f or Audio Output Connection

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4VV----

6VVV--

8VVVV

SPEED LED

ACT/LINK LED

LAN Port

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

1313

1.71.7

1.7

1.71.7

ASRASR

ock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T

ASR

ock SPDIF I/O Plus (P45T

ASRASR

ock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T

urboTurboT

urboT

urboTurboT

wins2000)wins2000)

wins2000)

wins2000)wins2000)

SPEED

ACT/LINK

LED

LAN Port

1516

1 PS/2 Mouse Port (Green) 9 Microphone (Pink)

2 Coaxial SPDIF Out Port 10 USB 2.0 Ports (USB45) * 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB01)

5 Rear Speaker (Black) 13 eSATAII Port (eSATAII_TOP)

6 Central / Bass (Orange) 14 eSATAII Port (eSATAII_BOTTOM)

7 Line In (Light Blue) 15 Optical SPDIF Out Port ** 8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity

LAN Port LED Indications

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Conne ction

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4)

2 V -- -- --

4VV----

6VVV--

8VVVV

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

1414

1.81.8

ASRock WiFi-802.11g Module SpecificationsASRock WiFi-802.11g Module Specifications

1.8

ASRock WiFi-802.11g Module Specifications

1.81.8

ASRock WiFi-802.11g Module SpecificationsASRock WiFi-802.11g Module Specifications

(F(F

or P45R2000-or P45R2000-

or P45R2000-

(F(F

or P45R2000-or P45R2000-

ASRock WiFi-802.11g module is an easy-to-use wireless local area network (WLAN)

adapter to support WiFi+AP function. With ASRock WiFi-802.11g module, you can

easily create a wireless environment and enjoy the convenience of wireless network

connectivity. Therefore, from anywhere within the signal range, you will be able to play

LAN games, connect to the internet, access and share printers, and make Internet

phone calls easily.

Standard - IEEE 802.11g Data Rate - 6, 9, 12, 18, 24, 36, 48, 54Mbps Security - Access Point mode (AP mode): WEP, WPA Network - Access Point mode (AP mode) Architecture Type s - Station mode: Infrastructure mode and Ad-Hoc mode Frequency Band - 2.4~2.5GHz Operating Range - Indoor: 80ft (30m)

Number of - up to 16 stations Connected Devices (AP Mode) Antenna - ASRock WiFi-802.11g omni-directional antenna LED - Green data transmission (AIR) LED Support OS - Windows Compatibility - Full compatible with IEEE 802.11g standard products Software Support - ASRock WiFi-802.11g Wizard

iFiF

i Only)i Only)

i Only)

iFiF

i Only)i Only)

Outdoor: 200ft (60m)

* The range varies in different environments

XP / XP 64-bit / VistaTM / VistaTM 64-bit

If you want to start to use ASRock WiFi-802.11g module on this motherboard, please carefully read “ASRock WiFi-802.11g Module Operation Guide” in the package for

the detailed introduction and operation procedures. You can also read the document in

the following path of ASRock motherboard support CD:

..\ ASRock WiFi-802.11g \ Vista64_Vista_XP64_XP

1515

Chapter 2: InstallationChapter 2: Installation

Chapter 2: Installation

Chapter 2: InstallationChapter 2: Installation

This is an ATX form factor (12.0" x 9.6", 30.5 x 24.4 cm) motherboard. Before you install

the motherboard, study the configuration of your chassis to ensure that the motherboard

fits into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1 Screw Holes2.1 Screw Holes

2.1 Screw Holes

2.1 Screw Holes2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

2.2 Pre-installation Precautions

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard, peripherals,

and/or components.

1616

2.3 CPU Installation2.3 CPU Installation

2.3 CPU Installation

2.3 CPU Installation2.3 CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

775-Pin Socket Overview

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

Pin1

orientation

key notch

775-LAND CPU

orientation

key notch

1717

Pin1

alignment key

black line

775-Pin Socket

black line

alignment key

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

1. It is recommended to use the cap tab to handle and avoid kicking

off the PnP cap.

2. This cap must be placed if returning the motherboard for after

service.

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS.

Step 4-2. While pressing down lightly on load

plate, engage the load lever.

Step 4-3. Secure load lever with load plate tab

under retention tab of load lever.

1818

2.42.4

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.4

Installation of CPU Fan and Heatsink

2.42.4

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU.

Please adopt the type of heatsink and cooling fan compliant with Intel 775-LAND CPU

to dissipate heat. Before you installed the heatsink, you need to spray thermal

interface material between the CPU and the heatsink to improve heat dissipation.

Ensure that the CPU and the heatsink are securely fastened and in good contact with

each other. Then connect the CPU fan to the CPU_FAN connector (CPU_FAN1, see

page 11/12, No. 1).

For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 775-LAND CPU.

Step 1. Apply thermal interface material onto center

of IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard

(CPU_FAN1, see page 11/12, No. 1).

Step 3. Align fasteners with the motherboard

throughholes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise,

the heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan

connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure

cable does not interfere with fan operation or

contact other components.

1919

2.5 Installation of Memor2.5 Installation of Memor

2.5 Installation of Memor

2.5 Installation of Memor2.5 Installation of Memor

This motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots and

four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel

Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR2/DDR3 DIMM pair in the slots of the same color. In other words, you have to install identical DDR2 DIMM pair in Dual Channel A (DDRII_1 and DDRII_2; Yellow slots; see p.11/12 No.

6), identical DDR3 DIMM pair in Dual Cha nnel B (DDR3_A1 and DDR3_B1; Green slots; see p.11/12 No.7), or identical DDR3 DIMM pair in Dual Cha nnel C (DDR3_A2

and DDR3_B2; Pink slots; see p.11/12 No.8), so that Dual Channel Memory Tech-

nology can be activated. This motherboard also allows you to install four DDR3 DIMMs for dual channel configuration, and please install identical DDR3 DIMMs in

all four slots. You may refer to the Dual Channel Memory Configuration Table below.

Dual Channel DDR2 Memory Configurations (DS: Double Side, SS: Single Side)

2 memory modules SS SS

2 memory modules DS DS

Dual Channel DDR3 Memory Configurations (DS: Double Side, SS: Single Side)

y Modules (DIMM)y Modules (DIMM)

y Modules (DIMM)

y Modules (DIMM)y Modules (DIMM)

DDRII_1 DDRII_2

(Yellow Slot) (Yellow Slot)

DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

(Green Slot) (Pink Slot) (Green Slot) (Pink Slot)

2 memory modules SS X SS X

2 memory modules DS X DS X

2 memory modules X SS X SS

2 memory modules X DS X DS

4 memory modules SS SS SS SS

4 memory modules DS DS DS DS

1. If you want to install two memory modules, for optimal compatibil-

ity and reliability, it is recommended to install them in the slots of

the same color. In other words, install them in the set of yellow

slots (DDRII_1 and DDRII_2), in the set of green slots (DDR3_A1

and DDR3_B1), or in the set of pink slots (DDR3_A2 and

DDR3_B2).

2020

2. If only one memory module or three memory modules are in-

stalled in DDR3 DIMM slots on this motherboard, it is unable to

activate the Dual Channel Memory Technology. If only one memory

module is installed in DDR2 DIMM slots on this motherboard, it is

unable to activate the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_B2, it is unable to activate the Dual Channel

Memory Technology.

4. It is not allowed to install a DDR3 memory module into DDR2 slot

or install a DDR2 memory module into DDR3 slot; otherwise, this

motherboard and DIMM may be damaged.

5. DDR2 and DDR3 memory modules cannot be installed on this

motherboard at the same time.

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

notch

break

notch

break

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the slot

at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

2121

2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)

2.6 Expansion Slots (PCI and PCI Express Slots)

2.6 Expansion Slots (PCI and PCI Express Slots)2.6 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 4 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots:PCIE1/DE (PCIE x1 slot; White) is used for PCI Express cards with x1

lane width cards, such as Gigabit LAN card, SATA2 card and ASRock

PCIE_DE card.

PCIE2 (PCIE x16 slot; Green) is used for PCI Express x16 lane width

graphics cards, or used to install PCI Express graphics cards to support

CrossFireTM function.

PCIE3 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane

width cards, such as Gigabit LAN card, SATA2 card, etc.

PCIE4 (PCIE x16 slot; Blue) is used for PCI Express x1 lane width cards,

such as Gigabit LAN card, SATA2 card, etc., or used to install PCI

Express graphics cards to support CrossFireTM function.

PCIE2 / PCIE4 / SLI/XFire Switch Card Retention Slot

Configurations

PCIE2 Slot PCIE4 Slot SLI/XFire Switch Card (Green) (Blue) Retention Slot

Single Graphics Card PCIE x16 N/A

Dual Graphics Cards PCIE x8 PCIE x8 in CrossFire

Mode

2222

(Default)

1. If you plan to install only one PCI Express VGA card on this

motherboard, please install it on PCIE2 slot (Green). In this mode,

you do not need to adjust the default setting of ASRock SLI/XFire

Switch Card, and please do not remove or lose ASRock SLI/XFire

Switch Card when it is still in working condition.

2. For the information of the compatible CrossFire

Express VGA cards and CrossFire

to “CrossFire

3. If you want to use ASRock DeskExpress function on this motherboard,

please install ASRock PCIE_DE card on PCIE1/DE slot.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Operation Guide” on page 24.

setup procedures, please refer

Mode PCI

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

2323

TMTM

2.7 CrossFire2.7 CrossFire

2.7 CrossFire

2.7 CrossFire2.7 CrossFire

TMTM

Operation Guide Operation Guide

Operation Guide

Operation Guide Operation Guide

This motherboard supports CrossFireTM feature. CrossFireTM technology offers the

most advantageous means available of combining multiple high performance

Graphics Processing Units (GPU) in a single PC. Combining a range of different

operating modes with intelligent software design and an innovative interconnect

mechanism, CrossFireTM enables the highest possible level of performance and

image quality in any 3D application. Currently CrossFireTM feature is supported with

Windows® XP with Service Pack 2 and VistaTM OS. Please check AMD website for

ATITM CrossFireTM driver updates.

What graphics cards work with CrossFireTM?

A complete CrossFireTM system requires a CrossFireTM Ready motherboard, a

CrossFire

Ready) graphics card from the same series, or two CrossFireTM Ready cards. This

applies to cards from ATI

CrossFire

For Windows® XP Vendor Chipset Model Driver

ATI Radeon HD2900XT MSI RX2900XT-VT2D512E Catalyst 7.11

Edition graphics card and a compatible standard Radeon (CrossFire

VGA card support list according to the OS you install.

or any of its partners. Please refer to below table for

Radeon HD 2600XT Gigabyte GV-RX26T256HP-B Catalyst 7.9

Radeon HD 2600PRO MSI RX2600PRO-T2D256EZ Catalyst 7.9

Radeon X1950XTX GeCube RX1950XTX Catalyst 7.11

Radeon X1950PRO Gecube Radeon X1950Pro 256MB Catalyst 7.11

For Windows

Vista

Vendor Chipset Model Driver

ATI Radeon HD2900XT MSI RX2900XT-VT2D512E Catalyst 7.11

Radeon HD 2600XT Gigabyte GV-RX26T256HP-B Catalyst 7.9

Radeon HD 2600PRO MSI RX2600PRO-T2D256EZ Catalyst 7.9

Radeon X1950XTX GeCube RX1950XTX Catalyst 7.11

Radeon X1950PRO Gecube Radeon X1950Pro 256MB Catalyst 7.11

Radeon X1600PRO MSI RX1600PRO-TD256E Catalyst 7.3

Radeon X1300 PRO MSI RX1300PRO-TD256E Catalyst 7.3

1. If a customer incorrectly configures their system they will not see the

performance benefits of CrossFire

CrossFire

benefit from the CrossFire

Ready graphics card, a CrossFireTM Ready motherboard and a

Edition co-processor graphics card, must be installed correctly to

2. If you pair a 12-pipe CrossFire

operate as 12-pipe cards while in CrossFire

. All three CrossFireTM components, a

multi-GPU platform.

Edition card with a 16-pipe card, both cards will

2424

mode.

TMTM

Enjoy the benefit of CrossFireEnjoy the benefit of CrossFire

Enjoy the benefit of CrossFire

Enjoy the benefit of CrossFireEnjoy the benefit of CrossFire

Different CrossFireTM cards may require different methods to enable CrossFire

feature. In below procedures, we use Radeon 2600XT as the example graphics

card. For other CrossFire

future, please refer to ATI

graphics card manuals for detailed installation guide.

TMTM

cards that ATITM has released or will release in the

Step 1. There is one ASRock SLI/XFire Switch Card factory-mounted on this

motherboard. This card served as a switch between the default mode (x16)

and CrossFire mode (x8 / x8). ASRock SLI/XFire Switch Card is factory-mounted

with its default mode (x16) side toward the retention slot base.

Step 2. To change it to CrossFire Mode, you need to reverse the direction of ASRock

SLI/XFire Switch Card. Please simultaneously pull open both the retention

arms that hold the card in position. The card itself will spring away from the

retention slot. Take it out gently by holding its edges, and keep away from

touching the connectors (Golden Fingers).

Step 3. Reverse the card direction so as to have the “X8 / X8 MODE” wording side

toward the retention slot base. Insert the card into the bottom of the base.

2525

Step 4. Push the card down into the retention slot till both the retention arms firmly

hold the card into position. Also, keep away from touching the connectors

(Golden Fingers).

Step 5. Install one Radeon graphics card to PCIE2 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 6. Install one Radeon graphics card to PCIE4 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 7. Connect two Radeon graphics cards by installing two CrossFireTM Bridge on

CrossFireTM Bridge Interconnects on the top of Radeon graphics cards.

(CrossFireTM Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

for details.)

CrossFireTM Bridge

2626

Step 8. Connect the DVI monitor cable to the DVI connector on the Radeon graphics

card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI

connector to D-Sub interface, and then connect the D-Sub monitor cable to the

DVI to D-Sub adapter.)

Step 9. Power on your computer and boot into OS.

Step 10. Remove the ATITM driver if you have any VGA driver installed in your system.

The Catalyst Uninstaller is an optional download. We recommend using this

utility to uninstall any previously installed Catalyst drivers prior to installation.

Please check AMD website for ATITM driver updates.

Step 11. Install the required drivers to your system.

For Windows® XP OS:

A. ATITM recommends Windows® XP Service Pack 2 or higher to be

installed (If you have Windows® XP Service Pack 2 or higher installed

in your system, there is no need to download it again):

http://www.microsoft.com/windowsxp/sp2/default.mspx

B. You must have Microsoft .NET Framework installed prior to

downloading and installing the CATALYST Control Center. Please

check Microsoft website for details.

For Windows® VistaTM OS:

Install the CATALYST Control Center. Please check AMD website for details.

Step 12. Restart your computer.

Step 13. Install the VGA card drivers to your system, and restart your computer.

Then you will find “ATI Catalyst Control Center” on your Windows® taskbar.

ATI Catalyst Control Center

2727

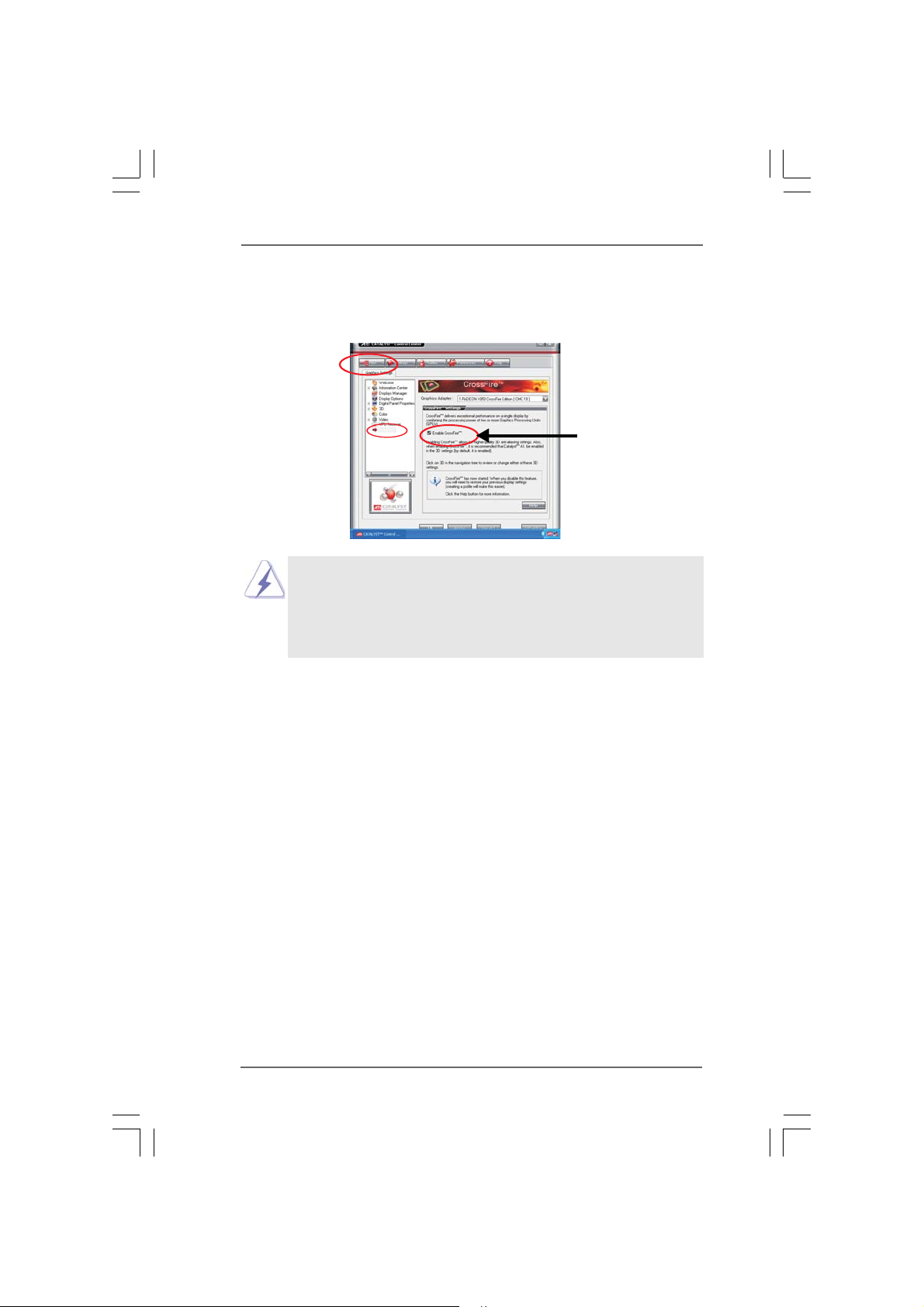

Step 14. Double-click “ATI Catalyst Control Center”. Click “View”, and select

“Advanced View”. Click “CrossFireTM”, and then set the option “Enable

CrossFireTM” to “Yes”.

View

CrossFire

Although you have selected the option “Enable CrossFireTM”, the CrossFire

function may not work actually. Your computer will automatically reboot. After

restarting your computer, please confirm whether the option “Enable CrossFire

in “ATI Catalyst Control Center” is selected or not; if not, please select it again,

and then you are able to enjoy the benefit of CrossFire

Enable CrossFire

feature.

Step 15. You can freely enjoy the benefit of CrossFireTM feature.

* CrossFireTM appearing here is a registered trademark of ATITM Technologies Inc., and is used

only for identification or explanation and to the owners’ benefit, without intent to infringe.

* For further information of ATITM CrossFireTM technology, please check AMD website for updates

and details.

2.8 Surround Display Feature2.8 Surround Display Feature

2.8 Surround Display Feature

2.8 Surround Display Feature2.8 Surround Display Feature

This motherboard supports Surround Display upgrade. With the external add-on

PCI Express VGA cards, you can easily enjoy the benefits of Surround Display

feature. For the detailed instruction, please refer to the document at the following

path in the Support CD:

..\ Surround Display Information

”

2828

2.9 Jumpers Setup2.9 Jumpers Setup

2.9 Jumpers Setup

2.9 Jumpers Setup2.9 Jumpers Setup

The illustration shows how jumpers are setup.

When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap is

placed on pins, the jumper is “Open”. The il-

lustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.11/12 No. 5) +5VSB (standby) for PS/2

1_2

+5V

2_3

+5VSB

or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS Jumper

(CLRCMOS1)

(see p.11/12, No. 14)

1_2

Default

2_3

Clear CMOS

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power supply.

After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1

for 5 seconds. However, please do not clear the CMOS right after you update the

BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you

must boot up the system first, and then shut it down before you do the clear-

CMOS action.

FSB1 Jumper

(FSB1, 3-pin jumper, see p.11/12 No. 12)

FSB2 Jumper

(FSB2, 5-pin jumper, see p.11/12 No. 11)

FSB3

FSB2

FSB1

1_2

Default

FSB3 Jumper

(FSB3, 5-pin jumper, see p.11/12 No. 10)

When you mount a FSB800 or FSB1066 CPU, and try to overclock to FSB1333 or

FSB1600 (by BIOS setting) you may face the problem, that DRAM frequency will be

overclocked very high. Please use jumper to force NB to be strapped at higher

frequency, so the DRAM can work at lower frequency.

2929

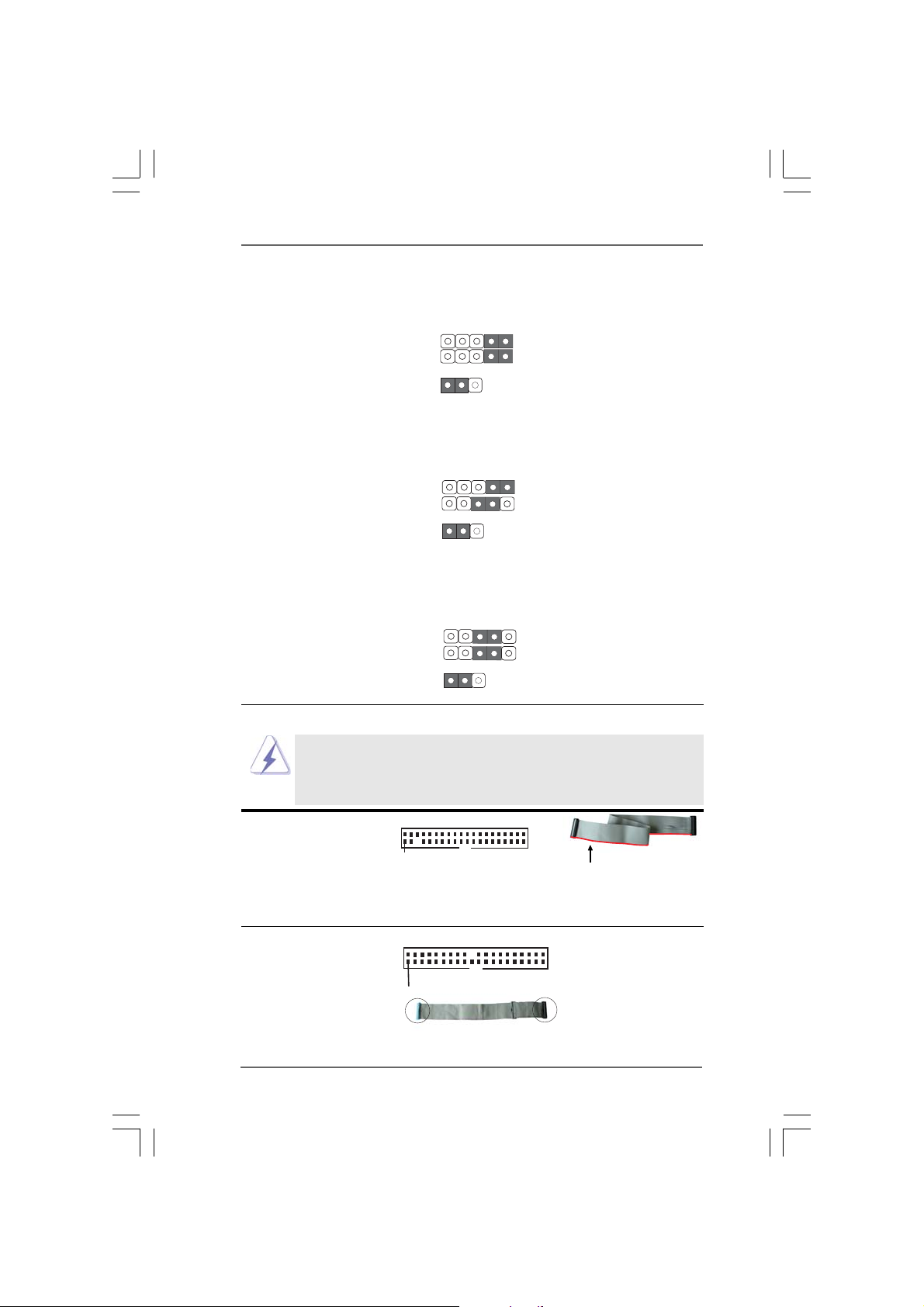

If you want to overclock the CPU you adopt to FSB1066 on this motherboard, you need

to adjust the jumpers. Please short pin4, pin5 for FSB2 jumper and pin4, pin5 for FSB3

jumper. Otherwise, the CPU may not work properly on this motherboard. Please refer to

below jumper settings.

FSB3

FSB2

FSB1

4_5

1_2

If you want to overclock the CPU you adopt to FSB1333 on this motherboard, you need

to adjust the jumpers. Please short pin3, pin4 for FSB2 jumper and pin4, pin5 for FSB3

jumper. Otherwise, the CPU may not work properly on this motherboard. Please refer to

below jumper settings.

FSB3

FSB2

FSB1

4_5

3_4

1_2

If you want to overclock the CPU you adopt to FSB1600 on this motherboard, you need

to adjust the jumpers. Please short pin3, pin4 for FSB2 jumper and pin3, pin4 for FSB3

jumper. Otherwise, the CPU may not work properly on this motherboard. Please refer to

below jumper settings.

FSB3

FSB2

FSB1

2.10 Onboard Headers and Connectors2.10 Onboard Headers and Connectors

2.10 Onboard Headers and Connectors

2.10 Onboard Headers and Connectors2.10 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper

caps over the headers and connectors will cause permanent dam-

age of the motherboard!

3_4

1_2

FDD connector

(33-pin FLOPPY1)

(see p.11 No. 29 or p.12 No. 28)

Pin1

FLOPPY1

the red-striped side to

Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.11/12 No. 9)

PIN1

connect the blue end

to the motherboard

IDE1

connect the black end

to the IDE devices

80-conductor ATA 66/100/133 cable

Note: Please refer to the instruction of your IDE device vendor for the details.

3030

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SATAII_1 (Port0): connectors support SATA data

see p.11/12, No. 20) cables for internal storage

(SATAII_2 (Port1): devices. The current SATAII

see p.11/12, No. 21) interface allows up to 3.0 Gb/s

(SATAII_3 (Port2): data transfer rate.

see p.11/12, No. 18)

(SATAII_4 (Port3):

see p.11/12, No. 19)

(SATAII_5 (Port4):

see p.11/12, No. 17)

(SATAII_6 (Port5):

see p.11/12, No. 16)

SATAII_1 (Port0) SATAII_3 (Port2)

SATAII_2 (Port1) SATAII_4 (Port3)

SATAII_6

(Port5)

SATAII_5

(Port4)

SATAII_5 (Port4) and SATAII_6 (Port5) connectors can be used for

internal storage device or be connected to eSATAII connectors to

support eSATAII device. Please read “eSATAII Interface Introduction”

on page 37 for details about eSATAII and eSATAII installation

procedures.

eSATAII Connectors These eSATAII connectors

(eSATAII_TOP (Port4): support SATA data cables for

see p.11/12, No. 3) external SATAII function. The

(eSATAII_BOTTOM (Port5): current eSATAII interface

see p.11/12, No. 2) allows up to 3.0 Gb/s data

eSATAII_BOTTOM

(Port5)

eSATAII_TOP

(Port4)

transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.

You can also use the SATA data

cable to connect SATAII_5 (Port4)

or SATAII_6 (Port5) connector and

eSATAII connector.

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect to the SATA

HDD power connector

connect to

the power

supply

3131

connect the white end of SATA

power cable to the power

connector of the power supply.

CD-L

GND

CD-R

USB_PW R

P-9

P-8

USB_PW R

USB_PWR

P-7

P-6

USB_PWR

P+9

P+8

P+7

P+6

GND

DUMMY

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

DUMMY

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB8_9) ports on the I/O panel, there are

(see p.11/12 No. 22) two USB 2.0 headers on this

(9-pin USB6_7)

(see p.11/12 No. 24)

WiFi/E Header This header supports WiFi+AP

(15-pin WIFI/E) function with ASRock

(see p.11 No. 31 or p.12 No. 30) WiFi-802.11g or WiFi-802.11n

USB+5V_2

USB+5V_1

TXN

TXP

GND2

PCIE_RST#

+3SVB

RXP

RXN

GND1

PexCLK#

D0+

D0-

PME#

module, an easy-to-use wireless

local area network (WLAN)

PexCLK

adapter. It allows you to create a

wireless environment and enjoy the

convenience of wireless network

connectivity.

If you don’t plan to use WiFi+AP functin on this motherboard, this header can be used as a 4-Pin USB 2.0 header to support one USB 2.0 port. To connect the 4-Pin USB device cable to this header, please refer to this picture for proper installation.

DeskExpress Hot Plug Detection This header supports the Hot

Header Plug detection function for

(5-pin IR1) ASRock DeskExpress.

(see p.11 No. 28 or p.12 No. 27)

IRTX

+5VSB

Hotplug#

GND

IRRX

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.11 No. 34 or p.12 No. 33) from sound sources such as

CD1

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

3232

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.11 No. 32 or p.12 No. 31) convenient connection and

GND

PRE SENCE#

MIC2_R

MIC2_L

MIC_R ET

J_SENSE

OUT 2_R

OUT_R ET

control of audio devices.

OUT 2_L

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

F. Enter Windows system. Click the icon on the lower right hand

taskbar to enter Realtek HD Audio Manager.

For Windows

2000 / XP / XP 64-bit OS:

Click “Audio I/O”, select “Connector Settings” , choose

“Disable front panel jack detection”, and save the change by

clicking “OK”.

For Windows

VistaTM / VistaTM 64-bit OS:

Click the right-top “Folder” icon , choose “Disable front

panel jack detection”, and save the change by clicking “OK”.

G. To activate the front mic.

For Windows

2000 / XP / XP 64-bit OS:

Please select “Front Mic” as default record device.

If you want to hear your voice through front mic, please deselect "Mute"

icon in “Front Mic” of “Playback” portion.

For Windows® VistaTM / VistaTM 64-bit OS:

Go to the "Front Mic" Tab in the Realtek Control panel.

Click "Set Default Device" to make the Front Mic as the default record

device.

3333

PLED+

PLED-

HDLED -

HDLED +

PWRBTN#

GND

DUMMY

RES ET#

GND

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.11/12 No. 23) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.11/12 No. 15)

Chassis Fan Connector Please connect a chassis fan

(3-pin CHA_FAN1) cable to this connector and

+5V

GND

+12V

CHA_FAN_SPEED

DUMMY

SPEAKER

(see p.11/12 No. 25) match the black wire to the

ground pin.

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match

(see p.11/12 No. 1) the black wire to the ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.11, No. 41 or p.12 No. 40)

FAN_S PEED_CONTR OL

CPU _FAN_SPEED

+12V

GND

1 2 3 4

Pin 1-3 Connected

3-Pin Fan Installation

Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

3434

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1) power supply to this connector.

(see p.11 No. 42 or p.12 No. 41)

5 1

8 4

Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX

5 1

12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

4-Pin ATX 12V Power Supply Installation

IEEE 1394 Header Besides one default IEEE 1394

(9-pin FRONT_1394) port on the I/O panel, there is one

(see p.11 No. 27) IEEE 1394 header

RXTPAM_0

GND

RXTPBM_0

RXTPBP_0

GND

RXTPAP_0

+12V

GND

(FRONT_1394) on this

motherboard. This IEEE 1394

header can support one IEEE

8 4

1394 port.

RRXD1

DDCD#1

+5V

DDTR#1

DDSR#1

GND

TTXD1

SPD IFOUT

CCTS#1

RRI#1

RRTS#1

GND

Serial port Header This COM1 header

(9-pin COM1) supports a serial port module.

(see p.11 No.30 or p.12 No. 29)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.11 No. 33 or p.12 No. 32) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

SPD IFOUT

GND

+5V

blue black

SPD IFOU T

GND

3535

blue black

SPD IFOU T

GND

blue black

2.11 HDMI_SPDIF Header Connection Guide2.11 HDMI_SPDIF Header Connection Guide

2.11 HDMI_SPDIF Header Connection Guide

2.11 HDMI_SPDIF Header Connection Guide2.11 HDMI_SPDIF Header Connection Guide

HDMI (High-Definition Multi-media Interface) is an all-digital audio/video

specification, which provides an interface between any compatible digital audio/

video source, such as a set-top box, DVD player, A/V receiver and a compatible

digital audio or video monitor, such as a digital television (DTV). A complete HDMI

system requires a HDMI VGA card and a HDMI ready motherboard with a

HDMI_SPDIF header. This motherboard is equipped with a HDMI_SPDIF header,

which provides SPDIF audio output to HDMI VGA card, allows the system to

connect HDMI Digital TV/projector/LCD devices. To use HDMI function on this

motherboard, please carefully follow the below steps.

Step 1. Install the HDMI VGA card to the PCI Express Graphics slot on this

•

motherboard. For the proper installation of HDMI VGA card, please refer

to the installation guide on page 22.

Step 2. Connect the black end (A) of HDMI_SPDIF cable to the

HDMI_SPDIF header (HDMI_SPDIF1, yellow, see page 11,

No. 33 or page 12, No. 32) on the motherboard.

Make sure to correctly connect the HDMI_SPDIF cable to the motherboard and the

HDMI VGA card according to the same pin definition. For the pin definition of

HDMI_SPDIF header and HDMI_SPDIF cable connectors, please refer to page 35.

For the pin definition of HDMI_SPDIF connectors on HDMI VGA card, please refer to

the user manual of HDMI VGA card vendor. Incorrect connection may cause

permanent damage to this motherboard and the HDMI VGA card.

Step 3. Connect the white end (B or C) of HDMI_SPDIF cable to the HDMI_SPDIF

connector of HDMI VGA card. (There are two white ends (2-pin and 3-pin)

on HDMI_SPDIF cable. Please choose the appropriate white end according

to the HDMI_SPDIF connector of the HDMI VGA card you install.

white end

(2-pin) (B)

Please do not connect the white end of HDMI_SPDIF cable to the wrong connector

of HDMI VGA card or other VGA card. Otherwise, the motherboard and the

VGA card may be damaged. For example, this picture shows the wrong

example of connecting HDMI_SPDIF cable to the fan connector of PCI

Express VGA card. Please refer to the VGA card user manual for

connector usage in advance.

white end

(3-pin) (C)

Step 4. Connect the HDMI output connector on HDMI VGA card to

HDMI device, such as HDTV. Please refer to the user manual

of HDTV and HDMI VGA card vendor for detailed connection

procedures.

Step 5. Install HDMI VGA card driver to your system.

3636

2.12 eSA2.12 eSA

2.12 eSA

2.12 eSA2.12 eSA

What is eSATAII?

This motherboard supports eSATAII interface, the external SATAII specification.

eSATAII allows you to enjoy the SATAII function provided by the I/O of your

computer, offering the high speed data transfer rate up to 3.0Gb/s, and the

convenient mobility like USB. eSATAII is equipped with Hot Plug capability that

enables you to exchange drives easily. For example, with eSATAII interface, you

may simply plug your eSATAII hard disk to the eSATAII ports instead of opening

your chassis to exchange your SATAII hard disk. Currently, on the market, the

data transfer rate of USB 2.0 is up to 480Mb/s, and for IEEE 1394 is up to

400Mb/s. However, eSATAII provides the data transfer rate up to 3000Mb/s, which is

much higher than USB 2.0 and IEEE 1394, and still keeps the convenience of Hot

Plug feature. Therefore, on the basis of the advantageous transfer speed and the

facilitating mobile capability, in the near future, eSATAII will replace USB 2.0 and

IEEE 1394 to be a trend for external interface.

AII InterAII Inter

AII Inter

AII InterAII Inter

NOTE:

1. If you set “Configure SATAII as” option in BIOS setup to AHCI or RAID mode, Hot

Plug function is supported with eSATAII devices. Therefore, you can insert or

remove your eSATAII devices to the eSATAII ports while the system is power-on and

in working condition.

2. If you set “Configure SATAII as” option in BIOS setup to IDE mode, Hot Plug function

is not supported with eSATAII devices. If you still want to use eSATAII function in IDE

mode, please insert or remove your eSATAII devices to the eSATAII ports only when

the system is power-off.

3. Please refer to page 45 to 50 for detailed information of RAID mode, IDE mode, and

AHCI mode.

face Introductionface Introduction

face Introduction

face Introductionface Introduction

How to install eSATAII?

SATAII connectors

(SATAII_5 (Port4) and

SATAII_6 (Port5))

eSATAII connectors

(eSATAII_TOP (Port4) and

eSATAII_BOTTOM (Port5))

3737

1. If you just plan to install one eSATAII device to this motherboard, it is recom-

mended to enable the bottom eSATAII port of the I/O shield. In order to enable

the bottom eSATAII port of the I/O shield, you need to connect one of the orage

SATAII connectors (SATAII_6 (Port5); see p.11/12 No.16) and one of the orange

eSATAII connectors (eSATAII_BOTTOM (Port5); see p.11/12 No.2) with a SATA

data cable first. Then the bottom eSATAII port of the I/O shield is enabled.

Connect the SATA data cable

to one of the orange SATAII

connector (SATAII_6 (Port5))

Connect the SATA data

cable to one of the

orange eSATAII connector

(eSATAII_BOTTOM (Port5))

2. If you plan to install two eSATAII devices to this motherboard, you need to enable

both the top and the bottom eSATAII ports of the I/O shield. In order to enable the

top and the bottom eSATAII ports of the I/O shield, you have to connect one of

the orange SATAII connector (SATAII_6 (Port5); see p.11/12 No.16) and one of

the orange eSATAII connector (eSATAII_BOTTOM (Port5); see p.11/12 No.2) with

a SATA data cable first, and then connect the other orange SATAII connector

(SATAII_5 (Port4); see p.11/12 No.17) and the other orange eSATAII connector

(eSATAII_TOP (Port4); see p.11/12 No.3) with the other SATA data cable. After

that, both the top and the bottom eSATAII ports of the I/O shield are enabled.

Connect the SATA data

cables to both orange

SATAII connectors

(SATAII_6 (Port5) and

SATAII_5 (Port4))

Connect the SATA

data cables to both

orange eSATAII

connectors

(eSATAII_BOTTOM (Port5)

and eSATAII_TOP (Port4))

3838

3. Use the eSATAII device cable to connect eSATAII device and the eSATAII port of the I/O shield.

Connect one end of the eSATAII device cable to eSATAII device

Connect the other end of the eSATAII device cable to eSATAII port of the I/O shield

Comparison between eSATAII and other devices

IEEE 1394 400Mb/s USB 2.0 480Mb/s SA T A 1.5Gb/s (1500Mb/s) eSATAII/SATAII 3.0Gb/s (3000Mb/s)

3939

2.13 SA2.13 SA

2.13 SA

2.13 SA2.13 SA

Before installing SATAII hard disk to your computer, please carefully read below

SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be

at SATAII mode, which operate with the best performance. In order to enable SATAII

function, please follow the below instruction with different vendors to correctly adjust

your SATAII hard disk to SATAII mode in advance; otherwise, your

SATAII hard disk may fail to run at SATAII mode.

Western Digital

If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 5 and pin 6.

SAMSUNG

If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 3 and pin 4.

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

AII Hard Disk Setup Guide

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

1357

2468

1357

2468

HIT ACHI

Please use the Feature Tool, a DOS-bootable tool, for changing various ATA

features. Please visit HITACHI’s website for details:

http://www.hitachigst.com/hdd/support/download.htm

The above examples are just for your reference. For different SATAII hard

disk products of different vendors, the jumper pin setting methods may

not be the same. Please visit the vendors’ website for the updates.

4040

2.142.14

Serial ASerial A

2.14

Serial A

2.142.14

Serial ASerial A

InstallationInstallation

Installation

InstallationInstallation

P45R2000-WiFi / P45R2000 adopts Intel

Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID (RAID 0, RAID 1, RAID 10, RAID 5, and Intel Matrix Storage) functions. P45TurboTwins2000 adopts Intel

ICH10 south bridge chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII)

hard disks. You may install SATA / SATAII hard disks on this motherboard for internal

storage devices. This section will guide you to install the SATA / SATAII hard disks.

STEP 1: In stall the SATA / SATAII hard disks into the drive bays of your chassis.

STEP 2: Connect the SATA power cable to the SATA / SATAII hard disk.

STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII

connector.

STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard

disk.

A (SAA (SA

A (SA

A (SAA (SA

A) / Serial AA) / Serial A

A) / Serial A

A) / Serial AA) / Serial A

1. If you plan to use RAID 0, RAID 1, RAID 10 or Intel Matrix Storage

function, you need to install at least 2 SATA / SATAII hard disks. If you

plan to use RAID 5 function, you need to install at least 3 SATA / SATAII

hard disks.

2. It is not recommended to switch the “Configure SATAII as” setting after

OS installation.

AII (SAAII (SA

AII (SA

AII (SAAII (SA

ICH10R south bridge chipset that supports

AII) Hard DisksAII) Hard Disks

AII) Hard Disks

AII) Hard DisksAII) Hard Disks

4141

2.15 Hot Plug and Hot Swap F2.15 Hot Plug and Hot Swap F

2.15 Hot Plug and Hot Swap F

2.15 Hot Plug and Hot Swap F2.15 Hot Plug and Hot Swap F

HDDs and eSA HDDs and eSA

HDDs and eSA

HDDs and eSA HDDs and eSA

P45R2000-WiFi / P45R2000 supports Hot Plug and Hot Swap functions for SATA / SATAII / eSATAII Devices in RAID / AHCI mode. P45TurboTwins2000 supports Hot

Plug and Hot Swap functions for SATA / SATAII / eSATAII Devices in AHCI mode. Intel

ICH10R / ICH10 south bridge chipset provides hardware support for Advanced Host

controller Interface (AHCI), a new programming interface for SATA host controllers

developed thru a joint industry effort.

NOTE What is Hot Plug Function?

If the SATA / SATAII HDDs are NOT set for RAID configuration, it is called

“Hot Plug” for the action to insert and remove the SATA / SATAII HDDs

while the system is still power-on and in working condition.

However, please note that it cannot perform Hot Plug if the OS has been

installed into the SATA / SATAII HDD.

What is Hot Swap Function?

If SATA / SATAII HDDs are built as RAID1 or RAID 5 then it is called “Hot

Swap” for the action to insert and remove the SATA / SATAII HDDs while

the system is still power-on and in working condition.

eSATAII is equipped with Hot Plug capability that enables you to

exchange drives easily. For example, with eSATAII interface, you may

simply plug your eSATAII devices to the eSATAII ports instead of opening

your chassis to exchange your SATAII hard disk.

AII DevicesAII Devices

AII Devices

AII DevicesAII Devices

unctions for SAunctions for SA

unctions for SA

unctions for SAunctions for SA

A / SAA / SA

A / SA

A / SAA / SA

AIIAII

AII

AIIAII

4242

2.16 SA2.16 SA

2.16 SA

2.16 SA2.16 SA

This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI

mode. Please read below operation guide of SATA / SATAII HDD Hot Plug feature

carefully. Before you process the SATA / SATAII HDD Hot Plug, please check below

cable accessories from the motherboard gift box pack.

A. 7-pin SATA data cable

B. SATA power cable with SATA 15-pin power connector interface

A / SAA / SA

A / SA

A / SAA / SA

GuideGuide

Guide

GuideGuide

A. SATA data cable (Red) B. SATA power cable

AII HDD Hot Plug FAII HDD Hot Plug F

AII HDD Hot Plug F

AII HDD Hot Plug FAII HDD Hot Plug F

eature and Operationeature and Operation

eature and Operation

eature and Operationeature and Operation

SATA 7-pin

connector

The SATA 15-pin power

connector (Black) connect

to SATA / SATAII HDD

1x4-pin conventional

power connector (White)

connect to power supply

Caution

1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug

cannot be processed.

2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector

and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin

conventional power connector interface is definitely not able to support Hot

Plug and will cause the HDD damage and data loss.

Points of attention, before you process the Hot Plug:

1. Below operation procedure is designed only for our motherboard, which

supports SATA / SATAII HDD Hot Plug.

* The SATA / SATAII Hot Plug feature might not be supported by the chipset

because of its limitation, the SATA / SATAII Hot Plug support information of our

motherboard is indicated in the product spec on our website:

www.asrock.com

2. Make sure your SATA / SATAII HDD can support Hot Plug function from your

dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot

Plug function, will be damaged under the Hot Plug operation.

3. Please make sure the SATA / SATAII driver is installed into system properly. The

latest SATA / SATAII driver is available on our support website:

www.asrock.com

4. Make sure to use the SATA power cable & data cable, which are from our

motherboard package.

5. Please follow below instructions step by step to reduce the risk of HDD crash

or data loss.

4343

How to Hot Plug a SATA / SA TAII HDD:

Points of attention, before you process the Hot Plug:

Please do follow below instruction sequence to process the Hot Plug, improper

procedure will cause the SATA / SATAII HDD damage and data loss.

Step 1

Please connect SATA power cable 1x4-pin end

(White) to the power supply 1x4-pin cable.

SATA power cable 1x4-pin

power connector (White)

Step 3

Connect SATA 15-pin power cable connector

(Black) end to SATA / SATAII HDD.

Step 2

Connect SATA data cable to

the motherboard’s SATAII connector.

Step 4

Connect SATA data cable to

the SATA / SATAII HDD.

How to Hot Unplug a SATA / SATAII HDD:

Points of attention, before you process the Hot Unplug:

Please do follow below instruction sequence to process the Hot Unplug, improper

procedure will cause the SATA / SATAII HDD damage and data loss.

Step 1

Unplug SATA data cable from SATA / SATAII HDD side.

Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.

Step 2

4444

2.172.17

Driver Installation Guide Driver Installation Guide

2.17

Driver Installation Guide

2.172.17

Driver Installation Guide Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive

first. Then, the drivers compatible to your system can be auto-detected and listed on

the support CD driver page. Please follow the order from up to bottom side to install

those required drivers. Therefore, the drivers you install can work properly.

2.182.18

Installing WindowsInstalling Windows

2.18

Installing Windows

2.182.18

Installing WindowsInstalling Windows

64-bit W64-bit W

64-bit W

64-bit W64-bit W

P45R2000 Only)P45R2000 Only)

P45R2000 Only)

P45R2000 Only)P45R2000 Only)

If you want to install Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit OS on your

SATA / SATAII HDDs with RAID functions, please follow below procedures according to

the OS you install.

2.18.1 Installing Windows2.18.1 Installing Windows

2.18.1 Installing Windows

2.18.1 Installing Windows2.18.1 Installing Windows

F F

If you want to install Windows® XP / XP 64-bit on your SATA / SATAII HDDs with RAID

functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [RAID].

STEP 2: Make a SATA / SATAII Driver Diskette.

A. Insert the Support CD into your optical drive to boot your system.

B. During POST at the beginning of system boot-up, press <F11> key, and then a

window for boot devices selection appears. Please select CD-ROM as the boot

device.

C. When you see the message on the screen, “Do you want to generate Serial

ATA driver diskette [YN]?”, press <Y>.

D. Then you will see these messages,

Please insert a diskette into the floppy drive. WARNING! Formatting the floppy diskette will lose ALL data in it! Start to format and copy files [YN]?

Please insert a floppy diskette into the floppy drive, and press <Y>.

E. The system will start to format the floppy diskette and copy SATA / SATAII

drivers into the floppy diskette.

ith RAID Fith RAID F

ith RAID F

ith RAID Fith RAID F

Since Windows® 2000 RAID / AHCI driver is not provided by the chipset

vendor, RAID / AHCI functions are not supported under Windows

unctionsunctions

unctions

unctionsunctions

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

XP / XP 64-bit / Vista

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

unctions (Functions (F

unctions (F

unctions (Functions (F

XP / XP 64-bit With RAID XP / XP 64-bit With RAID

XP / XP 64-bit With RAID

XP / XP 64-bit With RAID XP / XP 64-bit With RAID

or P45R2000-or P45R2000-

or P45R2000-

or P45R2000-or P45R2000-

TM TM

/ Vista/ Vista

/ Vista

/ Vista/ Vista

iFiF

i /i /

i /

i /i /

2000.

TMTM

4545

STEP 3: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure the RAID function, you need to check theinstallation

guide in the Support CD for proper configuration. Please refer to the document in

the Support CD, “Guide to SATA Hard Disks Installation and RAID Configuration”, which is located in the folder at the following path: .. \ RAID Installation Guide

STEP 4: Install Windows® XP / XP 64-bit OS on your system. (Windows® 2000 is not supported.)

After making a SATA / SATAII driver diskette and using “RAID Installation Guide” to set

RAID configuration, you can start to install Windows® XP / XP 64-bit on your system.

At the beginning of Windows setup, press F6 to install a third-party RAID driver. When

prompted, insert the SATA / SATAII driver diskette containing the Intel® RAID driver.

After reading the floppy disk, the driver will be presented. Select the driver to install

according to the mode you choose and the OS you install. You may select: "Intel(R)

ICH10R SATA RAID Controller (Desktop - Windows XP)" for Windows® XP or "Intel(R)

ICH10R SATA RAID Controller (Desktop - Windows XP64)" for Windows® XP 64-bit.

After the installation of Windows

RAID functions, you are allowed to use both “RAID Installation Guide” and “Intel Matrix

Storage Manager Information” for RAID configuration. Please refer to the document in the

Support CD, “Guide to SATA Hard Disks Installation and RAID Configuration”, which is located in the folder at the following path: .. \ RAID Installation Guide and the document

in the support CD, “Guide to Intel Matrix Storage Manager”, which is located in the folder at the following path: .. \ Intel Matrix Storage Manager Information

If you want to use “Intel Matrix Storage Manager” in Windows® environment,

please install SATA / SATAII drivers from the Support CD again so that “Intel

Matrix Storage Manager” will be installed to your system as well.

XP / Windows® XP-64bit OS, if you want to manage

2.18.2 Setting Up a “RAID Ready” System2.18.2 Setting Up a “RAID Ready” System

2.18.2 Setting Up a “RAID Ready” System

2.18.2 Setting Up a “RAID Ready” System2.18.2 Setting Up a “RAID Ready” System

You can also set up a “RAID Ready” system with a single SATA / SATAII hard disk.

A “RAID Ready” system can be seamlessly upgraded to RAID 0, RAID 1 or RAID 5

at a later date by using RAID migration feature of Intel Matrix Storage. The

following steps outline how to build an Intel “RAID Ready” system.

1. Assemble the system and attach a single SATA / SATAII hard drive.

2. Set up system BIOS as step 1 of page 45. When done, exit Setup.

3. Make a SATA / SATAII driver diskette as step 2 of page 45. Begin Windows

setup by booting from the installation CD.

4. At the beginning of Windows® setup, press F6 to install a third-party RAID

driver. When prompted, insert the SATA / SATAII driver diskette containing the

Intel® RAID driver. After reading the floppy disk, the driver will be presented.

4646

Select the driver to install according to the mode you choose and the OS you

install. You may select: "Intel(R) ICH10R SATA RAID Controller (Desktop -

Windows XP)" for Windows® XP or "Intel(R) ICH10R SATA RAID Controller

(Desktop - Windows XP64)" for Windows® XP 64-bit.

5. Finish the Windows® installation and install all necessary drivers.

6. Install the Intel(R) Matrix Storage Manager software via the CD-ROM included

with your motherboard or after downloading it from the Internet. This will add

the Intel(R) Matrix Storage Console which can be used to manage the RAID

configuration.

7. After setting up a “RAID Ready” system as the above steps, you can follow the

procedures of the next section to migrate the system to RAID 0, RAID 1 or RAID

2.18.3 Migrating a “RAID Ready” System to RAID 0,2.18.3 Migrating a “RAID Ready” System to RAID 0,

2.18.3 Migrating a “RAID Ready” System to RAID 0,

2.18.3 Migrating a “RAID Ready” System to RAID 0,2.18.3 Migrating a “RAID Ready” System to RAID 0,

RAID 1 or RAID 5 RAID 1 or RAID 5

RAID 1 or RAID 5

RAID 1 or RAID 5 RAID 1 or RAID 5

If you have an existing “RAID Ready” system, then you can use the following

steps to perform a migration from a single non-RAID configuration to a two drive

RAID 0, RAID 1 configuration or three drive RAID 5 configuration. To prepare for

this, you will need another SATA / SATAII hard drive with a capacity equal to or

greater than that currently being used as the source hard drive.

1. Physically attach one additional SATA / SATAII hard drive to the SATAII port not

being used. Note the serial number of the hard drive already in the system; you

will use this to select it as the source hard drive when initiating the migration.

2. Boot Windows®, install the Intel(R) Matrix Storage Manager software, if not

already installed, using the setup package obtained from a CD-ROM or from the

Internet. This will install the necessary Intel Storage Utility and start menu links.

3. Open the Intel Storage Utility from the Start Menu and select “Create RAID

volume from Existing Hard Drive” from the Actions menu. This will activate the

Create RAID volume from Existing Hard Drive Wizard. Click through the dialogs

as prompted. It’s important to understand what will occur during the migration

process because any data on the destination hard drive will be lost.

4. Once the migration is complete, reboot the system. If you migrated to a RAID 0

volume, use Disk Management from within Windows® in order to partition and

format the empty space created when the two hard drive capacities are

combined. You may also use third-party software to extend any existing

partitions within the RAID volume.

4747

2.18.4 Installing Windows2.18.4 Installing Windows

2.18.4 Installing Windows

2.18.4 Installing Windows2.18.4 Installing Windows

RAID F RAID F

RAID F

RAID F RAID F

unctionsunctions

unctions

unctionsunctions

Vista Vista

Vista

Vista Vista

TMTM

/ Vista / Vista

/ Vista

/ Vista / Vista

TMTM

64-bit With 64-bit With

64-bit With

64-bit With 64-bit With

If you want to install Windows® VistaTM / VistaTM 64-bit on your SATA / SATAII HDDs

with RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure the RAID function, you need to check the installation

guide in the Support CD for proper configuration. Please refer to the document in

the Support CD, “Guide to SATA Hard Disks Installation and RAID Configuration”, which is located in the folder at the following path: .. \ RAID Installation Guide

STEP 3: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

Insert the Windows® VistaTM / VistaTM 64-bit optical disk into the optical drive to boot

your system, and follow the instruction to install Windows® VistaTM / VistaTM 64-bit

OS on your system. When you see “Where do you want to install Windows?” page,

please insert the ASRock Support CD into your optical drive, and click the “Load

Driver” button on the left on the bottom to load the Intel® RAID drivers. Intel® RAID

drivers are in the following path in our Support CD:

.. \ I386 (For Windows .. \ AMD64 (For Windows

Vista

OS)

64-bit OS)

After that, please insert Windows® VistaTM / VistaTM 64-bit optical disk into the optical

drive again to continue the installation.

After the installation of Windows® VistaTM / VistaTM 64-bit OS, if you want to manage RAID

functions, you are allowed to use both “RAID Installation Guide” and “Intel Matrix Storage

Manager Information” for RAID configuration. Please refer to the document in the Support

CD, “Guide to SATA Hard Disks Installation and RAID Configuration”, which is located in the folder at the following path: .. \ RAID Installation Guide and the document in the support

CD, “Guide to Intel Matrix Storage Manager”, which is located in the folder at the following path: .. \ Intel Matrix Storage Manager Information

If you want to use “Intel Matrix Storage Manager” in Windows

please install SATA / SATAII drivers from the Support CD again so that “Intel

Matrix Storage Manager” will be installed to your system as well.

4848

environment,

2.192.19

Installing WindowsInstalling Windows

2.19

Installing Windows

2.192.19

Installing WindowsInstalling Windows

TMTM

VistaVista

Vista

VistaVista

If you want to install Windows® 2000 / XP / XP 64-bit / VistaTM / VistaTM 64-bit OS

on your SATA / SATAII HDDs without RAID functions, please follow below

procedures according to the OS you install.

64-bit Without RAID Functions 64-bit Without RAID Functions

64-bit Without RAID Functions

64-bit Without RAID Functions 64-bit Without RAID Functions

2000 / XP / XP 64-bit / Vista 2000 / XP / XP 64-bit / Vista

2000 / XP / XP 64-bit / Vista

2000 / XP / XP 64-bit / Vista 2000 / XP / XP 64-bit / Vista

TM TM

Since Windows® 2000 RAID / AHCI driver is not provided by the chipset

vendor, RAID / AHCI functions are not supported under Windows

2.19.1 Installing Windows2.19.1 Installing Windows

2.19.1 Installing Windows

2.19.1 Installing Windows2.19.1 Installing Windows

W W

ithout RAID Fithout RAID F

ithout RAID F

W W

ithout RAID Fithout RAID F

If you want to install Windows® 2000 / XP / XP 64-bit OS on your SATA / SATAII HDDs

without RAID functions, please follow below steps.

Using SATA / SATAII HDDs and eSATAII devices with NCQ function

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [AHCI].

STEP 2: Make a SATA / SATAII driver diskette.

Please make a SATA / SATAII driver diskette by following section 2.18.1 step 2 on

page 45.

STEP 3: Install Windows® XP / XP 64-bit OS on your system. (Windows® 2000 is not supported.)

After making a SATA / SATAII driver diskette, you can start to install Windows® XP / XP

64-bit on your system. At the beginning of Windows® setup, press F6 to install a third-

party AHCI driver. When prompted, insert the SATA / SATAII driver diskette containing

the Intel® AHCI driver. After reading the floppy disk, the driver will be presented. Select

the driver to install according to the mode you choose and the OS you install. You may

select: "Intel(R) ICH10R SATA AHCI Controller (Desktop - Windows XP)" for Windows

XP or "Intel(R) ICH10R SATA AHCI Controller (Desktop - Windows XP64)" for Windows

XP 64-bit.

2000 / XP / XP 64-bit 2000 / XP / XP 64-bit

2000 / XP / XP 64-bit

2000 / XP / XP 64-bit 2000 / XP / XP 64-bit

unctionsunctions

unctions

unctionsunctions

2000.

Using SATA / SATAII HDDs and eSA TAII devices without NCQ function

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [IDE].

STEP 2: Install Windows® 2000 / XP / XP 64-bit OS on your system.

4949

Vista Vista

Vista

Vista Vista

TM TM

/ Vista/ Vista

/ Vista

/ Vista/ Vista

2.19.2 Installing Windows2.19.2 Installing Windows

2.19.2 Installing Windows

2.19.2 Installing Windows2.19.2 Installing Windows

W W

ithout RAID Fithout RAID F

ithout RAID F

W W

ithout RAID Fithout RAID F

If you want to install Windows® VistaTM / VistaTM 64-bit OS on your SATA / SATAII

HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs and eSATAII device s with NCQ function

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [AHCI].

STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

Insert the Windows® VistaTM / VistaTM 64-bit optical disk into the optical drive to boot

your system, and follow the instruction to install Windows® VistaTM / VistaTM 64-bit OS

on your system. When you see “Where do you want to install Windows?” page, please

insert the ASRock Support CD into your optical drive, and click the “Load Driver” button

on the left on the bottom to load the Intel® AHCI drivers. Intel® AHCI drivers are in the

following path in our Support CD:

.. \ I386 (For Windows .. \ AMD64 (For Windows

After that, please insert Windows® VistaTM / VistaTM 64-bit optical disk into the optical

drive again to continue the installation.

Using SATA / SAT AII HDDs and eSATAII devices without NCQ function

Vista

OS)

unctionsunctions

unctions

unctionsunctions

64-bit OS)

TMTM

64-bit 64-bit

64-bit

64-bit 64-bit

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration.

B. Set “SATAII Configuration” to [Enhanced], and then in the option “Configure

SATAII as”, please set the option to [IDE].

STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

5050

2.202.20

2.20

2.202.20

Dual LAN with Teaming function enabled on this motherboard allows two single

connections to act as one single connection for twice the transmission bandwidth,

making data transmission more effective and improving the quality of transmission of

distant images. Fault tolerance on the dual LAN network prevents network downtime

by transferring the workload from a failed port to a working port.

Before setting up Teaming function, please make sure if your Switch (or Router) could

support Teaming (IEEE 802.3ad Link Aggregation) function. (For example: D-Link

DGS-3100.) Then, please refer to following steps to set up Teaming function.

1. Install RtkTeaming driver ver.1.0.0.51 from the following path of motherboard

Support CD: .. \ Driver \ Teaming \ RtkTeaming 1.0.0.51

(This is a special driver for Teaming function only. If you don't want to use Teaming,

please install the LAN driver provided by our support CD link.)

When installing teaming driver, system will show below warming message. Please choose Continue Anyway and keep installing driver.

eaming Feaming F

eaming F

eaming Feaming F

(F(F

or P45R2000-or P45R2000-

or P45R2000-

(F(F

or P45R2000-or P45R2000-

unction Operation Guideunction Operation Guide

unction Operation Guide

unction Operation Guideunction Operation Guide

iFiF

i / P45R2000 Only)i / P45R2000 Only)

i / P45R2000 Only)

iFiF

i / P45R2000 Only)i / P45R2000 Only)

The speed of transmission is subject to the actual network environment

or status even with Teaming enabled.

2. After installing driver, please open Tea ming Utility in Programs.

(Start > Programs > Realtek > Teaming Utility)

5151

3. Click Teaming item and then press Create Team button.

4. Key in Team Name and choose Link Aggregation \ LACP (802.3a d) for Settings.

5. Select two available onboard LAN cards and then press OK button. (After pressing OK button, system will show below warming message. Please choose Continue Anyway.)

5252

6. After doing above settings, system will auto create a new Local Area Connection.

7. Reboot your system. Then, you will find the Speed column of new Local Area

Connection show 2.0Gbps.

2.212.21

Untied Overclocking TUntied Overclocking T

2.21

Untied Overclocking T

2.212.21

Untied Overclocking TUntied Overclocking T

This motherboard supports Untied Overclocking Technology, which means during

overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you

enable Untied Overclocking function, please enter “Overclock Mode” option of

BIOS setup to set the selection from [Auto] to [Manual]. Therefore, CPU FSB is

untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB

can operate under a more stable overclocking environment.

echnologyechnology

echnology

echnologyechnology

Please refer to the warning on page 8 for the possible overclocking risk

before you apply Untied Overclocking Technology.

5353

Chapter 3: BIOS SETUP UTILITYChapter 3: BIOS SETUP UTILITY

Chapter 3: BIOS SETUP UTILITY

Chapter 3: BIOS SETUP UTILITYChapter 3: BIOS SETUP UTILITY

3.13.1

IntroductionIntroduction

3.1

Introduction

3.13.1

IntroductionIntroduction

This section explains how to use the BIOS SETUP UTILITY to configure your system.

The BIOS FWH chip on the motherboard stores the BIOS SETUP UTILITY. You may

run the BIOS SETUP UTILITY when you start up the computer. Please press <F2>

during the Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise,

POST will continue with its test routines.

If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by

pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system

chassis. You may also restart by turning the system off and then back on.

Because the BIOS software is constantly being updated, the

following BIOS setup screens and descriptions are for refer-

ence purpose only, and they may not exactly match what you

see on your screen.

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

3.1.1

BIOS Menu Bar

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

The top of the screen has a menu bar with the following selections:

Main To set up the system time/date information Advanced To set up the advanced BIOS features H/W Monitor To display current hardware status Boot To set up the default system device to locate and load the

Operating System

Security To set up the security features Exit To exit the current screen or the BIOS SETUP UTILITY

Use < > key or < > key to choose among the selections on the menu bar,

and then press <Enter> to get into the sub screen.

5454

3.1.23.1.2

Navigation KeysNavigation Keys

3.1.2

Navigation Keys

3.1.23.1.2

Navigation KeysNavigation Keys

Please check the following table for the function description of each navigation key.

Navigation Key(s) Function Description / Moves cursor left or right to select Screens / Moves cursor up or down to select items + / - To change option for the selected items <Enter> To bring up the selected screen <F1> To display the General Help Screen <F9> To load optimal default values for all the settings <F10> To save changes and exit the BIOS SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen

3.23.2

Main ScreenMain Screen

3.2

Main Screen

3.23.2

Main ScreenMain Screen

When you enter the BIOS SETUP UTILITY, the Main screen will appear and display the

system overview.

P45R2000-WiFi

Advanced H/W Monitor Boot Security Exit

Main

System Overview

System Time

System Date

BIOS Version Processor Type

Processor Speed Microcode Update Cache Size

Total Memory

DDRII_1 DDRII_2 DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

BIOS SETUP UTILITY

[ :00:09]

: P45R2000-WiFi P1.00 : Intel (R) Core(TM)2 Duo CPU

: 2679MHz : 6FB/B6 : 4096KB

: 1024MB

: 1024MB/333MHz (DDR2 667) : None : None : None : None : None

[Wed 05/14/2008]

E6750 @ 2.66GHz (64bit)

Single-Channel Memory Mode

Use [Enter], [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

System Time [Hour:Minute:Second]

Use this item to specify the system time.

System Date [Day Month/Date/Year]

Use this item to specify the system date.

5555

P45R2000

Advanced H/W Monitor Boot Security Exit

Main

BIOS SETUP UTILITY

System Overview

System Time

System Date

BIOS Version Processor Type

Processor Speed Microcode Update Cache Size

Total Memory

DDRII_1 DDRII_2 DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

: P45R2000 P1.00 : Intel (R) Core(TM)2 Duo CPU

: 2679MHz : 6FB/B6 : 4096KB

: 1024MB

: 1024MB/333MHz (DDR2 667) : None : None : None : None : None

[ :00:09]

[Wed 05/14/2008]

E6750 @ 2.66GHz (64bit)

Single-Channel Memory Mode

System Time [Hour:Minute:Second]

Use this item to specify the system time.

System Date [Day Month/Date/Year]

Use this item to specify the system date.

P45TurboTwins2000

Advanced H/W Monitor Boot Security Exit

Main

System Overview

System Time

System Date

BIOS Version Processor Type

Processor Speed Microcode Update Cache Size

Total Memory

DDRII_1 DDRII_2 DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

BIOS SETUP UTILITY

[ :00:09]

: P45RTurboTwins2000 P1.00 : Intel (R) Core(TM)2 Duo CPU

: 2679MHz : 6FB/B6 : 4096KB

: 1024MB

: 1024MB/333MHz (DDR2 667) : None : None : None : None : None

[Wed 05/14/2008]

E6750 @ 2.66GHz (64bit)

Single-Channel Memory Mode

Use [Enter], [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Use [Enter], [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

System Time [Hour:Minute:Second]

Use this item to specify the system time.

System Date [Day Month/Date/Year]

Use this item to specify the system date.

5656

3.33.3

Advanced ScreenAdvanced Screen

3.3

Advanced Screen

3.33.3

Advanced ScreenAdvanced Screen

In this section, you may set the configurations for the following items: CPU Configuration,

Chipset Configuration, ACPI Configuration, IDE Configuration, PCIPnP Configuration,

Floppy Configuration, SuperIO Configuration, and USB Configuration.

BIOS SETUP UTILITY

Main

Advanced Settings

WARNING: Setting wrong values in below sections

CPU Configuration

Chipset Configuration ACPI Configuration IDE Configuration PCIPnP Configuration Floppy Configuration SuperIO Configuration USB Configuration

Advanced

may cause system to malfunction.

H/W Monitor Boot Security Exit

Configure CPU

Select Screen

Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Setting wrong values in this section may cause

the system to malfunction.

5757

3.3.13.3.1

CPU ConfigurationCPU Configuration

3.3.1

CPU Configuration

3.3.13.3.1

CPU ConfigurationCPU Configuration

Advanced

CPU Configuration

Overclock Mode

CPU Frequency (MHz)

PCIE Frequency (MHz)

Boot Failure Guard Spread Spectrum

Ratio Actual Value 8

Enhanced Halt State Intel (R) Virtualization tech. CPU Thermal Throttling No-Excute Memory Protection Hyper Threading Technology Intel (R) SpeedStep(tm) tech. Intel (R) C-STATE tech.

BIOS SETUP UTILITY

[Auto]

[333] [100]

[Enabled] [Auto]

[Disabled] [Enabled] [Enabled] [Disabled] [Enabled] [Auto] [Disabled]

Select the over clock mode.

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

Overclock Mode

Use this to select Overclock Mode. Configuration options: [Auto], [Manual]

and [I.O.T.]. The default value is [Auto]. If you select [Manual], Untied

Overclocking function is enabled. Please refer to page 50 for the details of

Untied Overclocking Technology. If you select [I.O.T.] (Intelligent Overclocking

Technology), you are allowed to adjust the CPU frequency and PCIE frequency

in the following two items. Therefore, the system will automatically enable the

overclocking function when your CPU is heavy loaded.

CPU Frequency (MHz)

Use this option to adjust CPU frequency.

PCIE Frequency (MHz)

Use this option to adjust PCIE frequency.

Boot Failure Guard

Enable or disable the feature of Boot Failure Guard.

Spread Spectrum

This item should always be [Auto] for better system stability.

Ratio Actual Value

This is a read-only item, which displays the ratio actual value of this

motherboard.

Enhance Halt State

All processors support the Halt State (C1). The C1 state is supported

through the native processor instructions HLT and MWAIT and requires no

hardware support from the chipset. In the C1 power state, the processor

maintains the context of the system caches.

Intel (R) Virtualization tech.

When this option is set to [Enabled], a VMM (Virtual Machine Architecture)

can utilize the additional hardware capabilities provided by Vanderpool

Technology. This option will be hidden if the installed CPU does not support

Intel (R) Virtualization Technology.

5858

CPU Thermal Throttling

You may select [Enabled] to enable P4 CPU internal thermal control mecha-

nism to keep the CPU from overheated.

No-Excute Memory Protection

No-Execution (NX) Memory Protection Technology is an enhancement to the

IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory

Protection” can prevent data pages from being used by malicious software to

execute code. This option will be hidden if the current CPU does not support

No-Excute Memory Protection.

Hyper Threading Technology

To enable this feature, it requires a computer system with an Intel Pentium® 4

processor that supports Hyper-Threading technology and an operating system

that includes optimization for this technology, such as Microsoft® Windows

XP. Set to [Enabled] if using Microsoft® Windows® XP, or Linux kernel version

2.4.18 or higher. This option will be hidden if the installed CPU does not sup-

port Hyper-Threading technology.

Intel (R) SpeedStep(tm) tech.

Intel (R) SpeedStep(tm) tech. is Intel’s new power saving technology. Proces-

sor can switch between multiple frequency and voltage points to enable power

savings. The default value is [Auto]. Configuration options: [Auto], [Enabled]

and [Disabled]. If you install Windows® XP and select [Auto], you need to set

the “Power Schemes” as “Portable/Laptop” to enable this function. If you

install Windows® VistaTM and want to enable this function, please set this item

to [Enabled]. This item will be hidden if the current CPU does not support Intel

(R) SpeedStep(tm) tech..

Please note that enabling this function may reduce CPU voltage and lead to system

stability or compatibility issue with some power supplies. Please set this item to

[Disable] if above issue occurs.

Intel (R) C-ST ATE tech.

Intel (R) C-STATE tech. is achieved by making the power and thermal control

unit part of the core logic and not part of the chipset as before. Migration of the

power and thermal management flow into the processor allows us to use a

hardware coordination mechanism in which each core can request any C-state

it wishes, thus allowing for individual core savings to be maximized. The CPU

C-state is determined and entered based on the lowest common denominator

of both cores’ requests, portraying a single CPU entity to the chipset power

management hardware and flows. Thus, software can manage each core

independently, while the actual power management adheres to the platform

and CPU shared resource restrictions. Configuration options are: [C2], [C3],

[C4] and [Disabled]. The default value is [Disabled].

5959

3.3.23.3.2

Chipset ConfigurationChipset Configuration

3.3.2

Chipset Configuration

3.3.23.3.2

Chipset ConfigurationChipset Configuration

Advanced

Chipset Configuration

Memory Remap Feature

DRAM Frequency Flexibility Option

Standard Memory Info : 4-15-5-5-5-26-3-3-3

DRAM tCL DRAM tRAS DRAM tRP DRAM tRCD DRAM tWR DRAM tRFC DRAM tWTR DRAM tRRD DRAM tRTP

Advanced Memory Info : 18-18-9-9-0-0

DRAM CH0 RCOMP ODT DRAM CH1 RCOMP ODT DRAM CH0 tRD DRAM CH1 tRD

BIOS SETUP UTILITY

[Disabled]

[Auto] [Disabled]

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Auto]

[Auto] [Auto] [Auto] [Auto]

ENABLE: Allow remapping of overlapped PCI memory above the total physical memory.

DISABLE: Do not allow remapping of memory.

Select Screen

Select Item + - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Memory Remap Feature

Use this item to enable or disable memory remap feature. Configuration

options: [Enabled] and [Disabled]. The default value is [Disabled].

DRAM Frequency

If [Auto] is selected, the motherboard will detect the memory module(s)

inserted and assigns appropriate frequency automatically. You may select

[333MHz (DDR2 667)], [400MHz (DDR2 800)] or [533MHz (DDR2 1066)] for

DDR2 memory modules, or select [533MHz (DDR3 1066)] or [667MHz (DDR3

1333)] for DDR3 memory modules. The configuration options depend on the

CPU and memory module you adopt on this motherboard. Please refer to page

9 for the CPU FSB frequency and its corresponding memory support frequency.

Flexibility Option

The default value of this option is [Disabled]. It will allow better tolerance for

memory compatibility when it is set to [Enabled].

Standard Memory Info : 4-15-5-5-5-26-3-3-3 DRAM tCL

Use this item to adjust the means of memory accessing. Configuration

options for DDR2 memory modules are [3], [4], [5], [6], [7] and [Auto].

Configuration options for DDR3 memory modules are are [5], [6], [7], [8], [9],

[10] and [Auto].

DRAM tRAS

This controls the number of DRAM clocks for TRAS. Configuration options:

Configuration options: [Auto], [9] to [24].

DRAM tRP

This controls the number of DRAM clocks for TRP. Configuration options:

Configuration options: [Auto], [3] to [10].

6060

DRAM tRCD

This controls the number of DRAM clocks for TRCD. Configuration options:

Configuration options: [Auto], [3] to [10].

DRAM tWR

This controls the number of DRAM clocks for TWR. Configuration options:

Configuration options: [Auto], [3] to [15].

DRAM tRFC

This controls the number of DRAM clocks for TRFC. Configuration options:

Configuration options: [Auto], [15] to [78].

DRAM tWTR

This controls the number of DRAM clocks for TWTR. Configuration options:

Configuration options: [Auto], [2] to [15].

DRAM tRRD

This controls the number of DRAM clocks for TRRD. Configuration options:

Configuration options: [Auto], [2] to [15].

DRAM tRTP

This controls the number of DRAM clocks for TRTP. Configuration options:

Configuration options: [Auto], [2] to [15].

Advanced Memory Info : 18-18-9-9-0-0 DRAM CH0 RCOMP ODT

This controls the number of DRAM clocks for CH0 RCOMP ODT.

Configuration options: Configuration options: [Auto], [1] to [63].

DRAM CH1 RCOMP ODT

This controls the number of DRAM clocks for CH1 RCOMP ODT.

Configuration options: Configuration options: [Auto], [1] to [63].

DRAM CH0 tRD

This controls the number of DRAM clocks for CH0 TRD. Configuration options:

Configuration options: [Auto], [0] to [30].

DRAM CH1 tRD

This controls the number of DRAM clocks for CH1 TRD. Configuration options:

Configuration options: [Auto], [0] to [30].

DRAM CH0 tRD Pha se Adjust

This controls the number of DRAM clocks for CH0 TRD Phase Adjust.

Configuration options: Configuration options: [Auto], [0] to [62].

DRAM CH1 tRD Pha se Adjust

This controls the number of DRAM clocks for CH1 TRD Phase Adjust.

Configuration options: Configuration options: [Auto], [0] to [62].

6161

Primary Graphics Adapter

This allows you to select [PCI] or [PCI Express] as the boot graphic adapter

priority. The default value is [PCI].

OnBoard HD Audio

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you

select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is

plugged.

Front Panel

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio Front Panel.

CD-In

This option is for P45TurboTwins2000 only. Use this item to enable or disable

CD-In of OnBoard HD Audio. If you plan to use this motherboard to submit

Windows® VistaTM logo test, please disable this option.

OnBoard Lan 1

This allows you to enable or disable the “OnBoard Lan 1” feature.

OnBoard Lan 2

This allows you to enable or disable the “OnBoard Lan 2” feature.

OnBoard 1394

This option is for P45R2000-WiFi / P45R2000 only. This allows you to enable

or disable the “OnBoard 1394” feature.

CPU Voltage

Use this to select CPU Voltage. Configuration options: [Auto] and [Manual].

The default value of this feature is [Auto].

DRAM V oltage

Use this to select DRAM Voltage. Configuration options for DDR2 memory

modules: [Auto], [1.79V], [1.85V], [1.90V], [1.96V], [2.02V], [2.08V], [2.14V],

[2.20V], [2.31V], [2.37V], [2.42V], [2.48V], [2.54V], [2.60V], [2.66V] and

[2.72V]. Configuration options for DDR3 memory modules: [Auto], [1.47V],

[1.53V], [1.59V], [1.65V], [1.71V], [1.77V], [1.83V], [1.88V], [1.95V], [2.05V],

[2.11V], [2.17V], [2.23V], [2.29V], [2.34V] and [2.40V]. The default value of

this feature is [Auto].

NB Core Voltage

Use this to select NB Core Voltage. Configuration options: [Auto], [Low], [Middle],

[High] and [Highest]. The default value of this feature is [Auto].

SB Core Voltage

Use this to select SB Core Voltage. Configuration options: [Auto], [Low], [Middle],

[High] and [Highest]. The default value of this feature is [Auto].

SB 1.1V Voltage

Use this to select SB 1.1V Voltage. Configuration options: [Auto], [Low],

[Middle], [High] and [Highest]. The default value of this feature is [Auto].

6262

VTT Voltage

Use this to select VTT Voltage. Configuration options: [Auto], [Low],

[Middle], [High] and [Highest]. The default value of this feature is [Auto].

GL TREF Voltage

Use this to select GLTREF Voltage. Configuration options: [Auto], [0.67 x Vtt],

[0.65 x Vtt], [0.63 x Vtt] and [0.615 x Vtt]. The default value of this feature is

[Auto].

PLL Voltage

Use this to select PLL Voltage. Configuration options: [Auto], [Low],

[Middle], [High] and [Highest]. The default value of this feature is [Auto].

CIR10 Field 1

Use this to enable or disable CIR10 Field 1. The default value of this feature is

[Enabled].

3.3.33.3.3

ACPI ConfigurationACPI Configuration

3.3.3

ACPI Configuration

3.3.33.3.3

ACPI ConfigurationACPI Configuration

Advanced

ACPI Configuration

Suspend To RAM

Repost Video on STR Resume

Restore on AC/Power Loss Ring-In Power On PCI Devices Power On PS /2 Keyboard Power On RTC Alarm Power On

ACPI HPET Table

BIOS SETUP UTILITY

[Auto]

[No]

[Power Off] [Disabled] [Disabled] [Disabled] [Disabled]

[Disabled]

Select auto-detect or disable the STR feature.

Select Screen Select Item

+- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Suspend to RAM

Use this item to select whether to auto-detect or disable the Suspend-to-

RAM feature. Select [Auto] will enable this feature if the OS supports it. If

you set this item to [Disabled], the function “Repost Video on STR Resume”

will be hidden.

Repost Video on STR Resume This feature allows you to repost video on STR resume. (STR refers to

suspend to RAM.)

Restore on AC/Power Loss

This allows you to set the power state after an unexpected AC/power

loss. If [Power Off] is selected, the AC/power remains off when the

power recovers. If [Power On] is selected, the AC/power resumes

and the system starts to boot up when the power recovers.

6363

Ring-In Power On

Use this item to enable or disable Ring-In signals to turn on the system from

the power-soft-off mode.

PCI Devices Power On

Use this item to enable or disable PCI devices to turn on the system from the

power-soft-off mode.

PS/2 Keyboard Power On

Use this item to enable or disable PS/2 keyboard to turn on the system from

the power-soft-off mode.

RTC Alarm Power On

Use this item to enable or disable RTC (Real Time Clock) to power on the

system.

ACPI HPET T able

Use this item to enable or disable ACPI HPET Table. The default value is

[Disabled]. Please set this option to [Enabled] if you plan to use this

motherboard to submit Windows® VistaTM certification.

3.3.43.3.4

IDE ConfigurationIDE Configuration

3.3.4

IDE Configuration

3.3.43.3.4

IDE ConfigurationIDE Configuration

Advanced

IDE Configuration

SATAII Configuration

Configure SATAII as Hot Plug

OnBoard IDE Controller

SATAII 1 SATAII 2 SATAII 3 SATAII 4 SATAII 5 SATAII 6 IDE1 Master IDE1 Slave

AHCI CD/DVD Boot Time out

BIOS SETUP UTILITY

[Enhanced]

[AHCI] [Enabled] [Enabled]

[Hard Disk] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected]

[35]

Options

Disabled Compatible Enhanced

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

SATAII Configuration

Please select [Compatible] when you install legacy OS. If native OS (Windows 2000 / XP) is installed, please select [Enhanced]. Then in the option “Config-

ure SATAII as”, you are allowed to set the selection to [RAID] if you plan to

enable RAID function. Configuration options: [AHCI], [IDE] and [RAID]. The

default value is [AHCI].

If you select [AHCI] or [RAID] mode, the option “Hot Plug” will appear. You are

allowed to use the Hot Plug function under Windows environment if this option

is enabled. Configuration options: [Enabled] and [Disabled].

* RAID option is only supported for P45R2000-WiFi / P45R2000.

6464

1. AHCI (Advanced Host Controller Interface) supports NCQ and

other new features that will improve SATA disk performance

but IDE mode does not have these advantages.

2. RAID option is only for P45R2000-WiFi / P45R2000.

OnBoard IDE Controller

Use this item to enable or disable onboard IDE controller. The default value

is [Enabled].

IDE Device Configuration

You may set the IDE configuration for the device that you specify. We will

use the “Primary IDE Master” as the example in the following instruction.

Advanced

Primary IDE Master

Device Vendor Size LBA Mode Block Mode PIO Mode Async DMA Ultra DMA S.M.A.R.T.

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

BIOS SETUP UTILITY

:Hard Disk :ST340014A :40.0 GB :Supported :16Sectors :4 :MultiWord DMA-2 :Ultra DMA-5 :Supported

[Auto]

[Auto] [Auto] [Auto] [Auto] [Disabled] [Enabled]

Select the type of device connected to the system.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

TYPE

Use this item to configure the type of the IDE device that you specify.

Configuration options: [Not Installed], [Auto], [CD/DVD], and [ARMD].

[Not Installed]: Select [Not Installed] to disable the use of IDE device. [Auto]: Select [Auto] to automatically detect the hard disk drive.

After selecting the hard disk information into BIOS, use a disk

utility, such as FDISK, to partition and format the new IDE hard

disk drives. This is necessary so that you can write or read

data from the hard disk. Make sure to set the partition of the

Primary IDE hard disk drives to active.

6565

[CD/DVD]: This is used for IDE CD/DVD drives. [ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),

such as MO.

LBA/Large Mode

Use this item to select the LBA/Large mode for a hard disk > 512 MB under

DOS and Windows; for Netware and UNIX user, select [Disabled] to

disable the LBA/Large mode.

Block (Multi-Sector Transfer)

The default value of this item is [Auto]. If this feature is enabled, it will

enhance hard disk performance by reading or writing more data during

each transfer.

PIO Mode

Use this item to set the PIO mode to enhance hard disk performance by

optimizing the hard disk timing.

DMA Mode

DMA capability allows the improved transfer-speed and data-integrity for com-

patible IDE devices.

S.M.A.R.T.

Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis,

and Reporting Technology) feature. Configuration options: [Disabled], [Auto],

[Enabled].

32-Bit Data Transfer

Use this item to enable 32-bit access to maximize the IDE hard disk data

transfer rate.

6666

3.3.53.3.5

PCIPnP ConfigurationPCIPnP Configuration

3.3.5

PCIPnP Configuration

3.3.53.3.5

PCIPnP ConfigurationPCIPnP Configuration

Advanced

Advanced PCI / PnP Settings

PCI Latency Timer

PCI IDE BusMaster

BIOS SETUP UTILITY

[32]

[Enabled]

ValueinunitsofPCI clocks for PCI device latency timer register.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

PCI Latency Timer

The default value is 32. It is recommended to keep the default value unless

the installed PCI expansion cards’ specifications require other settings.

PCI IDE BusMaster

Use this item to enable or disable the PCI IDE BusMaster feature.

6767

3.3.63.3.6

Floppy ConfigurationFloppy Configuration

3.3.6

Floppy Configuration

3.3.63.3.6

Floppy ConfigurationFloppy Configuration

In this section, you may configure the type of your floppy drive.

Advanced

Floppy Configuration

Floppy A

3.3.73.3.7

Super IO ConfigurationSuper IO Configuration

3.3.7

Super IO Configuration

3.3.73.3.7

Super IO ConfigurationSuper IO Configuration

Advanced

Configure Super IO Chipset

OnBoard Floppy Controller

Serial Port Address Infrared Port Address

BIOS SETUP UTILITY

[1.44 MB 3 "]

[Enabled]

[3F8 /IRQ4] [Disabled]

Select the type of

floppy drive connected to the system.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Allow BIOS to Enable or Disable Floppy Controller.

Select Screen

Select Item

+- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

OnBoard Floppy Controller

Use this item to enable or disable floppy drive controller.

Serial Port Address

Use this item to set the address for the onboard serial port or disable it.

Configuration options: [Disabled], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4],

[2E8 / IRQ3].

Infrared Port Address

Use this item to set the address for the onboard infrared port or disable it.

Configuration options: [Disabled], [2F8 / IRQ3], and [2E8 / IRQ3]. If you plan to

use ASRock DeskExpress on this motherboard, please keep this item on

[Disabled] option.

6868

3.3.83.3.8

USB ConfigurationUSB Configuration

3.3.8

USB Configuration

3.3.83.3.8

USB ConfigurationUSB Configuration

Advanced

USB Configuration

USB Controller

USB 2.0 Support Legacy USB Support

BIOS SETUP UTILITY

[Enabled]

[Enabled] [BIOS Setup Only]

To enable or disable the onboard USB controllers.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

USB Controller

Use this item to enable or disable the use of USB controller.

USB 2.0 Support

Use this item to enable or disable the USB 2.0 support.

Legacy USB Support

Use this option to select legacy support for USB devices. There are four

configuration options: [Enabled], [Auto], [Disabled] and [BIOS Setup Only].

The default value is [BIOS Setup Only]. Please refer to below descriptions

for the details of these four options:

[Enabled] - Enables support for legacy USB.

[Auto] - Enables legacy support if USB devices are connected.

[Disabled] - USB devices are not allowed to use under legacy OS and BIOS

setup when [Disabled] is selected. If you have USB compatibility issue, it is

recommended to select [Disabled] to enter OS.

[BIOS Setup Only] - USB devices are allowed to use only under BIOS setup

and Windows / Linux OS.

6969

3.43.4

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

3.4

Hardware Health Event Monitoring Screen

3.43.4

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system,

including the parameters of the CPU temperature, motherboard temperature, CPU fan

speed, chassis fan speed, and the critical voltage.

Main Advanced

Hardware Health Event Monitoring

CPU Temperature M /B Temperature

CPU Fan Speed Chassis Fan Speed

Vcore + 3.30V + 5.00V + 12.00V

CPU Quiet Fan [Disabled]

BIOS SETUP UTILITY

H/W Monitor

: 37C/98F : 31C/87F

: 3400 RPM :N/A

: 1.629V : 3.306V : 5.067V : 11.890V

Boot Security Exit

Enable/Disable CPU Quiet Fan Function.

Select Screen

Select Item F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

CPU Quiet Fan

This item allows you to identify the temperature of CPU fan. If you set this

option as [Disabled], the CPU fan will operate in full speed. If you set this

option as [Enabled], you will find the items “Target CPU Temperature” and

“Target Fan Speed” appear to allow you adjusting them. The default value is

[Disabled]. You are allowed to enable this function only when you install 4-pin

CPU fan.

Target CPU Temperature

The target temperature will be between 45 C/113 F and 65 C/149 F. The

default value is [50 C/122 F].

Target Fan Speed

Use this option to set the target fan speed. You can freely adjust the

target fan speed according to the target CPU temperature that you

choose. Configuration options: [Level 1], [Level 2], [Level 3], [Level 4],

[Level 5], [Level 6] [Level 7], [Level 8] and [Level 9].

7070

3.53.5

Boot ScreenBoot Screen

3.5

Boot Screen

3.53.5

Boot ScreenBoot Screen

In this section, it will display the available devices on your system for you to config-

ure the boot settings and the boot priority.

Main Advanced H/W Monitor

Boot Settings

Boot Settings Configuration

1st Boot Device 2nd Boot Device 3rd Boot Device 4th Boot Device

Hard Disk Drives Removable Drives CD/DVD Drives

3.5.13.5.1

3.5.1

3.5.13.5.1

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Full Screen Logo

AddOn ROM Display

Boot Logo Boot From Onboard LAN

Bootup Num-Lock

BIOS SETUP UTILITY

[1st Floppy Device] [HDD: PM - HDS722580VL] [CD/DVD:3S-CD-ROM C] [USB]

BIOS SETUP UTILITY

[Enabled]

[Enabled] [Auto] [Disabled]

[On]

Boot

Configure Settings during System Boot.

Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Boot

Disabled: Displays normal POST messages. Enabled: Displays OEM Logo instead of POST messages.

+ - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Security Exit

Select Screen Select Item

Full Screen Logo

Use this item to enable or disable OEM Logo. The default value is [Enabled].

AddOn ROM Display

Use this option to adjust AddOn ROM Display. If you enable the option

“Full Screen Logo” but you want to see the AddOn ROM information when the

system boots, please select [Enabled]. Configuration options: [Enabled] and

[Disabled]. The default value is [Enabled].

7171

Boot Logo

Use this option to select logo in POST screen. This option only appears when

you enable the option “Full Screen Logo”. Configuration options: [Auto],

[PCIE2.0 Revolution], [Scenery] and [ASRock]. The default value is [Auto].

Currently, the option [Auto] is set to Aircraft.

Boot From Onboard LAN

Use this item to enable or disable the Boot From Onboard LAN feature.

Boot Up Num-Lock

If this item is set to [On], it will automatically activate the Numeric Lock

function after boot-up.

3.63.6

Security ScreenSecurity Screen

3.6

Security Screen

3.63.6

Security ScreenSecurity Screen

In this section, you may set or change the supervisor/user password for the system. For

the user password, you may also clear it.

Main Advanced H/W Monitor Boot

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password

Change User Password

BIOS SETUP UTILITY

Security

Install or Change the password.

Select Screen

Select Item Enter Change F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Exit

7272

3.73.7

Exit ScreenExit Screen

3.7

Exit Screen

3.73.7

Exit ScreenExit Screen

Main Advanced H/W Monitro Boot Security

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Load Optimal Defaults

BIOS SETUP UTILITY

Exit

Exit system setup after saving the changes.

F10 key can be used for this operation.

Select Screen

Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save

configuration changes and exit setup?” Select [OK] to save the changes

and exit the BIOS SETUP UTILITY.

Discard Changes and Exit

When you select this option, it will pop-out the following message, “Dis-

card changes and exit setup?” Select [OK] to exit the BIOS SETUP UTILITY

without saving any changes.

Discard Changes

When you select this option, it will pop-out the following message, “Dis-

card changes?” Select [OK] to discard all changes.

Load Optimal Defaults

When you select this option, it will pop-out the following message, “Load

optimal defaults?” Select [OK] to load the default values for all the setup

configurations.

7373

Chapter 4: SofChapter 4: Sof

Chapter 4: Sof

Chapter 4: SofChapter 4: Sof

4.14.1

Install Operating SystemInstall Operating System

4.1

Install Operating System

4.14.1

Install Operating SystemInstall Operating System

This motherboard supports various Microsoft® Windows® operating systems: 2000 /

XP / XP 64-bit / VistaTM / Vista

options vary, use the setup procedures in this chapter for general reference only.

Refer to your OS documentation for more information.

4.24.2

Support CD InformationSupport CD Information

4.2

Support CD Information

4.24.2

Support CD InformationSupport CD Information

The Support CD that came with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard features.

4.2.14.2.1

Running The Support CDRunning The Support CD

4.2.1

Running The Support CD

4.2.14.2.1

Running The Support CDRunning The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu did not appear automatically, locate and double click on the

file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

4.2.24.2.2

Drivers MenuDrivers Menu

4.2.2

Drivers Menu

4.2.24.2.2

Drivers MenuDrivers Menu

The Drivers Menu shows the available devices drivers if the system detects

installed devices. Please install the necessary drivers to activate the devices.

4.2.34.2.3

Utilities MenuUtilities Menu

4.2.3

Utilities Menu

4.2.34.2.3

Utilities MenuUtilities Menu

The Utilities Menu shows the applications software that the motherboard

supports. Click on a specific item then follow the installation wizard to install it.

64-bit. Because motherboard settings and hardware

tware Supportware Suppor

tware Suppor

tware Supportware Suppor

4.2.44.2.4

Contact InformationContact Information

4.2.4

Contact Information

4.2.44.2.4

Contact InformationContact Information

If you need to contact ASRock or want to know more about ASRock, welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your

dealer for further information.

7474

ASRock P45R2000, P45R2000-WIFI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
